34 Messaging
Call time and cost
During a call, the duration of the call is
shown. You can check the duration of
your last call, outgoing calls and the
total time of your calls.
To check the call time
•From standby select Menu > Settings
> the Calls tab > Time & cost > Call
timers.
Messaging
Receiving and saving messages
You are notified when you receive a
message. Messages are automatically
saved in the phone memory. When the
phone memory is full, you can delete
messages or save them on a memory
card or on the SIM card.
To save a message on a memory
card
•From standby select Menu > Messaging
> Settings > General > Save to
> Memory card.
To save a message on the SIM card
1From standby select Menu
>Messaging and select a folder.
2Scroll to a message and select Options
> Save message.
To view a message from the inbox
1From standby select Menu
>Messaging > Inbox.
2Scroll to the message and select View.
To delete a message
1From standby select Menu
> Messaging and select a folder.
2Scroll to the message and press .
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
35Messaging
Text messages
Text messages can contain simple
pictures, sound effects, animations,
and melodies.
Before you use messaging
You must have a service centre
number. The number is supplied by
your service provider and is usually
saved on the SIM card. If the number
to your service centre is not saved on
your SIM card, you must enter the
number yourself.
To enter a service centre number
1From standby select Menu > Messaging
> Settings > Text message and scroll to
Service centre. The number is shown if
it is saved on the SIM card.
2If there is no number shown, select
Edit.
3Scroll to New ServiceCentre and select
Add.
4Enter the number, including the
international “+” sign and country/
region code.
5Select Save.
To write and send a text message
1From standby select Menu > Messaging
> Write new > Text message.
2Write the message and select Cont.
> Contacts look-up.
3Select a recipient and select Send.
To add an item to a text message
1When you write the message, select
Options > Add item.
2Select an option and then an item.
To call a number in a text message
•When you view the message, scroll to
the phone number and press .
Picture messages
Picture messages can contain text,
pictures, slides, sound recordings,
video clips, signatures and attachments.
You can send picture messages to
a mobile phone or an email address.
Before you use picture messaging
You must set an Internet profile and
the address of your message server.
If no Internet profile or message server
exists, you can receive all the settings
automatically from your network
operator or at
www.sonyericsson.com/cn.
If you send a text message to a group,
you will be charged for each member.
See Groups on page 27.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
36 Messaging
To select an MMS profile
1From standby select Menu > Messaging
> Settings > Picture message > MMS
profile.
2Select a profile.
To set the message server address
1From standby select Menu > Messaging
> Settings > Picture message.
2Scroll to MMS profile and select Edit.
3Select Options > Edit.
4Scroll to Message server and select
Edit.
5Enter the address and select OK
> Save.
To create and send a picture
message
1From standby select Menu > Messaging
> Write new > Picture msg.
2Enter text. To add items to the message,
press , scroll and select an item.
3Select Cont. > Contacts look-up.
4Select a recipient and select Send.
Receiving picture messages
You can select how to download your
picture messages. Standard options
when you download picture messages
are:
•Always – automatic download.
•Ask in roaming – ask to download
when not in home network.
•Not in roaming – do not download
when not in home network.
•Always ask – ask to download.
•Off – new messages appear in the
Inbox.
To set automatic download
1From standby select Menu > Messaging
> Settings > Picture message > Auto
download.
2Select an option.
To save an item in a picture message
•When you view a picture message
select Options > Save items and select
an item.
To delete a message
1From standby select Menu > Messaging
and select a folder.
2Select the message and press .
Message options
You can set standard options for all
messages or choose specific settings
each time you send a message.
To set text message options
1From standby select Menu > Messaging
> Settings > Text message.
2Scroll to an option and select Edit.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
37Messaging
To set picture message options
1From standby select Menu > Messaging
> Settings > Picture message.
2Scroll to an option and select Edit.
To set message options for a specific
message
1When the message is ready and
a recipient is selected, select Options
> Advanced.
2Scroll to an option and select Edit.
Templates
If you often use the same phrases and
pictures in a message, you can save
the message as a template.
To add a text message template
1From standby select Menu > Messaging
> Templates > New template > Text.
2Insert text or select Options to add
items. Select OK.
3Enter a title and select OK.
To use a picture message template
1From standby select Menu > Messaging
> Templates.
2Scroll to a template and select Use.
3When the message is ready, select
Cont. > Contacts look-up.
4Select a recipient and select Send.
To add a picture message template
1From standby select Menu > Messaging
> Templates > New template > Picture
msg.
2Enter text. To add items to the
message, press , scroll and select
an item.
3Select Yes, enter a title and select OK.
To save a message as a template
1From standby select Menu > Messaging
> Inbox.
2Scroll to the message and select
Options > Save as template.
Voice messages
You can send and receive a sound
recording as a voice message.
To record and send a voice message
1From standby select Menu > Messaging
> Write new > Voice message.
2Record the message and select Stop
> Send > Contacts look-up.
3Select a recipient and select Send.
The sender and recipient must have
a subscription supporting picture
messaging.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
38 Messaging
Email
You can use standard email functions
and your computer email address in
your phone.
Before you use email
You can use the setup wizard to check
if settings are available for your email
account or you can enter them
manually. You can also receive
settings at www.sonyericsson.com/cn.
To create an email account
1From standby select Menu > Messaging
> Email > Accounts.
2Scroll to New account and select Add.
To write and send an email message
1From standby select Menu > Messaging
> Email > Write new.
2Select Add > Enter email address.
Enter the email address and select
OK.
3To enter more recipients, select Edit.
Scroll to an option and select Add
> Enter email address. Enter the email
address and select OK. When you are
ready, select Done.
4Scroll to Subject:. Select OK and enter
a subject.
5Scroll to Text:. Select OK and enter the
text.
6Scroll to Attachments:. Select Add and
select a file to attach.
7Select Cont. > Send.
To receive and read an email message
1From standby select Menu > Messaging
> Email > Inbox > Options > Send&rec.
2Scroll to the message and select View.
To save an email message
1From standby select Menu > Messaging
> Email > Inbox.
2Scroll to the message and select
Options > Save message.
To reply to an email message
1From standby select Menu > Messaging
> Email > Inbox.
2Scroll to the message and select
Options > Reply.
3Write the reply and select OK.
4Select Cont. > Send.
If you enter settings manually, you can
contact your email provider for more
information. An email provider could be
the company that supplied your email
address.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
39Messaging
To view an attachment in an email
message
•When you view the message, select
Options > Attachments > View.
To save an attachment in an email
message
•When you view the message, select
Options > Attachments > View > Save.
Synchronizing email
Email can be synchronized with a
Microsoft Exchange Server (Microsoft®
Outlook®). For more information
see Synchronizing on page 62.
Active email account
If you have several email accounts,
you can change which one is active.
To change the active email account
1From standby select Menu > Messaging
> Email > Accounts.
2Select an account.
To delete an email (POP3)
1From standby select Menu > Messaging
> Email > Inbox.
2Scroll to the message and select
Options > Mark for deletion.
To delete an email (IMAP4)
1From standby select Menu > Messaging
> Email > Inbox.
2Scroll to the message and select
Options > Mark for deletion.
3Select Options > Clear inbox.
Push email
You can receive notification in your
phone from your email server that you
have new email messages.
To turn on push email notification
•From standby select Menu > Messaging
> Email > Settings > Push email.
My friends
You can connect and log in to the My
friends server to communicate online
with chat messages.
Before you use My friends
If no settings exist in your phone, you
need to enter server settings. Your
service provider can provide standard
settings information such as:
•Username
•Password
•Server address
•Internet profile
Marked emails will be deleted when you
next connect to your server.
Marked email messages will be deleted
in the phone and on the server.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
40 Messaging
To enter My friends server settings
1From standby select Menu > Messaging
> My friends > Configure.
2Scroll to a setting and select Add.
To log in to the My friends server
•From standby select Menu > Messaging
> My friends > Log in.
To log out of the My friends server
•Select Options > Log out.
To add a chat contact
1From standby select Menu >
Messaging
> My friends > the Contacts tab.
2Select Options > Add contact.
To send a chat message
1From standby select Menu > Messaging
> My friends > the Contacts tab.
2Scroll to a contact and select Chat.
3Write the message and select Send.
Status
You can show your status, for example,
Happy or Busy, to your contacts only.
You can also show your status to all
users on the My friends server.
To show my status
1From standby select Menu > Messaging
> My friends > Options > Settings
> Show my status.
2Select an option.
To update your own status
1From standby select Menu > Messaging
> My friends > the My status tab.
2Edit the information.
Chat group
A chat group can be started by your
service provider, by an individual My
friends user or by yourself. You can
save chat groups by saving a chat
invitation or by searching for a specific
chat group.
To create a chat group
1From standby select Menu > Messaging
> My friends > the Chat groups tab.
2Select Options > Add chat group
> New chat group.
3Select who to invite from your
contacts list and select Cont.
4Enter a short invitation text and select
Cont. > Send.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
41Messaging
To add a chat group
1From standby select Menu > Messaging
> My friends > the Chat groups tab
> Options > Add chat group.
2Select an option.
To save a conversation
1From standby select Menu > Messaging
> My friends > the Conversations tab.
2Scroll to a conversation and select
Options > Advanced > Save
conversation.
To view a saved conversation
1From standby select Menu > Messaging
> My friends > the Conversations tab.
2Select Options > Saved conv.
Area and cell information
Area and cell information are text
messages, for example, local traffic
reports that are sent to subscribers
within a certain network area.
To turn area information on
1From standby select Menu > Messaging
> Settings > Area info.
2Scroll to Reception and select Edit
> On.
Conversation history is saved between
log out and when you log in again to
let you return to chat messages from
previous conversations.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
42 Imaging
Imaging
Camera and video recorder
You can take pictures and record
video clips to view, save or send.
Viewfinder and camera keys
1 Zoom in or out
2 Switch camera/video/view
3 Take pictures/Record video
4 Turn the camera on or off
4321
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
43Imaging
Using the camera
To activate the camera
•When the phone is turned on, press
.
To take a picture
1Activate the camera and use
to select camera.
2Press halfway down to use
auto focus.
3When the dot and focus frame are
green, press fully down to take
a picture.
4The picture is automatically saved on
the memory card.
Do not look directly at the camera Xe
flash in the phone using a magnification
device. Failure to comply with this
warning may damage your eyes.
To record a video clip
1Activate the camera and use
to select video recorder.
2Press fully down to start
recording.
To stop recording
1Press .
2The video clip is automatically saved
on the memory card.
To use zoom
•Press the volume keys up or down.
To adjust brightness
•Press or .
Do not cover the Xe flash when you take
a picture.
Do not record with a strong light source
in the background. Place the subject
within the focus frame. Use a support or
the self-timer to avoid a blurred picture.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
44 Imaging
Getting more from the
camera
BestPic™ helps you capture the precise
moment. You can improve an under-
exposed picture with Photo fix.
To use BestPic™
1Activate the camera and use to
select camera.
2Select > Shoot mode > BestPic™.
3Press halfway down to use auto
focus.
4When the dot and focus frame are
green, press fully down to complete
the shot.
5Select Save all or press or to
choose the best picture and select
Save.
To improve a picture with Photo fix
1Activate the camera and use to
select camera.
2Select > Settings.
3Make sure Review is set to On.
4Take a picture.
5During review, select Options
> Photo fix.
To view pictures and video clips
1Activate the camera and use
to select view.
2Scroll to the item.
3Press to view a video clip.
Camera icons and settings
Icons on the screen inform what the
current setting is. More camera
settings are available in Settings.
Use Photo mate to learn about camera
functions. Photo mate is an interactive
tutorial, included in your phone.
Icon Description
Shoot mode
Scenes. Predefined
settings for common
picture situations
Picture size
Focus
Flash
Self-timer
ISO. The light
sensitivity of the
camera
Metering mode
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
45Imaging
To change settings
•Activate the camera and select .
To view information about settings
•Scroll to a setting and select .
Camera shortcuts
Transferring pictures
Transfer to and from your computer
You can use Bluetooth™ wireless
technology and the USB cable to
transfer pictures and video clips
between your computer and phone.
See Bluetooth™ wireless technology
on page 58 and Using the USB cable
on page 60 for more information.
You can view, enhance and organize
your pictures and video clips on your
computer by installing the Adobe™
Photoshop™ Album Starter Edition
or the Sony Ericsson Media Manager.
These are included on the CD that
comes with your phone and are
available for download at
www.sonyericsson.com/cn.
White balance. To
adjust colour tones
to the lighting
conditions
Video size. For
picture messages,
the size is limited
Video: recording
Zoom
Auto focus
Focus frame
Camera: remaining
pictures
Flash is charging
Key Shortcut
Camera: Shoot mode
Video: Video size
Camera: Scenes
Video: Night mode
Self-timer
Camera key guide
Camera: Flash
Video: AF light
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
46 Imaging
Camera printing
You can print camera pictures
using the USB cable connected to
a compatible printer.
To print camera pictures using the
USB cable
1From standby select Media and scroll
to Photo > Camera album.
2Scroll to a month and a picture.
3Select Options > Print.
4Select an option.
5Connect the USB cable to the phone.
6Connect the USB cable to the printer.
7Wait for feedback in the phone and
select OK.
8Enter printer settings, if required and
select Print.
Pictures
You can view, add, edit or delete
pictures in Media.
Using pictures
You can add a picture to a contact,
use it during phone startup, as
a wallpaper in standby or as a screen
saver.
To use pictures
1From standby select Media and scroll
to Photo > Camera album.
2Scroll to a month and a picture. Select
View.
3Select Options > Use as.
4Select an option.
To view pictures in a slide show
1From standby select Media and scroll
to Photo > Camera album.
2Scroll to a month and a picture. Select
View.
3Select Options > Slide show.
4Select a mood.
You can also print using a Bluetooth
compatible printer.
You should disconnect and re-connect
the USB cable if there is a printer error.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
47Imaging
Photo tags
You can tag pictures to categorise
them.
To tag pictures
1From standby select Media and scroll
to Photo > Camera album.
2Scroll to a month and a picture. Select
View.
3Press and scroll to a tag.
4Press the centre touch option.
5For each picture you want to tag, use
or to scroll to the picture and
press the centre touch option.
To create a new photo tag
1From standby select Media and scroll
to Photo > Camera album.
2Scroll to a month and a picture. Select
View.
3Press and select Options > New tag.
4Enter a name and select OK.
5Select an icon.
6Press the centre touch option to tag
the picture.
PhotoDJ™ and VideoDJ™
You can edit pictures and video clips.
To edit and save a picture
1From standby select Media and scroll
to Photo > Camera album.
2Scroll to a month and a picture. Select
View.
3Select Options > Edit in PhotoDJ™.
4Edit the picture.
5Select Options > Save.
To edit and save a video clip
1From standby select Menu > Organizer
> File manager > Videos.
2Scroll to a video clip and select Open
> Options > VideoDJ™.
3Edit the video clip.
4Select Options > Save.
To trim a video clip
1From standby select Menu > Organizer
> File manager > Videos.
2Scroll to a video clip and select Open
> Options > VideoDJ™ > Edit > Trim.
3Select Set to set the starting point and
select Start.
4Select Set to set the ending point and
select End.
5Select Trim > Save.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
48 Entertainment
Themes
You can change the appearance of the
screen through items such as colours
and wallpaper. You can also create
new themes and download them. For
more information, go to
www.sonyericsson.com/cn.
To set a theme
1From standby select Menu > Organizer
> File manager.
2Scroll to Themes and select Open.
3Scroll to a theme and select Set.
Entertainment

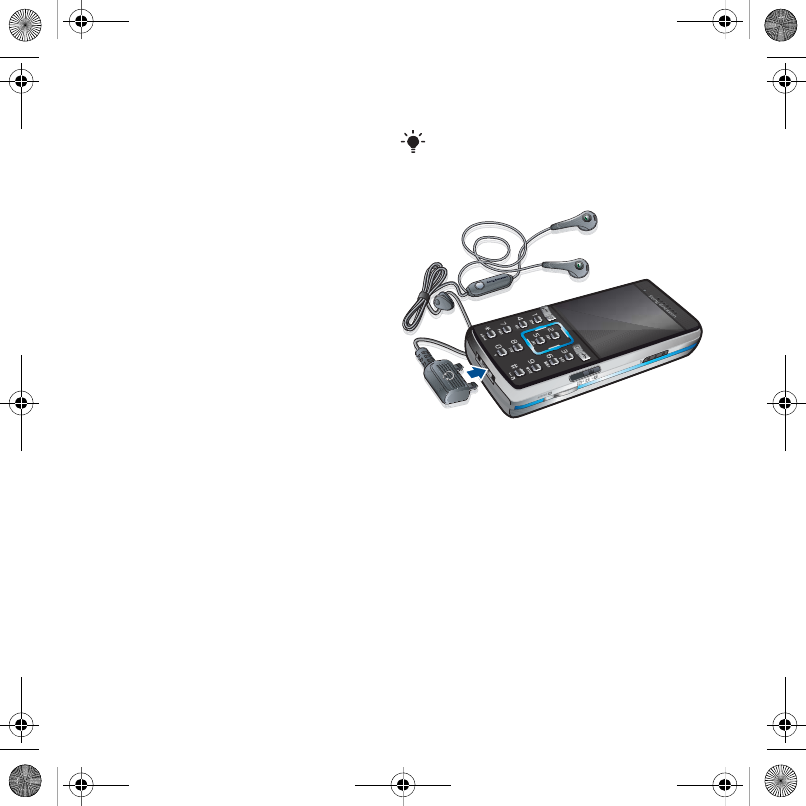

Stereo portable handsfree
To use the handsfree
•Connect the portable handsfree.
Music stops when you receive a call
and resumes when the call has ended.
Music and video players
To play music
1From standby select Media and scroll
to Music.
2Scroll to a title and select Play.
To navigate your media see Navigation
on page 14.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
49Entertainment
To play videos
1From standby select Media and scroll
to Video.
2Scroll to a title and select Play.
Music and video controls
To stop playing music
•Press the centre touch option.
To resume playing music
•Press the centre touch option.
To change the volume
•When you listen to music, press the
volume keys up or down.
To move between tracks
•When you listen to music, press
or .
To fast forward and rewind
•When you listen to music, press and
hold down or .
To return to the player menus
•Select Back.
To return to the players
•Select Options > Resume.
To exit the player menus
•Press and hold down .
To send music
1From standby select Media and scroll
to Music.
2Scroll to a title and select Options
> Send.
3Select a transfer method.
To receive music
•Follow the instructions that appear.
Transferring music from
a computer
With Sony Ericsson Media Manager,
included on the CD with your phone,
you can transfer music from CDs, your
computer or that you have purchased
to the phone memory or a memory card.
Before you use Media Manager
You need one of these operating
systems to use Media Manager
on your computer:
•Windows Vista™ (32 bit and 64 bit
versions of: Ultimate, Enterprise,
Business, Home Premium, Home
Basic)
Make sure the receiving device supports
the transfer method you select.
Sony Ericsson Media Manager software
is also available for download at
www.sonyericsson.com/cn.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
50 Entertainment
•Windows XP (Pro or Home)
To install Media Manager
1Turn on your computer and insert the
CD. The CD starts automatically and
the installation window opens.
2Select a language and click OK.
3Click Install Sony Ericsson Media
Manager and follow the instructions.

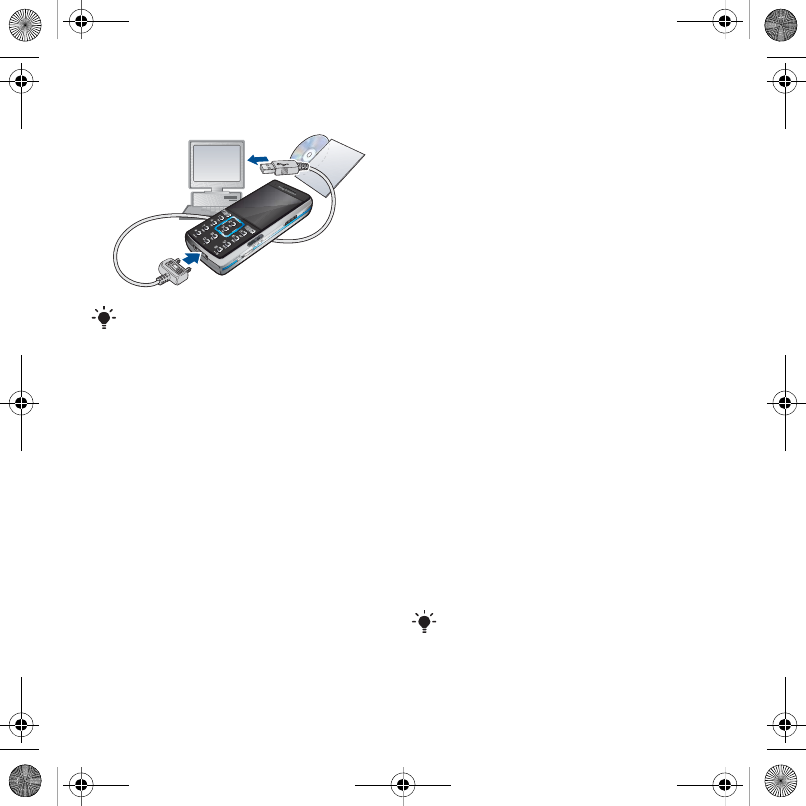

To use Media Manager
1Connect the phone to a computer with
the USB cable that came with the
phone.
2Computer: Start/Programs/
Sony Ericsson/Media Manager.
3Phone: Select Mass storage > Menu
> Settings > the Connectivity tab > USB
> USB mode > Mass storage. The
phone will shut down in this mode but
will restart again when it is disconnected
from the USB cable.
4For safe disconnection of the USB
cable in mass storage mode, right-
click the removable disk icon in
Windows Explorer and select Eject.
See Using the USB cable on page 60.
For details on transferring music, refer
to Media Manager Help. Click in
the top right corner of the Media
Manager window.
Browsing files
Music and video files are saved and
categorized.
•Artists – list tracks you have
transferred using Media Manager.
•Albums – list music tracks by album
in your phone and on a memory card.
•Tracks – list all music tracks in your
phone and on a memory card.
•Audio books – list audio books you
have transferred from your computer.
•Podcasts – list all podcasts you have
transferred from your computer.
•Playlists – create own lists of tracks.
•Video – list all video clips in your
phone or on a memory card.
Playlists
You can create playlists to organize
files. You can sort the files by artist or
title. Files can be added to more than
one playlist.
Deleting a playlist, or a file from a
playlist, does not delete the file from
the memory, just the reference to the
file.
Do not remove the USB cable from your
phone or computer during transfer, as
this may corrupt the memory card or the
phone memory.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
51Entertainment
To create a playlist
1From standby select Media and scroll
to Music > Playlists.
2Scroll to New playlist and select Add.
3Enter a name and select OK.
4Scroll to a track and select Mark.
5Select Add to add the track to the
playlist.
To add files to a playlist
1From standby select Media and scroll
to Music > Playlists.
2Scroll to the playlist and select Open.
3Select Options > Add media.
4Scroll to a track and select Mark.
5Select Add to add the track to the
playlist.
To remove tracks from a playlist
1From standby select Media and scroll
to Music > Playlists.
2Scroll to a playlist and select Open.
3Scroll to the track and press .
To delete a playlist
1From standby select Media and scroll
to Music > Playlists.
2Scroll to a playlist and press .
To view information about a track
•Scroll to a track and select Options
> Information.
Online music and video clips
You can view video clips and listen to
music by streaming them to your phone
from the Internet. If settings are not
already in your phone, see Settings
on page 56. For more information,
contact your network operator or go
to www.sonyericsson.com/cn.
To select a data account for
streaming
1From standby select Menu > Settings
> the Connectivity tab > Streaming
settings.
2Select the data account to use.
To stream music and video clips
1From standby select Menu > Monternet.
2Select > Options > Go to > Bookmarks.
3Select a link to stream from.
TrackID™
TrackID™ is a free music recognition
service. Search for song titles, artists
and album names.
To search for song information
•When you hear a song through a
loudspeaker, from standby select
Menu > Entertainment > TrackID™.
•When the radio is playing select
Options > TrackID™.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
52 Entertainment
Radio
To listen to the radio
1Connect the handsfree to the phone.
2From standby select Menu > Radio.
To change the volume
•When the radio is playing, press the
volume keys up or down.
To automatically search for channels
•When the radio is playing, select
Search.
To manually search for channels
•When the radio is playing, press
or .
To switch between preset channels
•When the radio is playing, press
or .
Saving channels
You can save up to 20 preset channels.
To save channels
•When you have found a radio channel
select Options > Save.
To select saved channels
1From standby select Menu > Radio
> Options > Channels.
2Select a radio channel.
To save channels in positions 1 to 10
•When you have found a radio channel,
press and hold down – .
To select channels saved in positions
1 to 10
•When the radio is playing, press
– .
PlayNow™
You can listen to music before you
purchase and download it to your
phone.
Before you use PlayNow™
You must have the required settings in
your phone. See Settings on page 56.
To listen to PlayNow™ music
1From standby select Menu
> PlayNow™.
2Select music from a list.
Do not use your phone as a radio
in places where this is prohibited.
This service is not available in all
countries/regions. In some countries/
regions you can purchase music from
some of the world’s top musical artists.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
53Entertainment
Downloading from PlayNow™
The price appears when you select to
download and save a music file. Your
phone bill or prepay card is debited
when a purchase is accepted.
To download a music file
When you have listened to a music file
preview, you can agree to accept the
conditions.
1Select Yes to download.
2A text message is sent to confirm
payment and the file is made available
to download.
Ringtones and melodies
To set a ringtone
1From standby select Menu > Settings
> the Sounds & alerts tab > Ringtone.
2Find and select a ringtone.
To set the ringtone volume
1From standby select Menu > Settings
> the Sounds & alerts tab > Ring
volume.
2Press or to change the volume.
3Select Save.
To turn the ringtone off
•From standby press and hold down
.
To set the vibrating alert
1From standby select Menu > Settings
> the Sounds & alerts tab > Vibrating
alert.
2Select an option.
To send a ringtone
1From standby select Menu > Organizer
> File manager.
2Scroll to Music and select Open.
3Scroll to a ringtone and select Options
> Send.
4Select a transfer method.
To receive a ringtone
•Follow the instructions that appear.
All signals except the alarm signal are
affected.
Make sure the receiving device supports
the transfer method you select.
You are not allowed to exchange
some copyright-protected material.
A protected file has a icon.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
54 Entertainment
MusicDJ™
You can compose and edit your own
melodies to use as ringtones. A melody
consists of four types of tracks –
Drums, Basses, Chords, and Accents.
A track contains a number of music
blocks. The blocks consist of
pre-arranged sounds with different
characteristics. The blocks are grouped
into Intro, Verse, Chorus, and Break.
You compose a melody by adding
music blocks to the tracks.
To compose a melody
1From standby select Menu
> Entertainment > MusicDJ™.
2Select to Insert, Copy or Paste blocks.
3Use , , or to scroll between
the blocks.
4Select Options > Save melody.
To send a melody
1From standby select Menu > Organizer
> File manager.
2Scroll to Music and select Open.
3Find a melody and select Options
> Send.
4Select a transfer method.
To receive a melody
•Follow the instructions that appear.
Sound recorder
You can record a voice memo or
a call. Recorded sounds can also be
set as ringtones.
To record a sound
•From standby select Menu
> Entertainment > Record sound.
To listen to a recording
1From standby select Menu > Organizer
> File manager.
2Scroll to Music and select Open.
3Scroll to a recording and select Play.
Games
Your phone contains several games.
You can also download games. Help
texts are available for most games.
To start a game
1From standby select Menu
> Entertainment > Games.
2Select a game.
Make sure the receiving device supports
the transfer method you select.
You cannot send a polyphonic melody or
MP3 file in a text message.
In some countries/regions or states it is
required by law that you inform the other
person before recording the call.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
55Entertainment
To end a game
•Press .
Gaming control
The keys on your phone can be used
for different gaming control functions.
For some games you can tilt the entire
phone left, right, up and down for
gaming control.
Applications
You can download and run Java
applications. You can also view
information or set different permissions.
Before you use Java™ applications
If settings are not already entered in
your phone, see Settings on page 56.
To select a Java application
1From standby select Menu > Organizer
> Applications.
2Select an application.
To view information about a Java
application
1From standby select Menu > Organizer
> Applications.
2Scroll to an application and select
Options > Information.
To set permissions for a Java
application
1From standby select Menu > Organizer
> Applications.
2Scroll to an application and select
Options > Permissions.
3Set permissions.
Java application screen size
Some Java applications are designed
for a specific screen size. For more
information, contact the application
vendor.
To set the screen size for a Java
application
1From standby select Menu > Organizer
> Applications.
2Scroll to an application and select
Options > Screen size.
3Select an option.
Internet profiles for Java applications
Some Java applications need to
connect to the Internet to receive
information. Most Java applications
use the same Internet settings as your
Web browser.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
56 Connectivity
Transactions
A summary showing the transactions
you have made in different Java
applications is provided in Menu
> Organizer > Applications
> Transactions. You can sort and filter
the content of the summary.
To sort your transactions
1From standby select Menu > Organizer
> Applications > Transactions > Sort.
2Select a sorting option.
To filter your transactions
1From standby select Menu > Organizer
> Applications > Transactions > Filter.
2Filter your transactions by day, week
or month.
Connectivity
Settings
Before you synchronize with an Internet
service, use the Internet, PlayNow™,
My friends, Java, picture messaging
and email you need to have settings
in your phone.
If settings are not already entered, you
can download settings by going to
www.sonyericsson.com/cn.
To download settings using
a computer
1Go to www.sonyericsson.com/cn.
2Follow the instructions on the screen.
Phone name
You can enter a name for your phone
to be shown to other devices.
To enter a phone name
1From standby select Menu > Settings
> the Connectivity tab > Phone name.
2Enter the phone name and select OK.
Contact your network operator or
service provider for more information.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
57Connectivity
Using the Internet
You can use the Internet to access
online services.
To start browsing
1From standby select Menu > Monternet.
2Select Options > Go to.
3Select an option.
To exit the browser
•When you browse the Internet, select
Options > Exit browser.
To make a call while browsing
•When you browse the Internet press
.
To save an item from a Web page
1When you browse the Internet, select
an item.
2Select Options > Tools and save the
item.
To find text on a Web page
1When you browse the Internet, select
Options > Tools > Find on page.
2Enter text and press Find.
To send a link
1When you browse the Internet, select
Options > Tools > Send link.
2Select an option.
Using bookmarks
You can create and edit bookmarks
as quick links to your favourite Web
pages.
To create a bookmark
1When you browse the Internet, select
Options > Tools > Add bookmark
> Bookmarks.
2Enter a title and an address. Select
Save.
To select a bookmark
1From standby select Menu > Monternet.
2Select Options > Go to > Bookmarks.
3Scroll to a bookmark and select Go to.
Internet keypad shortcuts
You can use the keypad to go directly
to an Internet browser function.
To select Internet keypad shortcuts
1From standby select Menu > Monternet.
2Select Options > Advanced > Keypad
mode > Shortcuts.
Key Shortcut
Bookmarks
- Enter text to Enter
address or search in
Bookmarks.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
58 Connectivity
Internet security and certificates
Your phone supports secure browsing.
Certain Internet services, such as
banking, require certificates in your
phone. Your phone may already contain
certificates when you buy it or you can
download new certificates.
To view certificates in the phone
•From standby select Menu > Settings
> the General tab > Security
> Certificates.
Web feeds
You can receive frequently updated
content, such as podcasts or news
headlines, as Web feeds. You can add
feeds for a page, if it has the icon.
To add new feeds for a Web page
•When you browse a page on the
Internet that has Web feeds, select
Options > Web feeds.
To create a new Web feed
1From standby select Menu > Messaging
> Web feeds > Options > New feed.
2Enter the address and select Go to.
To set options for Web feeds
1From standby select Menu > Messaging
> Web feeds.
2Scroll to a Web feed and select Options.
3Select an option.
Bluetooth™ wireless
technology
The Bluetooth function makes wireless
connection to other Bluetooth devices
possible. You can, for example:
•Connect to handsfree devices.
•Connect to several devices at the
same time.
•Connect to computers and access
the Internet.
•Exchange items and play multiplayer
games.
Fullscreen or Landscape
or Normal screen.
Zoom
Pan & zoom (when
Smart-Fit is off).
We recommend a range within 10 metres,
with no solid objects in between, for
Bluetooth communication.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
59Connectivity
Before you use Bluetooth wireless
technology
You must turn on the Bluetooth function
to communicate with other devices.
You must also pair your phone with
other Bluetooth devices.
To turn the Bluetooth function on
•From standby select Menu > Settings
> the Connectivity tab > Bluetooth
> Turn on.
To pair the phone with a device
1From standby select Menu > Settings
> the Connectivity tab > Bluetooth
> My devices.
2Scroll to New device and select Add to
search for available devices.
3Select a device.
4Enter a passcode, if required.
To allow connection to the phone
1From standby select Menu > Settings
> the Connectivity tab > Bluetooth
> My devices.
2Select a device from the list.
3Select Options > Allow connection.
To pair the phone with a Bluetooth
handsfree for the first time
1From standby select Menu > Settings
> the Connectivity tab > Bluetooth
> Handsfree.
2Select Yes.
3Enter a passcode, if required.
To pair the phone with more than one
Bluetooth handsfree
1From standby select Menu > Settings
> the Connectivity tab > Bluetooth
> Handsfree > My handsfree > New
handsfree.
2Scroll to a device and select Add.
Power saving
You can save battery power with the
Power save function. You can only
connect with a single Bluetooth device.
You must turn this function off if you
want to connect with more than one
Bluetooth device at the same time.
To turn powersave on
•From standby select Menu > Settings
> the Connectivity tab > Bluetooth
> Powersave > On.
Make sure that the device you want to
pair your phone with has the Bluetooth
function activated and is made visible.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
60 Connectivity
Visibility
If you want other Bluetooth devices to
be able to discover your phone, you
can choose to make your phone
visible.
To receive an item
1From standby select Menu > Settings
> the Connectivity tab > Bluetooth
> Visibility > Show phone.
2When you receive an item, follow the
instructions that appear.
Transferring sound to and from
a Bluetooth handsfree
You can transfer the sound to and
from a Bluetooth handsfree using
a phone key or the handsfree key.
To transfer sound
1From standby select Menu > Settings
> the Connectivity tab > Bluetooth
> Handsfree > Incoming call.
2Select an option. In phone transfers
sound to the phone. In handsfree
transfers sound to the handsfree.
File transfer
You can synchronize and transfer files
using Bluetooth wireless technology.
See Synchronization using a computer
on page 62.
Using the USB cable
You can connect your phone to
a computer with the USB cable to
transfer files using Mass storage
or Media transfer. You can also
synchronize, transfer files and use
your phone as a modem using Phone
mode. For more information go to the
Getting started section at
www.sonyericsson.com/cn.
Before you use the USB cable
You need one of these operating
systems to transfer files using a USB
cable:
•Windows® 2000
•Windows XP (Pro and Home)
•Windows Vista (32 bit and 64 bit
versions of: Ultimate, Enterprise,
Business, Home Premium, Home
Basic)
Media transfer and Mass storage
You can drag and drop files between
your phone or memory card and
a computer in Microsoft Windows
Explorer.
Only use a USB cable supported by your
phone. Do not remove the USB cable
from your phone or computer during file
transfer as this may corrupt the phone
memory or the memory card.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
61Connectivity
To use media transfer and mass
storage mode
1Connect the USB cable to the phone
and the computer.
2Phone: Select Mass storage > Menu
> Settings > the Connectivity tab > USB
> USB mode > Mass storage. The
phone will shut down in this mode and
restart when disconnected from the
USB cable.
3Phone: Select Media transfer and the
phone will remain activated during file
transfer.
4Computer: Wait until the phone
memory and memory card appear as
external disks in Windows Explorer.
5Drag and drop selected files between
the phone and the computer.
To disconnect the USB cable safely
1Right-click the removable disk icon in
Windows Explorer.
2Select Eject.
3Disconnect the USB cable when the
following message is shown in the
phone: Mass storage session ended. It
is now safe to remove the USB cable.
Phone mode
Before synchronizing or using your
phone as a modem you must install
the Sony Ericsson PC Suite software
on your computer. See To install the
Sony Ericsson PC Suite on page 62.
To use phone mode
1Computer: Start PC Suite from Start/
Programs/Sony Ericsson/PC Suite.
2Connect the USB cable to the phone
and the computer.
3Phone: Select Phone mode > Menu
> Settings > the Connectivity tab > USB
> USB mode > Phone mode.
4Computer: When you are notified that
the Sony Ericsson PC Suite has found
your phone, you can start using the
phone mode applications.
Before transferring files you must install
the Sony Ericsson PC Suite software
on your computer. See To install the
Sony Ericsson PC Suite on page 62.
For usage details, see the Sony Ericsson
PC Suite Help section once the software
has been installed on your computer.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
62 Connectivity
Synchronizing
You can use the USB cable or Bluetooth
wireless technology to synchronize
phone contacts, appointments,
bookmarks, tasks and notes with
a computer program such as Microsoft
Outlook. You can also synchronize
with an Internet service using SyncML
or a Microsoft® Exchange Server
using Exchange ActiveSync. For more
information go to the Getting started
section at www.sonyericsson.com/cn.
Synchronization using a computer
Before synchronizing you need to
install the Sony Ericsson PC Suite
from the CD included with your phone.
The software includes help information.
You can also go to
www.sonyericsson.com/cn to download
the software.
You need one of these operating
systems to use the PC Suite on your
computer:
•Windows XP (Pro and Home)
•Windows Vista (32 bit and 64 bit
versions of: Ultimate, Enterprise,
Business, Home Premium, Home
Basic)
To install the Sony Ericsson PC Suite
1Turn on your computer and insert the
CD. The CD starts automatically and
the installation window opens.
2Select a language and click OK.
3Click Install Sony Ericsson PC suite
and follow the instructions on the
screen.
Synchronization using an Internet
service
You can synchronize online using an
Internet service with your phone. If
Internet settings are not in your phone,
see Settings on page 56.
Before you start to synchronize
You must enter settings for SyncML
synchronization and register a
synchronization account online with
a service provider. Settings that are
required are:
•Server address – server URL
•Database name – database to
synchronize with
To enter settings for SyncML
1From standby select Menu > Organizer
> Synchronization.
2Scroll to New account and select Add
> SyncML.
Use only one of the synchronization
methods at a time with your phone.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
63Connectivity
3Enter a name for the new account and
select Cont.
4Scroll to Server address. Enter the
required information and select OK.
5Enter Username and Password, if
required.
6Scroll to the Applications tab to mark
which applications you would like to
synchronize.
7Scroll to the App. settings tab and
select an application.
8Select Database name and enter the
required information.
9Scroll to the Advanced tab to enter
additional settings for synchronizing.
10 Select Save.
To delete an account
1From standby select Menu > Organizer
> Synchronization.
2Scroll to an account and select Options
> Delete.
To start synchronization
1From standby select Menu > Organizer
> Synchronization.
2Scroll to an account and select Start.
Synchronization using a Microsoft®
Exchange Server
You can access and synchronize
corporate exchange information such
as email, contacts and calendar entries
with a Microsoft® Exchange Server
using your phone.
Before you start to synchronize
You must enter settings for Exchange
ActiveSync to access a Microsoft
Exchange Server. Settings that are
required are:
•Server address – server URL
•Domain – server domain
•Username – account username
•Password – account password
To enter settings for Exchange
ActiveSync
1From standby select Menu > Organizer
> Synchronization > ActiveSync.
2Enter a name for the new account and
select Cont.
3Enter the required settings.
4Scroll between the tabs to enter
additional settings.
5Select Save.
For more information on synchronization
settings, contact your IT administrator.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
64 Connectivity
To start synchronization
1From standby select Menu > Organizer
> Synchronization.
2Scroll to an account and select Start.
Update service
You can update your phone with the
latest software. You do not lose
personal or phone information.
There are two ways to update your
phone:
•Over the air using your phone
•Using the provided USB cable and
an Internet-connected computer
Before you use the Update service
If settings are not in your phone see
Settings on page 56.
To view the current software in the
phone
1From standby select Menu > Settings
> the General tab > Update service.
2Select Software version.
To use Update service using the
phone
1From standby select Menu > Settings
> the General tab > Update service.
2Select Search for update and follow
the instructions that appear.
To use Update service using a USB
cable
1Go to www.sonyericsson.com/cn or
click the Sony Ericsson Update service
in the PC Suite software if installed on
your computer. See To install the
Sony Ericsson PC Suite on page 62.
2Enter online Service Centre.
3Follow the instructions on the screen.
To set a reminder to use Update
service
1From standby select Menu > Settings
> the General tab > Update service
> Settings > Reminder.
2Select an option.
Update service requires data access
such as GPRS.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
65More features
More features
Alarms
You can set a sound or the radio as an
alarm signal. The alarm sounds even if
the phone is turned off. When the alarm
sounds you can silence it for 9 minutes
or turn it off.
To set the alarm
1From standby select Menu > Alarms.
2Scroll to an alarm and select Edit.
3Scroll to Time: and select Edit.
4Enter a time and select OK > Save.
To set the recurrent alarm
1From standby select Menu > Alarms.
2Scroll to an alarm and select Edit.
3Scroll to Recurrent: and select Edit.
4Scroll to a day and select Mark.
5To select another day, scroll to the day
and select Mark.
6Select Done > Save.
To set the alarm signal
1From standby select Menu > Alarms.
2Scroll to an alarm and select Edit.
3Scroll to Alarm signal: and select Edit.
4Find and select an alarm signal. Select
Save.
To silence the alarm
•When the alarm sounds, press any key.
•To repeat the alarm, select Snooze.
To turn off an alarm
•When the alarm sounds, select Turn off.
To cancel the alarm
1From standby select Menu > Alarms.
2Scroll to an alarm and select Turn off.
The alarm in silent mode
You can set the alarm not to sound
when the phone is in silent mode.
To set an alarm to sound or not in
silent mode
1From standby select Menu > Alarms.
2Scroll to an alarm and select Edit.
3Scroll to the tab.
4Scroll to Silent mode and select Edit.
5Select an option.
Calendar
The calendar can be synchronized with
a computer calendar, with a calendar
on the Web or with a Microsoft®
Exchange Server (Microsoft® Outlook®).
For more information see Synchronizing
on page 62.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
66 More features
Default view
You can choose whether month, week
or day view will appear first when you
open the calendar.
To set default view
1From standby select Menu > Organizer
> Calendar.
2Select Options > Advanced > Default
view.
3Select an option.
Appointments
You can add new appointments or
reuse existing appointments.
To add an appointment
1From standby select Menu > Organizer
> Calendar.
2Select a date.
3Scroll to New appointment and select
Add.
4Enter the information and confirm
each entry.
5Select Save.
To view an appointment
1From standby select Menu > Organizer
> Calendar.
2Select a date.
3Scroll to an appointment and select
View.
To edit an appointment
1From standby select Menu > Organizer
> Calendar.
2Select a date.
3Scroll to an appointment and select
View.
4Select Options > Edit.
5Edit the appointment and confirm each
entry.
6Select Save.
To send an appointment
1From standby select Menu > Organizer
> Calendar.
2Select a date.
3Scroll to an appointment and select
Options > Send.
4Select a transfer method.
To view a calendar week
1From standby select Menu > Organizer
> Calendar.
2Select a date.
3Select Options > View week.
To set when reminders should sound
1From standby select Menu > Organizer
> Calendar.
2Select a date.
Make sure the receiving device supports
the transfer method you select.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
67More features
3Select Options > Advanced
> Reminders.
4Select an option.
Tasks
You can add new tasks or reuse
existing tasks.
To add a task
1From standby select Menu > Organizer
> Tasks.
2Scroll to New task and select Add.
3Select an option.
4Enter details and confirm each entry.
To view a task
1From standby select Menu > Organizer
> Tasks.
2Scroll to a task and select View.
To reuse an existing task
1From standby select Menu > Organizer
> Tasks.
2Scroll to a task and select View.
3Select Options > Edit.
4Edit the task and select Cont.
5Choose to set a reminder.
To send a task
1From standby select Menu > Organizer
> Tasks.
2Scroll to a task and select Options
> Send.
3Select a transfer method.
To set when reminders should sound
1From standby select Menu > Organizer
> Tasks.
2Scroll to a task and select Options
> Reminders.
3Select an option.
Notes
You can make notes and save them.
You can also show a note in standby.
To add a note
1From standby select Menu > Organizer
> Notes.
2Scroll to New note and select Add.
3Write a note and select Save.
To show a note in standby
1From standby select Menu > Organizer
> Notes.
A reminders option set in calendar
affects a reminders option set in tasks.
Make sure the receiving device supports
the transfer method you select.
A reminders option set in tasks affects
a reminders option set in calendar.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
68 More features
2Scroll to a note and select Options
> Show in standby.
To send a note
1From standby select Menu > Organizer
> Notes.
2Scroll to a note and select Options
> Send.
3Select a transfer method.
To use an item in a note
1When you view the note, select a
phone number, email or Web address.
2Select Options > Use.
3Select an option.
Timer, stopwatch and
calculator
To use the timer
1From standby select Menu > Organizer
> Timer.
2Enter the hours, minutes and seconds.
3Select Start.
To use the stopwatch
1From standby select Menu > Organizer
> Stopwatch > Start.
2To view a new lap time, select Lap.
To use the calculator
1From standby select Menu > Organizer
> Calculator.
2Press or to select ÷ x - + . % =.
Code memo
You can save security codes, for
example, for credit cards. You must
set a passcode to open the code memo.
Checkword
The checkword confirms that you have
entered the correct passcode. If the
passcode is correct, the correct codes
are shown. If the passcode is incorrect,
the checkword and the codes shown
are also incorrect.
To open code memo for the first time
1From standby select Menu > Organizer
> Code memo.
2Follow the instructions that appear
and select Cont.
3Enter a passcode and select Cont.
4Confirm the passcode and select
Cont.
5Enter a checkword and select Done.
Make sure the receiving device supports
the transfer method you select.
Please note that the accuracy of the
calculator is limited.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
69More features
To add a code
1From standby select Menu > Organizer
> Code memo.
2Enter a passcode and select Cont.
3Scroll to New code and select Add.
4Enter a name associated with the
code and select Cont.
5Enter the code and select Done.
To change a passcode
1From standby select Menu > Organizer
> Code memo.
2Enter your passcode and select
Options > Change passcode.
3Enter your new passcode and select
Cont.
4Re-enter the new passcode and select
Cont.
5Enter a checkword and select Done.
Forget your passcode?
If you forget your passcode, you must
reset the code memo. This means that
all entries in the code memo are deleted.
The next time you enter the code
memo, you must proceed as if you are
opening it for the first time. See To
open code memo for the first time
on page 68.
To reset code memo
1From standby select Menu > Organizer
> Code memo.
2Enter any passcode to access the
code memo. The checkword and
codes that are then shown are incorrect.
3Select Options > Reset.
4Reset code memo? appears.
5Select Yes.
Profiles
Profiles automatically adapt some
phone settings to different situations,
for example, the ring volume may be
adapted to suit a meeting or an
accessory. You can reset all profiles
to how they were set when you
purchased your phone.
To select a profile
1From standby select Menu > Settings
> the General tab > Profiles.
2Select a profile.
To view and edit a profile
1From standby select Menu > Settings
> the General tab > Profiles.
2Scroll to a profile and select Options
> View and edit.
You cannot rename the Normal profile.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
70 More features
To reset all profiles
1From standby select Menu > Settings
> the General tab > Profiles.
2Select Options > Reset profiles.
Time and date
To set the time
1From standby select Menu > Settings
> the General tab > Time & date
> Time.
2Enter the time and select Save.
To set the date
1From standby select Menu > Settings
> the General tab > Time & date > Date.
2Enter the date and select Save.
To set the time zone
1From standby select Menu > Settings
> the General tab > Time & date > My
time zone.
2Select the time zone you are in by city.
Locks
SIM card lock
This lock only protects your
subscription. Your phone will work
with a new SIM card. If the lock is on,
you have to enter a PIN (Personal
Identity Number).
If you enter your PIN incorrectly three
times in a row, the SIM card is blocked
and you need to enter your PUK
(Personal Unblocking Key). Your PIN
and PUK are supplied by your network
operator.
To unblock the SIM card
1When PIN blocked appears, enter your
PUK and select OK.
2Enter a new four- to eight-digit PIN
and select OK.
3Re-enter the new PIN and select OK.
To edit the PIN
1From standby select Menu > Settings
> the General tab > Security > Locks
> SIM protection > Change PIN.
2Enter your PIN and select OK.
3Enter a new four- to eight-digit PIN
and select OK.
4Re-enter the new PIN and select OK.
If you select a city, My time zone also
updates the time when daylight saving
time changes. If Codes do not match appears, you
entered the new PIN incorrectly.
If Wrong PIN appears, followed by Old
PIN:, you entered your old PIN incorrectly.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
71More features
To use the SIM card lock
1From standby select Menu > Settings
> the General tab > Security > Locks
> SIM protection > Protection.
2Select an option.
3Enter your PIN and select OK.
Phone lock
You can stop unauthorized use of your
phone. Change the phone lock code
(0000) to any four- to eight-digit
personal code.
To use the phone lock
1From standby select Menu > Settings
> the General tab > Security > Locks
> Phone protection > Protection.
2Select an option.
3Enter the phone lock code and select
OK.
To change the phone lock code
1From standby select Menu > Settings
> the General tab > Security > Locks
> Phone protection > Change code.
2Enter the old code and select OK.
3Enter the new code and select OK.
4Repeat the code and select OK.
Keypad lock
You can set this lock to avoid accidental
dialling. Incoming calls can be answered
without unlocking the keypad.
To use the automatic keylock
1From standby select Menu > Settings
> the General tab > Security
> Automatic keylock.
2Select an option.
To lock the keypad manually
•From standby press and select
Lock.
To unlock the keypad manually
•From standby press and select
Unlock.
IMEI number
Keep a copy of your IMEI (International
Mobile Equipment Identity) number in
case your phone is stolen.
To view your IMEI number
•From standby press , , ,
, .
It is important that you remember your
new code. If you forget it, you have to
take your phone to your local
Sony Ericsson retailer.
Calls to the international emergency
number 112 can still be made.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
72 Troubleshooting
Troubleshooting
Some problems will require you to call
your network operator.
For more support go to
www.sonyericsson.com/cn.
Common questions
I have problems with memory
capacity or the phone is working
slowly
Restart your phone every day to free
memory or do a Master reset.
Master reset
If you select Reset settings, the changes
that you have made to settings will be
deleted.
If you select Reset all, in addition to
your changes to settings, all contacts,
messages, personal data, and content
that you have downloaded, received
or edited will also be deleted.
To reset the phone
1From standby select Menu > Settings
> the General tab > Master reset.
2Select an option.
3Follow the instructions that appear.
I cannot charge the phone or battery
capacity is low
The charger is not properly connected
or the battery connection is poor.
Remove the battery and clean the
connectors.
The battery is worn out and needs to
be replaced. See Charge the battery
on page 7.
No battery icon appears when I start
charging the phone
It may take a few minutes before the
battery icon appears on the screen.
Some menu options appear in grey
A service is not activated. Contact
your network operator.
I cannot use SMS/text messages
on my phone
Settings are missing or incorrect.
Contact your network operator to find
out the correct SMS service centre
setting. See Text messages on page 35.
I cannot use picture messages on my
phone
Your subscription does not include
data capability. Settings are missing
or incorrect. Please contact your
network operator.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
73Troubleshooting
See Help in your phone on page 7 or
go to www.sonyericsson.com/cn to
order settings and follow the
instructions on the screen. See
Settings on page 56.
How do I turn on and off T9 Text
Input when writing?
When you enter text, press and hold
down . You will see at the top
of the screen when T9 Text Input is
activated.
How do I change phone language?
1From standby select Menu > Settings
> the General tab > Language > Phone
language.
2Select an option.
I cannot use the Internet
Your subscription does not include
data capability. Internet settings are
missing or incorrect. Please contact
your network operator.
See Help in your phone on page 7 or
go to www.sonyericsson.com/cn to
order Internet settings, and follow the
instructions on the screen. See
Settings on page 56.
The phone cannot be detected
by other devices using Bluetooth
wireless technology
You have not turned the Bluetooth
function on.
Make sure that the visibility is set to
show phone. See To receive an item
on page 60.
I cannot synchronize or transfer data
between my phone and my computer,
when using the USB cable.
The cable or software that came with
your phone has not been properly
installed. Go to
www.sonyericsson.com/cn to read
Getting started guides which contain
detailed installation instructions and
troubleshooting guides.
Error messages
Insert SIM
There is no SIM card in your phone or
you may have inserted it incorrectly.
See Charge the battery on page 7.
The SIM card connectors need
cleaning. If the card is damaged,
contact your network operator.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
74 Troubleshooting
Insert correct SIM card
Your phone is set to work only with
certain SIM cards. Check if you are
using the correct operator SIM card.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2
incorrectly.
Enter the correct PIN or PIN2 and
select Yes. See To insert the SIM card
on page 5.
PIN blocked/PIN2 blocked
You have entered your PIN or PIN2
code incorrectly three times in a row.
To unblock, see SIM card lock on
page 70.
Codes do not match
Codes that you have entered do not
match. When you want to change a
security code, for example your PIN,
you have to confirm the new code.
See SIM card lock on page 70.
No netw. coverage
Your phone is in flight mode. See
Flight mode on page 6.
Your phone is not receiving any network
signal, or the received signal is too
weak. Contact your network operator
and make sure that the network has
coverage where you are.
The SIM card is not working properly.
Insert your SIM card in another phone.
If this works, it is probably your phone
that is causing the problem. Please
contact the nearest Sony Ericsson
service location.
Emerg. calls only
You are within range of a network, but
you are not allowed to use it. However,
in an emergency, some network
operators allow you to call the
international emergency number 112.
See Emergency calls on page 23.
PUK blocked. Contact operator.
You entered your personal unblocking
key code (PUK) incorrectly 10 times
in a row.
Charging, alien battery
The battery that you are using is not
a Sony Ericsson-approved battery.
See Battery on page 78.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
75Important information
Important information
Sony Ericsson Consumer Web site
On www.sonyericsson.com/support is a support
section where help and tips are only a few clicks
away. Here you will find the latest computer
software updates and tips on how to use your
product more efficiently.
Service and support
From now on you will have access to a portfolio of
exclusive service advantages such as:
• Global and local Web sites providing support.
• A global network of Call Centers.
• An extensive network of Sony Ericsson service
partners.
• A warranty period. Learn more about the warranty
conditions in this User guide.
On www.sonyericsson.com, under the support
section in the language of your choice, you will find
the latest support tools and information, such as
software updates, Knowledge base, phone setup
and additional help when you require it.
For operator-specific services and features, please
contact your network operator for more information.
You can also contact our Call Centers. See the
phone number for the nearest Call Center in the list
below. If your country/region is not represented in
the list, please contact your local dealer. (The
phone numbers below were correct at the time of
going to print. On www.sonyericsson.com you can
always find the latest updates.
In the unlikely event that your product needs
service please contact the dealer from whom it was
purchased or one of our service partners. Save
your original proof of purchase, you will need it if
you need to claim warranty.
For a call to one of our Call Centers you will be
charged according to national rates, including local
taxes, unless the phone number is a toll-free number.
country/region Phone number Email address
Argentina 800-333-7427 questions.AR@support.sonyericsson.com
Australia 1-300 650 050 questions.AU@support.sonyericsson.com
Austria 0810 200245 questions.AT@support.sonyericsson.com
Belgium 02-7451611 questions.BE@support.sonyericsson.com
Brazil 4001-0444 questions.BR@support.sonyericsson.com
Canada 1-866-766-9374 questions.CA@support.sonyericsson.com
Central Africa +27 112589023 questions.CF@support.sonyericsson.com
Chile 123-0020-0656 questions.CL@support.sonyericsson.com
China 4008100000 questions.CN@support.sonyericsson.com
Colombia 18009122135 questions.CO@support.sonyericsson.com
Croatia 062 000 000 questions.HR@support.sonyericsson.com
Czech Republic 844 550 055 questions.CZ@support.sonyericsson.com
Denmark 33 31 28 28 questions.DK@support.sonyericsson.com
Finland 09-299 2000 questions.FI@support.sonyericsson.com
France 0 825 383 383 questions.FR@support.sonyericsson.com
Germany 0180 534 2020 questions.DE@support.sonyericsson.com
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
76 Important information
Greece 801-11-810-810 questions.GR@support.sonyericsson.com
210-89 91 919 (from mobile)
Hong Kong 8203 8863 questions.HK@support.sonyericsson.com
Hungary +36 1 880 4747 questions.HU@support.sonyericsson.com
India 39011111 questions.IN@support.sonyericsson.com
(Add STD code when dialling from a GSM connection)
Indonesia 021-2701388 questions.ID@support.sonyericsson.com
Ireland 1850 545 888 questions.IE@support.sonyericsson.com
Italy 06 48895206 questions.IT@support.sonyericsson.com
Lithuania 8 700 55030 questions.LT@support.sonyericsson.com
Malaysia 1-800-889900 questions.MY@support.sonyericsson.com
Mexico 01 800 000 4722 questions.MX@support.sonyericsson.com
Netherlands 0900 899 8318 questions.NL@support.sonyericsson.com
New Zealand 0800-100150 questions.NZ@support.sonyericsson.com
Norway 815 00 840 questions.NO@support.sonyericsson.com
Pakistan 111 22 55 73 questions.PK@support.sonyericsson.com
Outside Karachi: (92-21) 111 22 55 73
Philippines 02-6351860 questions.PH@support.sonyericsson.com
Poland 0 (prefix) 22 6916200 questions.PL@support.sonyericsson.com
Portugal 808 204 466 questions.PT@support.sonyericsson.com
Romania (+4021) 401 0401 questions.RO@support.sonyericsson.com
Russia 8(495) 787 0986 questions.RU@support.sonyericsson.com
Singapore 67440733 questions.SG@support.sonyericsson.com
Slovakia 02-5443 6443 questions.SK@support.sonyericsson.com
South Africa 0861 632222 questions.ZA@support.sonyericsson.com
Spain 902 180 576 questions.ES@support.sonyericsson.com
Sweden 013-24 45 00 questions.SE@support.sonyericsson.com
Switzerland 0848 824 040 questions.CH@support.sonyericsson.com
Taiwan 02-25625511 questions.TW@support.sonyericsson.com
Thailand 02-2483030 questions.TH@support.sonyericsson.com
Turkey 0212 47 37 777 questions.TR@support.sonyericsson.com
Ukraine (+380) 44 590 1515 questions.UA@support.sonyericsson.com
United Arab Emirates 43 919880 questions.AE@support.sonyericsson.com
United Kingdom 08705 23 7237 questions.GB@support.sonyericsson.com
United States 1-866-766-9374 questions.US@support.sonyericsson.com
Venezuela 0-800-100-2250 questions.VE@support.sonyericsson.com
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
77Important information
Guidelines for Safe and
Efficient Use
Please read this information before
using your mobile phone.
These instructions are intended for
your safety. Please follow these
guidelines. If the product has been
subject to any of the conditions listed
below or you have any doubt as to its proper
function make sure you have the product checked
by a certified service partner before charging or
using it. Failure to do so might entail a risk of
product malfunction or even a potential hazard to
your health.
Recommendations for safe use of
product (mobile phone, battery,
charger and other accessories)
• Always treat your product with care and keep it in a
clean and dust-free place.
•Warning! May explode if disposed of in fire.
• Do not expose your product to liquid or moisture or
humidity.
• Do not expose your product to
extreme high or low temperatures. Do
not expose the battery to
temperatures above +60°C (+140°F).
• Do not expose your product to open
flames or lit tobacco products.
• Do not drop, throw or try to bend your product.
• Do not paint your product.
• Do not attempt to disassemble or
modify your product. Only
Sony Ericsson authorised personnel
should perform service.
• Do not use your product near medical
equipment without requesting
permission from your treating physician or
authorized medical staff.
• Do not use your product when in, or around
aircraft, or areas showing the sign “turn off two-way
radio”.
• Do not use your product in an area
where a potentially explosive
atmosphere exists.
• Do not place your product or install
wireless equipment in the area above
an air bag in your car.
•Caution: Cracked or broken displays may create
sharp edges or splinters that could be harmful upon
contact.
CHILDREN
KEEP OUT OF CHILDRENS REACH.
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR COULD
ACCIDENTALLY DAMAGE THE MOBILE PHONE
OR ACCESSORY. YOUR MOBILE PHONE OR ITS
ACCESSORY MAY CONTAIN SMALL PARTS THAT
COULD BECOME DETACHED AND CREATE A
CHOKING HAZARD.
Power supply (Charger)
Connect the AC power adapter only to designated
power sources as marked on the product. Make
sure the cord is positioned so that it will not be
subjected to damage or stress. To reduce risk of
electric shock, unplug the unit from any power
source before attempting to clean it. The AC power
adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug does
not fit into the outlet, have a proper outlet installed
by a qualified electrician.
Use only Sony Ericsson branded original chargers
intended for use with your mobile phone. Other
chargers may not be designed to the same safety
and performance standards.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
78 Important information
Battery
We recommend that you fully charge the battery
before you use your mobile phone for the first time.
A new battery or one that has not been used for a
long time could have reduced capacity the first few
times it is used. The battery should only be charged
in temperatures between +5°C (+41°F) and +45°C
(+113°F).
Use only Sony Ericsson branded original batteries
intended for use with your mobile phone. Using
other batteries and chargers could be dangerous.
Talk and standby times depend on several different
conditions such as signal strength, operating
temperature, application usage patterns, features
selected and voice or data transmissions when the
mobile phone is being used.
Turn off your mobile phone before removing the
battery. Do not put the battery into your mouth.
Battery electrolytes may be toxic if swallowed. Do
not let the metal contacts on the battery touch
another metal object. Doing this could short-circuit
and damage the battery. Use the battery for the
intended purpose only.
Personal medical devices
Mobile phones may affect the operation of
pacemakers and other implanted equipment.
Please avoid placing the mobile phone over the
pacemaker, e.g. in your breast pocket. When using
the mobile phone, use it at the ear on the opposite
side of the body to the pacemaker. If a minimum
distance of 15 cm (6 inches) is kept between the
mobile phone and the pacemaker, the risk of
interference is limited. If you have any reason to
suspect that interference is taking place,
immediately turn off your mobile phone. Contact
your cardiologist for more information.
For other medical devices, please consult your
physician and the manufacturer of the device.
Driving
Please check if local laws and regulations restrict
the use of mobile phones while driving or require
drivers to use handsfree solutions. We recommend
that you use only Sony Ericsson handsfree
solutions intended for use with your product.
Please note that because of possible interference
to electronic equipment, some vehicle
manufacturers forbid the use of mobile phones in
their vehicles unless a handsfree kit with an
external antenna has been installed.
Always pay full attention to driving and pull off the
road and park before making or answering a call if
driving conditions so require.
Emergency calls
Mobile phones operate using radio signals, which
cannot guarantee connection in all conditions. You
should therefore never rely solely upon any mobile
phone for essential communications (e.g. medical
emergencies).
Emergency calls may not be possible in all areas,
on all cellular networks, or when certain network
services and/or mobile phone features are in use.
Check with your local service provider.
Antenna
This phone contains a built-in antenna. Use of
antenna devices not marketed by Sony Ericsson
specifically for this model could damage your
mobile phone, reduce performance, and produce
SAR levels above the established limits (see below).
Efficient use
Hold your mobile phone as you would any other
phone. Do not cover the top of the phone when it is
in use, as this affects call quality and may cause the
phone to operate at a higher power level than
needed, thus shortening talk and standby times.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
79Important information
Radio frequency (RF) exposure and
Specific Absorption Rate (SAR)
Your mobile phone is a low-power radio transmitter
and receiver. When it is turned on, it emits low
levels of radio frequency energy (also known as
radio waves or radio frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
(International Commission on Non-Ionizing
Radiation Protection) and IEEE (The Institute of
Electrical and Electronics Engineers Inc.), through
periodic and thorough evaluation of scientific
studies. These guidelines establish permitted levels
of radio wave exposure for the general population.
The levels include a safety margin designed to
assure the safety of all persons, regardless of age
and health, and to account for any variations in
measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency
energy absorbed by the body when using a mobile
phone. The SAR value is determined at the highest
certified power level in laboratory conditions, but
the actual SAR level of the mobile phone while it is
operating can be well below this value. This is
because the mobile phone is designed to use the
minimum power required to reach the network.
Variations in SAR below the radio frequency
exposure guidelines do not mean that there are
variations in safety. While there may be differences
in SAR levels among mobile phones, all
Sony Ericsson mobile phone models are designed
to meet radio frequency exposure guidelines.
For phones sold in the US, before a phone model is
available for sale to the public, it must be tested
and certified by the Federal Communications
Commission (FCC) that it does not exceed the limit
established by the government-adopted
requirement for safe exposure. The tests are
performed in positions and locations (that is, at the
ear and worn on the body) as required by the FCC
for each model. For body-worn operation, this
phone has been tested and meets FCC RF
exposure guidelines when the handset is
positioned a minimum of 15 mm from the body
without any metal parts in the vicinity of the phone
or when used with the original Sony Ericsson
accessory intended for this phone and worn on the
body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
A separate leaflet with SAR information about this
mobile phone model is included with the material
accompanying this mobile phone. This information
can also be found, together with more information
on radio frequency exposure and SAR, on:
www.sonyericsson.com/health.
Accessible Solutions/Special Needs
For phones sold in the US, you can use your TTY
terminal with your Sony Ericsson mobile phone
(with the necessary accessory). For information on
Accessible Solutions for individuals with special
needs call the Sony Ericsson Special Needs Center
on 877 878 1996 (TTY) or 877 207 2056 (voice), or
visit the Sony Ericsson Special Needs Center at
www.sonyericsson-snc.com.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
80 Important information
Disposal of old electrical
and electronic equipment
This symbol indicates that all
electrical and electronic equipment
included shall not be treated as
household waste. Instead it shall be left at the
appropriate collection point for recycling of
electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. The recycling of materials
will help to conserve natural resources. For more
detailed information about recycling this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
Disposing of the battery
Please check local regulations for
disposal of batteries or call your local
Sony Ericsson Call Center for
information.
The battery should never be placed in municipal
waste. Use a battery disposal facility if available.
Memory card
Your product comes complete with a removable
memory card. It is generally compatible with the
handset purchased but may not be compatible with
other devices or the capabilities of their memory
cards. Check other devices for compatibility before
purchase or use.
The memory card is formatted prior to shipping. To
reformat the memory card, use a compatible
device. Do not use the standard operating system
format when formatting the memory card on a PC.
For details, refer to the operating instructions of the
device or contact customer support.
WARNING:
If your device requires an adapter for insertion into
the handset or another device, do not insert the
card directly without the required adapter.
Precautions on Memory Card Use
• Do not expose the memory card to moisture.
• Do not touch terminal connections with your hand
or any metal object.
• Do not strike, bend, or drop the memory card.
• Do not attempt to disassemble or modify the
memory card.
• Do not use or store the memory card in humid or
corrosive locations or in excessive heat such as a
closed car in summer, in direct sunlight or near a
heater, etc.
• Do not press or bend the end of the memory card
adapter with excessive force.
• Do not let dirt, dust, or foreign objects get into the
insert port of any memory card adapter.
• Check you have inserted the memory card
correctly.
• Insert the memory card as far as it will go into any
memory card adapter needed. The memory card
may not operate properly unless fully inserted.
• We recommend that you make a backup copy of
important data. We are not responsible for any loss
or damage to content you store on the memory
card.
• Recorded data may be damaged or lost when you
remove the memory card or memory card adapter,
turn off the power while formatting, reading or
writing data, or use the memory card in locations
subject to static electricity or high electrical field
emissions.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
81Important information
Protection of personal information
To safeguard your privacy and prevent information
being accessible to a third party, you should erase
all personal data before selling or disposing of the
product. To delete personal data, perform a master
reset and remove the memory card. DELETION OF
MATERIAL FROM THE PHONE MEMORY DOES
NOT ENSURE THAT SAID INFORMATION
CANNOT BE RECOVERED BY A SUBSEQUENT
USER. SONY ERICSSON DOES NOT WARRANT
AGAINST A SUBSEQUENT USER OF THE DEVICE
ACCESSING YOUR INFORMATION AND DOES
NOT ASSUME ANY RESPONSIBILITY FOR
SUBSEQUENT DISCLOSURE OF SAID
INFORMATION EVEN IF A MASTER RESET HAS
BEEN PERFORMED. If you are concerned about
such potential disclosure retain your device or
secure its permanent destruction.
Accessories
Sony Ericsson recommends use of Sony Ericsson
original accessories for safe and efficient use of its
products. Use of third-party accessories may
decrease performance or pose a risk to your health
or safety.
LOUDNESS WARNING:
Please adjust the audio volume cautiously when
using third-party audio accessories to avoid
volume levels that may be harmful to your hearing.
Sony Ericsson does not test use of third-party
audio accessories with this mobile phone.
Sony Ericsson recommends using only
Sony Ericsson original audio accessories.
End User Licence Agreement
This wireless device, including without limitation
any media delivered with the device, (“Device”)
contains software owned by Sony Ericsson Mobile
Communications AB and its affiliated companies
(“Sony Ericsson”) and its third party suppliers and
licensors (“Software”).
As user of this Device, Sony Ericsson grants you a
non-exclusive, non-transferable, non-assignable
license to use the Software solely in conjunction
with the Device on which it is installed and/or
delivered with. Nothing herein shall be construed as
a sale of the Software to a user of this Device.
You shall not reproduce, modify, distribute, reverse
engineer, decompile, otherwise alter or use any
other means to discover the source code of the
Software or any component of the Software. For
avoidance of doubt, you are at all times entitled to
transfer all rights and obligations to the Software to
a third party, solely together with the Device with
which you received the Software, provided always
that such third party agrees in writing to be bound
by these rules.
You are granted this license for a term of the useful
life of this Device. You can terminate this license by
transferring all your rights to the Device on which
you have received the Software to a third party in
writing. If you fail to comply with any of the terms
and conditions set out in this license, it will
terminate with immediate effect.
Sony Ericsson and its third party suppliers and
licensors are the sole and exclusive owner of and
retain all rights, title and interest in and to the
Software. Sony Ericsson, and, to the extent that the
Software contains material or code of a third party,
such third party, shall be entitled third party
beneficiaries of these terms.
The validity, construction and performance of this
license shall be governed by the laws of Sweden. The
foregoing shall apply to the full extent permitted by,
when applicable, statutory consumer rights.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
82 Important information
Limited Warranty
Sony Ericsson Mobile Communications AB, SE-221
88 Lund, Sweden, (Sony Ericsson) or its local
affiliated company, provides this Limited Warranty
for your mobile phone and original accessory
delivered with your mobile phone (hereinafter
referred to as “Product”).
Should your Product need warranty service, please
return it to the dealer from whom it was purchased,
or contact your local Sony Ericsson Call Center
(national rates may apply) or visit
www.sonyericsson.com to get further information.
Our warranty
Subject to the conditions of this Limited Warranty,
Sony Ericsson warrants this Product to be free from
defects in design, material and workmanship at the
time of its original purchase by a consumer. This
Limited Warranty will last for a period of one (1)
year as from the original date of purchase of the
Product. All original accessory delivered with the
mobile phone will be warranted within six (6) months
from the date of purchase.
What we will do
If, during the warranty period, this Product fails to
operate under normal use and service, due to
defects in design, materials or workmanship,
Sony Ericsson authorized distributors or service
partners, in the country/region* where you
purchased the Product, will, at their option, either
repair or replace the Product in accordance with
the terms and conditions stipulated herein.
Sony Ericsson and its service partners reserve the
right to charge a handling fee if a returned Product
is found not to be under warranty according to the
conditions below.
Please note that some of your personal settings,
downloads and other information may be lost when
your Sony Ericsson Product is repaired or replaced.
At present Sony Ericsson may be prevented by
applicable law, other regulation or technical
restrictions from making a backup copy of certain
downloads. Sony Ericsson does not take any
responsibility for any lost information of any kind
and will not reimburse you for any such loss. You
should always make backup copies of all the
information stored on your Sony Ericsson Product
such as downloads, calendar and contacts before
handing in your Sony Ericsson Product for repair or
replacement.
Conditions
1 This Limited Warranty is valid only if the original
proof of purchase for this Product issued by a
Sony Ericsson authorized dealer specifying the
date of purchase and serial number**, is presented
with the Product to be repaired or replaced.
Sony Ericsson reserves the right to refuse warranty
service if this information has been removed or
changed after the original purchase of the Product
from the dealer.
2 If Sony Ericsson repairs or replaces the Product,
the repair for the defect concerned, or the replaced
Product shall be warranted for the remaining time
of the original warranty period or for ninety (90)
days from the date of repair, whichever is longer.
Repair or replacement may involve the use of
functionally equivalent reconditioned units.
Replaced parts or components will become the
property of Sony Ericsson.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
83Important information
3 This warranty does not cover any failure of the
Product due to normal tear and wear, or due to
misuse, including but not limited to use in other
than the normal and customary manner, in
accordance with the Sony Ericsson instructions for
use and maintenance of the Product. Nor does this
warranty cover any failure of the Product due to
accident, software or hardware modification or
adjustment, acts of God or damage resulting from
liquid.
A rechargeable battery can be charged and
discharged more than a hundred times. However, it
will eventually wear out – this is not a defect and
corresponds to normal wear and tear. When the
talk-time or standby time is noticeably shorter, it is
time to replace your battery. Sony Ericsson
recommends that you use only batteries and
chargers approved by Sony Ericsson.
Minor variations in display brightness and colour
may occur between the phones. There may be tiny
bright or dark dots on the display. These are called
defective pixels and occur when individual dots
have malfunctioned and can not be adjusted. Two
defective pixels are deemed acceptable.
Minor variations in camera image appearance may
occur between phones. This is nothing uncommon
and is not regarded as a defective camera module.
4 Since the cellular system on which the Product is to
operate is provided by a carrier independent from
Sony Ericsson, Sony Ericsson will not be
responsible for the operation, availability, coverage,
services or range of that system.
5 This warranty does not cover Product failures
caused by installations, modifications, or repair or
opening of the Product performed by a non-
Sony Ericsson authorised person.
6 The warranty does not cover Product failures which
have been caused by use of accessories or other
peripheral devices which are not Sony Ericsson
branded original accessories intended for use with
the Product.
7 Tampering with any of the seals on the Product will
void the warranty.
8 THERE ARE NO EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN
THIS PRINTED LIMITED WARRANTY. ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. IN NO
EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED
TO LOST PROFITS OR COMMERCIAL LOSS; TO
THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
Some countries/regions/states do not allow the
exclusion or limitation of incidental or
consequential damages, or limitation of the
duration of implied warranties, so the preceding
limitations or exclusions may not apply to you.
The warranty provided does not affect the
consumer's statutory rights under applicable
legislation in force, nor the consumer’s rights
against the dealer arising from their sales /
purchase contract.
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
84 Important information
*Geographical scope of the warranty
If you have purchased your Product in a country/
region member of the European Economic Area
(EEA) or in Switzerland or the Republic of Turkey,
and such Product was intended for sale in the EEA
or in Switzerland or in Turkey, you can have your
Product serviced in any EEA country/region or in
Switzerland or in Turkey, under the warranty
conditions prevailing in the country/region in which
you require servicing, provided that an identical
Product is sold in such country/region by an
authorised Sony Ericsson distributor. To find out if
your Product is sold in the country/region you are
in, please call the local Sony Ericsson Call Center.
Please observe that certain services may not be
possible elsewhere than in the country/region of
original purchase, for example due to the fact that
your Product may have an interior or exterior which
is different from equivalent models sold in other
countries/regions. Please note in addition that it
may sometimes not be possible to repair SIM-
locked Products.
** In some countries/regions additional information
(such as a valid warranty card) may be requested.
FCC Statement
This device complies with Part 15
of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause
harmful interference, and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Declaration of Conformity for
K858c
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our
product
Sony Ericsson type AAC-1052061-BV
and in combination with our accessories, to which
this declaration relates is in conformity with the
appropriate standards 3GPP TS 51.010-1,
EN 301908-1, EN 301489-7, EN 301489-24,
EN 300328, EN 301489-17 and EN 60950,
following the provisions of, Radio Equipment and
Telecommunication Terminal Equipment directive
99/5/EC with requirements covering EMC directive
89/336/EEC, and Low Voltage directive 73/23/EEC.
We fulfil the requirements of the R&TTE Directive
(99/5/EC).
Lund, April 2007
Shoji Nemoto,
Head of Product Business Group GSM/UMTS
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
85Index
Index
A
activity menu ........................................ 15
alarms ................................................... 65
answering service ................................ 28
applications .......................................... 55
appointments ....................................... 66
assembly ................................................ 5
automatic redialling .............................. 22
B
battery
inserting ......................................... 5
inserting and charging ................... 7
use and care ................................ 78
Bluetooth™ wireless technology ......... 58
business cards ..................................... 27
C
calculator .............................................. 68
calendar ......................................... 65–66
call divert .............................................. 30
call list .................................................. 27
call numbers in message ..................... 35
call time ................................................ 34
caller-specific ringtones ....................... 25
calls
accepting ..................................... 32
answering and rejecting ............... 22
emergency ................................... 23
handling two calls ........................ 31
international ................................. 22
making and receiving ................... 22
putting on hold ............................. 31
recording ...................................... 54
camera
overview ....................................... 42
settings ......................................... 44
code memo .......................................... 68
conference calls ................................... 32
contacts
adding phone contacts ................ 23
default contacts ........................... 23
groups of ...................................... 27
synchronizing ............................... 62
D
date ...................................................... 70
declaration of conformity for K858c .... 84
E
email ..................................................... 38
entering text ......................................... 17
F
file manager .......................................... 15
fixed dialling ......................................... 33
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
86 Index
G
games .................................................. 54
groups .................................................. 27
H
handsfree ....................................... 28, 48
Bluetooth technology ................... 59
help ........................................................ 7
I
IMEI number ......................................... 71
Internet
bookmarks ................................... 57
security and certificates ............... 58
settings ........................................ 56
J
Java™ .................................................. 55
K
keypad lock .......................................... 71
keys ...................................................... 10
L
language .............................................. 17
Limited Warranty .................................. 82
lock
keypad ......................................... 71
phone ........................................... 71
SIM card ...................................... 70
M
magic word ...........................................29
master reset ..........................................72
Media Manager .....................................49
memory card .........................................15
memory status ......................................26
menu overview ......................................12
menus ...................................................14
messages
area and cell information ..............41
email .............................................38
voice .............................................37
microphone ...........................................22
MMS .....................................................35
music player ..........................................48
MusicDJ™ ............................................54
My friends .............................................39
my numbers ..........................................32
N
navigating menus ..................................14
notes ...............................................67–68
P
phone name ..........................................56
photo tags .............................................47
PhotoDJ™ .............................................47
pictures .................................................46
edit ................................................47
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
87Index
PIN code
changing ...................................... 70
unblocking ...................................... 6
playlists .......................................... 50–51
PlayNow™ ............................................ 52
profiles ............................................ 69–70
PUK .................................................. 6, 70
push email ............................................ 39
R
ringtones .............................................. 53
S
safety guidelines .................................. 77
sending
appointments and tasks .............. 66
business cards ............................. 27
melodies and ringtones ................ 54
music ............................................ 49
notes ............................................ 68
settings
Internet ......................................... 56
Java™ .......................................... 55
shortcuts .............................................. 15
SIM card
copying to/from ...................... 25, 26
lock and unblock .......................... 70
SMS ...................................................... 35
sound recorder ..................................... 54
speed dialling ....................................... 28
standby .................................................. 6
startup screen ........................................ 6
stopwatch ............................................ 68
submenus ............................................. 14
synchronizing ..................................62–64
T
T9™ Text Input .................................... 17
tasks ..................................................... 67
templates ............................................. 37
themes ............................................48–53
time ...................................................... 70
time zone .............................................. 70
timer ..................................................... 68
touch options ....................................... 14
transfer method
Bluetooth technology ................... 58
USB .............................................. 60
transferring
camera pictures ........................... 45
files ............................................... 60
music ............................................ 50
sound ........................................... 60
turning on/off
Bluetooth ...................................... 59
phone lock ................................... 71
SIM lock protection ...................... 71
U
unblock SIM card ................................. 70
Update service ..................................... 64
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
88 Index
V
video player .......................................... 49
video recorder ...................................... 42
voice answering ................................... 30
voice control ........................................ 28
voice messages ................................... 37
voicemail .............................................. 28
volume
ear speaker .................................. 22
ringtone ........................................ 53
W
Web feeds ............................................ 58
Z
zoom .................................................... 43
.FB8*BB$(ERRN3DJH0RQGD\2FWREHU30
