Contents

01 Label

1 (3)
Company Internal
MARKING DRAWING
Prepared (also subject responsible if other) No.
SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen
Approved Checked Date Rev Reference
SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3
Approved according to 000 21–LXE 107 42/1
V630i, KRH-label, TYPE: AAD-3022042-BV, Made in...
1 General information
The format of the label is based on a label SVF 930 2406 (40,4 x 31,4 mm).
If applicable, or nothing else specified, Zebra printer Scaleable Smooth
Font CG Triumvirate Bold Condensed is imposed. When needed, the text is
adjusted to fit the label.
All bar codes, when applicable, are according to Ericsson corporate
standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C
according to ANSI X3.182-1990 as stated in Ericsson corporate standard
102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than
2 mm! (quiet zone).
“(x/y)” under each line number specifies the bottom / left alignment for text,
graphics and bar codes, x is measured vertically, and y horizontally from the
upper left corner of the label (landscape format), both in mm. When needed,
the alignment is adjusted to fit the label.

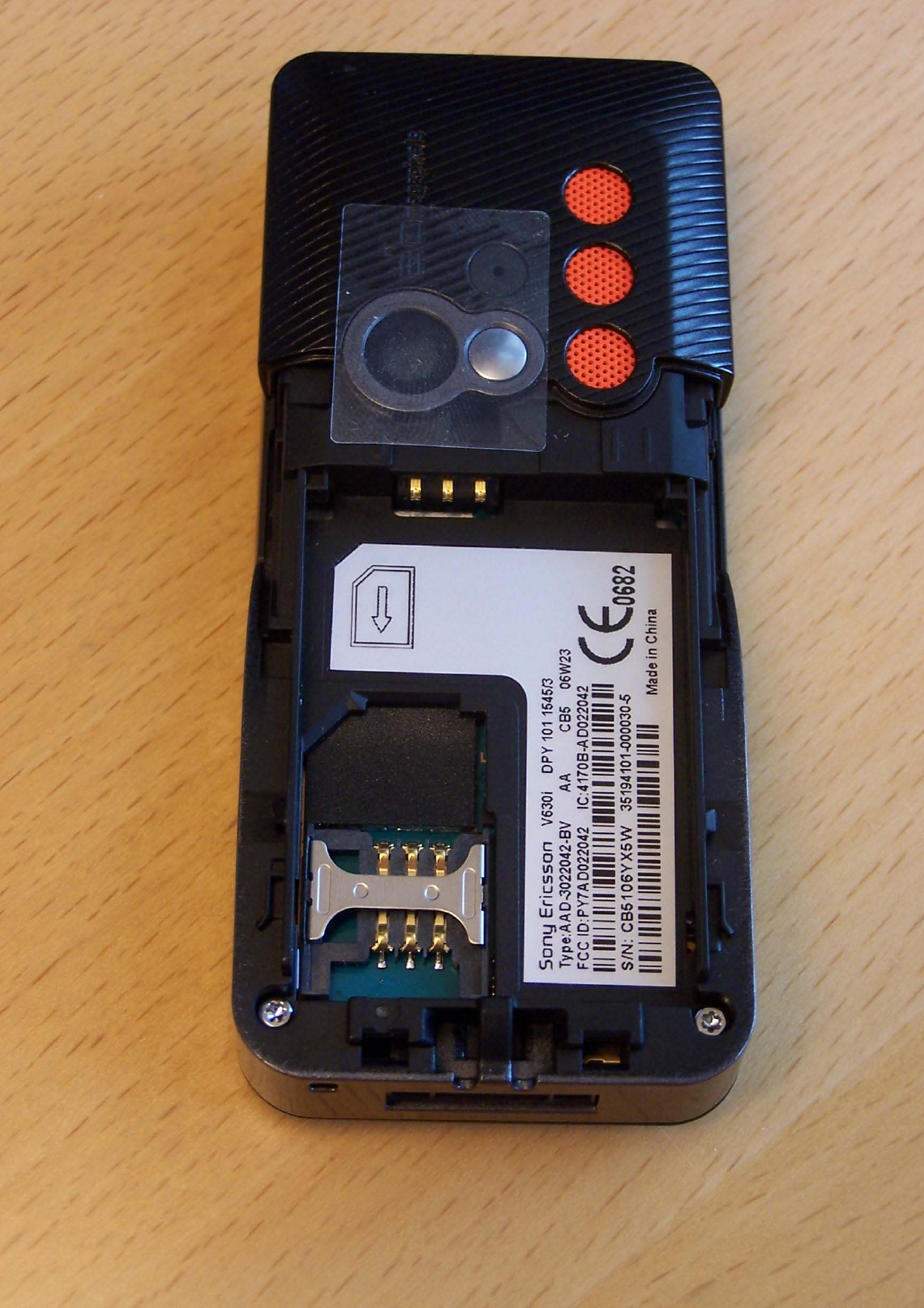

The label shall be placed on the back of the telephone according to the
Assembly Drawing (151 88-) for the KRH.
2 Printing information
Content Format
Line 1
(1,0/29,0) SIM-card logo Graphics, height 7,3 mm.
According to 1424-SVF 930 1418.
Rotated 90° Clockwise.
Line 2a
(20,7/1,0) Sony Ericsson stylized name. Graphics, height 2,0 mm.
According to 190 89–EN/LZT 108 5347
Line 2b
(20,2/18,0) Model name, “V630i” Text, height 1,2 mm.
Line 2c
(20,2/23,0)
Product number of the DPY kit in
which the phone is packed. Printed
without R-state,
“DPY 101 0000/000”
Text, height 1,2 mm.
Line 3a
(22,2/1,0) Type number of the phone (KRH),
“Type: AAD-3022042-BV”. Text, height 1,2 mm.
Line 3b
(22,2/18,0) HW & SW fields,
“FG”
Text, height 1,2 mm.
According to the 3/151 86- document in
the 1095- for the SVV.
2 (3)
Company Internal
MARKING DRAWING
Prepared (also subject responsible if other) No.
SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen
Approved Checked Date Rev Reference
SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3
Content Format
Line 3c
(22,2/24,0)
Location code of where the phone
is flashed, if applicable,
“FFF”
Text, height 1,2 mm.
According to 1050-LZT 108 6537.
Line 3d
(22,2/27,5) Production week (flash), “yy’W’ww”
(yy = year, ww = week) Text, height 1,2 mm.
Line 3e
(22,2/34,0)
Repair week, if applicable.
“Ry’W’ww”
(y = year, ww = week) Text, height 1,2 mm.
Line 4a
(24,0/1,0) Country approval mark 1
“FCC ID: PY7AD022042” Text, height 1,2 mm.
Line 4b
(24,0/15,0) Country approval mark 2
“IC: 4170B-AD022042” Text, height 1,2 mm.
Line 5
(26,5/1,0)
Line 6a in bar code.
As desired by supplier (e.g. only
actual number).
Bar code, height 2,0 mm.
As desired by supplier (e.g. Code 128
symbology).
Line 6a
(28,0/1,0)
Supplier’s identification for trace-
ability of the telephone, as desired
by supplier (e.g. “S/N: nnn….” for
serial number).
Text, height 1,2 mm.
Defined by supplier.
Line 6b
(28,0/13,0)
Actual electronic serial number
(IMEI) of the phone (KRH),
“00000000-000000-0”
Text, height 2,0 mm.
In the format TAC-SNR-CD.
TAC and SNR derived from the
3/151 86- document in the 1095- for the
SVV.
CD = check digit according to the Luhn
formula (ISO/IEC 7812), GSM 02.16.
Line 6c
(28,0/28,5) CE approval symbol. Graphics, height 5 mm.
According to 1424-SVF 930 52.
Line 6d
(28,0/35,3) The Notified body number.
“0682” Text, height 2,0 mm.
Line 7a
(30,2/1,0) Line 6b in bar code (only actual
number, without data identifier).
Bar code, height 2,0 mm.
Code 128 symbology, code C subset. If
uneven number of digits, code B subset
shall be used for the last digit.
Line 7b
(30,2/27,0)
Marking of origin.
The line shall be printed as stated
in chapter 3 in this document. Text, height 1,2 mm.
3 (3)
Company Internal
MARKING DRAWING
Prepared (also subject responsible if other) No.
SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 447/1 Uen
Approved Checked Date Rev Reference
SEM/BGUDBB (Niklas Lövberg) 2006-06-22 C 3
3 Marking of Origin
3.1 Content
“Made in Xxx”;
“Xxx” = actual country of production of the included telephone, in English
4 Layout
The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be
considered as specifications, but as an additional help for setting up the label.

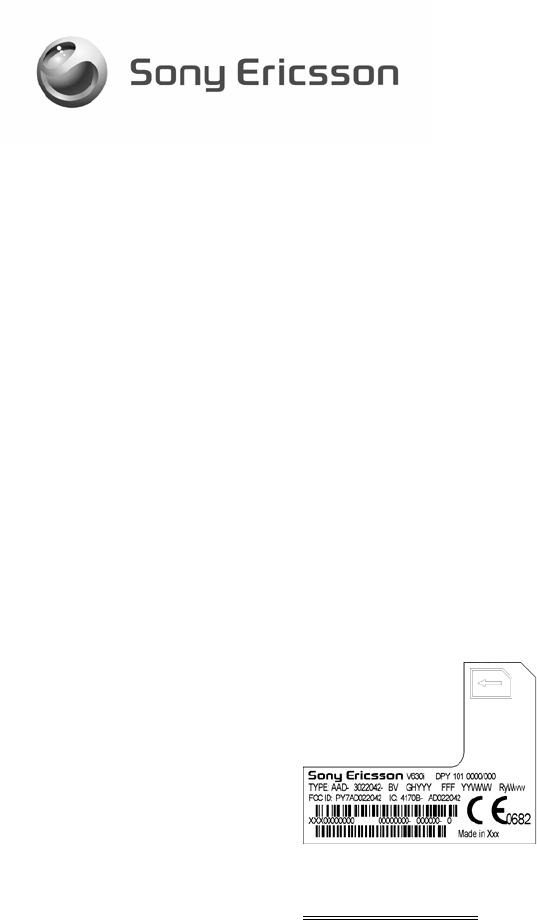

4.1 Conceptual picture
double underlined = major changes since last revision.
