08 user manual

This is the Internet version of the user's guide. © Print only for private use.

Congratulations on your purchase of the Sony Ericsson

P1c. Enjoy efficient email tools, the 3.2 megapixel

camera and high-speed Internet on the go. In addition to

your pre-installed multimedia content, a lot more is

waiting for you at www.sonyericsson.com/cn/fun.

Also check out the Sony Ericsson Application Shop at

www.sonyericsson.com/applicationshop and learn how

to get the most out of your P1c.

And if you register at www.sonyericsson.com/register,

you get an exclusive offer. Go now and don’t miss out.

This is the Internet version of the user's guide. © Print only for private use.

Accessories – More for your phone

Music remote control MRC-60

Listen to music with hi-fi sound quality and

adjust music settings with a remote control.

Bluetooth™ Car Speakerphone

HCB-120

A handsfree solution with caller display. For

use in the car, office or home.

Bluetooth™ Headset HBH-IV835

A discreet and stylish handsfree solution

with clear digital sound.

These accessories can be purchased seperately but may not be available in every

market. To view the full range go to www.sonyericsson.com/accessories.

1Contents

This is the Internet version of the user's guide. © Print only for private use.

Contents

Getting started .......................... 3

Getting to know the phone ....... 8

Calling ................................... 22

Messaging .............................. 27

Imaging .................................. 34

Entertainment ......................... 38

Connectivity ........................... 45

More features ......................... 49

Important information ............ 52

Index ...................................... 63

Sony Ericsson

UMTS 2100 GSM 900/1800/1900

This User guide is published by Sony Ericsson

Mobile Communications AB or its local affiliated

company, without any warranty. Improvements and

changes to this User guide necessitated by

typographical errors, inaccuracies of current

information, or improvements to programs and/or

equipment, may be made by Sony Ericsson Mobile

Communications AB or its local affiliated company

at any time and without notice. Such changes will,

however, be incorporated into new editions of this

User guide.

©Sony Ericsson Mobile Communications AB,

2007

Publication number: EN/LZT 162 141 R1A

Please note:

Some of the services in this User guide are not

supported by all networks. This also applies to the

GSM International Emergency Number 112.

Please contact your network operator or service

provider if you are in doubt whether you can use a

particular service.

Please read the Guidelines for safe and efficient use

and the Limited warranty chapters before you use

your mobile phone.

Your mobile phone has the capability to download,

store and forward additional content, for example,

ringtones. The use of such content may be

restricted or prohibited by rights of third parties,

including but not limited to restriction under

applicable copyright laws. You, and not Sony

Ericsson, are entirely responsible for additional

content that you download to or forward from your

mobile phone. Prior to your use of any additional

content, please verify that your intended use is

properly licensed or is otherwise authorized. Sony

Ericsson does not guarantee the accuracy, integrity

or quality of any additional content or any other

third party content. Under no circumstances will

Sony Ericsson be liable in any way for your

improper use of additional content or other third

party content.

The marble logo, PlayNow, TrackID and MusicDJ

are trademarks or registered trademarks of Sony

Ericsson Mobile Communications AB.

Sony, Memory Stick Micro and M2 are trademarks

or registered trademarks of Sony Corporation.

Ericsson is a trademark or registered trademark of

Telefonaktiebolaget LM Ericsson.

2Contents

This is the Internet version of the user's guide. © Print only for private use.

Bluetooth™ is a trademark or registered trademark

of Bluetooth SIG Inc.

Real is a trademark or a registered trademark of

RealNetworks, Inc. RealPlayer® for Mobile is

included under license from RealNetworks, Inc.

reserved.

Adobe® Photoshop® Album Starter Edition and

Adobe® Acrobat® are registered trademarks of

Adobe Systems Incorporated.

Microsoft, Windows, ActiveSync and PowerPoint

are either registered trademarks or trademarks of

Microsoft Corporation in the U.S and other

countries/regions.

Smart-Fit Rendering is a trademark or registered

trademark of ACCESS CO. LTD. in Japan and other

countries/regions.

Java and all Java based trademarks and logos are

trademarks or registered trademarks of Sun

Microsystems, Inc. in the U.S. and other

countries/regions.

End-user license agreement for Sun™ Java™

J2ME™.

1 Restrictions: Software is confidential copyrighted

information of Sun and title to all copies is retained

by Sun and/or its licensors. Customer shall not

modify, decompile, disassemble, decrypt, extract,

or otherwise reverse engineer Software. Software

may not be leased, assigned, or sublicensed, in

whole or in part.

2 Export Regulations: Software, including technical

data, is subject to U.S. export control laws,

including the U.S. Export Administration Act and its

associated regulations, and may be subject to

export or import regulations in other countries/

regions. Customers agree to comply strictly with all

such regulations and acknowledges that it has the

responsibility to obtain licenses to export, re-

export, or import Software. Software may not be

downloaded, or otherwise exported or re-exported

(i) into, or to a national or resident of, Cuba, Iraq,

Iran, North Korea, Libya, Sudan, Syria (as such

listing may be revised from time to time) or any

country/region to which the U.S. has embargoed

goods; or (ii) to anyone on the U.S. Treasury

Department's list of Specially Designated Nations

or the U.S. Commerce Department's Table of

Denial Orders.

3 Restricted Rights: Use, duplication or disclosure by

the United States government is subject to the

restrictions as set forth in the Rights in Technical

Data and Computer Software Clauses in DFARS

252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as

applicable.

Other product and company names mentioned

herein may be the trademarks of their respective

owners.

Any rights not expressly granted herein are

reserved.

Note: Sony Ericsson advised users to backup their

personal data information.

All illustrations are for guidance only and may not

accurately depict the actual phone.

3Getting started

This is the Internet version of the user's guide. © Print only for private use.

Getting started

Welcome

Thank you for purchasing the

Sony Ericsson P1c.

Before you start to use your new

phone please read the information in

the Getting started chapter carefully.

Instruction symbols

The following appear in the User

guide:

Additional help

The complete user documentation for

your phone consists of:

•User guide – an overview of your

phone with the information needed

to get you started.

•Help in the phone – your phone has

built-in help. In most applications

Help is available in the More menu.

•Web guide – an up-to-date User

guide with step-by-step instructions

and additional information on

features available in you phone. You

can access the Web guide from

your computer at

www.sonyericsson.com/cn.

If you have an Internet connection

set up in your phone you can also

access the Web guide from the Web

browser in your phone.

To access the Web guide from your

phone

1 From Standby select Main menu >

Multimedia >Web.

2 Select More >Bookmarks >Web

Guide.

Note

Tip

A service or function is network-

or subscription-dependent.

Contact your network operator

for details.

Accessing the Web guide from your

phone might involve some costs

depending on the Internet connection

used. Please contact your network

operator for more information.

4Getting started

This is the Internet version of the user's guide. © Print only for private use.

Package

Phone overview

1 Phone

2Charger

3 Stereo portable handsfree

4 Deskstand

5Pouch

6 Battery

7 Memory Stick™

8 USB cable

P1c

9 Extra stylus

10 Documentation package

11 CD with Sony Ericsson PC

Suite for Smartphones

If your package does not include all the

listed items then contact your retailer.

1 On/off button

2 Stylus

3Screen

4 Dual function keyboard

5 Camera button

6 Memory Stick™ slot

110 19

12 14

P1c

5Getting started

This is the Internet version of the user's guide. © Print only for private use.

Before using your phone

Battery

You need to charge the battery when

the indicator light on the base of the

phone flashes red or when the low

battery message appears on the

screen.

To insert the battery

1 Open the battery cover by pressing

slightly on the upper part and sliding it

down the phone.

2 Insert the battery.

3 Slide the cover back onto the phone.

To charge the battery

1 Make sure the battery is inserted.

2 Connect the charger to the phone.

3 Connect the charger to the mains.

7 Monternet key

8 Infrared port

9Earspeaker

10 Loudspeaker

11 Antenna connector

12 Connector for charger and

accessories

13 Indicator light

14 Microphone

15 Back button

16 Jog Dial

17 Camera

18 Strap holder

19 Photo light

A green indicator light on the base of the

phone is turned on during charging. If

the phone is off during charging, a red

indicator light will be turned on.

The indicator light flashes green when

you have, for example, recieved a new

message or missed a call.

6Getting started

This is the Internet version of the user's guide. © Print only for private use.

SIM card

You receive a SIM (Subscriber Identity

Module) card when you register with a

network operator. The SIM card keeps

track of your phone number, the

services included in your subscription

and phonebook information. A PIN

code is supplied with the SIM card

and must be entered, if requested,

when you turn on your phone for the

first time.

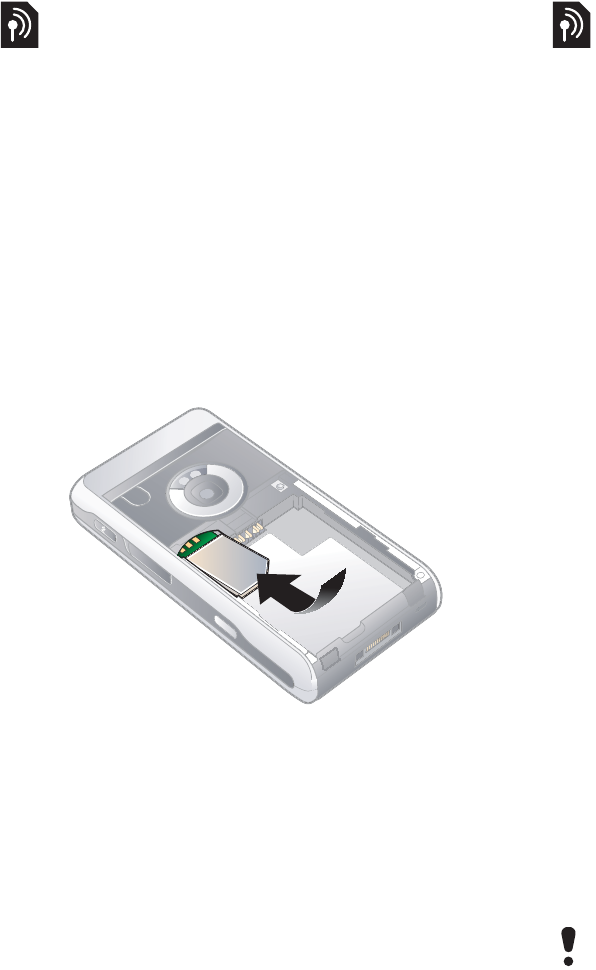

To insert the SIM card

1 Detach the charger (if connected).

2 Open the battery cover by pressing

slightly on the upper part and sliding it

down the phone.

3 Remove the battery (if it is in place).

4 Insert the SIM card into the SIM card

holder.

5 Insert the battery.

6 Slide the cover back onto the phone.

IMEI number

IMEI (International Mobile Equipment

Identifier) is a 15-digit number. Your

operator can use the IMEI number to

enable a complete barring of your

phone if it is stolen. The number is

printed at the bottom of the battery

compartment. You can also view the

number on the phone display.

To view the IMEI number in your

phone

•From Standby enter *#06#.

Care instructions

•Use a moist cloth when you clean the

screen.

•Only use the stylus provided, or your

fingertips, to tap the screen.

For detailed care instructions, see

Recommendations for safe use of

product (mobile phone, battery,

charger and other accessories)

on page 54.

First time start-up

Before you use your phone, see

Guidelines for Safe and Efficient Use

on page 54.

Before you can use your phone you need

to insert the SIM card, and insert and

charge the battery.

7Getting started

This is the Internet version of the user's guide. © Print only for private use.

To switch on your phone

1 Press and hold down the On/off

button.

2 Select Phone on.

3 Select a language.

4 Enter your PIN, if requested.

5 Select Done.

Keylock

Your phone has an automatic keylock

which is turned on as default. You can

turn it off in Main menu >Control

panel >Security >Locks.

To unlock the keyboard

1 From Standby press .

2 Select Unlock.

To manually lock the keyboard

1 From Standby press .

2 Select Lock keys.

For more information about phone

locks, see Control panel in the Web

guide.

Wizards

•Setup wizard – helps you to enter

some basic settings for your phone.

The wizard starts the first time you

use your phone or you can find it in

Main menu >Control panel >

Other >Setup wizard.

If you make a mistake when you enter

your PIN code, you can delete the

number by pressing . If you enter the

wrong PIN code three times in a row, the

SIM card is blocked. To unblock it, you

need to enter the PUK code supplied

with your SIM card.

You can also press and hold to

lock and unlock the keyboard.

8Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Getting to know the

phone

Turning the phone on and off

Your phone has two modes of

operation:

•Phone on – full functionality.

•Flight mode – limited functionality

with network and radio functions

switched off.

You can use flight mode where mobile

phones are prohibited, such as in

hospitals and aircrafts.

To turn on the phone in phone mode

1 Press and hold down the On/off

button.

2 Select Phone on.

To turn on the phone in flight mode

1 Press and hold down the On/off

button.

2 Select Flight mode.

To turn off the phone

1 Press and hold down the On/off

button.

2 Select Power off.

The screen

The screen is touch-sensitive. You can

use the stylus or your fingertips to

select items.

1 Status bar, containing status

icons

2 Status bar menu

3 Touch options bar

Notes

EditSave More

9Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Navigation

To navigate menus and select items,

you can use the Jog Dial, Back button,

stylus, keyboard navigation keys,

touch options and your fingertips.

Jog Dial

You can rotate the

Jog Dial to scroll lists

up and down, adjust

sound volume. You

can press the Jog

Dial to select a

highlighted item.

Back button

You can press to return to the

previous screen or menu. You can

press and hold down to return

to Standby or lock and unlock the

keyboard from Standby.

Stylus

You can tap the screen with the stylus

to navigate and select items or to pan

multimedia pictures.

Finding the applications

Standby

Standby is the starting point for a

number of tasks and is displayed

whenever you turn on your phone. You

can change the view of Standby in

Main menu >Control panel > Device

> Standby application to:

•Activity menu – show the Today

view and shortcuts which you can

set to reach the applications you

use most frequently.

•None – show an enlarged view of

the clock.

Main menu

All the applications in your phone can

be found in Main menu . You can

select to view the applications in Main

menu in a grid or a list.

To access applications in Main menu

•Select , or if Standby application is

set to None, tap Menu.

Using the applications

To start an application

•Select the application icon with the

stylus or your fingertips, or rotate the

Jog Dial to highlight it and press the

Jog Dial.

To leave an application without

closing it

•Switch to another application using

the Task manager. See Task manager

on page 10.

Inwards

Down

Back

button

10 Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

To close an application

•Press and hold . All data is

saved.

Task manager

Task manager helps you switch

between applications. Leaving an

application via Task manager rather

than closing it, lets you return to the

the application in the state that you left

it. This is useful, for example, when

cutting and pasting text from one

application to another.

To switch to another application

1 Tap in the status bar or select

More >Task manager.

2 Select the Recent tab.

3 Select the application and select

Switch.

Status bar

The status bar on top of the screen

contains icons that indicate the status

of the current settings and activities.

Status bar icons

You can select an icon to get more

information or to start an application.

Icon Function

Battery strength

Bluetooth headset connected

Bluetooth activated

Current line selection

(Alternative Line Service

available on the SIM card)

Divert all calls notification

Email notification

Infrared turned on

Flight mode

Internet connection activated

(flashes when data is

transferred)

Keylock activated

Missed call notification

MMS notification

Muted microphone

11Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Status bar menu

You can use the status bar menu to

quickly access extra settings:

•New call, SMS, MMS and more

•Connections

•Volume

•Time

•Keylock

To access the Status bar menu

•Select in the status bar.

Importing phone book entries

You can import contact information

by:

•Copying phonebook entries stored

on your SIM card.

•Transferring phonebook entries from

a computer application using the

synchronize function.

•Transferring phonebook entries from

another phone using Bluetooth™

wireless technology.

English predictive text

activated

Chinese predictive text

activated

Ring volume set to zero

Signal strength in phone

mode, GPRS available

Silent mode

SMS notification

SMS overflow

Speakerphone activated

Status bar menu

Task manager

Voicemail notification

12 Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Main menu overview

Monternet * China Mobile in * Entertainment

Music

Games

News & Weather

Fetion

Movie & TV

Mail

Phonebook Manager

Finance Online

What's New!

SIM Application

My Monternet

Monternet

Music player

FM radio

Video

Online media

MusicDJ™

Sound recorder

Vijay Singh Pro Golf 3D

Demo

My Favorites Messages Control panel


Music

Video

Magic Box

Mobile Flash

Other

Call voice mail

Create new message

Inbox

Outbox

Drafts

Sent

SIM

Call settings

Connections

Device

Messaging

Security

Other

Call history Contacts CustomerService*

All

Incoming

Outgoing

Missed

Contacts

Phonebook Manager

㾥〛 service guide

Customer Center

Service Hotline

Customer Manager

My Monternet

Settings

* Some menus are operator-, network- and subscription-dependent.

13Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Memory Stick Micro™ (M2™)

Your phone comes with a Memory

Stick which can be used as extra

storage space for pictures, music,

applications, and so forth. You can

rename and format the Memory Stick.

You can also transfer data to and from

the Memory Stick.

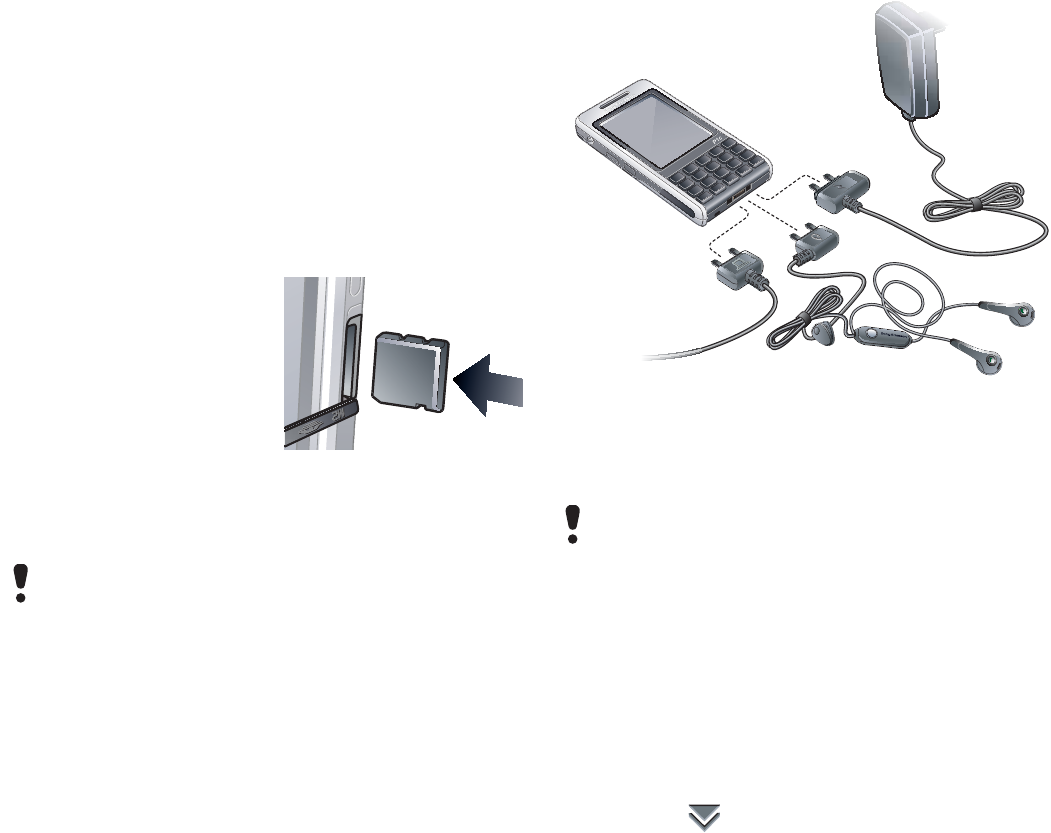

To insert the Memory Stick

1 Open the cover.

2 Insert the Memory

Stick in the slot.

To remove the

Memory Stick

1 Open the cover.

2 Press the edge of the Memory Stick

inwards and then release it.

Connecting accessories

To connect an accessory

•Connect the accessory to the base of

your phone.

Sound

To set the ear speaker volume during

a phone call

•Rotate the Jog Dial.

To set the multimedia volume

1 Select >Volume >Multimedia.

2 Rotate the Jog Dial.

Do not remove the Memory Stick during

file transfer. This may cause the phone to

hang or it can corrupt the file system on

the Memory Stick.

Tilt the plug upwards when you

disconnect the accessory.

14 Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

To set the volume for ringtone, alarm

and message alerts

1 Select >Volume.

2 Select the corresponding slider.

3 Rotate the Jog Dial.

To set the phone to silent

1 Select >Volume.

2Mark the Silent mode check box.

Transfer sound

During an ongoing call or when

listening to, for example, Music player

you can transfer the sound to a

connected accessory such as a

Bluetooth headset.

To transfer sound

1 Select >Volume.

2 Select More >Transfer sound.

Update software

When an improved software version

for your phone is introduced, you can

update your phone using the

Sony Ericsson Update Service on

www.sonyericsson.com/cn. The Web

page has further instructions and will

guide you through the process.

Text entry

Text can be entered in several

different ways. The dual function

keyboard works as a standard

keyboard. The on-screen keyboard

appears when selecting . You can

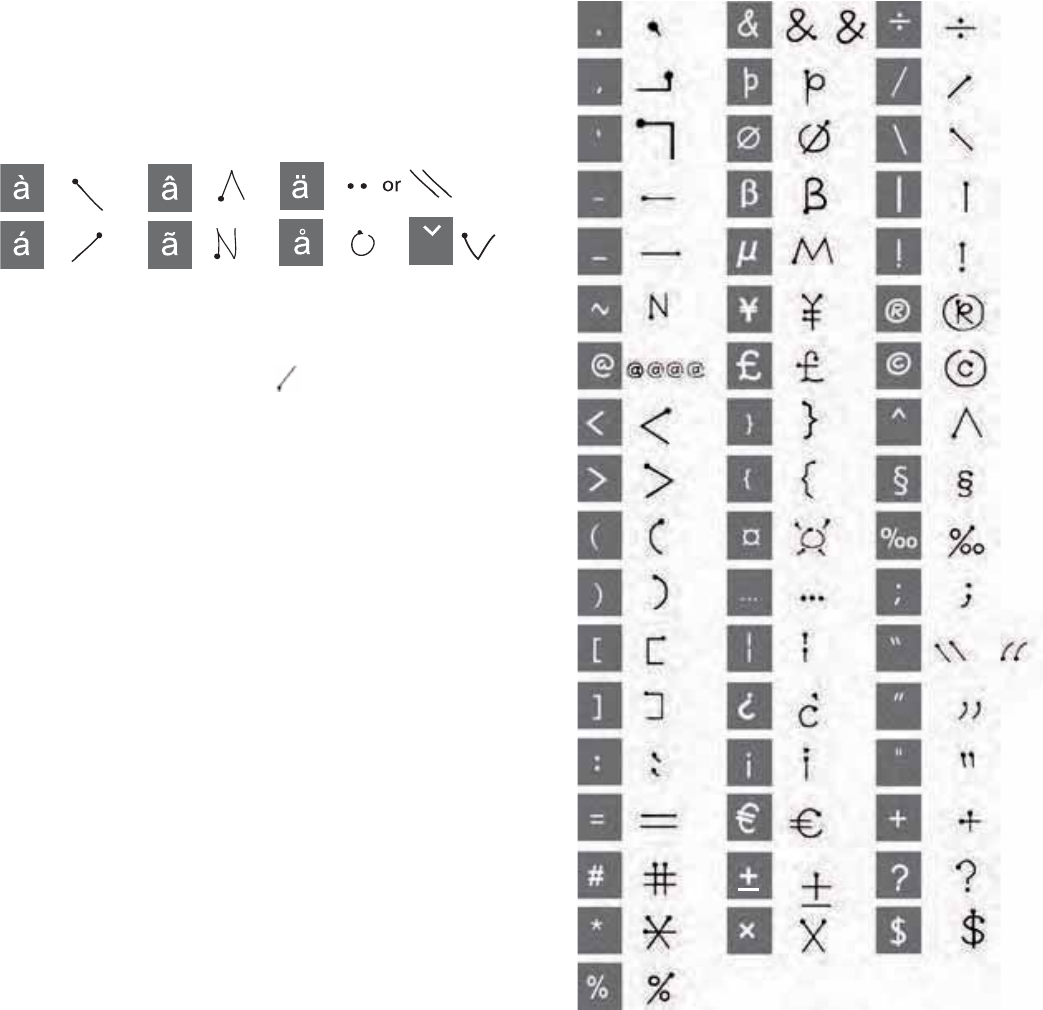

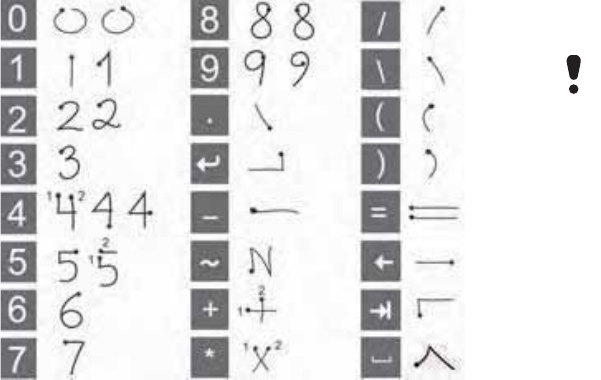

also use the stylus to write directly on

the screen.

There are four text entry types when

you enter latin characters:

•Abc - Iatin characters; initial

uppercase letter, the rest lowercase.

•abc - Iatin characters; lowercase entry.

•ABC - Iatin characters; uppercase

entry.

•123 - numeric entry only.

There are three text entry types when

you enter characeters in Chinese:

•Pinyin - Chinese characters; Pinyin

input.

•Stroke - Chinese characters; Stroke

input.

•123 - numeric entry only.

From Standby you can press and hold

to switch silent mode on or off.

Choosing a new language in the phone

will also automatically change the

behaviour of the keyboard to that

language.

15Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Dual function keyboard

Press the keys below the screen to

use the dual function keyboard.

Switching language

You can select and switch quickly to

another language by pressing

and simultaneously.

To enter latin characters using

Keypad

Each key has several characters and

symbols. In Standby the keyboard is in

number entry mode.

The characters are accessed by

pressing the left or right side of the

key. By pressing you access the

characters or symbols on the top of

the key.

Additional characters associated with

the pressed character will be shown in

the pre-edit box at top of the screen.

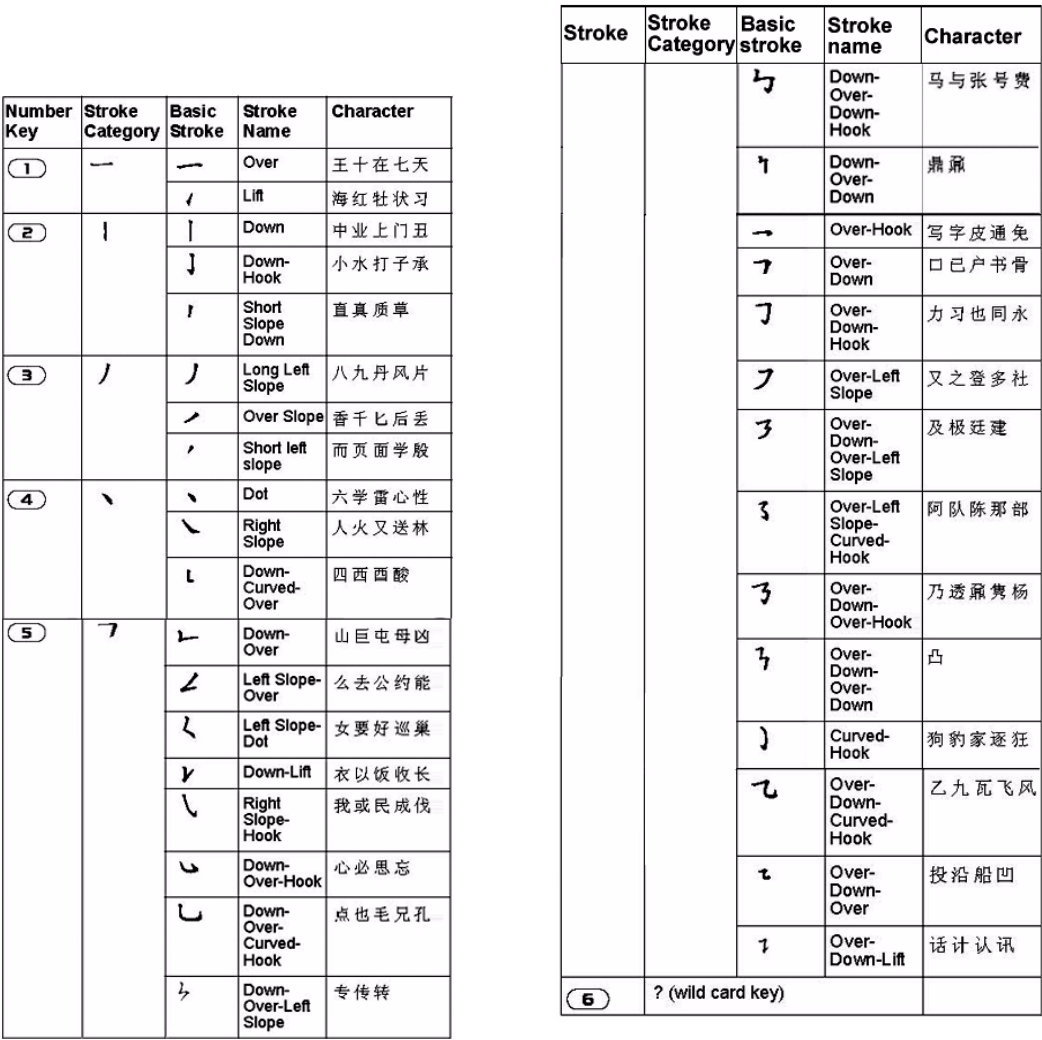

To enter Chinese characters using

Keypad

The phone has different input methods

for entering Chinese characters:

•Pinyin input

•Stroke input

Pinyin input

Press the keys containing the required

Pinyin letters, and the phone will make

various proposals on the screen

according to the pronunciation rules of

Mandarin,when the letter is shown and

highlighted in the suggestion list,

press Select or press the Jog Dial

inwards to accept it.

Tip You can also scroll through and

select any additional Chinese text by

pressing the Jog Dial down and up.

Stroke input

The Chinese characters consist of

strokes. There are more than 30 types

of basic strokes,which come in 5 type.

The - keys on the keyboard

represent type-1 strokes. If you are

not sure of using what kind of strokes,

just use the intelligents key

ER GH

16 Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Type of strokes

The 5 stroke types are defined in the following

table:

17Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

On-screen keyboard

The on-screen keyboard enables you

to select the characters and symbols

with the stylus. The on-screen

keyboard can be set to different

languages.

To use the on-screen keyboard

•Select the on-screen keyboard symbol

located in the status bar.

To view option of the on-screen

keyboard

•Select and select a option.

Handwriting recognition

Handwriting recognition translates

stylus gestures written directly on the

screen into letters, numbers or other

characters, and displays these

characters as text. Handwriting

recognition is only active in places

where text can be entered.

Handwriting setting

You can select Main menu > Control Panel >

Device > Text Input > Handwriting > More >

Setup to set handwriting. Alternatively, you

can set handwriting by selecting > More > Text

Options > Handwriting Setup in the Chinese

input mode.

Note: The multi-character recognition can be

enabled by selecting the "Multi-character

recognition" check box, and you can also do it

with shortcuts.

Shortcuts

Shift between single-character and

multi-characters inputting.

Shift between Chinese/English

recognition.

Cut.

Copy.

Undo.

Paste.

in Chinese input mode.

in English input mode.

Symbols list.

to hide the handwriting toolbar.

Note: Start each stroke from the dots.

18 Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Introduction to multi-characters recognition

function

1. English: Input one English word at a time.

In the lower-case input area, the upper-case

letters can also be recognized, for example:

Input “hello”, “Hello”.

2. Chinese: Multiple Chinese words can be

input at a time, for example: Input “ Դད ”.

3. Number: Multiple digits of telephone

number can be input at a time, for example:

Input “4008100000”.

Input Chinese

Chinese punctuations

Note: Start each stroke from the dots.

Chinese characters

1. Write each Chinese character with one or

several strokes in different areas of the

screen, depending on the difference of the

required characters:

– Write Chinese characters at and below

the arrowhead section.

– Write digits above the arrowhead.

2. Select the characters in the candidate

characters area.

3. Select predictive words in the prediction

area.

Note: It is important to write in the correct

stroke sequence. Otherwise, the required words

may be unable to come out.

19Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Input Latin characters

The Handwriting recognition converts the

handwriting strokes to letters, digits or other

characters, and displays such characters as text.

The Handwriting recognition is activated only

at the place of inputting the text.

A. Split the text mode screen into upper and

lower arrowheads.

B. Write the digits and symbols in the areas

above the arrowhead.

C. Write the upper-case letters between

arrowheads.

D. Write the lower-case letters and symbols in

the area below the arrowhead.

To select an icon or button, please tap it with the

handwriting pen.

Note: Most letters can be written through

different stroke patterns. See the following

charts for more information. The upper case

and lower case depend on the location on the

screen, and are unrelated to the pattern.

Letters

Write the lower-case letters below the

arrowhead, and write the upper-case letters in

the line where the arrowhead is located.

Note: Start each stroke from the dots.

20 Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Accented symbols

When inputting an accented character, finish

inputting at a single attempt and then identify it;

the letters and accent can be input in the upper-

or lower-case letter area (below the arrowhead

or in the line where the arrowhead is located).

Extended symbols

Input the Latin characters by using the specific

stroke trace as a switch ( ).

21Getting to know the phone

This is the Internet version of the user's guide. © Print only for private use.

Input number characters

Write numbers above the arrowhead.

Note: Start each stroke from the dots.

Predictive text

You can use text prediction in all text

entry methods. The primary word or

next word suggestion is presented

where you are writing, additional

suggestions are presented in a

pre-edit box at the top of the screen.

To turn predictive text on

1 Select More >Text options.

2 Mark the Next word suggestions or

Predictive text check box to enable

enhanced Latin or Chinese text

prediction in the status bar.

Edit text

In the More menu you will find text

editing functions like copying, cutting

and pasting.

To highlight the text with the stylus

•Hold the stylus at the end of the text

for a short while then drag the stylus

across the text.

Text options

You can build your own dictionary

using My words, add symbols and

change text options in the More menu.

To add words to My words dictionary

1 Select More >Text options >My words.

2 Select Add.

3 Write the new word and select Done.

4 Select Save.

To add a symbol

1 Select More >Text options >Add

symbol to launch the symbols and

punctuation marks table.

2 Select the symbol you want to add.

To switch auto capitalization on

when input latin character

1 Select More >Text options when

imputting Latin characters.

2 Mark the Auto capitalization check

box to switch auto capitalization on.

Some text editing functions are available

only when the text is highlighted.

22 Calling

This is the Internet version of the user's guide. © Print only for private use.

Calling

Networks

Network coverage

To make or receive a phone call your

phone must be within range of a

network.

Home network

When you turn your phone on, it

automatically selects your home

network if it is within range.

Roaming

If your home network is not within

range, you may use another network

that is accepted by your operator. This

is called roaming.

Network settings

You can set how your phone should

choose an available network when you

are outside your operator’s coverage

area. From Standby you find the

settings in Main menu > Control

panel > Connections > Mobile

networks.

Making a call

To make a call from Standby

•Enter a phone number (including the

area number) from the keyboard and

select Call.

To make an international call

1 From Standby, press and hold

to get the international call prefix.

2 Enter the country/region code, area

code (without the first zero) and phone

number.

3Select Call.

To delete characters when dialling

•When entering a number you can

delete characters by pressing .

Hide or show your phone number

When calling, you can choose in the

More menu whether to show or hide

your phone number to the called

party.

Speed dial

You can save up to nine of your

contacts as Speed contacts. This

means that you can call them using

abbreviated numbers (numbers 1 – 9).

23Calling

This is the Internet version of the user's guide. © Print only for private use.

To set a speed contact (number)

1 From Standby select Main menu >

Phone >Speed contacts.

2 Scroll to an empty position and press

the Jog Dial.

3 Select a contact in the list and select

Save.

To make a call to a speed contact

1 From Standby press one of the keys 1

to 9 that corresponds to the stored

speed contact.

2 Select Call.

To make an emergency call

1 From Standby, enter the emergency

number on the keyboard.

2 Select Call.

Local SOS numbers

When dialling, you can find local SOS

numbers in the More menu.

Receiving a call

To answer a call

•Select Yes.

To reject a call with busy tone

•Select No.

Rejecting a call with an SMS

message

This feature means that you can reject

a call by sending a pre-defined SMS

text message to the caller. Before you

use it, enter the settings from Standby

in Main menu >Control panel >Call

settings >Reject with SMS.

Rejecting a call and setting a

reminder

This feature means that you will be

asked to set a follow-up reminder

every time you reject a call. Before you

use it, enter the settings from Standby

in Main menu >Control panel >Call

settings >Flag call.

To enable the speakerphone

•During a call, select More >

Speakerphone on.

To mute the microphone (shortcut)

•When you have answered a call, press

and hold .

To un-mute the microphone

(shortcut)

•When the microphone is muted, press

Usually no SIM card or PIN code is

required for emergency calls, but this

can be operator-dependant. Contact

your operator for more information.

24 Calling

This is the Internet version of the user's guide. © Print only for private use.

Handling two or more calls

You can handle multiple calls at the

same time:

•Put an ongoing call on hold and

start a new one, or answer an

incoming call.

•Start a conference call during an

ongoing call (operator-dependent).

•Extract one party in a conference

call for a private talk and put the

conference call on hold.

•Retrieve a held call, or end it.

Conference call

You can start a conference call if you

have one active call and one on hold.

The maximum number of conference

parties is five.

To make a conference call

1 Make a call and select Hold.

2 Repeat the above step for the desired

number of parties.

3 Select More >Start conference call.

Call log

You can find call information, such as

the type of call, time, date, phone

number and call length, in Main

menu >Phone >Call log. You can

also make a call or a call note directly

from this application.

Handsfree

If you connect a handsfree or a

Bluetooth™ headset to your phone,

you will need to set how to answer an

incoming call. From Standby select

Main menu >Control panel >Call

settings >Handsfree.

More features

Some other features that your phone

offers are:

•Accept calls – caller filter.

•Add to contacts – add contact data

from the last call.

•ALS – line settings, if your SIM card

supports two lines.

•Call meter – service to keep track of

the call costs.

•Calling cards – calling via a calling

card server.

•Call waiting – call waiting alert

option.

•Divert calls – divert calls option.

•Fixed numbers – only special

numbers can be called.

•My number – option to save your

own number.

•Restrict calls – options to set

roaming and international call

restrictions.

•TTY Accessory – use of a teletype

writer.

25Calling

This is the Internet version of the user's guide. © Print only for private use.

•Voicemail – “answering machine”.

•Voice control – you can call and

answer with voice commands.

Using contacts

To call a contact written in Chinese

characters

1 From Standby select > Contacts.

2 Press and select input

method to PinYin or Stroke, Then

enter the name of Chinese contacts

you want to call using keypad and

stylus.

3 When the contact is highlighted, press

the arrow icon to select a number >

Call.

To call a contact written in Latin

characters

1 From Standby select > Contacts.

2 Press and select input

method to English, Then enter the

name of contacts you want to call

using keypad and stylus.

3 When the contact is highlighted, press

the arrow icon to select a number >

Call.

To find service numbers on the SIM

card

1 From Standby select > Contacts.

2 Select More >View folder >SIM >

More >Service numbers.

Creating contacts

To create a new contact

1 From Standby select > Contacts.

2 Select More >New contact.

3 You can enter contact data on four

tabs.

4 Select Save.

Editing contacts

To add a field to a contact

1 From Standby select > Contacts.

2 Scroll to the desired contact and press

the Jog Dial.

3 Select More >Edit contact.

Many of these features are operator-

dependent and may not be available. For

more information about these, and other

features, see Phone, Contacts and

Control panel in the Web guide.

If you save your contacts’ phone

numbers in the international number

format, starting with +, you can call

directly from Contacts when you are

abroad.

26 Calling

This is the Internet version of the user's guide. © Print only for private use.

4 Select More >Add field and mark a

field.

5 Select Add.

To edit a contact on the SIM card

1 From Standby select > Contacts.

2 Select More >View folder >SIM.

3 Scroll to a contact and press the Jog

Dial.

4 Select More >Edit contact.

To add a stored picture to a contact

1 From Standby select > Contacts and

select a contact.

2 Select More >Edit contact.

3 Scroll to the Picture field and press

the Jog Dial.

4 Choose Select and scroll to a picture

you want to add.

5 Choose Select >Save.

To add a personal ringtone to a

contact

1 From Standby select > Contacts and

scroll to the desired contact.

2 Press the Jog Dial to open the entry.

3 Select the audio tab .

4 Select the ringtone drop-down menu >

select Find sound.

5 Scroll to the sound you want to add.

6 Choose Select.

7 Select More >Save.

Managing contacts

To copy a contact to another folder

1 From Standby select > Contacts and

scroll to a contact.

2Select More >Add to and select the

desired folder.

To delete a contact

1 From Standby select > Contacts and

scroll to a contact.

2Select More >Delete.

To copy contacts to the SIM card

1 From Standby select > Contacts.

2 Mark the desired entries in Contacts.

3Select More >Add to >SIM.

To copy contacts from the SIM card

1 From Standby select > Contacts.

2Select More >View folder >SIM to

open the SIM card.

3 Mark the desired entries.

4Select More >Copy to Contacts.

27Messaging

This is the Internet version of the user's guide. © Print only for private use.

Messaging

Before you use Messaging

Before you can send or receive any

messages (except for SMS text

messages) you need to set up the

necessary accounts. See the Help in

the phone or Setting up Internet, email

and MMS in the Web guide.

Messages

You can create, send, and receive

different types of messages:

You can also receive:

Folders

The different types of messages are

handled by different accounts. The

default account, Messages, handles

all messages except email messages.

Email messages are handled by email

accounts you create yourself. All

accounts consist of a number of

folders. You can switch between

folders by selecting the arrow icon

beside the folder name:

•Inbox in Messages – contains all

received messages except email

messages. In Control panel >

Device >Sounds & alerts >

Message alerts you can set how

you will be notified when a message

is received.

•Inbox in an email account –

contains the received email

messages for that particular

account.

•Outbox – contains messages ready

to be sent.

SMS (Short Message Service)

– text messages

MMS (Multimedia Message

Service) – can include text,

pictures and sound

Email messages

Beamed messages via

Bluetooth

Auto setup files for

configuring Internet, email

and MMS

Area information messages

such as local road reports

28 Messaging

This is the Internet version of the user's guide. © Print only for private use.

•Drafts – contains messages that are

not ready to be sent. When you are

creating a message, and exit the

message before sending it, you will

be asked if you want to save it. If

you select Yes, the message will

automatically be stored in this

folder.

•Sent – contains sent messages.

•SIM – a folder located on your SIM

card.

SMS

A message can contain up to 160

characters. Longer messages will be

sent as two or more separate

messages (concatenated), but will

usually be received as one message.

You can add smileys, pictures and

sounds to your messages.

To create and send an SMS

1 From Standby select or Main

menu >Messaging.

2 Select Create new message >SMS.

3 Highlight To: and write the telephone

number of the recipient or select To: >

Select contact and browse to your

contact.

4 Write the message and select Send.

MMS

Multimedia messages can include

pictures, video clips, animations and

sound, organized like a slide

presentation with time-based control

of playback.

If the sending or receiving of

messages is interrupted, the sending

or receiving will resume when it is

possible, without losing information.

Before you use MMS

Before you can send and receive

multimedia messages you need to

download MMS settings. See the Help

in the phone or Setting up Internet,

email and MMS in the Web guide.

29Messaging

This is the Internet version of the user's guide. © Print only for private use.

An overview of MMS

To create and send an MMS

1 From Standby select or Main

menu >Messaging.

2 Select Create new message >MMS.

3 Add picture, text and sound as

desired.

4 Select and fill in the recipient’s

details. To send a message to several

recipients, type a comma between

each address.

5 Select Done.

6 Select More > Send.

To read an MMS

•Select the new message.

1 Menu options. You can select

a template or what you want

to add to the message, for

example a picture or sound.

(If the menu is not open,

select Add.)

2Entry field (on the detail tab)

where you can create your

message

3 Playback buttons

4New page icon

where you can adjust when

and for how long your added

items will be shown

Select Close

1KB

Select template


Text

Scribble

Sound

Video

Record sound

MMS

1/1 5

76 Attachments tab. The tab is

only visible if Creation mode

in Main Menu >Control

panel >Messaging >MMS

account >More >

Advanced settings is set to

Free or Warning.

7 Address tab for the recipient

and other details

The first time you open the message it

plays automatically. After that, you have

to use the playback buttons to play it.

30 Messaging

This is the Internet version of the user's guide. © Print only for private use.

Before you use email

To use email you require an Internet

account and will need to download the

necessary email settings. See the Help

in the phone or Setting up Internet,

email and MMS in the Web guide.

Sending email messages

You can create email messages from

each email account.

To create and send an email

message

1 From Standby select or Main

menu >Messaging >your email

account.

2 Select New.

3 Highlight To: and write the telephone

number of the recipient or select To: >

Select contact and browse to your

contact. To send a message to several

recipients, type a comma between

each address.

4 Select Subject: and enter details.

5 Write your message and select Done.

6 Select Send. You will have the option

to send the message immediately, or

to save it to Outbox.

Receiving email

Email messages are downloaded from

the email server on the Internet or at

your office. You can download your

email manually or set when your

phone should check for new email.

To download email messages

manually

•From Standby select or Main

menu >Messaging >your email

account >More >Get & send.

To download messages

automatically

1 From Standby select Main menu >

Control panel >Messaging >Email

accounts.

2Select your email account >More >

Scheduled download.

3 Mark the Schedule download check

box and enter the times when you

would like to download email

messages.

4Select Save.

For IMAP accounts you can also select

Push email and have new email

messages pushed to your phone.

31Messaging

This is the Internet version of the user's guide. © Print only for private use.

To forward an email message

1From your email account in

Messaging scroll to the message you

wish to forward.

2 Select More >Forward.

Viewing messages

You can choose not to receive large

messages and only to receive a

header.

To download headers

1 From Standby select Main menu >

Control panel >Messaging > Email

accounts > your email account.

2 Select the Inbox tab.

3 Select Just headers from Download

restrictions.

4 Select Save.

To fit the text to the width of the

screen

1 From Standby select or Main

menu >Messaging > your email

account.

2 Scroll to and select a message.

3 Select More >Settings >Always fit

screen.

Viewing attachments

To view an attachment you need a

viewer for that type of file. Your phone

comes with pre-installed viewers for

Microsoft® Word, Excel,

PowerPoint®, and Adobe® Acrobat®

files.

More about Messaging

Deleting email

You can delete a message both locally

and on your email server. When you

delete it locally, the message body

and attachments are deleted but the

heading remains. You can download

the message again later with the Get &

send option. When you delete the

message on your server, it is deleted

both in your phone and on your server.

To find a message

1 From Standby select or Main

menu >Messaging.

2Select More >Find message to

search through the subject lines,

sender details and the text of the

message.

Large attachments increase the size of

an email and the connection time

needed to send it. It is possible to

choose whether to forward the

attachment.

In an open message, Find searches

through the message.

32 Messaging

This is the Internet version of the user's guide. © Print only for private use.

Saving contact details

When you receive a message, you can

save the contact details of the person

who sent the message.

To save a sender’s contact details

1 Select the sender’s name or email

address in the details tab or From: in

the address tab.

2 Select Add to Contacts.

Disconnecting from the Internet

If your phone is already connected to

the Internet when you send an email

message or an MMS message it

remains connected after sending.

To disconnect from the Internet

1 Select the connection icon, for

example , in the status bar.

2 In Connections manager, mark the

check box for your connection.

3 Select Close.

Invitations

If you receive an invitation to an

appointment via an email message,

and you accept, your calendar will be

updated automatically. You can also

reply to and forward an invitation.

Push email

With push email, email messages

received in your ordinary mailbox will

automatically be sent to your phone.

You can send messages from your

phone, and also use Calendar and

Contacts as if you were using the

ordinary email application in your

computer.

Depending on your operator and

market, you can have a different push

email client installed on your phone. If

your phone comes with Exchange

ActiveSync™, you can wirelessly

synchronize your phone with your

corporate email, calendar items and

contacts on a Microsoft® Exchange

Server. Exchange ActiveSync can be

found ready for setup from Tools >

Exchange ActiveSync or if not pre-

installed ready for installation from

Control panel > Other > Install.

You can only have one corporate push

email client installed on your phone.

IMAP Push email is available on your

phone besides your corporate push

email client.

33Messaging

This is the Internet version of the user's guide. © Print only for private use.

To set IMAP Push email

1 From Standby select Main menu >

Control panel >Messaging >Email

accounts >your email account.

2 Select the Basic tab.

3 Select IMAP in Connection type:.

4 Mark the Push email check box.

5 In Email accounts select More >

Always On push email.

6 Mark the Always On check box.

7 Select Save.

For more information on push email

contact your operator or your service

provider. For more information on how

to set up Exchange ActiveSync see

Messaging in the Web guide, or

contact your IT administrator.

34 Imaging

This is the Internet version of the user's guide. © Print only for private use.

Imaging

Camera

The 3.2 megapixel camera can take

both still pictures and video clips. You

can store them in the phone or send

them as MMS. Exposure control is

automatic and in bad light conditions

you can use the camera light.

To take a picture or a video clip

1 Press the camera button to activate

the camera.

2 Change the settings if necessary.

3 Press the camera button again to take

the picture.

500+

1. 0 x

+0.0

1 The icon row gives an

overview of the current

settings.

2 indicates picture mode and

indicate video mode. The

video icon turns red during

video recording.

3 Remaining number of pictures

or video time for the current

settings.

4 Exposure compensation. Use

the Jog Dial to change the

brightness.

5 Zoom scale. Use and

to zoom in or out.

6 View your pictures and clips.

7 Change the camera settings.

8 Change between picture and

video mode.

35Imaging

This is the Internet version of the user's guide. © Print only for private use.

Changing the camera settings

Most of the settings you make will

remain until you change them, even if

you have switched the camera or your

phone off.

To change the settings

1 Press the Jog Dial to open the list of

settings.

2 Rotate the Jog Dial to move through

the list and see the options for each

setting. Press the Jog Dial to select a

setting to change.

3 Rotate the Jog Dial to scroll through

the options and press it to select the

required option for the setting.

4 Press the back button to return to

camera mode.

The settings will vary depending on

whether picture or video mode is

selected. The settings are:

Press to see how you can use

the keypad keys as shortcuts for

some of the most frequently used

settings. Press the key again to

remove the description.

You can also select Settings and use

the stylus to change the settings.

Shoot mode – select what sort of

pictures to take. Burst takes four

pictures in rapid succession.

Frame size – select what picture

or video size to use. The Frame

size might decrease when you

zoom in.

Auto focus – allows the camera

to automatically focus the

camera lens.

Select Macro for extreme close-

ups.

Video file size – select

Messaging to limit the length

and size of video clips (when

recording) so that they can be

sent as MMS.

White balance – select an option

that matches the lighting

conditions.

Light – only for still pictures:

Select On to enable the photo

light.

36 Imaging

This is the Internet version of the user's guide. © Print only for private use.

Select Info to see a short description

of a highlighted setting.

To view pictures and clips

1Select View.

2 Use the Jog Dial to scroll through the

pictures and clips.

Use the touch options to manage the

viewer. More provides some useful

options.

Tapping the screen while playing a

video clip will pause the clip.

To send a picture or video clip as an

MMS

1Select Send to launch Messaging and

insert the picture or clip into an MMS.

2 Follow the instructions in the phone.

See also MMS on page 28.

To delete a video clip

1 In the viewer select More > Delete.

2Select Yes.

Microphone – only for recording

video clips:

Select Off to turn off sound

recording.

Effects – set and view different

effects before you take a picture.

Quality – select a quality level.

Night mode – increases the

exposure time for conditions

where the lighting is poor.

Save to – select if pictures and

clips will be saved to the Memory

Stick or the phone. If you select

Memory stick preferred they will

be stored on the phone when

there is no room left on the

Memory stick.

Auto review – show the picture

or video clip automatically after it

has been taken.

Shutter sound – select (or mute)

a shutter sound.

Self timer – select On to take

pictures and clips with a time

delay.

Reset file number – the next

pictures and clips you take are

automatically stored in a new

folder and file numbering

restarts.

37Imaging

This is the Internet version of the user's guide. © Print only for private use.

Picture gallery

In Picture gallery you can view, send

and use pictures saved in your phone

or on a Memory Stick.

To use a picture

1 From Standby select Main menu >

Multimedia >Picture gallery.

2 Select a picture.

3 Select More >Use as.

4 Select an option.

To show pictures as a slide show

1 From Standby select Main menu >

Multimedia >Picture gallery.

2 Browse to the folder containing the

pictures.

3 Select More >Slideshow >Slideshow

settings to, for example, set transition

effects and add a soundtrack.

4 Select More >Slideshow >Start

slideshow.

Remote screen

You can use a compatible Bluetooth™

accessory to view pictures on a

remote screen such as a TV. For a list

of compatible accessories go to

www.sonyericsson.com/cn.

To send pictures to a remote screen

1 From Standby select Main menu >

Multimedia >Picture gallery.

2 Select More >Use as and mark

Remote screen.

3 Select the Bluetooth™ accessory from

the list.

4 Open a picture. It will automatically be

sent to the remote screen.

Picture editor

Using Picture editor, you can crop,

rotate and resize images. You can add

layers with clipart and frames. There

are tools for drawing on the image

using the stylus, as well as a text tool

for formatting and inserting text into

the image. There are also filters for

effects and picture correction.

To edit a picture

1 From Standby select Main menu >

Multimedia >Picture gallery.

2 Select a picture.

3 Select More >Edit picture.

4 Select More >Help to read more

about the features and how to use

them.

When you insert a picture in an MMS

message you can open Picture editor

from there.

38 Entertainment

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

PlayNow™

PlayNow™ is an entertainment

download service. You can preview

content before purchase.

Before you use PlayNow™

To use PlayNow™ you need an

Internet connection. See Setting up

Internet, email and MMS in the Web

guide.

Previewing content

When you select content from

PlayNow™ a preview sample is

automatically downloaded and played.

To preview PlayNow™ content

1 From Standby select Main menu >

Multimedia >PlayNow™.

2 Select the song you wish to preview.

Purchasing content

When purchasing content from

PlayNow™, your phone bill or prepay

card will be debited the amount

specified in the Purchase dialog. A

text message is sent to you to confirm

payment.

To purchase PlayNow™ content

•When you have previewed a song,

select Yes in the Purchase dialog.

FM radio

To listen to the radio you need to

insert the handsfree, since the radio

uses the handsfree cable as antenna.

However, you can still listen to the

sound through the speaker.

To listen to the radio

1 Connect the handsfree to the phone.

2 From Standby select Main menu >

Entertainment >FM radio.

To automatically find and store radio

channels

•Select Main menu >Entertainment >

FM radio >More >Auto store.

To transfer the sound to the

loudspeaker

•When FM radio is open select and

select Speaker.

To minimize the radio

•When FM radio is open select

Minimize. The radio will continue

playing in the background.

To return to the radio

•Select in the status bar.

This service is not available in all

countries/regions.

39Entertainment

This is the Internet version of the user's guide. © Print only for private use.

Tuning and memory presets

To search for radio channels

•When FM radio is open select

or .

To tune manually

1 When FM radio is open select More >

Set frequency.

2 Enter the frequency using the keys, or

tune using the Jog Dial.

3 You can also select and hold or

to change the frequency in 0.1 MHz

steps.

To store a memory preset

1 When FM radio is open tune to the

desired channel and select More >

Save.

2 Select a preset number between 1 and

20 and select Insert.

To recall a memory preset

1 When FM radio is open select Presets.

2 Scroll to the desired channel and

press the Jog Dial.

RDS (Radio Data System)

The RDS functionality lets you set the

radio to automatically switch to a

channel when it is broadcasting a

Traffic announcement, , or

News announcement, . The

radio can also re-tune to the

Alternative frequency that gives

the best reception for the station you

have selected.

To access RDS settings

•When FM radio is open select More >

Settings >RDS options.

TrackID™

You can use TrackID™ to find out the

name of a song. The phone records a

short sample of the music and sends

the information to the TrackID™

database. If a match is found you will

see the name of the artist, the album

and the title of the song after a few

seconds. The TrackID™ service is

free, but your service provider may

charge for the data traffic.

You can use presets 1 to 10 by pressing

to and . Press and hold

to store, press briefly to recall.

This service is not available in all

countries/regions.

40 Entertainment

This is the Internet version of the user's guide. © Print only for private use.

Before you use TrackID™

To use TrackID™ you need an Internet

connection. See Setting up Internet,

email and MMS in the Web guide.

To identify a song on the radio

•When the radio is open, select More >

TrackID™.

To identify a song with the Sound

recorder

1 From Standby select Main menu >

Entertainment >Sound recorder.

2 Hold the phone close to the sound

source and select TrackID™.

Music player

Music player supports formats such

as MP3, WMA, WAV, AAC, AAC+ and

eAAC+.

The first time you open Music player,

or when you have transferred new

tracks to the phone, you need to

perform an update for the tracks to

appear in Music player.

To scan your phone and Memory

Stick for music

•From Standby select Main menu >

Entertainment >Music player >More

>Update music.

To play music

1 From Standby select Main menu >

Entertainment >Music player.

2 Browse for a track by Albums,Artists

or Playlists.

3 Scroll to the desired track and press

the Jog Dial.

Playback controls

To adjust the volume

•Rotate the Jog Dial.

To minimize the Music player

•When the Music player is open select

More >Minimize. The music will

continue to play. To return to the

Music player, tap in the status bar.

Play

Pause

Stop

Skip to previous track

Skip to next track

Loop the current collection

Open the Equalizer

When you are not in playback view, for

example, when the Music player is

minimized, tap and select Volume.

41Entertainment

This is the Internet version of the user's guide. © Print only for private use.

Playlists

A playlist describes which tracks to

play and in which order. The playlist

only contains links to the tracks, so

when you remove tracks from the

playlist, the actual sound files are not

deleted.

To create a playlist

•From Standby select Main menu >

Entertainment >Music player >

Playlists >New playlist.

To add songs to a playlist

1 Select one ore more tracks.

2 Select More >Manage >Add to

playlist.

Preferences

To set Music player preferences

1 From Standby select Main menu >

Entertainment >Music player >More

>Settings >Preferences.

2 Select Help to read more about the

different options.

Video

With Video, you can watch clips

stored on your phone as well as

streaming content from the Internet.

Video can play MPEG-4, H.263,

H.264, WMV9 and Real Video formats.

To play a video clip

1 From Standby select Main menu >

Entertainment >Video.

2 Navigate to the clip you want to

watch.

3 Press the Jog Dial.

To play streaming video

1 From Standby select Main menu >

Entertainment >Video >More >

Open link.

2 Enter the address to the streaming

content.

3 Select Open.

Playback controls

To move within a video clip

•Tap on the progress bar.

To switch to full screen view

•Tap the screen in the video playback

area.

Bookmarks

You can set a bookmark in a video

clip, and resume viewing from that

position at a later time.

To watch streaming video you need an

Internet connection. See Setting up

Internet, email and MMS in the Web

guide.

42 Entertainment

This is the Internet version of the user's guide. © Print only for private use.

To set a bookmark

•From playback view, select More >

Bookmark >Save position.

To resume playback from a

bookmark

1 Select a video clip.

2 Select Resume.

Web

The Web browser supports both

frames and JavaScript™. You can

switch between portrait and

landscape view, and change from

normal to full screen presentation.

Before you use Web

To use Web you need an Internet

connection. See Setting up Internet,

email and MMS in the Web guide.

To start the Web browser

•From Standby select Main menu >

Multimedia >Web.

Navigation

All navigation commands and settings

are available from the More menu. The

most common operations are also

available as keyboard shortcuts.

Press and then one of these keys

to:

Key Function

Go to Web page

Open the bookmarks list

Close the current page

Go to the homepage

Switch between loading and

not loading pictures

Switch between normal and

Full screen display

Switch to the next page

Open the Configuration menu

Add a bookmark for the

current page

Find (on the Internet or on the

current page)

Go to the top or bottom of the

page

Stop or Reload the current

page

43Entertainment

This is the Internet version of the user's guide. © Print only for private use.

Settings

To switch to landscape view

•With Web open select More >

Settings and mark the Landscape

check box.

To exit landscape view

•Select >Settings and unmark the

Landscape check box.

RSS feeds

RSS (Really Simple Syndication) feeds

allow you to see when Web sites have

added new content. You can, for

example, get the latest headlines

without having to visit the Web site.

You can add feeds directly in the RSS

reader. An easier way, however, is to

add feeds from within the Web

browser.

Before you use RSS feeds

To use RSS feeds you need an

Internet connection. See Setting up

Internet, email and MMS in the Web

guide.

To subscribe to an RSS feed

1 From Standby select Main menu >

Multimedia >RSS Feeds.

2 Select More >Add feed and enter the

address to the feed.

3 Select a folder to add the feed to.

To subscribe to an RSS feed from the

Web browser

1 From Standby select Main menu >

Multimedia >Web.

2 Navigate to a page that contains RSS

feeds.

3 Select More >Current page >RSS

feeds.

4 Select a feed and which folder to add

it to.

To view an RSS feed

1 From Standby select Main menu >

Multimedia >RSS Feeds.

2 Select a feed and select Open.

Lunar calender

You can look up the Lunar Calendar

correspondence for a specified date

ranging from January 1 1901 to

December 31 2100, where the current

day is highlighted in red and public

holidays are displayed in red fonts.

44 Entertainment

This is the Internet version of the user's guide. © Print only for private use.

To use the Lunar Calendar

•Click the button in the left of the

Month -Shows the previous month

within the current year; and displays

information for December of last year

if it were January currently.

•Click the button in the right of the

Month - Shows the next month within

the current year; and displays

information for January of the

following year if it were December

currently.

•Click the Month - Displays the list of

months.

•Click the button in the left of the Year -

Shows the information for the current

month of last year.

•Click the button in the right of the Year

- Shows the information for the current

month of next year.

•Click the Year - Displays the list of

years. You can also use Jog Dial for

some operations:

•When the Year / Month list appears,

rotate Jog Dial up or down and then

Jog Dial inwards to select the desired

year or month.

45Connectivity

This is the Internet version of the user's guide. © Print only for private use.

Connectivity

Bluetooth™ wireless

technology

To turn on Bluetooth™ connection

1 From Standby select Main menu >

Control panel >Connections >

Bluetooth.

2 Select the Settings tab and mark

the Bluetooth on check box.

Pairing

For all tasks, except for a single file

transfer, it is necessary to set up a

permanent and trusted relationship

between your phone and the other

device. This is called pairing (or

bonding).

To pair with another Bluetooth™

device

1 From Standby select Main menu >

Control panel >Connections >

Bluetooth.

2 Select the Devices tab >New

device.

3 Select the device in the list.

4 If you are asked to, enter the

passcode (also called passkey).

Infrared

Sending and receiving files

When you connect your phone to

another device using an infrared link,

the ports of both devices have to be

within one metre from each other, in

line of sight, and at an angle of no

more than 30 degrees.

From any application with a Send as

option, you can send a file using

infrared. The infrared port will switch

on automatically and switch off when

the file has been transferred.

To send a file

•Select the file you want to send.

•Select More >Send as >IR.

To receive a file

1 From Standby select Control panel >

Connections >Infrared.

2 Select On or On for 10 minutes.

3 Start the transfer from the other

device.

4 By default transferred files are stored

in the Inbox in the Messaging

application.

46 Connectivity

This is the Internet version of the user's guide. © Print only for private use.

Connections manager

Connections manager lets you view

and close all open Internet

connections. You can also view and

reset logs for both open and closed

connections.

To open connections manager

•From Standby select Main menu >

Tools > Connections mgr.

To reset logs

1 From Standby select Main menu >

Tools > Connections mgr.

2 Select the log you want to reset.

3 Select More > Reset log.

Connecting to other devices

You can exchange information

between your phone and another

device using a Bluetooth device or a

USB cable. You can:

•Send a file.

•Use a Bluetooth headset in a phone

call.

•Synchronize calendar events and

contacts with your computer.

•Back up phone data to a computer.

•Use your phone as a computer

modem.

Transfer files using the USB

cable

With the USB cable you can transfer

files between your phone and a

computer.

Before connecting the USB cable

Before you connect the USB cable to

the computer, install the

Sony Ericsson PC Suite for

Smartphones on the computer. The

software is included on the CD that

comes with your phone or go to

www.sonyericsson.com/cn.

File transfer

With your phone set into file transfer

mode you can drag and drop files

between the phone and the computer

in Microsoft® Windows® Explorer.

You can also use the Sony

Disc2Phone and Adobe®

Photoshop® Album SE computer

applications to transfer music and

image files. The applications are

available on the CD that comes with

your phone or can be downloaded

from www.sonyericsson.com/cn.

Do not remove the USB cable from the

phone or computer during file transfer as

this may cause a loss of your data.

47Connectivity

This is the Internet version of the user's guide. © Print only for private use.

To use the file transfer mode

1 Connect the USB cable to the phone

and the computer.

2Phone: Select File transfer.

3Computer: Wait until your phone

memory and memory card, if inserted,

appear as external disks in Windows

Explorer.

4 Use Windows Explorer, Sony

Disc2Phone or Adobe Photoshop

Album Starter Edition to transfer files.

To disconnect the USB cable safely

using file transfer mode

1Computer: Right-click on the

removable disk icon in Windows

Explorer.

2Computer: Select Eject.

3 Remove the USB cable from your

phone.

Phone mode

With phone mode you can use your

your computer to synchronize

contacts and calendar, transfer files,

use the phone as modem and more.

Applications supported in phone

mode are:

•Synchronization

•File manager

•Mobile Networking Wizard

For other applications, use the file

transfer mode.

To use the phone mode

1Computer: Install the Sony Ericsson

PC Suite for Smartphones before

connecting the USB cable to the

computer.

2Computer: Start the Sony Ericsson

PC Suite for Smartphones.

3 Connect the USB Cable to the phone

and the computer.

4Phone: Select Phone mode.

5Computer: Wait while Windows

installs the required drivers.

Computer modem

Through the Sony Ericsson PC Suite

for Smartphones, a computer can use

your phone as a modem for

connecting to the Internet. For more

information see Connecting to other

devices in the Web guide.

All applications that you can use with

your connected phone are found in the

Sony Ericsson PC Suite for

Smartphones.

48 Connectivity

PC Suite

The Sony Ericsson PC Suite for

Smartphones software is delivered

with your phone on a CD. You can use

it for many things, such as

synchronizing your phone with a

computer and making backups of

phone data, see PC Suite in the Web

guide.

Synchronization

To synchronize your phone using PC

Suite

1 Connect your phone to the computer

with the USB cable.

2Phone: Select Phone mode on the

phone.

3Computer: Select Start/Programs/

Sony Ericsson/Sony Ericsson PC Suite

for Smartphones. The application

starts.

4Computer: Wait until your phone is

connected which it is when the

Synchronize Now button lights green.

5Computer: Click Synchronize Now.

Wap push

To set up your phone to handle

incoming Wap push messages

1 From Standby select Main menu >

Control panel >Messaging >WAP

push.

2Select Automatically to receive Wap

push service loading messages

without being prompted.

Certificate manager and Java

certificates

Digital certificates are used to verify

the origin of the Web pages you visit

or any software you install.

To view user and CA certificates in

your phone.

•From Standby select Main menu >

Control panel >Security >Certificate

manager.

49More features

More features

Business card scanner

With Business card scanner you can

scan a business card and add the

contact details to your contacts.

To scan a business card

1 From standby select Main menu >

Office >Business card scanner.

2 Select Capture to activate the camera.

3 Take a picture of the business card by

pressing the camera button.

You can add the details to your

contacts now or you can choose to

do this later. You can find the

scanned business cards in Main

menu >Office >Business card

scanner >Browse.

To add business card details to

Contacts

1 Scan a business card or open a

previously scanned card. Select

Process.

2 Adjust the contact entry fields if

necessary.

3 Select Save.

Managing files and

applications

File manager

With File manager you can view,

rename, copy, move and delete files

and folders on the phone memory and

on Memory Sticks. The File manager

view is displayed in two tabs. tab

for the phone memory and tab for

the Memory Stick.

To open File manager

•From Standby select Main menu >

Tools >File manager.

Protected files

Downloaded or received files may be

protection may prevent content from

being copied, modified or transferred.

If a file is copyright protected, or if a

license has expired or is unavailable,

is displayed next to the file name.

Deleting a business card will not delete

the contact entry.

Information that could not be placed into

a field will be saved in the tab in the

contact entry. You can copy and paste

this text into appropriate fields.

50 More features

Format disk

Memory Sticks are normally formatted

the first time they are inserted in the

phone.

To format a Memory Stick

From Standby select Main menu >

Tools >File manager >More >

Device >Format Memory Stick >

Format.

Installing applications

To install an application

1 From Standby select Main menu >

Control panel >Other >Install.

2 Select the application and select

Details to view information about the

certificate.

3 If the certificate details are OK, select

Install and follow the instructions in

the phone. The application will be

installed in Tools folder.

To remove an application

1 From Standby select Main menu >

Control panel >Other > Uninstall.

2 Select the application and select

Uninstall.

Master reset

To reset the phone

1 From Standby select Main menu >

Control panel >Other >Master reset.

2 If you want to keep installed

applications, unmark Delete all user

installed applications.

3Select Delete.

All information on the Memory Stick will

be deleted during formatting.

Do not remove a Memory Stick during

formatting.

Install applications and other content

you use often, for example, ringtones in

the phone memory. The Memory Stick is

sometimes unavailable when the phone

is connected to a computer.

In Main menu >Multimedia >More

applications you will find links to

additional applications for your phone.

Some of them are free of charge or free

to try out.

All user data, as well as preinstalled

media files (including, for example,

backgrounds, ringtones and pictures),

will be deleted and factory settings

restored.

If you back up your user data using the

Sony Ericsson PC Suite for

Smartphones, you can restore it after a

master reset.

51More features

4 Select Yes.

5 Enter the phone lock code and select

Yes.

Shortcut button

The shortcut button opens the phone

browser. It can also be set to open:

•Main menu

•Music player

•Sound recorder

•Standby

•Task manager

•Video telephony

To personalize the shortcut button

•From Standby select Main menu >

Control panel >Device >Shortcut

button.

Power save

To save power, you can set the

display to go blank after a period of

inactivity.

To enable Power save

1 From Standby select Main menu >

Control panel >Device >Backlight.

2 Mark the Power save enabled check

box.

Screen saver

You can use a picture, or several

pictures in a slideshow, as screen

saver.

To set a screen saver

•From Standby select Main menu >

Control panel >Device >Screen

saver.

Select Help to read more about the

options.

52 Important information

Important information

Sony Ericsson Consumer Web site

On www.sonyericsson.com/cn there is

a support section where help and tips

are only a few clicks away. Here you

will find the latest computer software

updates and tips on how to use your

product more efficiently.

Service and support

From now on you will have access to a portfolio of

exclusive service advantages such as:

• Global and local websites providing support.

• A global network of Call Centers.

• An extensive network of Sony Ericsson service

partners.

• A warranty period. Learn more about the warranty

conditions in this User guide.

On www.sonyericsson.com, under the support

section in the language of your choice, you will find

the latest support tools and information, such as

software updates, Knowledge base, phone setup

and additional help when you require it.

For operator-specific services and features, please

contact your network operator for more

information.

You can also contact our Call Centers. See the

phone number for the nearest Call Center in the list

below. If your country/region is not represented in

the list, please contact your local dealer. (The

phone numbers below were correct at the time of

going to print. On www.sonyericsson.com you can

always find the latest updates.

In the unlikely event that your product needs

service please contact the dealer from whom it was

purchased or one of our service partners. Save

your original proof of purchase, you will need it if

you need to claim warranty.

For a call to one of our Call Centers you will be

charged according to national rates, including local

taxes, unless the phone number is a toll-free

number.

Country Phone number Email address

Argentina 800-333-7427 questions.AR@support.sonyericsson.com

Australia 1-300 650 050 questions.AU@support.sonyericsson.com

Austria 0810 200245 questions.AT@support.sonyericsson.com

Belgium 02-7451611 questions.BE@support.sonyericsson.com

Brazil 4001-0444 questions.BR@support.sonyericsson.com

Canada 1-866-766-9374 questions.CA@support.sonyericsson.com

Central Africa +27 112589023 questions.CF@support.sonyericsson.com

Chile 123-0020-0656 questions.CL@support.sonyericsson.com

China 4008100000 questions.CN@support.sonyericsson.com

Colombia 18009122135 questions.CO@support.sonyericsson.com

Croatia 062 000 000 questions.HR@support.sonyericsson.com

Czech Republic 844 550 055 questions.CZ@support.sonyericsson.com

Denmark 33 31 28 28 questions.DK@support.sonyericsson.com

Finland 09-299 2000 questions.FI@support.sonyericsson.com

53Important information

France 0 825 383 383 questions.FR@support.sonyericsson.com

Germany 0180 534 2020 questions.DE@support.sonyericsson.com

Greece 801-11-810-810 questions.GR@support.sonyericsson.com

210-89 91 919 (from mobile)

Hong Kong 8203 8863 questions.HK@support.sonyericsson.com

Hungary +36 1 880 4747 questions.HU@support.sonyericsson.com

India 1800 11 1800 (toll free number) questions.IN@support.sonyericsson.com

39011111 (from mobile phone)

Indonesia 021-2701388 questions.ID@support.sonyericsson.com

Ireland 1850 545 888 questions.IE@support.sonyericsson.com

Italy 06 48895206 questions.IT@support.sonyericsson.com

Lithuania 8 700 55030 questions.LT@support.sonyericsson.com

Malaysia 1-800-889900 questions.MY@support.sonyericsson.com

Mexico 01 800 000 4722 questions.MX@support.sonyericsson.com

Netherlands 0900 899 8318 questions.NL@support.sonyericsson.com

New Zealand 0800-100150 questions.NZ@support.sonyericsson.com

Norway 815 00 840 questions.NO@support.sonyericsson.com

Pakistan 111 22 55 73 questions.PK@support.sonyericsson.com

Outside Karachi: (92-21) 111 22 55 73

Philippines +63 (02) 7891860 questions.PH@support.sonyericsson.com

Poland 0 (prefix) 22 6916200 questions.PL@support.sonyericsson.com

Portugal 808 204 466 questions.PT@support.sonyericsson.com

Romania (+4021) 401 0401 questions.RO@support.sonyericsson.com

Russia 8(495) 787 0986 questions.RU@support.sonyericsson.com

Singapore 67440733 questions.SG@support.sonyericsson.com

Slovakia 02-5443 6443 questions.SK@support.sonyericsson.com

South Africa 0861 632222 questions.ZA@support.sonyericsson.com

Spain 902 180 576 questions.ES@support.sonyericsson.com

Sweden 013-24 45 00 questions.SE@support.sonyericsson.com

Switzerland 0848 824 040 questions.CH@support.sonyericsson.com

Taiwan 02-25625511 questions.TW@support.sonyericsson.com

Thailand 02-2483030 questions.TH@support.sonyericsson.com

Turkey 0212 47 37 777 questions.TR@support.sonyericsson.com

Ukraine (+380) 44 590 1515 questions.UA@support.sonyericsson.com

United Arab Emirates 43 919880 questions.AE@support.sonyericsson.com

United Kingdom 08705 23 7237 questions.GB@support.sonyericsson.com

United States 1-866-766-9374 questions.US@support.sonyericsson.com

54 Important information

Venezuela 0-800-100-2250 questions.VE@support.sonyericsson.com

Vietnam 111 2255 73 questions.VN@support.sonyericsson.com

Guidelines for Safe and Efficient Use

Please read this information before

using your mobile phone.

These instructions are intended for

your safety. Please follow these

guidelines. If the product has been

subject to any of the conditions listed

below or you have any doubt as to its proper

function make sure you have the product checked

by a certified service partner before charging or

using it. Failure to do so might entail a risk of

product malfunction or even a potential hazard to

your health.

Recommendations for safe use of

product (mobile phone, battery,

charger and other accessories)

• Always treat your product with care and keep it in a

clean and dust-free place.

• Warning! May explode if disposed of in fire.

• Do not expose your product to liquid or moisture or

humidity.

• Do not expose your product to

extremely high or low temperatures.

Do not expose the battery to

temperatures above +60°C (+140°F).

• Do not expose your product to open

flames or lit tobacco products.

• Do not drop, throw or try to bend your product.

• Do not paint your product.

• Do not attempt to disassemble or

modify your product. Only Sony

Ericsson authorized personnel should

perform service.

• Do not use your product near medical

equipment without requesting

permission from your treating physician or

authorized medical staff.

• Do not use your product when in, or around

aircraft, or areas showing the sign “turn off two-way

radio”.

• Do not use your product in an area

where a potentially explosive

atmosphere exists.

• Do not place your product or install

wireless equipment in the area above

an air bag in your car.

• "Caution! Cracked or broken displays may create

sharp edges or splinters that could be harmful upon

contact.

CHILDREN

KEEP OUT OF CHILDRENS REACH.

DO NOT ALLOW CHILDREN TO PLAY

WITH YOUR MOBILE PHONE OR ITS

ACCESSORIES. THEY COULD HURT

THEMSELVES OR OTHERS, OR COULD

ACCIDENTALLY DAMAGE THE MOBILE PHONE

OR ACCESSORY. YOUR MOBILE PHONE OR ITS

ACCESSORY MAY CONTAIN SMALL PARTS THAT

COULD BECOME DETACHED AND CREATE A

CHOKING HAZARD.

Power supply (Charger)

Connect the AC power adapter only to designated

power sources as marked on the product. Make

sure the cord is positioned so that it will not be

subjected to damage or stress. To reduce risk of

electric shock, unplug the unit from any power

source before attempting to clean it. The AC power

adapter must not be used outdoors or in damp

areas. Never alter the cord or plug. If the plug does

not fit into the outlet, have a proper outlet installed

by a qualified electrician.

55Important information

Use only Sony Ericsson branded original chargers

intended for use with your mobile phone. Other

chargers may not be designed to the same safety

and performance standards.

Battery

We recommend that you fully charge the battery

before you use your mobile phone for the first time.

A new battery or one that has not been used for a

long time could have reduced capacity the first few

times it is used. The battery should only be charged

in temperatures between +5°C (+41°F) and +45°C

(+113°F).

Use only Sony Ericsson branded original batteries

intended for use with your mobile phone. Using

other batteries and chargers could be dangerous.

Talk and standby times depend on several different

conditions such as signal strength, operating

temperature, application usage patterns, features

selected and voice or data transmissions when the

mobile phone is being used.

Turn off your mobile phone before removing the

battery. Do not put the battery into your mouth.

Battery electrolytes may be toxic if swallowed. Do

not let the metal contacts on the battery touch

another metal object. Doing this could short-circuit

and damage the battery. Use the battery for the

intended purpose only.

Personal medical devices

Mobile phones may affect the operation of

pacemakers and other implanted equipment.

Please avoid placing the mobile phone over the

pacemaker, e.g. in your breast pocket. When using

the mobile phone, use it at the ear on the opposite

side of the body to the pacemaker. If a minimum

distance of 15 cm (6 inches) is kept between the

mobile phone and the pacemaker, the risk of

interference is limited. If you have any reason to

suspect that interference is taking place,

immediately turn off your mobile phone. Contact

your cardiologist for more information.

For other medical devices, please consult your

physician and the manufacturer of the device.

Driving

Please check if local laws and regulations restrict

the use of mobile phones while driving or require

drivers to use handsfree solutions. We recommend

that you use only Sony Ericsson handsfree

solutions intended for use with your product.

Please note that because of possible interference

to electronic equipment, some vehicle

manufacturers forbid the use of mobile phones in

their vehicles unless a handsfree kit with an

external antenna has been installed.

Always pay full attention to driving and pull off the

road and park before making or answering a call if

driving conditions so require.

Emergency calls

Mobile phones operate using radio signals, which

cannot guarantee connection in all conditions. You

should therefore never rely solely upon any mobile

phone for essential communications (e.g. medical

emergencies).

Emergency calls may not be possible in all areas,

on all cellular networks, or when certain network

services and/or mobile phone features are in use.

Check with your local service provider.

Antenna

This phone contains a built-in antenna. Use of

antenna devices not marketed by Sony Ericsson

specifically for this model could damage your

mobile phone, reduce performance, and produce

SAR levels above the established limits (see below).

56 Important information

Efficient use

Hold your mobile phone as you would any other

phone. Do not cover the top of the phone when it is

in use, as this affects call quality and may cause the

phone to operate at a higher power level than

needed, thus shortening talk and standby times.

Radio frequency (RF) exposure and

Specific Absorption Rate (SAR)

Your mobile phone is a low-power radio transmitter

and receiver. When it is turned on, it emits low

levels of radio frequency energy (also known as

radio waves or radio frequency fields).

Governments around the world have adopted

comprehensive international safety guidelines,

developed by scientific organizations, e.g. ICNIRP

(International Commission on Non-Ionizing

Radiation Protection) and IEEE (The Institute of

Electrical and Electronics Engineers Inc.), through

periodic and thorough evaluation of scientific

studies. These guidelines establish permitted levels

of radio wave exposure for the general population.

The levels include a safety margin designed to

assure the safety of all persons, regardless of age

and health, and to account for any variations in

measurements.

Specific Absorption Rate (SAR) is the unit of

measurement for the amount of radio frequency

energy absorbed by the body when using a mobile

phone. The SAR value is determined at the highest

certified power level in laboratory conditions, but

the actual SAR level of the mobile phone while it is

operating can be well below this value. This is

because the mobile phone is designed to use the

minimum power required to reach the network.

Variations in SAR below the radio frequency

exposure guidelines do not mean that there are

variations in safety. While there may be differences

in SAR levels among mobile phones, all Sony

Ericsson mobile phone models are designed to

meet radio frequency exposure guidelines.

For phones sold in the US, before a phone model is

available for sale to the public, it must be tested

and certified by the Federal Communications

Commission (FCC) that it does not exceed the limit

established by the government-adopted

requirement for safe exposure. The tests are

performed in positions and locations (that is, at the

ear and worn on the body) as required by the FCC

for each model. For body-worn operation, this

phone has been tested and meets FCC RF

exposure guidelines when the handset is

positioned a minimum of 15 mm from the body

without any metal parts in the vicinity of the phone

or when used with the original Sony Ericsson

accessory intended for this phone and worn on the

body. Use of other accessories may not ensure

compliance with FCC RF exposure guidelines.

A separate leaflet with SAR information about this

mobile phone model is included with the material

accompanying this mobile phone. This information

can also be found, together with more information

on radio frequency exposure and SAR, at

www.sonyericsson.com/health.

Accessible Solutions/Special Needs

For phones sold in the US, you can use your TTY

terminal with your Sony Ericsson mobile phone

(with the necessary accessory). For information on

Accessible Solutions for individuals with special

needs call the Sony Ericsson Special Needs Center

on 877-878-1996 (TTY) or 877-207-2056 (voice), or

visit the Sony Ericsson Special Needs Center at

www.sonyericsson-snc.com.

57Important information

Disposal of old electrical

and electronic equipment

This symbol indicates that all

electrical and electronic equipment

included shall not be treated as

household waste. Instead it shall be left at the

appropriate collection point for recycling of

electrical and electronic equipment. By ensuring

this product is disposed of correctly, you will help

prevent potential negative consequences for the

environment and human health, which could

otherwise be caused by inappropriate waste

handling of this product. The recycling of materials

will help to conserve natural resources. For more

detailed information about recycling this product,

please contact your local city office, your

household waste disposal service or the shop

where you purchased the product.

Disposing of the battery

Please check local regulations for

disposal of batteries or call your local

Sony Ericsson Call Center for

information.

The battery should never be placed in municipal

waste. Use a battery disposal facility if available.

Declaration of substances

When this product is operated under the conditions

in the product manual, the environmental

protection period (EPUP) is 20 years.

7R[LFRUKD]DUGRXVVXEVWDQFHV

3DUW1DPH 0HUFXU\

+J

&DGPLXP

&G

+H[DYDOHQW

FKURPLXP

&U

3RO\EURPLQDWHG

ELSKHQ\OV

3%%

3RO\EURPLQDWHG

GLSKHQ\O

HWKHUV3%'(

3KRQH ; 2 2 2 2 2

%DWWHU\ ; 2 2 2 2 2

$FFHVVRULHV

DQGFKDUJHU ; 2 2 2 2 2

,QGLFDWHVWKDWWKLVWR[LFRUKD]DUGRXVVXEVWDQFHFRQWDLQHGLQDOORIWKHKRPRJHQHRXV

PDWHULDOVIRUWKLVSDUWLVEHORZWKHOLPLWUHTXLUHPHQWLQ6-7

;

,QGLFDWHVWKDWWKLVWR[LFRUKD]DUGRXVVXEVWDQFHFRQWDLQHGLQDWOHDVWRQHRIWKH

KRPRJHQHRXVPDWHULDOVXVHGIRUWKLVSDUWLVDERYHWKHOLPLWUHTXLUHPHQWLQ6-7

&XUUHQWO\WKHUHDUHQRDOWHUQDWLYHWHFKQRORJLHVDYDLODEOH)



58 Important information

Memory card

Your phone comes complete with a removable

memory card, which may not be compatible with

other devices. Always check other devices for

compatibility before purchase or use.

Memory cards are generally formatted prior to

shipping. To reformat the memory card, use a

compatible device. Do not use the standard

operating system format when formatting the

memory card on a PC. For details, refer to the

operating instructions of the memory card or

contact customer support.

WARNING:

If the memory card requires an adapter for insertion

into the phone or another device, do not insert the

memory card directly without the required adapter.

Precautions on memory card use:

• Do not expose the memory card to moisture.

• Do not touch terminal connections with your hand

or any metal object.

• Do not strike, bend, or drop the memory card.

• Do not attempt to disassemble or modify the

memory card.

• Do not use or store the memory card in humid or

corrosive locations or in excessive heat such as a

closed car in summer, in direct sunlight or near a

heater, etc.

• Do not press or bend the end of the memory card

adapter with excessive force.

• Do not let dirt, dust, or foreign objects get into the

insert port of any memory card adapter.

• Check you have inserted the memory card

correctly.

• Insert the memory card as far as it will go into any

memory card adapter needed. The memory card

may not operate properly unless fully inserted.

• We recommend that you make a backup copy of

important data. We are not responsible for any loss

or damage to content you store on the memory

card.

• Recorded data may be damaged or lost when you

remove the memory card or memory card adapter,

turn off the power while formatting, reading or

writing data, or use the memory card in locations

subject to static electricity or high electrical field

emissions.

Protection of personal information

To safeguard your privacy and prevent information

being accessible to a third party, you should erase

all personal data before selling or disposing of the

product. To delete personal data, perform a master

reset and remove the memory card. DELETION OF

MATERIAL FROM THE PHONE MEMORY DOES

NOT ENSURE THAT SAID INFORMATION

CANNOT BE RECOVERED BY A SUBSEQUENT

USER. SONY ERICSSON DOES NOT WARRANT

AGAINST A SUBSEQUENT USER OF THE DEVICE

ACCESSING YOUR INFORMATION AND DOES

NOT ASSUME ANY RESPONSIBILITY FOR

SUBSEQUENT DISCLOSURE OF SAID

INFORMATION EVEN IF A MASTER RESET HAS

BEEN PERFORMED. If you are concerned about

such potential disclosure retain your device or

secure its permanent destruction.

Accessories

Sony Ericsson recommends use of Sony Ericsson

original accessories for safe and efficient use of its

products. Use of third-party accessories may

decrease performance or pose a risk to your health

or safety.

LOUDNESS WARNING:

Please adjust the audio volume cautiously when

using third-party audio accessories to avoid

volume levels that may be harmful to your hearing.

Sony Ericsson does not test use of third-party

audio accessories with this mobile phone. Sony

Ericsson recommends using only Sony Ericsson

original audio accessories.

59Important information

End User Licence Agreement

This wireless device, including without limitation

any media delivered with the device, (“Device”)

contains software owned by Sony Ericsson Mobile

Communications AB and its affiliated companies

(“Sony Ericsson”) and its third party suppliers and

licensors (“Software”).

As user of this Device, Sony Ericsson grants you a

non-exclusive, non-transferable, non-assignable

license to use the Software solely in conjunction

with the Device on which it is installed and/or

delivered with. Nothing herein shall be construed as

a sale of the Software to a user of this Device.

You shall not reproduce, modify, distribute, reverse

engineer, decompile, otherwise alter or use any

other means to discover the source code of the

Software or any component of the Software. For

avoidance of doubt, you are at all times entitled to

transfer all rights and obligations to the Software to

a third party, solely together with the Device with

which you received the Software, provided always

that such third party agrees in writing to be bound

by these rules.

You are granted this license for a term of the useful

life of this Device. You can terminate this license by

transferring all your rights to the Device on which

you have received the Software to a third party in

writing. If you fail to comply with any of the terms

and conditions set out in this license, it will

terminate with immediate effect.

Sony Ericsson and its third party suppliers and

licensors are the sole and exclusive owner of and

retain all rights, title and interest in and to the

Software. Sony Ericsson, and, to the extent that the

Software contains material or code of a third party,

such third party, shall be entitled third party

beneficiaries of these terms.

The validity, construction and performance of this

license shall be governed by the laws of Sweden.

The foregoing shall apply to the full extent

permitted by, when applicable, statutory

consumer rights.

Limited Warranty

Sony Ericsson Mobile Communications AB, Nya

Vattentornet, SE-221 88 Lund, Sweden, (Sony

Ericsson) or its local affiliated company, provides

this Limited Warranty for your mobile phone and

original accessory delivered with your mobile

phone (hereinafter referred to as “Product”).

Should your Product need warranty service, please

return it to the dealer from whom it was purchased,

or contact your local Sony Ericsson Call Center

(national rates may apply) or visit

www.sonyericsson.com to get further information.

OUR WARRANTY

Subject to the conditions of this Limited Warranty,

Sony Ericsson warrants this Product to be free from

defects in design, material and workmanship at the

time of its original purchase by a consumer. This

Limited Warranty will last for a period of one (1)year

as from the original date of purchase of the

Product.

WHAT WE WILL DO

If, during the warranty period, this Product fails to

operate under normal use and service, due to

defects in design, materials or workmanship, Sony

Ericsson authorized distributors or service partners,

in the country/region* where you purchased the

Product, will, at their option, either repair or replace

the Product in accordance with the terms and

conditions stipulated herein.

Sony Ericsson and its service partners reserve the

right to charge a handling fee if a returned Product

is found not to be under warranty according to the

conditions below.

60 Important information

Please note that some of your personal settings,

downloads and other information may be lost when

your Sony Ericsson Product is repaired or replaced.

At present Sony Ericsson may be prevented by

applicable law, other regulation or technical

restrictions from making a backup copy of certain

downloads. Sony Ericsson does not take any

responsibility for any lost information of any kind

and will not reimburse you for any such loss. You

should always make backup copies of all the

information stored on your Sony Ericsson Product

such as downloads, calendar and contacts before

handing in your Sony Ericsson Product for repair or

replacement.

CONDITIONS

1 This Limited Warranty is valid only if the original

proof of purchase for this Product issued by a Sony

Ericsson authorized dealer specifying the date of

purchase and serial number**, is presented with the

Product to be repaired or replaced. Sony Ericsson

reserves the right to refuse warranty service if this

information has been removed or changed after the

original purchase of the Product from the dealer.

2 If Sony Ericsson repairs or replaces the Product,

the repair for the defect concerned, or the replaced

Product shall be warranted for the remaining time

of the original warranty period or for ninety (90)

days from the date of repair, whichever is longer.

Repair or replacement may involve the use of

functionally equivalent reconditioned units.

Replaced parts or components will become the

property of Sony Ericsson.

3 This warranty does not cover any failure of the

Product due to normal tear and wear, or due to

misuse, including but not limited to use in other

than the normal and customary manner, in

accordance with the Sony Ericsson instructions for

use and maintenance of the Product. Nor does this

warranty cover any failure of the Product due to

accident, software or hardware modification or

adjustment, acts of God or damage resulting from

liquid.

A rechargeable battery can be charged and

discharged more than a hundred times. However, it

will eventually wear out – this is not a defect and

corresponds to normal wear and tear. When the

talk-time or standby time is noticeably shorter, it is

time to replace your battery. Sony Ericsson

recommends that you use only batteries and

chargers approved by Sony Ericsson.

Minor variations in display brightness and colour

may occur between the phones. There may be tiny

bright or dark dots on the display. These are called

defective pixels and occur when individual dots

have malfunctioned and can not be adjusted. Two

defective pixels are deemed acceptable.

Minor variations in camera image appearance may

occur between phones. This is nothing uncommon

and is not regarded as a defective camera module.

4 Since the cellular system on which the Product is to

operate is provided by a carrier independent from

Sony Ericsson, Sony Ericsson will not be

responsible for the operation, availability, coverage,

services or range of that system.

5 This warranty does not cover Product failures

caused by installations, modifications, or repair or

opening of the Product performed by a non-Sony

Ericsson authorised person.

61Important information

6 The warranty does not cover Product failures which

have been caused by use of accessories or other

peripheral devices which are not Sony Ericsson

branded original accessories intended for use with

the Product.

7 Tampering with any of the seals on the Product will

void the warranty.

8 THERE ARE NO EXPRESS WARRANTIES,

WHETHER WRITTEN OR ORAL, OTHER THAN

THIS PRINTED LIMITED WARRANTY. ALL

IMPLIED WARRANTIES, INCLUDING WITHOUT

LIMITATION THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE, ARE LIMITED TO THE

DURATION OF THIS LIMITED WARRANTY. IN NO

EVENT SHALL SONY ERICSSON OR ITS

LICENSORS BE LIABLE FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES OF ANY NATURE

WHATSOEVER, INCLUDING BUT NOT LIMITED

TO LOST PROFITS OR COMMERCIAL LOSS; TO

THE FULL EXTENT THOSE DAMAGES CAN BE

DISCLAIMED BY LAW.

Some countries/regions/states do not allow the

exclusion or limitation of incidental or

consequential damages, or limitation of the

duration of implied warranties, so the preceding

limitations or exclusions may not apply to you.

The warranty provided does not affect the

consumer's statutory rights under applicable

legislation in force, nor the consumer’s rights

against the dealer arising from their sales /

purchase contract.

*GEOGRAPHICAL SCOPE OF THE

WARRANTY

If you have purchased your Product in a country/

region member of the European Economic Area

(EEA) or in Switzerland or the Republic of Turkey,

and such Product was intended for sale in the EEA

or in Switzerland or in Turkey, you can have your

Product serviced in any EEA country or in

Switzerland or in Turkey, under the warranty

conditions prevailing in the country in which you

require servicing, provided that an identical

Product is sold in such country by an authorised

Sony Ericsson distributor. To find out if your

Product is sold in the country you are in, please call

the local Sony Ericsson Call Center. Please observe

that certain services may not be possible elsewhere

than in the country of original purchase, for

example due to the fact that your Product may

have an interior or exterior which is different from

equivalent models sold in other countries. Please

note in addition that it may sometimes not be

possible to repair SIM-locked Products.

** In some countries/regions additional information

(such as a valid warranty card) may be requested.

FCC Statement

This device complies with Part 15 of

the FCC rules. Operation is subject to

the following two conditions:

(1) This device may not cause

harmful interference, and

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

62 Important information

Declaration of Conformity

We, Sony Ericsson Mobile Communications AB of

Nya Vattentornet

SE-221 88 Lund, Sweden

declare under our sole responsibility that our

product

Sony Ericsson type FAB-1022013-BV

and in combination with our accessories, to which

this declaration relates is in conformity with the

appropriate standards 3GPP TS 51.010-1,

EN 301908-1, EN 301489-7, EN 301489-24,

EN 300328, EN 301489-17 and EN 60950,

following the provisions of, Radio Equipment and

Telecommunication Terminal Equipment Directive

99/5/EC with requirements covering EMC Directive

89/336/EEC, and Low Voltage Directive

73/23/EEC.

We fulfil the requirements of the R&TTE Directive

(99/5/EC).

Lund, April 2007

Shoji Nemoto,

Head of Product Business Group GSM/UMTS

63Index

Index

Auto capitalization ...................................... 21

Back button .................................................... 9

Backup of phone data .................................. 48

Battery ........................................................... 5

Bluetooth™ wireless technology ................ 45

Business card scanner .................................. 49

Call log ........................................................ 24

Camera ......................................................... 34

Certificates ................................................... 48

Connections manager .................................. 46

Contacts ....................................................... 25

Email ........................................................... 30

File manager ................................................ 49

File transfer mode ........................................ 46

Flight mode .................................................... 8

FM radio ...................................................... 38

Folders in messaging ................................... 27

Handsfree settings ....................................... 24

Handwriting recognition ............................. 17

IMEI number ................................................. 6

Infrared port ................................................. 45

Installing applications ................................. 50

Jog Dial ......................................................... 9

Keyboard ..................................................... 15

Keylock ......................................................... 7

Main menu ..................................................... 9

overview ............................................. 12

Master reset ................................................. 50

Memory Stick .............................................. 13

Messaging .................................................... 27

MMS ............................................................ 28

Music player .......................................... 40, 41

My words dictionary ................................... 21

64 Index

Navigation ..................................................... 9

On/off ............................................................ 8

Pairing ......................................................... 45

PC Suite ....................................................... 48

Phone overview ............................................. 4

Picture editor ............................................... 37

Picture gallery ............................................. 37

Playlists ....................................................... 41

PlayNow™ .................................................. 38

Power save .................................................. 51

Predictive text .............................................. 21

Protected files .............................................. 49

Push email ................................................... 32

Remote screen ............................................. 37

RSS feeds .................................................... 43

Screen ............................................................ 8

Screen saver ................................................ 51

Shortcut button ............................................ 51

SIM card ........................................................ 6

Slide show ................................................... 37

SMS ............................................................. 28

Sound .......................................................... 13

Standby .......................................................... 9

Status bar ..................................................... 10

Synchronization .......................................... 48

Task manager .............................................. 10

Telephony features ...................................... 24

Text ............................................................. 14

TrackID™ ................................................... 39

Transferring files using the USB cable ....... 46

Update software .......................................... 14

USB file transfer ......................................... 46

Video ........................................................... 41

Volume ........................................................ 13

Wap push ..................................................... 48

Web browser ............................................... 42

Web guide ..................................................... 3

Wizards ......................................................... 7

Sony F1022013 Licensed transmitter User Manual Elena SHUG

Sony Mobile Communications Inc Licensed transmitter Elena SHUG

08 user manual

Navigation menu

Namespaces

Views

Navigation
