user manual
User guide
Bluetooth® Speaker
BSP10
Contents
Introduction....................................................................................3
Function overview..............................................................................3
Hardware overview............................................................................3
Notification light status......................................................................3
Charging.........................................................................................4
To charge your accessory.................................................................4
Getting started...............................................................................5
To prepare using your accessory with an Xperia™ device................5
Disconnecting and reconnecting...................................................6
To disconnect your Xperia™ device from or reconnect it with
your accessory...................................................................................6
Troubleshooting.............................................................................7
I cannot answer a second call...........................................................7
The Bluetooth® Speaker turns off unexpectedly..............................7
Unexpected behaviour.......................................................................7
No connection between Bluetooth® Speaker and other device.......7
Legal information............................................................................8
DECLARATION OF CONFORMITY FOR BSP10...............................8
2
This is an Internet version of this publication. © Print only for private use.
Introduction
Function overview
The BSP10 Bluetooth® Speaker accessory lets you enjoy high-quality audio and
make conference call indoors and outdoors.
Hardware overview
1 Microphone
2 Handsfree button Speaker
3 Bluetooth notification light
4 NFC detection area
5 Volume up button
6 Volume down button
7 Speaker
8 Power button
9 Power notification light/power input
Notification light status
Flashing rapidly Pairing mode – The BSP10 accessory is ready to pair with an Xperia™ device
Steady blue light The BSP10 accessory is paired with an Xperia™ device
Steady white light Standby mode – The BSP10 accessory is not pairing with an Xperia™ device
3
This is an Internet version of this publication. © Print only for private use.
Charging

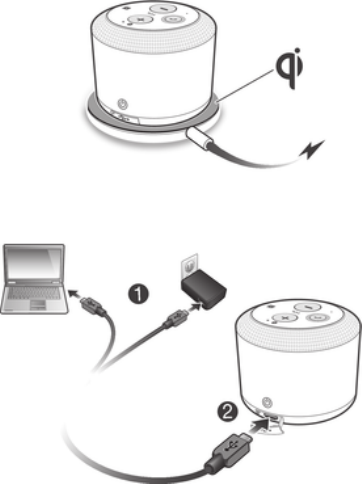

To charge your accessory
There are several ways to charge your accessory:
•Connect the BSP10 to a power source.
•Place the BSP10 on any Wireless Charging Plate which supports the Qi inductive
power standard.
4
This is an Internet version of this publication. © Print only for private use.
Getting started
To prepare using your accessory with an Xperia™ device
Before you can use your BSP10 accessory with an Xperia™ device, for example, to
play music or handle incoming calls, you must first pair the two devices. You can pair
your BSP10 accessory with an Xperia™ device using either the Bluetooth® or NFC
functions. Once the devices are paired, your BSP10 accessory automatically
establishes a connection with the Xperia™ device.
To pair the BSP10 accessory with an Xperia™ device using NFC
1On the Xperia™ device, make sure that the NFC function is turned on and that
the screen is active and unlocked.
2Turn on the BSP10 accessory.
3Position your Xperia™ device in such a way that the NFC detection area of
each device touches the other.
To pair the BSP10 accesory with an Xperia™ device using Bluetooth®
1Xperia™ device: Make sure the Bluetooth® function is turned on.
2BSP10 accessory: Press and hold down the Bluetooth pairing button until you
hear a beep and a blue notification light flashes rapidly.
3Xperia™ device: Search for and connect to the BSP10 accessory. When the
accessory is successfully paired with the Xperia™ device, the notification light
turns solid blue.
To use the BSP10 accessory to answer incoming calls
1Make sure the BSP10 accessory is paired with an Xperia™ device that
supports call handling.
2When a call comes in, press .
Please note that the calling function and call button is not supported for VoIP call.
To use the BSP10 accessory to listen to music
1Make sure the BSP10 accessory is paired with an Xperia™ device.
2Play the audio or video file on the Xperia™ device. The sound is automatically
played through the speakers of the paired BSP10 accessory.
5
This is an Internet version of this publication. © Print only for private use.
Disconnecting and reconnecting
To disconnect your Xperia™ device from or reconnect it with your
accessory
There are several ways to disconnect your Xperia™ device from or reconnect it with
the BSP10 accessory:
•On the Xperia™ device, deselect or select BSP10 in the list of paired Bluetooth®
devices.
•Place the Xperia™ device over the BSP10 accessory so that the NFC detection area
of each device touches the other.
To pair with another device
1On the Xperia™ device, deselect BSP10 accessory in the list of paired
Bluetooth® devices.
2Repeat the pairing procedures using NFC, see
To pair the BSP10 accessory
with an Xperia™ device using NFC
.
3Repeat the pairing procedures using Bluetooth®, see
To pair the BSP10
accesory with an Xperia™ device using Bluetooth®
.
6
This is an Internet version of this publication. © Print only for private use.
Troubleshooting
I cannot answer a second call
•Make sure that your calling device supports the Bluetooth® Handsfree profile.
•Make sure that the correct calling device is selected.
The Bluetooth® Speaker turns off unexpectedly
•If the speaker beeps several times shortly before turning off, the battery level is low.
Charge the battery.
Unexpected behaviour
•Reset the speaker.
No connection between Bluetooth® Speaker and other device
•Make sure that the speaker is charged and within range of the device that you want
to connect to. A maximum distance of 10 metres (33 feet), with no solid objects in
between, is recommended.
•Disable the Bluetooth® function in the other device so that all connections are
closed, then re-enable the Bluetooth® function and pair the speaker with the device
again.
7
This is an Internet version of this publication. © Print only for private use.
Legal information
SONY BSP10
Prior to use, please read the
Important information
leaflet separately provided.
This User guide is published by Sony Mobile Communications AB or its local affiliated company, without any
warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of
current information, or improvements to programs and/or equipment, may be made by Sony Mobile
Communications AB at any time and without notice. Such changes will, however, be incorporated into new
editions of this User guide.
All rights reserved.
©Sony Mobile Communications AB, 2014
Interoperability and compatibility among Bluetooth® devices varies. Device generally supports products
utilizing Bluetooth spec. 1.2 or higher, and Headset or Handsfree profile.
Sony is the trademark or registered trademark of Sony Corporation. Bluetooth is the trademark of the
Bluetooth (SIG) Inc. and is used under license. All other marks are the property of their respective owners. All
rights reserved.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property of
their respective owners.
Visit
www.sonymobile.com
for more information.
All illustrations are for illustration only and may not accurately depict the actual accessory.
DECLARATION OF CONFORMITY FOR BSP10
We, Sony Mobile Communications AB of
Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony type RD-0160
to which this declaration relates is in conformity with the appropriate standards EN
300 328:V1.8.1, EN 300 330-2:V1.5.1, EN 301 489-7:V1.3.1, EN 301 489-17:V2.2.1,
EN 301 489-3:V1.6.1 and EN 60 950-1: 2006+A11:2009+A1:2010+A12:2011, EN 62
311:2008 following the provisions of, Radio Equipment and Telecommunication
Terminal Equipment directive 1999/5/EC.
Lund, July 2014
Pär Thuresson,
Quality Officer, SVP, Quality & Customer Services
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Any change or modification not expressly approved by Sony may void the user's authority to operate the
equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
8
This is an Internet version of this publication. © Print only for private use.
•Consult the dealer or an experienced radio/TV technician for help.
AVISO IMPORTANTE PARA MÉXICO
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o
dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier
interferencia, incluyendo la que pueda causar su operación no deseada.
Para consultar la información relacionada al número del certificado, refiérase a la etiqueta del empaque y/o del
producto.
Alimentación: 5,0 Vcc
Industry Canada Statement
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Avis d’industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et,
and (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
