©2006 Sony Corporation 2-699-315-12 (3)
NW-S202F / S203F / S205F / S202.GB.2-699-315-12(3)
Operation Guide
NW-S202F / S203F / S205F / S202
Table of
Contents
Menu
Index
NW-S203F/S205F.GB.2-699-315-12(2)
2
2
About the Manuals
Included with the player are the Quick Start Guide and this PDF-format
Operation Guide. Additionally, after installing SonicStage software from the
supplied CD-ROM, you can refer to the Help within SonicStage.
– The Quick Start Guide explains set up and the basic operations, enabling
you to import songs to a computer, to transfer them to the player, and to
play them back.
– This Operation Guide explains standard and advanced features, enabling
you to make full use of the player and troubleshoot problems.
– The SonicStage Help explains details about using SonicStage software (
page 3).
Browsing the Operation Guide
To use the buttons in the Operation Guide
Click the buttons located in the upper right of this manual to jump to “Table of
Contents,” “Home Menu List,” or “Index.”
Jumps to the table of contents
Find what you are looking for from a list of topics in the
manual.
Jumps to the home menu list
Find what you are looking for from a list of the option items
in the player’s menu.
Jumps to the index
Find what you are looking for from a list of key words
mentioned in the manual.
Hints
You can jump to the indicated page by clicking a page number in the table of contents, in
the home menu list, or in the index.
You can jump to the indicated page by clicking a page reference indication (e.g. page
3) on each page.
To search for a reference page by keyword, click the “Edit” menu, select “Search” of the
Adobe Reader to display the navigation frame, type the keyword into the Search text
box, and click “Search.”
You can jump to the previous or next page by clicking the and buttons located at
bottom of the Adobe Reader screen.
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
3
3
To change the page layout
The buttons at the bottom of the Adobe Reader screen enable you to select how
pages are displayed.
Single Page
Pages are displayed one at a time.
When you scroll, the display changes
to a previous or succeeding page.
Continuous
Pages are displayed as a continuous
roll of pages.
When you scroll, the previous and
next pages scroll up or down
continuously.
Continuous - Facing
Two pages are displayed side by side
with each pair part of a continuous
roll of pages. When you scroll, the
previous and next pairs of pages scroll
up or down continuously.
Facing
Two pages are displayed side by side.
When you scroll, the display changes
to previous or succeeding pairs of
pages.
Using SonicStage Help
Refer to SonicStage Help for details about using SonicStage, such as importing
songs to your computer and transferring songs to the player.
Click “Help” – “SonicStage Help” while SonicStage is running.
Help appears.
Note
In SonicStage Help, the player is referred to as “ATRAC Audio Device.”
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
4
4
Continued
Table of Contents
Supplied Accessories ............................. 6
Home Menu List .................................... 8
Parts and Controls ................................ 9
Playing Songs
Playing Songs (ALL SONGS) ........................13
Playing Lists of Songs (PLAYLIST) ...........14
Searching for Songs (SEARCH) ..................15
Searching for songs by song name (Song)......15
Searching for songs by artist (Artist) .................16
Searching for songs by album (Album) ............17
Changing the Play Mode (Play Mode) ......18
Changing the play mode by shaking the
player 3 times (Shue Shake) ...............................20
Playing songs during exercise
Playing songs to a set
target (Set Target) ..........................................21
Playing songs in automatic selection
mode depending on your exercise pace
(Music Pacer) ....................................................23
Changing the playlists of the automatic
song selection (Set Playlist) ...................................25
Using the stop watch function
(STOPWATCH) ................................................26
Settings
Changing the Display Mode ............... 27
Changing the Song Order (Sort) ..............29
Setting the Volume Using the Preset
Volume Function (Volume Mode) ............30
Setting a volume level for preset mode
(Preset) ...........................................................................30
Switching to manual mode (Manual) ................32
Customizing Sound Quality
(Equalizer) ........................................................33
Registering a Desired Sound Quality
(Preset Custom)................................................34
Adjusting the Volume Level
(Dynamic Normalizer) .....................................35
Limiting the Volume (AVLS)......................36
Turning O the Beep Sound (Beep) ........37
Setting the information for calorie-
count and distance (Height/Weight) ........38
Setting the G Sensor (G Sensor) .................40
Displaying step count history
(Count History) ................................................42
Setting the reset method of the step
count (Counter Reset) ...................................43
Adjusting the Current Time Setting
(Set Date-Time) ................................................44
Setting the Date Format
(Date Disp Type) ..............................................46
Setting the Time Format
(Time Disp Type) .............................................47
Displaying the Player Information
(Information) ...................................................48
Resetting to Factory Settings
(Reset All Setting) ............................................49
Formatting Memory (Format) ....................50
Changing the USB Connection Setting
(USB Power) .....................................................52
Setting the Display’s Le/Right
Orientation (Disp. Rotation) ......................53
Saving Power Consumption
(Power Save) .....................................................54
Listening to FM Radio (NW-S202F/S203F/S205F only)
Enjoy Listening to FM Radio .............. 55
1 Switching to the FM tuner .........................55
2 Presetting broadcast stations
automatically (FM Auto Preset) ............................56
3 Selecting broadcast stations .......................57
Presetting Desired
Broadcast Stations ............................ 59
To delete preset broadcast stations ..............59
Setting the Reception (Scan Sens)..............60
Changing the Monaural/Stereo
(Mono/Auto) ....................................................61
Table of Contents
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
5
5
Advanced Features
Recharging the Player ......................... 62
Maximizing Battery Life ..................... 63
What are Format and Bit Rate? ........... 64
Playing Songs Without Pauses ............ 65
How is Song Information Imported
to the Player?..................................... 66
Storing Data Other an Audio Files
.......................................................... 67
Upgrading the Player’s Firmware ....... 68
Troubleshooting
Troubleshooting .................................. 69
Messages .............................................. 76
Uninstalling SonicStage ...................... 80
Additional Information
Precautions ......................................... 84
On Copyrights .................................... 88
Specications ...................................... 89
Index ................................................... 92
Note
Depending on the country/region in which you have purchased the player, some models
may not be available.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
6
6
Supplied Accessories
Please check the accessories in the package.
Headphones (1)
USB cable (1)
Arm band* (1)
Clip* (1)
This is used to clip onto your clothes when carrying the player.
CD-ROM** (1)
- SonicStage software
- Operation Guide (PDF file)
Quick Start Guide (1)
* The supplied items may differ depending on the country/region in which
you have purchased the player.
** Do not attempt to play this CD-ROM in an audio CD player.
Attaching the player with the arm band
Attach the player with the arm band following the procedure below.
1 Open the touch fastener, put your arm through the arm band, and then
close the touch fastener temporarily.
2 Slide the player (display facing up) into the holder of the arm band.
Insert the player until it clicks.
3 Adjust the display for best viewing angle, and fasten the belt with the
touch fastener securely, so it was not fall off.
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
7
7
To remove the player from the arm band
Pull the tab on the undersurface of the arm band’s holder in the direction of the
arrow to detach the player, then release the player from the arm band’s
holder .
Attaching the player with the clip
Slide the player (display facing up) on the clip.
Insert the player until it clicks.
To remove the player from the clip
Flex open the bottom position of the clip slightly in the direction of to detach
the player , then release the player from the clip .
About the serial number
The serial number provided for this player is required for the customer
registration. The number is on the rear of the player.
You can also check the serial number on this player. See page 48 for details.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
8
8
Home Menu List
You can display the HOME screen by pressing and holding the DISP/HOME
button of the player.
The HOME screen is the starting point to play audio, search for songs, and
change settings such as follows.
DISP/HOME button
HOME screen*
* 5 of the 7 icons appear in the display
with the current selection in the centre.
The current icon changes depending
on the function you use. By rotating the
shuttle switch, you can select an icon
and press the  button to confirm.
(SEARCH)
├
Song.............................................15
├
Artist ...........................................16
└
Album .........................................17
(SPORTS MODE)
├
Start .............................................21
├
Set Target ....................................21
├
Set Playlist ..................................25
└
Music Pacer ................................23
(STOPWATCH)............................ 26
(ALL SONGS) .............................. 13
(FM)* ...................................... 55
(PLAYLIST) ............................... 14
(SETTINGS)
├
Play Mode ...................................18
├
Sort ..............................................29
├
Scan Sens* ..................................60
├
Mono/Auto* ...............................61
├
FM Auto Preset* ........................56
├
Advanced Menu
│
├
Sound
│
│
├
Volume Mode ....................30
│
│
├
Preset Custom ...................34
│
│
├
AVLS ...................................36
│
│
├
Beep ....................................37
│
│
└
D.Normalizer .....................35
│
├
Height/Weight .......................38
│
├
G Sensor .................................40
│
├
Date-Time
│
│
├
Set Date-Time ...................44
│
│
├
Date Disp Type ..................46
│
│
└
Time Disp Type .................47
│
├
Information ............................48
│
├
Initialize
│
│
├
Reset All Setting ................49
│
│
└
Format ................................50
│
├
USB Power .............................52
│
├
Disp. Rotation ........................53
│
└
Power Save .............................54
├
Count History ............................42
├
Counter Reset ............................43
└
Equalizer .....................................33
* NW-S202F/S203F/S205F only
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
9
9
* button
Starts song playback. When starting
playback, appears at the bottom
left of the display, and if the 
button is pressed again, appears
and playback stops.
When you press the  button,
just after purchasing the player or
after disconnecting the supplied USB
cable from the computer, playback
starts from the first song on the
player.
When a menu appears on the display
use this button to confirm the item
of the menu.
Hint
There is no power button on the player.
When you stop song playback or FM
reception (NW-S202F/S203F/S205F
only) by pressing the  button, after
about a few seconds, the display goes
off automatically and the player enters
Sleep status.
When the G Sensor menu is deactivated
in Sleep status, the player consumes very
little battery power.
VOL +*/– button
Adjusts the volume.
* There are tactile dots. Use them to help
with button operation.
DISP/HOME button
When you press this button while
the player is in play or stop mode,
you can change the display ( page
27).
Press and hold this button to display
the HOME screen.
While menus of the HOME screen
appear, when this button is pressed
again, the previous screen returns
and when pressing and holding, the
screen returns to the HOME screen.
Display
See page 12.
Continued
Parts and Controls
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
10
10
To operate the player with the shuttle switch
Normal mode
To Operation
In play mode
Skip to the beginning of the next song. Rotate the shuttle switch to briefly.
Skip to the beginning of the current song. Rotate the shuttle switch to briefly.
Fast-forwards the current song. Rotate the shuttle switch to and release
it at the desired point.
Fast-rewinds the current song. Rotate the shuttle switch to and release
it at the desired point.
In stop mode
Skip to the beginning of the next song, and
if held longer, continues to skip through the
next song(s).
Rotate and hold the shuttle switch to .
Skip to the beginning of the current song,
and if held longer, continues to skip through
the previous song(s).
Rotate and hold the shuttle switch to .
Folder control mode
To Operation
In play mode
Skip to the beginning of the next album/artist.
Rotate the shuttle switch to briefly.
Skip to the beginning of the current album/artist.
Rotate the shuttle switch to briefly.
In stop mode
Skip to the beginning of the next album/artist,
and if held longer, continues to skip through
the next album/artist(s).
Rotate and hold the shuttle switch to .
Skip to the beginning of the current album/
artist, and if held longer, continues to skip
through the previous album/artist(s).
Rotate and hold the shuttle switch to .
Continued
Shuttle switch
By rotating the shuttle switch, you can
select a menu item, skip to the
beginning of the song, or fast-forward
/fast-rewind.
You can also set to the Folder control
mode, Normal mode or HOLD by
sliding the shuttle switch.
(Folder control mode)
Normal (Normal mode)
HOLD
to
to
HOLD function
You can protect the player against
accidental operation by using the
HOLD function when carrying it.
By sliding the shuttle switch to the
HOLD position, all operation buttons
are disabled. If you press buttons or
rotate the shuttle switch while the
HOLD function is activated, the
current time, “HOLD” and
(remaining battery indication) appear
in the display. If you slide the shuttle
switch back to the
Folder control
or
Normal
mode
, the HOLD function is
released.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
11
11
USB jack
Rotate the lid to the left to set the
OPEN position, and then open.
Connect the player to the small
connector of the supplied USB cable.
To close the lid, rotate it to set the
OPEN position and close, then rotate
it to the right to set the LOCK
position.
Headphone jack
For connecting the headphones.
Connect until it clicks into place.
If the headphones do not connect
properly, it may not sound right.
Strap hole
This is used to attach a strap (sold
separately).
Continued
Headphones
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
12
12

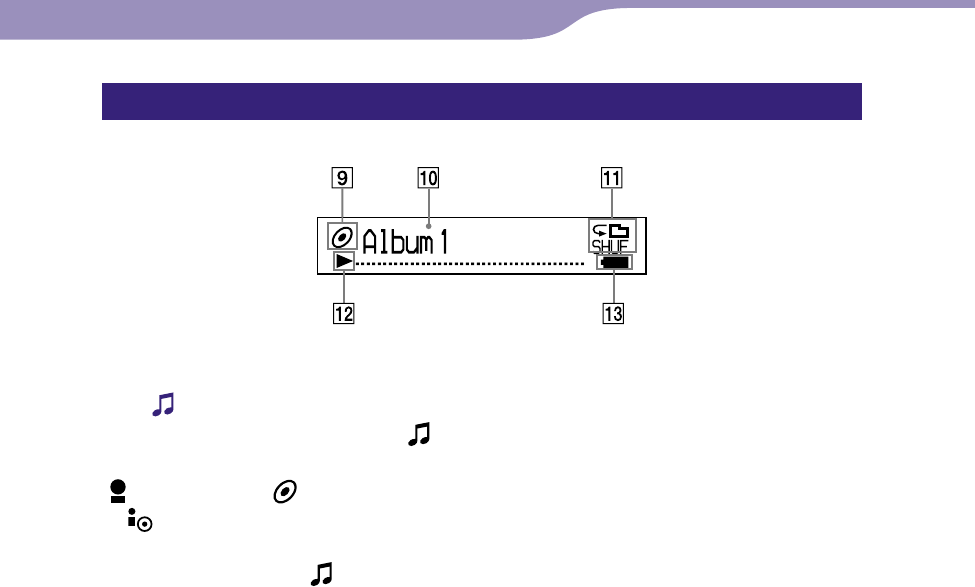

Sorting status indication (Sort)
/ icon
During playback operation, the
icon or the current song order icon
( (Artist order), (Album order)
or (Albums by artist order))
appears.
In Normal mode, the icon
appears, and in Folder control mode,
the song order icon appears.
Text/graphic information display
Displays album title, artist name,
song name, current date and time,
messages and menu.
During playback operation in
Normal mode, “song title/artist
name, album name” appears.
During playback operation in Folder
control mode, “album title/artist
name/playlist name” appears.
To change the display mode, press
the DISP/HOME button ( page
27). Switch the display to Power Save
mode when you do not operate the
unit for a while.
Display
Play mode indication (Play Mode)
Displays the current play mode icon
( page 18). If the play mode is set
to “Normal,” no icon appears.
Playing status indication
Displays the current playback mode
(: playback, : stop, ():
fast-rewinds (fast-forwards),
(): skips to the beginning of the
current (or next) song).
Remaining battery indication
Displays the remaining battery
power.
Hint
For information on the FM tuner
display (NW-S202F/S203F/S205F only),
see “Enjoy Listening to FM Radio” (
page 55).
Album
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
13
13
Playing Songs
(ALL SONGS)
The songs on the player are played back.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (ALL SONGS) and press the
 button to conrm.
All songs on the player appear and playback starts from the last song you
listened to. If you did not play any song, playback starts from the
beginning.
Playback continues in order through the last song and then stops.
To skip to the beginning of the song
By rotating the shuttle switch to () briefly while in play or stop mode,
the player skips to the beginning of the current (or next) song.
If the shuttle switch is set to the folder position, and then rotated to ()
briefly while in play or stop mode, the player skips to the beginning of the
current (or next) album/artist.
Hints
You can change the playing mode to random, repeat, etc., in the Play Mode menu (
page 18).
The songs appear in the order that you set in the Sort menu ( page 29). The songs
appear in the album order at the factory setting.
Playing Songs
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
14
14
Playing Lists of Songs
(PLAYLIST)
You can play lists of songs (Playlist) created in SonicStage. If you change a name
in SonicStage, the changed name appears on the player. See the SonicStage Help
for details.
to
 button
DISP/HOME button to
Shuttle switch
Note
When (PLAYLIST) is selected, (SEARCH) does not appear in the HOME screen.
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the
shuttle switch to select (PLAYLIST) and press the 
button to conrm.
The last song you listened to starts playback. If you did not play any song,
playback starts from the first song of the first playlist.
Playback continues in order through the last song and then stops.
To skip to the beginning of the song
By rotating the shuttle switch to () briefly while in play or stop mode,
the player skips to the beginning of the current (or next) song.
If the shuttle switch is set to the folder position, and then rotated to ()
briefly while in play or stop mode, the player skips to the beginning of the
current (or next) playlist.
Hint
You can change the playing mode to random, repeat, etc., in the Play Mode menu (
page 18).
Playing Songs
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
15
15
Searching for Songs
(SEARCH)
You can search for songs by “Song name,” “Artist name,” or “Album name.”
to
 button
DISP/HOME button to
Shuttle switch
Searching for songs by song name (Song)
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SEARCH) and press the 
button to conrm.
Rotate the shuttle switch to select “Song>” and press the 
button to conrm.
A list of songs appears on the player.
Rotate the shuttle switch to select a song and press the 
button to conrm.
The song you selected starts playback. Playback continues in the order
through the last song and then stops.
Hint
The play mode set in the Play Mode menu ( page 18) does not change when a
SEARCH is activated.
Continued
Playing Songs
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
16
16
Searching for songs by artist (Artist)
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SEARCH) and press the 
button to conrm.
Rotate the shuttle switch to select “Artist>” and press the 
button to conrm.
The artist lists appear.
Rotate the shuttle switch to select the desired artist and press the
 button to conrm.
The album lists for the selected artist appear.
Rotate the shuttle switch to select the desired album and press the
 button to conrm.
The song lists for the selected album appear.
Rotate the shuttle switch to select a song and press the 
button to conrm.
The song you selected starts playback. Playback continues in the order
through the last song and then stops.
Hint
The play mode set in the Play Mode menu ( page 18) does not change when a
SEARCH is activated.
Continued
Playing Songs...Searching for Songs
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
17
17
Searching for songs by album (Album)
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SEARCH) and press the 
button to conrm.
Rotate the shuttle switch to select “Album>” and press the 
button to conrm.
The album lists appear.
Rotate the shuttle switch to select the desired album and press the
 button to conrm.
The song lists for the selected album appear.
Rotate the shuttle switch to select a song and press the 
button to conrm.
The song you selected starts playback. Playback continues in the order
through the last song and then stops.
Hint
The play mode set in the Play Mode menu ( page 18) does not change when a
SEARCH is activated.
Playing Songs...Searching for Songs
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
18
18
Changing the Play Mode
(Play Mode)
The player offers a variety of play modes, including random play and selected
repeat play.
You can change the play mode by shaking the player 3 times ( page 20) after
activating the G Sensor menu ( page 40).
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Play Mode>” and press the 
button to conrm.
Rotate the shuttle switch to select a play mode ( page 19) and
press the  button to conrm.
To return to the previous menu
Press the DISP/HOME button.
Continued
Playing Songs
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
19
19
List of play modes
Play mode type/Icon Description
Normal/No icon All songs from the current song are played once,
and then playback stops. (Default setting)
Folder/ All songs of an album (or artist)*, including the
current song are played once, and then playback
stops.
Repeat All (all repeat)/ All songs from the current song are played
repeatedly.
Repeat Folder (folder
repeat)/
All songs of an album (or artist)*, including the
current song are played repeatedly.
Repeat 1 Song (one song
repeat)/ 1
The current song is played repeatedly.
Repeat Shuffle All (all song
shuffle repeat)/
SHUF
The current song is played, and then all the songs
are played in random order.
Repeat Shuffle Folder
(folder shuffle repeat)/
SHUF
The current song is played, and then all songs of the
album (or artist)* including the current song are
played in random order.
* If you set “Album” or “Artist/Album” in the Sort menu ( page 29), the play
range is an album. If you set “Artist” in the Sort menu, the play range is an artist.
Continued
Playing Songs...Changing the Play Mode
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
20
20
Playing Songs...Changing the Play Mode
Changing the play mode by shaking the player 3 times (Shuffle Shake)
You can change the play mode (shuffle activated or deactivated) by shaking the
player 3 times during playback.
Holding the player as illustrated below (display facing up), shake the player up
and down 3 times in rhythm within two seconds. A sound effect is heard when
shaking to change play mode.
When the player is shaken 3 times again, the play mode returns to the previous
mode.
List of play modes when shaking the player 3 times
Play mode type Changes to
Normal Repeat Shuffle All (all song shuffle repeat)
Folder Repeat Shuffle Folder (folder shuffle repeat)
Repeat All (all repeat) Repeat Shuffle All (all song shuffle repeat)
Repeat Folder (folder repeat) Repeat Shuffle Folder (folder shuffle repeat)
Repeat 1 Song (one song repeat) No change
Repeat Shuffle All
(all song shuffle repeat)
Repeat All (all repeat)
Repeat Shuffle Folder
(folder shuffle repeat)
Repeat Folder (folder repeat)
Notes
When the G sensor menu ( page 40) is set to “OFF,” this function is not available.
You cannot use this function when:
– the automatic song selection function ( page 23) is activated in the Music Pacer menu
– you are using the FM tuner (NW-S202F/S203F/S205F only)
– the HOME screen appears or you are setting a SETTINGS menu item
When shaking the player, make sure not to bump the player into other objects or drop it.
When you change the play mode by shaking the player 3 times, a step count error may
occur.
If you shake the player 3 times in rhythm within two seconds, the play mode changes but
nothing happens after shaking it for two seconds.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
21
21
Playing songs to a set target
(Set Target)
You can set the target items such as playback time, calories, or distance during
playback and exercise listening to music until the target items are achieved.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SPORTS MODE) and press the
 button to conrm.
Rotate the shuttle switch to select “Set Target>” and press the 
button to conrm.
Rotate the shuttle switch to select the target item ( page 22) and
press the  button to conrm.
“Time” is set by default.
Rotate the shuttle switch to select the setting value ( page 22)
of the target item selected in step and press the  button to
conrm.
Rotate the shuttle switch to select “Start” and press the 
button to conrm.
Songs are played back by the set mode and the target value starts count
down.
When the target value is achieved, playback stops.
To return to normal play
During count down, perform steps to , and then select “OFF.”
Continued
Playing songs during exercise
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
22
22
List of target setting
Target item Setting value
Time Sets target time. You can set the time from 1 to
99 minutes by 1 minute increments.
“10min” is set by default.
Calorie Sets target calorie. You can set the calorie from
10 to 990 kcal by 10 kcal increments. “100kcal”
is set by default.
DIST_km (distance (km)) Sets target distance. You can set the distance
from 0.5 to 99.5 km by 0.5 km increments.
“1.0km” is set by default.
DIST_mile (distance (mile)) Sets target distance. You can set the distance
from 0.5 to 99.5 mile by 0.5 mile increments.
“1.0mile” is set by default.
Hints
When there is a previous target not yet achieved can start count down after selecting
“Start” in step .
You can play songs in automatic song selection mode according to your exercise pace
( page 23) instead of setting a target.
Notes
We recommend using the supplied clip or arm band ( page 6) when using the player.
However the player may not be able to count steps properly depending on how the
player is attached, or the following cases.
– If you use the player with a strap (sold separately) around your neck, waist, bag, etc.
– If you use the player inside a bag swinging randomly.
– If you use the player during up and down movement or swaying from side to side in a
vehicle.
– If you use the player during active sports requiring up and down movement or subject
the player to excessive shock.
The player calculates the distance and calorie-count based on the step count and height/
weight/step length you set ( page 38). Inaccuracies may occur depending on how the
player is attached, age, or gender. Use this function as a guide.
Playing songs during exercise...Playing songs to a set target
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
23
23
Playing songs in automatic selection mode
depending on your exercise pace
(Music Pacer)
In SPORTS MODE, you can play songs using the automatic selection function
in which the player changes the playlist automatically depending on your pace
of movement, like walking or jogging.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SPORTS MODE) and press the
 button to conrm.
Rotate the shuttle switch to select “Music Pacer>” and press the
 button to conrm.
Rotate the shuttle switch to select “ON” or “OFF” and press the 
button to conrm.
ON: Activates automatic song selection. The “Walk Music” or “Run
Music” playlist is played back in shuffle mode, depending on the pace of
the movement. (Default setting)
OFF: Automatic song selection is not activated. Plays back songs in the
status before you selected “SPORTS MODE.”
Rotate the shuttle switch to select “Start” and press the 
button to conrm.
Playback starts in the pace set in step and the set target value starts
count down. When the target value is achieved, playback stops.
Continued
Playing songs during exercise
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
24
24
Playing songs during exercise...
Playing songs in automatic selection mode according to your exercise pace
Hints
Playlists of “Walk” and “Run” are included on the player by default.
Furthermore, you can add songs to the playlists of “Walk” and “Run” using the
SonicStage software.
You can change the playlist depending on your exercise pace ( page 25).
When switching the playlist from “Walk” to “Run” or vice versa, audio guidance is
provided.
Notes
If there is not any playlist on the player, the Music Pacer menu does not appear.
We recommend using the supplied clip or arm band ( page 6) when using the player.
However the player may not be able to recognize pace of movement properly depending
on how the player is attached, or the following cases.
– If you use the player with a strap (sold separately) around your neck, waist, bag, etc.
– If you use the player inside a bag swinging randomly.
– If you use the player during up and down movement or swaying from side to side in a
vehicle.
– If you use the player during active sports requiring up and down movement or subject
the player to excessive shock.
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
25
25
Playing songs during exercise...
Playing songs in automatic selection mode according to your exercise pace
Changing the playlists of the automatic song selection (Set Playlist)
You can change the playlists of the automatic song selection.
Note
To activate the automatic song selection, select “ON” on the Music Pacer ( page 23).
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SPORTS MODE) and press the
 button to conrm.
Rotate the shuttle switch to select “Set Playlist>” and press the
 button to conrm.
“SET WALK P.LIST” appears.
Rotate the shuttle switch to select the playlist for slow pace and
press the  button to conrm.
“SET RUN P.LIST” appears.
Rotate the shuttle switch to select the playlist for fast pace and
press the  button to conrm.
Note
If you format the player, all playlists including the default playlist are deleted.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
26
26
Playing songs during exercise
Using the stop watch function
(STOPWATCH)
You can use the player as a stop watch. You can time up to 9 hours 59 minutes
59 seconds by 1 second increments.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (STOPWATCH) and press the
 button to conrm.
Press the DISP/HOME button to start measuring time.
Press the DISP/HOME button again to stop measuring time.
If you press the DISP/HOME button again while measuring time stops,
stop watch is reset.
Hint
The stop watch function can be used during playback. However while using the stop
watch function, the screen for measurement of time appears.
To stop the stop watch function
Press and hold the DISP/HOME button until the HOME screen appears, and
then select (ALL SONGS), (PLAYLIST) or (FM) (NW-S202F/S203F/
S205F only) from the menu screen and press the  button to confirm.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
27
27
Changing the Display Mode
You can change the desired display for playback or stop mode.
DISP/HOME button
Each time the DISP/HOME button is pressed, the screen changes as follows.
Basic: Displays the basic screen. (Default setting)
Property: Displays song information.
Displays the current song number (or current album/artist number)/total
song number (or total album/artist number) of the play range, elapsed time,
codec (compression type), bit rate, and current sound quality setting
(Equalizer).
0120
ATRAC
2 5 6 k b p s
0200 01:35
C
/
Step: Displays step count.
Displays step count, distance covered and G Sensor setting (G Sensor).
At the default setting, step count during playback or FM reception (NW-
S202F/S203F/S205F only), or distance covered appears ( page 40) and step
count is reset automatically ( page 43) when the player’s clock you set
shows 0:00.
Calorie: Displays calorie-count.
Displays calories consumed and G Sensor setting (G Sensor).
At the default setting, consumed calories during playback or FM reception (NW-
S202F/S203F/S205F only) appear ( page 40).
, , , appear in this order depending on the calories consumed. 5 ( )
icons appear when maximum calorific value is reached.
Clock: Displays the day of the week, month, date, and current time. For
information on setting the time, see “Adjusting the Current Time Setting (Set
Date-Time)” ( page 44).
DISP: Displays animations.
Continued
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
28
28
Hint
Set the power save setting ( page 54) to “OFF” to show the screen constantly.
Notes
When the sound quality setting (Equalizer) ( page 33) is set to “OFF,” it does not
appear on the “Property” screen.
We recommend using the supplied clip or arm band ( page 6) when using the player.
However the player may not be able to count steps properly depending on how the
player is attached, or the following cases.
– If you use the player with a strap (sold separately) around your neck, waist, bag, etc.
– If you use the player inside a bag swinging randomly.
– If you use the player during up and down movement or swaying from side to side in a
vehicle.
– If you use the player during active sports requiring up and down movement or subject
the player to excessive shock.
The player calculates the distance and calorie-count based on the step count and height/
weight/step length you set ( page 38). Inaccuracies may occur depending on how the
player is attached, age, or gender. Use this function as a guide.
Settings...Changing the Display Mode
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
29
29
Changing the Song Order
(Sort)
You can set the song order by album order, albums by artist order, or artist
name order.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Sort>” and press the 
button to conrm.
Rotate the shuttle switch to select a song order and press the 
button to conrm.
Album
Sorting status indication
To return to the previous menu
Press the DISP/HOME button.
List of song order
Setting item/Icon Description
Album (Album order)/ Songs appear in album order. In the album, songs
appear in song number order.
In Folder control mode, songs are skipped by album.
(Default setting)
Artist/Album (Albums by
artist order)/
Songs appear in album order by artist. In the album,
songs appear in song number order.
In Folder control mode, songs are skipped by album.
Artist (Artist order)/ Songs appear in artist order. The same artist’s songs
appear in song name order.
In Folder control mode, songs are skipped by artist.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
30
30
Setting the Volume Using the Preset Volume
Function
(Volume Mode)
There are 2 modes to adjust the volume level.
Manual (Manual Volume):
Press the VOL +/– button to adjust the volume level from 0 to 30.
Preset (Preset Volume):
Press the VOL +/– button to select the volume level to any of 3 preset
levels: “Low,” “Mid,” or “Hi.”
to
 button
DISP/HOME button
to
Shuttle switch
VOL +/– button
Setting a volume level for preset mode (Preset)
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Sound>” and press the 
button to conrm.
Rotate the shuttle switch to select “Volume Mode>” and press the
 button to conrm.
Continued
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
31
31
Rotate the shuttle switch to select “Preset” and press the 
button to conrm.
A line appears above and below “Low.”
Rotate the shuttle switch to set the volume for each preset level,
and press the  button to conrm.
Preset level appears in order, “Low,” “Mid” and “Hi.”
With this setting, you can select the volume level (“Low,” “Mid,” or “Hi”) by
pressing the VOL +/– button.
To return to the previous menu
Press the DISP/HOME button.
Note
If AVLS ( page 36) is set, the actual volume may be lower than the settings.
Releasing AVLS returns the volume to the preset level.
Continued
Settings...
Setting the Volume Using the Preset Volume Function
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
32
32
Switching to manual mode (Manual)
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Sound>” and press the 
button to conrm.
Rotate the shuttle switch to select “Volume Mode>” and press the
 button to conrm.
Rotate the shuttle switch to select “Manual” and press the 
button to conrm.
With this setting, you can adjust the volume level (from 0 to 30) by
pressing the VOL +/– button.
To return to the previous menu
Press the DISP/HOME button.
Settings...
Setting the Volume Using the Preset Volume Function
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
33
33
Customizing Sound Quality
(Equalizer)
You can customize the sound quality to match the genre of music.
to
 button
DISP/HOME button to
Shuttle switch
Note
You cannot customize the sound quality while using the FM tuner (NW-S202F/S203F/
S205F only).
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Equalizer>” and press the 
button to conrm.
Rotate the shuttle switch to select the sound quality setting and
press the  button to conrm.
To return to the previous menu
Press the DISP/HOME button.
List of sound quality settings
Setting item Description
OFF Sound quality setting is not activated. (Default setting)
Heavy Emphasizes high and low ranges for a powerful sound.
Pop Stresses the middle range audio, ideal for vocals.
Jazz Emphasizes high and low ranges for a lively sound.
Custom User-customizable sound settings. See page 34 for setting.
Notes
If the sound quality setting you choose is distorted when you turn up the volume, turn it
down.
If your personal settings saved as “Custom” seem to produce a different volume level
than the other settings, you may have to adjust the volume manually to compensate.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
34
34
Registering a Desired Sound Quality
(Preset Custom)
You can set 7 levels for each 5 bands and register a desired sound quality. And
you can select the registered setting on “Custom” in “Customizing Sound
Quality (Equalizer)” ( page 33).
to
 button
DISP/HOME button to
Shuttle switch
Note
You cannot register the sound quality while using the FM tuner (NW-S202F/S203F/
S205F only).
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Sound>” and press the 
button to conrm.
Rotate the shuttle switch to select “Preset Custom>” and press the
 button to conrm.
A line appears above and below the lowest band.
Rotate the shuttle switch to set the level for each band, and press
the  button to conrm.
Sound quality order is set from low band (bass) to high band (treble).
To return to the previous menu
Press the DISP/HOME button.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
35
35
Adjusting the Volume Level
(Dynamic Normalizer)
You can set to reduce the volume level between songs. With this setting, when
listening to album songs in shuffle play mode, the volume level between songs
is moderated to minimize the difference in their recording levels.
to
 button
DISP/HOME button to
Shuttle switch
Note
You cannot set to reduce the volume level between songs while using the FM tuner
(NW-S202F/S203F/S205F only).
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Sound>” and press the 
button to conrm.
Rotate the shuttle switch to select “D.Normalizer>” and press the
 button to conrm.
Rotate the shuttle switch to select “ON” and press the  button
to conrm.
To set to off
Select “OFF” in step .
To return to the previous menu
Press the DISP/HOME button.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
36
36
Limiting the Volume
(AVLS)
You can set AVLS (Automatic Volume Limiter System) to limit the maximum
volume to prevent auditory disturbance or distraction. With AVLS, you can
listen to music at a comfortable volume level.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Sound>” and press the 
button to conrm.
Rotate the shuttle switch to select “AVLS>” and press the 
button to conrm.
Rotate the shuttle switch to select “ON” and press the  button
to conrm.
The volume is kept at a moderate level.
To set to off
Select “OFF” in step .
To return to the previous menu
Press the DISP/HOME button.
Hint
“AVLS” appears by pressing the VOL +/– button if AVLS is set to “ON.”
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
37
37
Turning O the Beep Sound
(Beep)
You can turn off the beep sounds of the player.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Sound>” and press the 
button to conrm.
Rotate the shuttle switch to select “Beep>” and press the 
button to conrm.
Rotate the shuttle switch to select “OFF” and press the  button
to conrm.
To change the setting to on
Select “ON” in step .
To return to the previous menu
Press the DISP/HOME button.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
38
38
Settings
Setting the information for calorie-count and
distance
(Height/Weight)
You can set the information (height/weight/step length) to measure for calorie-
count and distance when playing back songs in SPORTS MODE ( page 21).
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Height/Weight>” and press the
 button to conrm.
Rotate the shuttle switch to select the value for “inch/lb” or “cm/kg”
and press the  button to conrm.
Rotate the shuttle switch to select weight and press the 
button to conrm.
“132lb (or 60kg)” is set by default.
Rotate the shuttle switch to select height and press the 
button to conrm.
“67inch (or 170cm)” is set by default.
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
39
39
Settings...Setting the information for calorie-count and distance
After pressing the  button to decide “Walk Stride>,” rotate the
shuttle switch to set step length for when walking, and then press
the  button to conrm.
Step length is calculated by the height value (set in step ) × 0.5.
After pressing the  button to decide “Run Stride>,” rotate the
shuttle switch to set step length for when running, and then press
the  button to conrm.
Step length is calculated by the height value (set in step ) × 0.7.
To return to the previous menu
Press the DISP/HOME button.
Hint
You can set the height from 80 to 250 cm (31 to 99 inch), the weigh from 10 to 300
kg (22 to 660 lb). In case of other values, you can set from “Less” (minimum value) or
“More” (maximum value). Select the approximate value.
Notes
We recommend using the supplied clip or arm band ( page 6) when using the player.
However the player may not be able to count steps properly depending on how the
player is attached, or the following cases.
– If you use the player with a strap (sold separately) around your neck, waist, bag, etc.
– If you use the player inside a bag swinging randomly.
– If you use the player during up and down movement or swaying from side to side in a
vehicle.
– If you use the player during active sports requiring up and down movement or subject
the player to excessive shock.
The player calculates the distance and calorie-count based on the step count and height/
weight/step length you set ( page 38). Inaccuracies may occur depending on how the
player is attached, age, or gender. Use this function as a guide.
When you measure calories, the G Sensor menu ( page 40) needs to be activated.
The information you set for “Height/Weight” is used only for the purpose of measuring
the distance of movement and calories consumed. This information is not output via the
USB connection.
If you change the value of the height (step ) after setting the step length steps in
and , the step length is also changed to be calculated again.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
40
40
Settings
Setting the G Sensor
(G Sensor)
The player’s built-in G Sensor recognizes speed variation and provides
functions such as step count, distance covered and consumed calorie
calculations, or play mode change by shaking the player 3 times ( page 20).
You can also deactivate the G Sensor.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “G Sensor>” and press the 
button to conrm.
Rotate the shuttle switch to select the following G Sensor setting
and press the  button to conrm.
ON-MusicPB: Activates the G Sensor during playback or FM reception
(NW-S202F/S203F/S205F only). (Default setting) Recommended to
listen to songs during sports.
ON-Anytime: Activates G Sensor always. Recommended to know step
count or consumed calories throughout the day. However, even if you do
not use the player, the G Sensor remains activate and consumes battery
power.
OFF: The G Sensor is not activated. Recommended to save power and
prolong use of the player.
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
41
41
Hint
When the G Sensor menu is set to “ON-MusicPB” or “ON-Anytime,” “G” appears on the
screen of “Step” or “Calorie” ( page 27).
Note
We recommend using the supplied clip or arm band ( page 6) when using the
player. However the player may not be able to activate the G Sensor function properly
depending on how the player is attached, or the following cases.
– If you use the player with a strap (sold separately) around your neck, waist, bag, etc.
– If you use the player inside a bag swinging randomly.
– If you use the player during up and down movement or swaying from side to side in a
vehicle.
– If you use the player during active sports requiring up and down movement or subject
the player to excessive shock.
To return to the previous menu
Press the DISP/HOME button.
Settings...Setting the G Sensor
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
42
42
Settings
Displaying step count history
(Count History)
Step count history is recorded when counting steps while the G Sensor menu is
set to “ON” ( page 40). You can display up to 7 histories from the latest
history.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Count History>” and press the
 button to conrm.
The date, step count, distance and calorie-count appear on the screen from
the left, in this order. By rotating the shuttle switch you can select the
previous or next step count history.
Hint
The latest step count history always appears on the top.
If you set the Counter Reset menu ( page 43) to “Daily,” the daily history remains on
the player.
By activating the Reset All Setting menu ( page 49), you can delete the step count
history.
To return to the previous menu
Press the DISP/HOME button.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
43
43
Setting the reset method of the step count
(Counter Reset)
You can reset the accumulated step count. “Daily” is set by default.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Counter Reset>” and press the
 button to conrm.
Rotate the shuttle switch to select the following resetting method
and press the  button to conrm.
Now: Resets the accumulated step count now.
Daily: Resets the accumulated step count when the player’s clock you set
( page 44) shows 0:00.
OFF: Resetting is not activated.
If you want to select “Now,” select “OK” and press the  button to
confirm. If you select “Cancel” and press the  button to confirm, the
resetting method menu returns.
To return to the previous menu
Press the DISP/HOME button.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
44
44
Adjusting the Current Time Setting
(Set Date-Time)
You can set and display the current time.
You can set the date and time of the player to either synchronize with your
computer automatically, or manually by the player.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press
the  button to conrm.
Rotate the shuttle switch to select “Date-Time>” and press the
button to conrm.
Rotate the shuttle switch to select “Set Date-Time>” and press the
 button to conrm.
Rotate the shuttle switch to select “Automatic” or “Manual” and
press the  button to conrm.
Automatic: Synchronizes the date and time with your computer when
connecting the player to your computer and starts the SonicStage
software.
Manual: To set the date and time manually.
If you select “Automatic,” the SETTINGS menu closes.
If you select “Manual,” a line appears above and below the year digit.
Continue with steps to .
Continued
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
45
45
Rotate the shuttle switch to adjust the year setting and press the
 button to conrm.
A line appears above and below the month digit.
As you did in step , adjust the settings for month, date, hour, and
minute.
After rotating the shuttle switch to adjust the date and time setting, press
the  button to confirm.
To return to the previous menu
Press the DISP/HOME button.
To display the current time
Follow either procedure below.
Set “Clock” on “Changing the Display Mode” ( page 27).
Press any button while the HOLD function is activated.
Hint
You can select the date format from either “month/day,” or “day/month.” Furthermore,
you can select the time format from either a 12 or 24 hour display. See “Setting the Date
Format (Date Disp Type)” ( page 46), or “Setting the Time Format (Time Disp Type)”
( page 47).
Notes
If the player is not used for a long time, your settings for date and time may need to be
reset.
If the current time is not set and the display is set to “Clock” ( page 27), “---” appears.
Settings...Adjusting the Current Time Setting
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
46
46
Setting the Date Format
(Date Disp Type)
You can select the date format you set ( page 44) from either “month/day,” or
“day/month.”
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Date-Time>” and press the 
button to conrm.
Rotate the shuttle switch to select “Date Disp Type>” and press the
 button to conrm.
Rotate the shuttle switch to select the date format and press the
 button to conrm.
mm/dd: The date format appears “month/day.” (Default setting)
dd/mm: The date format appears “day/month.”
To return to the previous menu
Press the DISP/HOME button.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
47
47
Setting the Time Format
(Time Disp Type)
You can select the time format you set ( page 44) from either a 12 or 24 hour
display. “24h” is set by default.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Date-Time>” and press the 
button to conrm.
Rotate the shuttle switch to select “Time Disp Type>” and press the
 button to conrm.
Rotate the shuttle switch to select “12h” or “24h” and press the
 button to conrm.
To return to the previous menu
Press the DISP/HOME button.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
48
48
Displaying the Player Information
(Information)
Information such as product name, built-in flash memory capacity, serial
number and firmware version can be shown.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Information>” and press the
 button to conrm.
Rotate the shuttle switch to show the following information.
1: product name
2: built-in flash memory capacity
3: serial number
4: version information for the player’s firmware
Press and hold the DISP/HOME button until the display changes.
To return to the previous menu
Press the DISP/HOME button.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
49
49
Resetting to Factory Settings
(Reset All Setting)
You can reset the player to the factory settings. Resetting the player does not
delete the music songs you have transferred to the player.
to
 button
DISP/HOME button to
Shuttle switch
Note
Only available when using the ALL SONGS function in stop mode.
Press and hold the DISP/HOME button in stop mode until the HOME
screen appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Initialize>” and press the 
button to conrm.
Rotate the shuttle switch to select “Reset All Setting>” and press
the  button to conrm.
Rotate the shuttle switch to select “OK” and press the  button
to conrm.
When resetting is completed, “COMPLETE” appears.
To return to the previous menu
Press the DISP/HOME button.
To cancel restoration of factory settings
Select “Cancel” in step and press the  button to confirm.
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
50
50
Formatting Memory
(Format)
You can format the built-in flash memory of the player.
If the memory’s formatted, all the music data and the other data stored will be
erased. Be sure to verify the data stored in the memory prior to formatting.
to
 button
DISP/HOME button to
Shuttle switch
Note
Only available when using the ALL SONGS function in stop mode.
Press and hold the DISP/HOME button in stop mode until the HOME
screen appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Initialize>” and press the 
button to conrm.
Rotate the shuttle switch to select “Format>” and press the 
button to conrm.
Rotate the shuttle switch to select “OK” and press the  button
to conrm.
“FORMATTING...” appears and formatting starts.
When formatting is complete, “COMPLETE” appears.
Continued
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
51
51
To return to the previous menu
Press the DISP/HOME button.
To cancel formatting
Select “Cancel” in step and press the  button to confirm.
Note
Do not format the built-in flash memory of the player using Windows Explorer.
Settings...Formatting Memory
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
52
52
Changing the USB Connection Setting
(USB Power)
Depending on how you are using the computer, if the power supply (USB Bus
Powered) is insufficient, incomplete data transfer may occur from the
computer to the player. In this case, setting the USB connection (USB Power)
to “100mA” may improve data transfer. “500mA” is set by default.
to
 button
DISP/HOME button to
Shuttle switch
Note
You cannot set this during the USB connection.
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “USB Power>” and press the
 button to conrm.
Rotate the shuttle switch to select “100mA” or “500mA” and press
the  button to conrm.
To return to the previous menu
Press the DISP/HOME button.
Hints
When you connect the player to a laptop computer, we recommend to connect the
laptop computer to a power supply.
The charging time will be longer if the “USB Power” is set to “100mA.”
Settings
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
53
53
Settings
Setting the Display’s Left/Right Orientation
(Disp. Rotation)
You can change the display’s orientation to operate easily, for example, when
attaching the player using the supplied clip or arm band.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Disp. Rotation>” and press the
 button to conrm.
Rotate the shuttle switch to select “ON” or “OFF” and press the 
button to conrm.
“OFF” is set by default.
To return to the previous menu
Press the DISP/HOME button.
Hint
Even if you change the display’s orientation, the shuttle switch function ( () or
VOL +/–) is not be changed.
Note
Even if you change the display’s orientation according to the above procedure, Power
Save display ( page 54) orientation for ALL SONGS ( page 13) or PLAYLIST (
page 14) cannot be changed.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
54
54
Saving Power Consumption
(Power Save)
The screen changes to the power save screen when the player is not operated
for about 15 seconds.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Advanced Menu>” and press the
 button to conrm.
Rotate the shuttle switch to select “Power Save>” and press the
 button to conrm.
Rotate the shuttle switch to select the power save setting and press
the  button to conrm.
To return to the previous menu
Press the DISP/HOME button.
Lists of the power save setting
Setting item Description
ON-Normal The power save screen appears in the display when
no operation is performed for about 15 seconds.
(Default setting)
ON-Super Nothing appears in the display. This setting uses the
least battery consumption.
OFF The icon(s) or letter(s) appears in the display
constantly during playback or FM reception (NW-
S202F/S203F/S205F only).
Settings
Table of
Contents
Index
Menu
55
55
NW-S203F/S205F.GB.2-699-315-12(2)
Enjoy Listening to FM Radio
You can listen to FM radio. Charge the built-in rechargeable battery before
using the player ( page 62), and connect the headphones to the headphone
jack.
1 Switching to the FM tuner
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (FM) and press the 
button to conrm.
The FM tuner screen appears.
ST
FM
AND SCANBY NOMO
9001 .0
M Hz
FM tuner screen*
Preset number FrequencyTuning mode
* The illustrated FM tuner screen may be different from your model.
Continued
Listening to FM Radio (NW-S202F/S203F/S205F only)
Table of
Contents
Index
Menu
56
56
NW-S203F/S205F.GB.2-699-315-12(2)
To stop the FM tuner and return to the audio player
Press and hold the DISP/HOME button until the HOME screen appears, and
then select (ALL SONGS) or (PLAYLIST) from the menu screen and
press the button to confirm.
If there are no songs in the playlist, select (ALL SONGS).
To turn off the volume of the FM tuner briefly
By pressing the  button, FM tuner sound is not output. The FM tuner
enters Sleep status after about 5 seconds and the display goes off. By pressing
the  button, the FM tuner sound is output again.
Notes
If you rotate the shuttle switch to () in Sleep status, the previous (or
next) preset number or frequency is selected. At that time, the sound is not output,
regardless of the VOL +/- button.
During FM reception, (SPORTS MODE) and (STOPWATCH) do not
appear on the HOME screen.
During FM reception, you cannot change the display by pressing the DISP/
HOME button.
2 Presetting broadcast stations automatically (FM Auto Preset)
You can preset receivable broadcast stations (up to 30 stations) in your area
automatically by selecting “FM Auto Preset.” This is convenient when you use
the FM tuner for the first time or when you change to a new area.
Note
The “FM Auto Preset” operation will delete already preset broadcast stations.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Continued
Listening to FM Radio (NW-S202F/S203F/S205F only)
Table of
Contents
Index
Menu
57
57
NW-S203F/S205F.GB.2-699-315-12(2)
Rotate the shuttle switch to select “FM Auto Preset>” and press the
 button to conrm.
Rotate the shuttle switch to select “OK” and press the  button
to conrm.
The receivable broadcast stations will be preset in order from low to high
frequency.
“COMPLETE” appears when presetting is complete, then the first preset
station is received.
To stop the presetting
Select “Cancel” in step and press the  button.
To return to the previous menu
Press the DISP/HOME button.
If several unnecessary stations are received
If interference is prevalent or reception is too sensitive, change the reception
setting ( page 60) to “Low.”
3 Selecting broadcast stations
There are 2 ways (manual or preset tuning) to select broadcast stations.
(manual tuning)
Normal (preset tuning)
HOLD
Shuttle switch
to
 button
DISP/HOME button to
Slide the shuttle switch to the folder position to enter manual tuning mode.
Slide the shuttle switch to the Normal position to enter preset tuning mode.
Manual Tuning: In manual tuning mode, you can select broadcast stations
by frequency.
Preset Tuning: In preset tuning mode, you can select broadcast stations by
preset number.
Continued
Listening to FM Radio (NW-S202F/S203F/S205F only)
Table of
Contents
Index
Menu
58
58
NW-S203F/S205F.GB.2-699-315-12(2)
Manual Tuning
, frequency, and preset number appear on the FM tuner screen, in order.
To Operation
Select the previous frequency Rotate the shuttle switch to briefly.
Select the next frequency Rotate the shuttle switch to briefly.
Select the previous receivable
broadcast station*Rotate and hold the shuttle switch to .
Select the next receivable broadcast
station*Rotate and hold the shuttle switch to .
* By rotating and holding the shuttle switch to () during FM
reception, the previous (or next) broadcast station is found. If the broadcast
station is receivable, the reception is accepted.
If interference is prevalent or reception is too sensitive, change the reception
setting ( page 60) to “Low.”
If you rotate the shuttle switch to () in Sleep status, the frequency
decreases (or increases), and the previous (or next) broadcast station is not
found and sound is not output.
Preset Tuning
, preset number, and frequency appear on the FM tuner screen, in order.
To Operation
Select the previous preset number Rotate the shuttle switch to briefly.
Select the next preset number Rotate the shuttle switch to briefly.
Note
You cannot select broadcast stations if no preset stations are entered. Preset the
receivable stations using “FM Auto Preset” ( page 56).
Improving the reception
The headphones cord serves as the antenna, so extend it as far as possible.
Listening to FM Radio (NW-S202F/S203F/S205F only)
Table of
Contents
Index
Menu
59
59
NW-S203F/S205F.GB.2-699-315-12(2)
Presetting Desired Broadcast Stations
You can preset broadcast stations that “FM Auto Preset” misses ( page 56).
to
 button
DISP/HOME button to
Shuttle switch
Select the desired frequency by manual tuning mode ( page 57).
Press and hold the  button.
The frequency you select in step is preset and the preset number
appears.
Hint
You can preset up to 30 stations (P01 to P30).
Note
The preset number is always sorted from low to high frequency order.
To delete preset broadcast stations
Select the desired frequency’s preset number.
Press and hold the  button.
Rotate the shuttle switch to select “OK” and press the  button
to conrm.
The preset broadcast station is deleted and the next one appears.
To cancel deletion of the preset broadcast station
Select “Cancel” in step and press the  button.
Listening to FM Radio (NW-S202F/S203F/S205F only)
Table of
Contents
Index
Menu
60
60
NW-S203F/S205F.GB.2-699-315-12(2)
Setting the Reception
(Scan Sens)
When you set the “FM Auto Preset” ( page 56) or “Manual Tuning” ( page
57), it may receive many unnecessary broadcast stations because reception is
too sensitive. In this case, set to “Low.” “High” is set by default.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Scan Sens>” and press the 
button to conrm.
Rotate the shuttle switch to select “Low” and press the  button
to conrm.
To set back the reception
Select “High” in step and press the  button to confirm.
To return to the previous menu
Press the DISP/HOME button.
Listening to FM Radio (NW-S202F/S203F/S205F only)
Table of
Contents
Index
Menu
61
61
NW-S203F/S205F.GB.2-699-315-12(2)
Changing the Monaural/Stereo
(Mono/Auto)
If noise occurs during FM reception, set to “Mono” for monaural. If you set to
“Auto,” stereo/monaural reception is automatically set, depending on reception
conditions. “Auto” is set by default.
to
 button
DISP/HOME button to
Shuttle switch
Press and hold the DISP/HOME button until the HOME screen
appears.
Rotate the shuttle switch to select (SETTINGS) and press the
 button to conrm.
Rotate the shuttle switch to select “Mono/Auto>” and press the
 button to conrm.
Rotate the shuttle switch to select “Mono” and press the
 button to conrm.
To return to the automatic setting
Select “Auto” in step and press the  button to confirm.
To return to the previous menu
Press the DISP/HOME button.
Listening to FM Radio (NW-S202F/S203F/S205F only)
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
62
62
Recharging the Player
The player is rechargeable when connected to a computer.
When you connect the player to your computer, use the supplied USB cable.
When the remaining battery indication of the display shows: ,
charging is complete (charging time is approx. 45 minutes*).
When you use the player for the first time, or if you have not used the player
for a long time, recharge it fully (to in the remaining battery
indication of the display).
* This is the approximate charging time when the battery power is low and the
“USB Power” setting ( page 52) is “500mA” under room temperature. The
charging time will vary depending on remaining battery power and battery
condition. If the battery is charged in a low-temperature environment, the
charging time will be longer. It will also be longer if you transfer audio file(s)
to the player while charging.
On the remaining battery indication
The battery icon in the display ( page 12) changes as shown below. See 
page 90 on battery duration.
The battery power gets low as shown in the battery icon. If “LOW BATTERY”
appears, you cannot play back with the player. In this case, charge the battery
by connecting to your computer.
Notes
Charge the battery in an ambient temperature of between 5 to 35ºC (67 to 95ºF).
“DATA ACCESS” appears in the display while the player accesses the computer. Do not
disconnect the player while “DATA ACCESS” appears or the data being transferred may
be destroyed.
Some USB devices connected to the computer may interfere with the proper operation
of the player.
The control buttons on the player are all disabled while it is connected to a computer.
Advanced Features
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
63
63
Maximizing Battery Life
By following a few simple guidelines, you can extend the playing time available
from a battery charge.
Screen display auto-off
Setting the display to turn off after a certain period of time of not using the
player (approx. 15 seconds), can help to save battery power.
See “Saving Power Consumption (Power Save)” ( page 54) for the setting
method.
Adjust song format and bit rate
The playing time varies, as battery charge can be affected by the format and bit
rate of the audio songs that are played.
For example, a full battery charge offers about 18 hours of playing time for
songs in ATRAC format at 48 kbps, but only about 15 hours for songs in WMA
format at 128 kbps. The exact playing time available from a full charge varies
with the operating conditions and environment of the player.
To deactivate the G Sensor
The player’s built-in G Sensor recognizes speed variation and provides various
functions. However, with the G Sensor active, battery consumption is higher
when G Sensor active than when not. In order to save power and prolong use
of the player, it is recommended to deactivate the G Sensor ( page 40).
To make the player enter Sleep status
When you stop song playback or FM reception (NW-S202F/S203F/S205F only)
by pressing the  button, after about a few seconds, the display goes off
automatically and the player enters Sleep status.
When the G Sensor menu is deactivated in Sleep status, the player consumes
very little battery power.
Note
Do not leave the player connected for extended periods to a laptop computer that is not
connected to AC power, because the player may discharge the computer’s battery.
Advanced Features
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
64
64
Advanced Features
What are Format and Bit Rate?
What is format?
The format of a song refers to the method used by SonicStage to store the
song’s audio information when songs are imported to SonicStage from the
Internet or audio CDs.
Common formats include MP3, WMA and ATRAC, etc.
MP3: MP3 (MPEG-1 Audio Layer3) is a common audio compression
technology developed by the MPEG working group of the ISO (International
Organization for Standardization).
MP3 can compress audio files to about 1/10 the size of standard CD audio songs.
WMA: WMA (Windows Media Audio) is a common audio compression
technology developed by Microsoft Corporation. The WMA format produces
the same sound quality as that of the MP3 format with smaller file size.
ATRAC: ATRAC (Adaptive Transform Acoustic Coding) is a general term used
to refer to ATRAC3 and ATRAC3plus formats. ATRAC is an audio
compression technology that satisfies the demand for both high sound quality
and high compression rates. ATRAC3 can compress audio files to about 1/10
the size of standard CD audio songs. ATRAC3plus, a more advanced version of
ATRAC3, can compress audio files to about 1/20 the size of standard CD audio
songs.
AAC: AAC (Advanced Audio Coding) is a common audio compression
technology developed by the MPEG working group of the ISO (International
Organization for Standardization). The AAC format produces the same sound
quality as that of the MP3 format, with a smaller file size.
What is bit rate?
Bit rate refers to the amount of data used to store each second of audio.
Generally, higher bit rates provide better sound quality, but require more storage
space for the same length of audio.
What is the relationship between bit rate, sound quality, and storage size?
Generally, higher bit rates provide better sound quality, but require more storage
space for the same length of audio, so you can store fewer songs on the player.
Lower bit rates enable you to store more songs, but at a lower sound quality.
For details on supported audio formats and bite rate, see page 90.
Note
If you import a song from a CD to SonicStage at a low bit rate, you cannot improve
the song’s sound quality by selecting a high bit rate when transferring the song from
SonicStage to the player.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
65
65
Advanced Features
Playing Songs Without Pauses
If you import songs to SonicStage in ATRAC format and transfer them to the
player, you can play them on the player continuously, without pauses between
the songs.
For example, an album that includes a long recording of a live performance
with no pauses between songs can be played continuously without pauses after
the songs are imported to SonicStage in ATRAC format and then transferred to
the player.
Note
For songs to be played without pauses, you must import all the songs on a single album
without pauses at one time to the SonicStage software in the same ATRAC format.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
66
66
Advanced Features
How is Song Information Imported to the Player?
When you import CD songs into SonicStage, SonicStage automatically retrieves
information about the songs (such as album title, artist name, and song name)
from a CD database service (CDDB, the Gracenote CD DataBase) on the
Internet at no charge. When songs are transferred to the player, this song
information is transferred along with the songs.
Having this information attached to your songs makes possible various
advanced searching features of the player.
Note
Song information of some CDs may not be able to retrieved from the Internet. For songs
that are not in the Internet database, you can manually enter and edit song information
in SonicStage. For details on editing song information, refer to SonicStage Help.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
67
67
Storing Data Other Than Audio Files
You can store computer data into the built-in flash memory of the player by
transferring it from your computer with Windows Explorer. If the player is
connected to the computer, the built-in flash memory appears in Windows
Explorer as a removable storage drive.
Notes
Do not use SonicStage while using Windows Explorer to interact with the built-in flash
memory of the player.
Always use SonicStage to transfer audio files that you want to play to the player. Audio
files transferred with Windows Explorer cannot be played by the player.
Do not disconnect the supplied USB cable while transferring data between a computer
and the player because the data being transferred could be damaged.
Do not format the built-in flash memory using Windows Explorer. If you format the
built-in flash memory, format it using the “Format” menu of the player ( page 50).
Advanced Features
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
Upgrading the Player’s Firmware
You can update the player’s firmware, ensuring you to add new features for the
player by installing the latest player’s firmware to the player. For details about
the latest firmware information and how to install it, visit the following web
site:
For customers in the USA: http://www.sony.com/walkmansupport
For customers in Canada: http://www.sony.ca/ElectronicsSupport/
For customers in Europe: http://www.support-nwwalkman.com
For customers in Latin America: http://www.sony-latin.com/pa/info/
For customers in other countries/regions: http://www.css.ap.sony.com
For customers who purchased the overseas models: http://www.sony.co.jp/overseas/support/
Download the update program to your computer from the web site.
Connect the player to your computer, and then start up the update
program.
Follow the on-screen instructions to update the player’s rmware.
Firmware update is complete.
68
68
Advanced Features
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
69
69
Troubleshooting
If the player does not function as expected, try the following steps to resolve
the issue.
1 Press the DISP/HOME button and  button at the same time for
more about 7 seconds to reset the player.
All the songs and settings stored on the player will not be erased even when you
reset it.
 button
DISP/HOME button
2 Find the symptoms of the issue in the following troubleshooting tables,
and try any corrective actions listed.
3 Check for information about the issue in SonicStage Help.
4 Look for information about the issue on one of the support Web sites.
For customers in the USA, visit: http://www.sony.com/walkmansupport
For customers in Canada, visit: http://www.sony.ca/ElectronicsSupport/
For customers in Europe, visit: http://www.support-nwwalkman.com
For customers in Latin America, visit: http://www.sony-latin.com/pa/info/
For customers in other countries/regions, visit: http://www.css.ap.sony.com
For customers who purchased the overseas models, visit:
http://www.sony.co.jp/overseas/support/
5 If the approaches listed above fail to resolve the issue, consult your
nearest Sony dealer.
Operation
Symptom Cause/Remedy
There is no sound. The volume level is set to zero.
Turn the volume up ( page 9).
The headphone jack is not connected properly.
Connect the headphone jack properly ( page 11).
The headphone plug is dirty.
Clean the headphone plug with a soft dry cloth.
No audio files are stored in the built-in flash
memory.
If “NO DATA” appears, transfer audio file(s) from
the computer.
Troubleshooting
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
70
70
Symptom Cause/Remedy
Noise is generated. An apparatus emitting radio signals, such as a
mobile phone is being used near the player.
When using such apparatus as mobile phones,
keep them away from the player.
Buttons do not work. The shuttle switch is set to the HOLD position.
Slide the shuttle switch to the Normal (centre)
position ( page 10).
The player contains moisture condensation.
Wait a few hours to let the player dry.
The remaining battery is low or insufficient.
Charge the battery connecting to the computer
( page 62).
Even if charging the battery and nothing is
changed, press the DISP/HOME button and
 button at the same time for more about 7
seconds to reset the player ( page 69).
The player does not work. The remaining battery is insufficient.
Charge the battery connecting to the computer
( page 62).
Even if charging the battery and nothing is
changed, press the DISP/HOME button and
 button at the same time for more about 7
seconds to reset the player ( page 69).
The transferred songs
cannot be found. The built-in flash memory of the player was
formatted using Windows Explorer.
Format the built-in flash memory using the
“Format” menu of the player ( page 50).
The supplied USB cable is disconnected from the
player while data is being transferred.
Transfer usable files back to your computer and
format the built-in flash memory using the
“Format” menu of the player ( page 50).
The volume is not loud
enough. AVLS is enabled.
Disable AVLS ( page 36).
There is no sound from
right channel of the
headphones.
The headphone jack is not fully inserted.
If the headphones are not connected correctly,
sound will not be output properly. Connect the
headphones into the jack until it clicks ( page 11).
Playback has stopped
suddenly. The remaining battery is insufficient.
Charge the battery connecting to the computer
( page 62).
Troubleshooting
Operation (continued)
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
71
71
Troubleshooting
Symptom Cause/Remedy
Even if you use the Music
Pacer function ( page
23), the playlist is not
changed.
The player cannot recognize pace of movement
properly.
We recommend using the supplied clip or arm
band ( page 6) when using the player. However
the player may not be able to recognize pace of
movement properly depending on how the player
is attached, or the following cases.
– If you use the player with a strap (sold
separately) around your neck, waist, bag, etc.
– If you use the player inside a bag swinging
randomly.
– If you use the player during up and down
movement or swaying from side to side in a
vehicle.
– If you use the player during active sports
requiring up and down movement or subject
the player to excessive shock.
Even if you shake the
player 3 times, play mode
is not changed.
Shaking method of the player is not correct.
As illustration page 20, hold the player with
display facing up and shake the player up and
down 3 times in rhythm within two seconds.
The G Sensor menu is set to “OFF.”
When the G Sensor menu ( page 40) is set to
“OFF,” this function is not available. Set to “ON”
and then shake the player.
Display
Symptom Cause/Remedy
“” appears for a title. Characters that cannot appear on the player are
involved.
Use the supplied SonicStage to rename the title
with appropriate characters.
Continued
Operation (continued)
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
72
72
Troubleshooting
Continued
Charging the battery
Symptom Cause/Remedy
Battery life is short. The operating temperature is below 5°C (67°F).
Battery life becomes shorter due to the battery
characteristics. This is not malfunction.
Battery charging time is not enough.
Charge the battery longer if the USB connection
(USB Power) is set to “100mA” ( page 52).
The G Sensor menu is set to “ON.”
The battery consumes more power than when the
G Sensor menu ( page 40) is set to “OFF.”
You can save the battery power by changing the settings
and careful management of your battery usage (
page 63).
The battery is required to be replaced.
Consult your near Sony dealer.
The player cannot charge
the battery. The USB cable is not connected to a USB port on
your computer properly.
Disconnect the USB cable, and then reconnect it.
Use the supplied USB cable.
Connection with the computer/SonicStage
Symptom Cause/Remedy
The SonicStage software
cannot be installed. The computer’s operating system software is not
compatible with SonicStage.
Refer to the system requirements ( page 91).
All Windows applications are not closed.
If you start the installation while other programs
are running, an error may occur. This is especially
true for programs that require significant system
resources, such as virus-protection software.
There is not enough free space on the hard disk of
your computer.
You need 200 MB or more of free space. Delete
any unnecessary files on your computer.
You are not logged on as an “Administrator.”
If you are not logged on as an “Administrator,” the
installation of SonicStage might fail. Make sure
that you are logged on using an account with
“Administrator” privileges.
When installing the
SonicStage software, the
progress bar on the display
of your computer is not
moving. The access lamp
of your computer has not
lit for a few minutes.
The installation is progressing normally. Please wait.
The installation may take 30 minutes or more,
depending on your system environment.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
73
73
Symptom Cause/Remedy
SonicStage does not start
up. Your computer’s system environment has changed,
perhaps due to an update of the Windows operating
system.
“USB CONNECT” does
not appear when
connected to the
computer with the
supplied USB cable.
The USB cable is not connected to a USB port on
your computer properly.
Disconnect the USB cable, and then reconnect it.
Use the supplied USB cable.
A USB hub is being used.
Connecting the player via a USB hub may not
work. Connect the player directly to the
computer.
Please wait for the authentication of the SonicStage
software.
Another application is running on the computer.
Disconnect the USB cable, wait a few minutes,
and reconnect it. If the problem persists,
disconnect the USB cable, restart the computer,
and then reconnect the USB cable.
The player’s USB connection (USB Power) is set to
“500mA.”
Set the “USB Power” to “100mA” ( page 52).
The installation of the SonicStage software was not
successful.
Disconnect the player from your computer, and
reinstall the software using the supplied CD-
ROM ( “Quick Start Guide”). Audio songs
registered with the earlier installation will be
available with the new SonicStage installation.
The player is not
recognized by the
computer when it is
connected to the
computer.
The USB cable is not connected to a USB port on
your computer properly.
Disconnect the USB cable, and then reconnect it.
A USB hub is being used.
Connecting the player via a USB hub may not
work. Connect the player directly to the
computer.
Connection with the computer/SonicStage (continued)
Troubleshooting
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
74
74
Troubleshooting
Symptom Cause/Remedy
Audio data cannot be
transferred to the player
from your computer.
The USB cable is not connected to a USB port on
your computer properly.
Disconnect the USB cable, and then reconnect it.
There is not enough free space in the built-in flash
memory.
Transfer any unnecessary songs back to your
computer to increase free space.
You have already transferred over 65,535 songs or
over 8,192 playlists to the built-in flash memory, or
you are trying to transfer a playlist that contains
over 999 songs.
Songs with a limited playing period or playing count
may not be transferred due to restrictions set by
copyright holders. For details on the settings of each
audio file, contact the distributor.
Only a small number of
songs can be transferred
to the player.
(Available recording time
is short.)
There is not enough free space in the built-in flash
memory.
Transfer any unnecessary songs back to your
computer to increase free space.
Non-audio data is stored in the built-in flash
memory.
Move non-audio data to the computer to increase
free space.
Audio data cannot be
transferred back to your
computer from the
player.
The computer you are trying to transfer songs to is
not the same computer from which the songs were
originally transferred.
Songs can be transferred only to the computer
that they originally came from. If songs cannot be
transferred back to the computer and you want to
delete songs on the player, select songs on the
SonicStage software and click to delete them.
The audio data has been deleted from the computer
you used to transfer to the player.
The audio data cannot be transferred back to your
computer if the song is deleted from the computer
used to transfer to the player.
The player becomes
unstable while it is
connected to the
computer.
A USB hub or USB extension cable is being used.
Connecting the player via a USB hub or extension
cable may not work. Connect the supplied USB
cable directly to the computer.
Connection with the computer/SonicStage (continued)
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
75
75
Troubleshooting
FM Tuner (NW-S202F/S203F/S205F only)
Symptom Cause/Remedy
You cannot hear the FM
broadcast well. The receiving frequency is not fully tuned in.
Select the frequency manually to improve
reception ( page 57).
Reception is weak and
sound quality is poor. The radio signal is weak.
Listen to the FM broadcast near a window since
the signal may be weak inside buildings or
vehicles.
The headphone cord does not extend enough.
The headphone cord functions as an antenna.
Extend the headphone cord as far as possible.
The FM broadcast is
affected by interference. An apparatus emitting radio signals, such as a
mobile phone is being used near the player.
When using such apparatus as mobile phones,
keep them away from the player.
Other
Symptom Cause/Remedy
There is no beep sound
when the player is
operated.
Beep is set to “OFF.”
Set “ON” in the “Beep” menu ( page 37).
The player gets warm. While charging, the player may become slightly
warm.
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
76
76
Messages
Follow the instructions below if a message appears in the display.
Message Meaning Remedy
ACCESS This message appears
after disconnecting the
USB cable from the
computer, or resetting the
player ( page 69).
This is not an error
message. Wait until the
message disappears.
AVLS (blinks) The volume level exceeds
the rated value while
AVLS is enabled.
Turn the volume down or
disable AVLS ( page 36).
CANNOT PLAY The player cannot play
certain files because of
incompatible formats.
Transferring has been
interrupted forcefully.
If the song which cannot
be played is unnecessary,
you can erase it from the
built-in flash memory. For
details, refer to “To delete
abnormal data from the
built-in flash memory”
( page 79).
CHARGE ERROR The power supply is
abnormal.
Try using another
computer.
DATA ACCESS Accessing the built-in
flash memory.
Please wait for access to
complete. This message
appears while the built-in
flash memory is being
accessed.
DRM ERROR An unauthorized
distribution file is
detected for copyright
protection.
Transfer the normal audio
file back to the computer
and then format the
player. For details, refer to
“To delete abnormal data
from the built-in flash
memory” ( page 79).
EXPIRED You are trying to play a
song that has a playback
time restriction.
If the song which cannot
be played is unnecessary,
you can erase it from the
built-in flash memory. For
details, refer to “To delete
abnormal data from the
built-in flash memory”
( page 79).
Troubleshooting
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
77
77
Message Meaning Remedy
FILE ERROR The file cannot be read.
The file is not normal.
Transfer the normal audio
file back to the computer
and then format the
player. For details, refer to
“To delete abnormal data
from the built-in flash
memory” ( page 79).
FORMAT ERROR The built-in flash memory
was formatted on a
computer.
Format the player using
the “Format” menu. For
details, refer to “To delete
abnormal data from the
built-in flash memory”
( page 79).
HOLD The player cannot be
operated because the
shuttle switch is set to the
HOLD position.
To operate the player, slide
the shuttle switch to the
Normal (centre) position
( page 10).
LOW BATTERY The battery is low. You must charge the
battery ( page 62).
MEMORY ERROR There is a problem with
the built-in flash memory.
Format the player using
the “Format” menu. For
details, refer to “To delete
abnormal data from the
built-in flash memory”
( page 79). If this
message still appears,
consult your nearest Sony
dealer.
NO DATA There are no audio files in
the built-in flash memory.
If there are no audio files
in the built-in flash
memory, use SonicStage
to transfer audio files.
NO DATABASE The player is disconnected
from the computer while
transferring audio files.
Transfer the normal audio
file back to the computer
and then format the
player. For details, refer to
“To delete abnormal data
from the built-in flash
memory” ( page 79).
Troubleshooting...Messages
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
78
78
Message Meaning Remedy
NO ITEM No song exists in the
selected item.
Use SonicStage to transfer
audio files.
PRESET FULL 30 broadcast stations are
already preset.
You can preset up to 30
broadcast stations. If you
want to preset more
stations, delete
unnecessary stations first
( page 59), then preset
the stations you want.
SET RUN P.LIST Appears when changing
the playlist in the Set
Playlist (automatic song
selection) menu of
“SPORTS MODE.”
Select the playlist to listen
to songs at fast pace
( page 25).
SET WALK P.LIST Appears when changing
the playlist in the Set
Playlist (automatic song
selection) menu of
“SPORTS MODE.”
Select the playlist to listen
to songs at slow pace
( page 25).
SYSTEM ERROR There is a problem with
the hardware.
Consult your nearest Sony
dealer.
UPDATE ERROR When the player fails to
update the firmware.
Follow the on-screen
instructions on the
computer and update
again.
USB CONNECT The player is connected to
a computer.
This is not a malfunction.
You can operate the player
using SonicStage, but you
cannot operate the
controls on the player.
Troubleshooting...Messages
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
79
79
Troubleshooting...Messages
To delete abnormal data from the built-in flash memory
If “CANNOT PLAY,” “DRM ERROR,” “EXPIRED,” “FILE ERROR,” “FORMAT
ERROR,” “MEMORY ERROR,” or “NO DATABASE” appears, there is a
problem with all or part of the data stored in the built-in flash memory.
Please follow the procedure below to erase data you cannot play.
1 Connect the player to the computer, and start SonicStage.
2 If you have already specified the data with problems, erase the data
using SonicStage.
3 If the problem persists, transfer all data without problems back to the
computer using SonicStage while the player is connected to the
computer.
4 Disconnect the player from the computer and then format the built-in
flash memory using the “Format” menu ( page 50).
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
80
80
Uninstalling SonicStage
To uninstall the supplied software from your computer, follow the procedure
below.
Click “Start”– “Control Panel.”1)
Double-click “Add or Remove Programs.”
Click “SonicStage X.X” in the “Currently Installed Programs” list, and
then click “Remove.”2)
Follow the displayed instruction and restart your computer.
The uninstallation is completed when the computer has restarted.
1) “Settings” – “Control Panel” in the case of Windows 2000 Professional.
2) “Change/Remove” in the case of Windows 2000 Professional.
Note
When you install SonicStage, OpenMG Secure Module is installed at the same time. Do
not delete OpenMG Secure Module since it may be used by other software.
Troubleshooting
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
81
81
Owner’s Record
The model and serial numbers are located on the rear of the player. Record the
serial number in the space provided below. Refer to these numbers whenever
you call upon your Sony dealer regarding this product.
Model No. ___________________________
Serial No. ___________________________
For Customers in the USA
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in
this manual could void your authority to operate this equipment.
Continued
Additional Information
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
82
82
If you have any questions about this product:
Visit:
www.sony.com/walkmansupport
Contact:
Sony Customer Information Service Center at 1-(866)-456-7669
Write:
Sony Customer Information Services Center
12451 Gateway Blvd.,
Fort Myers, FL 33913
Declaration of Conformity
Trade Name: SONY
Model No.: NW-S203F/S205F
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Continued
Additional Information
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
83
83
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union
and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. The recycling of
materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local Civic
Office, your household waste disposal service or the shop where you purchased
the product.
Applicable accessories: Headphones
For Customers in Russia
Additional Information
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
84
84
Precautions
On safety
Be sure not to short-circuit the terminals of the player with other metallic
objects.
Do not touch the rechargeable battery with bare hands if it is leaking. Since
battery liquid may remain in the player, consult your nearest Sony dealer if
the battery has leaked. If the liquid gets into your eyes, do not rub your eyes
as it may lead to blindness. Wash out your eyes with clean water, and consult
a doctor.
Also, if the liquid gets on to your body or clothes, wash it off immediately. If
you do not, it may cause burns or injury. If you get burned or injured by the
liquid from the battery, consult a doctor.
Do not pour water or put any foreign object in the player. Doing so may
cause fire or electric shock.
If this occurs, turn off the player immediately, disconnect the USB cable from
the player, and consult your nearest Sony dealer or Sony Service Center.
Do not put the player into the fire.
Do not take apart or remodel the player. Doing so can result in electric shock.
Consult your nearest Sony dealer or Sony Service Center for exchange of
rechargeable batteries, internal checks or repair.
On installation
Do not put any heavy object on top of the player or apply a strong shock to
the player. It may cause a player to malfunction or damage.
Never use the player where it will be subjected to extremes of light,
temperature, moisture or vibration.
Never leave the player exposed to high temperature, such as in a car parked
in the sun or under direct sunlight.
The player may become discolored or deformed, or this may cause a
malfunction.
Do not leave the player in a place subject to excessive dust.
Do not leave the player on an unstable surface or in an inclined position.
If the player causes interference to radio or television reception, turn the
player off and move it away from the radio or television.
Additional Information
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
85
85
When using the player, remember to follow the precautions below in order to
avoid warping the cabinet or causing the player to malfunction.
– Make sure not to sit down with the player in your back pocket.
– Make sure not to put the player into a bag with the headphones/earphones
cord wrapped around it and then subject the bag to strong impact.
On heat build-up
Heat may build up in the player while charging if it is used for an extended
period of time.
On the headphones
Road safety
Do not use headphones while driving, cycling, or operating any motorized
vehicle. Doing so may create a traffic hazard and is illegal in many areas. It can
also be potentially dangerous to play the player at a high volume while walking,
especially at pedestrian crossings. You should exercise extreme caution or
discontinue use in potentially hazardous situations. Also, when using the player
while you are walking, watch out for traffic and road surface conditions.
Preventing hearing damage
Avoid using the headphones at a high volume. Hearing experts advise against
continuous, loud and extended play. If you experience a ringing in your ears,
reduce the volume or discontinue use.
Do not turn the volume up high all at once, especially when using headphones.
Turn up the volume gradually so that loud sound will not hurt your ears.
Caring for others
Keep the volume at a moderate level. This will allow you to hear outside
sounds and to be considerate to the people around you.
Warning
If there is lightning when you are using the player, take off the headphones
immediately.
If you experience an allergic reaction to the supplied headphones, stop using
them at once and contact a doctor.
Additional Information...Precautions
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
86
86
On the use
When using a strap (sold separately), be careful to avoid hooking it on objects
you pass by.
Do not use the player on an aircraft.
The player (except headphones) is designed to be splash-resistant, but pay
attention to the following conditions:
– Do not splash a large amount of water on the player.
– Do not drop or immerse the player in water.
– Rotate the lid to close it tightly to prevent objects from entering the player
through the USB jack (page 11).
The player’s shuttle switch works on a magnetic principle. In normal use, the
player should not interfere with other devices, however, care should be taken
to avoid close contact with magnetically–encoded items, such as credit cards,
etc. Furthermore, avoid use on a beach or near sand, which may cause
damage to the player’s shuttle switch, etc.
When using the supplied arm band, avoid over tightening it as blood circulatory
problems may result.
On cleaning
Clean the player’s case with a soft cloth, such as cleaning cloth for eyeglasses.
If the player’s case becomes very dirty, clean it with a soft cloth slightly
moistened with water or a mild detergent solution.
Do not use any type of abrasive pad, scouring powder, or solvent, such as
alcohol or benzene, as it may mar the finish of the case.
Be careful not to let water get into the player from the opening near the
connector.
Clean the headphone plug periodically.
If you have any questions or problems concerning the player, please consult
your nearest Sony dealer.
On software
Copyright laws prohibit reproducing the software or the manual
accompanying it in whole or in part, or renting the software without the
permission of the copyright holder.
In no event will SONY be liable for any financial damage, or loss of profits,
including claims made by third parties, arising out of the use of the software
supplied with this player.
In the event a problem occurs with this software as a result of defective
manufacturing, SONY will replace it. However, SONY bears no other
responsibility.
Additional Information...Precautions
Continued
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
87
87
The software provided with this player cannot be used with equipment other
than that which is so designated.
Please note that, due to continued efforts to improve quality, the software
specifications may be changed without notice.
Operation of this player with software other than that provided is not covered
by the warranty.
The ability to display the languages on your SonicStage will depend on the
installed OS on your PC. For better results, please ensure that the installed
OS is compatible with the desired language you want to display.
– We do not guarantee all the languages will be able to be displayed properly on
your SonicStage.
– User-created characters and some special characters may not be displayed.
The explanations in this manual assume that you are familiar with the basic
operations of Windows.
For details on the use of your computer and operating system, please refer to
the respective manuals.
On sample audio data
The player is pre-installed with sample audio data so that you can try it out
right away. To delete this audio data, delete it using SonicStage.
The recorded music is limited to private use only. Use of the music
beyond this limit requires permission of the copyright holders.
Sony is not responsible for incomplete recording/downloading or
damaged data due to problems of the player or computer.
Depending on the types of the text and characters, the text shown on
the player may not be displayed properly on device. This is due to:
– The capacity of the connected player.
– The player is not functioning normally.
– The ID3 TAG information for the song is written in the language or the
character that is not supported by the player.
About the customer support Web site
If you have any questions about or issue with this product, visit the following
web sites.
For customers in the USA: http://www.sony.com/walkmansupport
For customers in Canada: http://www.sony.ca/ElectronicsSupport/
For customers in Europe: http://www.support-nwwalkman.com
For customers in Latin America: http://www.sony-latin.com/pa/info/
For customers in other countries/regions: http://www.css.ap.sony.com
For customers who purchased the overseas models:
http://www.sony.co.jp/overseas/support/
Additional Information...Precautions
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
88
88
Additional Information
On Copyrights
SonicStage and the SonicStage logo are trademarks or registered trademarks
of Sony Corporation.
OpenMG, ATRAC, ATRAC3, ATRAC3plus and their logos are trademarks of
Sony Corporation.
“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony
Corporation.
Microsoft, Windows, Windows NT and Windows Media are trademarks or
registered trademarks of Microsoft Corporation in the United States and/or
other countries.
Adobe and Adobe Reader are trademarks or registered trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
MPEG Layer-3 audio coding technology and patents licensed from
Fraunhofer IIS and Thomson.
IBM and PC/AT are registered trademarks of International Business
Machines Corporation.
Macintosh is a trademark of Apple Computer, Inc.
Pentium is a trademark or a registered trademark of Intel Corporation.
CD and music-related data from Gracenote, Inc., copyright © 2000-2004
Gracenote.
Gracenote CDDB ® Client Software, copyright 2000-2004 Gracenote. This
product and service may practice one or more of the following U.S. Patents:
#5,987,525; #6,061,680; #6,154,773, #6,161,132, #6,230,192, #6,230,207,
#6,240,459, #6,330,593, and other patents issued or pending. Services
supplied and/or device manufactured under license for following Open
Globe,Inc. United States Patent 6,304,523. Gracenote and CDDB are
registered trademarks of Gracenote.
The Gracenote logo and logotype, and the “Powered by Gracenote” logo are
trademarks of Gracenote.
All other trademarks and registered trademarks are trademarks or registered
trademarks of their respective holders. In this manual, TM and ® marks are not
specified.
Program ©2006 Sony Corporation
Documentation ©2006 Sony Corporation
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
89
89
Specications
Audio compression technology
– MPEG-1 Audio Layer-3 (MP3)
– Windows Media Audio (WMA)*
– Adaptive Transform Acoustic Coding (ATRAC)
– Advanced Audio Coding (AAC)*
* WMA/AAC format audio files that are copyright-protected cannot be played back.
Maximum recordable number of songs and time (Approx.)*
* The approximate times are based on a transferred 4-minute ATRAC or MP3 format song. Other playable audio file
formats may be different from ATRAC or MP3 format.
NW-S202F/S202 NW-S203F
Bit rate Songs Time Songs Time
48 kbps 340 22 hr. 40 min. 685 45 hr. 00 min.
64 kbps 255 17 hr. 00 min. 515 34 hr. 20 min.
96 kbps 170 11 hr. 20 min. 345 23 hr. 00 min.
128 kbps 125 8 hr. 20 min. 260 17 hr. 20 min.
132 kbps 120 8 hr. 00 min. 250 16 hr. 40 min.
160 kbps 100 6 hr. 40 min. 205 13 hr. 40 min.
192 kbps 85 5 hr. 40 min. 170 11 hr. 20 min.
256 kbps 64 4 hr. 10 min. 130 8 hr. 40 min.
320 kbps 51 3 hr. 20 min. 100 6 hr. 40 min.
352 kbps 46 3 hr. 00 min. 94 6 hr. 10 min.
NW-S205F
Bit rate Songs Time
48 kbps 1,350 90 hr. 00 min.
64 kbps 1,000 66 hr. 40 min.
96 kbps 690 46 hr. 00 min.
128 kbps 520 34 hr. 40 min.
132 kbps 500 33 hr. 20 min.
160 kbps 415 27 hr. 40 min.
192 kbps 345 23 hr. 00 min.
256 kbps 260 17 hr. 20 min.
320 kbps 205 13 hr. 40 min.
352 kbps 185 12 hr. 20 min.
Capacity (User available capacity)*
NW-S202F/S202: 512 MB (Approx. 482 MB = 505,724,928 bytes)
NW-S203F: 1 GB (Approx. 968 MB = 1,015,726,080 bytes)
NW-S205F: 2 GB (Approx. 1.89 GB = 2,035,974,144 bytes)
* Available storage capacity of the player may vary.
A portion of the memory is used for data management functions.
Continued
Additional Information
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(3)
90
90
Supported bit rates
MP3: 32 to 320 kbps variable bit rate-compliant
WMA: 32 to 192 kbps variable bit rate-compliant
ATRAC: 48/64/66 (ATRAC3)*/96/105 (ATRAC3)*/128/132 (ATRAC3)/160/192/256/320/352 kbps
* CD recording cannot be done using SonicStage software in ATRAC3 at 66/105 kbps.
AAC: 16 to 320 kbps variable bit rate-compliant*
* Nonstandard bit rates or non-guaranteed bit rates are included depending on the sampling frequency.
Sampling frequency*
MP3: 32, 44.1, 48 kHz
WMA: 44.1 kHz
ATRAC: 44.1 kHz
AAC: 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz
* Sampling frequency may not correspond to all encoders.
Frequency response
20 to 20,000 Hz (single signal measurement)
FM Frequency range (NW-S202F/S203F/S205F only)
87.5 to 108.0 MHz
IF (FM) (NW-S202F/S203F/S205F only)
375 kHz
Antenna
Headphone cord antenna
Interface
Headphone: Stereo mini
Hi-speed USB (USB 2.0 compliant)
Operating temperature
5°C to 35°C (67°F to 95°F)
Power source
Built-in rechargeable lithium-ion battery
USB power (from a computer through supplied USB cable)
Battery life (continuous playback)*
ATRAC format: Approximately 18 hours (Playback at 132 kbps)
ATRAC format: Approximately 17 hours (Playback at 128 kbps)
ATRAC format: Approximately 18 hours (Playback at 48 kbps)
MP3 format: Approximately 17 hours (Playback at 128 kbps)
WMA format: Approximately 15 hours (Playback at 128 kbps)
AAC format: Approximately 18 hours (Playback at 128 kbps)
FM radio reception (NW-S202F/S203F/S205F only): Approximately 5 hours
*
This is when power save setting is “ON-Super” (
page54), the sound quality setting (Equalizer) is “OFF” (
page
33), and G Sensor setting is “OFF” (
page 40). The battery duration will vary depending on temperature and usage.
Dimension (w/h/d)
15.0 × 96.5 × 15.0 mm (0.6 × 3.8 × 0.6 inches)
(w/h/d, projecting parts not included)
Mass
Approx. 26 g (Approx. 0.9 oz)
Continued
Additional Information...Specifications
Table of
Contents
Index
Menu
NW-S203F/S205F.GB.2-699-315-12(2)
91
91
Minimum System Requirements (for the player)
Computer
IBM PC/AT or compatible computer preinstalled with the following Windows operating systems:
– Windows 2000 Professional (Service Pack 3 or later)
– Windows XP Home Edition
– Windows XP Professional
– Windows XP Media Center Edition
– Windows XP Media Center Edition 2004
– Windows XP Media Center Edition 2005
OSs other than those indicated above are not supported.
CPU: Pentium III 450 MHz or higher
RAM: 128 MB or more
Hard Disk drive: 200 MB or more of available space (1.5 GB or more is recommended)
More space may be required, depending on the version of the operating system. Additional space is
required for storing music data.
Display:
– Screen Resolution: 800 × 600 pixels (or higher) (recommended 1,024 × 768 or higher)
– Colors: High Color (16 bit) (or higher) (SonicStage may not operate properly at color settings at or
below 256 colors.)
CD-ROM drive (supporting Digital Music CD playback capabilities using WDM)
To create original CDs or to back up audio CDs, a CD-R/RW drive is required.
Sound board
USB port (Hi-Speed USB is recommended)
Internet Explorer 5.5 or later needs to be installed.
Internet connection is required to use the CD Data Base (CDDB) or Electronic Music Distribution
(EMD).
We do not guarantee operation for all computers even if they meet the above System Requirements.
Not supported by the following environments:
– Personally constructed PCs or operating systems
– An environment that is an upgrade of the original manufacturer-installed operating system
– Multi-boot environment
– Multi-monitor environment
– Macintosh
Design and specifications are subject to change without notice.
US and foreign patents licensed from Dolby Laboratories.
Additional Information...Specifications
Table of
Contents
Index
Menu
92
92
NW-S203F/S205F.GB.2-699-315-12(2)
D
D.Normalizer ................................... 35
Date-Time ............................44, 46, 47
Date Disp Type ................................ 46
Disp. Rotation .................................. 53
DISP button ........................................ 9
Display .............................................. 12
Dynamic Normalizer ...................... 35
E
Equalizer ........................................... 33
Explorer ............................................ 67
F
Fast-forward ..................................... 10
Fast-rewind ....................................... 10
FM ..................................................... 55
FM Auto Preset ................................ 56
Folder (control mode)...............10, 29
Format (Formatting) ....................... 50
G
G Sensor ............................................ 40
H
Headphones ............................6, 11, 85
HOLD ............................................... 10
HOME button .................................... 9
HOME screen .................................... 8
I
Information ...................................... 48
Initialize ......................................49, 50
Index
Additional Information
Continued
Symbols
(Album)....................................... 29
(Artist) .......................................... 29
(Artist/Album) ........................... 29
(Folder) ........................................ 19
1 (Repeat 1 Song) ......................... 19
(Repeat All) ................................. 19
(Repeat Folder) ....................... 19
SHUF (Repeat Shuffle All) ........ 19
SHUF
(Repeat Shuffle Folder) ............... 19
A
AAC ................................................... 64
Accessories ......................................... 6
Adobe Reader ..................................... 3
Album ............................................... 17
ALL SONGS ..................................... 13
Artist ................................................. 16
ATRAC..................................64, 65, 89
AVLS (Limiting the volume) .......... 36
B
Battery .........................................62, 63
Beep (Beep sound) .......................... 37
Bit rate ............................................... 64
C
Calorie .........................................21, 38
Charge the battery ........................... 62
Clock ................................................. 27
Computer...................................... 3, 91
Counter Reset .................................. 43
Count History .................................. 42
Table of
Contents
Index
Menu
93
93
NW-S203F/S205F.GB.2-699-315-12(2)
Additional Information...Index
K
km ...................................................... 22
M
Manual (Volume) ............................ 32
Manual tuning ................................. 57
Messages ........................................... 76
miles .................................................. 22
Mono/Auto ....................................... 61
MP3 .............................................64, 89
Music Pacer ...................................... 23
P
Playback .............................................. 9
Playlist ............................................... 14
Play Mode ......................................... 18
Play Range ........................................ 19
Power Save ........................................ 54
Preset Custom .................................. 34
Preset (Volume) ............................... 30
Preset tuning .................................... 57
R
Radio ................................................. 55
Recharging ........................................ 62
Repeat................................................ 19
Reset (the players) ........................... 69
Reset All Setting ............................... 49
S
Scan Sens .......................................... 60
SEARCH ........................................... 15
by album ..............................................17
by artist.................................................16
by song name .......................................15
Searching for Songs ......................... 15
Serial Number .................................. 48
Set Date-Time .................................. 44
Set Playlist ......................................... 25
Set Target .......................................... 21
Set the current time ......................... 44
SETTINGS .......................................... 8
Shuffle ............................................... 19
Shuttle switch ................................... 10
Skip to the beginning of a song ..... 10
Song Information ............................ 66
Song order ........................................ 29
SonicStage ..................................... 3, 80
Sort .................................................... 29
Sound ....................... 33, 34, 35, 36, 37
Sound quality .............................33, 34
SPORTS MODE ...................21, 23, 38
STOPWATCH .................................. 26
T
Time Disp Type ............................... 47
Transferring ........................................ 3
Troubleshooting ............................... 69
Tuner ................................................. 55
U
Uninstalling ...................................... 80
USB Power
(USB connection setting) ........... 52
V
Volume ....................................9, 30, 33
Volume Mode ................................... 30
VOL +/- button .................................. 9
W
Windows Explorer ........................... 67
WMA ..........................................64, 89
Table of
Contents
Index
Menu

Navigation menu
