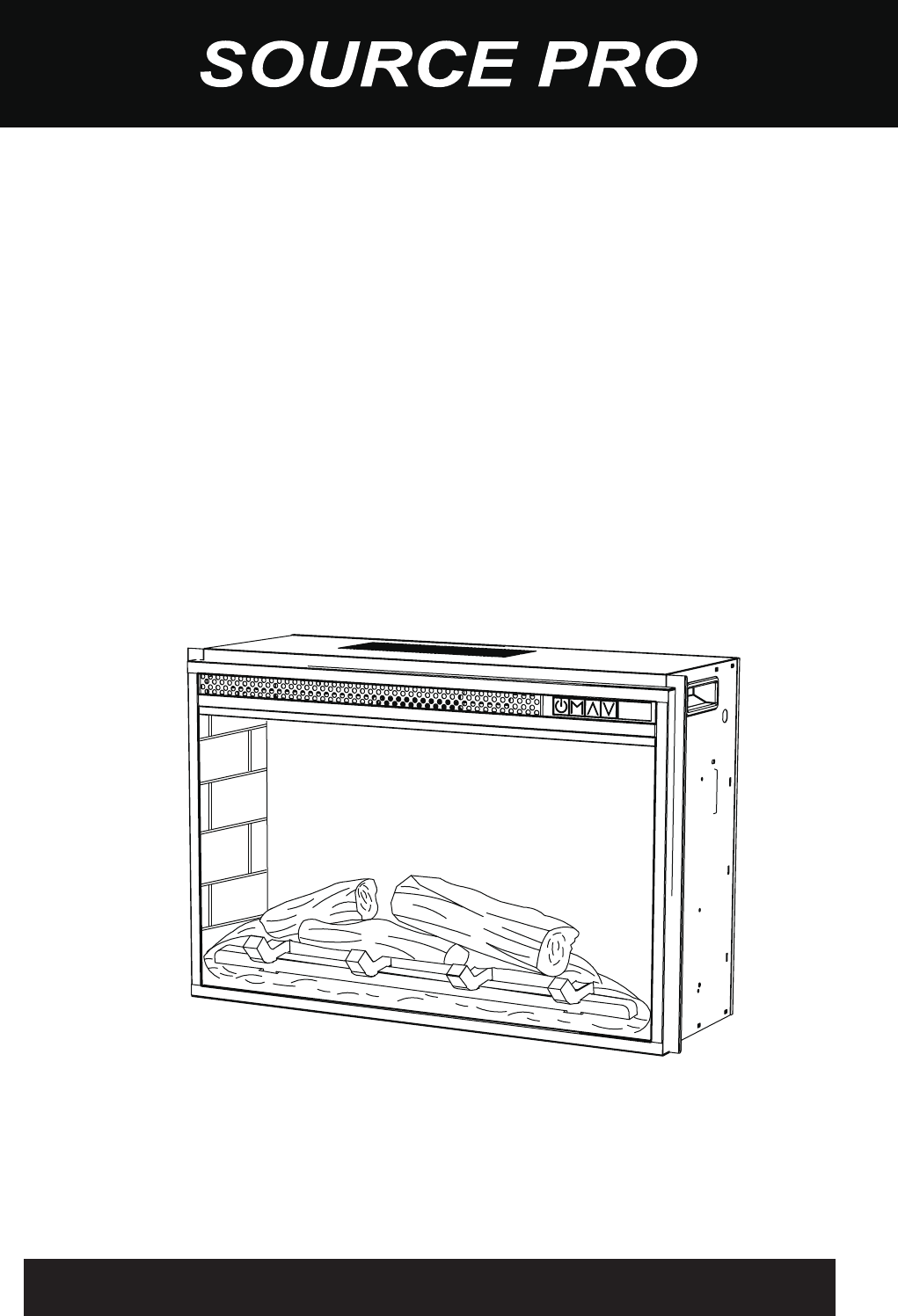

ELECTRIC FIREPLACE HEATER
HOME OWNER’S INSTRUCTION MANUAL
Model: SP2618-HE-FGPBBT
ATTENTION
FIND A LOCATION FOR THE FIREPLACE HEATER THAT IS PROTECTED FROM DIRECT
SUNLIGHT.
FAILURE TO READ ALL INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE
HAZARD AND / OR INJURY WILL VOID THE WARRANTY
CONSUMER SAFETY INFORMATION
PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE
WARNING
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY AN ELECTRIC SHOCK
OR FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
Thank you and congratulaons on your purchase of a Source Pro fireplace. Please read
the installaon & operang instrucons before using this appliance.
ATTENTION
Also Requires-
Wood Fireplace Mantel
2
SAFETY INFORMATION
IMPORTANT INSTRUCTIONS
Please read and understand this enre manual before aempng to assemble, operate or install the product.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instrucons, may cause harmful interference to radio communicaons.
However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause
harmful interference to radio or television recepon, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separaon between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada Licence-exempt RSS-210. Operaon is subject to the following two condions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operaon of the device.
CAUTION: To maintain compliance with the RF exposure guidelines, place the base unit at least 20cm from nearby persons.
WARNING: Changes or modificaons to this unit not expressly approved by party responsible for compliance could void the
user’s authority to operate the equipment.
WARNING: Extreme cauon is necessary when any heater is used by or near children or individuals with
disabilies and whenever the fireplace is le operang and unaended.
WARNING: DO NOT run cord under carpeng. DO NOT cover cord with throw rugs, runners, or similar
covering.Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it
will not be tripped over.
WARNING: Do NOT insert or allow foreign objects to enter any venlaon or exhaust opening as this may
cause an electric shock or fire, or damage the appliance.
WARNING: This appliance has hot and arcing or sparking parts inside. DO NOT use it in areas where gasoline,
paint or flammable vapors or liquids are used or stored. This fireplace should not be used as a drying rack for
clothing. Christmas stockings or decoraons should not be hung in the area of it.
WARNING: This appliance is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. Keep
combusble material, such as furniture, pillows, bedding, papers, clothes and curtains, at least 3 feet from
the front of the heater and keep them away from the side and rear.
When using electrical appliances, basic precauons should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:
Read all instrucons before installing or using the heater.
DANGER: If the informaon in this manual is not followed exactly, an electric shock or fire may result causing
property damage, personal injury or loss of life.
3
SAFETY INFORMATION
Use this appliance only as described in the manual. Any other use is NOT recommended by the manufacturer and
may cause fire, electric shock or injury to persons.
CAUTION
• If possible, ALWAYS unplug this appliance when not in use.
• DO NOT operate any heater with a damaged cord or plug or aer the heater malfuncons.
• DO NOT operate any heater if it has been dropped or damaged in any manner. Disconnect power at service
panel and have heater inspected by a reputable electrician before reusing.
• Any repairs to this fireplace should be carried out by a qualified service person.
• Under no circumstances should this fireplace be modified. Parts having to be removed for servicing must be
replaced prior to operang this fireplace again.
• DO NOT use outdoors.
• This heater is not intended for use in bathrooms, laundry areas and similar indoor locaons. NEVER place heater
where it may fall into a bathtub or other water container.
• To disconnect this appliance, turn controls to the off posion, then remove plug from outlet.
• ONLY connect to properly grounded outlets.
• This appliance, when installed, must be electrically grounded in accordance with local codes, with the current
CSA C22.1 Canadian Electrical Code or follow the Naonal Electrical Code, ANSI/NFPA N0.70.
• To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. DO NOT use on so surfaces, like
a bed, where opening may become blocked.
• The heaters MUST NOT be located immediately below a socket-outlet.
• ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an extension cord or relocatable
power tap (outlet/power strip).
• There is a thermostat protecve device provide inside of unit. If the inner temperature overheats or abnormal
heang occurs, the thermostat protecve device will cut off power supply to prevent damage or risk of fire.
• DO NOT slide insert on top of wood to avoid scratching wood surface.
• DO NOT place any objects on top of insert and top air intake vents as this will cause unit to overheat and can
cause a fire.
Electrical Connecon
A 15-amp, 120-volt, 60 Hz circuit with a properly grounded outlet is
required. Preferably, the fireplace will be on a dedicated circuit as other
appliances on the same circuit may cause the circuit breaker to trip or
the fuse to blow when the heater is in operaon. The unit comes
standard with 6-. three-wire cord, exing from the rear of the
fireplace. DO NOT exceed the current rang of the current tap. ALWAYS
plug heaters directly into a wall outlet/receptacle. NEVER use with an
extension cord or relocatable power tap (outlet/power strip).
•
This heater is for use on 120 volts. The cord has a plug as shown
below. See illustraon for grounding instrucon. An adapter as shown
at C is available for connecng three-blade grounding type plugs to
two-slot receptacles. The green grounding lug extending from the
adapter must be connected to a permanent ground such as a properly
grounded outlet box. The adapter should not be used if a three-slot
grounded receptacle is available.
•
Voltage: 120 VAC, 60 Hz
Amps: 11.7 Amps
Was: 1400 Was
ELECTRICAL SPECIFICATIONS
Grounding Pin
Metal
Screw
Cover of
Grounding
Box
Grounding Pin
Grounding Means
Adapter
C
A
D
B
SAVE THESE INSTRUCTIONS
4
1. Posion your completed mantel close to its final locaon. Make sure you can access the back of the mantel as
your electric fireplace insert will be install from the back.
2. Place a piece of cardboard or protecve sheet on the floor in order to avoid scratching the decorave surface of
your mantel during assembly. Please DO NOT fully ghten the KD screws unl all panels are assembled.
3. The fireplace insert can be installed aer the mantel has been fully assembled.
WARNING: Make sure the fireplace insert controls are in the OFF posion and the unit is NOT plugged in.
CAUTION - High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other combusbles at
least 3 feet (0.9 m) from the front of the heater and away from the side and rear.
To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the
heater.
INSTALLATION INSTRUCTION
INSTALLATION
Rear view of fireplace
ELECTRIC
FI
REPLACE
INSERT
5
OPERATING INSTRUCTIONS
Mode Buon
Power Buon
• Pressing the power buon will turn ON or OFF the unit.
• When the unit is in ON mode, the power icon indicator light will be shown green.
• When the unit is in OFF mode, the power icon indicator light will be shown red. When power OFF, unit will be
stopped, if heater is working before power OFF the unit, fan will have 20 seconds delay to ensure heat will not
be trapped inside the unit.
Note: When plug the unit each me, 5 seconds fan and heater will turn on for internal check program.
Note: The unit has a memory funcon with last sengs for heang level and flame brightness effect, unless the
main power to the unit has been interrupted.
Temperature Seng
• The temperature mode controls the heater’s thermostat seng.
• Press UP Arrow Buon or Down Arrow Buon to scroll through the pre-set temperature range from 59°F (15°C)
to 86°F (30°C), ON & OF (OFF).
• Hold the mode buon for 3s, this allows the temperature unit changing from °C to °F or °F to °C. The unit
default is °F.
Note: This funcon is only available if using the control panel.
• When the ambient temperature is higher than the set temperature, heater will turn off automacally.
• Press the mode buon to cycle through the different funcons. Each me the mode buon is pressed, the
mode will enter the next funcon - Temperature, Timer or Flame Brightness.
Timer Seng
• The mer seng shoud be used to set the countdown for the unit’s main power.
• Press Up Arrow Buon or Down Arrow Buon to adjust the mer seng from 0 hour (OFF) to 9 hours with 0.5
hour interval.
Flame Brightness Seng
• The flame brightness mode should be used to set the flame brightness.
• Use Up arrow buon or Down arrow buon to scroll through the flame brightness sengs:
F0 (Flame OFF, only lowest brightest on ember bed), F1, F2, F3, F4, F5 (brightest).
Note: Heater must be properly installed before it is used.
OPERATING INSTRUCTIONS
Flame Color Seng
• The flame brightness mode should be used to set the flame brightness.
• Use Up arrow buon or Down arrow buon to scroll through the flame brightness sengs:
C1, C2, C3, C4
6
FIREPLACE REMOTE APP
1. Go to Apple Store or Google Play Store
2. Type “Fireplace remote” on the search bar
3. Click “download”
4. Enter your account and password if necessary
5. Installaon will be completed automacally
DOWNLOAD THE FIREPLACE MOBILE APP
Child Lock
Acvate Child Lock
When the unit is ON, holding the POWER buon for 10 seconds to acvate the Child Lock funcon. E3 will be
displayed and "Beep Sound" for 3 mes that indicate the Child Lock funcon acvate. All funcon keys are
locked. When pressing any buon, E3 will be displayed that indicate the Child Lock funcon acvate.
Inacvate Child Lock
To inacvate the Child Lock funcon, holding the POWER buon for 10 seconds.
Note: Child lock funcon is only available if using the control panel.
Manually Reset
Unplug unit, wait 5-10 minutes, then the sensor will reset itself.
UP Arrow Buon
• Use up arrow buon to increase the seng of the selected funcon.
Down Arrow Buon
• Use down arrow buon to decrease the seng of the selected funcon.
Bold Flame Fireplace Remote
Free Fireplace remote App gives you full
access and control of your fireplace
QR Code for download - FREE
ColorSeng
C1
C2
Yellow
Blue
Yellow + Blue
Auto Change
(Fade In / Fade Out)
C3
C4
Color
Seng
7. Return to main page by clicking the side menu buon
8. Make sure the right corner buon is “ON” (Fig.7)
9. Adjust the color, brightness and the temperature with the Bluetooth remote
CONNECT YOUR FIREPLACE WITH FIREPLACE REMOTE
1. Turn on the fireplace
2. Switch on Bluetooth on your mobile devices
3. Tap the side menu buon (Fig. 1)
4. Press “Add” (Fig. 2) buon and start searching (Fig. 3) the Fireplace nearby
5. Enter a name for the fireplace (Fig. 4)
6. (Fig. 6) Blue light represents the Fireplace is connected properly and ready to use
Fig. 1 Tap the side menu buon
(Top le)
Fig. 2 Tap the ”+”buon (Top le) Fig. 3 Searching Fireplace
Fig. 4 Enter a name for the
Fireplace
Fig. 5 Connecng Fireplace Fig. 6 Fireplace Connected
7
FIREPLACE REMOTE APP
Connected to Fireplace
and ready to use
Fig. 8Fig. 7 Long press the name to
enter edit mode
Fig. 9 Switch off the connecon
by pressing the toggle
(top right)
8
CARE AND MAINTENACE
• Make sure the unit is turned OFF, unplugged and the heang elements of heater are cool whenever you are
cleaning the heater.
• Clean the heater when the heater is not in use.
• For heavy or connous use, periodic cleaning must be done more frequently.
• Clean the metal trim using a water-dampened so, clean cloth. DO NOT use brass polish or household cleaners
as these products will damage the metal trim.
• The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and
require no further lubricaon. However, periodic cleaning/vacuuming of the fan/heater and air intake/output
vents is recommended.
• Any other servicing should be performed by an authorized service representave.
• When the heater is not in use, the heater should be stored in a dry locaon, away from possible damage. The
power cord should be stored properly to avoid contact with hot or sharp objects.
WARNING: Make sure the power is turned off before proceeding. Any electrical repairs or rewiring of
this unit should be carried out by a licensed electrician in accordance with naonal and local codes.
If repairing or replacing and electrical component or wiring, the original wire roung, color coding and
securing locaons must be followed.
WARNING: Electrical outlet wiring must comply with local building codes and other applicable
regulaons to reduce the risk of fire, electrical shock and injury to persons.
WARNING: Do not use this fireplace if any part of it has been under water. Immediately call a qualified
service technician to inspect te fireplace and replace any part of the electrical system.
WARNING: Disconnect power before aempng any maintenance or cleaning to reduce the risk of fire,
electrical shock or personal injury.
WARNING: During any service of this appliance, the power to the unit must be turned off. First turn the
main power switch to the “OFF” posion. Then remove the electrical plug from the wall outlet.
9
CARE AND MAINTENACE
Replacing the Remote Control Battery
When the remote control stops operang or its range seems reduced, it is me to replace the baeries.
Note: The baeries should be removed if the product is to be le unused for a long me.
Caution: Non-rechargeable baery is not to be recharged. Exhausted baery is to be removed from the
product.
1. The baery compartment is located on the back end of the remote control.
2. Press the small tab inward as you slide the baery door open and remove the old baery.
3. Insert a new CR2025 lithium baery (not included), ensuring the polaries of the baery match the inside of
the baery compartment.
4. Re-insert the baery door.
Disposal of Used Battery
A baery may contain hazardous substances that could be endangering to
environment and human health.
• This symbol marked on the baery and/or packaging indicates that used baery shall
not be treated as municipal waste. Instead it shall be le at the appropriate collecon
point for recycling.
• By ensuring the used baery is disposed of correctly, you will help prevent potenal
negave consequences for the environment and human health. The recycling of
materials will help to conserve natural resources.
For more informaon about collecon and recycling of used baeries, please contact your local municipality, your
waste disposal service or the point of sale where you purchased this item.
PROBLEM POSSIBLE CAUSE SOLUTION
10
TROUBLE SHOOTING GUIDE
1. No power, logs do
not glow.
1. The unit does not have power. 1. Check that unit is plugged into a standard 120
volt outlet. Then make sure power is set at “ON”
posion.
2. The overheat protecon device has
been engaged.
2. Unplug unit, wait 5-10 minutes, then the
sensor will reset itself. Plug the unit back in and
turn on the heater. If the problem persists, call
customer service.
2. E1 displayed on
control panel.
3. Unplug unit, wait 5-10 minutes, then the
sensor will reset itself. Plug the unit back in and
turn on the heater. If the problem persists, call
customer service.
3. E2 displayed on
control panel.
3. The ambient temperature sensor is
broken or not working correctly.
4. E3 displayed on
control panel.
4. Child lock funcon acvate. 4. To inacvate the Child Lock funcon, holding
the POWER buon for 10 seconds.
5. Fan motor
connues to blow
aer unit is powered
off.
5. Normal operaon. 5. This is a standard feature; the blower runs for
an addional 20 seconds to ensure heat will not
be trapped inside the unit.
6. Normal
operaon.
6. Power cord gets
warm to the touch.
6. This is normal for a heater appliance as it
requires more current to operate. Check the
connecons of the appliance cord and the outlet.
Make sure the plug fits ghtly into the outlet.
During use, check the plug and outlet frequently
to determine if it is HOT; if so, disconnue use of
the appliance and consult with a qualified
electrician to check or change the overheang
outlet(s).
SOURCE PRO ELECTRIC FIREPLACE MODEL
Source Pro Industries Ltd. (hereinaer referred to collecvely as the (“company”) warrants that your new
Prokonian Electric Fireplace is free from manufacturing and materials defects for a period of one year from date of
purchase. Subject to following condions and limitaons.
1. The electric fireplace must be installed and operated at all mes in accordance with the installaon and
operang instrucon furnished with the product. Any unauthorized repair, alteraon, willful abuse, accident, or
misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made
through an authorized supplier of the company.
3. The warranty is limited to the repair or replacement of part(s) found to be defecve in material or
workmanship, provided that such part(s) have been subjected to normal condions of use and service, aer said
defect is confirmed by the company’s inspecon.
4. This warranty does not cover the LED light bar included with the Prokonian Electric Fireplace.
5. The Company may, at its discreon, fully discharge all obligaons with respect to this warranty by refunding the
wholesale price of the defecve part(s).
6. Any installaon, labor construcon, transportaon, or other related costs/expenses arising from defecve
part(s), repair, replacement, or otherwise of same , will not be covered by this warranty, nor shall the Company
assume responsibility for same.
7. The owner/user assumes all other risks. If any including the risk of any direct, indirect or consequenal loss or
damage arising out of the use. Or inability to use the product, except as provided by law.
8. All other warranes – expressed of implied – with respect to the product, its components and accessories, or
any obligaons / liabilies on the part of the Company are hereby expressly excluded.
9. The Company neither assumes, nor authorizes any third party to assume, on it behalf, any other liabilies with
respect to the sale of the Prokonian product.
10. The warranes as outlined within this document do not apply to non Prokonian accessories used in
conjuncon with the installaon of this product.
11. This warranty gives you specific legal rights, and you may also have other right which vary from state to state.
This warranty is void if:
a. The fireplace is subjected to prolonged periods of dampness or condensaon.
b. Any unauthorized alteraon, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Contact the company, at serviceprokonian@jakeglobal.com or call +1-844-455-4621 have your warranty, your
sales receipt, locaon of purchase and the model / serial number of your Source Pro products.
Email: serviceprokonian@jakeglobal.com
Call: +1-844-455-4621
11
1 YEAR LIMITED WARRANTY
BASIC WARRANTY
IF WARRANTY SERVICE IS NEEDED
CUSTOMER SERVICE
Please refer to part code when reordering
For questions or comments about product:
Email: serviceprokonian@jakeglobal.com or Call: +1-844-455-4621
Crafted in China
Distributed by Source Pro Industries Ltd.
