South Pacific Electronics FMT-302 Two Channel Remote Control TX User Manual

South Pacific Electronics Ltd. Two Channel Remote Control TX

User manual

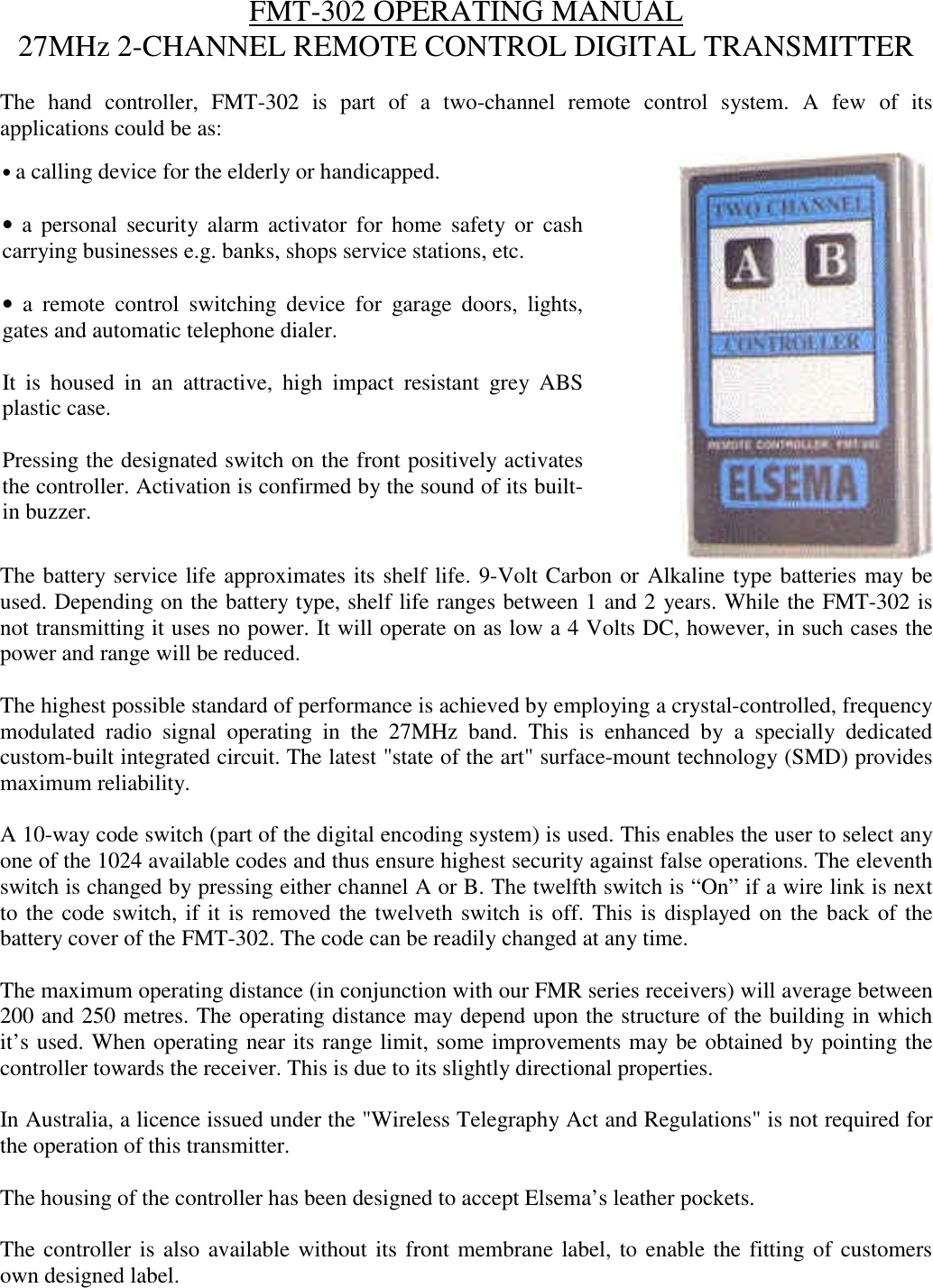

FMT-302 OPERATING MANUAL27MHz 2-CHANNEL REMOTE CONTROL DIGITAL TRANSMITTERThe hand controller, FMT-302 is part of a two-channel remote control system. A few of itsapplications could be as:The battery service life approximates its shelf life. 9-Volt Carbon or Alkaline type batteries may beused. Depending on the battery type, shelf life ranges between 1 and 2 years. While the FMT-302 isnot transmitting it uses no power. It will operate on as low a 4 Volts DC, however, in such cases thepower and range will be reduced.The highest possible standard of performance is achieved by employing a crystal-controlled, frequencymodulated radio signal operating in the 27MHz band. This is enhanced by a specially dedicatedcustom-built integrated circuit. The latest "state of the art" surface-mount technology (SMD) providesmaximum reliability.A 10-way code switch (part of the digital encoding system) is used. This enables the user to select anyone of the 1024 available codes and thus ensure highest security against false operations. The eleventhswitch is changed by pressing either channel A or B. The twelfth switch is “On” if a wire link is nextto the code switch, if it is removed the twelveth switch is off. This is displayed on the back of thebattery cover of the FMT-302. The code can be readily changed at any time.The maximum operating distance (in conjunction with our FMR series receivers) will average between200 and 250 metres. The operating distance may depend upon the structure of the building in whichit’s used. When operating near its range limit, some improvements may be obtained by pointing thecontroller towards the receiver. This is due to its slightly directional properties.In Australia, a licence issued under the "Wireless Telegraphy Act and Regulations" is not required forthe operation of this transmitter.The housing of the controller has been designed to accept Elsema’s leather pockets.The controller is also available without its front membrane label, to enable the fitting of customersown designed label.• a calling device for the elderly or handicapped.• a personal security alarm activator for home safety or cashcarrying businesses e.g. banks, shops service stations, etc.• a remote control switching device for garage doors, lights,gates and automatic telephone dialer.It is housed in an attractive, high impact resistant grey ABSplastic case.Pressing the designated switch on the front positively activatesthe controller. Activation is confirmed by the sound of its built-in buzzer.

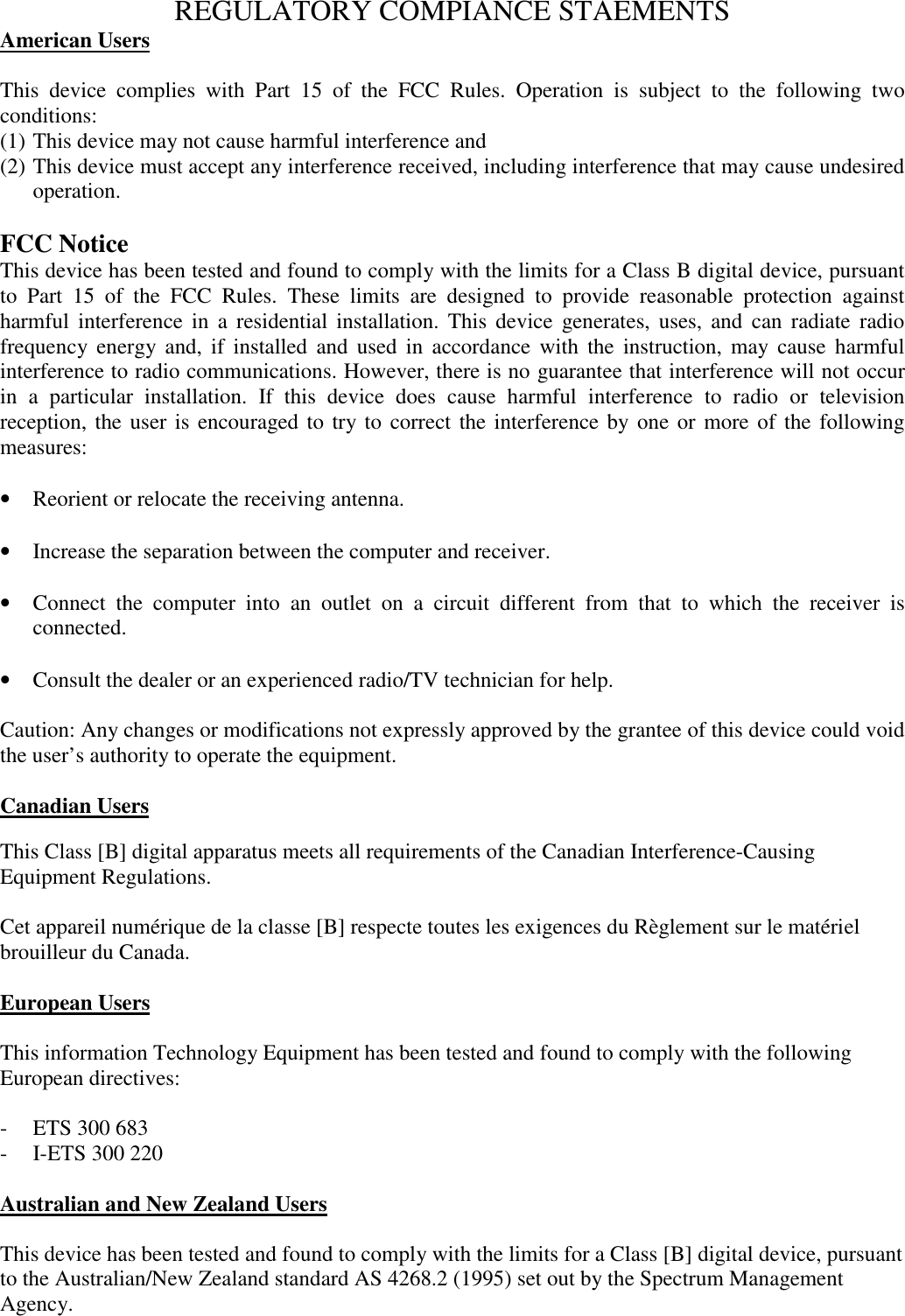

REGULATORY COMPIANCE STAEMENTSAmerican UsersThis device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1) This device may not cause harmful interference and(2) This device must accept any interference received, including interference that may cause undesiredoperation.FCC NoticeThis device has been tested and found to comply with the limits for a Class B digital device, pursuantto Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This device generates, uses, and can radiate radiofrequency energy and, if installed and used in accordance with the instruction, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occurin a particular installation. If this device does cause harmful interference to radio or televisionreception, the user is encouraged to try to correct the interference by one or more of the followingmeasures:• Reorient or relocate the receiving antenna.• Increase the separation between the computer and receiver.• Connect the computer into an outlet on a circuit different from that to which the receiver isconnected.• Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications not expressly approved by the grantee of this device could voidthe user’s authority to operate the equipment.Canadian UsersThis Class [B] digital apparatus meets all requirements of the Canadian Interference-CausingEquipment Regulations.Cet appareil numérique de la classe [B] respecte toutes les exigences du Règlement sur le matérielbrouilleur du Canada.European UsersThis information Technology Equipment has been tested and found to comply with the followingEuropean directives:- ETS 300 683- I-ETS 300 220Australian and New Zealand UsersThis device has been tested and found to comply with the limits for a Class [B] digital device, pursuantto the Australian/New Zealand standard AS 4268.2 (1995) set out by the Spectrum ManagementAgency.

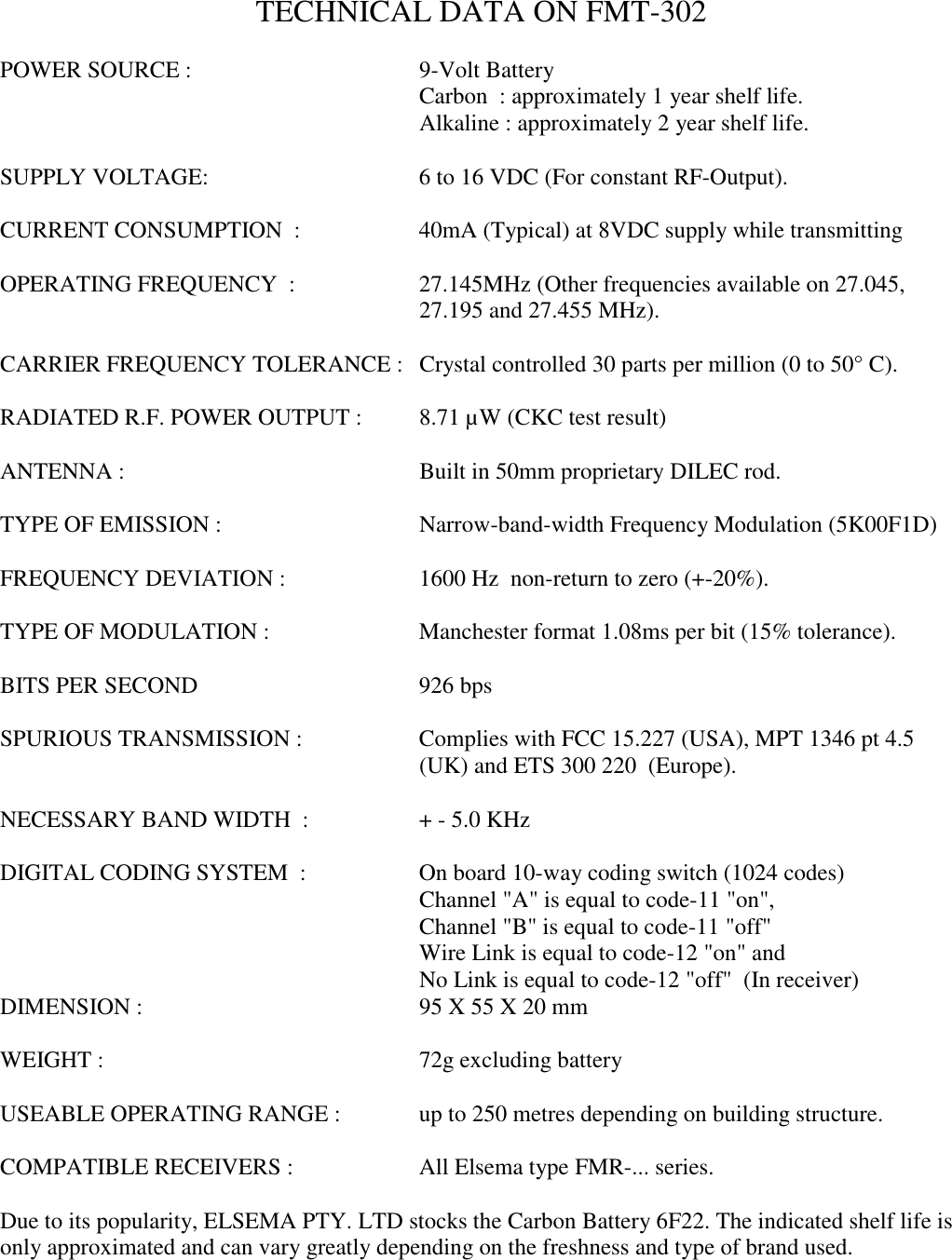

TECHNICAL DATA ON FMT-302POWER SOURCE : 9-Volt BatteryCarbon : approximately 1 year shelf life.Alkaline : approximately 2 year shelf life.SUPPLY VOLTAGE: 6 to 16 VDC (For constant RF-Output).CURRENT CONSUMPTION : 40mA (Typical) at 8VDC supply while transmittingOPERATING FREQUENCY : 27.145MHz (Other frequencies available on 27.045,27.195 and 27.455 MHz).CARRIER FREQUENCY TOLERANCE : Crystal controlled 30 parts per million (0 to 50° C).RADIATED R.F. POWER OUTPUT : 8.71 µW (CKC test result)ANTENNA : Built in 50mm proprietary DILEC rod.TYPE OF EMISSION : Narrow-band-width Frequency Modulation (5K00F1D)FREQUENCY DEVIATION : 1600 Hz non-return to zero (+-20%).TYPE OF MODULATION : Manchester format 1.08ms per bit (15% tolerance).BITS PER SECOND 926 bpsSPURIOUS TRANSMISSION : Complies with FCC 15.227 (USA), MPT 1346 pt 4.5(UK) and ETS 300 220 (Europe).NECESSARY BAND WIDTH : + - 5.0 KHzDIGITAL CODING SYSTEM : On board 10-way coding switch (1024 codes)Channel "A" is equal to code-11 "on",Channel "B" is equal to code-11 "off"Wire Link is equal to code-12 "on" andNo Link is equal to code-12 "off" (In receiver)DIMENSION : 95 X 55 X 20 mmWEIGHT : 72g excluding batteryUSEABLE OPERATING RANGE : up to 250 metres depending on building structure.COMPATIBLE RECEIVERS : All Elsema type FMR-... series.Due to its popularity, ELSEMA PTY. LTD stocks the Carbon Battery 6F22. The indicated shelf life isonly approximated and can vary greatly depending on the freshness and type of brand used.

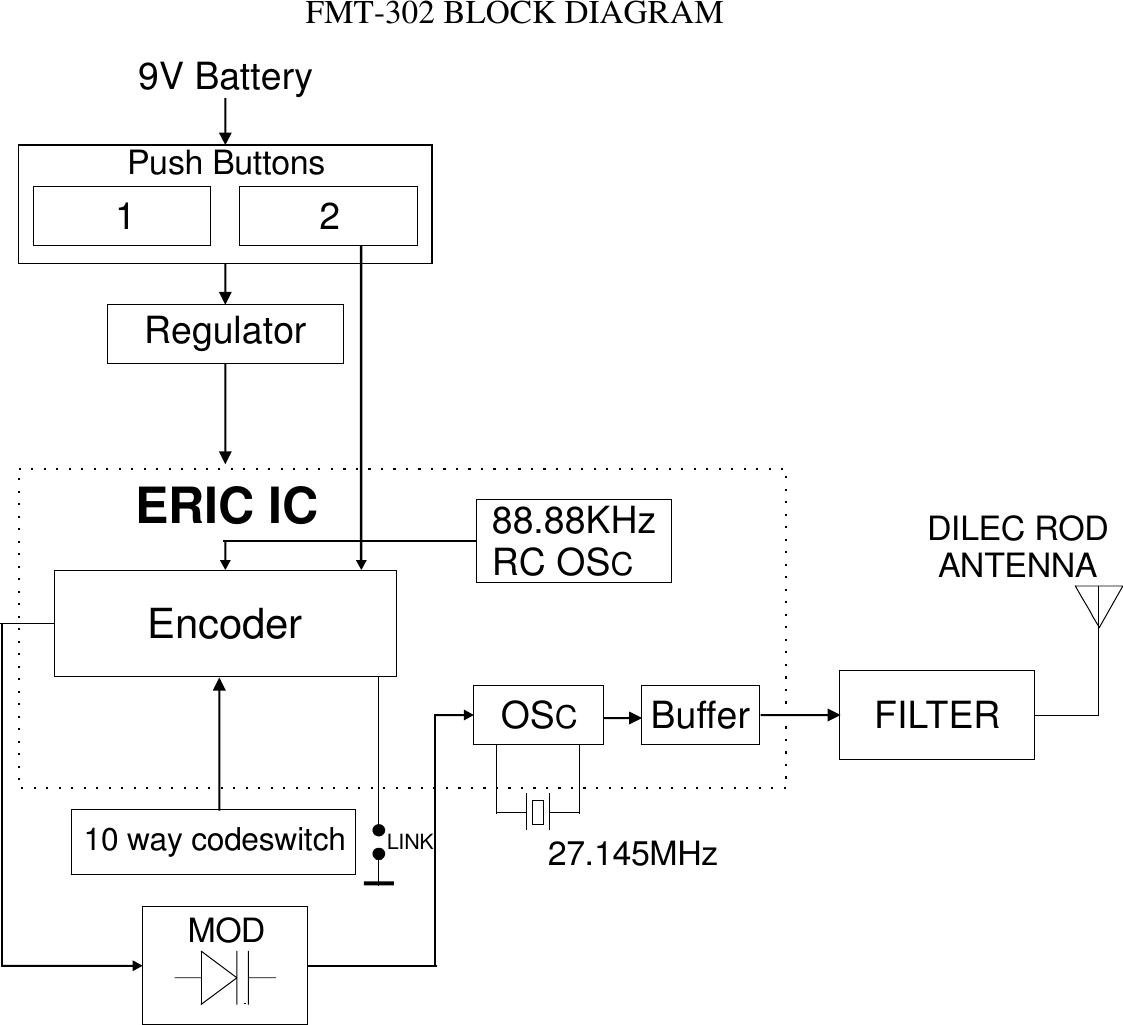

FMT-302 BLOCK DIAGRAMFILTERPush Buttons1210 way codeswitchMOD9V BatteryRegulatorERIC ICEncoder88.88KHzRC OSCOSCBuffer27.145MHzDILEC RODANTENNALINK
