Southco 02102 RF KEYFOB TRANSMITTER User Manual J EA R02 M revB

Southco,. Inc RF KEYFOB TRANSMITTER J EA R02 M revB

USERS MANUAL

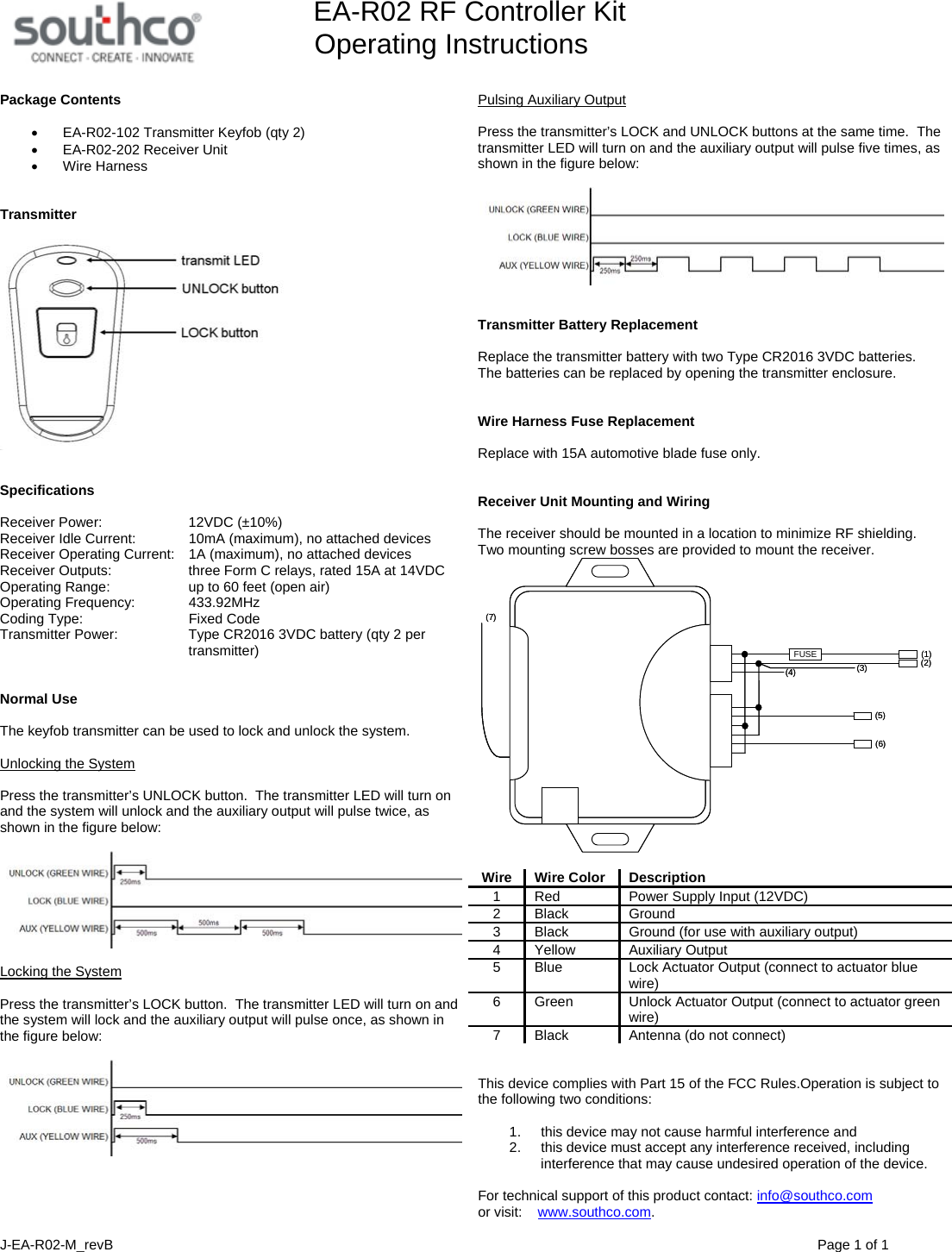

        EA-R02 RF Controller Kit Operating Instructions  J-EA-R02-M_revB                                Page 1 of 1  Package Contents  •  EA-R02-102 Transmitter Keyfob (qty 2) •  EA-R02-202 Receiver Unit • Wire Harness   Transmitter     Specifications  Receiver Power:    12VDC (±10%) Receiver Idle Current:    10mA (maximum), no attached devices  Receiver Operating Current:    1A (maximum), no attached devices Receiver Outputs:      three Form C relays, rated 15A at 14VDC Operating Range:      up to 60 feet (open air) Operating Frequency:    433.92MHz Coding Type:      Fixed Code Transmitter Power:    Type CR2016 3VDC battery (qty 2 per transmitter)   Normal Use  The keyfob transmitter can be used to lock and unlock the system.  Unlocking the System  Press the transmitter’s UNLOCK button.  The transmitter LED will turn on and the system will unlock and the auxiliary output will pulse twice, as shown in the figure below:    Locking the System  Press the transmitter’s LOCK button.  The transmitter LED will turn on and the system will lock and the auxiliary output will pulse once, as shown in the figure below:    Pulsing Auxiliary Output  Press the transmitter’s LOCK and UNLOCK buttons at the same time.  The transmitter LED will turn on and the auxiliary output will pulse five times, as shown in the figure below:      Transmitter Battery Replacement  Replace the transmitter battery with two Type CR2016 3VDC batteries.  The batteries can be replaced by opening the transmitter enclosure.   Wire Harness Fuse Replacement  Replace with 15A automotive blade fuse only.   Receiver Unit Mounting and Wiring   The receiver should be mounted in a location to minimize RF shielding.  Two mounting screw bosses are provided to mount the receiver. FUSE (1)(2)(3)(4)(5)(6)(7)FUSE (1)(2)(3)(4)(5)(6)(7)  Wire Wire Color Description 1  Red  Power Supply Input (12VDC) 2 Black  Ground 3  Black  Ground (for use with auxiliary output) 4 Yellow  Auxiliary Output 5  Blue  Lock Actuator Output (connect to actuator blue wire) 6  Green  Unlock Actuator Output (connect to actuator green wire) 7  Black  Antenna (do not connect)   This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:   1.  this device may not cause harmful interference and  2.  this device must accept any interference received, including interference that may cause undesired operation of the device.  For technical support of this product contact: info@southco.com or visit:    www.southco.com.
