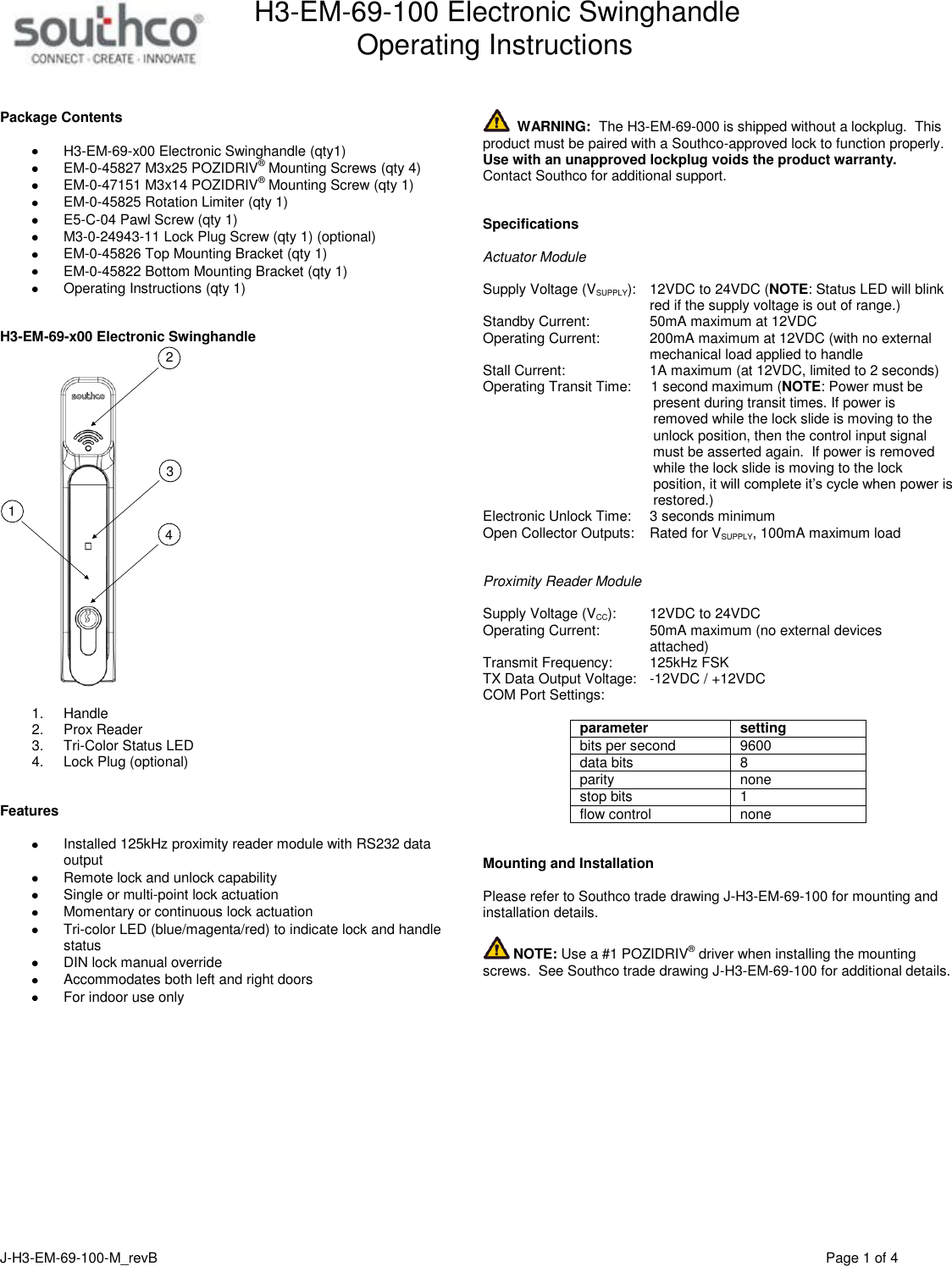

H3-EM-69-100 Electronic Swinghandle      Operating Instructions   J-H3-EM-69-100-M_revB                                         Page 1 of 4   Package Contents   H3-EM-69-x00 Electronic Swinghandle (qty1)  EM-0-45827 M3x25 POZIDRIV® Mounting Screws (qty 4)  EM-0-47151 M3x14 POZIDRIV® Mounting Screw (qty 1)  EM-0-45825 Rotation Limiter (qty 1)  E5-C-04 Pawl Screw (qty 1)  M3-0-24943-11 Lock Plug Screw (qty 1) (optional)  EM-0-45826 Top Mounting Bracket (qty 1)  EM-0-45822 Bottom Mounting Bracket (qty 1)   Operating Instructions (qty 1)   H3-EM-69-x00 Electronic Swinghandle 3412  1.  Handle 2.  Prox Reader 3.  Tri-Color Status LED 4.  Lock Plug (optional)   Features    Installed 125kHz proximity reader module with RS232 data output    Remote lock and unlock capability   Single or multi-point lock actuation   Momentary or continuous lock actuation   Tri-color LED (blue/magenta/red) to indicate lock and handle status   DIN lock manual override   Accommodates both left and right doors   For indoor use only     WARNING:  The H3-EM-69-000 is shipped without a lockplug.  This product must be paired with a Southco-approved lock to function properly.  Use with an unapproved lockplug voids the product warranty.  Contact Southco for additional support.   Specifications  Actuator Module  Supply Voltage (VSUPPLY):   12VDC to 24VDC (NOTE: Status LED will blink   red if the supply voltage is out of range.) Standby Current:    50mA maximum at 12VDC Operating Current:    200mA maximum at 12VDC (with no external   mechanical load applied to handle Stall Current:    1A maximum (at 12VDC, limited to 2 seconds) Operating Transit Time:     1 second maximum (NOTE: Power must be            present during transit times. If power is            removed while the lock slide is moving to the            unlock position, then the control input signal            must be asserted again.  If power is removed            while the lock slide is moving to the lock            position, it will complete it’s cycle when power is            restored.) Electronic Unlock Time:    3 seconds minimum Open Collector Outputs:  Rated for VSUPPLY, 100mA maximum load   Proximity Reader Module  Supply Voltage (VCC):    12VDC to 24VDC  Operating Current:    50mA maximum (no external devices   attached) Transmit Frequency:    125kHz FSK TX Data Output Voltage:  -12VDC / +12VDC COM Port Settings:  parameter setting bits per second 9600 data bits 8 parity none stop bits 1 flow control none   Mounting and Installation  Please refer to Southco trade drawing J-H3-EM-69-100 for mounting and installation details.   NOTE: Use a #1 POZIDRIV® driver when installing the mounting screws.  See Southco trade drawing J-H3-EM-69-100 for additional details.
H3-EM-69-100 Electronic Swinghandle      Operating Instructions   J-H3-EM-69-100-M_revB                                         Page 2 of 4   Wiring Diagrams  The H3-EM-69-x00 contains two separate functional modules:  the actuator module and proximity reader module.  The actuator module controls and monitors the locking function of the swinghandle.    These two modules operate independently of each other and require connection to an access control unit (not provided), as illustrated below, for the entire product to be fully functional.    The actuator module of the swinghandle is accessed with a six-position connector on the rear of the unit, shown below.     Pin Description Note 1 VGND ground (must be same as proximity reader module) 2 VSUPPLY 12 to 24 VDC power supply input (may be connected to prox reader VCC input) 3 N/C no connect 4 Control Signal command input (9VDC up to supply voltage, 50 milliseconds minimum) 5 Electronic Lock Status  open collector output (rated for VSUPPLY, 100mA max. load) 6 Mechanical Lock Status open collector output (rated for VSUPPLY, 100mA max. load)     The proximity reader module of the swinghandle is accessed with a four-position connector attached to a harness connected to the module’s circuit board.  The module’s connector pinout is:    Pin Wire Color Description Note 1 Black GND  ground (must be same as actuator module) 2 Red VCC  12 to 24VDC power supply input (may be connected to EML VSUPPLY input) 3 Green TX data transmit 4 n/c n/c not connected    NOTE:  If connecting the H3-EM-69’s TX data output to the DB9 connector of a computer, use the wiring configuration shown below.       NOTE:  The mating connectors/harnesses are not provided with the H3-EM-69-x00.  Refer to Southco trade drawing J-H3-EM-69-100 for mating connector/harness requirements.

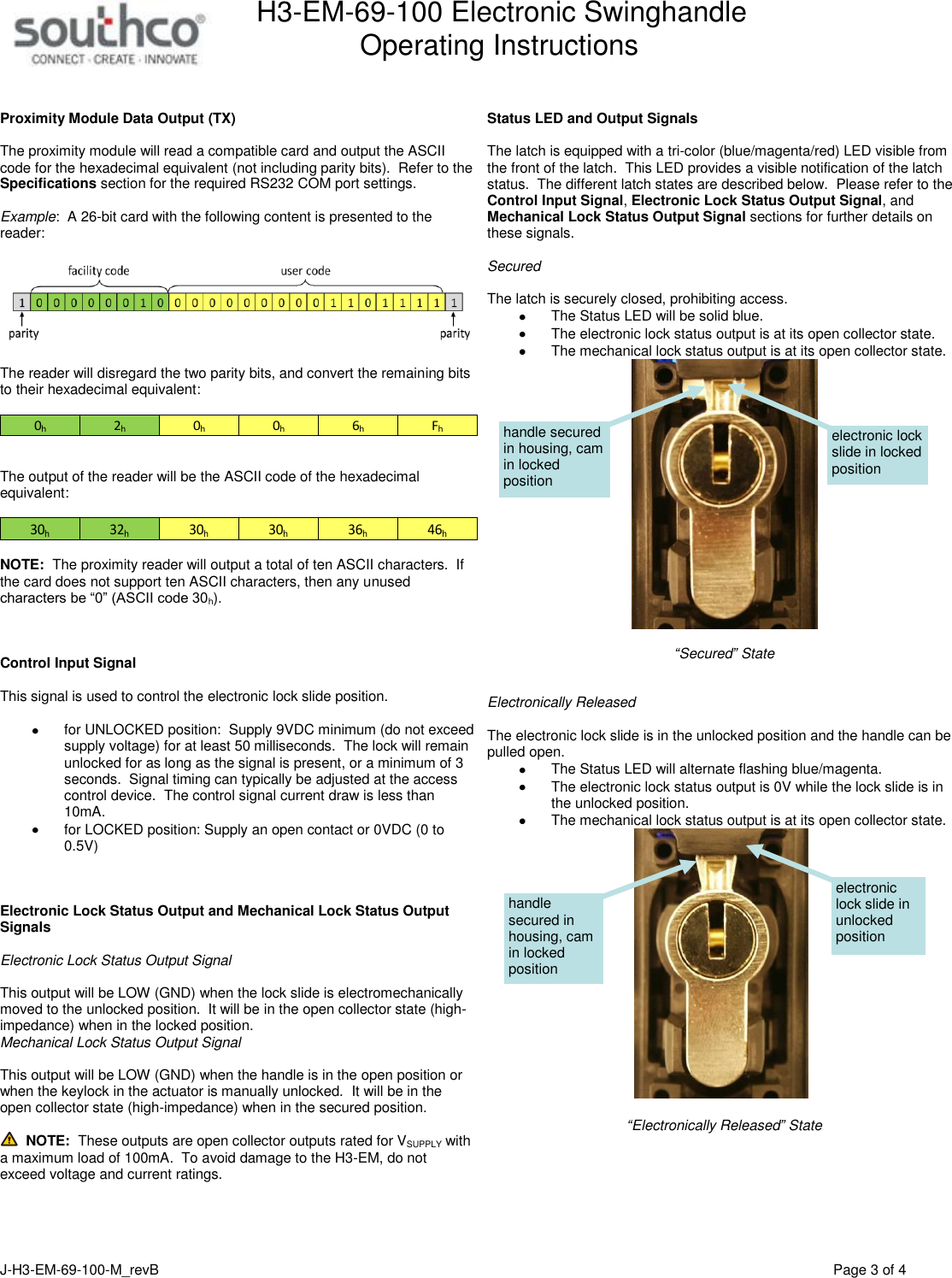

H3-EM-69-100 Electronic Swinghandle      Operating Instructions   J-H3-EM-69-100-M_revB                                         Page 3 of 4   Proximity Module Data Output (TX)  The proximity module will read a compatible card and output the ASCII code for the hexadecimal equivalent (not including parity bits).  Refer to the Specifications section for the required RS232 COM port settings.    Example:  A 26-bit card with the following content is presented to the reader:    The reader will disregard the two parity bits, and convert the remaining bits to their hexadecimal equivalent:  Fh6h0h0h2h0h   The output of the reader will be the ASCII code of the hexadecimal equivalent:  30h32h30h30h36h46h  NOTE:  The proximity reader will output a total of ten ASCII characters.  If the card does not support ten ASCII characters, then any unused characters be “0” (ASCII code 30h).    Control Input Signal  This signal is used to control the electronic lock slide position.      for UNLOCKED position:  Supply 9VDC minimum (do not exceed supply voltage) for at least 50 milliseconds.  The lock will remain unlocked for as long as the signal is present, or a minimum of 3 seconds.  Signal timing can typically be adjusted at the access control device.  The control signal current draw is less than 10mA.   for LOCKED position: Supply an open contact or 0VDC (0 to 0.5V)    Electronic Lock Status Output and Mechanical Lock Status Output Signals  Electronic Lock Status Output Signal  This output will be LOW (GND) when the lock slide is electromechanically moved to the unlocked position.  It will be in the open collector state (high-impedance) when in the locked position.  Mechanical Lock Status Output Signal  This output will be LOW (GND) when the handle is in the open position or when the keylock in the actuator is manually unlocked.  It will be in the open collector state (high-impedance) when in the secured position.    NOTE:  These outputs are open collector outputs rated for VSUPPLY with a maximum load of 100mA.  To avoid damage to the H3-EM, do not exceed voltage and current ratings.       Status LED and Output Signals  The latch is equipped with a tri-color (blue/magenta/red) LED visible from the front of the latch.  This LED provides a visible notification of the latch status.  The different latch states are described below.  Please refer to the Control Input Signal, Electronic Lock Status Output Signal, and Mechanical Lock Status Output Signal sections for further details on these signals.  Secured   The latch is securely closed, prohibiting access.   The Status LED will be solid blue.   The electronic lock status output is at its open collector state.     The mechanical lock status output is at its open collector state.     “Secured” State   Electronically Released  The electronic lock slide is in the unlocked position and the handle can be pulled open.   The Status LED will alternate flashing blue/magenta.   The electronic lock status output is 0V while the lock slide is in the unlocked position.   The mechanical lock status output is at its open collector state.     “Electronically Released” State  electronic lock slide in unlocked position handle secured in housing, cam in locked position electronic lock slide in locked position handle secured in housing, cam in locked position

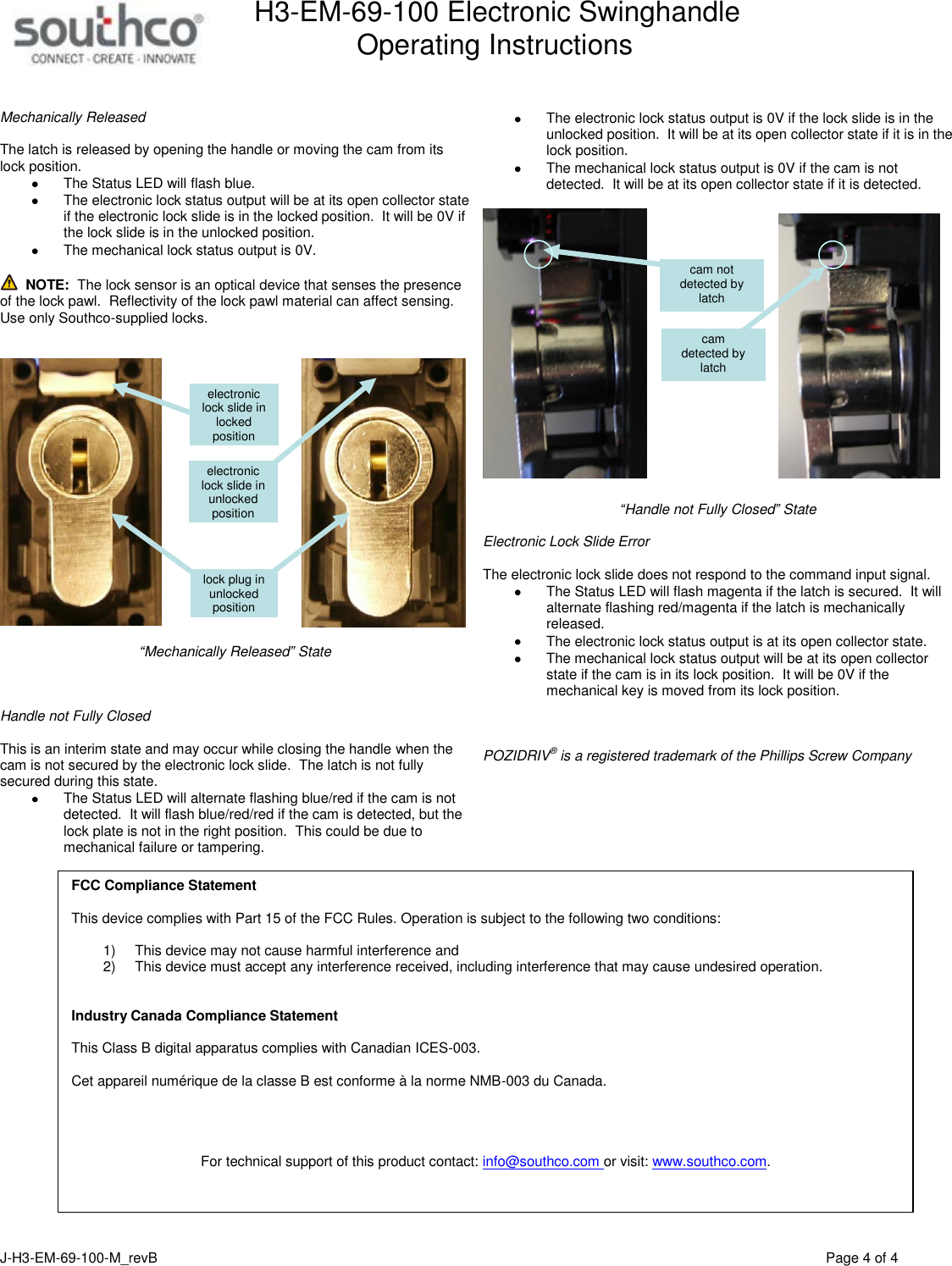

H3-EM-69-100 Electronic Swinghandle      Operating Instructions   J-H3-EM-69-100-M_revB                                         Page 4 of 4   Mechanically Released  The latch is released by opening the handle or moving the cam from its lock position.       The Status LED will flash blue.   The electronic lock status output will be at its open collector state if the electronic lock slide is in the locked position.  It will be 0V if the lock slide is in the unlocked position.     The mechanical lock status output is 0V.    NOTE:  The lock sensor is an optical device that senses the presence of the lock pawl.  Reflectivity of the lock pawl material can affect sensing.  Use only Southco-supplied locks.       “Mechanically Released” State    Handle not Fully Closed   This is an interim state and may occur while closing the handle when the cam is not secured by the electronic lock slide.  The latch is not fully secured during this state.   The Status LED will alternate flashing blue/red if the cam is not detected.  It will flash blue/red/red if the cam is detected, but the lock plate is not in the right position.  This could be due to mechanical failure or tampering.    The electronic lock status output is 0V if the lock slide is in the unlocked position.  It will be at its open collector state if it is in the lock position.   The mechanical lock status output is 0V if the cam is not detected.  It will be at its open collector state if it is detected.     “Handle not Fully Closed” State  Electronic Lock Slide Error  The electronic lock slide does not respond to the command input signal.     The Status LED will flash magenta if the latch is secured.  It will alternate flashing red/magenta if the latch is mechanically released.   The electronic lock status output is at its open collector state.   The mechanical lock status output will be at its open collector state if the cam is in its lock position.  It will be 0V if the mechanical key is moved from its lock position.    POZIDRIV® is a registered trademark of the Phillips Screw Company     cam  detected by latch cam not detected by latch electronic lock slide in unlocked position electronic lock slide in locked position lock plug in unlocked position FCC Compliance Statement  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  1)  This device may not cause harmful interference and  2)  This device must accept any interference received, including interference that may cause undesired operation.   Industry Canada Compliance Statement  This Class B digital apparatus complies with Canadian ICES-003.  Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.     For technical support of this product contact: info@southco.com or visit: www.southco.com.
