Southwing S L ASTO Bluetooth Hands-free Car Kit User Manual

Southwing S.L. Bluetooth Hands-free Car Kit

Users Manual

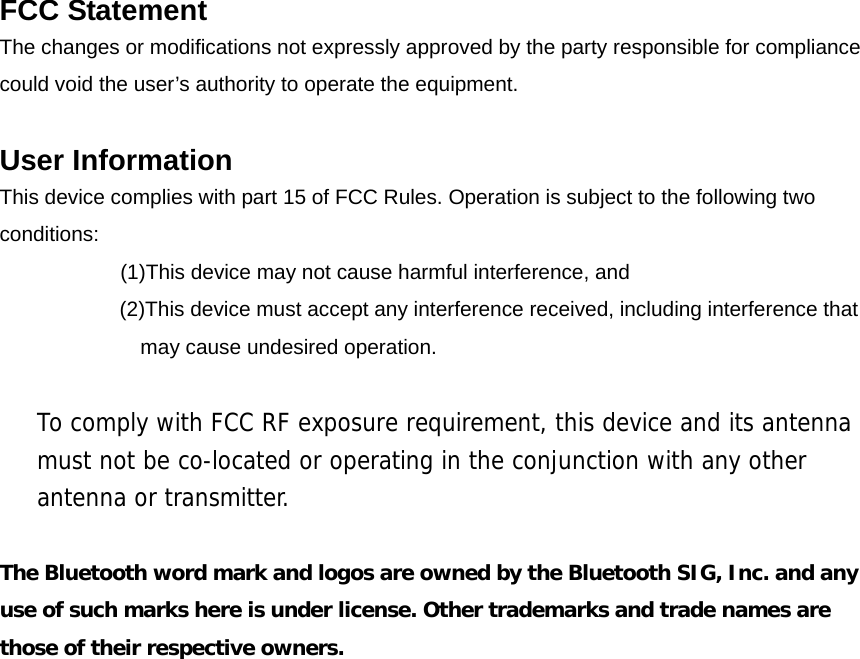

FCC Statement The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. User Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. To comply with FCC RF exposure requirement, this device and its antenna must not be co-located or operating in the conjunction with any other antenna or transmitter. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks here is under license. Other trademarks and trade names are those of their respective owners.

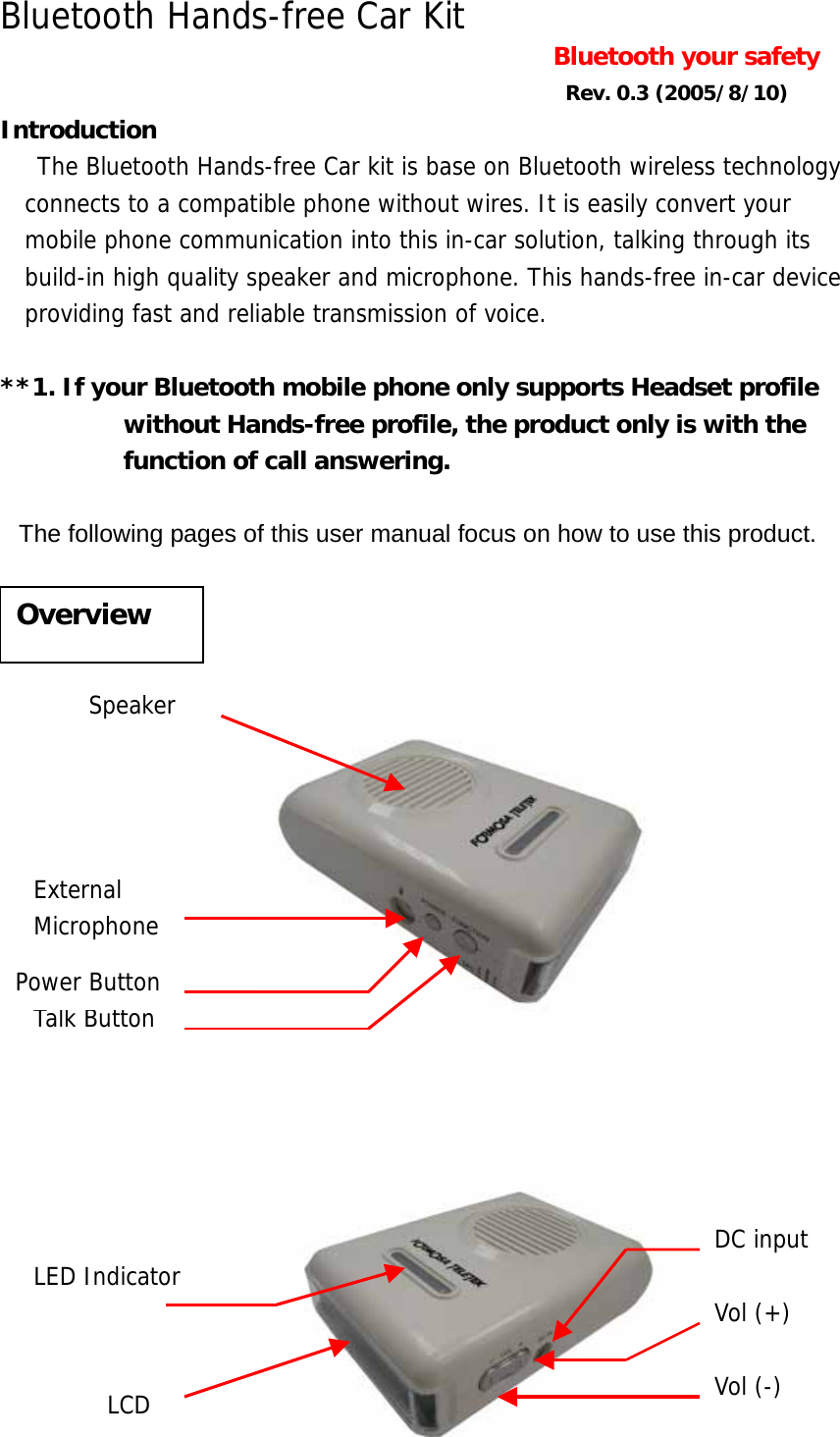

Bluetooth Hands-free Car Kit Bluetooth your safety Rev. 0.3 (2005/8/10) Introduction The Bluetooth Hands-free Car kit is base on Bluetooth wireless technology connects to a compatible phone without wires. It is easily convert your mobile phone communication into this in-car solution, talking through its build-in high quality speaker and microphone. This hands-free in-car device providing fast and reliable transmission of voice. **1. If your Bluetooth mobile phone only supports Headset profile without Hands-free profile, the product only is with the function of call answering. The following pages of this user manual focus on how to use this product. Overview Speaker Talk Button Power Button External Microphone DC input LCD LED Indicator Vol (-) Vol (+)

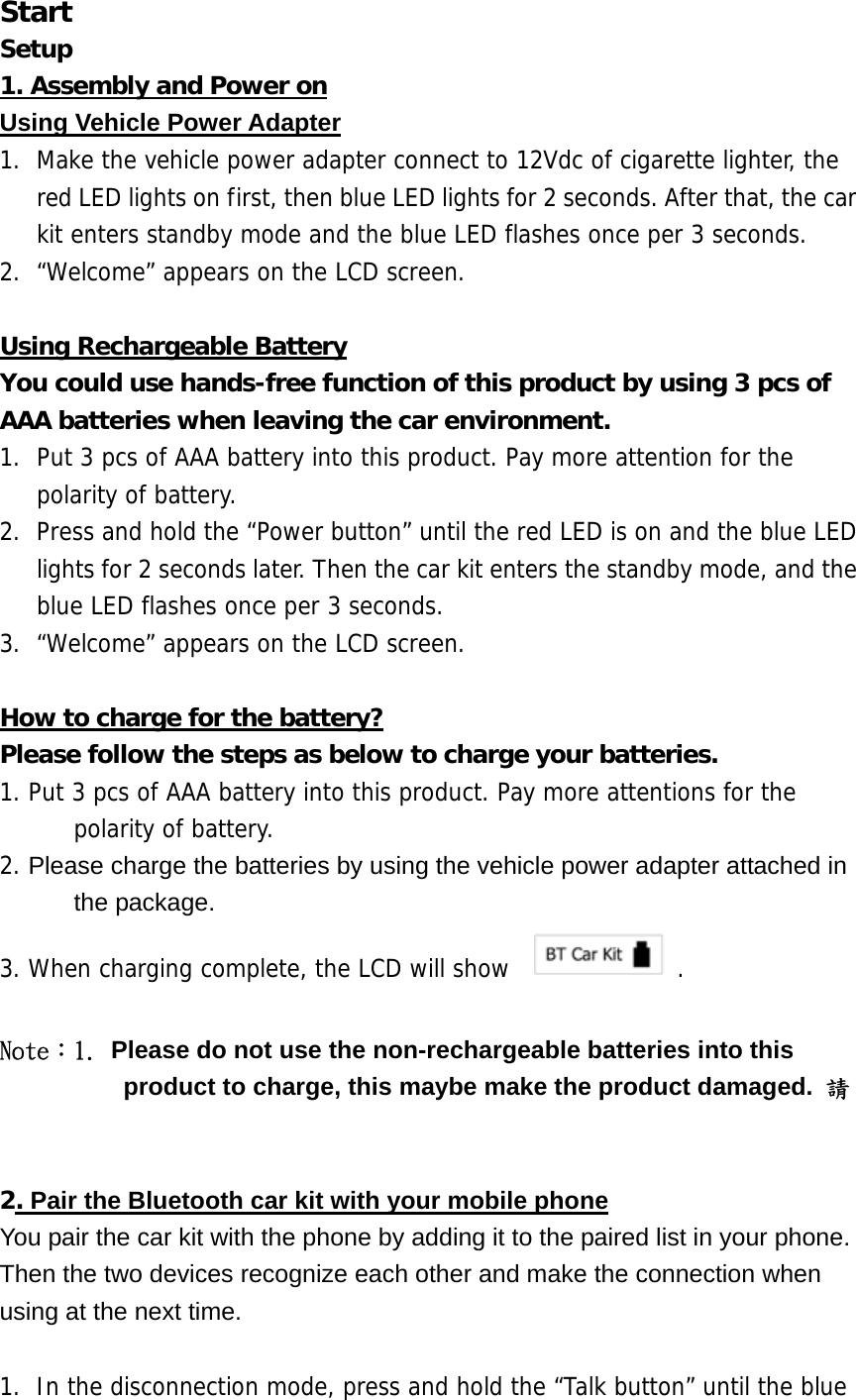

Start Setup 1. Assembly and Power on Using Vehicle Power Adapter 1. Make the vehicle power adapter connect to 12Vdc of cigarette lighter, the red LED lights on first, then blue LED lights for 2 seconds. After that, the car kit enters standby mode and the blue LED flashes once per 3 seconds. 2. “Welcome” appears on the LCD screen. Using Rechargeable Battery You could use hands-free function of this product by using 3 pcs of AAA batteries when leaving the car environment. 1. Put 3 pcs of AAA battery into this product. Pay more attention for the polarity of battery. 2. Press and hold the “Power button” until the red LED is on and the blue LED lights for 2 seconds later. Then the car kit enters the standby mode, and the blue LED flashes once per 3 seconds. 3. “Welcome” appears on the LCD screen. How to charge for the battery? Please follow the steps as below to charge your batteries. 1. Put 3 pcs of AAA battery into this product. Pay more attentions for the polarity of battery. 2. Please charge the batteries by using the vehicle power adapter attached in the package. 3. When charging complete, the LCD will show . Note：1. Please do not use the non-rechargeable batteries into this product to charge, this maybe make the product damaged. 請 2. Pair the Bluetooth car kit with your mobile phone You pair the car kit with the phone by adding it to the paired list in your phone. Then the two devices recognize each other and make the connection when using at the next time. 1. In the disconnection mode, press and hold the “Talk button” until the blue

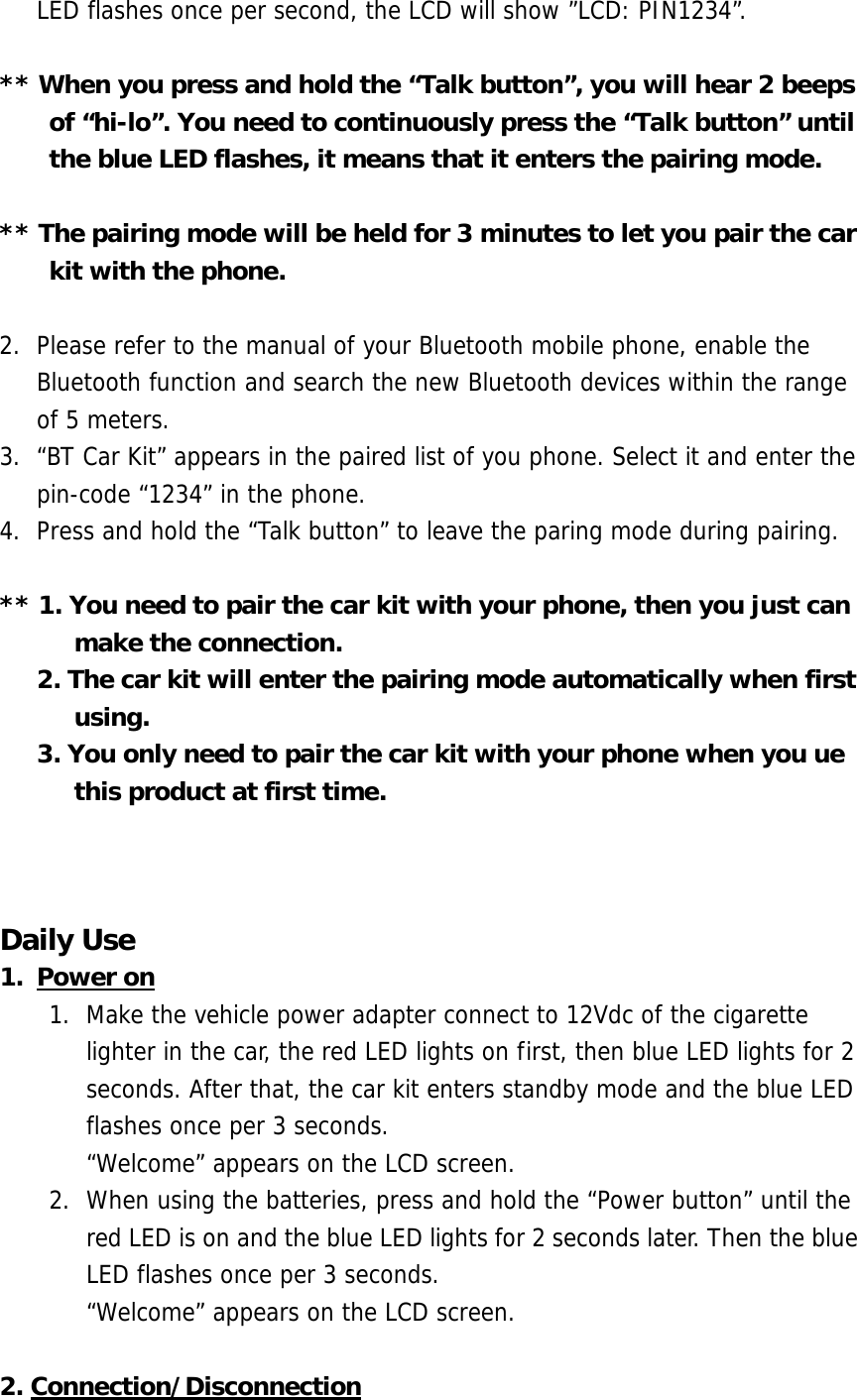

LED flashes once per second, the LCD will show ”LCD: PIN1234”. ** When you press and hold the “Talk button”, you will hear 2 beeps of “hi-lo”. You need to continuously press the “Talk button” until the blue LED flashes, it means that it enters the pairing mode. ** The pairing mode will be held for 3 minutes to let you pair the car kit with the phone. 2. Please refer to the manual of your Bluetooth mobile phone, enable the Bluetooth function and search the new Bluetooth devices within the range of 5 meters. 3. “BT Car Kit” appears in the paired list of you phone. Select it and enter the pin-code “1234” in the phone. 4. Press and hold the “Talk button” to leave the paring mode during pairing. ** 1. You need to pair the car kit with your phone, then you just can make the connection. 2. The car kit will enter the pairing mode automatically when first using. 3. You only need to pair the car kit with your phone when you ue this product at first time. Daily Use 1. Power on 1. Make the vehicle power adapter connect to 12Vdc of the cigarette lighter in the car, the red LED lights on first, then blue LED lights for 2 seconds. After that, the car kit enters standby mode and the blue LED flashes once per 3 seconds. “Welcome” appears on the LCD screen. 2. When using the batteries, press and hold the “Power button” until the red LED is on and the blue LED lights for 2 seconds later. Then the blue LED flashes once per 3 seconds. “Welcome” appears on the LCD screen. 2. Connection/Disconnection
Connection： 1. Every time you re-start your car kit, press the “Power button” then enter the paired list of the car kit; Press the “Power button” again to leave the paired list. The LCD will show . 2. Select the phone number you would like to link from the paired list by pressing the “Vol(-)” or “Vol(+)” button. 3. Press “Talk button” to make the connection, then the LCD will show ; When the connection is compete, the LCD will show Æ . Disconnection： In the connection mode, press the “Power button” to terminate the connection between the car kit and your phone. The LCD will show . 3. Calls Answer a coming call 1. When incoming call, the car kit rings, and the LCD will show the phone number or user name of the call. 2. Press the main button to answer the call. 3. You can answer the coming call by your phone for your privacy. The voice remains on the phone. According to the phone user guide to transfer the voice to the car kit. Terminate a call Press the “Talk button” during the talking mode to terminate the call. Reject a coming call 1. When incoming call, the car kit rings, and the LCD will show the phone number or user name of the call. 2. Press the “Talk” button to reject the call. Making a call When the car kit is connected to your phone, make a call by using

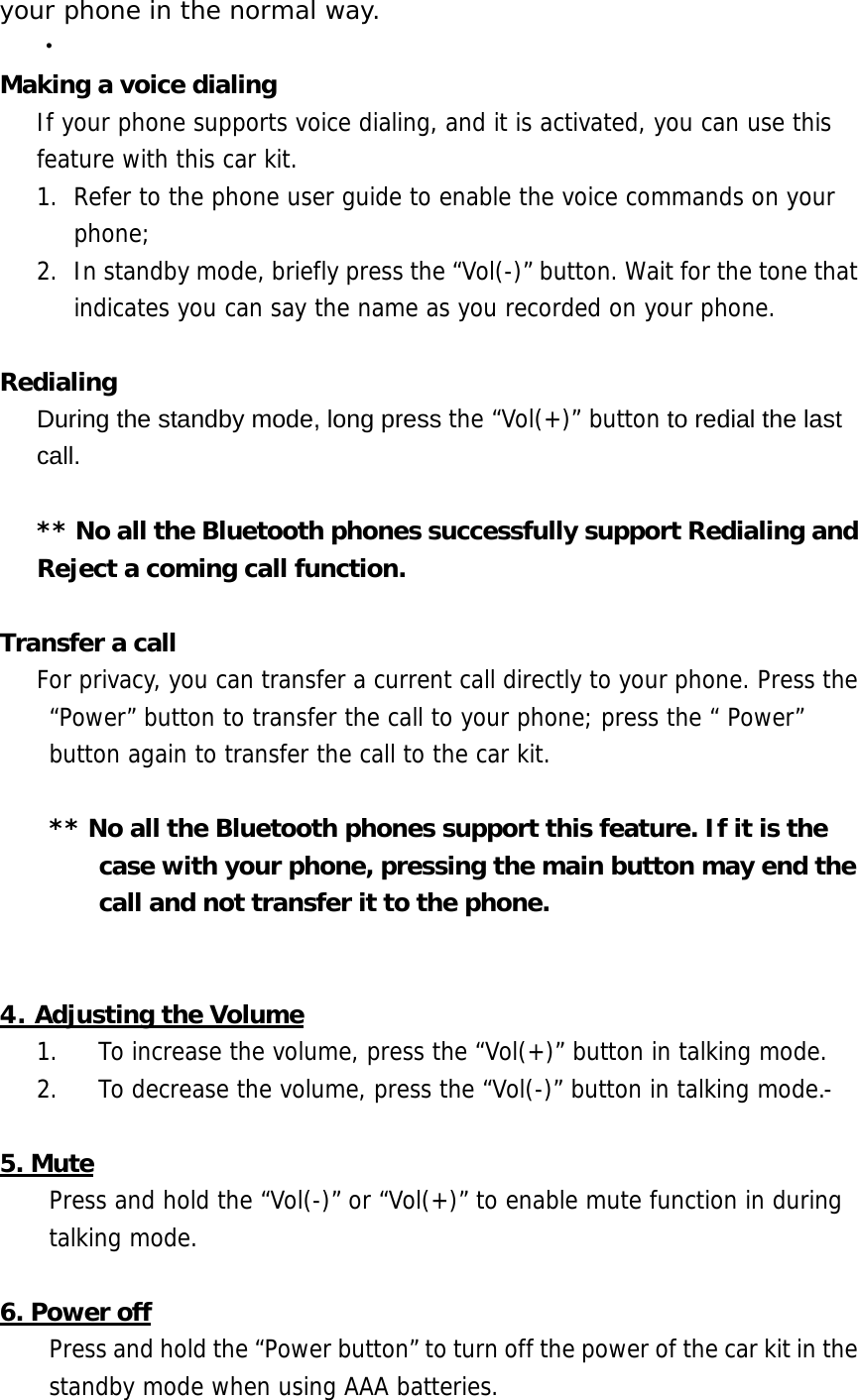

your phone in the normal way. ‧ Making a voice dialing If your phone supports voice dialing, and it is activated, you can use this feature with this car kit. 1. Refer to the phone user guide to enable the voice commands on your phone; 2. In standby mode, briefly press the “Vol(-)” button. Wait for the tone that indicates you can say the name as you recorded on your phone. Redialing During the standby mode, long press the “Vol(+)” button to redial the last call. ** No all the Bluetooth phones successfully support Redialing and Reject a coming call function. Transfer a call For privacy, you can transfer a current call directly to your phone. Press the “Power” button to transfer the call to your phone; press the “ Power” button again to transfer the call to the car kit. ** No all the Bluetooth phones support this feature. If it is the case with your phone, pressing the main button may end the call and not transfer it to the phone. 4. Adjusting the Volume 1. To increase the volume, press the “Vol(+)” button in talking mode. 2. To decrease the volume, press the “Vol(-)” button in talking mode.- 5. Mute Press and hold the “Vol(-)” or “Vol(+)” to enable mute function in during talking mode. 6. Power off Press and hold the “Power button” to turn off the power of the car kit in the standby mode when using AAA batteries.
