SparkLAN Communications WMIR268GN 802.11bgn Mini PCI Module User Manual WMIR 268GN v1
SparkLAN Communications, Inc. 802.11bgn Mini PCI Module WMIR 268GN v1
user manual
W
MIR
-
26
8G
N
www.sparklan.com / sales@sparklan.com / +886-2-2659-
1880
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
■ Chipset: Ralink RT2880 +
RT2820
■ Host Interface: Mini PCI Type
IIIA with MII
■ Antenna: 2 antennas to
support 2T2R
■ Output Power up to 18dBm
■ Enhanced wireless security:
64/128-bits WEP, WPA, WPA2
■ Linux
Wider Coverage by MIMO 2T2R Technology
The SparkLAN WMIR-268GN incorporates the latest MIMO 2T2R technology for
stable networking; it supports up to 300Mbps downstream and 300Mbps upstream
rates, which is an ideal choice of integrating with high performance AP or
networking equipment.
Enterprise level security
With advanced security encryptions, such as 64/128-bits WEP, WPA, WPA2, the
SparkLAN WMIR-268GN helps creating a secure and reliable wireless network. This
device is the best choice for you to quickly and easily integrate with your wireless
enabled applications.
Feature

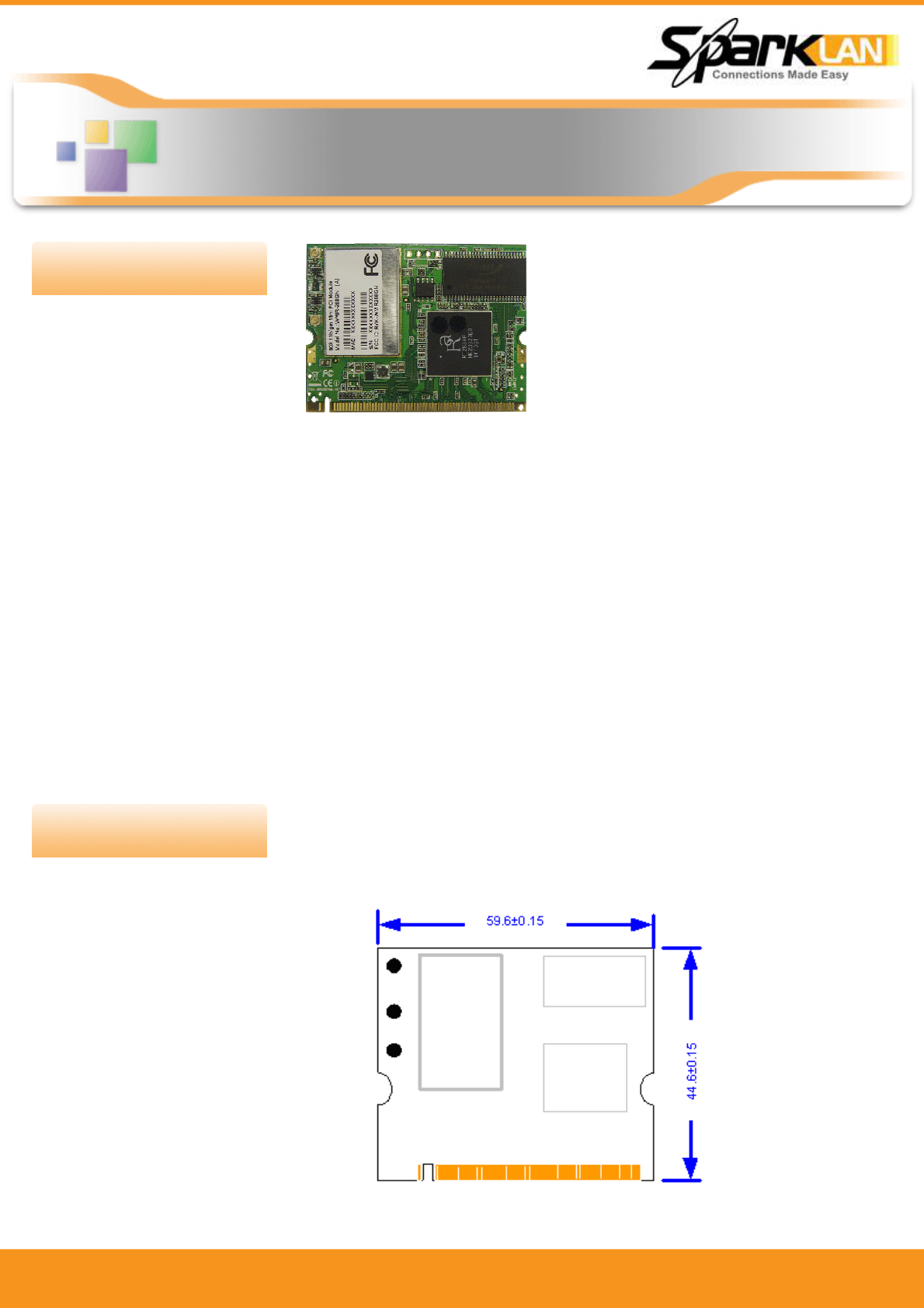

Mechanical Dimension (mm)
802.11
GN
Single
-
Band
Mini PCI Module
Ralink RT2880 (MIPS CPU) + RT2820
Solution with MII Interface, 2T3R
Application
■ Networking Equipment
■ Industrial Computers
■ Automation
■ Medical Device
■ POS (Point-of-Sale) System
■ Self-Service KIOSK
■ Gaming Machine
W
MIR
-
26
8G
N
www.sparklan.com / sales@sparklan.com / +886-2-2659-
1880
Application
Specifications
Ordering Info
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
■ WMIR-268GN
802.11b/g/n Mini PCI Module
Standard
802.11b/g/n
Chipset
CPU/Mac/BB RT2880 (MIPS CPU) + RT2820
Host Interface
Mini PCI, Type IIIA
Radio
Antenna 2 x U.FL connectors, 2T2R
Operating Frequency
802.11b/g/n ISM Band: 2.400 ~ 2.4835GHz
Modulation
802.11b: DSSS (DBPSK, DQPSK, CCK)
802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Peak Output Power
802.11b : 23.45dBm@11Mbps
802.11g : 24.58dBm@54Mbps
802.11n HT20 : 27.72dBm@MCS8
802.11n HT40 : 25.70dBm @MCS8
Receive Sensitivity
802.11b : -87dBm ± 2dBm @11Mbps
802.11g : -76dBm ± 2dBm @ 54Mbps
802.11n HT20 : -75dBm ± 2dBm @ MCS7
802.11n HT40 : -72dBm ± 2dBm @ MCS7
Power consumption
Continue TX Max 836mA
Continue RX Max 691mA
Operating Voltage
DC 3.3V ± 10%
Environmental
Temperature Range
0 ~ 50°C (Operating) -20 ~ 80°C (Storing)
Humidity
(Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
Physical Specification
Dimensions 59.6mm x 44.60mm x 3.5mm (±0.5mm)
Weight 7 g
Software
Driver Linux
Security 64/128-bits WEP, WPA, WPA2
Related Product
■ WMIR-278GN
802.11b/g/n Mini PCI Module
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not
possible.
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement
of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is
integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled
environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate
this equipment.
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RYK-WMIR268GN".
WMIR-268GN
Mini PCI Module
Quick Installiaton Guide
Version 1.0
1

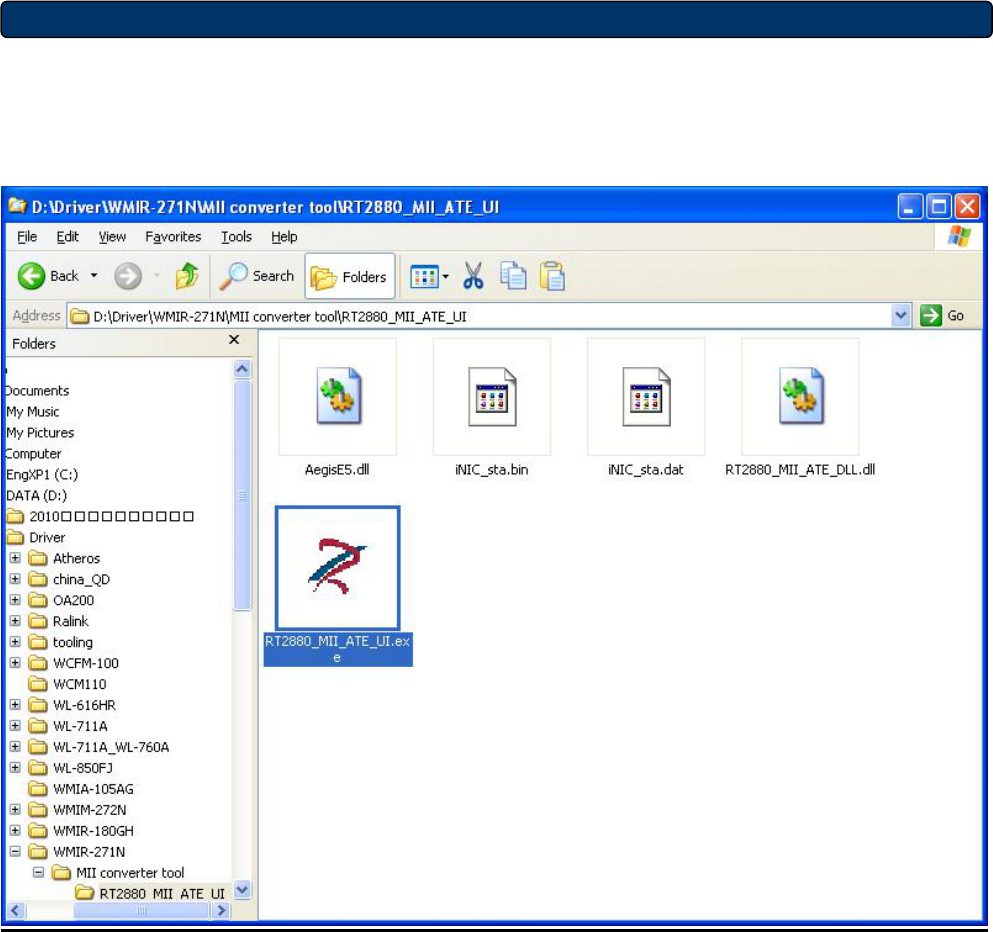

Setup 1.
Find out the Driver, and setup RT2880_MII_ATE_UI.exe
2

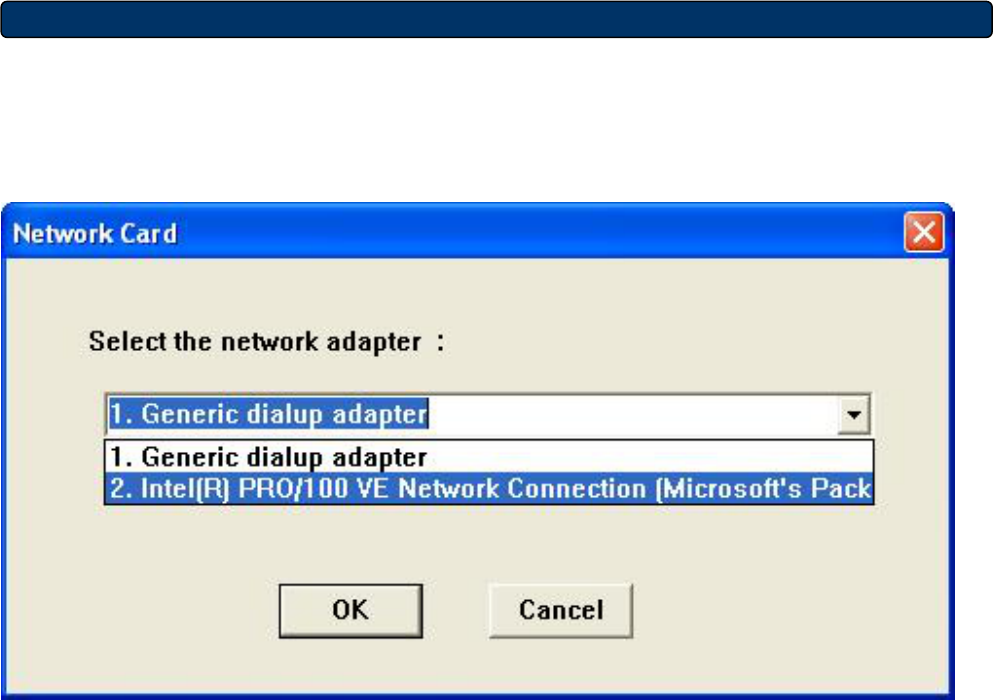

Setup 2.
Choose Ethernet Card
3

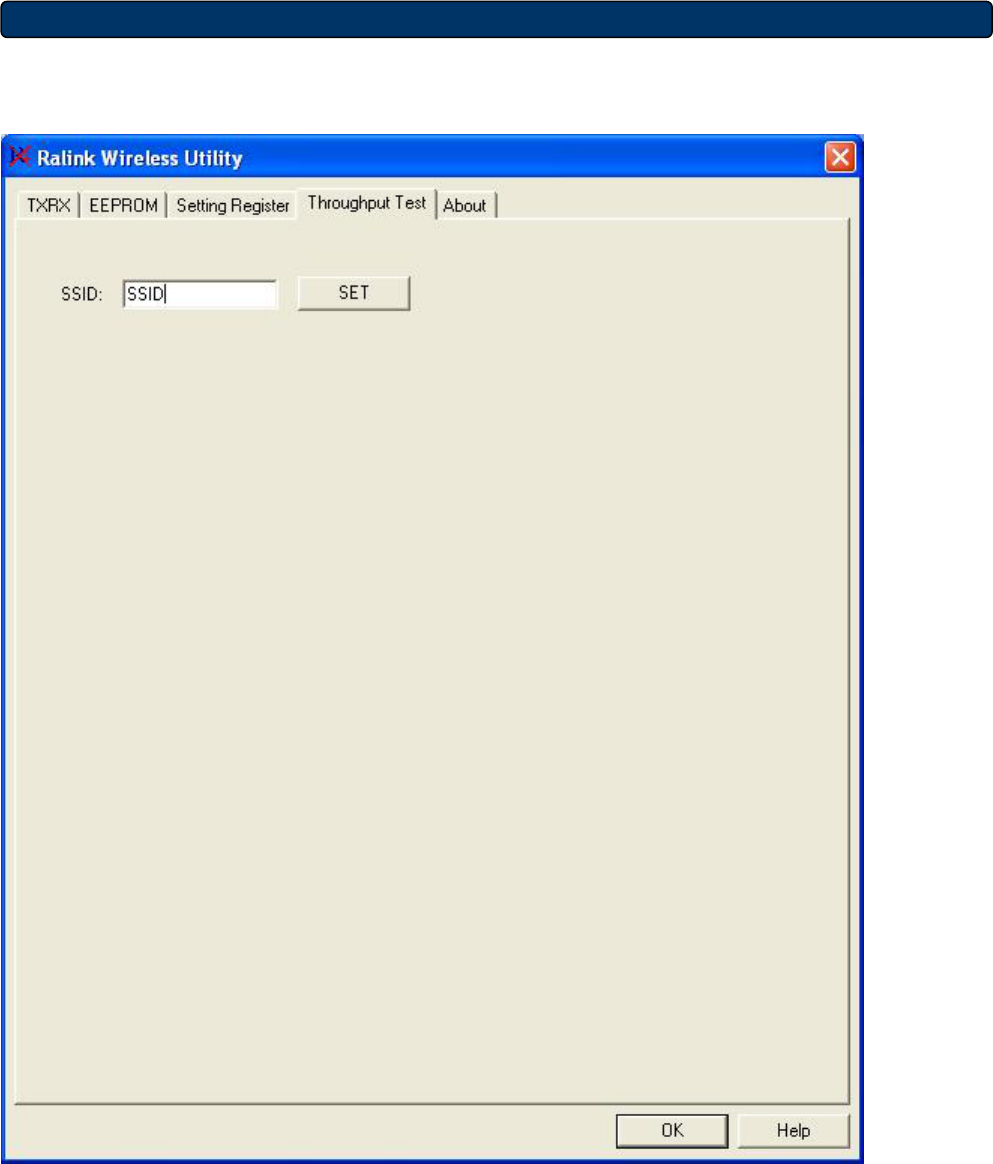

Setup 3.
Select “Throughtput Test” tab, and enter [SSID], press Set, then press OK
4

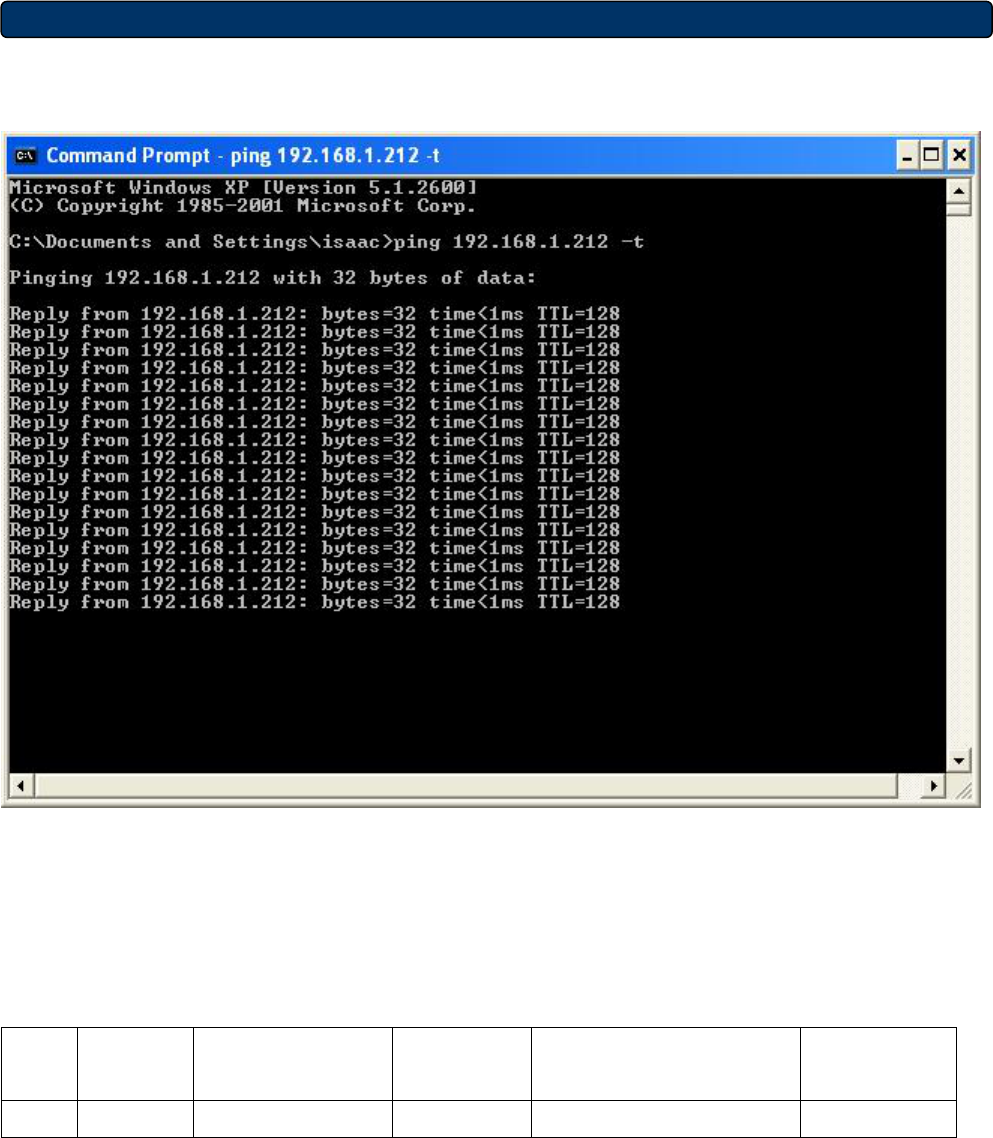

Setup 4.
Ping ipconfig to see if the module is functioning
Antenna Info.
Ant.
No. Category Type Model Connector Type Gain (dBi)
1 External GSM&WIFI Antenna EPH-501 FAKRA SMB CRIMB JACK -1.14
