Spectec Computer SDIOWLAN-11B SDIO Wireless Lan Card User Manual

Spectec Computer Co., Ltd SDIO Wireless Lan Card

Users Manual

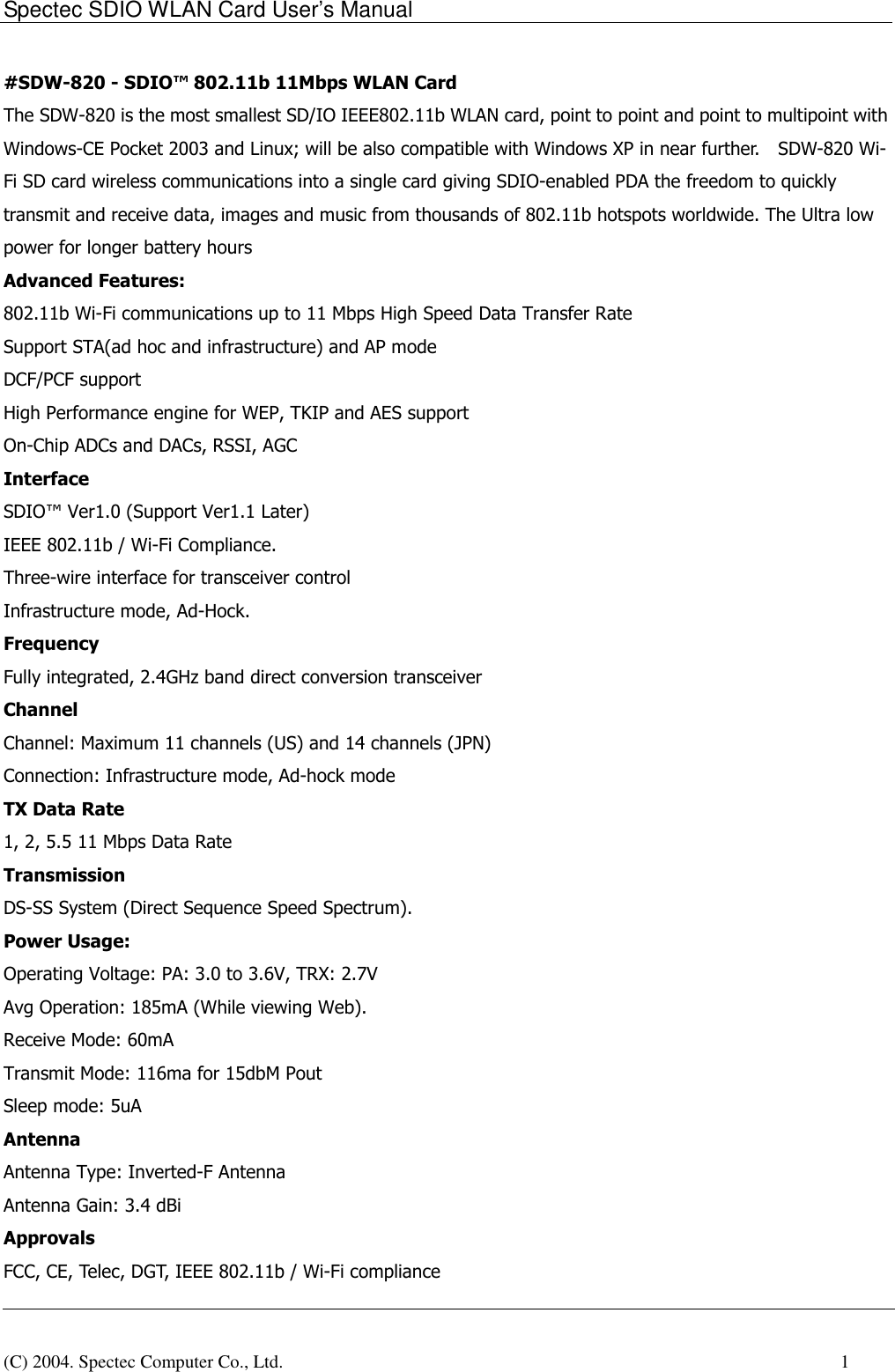

Spectec SDIO WLAN Card User’s Manual(C) 2004. Spectec Computer Co., Ltd. 1#SDW-820 - SDIO™ 802.11b 11Mbps WLAN CardThe SDW-820 is the most smallest SD/IO IEEE802.11b WLAN card, point to point and point to multipoint withWindows-CE Pocket 2003 and Linux; will be also compatible with Windows XP in near further. SDW-820 Wi-Fi SD card wireless communications into a single card giving SDIO-enabled PDA the freedom to quicklytransmit and receive data, images and music from thousands of 802.11b hotspots worldwide. The Ultra lowpower for longer battery hoursAdvanced Features:802.11b Wi-Fi communications up to 11 Mbps High Speed Data Transfer RateSupport STA(ad hoc and infrastructure) and AP modeDCF/PCF supportHigh Performance engine for WEP, TKIP and AES supportOn-Chip ADCs and DACs, RSSI, AGCInterfaceSDIO™ Ver1.0 (Support Ver1.1 Later)IEEE 802.11b / Wi-Fi Compliance.Three-wire interface for transceiver controlInfrastructure mode, Ad-Hock.FrequencyFully integrated, 2.4GHz band direct conversion transceiverChannelChannel: Maximum 11 channels (US) and 14 channels (JPN)Connection: Infrastructure mode, Ad-hock modeTX Data Rate1, 2, 5.5 11 Mbps Data RateTransmissionDS-SS System (Direct Sequence Speed Spectrum).Power Usage:Operating Voltage: PA: 3.0 to 3.6V, TRX: 2.7VAvg Operation: 185mA (While viewing Web).Receive Mode: 60mATransmit Mode: 116ma for 15dbM PoutSleep mode: 5uAAntennaAntenna Type: Inverted-F AntennaAntenna Gain: 3.4 dBiApprovalsFCC, CE, Telec, DGT, IEEE 802.11b / Wi-Fi compliance

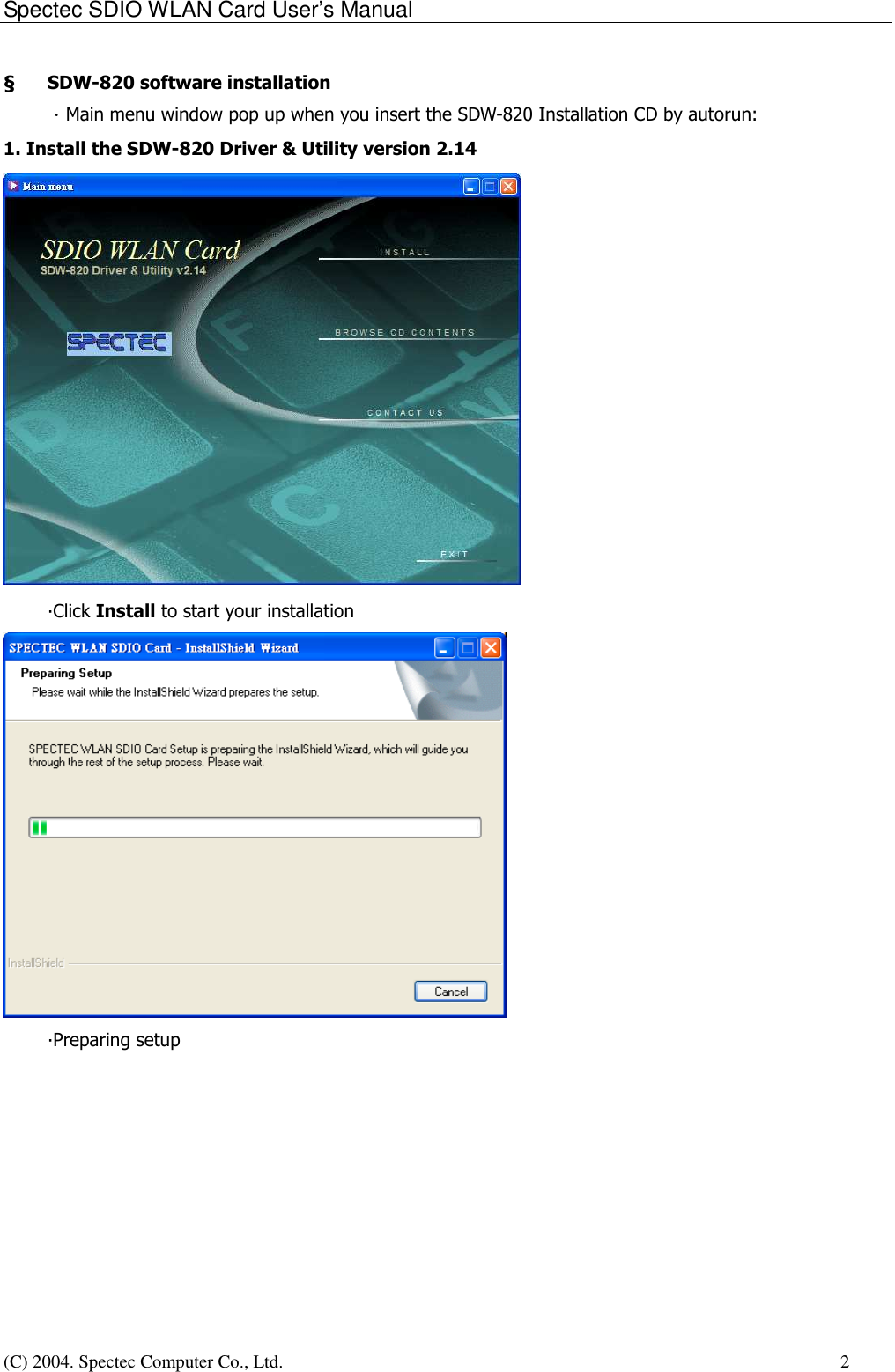

Spectec SDIO WLAN Card User’s Manual(C) 2004. Spectec Computer Co., Ltd. 2§ SDW-820 software installation．Main menu window pop up when you insert the SDW-820 Installation CD by autorun:1. Install the SDW-820 Driver & Utility version 2.14·Click Install to start your installation·Preparing setup

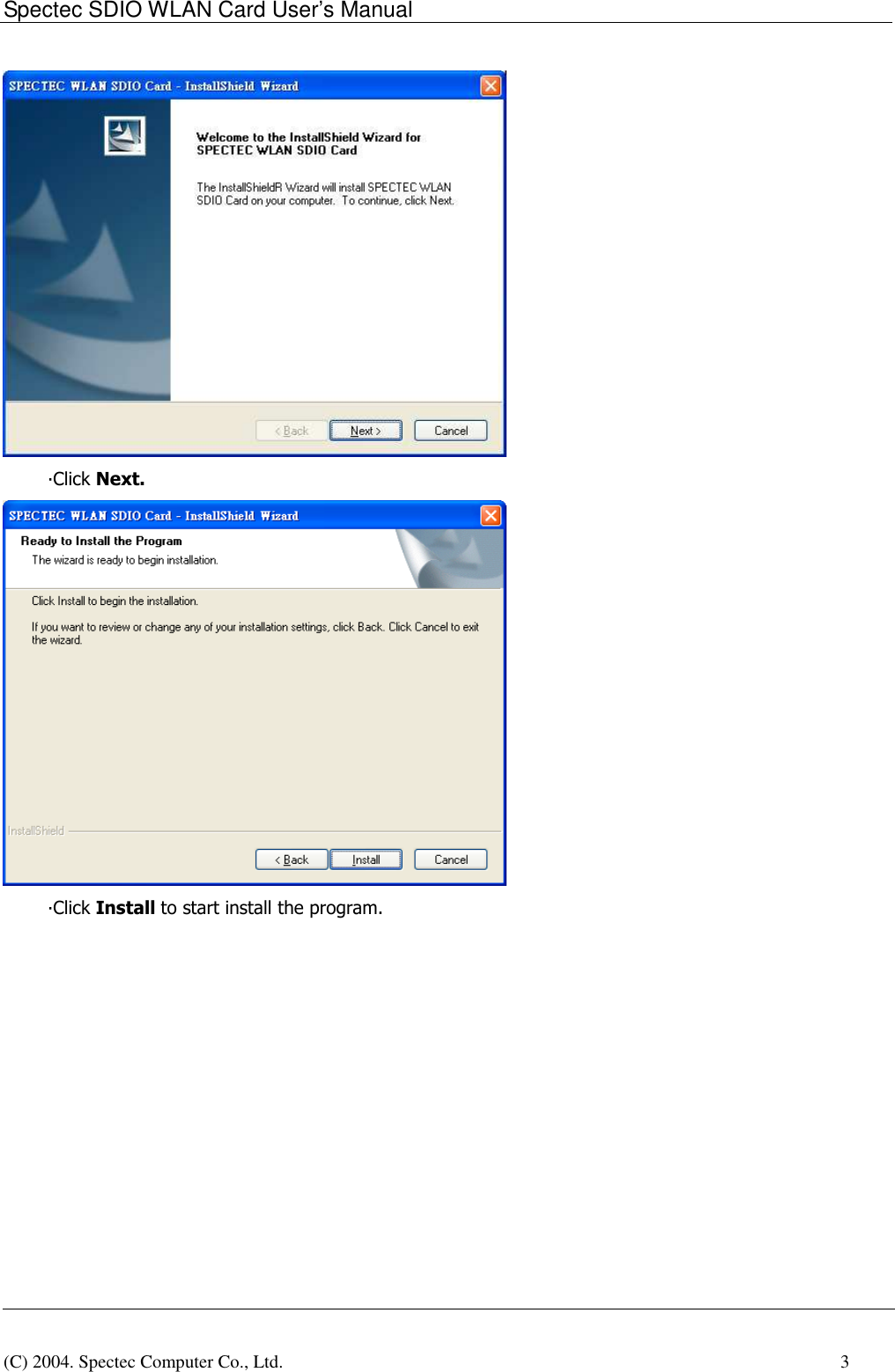

Spectec SDIO WLAN Card User’s Manual(C) 2004. Spectec Computer Co., Ltd. 3·Click Next.·Click Install to start install the program.

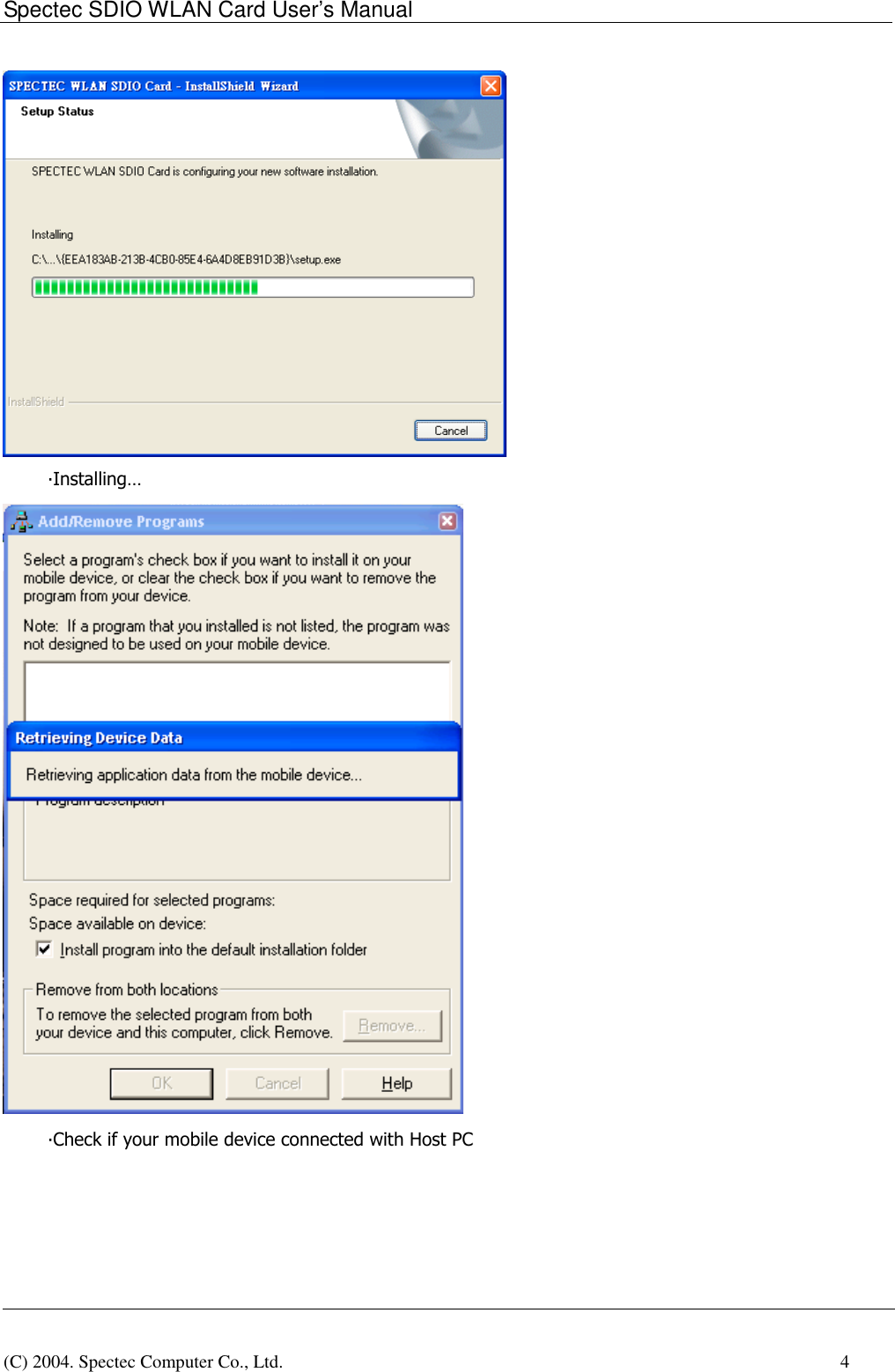

Spectec SDIO WLAN Card User’s Manual(C) 2004. Spectec Computer Co., Ltd. 4·Installing…·Check if your mobile device connected with Host PC

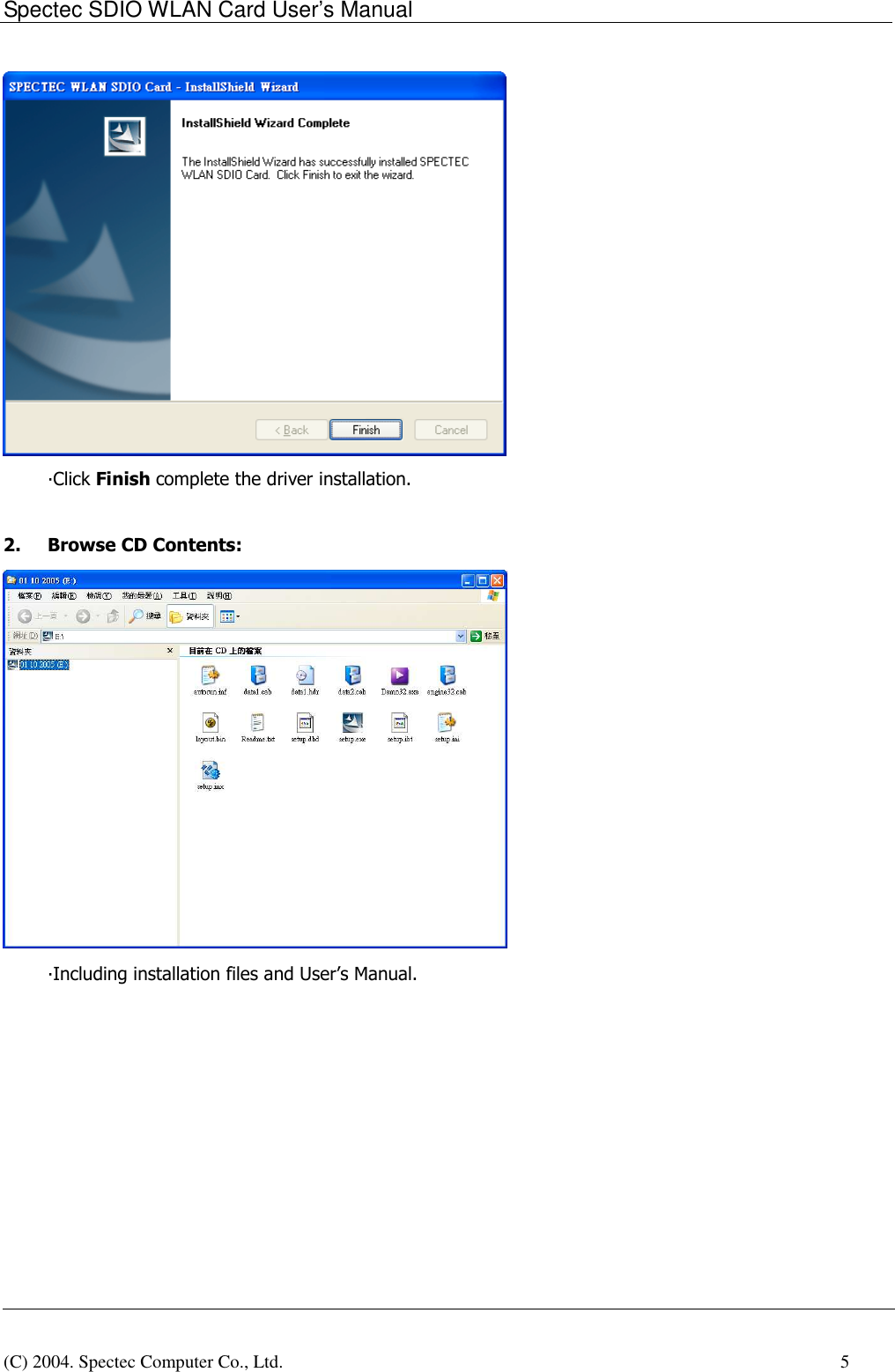

Spectec SDIO WLAN Card User’s Manual(C) 2004. Spectec Computer Co., Ltd. 5·Click Finish complete the driver installation.2. Browse CD Contents:·Including installation files and User’s Manual.

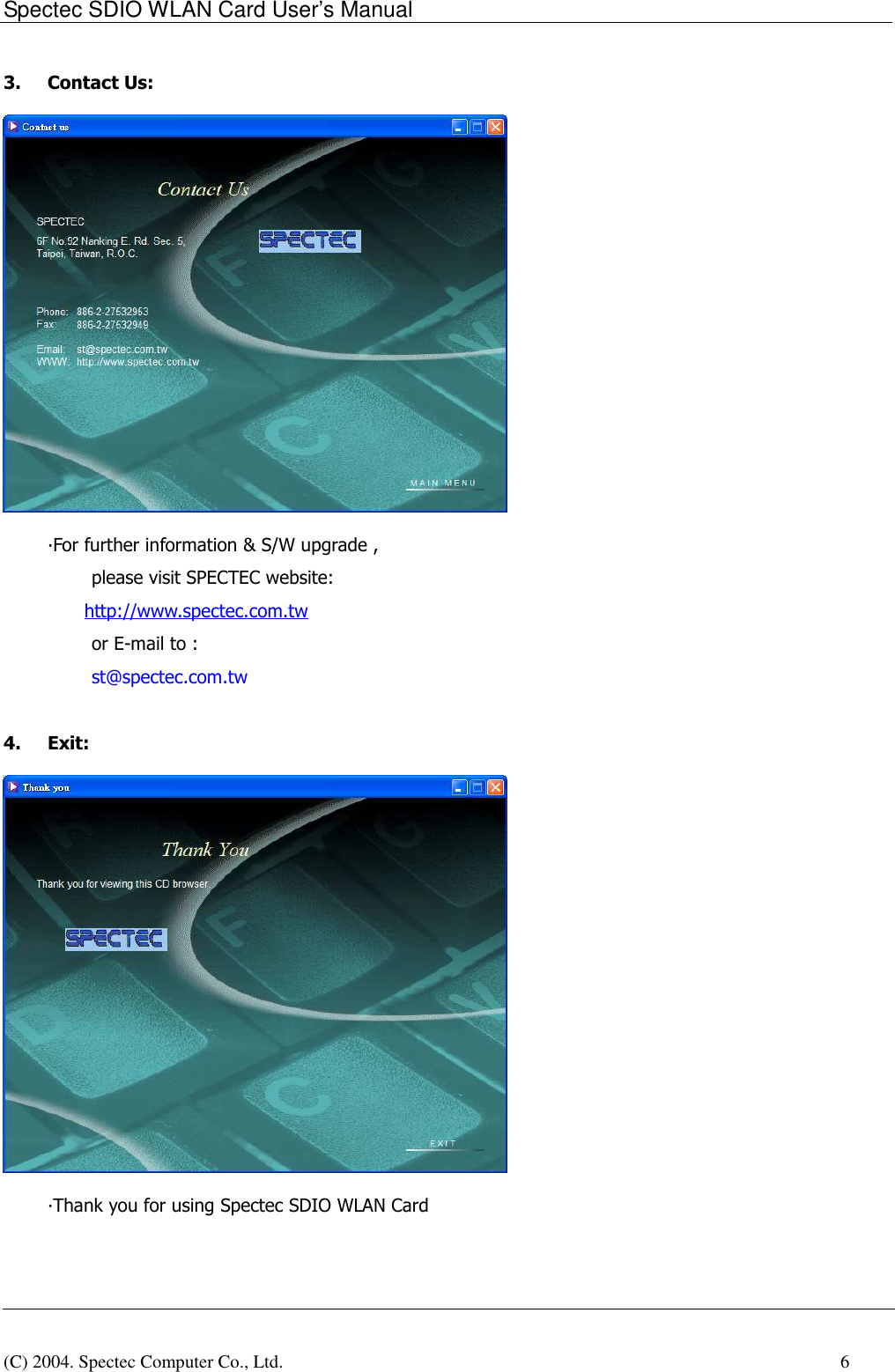

Spectec SDIO WLAN Card User’s Manual(C) 2004. Spectec Computer Co., Ltd. 63. Contact Us:·For further information & S/W upgrade ,please visit SPECTEC website: http://www.spectec.com.twor E-mail to :st@spectec.com.tw4. Exit:·Thank you for using Spectec SDIO WLAN Card

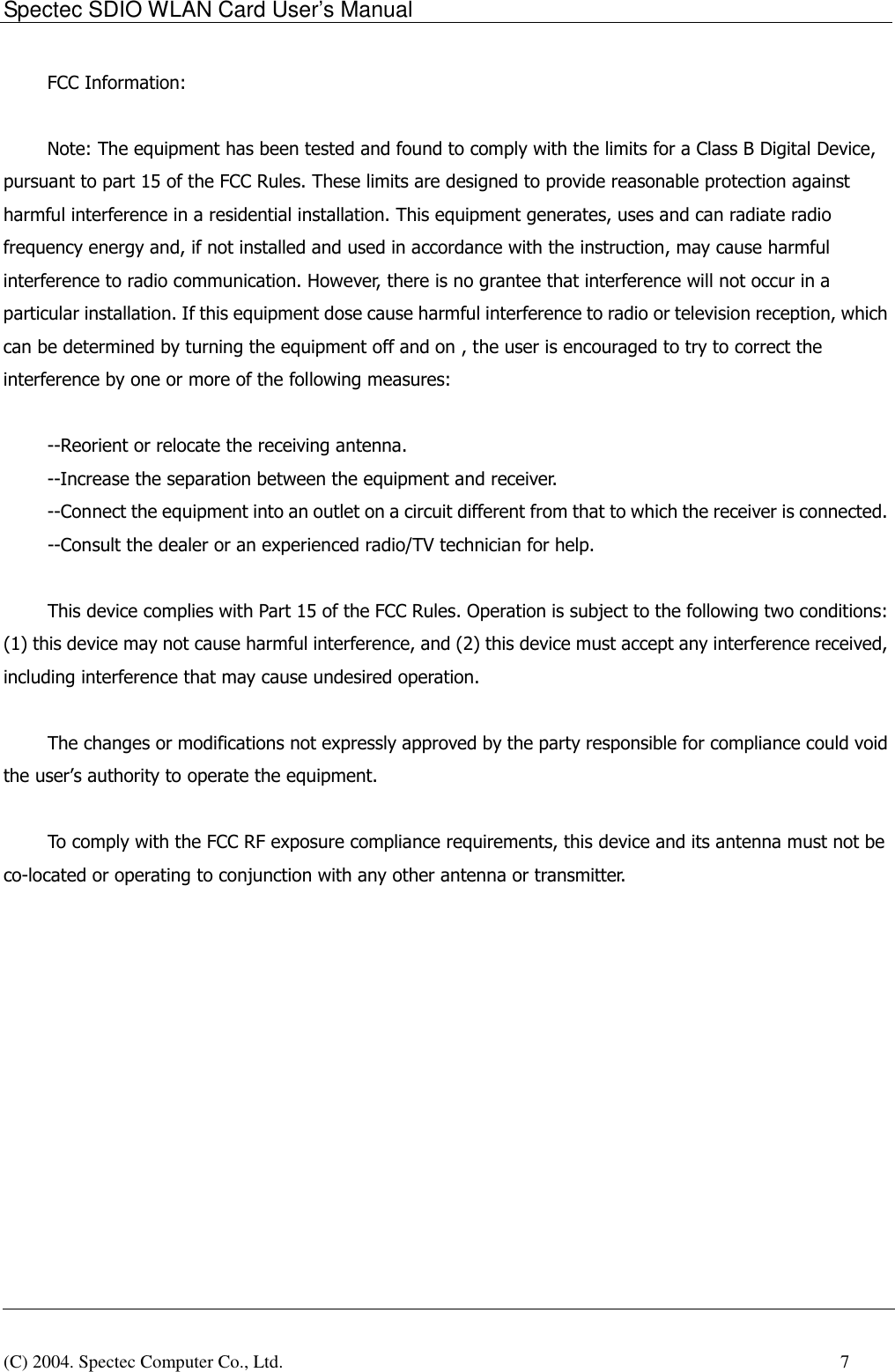

Spectec SDIO WLAN Card User’s Manual(C) 2004. Spectec Computer Co., Ltd. 7FCC Information:Note: The equipment has been tested and found to comply with the limits for a Class B Digital Device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instruction, may cause harmfulinterference to radio communication. However, there is no grantee that interference will not occur in aparticular installation. If this equipment dose cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on , the user is encouraged to try to correct theinterference by one or more of the following measures: --Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver.--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.--Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. The changes or modifications not expressly approved by the party responsible for compliance could voidthe user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not beco-located or operating to conjunction with any other antenna or transmitter.
