User Manual 1
Wireless/Internet
SDIO WLAN card
SDIO WLAN Card
User’s Manual
ver. 1.24
WLAN-11b
802.11b
TM
www.spectec.com.tw
WLAN-11b
0012E6000506
FCC ID:S2YMINIWLAN
11B
WLAN-11b/g
SDIO
WLAN
Card
www.spectec.com.tw
2
Installation Procedure

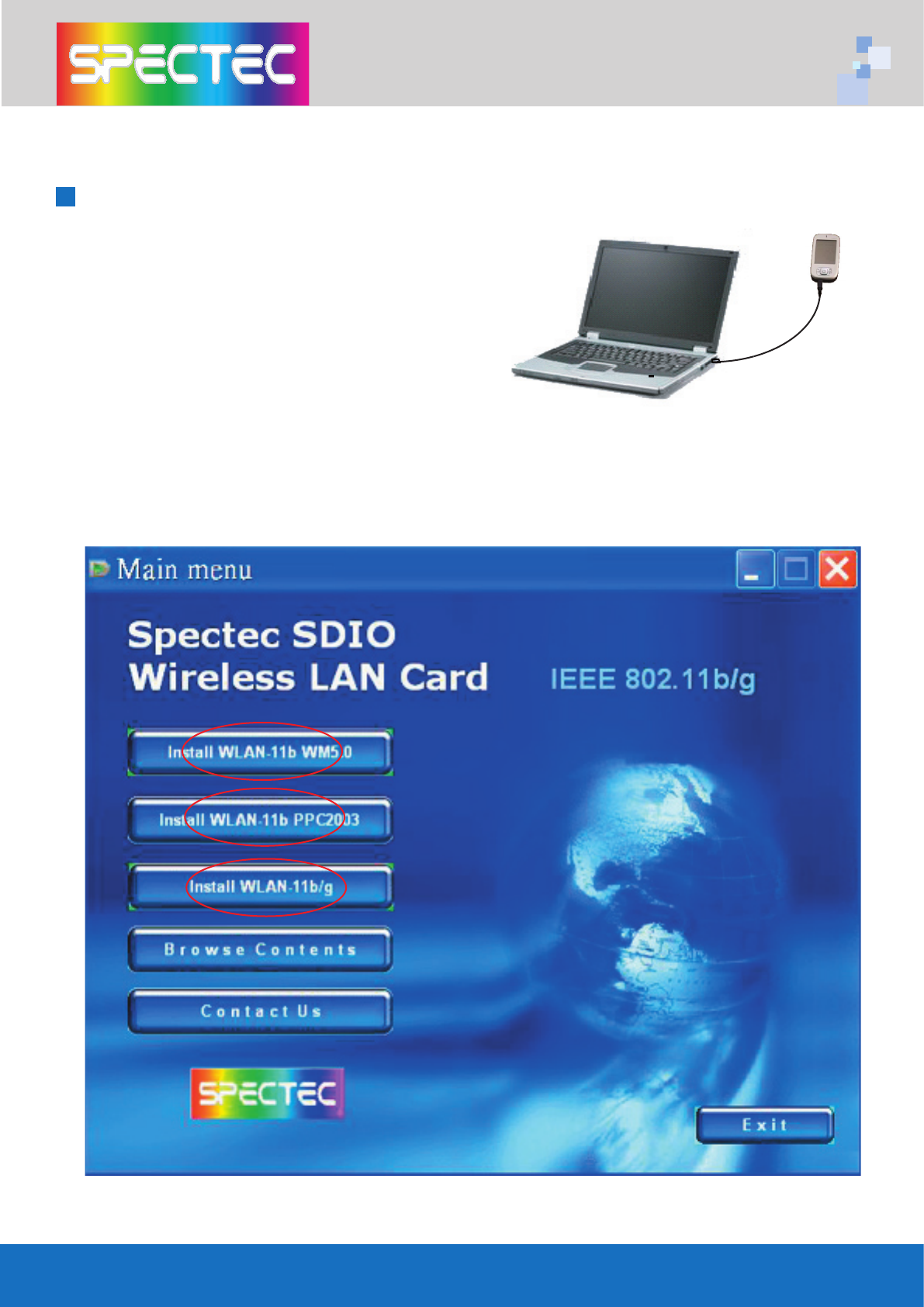

< First, connect PDA to your computer
with a USB wire.
< Main menu window will pop up when
you insert the WLAN-11b Installation
CD by autorun:
3
<

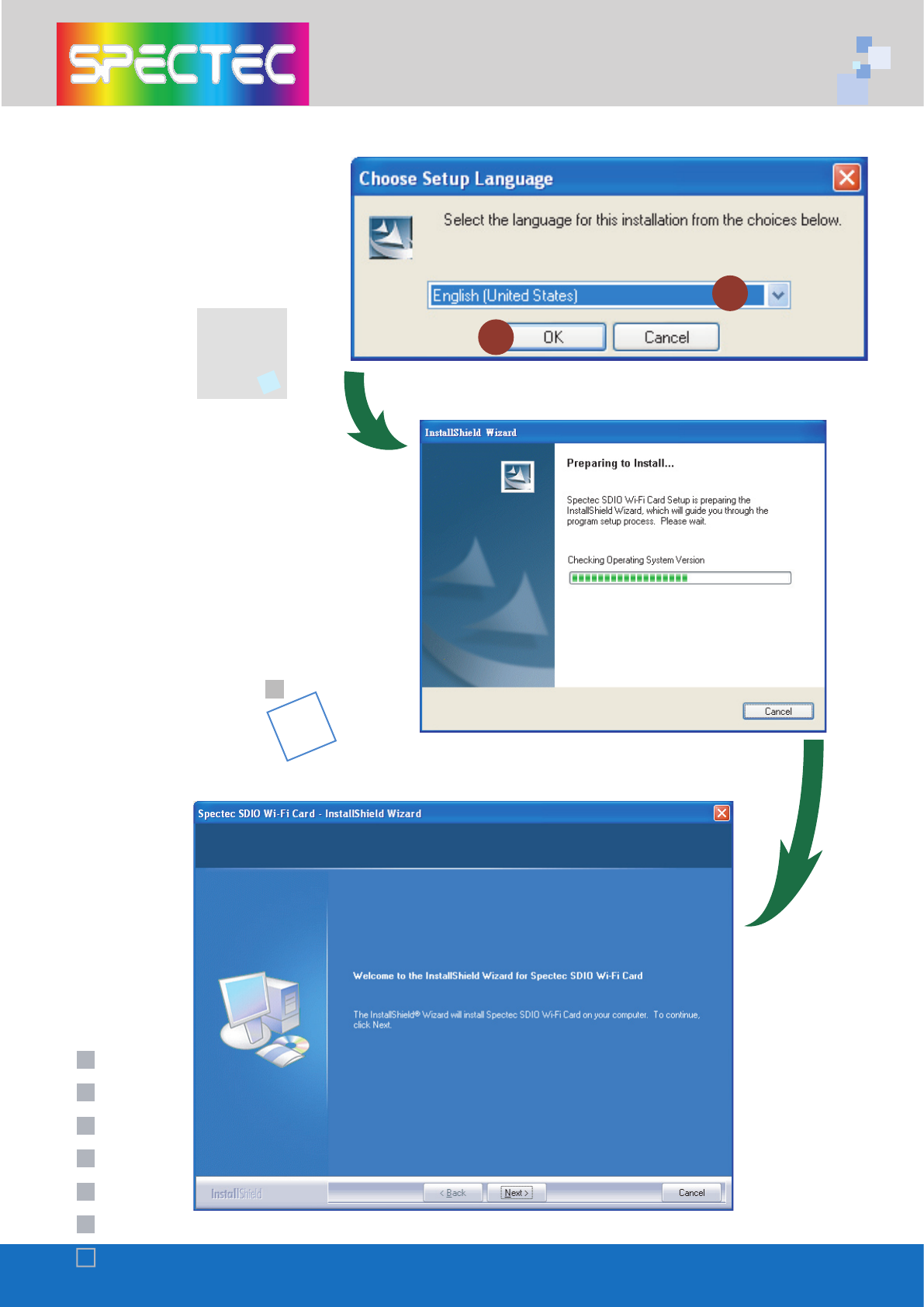

Choose the desired
Language,
then click
OK.
< The Installation menu will
automatically appear on
the screen.
< Click
Next
1
2
4
4
5
6
7
8
<

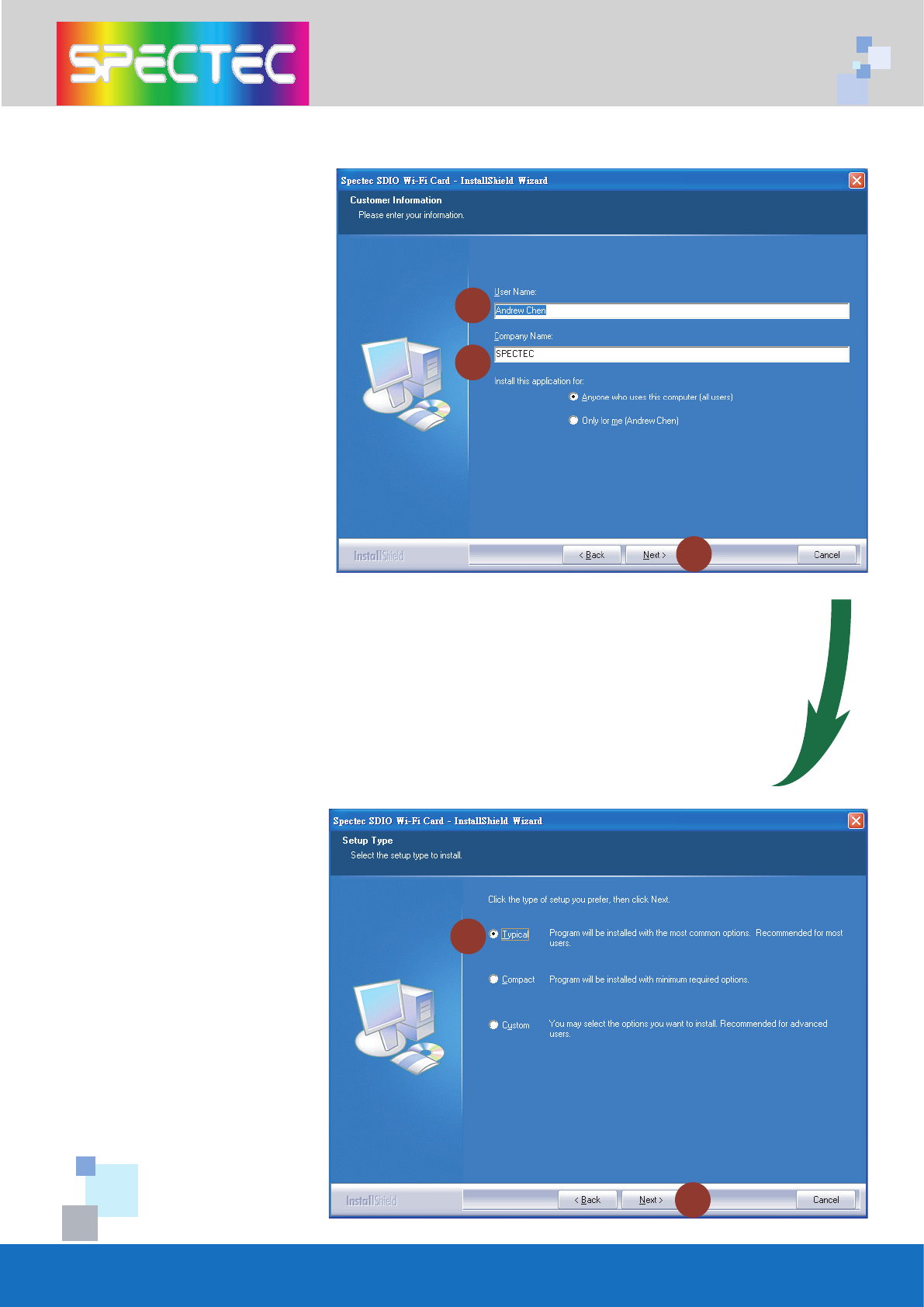

Enter user information,
then click
Next.
< Chose
Setup type
, then
click
Next
5
<

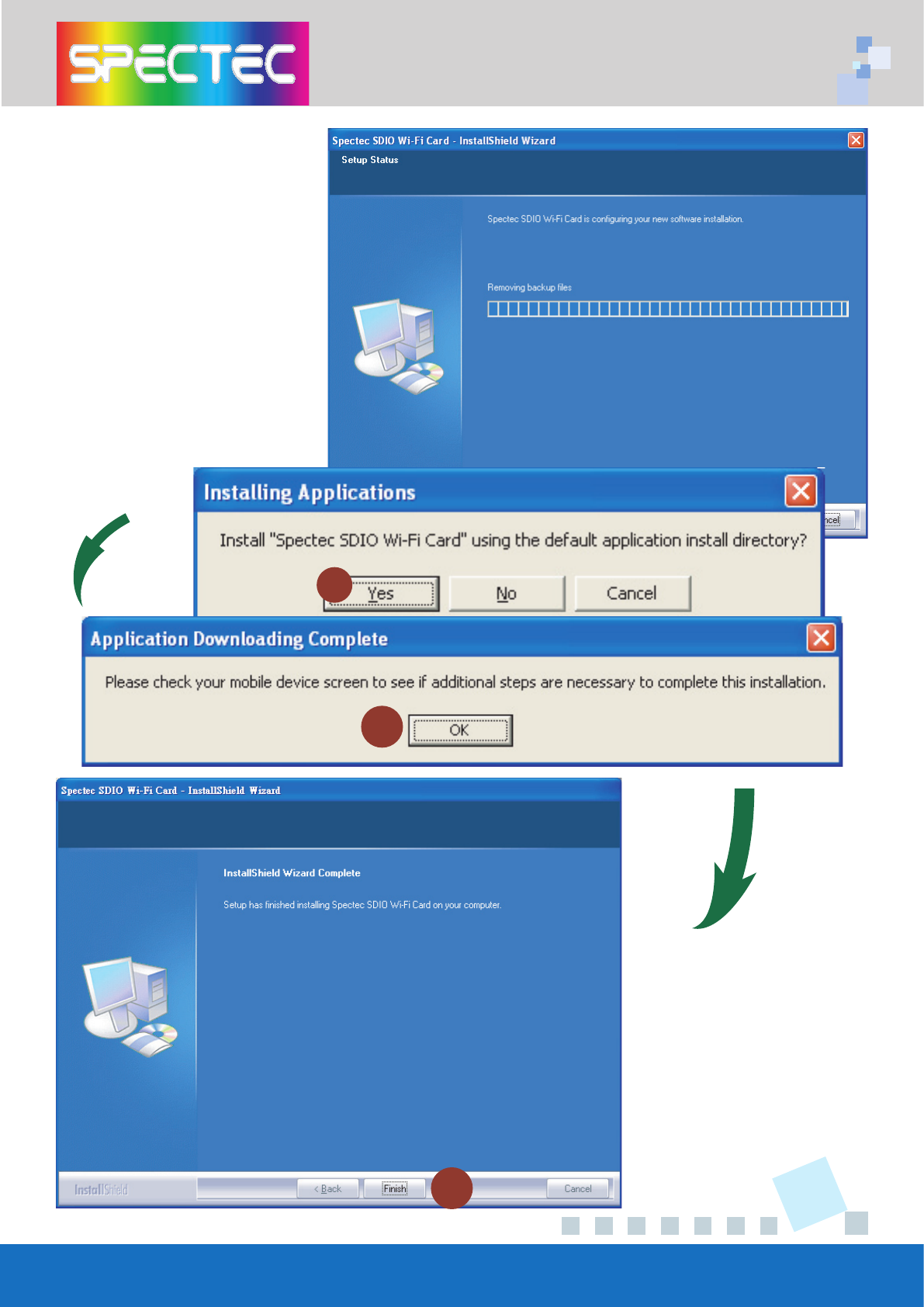

The driver will be installed
automatically.
<
Click
Yes
to proceed with
installation. Click
OK
to
finish installation.
< Click
Finish
to complete
the driver installation
process.
9
10
11
6

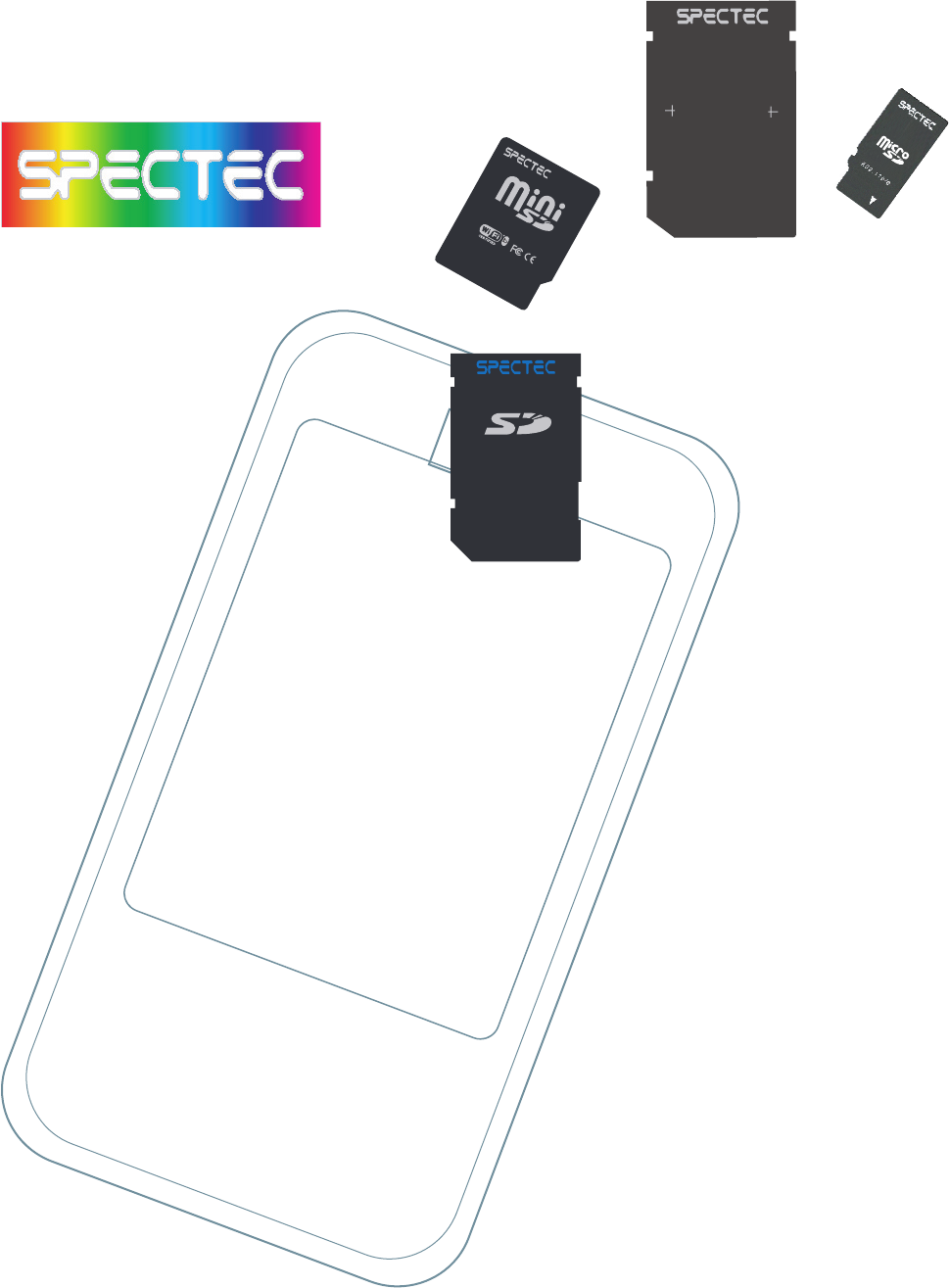

How to take a SDIO WLAN card out of a PDA

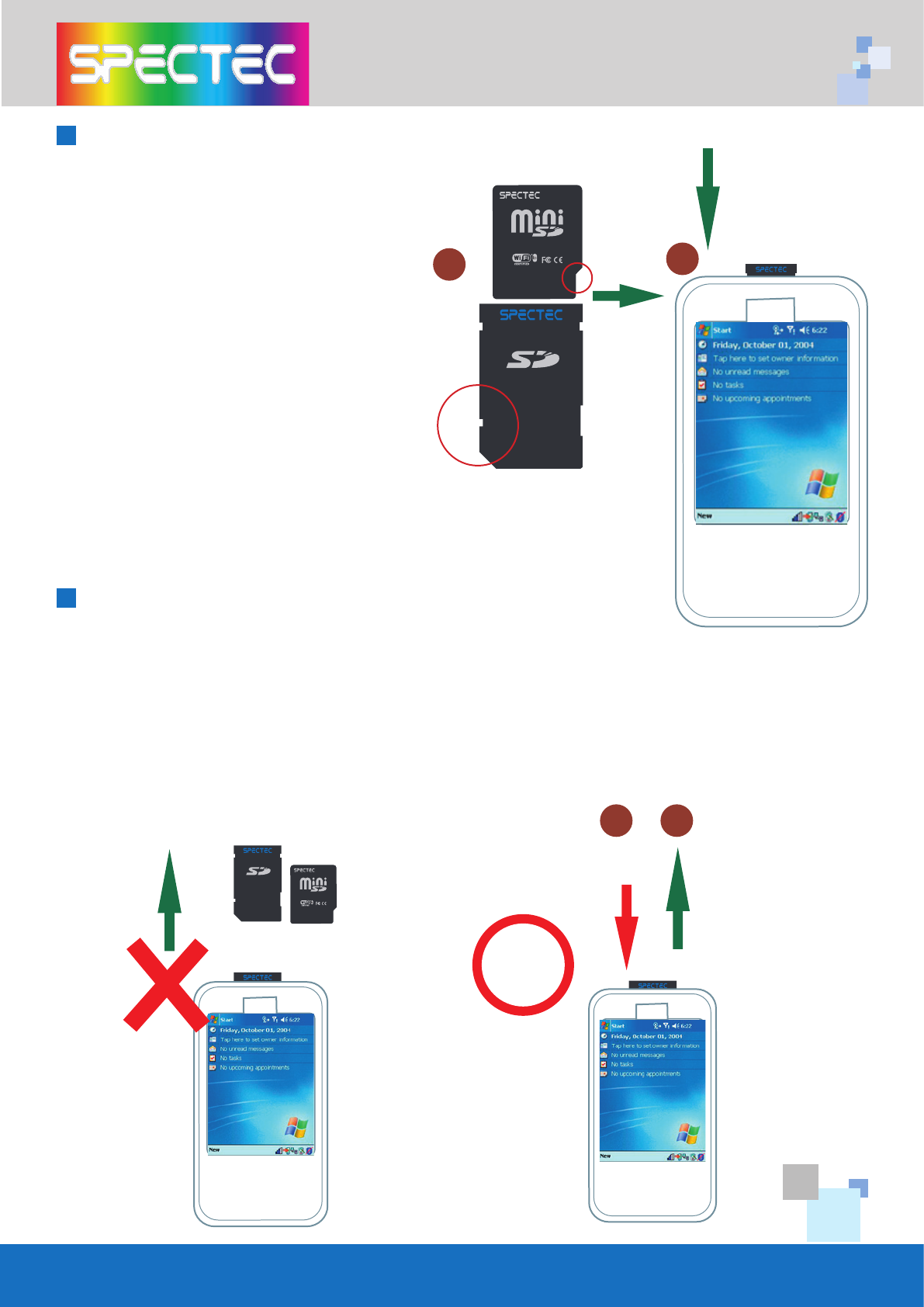

< Check the direction of the card.
Insert the card with the label side
facing the front of the PDA until it
clicks.
#
Different PDAs may have different
drives. Make sure the direction is
correct to avoid damaging the
PDA’s SD drive.
< When removing the SDIO WLAN
card from a PDA, simply press
down on the card until it clicks. The
card will rise up for easy removal.
DO NOT PULL by force, or the slot
may be damaged.
<
This card is designed to be locked
into the slot. Forcefully pulling the
card out will not only damage this
auto pop-out function, but also
the slot and the wireless card.
Pull out
Card rises, then
pull out
Press
down
Inserting the SDIO WLAN Card into a PDA
* Please do not
ke
ep inserting & removing the card
, different
PDA
s needs an interval of 5 to 7 seconds to process.
12
WLAN-11b
802.11b
TM
www.spectec.com.tw
WLAN-11b
802.11b
TM
www.spectec.com.tw
1 2
WLAN-11b
0012E6000506
FCC ID:S2YMINIWLAN
11B
WLAN-11b
802.11b
TM
www.spectec.com.tw
WLAN-11b
802.11b
TM
www.spectec.com.tw
WLAN-11b
802.11b
TM
www.spectec.com.tw
WLAN-11b
0012E6000506
FCC ID:S2YMINIWLAN11B
7

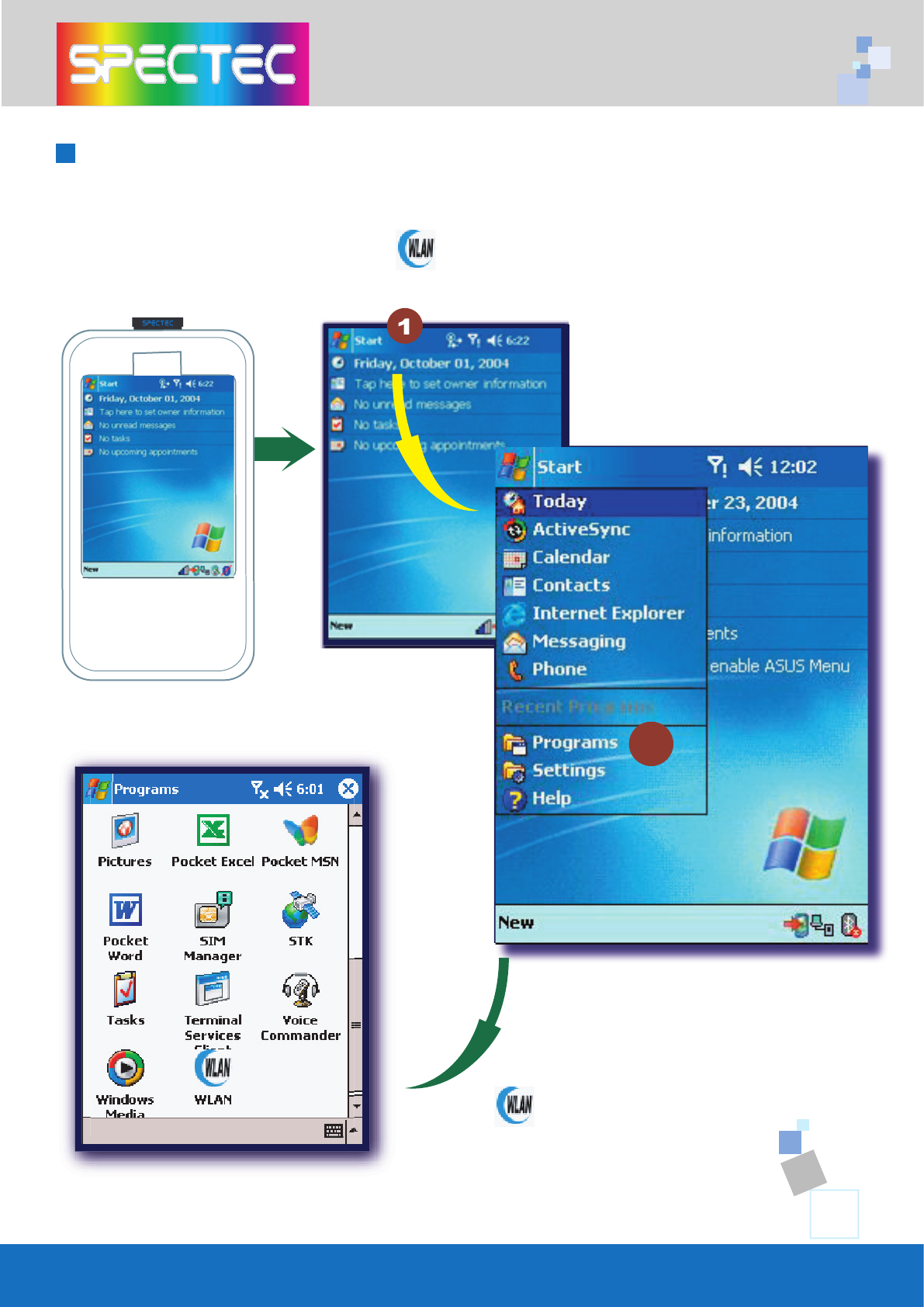

How to Connect
< After install the software, start path as
Start\Programs
.
<
After inserting the card into the PDA, click
Start
. Click
Programs
on the
pull-down menu, then selec
t
.(
Only built-in 11b card for PCC2003)
<
Click to open the
WLAN
Utility
window.
WLAN-11b
802.11b
TM
www.spectec.com.tw
2
8

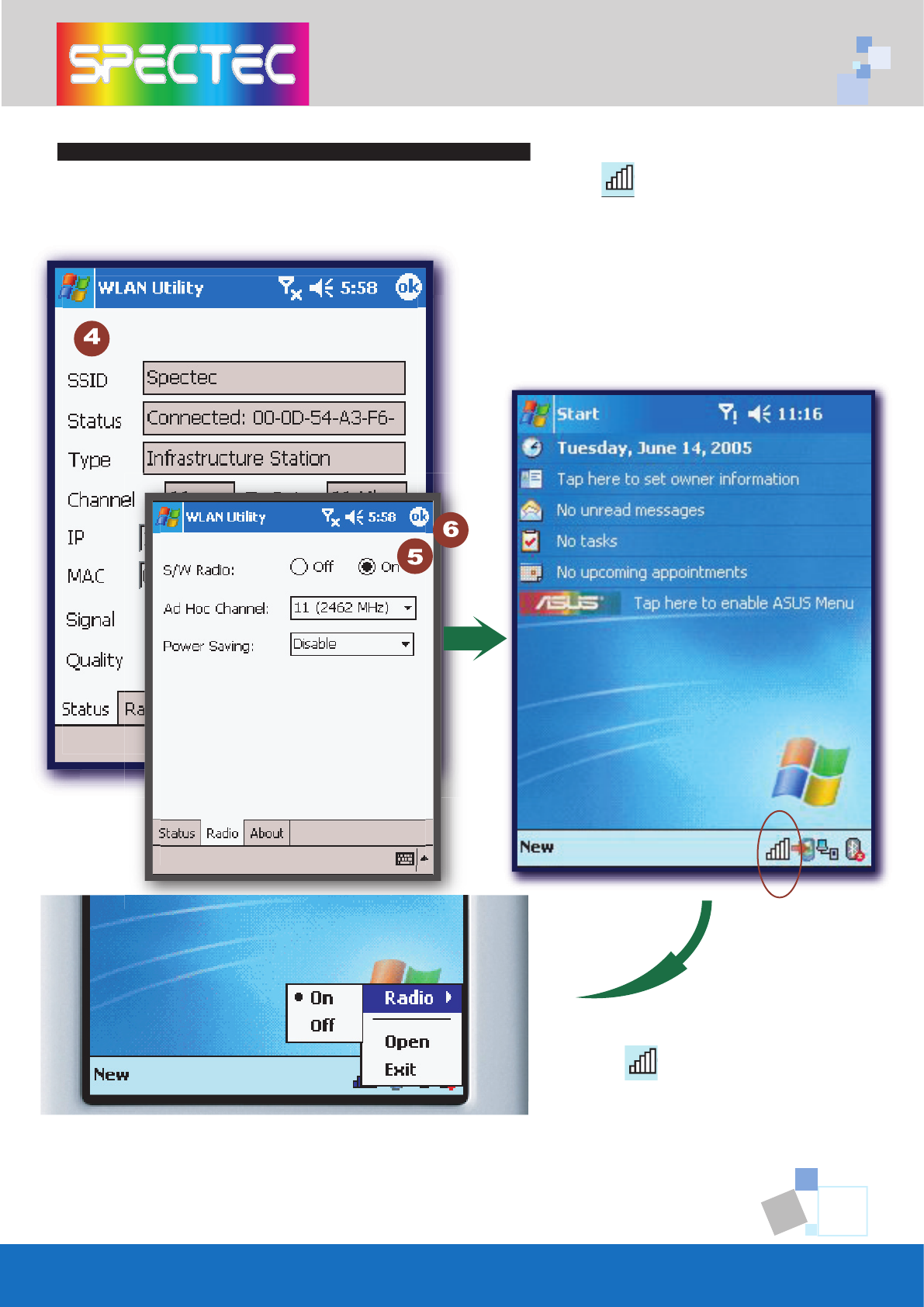

In “Radio” page of WLAN Utility, you may check
S/W Radio Off/on
for
Enable/
Disable
Wi-Fi card, or you can also find a shortcut icon at the lower right hand
corner of the screen.
< Click , shortcut icon to
switch
on/off
Wi-Fi radio
9

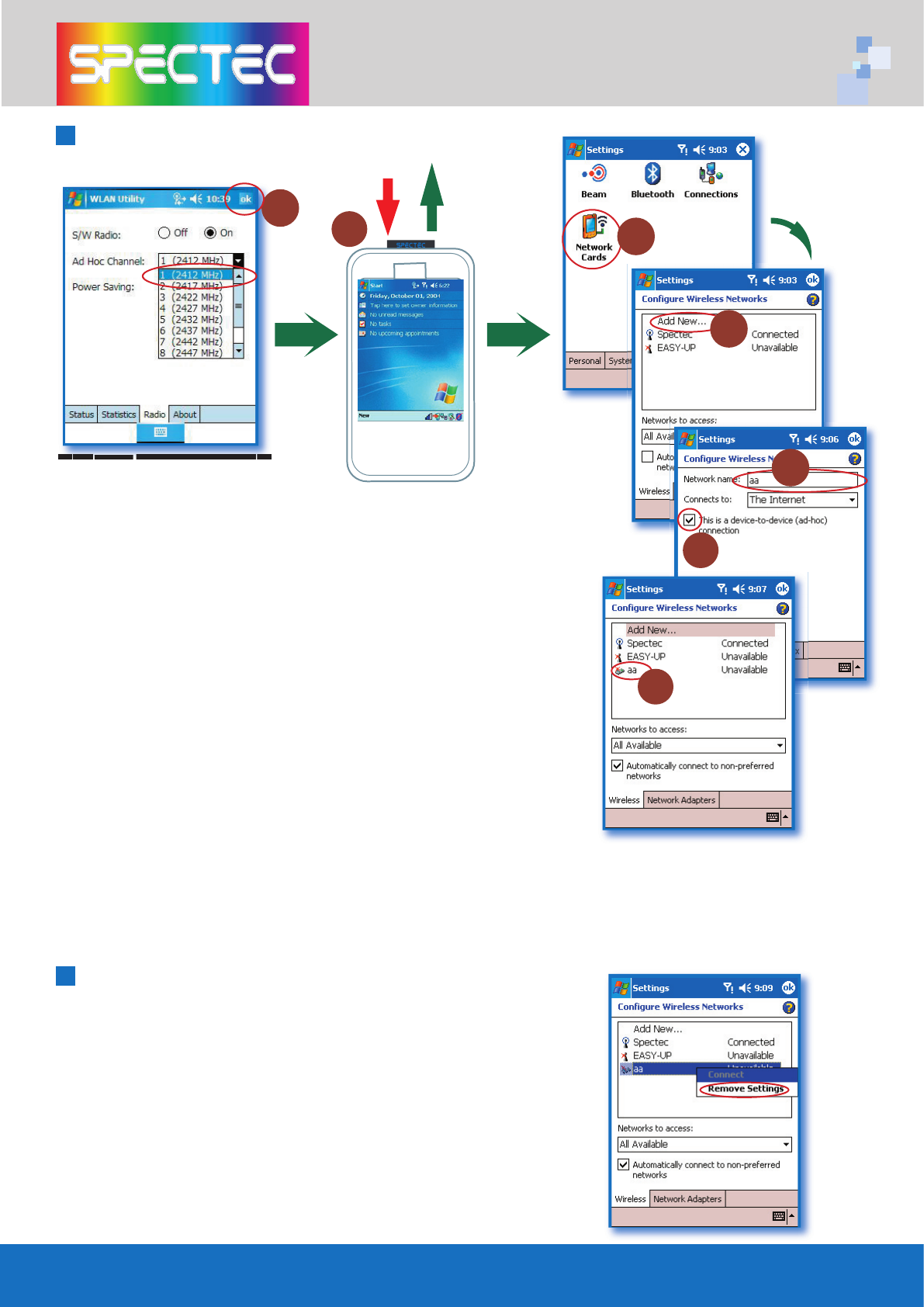

How to Connect Ad-hoc
1. In
WLAN Utility
, select
Ad-Hoc Channel
(must be
channel
1
).
2. Click
OK
to exit
WLAN Utility
.
3. Remove the card from PDA, then re-insert the
card.
4. Go to PDA system:
Settings\Connections\
Network Cards.
5. Click
Add New.
6. Type in the name (ex. aa).
7. Check the “This is a device-to-device (ad-hoc)
connection” box.
8. Click
OK.
The input name (ex. aa) will be
added to the
Network Address.
*Ad-hoc channel is a “Point-to-point” network segment. It
provides you with a temporary LAN environment.
I
n
Settings,
select the network name that
you would like to remove. Wait 2 seconds
for the
‘Remove Settings’
pop-up window
to appear.
How to Remove Settings
1
PS:
PS:
Ch
Ch
anne 1
anne 1
2 is the channel in A
2 is the channel in A
merica
merica
2
4
5
6
7
8
3
