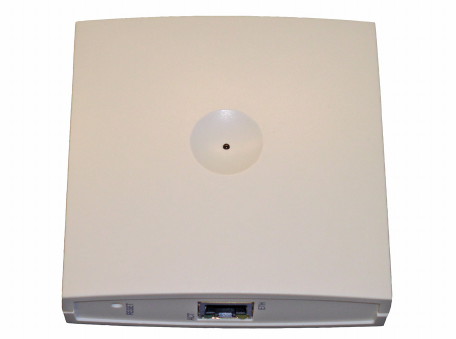

KIRK Base Station 12
1.9 GHz
User Guide
1 Introduction
The base station is only intended for use with a
wireless server. The base station must be connected
to a LAN or Ethernet Network. The base station is
designed with two internal antennas and supports
antenna diversity. The base station is also able to
carry out a handover between the RF channels
under the same base station, and handles 11 speech
channels simultaneously. The base station is able to
frame synchronize with other base stations under
the same wireless server.
Transmission lenght is up to 100 meters/329 feet,
according to IEEE 802.3u, on a twisted pair (in one
building), e.g. cat.5e, between the base station and
wireless server. The base station is also power sup-
plied from this connection (maximum power supply
consumption 3.0 W according to PoE 802.3af). The
radius of coverage is up to 600 meters/1960 feet
with a handset in free sight.
2 Installation
First you have to determine where to install the base
station to have the right coverage. The average cov-
erage within buildings is 75 meters/246 feet, under
normal conditions 50 meters/164 feet. The cover-
age depends on the construction of the building,
architecture and choice of buildings materials. You
may have to use the Deployment Kit to optimize
your installation.
The base station is to be mounted vertically on the
wall.
To mount the base station on the wall:
1Mount the base station onto the wall using the
anchors and screws accompanying the product.
Note: When you place the base station on the
screws, ensure that the screws do not touch the
printed circuit board.
2Connect the RJ45 plug to the ethernet connec-
tor at the bottom of the base station.
For further information and technical support
please refer to our web address
www.spectralink.com.
3 Configuration
Configure the base station for your VoIP
Network.
1Connect the base station to a PoE power source
either using a standard PoE adapter or using a
PoE-enabled port on a switch.
2The base station is pre-configured with the IP
address: 192.168.0.1. Connect a PC to the base
station either using a standard patch cable, or a
cross-over patch cable, or through a network
with identical net mask, e.g. the IP address:
192.168.0.2 and Sub-net mask: 255.255.255.0.
3The system is now ready to be reached with a
standard web browser. Log in using:
Default user name: admin
Default password: ip6000
4Change the IP address to fit your VoIP Net-
work.
5Change user name and password.
Connect base station to a Wireless Server
6000
1Configure the base station to connect to the
Wireless Server 6000 on your VoIP Network.
This is done in Configuration menu (web
based Administration Page).
Important Safety Instructions and Product
Information
Before using your telephone equipment, you should
always follow basic safety instruction to reduce the
risk of fire, electrical shock and injury to persons,
and damage to property.
1Read and understand all instructions
2Follow all warnings and instructions including
those marked on the product
3Unplug this product before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use
damp cloth for cleaning
4Do not install the telephone equipment in the
bathroom or near a wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swim-
ming pool
5Slots or openings in the cabinet back and bot-
tom of the equipment are provided for ventila-
tion to protect it from over-heating. These
openings must not be blocked or covered.
6The product should be operated only from the
type of power source indicated on the instruc-
tions. If you are not sure of the type of power
supply, consult your dealer or local power com-
pany.
7Do not overload wall outlets and extension
cords as this can result in fire or electrical
shock.
8Never push objects of any kind into this prod-
uct through cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in fire, electrical shock, or injury.
Never spill liquid of any kind into this product.
9To reduce the risk of electrical shock or burns,
do not disassemble this product. Opening or
removing covers may expose you to dangerous
voltages, dangerous electrical current, or other
risks. Incorrect reassemble can cause electrical
shock when the appliance is subsequently used.
If the product need repair, consult your dealer.
10 Refer servicing to qualified service personnel
under the following conditions:
AQ If liquid has been spilled into the product
BQ If the product has been exposed to rain or
water
CQ If the product does not operate normally when
following the operating instructions in the
manual. Adjust only those controls that are
covered by the operation instructions.
Improper adjustment of other controls may
result in damage and will often require exten-
sive work by qualified service personnel to
restore the product to normal operation.
DQ If the product has been dropped or cabinet has
been damaged
EQ If the product exhibits a distinct change in per-
formance
2Avoid using telephone during an electrical
storm. There may be a risk of electrical shock
from lightning
3Do not use the telephone to report a gas leak in
the vicinity of the leak
4Do not place the unit near microwave ovens,
radio equipment, or non-ground connected tele-
visions. These appliances may cause electrical
interference to the base or handset
5The unit must be installed on a hard, plane sur-
face and connected to a functional 120 volt AC
power netadapter and plug the adapter into the
power outlet
6The system will not operate in the event of a
blackout. Please keep a backup phone for emer-
gencies
Intrinsic safety
Do not install the unit in conditions where there is a
danger of electrically ignited explosions.
Exposure to sunlight, heat and moisture
Do not expose the unit to direct sunlight for long
periods. Keep away from excessive heat and mois-
ture.
Spare parts and accessories
Use only approved spare parts and accessories. The
operation of non-approved parts cannot be guaran-
teed and may even cause damage.
Power failure
In the event of a power failure, you cannot use the
wireless system to make or receive calls
NOTICES
NOTICE: Before installing this equipment, users
should ensure that it is permissible to be connected
to the facilities of the local telecommunications
company. The equipment must also be installed
using an acceptable method of connection. The cus-
tomer should be aware that compliance with the
above conditions may not prevent degradation of
service in some situations.
Repairs to certified equipment should be coordi-
nated by a representative designated by the sup-
plier. Any repairs or alterations made by the user to
this equipment, or equipment malfunctions, may
give the telecommunications company cause to
request the user to disconnect the equipment.
Users should ensure for their own protection that
the electrical ground connections of the power util-
ity, telephone lines and internal metallic water pipe
system, if present, are connected together. This pre-
caution may be particularly important in rural areas.
CAUTION: Users should not attempt to make
such connections themselves, but should contact
the appropriate electric inspection authority, or
electrician, as appropriate.
Note: If your telephone equipment causes harm to
the telephone network, the telephone company may
ask you to disconnect the system from the line until
the prob lem has been corrected or they may dis-
continue your service temporarily. If possible, they
will notify you in advance, But if advance notice is
not practical, you should be notified as soon as pos-
sible. You will be informed of your right to file a
complaint with the FCC.
Your telephone company may make changes in its
facilities, equipment, operations, or procedures that
could affect the proper functioning of your tele-
phone system, If they do and it is possible, you will
be notified in advance to give you an opportunity to
mainta- in uninterrupted telephone service. If you
experience trouble with this telephone system, dis-
connect it from the network until the problem has
been corrected or until you are sure that the equip-
ment is not malfunctioning.
Note: This equipment has been tested and found to
comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential instal-
lation. This equipment generates, uses and can radi-
ate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the seperation between the equipment
and receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
FCC Note: This device complies with Part 15 of
the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including interfer-
ence that may may cause undesired operation.
IC Note: Operation is subject to the following two
conditions: (1) This device may not cause interfer-
ence, and (2) this device must accept any interfer-
ence, including interference that may cause
undesired operation of the device.
The term “IC:” before the certification /registration
number only signifies that the Industry Canada
technical specifications were met.
CAUTION: Privacy of communication may not
be ensured when using this phone.
Power Outage: In the event of a power outage,
your cordless telephone will not operate. The cord-
less telephone requires electricity for operation.
You should have a telephone which does not
require electricity available for use during power
outages.
Information to user: The users manual or instruc-
tion manual for an intentional or unintentional radi-
ator shall caution the user that changes or
modifications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
LIMITED WARRANTY
This limited, non-transferable warranty is provided
to the original purchaser. The product is warranted
to be free from defects in materials and workman-
ship under normal installation, use and service for a
period of one (1) year from the date of purchase as
shown on the purchaser’s receipt.
Our obligation under this warranty is limited to
repair or replacement (at our option) of the product
or any part(s) which are defective provided that the
product is returned to the original place of purchase
or an authorized service location during the war-
ranty period. Products returned must be accompa-
nied by a copy of the purchase receipt. In the
absence of a purchase receipt, the warranty period
shall be one (1) year from the date of manufacture.
Repair or replacement of the product is your sole
and exclusive remedy.
If the product is repaired, reconditioned component
parts or materials may be used. If the product is
replaced, we may replace it with a new or recondi-
tioned product of the same or similar design. The
repaired product will be warranted for either (a) 90
days or (b) the remainder of the original one (1)
year warranty period, whichever is longer.
This warranty does not apply to the defects outside
of our control, including but not limited to acts of
God, fire, flood and damage while in transit to ser-
vice facility. We do not warranty that the product
will be compatible with any telephone equipment,
systems or party lines.
This warranty shall be void of the product is dam-
aged as a result of defacement, misuse, abuse,
neglect, accident, destruction or alteration of the
serial number, improper electrical voltages or cur-
rents, repair, alteration or maintenance by any per-
son or party other than our authorized service
facility, or any violation of instructions furnished
by us.
This warranty is also void if this product is
removeds from the country in which it was pur-
chased by the original purchaser, if it is used in a
country in which it is not registered for use, or if it
is used in a country for which it was not designed.
Due to variations in telephone systems and commu-
nications laws, this product may be illegal for use in
some countries. We assume no responsibilities for
damages or penalties incurred resulting from the
use of this product in a manner or location other
than that for which it was intended.
THIS LIMITED WARRANTY IS IN LIEU OF
ALL OTHER WARRANTIES EXPRESS OR
IMPLIED. ANY IMPLIED WARRANTIES
INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN LIMITED
WARRANTY. WE DISCLAIM ANY LIABILITY
FOR DAMAGES FOR LOSS OF USE OF THE
PRODUCTS, LOSS OF TIME, INCONVE-
NIENCE, INJURY TO ANY PERSON, OR DAM-
AGE TO PROPERTY CAUSED BY THE
PRODUCT, LOSS OF REVENUE OR PROFIT
OR DAMAGES FOR ANY FAILURE TO PER-
FORM. IN NO EVENT SHALL WE BE LIABLE
FOR ANY SPECIAL, INCIDENTAL, PUNITIVE
OR CONSEQUENTIAL DAMAGES EVEN IF
WE ARE ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Some states do not allow limitations on how long
an implied warranty lasts, so the above limitations
may not apply to you. This warranty is the sole and
exclusive warranty provided for the product. There
are no other express warranties. This warranty
gives you specific legal rights, and you may also
have other rights, which vary from state to state.
Appropriate RF
safety/installation information
The base station is intended to be installed by
authorized personal. The base station shall be
installed in accordance with FCC rules.
The base station shall be placed at a location in
such way, that there is at least 20 centimeters/8
inches between the base transmitter and the users
body or any other nearby persons.
International Regulatory Information
The WEEE Marking on this
equipment indicates that the
product must not be disposed of
with unsorted waste, but must be
collected separately.
Warranty and Repair Service Center
SpectraLink Corporation
5755 Central Avenue
Boulder, CO 80301
303 440 5330
800 775 5330
support@spectralink.com
1414 8301-HD, ed.1.
