Spectralink RFP4-1G9 Kirk Base Station 1.9 GHz User Manual KIRK BS 1G9 141432 qxp
Spectralink Corporation Kirk Base Station 1.9 GHz KIRK BS 1G9 141432 qxp
Manual
KIRK Base Station 1.9 GHz
User s Guide
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 1

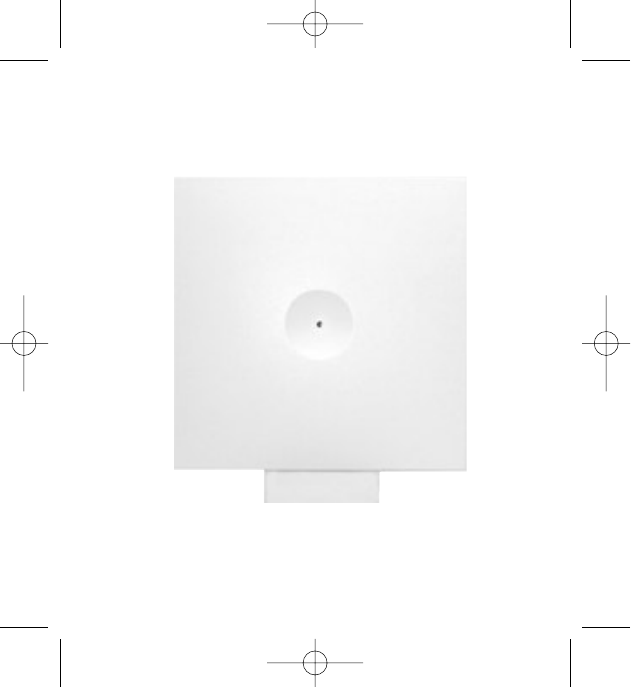

1Introduction
The base st ation is only intended for use with a wire -
less server . The base st ation is not intended to be
connected directly to the PSTN network. The base
st ation is designed with two internal antennas and
support s antenna diversity. The base station is also
able to carry out handover between the RF channels
under the same base st ation, and handles four wire -
less speech channels simult aneously. The base st ati -
on is able to frame synchronise with other base st ati -
ons under the same Wireless Server.
T ransmission lenght is up to 1.2 miles on a twisted
p air (in one building), e.g. cat.4, between the base
st ation and wireless server . The base st ation is also
power supplied from this connection (maximum sup -
ply 1.5 W). The radius of coverage is up to 1960 feet
with a handset in free sight. It is possible to connect
a maximum of 8 base st ations to a wireless server
without an exp ansion board, 16 base st ations with an
expansion board and 32 with a linked solution.
2 Inst allation
First you have to determine where to inst all the base
st ation to have the right coverage. The average
coverage within buildings is 246 feet. The coverage
depends on the construction of the building, archite -
cture and choice of building material. Y ou may have
to use the base st ation coverage determination kit
(Diagnostic Tooll) to optimize your inst allation. This
Diagnostic Tool, consist s of a base st ation which has
no need for a wireless server . It can easily be
moved around in the building and 1 to 8 handset s
can be connected.
Pull the a/b wire from your inst allation through the
wall suspension and then mount the wall suspension
on the wall.
Connect the a/b wire to the plug at the rear of the
base st ation, using the 2 inner connectors of the
plug.
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 2

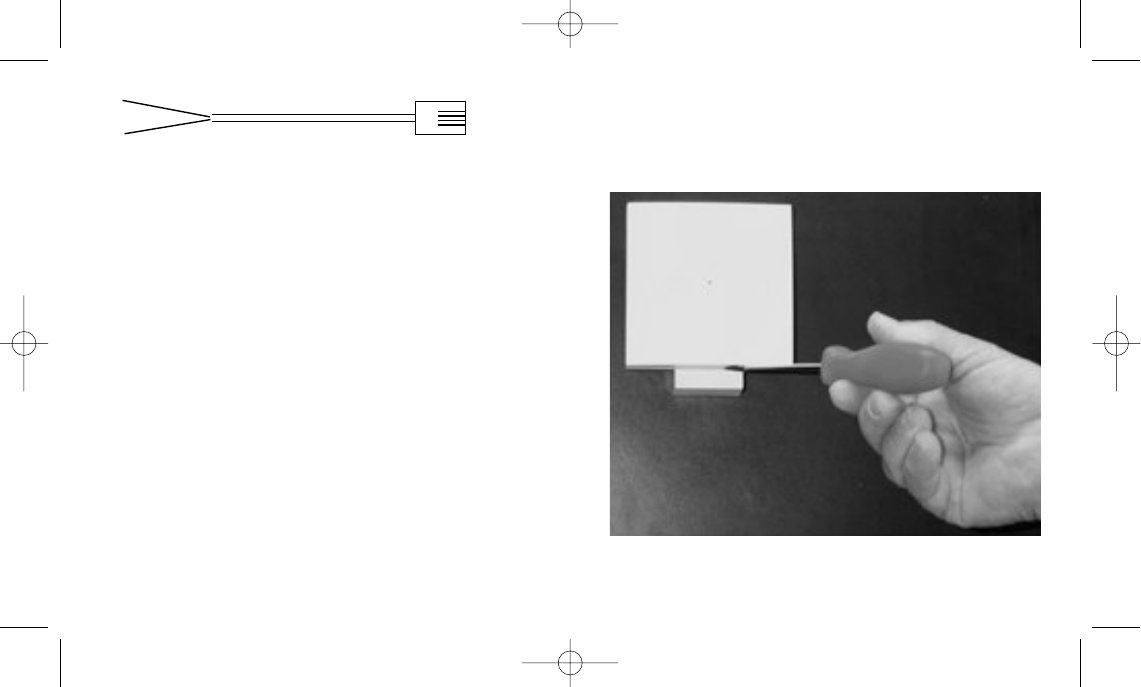

If you need to remove the base st ation please sep a-
rate it from the wall suspension with a gentle push of
a screwdriver.
Click the base st ation on to the wall suspension.
Af ter the wireless server is powered up again a cable
lenght measurement is needed in order to find the
correct Cable Delay Value (CDV).
NOTE!
Cable dimensions min. as A WG 26.
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 4
Important Safety Instructions and Product Infor -
mation
Before using your telephone equipment, you should
always follow basic safety instruction to reduce the
risk of fire, electrical shock and injury to persons,
and damage to property.
1Read and understand all instructions
2Follow all warnings and instructions including
those marked on the product
3Unplug this product before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use damp
cloth for cleaning
4Do not inst all the telephone equipment in the
bathroom or near a wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swim -
ming pool
5Slot s or openings in the cabinet back and bot-
tom of the equipment are provided for ventilation
to protect it from over-heating. These openings
must not be blocked or covered.
6The product should be operated only from the
type of power source indicated on the instruc-
tions. If you are not sure of the type of power
supply, consult your dealer or local power com -
pany.
7Do not overload wall outlet s and extension cords
as this can result in fire or electrical shock.
8Never push object s of any kind into this product
through cabinet slot s as they may touch danger -
ous volt age point s or short out p art s that could
result in fire, electrical shock, or injury . Never
spill liquid of any kind into this product.
9 T o reduce the risk of electrical shock or burns,
do not disassemble this product. Opening or
removing covers may expose you to dangerous
volt ages, dangerous electrical current, or other
risks. Incorrect reassemble can cause electrical
shock when the appliance is subsequently used.
If the product need rep air , consult your dealer .
10 Refer servicing to qualified service personnel
under the following conditions:
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 6
AQ If liquid has been spilled into the product
BQ If the product has been exposed to rain or water
CQ If the product does not operate normally when
following the operating instructions in the manu -
al. Adjust only those controls that are covered
by the operation instructions. Improper adjust -
ment of other controls may result in damage and
will of ten require extensive work by qualified ser -
vice personnel to restore the product to normal
operation.
DQ If the product has been dropped or cabinet has
been damaged
EQ If the product exhibit s a distinct change in per -
formance
11 A void using telephone during an electrical
storm. There may be a risk of electrical shock
from lightning
12 Do not use the telephone to report a gas leak in
the vicinity of the leak
13 Do not place the unit near microwave ovens,
radio equipment, or non-ground connected tele -
visions. These appliances may cause electrical
interference to the base or handset
14 The unit must be inst alled on a hard, plane sur -
face and connected to a functional 120 volt AC
power net adapter and plug the adapter into the
power outlet
15 The system will not operate in the event of a
blackout. Please keep a backup phone for emer -
gencies
Intrinsic safety
Do not inst all the unit in conditions where there is a
danger of electrically ignited explosions.
Exposure to sunlight, heat and moisture
Do not expose the unit to direct sunlight for long
periods. Keep away from excessive heat and
moisture.
S p are p art s and accessories
Use only approved sp are p art s and accessories. The
operation of non-approved p art s cannot be guarante -
ed and may even cause damage.
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 8
Power failure
In the event of a power failure, you cannot use the
wireless solution to make or receive calls
NOTICES
NOTICE: Before inst alling this equipment, users sho -
uld ensure that it is permissible to be connected to
the facilities of the local telecommunications comp a -
ny. The equipment must also be inst alled using an
accept able method of connection. The customer sho -
uld be aware that compliance with the above conditi -
ons may not prevent degradation of service in some
situations.
Repairs to certified equipment should be coordinated
by a represent ative designated by the supplier . Any
rep airs or alterations made by the user to this equi -
pment, or equipment malfunctions, may give the tele -
communications company cause to request the user
to disconnect the equipment.
Users should ensure for their own protection that the
electrical ground connections of the power utility,
telephone lines and internal met allic water pipe
system, if present, are connected together. This pre -
caution may be p articularly import ant in rural areas.
CAUTIONS: Users should not attempt to make such
connections themselves, but should cont act the
appropriate electric inspection authority, or electrici -
an, as appropriate.
If your telephone equipment causes harm to the tele -
phone network, the telephone operator may ask you
to disconnect the system from the line until the pro -
blem has been corrected or they may discontinue
your service temporarily. If possible, they will notify
you in advance, But if advance notice is not practi -
cal, you should be notified as soon as possible. Y ou
will be informed of your right to file a complaint with
the FCC.
Your telephone operator may make changes in it s
facilities, equipment, operations, or procedures that
could af fect the proper functioning of your telephone
system, If they do and it is possible, you will be noti -
fied in advance to give you an opportunity to maint a -
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 10
in uninterrupted telephone service. If you experience
trouble with this telephone system, disconnect it from
the network until the problem has been corrected or
until you are sure that the equipment is not malfu -
nctioning.
Note: This equipment has been tested and found to
comply with the limit s for a class B digit al device,
pursuant to Part 15 of the FCC Rules. These limit s
are designed to provide reasonable protection aga -
inst harmful interference in a residential inst allation.
This equipment generates, uses and can radiate
radio frequency energy and, if not inst alled and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a p articular inst allation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment of f and on, the user is encouraged to try
to correct the interference by one or more of the fol -
lowing measures:
- Reorient or relocate the receiving antenna.
- Increase the seperation between the equioment
and receiver.
- Connect the equipment into an outlet on a circuit
dif ferent from that to which the receiver is connec-
ted.
- Consult the dealer or an experienced radio/TV
technician for help.
Power Outage: In the event of a power out age, your
cordless telephone will not operate. The cordless
telephone requires electricity for operation. Y ou sho -
uld have a telephone which does not require electri -
city available for use during power out ages.
Information to user: The users manual or instructi -
on manual for an intentional or unintentional radiator
shall caution the user that changes or modifications
not expressly approved by the p arty responsible for
compliance could void the user s authority to operate
the equipment.
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 12
LIMITED WARRANTY
This limited, non-transferable warranty is provided to
the original purchaser . The product is warranted to
be free from defect s in materials and workmanship
under normal inst allation, use and service for a peri -
od of one (1) year from the date of purchase as
shown on the purchaser s receipt.
Our obligation under this warranty is limited to rep air
or replacement (at our option) of the product or any
p art(s) which are defective provided that the product
is returned to the original place of purchase or an
authorized service location during the warranty peri -
od. Product s returned must be accomp anied by a
copy of the purchase receipt. In the absence of a
purchase receipt, the warranty period shall be one
(1) year from the date of manufacture. Rep air or
replacement of the product is your sole and exclusi -
ve remedy.
If the product is rep aired, reconditioned component
part s or materials may be used. If the product is
replaced, we may replace it with a new or reconditio -
ned product of the same or similar design. The rep ai -
red product will be warranted for either (a) 90 days or
(b) the remainder of the original one (1) year warranty
period, whichever is longer .
This warranty does not apply to the defect s out side of
our control, including but not limited to act s of God,
fire, flood and damage while in transit to service facili -
ty . W e do not warranty that the product will be comp a -
tible with any telephone equipment, systems or p arty
lines.
This warranty shall be void of the product is damaged
as a result of defacement, misuse, abuse, neglect,
accident, destruction or alteration of the serial num -
ber , improper electrical volt ages or current s, rep air ,
alteration or maintenance by any person or p arty
other than our authorized service facility , or any viola -
tion of instructions furnished by us.
This warranty is also void if this product is removed
from the country in which it was purchased by the ori -
ginal purchaser, if it is used in a country in which it is
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 14
not registered for use, or if it is used in a country for
which it was not designed. Due to variations in tele -
phone systems and communications laws, this pro -
duct may be illegal for use in some countries. W e
assume no responsibilities for damages or penalties
incurred resulting from the use of this product in a
manner or location other than that for which it was
intended.
THIS LIMITED WARRANTY IS IN LIEU OF ALL
OTHER WARRANTIES EXPRESS OR IMPLIED.
ANY IMPLIED WARRANTIES INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTI -
CULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN LIMITED WARRAN-
TY. WE DISCLAIM ANY LIABILITY FOR DAMAGES
FOR LOSS OF USE OF THE PRODUCTS, LOSS
OF TIME, INCONVENIENCE, INJURY TO ANY
PERSON, OR DAMAGE TO PROPERTY CAUSED
BY THE PRODUCT, LOSS OF REVENUE OR PRO-
FIT OR DAMAGES FOR ANY FAILURE TO PER-
FORM. IN NO EVENT SHALL WE BE LIABLE FOR
ANY SPECIAL, INCIDENTAL, PUNITIVE OR CON-
SEQUENTIAL DAMAGES EVEN IF WE ARE ADVI-
SED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limit ations on how long an
implied warranty last s, so the above limit ations may
not apply to you.
This warranty is the sole and exclusive warranty pro -
vided for the product. There are no other express
warranties. This warranty gives you specific legal rig -
ht s, and you may also have other right s, which vary
from st ate to st ate
The product must not be disposed of with unsorted
waste, but must be collected sp aretely
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 16
Appropriate RF safty/inst allation
information
The Base Station is intended to be inst alled by
authorized personal. The Base Station shall be
inst alled in accordance with FCC rules.
The Base Station shall be placed at a location in
such way, that there is at least 20 centimetres
between the base transmitter and the users body
or any other nearby persons.
The product must not be disposed of with uns -
orted waste, but must be collected sep arately .
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 18
141432-HD, ed.1 . Reklame & Tryk A/S . 75 50 26 66
KIRK telecom A/S
Langmarksvej 34 • DK-8700 Horsens • Denmark
Tlf. +45 7560 2850 • Fax +45 7560 2851
kirk@kirktelecom.com
www.kirktelecom.com
KIRK_BS_1G9_141432.qxp 03-08-2005 12:35 Side 20
