Spectrum 450202ZIG OHM Zigbee V.2 User Manual 910

Spectrum Brands, Inc. OHM Zigbee V.2 910

User Manual - 910

ENGLISH
A B C
12"
305 mm
LL
Hold the interior assembly a maximum of 12" (305 mm) from your Z-Wave
controller, and initiate the Inclusion process at the controller. Refer to your
Z-Wave control system instructions for more information.
Press button “A” on the lock one time to include it in your system. The
controller and lock must remain stationary for a total of 60 seconds during
the Inclusion process.
If Inclusion is unsuccessful, initiate the Exclusion process at the controller,
then press button “A” on the lock one time. Once the lock is fully excluded
from the system, repeat the Inclusion process.
“Inclusion” refers to the process in which the lock is added to a Z-Wave or ZigBee controller.
ZigBee locks: Perform the Inclusion process after installation is complete.
See “Z-Wave and ZigBee Systems” on the reverse side of this document.
Button
“A” Z-Wave
Controller
Z-Wave locks only: Perform the Inclusion process
A
C D
B
N
P (2x)
KEnsure tight cable connection.
Lay cable
at against
the interior
housing.
Install interior assembly
A B C
MS
J
R (3x)
If needed, re-key the lock to
work with your existing key.
See the supplied SmartKey
Re-key instructions for more
information.
ball
tip
Keep “S” in a safe place, as you will
need it to access the back panel for
additional programming.
Select models only:
Install the battery cover and re-key the lockProgram the lock
Programming
instructions are
located on the
reverse side of
this document.
B
D (2x)
Install strike
A / A2
Extend latch bolt
A
A2
B
C
DE
F
G
H
K
L
M
N
PQ
S
R
J
Kwikset
1-866-863-6584
www.kwikset.com
If needed, please contact
Kwikset to order a drive-in
latch for your lock.
Parts in the Box
Latch and Strike Exterior Assembly Interior Assembly
Select models only:
9
1"
25 mm
2-1/8"
54 mm
1-1/2"
38 mm
1-3/8" — 1-3/4"*
35 mm — 44 mm*
Check dimensions
Additional door preparation may be
required for doors with 1-1/2" (38 mm)
holes. Consult the drilling instructions at
www.kwikset.com/doorprep.
*Service kits for 2-1/4"
(57 mm) thick doors are
available through Kwikset.
2-3/8" (60 mm)
or
2-3/4" (70 mm)
or
E
F
G
G
2-1/8"
54 mm
1-1/2"
38 mm
Prepare exterior keypad
For doors with 2-1/8" (54 mm) holes
For doors with 1-1/2" (38 mm) holes
A B
C D
K
Q (2x)
Q
H
Cable goes
underneath latch
Route cable
through center hole,
then push cable
into side hole.
center hole
side hole
Keep parallel to
edge of door
Tighten
screws
evenly
Insert key and test latch.
If latch does not extend or
retract smoothly, adjust
screws (Q).
Remove key when nished
and make sure the latch
bolt is fully extended.
Install keypad and mounting plate
A
D
B C
N
M
L
x4
AA
L
Make sure
turnpiece is
in the vertical
position.
Disassemble interior assembly and load battery pack
Ensure correct polarity. For best results,
use new non-rechargeable Alkaline
batteries only.
Do not install
battery pack yet!
Use and programming
instructions are located on the
reverse side of this document.
Required Tools
Additional Tools (depending on application)
Installation Guide
180°
A B
A / A2
Hold the latch in front of the
door hole, with the latch face
ush against the door edge.
If the latch holes are
centered in the door hole, no
adjustment is required.
Proceed to step 4.
If the latch holes are NOT
centered, adjust latch. See
“Latch Adjustment.
Latch Adjustment (only if needed)
Adjust the backset of latch (if needed)
A
A2
C (2x)
A
B
C D
Install latch
For doors with chiseled edge For doors without chiseled edge
wood
block
1-3/4" (44 mm)
1-3/8" (35 mm)
2-1/4" (57 mm)
2-3/8" (60 mm)
2-3/4" (70 mm)
Fold
If your door requires drilling, cut out the template and place it on the exterior side of the door.
Complete door drilling instructions are available on the SmartCode deadbolt page of www.kwikset.com.
Template
Edge
Backset
Face
Centerline
A B
L
Press and hold the
Lock button while
installing battery
pack (L).
Hold button until the
latch bolt starts
moving on its own.
This step will teach your lock the orientation of your door
and is crucial to lock operation.
HOLD
latch bolt
Did the latch bolt retract
and extend on its own
when the battery pack
was installed?
Door handing process
was successful!
Proceed to Step 11
after latch bolt stops
moving.
Remove battery pack,
wait 15 seconds, then
attempt the process
again.
YES NO
Perform door handing process
10
11 12 13
3 4 5 6
7 8
1 2
61019 / 02
ENGLISH
2 3 41
Status LED
Switches
Keypad
ON OFF
Normal Operation
Switch Function
1Door lock status LED blinks every
6 seconds
2
Lock automatically re-locks door 30
seconds after unlocking. Disabled if
no codes are programmed.
3Audio
4Not used
B

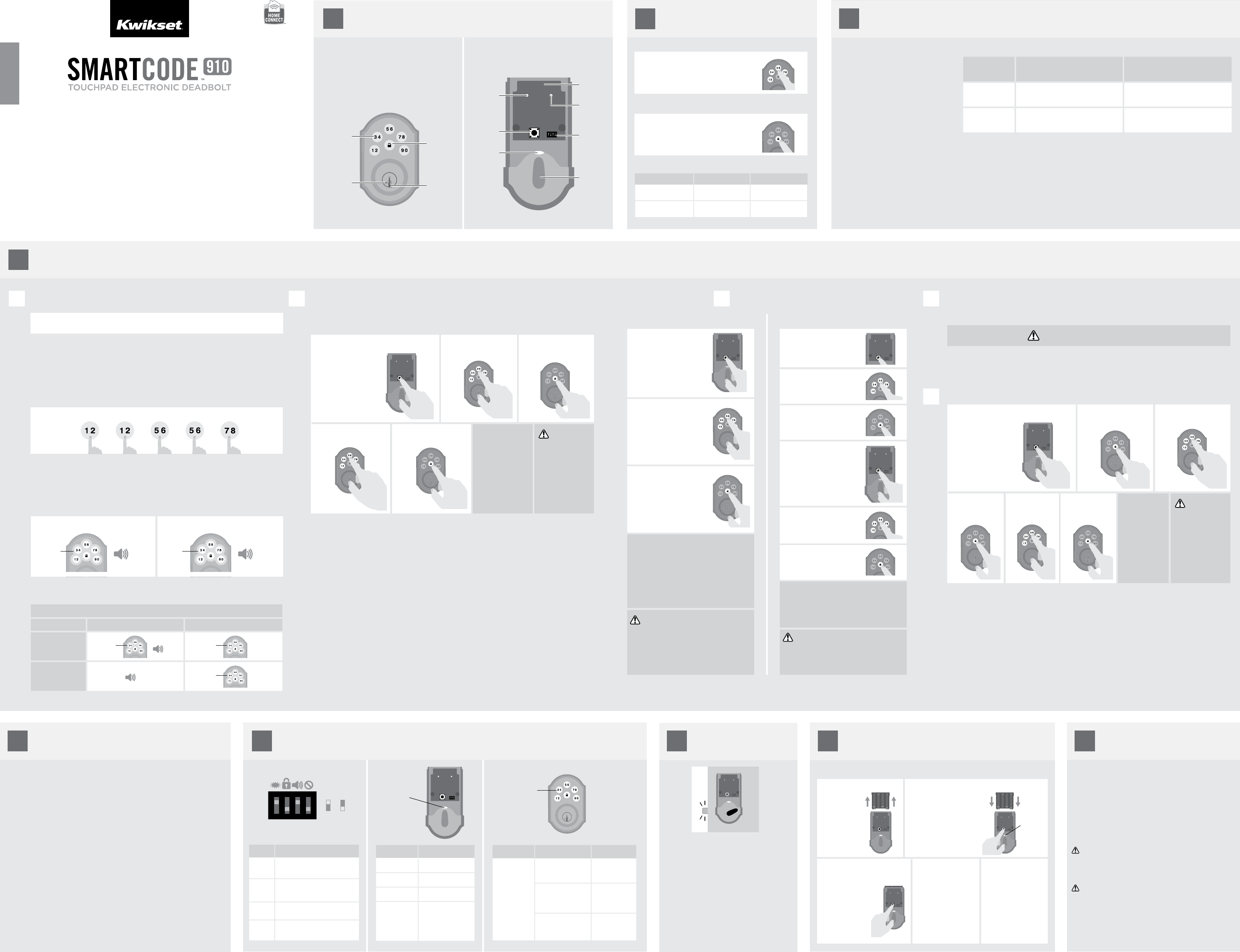

User Guide
Installation instructions are
located on the reverse side
of this document.
Troubleshooting and FAQs
are available online at
www.kwikset.com.
Kwikset
1-866-863-6584
www.kwikset.com
SmartCode at a Glance
Color Lock Status
Blinking green Unlocked
Blinking amber Locked
Blinking Red Low battery
Solid Red
Door Handing
Process did not work
properly. See online
Troubleshooting guide.
Switches, Status LED Colors and Keypad WarningsZ-Wave & ZigBee Systems
Lock Inclusion
“Inclusion” refers to the process in which the lock
is added to a Z-Wave or ZigBee controller.
Z-Wave: Perform the Inclusion process during lock
installation. See step 8 in the Installation Guide.
ZigBee: Initiate the Inclusion process at your
ZigBee controller. Refer to your control system
instructions for more information.
Unsuccessful ZigBee Inclusion: Press button “B”
nine times. Repeat the inclusion process.
Lock Exclusion
“Exclusion” refers to the process in which the lock
is removed from a Z-Wave or ZigBee controller.
Initiate the Exclusion process at your Z-Wave or
ZigBee controller. Refer to your control system
instructions for more information.
Z-Wave
In order to fully utilize this product, you must have a Z-Wave
controller compatible with door locks. Z-Wave is a “Wireless mesh
network, and results may vary based on building construction
and communication path, with 35 feet+ being typical installed
distance from network controller. It may be necessary to install
additional Z-Wave beaming capable devices that can serve as
repeaters to enhance the communication path between the lock
and controller for a more robust Z-Wave network.
ZigBee
ZigBee is a “Wireless mesh network, and results may vary based
on building construction and communication path, with 35+ feet
being typical installed distance in a standard home environment
and 250 feet+ when the lock has a clear line of sight with the
network controller. It may be necessary to install additional ZigBee
devices to enhance the communication path between the lock and
controller for a more robust ZigBee network.
System Notes
Use the chart to determine which button to press during Inclusion and Exclusion.
System Inclusion Exclusion
Z-Wave Press button “A” once. Press button “A” once.
ZigBee Press button “A” four times. Press button “B” nine times.
C
Regulatory Compliance Switches, Status LED Colors and Keypad Warnings Troubleshooting Factory Reset
A factory reset will delete all codes associated with the lock.
Important Safeguards
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Restrict access to your lock’s back panel and routinely check
your settings to ensure they have not been altered without your
knowledge.
5. Protect your user codes and mastercode.
6. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the
back panel can change the user codes, you must restrict access to the
back panel and routinely check the user codes to ensure they have not
been altered without your knowledge. The use of a mastercode can help
protect your system’s settings.
WARNING: This Manufacturer advises that no lock can provide complete
security by itself. This lock may be defeated by forcible or technical
means, or evaded by entry elsewhere on the property. No lock can
substitute for caution, awareness of your environment, and common
sense. Builder’s hardware is available in multiple performance grades
to suit the application. In order to enhance security and reduce risk, you
should consult a qualied locksmith or other security professional.
For more troubleshooting, download the
online Troubleshooting Guide, available at
www.kwikset.com.
This product complies with standards established
by the following regulatory bodies:
• Federal Communications Commission (FCC)
• Industry Canada
FCC
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
( 1 ) this device may not cause harmful
interference, and
( 2 ) this device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
IMPORTANT! Changes or modications not
expressly approved by the manufacturer
could void the user’s authority to operate the
equipment.
Industry Canada
This device complies with Industry Canada licence-
exempt RSS standard(s). Operation is subject to the
following two conditions: ( 1 ) this device may not
cause interference, and ( 2 ) this device must accept
any interference, including interference that may
cause undesired operation of the device.
E F G H I
12
3
Press and HOLD the Program
button while reinserting the
battery pack.
Keep holding the button for
30 seconds until the lock
beeps and the status LED
ashes red.
Remove
battery pack.
status LED
Press the Program
button once more.
When the LED
ashes green and
you hear one beep,
the lock has been
reset.
Perform the door
handing process
again. See step 10 in
the Installation Guide,
on the reverse side of
this document.
Perform the inclusion
process again to add
the lock back into
your network and
controller.
4 5
Problem: The latch bolt is not moving in the
correct direction and the turnpiece will not rotate.
Reason: The door handing process was not
executed during installation, and the lock does
not know the orientation of the door.
Solution: Perform the door handing process, step 10
in the installation guide.
©2014 Kwikset Corporation
It is recommended that you add and delete all user codes through your Z-Wave or ZigBee control system. If your system
does not allow this, the sections below will provide instructions for how to add and delete codes at the lock.
Programming Codes
Programming Information
User Codes Requirements
Each user code must be a unique code between 4 and 8 digits, depending on your control system.
A total of 30 user codes may be programmed.
How the Keypad Works
Each button represents two numbers (i.e. 1 and 2 for the rst button). You only need to push the button
once to get either 1 or 2. For example: If your code is 1-2-5-6-8,
1 2 5 6 8
abEnabling and Adding a Mastercode (Optional for Enhanced Security)
User codes can be programmed with or without a mastercode. Using a mastercode is an optional, added-security measure.
It is not enabled by default. A mastercode is used to add and delete user codes, but it cannot unlock the door (unless the
same code is programmed as a user code, though this is not recommended). The mastercode must be 4-8 digits.
1 2 3
4 5
Press and HOLD
Program button until
keypad ashes green
(about 5 seconds).
Enter new mastercode. Press Lock button once.
Re-enter mastercode. Press Lock button once.
Make sure the mastercode
has not been programmed
already. Attempt this
procedure again, making
sure to enter the same new
mastercode in steps 2 and 4.
IF UNSUCCESSFUL
Make sure switch #3 is on,
and then press the Program
button once. If you hear three
beeps and see the keypad
ash green three times, the
mastercode is enabled.
Note: The lock will time out
after ve seconds.
TEST
cAdding User Codes Deleting User Codes
In order to delete a user code, you must override the code by adding a different user code in the same position. For
example, if you want to delete the third code, add a different user code in position three.
If you cannot remember the user code position, you may wish to perform a factory reset to delete all codes associated
with the lock. See section “H.”
Test the old user code to make sure it is inactive.
d
eDisabling and Deleting the Mastercode
1 2 3
4 65
Enter mastercode.Press Lock button once.
Re-enter
mastercode.
Press Lock
button once.
Press Lock
button once.
Make sure the
mastercode has been
enabled before trying to
disable it. Attempt this
procedure again, making
sure to enter the same
mastercode in steps 3
and 5.
Press and HOLD
Program button until
keypad ashes green
(about 5 seconds).
Make sure switch #3 is on,
and then press the Program
button once. If you don’t
immediately hear three
beeps or see the keypad
ash green three times, the
mastercode is disabled.
Note: The lock will time out
after ve seconds
IF UNSUCCESSFUL TEST
4
5
3
6
1
2
Press Lock button once.
Press Lock button once.
While the door is open, test the user
code to make sure it unlocks the door.
Press the Program button
the number of times that
corresponds to the user
code position being
programmed.
Example: If programming the
third code, press the button
three times.
Enter new USER code.
Make sure the user code is not a duplicate and that it is
between 4 and 8 digits during your next attempt.
Make sure to enter a valid mastercode in step 2.
Press Program button once.
The keypad will ash green
and you will hear three beeps.
Enter MASTERCODE
(the code that was
enabled in section b)
IF UNSUCCESSFUL
TEST CODE
Mastercode enabled:
1
2
3Press Lock button once.
Press the Program button
the number of times that
corresponds to the user
code position being
programmed.
Example: If programming
the third code, press the
button three times.
Enter new USER code.
Make sure the user code is not a duplicate and that it
is between 4 and 8 digits during your next attempt.
IF UNSUCCESSFUL
While the door is open, test the user
code to make sure it unlocks the door.
TEST CODE
Mastercode NOT enabled:
If no button is pressed for ve seconds, the system will time out, and you will need to restart the procedure.
If no button is pressed for ve seconds, the system will time out, and you will need to restart the procedure.
If no button is pressed for ve seconds, the system will time out, and you will need to restart the procedure.
D
Unlocking the Door
Locking the Door
Incorrect Codes
Codes Entered Lock Behavior Next Step
One incorrect code entered. Keypad ashes red three
times with three beeps* Re-enter code.
Three incorrect codes
entered within one minute.
Keypad ashes red 15
times with 15 beeps*
Re-enter code after 60
second keypad lockout.
Tip: You can press the Lock button before entering
your user code to light up the keypad at night.
Enter user code.
Press Lock button once.
If no user codes are programmed, the
Lock button will be disabled.
*If switch #3 is ON
Warning Reason Solution
Keypad ashes
red with fast
beeping sound*
for 3 – 4
seconds.
Low battery Replace batteries
Door jammed while
attempting to lock
Relock door. If
needed, reposition
strike.
No user code
programmed
Program at least
one user code
*If switch #3 is ON
Programming Behavior
Successful Programming
The keypad will ash green once, and you will hear one beep*.
Unsuccessful Programming
The keypad will ash red three times, and you will hear three beeps*.
(x1)
(x1)
(x3)
(x3)
Successful Programming Unsuccessful Programming
redgreen
Timeout
If no button is pressed for ve seconds, the system will time out and you will need to restart the procedure.
(x6)
(x2)
(x6) (x6)
(x3)
red red
red
Timeout Behavior
Switch #3 ON Switch #3 OFF
Mastercode
enabled
Mastercode
NOT enabled
*If switch #3 is ON
A
61019 / 02
Program
button
Status LED
Switches
Back panel
Turnpiece
SmartKey
tool hole
Keypad
Keyway
Lock
button
Button “B”
Button “A”
Interior (cover removed)Exterior Note: Although the arched 910
model is illustrated, instructions
are the same for all 910 models.

Navigation menu
