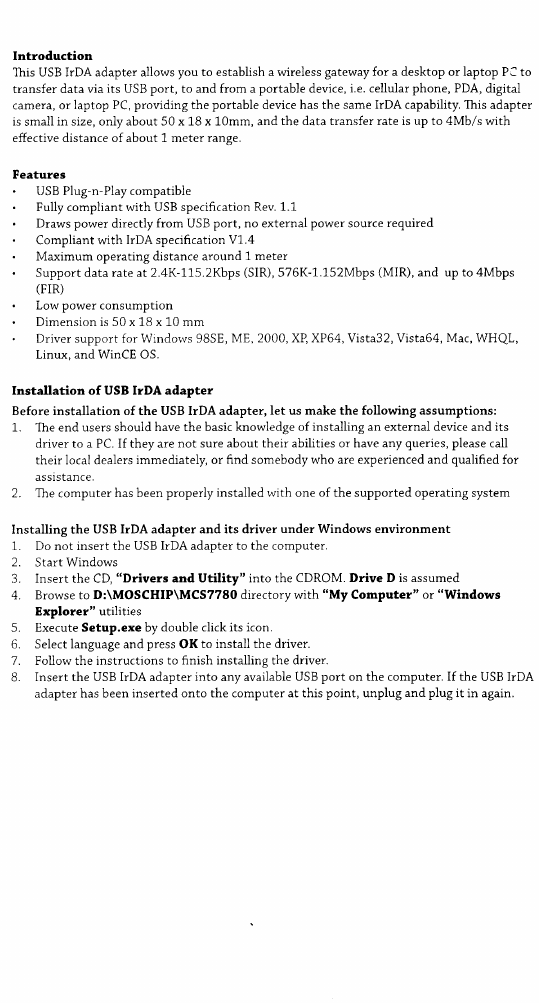

lhis USB irDA adapter aiiows you to establish a wireless gateway for a desktop or laptop PC to
transfer data via its USB port, to and frorn a portable device, i.e. cellular phone, PDA, digital
camera, or laptop PC, providing the portable device has the same IrDA capability. This adapter
is small in size, only about 50 x 18 x 10mm, and the data transfer rate is up to 4Mbls with
effective distance of about 1 meter ranqe.
Features
USB Plug-n-Play compatibie
Fully compliant with USB specification
Rev. 1.1
Draws
power
directiy
from USB
port, no external
power
source
required
Compliant with IrDA specification V1.4
Maximum operating distance around
1 meter
Support data
rate
at2.4K-1.75.2Kbps
(SIR),
576K-1.152Mbps
(MIR),
and up to 4Mbps
(FIR)
Low power consumption
Dimension is 50 x 18 x 10 mm
Driver support for Windorvs 98SE,
ME, 2000, XP, XP64, Vista32, Vista64, Mac, WHQL
Linux, and WinCE OS.
Installation of USB IrDA adapter
Before installation of the USB IrDA adapter, Iet us make the following assumptions:
1. The end users should have the basic knowledge ofinstalling an external device and its
driver to a PC. If they are not sure about their abilities or have any queries, please
call
their local dealers immediately, or frnd somebody who are experienced and qualified for
assistance.
2. The computer has been properly installed with one of the supported operating system
Installing the USB IrDA adapter and its driver under Windows environment
1. Do not insert the USB IrDA adapter to the comDuter.
2. Start Windows
3. Insert the CD, "Drivers and Utility" into the CDROM. Drive D is assumed
4. Browse to D:\MOSCHIP\MCS7780 directory with "My Computer" or "Windows
Explorer" utiiities
5. Execute Setup.exe by double click its icon,
6. Select language and press OK to install the driver.
7. Foilow the instructions to finish installing the drtver.

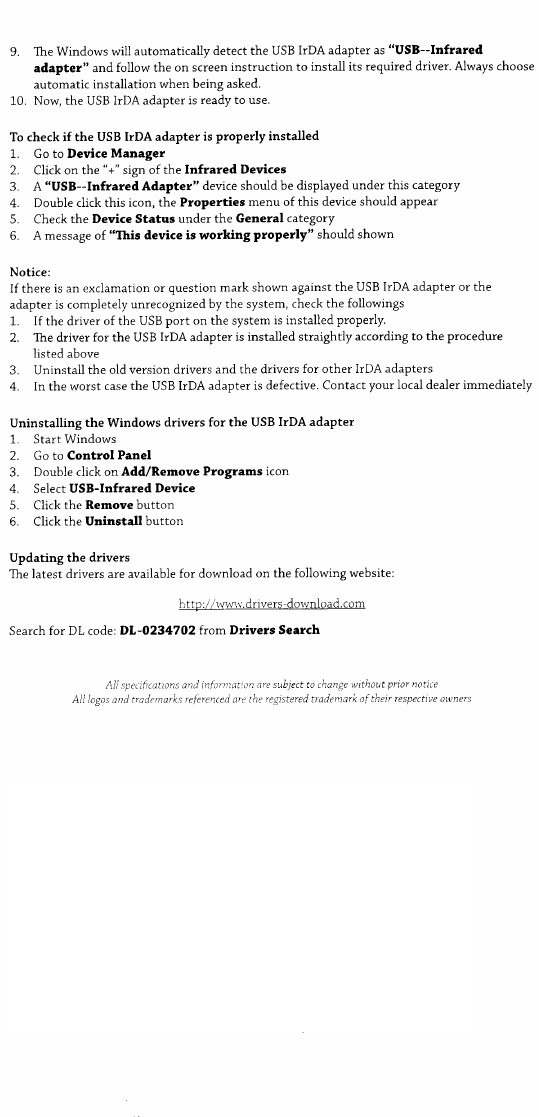

B. Insert the USB IrDA adapter into any available USB port on the computer. If the USB IrDA
adapter has been inserted onto the computer at this point, unplug and plug it in again.
9. The Windows will automatically detect the USB IrDA adapter as "USB--Infrared
adapter" and follow the on screen instruction to install its required driver. Always choose
automatic installation when being asked.
10. Now, the USB IrDA adapter is ready to use.
To check if the USB IrDA adapter is properly installed
1. Go to Device Manager
2. Click on the "+" sign of the Infrared Devices
3. A "USB--Infrared Adapter" device should be displayed under this category
4. Double click this icon, the Properties menu of this device should appear
5. Check the Device Status under the General category
6. A message of "This device is working ProPerly" should shown
Notice:
If there is an exclamation or question mark shown against the USB IIDA adapter or the
adapter is compietely unrecognized by the system, check the followings
1. If the driver of the USB port on the system is installed properly.
2. The driver for the USB IrDA adapter is instalied straightly according to the procedure
listed above
3. Uninstall the old version drivers and the drivers for other IrDA adapters
4. In the worst case the USB IIDA adapter is defective. Contact your local dealer immediately
Uninstalling the Windows drivers for the USB IrDA adapter
1. Start Windows
2. Go to Control Panel
3. Double click on Add/Remove Programs icon
4. Select USB-Infrared Device
5. Click the Remove button
6. Click the Uninstall button
Updating the drivers
The latest drivers are available for download on the following website:
http ://lvwrv. dnvers-download. com
Search for DL code: DL-O2347O2 from Drivers Search
