Cisco USC 8718/8818 Installation GuideCisco USC 8718/8818 Dual-Mode Small Cell Module Installation 2Before You Begin 2Install Your Small Cell Module 5Antenna Patterns 13Safety Instructions 19

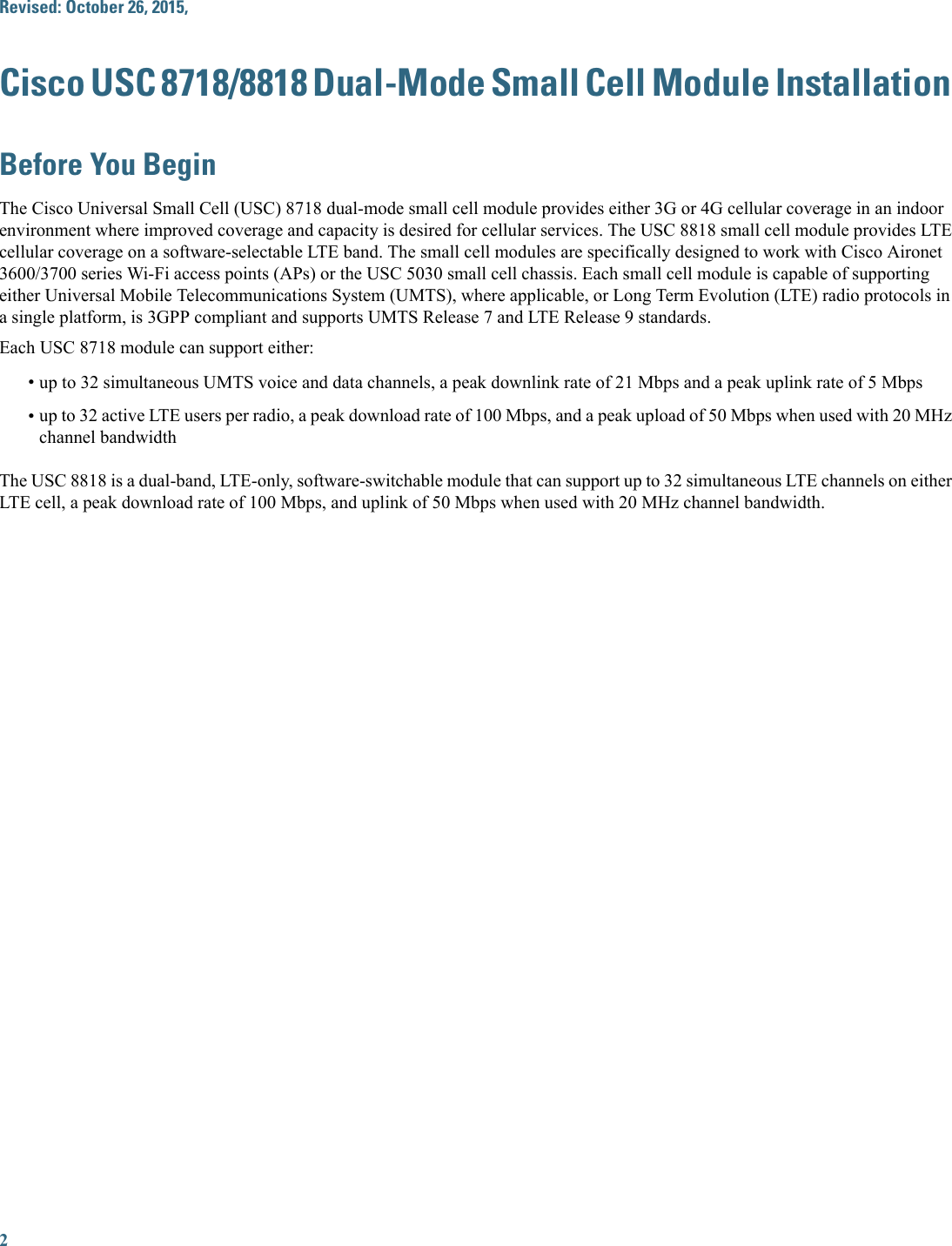

Revised: October 26, 2015,Cisco USC 8718/8818 Dual-Mode Small Cell Module InstallationBefore You BeginThe Cisco Universal Small Cell (USC) 8718 dual-mode small cell module provides either 3G or 4G cellular coverage in an indoorenvironment where improved coverage and capacity is desired for cellular services. The USC 8818 small cell module provides LTEcellular coverage on a software-selectable LTE band. The small cell modules are specifically designed to work with Cisco Aironet3600/3700 series Wi-Fi access points (APs) or the USC 5030 small cell chassis. Each small cell module is capable of supportingeither Universal Mobile Telecommunications System (UMTS), where applicable, or Long Term Evolution (LTE) radio protocols ina single platform, is 3GPP compliant and supports UMTS Release 7 and LTE Release 9 standards.Each USC 8718 module can support either:•up to 32 simultaneous UMTS voice and data channels, a peak downlink rate of 21 Mbps and a peak uplink rate of 5 Mbps•up to 32 active LTE users per radio, a peak download rate of 100 Mbps, and a peak upload of 50 Mbps when used with 20 MHzchannel bandwidthThe USC 8818 is a dual-band, LTE-only, software-switchable module that can support up to 32 simultaneous LTE channels on eitherLTE cell, a peak download rate of 100 Mbps, and uplink of 50 Mbps when used with 20 MHz channel bandwidth.2

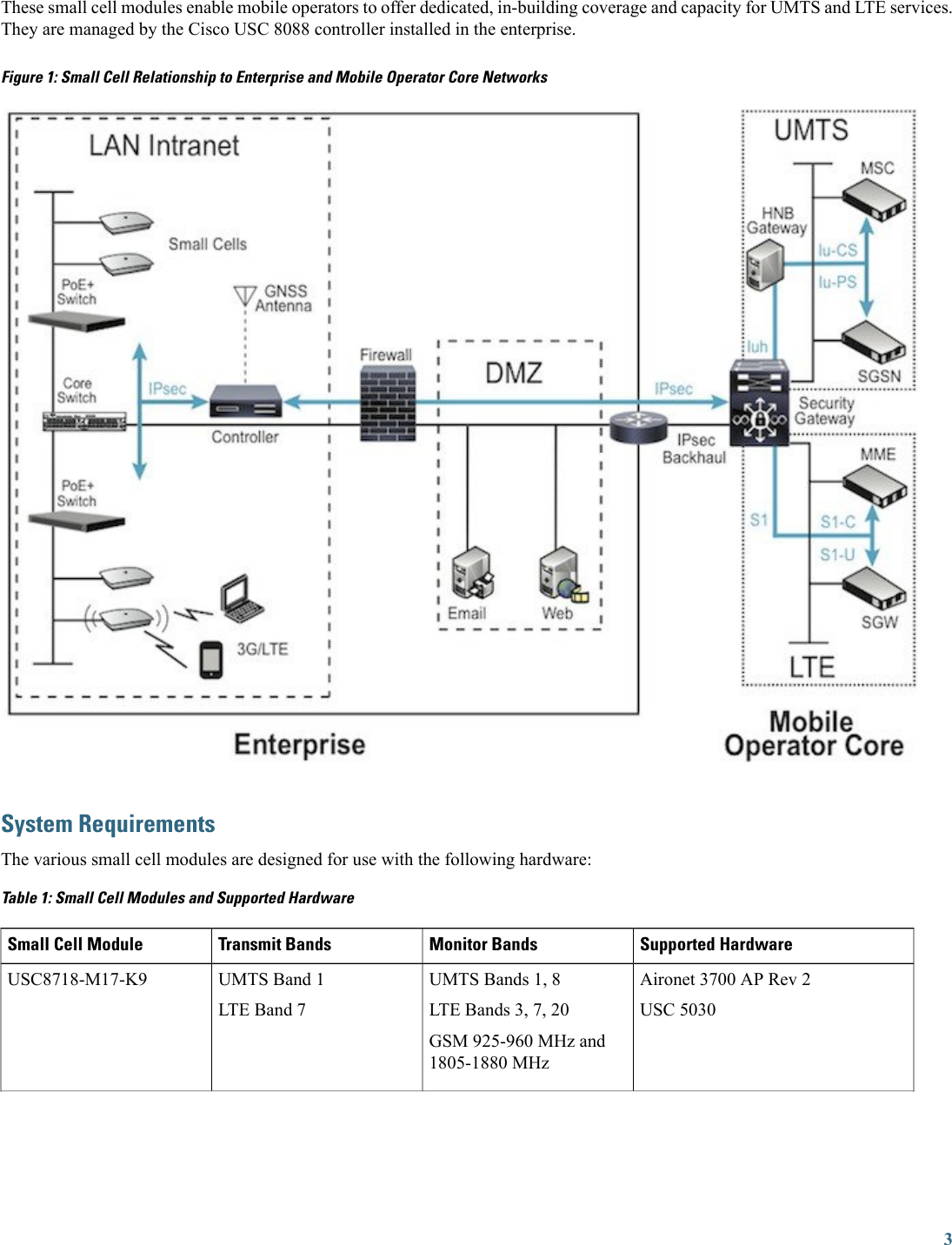

These small cell modules enable mobile operators to offer dedicated, in-building coverage and capacity for UMTS and LTE services.They are managed by the Cisco USC 8088 controller installed in the enterprise.Figure 1: Small Cell Relationship to Enterprise and Mobile Operator Core NetworksSystem RequirementsThe various small cell modules are designed for use with the following hardware:Table 1: Small Cell Modules and Supported HardwareSupported HardwareMonitor BandsTransmit BandsSmall Cell ModuleAironet 3700 AP Rev 2USC 5030UMTS Bands 1, 8LTE Bands 3, 7, 20GSM 925-960 MHz and1805-1880 MHzUMTS Band 1LTE Band 7USC8718-M17-K93

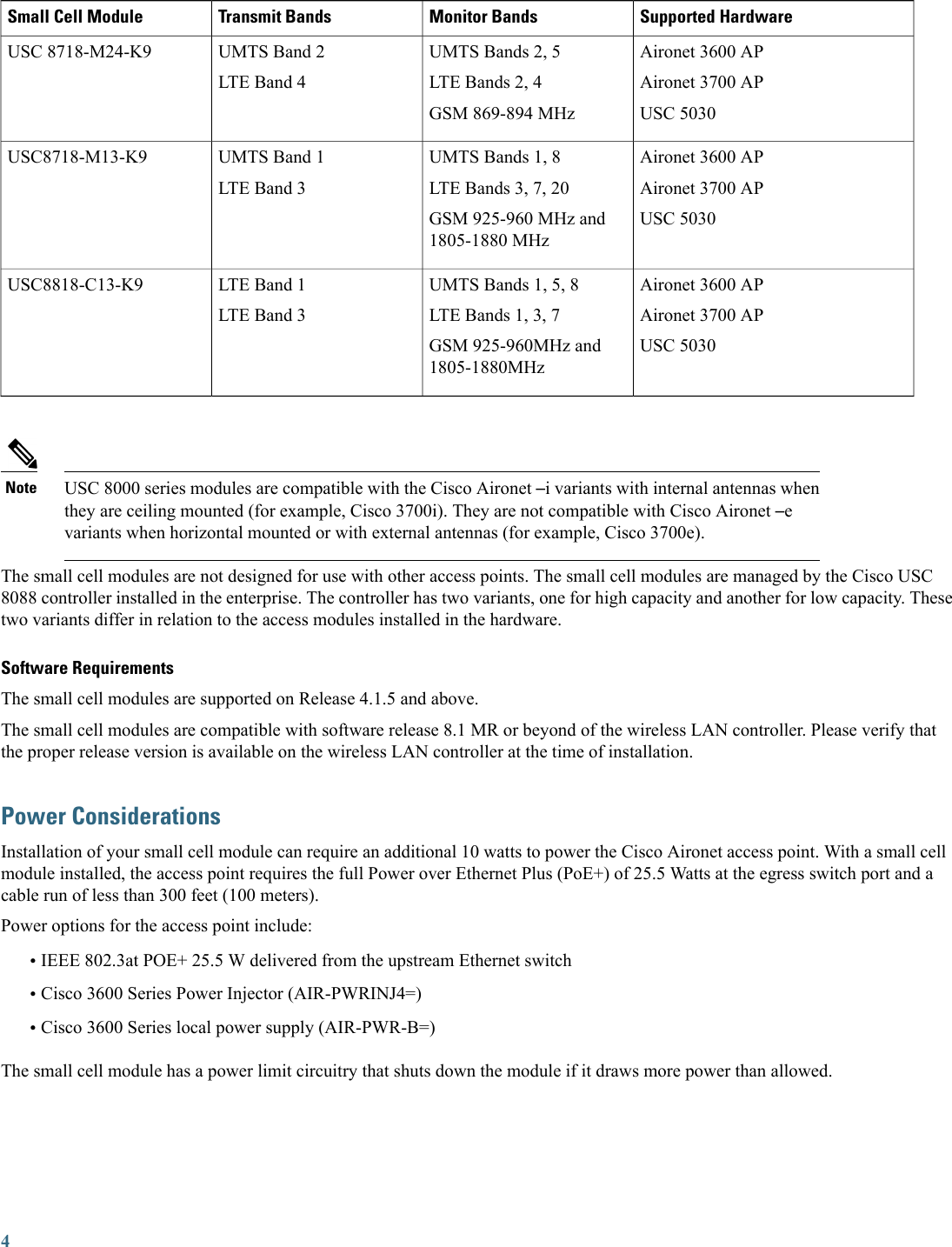

Supported HardwareMonitor BandsTransmit BandsSmall Cell ModuleAironet 3600 APAironet 3700 APUSC 5030UMTS Bands 2, 5LTE Bands 2, 4GSM 869-894 MHzUMTS Band 2LTE Band 4USC 8718-M24-K9Aironet 3600 APAironet 3700 APUSC 5030UMTS Bands 1, 8LTE Bands 3, 7, 20GSM 925-960 MHz and1805-1880 MHzUMTS Band 1LTE Band 3USC8718-M13-K9Aironet 3600 APAironet 3700 APUSC 5030UMTS Bands 1, 5, 8LTE Bands 1, 3, 7GSM 925-960MHz and1805-1880MHzLTE Band 1LTE Band 3USC8818-C13-K9USC 8000 series modules are compatible with the Cisco Aironet –i variants with internal antennas whenthey are ceiling mounted (for example, Cisco 3700i). They are not compatible with Cisco Aironet –evariants when horizontal mounted or with external antennas (for example, Cisco 3700e).NoteThe small cell modules are not designed for use with other access points. The small cell modules are managed by the Cisco USC8088 controller installed in the enterprise. The controller has two variants, one for high capacity and another for low capacity. Thesetwo variants differ in relation to the access modules installed in the hardware.Software RequirementsThe small cell modules are supported on Release 4.1.5 and above.The small cell modules are compatible with software release 8.1 MR or beyond of the wireless LAN controller. Please verify thatthe proper release version is available on the wireless LAN controller at the time of installation.Power ConsiderationsInstallation of your small cell module can require an additional 10 watts to power the Cisco Aironet access point. With a small cellmodule installed, the access point requires the full Power over Ethernet Plus (PoE+) of 25.5 Watts at the egress switch port and acable run of less than 300 feet (100 meters).Power options for the access point include:•IEEE 802.3at POE+ 25.5 W delivered from the upstream Ethernet switch•Cisco 3600 Series Power Injector (AIR-PWRINJ4=)•Cisco 3600 Series local power supply (AIR-PWR-B=)The small cell module has a power limit circuitry that shuts down the module if it draws more power than allowed.4

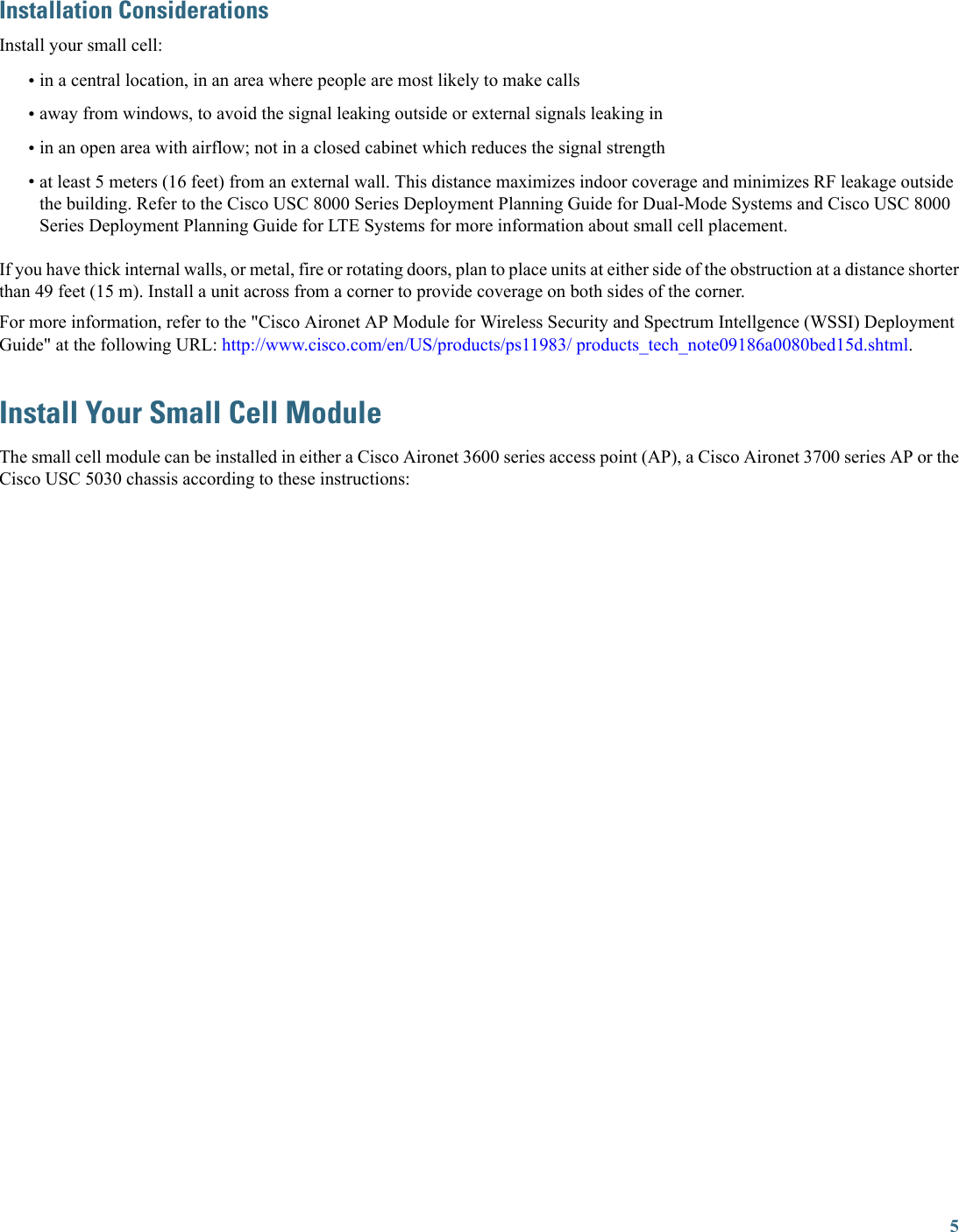

Installation ConsiderationsInstall your small cell:•in a central location, in an area where people are most likely to make calls•away from windows, to avoid the signal leaking outside or external signals leaking in•in an open area with airflow; not in a closed cabinet which reduces the signal strength•at least 5 meters (16 feet) from an external wall. This distance maximizes indoor coverage and minimizes RF leakage outsidethe building. Refer to the Cisco USC 8000 Series Deployment Planning Guide for Dual-Mode Systems and Cisco USC 8000Series Deployment Planning Guide for LTE Systems for more information about small cell placement.If you have thick internal walls, or metal, fire or rotating doors, plan to place units at either side of the obstruction at a distance shorterthan 49 feet (15 m). Install a unit across from a corner to provide coverage on both sides of the corner.For more information, refer to the "Cisco Aironet AP Module for Wireless Security and Spectrum Intellgence (WSSI) DeploymentGuide" at the following URL: http://www.cisco.com/en/US/products/ps11983/ products_tech_note09186a0080bed15d.shtml.Install Your Small Cell ModuleThe small cell module can be installed in either a Cisco Aironet 3600 series access point (AP), a Cisco Aironet 3700 series AP or theCisco USC 5030 chassis according to these instructions:5
ProcedureStep 1 Remove the module from the packaging.Step 2 Power down the access point if you are installing the small cell module into an operational access point.Step 3 Peel off the label from the back of the AP to reveal the module port connector.Figure 2: Backside of Cisco Aironet 3600 Access PointOpenings for module's antennas1Label covering port connector26

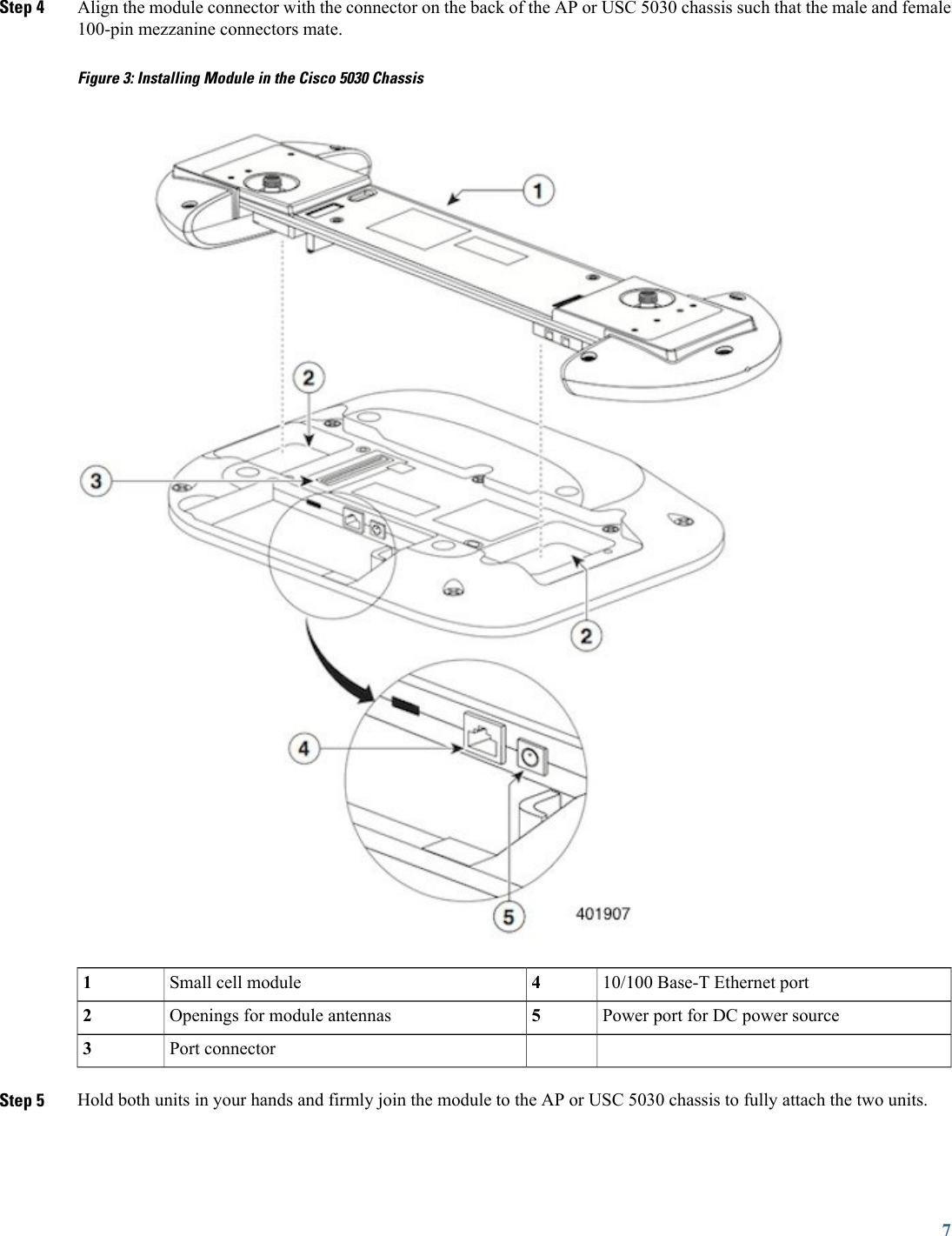

Step 4 Align the module connector with the connector on the back of the AP or USC 5030 chassis such that the male and female100-pin mezzanine connectors mate.Figure 3: Installing Module in the Cisco 5030 Chassis10/100 Base-T Ethernet port4Small cell module1Power port for DC power source5Openings for module antennas2Port connector3Step 5 Hold both units in your hands and firmly join the module to the AP or USC 5030 chassis to fully attach the two units.7

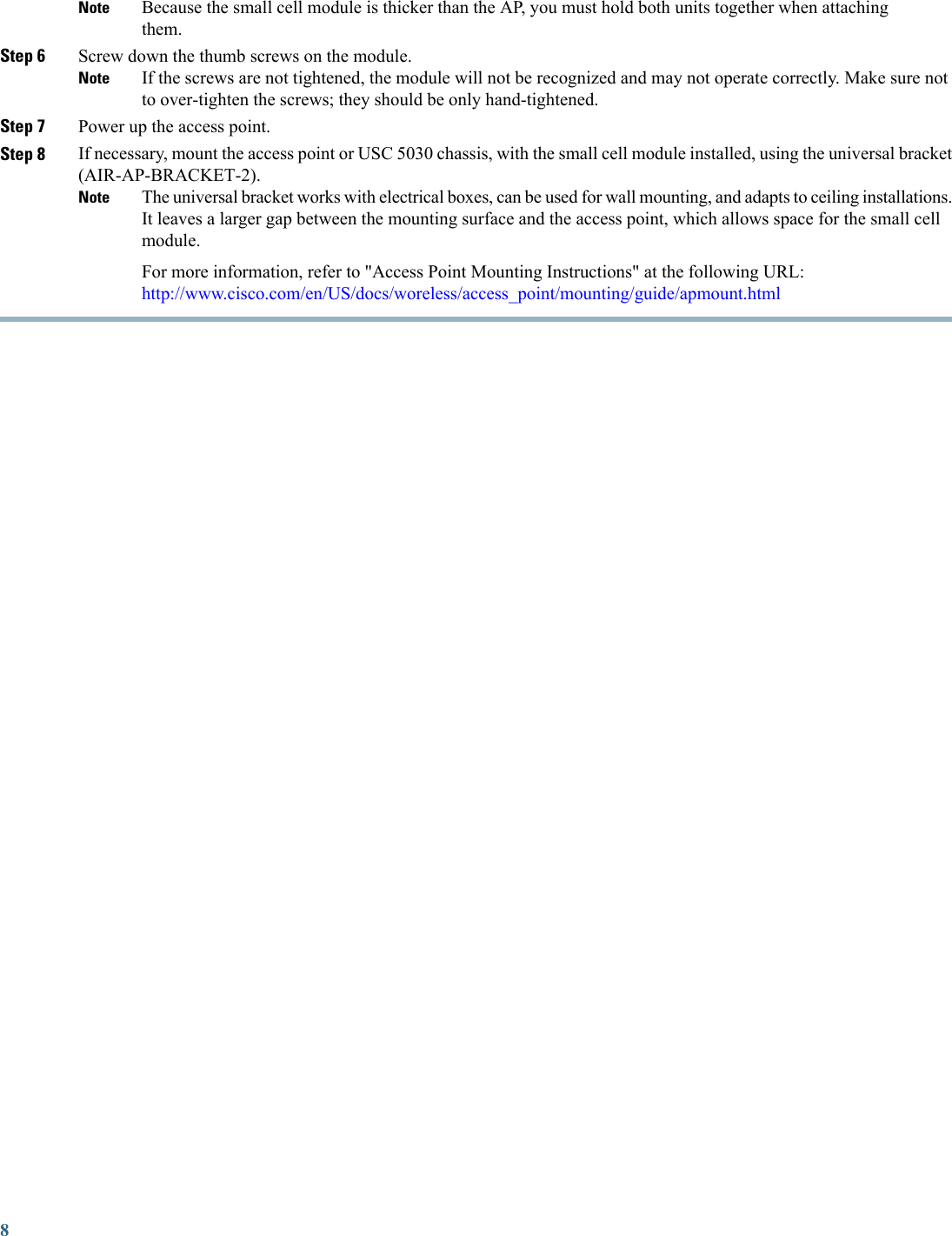

Because the small cell module is thicker than the AP, you must hold both units together when attachingthem.NoteStep 6 Screw down the thumb screws on the module.If the screws are not tightened, the module will not be recognized and may not operate correctly. Make sure notto over-tighten the screws; they should be only hand-tightened.NoteStep 7 Power up the access point.Step 8 If necessary, mount the access point or USC 5030 chassis, with the small cell module installed, using the universal bracket(AIR-AP-BRACKET-2).The universal bracket works with electrical boxes, can be used for wall mounting, and adapts to ceiling installations.It leaves a larger gap between the mounting surface and the access point, which allows space for the small cellmodule.For more information, refer to "Access Point Mounting Instructions" at the following URL:http://www.cisco.com/en/US/docs/woreless/access_point/mounting/guide/apmount.htmlNote8

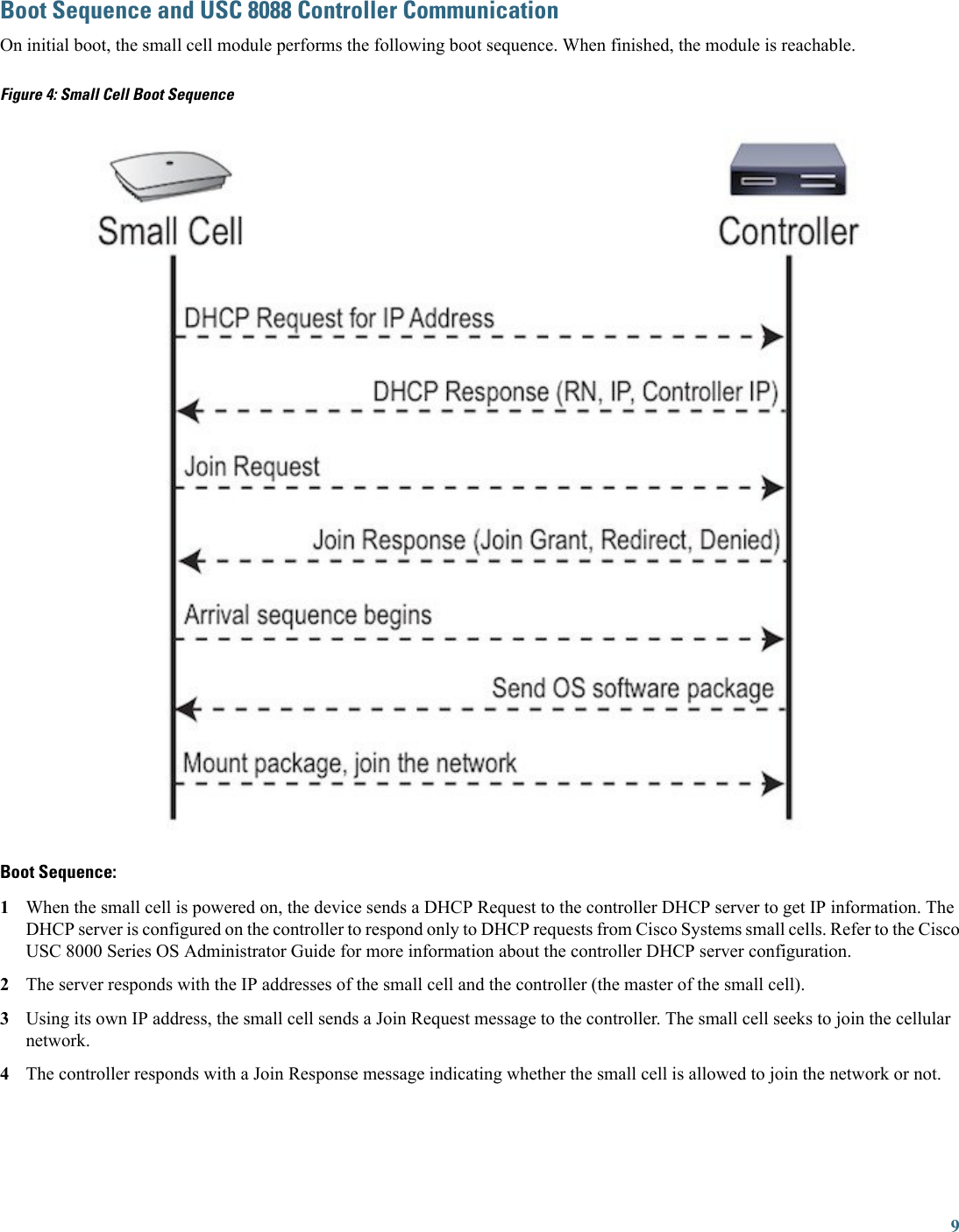

Boot Sequence and USC 8088 Controller CommunicationOn initial boot, the small cell module performs the following boot sequence. When finished, the module is reachable.Figure 4: Small Cell Boot SequenceBoot Sequence:1When the small cell is powered on, the device sends a DHCP Request to the controller DHCP server to get IP information. TheDHCP server is configured on the controller to respond only to DHCP requests from Cisco Systems small cells. Refer to the CiscoUSC 8000 Series OS Administrator Guide for more information about the controller DHCP server configuration.2The server responds with the IP addresses of the small cell and the controller (the master of the small cell).3Using its own IP address, the small cell sends a Join Request message to the controller. The small cell seeks to join the cellularnetwork.4The controller responds with a Join Response message indicating whether the small cell is allowed to join the network or not.9

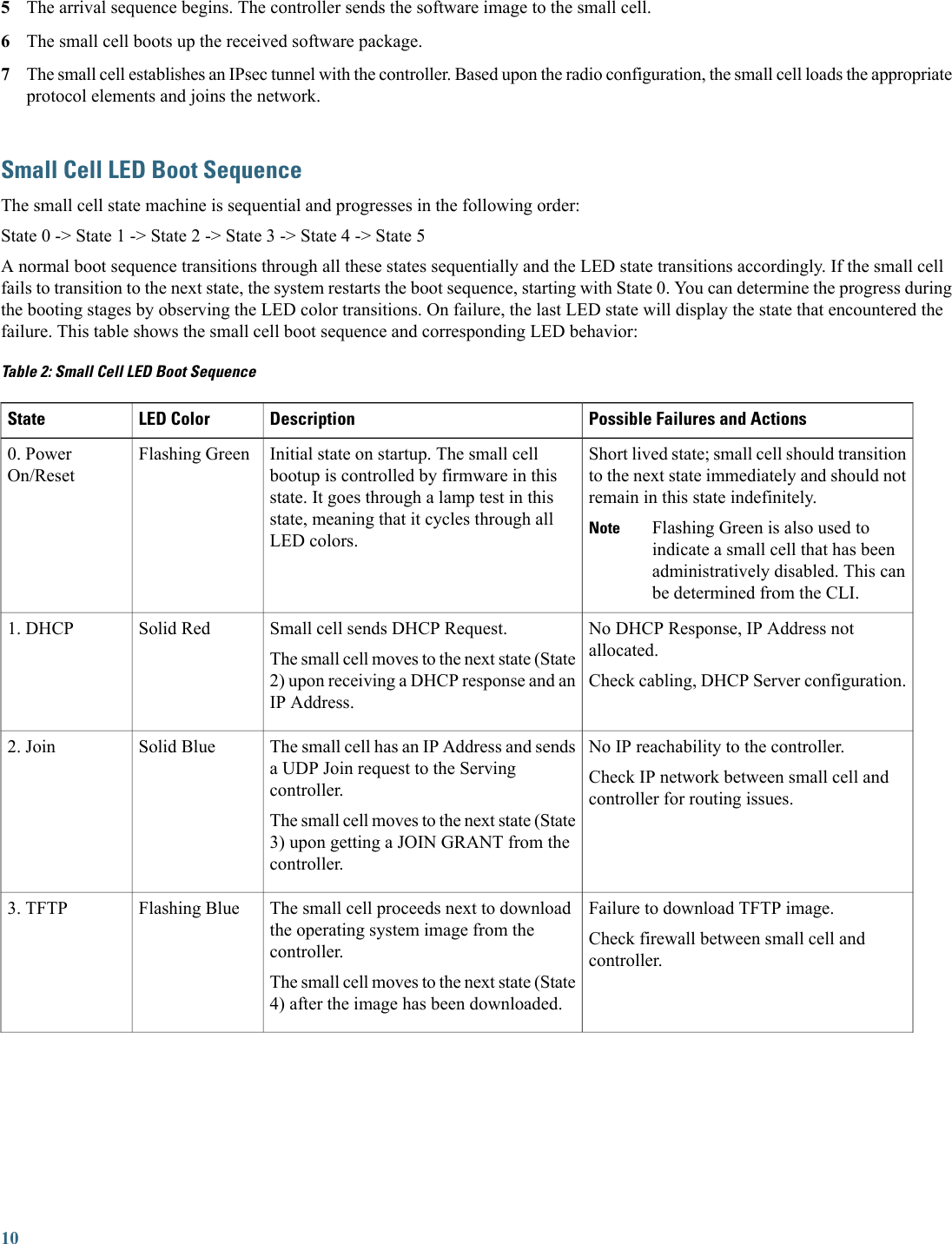

5The arrival sequence begins. The controller sends the software image to the small cell.6The small cell boots up the received software package.7The small cell establishes an IPsec tunnel with the controller. Based upon the radio configuration, the small cell loads the appropriateprotocol elements and joins the network.Small Cell LED Boot SequenceThe small cell state machine is sequential and progresses in the following order:State 0 -> State 1 -> State 2 -> State 3 -> State 4 -> State 5A normal boot sequence transitions through all these states sequentially and the LED state transitions accordingly. If the small cellfails to transition to the next state, the system restarts the boot sequence, starting with State 0. You can determine the progress duringthe booting stages by observing the LED color transitions. On failure, the last LED state will display the state that encountered thefailure. This table shows the small cell boot sequence and corresponding LED behavior:Table 2: Small Cell LED Boot SequencePossible Failures and ActionsDescriptionLED ColorStateShort lived state; small cell should transitionto the next state immediately and should notremain in this state indefinitely.Flashing Green is also used toindicate a small cell that has beenadministratively disabled. This canbe determined from the CLI.NoteInitial state on startup. The small cellbootup is controlled by firmware in thisstate. It goes through a lamp test in thisstate, meaning that it cycles through allLED colors.Flashing Green0. PowerOn/ResetNo DHCP Response, IP Address notallocated.Check cabling, DHCP Server configuration.Small cell sends DHCP Request.The small cell moves to the next state (State2) upon receiving a DHCP response and anIP Address.Solid Red1. DHCPNo IP reachability to the controller.Check IP network between small cell andcontroller for routing issues.The small cell has an IP Address and sendsa UDP Join request to the Servingcontroller.The small cell moves to the next state (State3) upon getting a JOIN GRANT from thecontroller.Solid Blue2. JoinFailure to download TFTP image.Check firewall between small cell andcontroller.The small cell proceeds next to downloadthe operating system image from thecontroller.The small cell moves to the next state (State4) after the image has been downloaded.Flashing Blue3. TFTP10

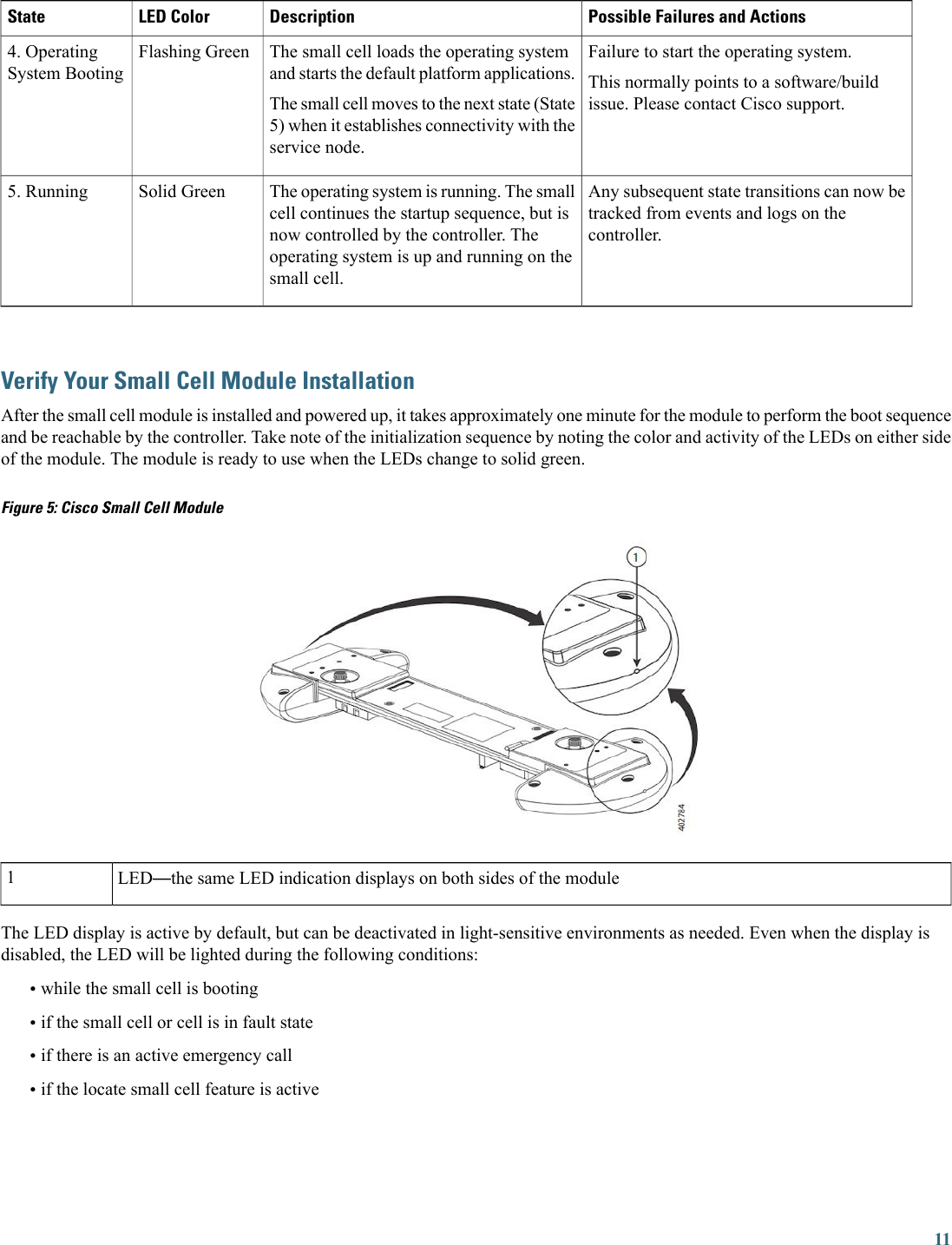

Possible Failures and ActionsDescriptionLED ColorStateFailure to start the operating system.This normally points to a software/buildissue. Please contact Cisco support.The small cell loads the operating systemand starts the default platform applications.The small cell moves to the next state (State5) when it establishes connectivity with theservice node.Flashing Green4. OperatingSystem BootingAny subsequent state transitions can now betracked from events and logs on thecontroller.The operating system is running. The smallcell continues the startup sequence, but isnow controlled by the controller. Theoperating system is up and running on thesmall cell.Solid Green5. RunningVerify Your Small Cell Module InstallationAfter the small cell module is installed and powered up, it takes approximately one minute for the module to perform the boot sequenceand be reachable by the controller. Take note of the initialization sequence by noting the color and activity of the LEDs on either sideof the module. The module is ready to use when the LEDs change to solid green.Figure 5: Cisco Small Cell ModuleLED—the same LED indication displays on both sides of the module1The LED display is active by default, but can be deactivated in light-sensitive environments as needed. Even when the display isdisabled, the LED will be lighted during the following conditions:•while the small cell is booting•if the small cell or cell is in fault state•if there is an active emergency call•if the locate small cell feature is active11

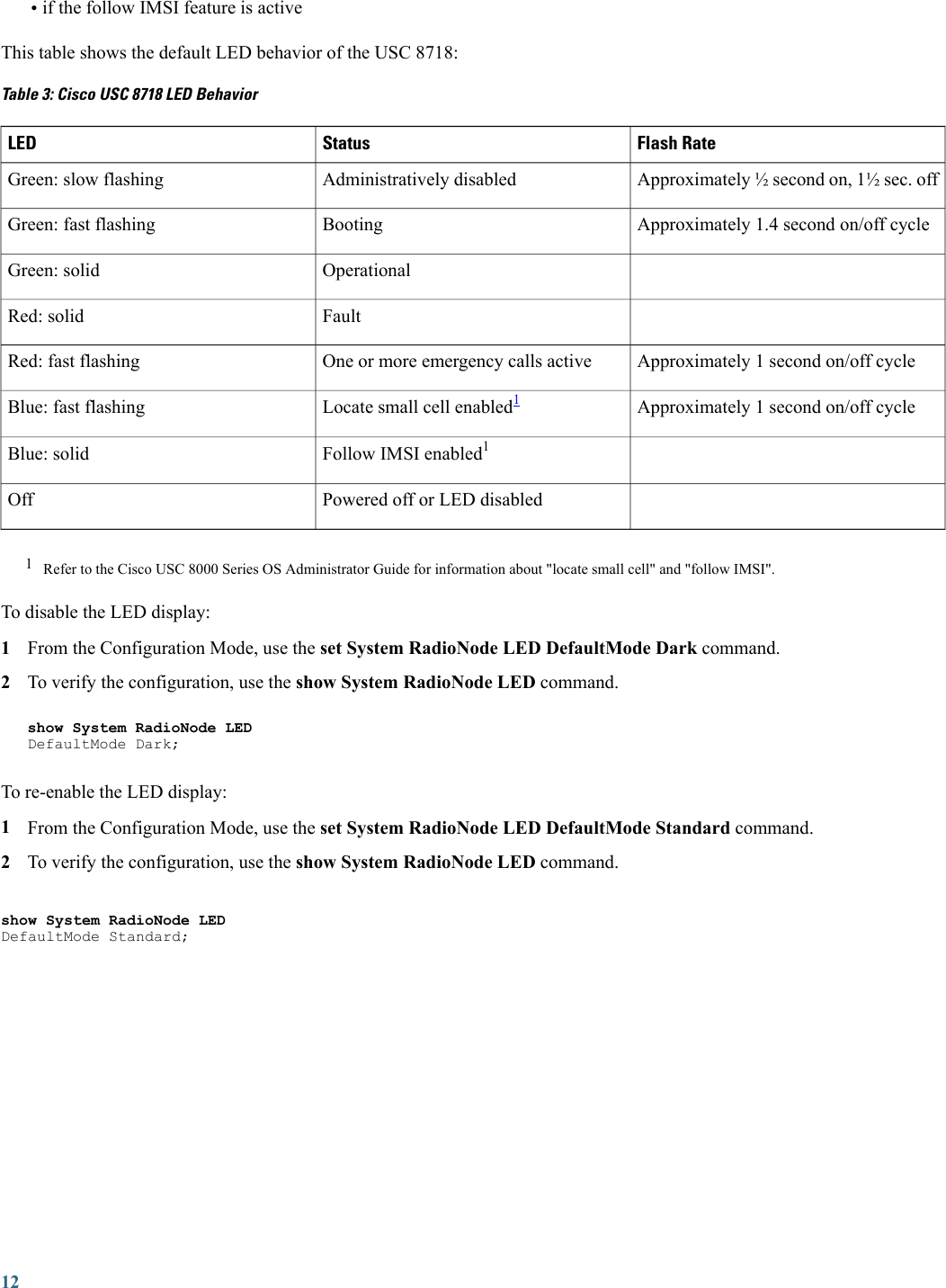

•if the follow IMSI feature is activeThis table shows the default LED behavior of the USC 8718:Table 3: Cisco USC 8718 LED BehaviorFlash RateStatusLEDApproximately ½ second on, 1½ sec. offAdministratively disabledGreen: slow flashingApproximately 1.4 second on/off cycleBootingGreen: fast flashingOperationalGreen: solidFaultRed: solidApproximately 1 second on/off cycleOne or more emergency calls activeRed: fast flashingApproximately 1 second on/off cycleLocate small cell enabled1Blue: fast flashingFollow IMSI enabled1Blue: solidPowered off or LED disabledOff1Refer to the Cisco USC 8000 Series OS Administrator Guide for information about "locate small cell" and "follow IMSI".To disable the LED display:1From the Configuration Mode, use the set System RadioNode LED DefaultMode Dark command.2To verify the configuration, use the show System RadioNode LED command.show System RadioNode LEDDefaultMode Dark;To re-enable the LED display:1From the Configuration Mode, use the set System RadioNode LED DefaultMode Standard command.2To verify the configuration, use the show System RadioNode LED command.show System RadioNode LEDDefaultMode Standard;12

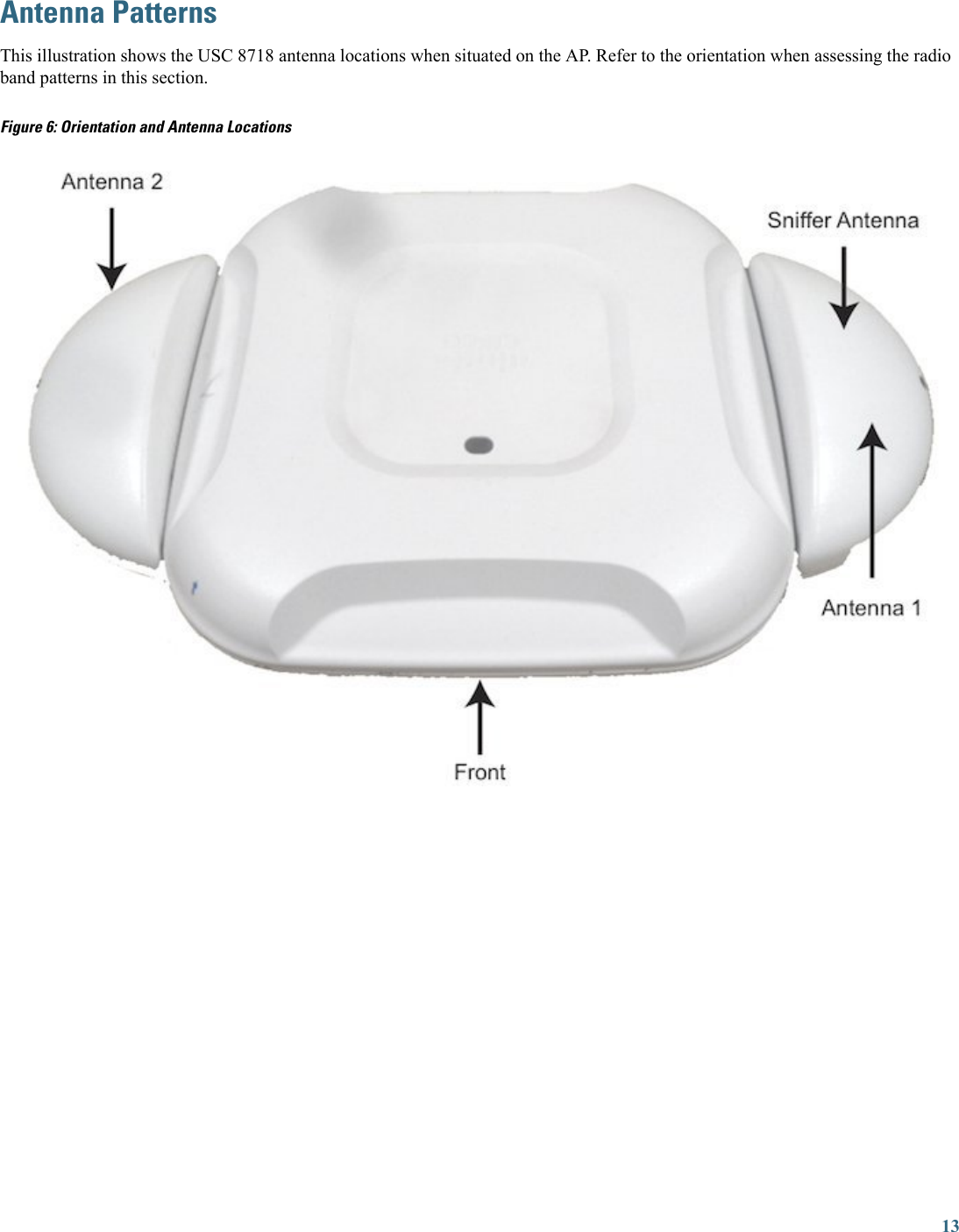

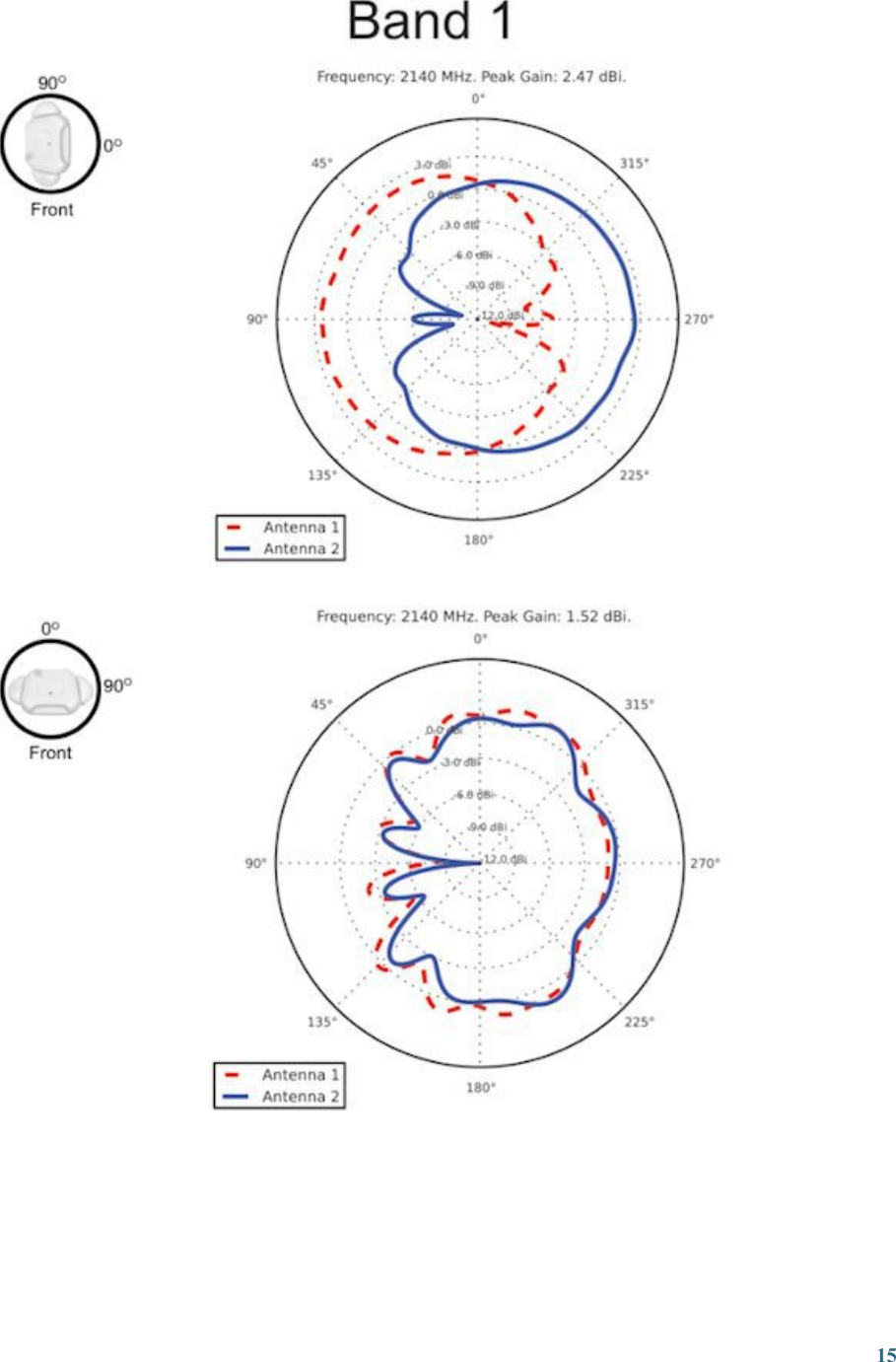

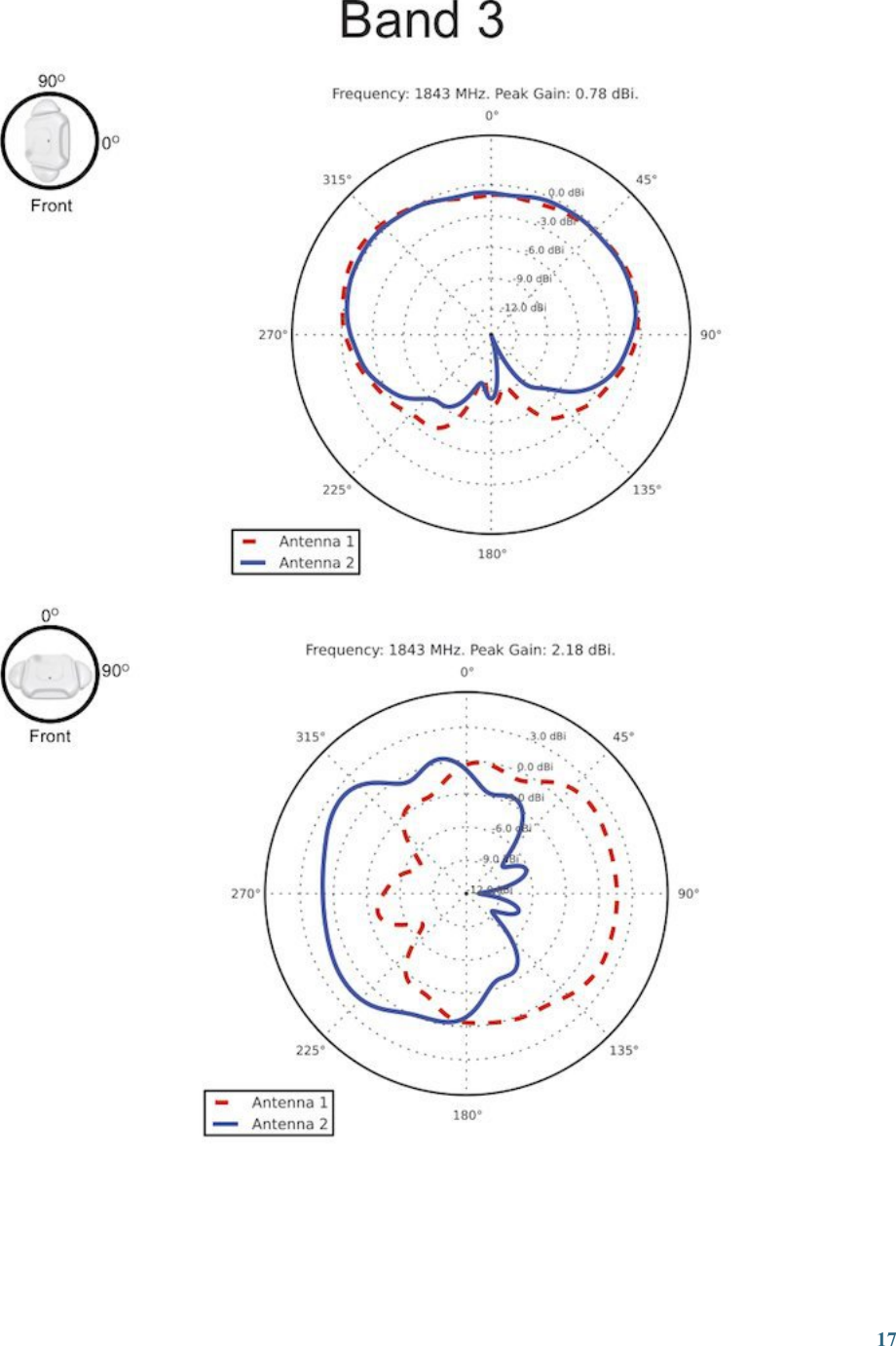

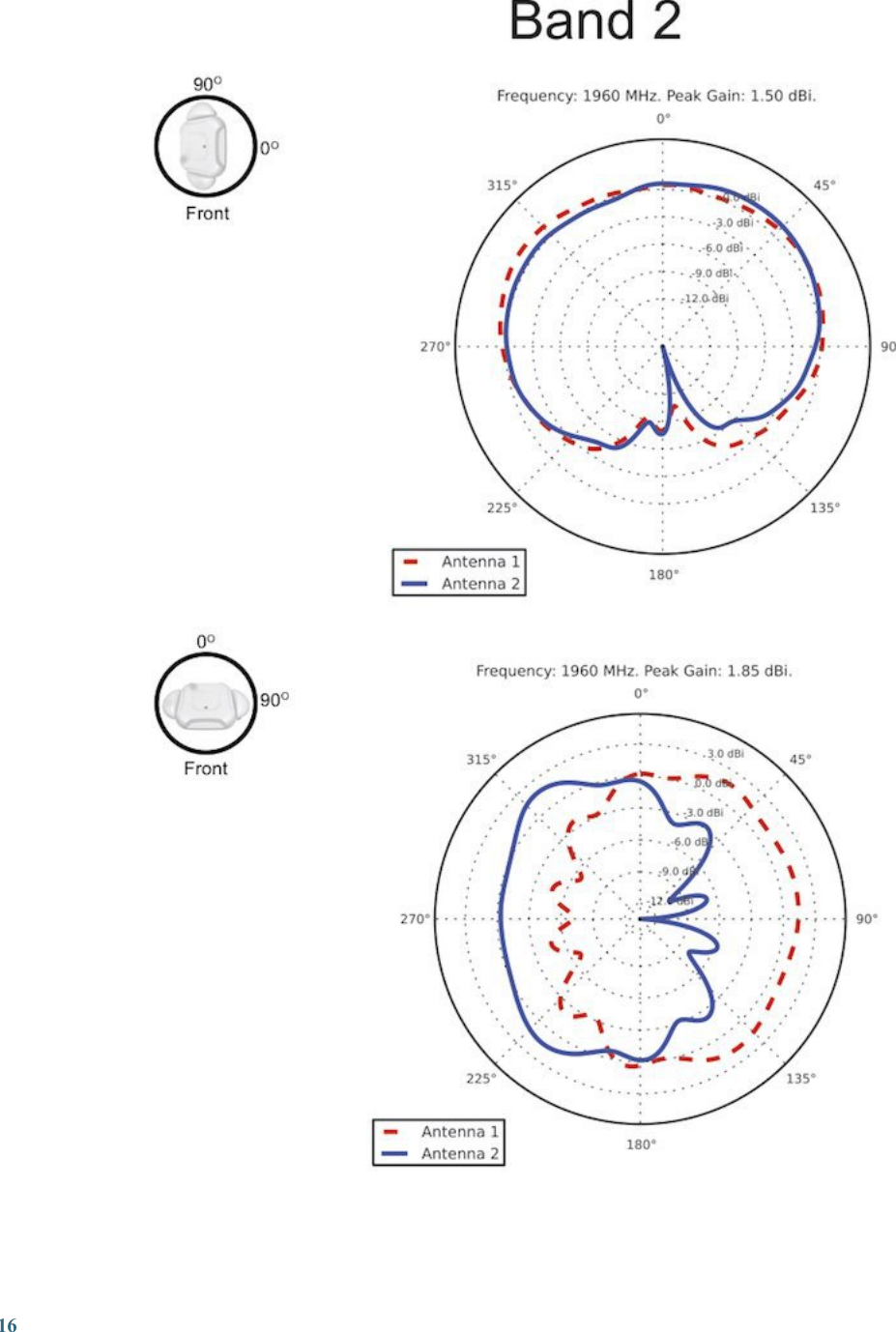

Antenna PatternsThis illustration shows the USC 8718 antenna locations when situated on the AP. Refer to the orientation when assessing the radioband patterns in this section.Figure 6: Orientation and Antenna Locations13

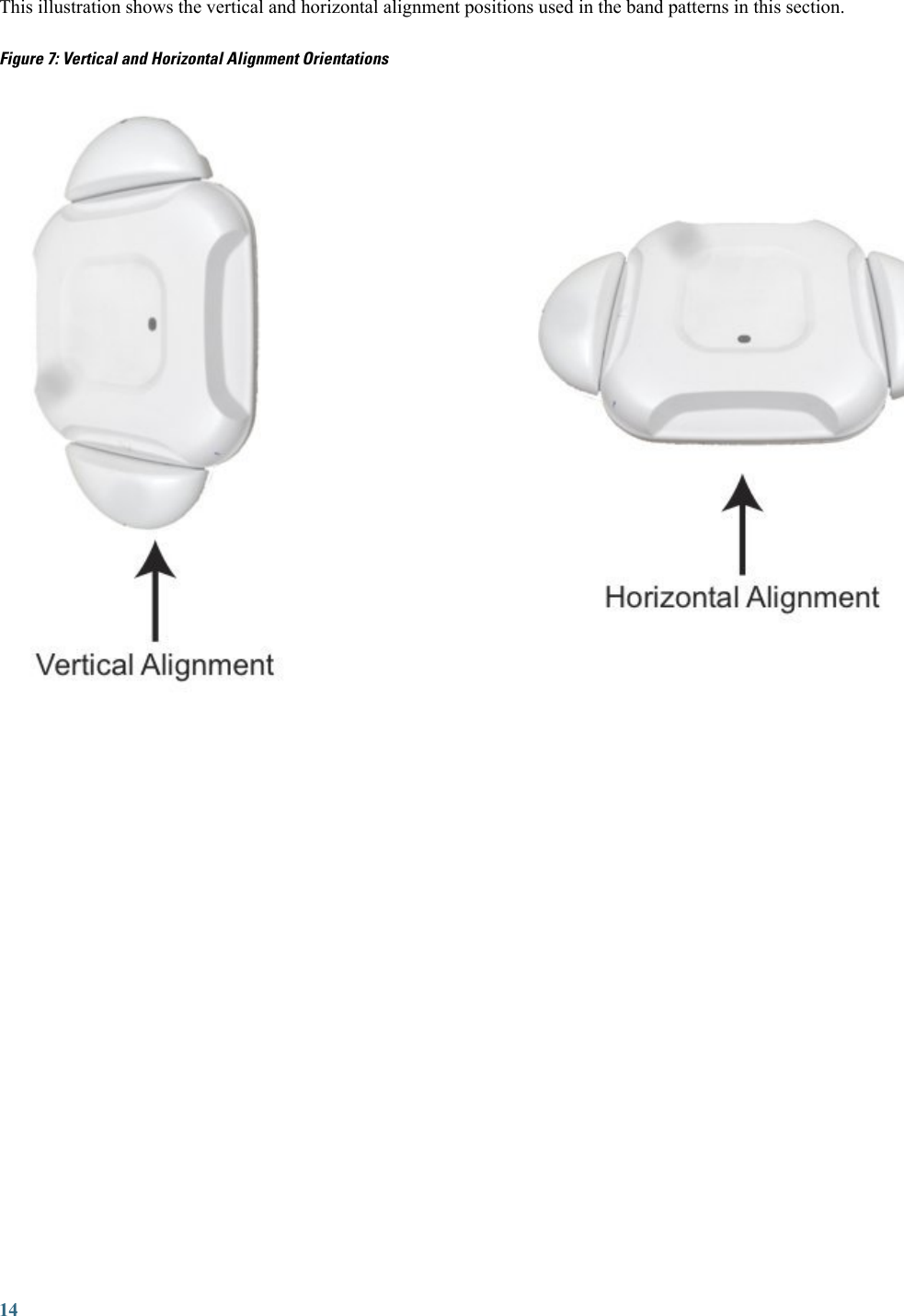

This illustration shows the vertical and horizontal alignment positions used in the band patterns in this section.Figure 7: Vertical and Horizontal Alignment Orientations14
15
16
17

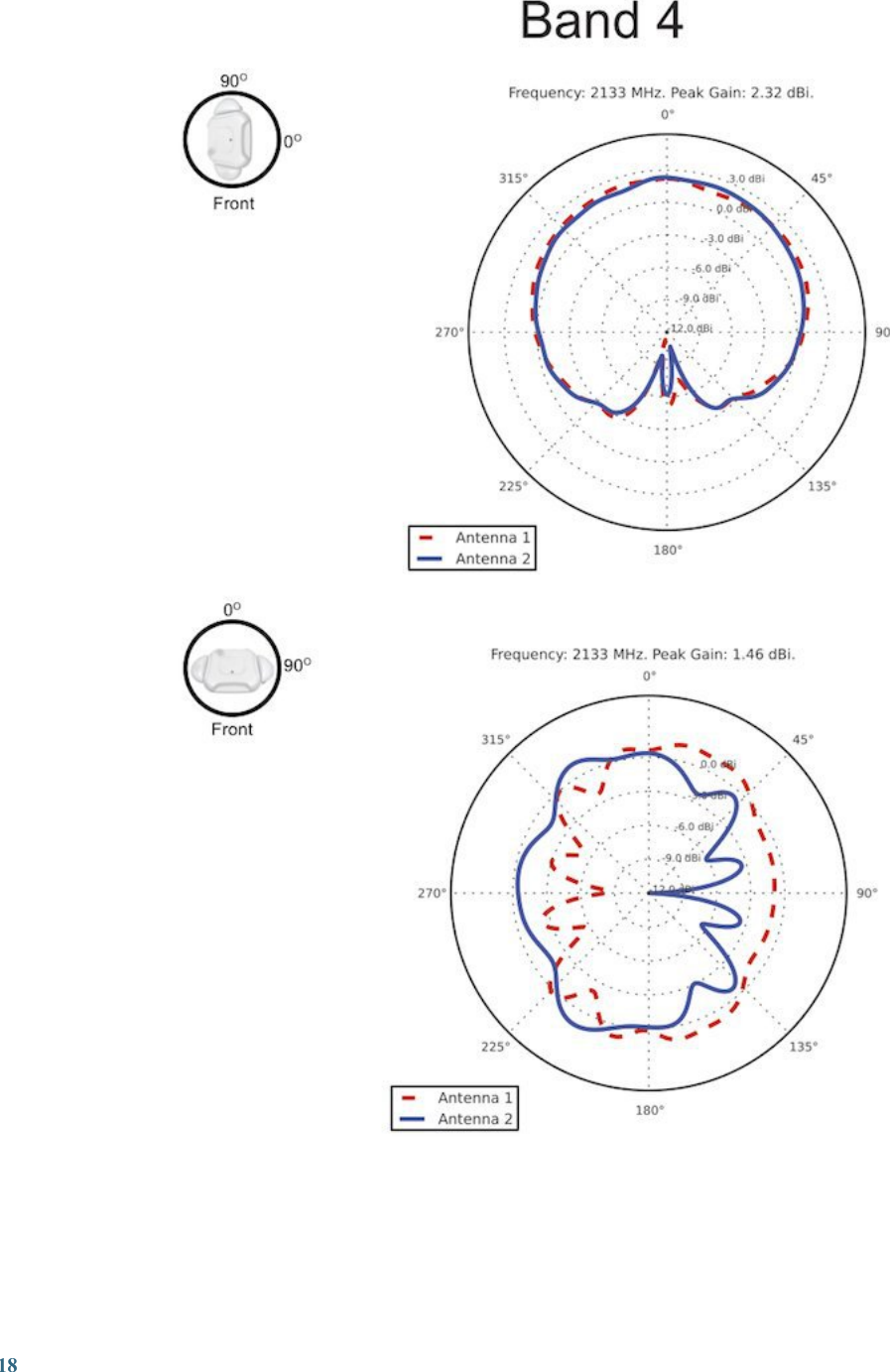

18

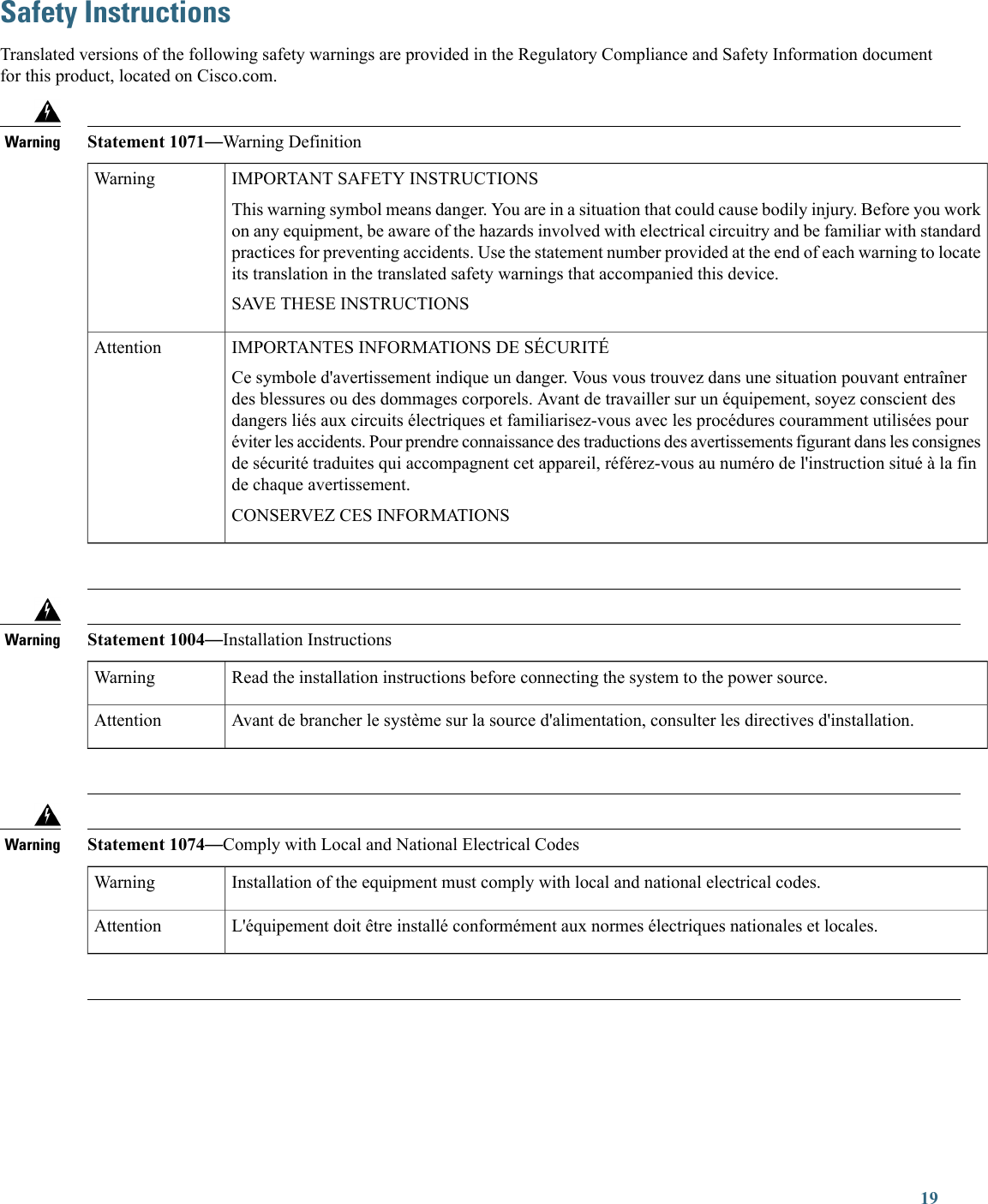

Safety InstructionsTranslated versions of the following safety warnings are provided in the Regulatory Compliance and Safety Information documentfor this product, located on Cisco.com.Statement 1071—Warning DefinitionWarningIMPORTANT SAFETY INSTRUCTIONSThis warning symbol means danger. You are in a situation that could cause bodily injury. Before you workon any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standardpractices for preventing accidents. Use the statement number provided at the end of each warning to locateits translation in the translated safety warnings that accompanied this device.SAVE THESE INSTRUCTIONSWarningIMPORTANTES INFORMATIONS DE SÉCURITÉCe symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraînerdes blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient desdangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pouréviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignesde sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la finde chaque avertissement.CONSERVEZ CES INFORMATIONSAttentionStatement 1004—Installation InstructionsWarningRead the installation instructions before connecting the system to the power source.WarningAvant de brancher le système sur la source d'alimentation, consulter les directives d'installation.AttentionStatement 1074—Comply with Local and National Electrical CodesWarningInstallation of the equipment must comply with local and national electrical codes.WarningL'équipement doit être installé conformément aux normes électriques nationales et locales.Attention19

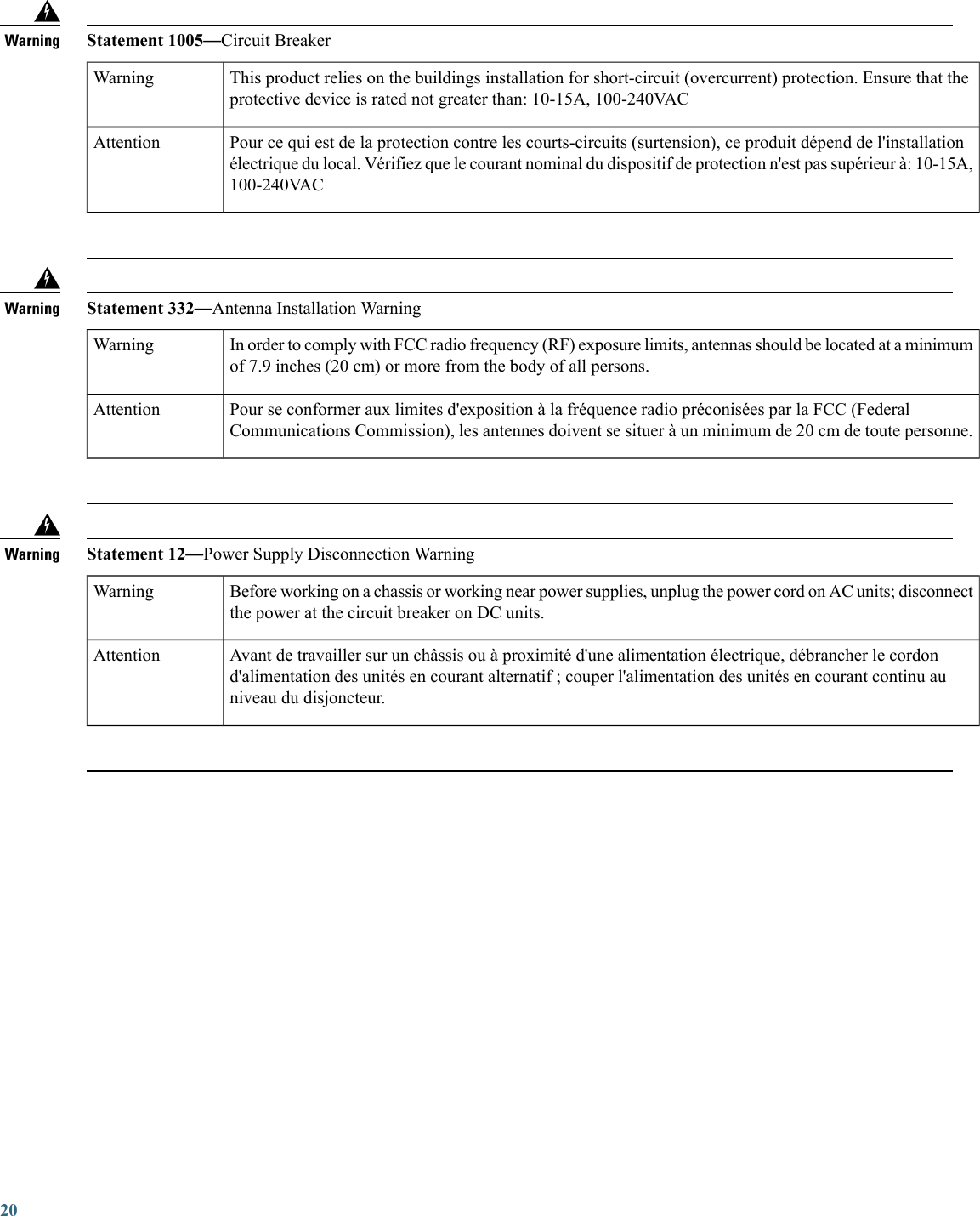

Statement 1005—Circuit BreakerWarningThis product relies on the buildings installation for short-circuit (overcurrent) protection. Ensure that theprotective device is rated not greater than: 10-15A, 100-240VACWarningPour ce qui est de la protection contre les courts-circuits (surtension), ce produit dépend de l'installationélectrique du local. Vérifiez que le courant nominal du dispositif de protection n'est pas supérieur à: 10-15A,100-240VACAttentionStatement 332—Antenna Installation WarningWarningIn order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimumof 7.9 inches (20 cm) or more from the body of all persons.WarningPour se conformer aux limites d'exposition à la fréquence radio préconisées par la FCC (FederalCommunications Commission), les antennes doivent se situer à un minimum de 20 cm de toute personne.AttentionStatement 12—Power Supply Disconnection WarningWarningBefore working on a chassis or working near power supplies, unplug the power cord on AC units; disconnectthe power at the circuit breaker on DC units.WarningAvant de travailler sur un châssis ou à proximité d'une alimentation électrique, débrancher le cordond'alimentation des unités en courant alternatif ; couper l'alimentation des unités en courant continu auniveau du disjoncteur.Attention20

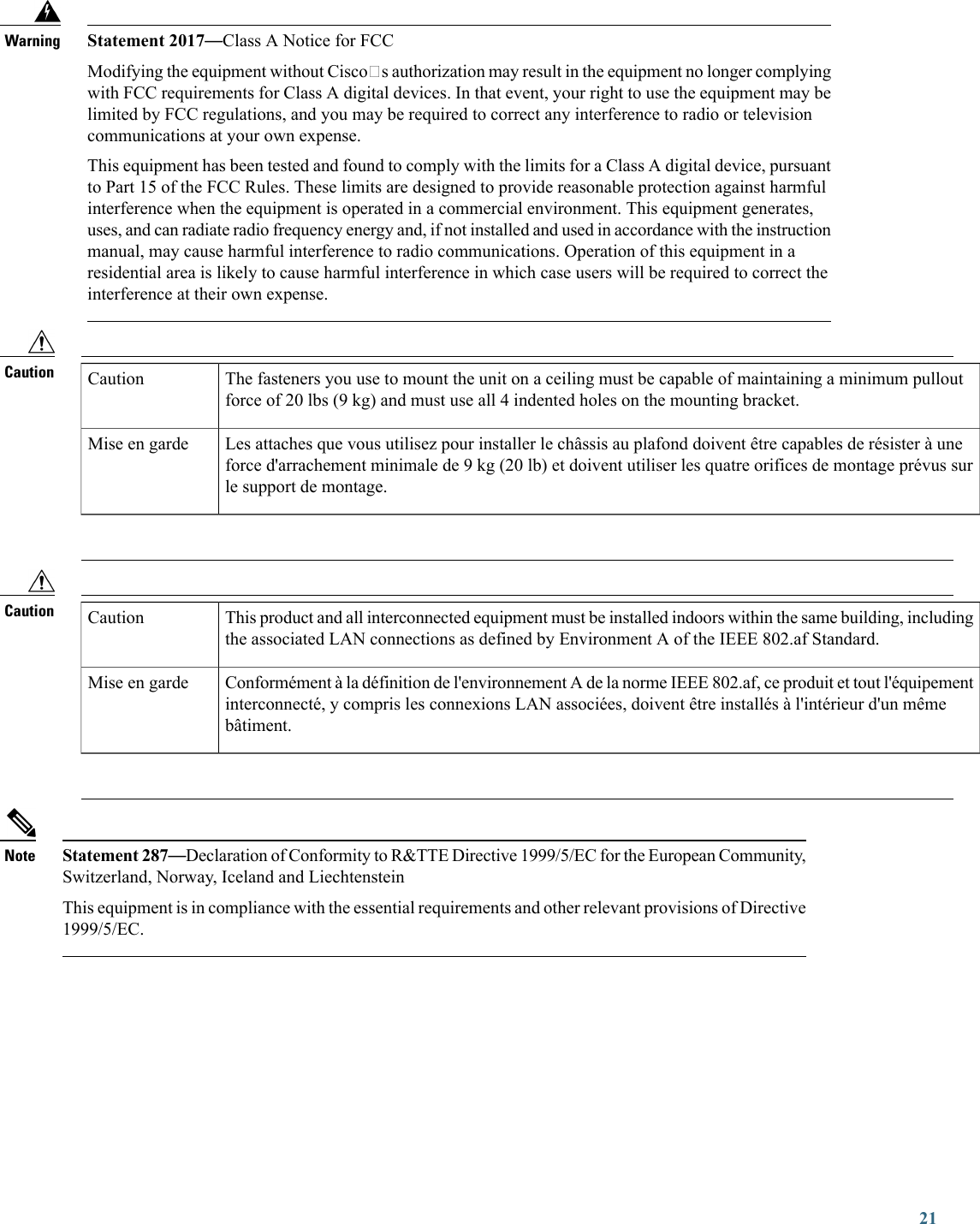

Statement 2017—Class A Notice for FCCModifying the equipment without Ciscos authorization may result in the equipment no longer complyingwith FCC requirements for Class A digital devices. In that event, your right to use the equipment may belimited by FCC regulations, and you may be required to correct any interference to radio or televisioncommunications at your own expense.This equipment has been tested and found to comply with the limits for a Class A digital device, pursuantto Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference when the equipment is operated in a commercial environment. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructionmanual, may cause harmful interference to radio communications. Operation of this equipment in aresidential area is likely to cause harmful interference in which case users will be required to correct theinterference at their own expense.WarningCaution The fasteners you use to mount the unit on a ceiling must be capable of maintaining a minimum pulloutforce of 20 lbs (9 kg) and must use all 4 indented holes on the mounting bracket.CautionLes attaches que vous utilisez pour installer le châssis au plafond doivent être capables de résister à uneforce d'arrachement minimale de 9 kg (20 lb) et doivent utiliser les quatre orifices de montage prévus surle support de montage.Mise en gardeCaution This product and all interconnected equipment must be installed indoors within the same building, includingthe associated LAN connections as defined by Environment A of the IEEE 802.af Standard.CautionConformément à la définition de l'environnement A de la norme IEEE 802.af, ce produit et tout l'équipementinterconnecté, y compris les connexions LAN associées, doivent être installés à l'intérieur d'un mêmebâtiment.Mise en gardeStatement 287—Declaration of Conformity to R&TTE Directive 1999/5/EC for the European Community,Switzerland, Norway, Iceland and LiechtensteinThis equipment is in compliance with the essential requirements and other relevant provisions of Directive1999/5/EC.Note21

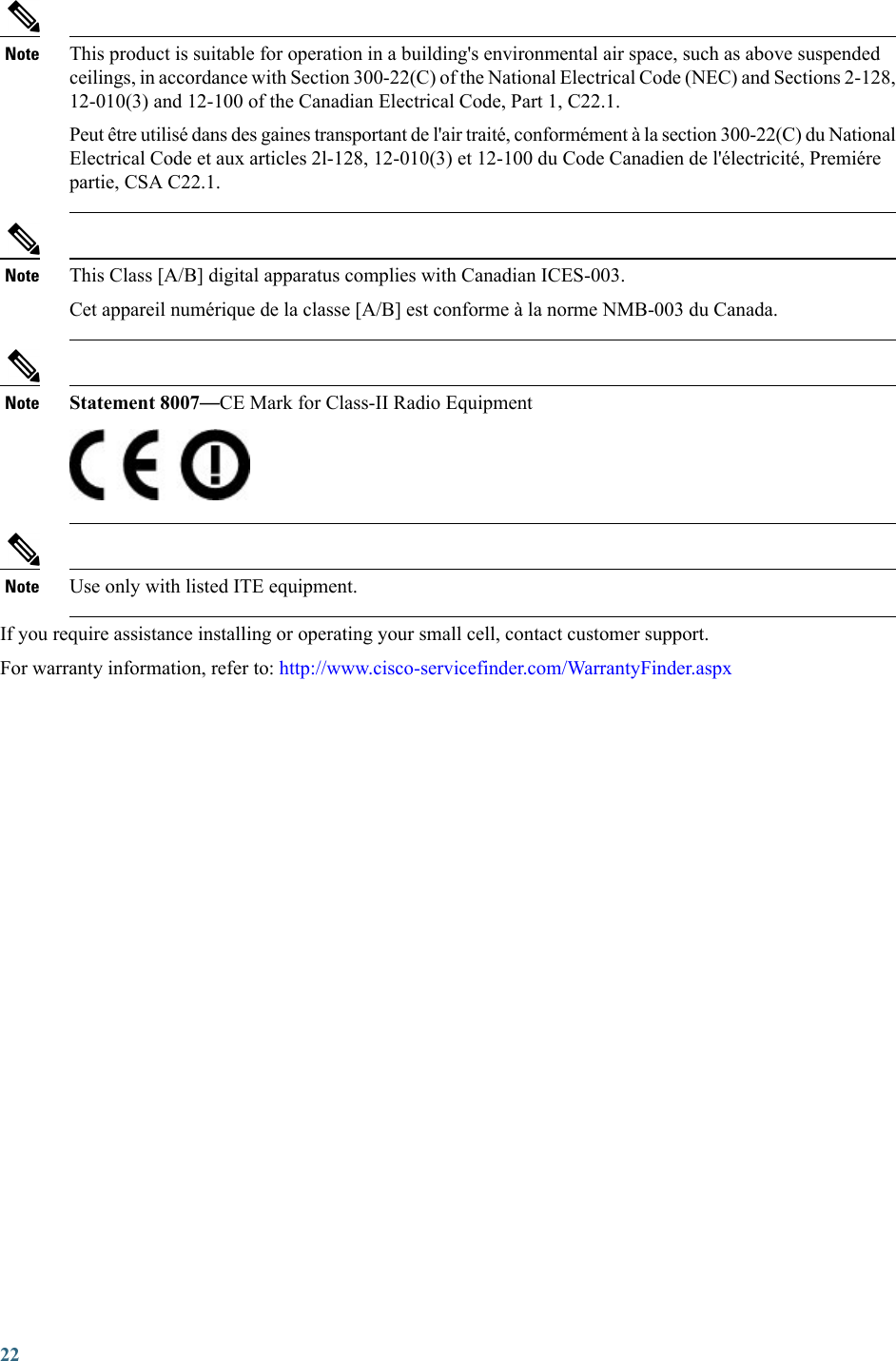

This product is suitable for operation in a building's environmental air space, such as above suspendedceilings, in accordance with Section 300-22(C) of the National Electrical Code (NEC) and Sections 2-128,12-010(3) and 12-100 of the Canadian Electrical Code, Part 1, C22.1.Peut être utilisé dans des gaines transportant de l'air traité, conformément à la section 300-22(C) du NationalElectrical Code et aux articles 2l-128, 12-010(3) et 12-100 du Code Canadien de l'électricité, Premiérepartie, CSA C22.1.NoteThis Class [A/B] digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe [A/B] est conforme à la norme NMB-003 du Canada.NoteStatement 8007—CE Mark for Class-II Radio EquipmentNoteUse only with listed ITE equipment.NoteIf you require assistance installing or operating your small cell, contact customer support.For warranty information, refer to: http://www.cisco-servicefinder.com/WarrantyFinder.aspx22

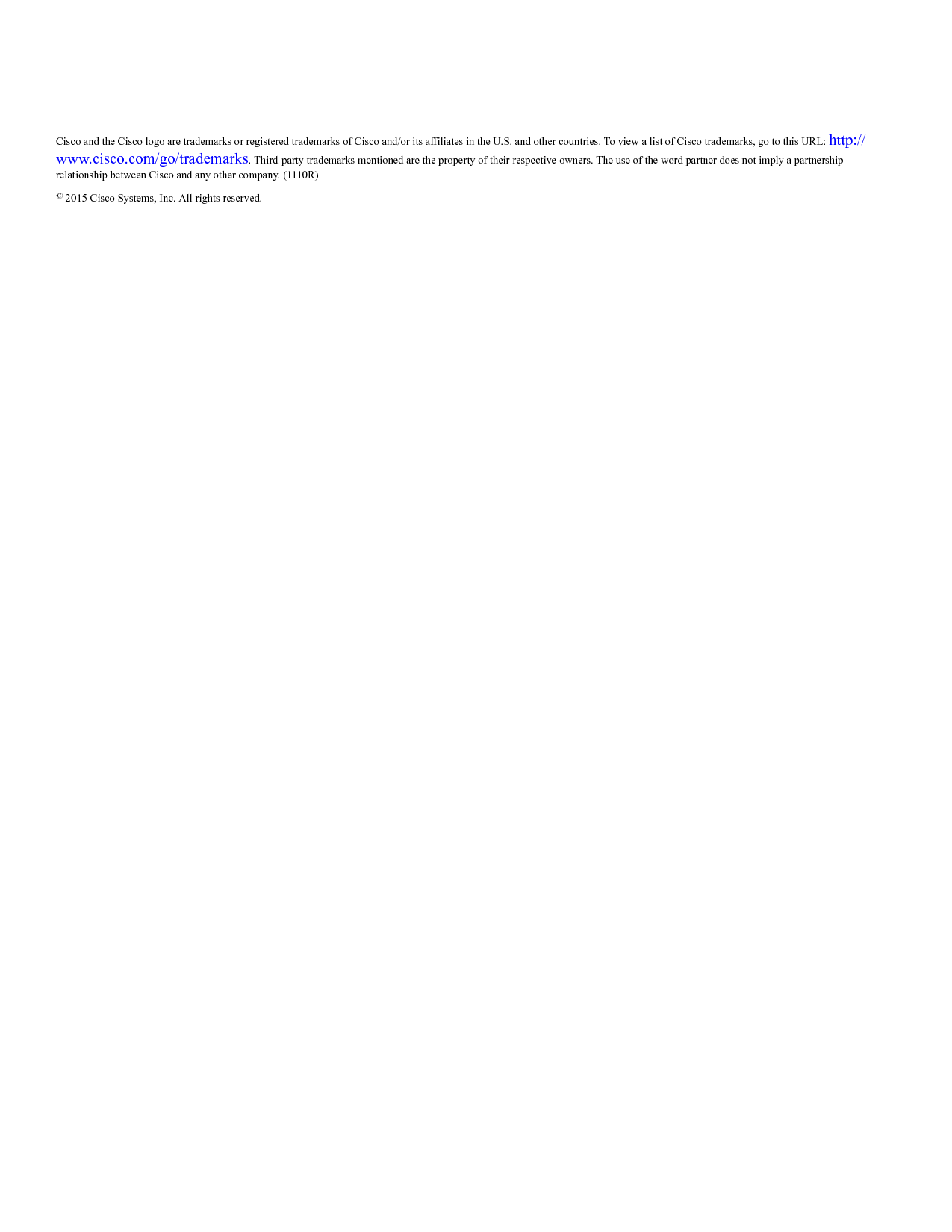

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: http://www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnershiprelationship between Cisco and any other company. (1110R)©2015 Cisco Systems, Inc. All rights reserved.

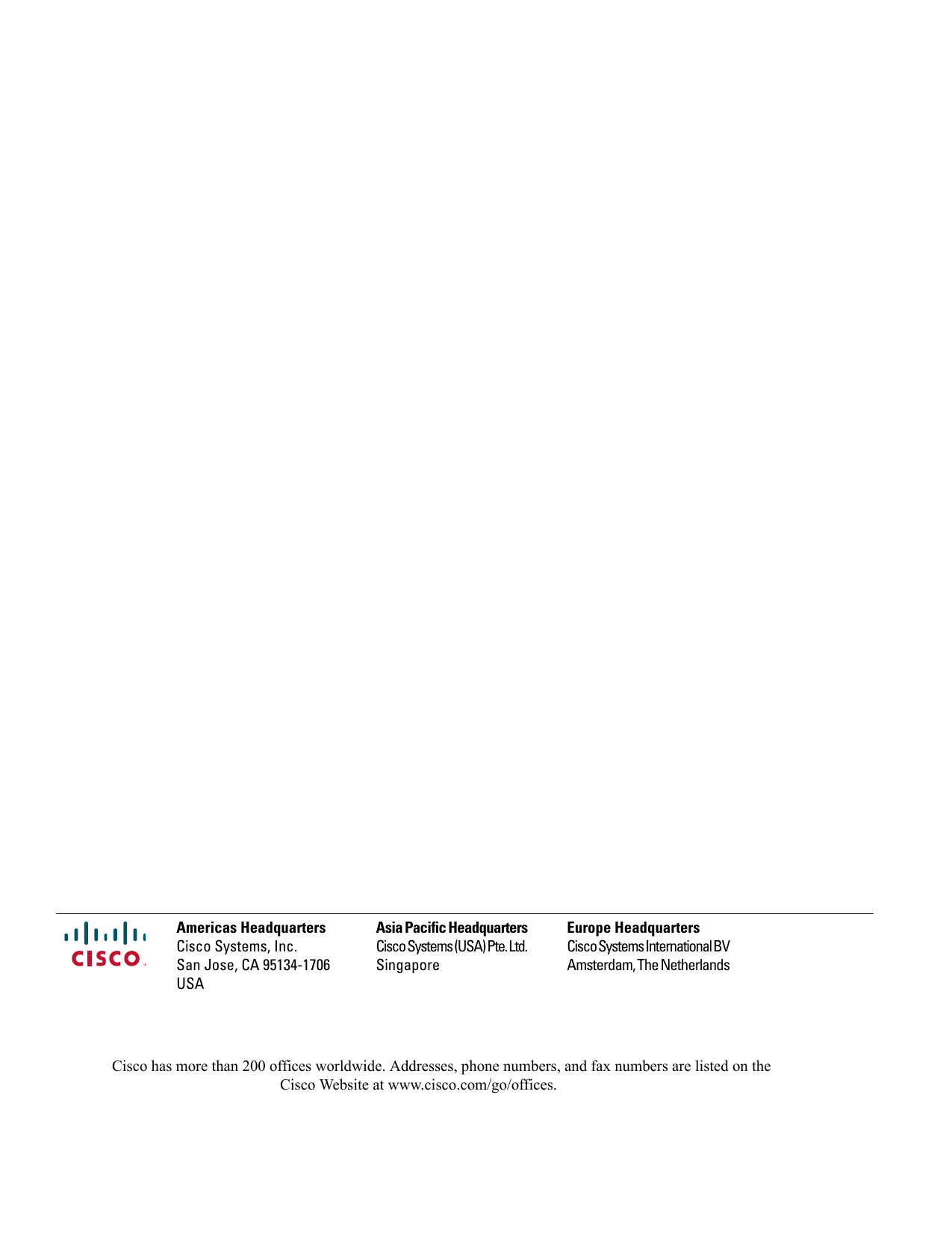

Europe HeadquartersAsia Pacific HeadquartersAmericas HeadquartersCisco Systems International BVAmsterdam, The NetherlandsCisco Systems (USA) Pte. Ltd.SingaporeCisco Systems, Inc.San Jose, CA 95134-1706USACisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on theCisco Website at www.cisco.com/go/offices.
