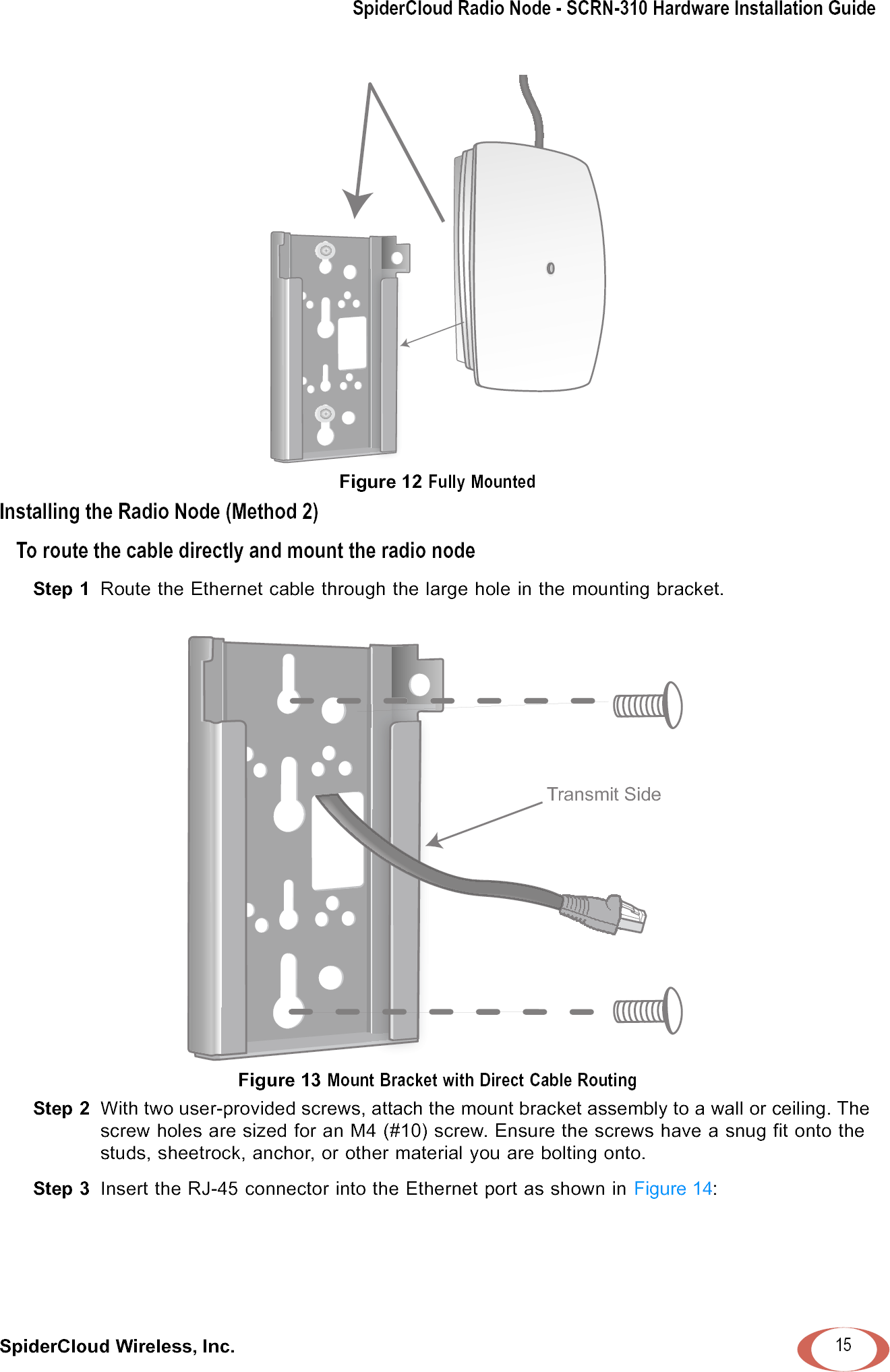

SpiderCloud Radio Node - SCRN-310 Hardware Installation GuideSpiderCloud Wireless, Inc. 15Figure 12 Fully MountedInstalling the Radio Node (Method 2)To route the cable directly and mount the radio nodeStep 1  Route the Ethernet cable through the large hole in the mounting bracket. Figure 13 Mount Bracket with Direct Cable RoutingStep 2  With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) screw. Ensure the screws have a snug fit onto the studs, sheetrock, anchor, or other material you are bolting onto. Step 3  Insert the RJ-45 connector into the Ethernet port as shown in Figure 14: Transmit Side
