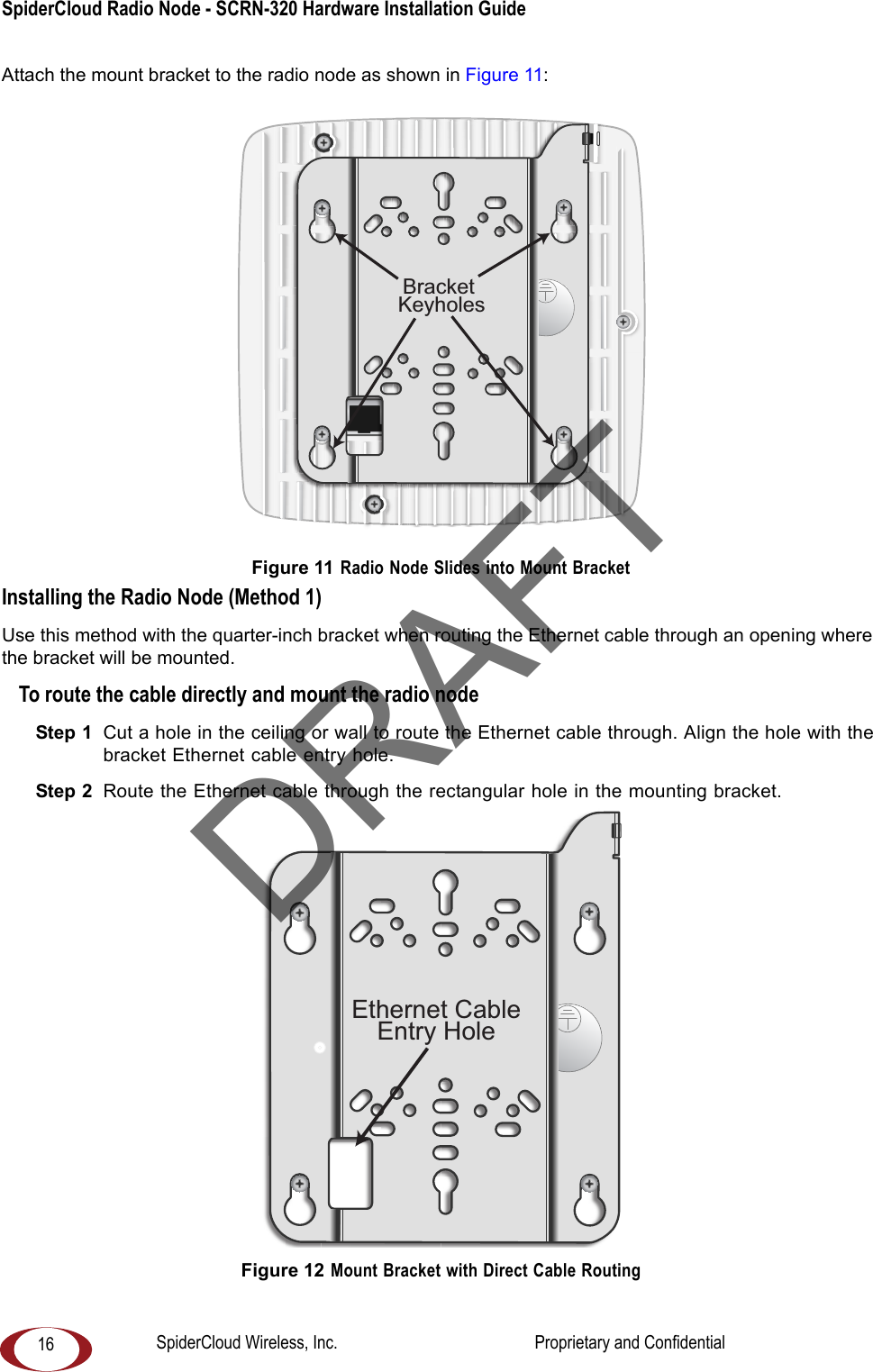

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide 16Attach the mount bracket to the radio node as shown in Figure 11: Figure 11 Radio Node Slides into Mount BracketInstalling the Radio Node (Method 1)Use this method with the quarter-inch bracket when routing the Ethernet cable through an opening where the bracket will be mounted.To route the cable directly and mount the radio nodeStep 1  Cut a hole in the ceiling or wall to route the Ethernet cable through. Align the hole with the bracket Ethernet cable entry hole.Step 2  Route the Ethernet cable through the rectangular hole in the mounting bracket. Figure 12 Mount Bracket with Direct Cable RoutingBracket KeyholesEthernet CableEntry HoleDRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential

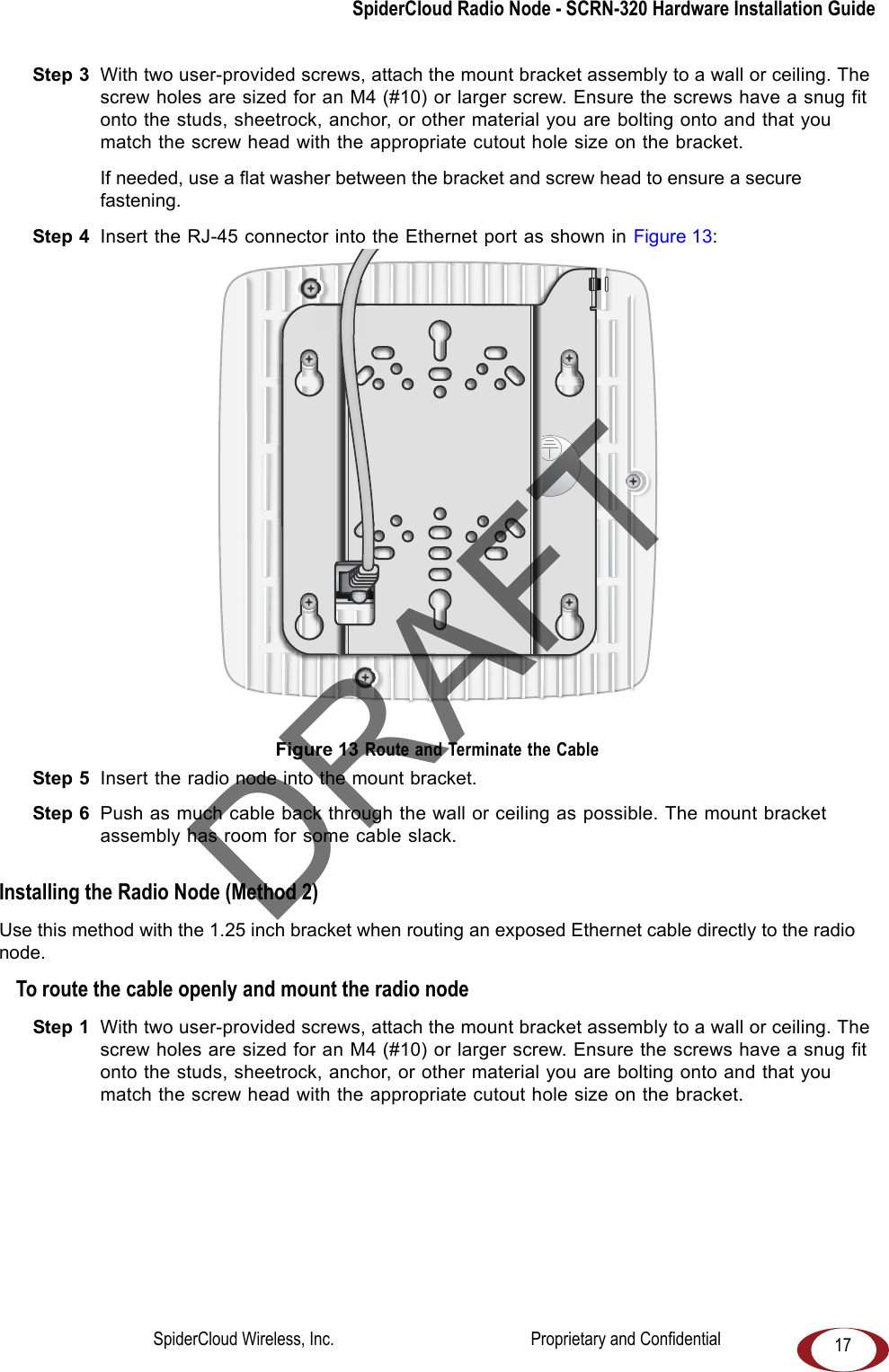

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide17Step 3  With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit onto the studs, sheetrock, anchor, or other material you are bolting onto and that you match the screw head with the appropriate cutout hole size on the bracket. If needed, use a flat washer between the bracket and screw head to ensure a secure fastening.Step 4  Insert the RJ-45 connector into the Ethernet port as shown in Figure 13: Figure 13 Route and Terminate the CableStep 5  Insert the radio node into the mount bracket.Step 6  Push as much cable back through the wall or ceiling as possible. The mount bracket assembly has room for some cable slack. Installing the Radio Node (Method 2)Use this method with the 1.25 inch bracket when routing an exposed Ethernet cable directly to the radio node.To route the cable openly and mount the radio nodeStep 1  With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit onto the studs, sheetrock, anchor, or other material you are bolting onto and that you match the screw head with the appropriate cutout hole size on the bracket. DRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential

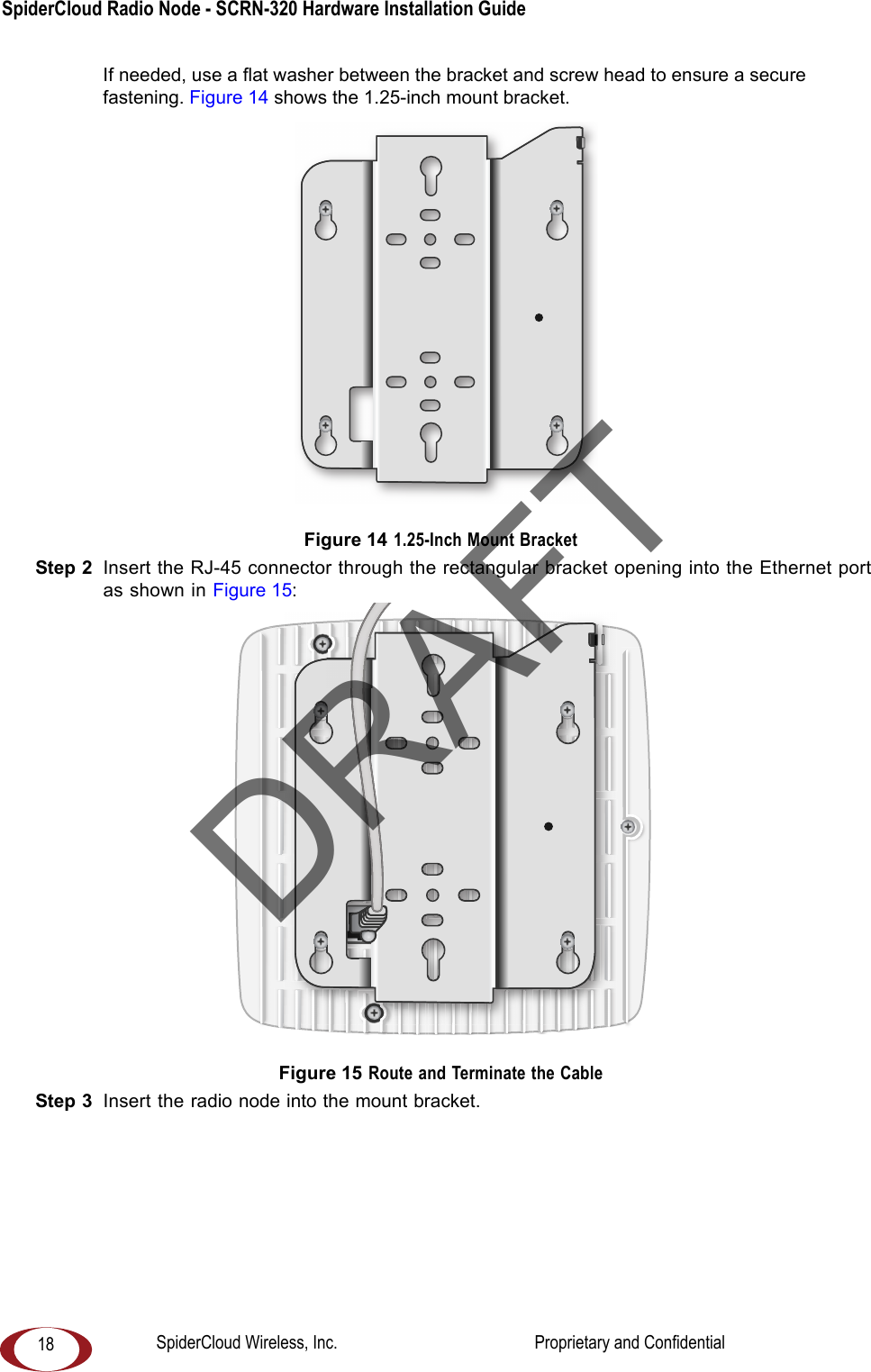

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide 18If needed, use a flat washer between the bracket and screw head to ensure a secure fastening. Figure 14 shows the 1.25-inch mount bracket.  Figure 14 1.25-Inch Mount BracketStep 2  Insert the RJ-45 connector through the rectangular bracket opening into the Ethernet port as shown in Figure 15: Figure 15 Route and Terminate the CableStep 3  Insert the radio node into the mount bracket. DRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential

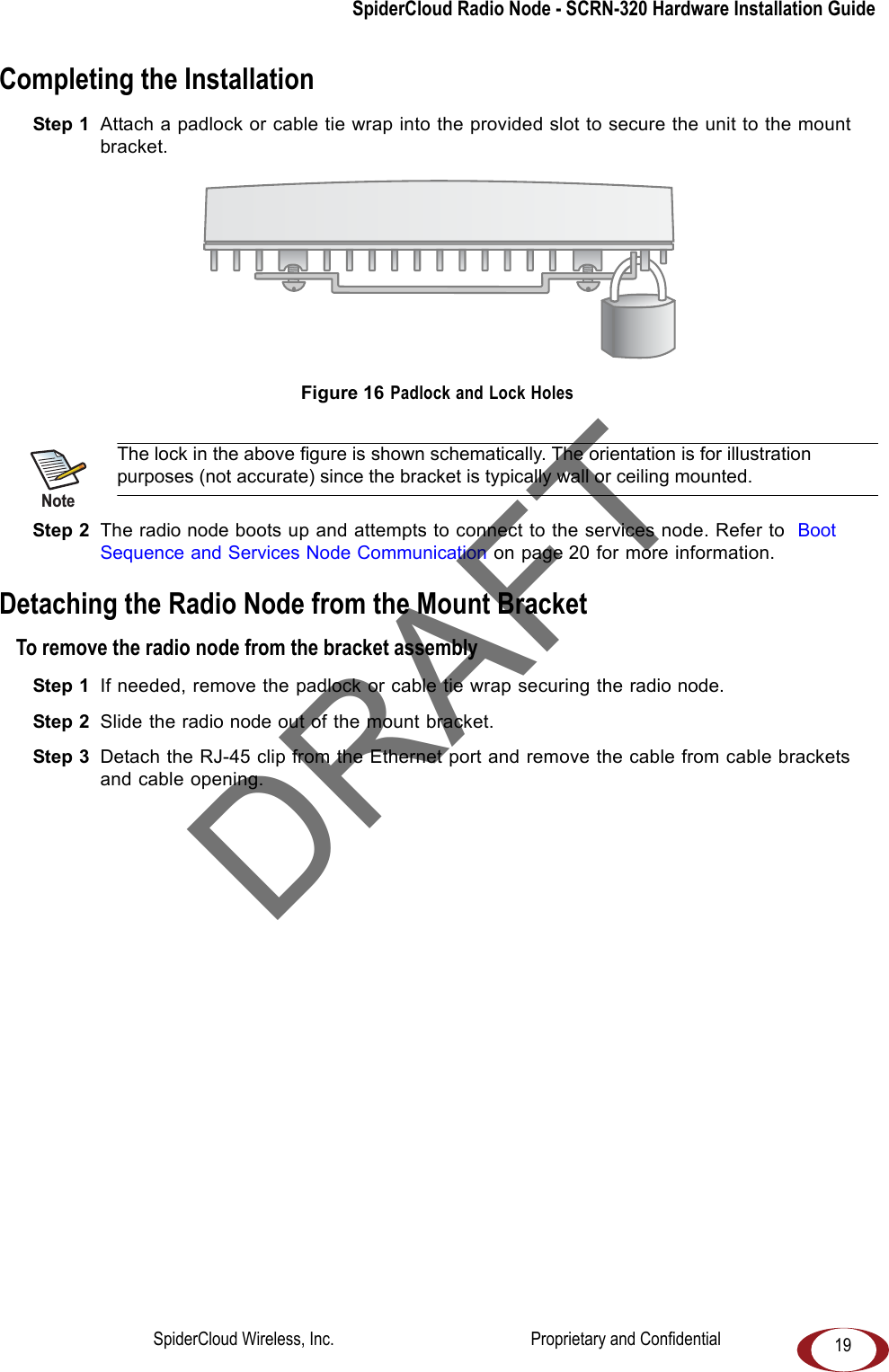

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide19Completing the InstallationStep 1  Attach a padlock or cable tie wrap into the provided slot to secure the unit to the mount bracket. Figure 16 Padlock and Lock Holes Step 2  The radio node boots up and attempts to connect to the services node. Refer to  Boot Sequence and Services Node Communication on page 20 for more information.Detaching the Radio Node from the Mount BracketTo remove the radio node from the bracket assemblyStep 1  If needed, remove the padlock or cable tie wrap securing the radio node.Step 2  Slide the radio node out of the mount bracket.Step 3  Detach the RJ-45 clip from the Ethernet port and remove the cable from cable brackets and cable opening.The lock in the above figure is shown schematically. The orientation is for illustration purposes (not accurate) since the bracket is typically wall or ceiling mounted.NoteDRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential

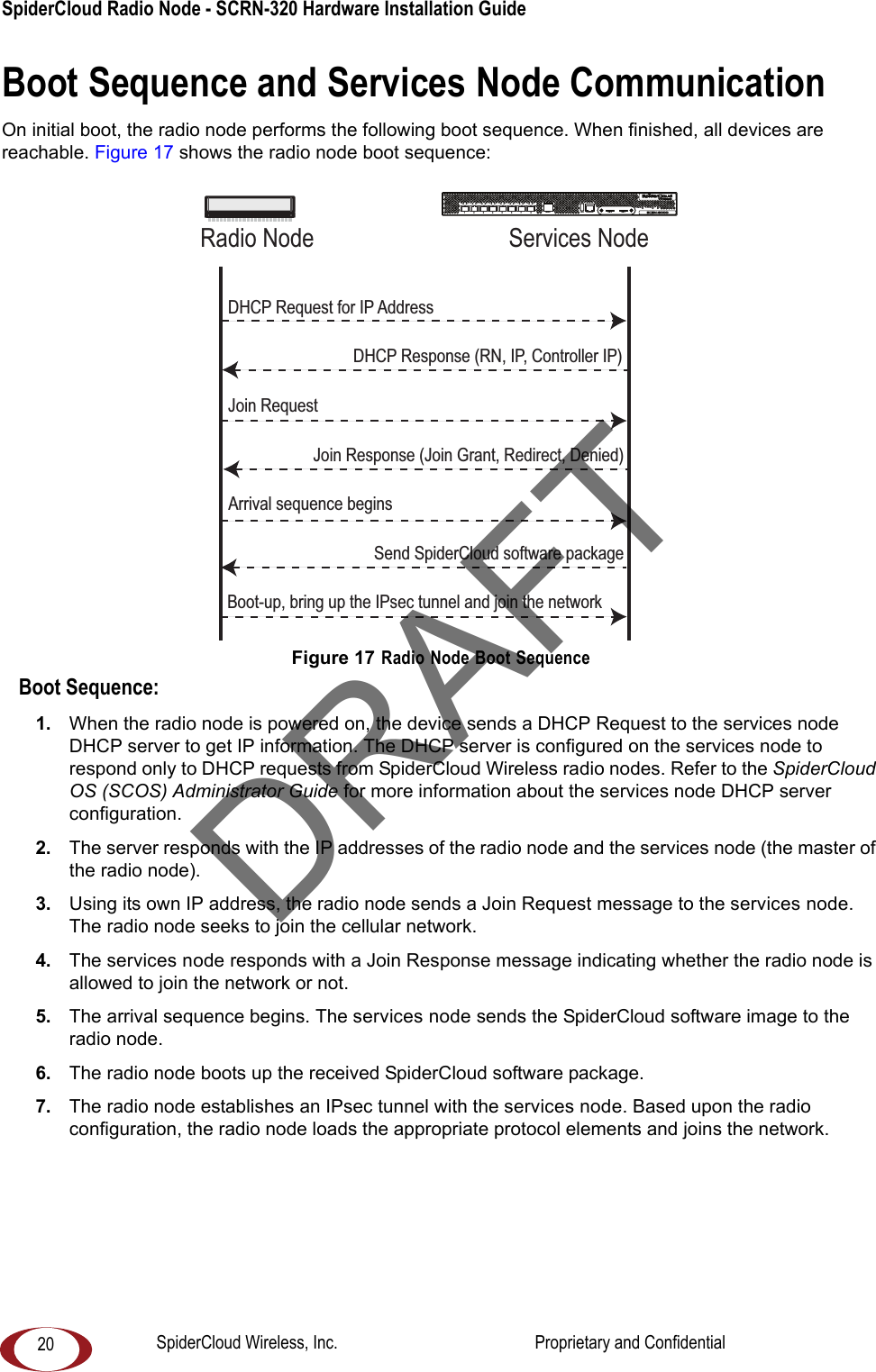

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide 20Boot Sequence and Services Node CommunicationOn initial boot, the radio node performs the following boot sequence. When finished, all devices are reachable. Figure 17 shows the radio node boot sequence:Figure 17 Radio Node Boot SequenceBoot Sequence:1.  When the radio node is powered on, the device sends a DHCP Request to the services node DHCP server to get IP information. The DHCP server is configured on the services node to respond only to DHCP requests from SpiderCloud Wireless radio nodes. Refer to the SpiderCloud OS (SCOS) Administrator Guide for more information about the services node DHCP server configuration.2.  The server responds with the IP addresses of the radio node and the services node (the master of the radio node).3.  Using its own IP address, the radio node sends a Join Request message to the services node. The radio node seeks to join the cellular network. 4.  The services node responds with a Join Response message indicating whether the radio node is allowed to join the network or not.5.  The arrival sequence begins. The services node sends the SpiderCloud software image to the radio node. 6.  The radio node boots up the received SpiderCloud software package.7.  The radio node establishes an IPsec tunnel with the services node. Based upon the radio configuration, the radio node loads the appropriate protocol elements and joins the network.USB CONSOLELK AT LK AT LK AT LK AT LK AT LK AT LK AT LK AT81234567LNK ACTMGMTPOWER STATUS 1 2SIM 0 SIM 1Radio Node Services NodeDHCP Request for IP AddressDHCP Response (RN, IP, Controller IP)Join RequestJoin Response (Join Grant, Redirect, Denied)Arrival sequence beginsSend SpiderCloud software packageBoot-up, bring up the IPsec tunnel and join the networkDRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential

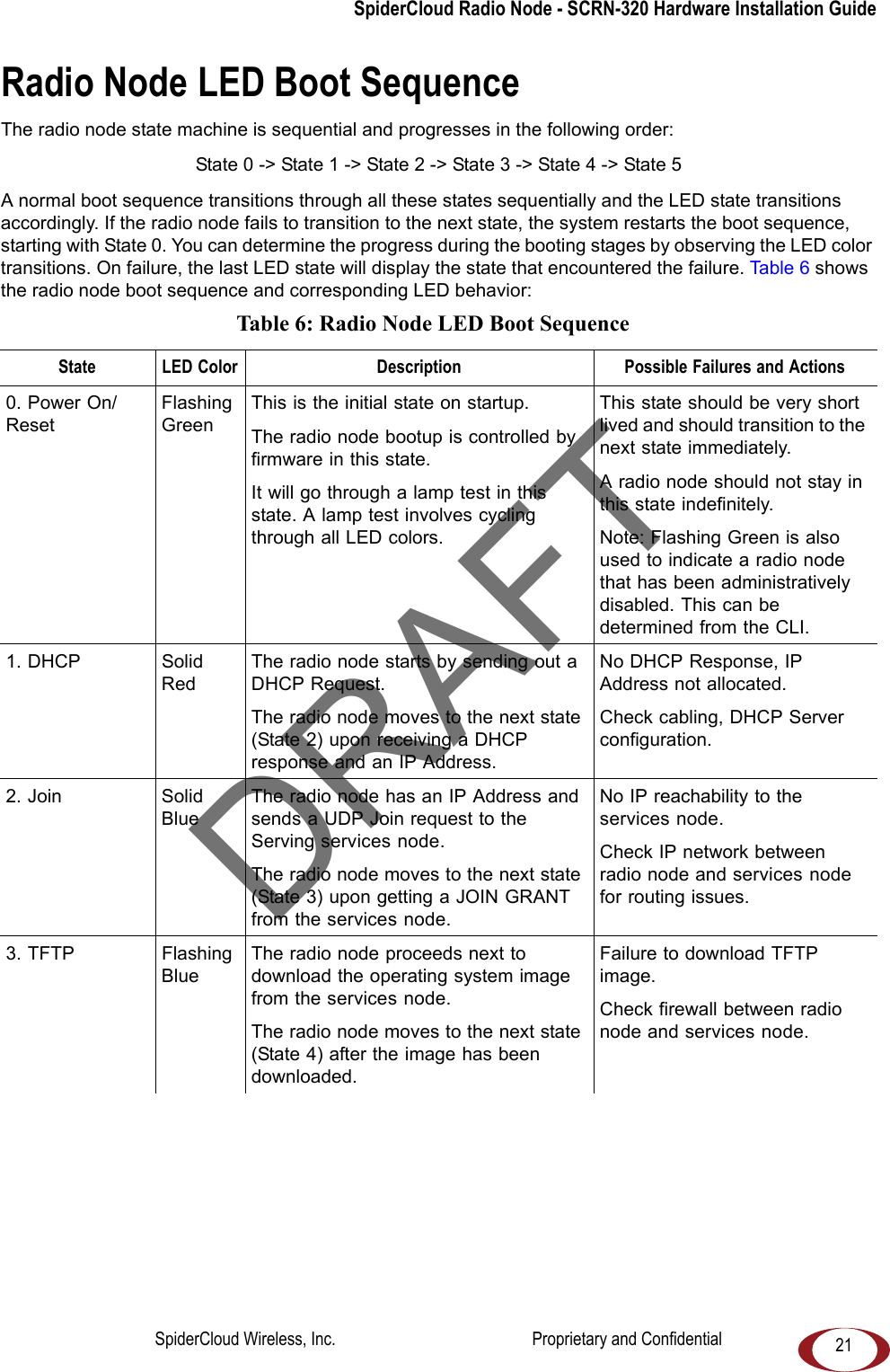

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide21Radio Node LED Boot SequenceThe radio node state machine is sequential and progresses in the following order: State 0 -> State 1 -> State 2 -> State 3 -> State 4 -> State 5A normal boot sequence transitions through all these states sequentially and the LED state transitions accordingly. If the radio node fails to transition to the next state, the system restarts the boot sequence, starting with State 0. You can determine the progress during the booting stages by observing the LED color transitions. On failure, the last LED state will display the state that encountered the failure. Tab le 6 shows the radio node boot sequence and corresponding LED behavior: Table 6: Radio Node LED Boot Sequence State LED Color Description Possible Failures and Actions0. Power On/ResetFlashing GreenThis is the initial state on startup. The radio node bootup is controlled by firmware in this state. It will go through a lamp test in this state. A lamp test involves cycling through all LED colors.This state should be very short lived and should transition to the next state immediately.A radio node should not stay in this state indefinitely. Note: Flashing Green is also used to indicate a radio node that has been administratively disabled. This can be determined from the CLI.1. DHCP Solid RedThe radio node starts by sending out a DHCP Request. The radio node moves to the next state (State 2) upon receiving a DHCP response and an IP Address.No DHCP Response, IP Address not allocated. Check cabling, DHCP Server configuration.2. Join Solid BlueThe radio node has an IP Address and sends a UDP Join request to the Serving services node. The radio node moves to the next state (State 3) upon getting a JOIN GRANT from the services node.No IP reachability to the services node.Check IP network between radio node and services node for routing issues.3. TFTP Flashing BlueThe radio node proceeds next to download the operating system image from the services node. The radio node moves to the next state (State 4) after the image has been downloaded.Failure to download TFTP image. Check firewall between radio node and services node.DRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential

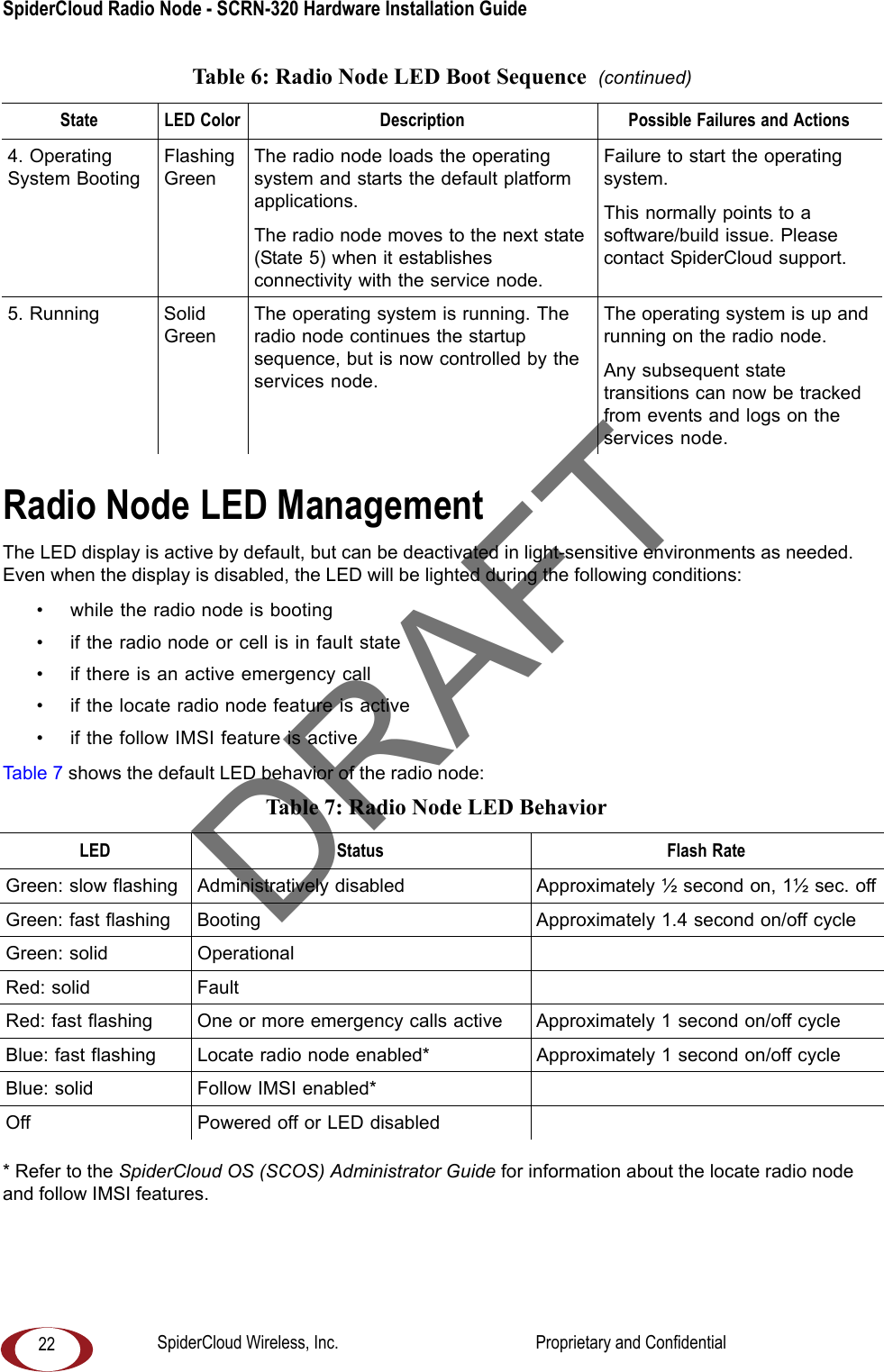

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide 22Radio Node LED ManagementThe LED display is active by default, but can be deactivated in light-sensitive environments as needed. Even when the display is disabled, the LED will be lighted during the following conditions: • while the radio node is booting• if the radio node or cell is in fault state• if there is an active emergency call• if the locate radio node feature is active• if the follow IMSI feature is activeTabl e 7 shows the default LED behavior of the radio node: * Refer to the SpiderCloud OS (SCOS) Administrator Guide for information about the locate radio node and follow IMSI features.4. Operating System BootingFlashing GreenThe radio node loads the operating system and starts the default platform applications. The radio node moves to the next state (State 5) when it establishes connectivity with the service node.Failure to start the operating system. This normally points to a software/build issue. Please contact SpiderCloud support.5. Running Solid GreenThe operating system is running. The radio node continues the startup sequence, but is now controlled by the services node.The operating system is up and running on the radio node. Any subsequent state transitions can now be tracked from events and logs on the services node.Table 7: Radio Node LED Behavior LED Status Flash RateGreen: slow flashing  Administratively disabled Approximately ½ second on, 1½ sec. offGreen: fast flashing  Booting Approximately 1.4 second on/off cycleGreen: solid OperationalRed: solid FaultRed: fast flashing  One or more emergency calls active Approximately 1 second on/off cycleBlue: fast flashing  Locate radio node enabled* Approximately 1 second on/off cycleBlue: solid Follow IMSI enabled*Off Powered off or LED disabledTable 6: Radio Node LED Boot Sequence  (continued)State LED Color Description Possible Failures and ActionsDRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential

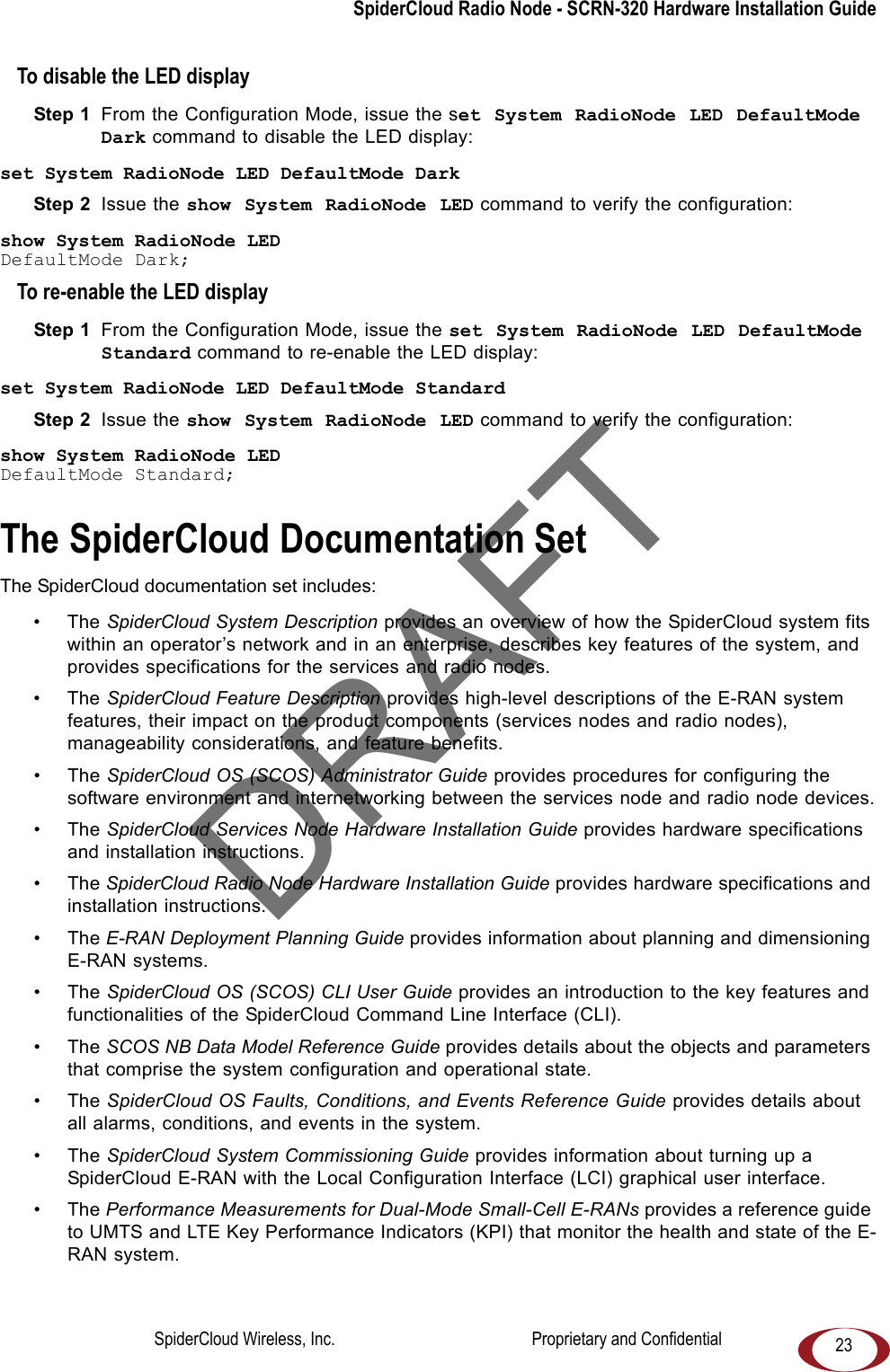

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide23To disable the LED displayStep 1  From the Configuration Mode, issue the set System RadioNode LED DefaultMode Dark command to disable the LED display:set System RadioNode LED DefaultMode DarkStep 2  Issue the show System RadioNode LED command to verify the configuration:show System RadioNode LEDDefaultMode Dark;To re-enable the LED displayStep 1  From the Configuration Mode, issue the set System RadioNode LED DefaultMode Standard command to re-enable the LED display:set System RadioNode LED DefaultMode StandardStep 2  Issue the show System RadioNode LED command to verify the configuration:show System RadioNode LEDDefaultMode Standard;The SpiderCloud Documentation SetThe SpiderCloud documentation set includes:•The SpiderCloud System Description provides an overview of how the SpiderCloud system fits within an operator’s network and in an enterprise, describes key features of the system, and provides specifications for the services and radio nodes.•The SpiderCloud Feature Description provides high-level descriptions of the E-RAN system features, their impact on the product components (services nodes and radio nodes), manageability considerations, and feature benefits.•The SpiderCloud OS (SCOS) Administrator Guide provides procedures for configuring the software environment and internetworking between the services node and radio node devices.•The SpiderCloud Services Node Hardware Installation Guide provides hardware specifications and installation instructions.•The SpiderCloud Radio Node Hardware Installation Guide provides hardware specifications and installation instructions.•The E-RAN Deployment Planning Guide provides information about planning and dimensioning E-RAN systems. •The SpiderCloud OS (SCOS) CLI User Guide provides an introduction to the key features and functionalities of the SpiderCloud Command Line Interface (CLI).•The SCOS NB Data Model Reference Guide provides details about the objects and parameters that comprise the system configuration and operational state.•The SpiderCloud OS Faults, Conditions, and Events Reference Guide provides details about all alarms, conditions, and events in the system.•The SpiderCloud System Commissioning Guide provides information about turning up a SpiderCloud E-RAN with the Local Configuration Interface (LCI) graphical user interface.•The Performance Measurements for Dual-Mode Small-Cell E-RANs provides a reference guide to UMTS and LTE Key Performance Indicators (KPI) that monitor the health and state of the E-RAN system.DRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential

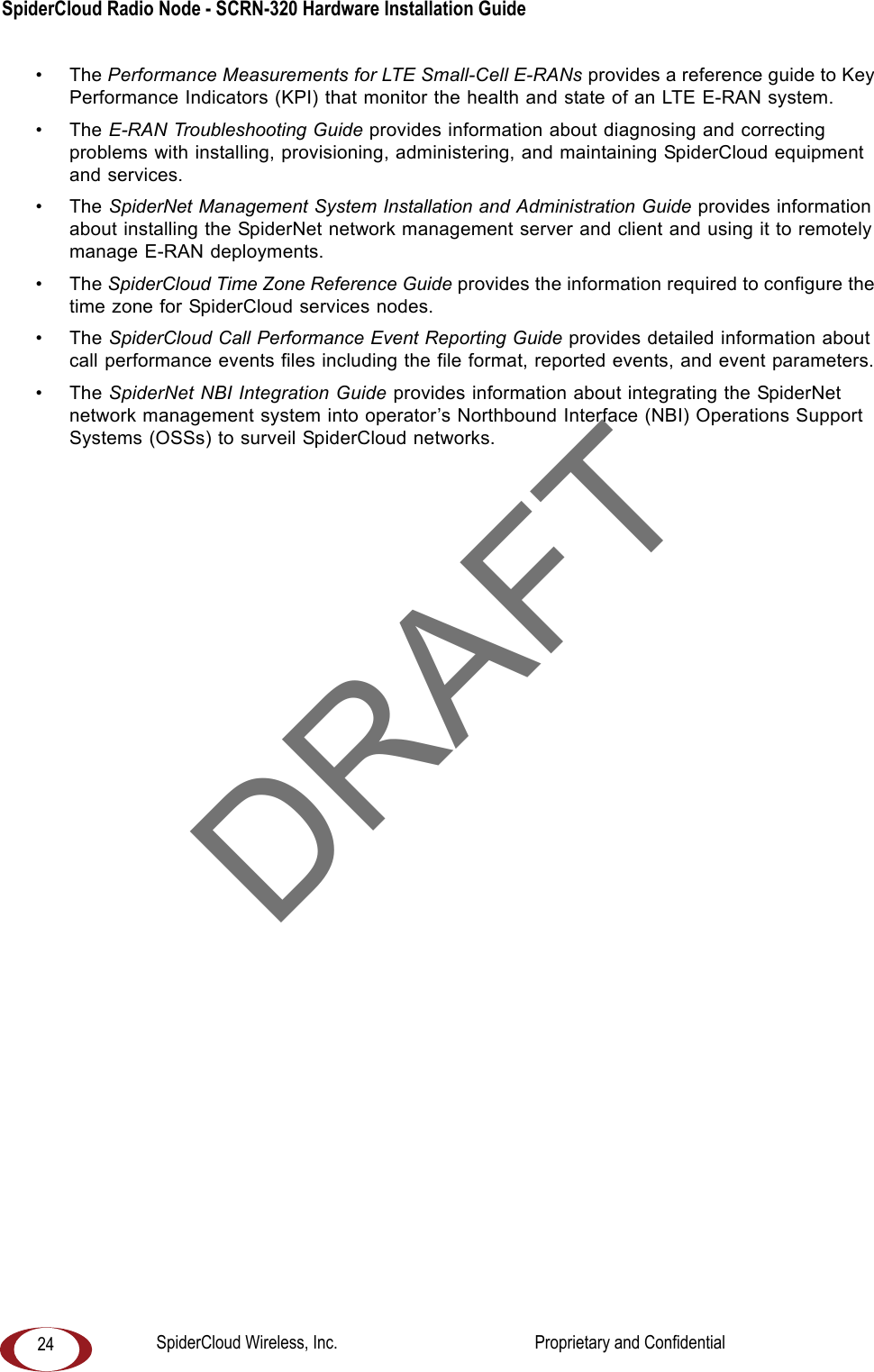

SpiderCloud Radio Node - SCRN-320 Hardware Installation Guide 24•The Performance Measurements for LTE Small-Cell E-RANs provides a reference guide to Key Performance Indicators (KPI) that monitor the health and state of an LTE E-RAN system.•The E-RAN Troubleshooting Guide provides information about diagnosing and correcting problems with installing, provisioning, administering, and maintaining SpiderCloud equipment and services.•The SpiderNet Management System Installation and Administration Guide provides information about installing the SpiderNet network management server and client and using it to remotely manage E-RAN deployments.•The SpiderCloud Time Zone Reference Guide provides the information required to configure the time zone for SpiderCloud services nodes.•The SpiderCloud Call Performance Event Reporting Guide provides detailed information about call performance events files including the file format, reported events, and event parameters.•The SpiderNet NBI Integration Guide provides information about integrating the SpiderNet network management system into operator’s Northbound Interface (NBI) Operations Support Systems (OSSs) to surveil SpiderCloud networks. DRAFTSpiderCloud Wireless, Inc.                                              Proprietary and Confidential
