Operators Manual
Hydra Operation Guide
Table of Contents
1. Introduction .......................................................................................................................................... 3
1.1. Important Safety Note .................................................................................................................. 3
1.2. Product Introduction ..................................................................................................................... 3
1.2.1. Product Purpose ........................................................................................................................ 3
1.2.2. Front panel ................................................................................................................................ 3
1.2.2.1. LED indicators ........................................................................................................................ 3
1.2.2.2. Base unit physical interfaces ................................................................................................. 4
1.3. Technical Support ......................................................................................................................... 4
2. Specifications ........................................................................................................................................ 4
1. Introduction
1.1. Important Safety Note
Any usage of the equipment in a manner not specified by the manufacturer may impair features related
to safety and user protection.
Tout usage de cet équipement, qui n’est pas conforme aux spécifications du manufacturier, peut affecter
les fonctions relatives à la sécurité et la protection de l’utilisateur
1.2. Product Introduction
The following sections provide a high-level overview of the unit.
1.2.1. Product Purpose
The unit is designed to measure mobile device performance. The unit is utilized to provide metrics for
voice quality, voice delay, call initiation, call retention, call setup time, loss of network, and Bluetooth
voice performance.

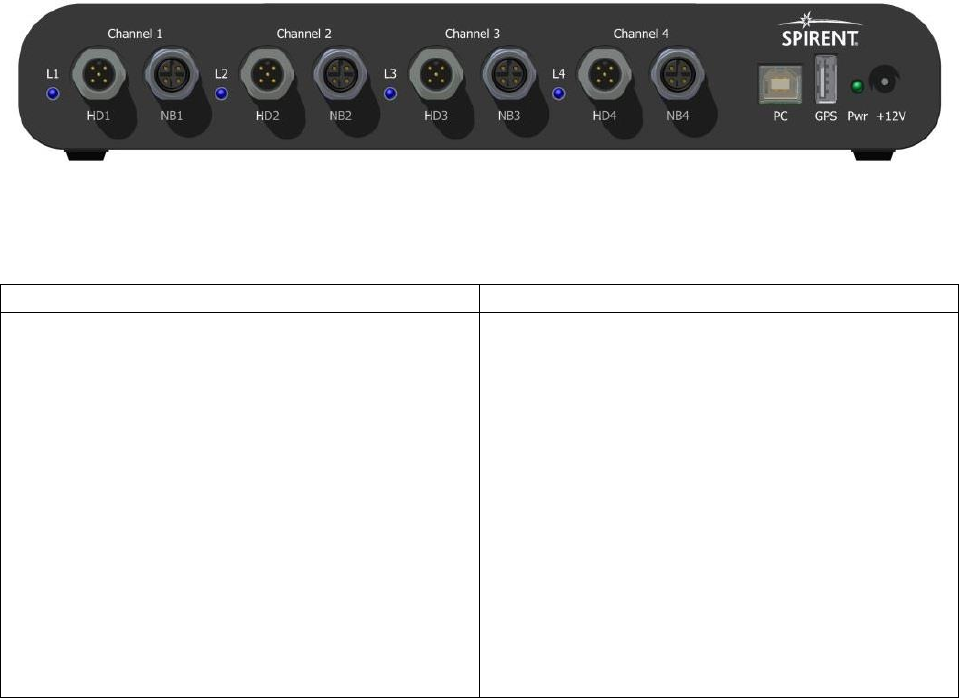

1.2.2. Front panel
1.2.2.1. LED indicators
Indicator
Function
L1, L2, L3, L4
Indicates the status of the link over the active
interface for the given channel. For example,
when utilizing the Bluetooth interface, the LED
indicates the status of the Bluetooth link. The
general behavior is as follows:
Dark – Channel is disabled
Green – Channel is enabled for
Narrowband Analog
White – Channel is enabled for Wideband
Analog
Cyan (Flashing) – Bluetooth initialization
Cyan (Solid) – Bluetooth initialized
Blue (Flashing) – Bluetooth Pairing “On”
Blue (Solid) – Bluetooth is Paired
Yellow (Flashing) – Outgoing call setup
Yellow (Solid) – Outgoing call in progress
Magenta (Flashing) – Incoming call setup
Magenta (Solid) – Incoming call in
progress
Red - Overdrive
Pwr
When lit, indicates that power is applied to the
unit.
1.2.2.2. Base unit physical interfaces
Interface
Description
HD1, HD2, HD3, HD4
Interface for High Definition Audio
NB1, NB2, NB3, NB4
Interface for Narrowband Audio
PC
USB interface for communication with the PC
GPS
USB interface for communication with a GPS
device. The interface functions as a normal USB
port for the PC.
+12V
Power supply interface.
1.3. Technical Support
If you need product assistance or want to report problems with the product or the documentation,
please contact us.
Mailing address:
Client Services
Spirent Communications
7340 Executive Way, Suite A
Frederick, MD 21704
USA
Phone:
1-800-714-6421, Extension 2
Intro Wi-Fi 10/100 System IP/Video Specs
E-mail: support@metricowireless.com
2. Specifications
Physical Specifications
Dimensions (H x W X D)
1 5/8 in x 10 ¼ in x 4 7/8 in
Weight
2.2 lbs
Case material
Aluminum
Communication interfaces
Bluetooth, Analog, USB
Power Specifications
AC operations
Requires external AC adapter. Adapter
specifications:
Input – 100 to 240 V, 50-60 Hz, 0.4 amps
Output – 12 V, 1.0 amps
Maximum power usage
10 Watts
Maximum heat dissipation
10 Watts
Environmental Requirements
Operating temperature
0 to 55°C
Storage temperature
-20 to 70°C
Humidity tolerance
5 to 85% RH at 40°C
