Spyder Controls BSSPZZFP Momentary operation remote control User Manual
Spyder Controls Corp. Momentary operation remote control
User Manual
Spyder Controls
SSP-17 RF (BSSPZZFP1, BSSPZZFP2, and BSSPZZFP4) User Manual
Page 1 of 3
Labels:
FCC: OV9BSSPZZFP
IC: 10245A- BSSPZZFP
FVIN: 12V
Model: BSSPZZFP1
PMN: SSP-17 RF 4 Pos
FCC: OV9BSSPZZFP
IC: 10245A- BSSPZZFP
FVIN: 12V
Model: BSSPZZFP2
PMN: SSP-17 RF 8 Pos
FCC: OV9BSSPZZFP
IC: 10245A- BSSPZZFP
FVIN: BAT
Model: BSSPZZFP4
PMN: SSP-17 RF Battery
Important Information
FCC Notice to Users
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Hitech Safety Displays Ltd. has not approved any changes or modification to this device by the user. Any
changes or modification could void the user's authority to operate the equipment.
Industry Canada Notice to Users
This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the following
two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation o
f the devices.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Variants
12 Volt Powered 4 Button - BSSPZZFP1
12 Volt Powered 8 Button - BSSPZZFP2
Battery Powered 8 Button - BSSPZZFP4
The 12 volt powered models feature a dim backlight to make the text on the buttons visible at night. To conserve
battery power, the battery powered model does not have the backlighting feature.
Spyder Controls
SSP-17 RF (BSSPZZFP1, BSSPZZFP2, and BSSPZZFP4) User Manual
Page 2 of 3
Operation
The SSP-17 RF switch panel features an integrated 400 Mhz Transmitter that wirelessly sends messages to
a reciever device. Each switch panel has a green “Transmit LED” located at the bottom center. This LED should turn
on whenever a button is being pressed or held indicating that the switch panel is transmitting. The LED will also
flash briefly once every 20 seconds when it transmitts the battery status and/or the optional ambient temperature
data.
The messages sent out by each switch panel has a unique identifier which is used to distinguish them from
one another. The message sent out when pressing a button also indicates which button is being pressed to allow
the reciving device to perform a unique action for each button. The wireless reciever device only acnologes
messages from switch panels that are paired with it. To pair a switch panel with the receiving device, put the
reciviving device into pairing mode (folowing the instructions for the reciever device), then press any two butons
on the switch panel simultaneously to send a pairing signal.

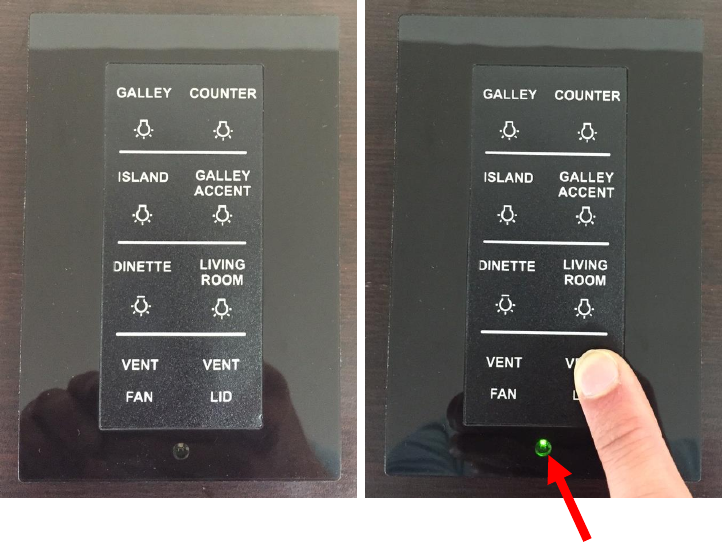

Not Transmitting Transmitting
Transmit LED
Spyder Controls
SSP-17 RF (BSSPZZFP1, BSSPZZFP2, and BSSPZZFP4) User Manual
Page 3 of 3
12 Volt Powered Battery Powered
Troubleshooting
If the switch panel is not operating as expected watch the Transmit LED and press on of the buttons to see
if it comes on. If the LED does not come on, check the power source. For the battery powered version, replace the
CR2032 battery and try operating the switch panel again. For the 12 volt version, verify that the red power wire
has a good connection to ground and that the black wire has a good connection to ground. If the Transmit LED still
does not turn on when pressing a button after troubleshooting the power source, the switch panel has failed and
needs to be replaced.
If the switch panel does not operate as expected but the Transmit LED does come on when pressing the
button there is likely a problem with the receer device. Refer to the document to the reciever device being used
for troubleshooting and pairing procedures.

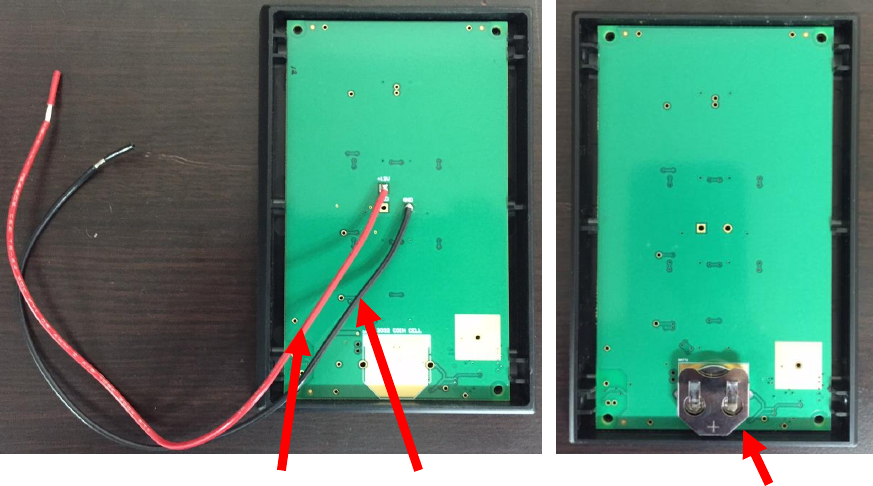

Power Wire
Ground Wire
CR2032 Battery
