User Manual



CM1039

PROFESSIONALSERIESMOBILERADIO



  



INSTRUCTION MANUAL



2



StandardCommunicationsPtyLtdreservesallrightstothisdocumentandtheinformation

containedherein.Reproduction,useordisclosuretothirdpartieswithouttheexpress

permissionisstrictlyprohibited.

StandardCommunicationsPtyLtd

Sydney,Australia



RADIOFREQUENCYEXPOSUREHAZARD

Attention

Thisradioshouldbeusedonlyinanoccupational(workrelated)environmentwherethe

userisawareofandabletoexercisecontrolovertheirexposuretoRFenergy.Thisradiois

notauthorizedforusebytheconsumerorbythegeneralpopulation.

TocomplywiththeUSFCCradiofrequencyguidelinesandtoensureyoursafetypleaseread

thefollowinginformationbeforeinstallingandusingtheradio.

 Usetheradioonlywithintheguidelinesofthismanual.

 Useonlywithanapprovedantenna.

 DonotremovetheRFExposurelabelfromthisradio.

 Donottransitlongerthantherateddutycycleof50%talk‐50%listen.

RadioFrequencyExposureControl

ThisradioemitsRF(RadioFrequency)energyorradiowaveswhentransmitting.RFenergyis

oneofmanyformsofelectromagneticenergyincludingsunlightandelectricity.TheFCC

RadioFrequencyexposureguidelinesincluderecommendationsonthesafelevelsof

exposureforworkersandthegeneralpublicwithasignificantmarginofprotection.

TocomplywithFCCexposurelimitstheradiomustbeinstalledusinganexternallymounted

antennawithagainofeither2.15dBior5.15dBi.Transmitonlywhenbystandersareata

minimumsafedistanceof35inches(0.9m)fromtheantenna.

ForfurtherinformationonRFenergyexposureandhowtocontrolit,pleasevisitthe

followingwebsite.www.fcc.gov/oet/rfsafety/rf‐faqs.html



3



CompliancewithRFEnergyStandards

Thisradioisdesignedandtestedtocomplywithanumberofnationalandinternational

standardsandguidelines(listedbelow)regardinghumanexposuretoRFelectromagnetic

energy.ThisradiocomplieswiththeIEEEandICNIRPexposurelimitsfor

occupational/controlledRFexposureenvironmentatdutycyclesofupto50%talk‐50%

listenandshouldbeusedforoccupationaluseonly.IntermsofmeasuringRFenergyfor

compliancewiththeFCCexposureguidelines,yourradioradiatesmeasureableRFenergy

onlywhenitistransmitting(duringtalking),notwhenitisreceiving(listening)orinstandby

mode.

ThisradiocomplieswiththefollowingRFenergyexposurestandardsandguidelines:

 UnitedStatesFederalCommunicationsCommission,CodeofFederalRegulations;

47CFRpart2sub‐partJ

 AmericanNationalStandardsInstitute(ANSI)/InstituteofElectricalandElectronic

Engineers(IEEE)C95.1‐1992

 InstituteofElectricalandElectronicEngineers(IEEE)C95.1‐1999edition

 InternationalCommissiononNon‐IonizingRadiationProtection(ICNIRP)1998

FCCCOMPLIANCE



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledand

usedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:

 Reorientorrelocatethereceivingantenna.

 Increasetheseparationbetweentheequipmentandreceiver.

 Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.



Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



4



USINGTHERADIOINEXPLOSIVEATMOSPHERESORBLASTINGAREAS



Switchoffyourradiobeforeenteringanyareawheretheremaybeinflammablegas,liquids

ordust.Anexplosioncouldresultinseriousinjuryordeath.



Switchoffyourradiowhenapproachingablastingarea.Blastingareasareusuallysign

postedwithinstructionstouserstoturnofftwowayradios.Strongradiotransmissions

couldigniteblastingcapsresultinginanunscheduledexplosionresultinginseriousinjuryor

death.



INSTALLATIONGUIDELINES



 Donotinstalltheradionearanairbagorinanareawhereanairbagmaydeploy.If

anairbagisobstructedbytheradio,itmaynotdeployasexpected.Itcouldalso

propeltheradiowithenoughforcetocauseseriousinjury.



 Avoidtouchingtheheatsinkattherearoftheradiowhiletheradioisinuse.The

heatsinkcanbecomehotduringprolongeduse.



 Donotinstalltheradioinfrontofavehicleheater.Theradiorequiresacoolairflow

overtherearheatsinkwhentransmittingtomaintainefficiency.



 Donotmakeunapprovedmodificationstotheradio.Suchmodificationscouldvoid

thewarrantyandcausetheradiotooperateoutsideitsapprovedspecifications.



InterferencewithVehicleElectronics



SomeoftheelectronicsinyourvehiclemaybesusceptibletoRFenergywhenyourradiois

transmitting.Examplesofelectronicdevicesinyourvehiclethatcouldbeaffectedareanti‐

lock/anti‐skidbrakingsystems,cruisecontrolsystemsandfuelinjectionsystems.Ifyour

vehicleisfittedwithanyofthesesystemspleaseconsultyourvehiclemanufacturerto

determinewhetherthesesystemsarelikelytobeaffectedbyyourradiowhenitis

transmitting.Carefulselectionofmountinglocationsandgoodinstallationtechniques

shouldgenerallyminimizeanyinterferencetoyourvehicleelectronics.



5



CONTENTS



INTRODUCTION...........................................................



6

FEATURES...........................................................6

PRIMARYCONTROLS........................................................

FrontPanel.........................................................

RearPanel.........................................................

MC513BCMicrophone................................................

7

PROGRAMMABLEKEYS......................................................8

MENUNAVIGATION........................................................

General............................................................

MenuMap.........................................................

8

9

GENERALOPERATION......................................................

Backlight...........................................................

TXPowerLevel......................................................

Squelch............................................................

SquelchLevel.......................................................

BeepVolume.......................................................

FirmwareVersion....................................................

RadioSerialNumber..................................................

SelectiveCall........................................................

DTMF..............................................................

MCD1200DigitalDataSignaling........................................

CTCSS/DCS..........................................................

MonitorFunction....................................................

Zones..............................................................

Scan...............................................................

Voting..............................................................

ScanNuisanceDelete.................................................

DynamicRegrouping..................................................

FailsoftOperation....................................................

10

11

12

13

14

17

18

20

21

INSTALLATION.............................................................

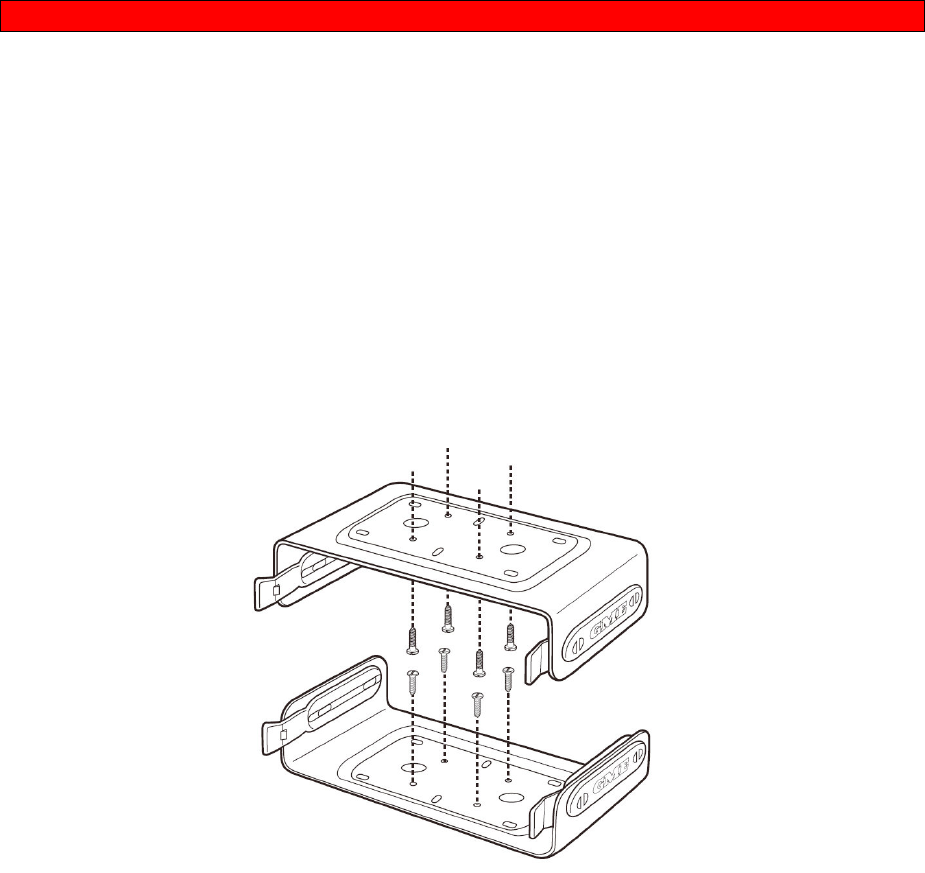

MountingtheCradle.................................................

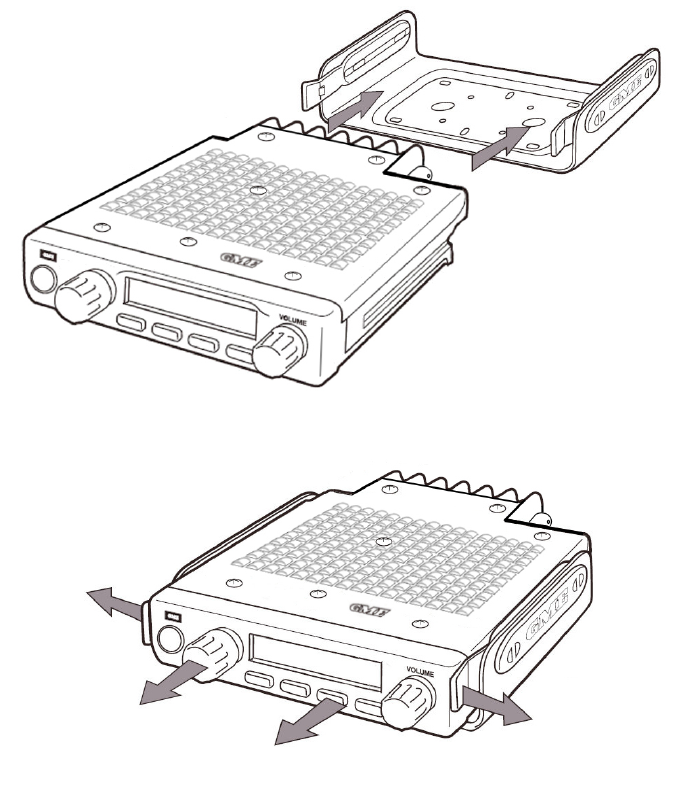

FittingtheRadio.....................................................

RemovingtheRadio..................................................

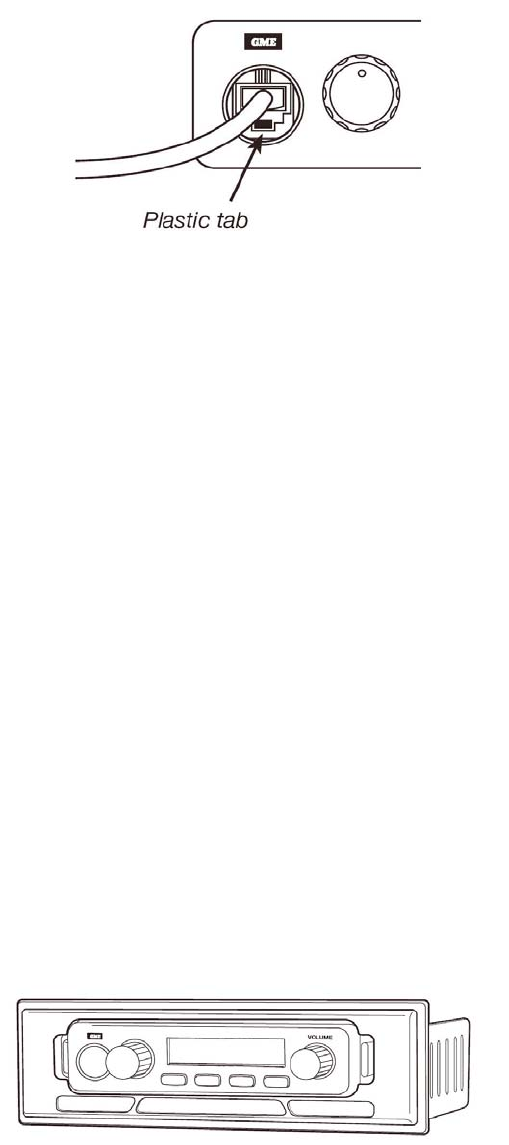

FittingtheMC513BCMicrophone.......................................

RemovingtheMicrophone.............................................

ConsoleMounting....................................................

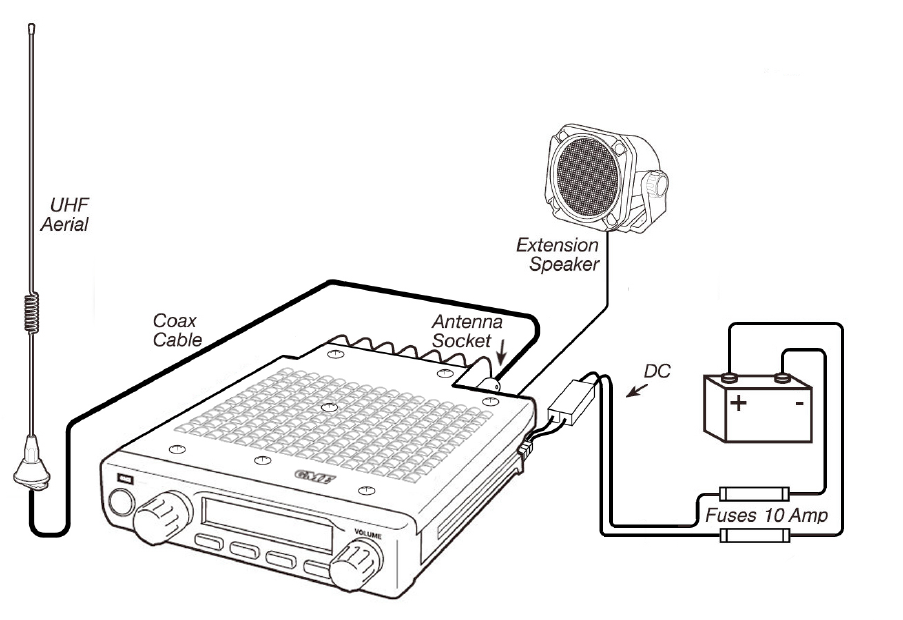

DCPowerConnection.................................................

AntennaConnection..................................................

21

22

23

24

SPECIFICATIONS............................................................25

WARRANTY...............................................................26



6



INTRODUCTION



TheGMECM1039Seriesisa25WCommercialradiowhichwilloperateintheVHF136–174

MHz,UHF(H)450MHz–512MHzandUHF(L)403MHz–470MHzbands.

GMECM1039Seriesradiosrepresentasignificantopportunityforbothlargeandsmall

networkoperatorstoeffectivelyfutureprooftheircommunicationssystems.TheCM1039

seriesofmobileradiospermitsfleettransitionfromasimple,yetfullyfeaturedanalog

transceivertoatotallycompliantconventionalortrunkedP25digitalsolution.

TheGMECM1039supportsarangeofconfigurableoptionstosuitanyapplicationand

virtuallyanyvehicleinstallationchallenge.



TheCM1039Seriescanoperateinthreemodes:



1. Conventionalanalog

2. P25Conventional

3. P25Trunkedwithencryptionanddata



FEATURES



 LocalandRemoteconfigurations

 Scan

 RSSIVoting

 1072Channels

 50Zones

 Selcall(analogmode)

 MDC1200(analogmode)

 CTCSS

 DCS

 Programmablefunctionkeys

 Channelprofiles





7



PRIMARYCONTROLS



FrontPanel



RearPanel



MC513BCMicrophone

Channel/

SelectKnobDisplay

On/OffVolume/

ClearKnob

Microphone

Socket

F1Function

Key

F2Function

Key

F3Function

Key

F4Function

Key

Push‐To‐Talk

Key

CallKey

UPKeyDownKey

Dash(‐)Key

12VDC

Connection

Antenna

Socket

Extension

Speaker

RearMic

Socket

8



PROGRAMMABLEKEYS



Thefunctionsofthefollowingbuttonsaredeterminedthroughdealerprogramming.

 Select(SEL)knob)

 Clear(CLR)knob)

 F1Key

 F2Key

 F3Key

 F4Key

 CallKey(MC513BCtop)

 Dash(‐)Key(MC513BCfront)



MENUNAVIGATION



Themenuisusedtoadjustsettingswithintheradio.Menuitemscanbeindividually

enabledordisabledbythedealerprogrammer.Dependingonhowitisprogrammed,the

menuinyourradiomayonlyincludeasmallselectionofthepossibleitemslistedbeloworit

maybedisabledcompletely.

Anenabledmenuitemmaynotbeapplicabletoallinstalledchannels;however,themenu

itemwillalwaysremainvisibleinthemenu.Attemptstoselecttheinvalidmenuitemwill

resultinanerrorbeep.

MenuNavigation‐General

Toaccessthemenu,presstheSELknob.RotatetheSELknobtoscrollthroughtheavailable

menuoptions.PresstheSELknobagaintoselectthedisplayedoption.Forsubmenuitems,

rotatetheSELknobagainuntiltherequiredsubmenuitemisdisplayedthenpresstheknob

toselect.

Example:ToadjusttheBeepTonevolumelevel;

1. PressSELtoaccesstheMenu.

2. Rotateto‘SETTINGS’thenpressSEL.

3. Rotateto‘ALERTLEVEL’thenpressSEL.

4. Rotateto‘BEEPVOLUME’thenpressSEL.

5. RotatetheknobtoadjusttheBeepVolumelevel.

6. PressSELtoacceptthechangeandreturntothepreviousmenulevel



Tostepbacktothepreviousmenuoptionatanytime,presstheCLR(volume)Knob.Toexit

themenucompletelyandreturntothenormaldisplay,pressandholdtheCLRknob.

9



Note:TheMenuoptionwilltimeoutafter5secondsifnofurthermenuselectionsaremade.

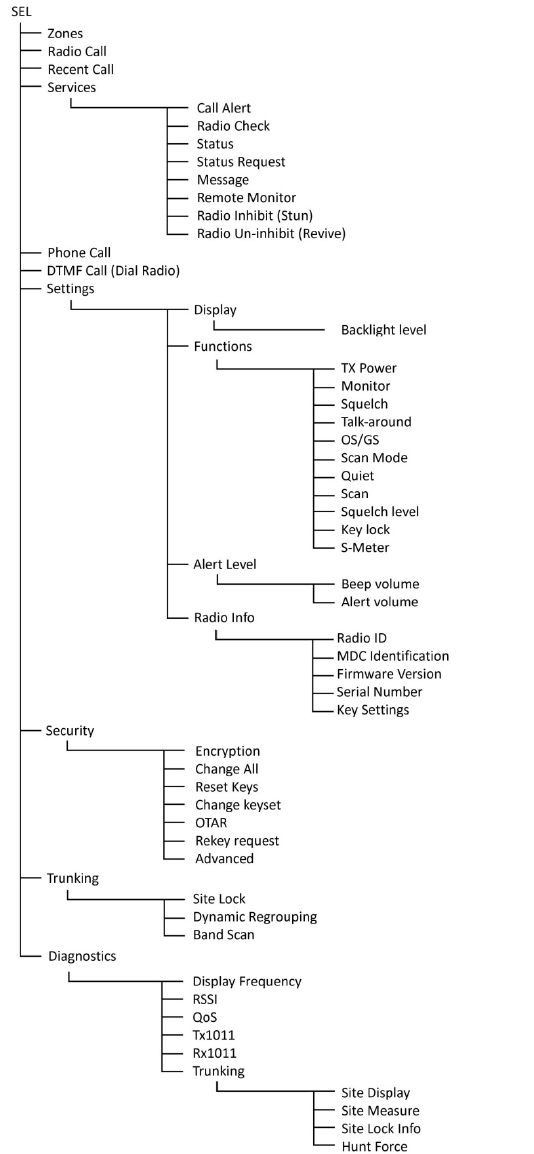

MenuMap

ThefollowingMenuMaprepresentsalloftheavailablemenuoptions.Onlythemenuitems

thathavebeenenabledinyourradiowillactuallyappearinyourradio’smenu.



10



GENERALOPERATION



BACKLIGHT

TheLCDbacklightbrightnesslevelisadjustablein16stepsfromofftofull.

Toadjustthebacklightbrightness;

1. PressSEL.

2. Rotateto‘SETTINGS’andpressSEL.

3. Rotateto‘DISPLAY’andpressSEL.

4. Rotateto‘BKLGT’andpressSEL.

5. Rotatetoselecttherequiredbrightnesssetting.

6. PressSELtoaccept.



TXPOWERLEVEL

Setstheglobalmaximumtransmitpowerfortheradio.Theusercanselectfrom1of4

levels:1W,5W,10W,25W.

Note:Individualchannelscanalsohavetheirownpowersettingsinwhichcasethetransmit

powerfortheselectedchannelwillbethelowerofthetwopowersettings.

E.g.Ifachannelissetfor10Wandthemaximumpowerlevelis25W,thenthetransmit

poweronthatchannelwillbe10W.Howeverifthemaximumpoweristhenloweredto5W,

thentheactualtransmitpoweronthatchannelwillbe5W.

TosettheTXPower;

1. PressSEL.

2. Rotateto‘SETTINGS’andpressSEL.

3. Rotateto‘FUNCTIONS’andpressSEL.

4. Rotateto‘TXPOWER’andpressSEL.

5. RotatetoselecttherequiredTXpower

6. PressSELtoaccept.



SQUELCH

Toturnthesquelchoff;

1. PressSEL.

2. Rotateto‘SETTINGS’andpressSEL.

3. Rotateto‘FUNCTIONS’andpressSEL.

4. Rotateto‘SQUELCH’andpressSEL.

11



5. RotatetoselectONorOFF.ThesquelchwillopenwhenOFFisselectedandclose

whenONisselected.

6. PressSELtoaccept.



Note:SquelchsettingsarenotapplicabletoP25operation.



SQUELCHLEVEL

Thesquelchleveladjuststhesensitivityofthesquelchtoincomingsignals.Thesquelchlevel

shouldbesetatapointwherethesquelchremainsclosedwhentherearenosignals

presentbutwillopenonmostsignals.

Inquietcountryorrurallocationswherethereislittleinterferencealowervaluemaybeset

toallowthesquelchtoopenonveryweaksignals.

Ininnercityapplicationsorareasofsevereinterferenceahighervaluemaybenecessaryto

allowonlystrongersignalstoopenthesquelch.

Toadjustthesquelchlevel;

1. PressSEL.

2. Rotateto‘SETTINGS’andpressSEL.

3. Rotateto‘FUNCTIONS’andpressSEL.

4. Rotateto‘SQLLEVEL’andpressSEL.

5. Rotatetoselecttherequiredsquelchlevelfrom1‐9

6. PressSELtoaccept.



BEEPVOLUME

TheBeepVolumeadjuststhevolumelevelofthebeepsthatareheardwhenbuttonsare

pressed.

ToadjusttheBeepVolume;

1. PressSEL.

2. Rotateto‘SETTINGS’andpressSEL.

3. Rotateto‘ALERTLEVEL’andpressSEL.

4. Rotateto‘BEEPVOLUME’andpressSEL.

5. Rotatetoselecttherequiredbeepvolumelevelfrom0to9.Todisablethebeeps

select0.

6. PressSELtoaccept.



12



FIRMWAREVERSION

Toreadthecurrentfirmwareversion;

1. PressSEL.

2. Rotateto‘SETTINGS’andpressSEL.

3. Rotateto‘RADIOINFO’andpressSEL.

4. Rotateto‘VERSION’andpressSEL.

5. Thecurrentradiofirmwareversionwillbedisplayed.

6. PressandholdCLRtoexitthemenu.



ELECTRONICSERIALNUMBER(ESN)

Toviewtheradio’selectronicserialnumber;

1. PressSEL.

2. Rotateto‘SETTINGS’andpressSEL.

3. Rotateto‘RADIOINFO’andpressSEL.

4. Rotateto‘SERIALNOandpressSEL.

5. Theradio’selectronicserialnumberwillbedisplayed.

6. PressandholdCLRtoexitthemenu.



SELECTIVECALL

SelectiveCalling(Selcall)isasecuresignalingsystemallowingindividualradiostobe

selectivelycalledwithoutdisturbingothersonthesamechannel.Eachradiocanbepre‐

programmedwithauniqueSelcallIdent.Theradiocanthenbesettoremaintotallyquiet

whileitmonitorsthechannelforSelcallsignals.IfanincomingsignalcontainsaSelcall

matchingtheIdentinyourradio,analarmsoundstoalertyouandthecaller’sidentification

isdisplayedonyourradio.Inthisway,evenifyouareawayfromyourradiowhenthecallis

received,youwillstillknowthatyouwerecalled.Youcanthenreturnthecallatyour

convenience.Iffurthercallsarereceived,themostrecentcallerisdisplayed.

IfSelcallhasbeenenabledonyourradio,itmayallowyoutocallotherswhoarealsousing

theSelcallsystem.Itmayalsobeprogrammedtoallowingspecificgroupsofradiostobe

calledwithoutdisturbingotherindividualsorgroups.

TomakeaSelcall

1. PresstheBlueCALLbuttononthemicrophone.

2. ‘CALLTO’willbedisplayed.

3. Presstheor buttonsonthemicrophone(orrotatetheSELknob)toselectthe

requiredcallnumberprogrammedintoyourradio.

4. HoldtheCALLbuttontomakethecall.

13



Ifthecallisreceivedsuccessfully,aconfirmationmessagewillbedisplayed.

OperatingintheQuietmode

TheQUIETmodepreventsanyincomingtransmissionsfrombeinghearduntilyourSelcall

Identisreceived.Thisallowsyoutomonitorabusychannelforcallswithoutbeingdisturbed

byunwantedsignals.WhenyourSelcallIdentisreceived,theQUIETmodeiscancelledand

allincomingsignalswillbeheardinthespeaker.

IfyourradioisprogrammedwithaQuietkey,youmaybeabletomanuallyactivateyour

radiosQuietmutingsystem.Ifnot,yourradio'squietmutingsystemwillhavebeenpreset

foryoubyyourretailer.

DTMF

YourradiomaybefittedwithDTMF‘speeddial’memoriestoprovidepre‐programmed

DTMFsequences.Iffitted,DTMF‘speeddial’memoriescanbeprogrammedintooneof

moreofthefunctionkeysF1,F2,F3orF4.

MDC1200DIGITALDATASIGNALLING

MDC1200digital/datasignalingoffersexpandedcallingfunctions.

MDC1200MenufunctionsarelocatedintheSERVICESmenu.Availablemenuoptionsare;

 CallAlert

 RadioCheck

 Status

 StatusRequest

 Message

 RemoteMonitor

 Stun

 Revive



MDC1200–Primaryusefunctions:

 PTT‐ID

 EmergencyCall



CTCSS/DCS(ContinuousToneCodedSquelchSystem/DigitallyCodedSquelch)

CTCSS/DCSareautomaticcodedsquelchsystemsthatallowgroupsofradioreceiversto

remainquietuntiltheyreceiveacallencodedwithaspecificsquelchtone.Thereceiver's

squelchthenopenstoallowthecalltobeheardandclosesagainwhenthecallisfinished.

Otherradiossharingthesamechannelbutprogrammedwithadifferentsquelchtonewill

14



nothearthecall.Similarly,callsmadetootherradiosthatuseadifferentsquelchtonewill

notbeheardbyyourradio.Inthiswayseveralgroupsofradioscansharethesamechannel

butbealmostunawareofeachother'sexistence.OnemainadvantageofCTCSS/DCSisitis

fullyautomaticwithnospecialoperationrequiredbytheuser.



MONITOR



Amonitorkeyisusedtomonitor(listen)toachannelthatwouldnormallyremainsquelched

(quiet)underthecontrolofaCTCSSorDCStone.WhenCTCSS/DCSisbeingused,theremay

beotheruserstalkingonthechannelbutyouwillnotbeabletohearanything.Pressingthe

Monitorkeyoverridesthetonesquelchtoallowyoutohearthesesignals.TheMonitorkey

isoftenusedtocheckthatthechannelisclearbeforetransmitting.



Note:TheMonitorkeydoesnotopentheSquelch;itsimplyoverridestheCTCSS/DCStone

decoder.Iftherearenosignalsonthechannel,theradiowillstillremainquietandno

receivernoisewillbeheard.



ZONES

TheCM1039seriesradioiscapableof50zoneswhichareusedforallocatingdiscreet

channelsortalkgroup(P25)intozones.Zonescanalsobeusedforregional,hierarchyor

geographicgrouping

Azoneisacollectionofchannelsortalkgroups.Zonesareusedtogroupchannelsthat

havesomethingincommon,suchaspublicagency(police,fire,ambulance)orgeographic

region.

Whenzonesareenabled,theusercanselectchannelsonlyfromthecurrentlyactivezone.

Ifzonesarenotrequired,zonescanbegloballydisabled.Allchannelsthenappearinone

list.Themaximumchannelcapacityis1072channels.

Ifzonesareenabled,everychannelmustbelongtoazoneandeachchannelcanbeinonly

onezoneatatime.

Eachzonecanbeindividuallyenabled.Azonecontainingnochannelsisalwaysdisabled.

Whenselectingazone,theusercanselectonlyfromthelistofenabledzones.The

maximumnumberofzonesis50.

Selectingazone

Toselectazone:

1. PressSELtoaccesstheMenu.

2. RotatetheSELknobtoselect‘ZONES’thenpressSEL.

3. RotatetheSELknobtoselectthedesiredZonethenpressSEL.



Whileselectingazoneusingthemenu,theradiocontinuestooperateonthecurrent

15



channelinthecurrentzone.Theradiodoesn'tchangetotheselectedzoneuntiltheSEL

knobispressed.IftheCLRknobpressed,thezonemenuclearsandtheradiocontinuesto

operateonthecurrentchannel.

ProgrammablekeyscanbeassignedtotheZONEfunctionprovidingdirectaccesstothe

ZONEsmenu.ThezoneisthenselectedusingtheSELknob.

Ifzonesaregloballydisabled,thezonemenuitemisalsodisabled.

ZoneInitialChannel

Bydefault,theradiochangestothefirstchannelintheselectedzone.Thefirstchannelis

knownasthehomechannelofthezone.Optionallytheradiocanbeconfiguredtosavethe

currentchannelinthecurrentzonebeforechangingtotheselectedzone.Theradiothen

changestothesavedchanneloftheselectedzone.Ifthereisnosavedchannelinthe

selectedzone,theradiodefaultstothefirstchannelinthezone.

ZoneDisplay

Eachzonehasazonename.Thezonenameisdisplayedwhenselectingazoneusingthe

ZONEmenu.

Withaone‐linedisplayitisnotpossibletoshowthechannelnameandzonenameatthe

sametime.Themainscreennormallydisplaysthechannelname.

IfakeyisassignedtotheZONEfunction,thenpressingthatkeywilldisplaythecurrent

zone.Theradiochangestothezoneselectmenuwiththecurrentzoneasthestarting

point.PressingtheZONEkeyagainorpressingtheBACKkeycancelsthezoneselectmenu.

Ifnokeyispressed,atimeoutwillclearthezonemenuandreturntheradiotothemain

screen.Bythismeantheusercancheckwhatthecurrentzoneisbyakeypressatanytime,

butthezonenameisnotnormallydisplayed.

ZonesandRecallChannels

ArecallchannelisachannelassignedtoaRECALLkey.ThechannelassignedtoaRECALL

keyisnotnecessarilyinthecurrentzone.WhentheRECALLkeyispressed,theradio

changestotherecallchannel.Bydefaulttheradiochangestothezonetherecallchannelis

in,(althoughthisisoptional),thereforethenextchannelchangeusingtheSELknobwillbe

fromtherecallchannel'szone.

Alternativelytheradiocanbeconfiguredtoremaininthecurrentzonewhileontherecall

channelfrequencyortalkgroup.InthiscasethenextchannelchangeusingtheSELknob

willbefromchannelsinthecurrentzone.



16



ZonesandScanning

Therearetwomaintypesofscanning;scangroupsandzonescan.Thescanbehaviorwhen

zonesarechangeddependsonthecurrentscantypeinprogress.

Ascangroupisalistofchannelsusedforscanningorvoting.Thescangroupappearsinthe

channellist,andisselectedbytheuserwiththeSELknob.

Iftheradioiscurrentlyonascangroupchannel,scanningstopswhenthezoneischanged.

Iftheinitialchannelintheselectedzoneisascangroup,thenscanningresumeswiththat

scangroup.

Zonescangivestheusertheabilitytoscanselectedchannelsinthecurrentzone.Channels

tobeincludedinthescanaretagged.ZonescanisstartedandstoppedwiththeSCANkey.

Ifzonescanisactivewhenzonesarechangedthenzonescancontinuestobeactiveinthe

selectedzoneifthatzonehaschannelstaggedforzonescan.Ifzonescanisnotpossiblein

theselectedzone,(e.g.thereareinsufficienttaggedchannels)thenscanstopsandtheradio

changestotheinitialchannelinthezone.

Channelsinascangrouparenotnecessarilyfromthecurrentzone.Whilescanningthe

radioremainsinthecurrentzoneasitchangeschannelsinthescangroup.Ifasignalis

receivedorPTTispressedsotheradioholdsonachannelinthescangroup,theradio

remainsinthecurrentzone.Iftheuserexitsscanwhileholdingonachannelinthescan

grouptheradiomaychangetothezoneoftheholdchanneloroptionallyremaininthe

currentzone.

ZoneEditing

Zonescanbecreated,modifiedanddeletedusingtheRadioprogrammeronly.Zonescannot

bemodifiedbytheuser.

Ifzonesareenabled,theremustbeatleastonezoneintheradio.Ifthereisonlyonezone,

thenallchannelsintheradiowillbeinthatzone.

Azonemustcontainatleastonechannelforthatzonetobeenabled.

Ifnozonenameisspecifiedtheradiogeneratesazonename:ZONE1,ZONE2etc.

Azonecanbedisabledwiththeradioprogrammer.Adisabledzonecannotbeselectedby

theuserintheradio,however,thezoneanditschannelswillstillexistinthememory.

Azoneisdeletedwhenallchannelsinthatzonearealsodeletedormovedfromthatzone.

Ifthezonecontainschannelsthataremembersofascangroupthatisinanotherzone,then

17



thezonecannotbedeleteduntilthechannelisremovedfromthescangroup.Whenazone

isdeleted,thezonenameiserasedandallzoneflagsarecleared.

Everychannelhastobelongtoazone.Channelscanbemovedfromonezonetoanotherin

theprogrammer.

SCAN

Thescanfeatureisusedtomonitoragroupofchannelsforactivity.Whenthereisactivity

onachanneltheradiostopsscanningandholdsonthatchannel.

AscangroupcanonlycontainAnalogorP25channels.Thescangroupcannotinclude

anotherscangrouporaP25Trunkingchannel.Thechannelsinthescangroupdonothave

tobefromthesamezoneasthescangroup.Channelsinthescangroupmaybehidden

channels,orchannelsthatcannormallybeselected.Ascangroupcancontainupto32

channels.

Therearetwowaysthatchannelscanbegroupedforscanningorvoting:

ScanGroup

ZoneScan

ScanGroup

Ascangroupisalistofchannelsusedforscanningorvoting.Themainuseforascangroup

istodefineachannelthatperformsRSSIvotingofrepeaterfrequencies.However,scan

groupscanbeconfiguredfordifferenttypesofscanningorvoting.

AscangroupappearsinthechannellistandisselectedusingtheSELknob.Thenameofthe

scangroupappearsasachannelname;thereforeascangroupappearstobeanother

channeltotheuser.Ifzonesareenabled,ascangrouphastobelongtoazone.Ascan

groupcanonlybelongtoonezone.Severalscangroupscanbeincludedinonezone.

Scanningorvotingbeginsautomaticallywhenthescangroupisselected.Scanningorvoting

stopswhenthescangroupisdeselected.

Whilethereisnochannelactivityandthescangroupisscanning,thescangroupnameis

displayed.Whenchannelactivityisdetected,thedisplaymayshowthenameofthechannel

theradioisholdingon.Whenchannelactivityceasesandtheradioresumesscanningor

voting,thescangroupnameisdisplayedagain.

AscangroupcanbeassignedtoaRECALLkey.WhentheRECALLispressedwhileon

anotherchannel,theradioselectsthescangroupandscanningorvotingbegins

immediately.IfaRECALLkeyassignedtoanotherchannelorscangroupispressedwhilea

18



scangroupisactive,thenthescangroupisdeselectedandscanningorvotingstops.The

radiothenselectsthechannelorscangroupassignedtheRECALLkey.

Ascangroupisconfiguredusingtheradioprogrammer.Thescangroupconfiguration

cannotbemodifiedandchannelscannotbeaddedtoorremovedfromthescangroupby

theuser.

Ascangroupcanbeconfiguredforeitherscanningorvoting.Eachscangroupcanbe

configuredindividually.

Scanning

Scanningisgenerallyusedtomonitoragroupofunrelatedchannelsforactivity.Theradio

checkseachchannelinthescangroupinturnforactivityandholdsonthefirstchannelwith

avalidsignal.Theconditionstoholdonachannelarethesameasthegeneralun‐mute

conditionsoftheradio.

Whenthesignaldisappearstheradiocontinuestoholdonthechanneluntilthescanhold

timeoutexpires.Ifthescanholdtimeoutexpires,theradioresumesscanning.

OpenScan

InOpenScan,theradioscansthechannelsinthesequenceofthechannellistcheckingfor

activity.

IfthePTTispressedwhileholdingonachannel,theradiotransmitsontheholdchanneland

thescantransmitchannelissettotheholdchannel.WhenthePTTispressedwhile

scanning,theradiotransmitsonthescantransmitchannel.

PriorityScan

InPriorityScan,theradioscansthechannelsinsequencesimilartoopenscanbutchecksa

prioritychannelmoreoftenthantheotherchannels.Thefirstchannelinthescangroupis

theprioritychannel.

IfthePTTispressedwhileholdingonachannel,theradiotransmitsontheholdchannel.

WhenthePTTispressedwhilescanning,theradiotransmitsontheprioritychannel.

VOTING

Votingisgenerallyusedtomonitoragroupofchannelsassociatedwitharepeaternetwork.

Therearetwogeneraltypesofvoting,RSSIvotingandBusyVoting.

RSSIVoting

RSSIvoting(alsocalledSignalStrengthvoting)isusedwithrepeaternetworkswherethe

repeaterstransmitthesameinformationsimultaneouslyondifferentrepeaterfrequencies.

19



Theradioscanstherepeateroutputfrequenciesandselectsthechannelwiththehighest

signalstrengthorthefirstchannelaboveasignalstrengththreshold.

TheradiomaintainsachanneltouseforPTT.Generallythisisthelastchanneltheradio

selectedforreceive.Ifnosignalhasbeenreceivedtheradiowillcyclethroughallthe

channelsinturnoneachPTTpress.

BusyVoting

Busyvotingisusedwhenthereareseveralrepeatersonthesamesiteprovidingapoolof

channelstoseveralgroupsofusers.Eachgroupofusersisgenerallydefinedbyacommon

CTCSStone.Theradioscansthechannelsandkeepstrackofwhichchannelsarefreeand

whicharebusyandcurrentlyusedbyanothergroup.

WhenasignalisreceivedwiththecorrectCTCSStone,theradiostopsscanningandholds

onthatchannel.

WhenthePTTispressedtheradiotransmitsonafreerepeaterchannel.Theradiosina

groupdon'ttransmitonthesamerepeaterchanneleachtime,asitdependsonwhich

repeaterchannelisinuseatanygiventime.

ZoneScan

Zonescanisusedtoscanagroupofchannelsforactivitywithinthecurrentzone.The

channelsarescannedinsequenceforactivityusingopenscanorpriorityscanmethods.

Votingisnotusedforzonescan.

Thechannelstobescannedaretaggedforzonescan.Analogchannels,P25Conventional

channels,andscangroupscanbetaggedforzonescan.Ifascangroupistagged,thenonly

thefirstchannelinthescangroupisincludedinthezonescansequence.P25Trunking

channelscannotbetagged.Hiddenchannelscanalsobetagged.Hiddenchannelscanonly

betaggedbytheradioprogrammer,notbytheuser.

Zonescanchannelsaretaggedusingtheradioprogrammer.Theusermayalsooptionally

beenabledtotagchannelsforzonescan.Totagachannel,theuserselectsthechannel

withtheSELknobthentagsthechannelwithalongpressoftheSCANkey.Atagged

channelisuntaggedwithalongpressoftheSCANkey.

ZonescanisselectedusingtheSCANkey.WhentheSCANkeyispressed,theradio

commencesscanningallthetaggedchannelsinthecurrentzone.TheSCANkeyispressed

againtostopzonescan.WhilezonescanisactivetheSELknobcannotbeusedtoselect

channels.

IfaRECALLkeyispressedduringzonescan,thenzonescanstopsandtheradioselectsthe

channelorscangroupassignedtotheRECALLkey.

20



Ifadifferentzoneisselectedwhilezonescanisactive,thenzonescancontinuestobeactive

intheselectedzoneifpossible.Iftherearenotenoughchannelstaggedforzonescaninthe

selectedzone,thenzonescanstops.

IftheSCANkeyispressedwhileascangroupisselected(i.e.:anRSSIvotingchannel),the

radiostopsthescangroupactivityandcommencesthezonescan.WhentheSCANkeyis

pressedagain,thezonescanstopsandtheradiowillresumescangroupactivity.

Duringzonescan,thedisplaychangesthroughthezonescanchannels.Whenactivityis

detectedonachannel,theradioholdsonthechannelandthedisplayshowsthenameof

theholdchannel.

Thecurrentchannelmaybeincludedinthezonescanchannellistevenifitisnottagged.

SCANNUISANCEDELETE

Anuisancechannelisonewheretemporaryunwantednoiseorinterferenceconstantly

stopsthescan.AnuisancechannelcanbetemporarilyremovedbyturningtheSELknob

whileholdingonthechannel.Theradiowillresumescanningandthenuisancechannelwill

beremovedforafixedtime(typically2minutes).

AnuisancechannelcanalsoberemovedfromthescansequencebyalongpresoftheSCAN

keywhileholdingonthechannel.Theradiowillresumescanningandthenuisancechannel

willberemovedaslongaszonescanisactive.

DYNAMICREGROUPING

Dynamicregroupingallowsthenetworkordispatchertore‐assigntheradiotoaspecial

communicationstalkgroup.Whenoperatingonthisgroup,normalchannelchange

operationmaybedisabled.

DynamicregroupingisonlyavailableonP25trunkingchannels.

Toactivatedynamicregrouping,theoperatorsendsa‘DynamicRegroupRequest’tothe

P25network.

TosendaDynamicRegrouprequest:

1. PresstheSELknobtoaccessthemenu.

2. RotatetheSELknobtoselect‘TRUNKING’thenpresstheSELknob.

3. RotatetheSELknobtoselect‘DYNREGROUP’thenpresstheSELknobtosendthe

request.

4. Thedisplaywillshow‘SENDREQ’.



Iftherequestissuccessfulthedisplayshowsanacknowledgement.Therequestmaynot

succeedforvariousreasons.

21



Dynamicregroupingisde‐activatedbyeitherselectinganothertalkgroup/channel(if

possible),orbysendarequesttode‐activatedynamicregrouping.Whendeactivated,the

radiowillreturntothetalkgroupthatwasactivewhenthedynamicregrouprequestwas

sent.

Dynamicregroupingisnotpreservedbetweenpoweroff‐on.

FAILSOFTOPERATION

Iftheradioisunabletoaccessthetrunkingsystem,itcanbeprogrammedtoenterfailsoft

mode.InfailsoftmodetheradioswitchestoaprogrammedconventionalP25oranalog

channel.

Failsoftmodeisenteredwheneitheratrunkingchannelisselectedandtheradiofailsto

controller.

INSTALLATION



TheCM1039issuppliedwithaslim,slide‐onmountingcradle.Thecradlecanbescrewedor

boltedinanyconvenientlocationinyourvehicle(underorabovethedash,onthecentre

console,etc)usingthemountingslotsprovidedinthebase.TheCM1039containsabuilt‐in

speakerandcanbeinstalledwiththespeakerfacingupwardsordownwardstoensurethe

receiveraudioisprojectedclearly.Alternatively,theCM1039canbefittedwithan

extensionspeakerifrequired.Wheninstallingtheradio,avoidmountingitclosetoheaters

orairconditioners.Screwthemountingcradletoafirmsurface.SlidetheCM1039intothe

cradlefromthefrontuntilitclicksintoplace.Finally,plugthepowerandantennaleadsto

thesocketsprovidedontherearoftheradio.



MountingtheCradle

22



FittingtheRadio



RemovingtheRadio



FittingMC513BCMicrophone



Screwthemicrophonemountingcliptoafirmsurface.



Themicrophoneusesaminiature6pintelephonestyleplugandsocket.



Tofitthemicrophone:



1. Positionthemicrophoneplugsotheplastictabfacesdownwards.Pressthepluginto

thesocketuntilit‘clicks’.



2. Gentlypresstherubberstrainreliefintotheholesurroundingthesocketsothatthe

slotaroundthestrainrelieffitsneatlyinsidethelipofthehole.



Gently

spread

tabs

Gently

spread

tabs

Slideradiofrom

cradle

23



Note:Themicrophonecanalsobeconnectedtothemicrophonesocketontherearpanel

oralternativelytwomicrophonescanbeconnectedusingbothsockets.Inthiscasethe

firstmicrophonethatkeysthePTTtakespriority.



Removingthemicrophone



1. Squeezetherubberstrainreliefnearthefrontpaneltodisengagetheslot,andslide

thestrainreliefbackalongthemicrophonecord.



2. Squeezetheplastictabonthemicrophoneplugtowardstheplugtounlockitwhile

gentlypullingtheplugoutwards.



Iftheplugdoesnotcomeouteasily,thetabhasnotreleasedcorrectlyandshouldbe

squeezedagain.



ConsoleMountingtheCM1039Series



Forconsolemounting,aflushmountingDINAdaptorMBD001isavailableasanoptional

accessory.Theadaptorincludesmountingbracketsandaspeciallydesignedfrontpanel

escutcheontosuitmostvehicleinstallations.



Installationinstructionsareprovidedwiththebracket.SeeyournearestGMEretailerfor

details.



DinAdaptorMBD001





24



DCPOWERCONECTION



TheCM1039isdesignedfor13.8VoltDC,negativeearthinstallationsonly(i.e.wherethe

negativeterminalofthebatteryisconnectedtothechassisorframeofthevehicle).



Twoin‐line10Ampfusesaresupplied.Thesefusesaretobeconnectedasclosetothe

batteryaspossible.Theradio’spositive(red)leadshouldbeconnectedviaa10Ampfuse

directlytothebattery’spositiveterminal.Connecttheradio’snegative(black)leadviaa10

Ampfusedirectlytothebattery’snegativeterminal.



ANTENNAINSTALLATION



TocomplywithFCCexposurelimitstheradiomustbeinstalledusinganexternallymounted

antennawithagainofeither2.15dBior5.15dBi.Forbestresultsyourantennashouldbe

professionallyinstalledusingindustrystandardtechniques.

Transmitonlywhenbystandersareataminimumsafedistanceof35inches(0.9m)from

theantenna.





25



SPECIFICATIONS



GENERAL

RF Performance: Compliant with AS/NZS 4295, ETSI EN 300-086-2, ETSI EN 300-113-2, TIA-603-C,

FCC Parts 90/15, IC - RSS119

Frequency Band: VHF 136 to 174 MHz, UHF Lo 403 to 470 MHz, UHF Hi 450 to 512 MHz

RF Switching Bandwidth: VHF 38 MHz, UHF 70 MHz

Number of channels: 1072

Channel Steps: 12.5 kHz, 6.26 kHz, 5 kHz, 2.5 kHz

Frequency Stability: +/-1 kHz for 14°F (-10°C) to +140°F (60°C)

Operating Voltage Range: 10.8V to 15.6V

Current Consumption: RX muted: 170 mA, RX full audio: 0.8A, TX: 5.0A (VHF) 6.0A (UHF)



TRANSMITTER

RF Output: 25W, 10W, 5W, 1W selectable per channel

Transmit Duty Cycle: 4:1 for 25W output

Modulation: FM, DC coupled, DSP audio processing

Deviation Limiting: 2.5 kHz at +20 dB AF limiting

TX Audio Frequency

Response: +6 dB/octave, +1dB/-3dB, 300 Hz to 3 kHz

AF Distortion: 3% below limiting

TX Audio Residual Noise

and Hum: -40 dB

Spurious Emissions: -36 dBm

Adjacent Channel Power: -60 dBc



RECEIVER

Circuit Type: Double Conversion Superheterodyne DC Coupled, DSP audio processing

Sensitivity-122 dBm for 12 dB SINAD unweighted

Adjacent Channel

Selectivity: 60 dB

Spurious Rejection: 75 dB

Intermodulation Rejection: 75 dB

Blocking 100 dB

Conducted Spurious

Emissions: -80 dBm



AUDIO

RX Audio Frequency

Response: -6 dB/octave, +1/-3 dB, 300 Hz to 3k Hz

RX Audio Residual Noise

and Hum: -40 dB

Audio Rated Power: 3W into 4 Ohms



MECHANICAL

Dimensions: 1.14” (29 mm) x 5” (127 mm) x 6.4” (163 mm)

Weight 22oz (620 g)



ENVIRONMENTAL

Operating Temperature

Range: 14°F (-10°C) to +140°F (60°C)

Shock and Vibration: MIL SPEC 810

Specifications are subject to change without notice or obligation

26



WARRANTY–NorthAmerica



Standard Communications Pty Ltd (herein, GME) warrants each new radio product manufactured or

supplied by it to be free from defects in material and workmanship under normal use and service for a

period listed below, provided that the user has complied with the requirements stated herein.

The Warranty period begins on the date of purchase from an authorized GME Sales and Service

Outlet. This warranty is offered to the original end user and is not assignable or transferable. GME is

not responsible for any ancillary equipment attached to or used in conjunction with its products.

GME offers to the original end user a Two (2) Year Limited Warranty on the CM1039 Series

Commercial Radio product range. During this period, if the product fails to function under normal use

through manufacturing defect(s) or substandard workmanship, it should be returned to the authorized

GME Sales and Service Outlet from which it was purchased. The Sales and Service Outlet will repair

the product or return the product for repair to GME or its authorized Regional Repair Depot. The user

is responsible for the payment of any charges or expenses incurred for the removal of the defective

product from the vehicle or other location of its use; for the transportation of the product to the Sales

and Service Outlet; for the return of the repaired / replacement product to the location of its use and

for the reinstallation of the product.

GME shall have no obligation to make repairs or to provide replacement product, which results from

normal wear and tear or is necessitated in whole or in part by catastrophe, fault or negligence of the

user, improper or unauthorized alterations or repairs to the product, incorrect wiring, use of the

product in a manner for which it was not designed or by causes external to the product.

This Warranty is void if the product serial number is altered, defaced or removed.

GME’s sole obligation hereunder shall be to replace or repair the product covered in this warranty.

Replacement, at GME’s discretion, may include a similar or higher-featured product.

Repair may include the replacement of parts or boards with functionally equivalent reconditioned or

new parts and/or boards.

No repair undertaken or replacement product provided during the warranty period will renew or extend

the warranty period past the period from the original date of purchase. All replaced parts, electronic

components or boards become the property of GME.

THE EXPRESS WARRANTIES CONTAINED HEREIN ARE IN LIEU OF ALL OTHER

WARRANTIES, EITHER EXPRESSED OR IMPLIED OR STATUTORY, INCLUDING, WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE.

FOR ANY PRODUCT WHICH DOES NOT COMPLY WITH THE WARRANTY SPECIFIED, THE

SOLE REMEDY WILL BE REPAIR OR REPLACEMENT. IN NO EVENT WILL GME BE LIABLE TO

THE BUYER OR ITS CUSTOMERS FOR ANY DAMAGES, INCLUDING ANY SPECIAL,

INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, OR FOR THE LOSS OF PROFIT,

REVENUE OR DATA ARISING OUT OF THE USE OF OR THE INABILITY TO USE THE

PRODUCT.

This warranty is void for sales and deliveries outside of the U. S. A. and Canada.

RevD

Standard Communications CM1039V VHF MOBILE TRANSCEIVER User Manual

Standard Communications Pty Ltd VHF MOBILE TRANSCEIVER

User Manual

Navigation menu

Namespaces

Views

Navigation
