Realtek/Intel UWB Dongle Demo Board

User’s Guide

Revision A

wion

ic

s

r e s e a r c h

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

2

Table of Contents

1 Introduction ............................................................................................................ 3

2 System Description ................................................................................................. 3

2.1 UWB PHY .................................................................................................. 3

2.2 Intel MAC ................................................................................................... 4

2.3 EEPROM .................................................................................................... 4

3 Software.................................................................................................................. 4

3.1 Driver/Application Installation .................................................................... 4

3.1.1 Setup ....................................................................................................... 4

3.1.2 Driver Installation.................................................................................... 7

3.1.2.1 USB Dongle ............................................................................................ 7

3.1.2.1.1 DFU Driver.......................................................................................... 7

3.1.2.1.2 Control Driver ................................................................................... 10

3.1.2.1.3 HWA(Host Wire Adapter) Driver ...................................................... 14

3.1.2.1.4 WiNet Driver ..................................................................................... 19

3.1.3 Application Operation............................................................................ 23

4 Hardware Interfaces .............................................................................................. 26

4.1 USB Interface............................................................................................ 26

5 Instruction to The User.......................................................................................... 26

6 Document History................................................................................................. 27

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

3

1 Introduction

This document describes the operations, interfaces, and software installation of the

Realtek/Intel UWB USB Dongle Demo Board.

2 System Description

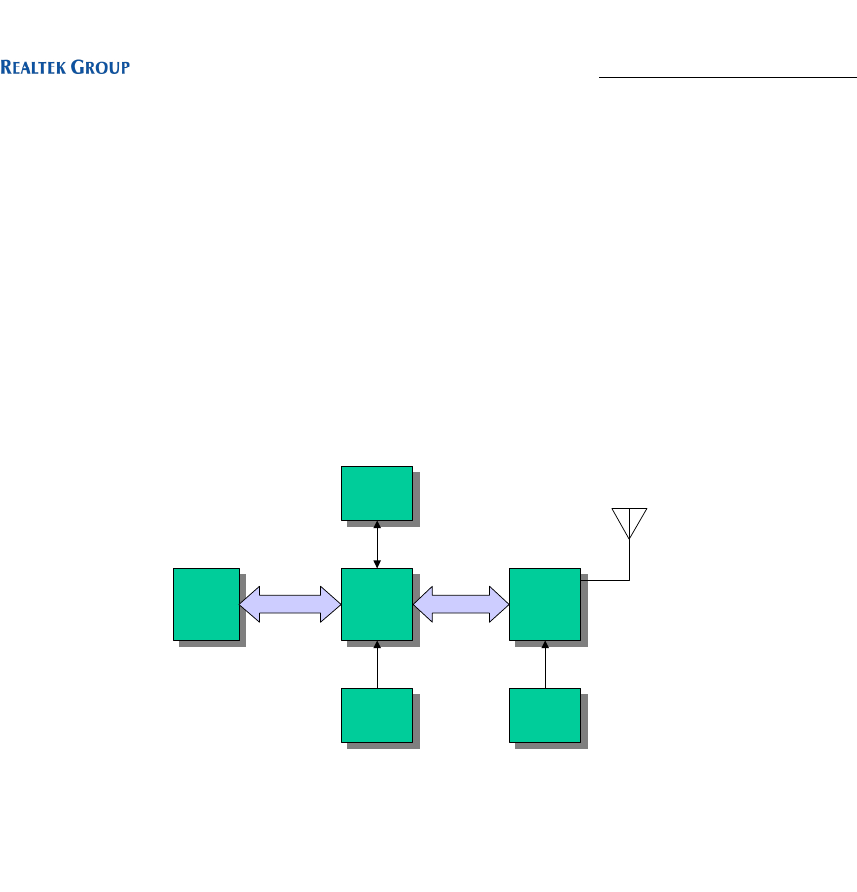

Figure 1 shows the system block diagram of the Realtek/Intel UWB USB Dongle Demo

Board.

UWB

PHY

UWB

PHY

Intel

MAC

Intel

MAC

ANT1

MPI_PHY

USB

Interface

USB

Interface

512Kb

EEPROM

512Kb

EEPROM

24MHz

Xtal

24MHz

Xtal 66MHz

Xtal

66MHz

Xtal

Figure 1 System Block Diagram

The demo system mainly consists of two main chips – (i) UWB PHY, (ii) Intel MAC. A

serial EEPROM is required to store proper data/commands for the PHY chip and MAC

chip. To make the system work properly, the EEPROM should be loaded with proper

content by using proper EEPROM writing equipment through I2C interface. Two basic

clock frequencies are used in the system – 24MHz for MAC and 66MHz for PHY. Some

more details of the components are shown in the following sections.

2.1 UWB PHY

This chip integrates the RF and baseband functions of a UWB PHY defined by the

standard. This version of PHY chip is packaged in 48-pin QFN form factor. The

analog/RF section requires 1.65V and 3.3V to operate. The digital core operates with

1.4V and the I/O voltage can support a range of 1.8V~3.3V.

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

4

2.2 Intel MAC

This MAC chip(Rhondda-M, 144-pin BGA) is from Intel which has a standard MPI

interface to communicate with a standard UWB PHY, as well as a standard USB 2.0

interface to connect directly to a PC. This chip requires voltages of 1.5V and 3.3V.

2.3 EEPROM

This chip is a serial EEPROM from Atmel with a capacity of 512Kb. It is used by the

MAC to store the initialization data and command sequence required by the MAC and

PHY on start up. This chip requires 2.7V~5V. On the application circuit, it’s powered by

3.3V.

3 Software

3.1 Driver/Application Installation

3.1.1 Setup

• Microsoft .NET Frame 2.0 should be installed before installing the software.

Please download it from Microsoft web site.

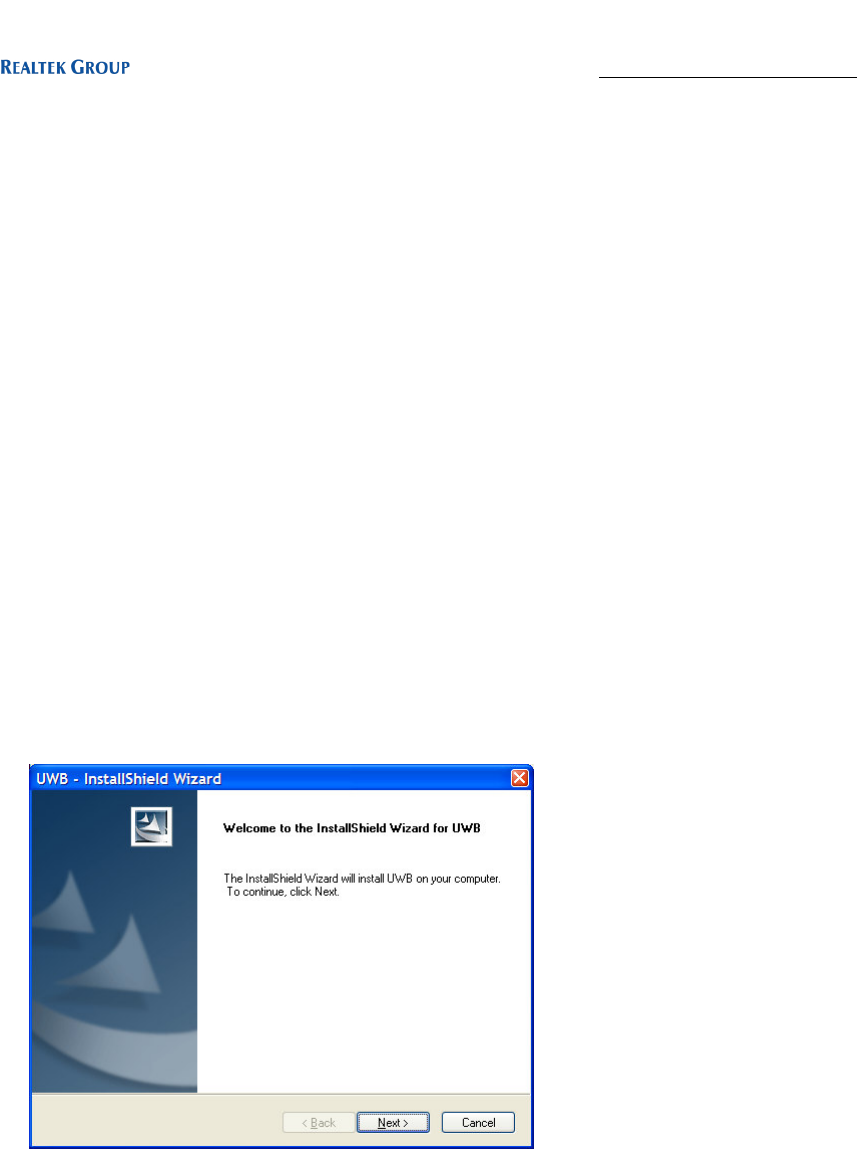

• Make sure the HWA USB dongle is not connected to the PC/Laptop. Execute

FCC_setup.exe

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

5

• Accept license agreement

• Enter user information

• Installed directory

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

6

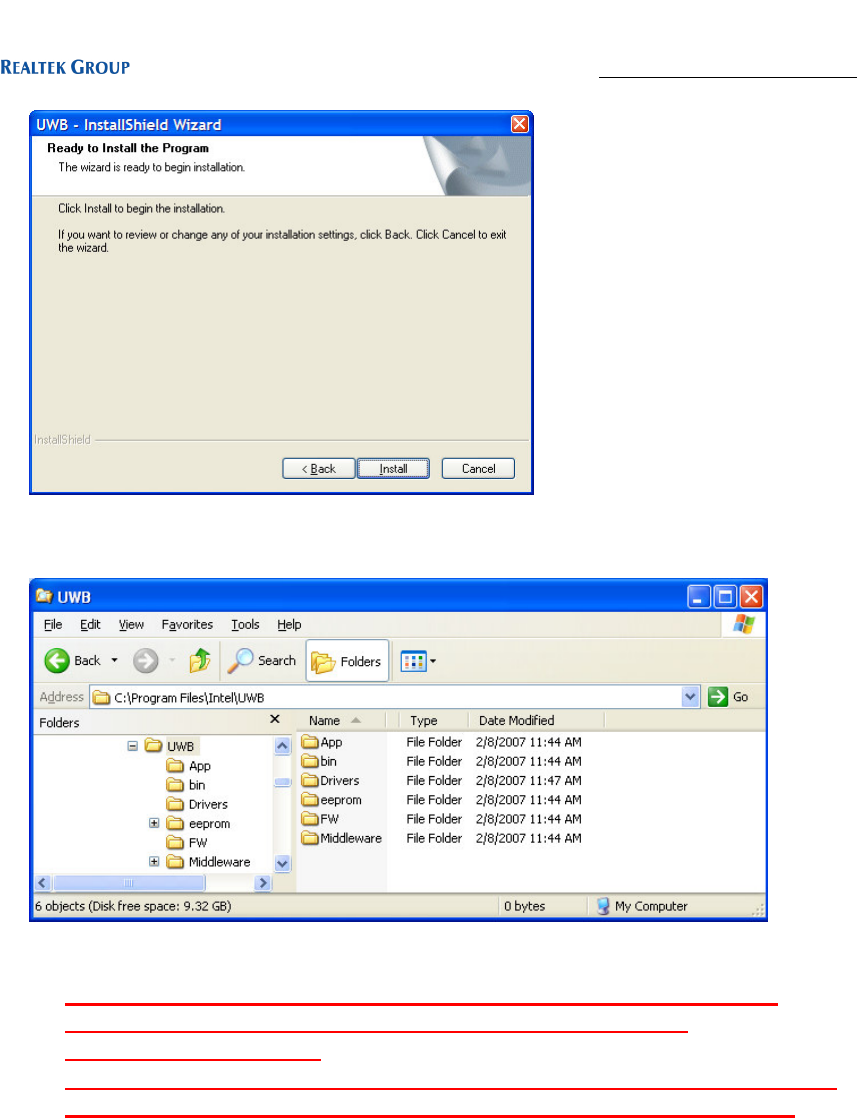

• Install the program

o The programs and drivers are install in the directory C:\Program

Files\Intel\UWB

• Installed directory

• Copy all files in the Drivers directory of the software package into the

installed directory and overwrite every files, i.e., C:\Program

Files\Intel\UWB\Drivers.

• Copy all files in the App directory of the software package into the installed

directory and overwrite all files, i.e., C:\Program Files\Intel\UWB\App.

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

7

3.1.2 Driver Installation

3.1.2.1 USB Dongle

3.1.2.1.1 DFU Driver

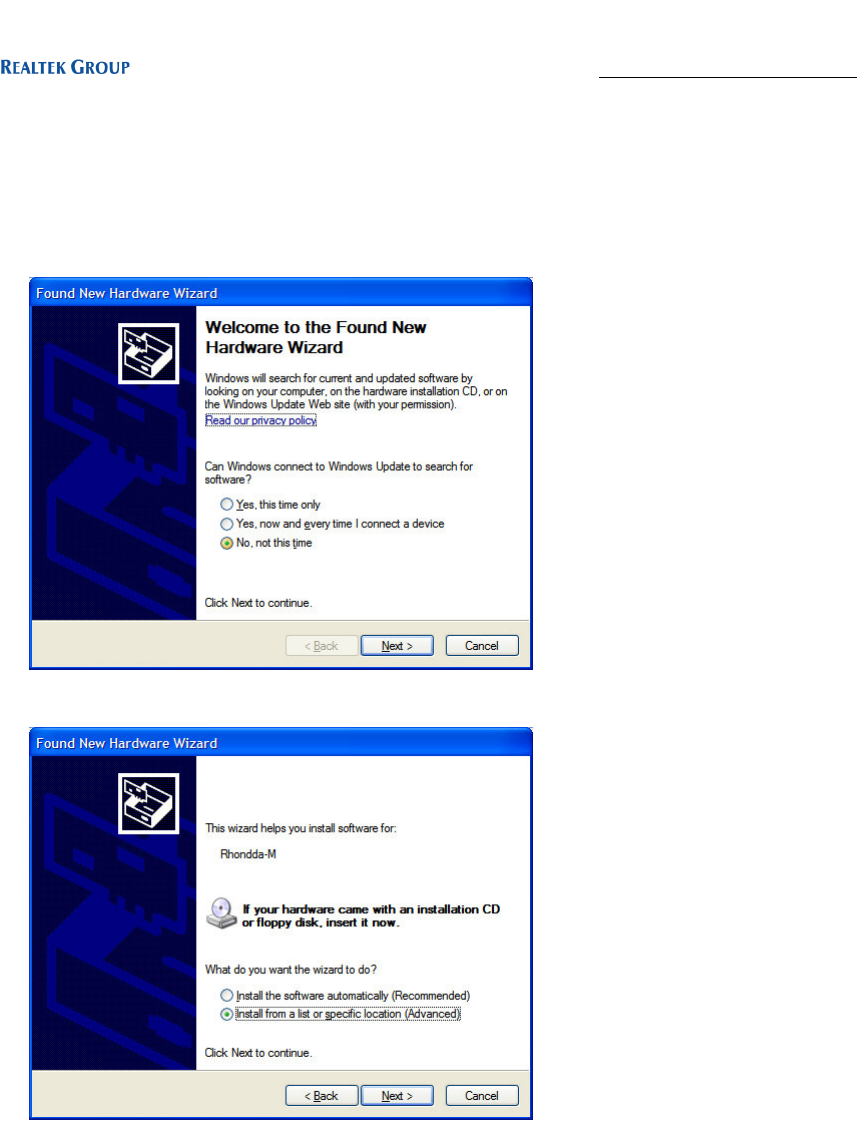

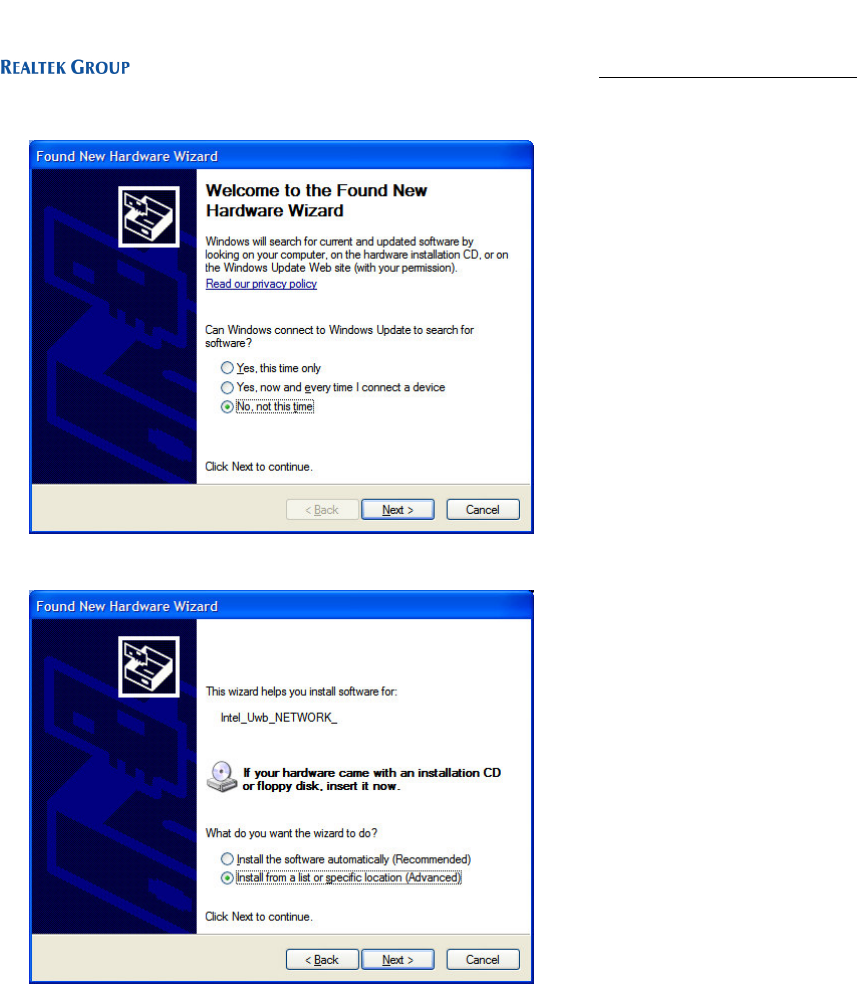

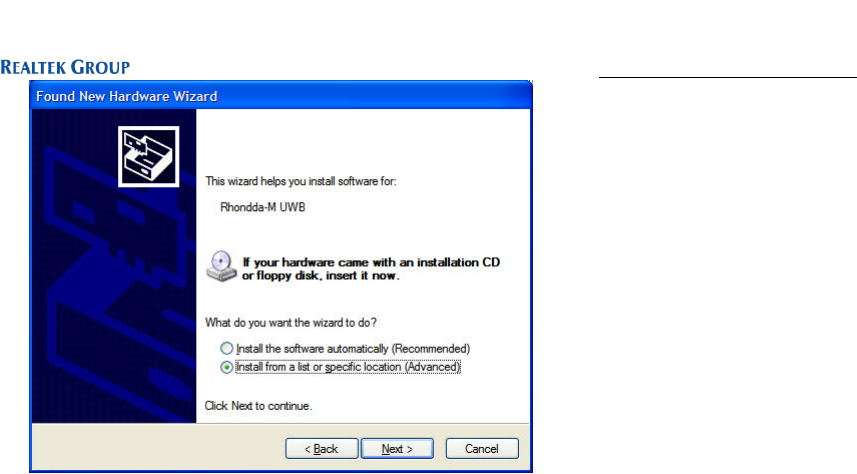

• Plug in the dongle, wait for the following dialog

• Install the drivers from the specified location(C:\Program

Files\Intel\UWB\Drivers) manually

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

8

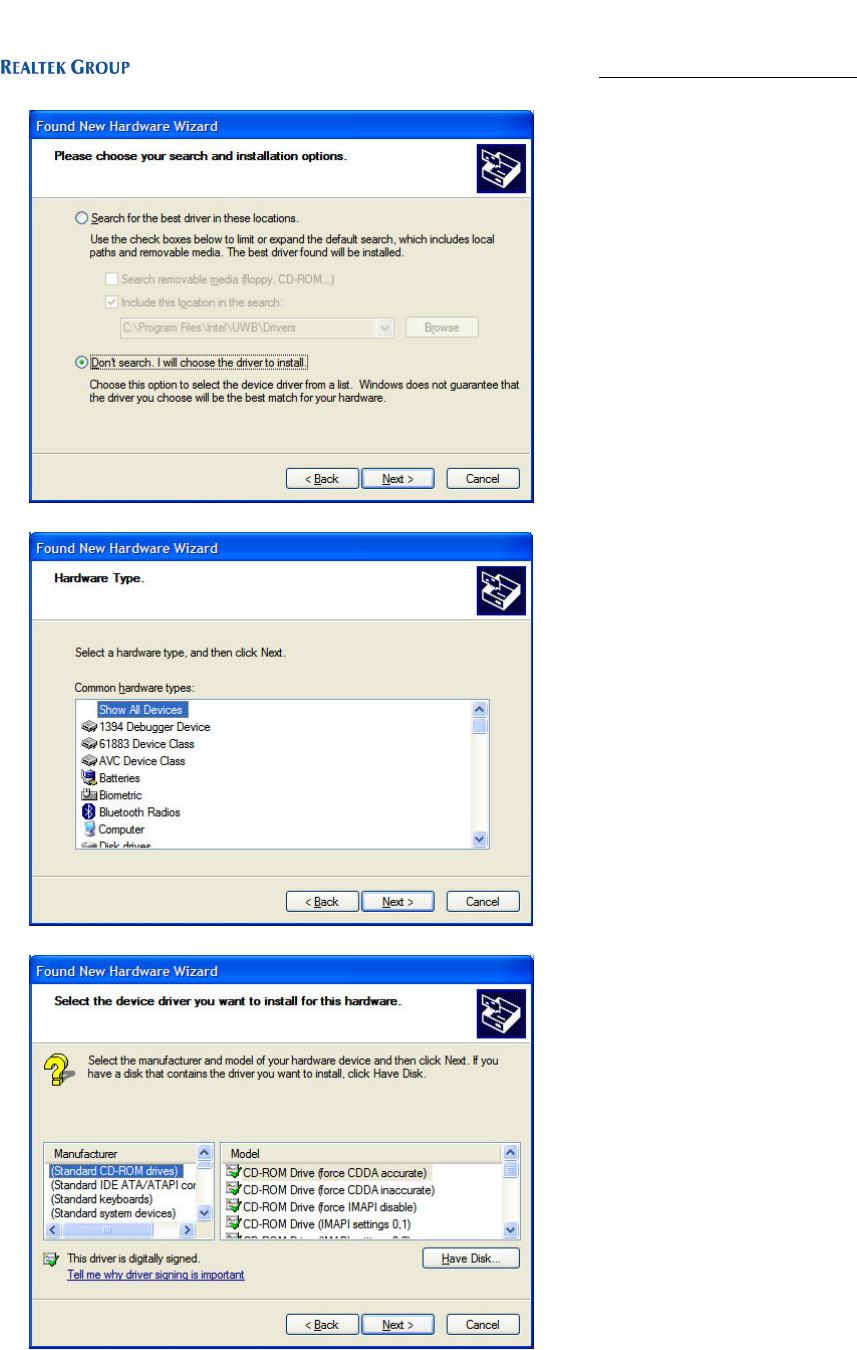

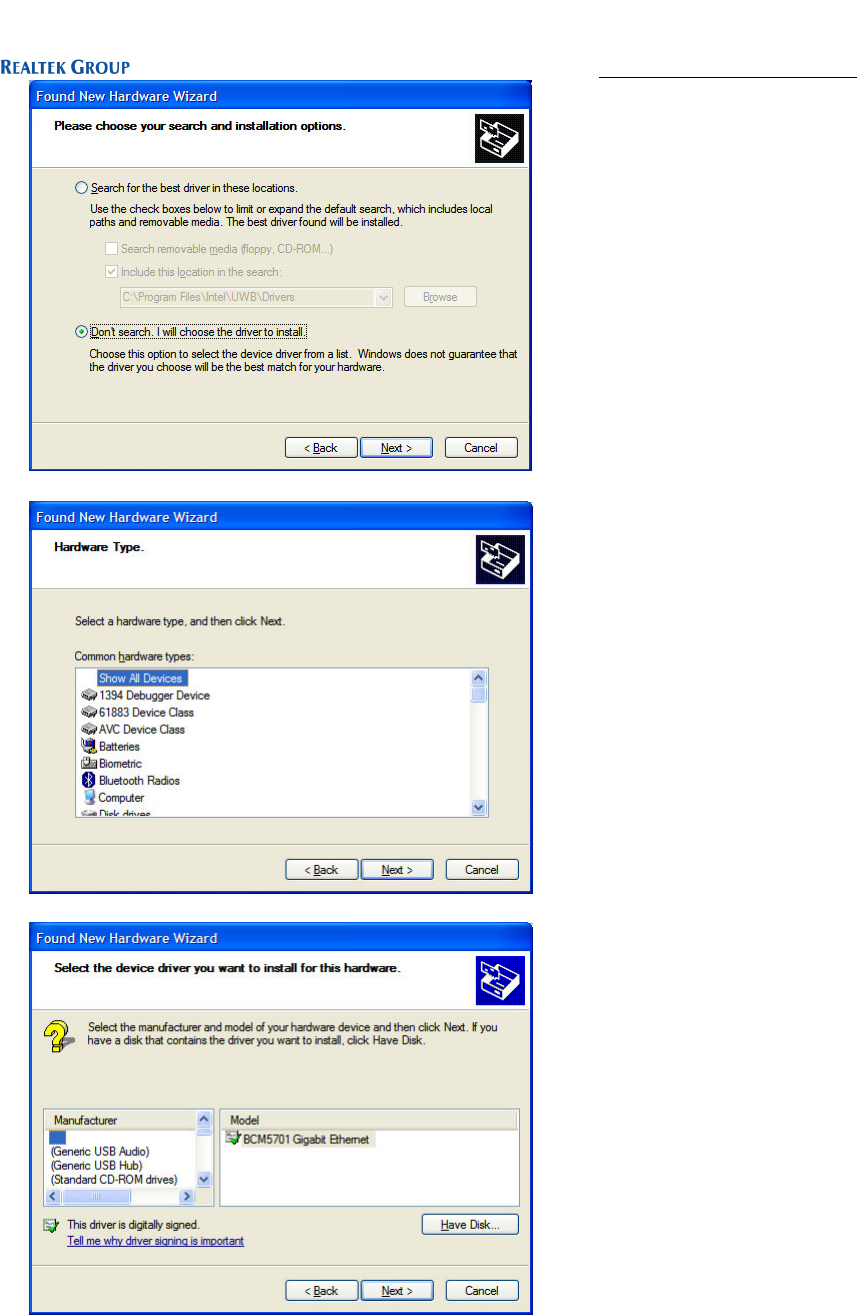

• Don’t search…

• Click “Next>”

• Choose “Have Disk…”

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

9

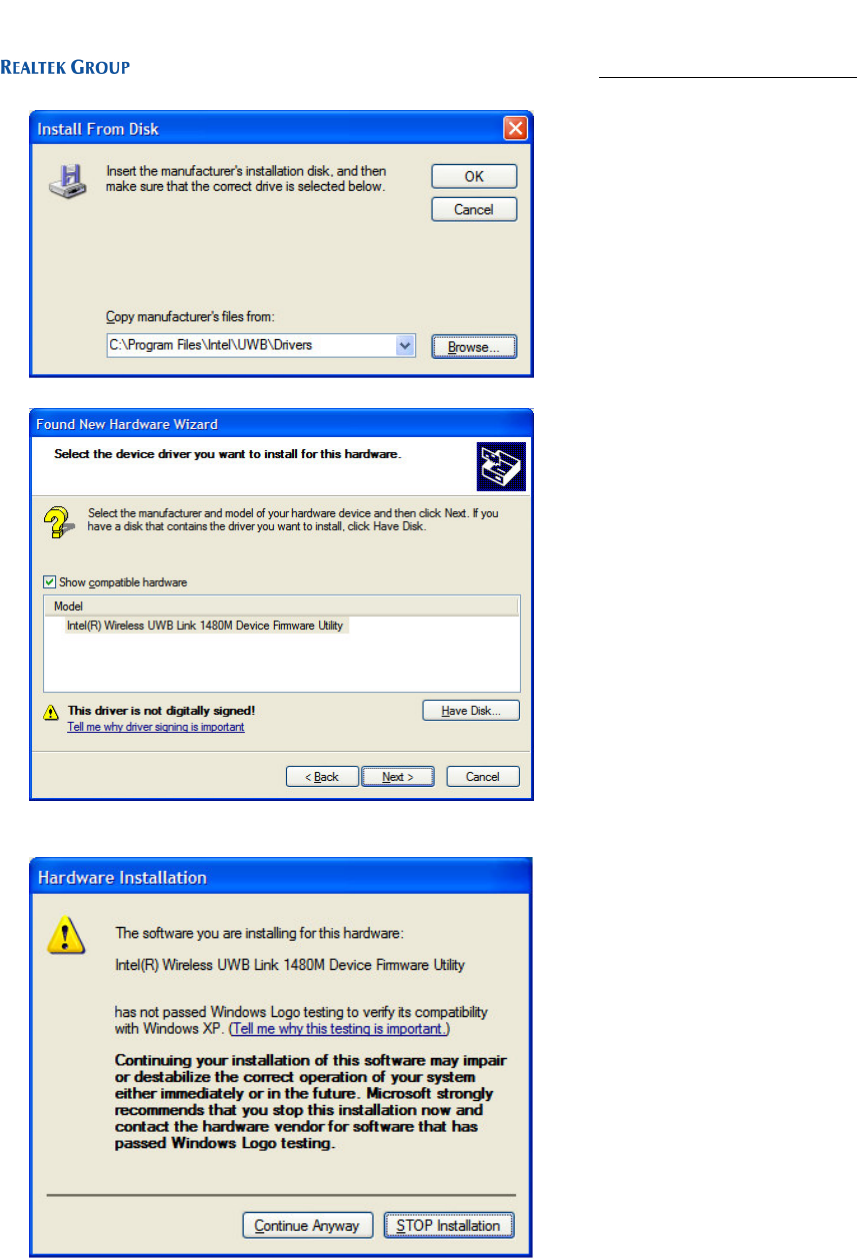

• Install the drivers from C:\Program Files\Intel\UWB\Drivers

• Click “Next>”

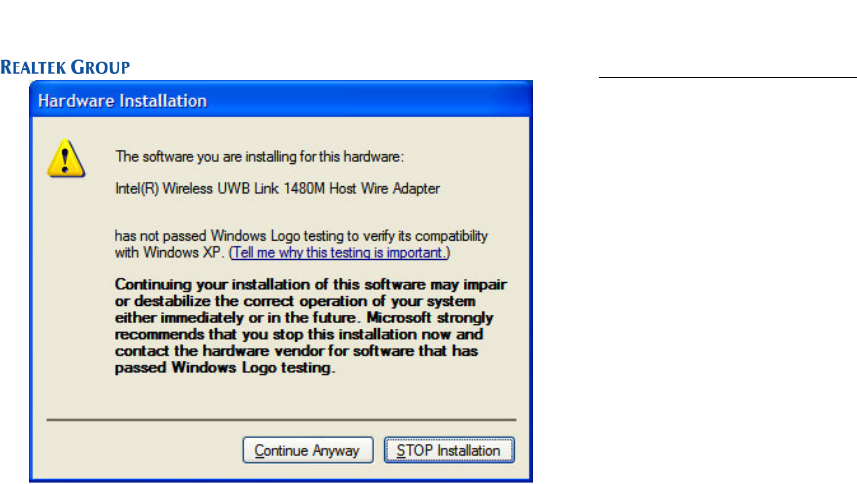

• Click “Continue Anyway”

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

10

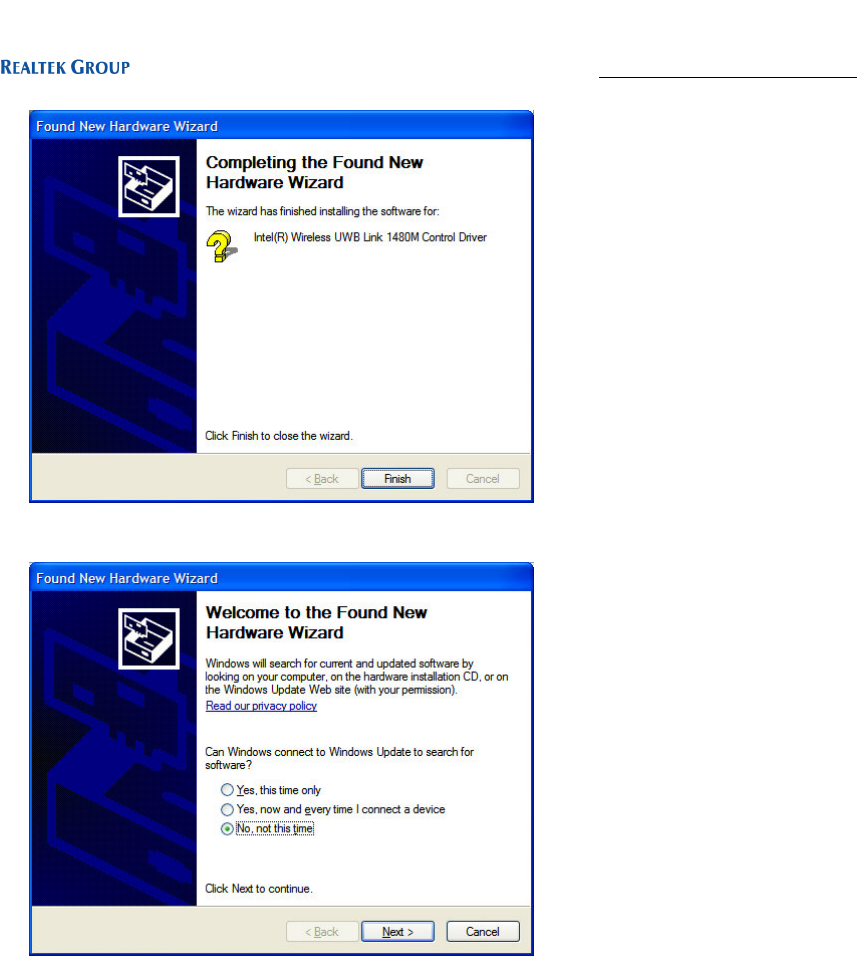

• Click “Finish”

3.1.2.1.2 Control Driver

• Install the drivers from the specified location(C:\Program

Files\Intel\UWB\Drivers) manually

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

11

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

12

• Don’t Search…

• Click “Next>”

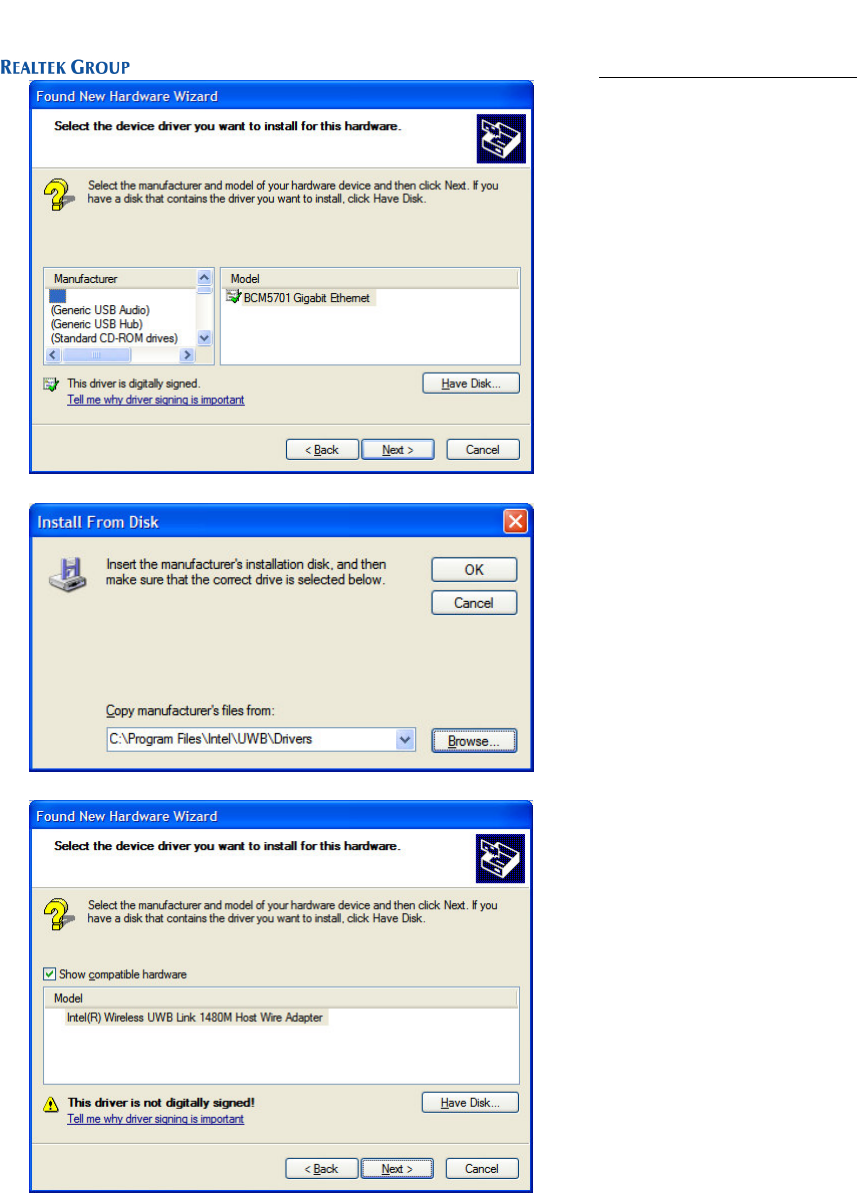

• Choose “Have Disk…”

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

13

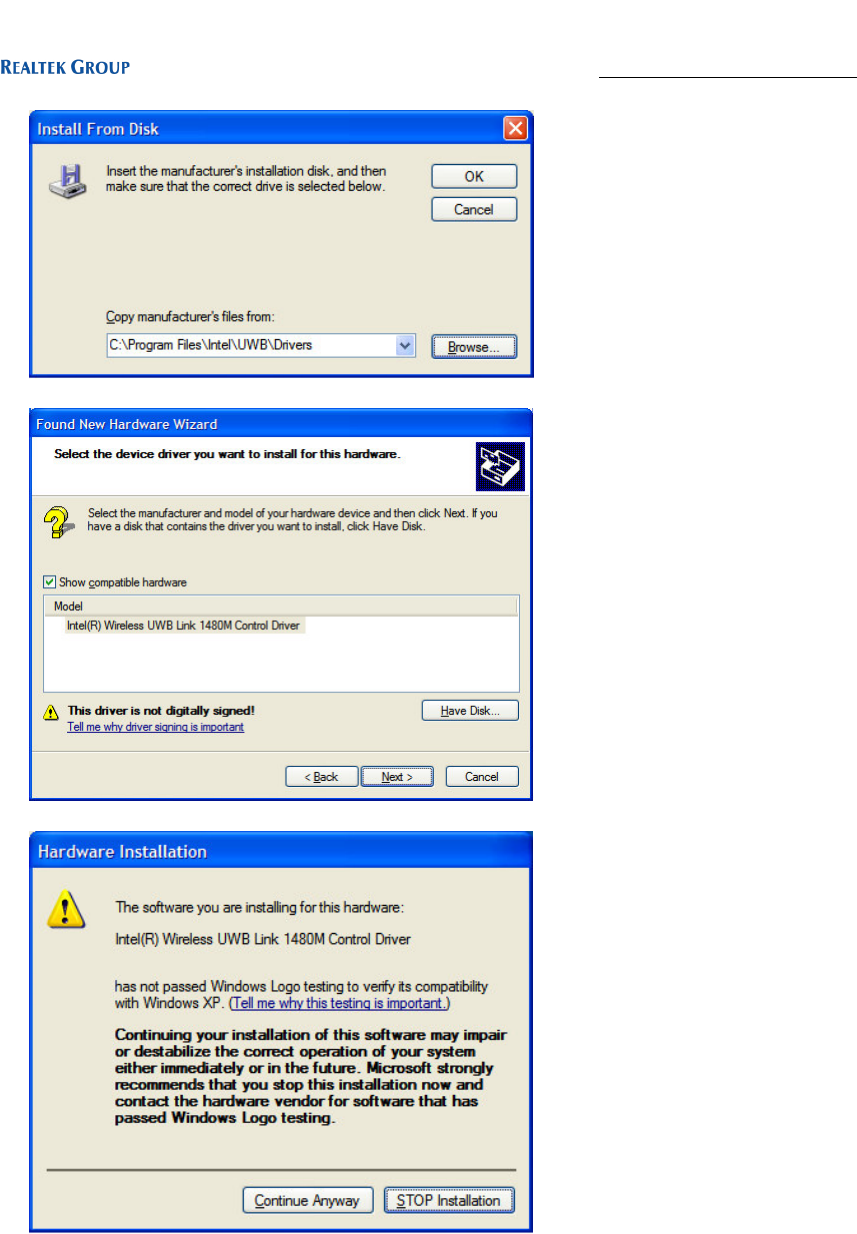

• Install the drivers from C:\Program Files\Intel\UWB\Drivers

• Click “Next>”

• Click “Continue Anyway”

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

14

• Click “Finish”

3.1.2.1.3 HWA(Host Wire Adapter) Driver

• Install the drivers from the specified location(C:\Program

Files\Intel\UWB\Drivers) manually

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

15

• Don’t Search…

• Click “Next>”

• Click “Have Disk…”

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

16

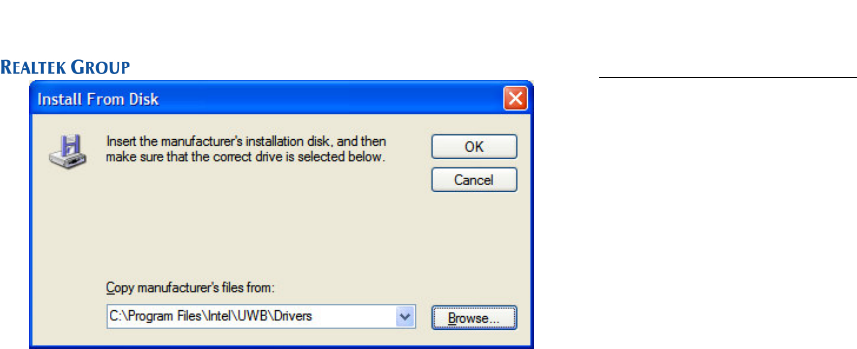

• Install the drivers from C:\Program Files\Intel\UWB\Drivers

• Click “Next>”

• Click “Continue Anyway”

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

17

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

18

• Click “Finish”

• Host Wire Adapter is installed

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

19

3.1.2.1.4 WiNet Driver

• Install the drivers from the specified location(C:\Program

Files\Intel\UWB\Drivers) manually

• Don’t Search

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

20

• Click “Next>”

• Click “Have Disk…”

• Install the drivers from C:\Program Files\Intel\UWB\Drivers

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

21

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

22

• Click “Have Disk…”

• Click “Continue Anyway”

• Click “Finish”

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

23

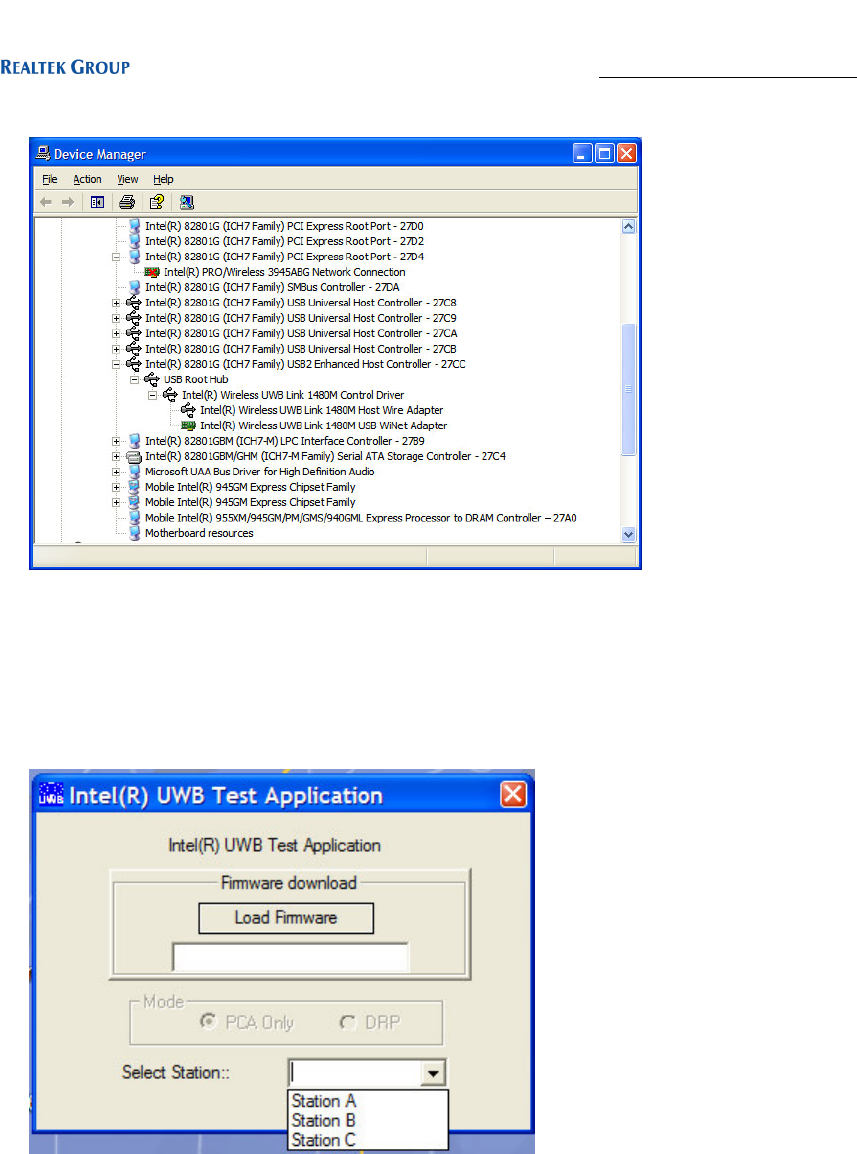

• Both Host Wire Adapter and WiNet Adapter are installed

3.1.3 Application Operation

• Execute the C:\Program Files\Intel\UWB\App\UWB Test Application.exe, and

select either Station A, B, or C.

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

24

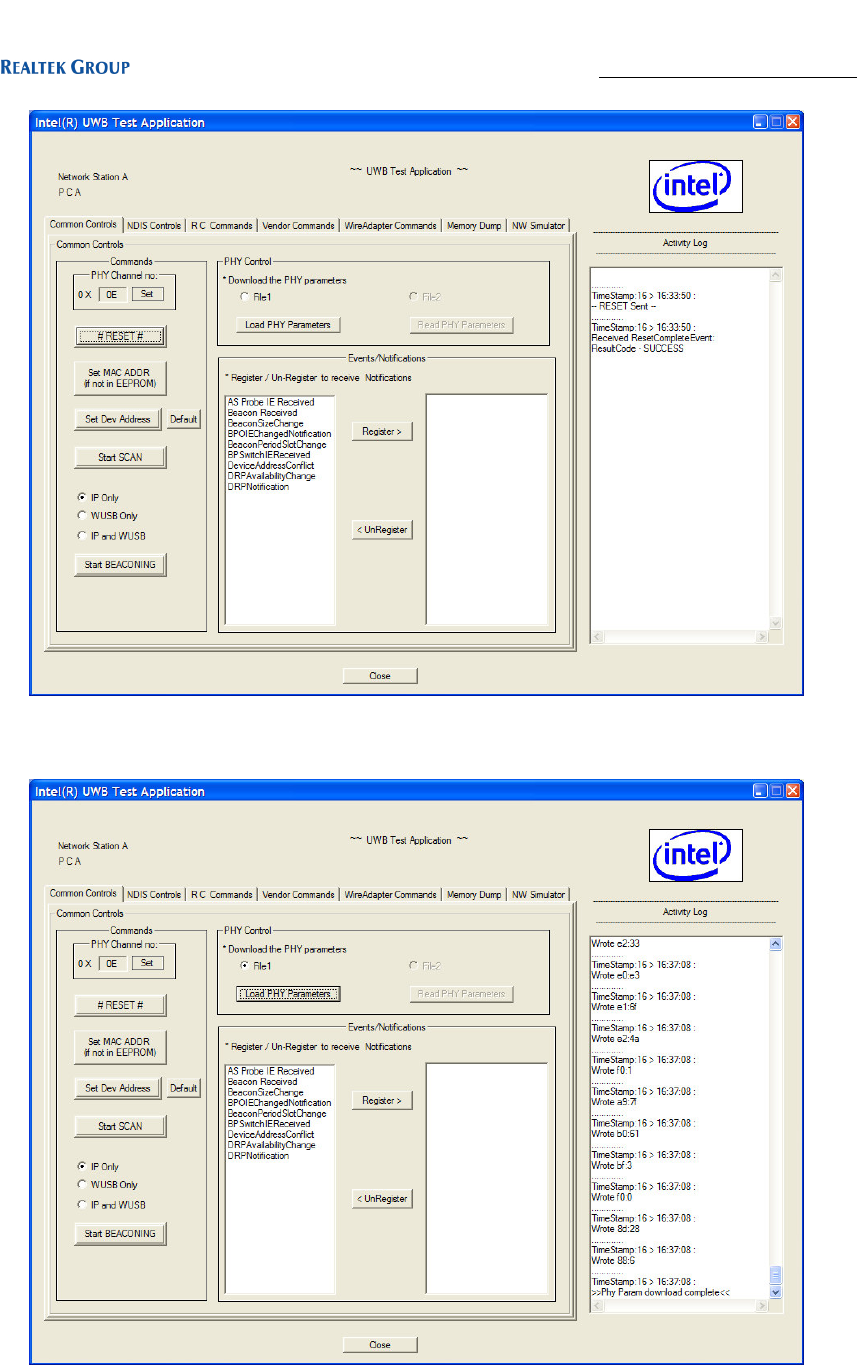

• Press #RESET# button in the Commands block of the Common Controls tab

• Select File1 and press Load PHY Parameters in the PHY Control block to load the

PHY parameter file, RTU7010-13RF1.TXT, from the C:\Program

Files\Intel\UWB\App directory.

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

25

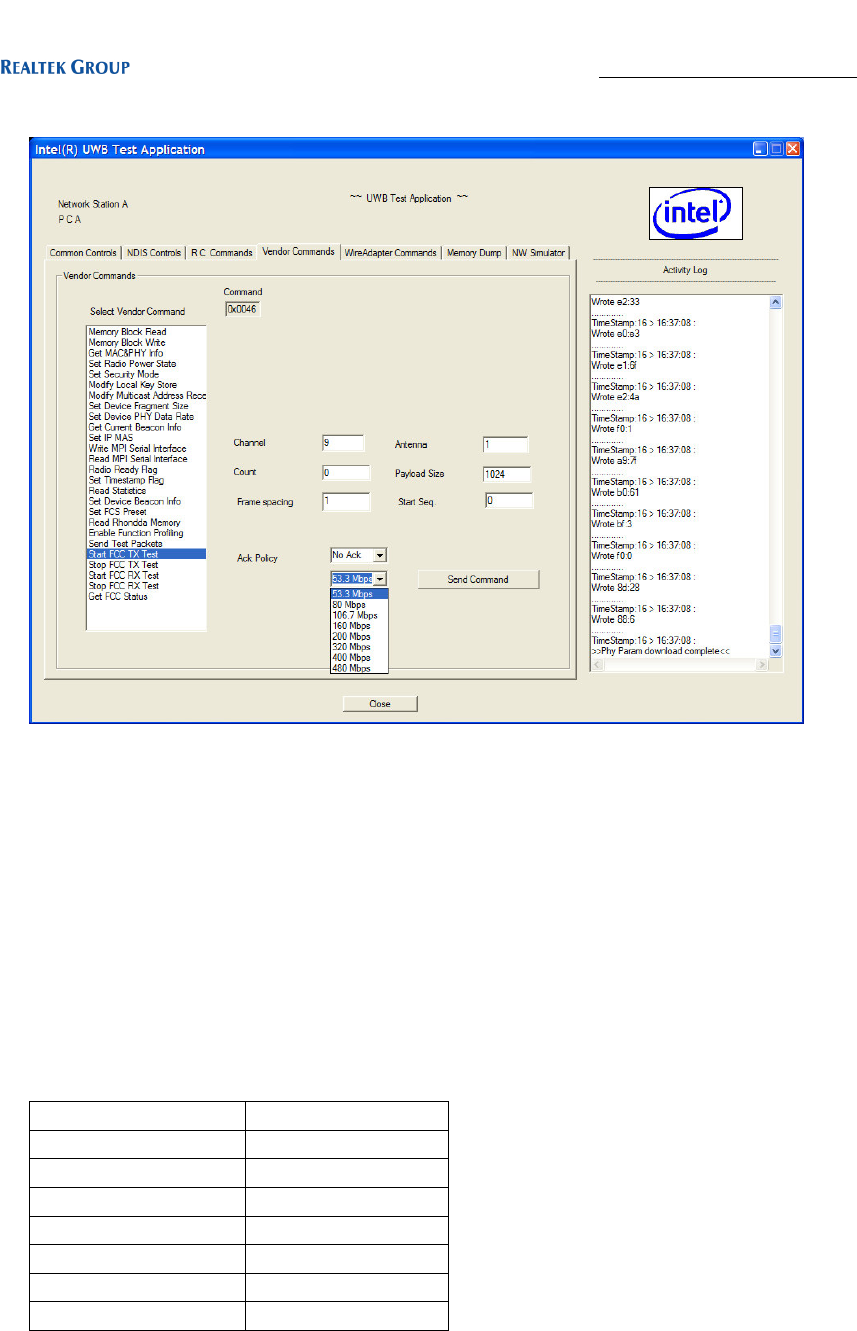

• Change to Vendor Command tab, select Start FCC TX Test, configure transmit

setting, then press Send Command to start transmitting

o Channel: 7 channels can be tested. TFC-1~7. The mapping is in the table 1

below.

o Antenna: 1. Do not change to other values. Only antenna 1 is used.

o Count: Transmit packet count. Set to 0 to transmit continuously.

o Payload Size: 0~4095.

o Frame spacing: 1~255. Set to 1 for the minimum Tx frame spacing.

o Start Seq.: Don’t care.

o Ack Policy: No Ack.

o Transmit packets data rates: 8 different data rates to test. 53.3Mbps,

80Mbps, 106.7Mbps, 160Mbps, 200Mbps, 320Mbps, 400Mbps, and

480Mbps.

Table 1 Channel Table

TFC Channel Value

1 9

2 10

3 11

4 12

5 13

6 14

7 15

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

26

• Select Stop FCC TX Test and press Send Command to stop transmitting.

• To continue Tx tests with different Tx setting, just change the setting and press

Send Command without leaving the Start FCC TX Test.

• Whenever there’s Tx or Rx activities, one of the lights (LED’s) should be

blinking. If the light is not blinking, press the Sand Command again. If the light is

still not blinking or in any other abnormal situations that the USB dongle is not

working correctly, close the application, unplug the dongle, and re-plug the

dongle, execute the application and do the test again.

• To enable receive function, just select Start FCC RX test, configure related setting,

and press Send Command to start receiving.

• Activity Log window also shows commands result of the dongle being tested.

4 Hardware Interfaces

4.1 USB Interface

Table 2 shows the pinout of the USB interface.

Table 2 USB Connector Pinout

Pin# Pin Name Description

1 VBUS USB BUS Power = 5V

2 Data-(D-, DM on the schematic) Differential Data Pin -

3 Data+(D+, DP on the schematic) Differential Data Pin +

4 GND USB BUS Ground

5 Instruction to The User

This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

wion

ic

s

r e s e a r c h

http://www.realtek.com.tw

27

* Consult the dealer or an experienced radio/TV technician for help.

This equipment has been certified to comply with the limits for a class B

computing device, pursuant to FCC Rules. In order to maintain compliance with FCC

regulations, shielded cables must be used with this equipment. Operation with non-

approved equipment or unshielded cables

is likely to result in interference to radio and TV reception. The user is cautioned

that changes and modifications made to the equipment without the approval of

manufacturer could void the user's authority to operate this equipment.

This equipment may only be operated indoors. Operation outdoors is in violation of 47

USC Section 301 and could subject the operator to serious legal penalties.

6 Document History

Date Revision Description Author

02/14/07 A Initial Release Ted Lin

Starix Technology DGLR7CV1 Wireless USB 2.0 Adapter User Manual

Realtek Semiconductor Corp. - Wionics Research Wireless USB 2.0 Adapter Users Manual

Users Manual Document

Navigation menu

Namespaces

Views

Navigation
