Sun™StorEdge™FC-100 Hub
Installation and Service
Manual
FormerlytheSun™EnterpriseNetworkArray™
Part No. 805-0315-12
September 1998, Revision A
Sun Microsystems, Inc.
Send comments about this document to: docfeedback@sun.com
Copyright1998SunMicrosystems,Inc.901SanAntonioRoad•PaloAlto,CA94303USA. All rights reserved.
Thisproductordocumentisprotectedbycopyrightanddistributedunderlicensesrestrictingits use, copying,distribution,anddecompilation.
Nopart of this productordocumentmaybereproducedin any form by any meanswithoutpriorwrittenauthorizationofSunanditslicensors,
ifany.Third-partysoftware,including font technology,is copyrightedandlicensedfromSun suppliers.
Partsof the productmaybederivedfromBerkeleyBSDsystems,licensedfromthe University of California. UNIX isaregisteredtrademarkin
theU.S. and other countries, exclusively licensed throughX/OpenCompany,Ltd.
Sun,Sun Microsystems,theSunlogo,AnswerBook, SunStorEdge,SunEnterpriseNetworkArray and Solaris aretrademarks,registered
trademarks,or service marks of Sun Microsystems,Inc.intheU.S.andother countries. All SPARCtrademarksareused under licenseandare
trademarksor registeredtrademarks of SPARCInternational,Inc.intheU.S.andothercountries. ProductsbearingSPARCtrademarks are
basedupon an architecturedeveloped by SunMicrosystems,Inc.
TheOPEN LOOK and Sun™ Graphical User Interface wasdevelopedbySunMicrosystems,Inc. for its users andlicensees.Sunacknowledges
thepioneering effortsofXeroxin researchinganddevelopingtheconceptofvisualorgraphicaluserinterfacesforthecomputerindustry.Sun
holdsa non-exclusive license fromXeroxtotheXeroxGraphical User Interface, which license also coversSun’slicenseeswhoimplementOPEN
LOOKGUIs and otherwise comply with Sun’s writtenlicenseagreements.
RESTRICTEDRIGHTS:Use, duplication, or disclosurebythe U.S. Government is subject to restrictionsofFAR 52.227-14(g)(2)(6/87)and
FAR52.227-19(6/87),orDFAR252.227-7015(b)(6/95)andDFAR227.7202-3(a).
DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-
INFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.
Copyright1998Sun Microsystems,Inc.,901SanAntonioRoad•PaloAlto,CA94303 Etatis-Unis. Tousdroitsréservés.
Ceproduitoudocumentestprotégéparuncopyrightetdistribuéavecdeslicencesquienrestreignentl’utilisation,lacopie, la distribution, et la
décompilation.Aucune partie de ce produitoudocumentnepeutêtrereproduitesousaucuneforme,parquelquemoyenquecesoit, sans
l’autorisationpréalable et écrite de Sun et desesbailleursdelicence,s’ilyena.Lelogicieldétenupardestiers,et qui comprendlatechnologie
relativeauxpolicesdecaractères,est protégéparuncopyrightet licencié par des fournisseurs de Sun.
Desparties de ce produitpourrontêtredérivéesdessystèmesBerkeleyBSD licenciés par l’Université de Californie. UNIXestunemarque
déposéeaux Etats-Unis et dans d’autrespaysetlicenciéeexclusivementparX/OpenCompany,Ltd.
Sun,Sun Microsystems,lelogoSun,AnswerBook, SunStorEdge,SunEnterpriseNetworkArrayet Solaris sont des marquesdefabriqueoudes
marquesdéposées,oumarquesde service,deSunMicrosystems,Inc.aux Etats-Unis et dans d’autrespays.Toutesles marquesSPARCsont
utiliséessous licence et sont des marquesdefabriqueoudesmarquesdéposéesdeSPARCInternational, Inc. aux Etats-Unis etdansd’autres
pays.Les produitsportantlesmarquesSPARCsontbaséssurunearchitecturedéveloppée par Sun Microsystems,Inc.
L’interfaced’utilisationgraphiqueOPENLOOK et Sun™ a été développée parSunMicrosystems,Inc.pourses utilisateurs et licenciés. Sun
reconnaîtleseffortsde pionniers de Xeroxpourlarechercheet le développement du conceptdesinterfacesd’utilisationvisuelleougraphique
pourl’industrie de l’informatique. Sun détient une licencenonexclusivedeXeroxsur l’interface d’utilisation graphique Xerox,cettelicence
couvrantégalement les licenciés de Sun qui mettentenplacel’interfaced’utilisationgraphiqueOPENLOOKetquienoutreseconformentaux
licencesécrites de Sun.
CETTE PUBLICATION EST FOURNIE "EN L’ETAT" ET AUCUNE GARANTIE, EXPRESSE OU IMPLICITE, N’EST ACCORDEE, Y
COMPRIS DES GARANTIES CONCERNANT LA VALEUR MARCHANDE, L’APTITUDE DE LA PUBLICATION A REPONDRE A UNE
UTILISATION PARTICULIERE, OU LE FAIT QU’ELLE NE SOIT PAS CONTREFAISANTE DE PRODUIT DE TIERS. CE DENI DE
GARANTIE NE S’APPLIQUERAIT PAS, DANS LA MESURE OU IL SERAIT TENU JURIDIQUEMENT NUL ET NON AVENU.
Regulatory Compliance Statements iii
RegulatoryComplianceStatements
Your Sun product is marked to indicate its compliance class:
• Federal Communications Commission (FCC) — USA
• Department of Communications (DOC) — Canada

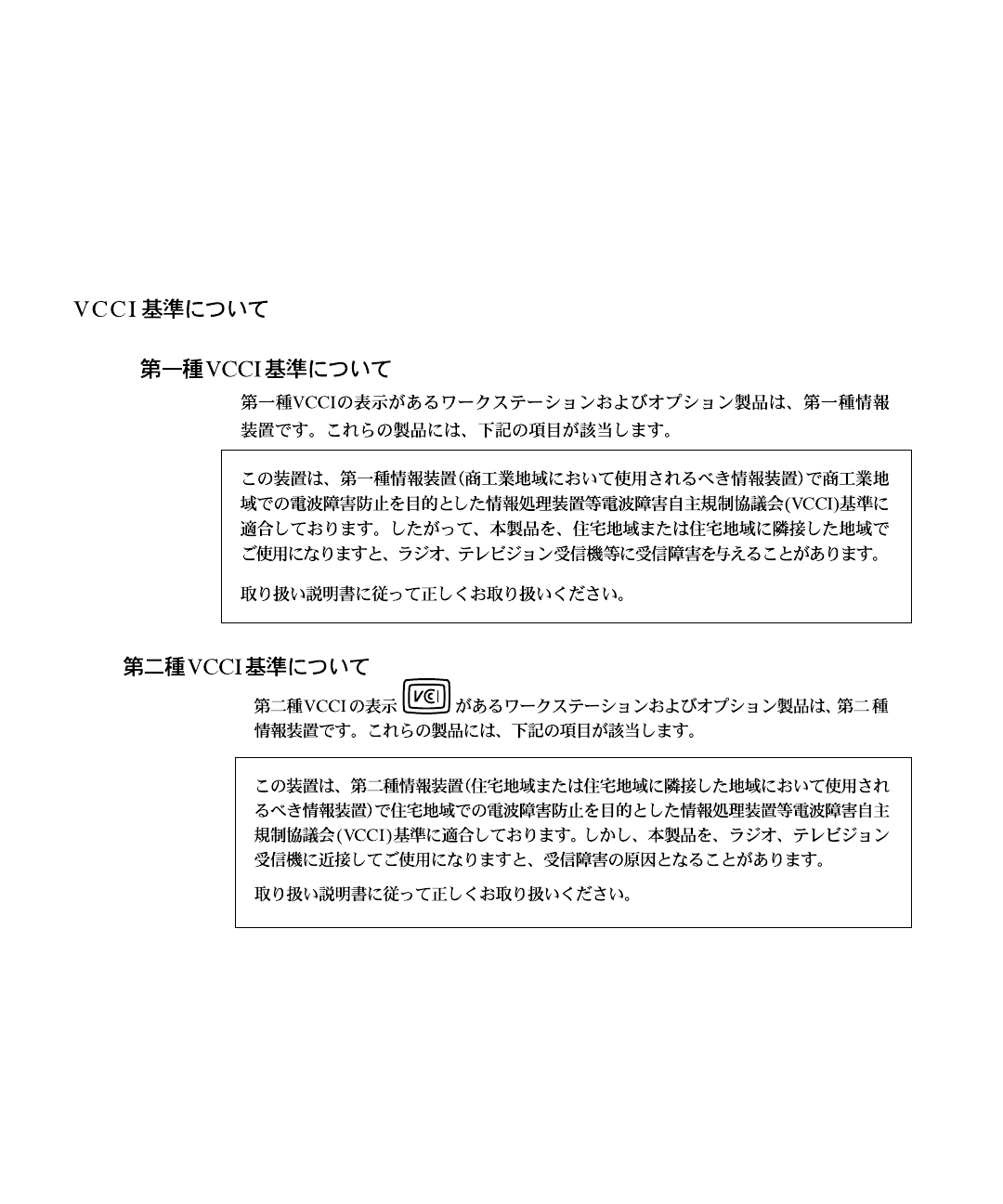

• Voluntary Control Council for Interference (VCCI) — Japan
Please read the appropriate section that corresponds to the marking on your Sun product before attempting to install the product.
FCCClassANotice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
Shielded Cables: Connections between the workstation and peripherals must be made using shielded cables in order to maintain
compliance with FCC radio frequency emission limits. Networking connections can be made using unshielded twisted-pair (UTP)
cables.
Modifications: Any modifications made to this device that are not approved by Sun Microsystems, Inc. may void the authority
granted to the user by the FCC to operate this equipment.
FCCClassBNotice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Shielded Cables: Connections between the workstation and peripherals must be made using shielded cables in order to maintain
compliance with FCC radio frequency emission limits. Networking connections can be made using unshielded twisted pair (UTP)
cables.
Modifications: Any modifications made to this device that are not approved by Sun Microsystems, Inc. may void the authority
granted to the user by the FCC to operate this equipment.
iv Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
DOCClassANotice-AvisDOC,ClasseA
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
DOCClassBNotice-AvisDOC,ClasseB
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Safety Agency Compliance Statements v
Safety Agency Compliance Statements
Read this section before beginning any procedure. The
following text provides safety precautions to follow when
installing a Sun Microsystems product.
Safety Precautions
For your protection, observe the following safety precautions
when setting up your equipment:
• Follow all cautions and instructions marked on the
equipment.
• Ensure that the voltage and frequency of your power
source match the voltage and frequency inscribed on the
equipment’s electrical rating label.
• Never push objects of any kind through openings in the
equipment. Dangerous voltages may be present.
Conductive foreign objects could produce a short circuit
that could cause fire, electric shock, or damage to your
equipment.
Symbols
The following symbols may appear in this book:
Caution – There is risk of personal injury and
equipment damage. Follow the instructions.
Caution – Hot surface. Avoid contact. Surfaces are
hot and may cause personal injury if touched.
Caution – Hazardous voltages are present. To reduce
the risk of electric shock and danger to personal
health, follow the instructions.
On – Applies AC power to the system.
Depending on the type of power switch your device has, one
of the following symbols may be used:
Off – Removes AC power from the system.
Standby – The On/Standby switch is in the standby
position.
Modifications to Equipment
Do not make mechanical or electrical modifications to the
equipment. Sun Microsystems is not responsible for
regulatory compliance of a modified Sun product.
Placement of a Sun Product
Caution – Do not block or cover the openings of your
Sun product. Never place a Sun product near a
radiator or heat register. Failure to follow these
guidelines can cause overheating and affect the
reliability of your Sun product.
SELV Compliance
Safety status of I/O connections comply to SELV
requirements.
Power Cord Connection
Caution – Sun products are designed to work with
single-phase power systems having a grounded
neutral conductor. To reduce the risk of electric
shock, do not plug Sun products into any other type
of power system. Contact your facilities manager or a
qualified electrician if you are not sure what type of
power is supplied to your building.
Caution – Not all power cords have the same current
ratings. Household extension cords do not have
overload protection and are not meant for use with
computer systems. Do not use household extension
cords with your Sun product.
Caution – Your Sun product is shipped with a
grounding type (three-wire) power cord. To reduce
the risk of electric shock, always plug the cord into a
grounded power outlet.
The following caution applies only to devices with a
Standby power switch:
Caution – The power switch of this product functions
as a standby type device only. The power cord serves
as the primary disconnect device for the system. Be
sure to plug the power cord into a grounded power
outlet that is nearby the system and is readily
accessible. Do not connect the power cord when the
power supply has been removed from the system
chassis.
System Unit Cover
You must remove the cover of your Sun computer system
unit in order to add cards, memory, or internal storage
devices. Be sure to replace the top cover before powering up
your computer system.
!
!
vi Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
Caution – Do not operate Sun products without the
top cover in place. Failure to take this precaution
may result in personal injury and system damage.
Laser Compliance Notice
Sun products that use laser technology comply with
Class 1 laser requirements.
Einhaltung sicherheitsbehördlicher
Vorschriften
Auf dieser Seite werden Sicherheitsrichtlinien beschrieben,
die bei der Installation von Sun-Produkten zu beachten sind.
Sicherheitsvorkehrungen
Treffen Sie zu Ihrem eigenen Schutz die folgenden
Sicherheitsvorkehrungen, wenn Sie Ihr Gerät installieren:
• Beachten Sie alle auf den Geräten angebrachten
Warnhinweise und Anweisungen.
• Vergewissern Sie sich, daß Spannung und Frequenz Ihrer
Stromquelle mit der Spannung und Frequenz
übereinstimmen, die auf dem Etikett mit den elektrischen
Nennwerten des Geräts angegeben sind.
• Stecken Sie auf keinen Fall irgendwelche Gegenstände in
Öffnungen in den Geräten. Leitfähige Gegenstände
könnten aufgrund der möglicherweise vorliegenden
gefährlichen Spannungen einen Kurzschluß verursachen,
der einen Brand, Stromschlag oder Geräteschaden
herbeiführen kann.
Symbole
Die Symbole in diesem Handbuch haben folgende
Bedeutung:
Achtung – Gefahr von Verletzung und
Geräteschaden. Befolgen Sie die Anweisungen.
Achtung – Hohe Temperatur. Nicht berühren, da
Verletzungsgefahr durch heiße Oberfläche besteht.
Achtung – Gefährliche Spannungen. Anweisungen
befolgen, um Stromschläge und Verletzungen zu
vermeiden.
Ein – Setzt das System unter Wechselstrom.
Je nach Netzschaltertyp an Ihrem Gerät kann eines der
folgenden Symbole benutzt werden:
Aus – Unterbricht die Wechselstromzufuhr zum
Gerät.
Wartezustand (Stand-by-Position) - Der Ein-/
Wartezustand-Schalter steht auf Wartezustand.
Änderungen an Sun-Geräten.
Nehmen Sie keine mechanischen oder elektrischen
Änderungen an den Geräten vor. Sun Microsystems,
übernimmt bei einem Sun-Produkt, das geändert wurde,
keine Verantwortung für die Einhaltung behördlicher
Vorschriften
Aufstellung von Sun-Geräten
Achtung – Um den zuverlässigen Betrieb Ihres Sun-
Geräts zu gewährleisten und es vor Überhitzung zu
schützen, dürfen die Öffnungen im Gerät nicht
blockiert oder verdeckt werden. Sun-Produkte sollten
niemals in der Nähe von Heizkörpern oder
Heizluftklappen aufgestellt werden.
Einhaltung der SELV-Richtlinien
Die Sicherung der I/O-Verbindungen entspricht den
Anforderungen der SELV-Spezifikation.
Anschluß des Netzkabels
Achtung – Sun-Produkte sind für den Betrieb an
Einphasen-Stromnetzen mit geerdetem Nulleiter
vorgesehen. Um die Stromschlaggefahr zu
reduzieren, schließen Sie Sun-Produkte nicht an
andere Stromquellen an. Ihr Betriebsleiter oder ein
qualifizierter Elektriker kann Ihnen die Daten zur
Stromversorgung in Ihrem Gebäude geben.
!
Class 1 Laser Product
Luokan 1 Laserlaite
Klasse 1 Laser Apparat
Laser Klasse 1
!
!
Safety Agency Compliance Statements vii
Achtung – Nicht alle Netzkabel haben die gleichen
Nennwerte. Herkömmliche, im Haushalt verwendete
Verlängerungskabel besitzen keinen
Überlastungsschutz und sind daher für
Computersysteme nicht geeignet.
Achtung – Ihr Sun-Gerät wird mit einem dreiadrigen
Netzkabel für geerdete Netzsteckdosen geliefert. Um
die Gefahr eines Stromschlags zu reduzieren,
schließen Sie das Kabel nur an eine fachgerecht
verlegte, geerdete Steckdose an.
Die folgende Warnung gilt nur für Geräte mit Wartezustand-
Netzschalter:
Achtung – Der Ein/Aus-Schalter dieses Geräts
schaltet nur auf Wartezustand (Stand-By-Modus).
Um die Stromzufuhr zum Gerät vollständig zu
unterbrechen, müssen Sie das Netzkabel von der
Steckdose abziehen. Schließen Sie den Stecker des
Netzkabels an eine in der Nähe befindliche, frei
zugängliche, geerdete Netzsteckdose an. Schließen
Sie das Netzkabel nicht an, wenn das Netzteil aus der
Systemeinheit entfernt wurde.
Gehäuseabdeckung
Sie müssen die obere Abdeckung Ihres Sun-Systems
entfernen, um interne Komponenten wie Karten,
Speicherchips oder Massenspeicher hinzuzufügen. Bringen
Sie die obere Gehäuseabdeckung wieder an, bevor Sie Ihr
System einschalten.
Achtung – Bei Betrieb des Systems ohne obere
Abdeckung besteht die Gefahr von Stromschlag und
Systemschäden.
Einhaltung der Richtlinien für Laser
Sun-Produkte, die mit Laser-Technologie arbeiten,
entsprechen den Anforderungen der Laser Klasse 1.
Conformité aux normes de sécurité
Ce texte traite des mesures de sécurité qu’il convient de
prendre pour l’installation d’un produit Sun Microsystems.
Mesures de sécurité
Pour votre protection, veuillez prendre les précautions
suivantes pendant l’installation du matériel :
• Suivre tous les avertissements et toutes les instructions
inscrites sur le matériel.
• Vérifier que la tension et la fréquence de la source
d’alimentation électrique correspondent à la tension et à la
fréquence indiquées sur l’étiquette de classification de
l’appareil.
• Ne jamais introduire d’objets quels qu’ils soient dans une
des ouvertures de l’appareil. Vous pourriez vous trouver
en présence de hautes tensions dangereuses. Tout objet
conducteur introduit de la sorte pourrait produire un
court-circuit qui entraînerait des flammes, des risques
d’électrocution ou des dégâts matériels.
Symboles
Vous trouverez ci-dessous la signification des différents
symboles utilisés :
Attention : risques de blessures corporelles et de
dégâts matériels. Veuillez suivre les instructions.
Attention : surface à température élevée. Evitez le
contact. La température des surfaces est élevée et leur
contact peut provoquer des blessures corporelles.
Attention : présence de tensions dangereuses. Pour
éviter les risques d’électrocution et de danger pour la
santé physique, veuillez suivre les instructions.
MARCHE – Votre système est sous tension (courant
alternatif).
Un des symboles suivants sera peut-être utilisé en fonction
du type d'interrupteur de votre système:
ARRET – Votre système est hors tension (courant
alternatif).
VEILLEUSE – L'interrupteur Marche/Veilleuse est
en position « Veilleuse ».
!
Class 1 Laser Product
Luokan 1 Laserlaite
Klasse 1 Laser Apparat
Laser Klasse 1
!
viii Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
Modification du matériel
Ne pas apporter de modification mécanique ou électrique au
matériel. Sun Microsystems n’est pas responsable de la
conformité réglementaire d’un produit Sun qui a été modifié.
Positionnement d’un produit Sun
Attention : pour assurer le bon fonctionnement de
votre produit Sun et pour l’empêcher de surchauffer,
il convient de ne pas obstruer ni recouvrir les
ouvertures prévues dans l’appareil. Un produit Sun
ne doit jamais être placé à proximité d’un radiateur
ou d’une source de chaleur.
Conformité SELV
Sécurité : les raccordements E/S sont conformes aux normes
SELV.
Connexion du cordon d’alimentation
Attention : les produits Sun sont conçus pour
fonctionner avec des alimentations monophasées
munies d’un conducteur neutre mis à la terre. Pour
écarter les risques d’électrocution, ne pas brancher de
produit Sun dans un autre type d’alimentation
secteur. En cas de doute quant au type d’alimentation
électrique du local, veuillez vous adresser au
directeur de l’exploitation ou à un électricien qualifié.
Attention : tous les cordons d’alimentation n’ont pas
forcément la même puissance nominale en matière de
courant. Les rallonges d’usage domestique n’offrent
pas de protection contre les surcharges et ne sont pas
prévues pour les systèmes d’ordinateurs. Ne pas
utiliser de rallonge d’usage domestique avec votre
produit Sun.
Attention : votre produit Sun a été livré équipé d’un
cordon d’alimentation à trois fils (avec prise de terre).
Pour écarter tout risque d’électrocution, branchez
toujours ce cordon dans une prise mise à la terre.
L'avertissement suivant s'applique uniquement aux systèmes
équipés d'un interrupteur VEILLEUSE:
Attention : le commutateur d’alimentation de ce
produit fonctionne comme un dispositif de mise en
veille uniquement. C’est la prise d’alimentation qui
sert à mettre le produit hors tension. Veillez donc à
installer le produit à proximité d’une prise murale
facilement accessible. Ne connectez pas la prise
d’alimentation lorsque le châssis du système n’est
plus alimenté.
Couvercle
Pour ajouter des cartes, de la mémoire, ou des unités de
stockage internes, vous devrez démonter le couvercle de
l’unité système Sun. Ne pas oublier de remettre ce couvercle
en place avant de mettre le système sous tension.
Attention : il est dangereux de faire fonctionner un
produit Sun sans le couvercle en place. Si l’on néglige
cette précaution, on encourt des risques de blessures
corporelles et de dégâts matériels.
Conformité aux certifications Laser
Les produits Sun qui font appel aux technologies lasers sont
conformes aux normes de la classe 1 en la matière.
Normativas de seguridad
El siguiente texto incluye las medidas de seguridad que se
deben seguir cuando se instale algún producto de Sun
Microsystems.
Precauciones de seguridad
Para su protección observe las siguientes medidas de
seguridad cuando manipule su equipo:
• Siga todas los avisos e instrucciones marcados en el
equipo.
• Asegúrese de que el voltaje y la frecuencia de la red
eléctrica concuerdan con las descritas en las etiquetas de
especificaciones eléctricas del equipo.
!
!
Class 1 Laser Product
Luokan 1 Laserlaite
Klasse 1 Laser Apparat
Laser Klasse 1
Safety Agency Compliance Statements ix
• No introduzca nunca objetos de ningún tipo a través de los
orificios del equipo. Pueden haber voltajes peligrosos.
Los objetos extraños conductores de la electricidad pueden
producir cortocircuitos que provoquen un incendio,
descargas eléctricas o daños en el equipo.
Símbolos
En este libro aparecen los siguientes símbolos:
Precaución – Existe el riesgo de lesiones personales y
daños al equipo. Siga las instrucciones.
Precaución – Superficie caliente. Evite el contacto.
Las superficies están calientes y pueden causar daños
personales si se tocan.
Precaución – Voltaje peligroso presente. Para reducir
el riesgo de descarga y daños para la salud siga las
instrucciones.
Encendido – Aplica la alimentación de CA al sistema.
Según el tipo de interruptor de encendido que su equipo
tenga, es posible que se utilice uno de los siguientes
símbolos:
Apagado – Elimina la alimentación de CA del
sistema.
En espera – El interruptor de Encendido/En espera
se ha colocado en la posición de En espera.
Modificaciones en el equipo
No realice modificaciones de tipo mecánico o eléctrico en el
equipo. Sun Microsystems no se hace responsable del
cumplimiento de las normativas de seguridad en los equipos
Sun modificados.
Ubicación de un producto Sun
Precaución – Para asegurar la fiabilidad de
funcionamiento de su producto Sun y para protegerlo
de sobrecalentamien-tos no deben obstruirse o
taparse las rejillas del equipo. Los productos Sun
nunca deben situarse cerca de radiadores o de
fuentes de calor.
Cumplimiento de la normativa SELV
El estado de la seguridad de las conexiones de entrada/
salida cumple los requisitos de la normativa SELV.
Conexión del cable de alimentación eléctrica
Precaución – Los productos Sun están diseñados
para
trabajar en una red eléctrica monofásica con toma de
tierra. Para reducir el riesgo de descarga eléctrica, no
conecte los productos Sun a otro tipo de sistema de
alimentación eléctrica. Póngase en contacto con el
responsable de mantenimiento o con un electricista
cualificado si no está seguro del sistema de
alimentación eléctrica del que se dispone en su
edificio.
Precaución – No todos los cables de alimentación
eléctrica tienen la misma capacidad. Los cables de
tipo doméstico no están provistos de protecciones
contra sobrecargas y por tanto no son apropiados
para su uso con computadores. No utilice
alargadores de tipo doméstico para conectar sus
productos Sun.
Precaución – Con el producto Sun se proporciona un
cable de alimentación con toma de tierra. Para
reducir el riesgo de descargas eléctricas conéctelo
siempre a un enchufe con toma de tierra.
La siguiente advertencia se aplica solamente a equipos con
un interruptor de encendido que tenga una posición "En
espera":
Precaución – El interruptor de encendido de este
producto funciona exclusivamente como un
dispositivo de puesta en espera. El enchufe de la
fuente de alimentación está diseñado para ser el
elemento primario de desconexión del equipo. El
equipo debe instalarse cerca del enchufe de forma
que este último pueda ser fácil y rápidamente
accesible. No conecte el cable de alimentación cuando
se ha retirado la fuente de alimentación del chasis del
sistema.
Tapa de la unidad del sistema
Debe quitar la tapa del sistema cuando sea necesario añadir
tarjetas, memoria o dispositivos de almacenamiento internos.
Asegúrese de cerrar la tapa superior antes de volver a
encender el equipo.
!
!
xSun StorEdge FC-100 Hub Installation and Service Manual • September 1998
Precaución – Es peligroso hacer funcionar los
productos Sun sin la tapa superior colocada. El hecho
de no tener en cuenta esta precaución puede
ocasionar daños personales o perjudicar el
funcionamiento del equipo.
Aviso de cumplimiento con requisitos de láser
Los productos Sun que utilizan la tecnología de láser
cumplen con los requisitos de láser de Clase 1.
GOST-R Certification Mark
!
Class 1 Laser Product
Luokan 1 Laserlaite
Klasse 1 Laser Apparat
Laser Klasse 1
xi
DeclarationofConformity
Compliance ID: HUB 1063
Product Name: Sun StorEdge FC-100 Hub
This product has been tested and complies with;
EMC
EuropeanUnion-EC
This equipment complies with the following requirements of the EMC Directive 89/336/EEC
EN55022 / CISPR22 (1985) Class A
EN50082-1 IEC801-2 (1991) 4 kV (Direct), 8 kV (Air)
IEC801-3 (1984) 3 V/m
IEC801-4 (1988) 1.0 kV Power Lines, 0.5 kV Signal Lines
EN61000-3-2/IEC1000-3-2(1994) Pass
Safety
This equipment complies with the following requirements of the Low Voltage Directive 73/23/EEC:
EC Type Examination Certificates:
EN60950/IEC950 (1993) TUV Roduct Service Certificate # AL 97 04 28026 002
EN60950 w/ Danish Deviations CB Scheme Certificate # UL1261A-157779/USA
SupplementaryInformation
This product was tested and complies with all the requirements for the CE Mark when connected to a Sun workstation or server.
/ S / / S /
Dennis P. Symanski DATE John Shades DATE
Manager, Product Compliance Quality Assurance Manager
Sun Microsystems, Inc Sun Microsystems Limited
901 San Antonio Road, M/S UMPK15-102 Springfield, Linlithgow
Palo Alto, CA 94303, USA West Lothian, EH49 7LR
Tel: 650-786-3255 Scotland, United Kingdom
Fax: 650-786-3723 Tel: 0506 670000
Fax: 0506 760011
xii Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
Contents xiii
Contents
Preface xv
1. Product Description 1-1
1.1 Sun StorEdge FC-100 Hub 1-1
1.2 GBIC 1-3
2. Installation 2-1
2.1 Inspecting the Hub 2-1
2.2 Rackmount Placement 2-1
2.3 Installing the Hub 2-2
2.3.1 Tools You Will Need 2-2
2.3.2 Preparing the Cabinet 2-2
2.3.3 Installing the Mounting Tray in the Cabinet 2-2
2.3.4 Installing the Hub on the Mounting Tray 2-4
2.3.5 Installing GBICs and Fiber Optic Cables 2-5
2.3.6 Routing the Power Cord 2-6
2.3.7 Verifying the Configuration 2-7
2.3.8 Reassembling the Cabinet 2-8
2.4 Troubleshooting 2-8
3. Service 3-1
xiv Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
3.1 Installing a GBIC 3-1
3.2 Removing a GBIC 3-4
3.3 Removing a Hub 3-6
A. Specifications A-1
xv
Preface
The Sun StorEdge FC-100 Hub Installation and Service Manual provides information on
installing and servicing the Sun™ StorEdge™ FC-100 Hub. These instructions are
designed for an experienced system administrator or trained service provider.
Using UNIX Commands
This document does not contain information on basic UNIX®commands and
procedures such as shutting down the system, booting the system, and configuring
devices.
See one or more of the following for this information:
■Solaris Handbook for Sun Peripherals
■AnswerBook™ online documentation for the Solaris™ software environment
■Other software documentation that you received with your system
xvi Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
Typographic Conventions
Shell Prompts
TABLE P-1 Typographic Conventions
Typeface Meaning Examples
AaBbCc123 The names of commands, files,
and directories; on-screen
computer output
Edit your .login file.
Use ls -a to list all files.
% You have mail.
AaBbCc123 What you type, when
contrasted with on-screen
computer output
%su
Password:
AaBbCc123 Book titles, new words or
terms, words to be emphasized
Command-line variable;
replace with a real name or
value
Read Chapter 6 in the User’s Guide.
These are called class options.
You must be superuser to do this.
To delete a file, type rm filename.
TABLE P-2 Shell Prompts
Shell Prompt
C shell machine_name%
C shell superuser machine_name#
Bourne shell and Korn shell $
Bourne shell and Korn shell superuser #
Preface xvii
Related Documentation
Refer to the Sun StorEdge A5000 Disk Array Installation and Documentation Guide, part
number 805-1903-xx, for a list of related documentation
Sun Documentation on the Web
The docs.sun.comsm web site enables you to access Sun technical documentation
on the Web. You can browse the docs.sun.com archive or search for a specific book
title or subject at:
http://docs.sun.com
Sun Welcomes Your Comments
We are interested in improving our documentation and welcome your comments
and suggestions. You can email your comments to us at:
docfeedback@sun.com
Please include the part number of your document in the subject line of your email.
xviii Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
1-1
CHAPTER 1
Product Description
This chapter describes the Sun StorEdge FC-100 Hub and Gigabit Interface
Converters (GBICs).
1.1 Sun StorEdge FC-100 Hub
The hub is a seven-port connection point for Fibre Channel Arbitrated Loops
(FC-ALs). Ports are connected using GBICs. Each port receives serial data from a
remote node and retransmits that data out the next port to the next node in the loop.
Each reception includes data regeneration (both signal timing and amplitude)
supporting full distance optical links.
The GBIC is compliant with the Gigabit Interface Converter specification and can be
hot-plugged into the hub. Removal of a GBIC from the hub causes the automatic
bypass of that port. Active ports continue to operate normally with no degradation
of system performance. Conversely, a GBIC plugged in the hub connected with a
fiber optic cable to an active node automatically becomes a node on the loop.
Missing or inoperative nodes are detected and bypassed by the hub. Data is
automatically routed to the next operational port and node in the loop. LED
indicators provide status information to service personnel to indicate whether the
port is active or bypassed.
The following conditions will cause the bypass of a port:
■Converter transmitter fault
■Loss of received signal amplitude
■Absence of a GBIC
■Off-frequency data, excessive jitter, or inadequate edge transition density
1-2 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
Data transfer within the hub is implemented in serial differential Positive Emitter
Coupled Logic (PECL) AC coupled logic. Each port monitors the serial data input
stream as well as the media converter connected to it.
Initiators or targets on the loop represent individual nodes that are linked by the
shared Fibre Channel loop. The positioning of the initiators or targets on the loop
depends upon the requirements of your application.

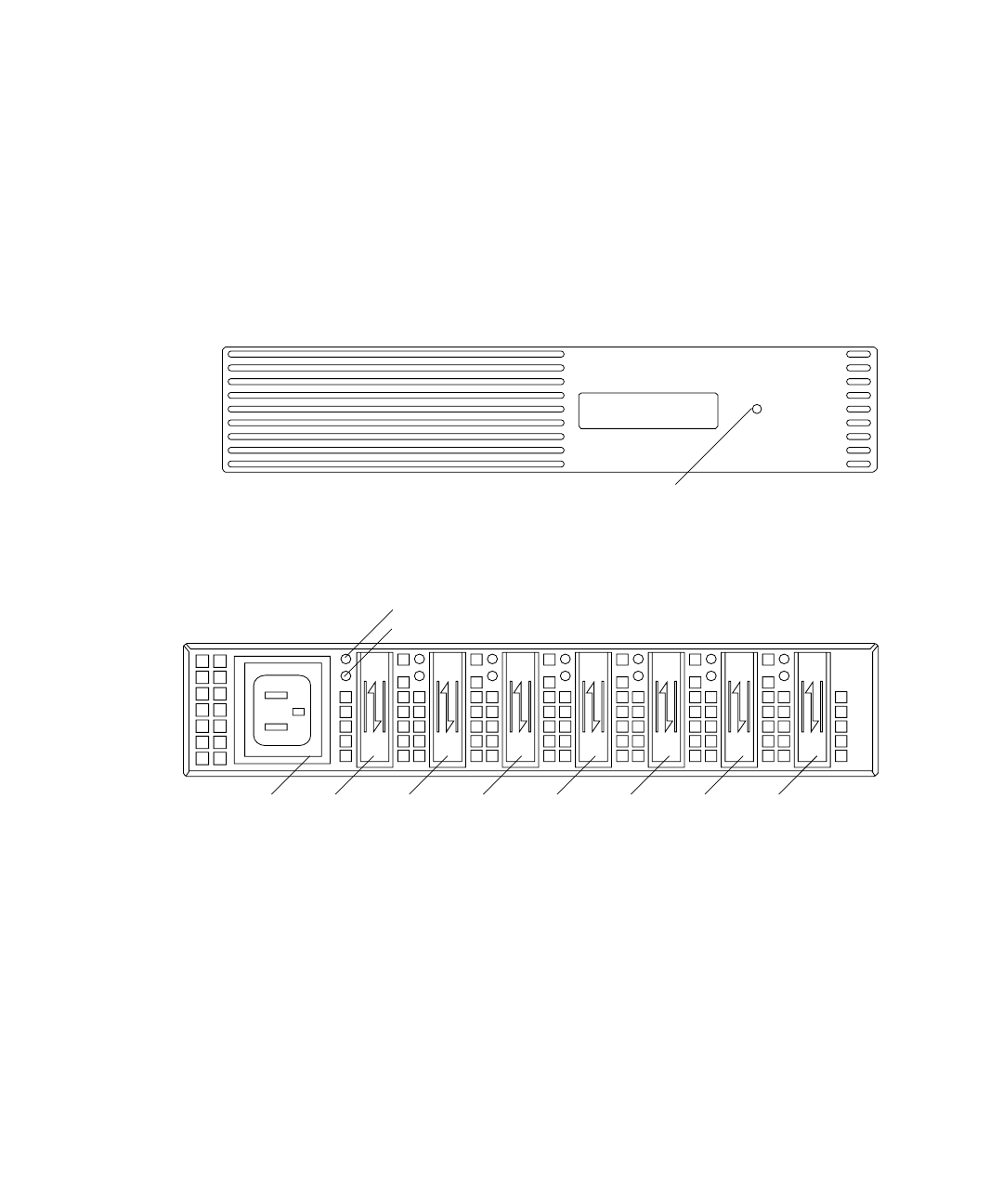

The front and rear of the hub are shown in FIGURE 1-1 and FIGURE 1-2.
FIGURE 1-1 Front of Hub
FIGURE 1-2 Rear of Hub
AC power LED
AC power
connector Port 0 Port 1 Port 2 Port 4 Port 5Port 3 Port 6
Bypass LED (yellow)
Active LED (green)
Chapter 1 Product Description 1-3
1.2 GBIC
The GBIC is compliant with Fibre Channel FC-PH-2 physical layer option 100-M5-
SN-I and the ANSI FC-AL standard. The full speed of the module is 1062.5 Mbits/
second. The range of distances supported is 2 to 500 meters.
Sun currently ships two types of GBICs: one with a bailed locking mechanism and
one without.

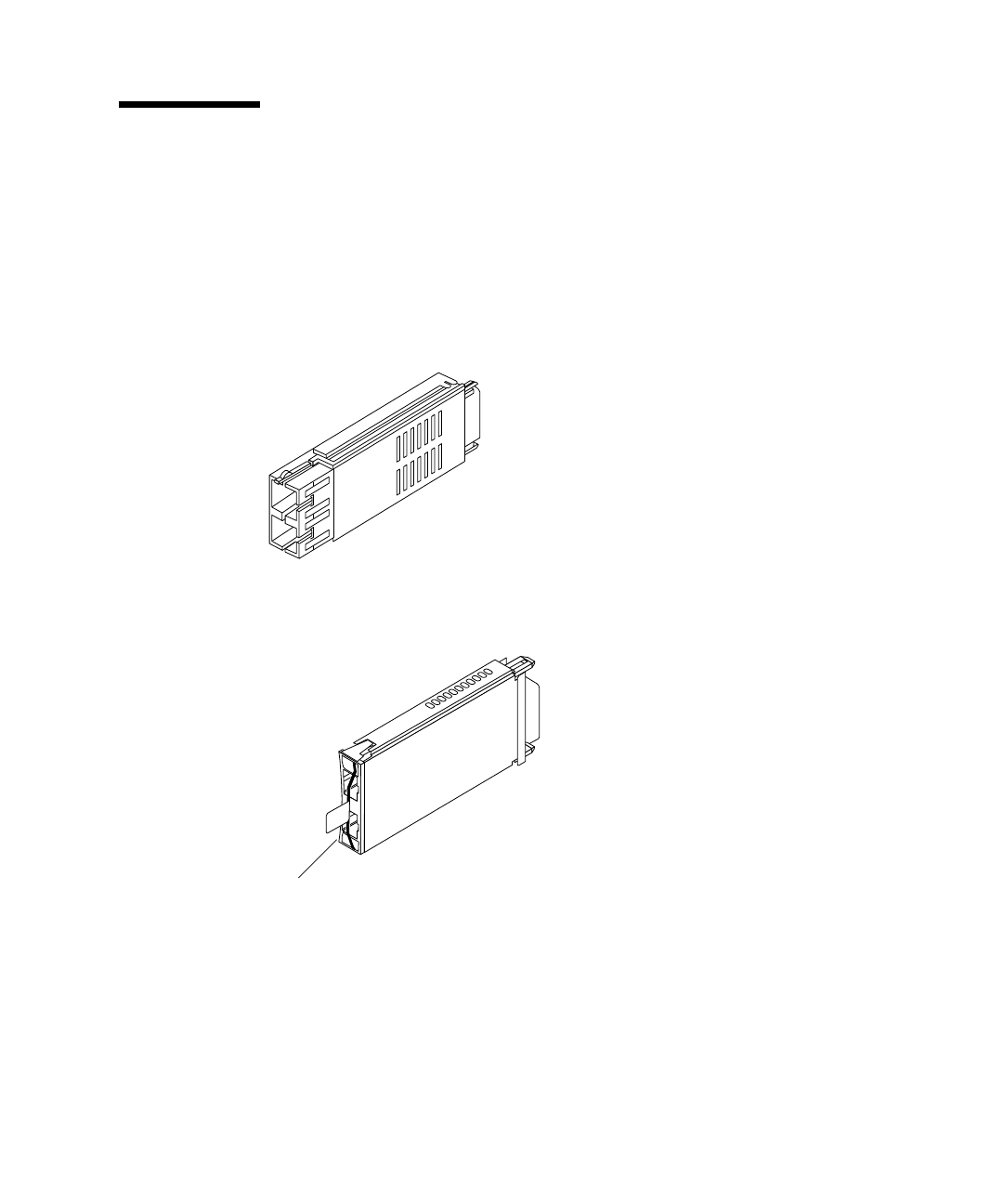

FIGURE 1-3 GBIC That Does Not Have a Bail
FIGURE 1-4 GBIC That Has a Bail
Bail
1-4 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
2-1
CHAPTER 2
Installation
This chapter describes how to install the hub in a cabinet.
2.1 Inspecting the Hub
1. Unpack the hub.
2. Inspect the hub for evidence of damage.
If damaged, keep all contents and packing materials for the carrier’s agent to
inspect.
3. Save the packing materials for future use.
2.2 Rackmount Placement
Rackmount placement information for the hub, as well as other devices that can be
mounted in Sun system and expansion cabinets, is now available through the Web
at:
http://docs.sun.com
Click on “Storage and Peripherals” in the Hardware section and open the Rackmount
Placement Matrix.
If you do not have access to the Web, contact your Sun service provider.
Retrieve the placement information for the disk array before beginning the
installation.
2-2 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
2.3 Installing the Hub
2.3.1 Tools You Will Need
You will need a #2 Phillips screwdriver.
2.3.2 Preparing the Cabinet
Follow the instruction in your system or expansion cabinet documentation. If
necessary, be sure to:
■Extend the antitilt bar
■Remove or open the top front panel
■Remove or open the rear panel
2.3.3 Installing the Mounting Tray in the Cabinet
1. Select the correct mounting holes in the cabinet to use for the tray.
Refer to the online Rackmount Placement Matrix for mounting hole information.
Chapter 2 Installation 2-3
2. Install the tray in the cabinet (FIGURE 2-1).

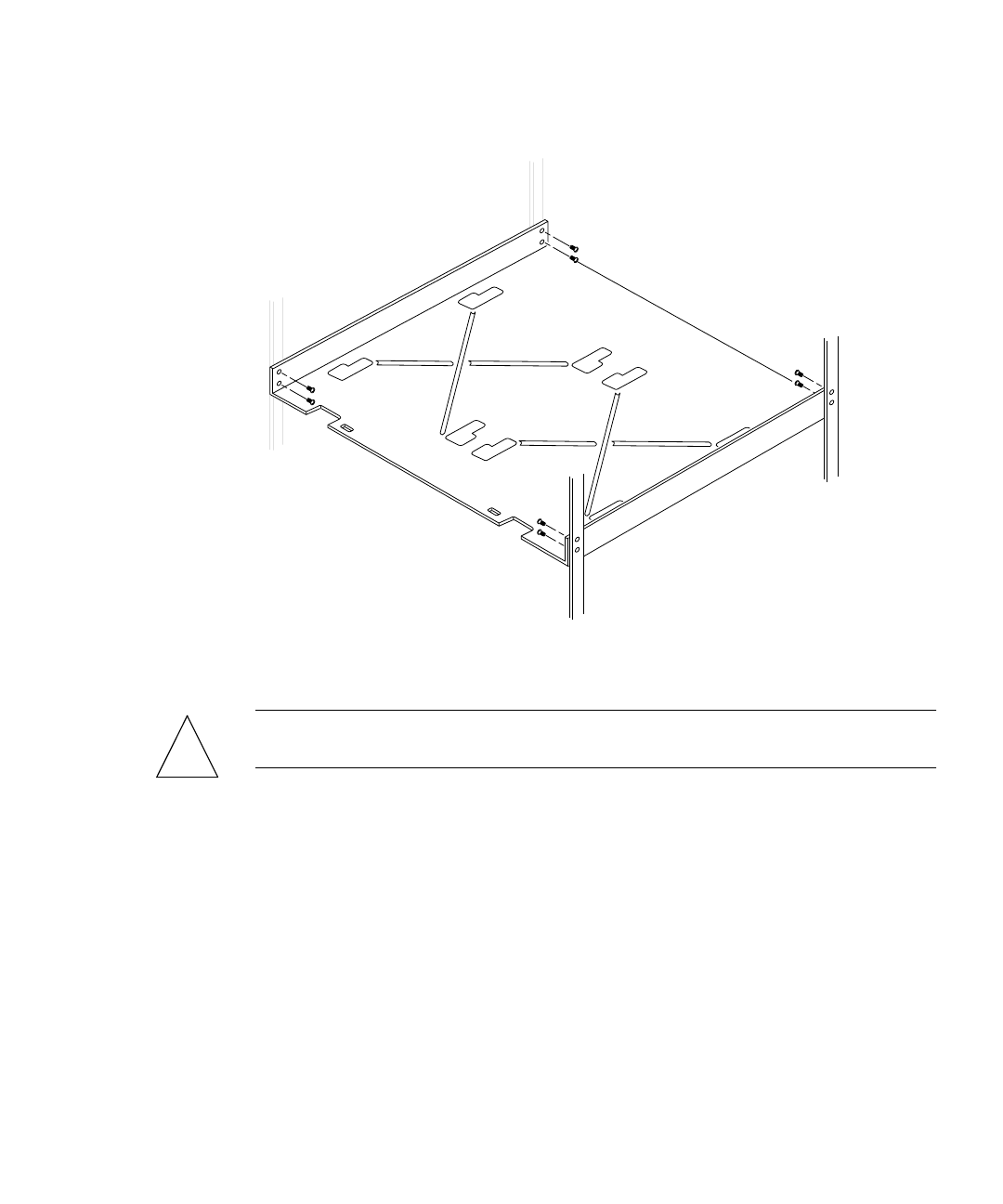

FIGURE 2-1 Installing the Tray in the Cabinet
Caution – Use only SAE 10-32 screws to secure the tray to the cabinet mounting
rails. Using any other screw type will damage the cabinet mounting holes.
a. In the front of the tray, use the Phillips screwdriver to loosely install two 10-32
screws each for the left and right side.
b. In the back of the tray, use the Phillips screwdriver to loosely install two 10-32
screws each for the left and right side.
c. Tighten both sets of screws.
Front
Rear
!
2-4 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
2.3.4 Installing the Hub on the Mounting Tray
1. Determine on which side of the tray you are going to install the hub.
The first hub goes in position A; the second goes in position B.
2. From the rear of the tray, slide the hub mounting bracket into the slots in the
mounting tray (FIGURE 2-2)
You should hear a click as the black plastic retaining tab goes through the notch in
the tray.

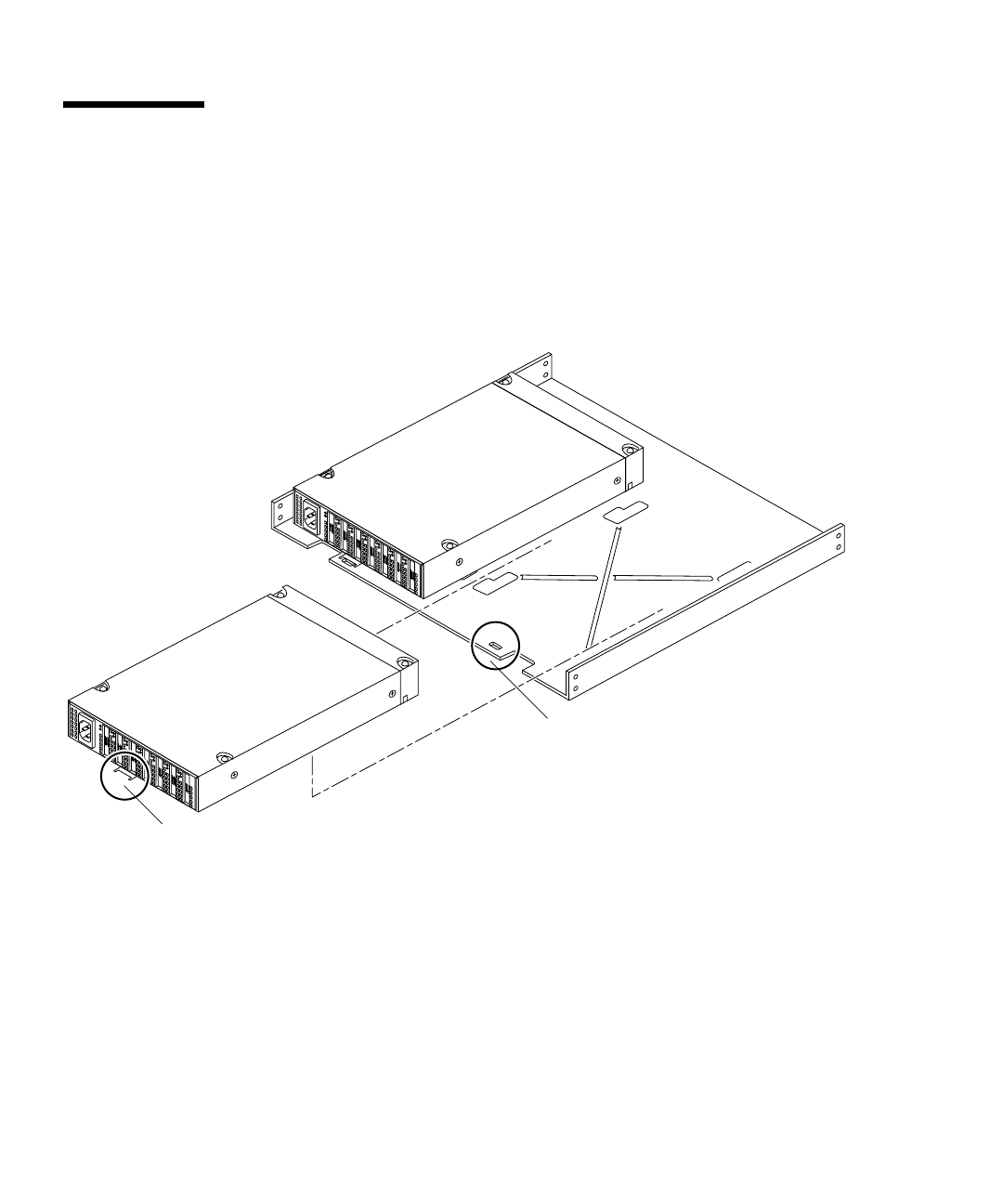

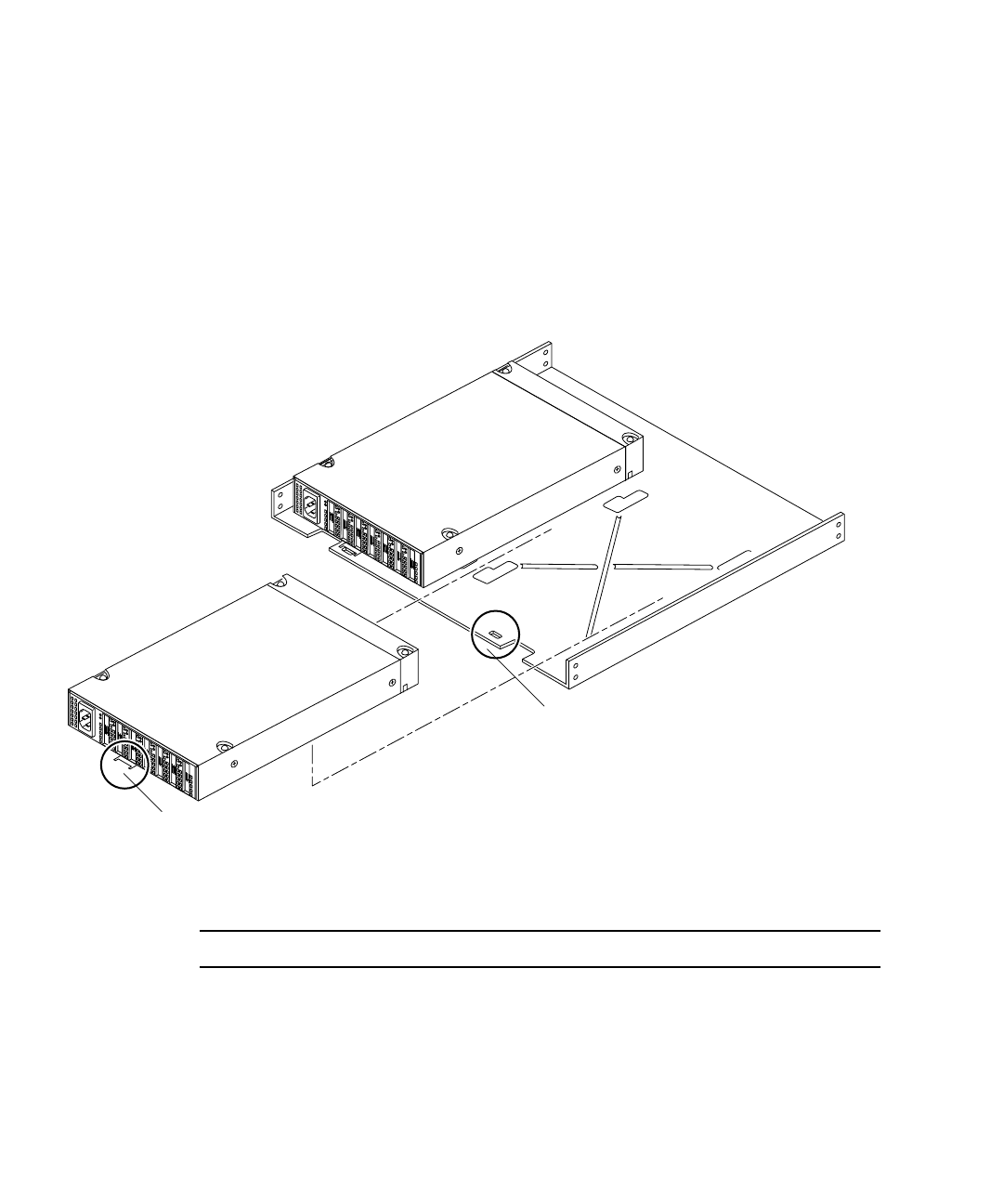

FIGURE 2-2 Installing the Hub on a Mounting Tray
Note – The front and rear mounting plastics are interchangeable.
Position A
Position B
Notch
Retaining tab
Chapter 2 Installation 2-5
2.3.5 Installing GBICs and Fiber Optic Cables
1. Choose the hub port into which you will install the GBIC.
Although the ports in a hub are electrically equivalent, follow any configuration
guidelines that may have accompanied the other hardware in your configuration.
If you are connecting the GBIC to a Sun StorEdge A5000 Disk Array , refer to the Sun
StorEdge A5000 Disk Array Hardware Configuration Guide, part number 805-0264-xx.
2. Insert the GBIC into the port.
Sun currently ships two types of GBICs: one with a bailed locking mechanism and
one without.
GBICs are keyed to prevent improper insertion; they can only be installed as shown
in FIGURE 2-3 and FIGURE 2-4.
Caution – Forcing a GBIC into a port can damage the GBIC and/or port. Use
minimal pressure when inserting the GBIC.
■To insert a GBIC that does not have a bail, slide the GBIC into the available port
until you hear a click.

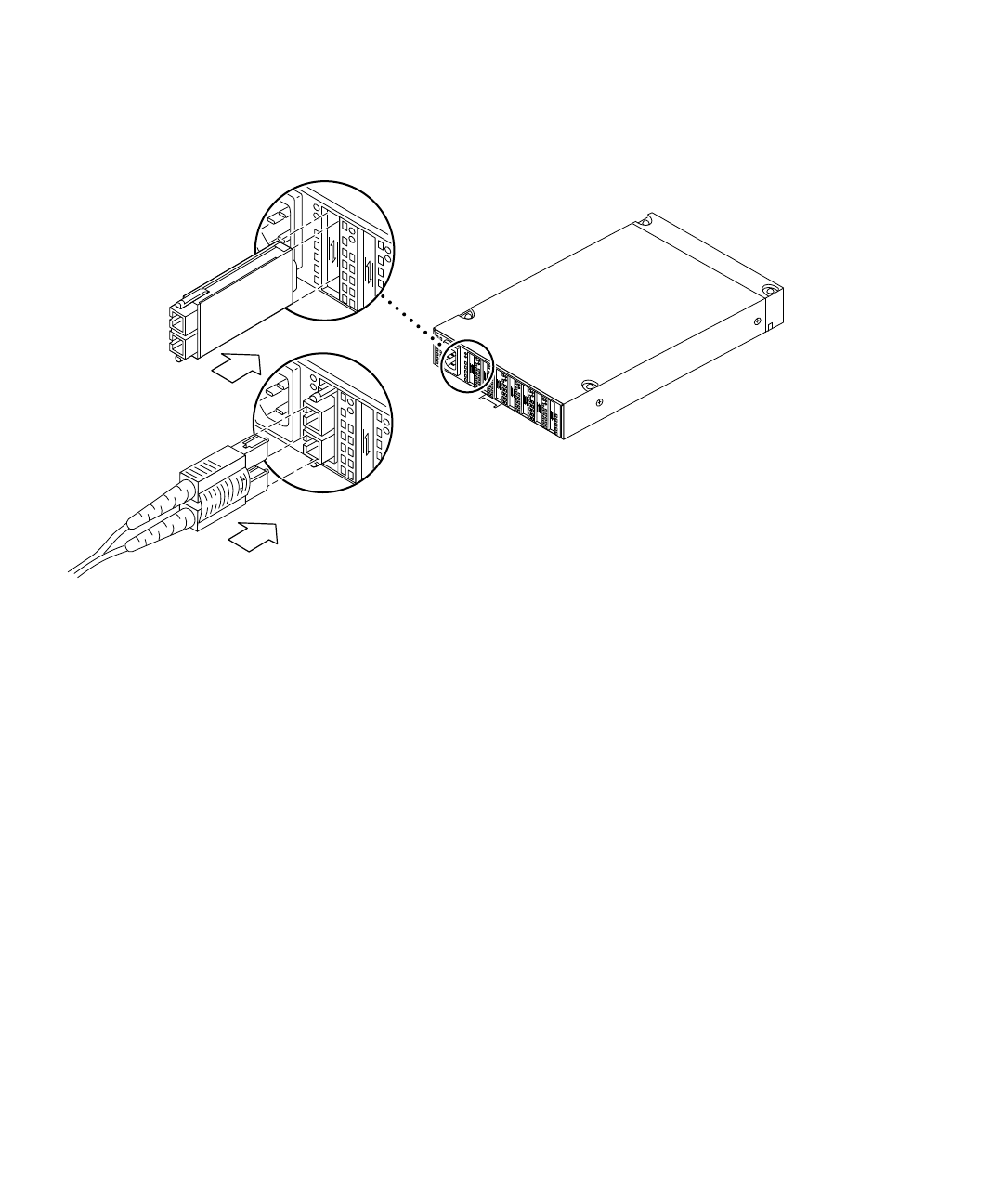

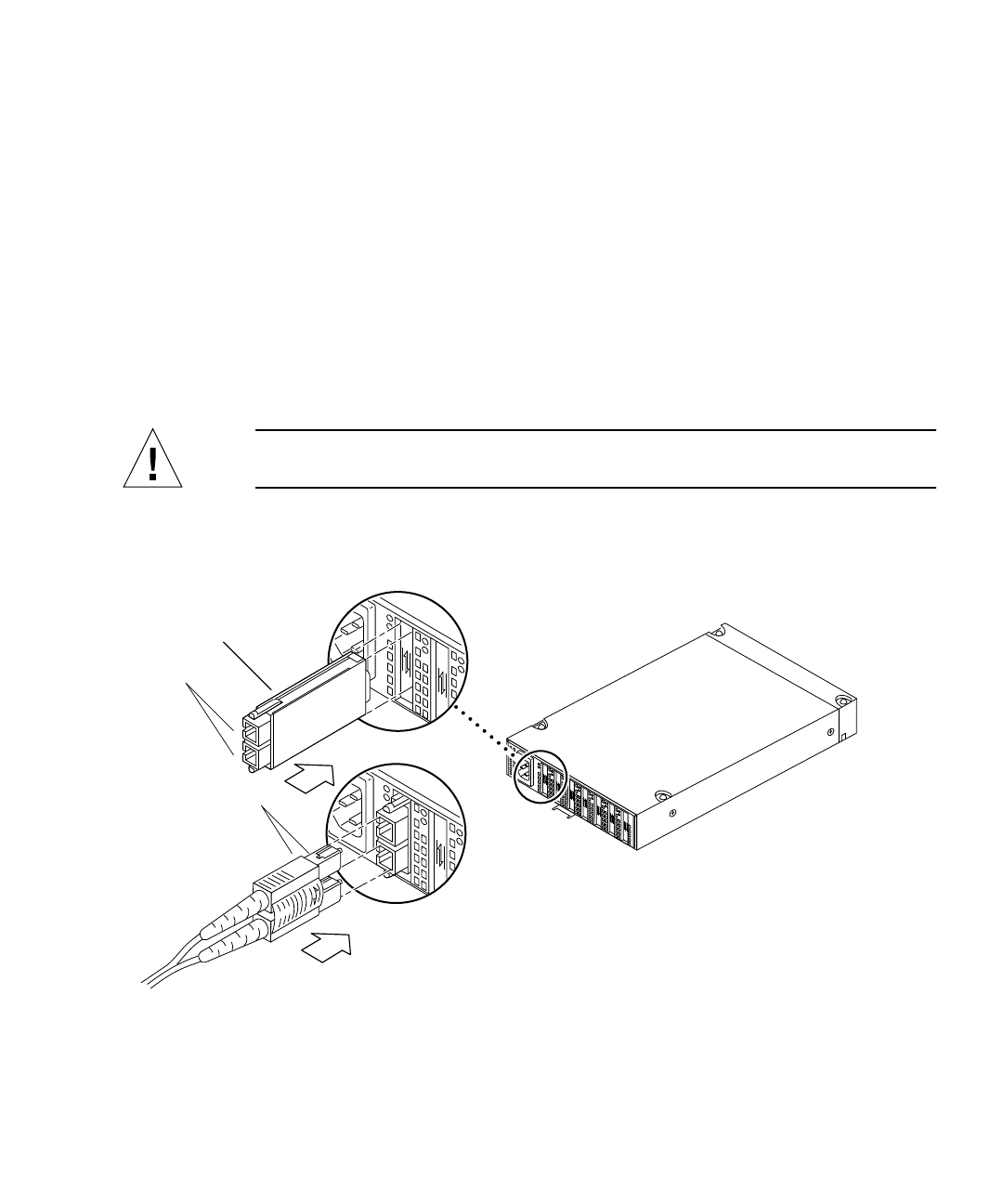

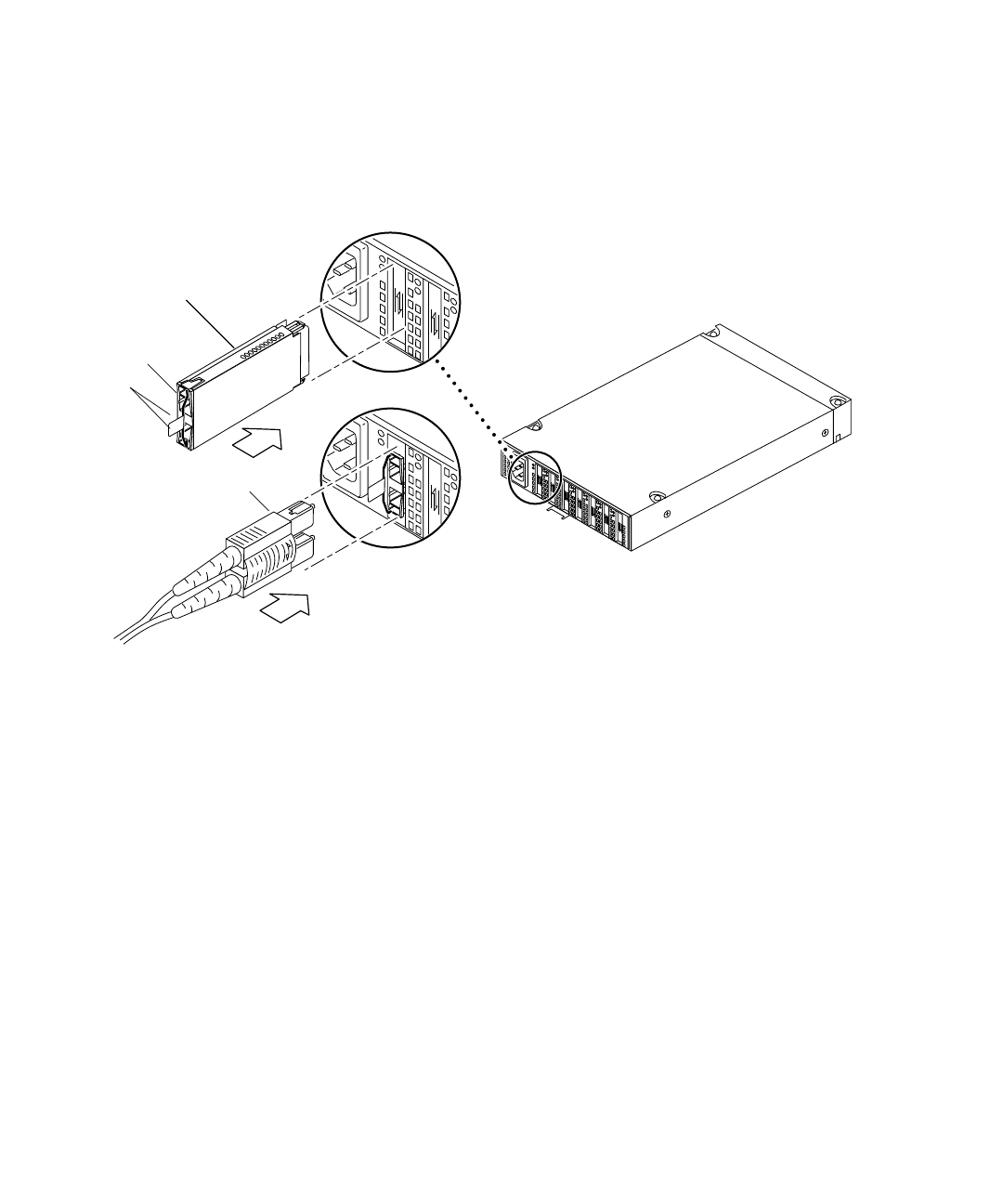

FIGURE 2-3 Installing a GBIC and Fiber Optic Cable
Notches
Slot
Keys (on side)
2-6 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
■To insert a GBIC that has a bail, slide the GBIC into the available port with the
bail in the unlocked (right) position. Once the GBIC is firmly seated in the port,
move the bail left into the locked position.

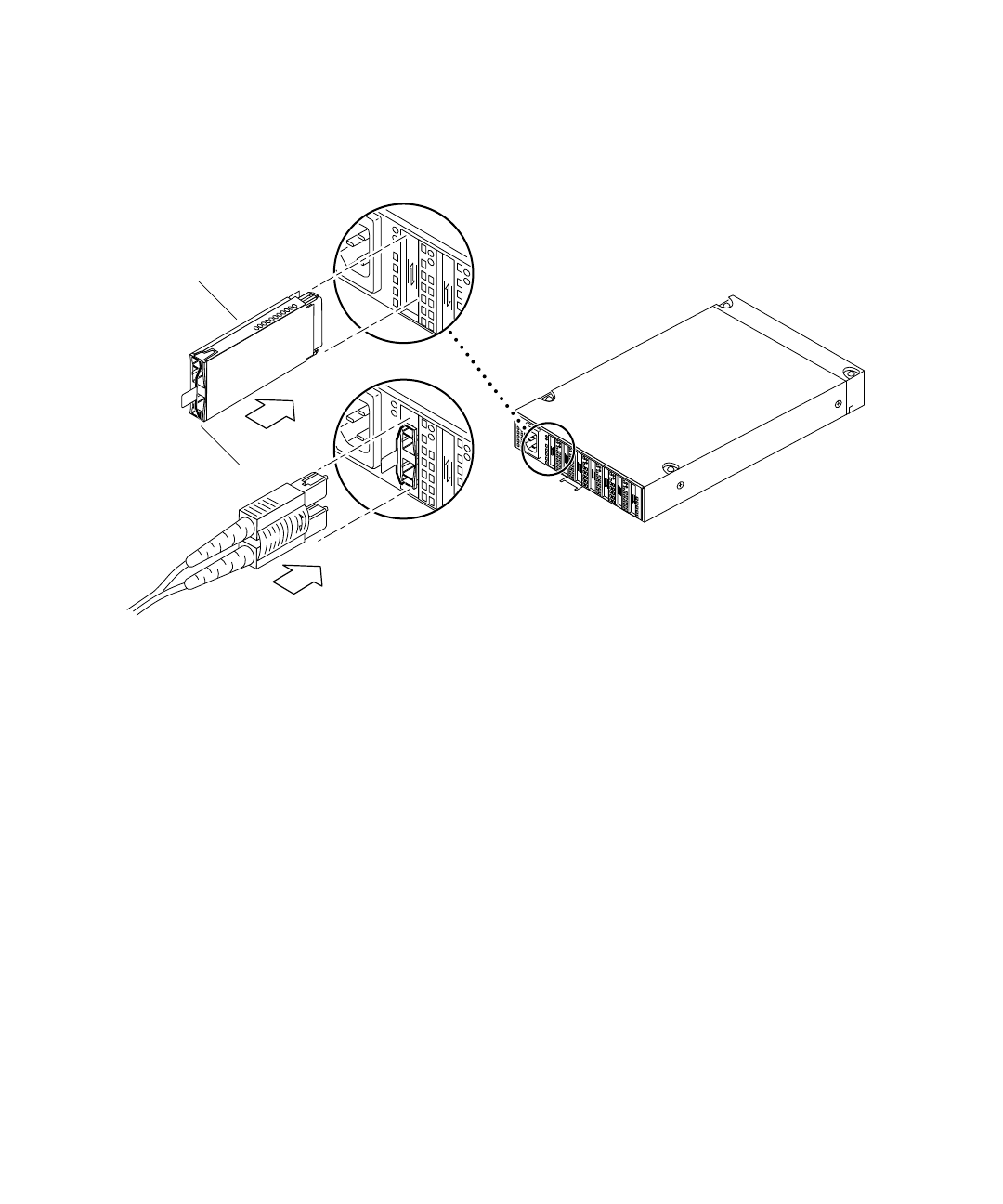

FIGURE 2-4 Installing a GBIC That Has a Bail and Fiber Optic Cable
3. Connect the fiber optic cable to the GBIC.
Fiber optic cable connectors are keyed to prevent improper insertion; they can only
be installed as shown in FIGURE 2-3 and FIGURE 2-4.
4. Route the fiber optic cable to an initiator or target.
Refer to the documentation that came with the device.
5. Connect the fiber optic cable to a GBIC in the initiator or target.
Refer to the documentation that came with the device.
2.3.6 Routing the Power Cord
If you are installing the hub along with Sun StorEdge A5000 Disk Arrays in a Sun
StorEdge Expansion Cabinet, refer to the Sun StorEdge A5000 Disk Array Hardware
Configuration Guide, part number 805-0264-12 (or later), for cable routing.
Notches
Slot
Key (on side)
Bail
Chapter 2 Installation 2-7
1. Connect the female end of the power cord to the power receptacle at the rear of
the hub (FIGURE 1-1 on page 1-2).
2. Route the power cord down the right side and along the bottom of the cabinet.
3. Route the power cord up through the cutout to the power distribution unit at the
left side of the cabinet.
Caution – The power distribution unit serves as the primary disconnect device for
the hub. Do not connect the hub into a power source other than the power
distribution unit. Personal injury can result if you work on a hub that is connected
into another power source, since that power source may still be active when you
work on the hub.
4. Connect the power cord for the tray to the power distribution unit.
If your power distribution unit has a sequencer, connect the first hub to one of the
four lower outlets. Connect the second hub to one of the four upper outlets.
5. Tuck the extra length of the power cord down into the pocket beneath the power
distribution unit.
2.3.7 Verifying the Configuration
1. Power on all nodes and then the hub.
Note – Refer to the handbook that came with your peripheral and your system
installation manual for instructions on safely powering on the cabinet.
2. Make sure that the Device Active LEDs are lit for active hub ports.
The Bypass LEDs for active ports should be off.
See Section 2.4, “Troubleshooting” if:
■The Device Active LED for an active port is flashing
■The Bypass LED for an active port is on
■The Device Active LED for an active port is off
The FC-AL should now be operational.
2-8 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
2.3.8 Reassembling the Cabinet
Follow the instructions in your system or expansion cabinet documentation. If
necessary, be sure to:
■Replace or close the top front panel
■Replace or close the rear panel
■Push the antitilt bar back into the cabinet
2.4 Troubleshooting
If a GBIC is properly installed, the Device Active LED for the GBIC should be on
and the Bypass LED should be off.
If the Device Active LED for a GBIC is flashing, replace the GBIC.
If a GBIC is installed and the Device Active LED for the GBIC is off and the Bypass
LED is on, see TABLE 2-1.
TABLE 2-1 Troubleshooting
Possible Cause Solution
Module not properly inserted Remove and reinsert the GBIC.
Diminished or missing signal from node Plug the optical cable from the other device
into a known good GBIC.
Bad hub port Move the GBIC to a known good port on
the hub.
Faulty GBIC Replace the GBIC.
3-1
CHAPTER 3
Service
This chapter describes how to remove and install a GBIC. It also describes how to
remove a hub.
3.1 Installing a GBIC
1. Choose the hub port into which you will install the GBIC.
Although the ports in a hub are electrically equivalent, follow any configuration
guidelines that may have accompanied the other hardware in your configuration.
If you are connecting the GBIC to a Sun StorEdge A5000 Disk Array, refer to the Sun
StorEdge A5000 Disk Array Hardware Configuration Guide, part number 805-0264-xx.
2. Insert the GBIC into the port.
Sun currently ships two types of GBICs: one with a bailed locking mechanism and
one without.
GBICs are keyed to prevent improper insertion; they can only be installed as shown
in FIGURE 3-1 and FIGURE 3-2.
Caution – Forcing a GBIC into a port can damage the GBIC and/or port. Use
minimal pressure when inserting the GBIC.
3-2 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
■To insert a GBIC that does not have a bail, slide the GBIC into the port until you
hear a click.
FIGURE 3-1 Installing a GBIC That Does Not Have a Bail
Chapter 3 Service 3-3
■To insert a GBIC that has a bail, slide the GBIC into the available port with the
bail in the unlocked (right) position. Once the GBIC is firmly seated in the port,
move the bail left into the locked position.
FIGURE 3-2 Installing a GBIC That Has a Bail
3. Connect the fiber optic cable to the GBIC.
Slot
Bail
3-4 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
3.2 Removing a GBIC
1. Disconnect the fiber optic cable from the GBIC (FIGURE 3-3 or FIGURE 3-4).
2. Remove the GBIC.
Sun currently ships two types of GBICs: one with a bailed locking mechanism and
one without.
■To remove a GBIC that does not have a bail, push the module tabs together and
pull the GBIC out from the port.

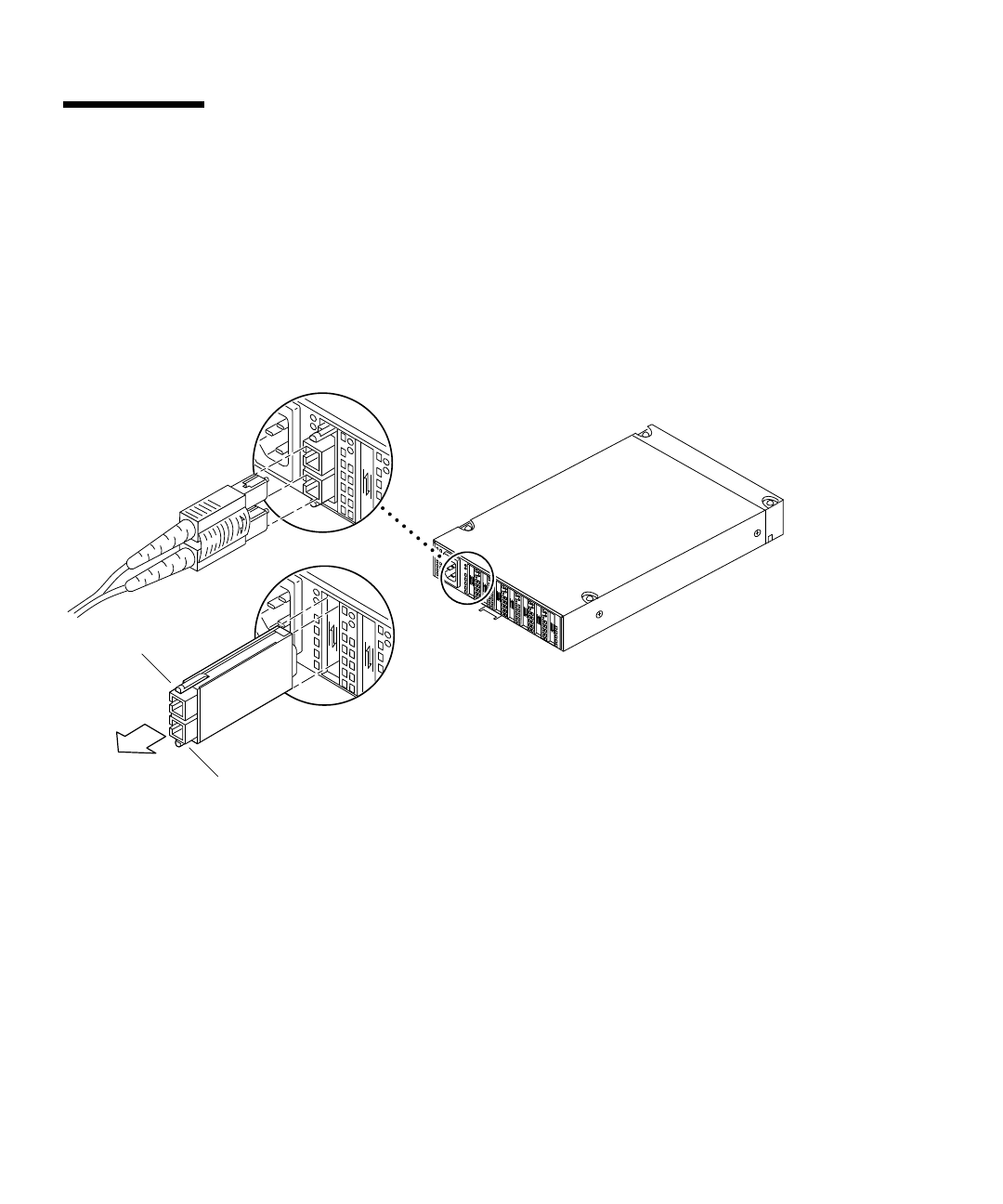

FIGURE 3-3 Removing a GBIC That Does Not Have a Bail
Tab
Tab
Chapter 3 Service 3-5
■To remove a GBIC that has a bail, move the bail right to the unlocked position
and pull on the plastic tab of the bail.
FIGURE 3-4 Removing a GBIC That Has a Bail
Tab
3-6 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
3.3 Removing a Hub
1. Disconnect and remove any installed fiber optic cables or GBICs (FIGURE 3-3).
2. Disconnect the AC power cord from the hub.
3. Push up on the retaining tab that secures the hub to the mounting tray
(FIGURE 3-5).
FIGURE 3-5 Removing the Hub
4. Pull the hub back and then lift it out of the mounting slots.
Position A
Position B
Notch
Retaining tab
A-1
APPENDIX A
Specifications
A.1 Physical
TABLE A-1 Physical Specifications
Height Width Depth Weight
1.69 in 8.6 in 14.35 in 6 lbs
42.92 mm 218.4 mm 364.49 mm 2.72 kg
A-2 Sun StorEdge FC-100 Hub Installation and Service Manual • September 1998
A.2 Electrical
A.3 Environmental
TABLE A-2 Electrical Specifications
Specification Value
Voltage 95 to 120V
Frequency 50 to 60 Hz
Power Consumption
Empty
Full 25W
35W1
Line Current
Average
Surge (Peak) 350 mA1
1.0 A ( < 1 second)1
1. All ports in use @250 mA each, steady state at 120 Vrms, 60 Hz
TABLE A-3 Environmental Specifications
Specification Operating Value
Temperature 0C to 50C
Vibration 1.25g, 5 to 500 Hz, sine
Shock 10g peak, 11 ms, 1/2 sine
Humidity 5 to 95%, noncondensing
Altitude +15,000 ft
