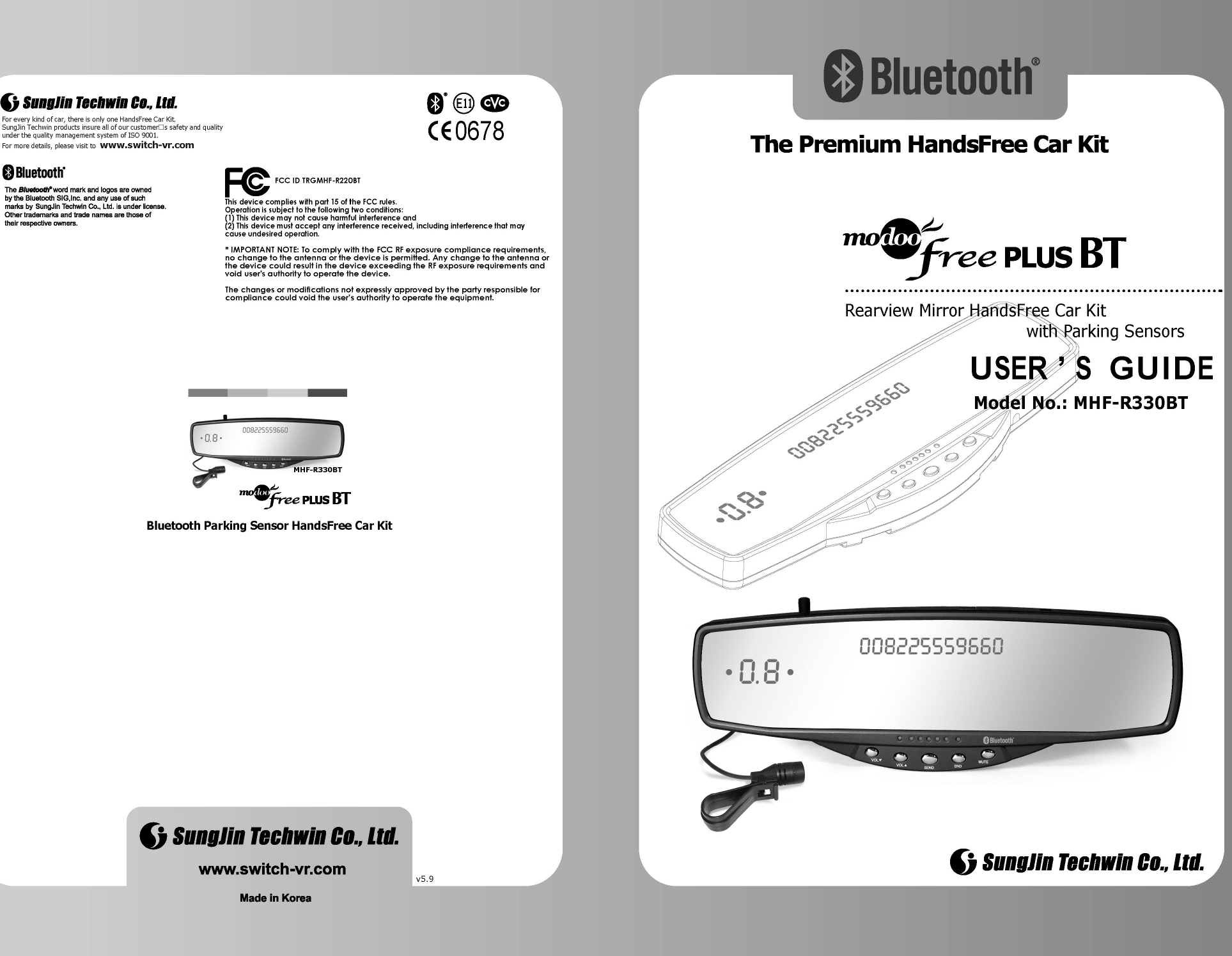

Sungjin Techwin MHF-R330BT BLUETOOTH REARVIEW MIRROR HANDS-FREE CAR KIT User Manual 1 of 2

Sungjin Techwin Co., Ltd. BLUETOOTH REARVIEW MIRROR HANDS-FREE CAR KIT Users Manual 1 of 2

Contents

Users Manual 1 of 2

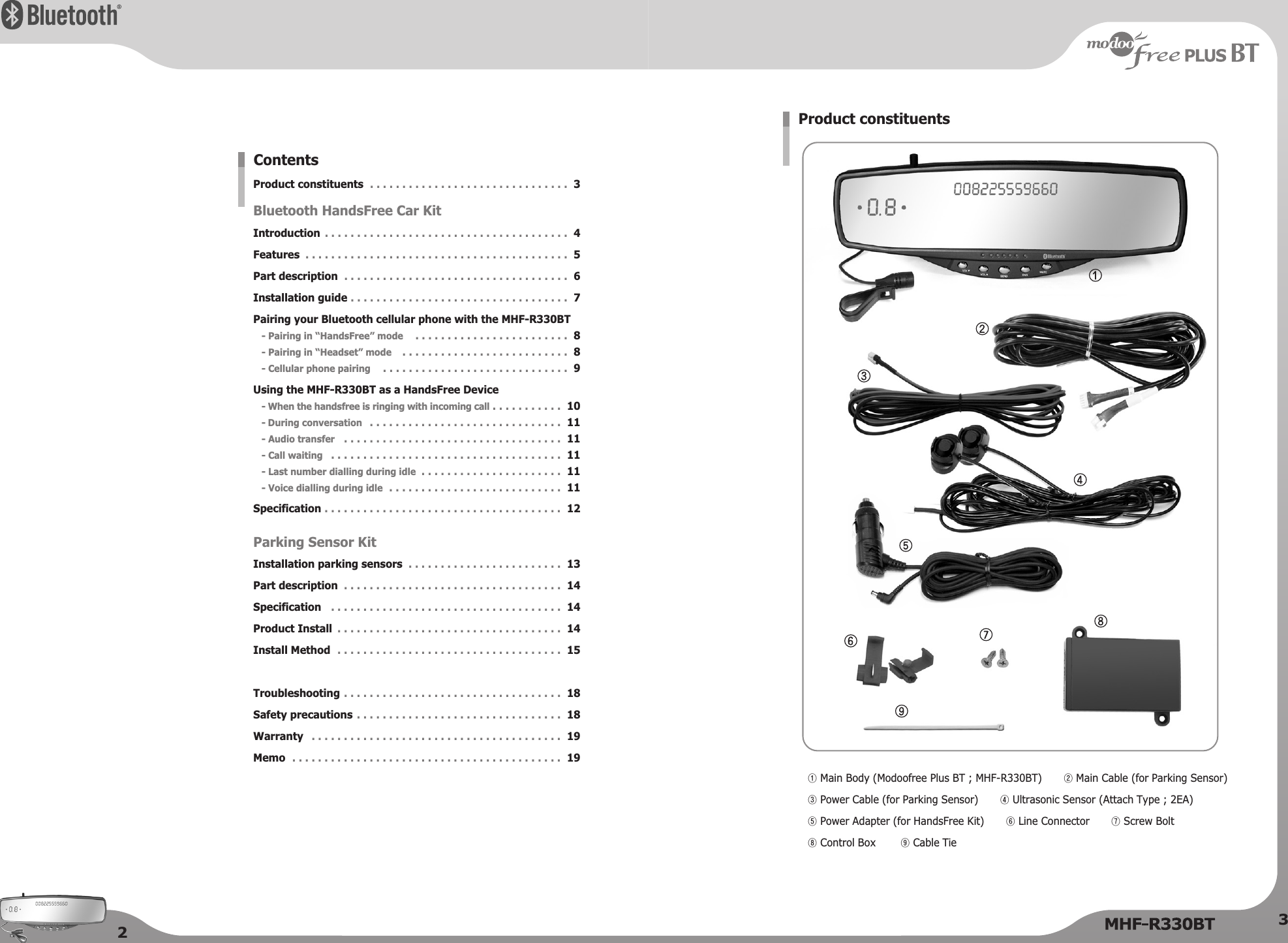

23Product constituentsBluetooth HandsFree Car KitIntroductionFeaturesPart descriptionInstallation guidePairing your Bluetooth cellular phone with the MHF-R330BT- Pairing in “HandsFree” mode- Pairing in “Headset” mode- Cellular phone pairingUsing the MHF-R330BT as a HandsFree Device- When the handsfree is ringing with incoming call- During conversation- Audio transfer- Call waiting- Last number dialling during idle- Voice dialling during idleSpecificationParking Sensor KitInstallation parking sensorsPart descriptionSpecificationProduct InstallInstall MethodTroubleshootingSafety precautionsWarrantyMemo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  7. . . . . . . . . . . . . . . . . . . . . . . .  8. . . . . . . . . . . . . . . . . . . . . . . . . .  8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9. . . . . . . . . . .  10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  11. . . . . . . . . . . . . . . . . . . . . .  11. . . . . . . . . . . . . . . . . . . . . . . . . . .  11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  12. . . . . . . . . . . . . . . . . . . . . . . .  13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  19Contents①Main Body (Modoofree Plus BT ; MHF-R330BT) ②Main Cable (for Parking Sensor)③Power Cable (for Parking Sensor) ④Ultrasonic Sensor (Attach Type ; 2EA)⑤Power Adapter (for HandsFree Kit) ⑥Line Connector ⑦Screw Bolt⑧Control Box ⑨Cable TieProduct constituents

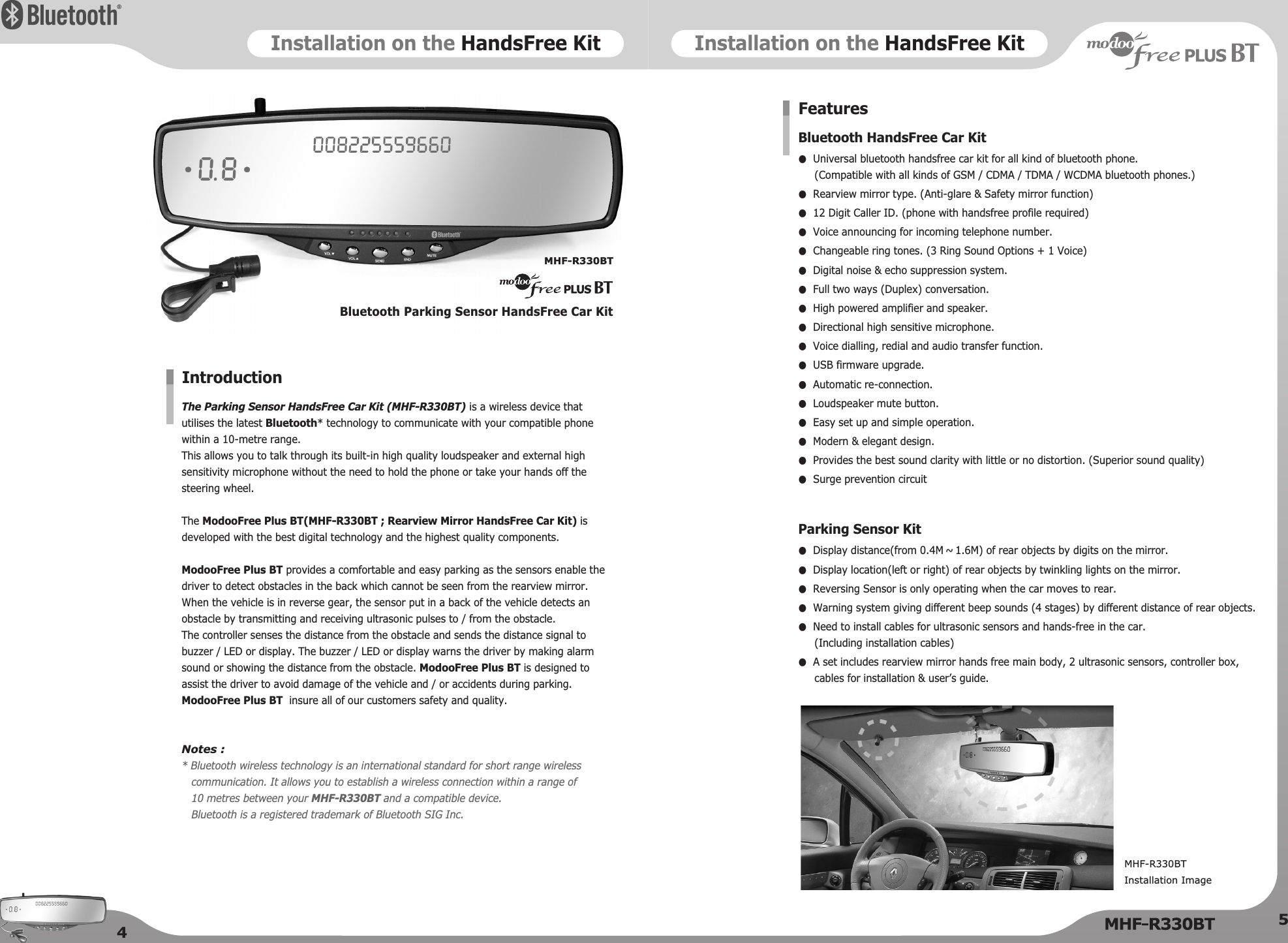

Installation on the HandsFree KitInstallation on the HandsFree KitThe Parking Sensor HandsFree Car Kit (MHF-R330BT) is a wireless device thatutilises the latest Bluetooth* technology to communicate with your compatible phonewithin a 10-metre range. This allows you to talk through its built-in high quality loudspeaker and external highsensitivity microphone without the need to hold the phone or take your hands off thesteering wheel.  The ModooFree Plus BT(MHF-R330BT ; Rearview Mirror HandsFree Car Kit) isdeveloped with the best digital technology and the highest quality components.ModooFree Plus BT provides a comfortable and easy parking as the sensors enable thedriver to detect obstacles in the back which cannot be seen from the rearview mirror.When the vehicle is in reverse gear, the sensor put in a back of the vehicle detects anobstacle by transmitting and receiving ultrasonic pulses to / from the obstacle. The controller senses the distance from the obstacle and sends the distance signal tobuzzer / LED or display. The buzzer / LED or display warns the driver by making alarmsound or showing the distance from the obstacle. ModooFree Plus BT is designed toassist the driver to avoid damage of the vehicle and / or accidents during parking.ModooFree Plus BT insure all of our customers safety and quality.Notes :* Bluetooth wireless technology is an international standard for short range wirelesscommunication. It allows you to establish a wireless connection within a range of 10 metres between your MHF-R330BT and a compatible device.  Bluetooth is a registered trademark of Bluetooth SIG Inc.IntroductionBluetooth Parking Sensor HandsFree Car KitMHF-R330BT45Bluetooth HandsFree Car Kit●Universal bluetooth handsfree car kit for all kind of bluetooth phone. (Compatible with all kinds of GSM / CDMA / TDMA / WCDMA bluetooth phones.)●Rearview mirror type. (Anti-glare & Safety mirror function)●12 Digit Caller ID. (phone with handsfree profile required)●Voice announcing for incoming telephone number.●Changeable ring tones. (3 Ring Sound Options + 1 Voice)●Digital noise & echo suppression system.●Full two ways (Duplex) conversation.●High powered amplifier and speaker.●Directional high sensitive microphone.●Voice dialling, redial and audio transfer function.●USB firmware upgrade.●Automatic re-connection.●Loudspeaker mute button.●Easy set up and simple operation.●Modern & elegant design.●Provides the best sound clarity with little or no distortion. (Superior sound quality)●Surge prevention circuitParking Sensor Kit●Display distance(from 0.4M ~ 1.6M) of rear objects by digits on the mirror.●Display location(left or right) of rear objects by twinkling lights on the mirror.●Reversing Sensor is only operating when the car moves to rear.●Warning system giving different beep sounds (4 stages) by different distance of rear objects. ●Need to install cables for ultrasonic sensors and hands-free in the car.(Including installation cables)●A set includes rearview mirror hands free main body, 2 ultrasonic sensors, controller box,cables for installation & user’s guide.FeaturesMHF-R330BT  Installation Image
