Sunmi Technology W1300 POS System User Manual W1300W1302 04 T1 mini UM 20180110 non NFC v1
Shanghai Sunmi Technology Co.,Ltd. POS System W1300W1302 04 T1 mini UM 20180110 non NFC v1
W1300W1302 04 T1 mini UM 20180110-non NFC-v1
3
4
Guide for quick
installation
Simple
Settings
To start this intelligent devise for commercial use, you only need several steps.
1 Press ON button to light the screen. First entering the startup screen, follow the prompts.
You can choose from two network modes on this device.
2 Wi-Fi
settings
·
Click
“Settings”
button and open WLAN to enter the WLAN-searching
interface.
Wait for the list of available WLAN
hotspots.
·
Click corresponding WLAN. If an encrypted network is selected, the device will not be
connected to the WLAN until the password is entered.
3 LAN
settings

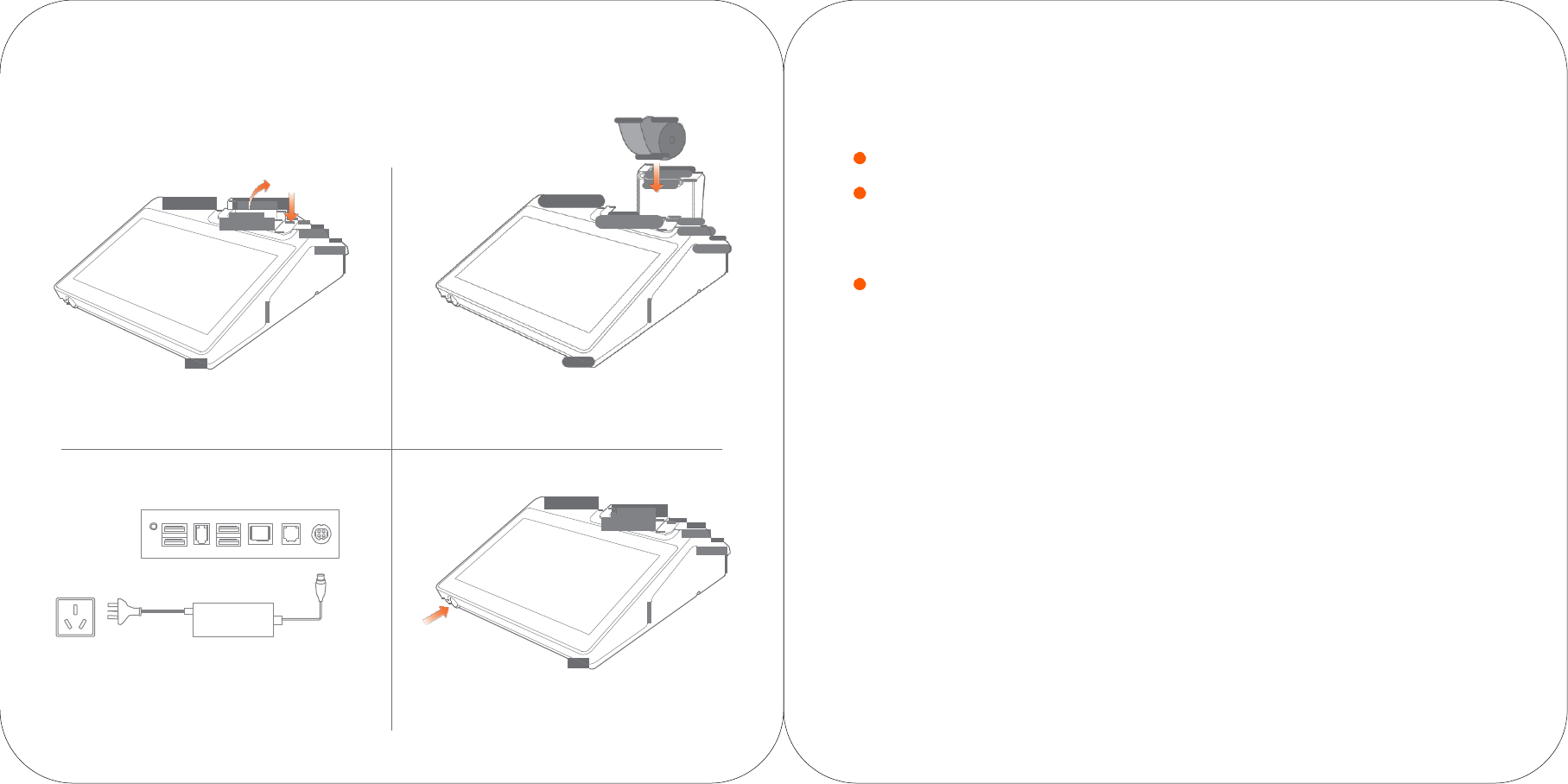

1 Press the open button to open the cover of the printer. 2 Place the thermal paper in the
printer.
How to
download/use
APPs
Relevant Apps can be downloaded while the network is connected. Open the App market,
and search and download the App to complete the installation.
To inquire detailed information of the above software: select “settings
->
application”, and select corresponding
software to inquire its
information;
how to uninstall the software: select “settings
->
application
->
application management
->
uninstall” to uninstall
the application; or press the icon and drag it into the trash can to uninstall
it.
Connect with the power supply. Press ON button and the printer will be
turned on in two seconds.
For more help, please refer to the Help App inside the device
Introduction to the POS
paper output exit of the
printer
ON
button
button to open the cover of the
printer
main screen
cover of the
printer
price-displaying
screen
58 thermal printer version 80 ther mal printer version
（W 1300）
（W1302）
Paper output exit of the
printer
It is used to print receipts when the device is on.
Button to open the cover of the
printer
It is used to open the cover of the printer and change
the paper.
Main screen
It is the touch screen used by the operator.
ON
button
W hile the device is off, click the ON button to turn on
the machine；
While the device is under use, press ON button for 2
to
3 seconds to turn on or turn off the device.
While the device is on, press ON button for
11
seconds to turn off the device.
Price-displaying screen
It is used for displaying the price information of the
customer.
5V
TXD
RXD
GND

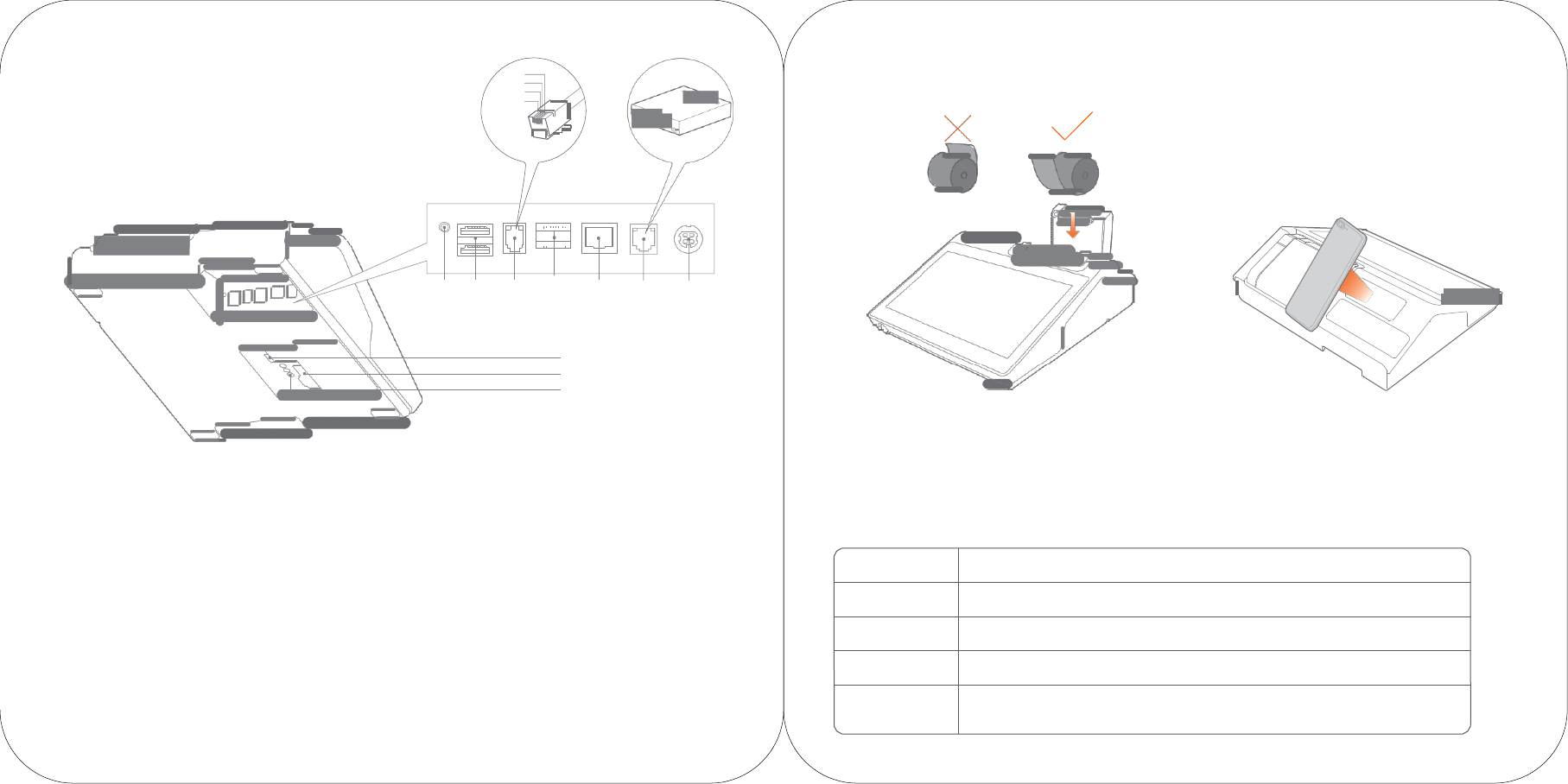

Instruction to load
paper
audio USB serial USB LAN cashbox power supply
output
port
port
port
port
port
port
TF card
slot
It is used for external expansion TF memory card.
Micro USB debugging
port
TF card
slot
debugging
button
Description of the paper
58 version supports the thermal paper with the seize
of
57±0.5 m m × Ø
60 m m ；
80 version supports the ther mal paper with the size
of
79±0.5 m m × Ø
60 m m 。
Regular fault
debugging
Description to QR code scanning by cellphone
The version with the function of QR code scanning supports
this function and can recognize the QR code for payment by
cellphone.
Micro USB debugging port, debugging
button
They are used to debug the device.
Problems Solutions
Cashbox
port
It is used to connect the cashbox, with an electrical impulse
of
120 ms and no continuous po wer
supply being provided. This device only supports external connection with 24V/1A cashbox.
If
12V cashbox is used, there may be risks that the circuit of the cashbox will be burnt.
What if the
printer
is dead?
What if the
printer
does not work?
What if the
printed
paper is blank?
What if the
printing
is blur?
Press
the O N butto n for 11 second s, then the printer is off. Click the ON
button to turn the printer on.
Make sure the cover is closed
correctly.
Make sure whether the paper is jammed.
Please check whether the paper roll is put upside down;
Please check whether wrong therVmal paper roll is used.
Please check whether the thermal printhead is dirty. If it is, please clean it with swab
that
has been dipped in anhydrous alcohol.
Please use quality thermal paper to avoid blur printing due to bad quality of paper.
Operating system
Android 6.0 sun mi secure operating
syste m
Processor
Qualcomm Snapdragon with
Octa-Core
Memorizer
8GB ROM+1GB RAM
Screen
M ain screen 11.6 inches, HD resolution 1366 x
768
Touch screen
G+G capacitive
multi-touch
touch screen
Customer display
128 x 40 Dots
Printer
High-speed 58 thermal printer is installed,
with a printing speed of 70
m m/s,
supporting the paper roll with a maximum
dia meter of 60 m m.
High-speed 80 thermal printer is
installed,
with an automatic cutter and a printing speed
of 160 m m/s, supporting the paper roll with
a
maximu m
dia meter of 60 m m.
Wi-Fi
2.4G,
support
IEEE 802.11 b/g/n
Bluetooth
Support Bluetooth
2.1/3.0/4.0,
support
BLE
Button
ON button
(screen-locking
button) + volume increase/decrease
button
Loudspeaker
1.2W
External memory
card
Support
MicroS D(TF),
maxi mu m
64 G
External
interface
4 x USB TypeA port, 1 x
RJ11
serial port, 1 x
RJ12
cashbox port
,
1 x
RJ45
LA N port
1 x audio output port, 1 x power supply port, 1 x
Micro-USB
debugging
port
Power adapter
Input：AC100 ~240V/1.7A Output：D C24V/2.5A
Size
290 m m x 290 m m x 100 m m
Working environment
W orking te m perature: -10°C ~55°C Storage te m perature:
-20°C ~ 60
°C
General parameters of the POS Name and content of toxic and harmful substances
contained in this product are shown in the following
table
Name of
parts
Circuit board
Toxic and harmful substances and elements
（Pb） (Hg) (Cd) (Cr(VII) (PBB)
(PBDE)
Shell
:It indicates that the content of toxic and har mful substances in all ho m o geneo us materials of this part is belo w the limit
specified
in
SJ/T11363-2006.
:It indicates that the content of toxic and har mful substances is higher than the limit specified in
SJ/T11363-2006
in at least one
homogeneous material of this part; however, the the reason why the toxic substance of that part exceeds the limit is that there is
no applicable material to replace it currently.
For products that have reached or passed the service years for environmental protection, they should be recycled
according to Measures for Control and Management of Electronic Information Products and should not be
thrown
away at will.
Technical features and
characteristic
the product includes the follo wing features and
characteristics
：
WIFI
Operation
Frequency
， Maximum Power
2412 M Hz~2462 M Hz
802.11b/802.11g/802.11n(H20/H40)
20.49dB m
BT
Operation Frequency
2402 ~2480 M Hz
M axi m u m
Po w er
9.81dBm
Contents of Package
1×
main
machine
1×
user manual (including contents of package, warranty card, qualification
certificate)
1×
po w er adapter
Precautions
Warning Important Safety
Instructions
EU Regulatory
Conformance
Hereby, Shanghai Sunmi Technology Co., Ltd. declares that the radio equipment type is in compliance with Directive
2014/53/EU.
·
Please insert the AC plug into the AC outlet
according
to the identifying input on the power adapter;
·
It is prohibited to use the device in any places
with
potential explosive gases;
·
Nonprofessionals shall not open the power adapter
anyhow so as to avoid dangers;
·
The device is a Grade A product. In living environment,
the product may cause radio interference. Therefore,
users may be required to take practical measures
against the interference.
·
About the battery replacement:
1. It may cause explosion with wrong type
battery
2. Old battery which is replaced should be handled
by repair man, do not put it in
fire!
·
Adapter shall be installed near the equipment and
shall be easily accessible.
·
The operating temperature of the device between
-10℃
to
55℃.
·
The device co m plies with RF
specifications
when
the device used at 20c m for m your body.
·
This product can be used across EU member states.
Recommendation
·
Do not use the device near water or in humid
environment.Keep liquid from falling onto the
terminal;
·
Do not use the device in extremely cold and
hot
environ m ent, e.g. around fire or lighted
cigarettes;
·
Do not smash, throw or bend the device;
·
Use the device in clean and dustfree environment
as much as possible and keep small items
from
falling into the terminal;
·
Do not use it near medical devices unless
permitted.
·
Avoid installing or using during thunder and lightning,other
wise lightning stroke may occur;
·
Cut off the po w er im m e diately if there is abnor mal
s mell, overheating or s mog；
·
Do not touch the sharp paper cutting
tool!
Statement
The company is not responsible for the following behaviors:
·
Damages caused by using and maintaining the device
without following the User Guide;
·
Damages or problems caused by selection of objects
or
Consumables (products which are not the initial ones
provided or recognized by the company).
In this case, the company will not undertake any
responsibility. No one is entitled to modify or change the
product unless permitted by the company.
Disclaimer
Discrepancies
between the product and the file concerning
details may raise due to product updates. Please be subject
to
the material object. The company reserves the right
to
interpret the file and the right to revise this manual without
prior notices.
Please make sure the temperature for adapter will be
from
-10
℃ to 55 ℃.
Please make sure the temperature for device will be
from
-10
℃ to 55 ℃.
The full text of the EU declaration of conformity is available at the following internet address: www.sunmi.com
Notice: The device co m plies with RF
specifications
when
the device used
at
least 20c m fro m hu m a n body.
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance
with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference
will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception,
w hich can be deter mined by turning the equip m e nt off and on, the user is encouraged to try to correct theinterference by
one or more of the following measures:
·
Reorient or relocate the receiving antenna.
·
Increase the separation between the equipment and receiver.
·
Connect the
equip m e nt
into an outlet on a circuit different fro m that to which the receiver is connected.
·
Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or m o difications not expressly approved by the party responsible for co m pliance could
void the user's authority to operate the equipment.This equipment must be installed and operated in accordance with provid
-
ed instructions and the antenna(s) used for this trans mitter must be installed to provide a separation distance of at least
20
cm from all persons and must not be
co-located
or operating in conjunction with any other antenna or transmitter.
End-users
and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
Notice for Canada
This device complies with Industry Canada’s
licence-exempt
RSSs.
Operation is subject to the following two conditions:
(1)This device may not cause interference; and (2)This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
