Sunricher Technology RF28XX02 RF sender User Manual

Shenzhen Sunricher Technology Limited RF sender

User Manual

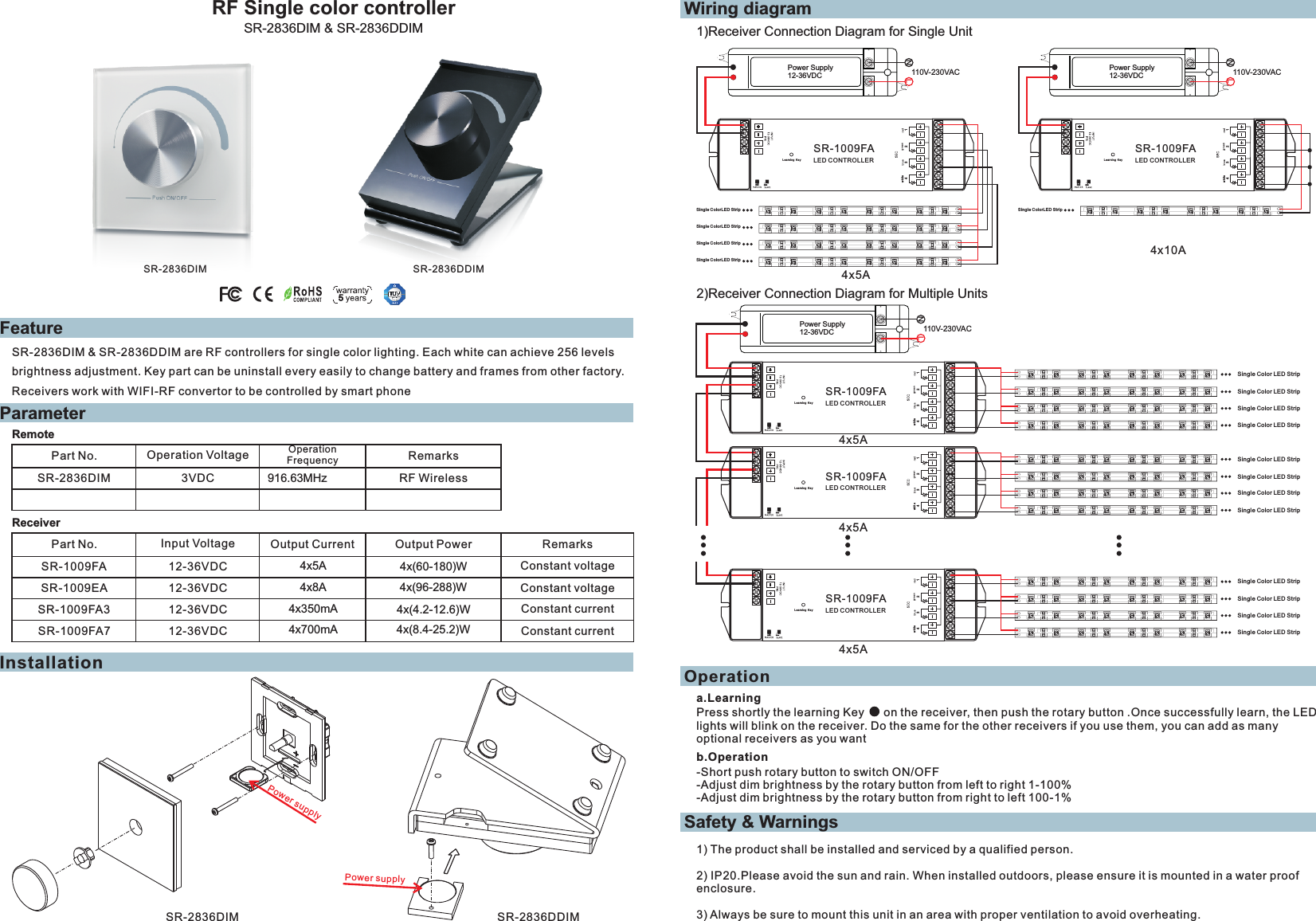

RF Single color controllerFeatureSR-2836DIM & SR-2836DDIMParameterInstallationRemotePart No. Operation Voltage Operation FrequencySR-2836DIM 3VDC 916.63MHzRemarksRF WirelessWiring diagramSR-2836DIM & SR-2836DDIM are RF controllers for single color lighting. Each white can achieve 256 levels brightness adjustment. Key part can be uninstall every easily to change battery and frames from other factory. Receivers work with WIFI-RF convertor to be controlled by smart phonePart No. Input Voltage RemarksOutput CurrentSR-1009FA 12-36VDC Constant voltage4x(60-180)W4x5AOutput PowerSR-1009EA 12-36VDC Constant voltage4x(96-288)W4x8AReceiverSR-1009FA3 12-36VDC Constant current4x(4.2-12.6)W4x350mASR-1009FA7 12-36VDC Constant current4x(8.4-25.2)W4x700mA1)Receiver Connection Diagram for Single Unit2) Connection Diagram for Multiple UnitsReceiver Power Supply12-36VDCLN110V-230VACwhi teSR-1009FALED CONTROLLER1234Lea rnin g KeySing le Colo r LED Stripwhi teSR-1009FALED CONTROLLER1234Lea rnin g Keywhi teSR-1009FALED CONTROLLER1234Lea rnin g KeyPower Supply12-36VDCLN110V-230VACwhi teSR-1009FALED CONTROLLER1234Lea rnin g KeySingl e Co lorLE D St rip4x5A4x5A4x5A4x5APower Supply12-36VDCLN110V-230VACwhi teSR-1009FALED CONTROLLER1234Lea rnin g Key4x10ASingl e Co lorLE D St ripSingl e Co lorLE D St ripSingl e Co lorLE D St ripSingl e Co lorLE D St ripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSing le Colo r LED StripSR-2836DIM SR-2836DDIMSR-2836DIMPower supplySR-2836DDIMPower supplyOperationa.LearningPress shortly the learning Key on the receiver, then push the rotary button .Once successfully learn, the LED lights will blink on the receiver. Do the same for the other receivers if you use them, you can add as many optional receivers as you wantb.Operation-Short push rotary button to switch ON/OFF-Adjust dim brightness by the rotary button from left to right 1-100%-Adjust dim brightness by the rotary button from right to left 100-1%Safety & Warnings1) The product shall be installed and serviced by a qualified person.2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.5

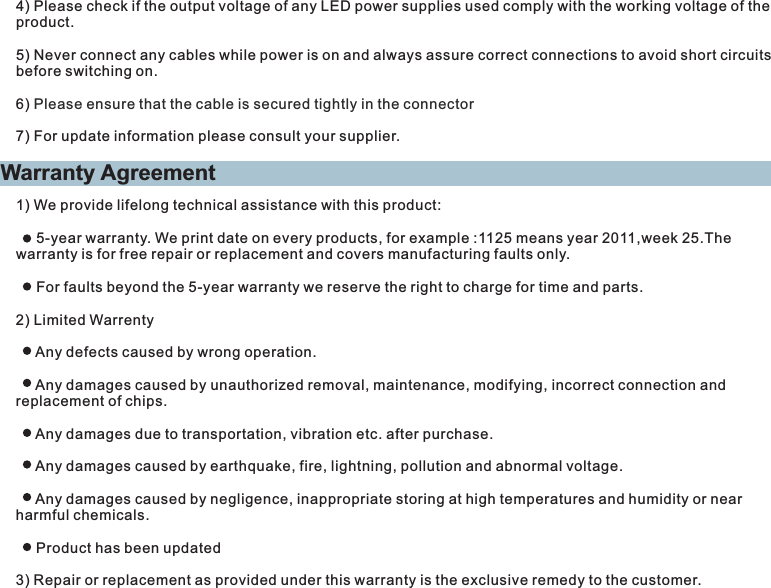

Warranty Agreement1) We provide lifelong technical assistance with this product: 5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The warranty is for free repair or replacement and covers manufacturing faults only. For faults beyond the 5-year warranty we reserve the right to charge for time and parts.2) Limited Warrenty Any defects caused by wrong operation. Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and replacement of chips. Any damages due to transportation, vibration etc. after purchase. Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage. Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near harmful chemicals. Product has been updated3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.5) Never connect any cables while power is on and always assure correct connections to avoid short circuits before switching on.6) 7) For update information please consult your supplier.Please ensure that the cable is secured tightly in the connector

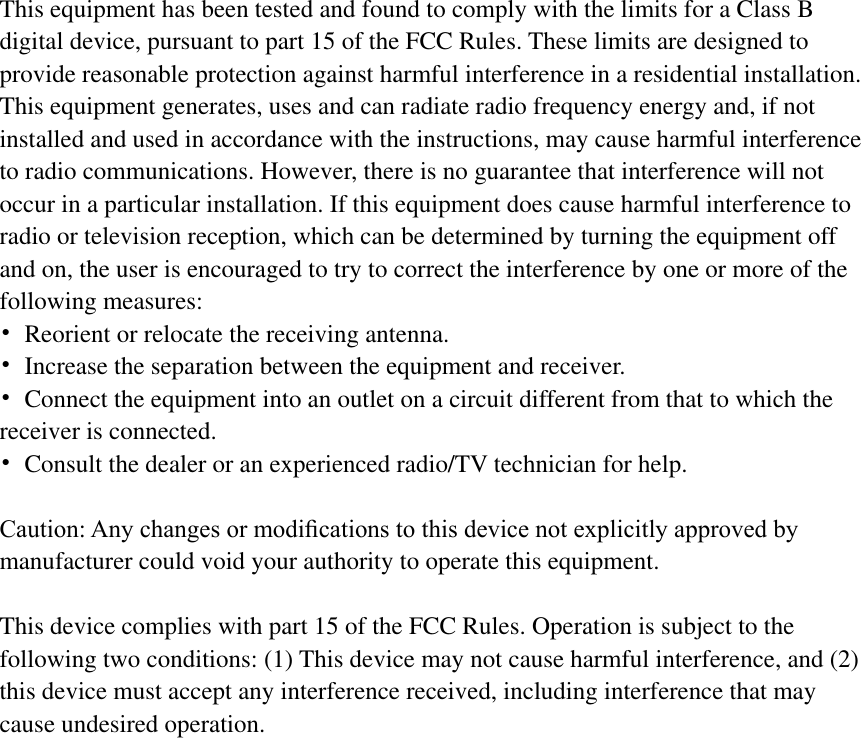

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
