Sunricher Technology RF28XX02 RF sender User Manual
Shenzhen Sunricher Technology Limited RF sender
User Manual
RF Single color controller
Feature
SR-2836DIM & SR-2836DDIM
Parameter
Installation
Remote
Part No. Operation Voltage Operation
Frequency
SR-2836DIM 3VDC 916.63MHz
Remarks
RF Wireless

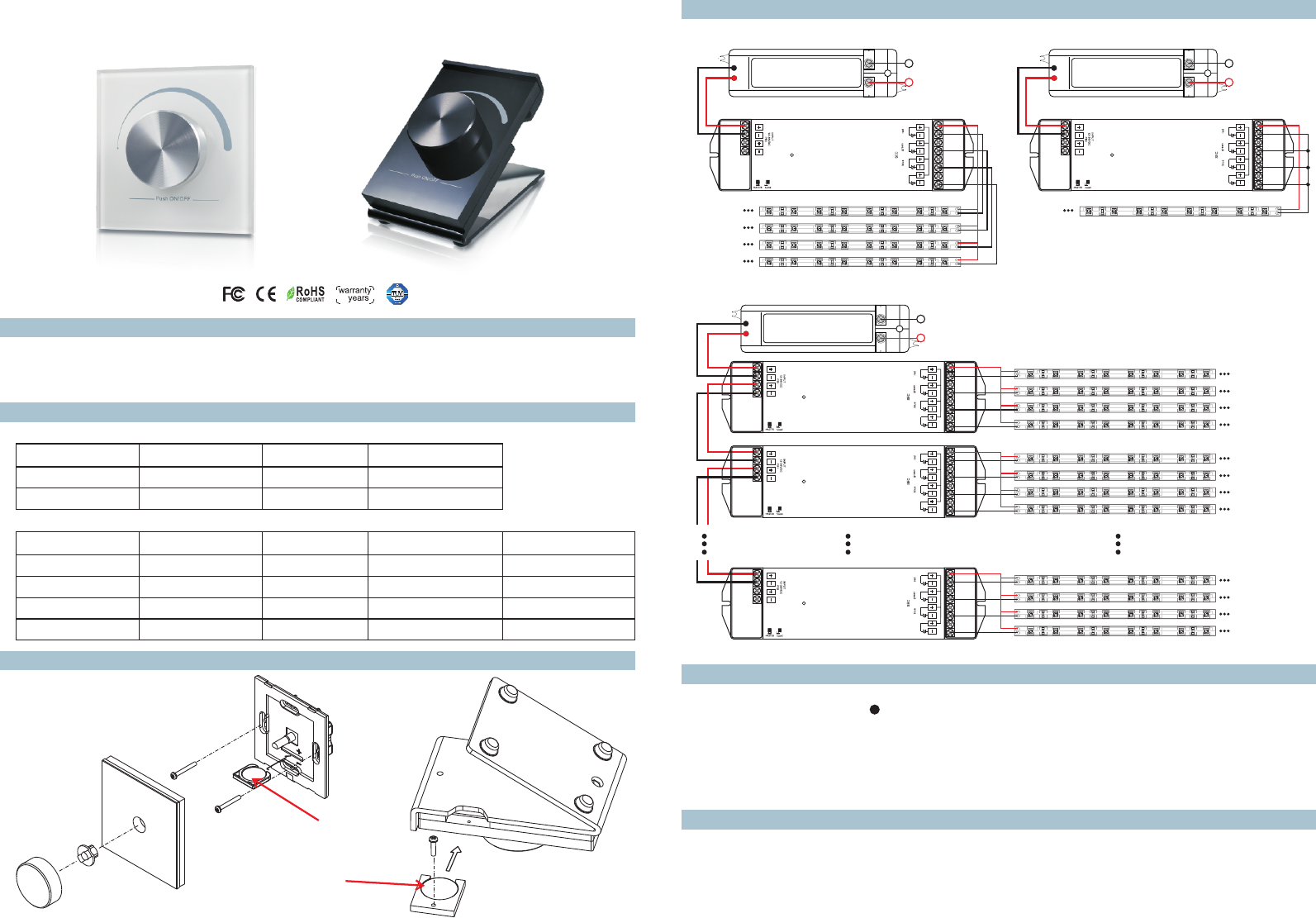

Wiring diagram
SR-2836DIM & SR-2836DDIM are RF controllers for single color lighting. Each white can achieve 256 levels
brightness adjustment. Key part can be uninstall every easily to change battery and frames from other factory.
Receivers work with WIFI-RF convertor to be controlled by smart phone
Part No. Input Voltage Remarks
Output Current
SR-1009FA 12-36VDC Constant voltage
4x(60-180)W
4x5A
Output Power
SR-1009EA 12-36VDC Constant voltage
4x(96-288)W4x8A
Receiver
SR-1009FA3 12-36VDC Constant current
4x(4.2-12.6)W
4x350mA
SR-1009FA7 12-36VDC Constant current
4x(8.4-25.2)W4x700mA
1)Receiver Connection Diagram for Single Unit
2) Connection Diagram for Multiple UnitsReceiver
Power Supply
12-36VDC
LN
110V-230VAC
whi te
SR-1009FA
LED CONTROLLER
1234
Lea rnin g Key
Sing le Colo r LED Strip
whi te
SR-1009FA
LED CONTROLLER
1234
Lea rnin g Key
whi te
SR-1009FA
LED CONTROLLER
1234
Lea rnin g Key
Power Supply
12-36VDC
LN
110V-230VAC
whi te
SR-1009FA
LED CONTROLLER
1234
Lea rnin g Key
Singl e Co lorLE D St rip
4x5A
4x5A
4x5A
4x5A
Power Supply
12-36VDC
LN
110V-230VAC
whi te
SR-1009FA
LED CONTROLLER
1234
Lea rnin g Key
4x10A
Singl e Co lorLE D St rip
Singl e Co lorLE D St rip
Singl e Co lorLE D St rip
Singl e Co lorLE D St rip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
Sing le Colo r LED Strip
SR-2836DIM SR-2836DDIM
SR-2836DIM
Power supply
SR-2836DDIM
Power supply
Operation
a.Learning
Press shortly the learning Key on the receiver, then push the rotary button .Once successfully learn, the LED
lights will blink on the receiver. Do the same for the other receivers if you use them, you can add as many
optional receivers as you want
b.Operation
-Short push rotary button to switch ON/OFF
-Adjust dim brightness by the rotary button from left to right 1-100%
-Adjust dim brightness by the rotary button from right to left 100-1%
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
5
Warranty Agreement
1) We provide lifelong technical assistance with this product:
5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The
warranty is for free repair or replacement and covers manufacturing faults only.
For faults beyond the 5-year warranty we reserve the right to charge for time and parts.
2) Limited Warrenty
Any defects caused by wrong operation.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and
replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near
harmful chemicals.
Product has been updated
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6)
7) For update information please consult your supplier.
Please ensure that the cable is secured tightly in the connector
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
