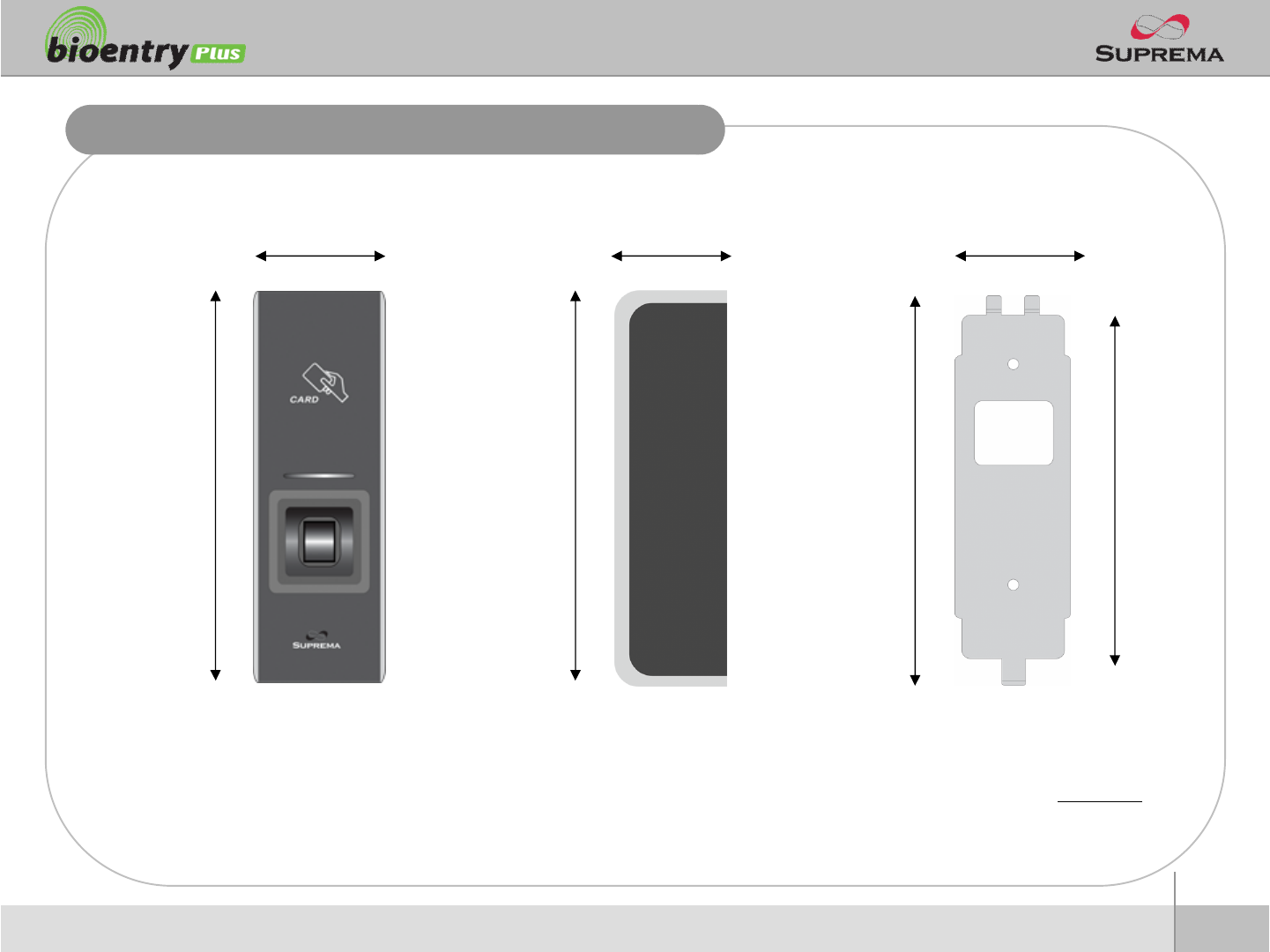

Product Dimension
Metal BracketFront Side
160
50 37
150
40
135
(unit : mm)
160
13
ⒸCopyright 2007Suprema Inc.

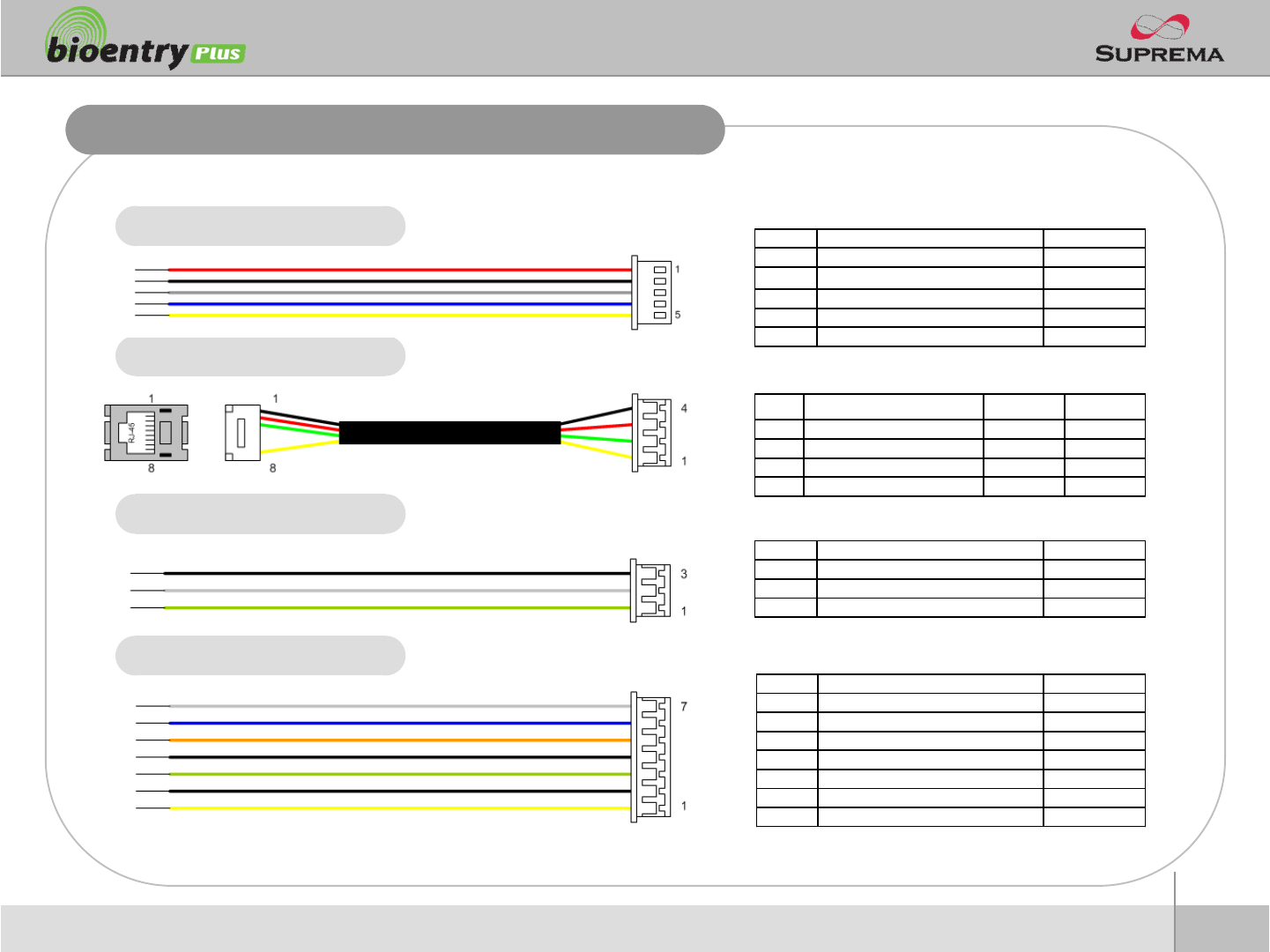

Cables and Connectors
Power and RS485
TCP/IP
Wiegandoutput
Digital Inputs and Relay output
PIN PIN DESCRIPTION WIRE
1WIEGAND DATA0 GREEN
2WIEGAND DATA1 WHITE
3WIEGAND GND BLACK
PIN PIN DESCRIPTION WIRE
1POWER +12V RED
2 POWER GND BLACK
3 RS -485 GND GRAY
4RS -485 TRX+ BLUE
5 RS -485 TRX- YELLOW
PIN PIN DESCRIPTION WIRE
1SW1 INPUT YELLOW
2SW1 GND BLACK
3SW2 INPUT GREEN
4SW2 GND BLACK
5 RELAY NORMAL CLOSE ORANGE
6RELAY COMMON BLUE
7 RELAY NORMAL OPEN WHITE
PIN PIN DESCRIPTION WIRE RJ45 PIN
1TX + YELLOW 6
2TX - GREEN 3
3RX + RED 2
4RX - BLACK 1
14
ⒸCopyright 2007Suprema Inc.

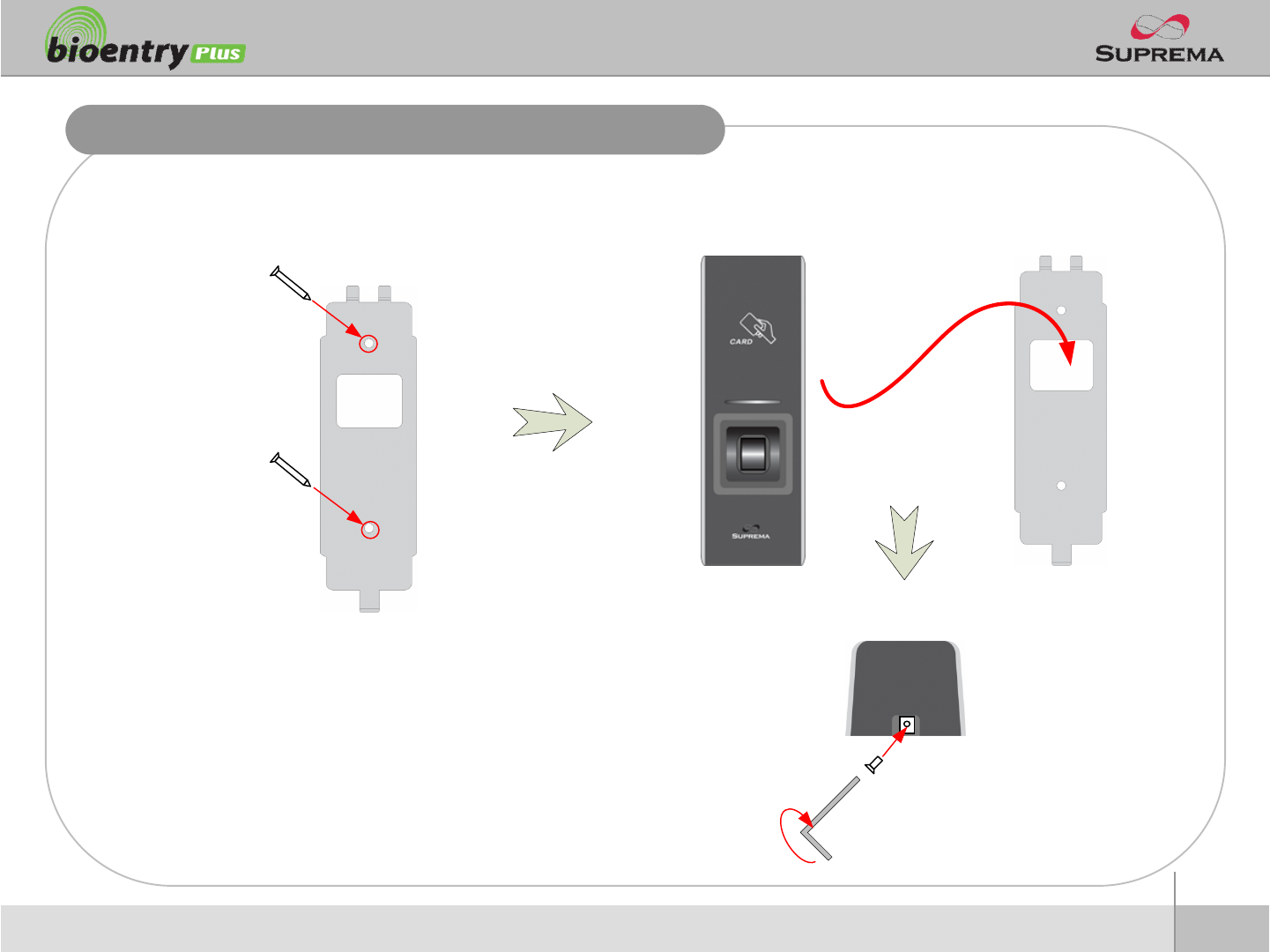

Installation of Wall-mount Bracket
nFix wall mount bracket on a wall using wall mounting
screws
nHook BioEntryPlus on the wall mount bracket
nFix BioStation and wall mounting bracket using a star
shape screw.
Wall mounting
screws
Star-shaped
screw
Star-shaped
wrench
15
ⒸCopyright 2007Suprema Inc.

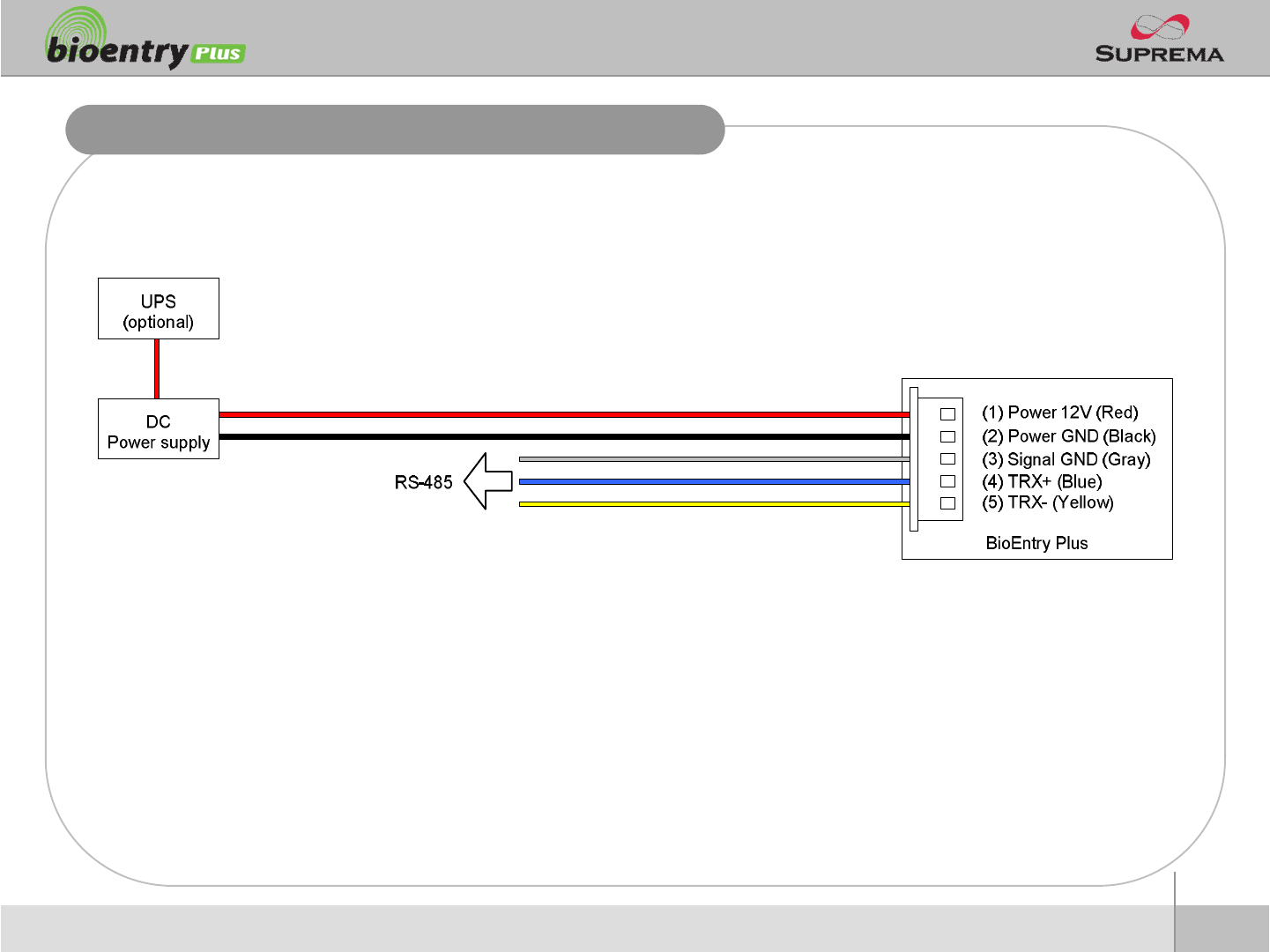

Power Connection
nRecommended power supply
l12V ±10%, at least 1500mA.
lComply with standard IEC/EN 60950-1.
lTo share the power with other devices, use a power supply with higher current ratings.
16
ⒸCopyright 2007Suprema Inc.

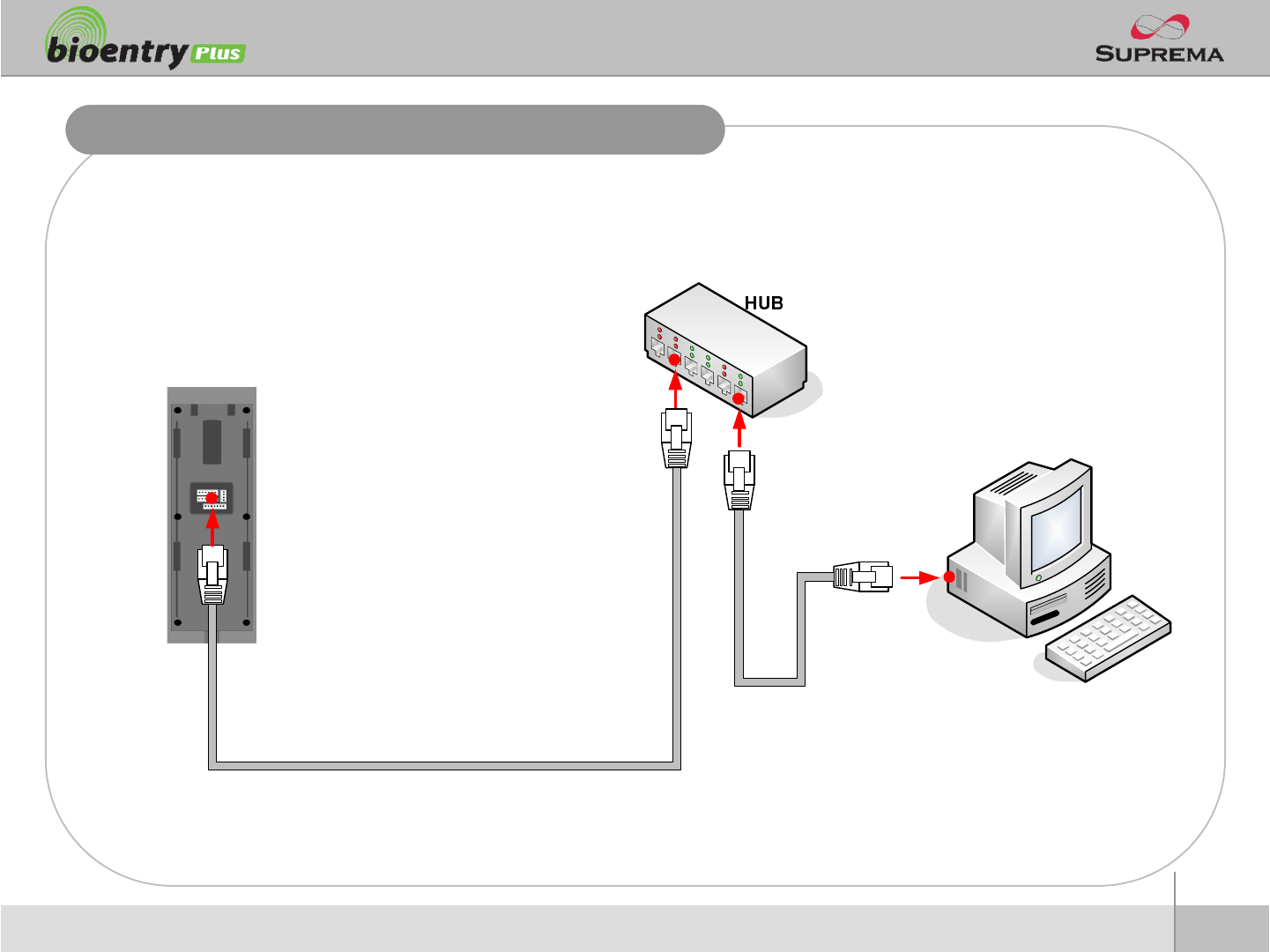

Ethernet Connection
17
ⒸCopyright 2007Suprema Inc.

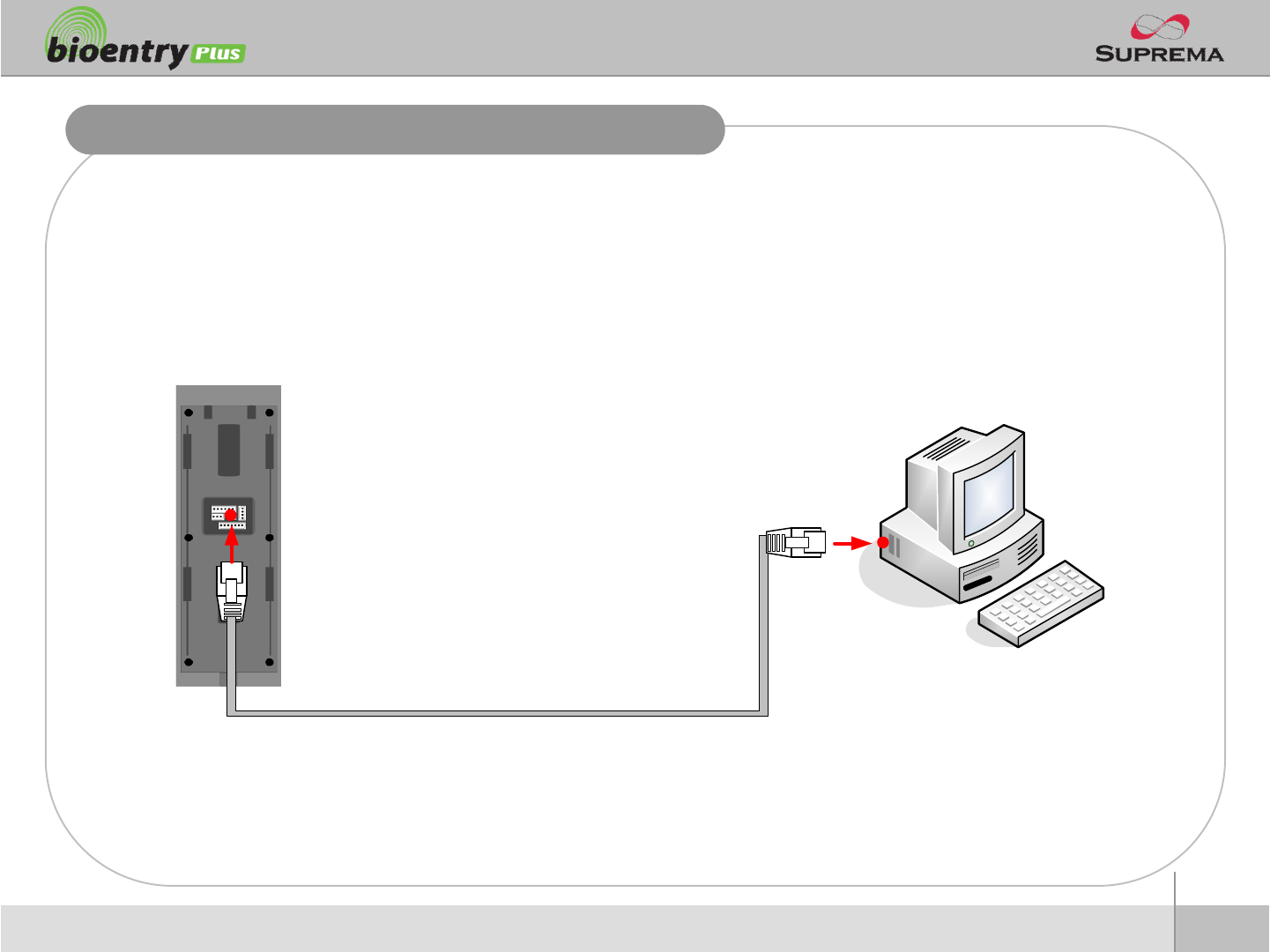

Ethernet Connection (Direct connection with PC)
nTo connect BioEntryPlus with a PC directly, connect both devices with a straight CAT-5
cable. As the BioEntryPlus supports auto MDI/MDIX feature, it is not necessary to usea
crossover type cable.
18
ⒸCopyright 2007Suprema Inc.

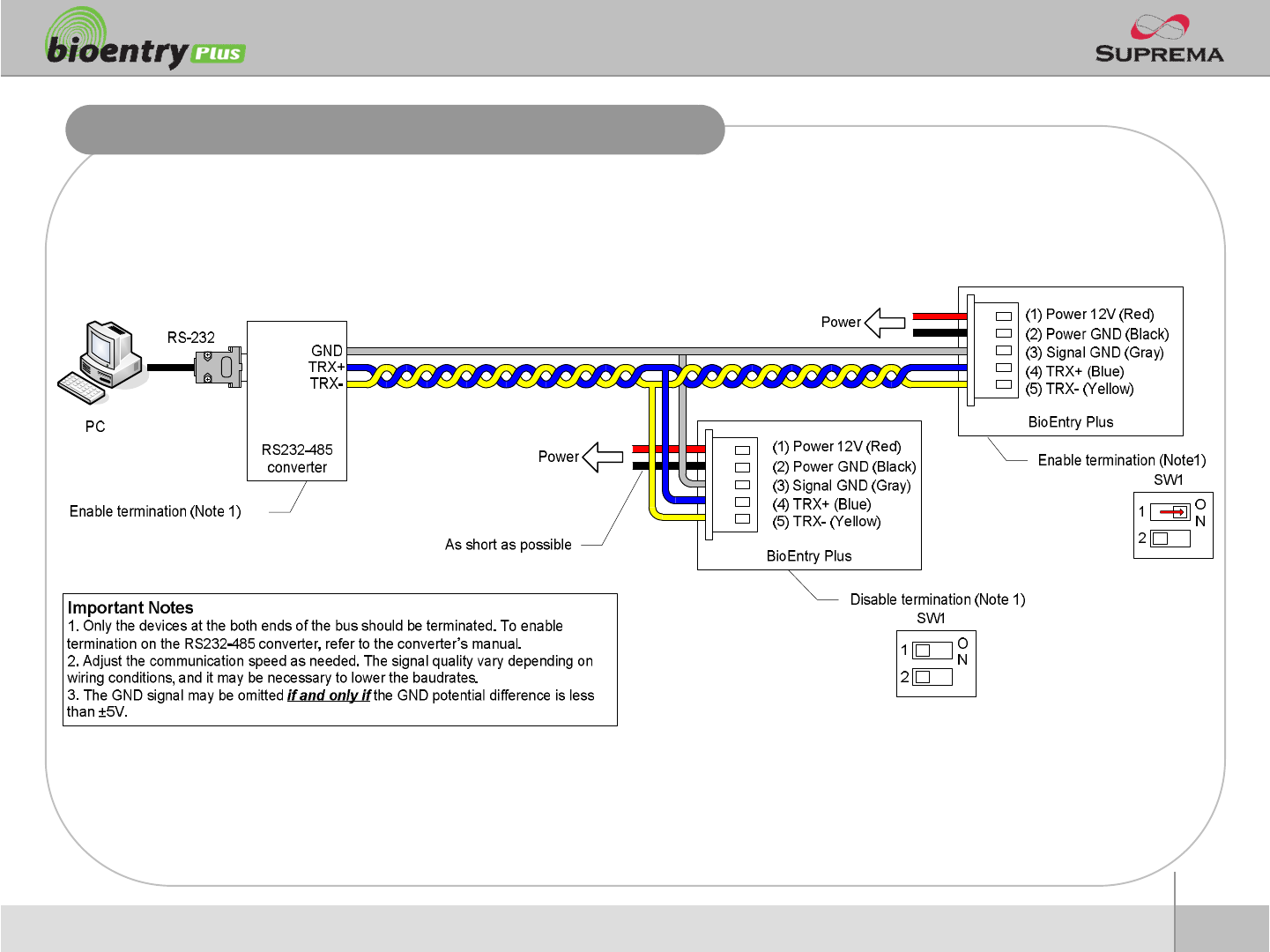

RS485 Connection for Host Communication
19
ⒸCopyright 2007Suprema Inc.

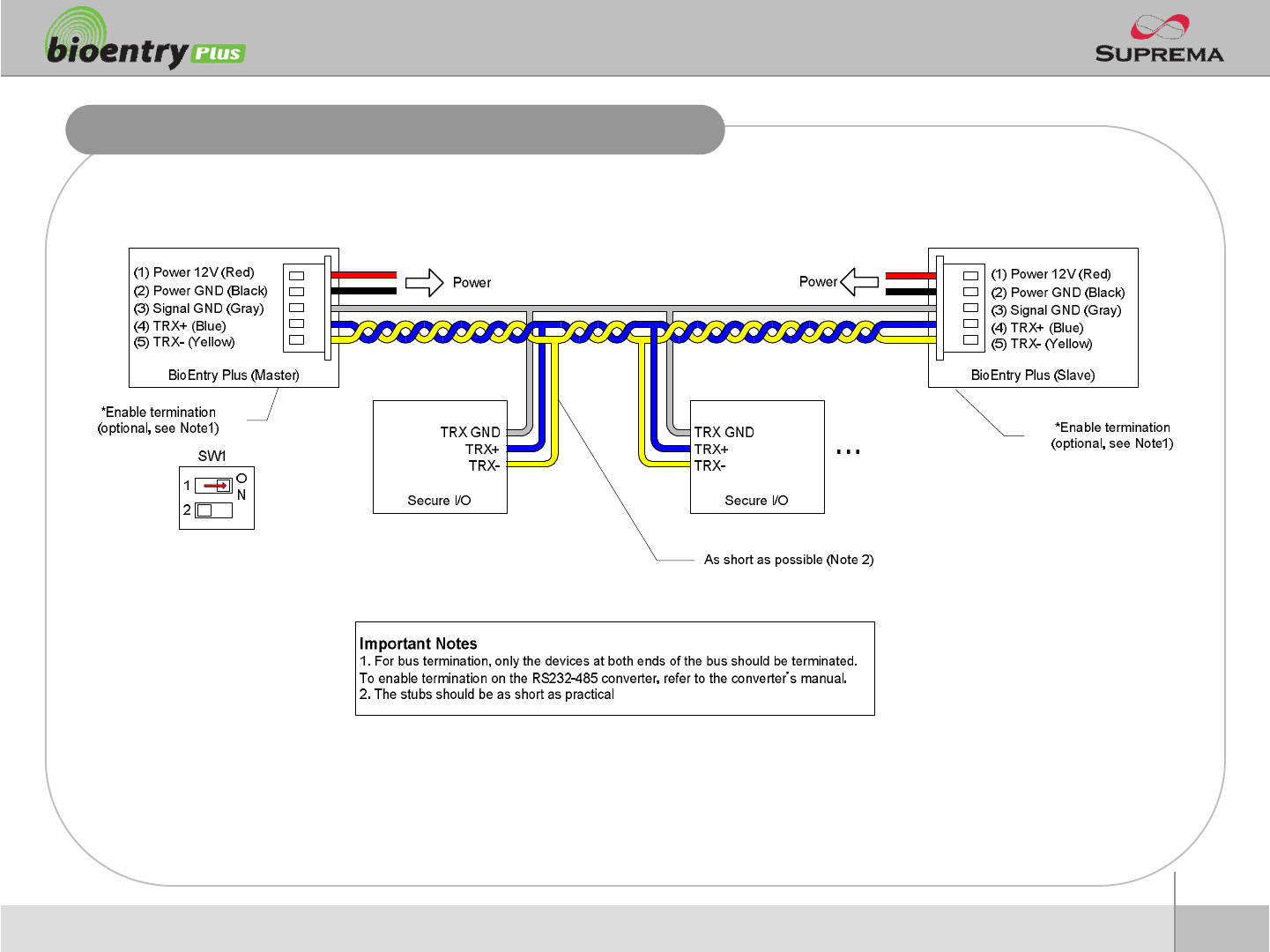

RS485 Connection for Secure I/O
nMax number of devices
lMaximum numbers of devices in an RS485 loop are two(2) devices (BioStation or BioEntry
Plus) and four(4) Secure I/Os
20
ⒸCopyright 2007Suprema Inc.

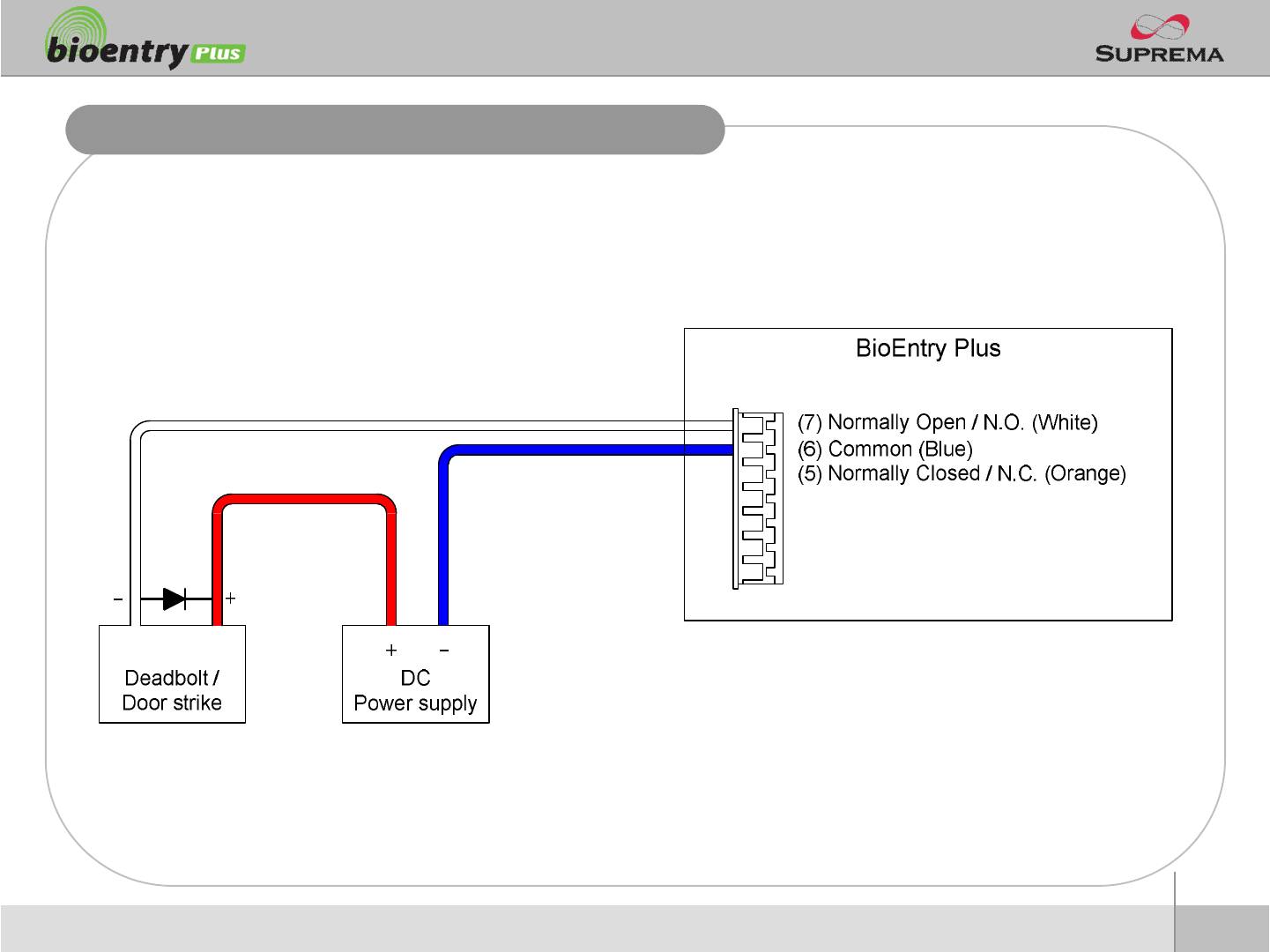

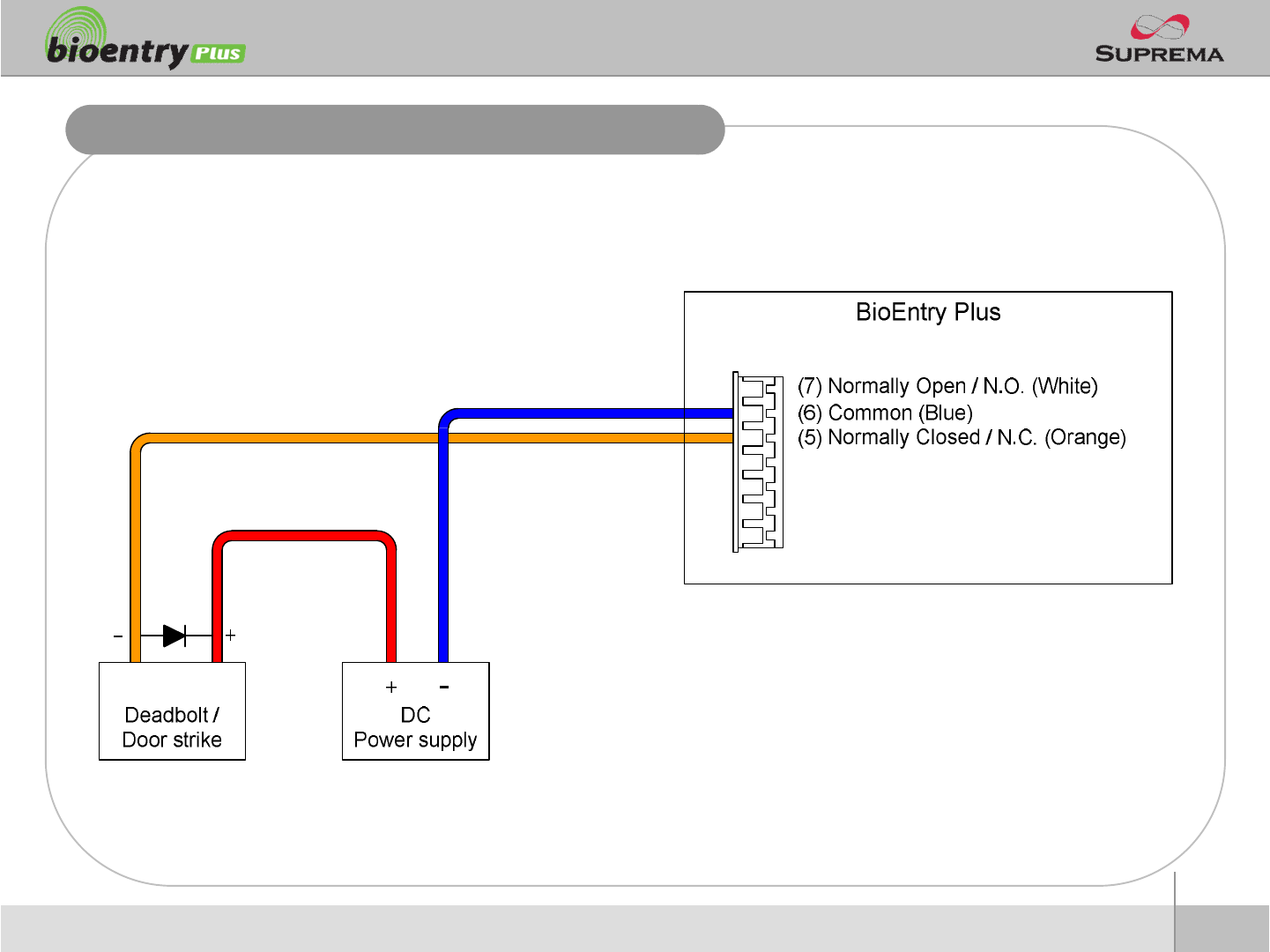

Relay Connection –Fail safe lock
21
ⒸCopyright 2007Suprema Inc.
Relay Connection –Fail secure lock
22
ⒸCopyright 2007Suprema Inc.

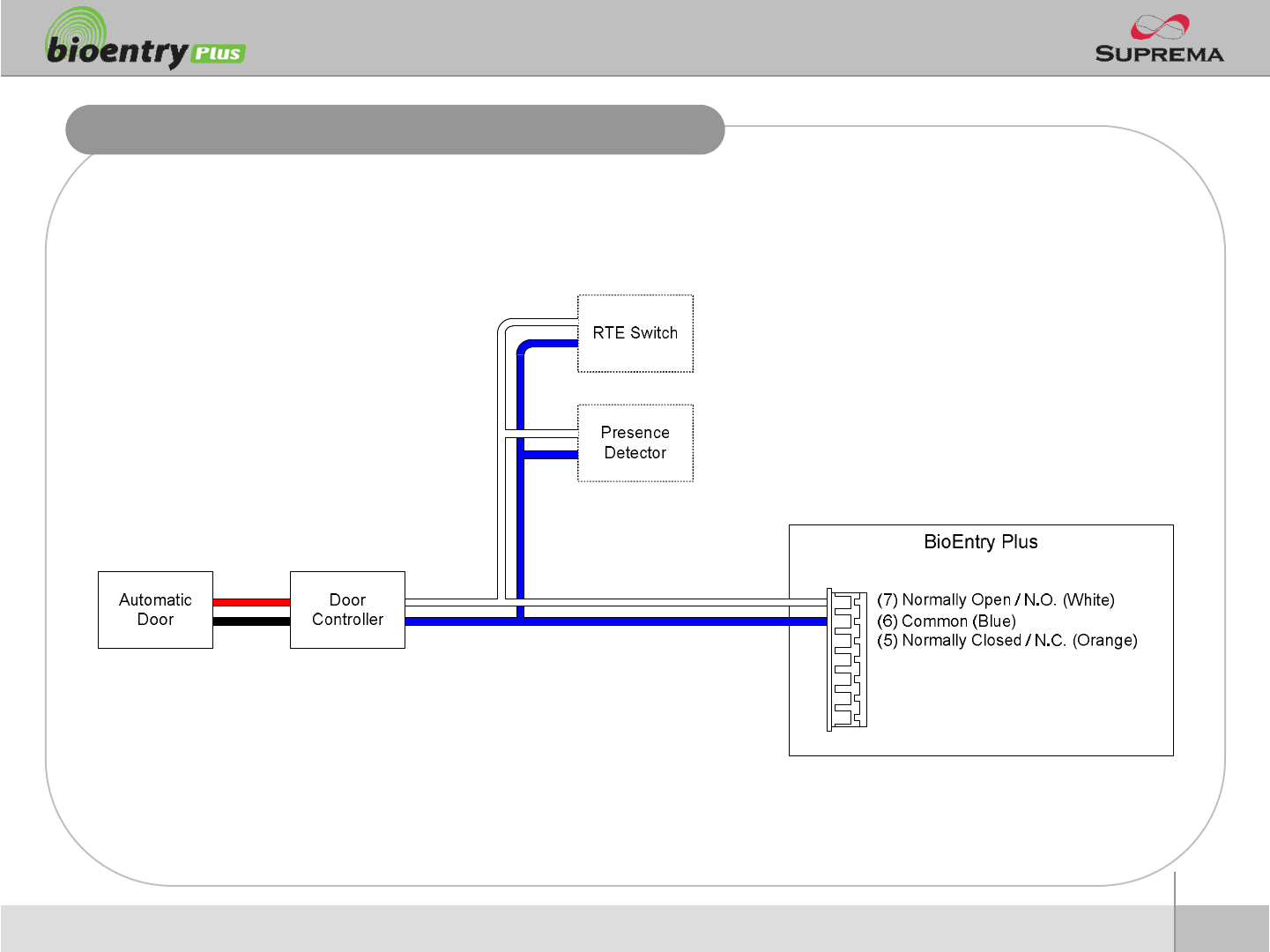

Relay Connection -Automatic door
23
ⒸCopyright 2007Suprema Inc.

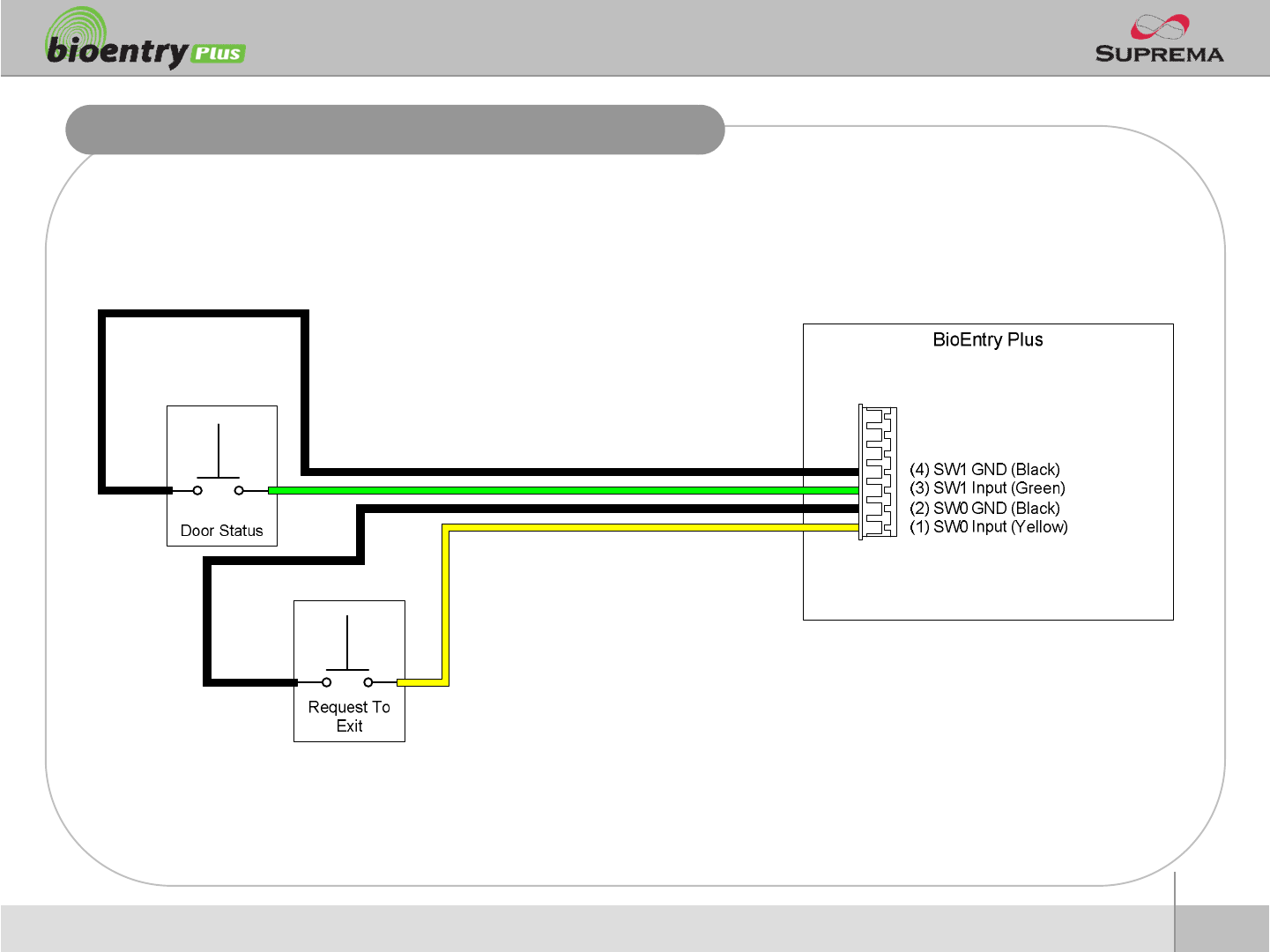

Digital Input Connection (RTE, Door sensor)
24
ⒸCopyright 2007Suprema Inc.
Digital Input Connection (Alarm, Emergency sw)
25
ⒸCopyright 2007Suprema Inc.
WiegandOutput
26
ⒸCopyright 2007Suprema Inc.

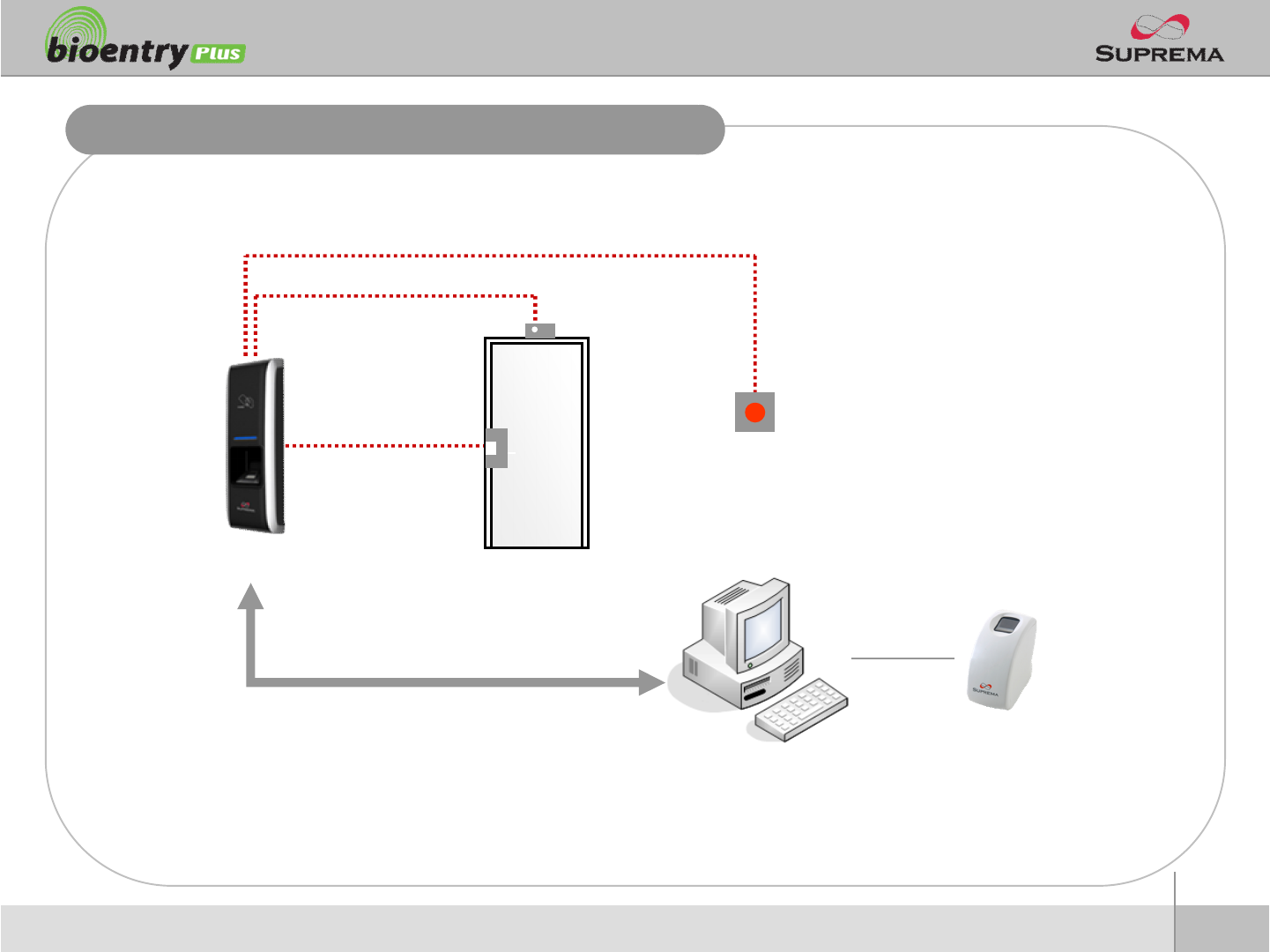

Installation Reference 1 -Stand alone
Door Lock
Door Sensor
Exit Button
Enroll ScannerPC
LAN
BioEntryPlus
27
ⒸCopyright 2007Suprema Inc.

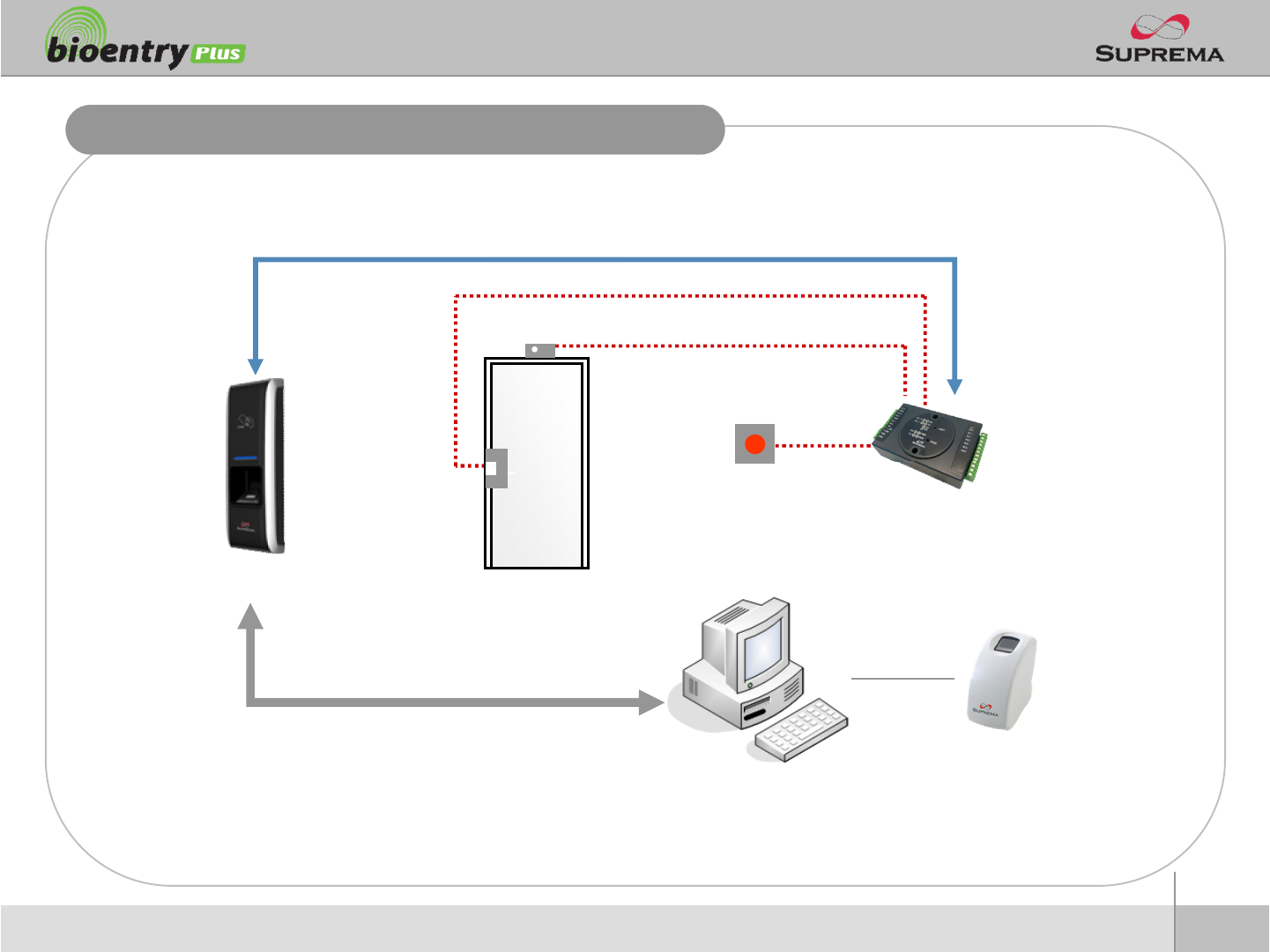

Installation Reference 2 –Secure
Exit Button
Enroll ScannerPC
LAN
BioEntryPlus
RS485
Secure I/O
Door Sensor
Door Lock
28
ⒸCopyright 2007Suprema Inc.

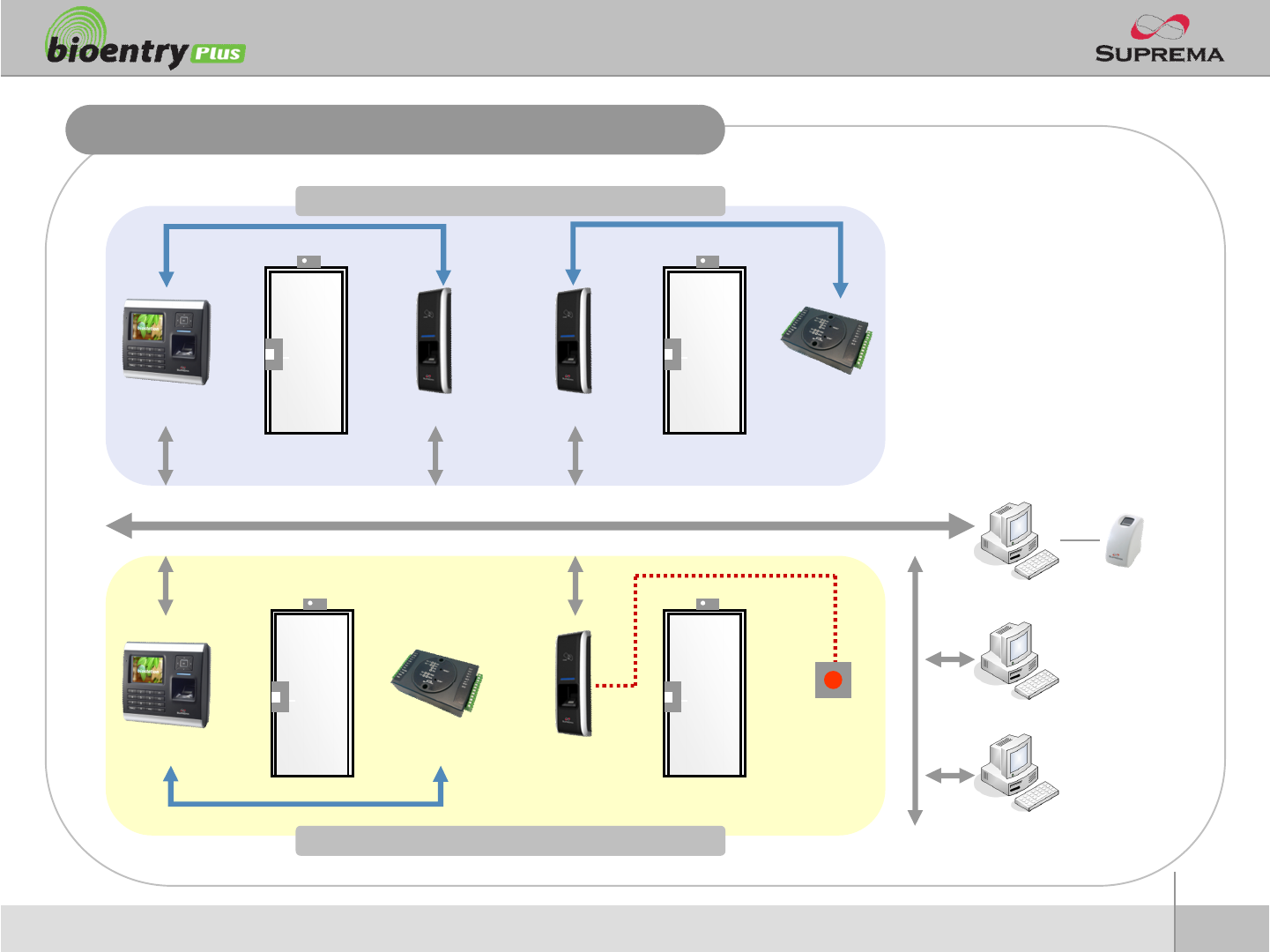

Installation Reference 3 –Network
Door Zone 2 (Anti passback)
Door Zone 1 (Anti passback)
BioStation BioEntryPlus BioEntryPlus Secure I/O
RS485 RS485
LAN
BioStation Secure I/O BioEntryPlus Exit Button
PC Server
PC Client
PC Client
RS485
Enroll Scanner
29
ⒸCopyright 2007Suprema Inc.
Electrical Specification
Min. Typ. Max. Notes
Power
Voltage (V) 10.8 12 13.2 Use regulated DC power adaptor only
Current (mA) -250
Switch Input
VIH (V) -TBD -
VIL (V) -TBD
Pull-up resistance (Ω)-4.7k - The input ports are pulled up with 4.7k resistors
TTL/WiegandOutput
VOH (V) - 5 -
VOL (V) -0.8 -
Pull-up resistance (Ω)-4.7k - The outputs ports are open drain type, pulled up with 4.7k resistors
internally
Relay
Switching capacity (A) - - 1
0.3
30V DC
125V AC
Switching power
(resistive) - - 30W
37.5VA
DC
AC
Switching voltage (V) - - 110
125
DC
AC
30
ⒸCopyright 2007Suprema Inc.
Troubleshooting
nFingerprint can not be read well or it takes too long.
lCheck whether a finger or fingerprint sensor is stained with sweat, water, or dust
lRetry after wiping off finger and fingerprint sensor with dry towel.
lIf a fingerprint is way too dry, blow on the finger and retry.
nFingerprint is entered but authorization keeps failing.
lCheck whether the user is restricted by door zone or time zone.
lInquire of administrator whether the enrolled fingerprint has been deleted frinthe device for some
reason.
nAuthorized but door is not opened.
lCheck whether the time is set as lock time.
lCheck whether an antipassback mode is in use. In antipassback mode, only who entered can exit.
nDevice doesn’t operate though power is connected.
lCheck whether a device and a bracket is well connected to each other. If not, a tamper switch is
activated and the device doesn’t work.
31
ⒸCopyright 2007Suprema Inc.
Device cleaning
nWipe out machine surface with dry towel or cloth.
nIn case there is dust or impurities on the sensor of the BioStation, wipe off the surface with
dry towel.
nNote that if the sensor is cleaned by detergent, benzene or thinner, surface is damaged and
fingerprint can’t be entered.
32
ⒸCopyright 2007Suprema Inc.
FCC Rules
Caution
Warning
Information to User
lChanges or modifications not expressly approved by the manufacturer
responsible for compliance could void the user's authority to operate the
equipment.
lThis device complies with part 15 of the FCC Rules. Operation issubject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
lThis equipment has been tested and found to comply with the limit of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, user and canradiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guaranteeethat interference will not occur in a particular
installation; if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that
to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help
