Suprema XR-10 Xpass Slim Dummy User Manual xr 10 eng

Suprema Inc. Xpass Slim Dummy xr 10 eng

Users Manual

3
5
6
7
9
10
11
12
14
Safety Precautions

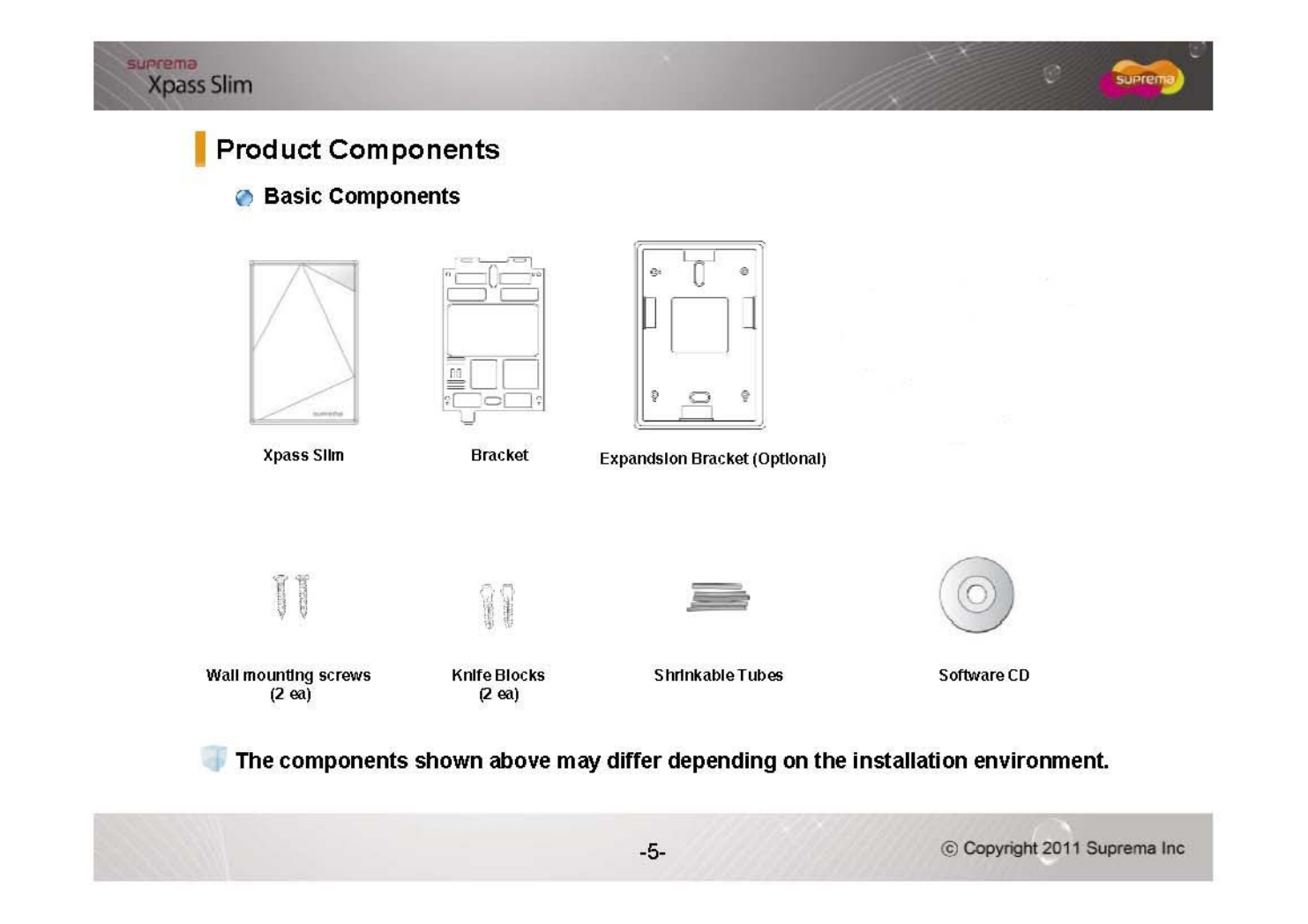

Product Components

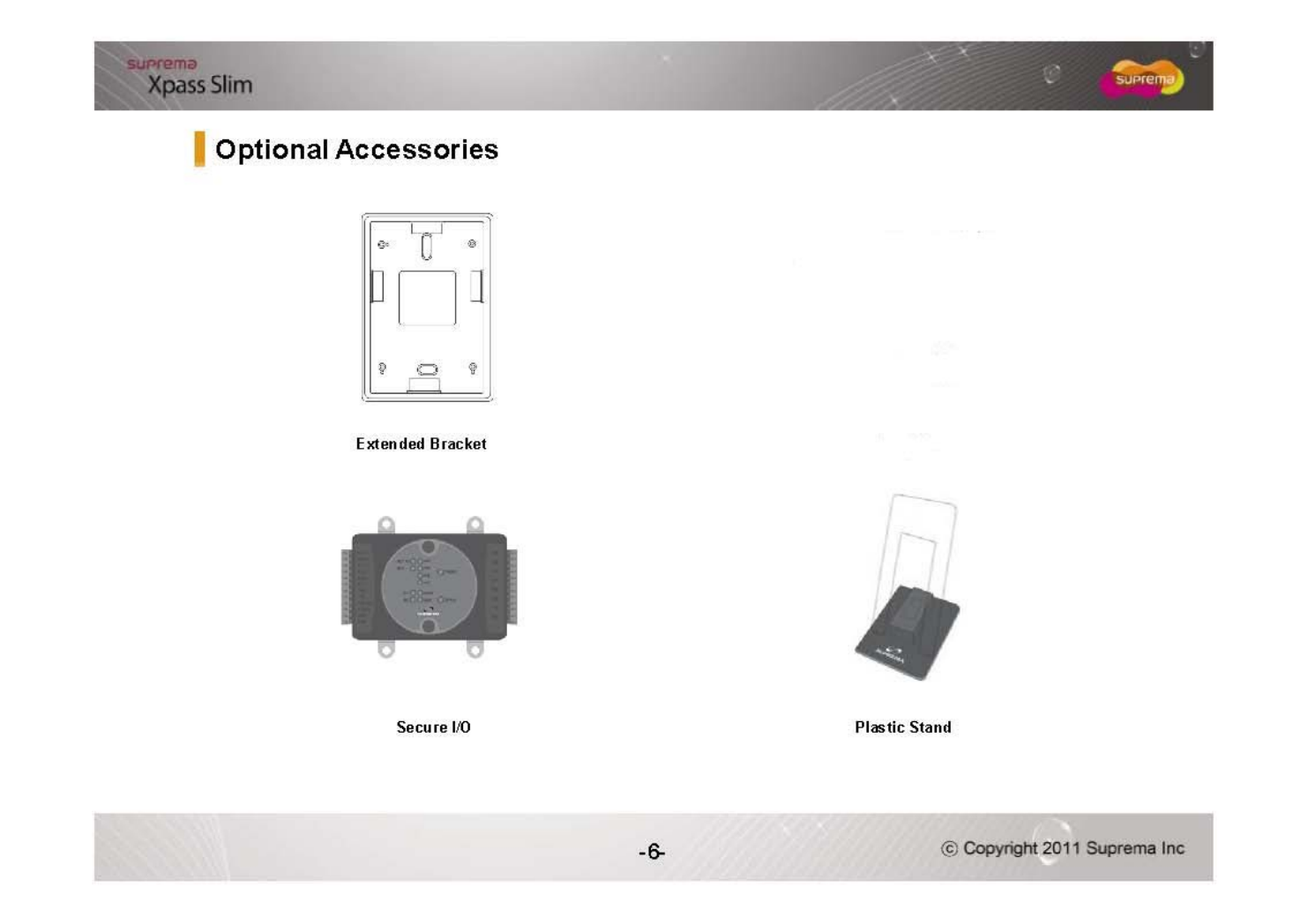

Optional Accessories
Product Description
Product Dimension
Cables and Connectors
Power Connection
RS485 Connection
Digital
Input Connection
Contents
-2-
14
16
17
18
19
20
21
Digital
Input Connection
WiegandInput/Output
Wall-mount Bracket Installation
Extended Bracket Installation
Specification
Electrical Specification
FCC Rules

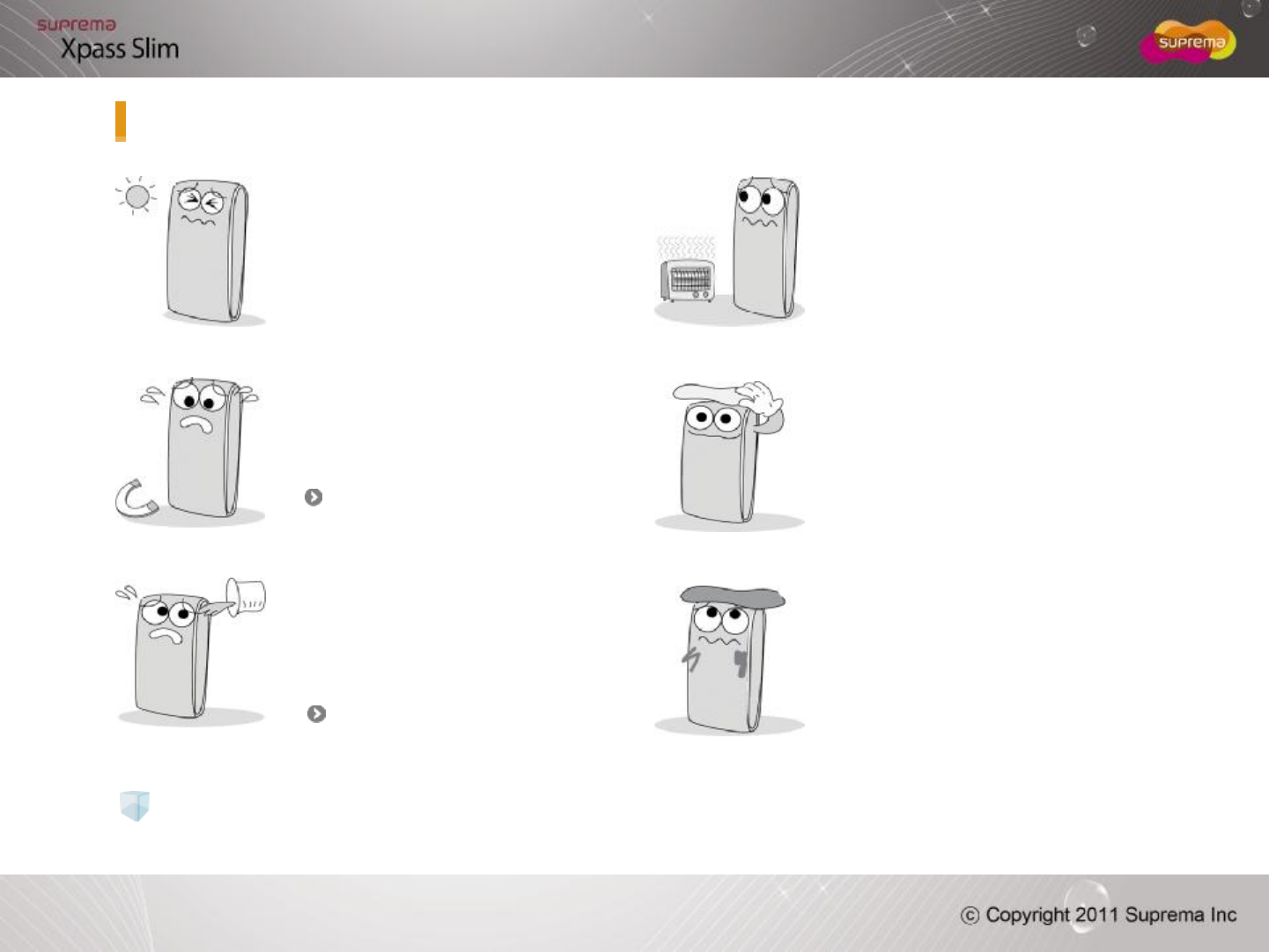

Do not install the device in a
place subject to direct sun
light, humidity, dust or soot.
Do not place a magnet
near the product.
Do not place the device next
to heating equipments.
When cleaning, do not splash
water on the device; wipe it
clean with smooth cloth or towel.
Safety Precautions
-3-
The list above is to keep user’s safety and prevent any loss. Please read safety
precautions carefully before use.

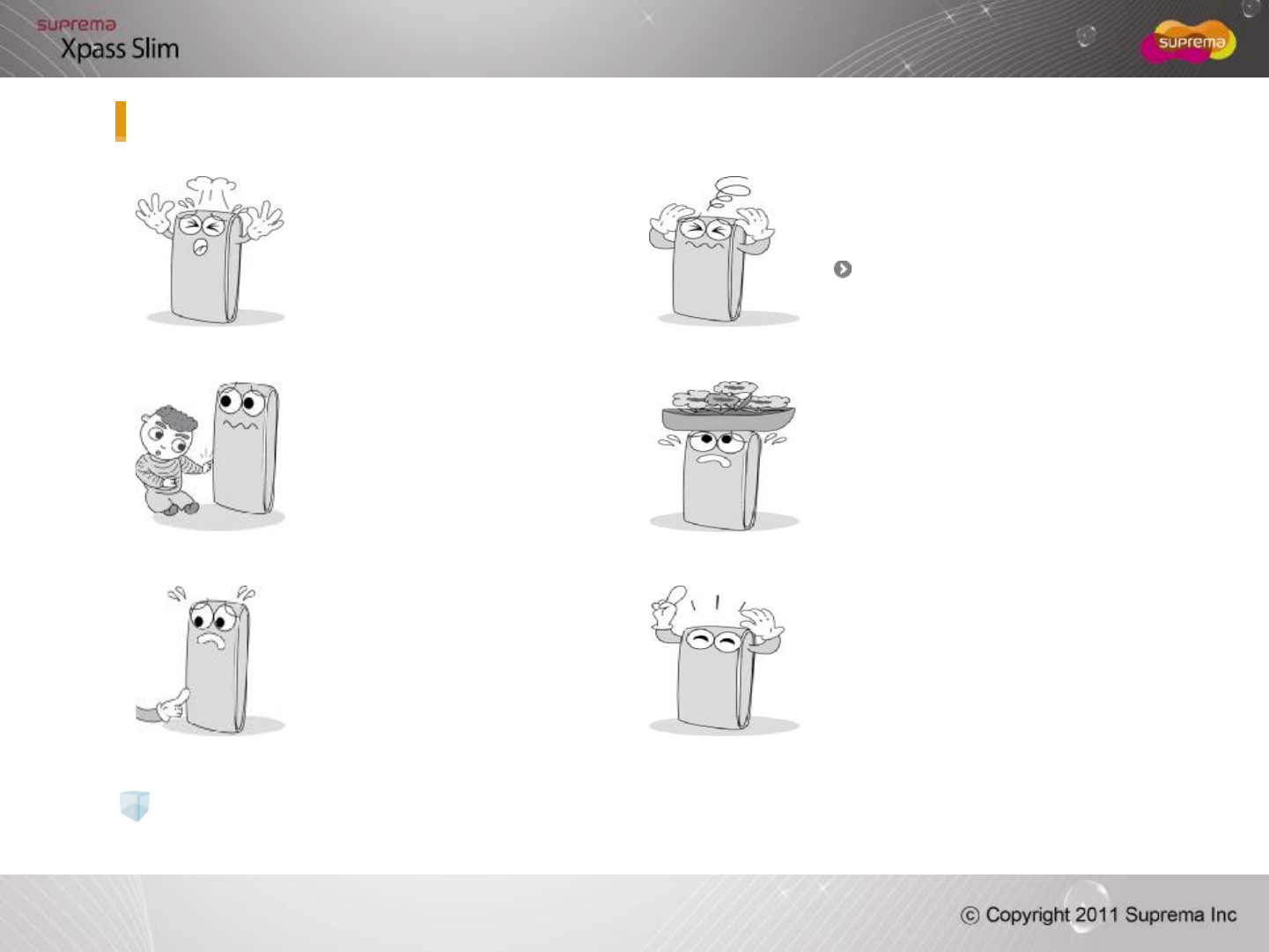

Be careful not to let liquid like
water, drinks or chemicals
leak inside the device.
Clean the device often to
remove dust on it.
It may cause a damage or
a failure to the product.
It may cause a failure.
Do not drop the device. Do not disassemble, repair or
alter the device.
Do not let children touch the
devicewithout supervision. Do not use the device for
any other purpose than
specified.
The warranty does not apply to any
product damage cause by an
arbitrary installation or repair.
Safety Precautions
-4-
Do not damage the device. Contact your nearest dealer in
case of a trouble or problem.
The list above is to keep user’s safety and prevent any loss. Please read safety
precautions carefully before use.

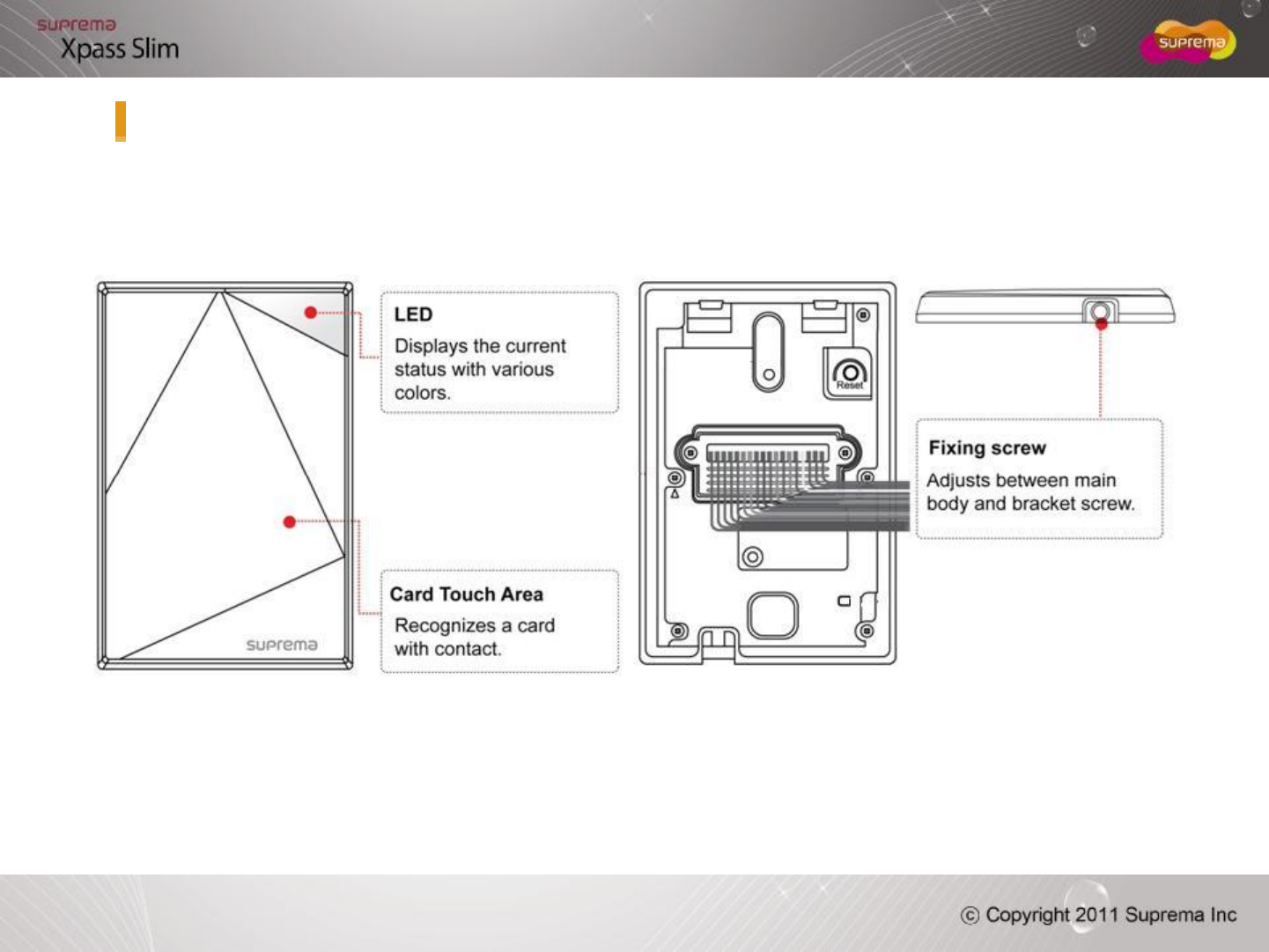

Product Description
-7-

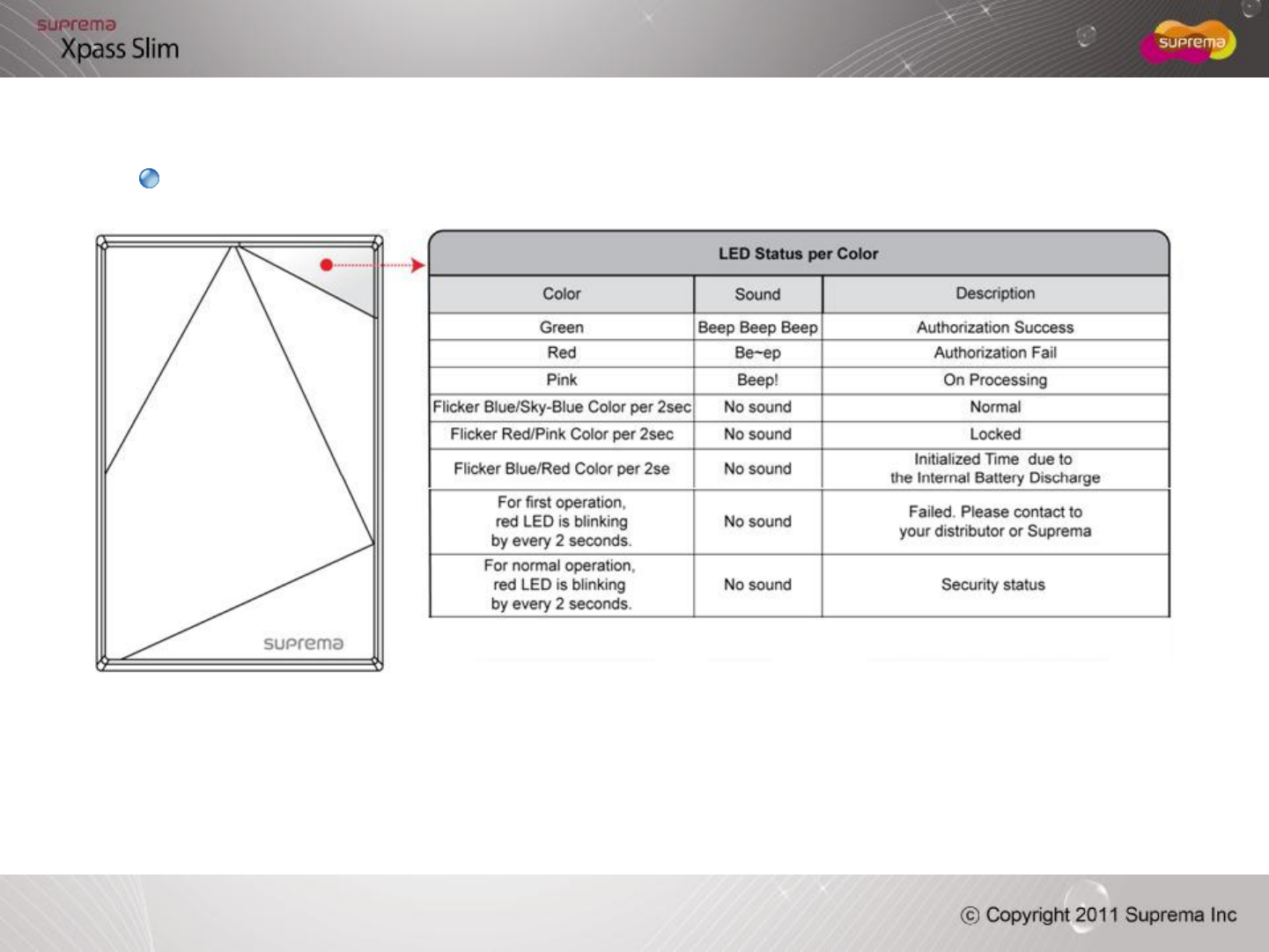

LED Status
-8-
(unit : mm)

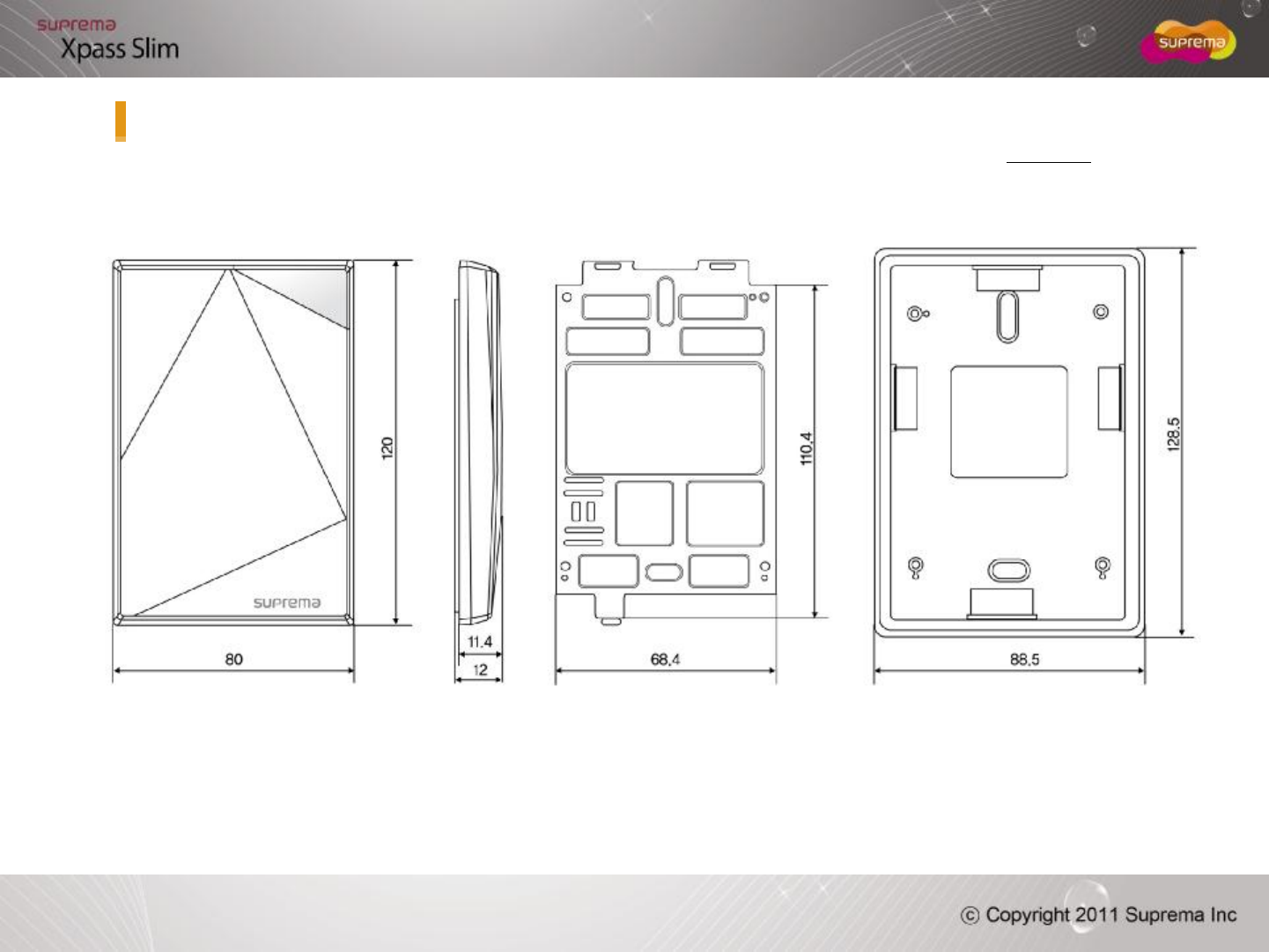

Product Dimensions
-9-
< Extended bracket >< Front View > < Bracket >< Side View >

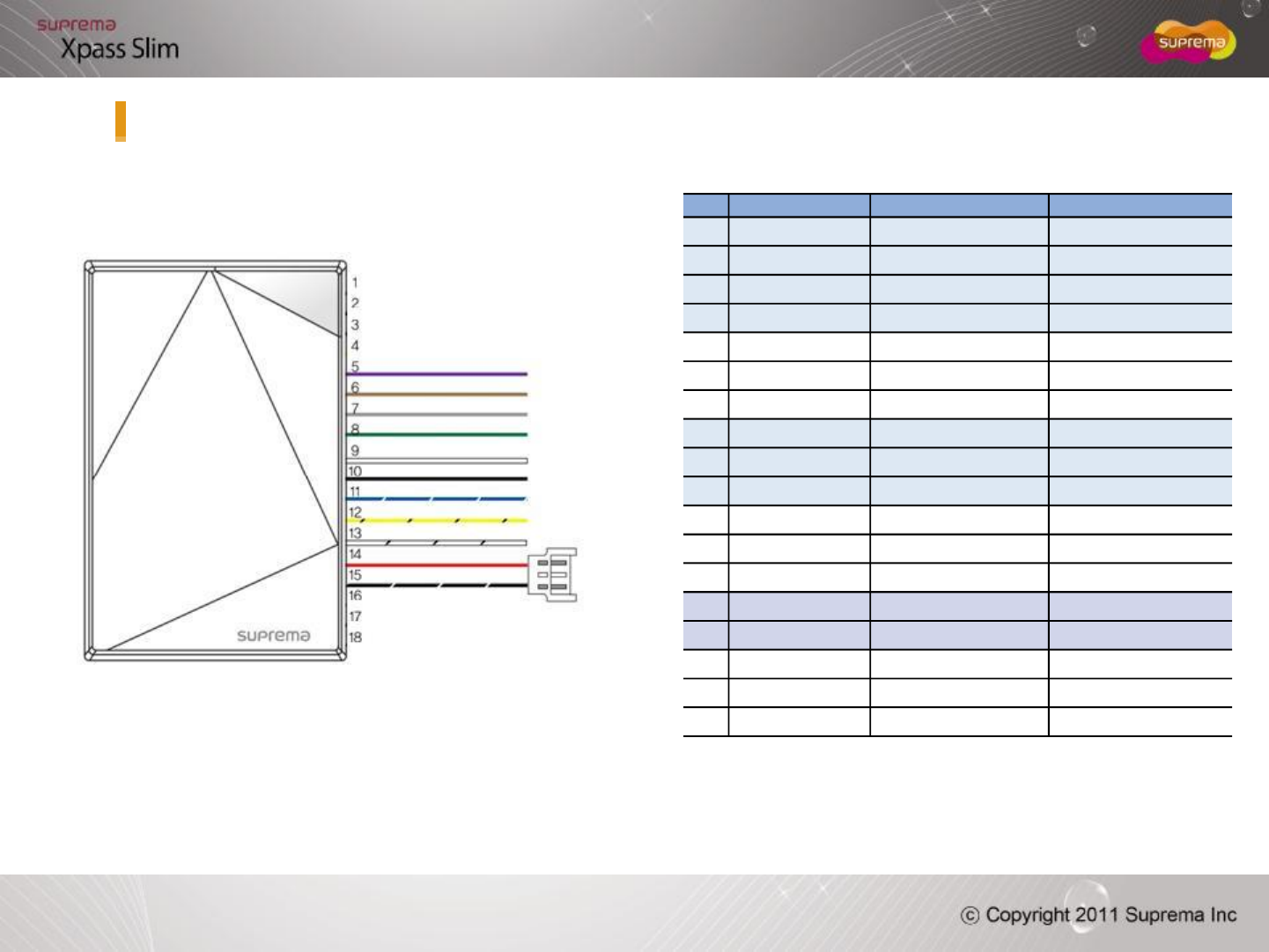

Pin Pin Name Description Color
5SWIN 0 Switch Input 0 Purple
6 SWIN 1 Switch Input 1 Brown
7SW GND Switch GND Gray
8WGD D0 Wiegand Data 0 Green
9WGD D1 Wiegand Data 1 white
Cables and Connectors
-10-
10 WGD GND Wiegand GND Black
11 485 TRX+ 485 TRX+ Blue(white string)
12 485 TRX- 485 TRX- Yellow(black string)
13 485 GND 485 GND White(black string)
14 PWR IN Power IN Red
15 PWR GND Power GND Black (white string)

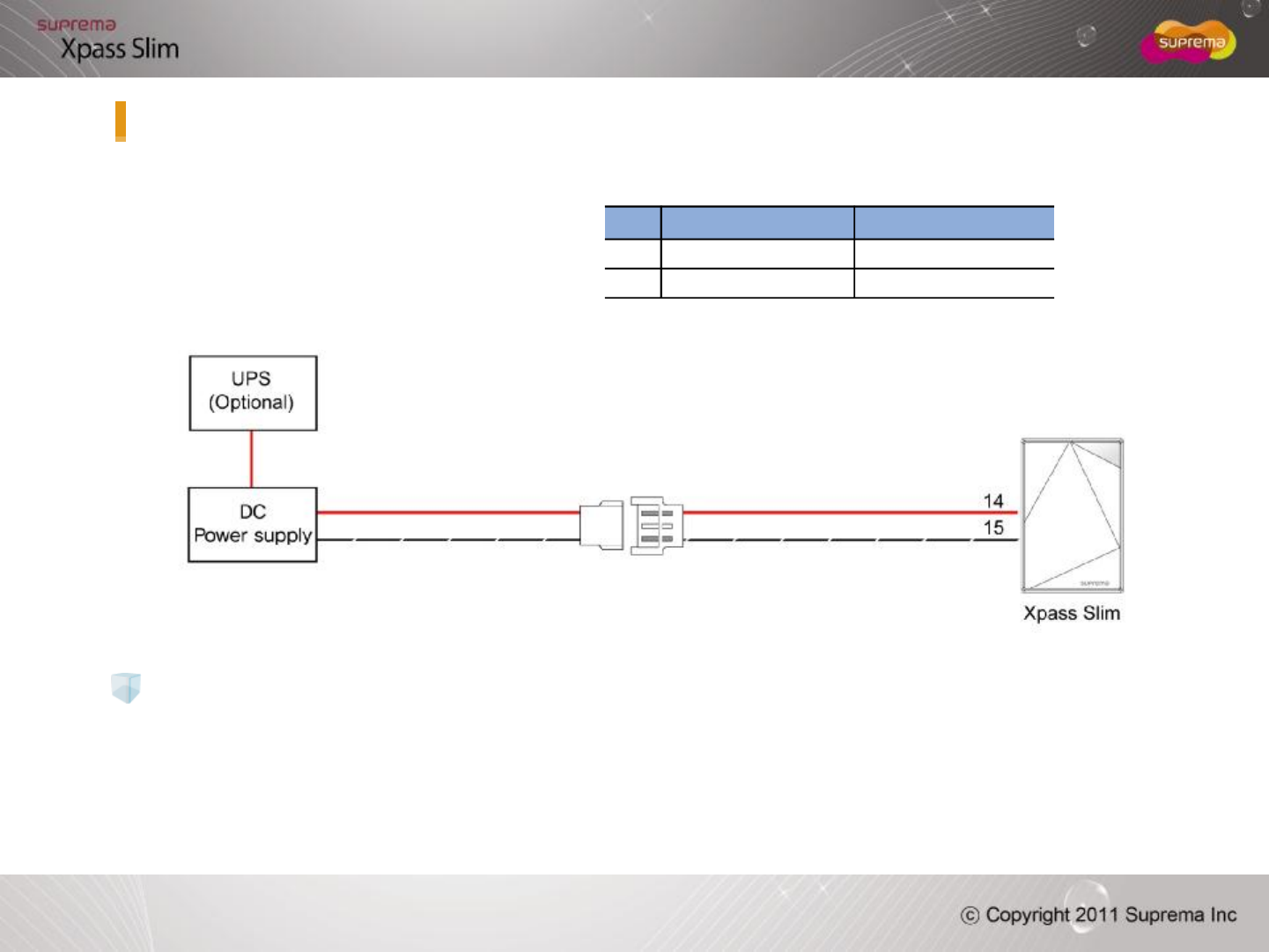

Power Connection
Pin Pin Name Color
14 PWR IN Red
15 PWR GND Black (white string)
-11-
12V ±10%, at least 500mA.
Comply with standard IEC/EN 60950-1.
When sharing the power with other devices, use a power supply with a higher current ratings.
Recommended Power Supply:
Pin Pin Name Color
11 485 TRX+ Blue (white string)
12 485 TRX- Yellow (black string)
13 485 GND White (black string)
RS485 Connection for Host Communication
-12-
Pin Pin Name Color
11 485 TRX+ Blue (white string)
12 485 TRX- Yellow (black string)
13 485 GND White (black string)

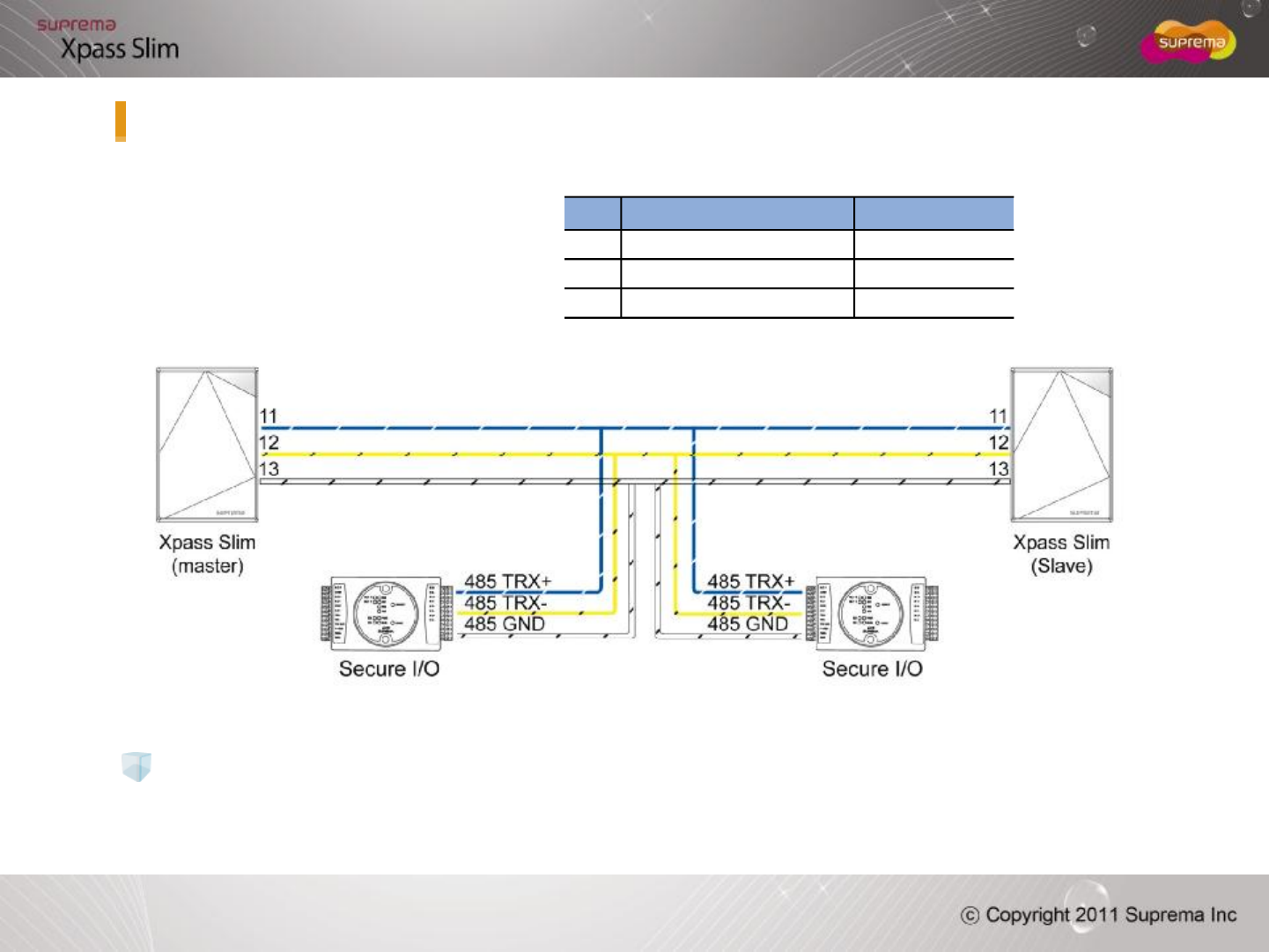

RS485 Connection for Secure I/O
-13-
Max Number of Devices:
Maximum eight(8) devices (including master) within an RS485 loop.
Pin Pin Name Color
5SWIN 0 Purple
6 SWIN 1 Brown
7SW GND Gray

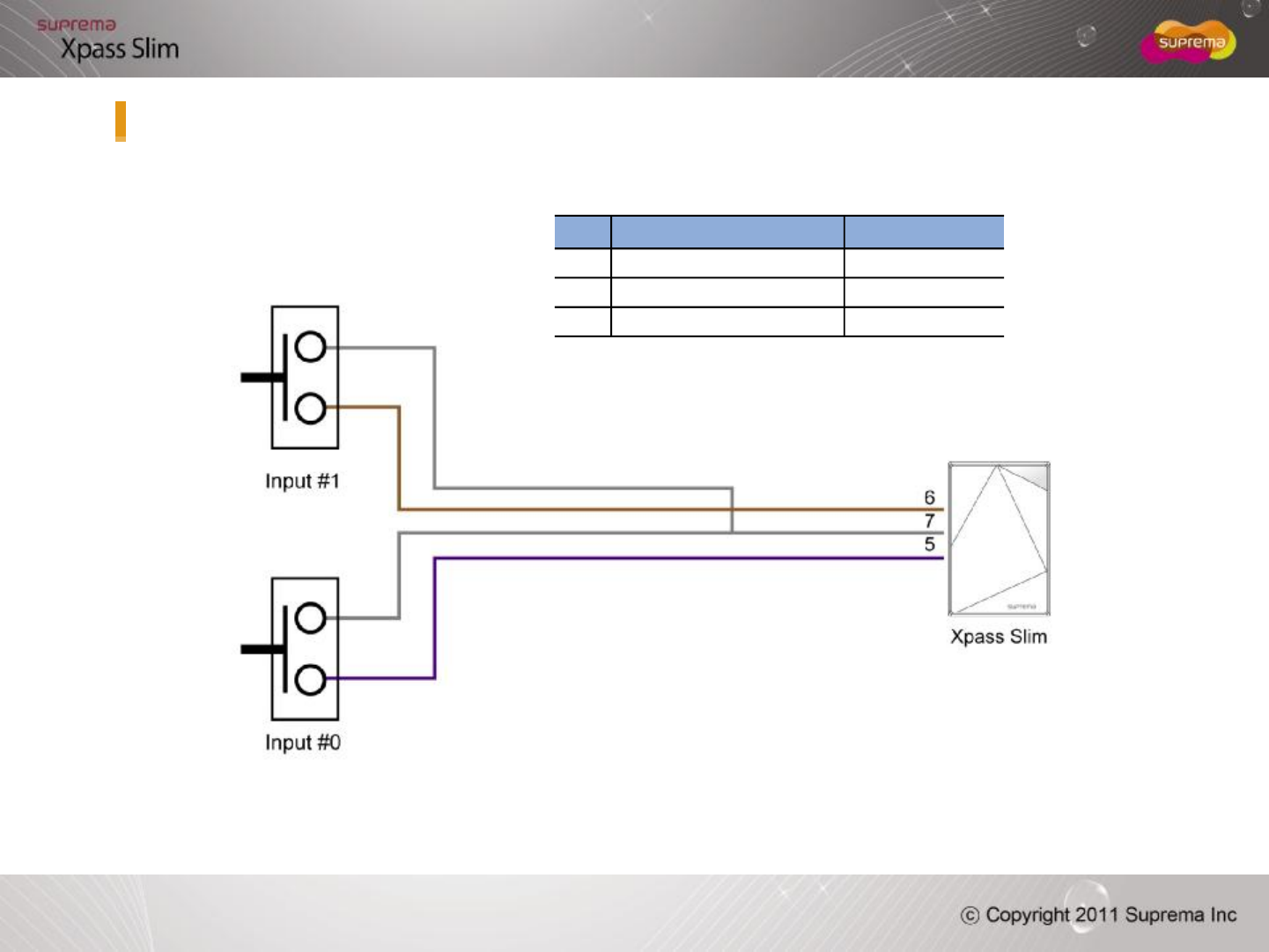

Digital Input Connection (Alarm, Emergency S/W)
-14-
Pin Pin Name Color
5SWIN 0 Purple
6 SWIN 1 Brown
7SW GND Gray
Digital Input Connection (RTE, Door sensor)
-15-

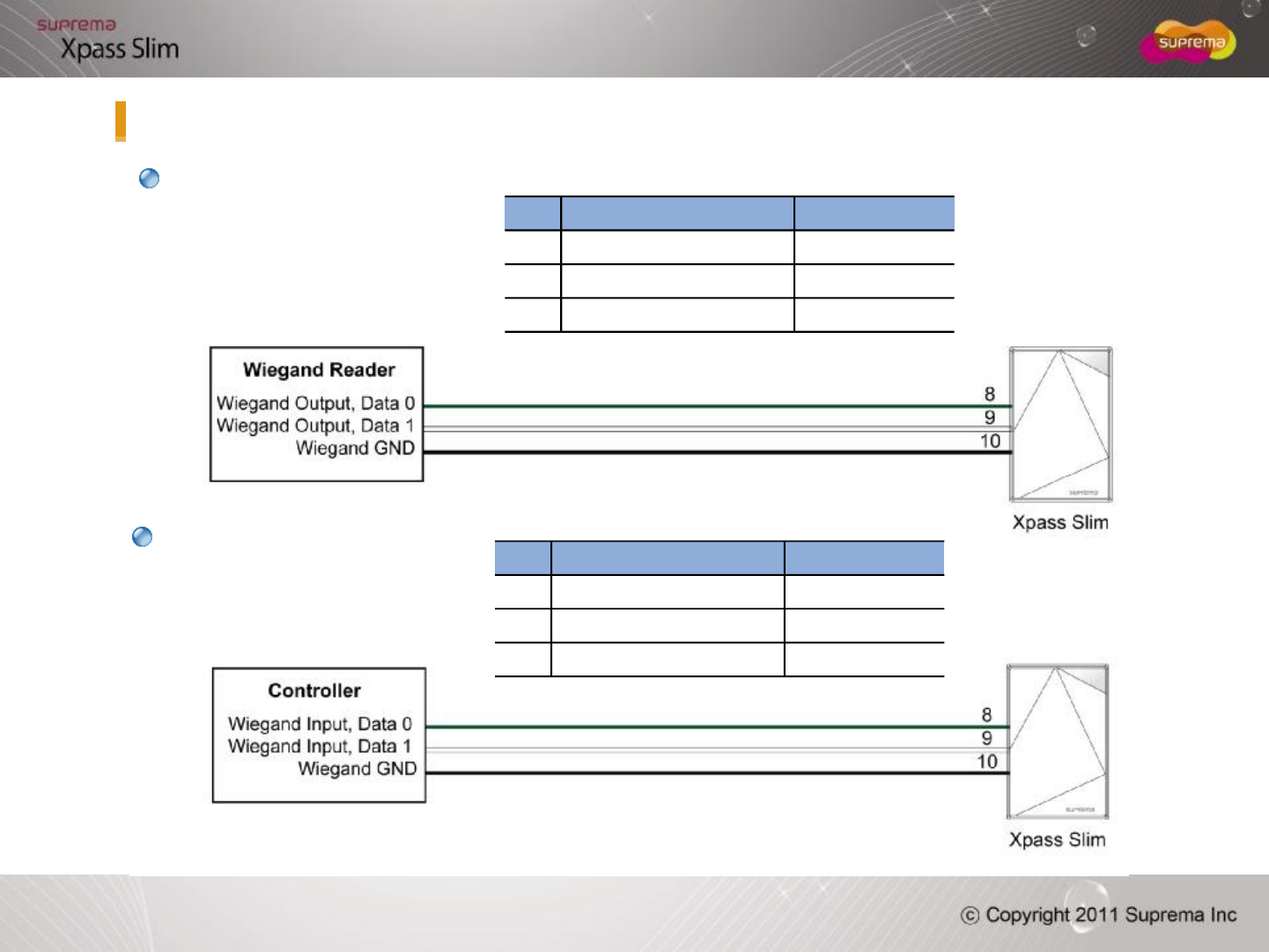

Pin Pin Name Color
8WGD D0 Green
9WGD D1 White
10 WGD GND Black
Wiegand Input
Wiegand Input/Output
-16-
Pin Pin Name Color
8WGD D0 Green
9WGD D1 White
10 WGD GND Black
Wiegand Output

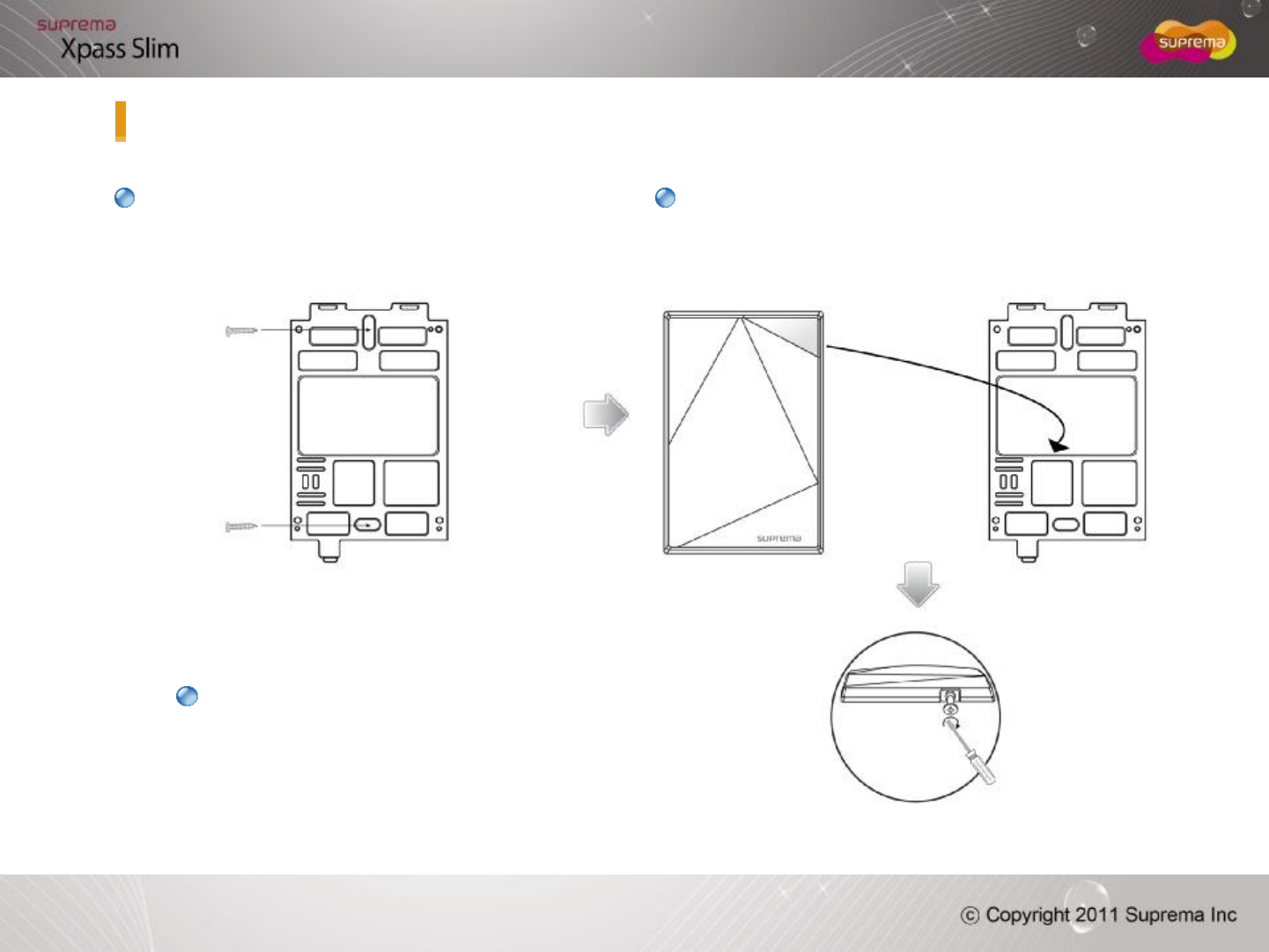

Wall-mount Bracket Installation
Fix the wall mount bracket on a wall
using the wall mounting screws Hook Xpass Slim on the wall mount bracket
-17-
Fix Xpass Slim and wall mounting bracket
using the mounting screw
Assemble the extended bracket using
the provided screws

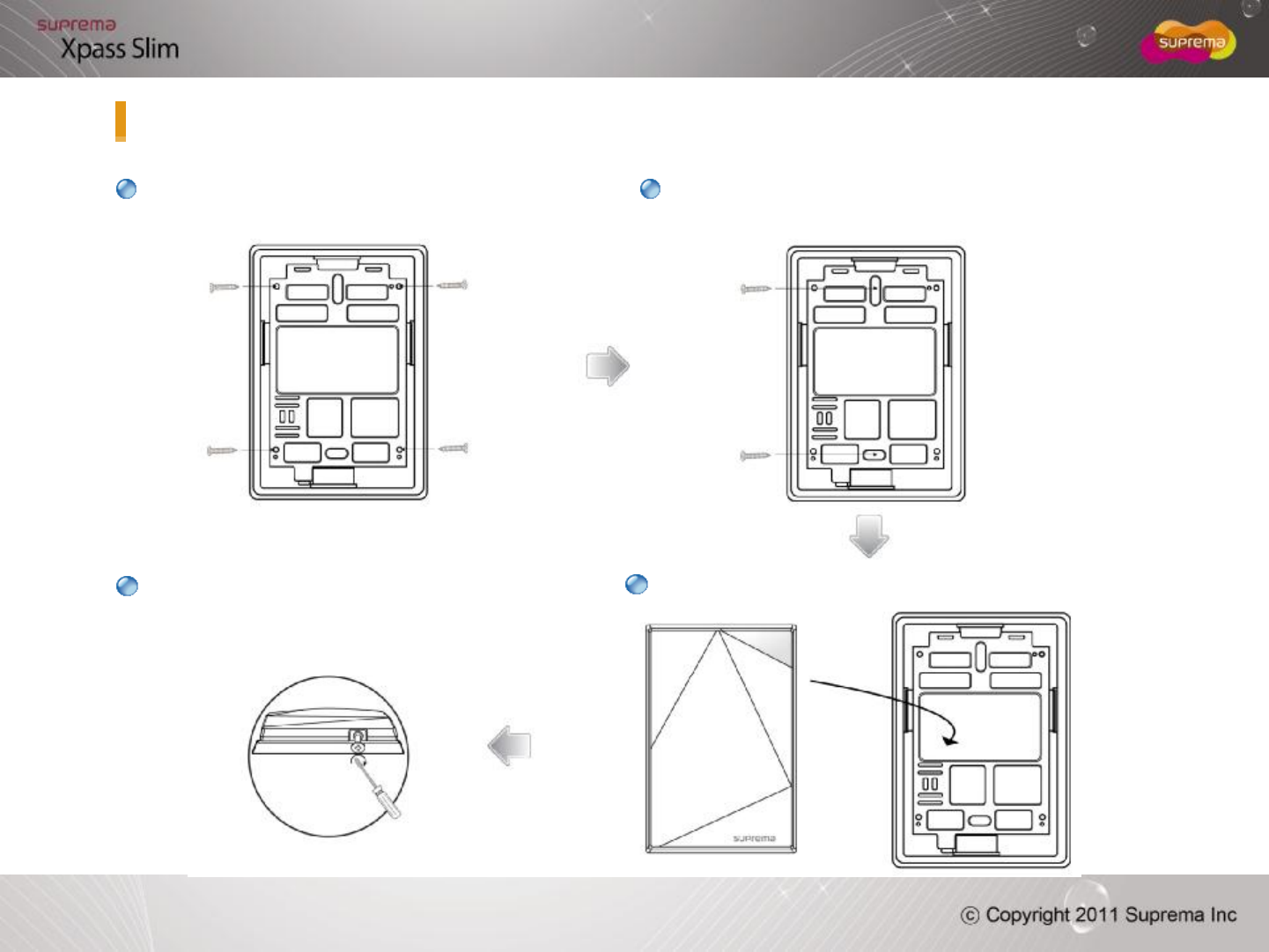

Extended Bracket Installation
Mount the extended bracket to the desired
location using the wall mounting screws
-18-
Hook Xpass Slim on the extended bracketFix Xpass Slim and the extended
bracket using the mounting screw
CPU 32 bit Micro-processor
Memory 1MB FLASH + 16MB SDRAM
RF Card 13.56 MHz ISO14443A/B, ISO15693, Mifare/DesFire(CSN), Inside(CSN),
Felica(IDM)
User Capacity 40,000 user
Log Capacity 50,000 log
Interfaces RS485, WiegandIn or Out
IP Rate IP65 class
Sound Multi-tone Buzzer
Specification
-19-
LED Multi-color LED
RTC Lithium-ion Rechargeable Batteries
I/O
Tamper x 1
Switch Input x 2
Wiegandx 1
Power 12VDC
Operating Temperature -20 ~ 50°C
Size 80 x 120 x 11.4mm (W x H x D )
Certificates CE, FCC, KCC, RoHS, IP65
Improper replacement of the battery may result in an explosion.
Please use the specified battery according to proper instructions.
Caution for RTC Battery
Electrical Specification
Min. Typ. Max. Notes
Power
Voltage (V) 10.8 12 13.2 Use regulated DC power adaptor only
Current (mA) - 500
Switch Input
VIH (V) - TBD -
VIL (V) - TBD
Pull-up resistance (Ω) - 4.7k - The input ports are pulled up with 4.7k resistors
TTL/Wiegand Output
VOH (V)
-
5
-
-20-
VOH (V)
-
5
-
VOL (V) - 0.8 -
Pull-up resistance (Ω) - 10k - The outputs ports are open drain type, pulled up with
10k resistors internally
Relay
Switching capacity (A) - - 1
0.3 30V DC
125V AC
Switching power
(resistive) - - 30W
37.5VA DC
AC
Switching voltage (V) - - 110
125 DC
AC
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interface, and
(2) this device must accept any interface received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limit of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
Caution
Warning
Information to User
FCC Rules
-21-
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, user and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation; if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more the
following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help
