Suzhou Sate Auto Electronic TSB25 TPMS Transmitter User Manual TSB23 25 Sersor

Suzhou Sate Auto Electronic Co., Ltd TPMS Transmitter TSB23 25 Sersor

users manual

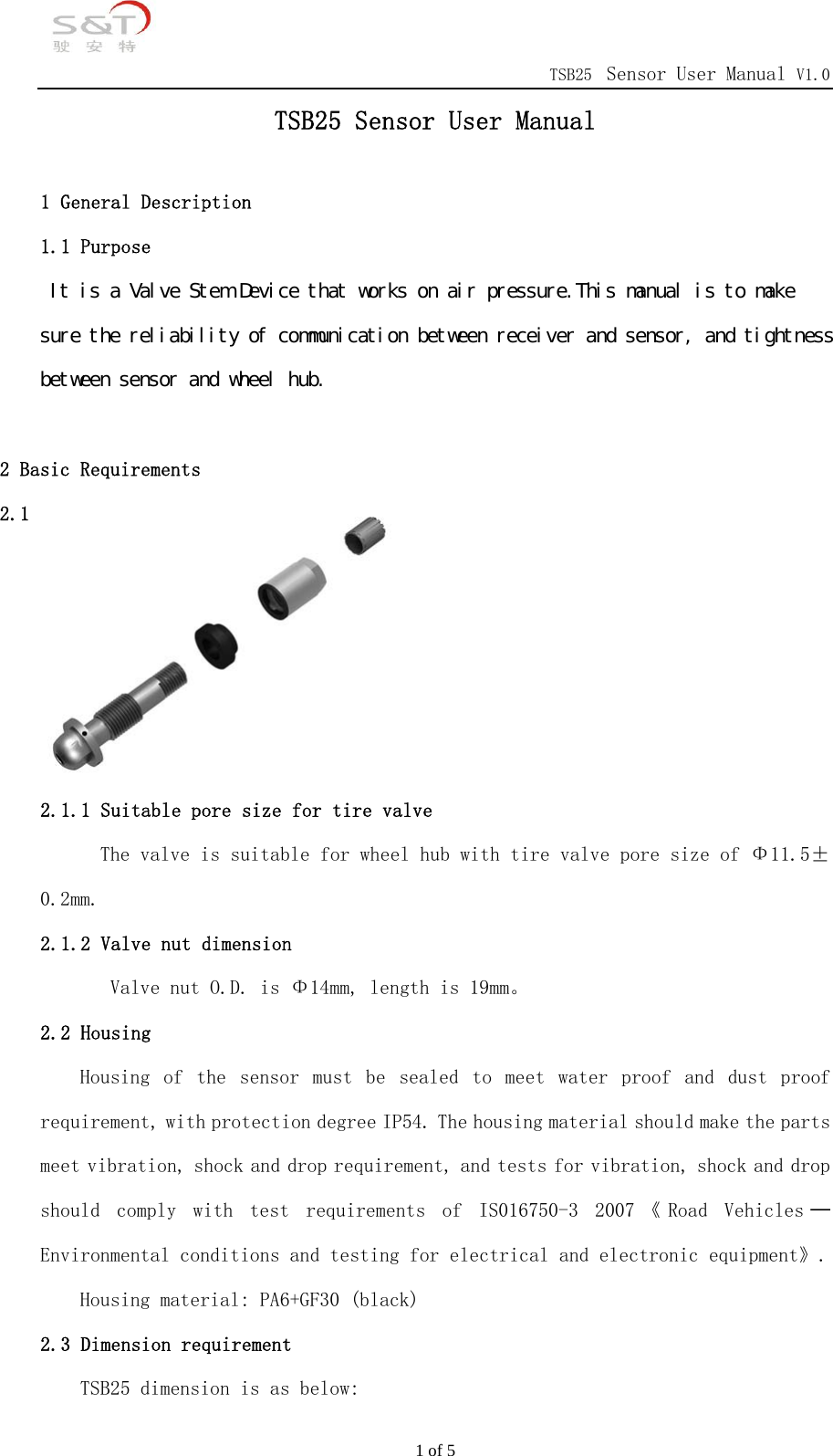

TSB25 Sensor User Manual V1.0 1 of 5 TSB25 Sensor User Manual 1 General Description 1.1 Purpose 　Ｉｔ　ｉｓ　ａ　Ｖａｌｖｅ　Ｓｔｅｍ　Ｄｅｖｉｃｅ　ｔｈａｔ　ｗｏｒｋｓ　ｏｎ　ａｉｒ　ｐｒｅｓｓｕｒｅ．Ｔｈｉｓ　ｍａｎｕａｌ　ｉｓ　ｔｏ　ｍａｋｅ　　ｓｕｒｅ　ｔｈｅ　ｒｅｌｉａｂｉｌｉｔｙ　ｏｆ　ｃｏｍｍｕｎｉｃａｔｉｏｎ　ｂｅｔｗｅｅｎ　ｒｅｃｅｉｖｅｒ　ａｎｄ　ｓｅｎｓｏｒ，　ａｎｄ　ｔｉｇｈｔｎｅｓｓ　ｂｅｔｗｅｅｎ　ｓｅｎｓｏｒ　ａｎｄ　ｗｈｅｅｌ　ｈｕｂ．　 2 Basic Requirements 2.1 Tire valve 2.1.1 Suitable pore size for tire valve The valve is suitable for wheel hub with tire valve pore size of Φ11.5±0.2mm. 2.1.2 Valve nut dimension Valve nut O.D. is Φ14mm, length is 19mm。 2.2 Housing Housing of the sensor must be sealed to meet water proof and dust proof requirement, with protection degree IP54. The housing material should make the parts meet vibration, shock and drop requirement, and tests for vibration, shock and drop should comply with test requirements of IS016750-3 2007 《 Road Vehicles ─Environmental conditions and testing for electrical and electronic equipment》. Housing material: PA6+GF30 (black) 2.3 Dimension requirement TSB25 dimension is as below:

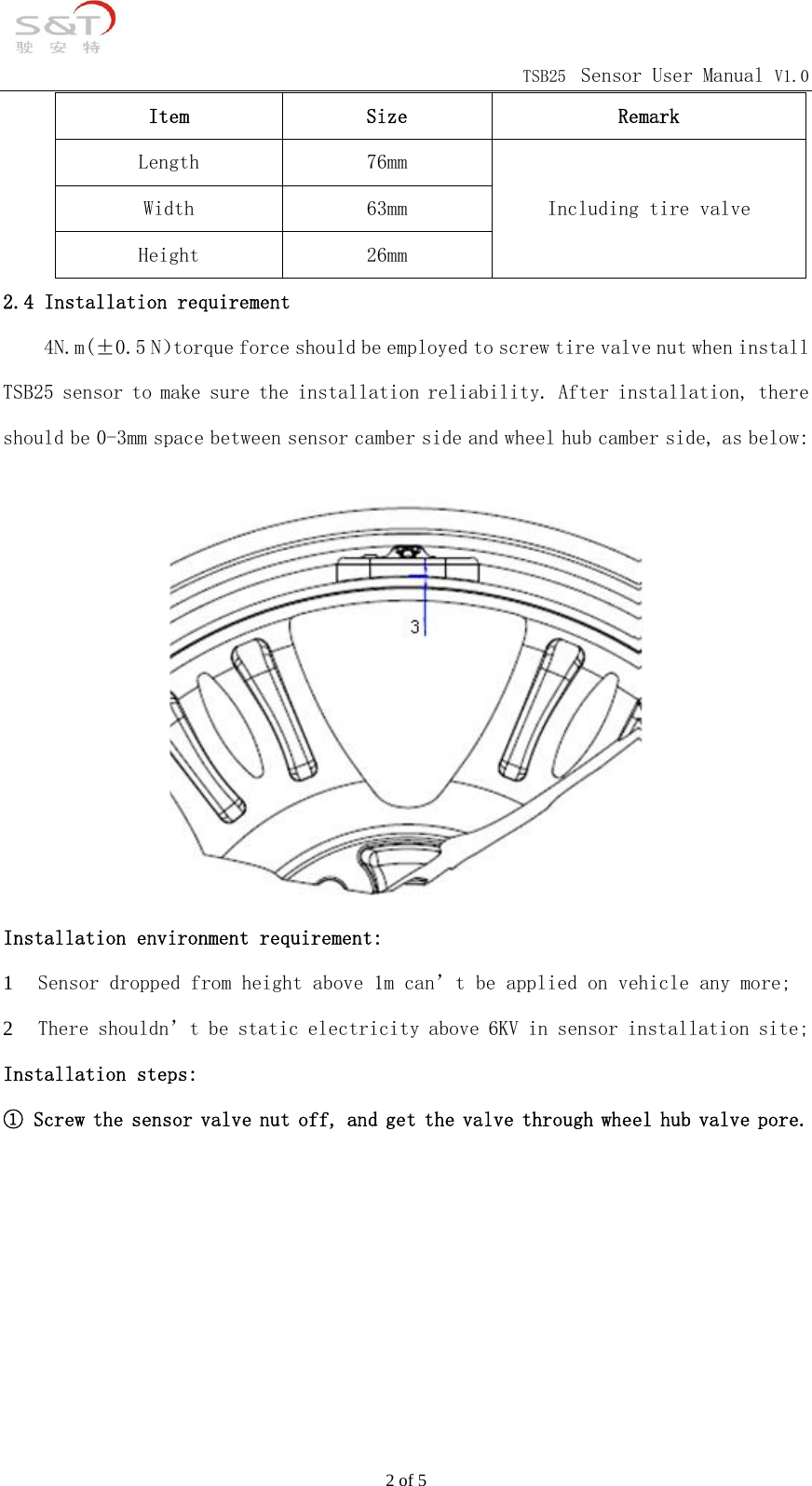

TSB25 Sensor User Manual V1.0 2 of 5 Item Size Remark Length 76mm Width 63mm Height 26mm Including tire valve 2.4 Installation requirement 4N.m(±0.5 N）torque force should be employed to screw tire valve nut when install TSB25 sensor to make sure the installation reliability. After installation, there should be 0-3mm space between sensor camber side and wheel hub camber side, as below: Installation environment requirement: 1 Sensor dropped from height above 1m can’t be applied on vehicle any more; 2 There shouldn’t be static electricity above 6KV in sensor installation site; Installation steps: ① Screw the sensor valve nut off, and get the valve through wheel hub valve pore.

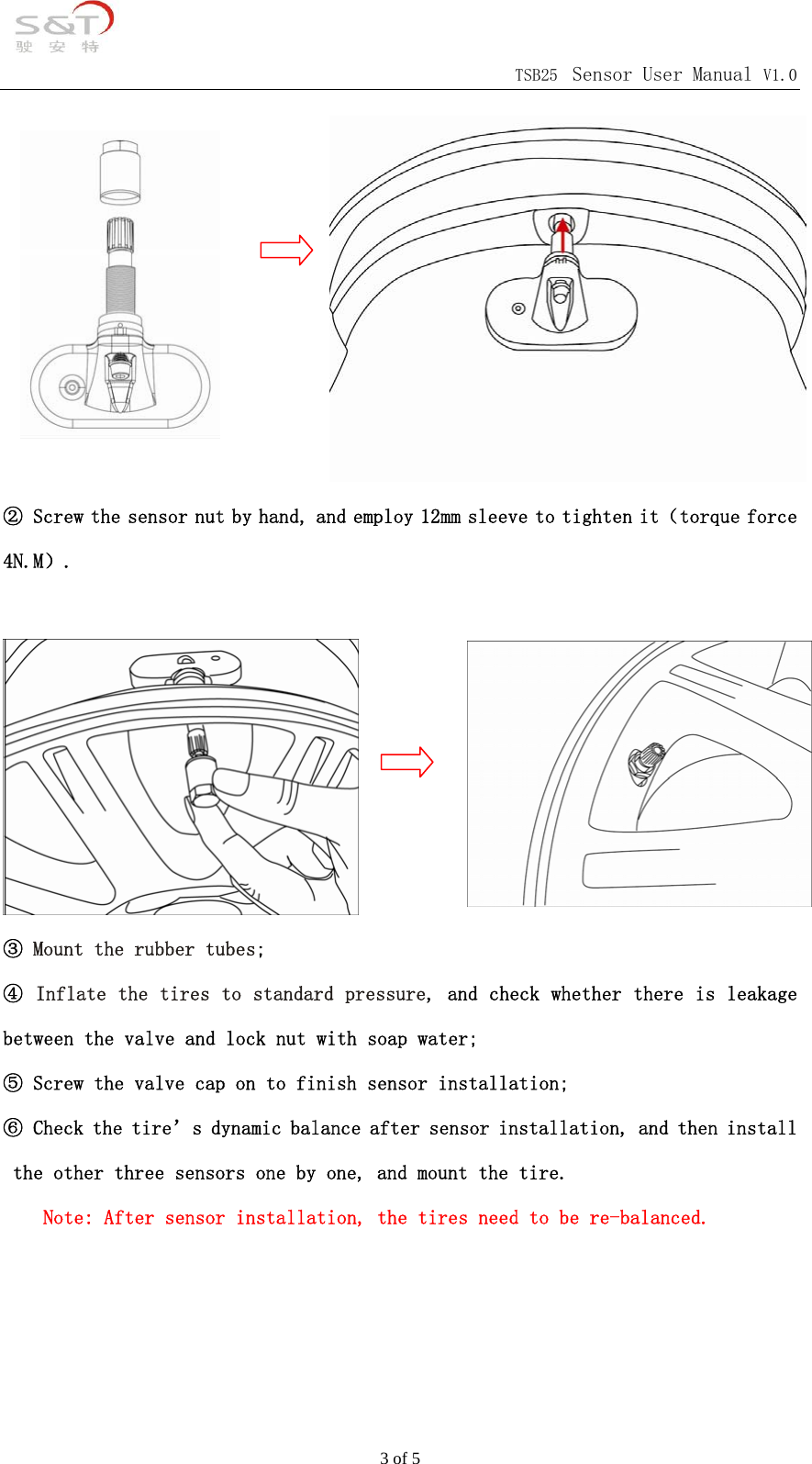

TSB25 Sensor User Manual V1.0 3 of 5 ② Screw the sensor nut by hand, and employ 12mm sleeve to tighten it（torque force 4N.M）. ③ Mount the rubber tubes; ④ Inflate the tires to standard pressure, and check whether there is leakage between the valve and lock nut with soap water; ⑤ Screw the valve cap on to finish sensor installation; ⑥ Check the tire’s dynamic balance after sensor installation, and then install the other three sensors one by one, and mount the tire. Note: After sensor installation, the tires need to be re-balanced.

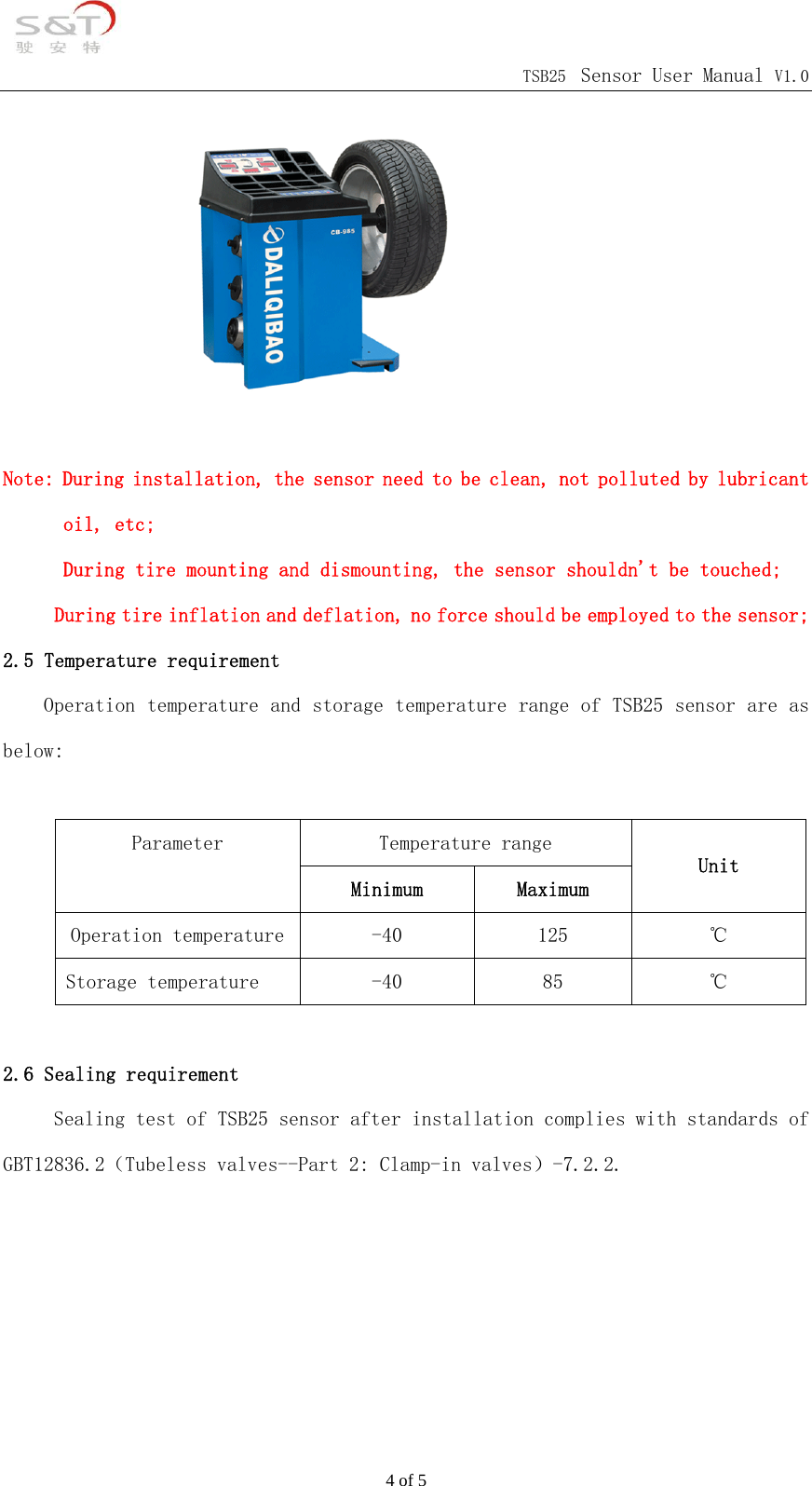

TSB25 Sensor User Manual V1.0 4 of 5 Note: During installation, the sensor need to be clean, not polluted by lubricant oil, etc; During tire mounting and dismounting, the sensor shouldn't be touched; During tire inflation and deflation, no force should be employed to the sensor; 2.5 Temperature requirement Operation temperature and storage temperature range of TSB25 sensor are as below: Temperature range Parameter Minimum Maximum Unit Operation temperature -40 125 ℃ Storage temperature -40 85 ℃ 2.6 Sealing requirement Sealing test of TSB25 sensor after installation complies with standards of GBT12836.2（Tubeless valves--Part 2: Clamp-in valves）-7.2.2.

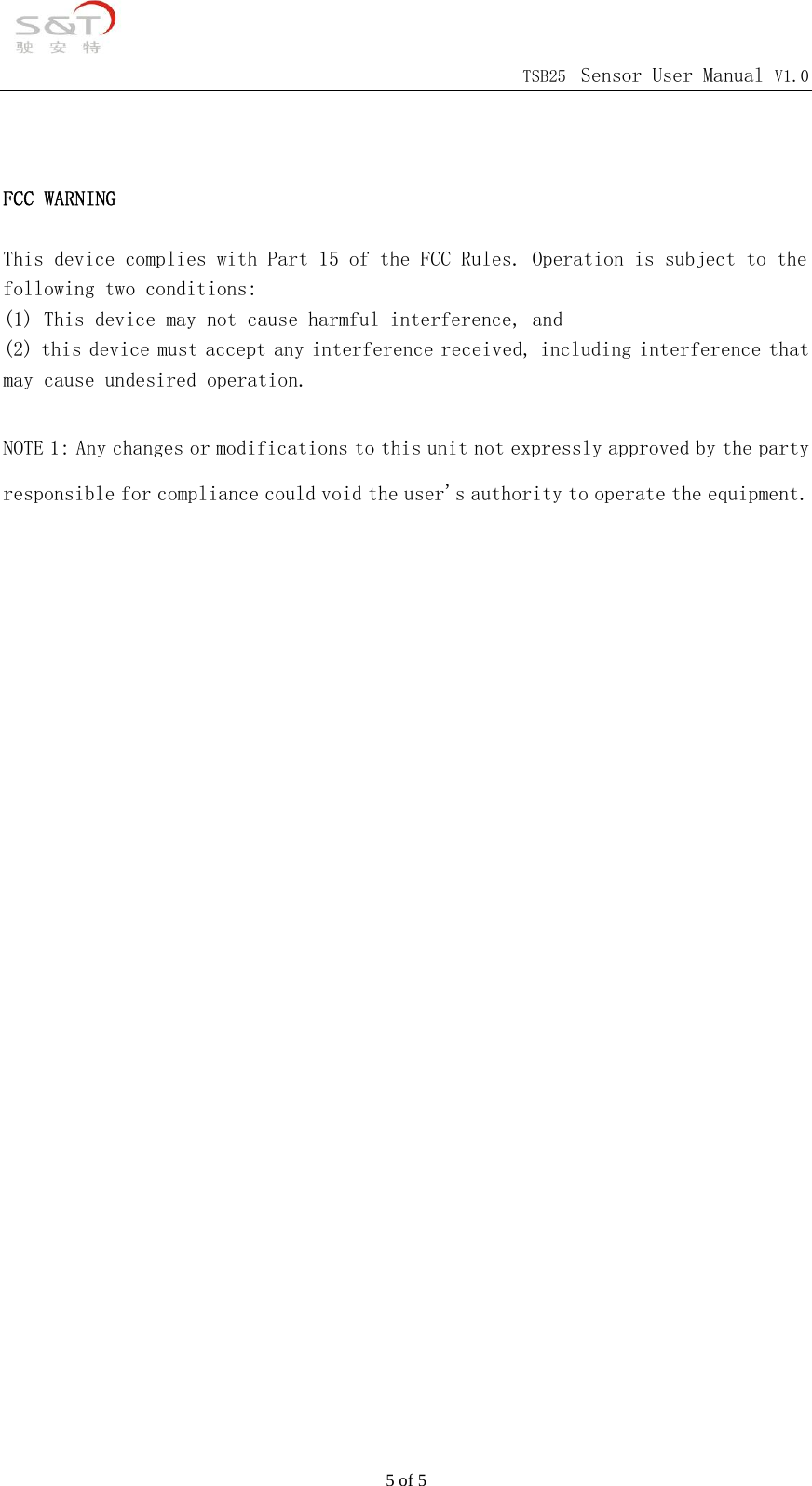

TSB25 Sensor User Manual V1.0 5 of 5 FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
