Suzhou Switek Electronics and Technology KL-151 KVM Extender User Manual 316 304 265 265 2
Suzhou Switek Electronics & Technology Co., Ltd. KVM Extender 316 304 265 265 2
Users Manual
KL-151/KL-153 User Manual
PACKING LIST
The complete KL-151/KL-153 switch package consists of
KL-151/KL-153 switch
Power Adapter
User Manual
Please check to make sure that all the components are present and that nothing was damaged in shipping. If you
encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation procedure carefully to prevent any
damage to the unit, and/or any of the devices that connect to it.
FEATURES
Can simultaneously control two 8-port or 16-port RJ45 type KVM
Be compatible with PS/2 / USB mouse and keyboard.
Superior video quality.
OVERVIEW

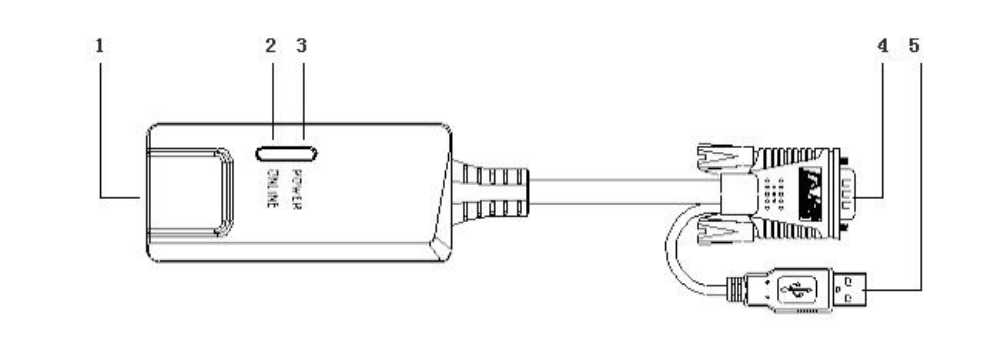

Transmitting End:
1. RJ45 Port of Transmitting End
Put one side CAT5 cable into this RJ45 port, put another side CAT5 interface into Receivers RJ45 port
2. LED on-line instruction light
The light is on when it’s connected with Receiver
3. LED Power Light
The light is on when it’s connected with PC
4. VGA Port
Connect with HDB-15 port of PC
5. Mouse & Keyboard Interface
Connect with USB port of PC

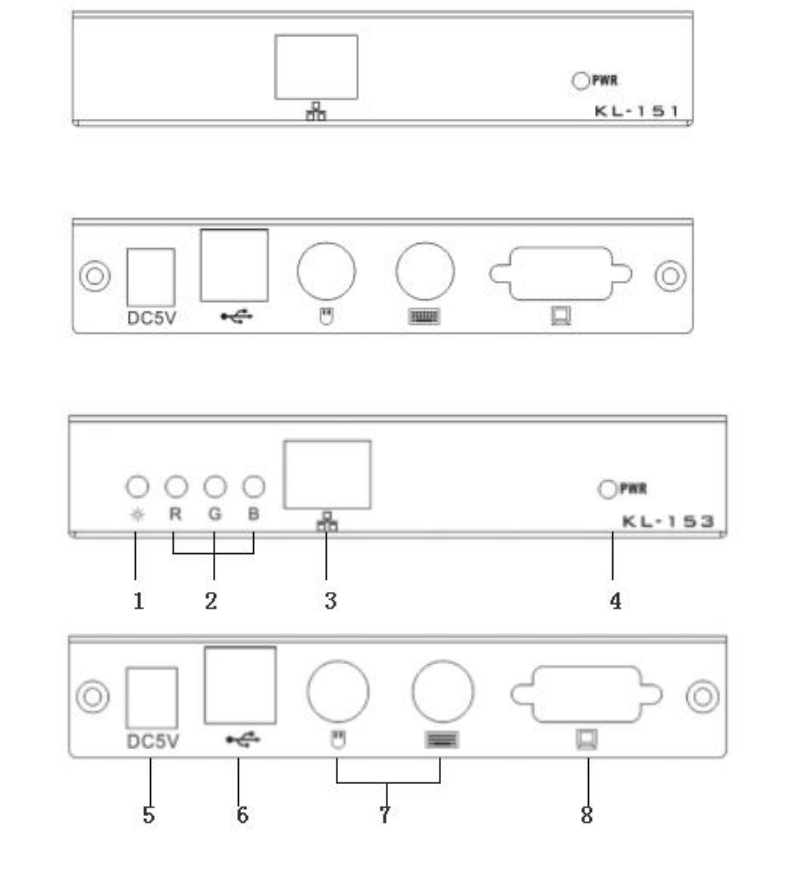

Receiving End:
KL-151
KL-153
1. Adjustable Turn-knob
Video Contrast adjustment
2. Adjustable Turn-knob
Three color primaries adjustment
3. Receiver RJ45 Port
Receive the signal from transmitting end.
4. LED Power Instruction
LED is light when it’s powered on.
5. Power Interface
DC port
6. USB Port
The USB mouse & keyboard plug into these ports.
7. PS/2 Port
The PS/2 mouse & keyboard plug into these ports.
8. VGA Port
It is used to plug the monitor.
INSTALLATION
SINGLE INSTALLATION
1. Plug your PS/2 / USB keyboard, PS/2 / USB mouse and monitor into the console port section located on the
unit’s rear panel.
2. Plug one end of the CAT5 UTP into the available RJ45 port on the switch.
3. Plug the other end of the CAT5 UTP into the RJ45 port on the matching dongle. Connect the dongle to the
computer.
INSTALLATION TOGETHER WITH KS-3108 / KS-3116
1. Plug your PS/2 / USB keyboard, PS/2 / USB mouse and monitor into the console port section located on
the unit’s rear panel.
2. Plug one end of the CAT5 UTP into the available RJ45 port on the switch.
3. Plug the other end of the CAT5 UTP into the RJ45 port on KS-3108 / KS-3116.

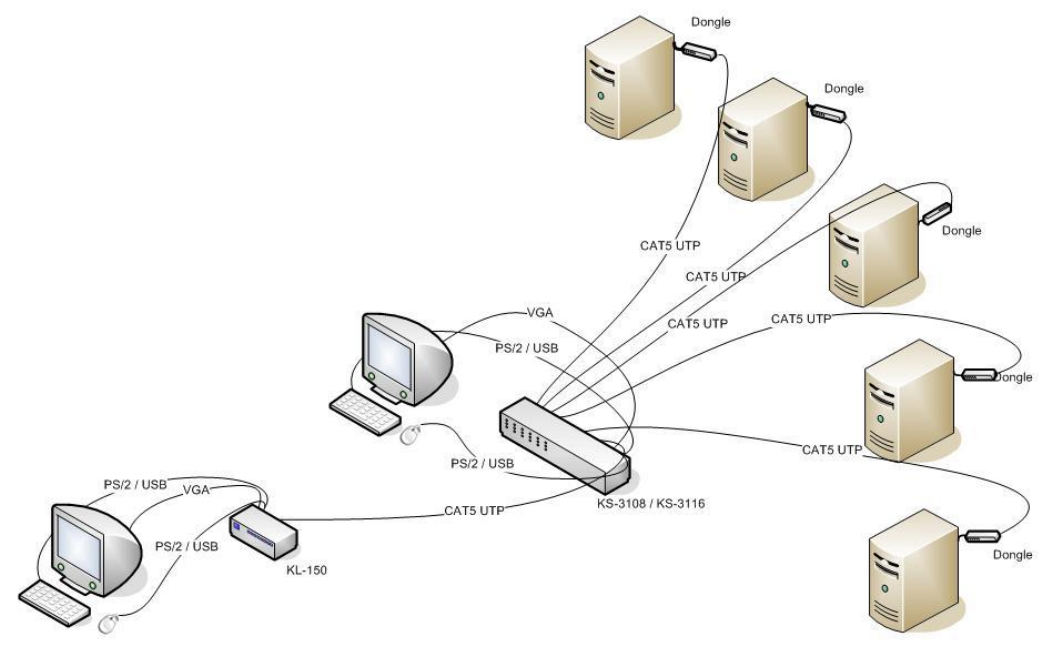

ILLUSTRATION
OPEARTION
User can use hot key to do some switching operation.
Port Switch: Quickly press L CTRL and release it, and then press R CTRL to switch between the two ports.
Remote and Local Switch: When connected to KS-3108 / KS-3116, double click F12 to shift between local control and remote
control.
SPECIFICATION
Type KL-151 KL-153
Connectors
Keyboard, Mouse PS/2,USB Female PS/2,USB Female
Video 1 x HDB-15 Female(Blue) 1 x HDB-15 Female(Blue)
CAT5 RJ45 RJ45
Video Adjustable No Adjustable Knobs
Video
Signal type VGA VGA
Minimum input
level
0.5Vp-p 0.5Vp-p
Max input level 1.0Vp-p 1.0Vp-p
I/O impedance 75Ω 75Ω
Resolution 1280*1024 1280*1024
Line Frequency 30-100KHz 30-100KHz
Field Frequency 40-120Hz 40-120Hz
Standard
Distance MAX 100M MAX 300M
Power DC5V 2000mA DC5V 2500mA
Storage Temp -20˚C~60˚C -20˚C~60˚C
Working Temp -10˚C~50˚C 0˚C~50˚C
Dimension 125mm*74mm*23mm 125mm*74mm*23mm
Weight 580g 600g
Color Black
Housing Metal
Transmission Distance:
Cable Distance (m) Resolution（60Hz）
CAT5/5e-CAT6
50 1920*1080
150 1280*1024
300 800*600
