Windsor Clipper 12 120v Carpet Extractor Parts Manual

2016-12-29

: Sweepscrub Windsor-Clipper-12-120V-Carpet-Extractor-Parts-Manual windsor-clipper-12-120v-carpet-extractor-parts-manual 1793 file product_file

Open the PDF directly: View PDF PDF.
Page Count: 19

Scroll down to view the document on your mobile browser.

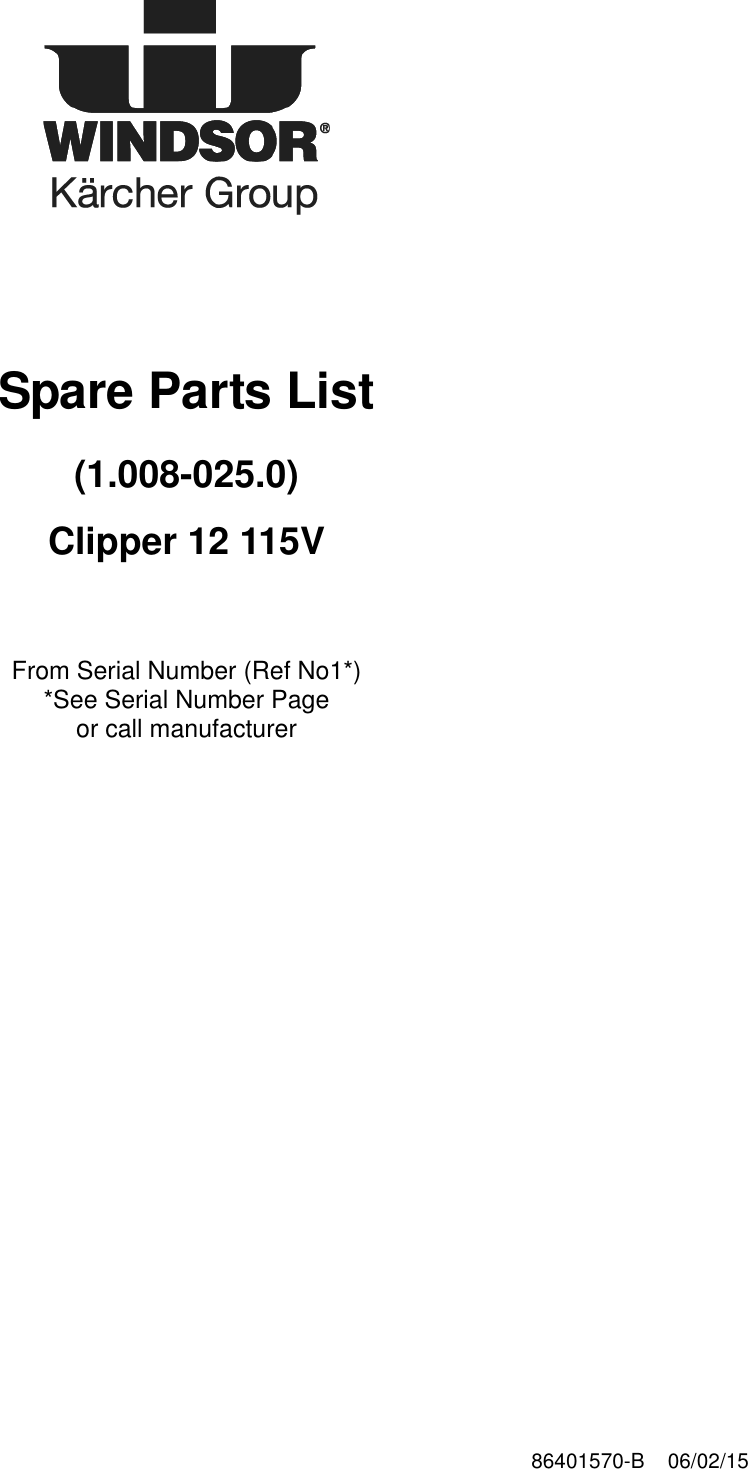

86401570-B 06/02/15Spare Parts List (1.008-025.0)Clipper 12 115VFrom Serial Number (Ref No1*)*See Serial Number Pageor call manufacturer

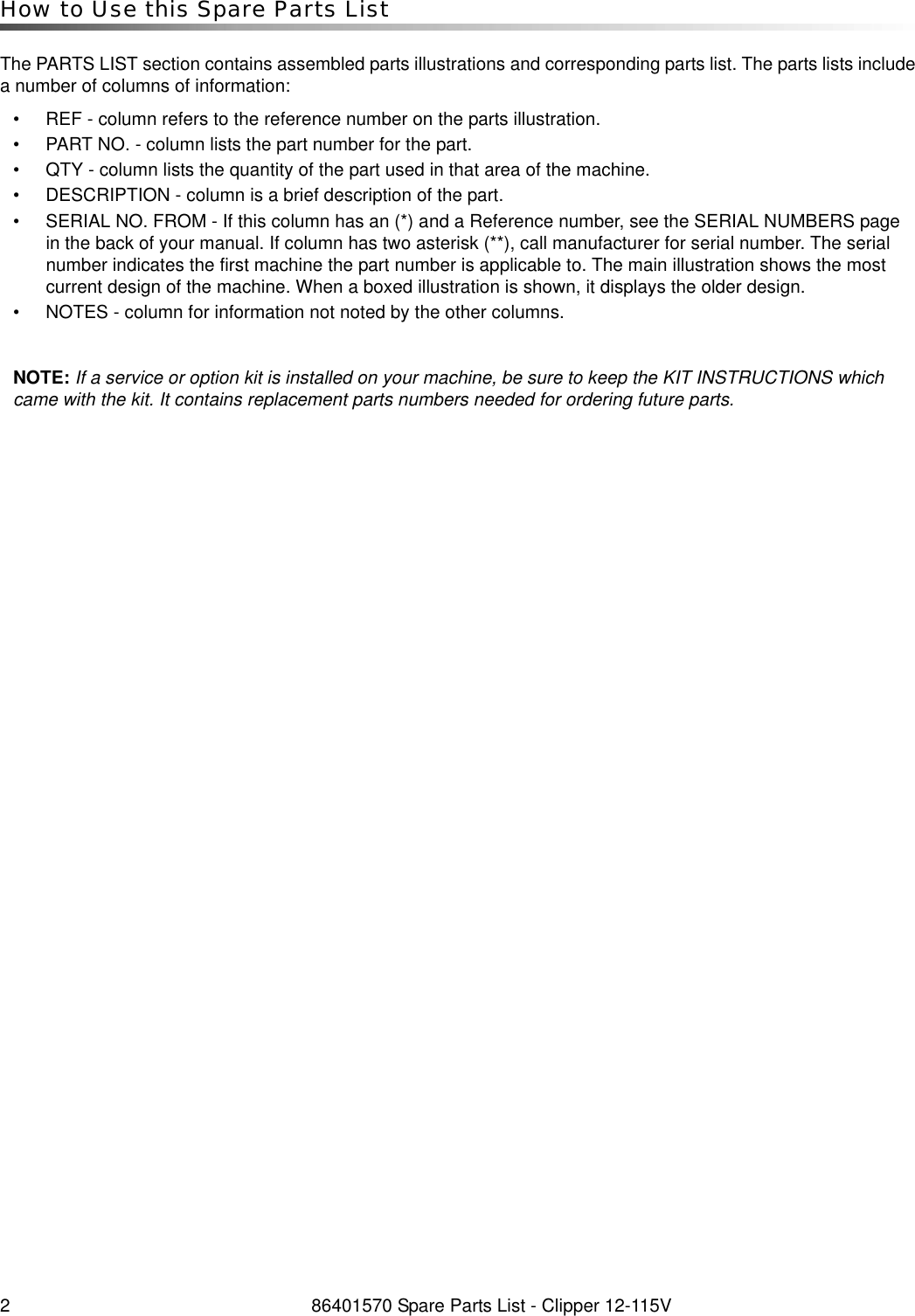

286401570 Spare Parts List - Clipper 12-115VHow to Use this Spare Parts ListThe PARTS LIST section contains assembled parts illustrations and corresponding parts list. The parts lists include a number of columns of information:• REF - column refers to the reference number on the parts illustration.• PART NO. - column lists the part number for the part.• QTY - column lists the quantity of the part used in that area of the machine.• DESCRIPTION - column is a brief description of the part.• SERIAL NO. FROM - If this column has an (*) and a Reference number, see the SERIAL NUMBERS page in the back of your manual. If column has two asterisk (**), call manufacturer for serial number. The serial number indicates the first machine the part number is applicable to. The main illustration shows the most current design of the machine. When a boxed illustration is shown, it displays the older design.• NOTES - column for information not noted by the other columns.NOTE: If a service or option kit is installed on your machine, be sure to keep the KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts.
