PARTS LIST WRANGLER 2625 DB WITH SIDEKICK CHEMICAL METERINGWITHOUT SIDEKICK CHEMICAL METERING

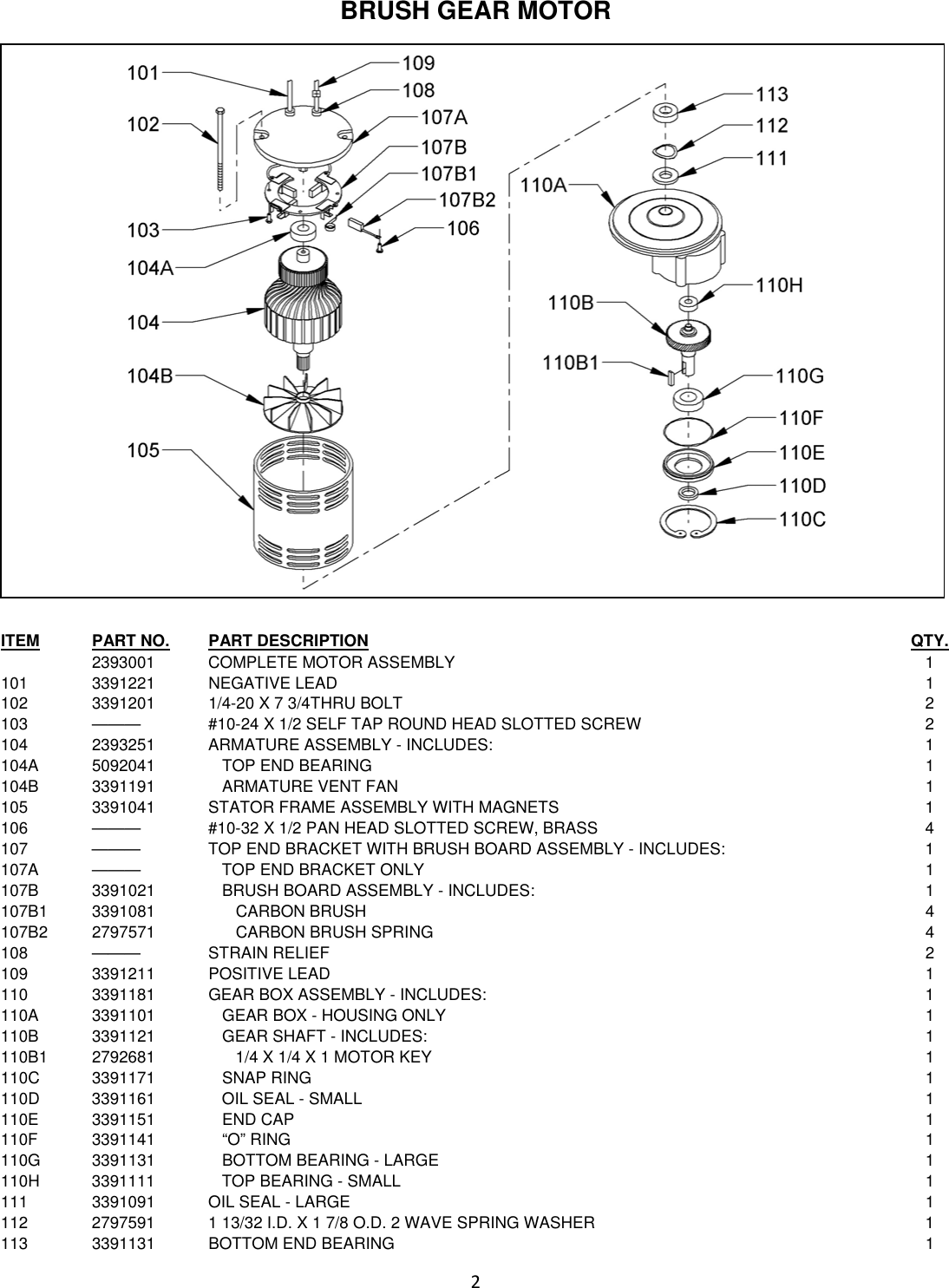

2BRUSH GEAR MOTOR ITEM PART NO. PART DESCRIPTION QTY. 2393001 COMPLETE MOTOR ASSEMBLY 1 101 3391221 NEGATIVE LEAD 1 102 3391201 1/4-20 X 7 3/4THRU BOLT 2 103 ——— #10-24 X 1/2 SELF TAP ROUND HEAD SLOTTED SCREW 2 104 2393251 ARMATURE ASSEMBLY - INCLUDES: 1 104A 5092041 TOP END BEARING 1 104B 3391191 ARMATURE VENT FAN 1 105 3391041 STATOR FRAME ASSEMBLY WITH MAGNETS 1 106 ——— #10-32 X 1/2 PAN HEAD SLOTTED SCREW, BRASS 4 107 ——— TOP END BRACKET WITH BRUSH BOARD ASSEMBLY - INCLUDES: 1 107A ——— TOP END BRACKET ONLY 1 107B 3391021 BRUSH BOARD ASSEMBLY - INCLUDES: 1 107B1 3391081 CARBON BRUSH 4 107B2 2797571 CARBON BRUSH SPRING 4 108 ——— STRAIN RELIEF 2 109 3391211 POSITIVE LEAD 1 110 3391181 GEAR BOX ASSEMBLY - INCLUDES: 1 110A 3391101 GEAR BOX - HOUSING ONLY 1 110B 3391121 GEAR SHAFT - INCLUDES: 1 110B1 2792681 1/4 X 1/4 X 1 MOTOR KEY 1 110C 3391171 SNAP RING 1 110D 3391161 OIL SEAL - SMALL 1 110E 3391151 END CAP 1 110F 3391141 “O” RING 1 110G 3391131 BOTTOM BEARING - LARGE 1 110H 3391111 TOP BEARING - SMALL 1 111 3391091 OIL SEAL - LARGE 1 112 2797591 1 13/32 I.D. X 1 7/8 O.D. 2 WAVE SPRING WASHER 1 113 3391131 BOTTOM END BEARING 1
