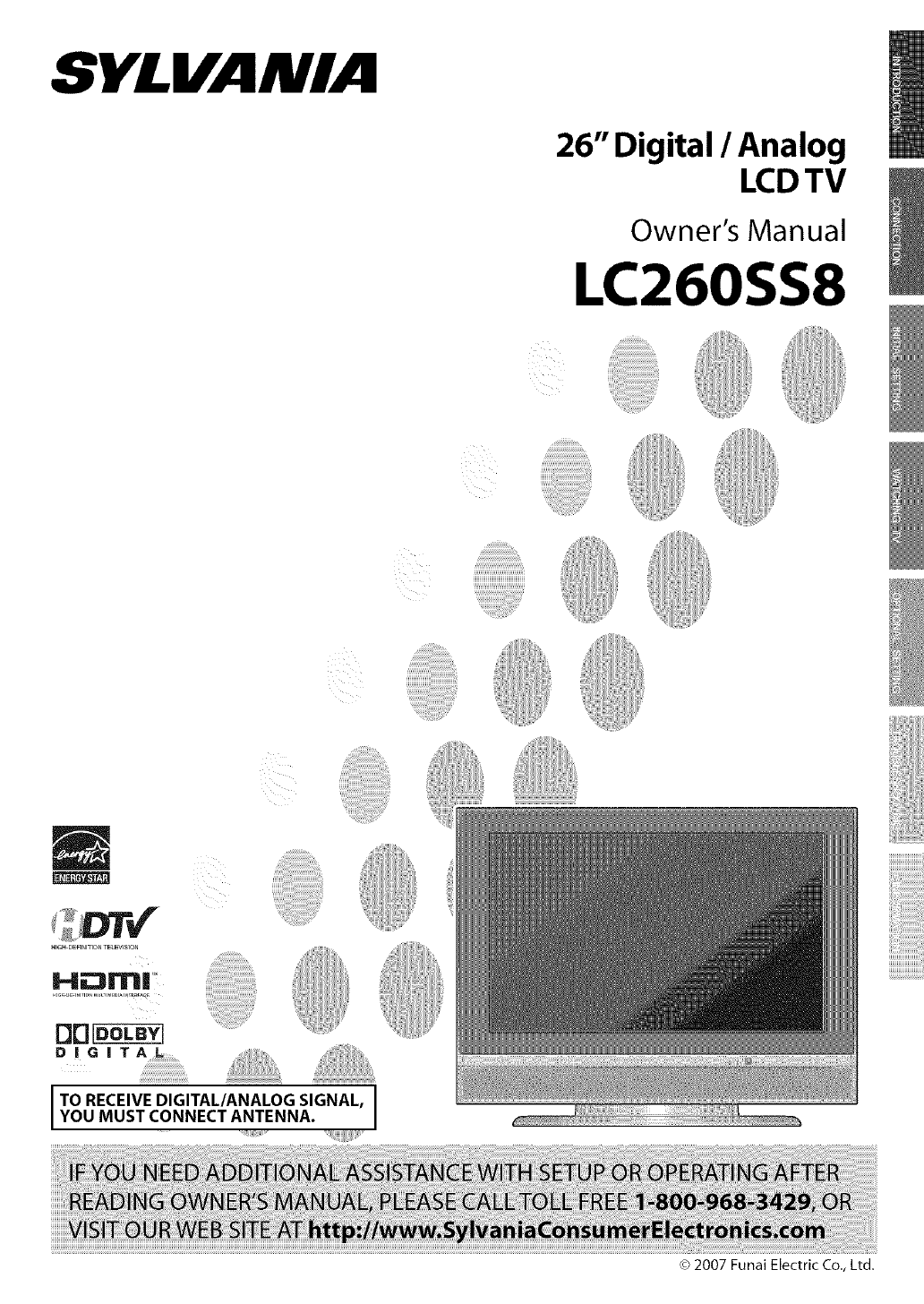

SYLVANIA

26" Digital /Analog

LCDTV

Owner's Manual

LC260SS8

HE_HDEnNmONTE_EWSI_

H_m|'!

ou_

D|G|TAL ....

I TO RECEIVE DIGITAL/ANALOG SIGNAL, IYOU MUST CONNECT ANTENNA.

_) 2007 Funai Electric Co., Ltd,

WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION/ A

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

Theimportantnoteis locatedonthe rear0fthe cabinet.

Important Safeguards

1o READ INSTRUCTIONS - All the safety and operating instructions

should be read before the appliance is operated.

2o RETAIN INSTRUCTIONS - The safety and operating instructions

should be retained for future reference.

3o HEED WARNINGS - All warnings on the appliance and in the

operating instructions should be adhered to.

4o FOLLOW INSTRUCTIONS - All operating and use instructions

should be followed.

5o CLEANING - Unplug TV from the wall outlet before cleaning. Do not

use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and,

that for some specific reason, such as the possibility of the loss

of an authorization code for a CATV converter, is not intended to

be unplugged by the user for cleaning or any other purpose, may

exclude the reference to unplugging the appliance in the cleaning

description otherwise required in item 5.

6o ATTACHMENTS - Do not use attachments not recommended by

theTV manufacturer as they may cause hazards.

7o WATER AND MOISTURE - Do not use this TV near water, for

example, near a bath tub, wash bowl, kitchen sink, or laundry tub,

in a wet basement, or near a swimming pool, and the like.

8o ACCESSORIES- Do not place this TV on an

unstable cart, stand, tripod, bracket, or table.Tile

TV may fall, causing serious injury to someone, and

serious damage to the appliance. Use only with a

cart, stand, tripod, bracket, or table recommended !

by the manufacturer, or sold with the TV.

Any mounting of the appliance should follow

the manufacturer's instructions and should

use a mounting accessory recommended by

the manufacturer. An appliance and cart combination should be

moved with care. Quick stops, excessive force, and uneven surfaces

may cause the appliance and cart combination to overturn.

AMEUBLES - Cet appareil ne dolt _tre plac_

que sur un meuble (avec ou sans roulettes)

recommand_ par le fabricant. Sivous I'

installez sur un meuble 5 roulettes, d_placez

les deux ensembles avec precaution. Un arrGt

brusque, I'utilisation d'une force excessive

et des surfaces irr_guli_res risquent de

d_stabiliser I'ensemble et de le renverser.

9o VENTILATION - Slots and openings in the

cabinet and the back or bottom are provided for ventilation

and to ensure reliable operation of the TV and to protect it from

overfleating, these openings must not be blocked or covered.The

openings should never be blocked by placing theTV on a bed,

sofa, rug, or other similar surface. This TV should never be placed

near or over a radiator or heat register. This TV should not be

placed in a builtqn installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer's instructions

have been adhered to.

19o POWER SOURCES - This TV should be operated only from the type

of power source indicated on the marking label. If you are not sure

of the type of power supply to your home, consult your appliance

dealer or local power company. For TVs intended to operate from

battery power, or other sources, refer to the operating instructions.

11o GROUNDING OR POLARIZATION -This TV is equipped with a

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE

IMPORTANT OPERATING AND MAINTENANCE

INSTRUCTIONS IN THE LITERATURE

ACCOMPANYING THE APPLIANCE.

polarized alternating-current line plug (a plug having one blade

wider than the other). This plug will fit into the power outlet only

one way. This is a safety feature. If you are unable to insert the plug

fully into the outlet, try reversing the plug. If the plug should still

fail to fit, contact your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the polarized plug.

12o POWER-CORD PROTECTION - Power-supply cords should be

routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to

cords at plugs, convenience receptacles, and the point where they

exit from the appliance.

1 :'LOUTDOOR ANTENNA GROUNDING - If an outside antenna or

cable system is connected to theTV, be sure the antenna or cable

system is grounded so as to provide some protection against

voltage surges and built-up static charges. Article 810 of the

National Electrical Code, ANSI/NFPA No. 70, provides information

with respect to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to an antenna discharge

unit, size of grounding conductors, location of antenna-discharge

unit, connection to grounding electrodes, and requirements for

the grounding electrode. (Fig. A)

FIGURE A ...... _-_-

EXAMPLE OF ANTENNA GROUNDING AS PER --I__--_--

NATIONAL ELECTRICAL CODE

E[ECT_4C

SE_VlCF

EQUIPMENT

NEC NATIONAtFLECT_ICALCODE

ELECTRODESYST_

CNECA_T 2_0, PARTH_

14o LIGHTNING - For added protection for this TV receiver during a

lightning storm, or when it is left unattended and unused for long

periods of time, unplug it from the wall outlet and disconnect the

antenna or cable system. This will prevent damage to the TV due

to lightning and power-line surges.

1 _oPOWER LINES - An outside antenna system should not be located

in the vicinity of overhead power lines or other electric light of

power circuits, or where it can fall into such power lines or circuits.

When installing an outside antenna system, extreme care should

be taken to keep from touching such power lines or circuits as

contact with them might be fatal.

1_o OVERLOADING - Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

17o OBJECT AND LIQUID ENTRY - Never push objects of any kind into

this TV through openings as they may touch dangerous voltage

points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the TV.

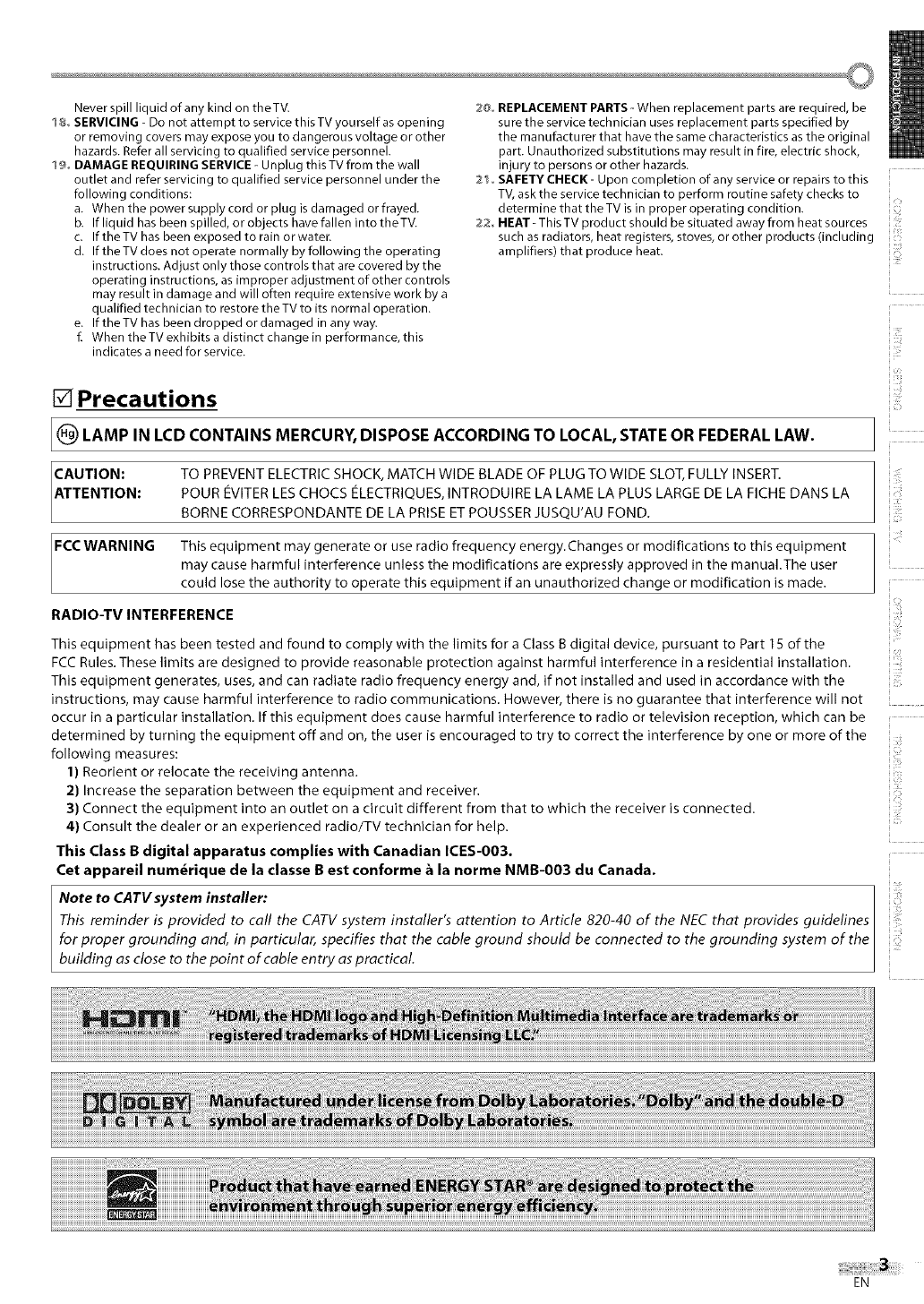

8SERVICING - Do not attempt to service this TV yourself as opening

or removing covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service personnel.

_9o DAMAGE REQUIRING SERVICE - Unplug this TV from the wall

outlet and refer servicing to qualified service personnel under the

following conditions:

a. When the power supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into the TV.

c. IftheTV has been exposed to rain or waten

d. If the TV does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the

operating instructions, as improper adjustment of other controls

may result in damage and will often require extensive work by a

qualified technician to restore the TV to its normal operation.

e. If the TV has been dropped or damaged in any way.

f. When the TV exhibits a distinct change in performance, this

indicates a need for service.

20° REPLACEMENT PARTS - When replacement parts are required, be

sure the service technician uses replacement parts specified by

the manufacturer that have the same characteristics as the original

part. Unauthorized substitutions may result in fire, electric shock,

injury to persons or other hazards.

2'1o SAFETY CHECK- Upon completion of any service or repairs to this

TV, ask the service technician to perform routine safety checks to

determine that the TV is in proper operating condition. :

22 HEAT- This TV product should be situated away from heat sources

such as radiators, heat registers, stoves, or other products (including

amplifiers) that produce heat.

[] Precautions

(_ LAMP IN LCDCONTAINS MERCURY,DISPOSEACCORDINGTO LOCAL,STATEOR FEDERALLAW.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR IeVlTER LES CHOCS IeLECTRIQUES,INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA

BORNE CORRESPONDANTE DE LA PRISE ETPOUSSER JUSQU'AU FOND.

FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment

may cause harmful interference unless the modifications are expressly approved in the manual.The user

could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

i izi!iil

!r,

_iill(

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

followi ng measu res:

1) Reorient or relocate the receiving antenna. i

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil num_rique de la classe B est conforme _ la norme NMB-003 du Canada.

Note to CATV system installer: I

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines I

for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the I

building as close to the point of cable entry as practical. 1

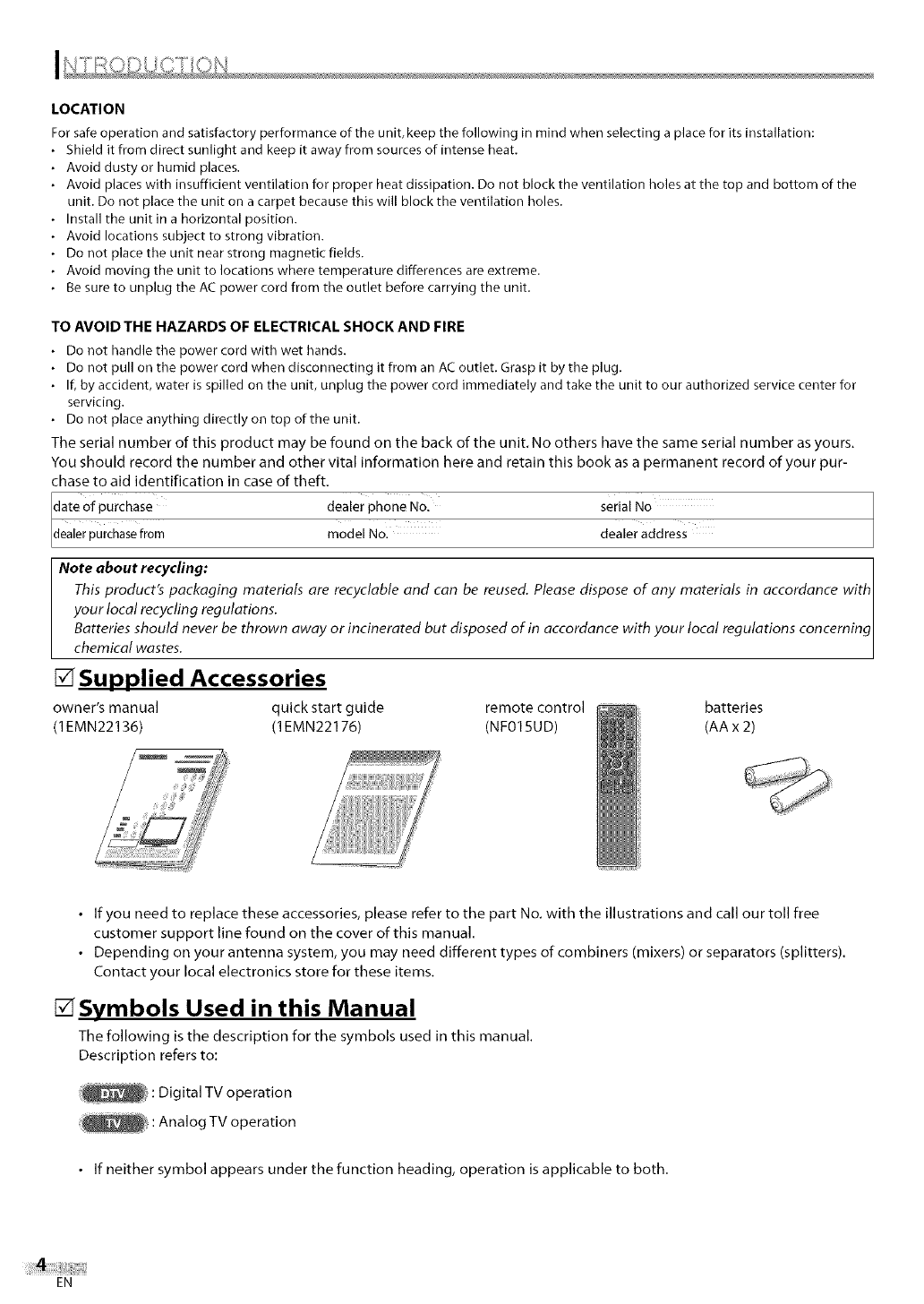

LOCATION

For safe operation and satisfactory performance of the unit, keep the following in rnind when selecting a place for its installation:

•Shield it from direct sunlight and keep it away from sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the

unit. Do not place the unit on a carpet because this will block the ventilation holes.

• Install the unit in a horizontal position.

• Avoid locations subject to strong vibration.

• Do not place the unit near strong magnetic fields.

• Avoid moving the unit to locations where temperature differences are extreme.

• Be sure to unplug the AC power cord from the outlet before carrying the unit.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• If, by accident, water is spilled on the unit, unplug the power cord immediately and take the unit to our authorized service center for

servicing.

• Do not place anything directly on top of the unit.

The serial number of this product may be found on the back of the unit. No others have the same serial number as yours.

You should record the number and other vital information here and retain this book as a permanent record of your pur-

chase to aid identification in case of theft.

date Of pu!chase dealer phone No. serial No

dea erpurchasefrom model Nol dealer address

Note about recycling: ]

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance withI

your local recycling regulations. I

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning

chemical wastes.

[] Supplied Accessories

owner's manual quick start guide remote control batteries

(1EMN22136) (1EMN22176) (NFO15UD) (AA x 2)

•If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free

customer support line found on the cover of this manual.

•Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters).

Contact your local electronics store for these items.

[] Symbols Used in this Manual

The following is tile description for the symbols used in this manual.

Description refers to:

: Digital TV operation

: Analog TV operation

• If neither symbol appears under the function heading, operation is applicable to both.

_Features [] Contents

•DTV/TV/CATV

- You can use your remote control to select

channels which are broadcast in digital format and

conventional analog format. Also, cable subscribers

can access their cable TV channels.

• Program Information Display (DTV only)

- You can display the title, contents and other

information of the current DTV program on the TV

screen.

•Auto Channel Scan

- This unit automatically scans and memorizes

channels available in your area, eliminating difficult

setup procedures.

• V-chip

- This feature allows you to block children's access to

inappropriate programs.

•Closed Caption Decoder

- Built-in closed caption decoder displays text for

closed caption supported programming.

•MTS/SAP Tuner

- Audio can be selected from the remote control.

•Auto Shut Off Function

- If there is no signal input from the antenna terminal

and no operation for 15 minutes, the unit will turn

off automatically.

•Sleep Timer

- This feature will automatically turned off the power

of the unit at a specific time.

•Choices for On-screen Language

- Select your on-screen language:

English, Spanish or French.

•Stereo Sound Function

•PLL Frequency Synthesized Tuning

- Provides free and easy channel selection and lets

you tune directly to any channel using the channel

number buttons on the remote control.

•Resume

- This unit automatically memorizes settings ifa

power failure occurs.

HDMI Input

PC Input

Component Video Input

S-video Input

AV Input

Digital Audio Coaxial Output

/N FRODUCT ON

Precautions...................................................... 3

SuppliedAccessories.............................................. 4

SymbolsUsedinthis Manual....................................... 4

Features......................................................... 5

RemoteControlFunction.......................................... 6

Installingthe Batteries............................................ 6

ControlPanel..................................................... 7

RearPanel....................................................... 7

CONN CTON

BasicConnection.................................................. 8

ExternalDeviceConnection........................................ 9

/N YAL SETTING

Initial Setup..................................................... 13

MainMenu...................................................... 14

AutoChannelScan............................................... 14

LanguageSelection.............................................. 15

WATCH NG TV

ChannelSelection................................................ 16

VolumeAdjustment.............................................. 16

StillMode....................................................... 17

SwitchingEachMode............................................. 17

SwitchingAudioMode ........................................... 18

ScreenInformation .............................................. 19

TVScreenDisplayMode........................................... 20

SleepTimer..................................................... 21

OPTIONAL SETTING

ChannelList..................................................... 22

ManualRegister................................................. 23

AntennaConfirmation............................................ 23

PictureAdjustment.............................................. 24

SoundAdjustment............................................... 25

ClosedCaption................................................... 26

DI"VClosedCaption............................................... 27

CCStyle......................................................... 28

V-chip.......................................................... 30

PCSettings...................................................... 33

HDMIAudio ..................................................... 34

TROUBLESHOOT BIG

TroubleshootingGuide........................................... 35

INFORM/', T OIt

Glossary........................................................ 37

Maintenance.................................................... 37

CableChannelDesignations....................................... 38

GeneralSpecifications............................................ 38

ElectricalSpecification............................................ 38

OtherSpecifications......................................... 38

Limited Warranty.................................... Backcover

any storage medium, in any form or for any purpose without the express prior written consent of Funai.

Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the

obligation to notify any person or organization of such changes.

F'UNAI with the _'_ design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written

consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this

manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein.

Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property

rights to the fullest extent of the law.

iiiiiii_ii

[] Remote Control Function

7--

1. POWER button (pl3)

Press to turn the unit on and off.

2. Number buttons (pl6)

• Press to select channels.

- button

• Press to shift the minor channel

from the major channel.

3. SETUP button (p14)

Press to display the main menu.

4. </•/•/•buttons(p13)

Press to move left/right/up/

down through the items.

5. ENTER button (p13)

Press to decide the command of

setting when the main menu is

displayed,

6. BACK button (p19)

Press to return to previous menu

operation,

7. CH RETURN button (p16)

Press to return to previous

channel.

8. VOL. /_buttons(pl6)

Press to adjust the volume.

9. MUTE D_ button (p16)

Press to turn tile sound on and off,

10. INPUT SELECT button (pl 7)

Press to access connected

external device like a DVD player

orVCR.

11. SLEEP button (p21)

Press to activate the sleep timer.

12. AUDIO button (p18)

Digital Mode (DTV)

Press to select the audio language.

Analog Mode (TV)

Press to select the audio mode,

13, STILL button (pl 7)

Press to pause screen image,

14. SCREEN MODE _button (p20)

Press to select aspect ratio

available for the TV screen,

15. INFO button (p19)

Digital Mode (DTV)

• Press to display the channel

information, signal type and TV

setting,

Analog Mode (TV)

• Press to display the channel

number, signal type and TV

setting,

External Input Mode

• Press to display the external

input mode, signal type and TV

setting,

16. CH •I• buttons (p16)

Press to select channels and the

external input mode.

[] Installing the Batteries

Install the batteries (AA x 2) matching tile polarity indicated inside battery compartment of the remote control,

Battery Precautions:

•Besure to follow the correct polarity as indicated in the battery coropartroent. Reversedbatteries may cause damage to the device.

•Do not mix different types of batteries together (e.g.,Alkaline and Carbon-Zinc) or old batteries with fresh ones.

•If the deviceis not to be usedfor olong period of time, remove the batteries to prevent damage or injury from possible battery leakage.

•Do not try to recharge batteries; they can overheat and rupture.

[] Control Panel

[] Rear Panel

rear of this unit

side of this unit

rear of this unit

1. POWER button (p13)

Press to turn the unit on and off,

2, INPUT SELECT button (p17)

•Press to access connected an external device _ike a

1DVD player or VCR,

2 Press to decide the command of setting when the

menu is displayed.

33. CHANNEL--IV buttons (p16)

Press to select channels or move up/clown through the .....

'4 main menu items.

'5 4. VOLUME_/buttons (p16)

Press to adjust the volume or move right ( _)/left (_) ,,:

through the main menu items.

5. SETUP button (p14) :i:

6 Press to display the main menu ....

6. Infrared Sensor Window

Receives infrared rays transmitted from the remote

control.

:54

-6

_:i¸

side of this unit

1. PC-IN jack (p12)

VGA cable connection for PC,

2. HDMIINjacks (pg) i;

HDMI connection foran HDMI device, _=

3. AUDIO IN jacks (p9) ::

RCA audio cable connection for a DVl device. (For

HDMI l-IN jack only) .....

4. AUDIO OUT jacks (p11)

RCA audio cable connection for an external device.

Use analog audio input jacks of an external device,

5. DIGITAL AUDIO OUT (COAXIAL) jack (pl 1)

Digital audio coaxial cable connection for a decoder or

an audio _eceiver.

Use digital audio input jack of an external device .....

6, ANT, IN jack (p8)

RF coaxial cable connection for your antenna or

cable/satellite box.

7. AC power cord

Connect to a standard AC outlet to supply power to

this unit.

8. PC-IN AUDIO jack(p12)

Mini-plug audio cable connection for PC.

Use line out jack of a PC,

9. AUDIO input jacks (plO)

RCA audio cable connection for an external device.

10. VIDEO input jack (pl 1)

RCA video cable connection for an external device.

1I. S-VIDEO input jack (plO)

S-video cane connection for an external device.

12. COMPONENT and AUDIO input jacks (pl O)

Component video cable and RCA audio cable

connection for an external device.

Use component video and audio output jacks of an

external device.

[] Basic Connection

Thissectiondescribeshowto connectthe unit toan antenna,cable/satellitebox,etc.

INote:

•Besureyourantennaorotherdeviceisconnectedproperlybeforeplugginginthepowercord.

[Antenna Cable Connection]

When connectinq the unit to an antenna or cable TV company (without cable/satellite box)

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.)

VHF/UHF'_

antenna _ ' rear of this unit

RF coaxial cable

cableTV

company

Once connections are completed, turn on the unit and begin initial setup.

Channel scanning is necessary for the unit to memorize all available channels in your area.

(Refer to "Initial Setup" on page 13.)

Note:

• Foryour safety and to avoid damage to device,please unplug the RFcoaxial cable from the antenna inputjock before moving the unit.

• lfyou usean an tenna to receiveanalog TV,it should also work for DTV reception. Outdoor or attic an tennas will be more effective than

settop versions.

• Toeasily switch your reception source between antenna and cable, install an antenna selector.

• Ifyou connect to the cable system directly, contact the CATVinstaller.

[Connection to Cable Box or Satellite Box]

Connect the RFcoaxial cable on your home outlet to the input jack of the cable/satellite box.

Use another RF coaxial cable to connect the antenna input jack of the unit to the output jack of the cable/satellite box,

e.g.)

satellite

dish

cable/satellite box

rear of this unit

cable TV RF coaxial cable RF coaxial cable

company

* Required cables and connecting methods differ depending on the cable/satellite box.

For more information, please contact your cable/satellite provider.

[] External Device Connection

[HDMI Connection]

HDMI (High Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a

single cable. It ensures that the content sent from the source to TV is of the highest possible resolution.

rear of this unit

e.g.)

DVD player with the HDMI output jack

HDMI cable

To HDMI 1qN or

HDMI 2qN jack

Note:

•This unit accepts 480i/480p / 720p / 1080i video signals, and 32kHz/44. lkHz/48kHz audio signals.

• This unitaccepts only2 chonnelaudiosignol(LPCM).

• You need to select "PCM" for the digital audio output of the device connected or the HDMI audio setting. There may be no audio output if

you select "Bitstream", etc.

• This TVonly accepts signals compliant with EIA861.

[HDMI-DVI Connection]

If your video device has a DVI output jack, connect using a HDMI-DVI conversion cable.

rear of this unit

_iii!_!!_

i iTi

i ::i

iii_!!_ill

e.g.)

z_ D

Cable box or satellite box

with the DVl output jack

FAUDIO OUT

L R ]

HDMI-DVl

conversion cable

)

RCA audio cable

To HDMI lqN jack

To AUDIO IN jacks

}i!i;iiii

iTJ

ii:_!!ili

Note:

• This unit accepts 480i/480p/720p/1080i video signals.

• An HDMI-DVI conversion cable requires o separate audio cable connection as well. As such, only the HDMI l-IN jack can be used.

• Audio signals are converted from digital to analog for this connection.

• DVI does not display 480i image that is not compfiant with EIA/CEA-861/86 lB.

iiiziii:ii

[Component Video Cable Connection]

Component video connection offers better picture quality for video devices connected to the unit.

Use a component video cable to connect the unit to external video devices equipped with component video output

jacks.

If you connect to the unit's COMPONENT 1 video input jack, connect RCA audio cables to the audio L/R jacks of

COMPONENT 1.

If you connect to the unit's COMPONENT 2 video input jack, connect RCA audio cables to the audio L/R jacks of

COMPONENT 2. c°m i

_(green) (red) [

.g.l , .... pb J rearofth sun t

DV--Fp'°y°rw ththec°mp°°en i--

video output jacks

Note: J

•Thisunit accepts 480i/480p / 720p / 1080ivideo signals.

[S-video Cable Connection]

S-video connection offers good picture quality for video devices connected to the unit.

Use an S-video cable to connect the unit to external video devices equipped with S-video output jack.

If you connect to the unit's VIDEO 1 S-video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 1.

If you connect to the unit's VIDEO 2 S-video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 2.

e.g.)

DVDplayer with the S-video output

jack

AUDIO OUT S-VIDEO

L _ I OUT rear of this unit

S-video cable

RCA audio cable

Note:•Ifyou connect to the S-videojack and the video jack at the same time, the S-video connection will have priority. J

[Video Connection]

Video connection offers standard picture quality for video devices connected to the unit.

If you connect to the unit's VIDEO I video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO I.

If you connect to the unit's VIDEO 2 video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 2.

When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.

e.g.)

camcorder

rear of this unit

VCR

AUDIO OUT VIDEO

L R I OUT

RCA video cable

Note:•lfyou connect to the S-video.lack and the video jack at the same time, the S-video connection will have priority. ]

[Audio Output Connection]

[Digital]

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1 ch digital

broadcasting sound.

[Analog]

If you connect this unit to an external analog audio device, you can enjoy stereo (2 channel) audio.

e.g.)

Stereo system

e.g.)

Dolby Digital decoder

RCA audio cable

COAXIAL IN

To AUDIO OUT

jack

rear of this unit

digital audio

coaxial cable

To DIGITALAUDIO

OUT jack

i!}ii!{{{

ii!ii_!!_

!;b

ii :i: i

ii !!}i_}i

i i ¸

ii 115

ix1

ii x!

[PC Connection]

This unit is equipped with a PC-IN jack, If you connect this unit to your PC, you can use this unit as a computer monitor.

VGA cable should be with

ferrite core.

To monitor jack rear of this unit

To PC-INjack

e.g.)

VGA cable

mini-plug audio cable

To audio line out jack To PC-INAUDIO

jack

Note: ]

•Pleasepurchase the VGAthat has a ferrite core.

[] Initial Setup

Thissectionwill guideyouthroughtheunit'sinitialsettingwhichincludes

selectingalanguageforyouron-screenmenuandautochannelscan,

whichautomaticallyscansandmemorizesviewablechannels,

Before you begin:

Makesureifthe unit isconnectedto antenna orcable.

After making all the necessary connections, press

[POWER] to turn on the unit.

POWER

•This operation maytake a few moments.

2 Use [Cursor l/Y] to select the on-screen language

from the choices on the right side of the TV screen.

(English /Espa6ol /Fran_ais)

• "Initial Setup" menu on step 3 will be displayed in the

selected language after you press [ENTER].

Use [Cursor l/V] to select "Air" for TV channels or

"Cable" for CATV channels, then press [ENTER].

• Scanning and memorizing of channels start

automatically.

Note:

•Ifyou connect the cable system directly, contact the CATV

installer.

•Ifyou press[POWER] or [SETUP]during auto channel

scan, this setting will be canceled.

•Theinitial auto channel scan function can be executed

for either "Air" or "Cable"only once. Whenyou change the

connection (Air/Cable), set auto channel scan again. (Refer

to page 14.)

•Youcan cancel or exit the initial auto channel scan menu

bypressing [SETUP].

•If there is no signal input from the antenna terminal and

no operation for several secondsafter you turn on the unit,

"Helpful Hints" appears. Follow the instructions listed on

the TVscreen.

!,,7_

ii !!i,i_]i

i 7 ¸

ii 111!7

iJtJ

! i71::

• When the scanning and memorizing are completed,

the lowest memorized channel in the broadcasting

will be displayed.

[] Main Menu

Thissectiondescribestheoverviewofthe mainmenudisplayedwhenyou

press[SETUP].Formoredetails,seethereferencepagefor eachitem.

Themainmenuconsistsofthe function settingitemsbelow.

Press [SETUP].

• EXIT

To exit settings.

•PICTURE

You can adjust the picture quality.

(Refer to "Picture Adjustment" on page 24.)

•SOUND

You can adjust the sound quality.

(Refer to "Sound Adjustment" on page 25.)

•CHANNEL

You can automatically scan the viewable channels

and remove those that are undesired.

(Refer to "Auto Channel Scan" on page 14.)

•DETAIL

You can change the display format for closed

caption, which displays the dialogue ofa TV program

or other information across the TV screen.

(Refer to "Closed Caption" on page 26.)

Set the viewing limitations.

(Refer to "V-chip" on page 30.)

Adjust the position, stability and clarity of the PC

screen.

(Refer to "PC Settings" on page 33.)

And select the sound input for the HDMI jack if your

TV is connected to a HDMI device.

(Refer to "HDMI Audio" on page 34.)

•LANGUAGE

You can change the language (English, Spanish,

French) displayed on the main menu.

(Refer to "Language Selection" on page 1S.)

[]Auto Channel Scan

If youswitchwires(e,g,,betweenantennaand CATV)or ifyoumovethe

unitto a differentareaafterthe initialsetting,orifyourestorethe DTV

channelyoudeleted,youwill needto performauto channelscan,

Beforeyou begin:

Makesureifthe unitisconnectedto antennaorcable,

1 Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select "CHANNEL", then press

[ENTER].

3Use [Cursor A/V] to select "Autoscan", then press

[ENTER].

Use [Cursor A/r] to select an appropriate option, then

press [ENTER].

•When aerial antenna is connected, select "Air".

• When connected to CATV, select "Cable".

• Scanning and memorizing of channels start

automatically.

•When the scanning and memorizing are completed,

the lowest memorized channel will be displayed.

Note:

•Ifyou connect the cable system directly, contact the CATV

installer

• lfyou press [POWER] or [SETUP] during auto channel

scan, the setting will be canceled.

•Channel settings will be saved even if the power fails.

• Ifyou need the English menus instead of the Spanish

or French menus you are having, press [SETUP]. Use

[Cursor A/V] to select "IDIOMA"or "LANGAGE"then press

[ENTER]. Use [Cursor A/V] to select "English", then press

[ENTER]. Press [SETUP] to exit the main menu.

• With regard only to the digital channel, even after the

scanning is complete if you unplug the AC power cord

before turning off the unit by pressing [POWER], the

channel setting may be lost.

[] Language Selection

YoucanchooseEnglish,Spanish,orFrenchasyour on-screenlanguage.

Press [SETUP] to display the main menu.

2 Use [Cursor A/r] to select "LANGUAGE", then press

[ENTER].

3 Use [Cursor AIr] to select "English", "Espa_ol" or

"Fran_ais", then press [ENTER],

Press [SETUP] to exit.

i,?i_

ii!ii_!!_

!iiii_

iiiii:il

ii!!ii_iii

i i ¸

iiiii!i_

ii:_!!ii_i

[] Channel Selection

Selectchannelsbypressing[OH•/V] or [the Numberbuttons],

[] Volume Adjustment

Thissectiondescribeshowto adjustthe volume,Themutefunction,which

turnsthesoundoff andon,isalsodescribed,

•To select the memorized channels, use [CH •Iv] or

[the Number buttons].

• To select the non-memorized channels, use

[the Number buttons].

To Use [the Number buttons]

-When selecting analog channel 12

-When selecting digital channel 12-]

Be sure to press [-] before entering the minor

channel number.

• Press [CH RETURN] to return to the previously

viewed channel.

About digital TV broadcasting:

With its high definition broadcast, digital broadcasting

far surpasses analog broadcasting in both its picture

and sound quality,

What is the minor channel?

By using high compression technology, digital

broadcasting offers a service that enables multiple

signals to send simultaneously.

Therefore, you can select more than one program per

major channel since digital broadcasting technology

distinguishes between multiple channels broadcast by

a single network.

NTSC(analog mode) [Air Time] ATSC(digital mode)

18:00

18:30

19:00

19:30

20:00

20:30

major ch minor channel

_!_ :change automatically

_> :change manually by using [CH •/V]

Note:

• "No Signal" will appear on the TVscreen after the minor

channel broadcast is over.

Use[VOL. I]toadjusttheaudiovolume.

• The volume bar will be displayed at the bottom of

the TV screen when adjusting the volume.

• The volume bar display will automatically disappear

in a few seconds.

Press [MUTE D_] to turn offand on the sound.

•"Mute" is displayed on the TV screen for a few

seconds.

Press [MUTED_] again or [VOL. I] to recover the

original volume.

[] Still Mode

Youcanfreezethe imageshownontheTVscreen,

Press [STILL] to pause the image shown on the screen.

•The sound output will not be paused.

• If no signal is detected or protected signal is received

during still mode, the image remains paused and the

sound output will be muted.

• The still function will be released after 5 minutes.

To cancel still mode, press any button except [POWER].

[] Switching Each Mode

Youcaneasilyswitchwiththe remotecontrolto the DTV(ATSC)andTV

(NTSC)orto accessan external devicewhentheyare connectedtothe unit,

Press [INPUT SELECT] or [CH A] repeatedly to cycle

through the input modes.

I "

TV/DTV channel

i ,?i;

ic)

iiii!

Pressing [CH Y] reverses the direction of the mode.

To use the video or S-video input jack of VIDEO 1 on

the unit, select "Video1 ".

To use the video or S-video input jack of VIDEO 2 on

the unit, select "Video2".

To use the component video input jack of

COMPONENT 1 on the unit, select "Componentl'L

To use the component video input jack of

COMPONENT 2 on the unit, select "Component2'L

To use the HDMI l-IN jack on the unit, select i

"HDMI1 'L

To use the HDMI 2-IN jack on the unit, select i

"H DMI2".

To use the PC-IN jack on the unit, select "PC".

i7]

ii:_!!ii_i

[] Switching Audio Mode

Thissectiondescribeshowto switchthe audiolanguage,

1 Press [AUDIO] to display the currently selected

audio mode. While receiving an MTS broadcast,

press repeatedly to cycle through the available audio

channel.

i%i

When all audio are available

When stereo and monaural audio are available

When SAP and monaural audio are available

When only monaural audio is available

(Cannot be switched)

STEREO

SAP

MONO

: Outputs stereo-audio

: Outputs second audio program

: Outputs mono-audio

• The current mode will automatically disappear in a

few seconds,

1 Press [AUDIO] to displaythe currently selected

language and the number of available languages.

2 Press [AUDIO] repeatedly to cycle through the

available audio languages.

• Available languages differ depending on the

broadcast. "Other" is displayed when the audio

language cannot be acquired, or the acquired

languages are other than English, Spanish or French.

• The current mode will automatically disappear in a

few seconds.

Note:•Pressing[AUDIO] does not control external audio device. J

[] Screen Information

Youcandisplay thecurrently selected channelorother information suchas

the audiomodeon the TVscreen.

Inthe analogmode,the current channelnumberand the audiomodeare

displayed.

Press [INFO].

N!O

•The current channel number, audio mode, type of

resolutions for video signal, TV aspect ratio, CC and

TV rating are displayed at the top-right corner of the

TV screen.

To clear the display, press [INFO] again.

You can also press [BACK].

In the digital mode,the detailed broadcastinginformation for the current

channelsuchas programtitle, programguidesare displayed.

Press [INFO] to display the details of the currently

selected program.

[Broadcasting Information]

• The following information is displayed.

1 program title

2broadcast station

3program guide

(The program guide added to broadcasting

information is displayed. Maximum display of 4

lines.)

4 channel number

5 audio language

(Refer to"Switching Audio Mode" on page 18.)

6 effective scanning lines and scan mode

7 program format

8 program aspect ratio

9 program rating

10 CC (not available if CC is set to "Off")

9 lO

Note:

•When the program guide consistsof more than 4 lines, use

[Cursor A/V] to scroll

• "No description provided" isdisplayed when the program

guide is not provided.

•While the program guide is displayed, the dosed caption

function is interrupted.

•In externalinput mode, the following screen is displayed;

e.g.) When an external device is connected to VIDEO 1

input jack.

i ,?i_

iiii!

ii :iii!

i i ¸

ii iii!i_

•The information display will automatically disappear in

1minute.

[]TV Screen Display Mode

4 types ofdisplaymodescanbeselectedwhen the broadcastingstation

issending4:3 or16:9video signal.And3 typesofdisplaymodescanbe

selectedfor PCinputsignal.

Press [SCREEN MODE _] repeatedly to switch the TV

aspect ratio.

'A(_i)i!!

For 4:3 video signal

Sidebar (normal)

Wide

Full

Cinema

[Sidebar]

Display a 4:3 picture at its original size. Sidebars appear

on both edges of the screen.

[Full]

Display a 4:3 picture at a 16:9 size; the picture is

stretched horizontally to fill the screen.

[Cinema]

Display a 4:3 picture at a 16:9 size; the picture is

stretched horizontally and vertically to fill the screen,

This crops out the top and bottom of the picture,

[Wide]

Display the picture with its center at the original size

and the edges stretched horizontally.

For 16:9 video signal

Full (normal)

Expand

[Fulll

Zoom

Cinema

Display a 16:9 picture at its original size.

[Zoom]

Display a 16:9 picture at its maximum size without

changing its horizontal and vertical ratio,

[Cinema]

Display a vertically stretched picture.

[Expand]

Display a horizontally stretched picture.

For PC input signal

Sidebar Full

Dot By Dot (normal)

[Sidebar]

Display a proportionately stretched picture. Sidebars

appear on both edges of the screen.

[Full]

Display a picture that is stretched out of proportion to

fill the screen.

[Dot By Dot]

Display a picture in its original size,

Note:

• Youmay not switch the display mode depending on the

program.

• For PCinput signal "Sidebar" may not be selectable

depending on the aspect ratio of the input signal.

[] Sleep Timer

Thesleeptimercanbe setto automatically turnoffthe unitafter an

incremental periodof time.

1 Press [SLEEP] to set the sleep timer.

•Sleep timer display appears on the TV screen.

2 Press [SLEEP] repeatedly to change the amount of time

until shut off.

• You can set your unit to turn off after a set period of

time (from 30 to 120 minutes).

• Each press of [SLEEP] will increase the time by 30

minutes.

• After set up, the sleep timer display can be called up

for checking by pressing [SLEEP].

To Cancel the Sleep Timer

Press [SLEEP] repeatedly until "Sleep Off" is displayed

on the TV screen.

Note:

•Thesleep timer setting display will automatically

disappear in afew seconds.

•When you disconnect the unit from the AC outlet or when

a power failure occurs, the sleep timer setting will be

canceled.

[(b

i(b

ii :iii!

i i ¸

ii iii!i_

ii:!!ii_i

[] Channel List

Thechannellistfunctionletsyouremoveundesiredchannelsfromthe

channelregistrationlist,

Press [SETUP] to display the main menu. Press [SETUP] to exit.

2 Use [Cursor A/Y] to select "CHANNEL", then press

[ENTER].

3 Use [CursorA/V] to select "Channel List", then press

[ENTER].

Use [Cursor A/V] to select the channel you want to

remove, then press [ENTER].

•The channel display for the removed channel

darkens. You will not be able to select the channel

again using [CH A/V].

• To reactivate a removed channel, highlight it using

[Cursor A/V] and press [ENTER]. The channel

display lightens.

• When you remove a major channel, its minor

channels are removed as well.

Note:

•Thechannel with the "DTV"indicated on the display is

ATSC.Otherwise the channel isNTSC.

[] Manual Register

Themanualregisterfunctionletsyouaddthechannelsthat werenot added

bythe autochannelscanduetothe receptionconditionat theinitialsetting,

Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select "CHANNEL", then press

[ENTER].

3 Use [Cursor A/r] to select "Manual Register", then

press [ENTER].

[] Antenna Confirmation

Thisfunctionletsyoucheckthesignalstrengthofeachchannel,

Press [SETUP] to display the main menu.

Use [Cursor A/V] to select "CHANNEL", then press

[ENTER].

Use [Cursor A/V] to select "Antenna", then press

[ENTER].

i,?i_

ii:i:il

Use [the Number buttons] to enter the number of the

channel you want to add, then press [ENTER].

@@@

@00

Press [SETUP] to exit.

Note:

•If set up completes successfully,

"Registered to the Channel List"is displuyed.

• If external inputis used, iris notpossible to register the

chunnel and "Unuvailable" will be displayed on the TV

screea.

Use [the Number buttons] or [CH A/r] to select the

channel for which you want to check the signal strength,

@@@

•If the channel is set to external input, you cannot

confirm the antenna condition.

Press [SETUP] to exit,

.........

[] Picture Adjustment

Youcanadjustbrightness,contrast,color,tint andsharpness.

I Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select "PICTURE", then press

[ENTER].

Brightness

Contrast

Cursor_

to decrease

brightness

to decrease

contrast

Cursor D_

to increase

brightness

to increase

contrast

Color

to decrease to brighten

color color

Tint

to add red to add green

Sharpness

to make soft to make clear

3 Use [Cursor A/r] to select the item you want to adjust,

then press [ENTER].

Reset Settings

Use [Cursor A/r] to select "Reset", then press [ENTER]

to restore the "Picture Mode" setting to default.

Adjust the picture quality.

Picture Mode

Use [Cursor A/r] to select the desired setting, then

press [ENTER]. (Standard, Dynamic, Movie and News)

Brightness, Contrast, Color, Tint, Sharpness

Use [Cursor _/1_] to adjust.

Color Temp.

Use [Cursor A/r] to select the desired setting, then

press [ENTER]. (Cool, Neutral and Warm)

Energy Saving

Use [Cursor </1_] to adjust the brightness of the backlight.

:To brighten

:To darken

Note"

•Tocancel picture adjustment, press[SETUP].

Press [SETUP] to exit.

[] Sound Adjustment

Youcanadjusttreble,bassandsurround,

Press [SETUP] to display the main menu.

2 Use [Cursor A/Y] to select "SOUND", then press

[ENTER].

Use [Cursor A/V] to select the sound type you want to

adjust, then press [ENTER].

Surround

Use [Cursor A/V] to turn on or off the surround

function, then press [ENTER].

i,71_

Reset Settings Z

Use [Cursor A/V] to select "Reset", then press [ENTER]

to restore the "Sound" settings to default.

Note:

•Tocancel sound adjustment, press[SETUP].

Press [SETUP] to exit.

Adjust the sound setting.

Treble, Bass

Use [Cursor _/1_] to adjust.

Cursor_ Cursorl_

Treble to decrease to increase

_ higher-pitched higher-pitched

, sounds sounds

Bass to decrease to increase

lower-pitched lower-pitched

sounds sounds

ii !!i,i_iii

i'ii'i'

ii iii!i_

i i!iiiiii

iTJ

ii:_!!ili

[] Closed Caption

Youcanviewclosedcaptioning(co)forTVprograms,moviesandnews.

Closedcaptionreferto text ofdialogueor descriptionsdisplayedon-screen

forthe hearingimpaired.

1 Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select "DETAIL", then press

[ENTER].

3 Use [Cursor A/V] to select "Closed Caption", then

press [ENTER].

Use [Cursor A/Y] to select "Conventional CC", then

press [ENTER].

Use [Cursor A/V] to select the desired closed caption,

then press [ENTER].

[Caption Mode]

CC1 and Text1;

are the primary caption and text services.

The captioning or text is displayed in the same

language as the program's dialogue

(up to 4 lines of script on the TV screen, where it

does not obstruct relevant parts of the picture).

CC3 and Text3;

serve as the preferred data channels.

The captioning or text is often a secondary language.

CC2, CC4, Text2 and Text4;

are rarely available and broadcasters use them only

in special conditions, such as when "CC1" and "CC3"

or "Text 1" and "Text3" are not available.

• There are 3 display modes according to programs:

Paint-on mode:

Displays input characters on the TV screen

immediately.

Pop-on mode:

Once characters are stored in memory, they are

displayed all at once.

Roll-up mode"

Displays the characters continuously by scrolling

(max. 4 lines).

6 Press [SETUP] to exit.

Note:

•Toshow the closed caption on your TVscreen, broadcast

signal must contain the dosed caption data.

•Not all TVprogmms and commercials have the closed

caption or all types of the dosed caption.

• Captions and texts may not match the TV voice exactly.

• Changing channels may delay the dosed caption for a few

seconds.

•Adjusting or muting the volume may delay the dosed

caption for afew seconds.

•Abbreviations, symbols and other grammatical shortcuts

may be used in order to keep pace with the on-screen

action. Thisisnot a problem with the unir

•Thecaption or text characters will not be displayed while

the main menu or functions display is shown.

•Ira black boxappears on the TVscreen, this means that

the closed caption is set to the text mode. Todear the box,

select "CCI", "CC2","CC3","CC4"or ,,Off,,.

•If the unit receivespoor quality television signals, the

captions may contain errors,or theremight be no captions

at all Somepossible causesof poor quality signals are:

-Automobile ignition noise

-Electricmotor noise

-Weak signal reception

-Multiplex signal reception (ghosts or screen flutter)

•Theunitretains thedosedcaptionsettingifthepower

fails.

• Closed caption will not be displayed when you are using

an HDMI connection.

•When the unit receivesaspedal effects playback signal

(i.e.,Search,Slow and Still) from aVCR'svideo output

channel (CH3or CH4),the unit may not display the correct

caption or text.

[] DTV Closed Caption

Inaddition tothe basicclosedcaptiondescribedon page26, DTVhasits

own closedcaptioncalledDTVCC.Usethis menuto changethe settings for

DTVCC.

Press [SETUP] to display the main menu.

Sii ii)i_

2 Use [Cursor A/V] to select "DETAIL", then press

[ENTER].

3 Use [Cursor A/V] to select "Closed Caption", then

press [ENTER].

i,71_

Use [Cursor A/r] to select the desired DTV closed

caption, then press [ENTER].

"W/

DTV CC

off

ServiceIN6

Select if you do not want

DTV CC.This is the default.

Select one of these before

changing any other item

in "Closed Caption" menu.

Choose"Servicel" under

normal circumstances.

6 Press [SETUP] to exit.

SE _iJi _

Note:

•"DTV CC"thatyou can switch differs depending on the

broadcast description.

! (b

i!iii

Use [CursorA/V] to select "DTV CC", then press

[ENTER],

iiiiiii

or ii!!i!!

[] CC Style

Youcanchangethe styleofCCsuchasfont,colororsize,etc,

Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select "DETAIL", then press

[ENTER].

6 Use [Cursor A/V] to select "On", then press [ENTER].

7 Use [Cursor A/r] to select an item, then press

[ENTER]. Then use [Cursor A/r] to select the desired

setting and press [ENTER].

Picture display

3 Use [Cursor A/V] to select "Closed Caption", then

press [ENTER].

Use [Cursor A/r] to select "CC Style", then press

[ENTER].

Use [Cursor AIr] to select "User Setting", then press

[ENTER].

Edge

(Edge Color and EdgeType)

Font

(Font Style, Font Size, Font Color and Font Opacity)

Back

(Back Color and Back Opacity)

•The setting description for each item is shown below.

[Font Style]

Closed Captioning font style can be changed as below.

[Font Size]

Font size of the displayed caption can be switched as

below.

i ,?i_

[Font Color]

Font color of the displayed caption can be switched as

below.

[Edge Type]

Edge type of the displayed caption can be switched as

below.

[Font Opacity]

Font opacity of the displayed caption can be switched

as below.

[Back Color]

Background color of the displayed caption can be

switched as below.

8 Press [SETUP] to exit.

ii!;i_!,!_

ii iii:_il

[Back Opacity]

Background opacity of the displayed caption can be

switched as below.

ii !!i{ii

i i ¸

ii iii!i_

ii:_!!ii_i

[Edge Color]

Edge color of the displayed caption can be switched as

below.

[] V-chij

V-chip reads the ratings for programs, then denies accessto the programs

which exceed the rating level you set. With this function, you can block

certain programming inappropriate for children.

1 Press [SETUP] to display the main menu.

Siii li i F'

2 Use [Cursor A/V] to select "DETAIL", then press

[ENTER].

3 Use [Cursor A/V] to select "V-chip", then press

[ENTER].

Use [the Number buttons] to enter the 4-digit

numbers for your password.

@@@

@@0

@O@

See the following description for setting each item.

A..."A. MPAA Rating"_ page 31

B..."B. TV Rating"_ page 31

C..."C. New Password" _ page 32

Note:

•When you select arating and set it to "Block", the higher

rotings will be blocked autornatically. The lower ratings

will be available for viewing.

• When you set the highest rating to "View", all ratings turn

to "View" automatically.

• To block any inappropriate programming, setyour limits in

"MPAA Rating", "TV Rating" and "Downloodable Rating"

• The V-chip setting will be retained after apower failure

(except the access code reverts to 0000).

• If the rating is blocked, will appear.

•"Downloadable Rating" will be available when the unit

receives adigital broadcast using the new rating system.

• If the broadcasting signal does not have

the downloadoble rating information,

"Downloadable Rating is currently not available." will

appear.

This message will also appear when you try to access

"Downloadable Rating" after you have cleared the

downloodable rating irfformation, and the new

information has not been downloaded since.

• To clear the downloadable rating information andits

setting, select "Clear Downloadable Rating';

•When you have not set up your password, enter

0000.

• When the password is correct, the "V-chip" menu is

displayed.

i!iii

MPAARatingisthe ratingsystemcreatedbyMPAA(Motion Picture

Associationof America). ............

Use [Cursor A/V] to select "MPAA Rating", then press _ Use [Cursor A/V] to select "TV Rating", then press

[ENTER]. [ENTER].

or or

Use [Cursor A/V] to select the desired rating, then

press [ENTER] repeatedly to switch between "View"

and "Block".

Use [Cursor A/VIgils] to select the desired rating,

then press [ENTER] repeatedly to switch between

"View" and "Block".

i iiill_

Rating Category

XMature audience only

NC-17 No one under 17 admitted

Restricted; under 17 requires accompanying

Rparent or adult guardian

PG-13 Unsuitable for children under 13

PG Parental guidance suggested

G General audience

NR No rating

Press [SETUP] to exit.

Note:

•Changing the category to "Block" or "View" automatically

changes all its sub ratings to the same ("Block" or "View").

Press [SETUP] to exit.

[To Set the Sub Ratings]

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further

set the sub ratings to block specific elements of

programming. To set the sub ratings, follow the step

below.

Use [Cursor A/V/'</I_] to select the desired rating,

then press [ENTER] repeatedly to switch between

"View" and "Block". ii!!i_il

Rating Category

TV-MA Mature audience only higher

TV-14 Unsuitable for children under 14 _ _

TV-PG Parental guidance suggested

TV-G General audience

TV-Y7 Appropriate for all children 7 and

older % P

TV-Y Appropriate for all children lower

Rating

TV_Y7

Sub Rating

Category

FantasyViolence

Violence

Sexual Situation

Coarse Language

Suggestive Dialogue

TV-PG

TV-14

TV-MA

TV=PG,TV-14

Note:

•Blockedsub rating willappearbeside themain rating

category in "TV Rating" menu.

• You cannot block a sub rating (D, L, S or V) if the main

rating is set to "View".

•Changing the category to "Block" or "View" automatically

changes all its sub ratings to the same ("Block" or "View").

Although the default code "0000" is supplied with the unit, you can set

your own password.

Use [Cursor&Iv] to select "New Password", then press

[ENTER].

6 Press [the Number buttons] to enter the new 4-digit

password.

• Enter password again in "Confirm password." entry

field.

00O

O0O

@@@

7 Press [SETUP] to exit.

Note:

•Make sure new password and confirm password must be

exactly the same. If they are different, the space is cleared

for reentering.

•Your password will be erased and return to the default

(0000) when a power failure occurs. If you forget the

password, unplug the power cord for 10 seconds to restore

the password to 0000.

[] PC Settings

Thisfunctionletsyouadjustthe PCscreenposition,clockand phaseduring

PCinput,

I Press [SETUP] to display the main menu.

2 Use [Cursor A/Y] to select "DETAIL", then press

[ENTER].

Use [Cursor A/V] to select "PC settings", then press

[ENTER].

Use [Cursor A/V] to select the setting you want to

adjust, then press [ENTER].

Adjust the setting.

Auto Adjustment

Use [Cursor A/V] to select "Adjust", then press

[ENTER].

•The Horizontal/Vertical position, clock and phase of

the PC screen are automatically adjusted.

Horizontal Position, Vertical Position

Use [Cursor<l•] to adjust.

Cursor

Horizontal Position to move PC

screen left

Vertical Position to move PC

screen down

Cursor•

to nqove PC

screen right

to move PC

screen up

Clock, Phase

Use [Cursor _/•] to adjust the "Clock" setting to

stabilize the PC screen and the "Phase" setting to

improve the clarity of the PC screen.

Cursor _Cursor•

Clock

Phase

to decrease

setting value

to increase

setting value

i ,?i_

ii iii!i_

Press [SETUP] to exit,

Note:

•Adjust the "Phase"setting after the "Clock" setting has

been properly adjusted.

•You may not obtain an appropriate screen with auto

adjustment for some signals. In this case, adjust the

settings manually.

[]HDMI Audio

Youcansetthemethodofsoundinputfor the HDMI l-IN jack,

Press [SETUP] to display the main menu. Press [SETUP] to exit.

2 Use [Cursor A/Y] to select "DETAIL", then press

[ENTER].

3 Use [Cursor A/V] to select "HDMI1 Audio", then press

[ENTER].

Use [Cursor A/V] to select the desired sound input,

then press [ENTER].

Select if you have connected both

digital device to the HDMI l-IN

Auto jack and analog device to the

audio sources. Digital audio input

signal will have priority.

HDMI1

Audio Select if you have connected

Digital digital device to the HDMI l-IN

jack for digital audio input signal.

Select if you have connected

Analog analog device to the analog audio

jacks for analog audio input signal.

[]Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this owner's manual, check the following chart once

before calling for service.

No power

No picture or sound

No color

Sound OK, picture poor

Picture distorted

Weak picture

Lines or streaks in picture

Picture blurred

Ghosts in picture

Bars on screen

Picture rolls vertically

Different color marks on

screen

Poor reception on some

channels

Picture OK, sound poor

No reception of digital signals

Be sure the power cord is plugged in.

If a power failure occurs, unplug the power cord for 30 minutes to allow the unit to

reset itself.

•Check if the power is on.

• Check the outlet connection.

• Check the antenna or cable connection to the main unit.

• When the outside antenna is used, check the wire condition and connection.
