AR 400 Reader
User’s Manual
Published: June 21, 2004
Part Number: 110003-001
Matrics, Inc.
7361 Calhoun Place
Suite 250
Rockville, MD 20855
Tel: 301.610.6100
Fax: 301.610.6101
http://www.matrics.com
![](/img.php?id=467204&img=bg2.png)
ii AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Notices
Copyright 2003-2004 Matrics, Inc. All rights reserved.
This document is protected by copyright with all rights reserved. No part of the document may be reproduced or
transmitted by any means or in any form without prior consent in writing from Matrics, Inc.
Trademarks
Matrics is a registered trademark of Matrics, Inc. All other product names or logos mentioned herein are used for
identification purposes only, and are the trademarks of their respective owners.
Statement of Rights
IMPORTANT – READ CAREFULLY: Matrics products incorporate technology that is protected by U.S. patent
and other intellectual property (IP) rights owned by Matrics, Inc, and other rights owners. Use of these products
constitutes your legal agreement to honor Matrics’ IP rights as protected by applicable laws. Reverse engineering,
decompiling, or disassembly of Matrics products is strictly prohibited. Violators will be prosecuted.
![](/img.php?id=467204&img=bg3.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. iii
Contents
SECTION 1. INTRODUCTION............................................................................................. 1
Document Conventions.............................................................................................. 1
Acronyms and Abbreviations ..................................................................................... 1
References................................................................................................................. 1
Disclaimer ................................................................................................................. 1
SECTION 2. SYSTEM DESCRIPTION..................................................................................2
Product Description................................................................................................... 2
SECTION 3. SPECIFICATIONS AND DIAGRAMS..................................................................3
AR-400-US Reader Specification............................................................................... 3
AR-400-US Reader Diagrams.................................................................................... 4
Top View................................................................................................................................... 4
Side View .................................................................................................................................. 4
LEDs and Connectors................................................................................................ 5
Interface Pin-Outs...................................................................................................... 5
I/O Interface ............................................................................................................................. 5
Ethernet Interface .................................................................................................................... 6
RS422/485 Interface ................................................................................................................ 6
RS232 Interface........................................................................................................................ 7
Power Supply............................................................................................................................ 7
PCMCIA Interface.................................................................................................................... 8
SECTION 4. INSTALLING THE READER............................................................................. 9
Getting Started .......................................................................................................... 9
Mount the Reader.................................................................................................... 10
Connect Antenna(s) to the Reader ........................................................................... 11
Connect the Reader to a Host Computer.................................................................. 11
Power On (and Off) the Reader ............................................................................... 11
Verify the Reader Installation................................................................................... 12
Reader On?............................................................................................................................. 12
Test Read Range..................................................................................................................... 12
SECTION 5. CONFIGURING THE READER ....................................................................... 13
Launch and Log In to the Reader Administrator Console ......................................... 13
Use Setup Wizard.................................................................................................... 15
Use Online Help ...................................................................................................... 16
Save or Discard Changes (or Revert to Backup) ...................................................... 17
Create Read Point Classes ....................................................................................... 18
Create Read Point Zones ......................................................................................... 21
Configure the Reader............................................................................................... 23
Modify a Reader’s Attributes ................................................................................................ 24
Add, Modify, or Delete Read Points...................................................................................... 25
Add or Delete a Splitter......................................................................................................... 27
![](/img.php?id=467204&img=bg4.png)
iv AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Define Trusted Hosts............................................................................................... 29
Manage Users.......................................................................................................... 31
Reset (Clear) a Password ...................................................................................................... 32
Change a Password .............................................................................................................. 32
Change an Access Level ........................................................................................................ 33
Display Current Active Session Information........................................................................ 33
Log Out of the System............................................................................................. 34
SECTION 6. NOTIFICATION OF EVENTS ......................................................................... 36
Events Overview ..................................................................................................... 36
Visibility Events...................................................................................................................... 36
Threshold Events.................................................................................................................... 37
Network Status Events ........................................................................................................... 37
Exception Events.................................................................................................................... 37
Set Event Notification Preferences........................................................................... 38
Set Host Notification Link....................................................................................... 39
Set SNMP Configuration......................................................................................... 39
SECTION 7. TAG SELECTION FILTERS ........................................................................... 40
Add, Modify, or Delete Tag Selection Filters ........................................................... 40
Add, Modify, or Delete Tag Filter Rules .................................................................. 42
SECTION 8. READER SERVER CONTROLS ...................................................................... 50
Check Status of Reader ........................................................................................... 50
Scan Control............................................................................................................ 52
SECTION 9. AD-HOC QUERIES....................................................................................... 53
Perform an Ad-hoc Query for a Specific Tag ........................................................... 53
SECTION 10. MAINTAINING THE READER...................................................................... 54
Access the Reader Maintenance Console.................................................................. 54
Manage Communication Configuration Settings....................................................... 55
Manage System Time Settings ................................................................................. 57
Display Version Control Information and Load Firmware via FTP ........................... 58
Display the System Log and/or Access History ........................................................ 59
Shut Down and/or Restart the System, and Turn Off the HTTP Server .................... 61
Use Online Help ...................................................................................................... 62
Log Out of the System............................................................................................. 63
SECTION 11. CAUTIONS, NOTES, AND APPROVALS........................................................ 64
SECTION 12. WARRANTIES AND RETURNS..................................................................... 65
Limited Warranty..................................................................................................... 65
Return Material Authorization (RMA) ..................................................................... 65
SECTION 13. CONTACT US............................................................................................ 66
APPENDIX A. ERROR MESSAGES AND RESOLUTIONS .................................................... 67
User Messages......................................................................................................... 67
Internal Messages .................................................................................................... 71
![](/img.php?id=467204&img=bg5.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 1
Section 1. Introduction
This AR 400 Reader User’s Manual, designed for end-users of a Matrics Radio Frequency Identification
(RFID) System, describes the Matrics AR 400 Reader (Model Number: AR-400-US) and how to install,
configure, and use it.
Document Conventions
The following conventions are used in this User’s Manual:
CONVENTION DESCRIPTION
1. Numbered list Provides step-by-step procedures for performing an action
Bulleted list Provides grouped information, not procedural steps
Acronyms and Abbreviations
The following acronyms and abbreviations are used in this User’s Manual:
ACRONYM DEFINITION
IC Integrated Circuit
MVM Matrics Visibility Manager
OOK On Off Keyed
RFID Radio Frequency Identification
TBD To Be Determined
References
For additional information, refer to the following documentation:
Matrics API Programmer’s Manual (PN: 110009-001)
Disclaimer
While Matrics has committed its best efforts to providing accurate information and timely updates to this
User’s Manual, we assume no responsibility for any inaccuracies that may be contained herein, and we
reserve the right to make changes to this User’s Manual without notice.
![](/img.php?id=467204&img=bg6.png)
2 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Section 2. System Description
Matrics develops and markets Radio Frequency Identification (RFID) solutions that are effective and
affordable by offering a combination of low cost, long read range, and a very high read rate unmatched by
other RFID systems. A Matrics RFID System gives you real-time, end-to-end visibility of products and
assets in your factory, distribution center, retail outlet, or other facility. A typical Matrics RFID system
consists of these main components:
Silicon-based RFID tags that can be attached to vehicles, trailers, containers, pallets, boxes, etc., to
create a “people-free” wireless environment for tracking assets; and
Reader network components (readers, antennas, cables, connectors, power supplies, etc.) that
power and communicate with the tags.
Product Description
The Matrics AR 400 Reader is a true multi-protocol reader providing real-time, seamless tag processing
for all EPC-compliant tags: Class 0 (Read), Class 0+ (Read/Write), and Class 1 (Read/Write). This
operational flexibility is useful in protecting customers’ RFID infrastructure investment.
The AR 400 is architected to be an intelligent reader. It provides a rich feature set for tag management
such as tag filtering, reconciliation, user defined association and selective visibility. The AR 400 also
provides timely and pertinent information to customers’ Network Management platform by real-time
reporting of events and status using SNMP. To address security concerns, it provides security and
privilege controls and full traceability of operator actions.
The AR 400 is a ready-to-connect network element that provides a variety of options for connecting to
customers’ corporate networks via Ethernet or Serial connections and wirelessly via 802.11. A
configuration Setup Wizard makes commissioning tags extremely easy.
All these new capabilities further enhance Matrics’ industry-leading performance. With improved
dynamic range, AR 400 remains Best-in-Class in RF performance with a typical read range in excess of
25 feet. Matrics’ patented contention-free protocol to communicate with tags provides unmatched read
rates of up to 1,000 tags per second for Class 0/0+ tags. Using advanced digital signal processing
techniques, the AR 400 allows superior interference management to operate in noisy environments.
Other key features include:
Up to four (4) individually addressable antennas (read points), reducing cost per read point;
Allows read point grouping;
Local tag buffering;
Tag filtering;
Ad-hoc tag querying;
Event notification and real-time reporting; and
Trusted host security and Access Control.
![](/img.php?id=467204&img=bg7.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 3
Section 3. Specifications and Diagrams
AR-400-US Reader Specification
CHARACTERISTIC DESCRIPTION
Physical
Dimensions Height 8.75” x Width 11.75“ x Depth 2”
Weight ~ 6 pounds
Base Material(s) Aluminum, Silver; Die-cast
Visual Status Indicators LEDs for Power (Green), Activity (Yellow) and Error (Red)
Connectivity
Network
RS422/485
10BaseT Ethernet
RS232 Console (Management)
Control I/O Port (6) (User programmable)
RJ45
RJ45
DB9
DB15
RF Connectors 1.0/2.3 DIN Jack
Read Points (Channels) 4 (4 Transmit and 4 Receive)
2 or more can be combined into one logical read point
Power Supply +24vDC @ 1.2 amps
Environmental
Environmental Sealing IEC 529 IP54
Temperature IEC 60068-2-1/2/14
Operational: 0° to +55° C (+32° to +131° F)
Storage: -20° to +70° C (-4° to +158° F)
Humidity IEC 60068-30/56 5-95% Non-condensing
Vibration IEC 60068-2-6
Compliance
Safety EMI/RF Emissions
Regulatory Region 1, FCC Part 15
Operational Features
Frequency UHF band, 902-928 MHz
Method Frequency Hopping Spread Spectrum (FHSS)
Power Output Up to 30 dBm (only 1 Watt Part 15)
Air Link Protocol EPCglobal: Class 0, Class 0+ and Class 1
Tag Communication Interleaved
Tag Buffering Local
Synchronization Network Time Protocol
IP Addressing Static and Dynamic
Host Interface Protocols XML and Byte Stream
Network Management
Protocol SNMP
Configuration Via Setup W izard
Event Management Auto Reported Events
User Controlled Thresholds, Damping and Filtering
Administrative Management Security/Privilege Controls, Change Traceability
Tag Management
ID-based Selection Ability
User-defined Association to Tag IDs
Taglist Management Features for Reconciliation and Visibility
![](/img.php?id=467204&img=bg8.png)
4 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
AR-400-US Reader Diagrams
Top View
Side View
![](/img.php?id=467204&img=bg9.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 5
LEDs and Connectors
ITEM DESCRIPTION
RJ45 Connector 10BaseT Ethernet
DB9 Connector RS232 Console (Management)
DB15 Connector Control I/O Port (6)
RS422/RS485 Connector Connect to host PC and bus power.
Power/Link LED LED is green when the Reader is powered on and linked to the host PC.
Error LED LED is red when commands are incorrectly received from the host PC.
Read LED LED is yellow when commands are correctly received from the host PC.
+24vDC 1.2A Connector
(Unit Power)
The power supply should be plugged into a wall outlet and into the DC
power connector (2.1mm jack.)
Antenna Connectors Connect to external antennas (4 Transmit and 4 Receive.)
Interface Pin-Outs
I/O Interface

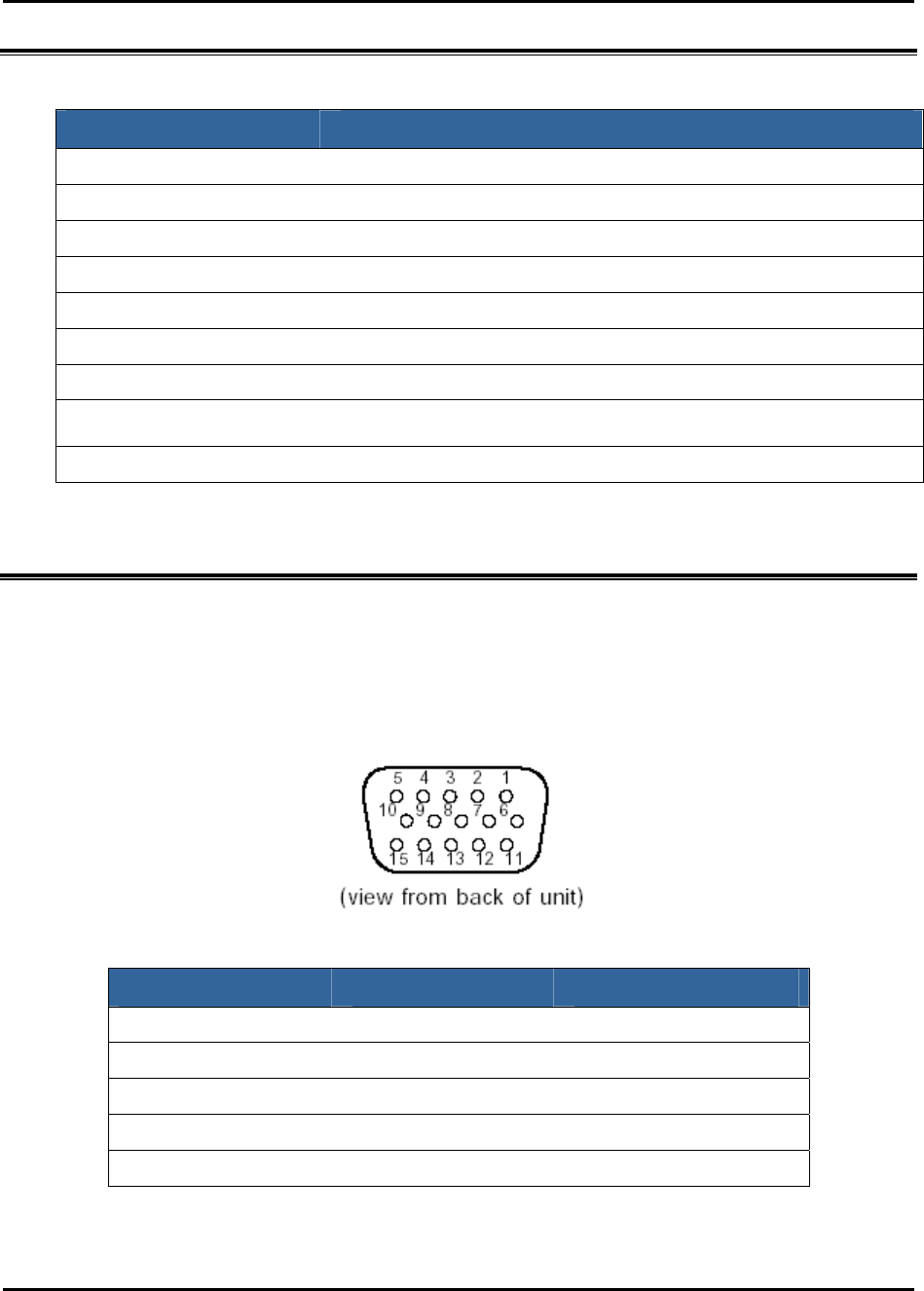

15-pin Female D-sub Connector:
PIN: FUNCTION PIN: FUNCTION PIN: FUNCTION
1: Ground 6: In2 11: Out1
2: Out4 7: In0 12: In5
3: Out2 8: Ground 13: In3
4: Out0 9: Out5 14: In1
5: In4 10: Out3 15: Vcc +5V power supply
![](/img.php?id=467204&img=bga.png)
6 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
PARAMETER MIN. TYPICAL MAX. UNIT
Inx VIL 0.8 V
Inx VIH 2.0 V
Outx VOL 0.55 V
Outx VOH 3.7 V
Outx IOL 24 mA
Outx IOH -24 mA
Vcc 4.5
5.5 V
Vcc Imax 100 mA

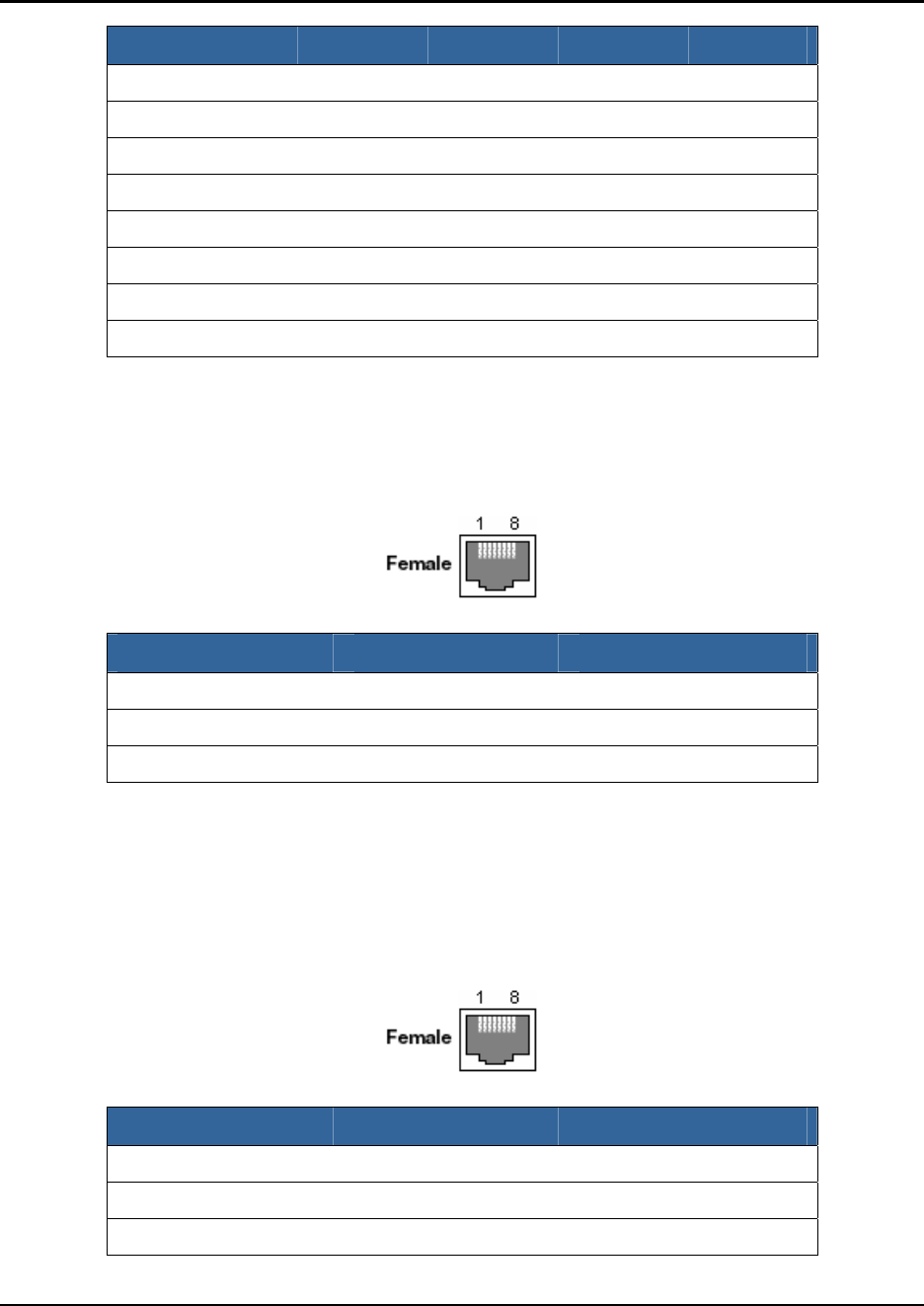

Ethernet Interface
Modular Jack RJ45:
PIN: FUNCTION PIN: FUNCTION PIN: FUNCTION
1: TD+ 4: Common 7: Common
2: TD- 5: Common 8: Common
3: RD+ 6: RD-
RS422/485 Interface
Modular Jack RJ45:
PIN: FUNCTION PIN: FUNCTION PIN: FUNCTION
1: Tx+ 4: NC 7: Rx-
2: Tx- 5: NC 8: Rx+
3: Ground 6: Ground
![](/img.php?id=467204&img=bgb.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 7

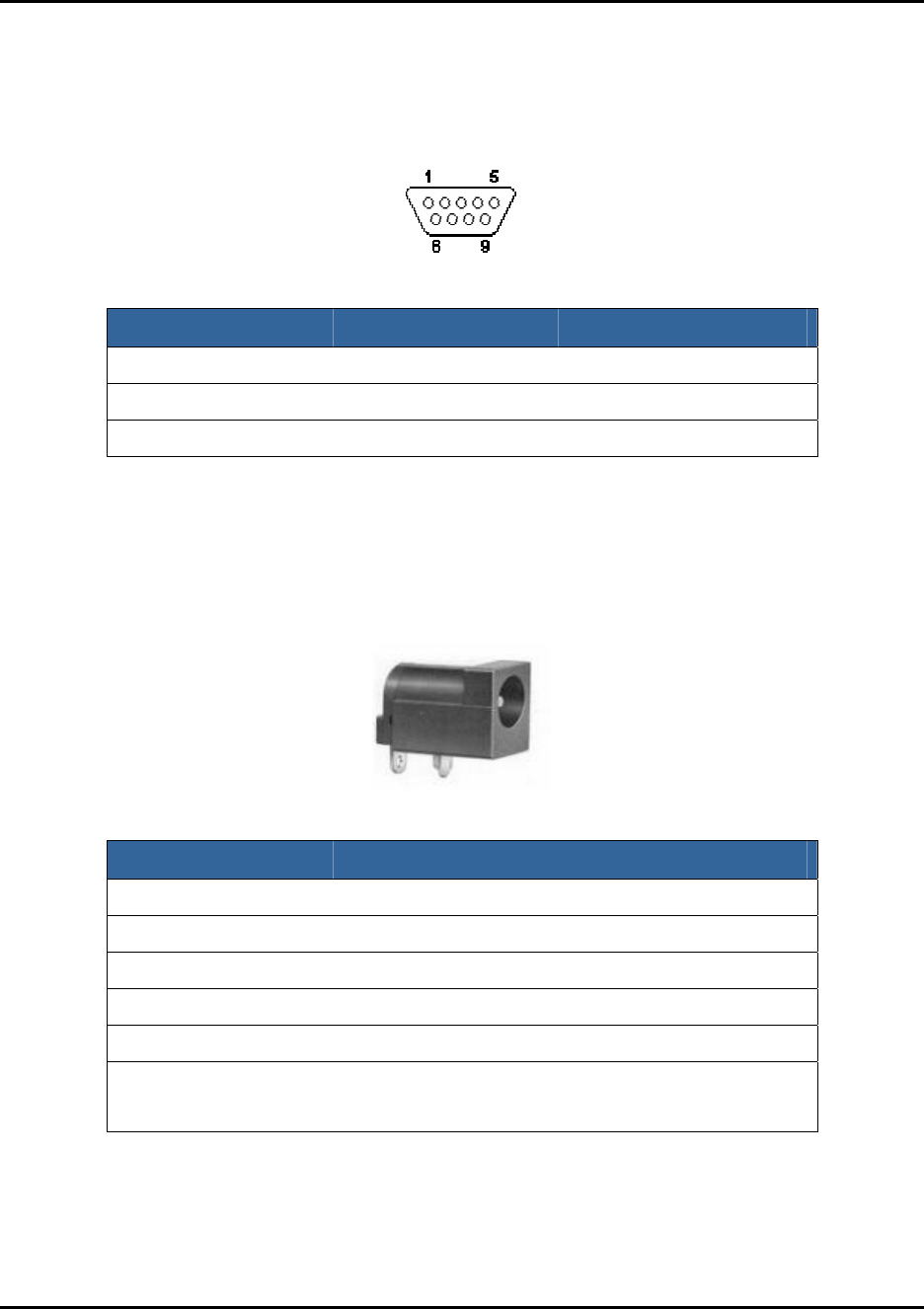

RS232 Interface
9-pin Female D-sub Connector:
PIN: FUNCTION PIN: FUNCTION PIN: FUNCTION
1: NC 4: NC 7: NC
2: Tx 5: Ground 8: NC
3: Rx 6: NC 9: NC
Power Supply
PWR JACK 2.1X5.5MM:
ITEM DESCRIPTION
Rating 24vDC @ 1.2A
Contact Resistance 30m OHMS Max
Insulation Resistance 50m OHMS Min: 100vDC
Voltage Withstand 250v AC R.M.S. for 1 minute
Life 5,000 cycles
Pin Assignments
Center Pin: Ground
Outer Pin:
Vcc Imax:
![](/img.php?id=467204&img=bgc.png)
8 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
PCMCIA Interface
PC Card Internal Slot, PCMCIA header 68-pin:
PIN: FUNCTION PIN: FUNCTION PIN: FUNCTION
1: Ground 24: PA5 47: N/C
2: PD3 25: PA4 48: N/C
3: PD4 26: PA3 49: N/C
4: PD5 27: PA2 50: N/C
5: PD6 28: PA1 51: VCC
6: PD7 29: PA0 52: VPP2
7: CE1# 30: PD0 53: N/C
8: PA10 31: PD1 54: N/C
9: OE# 32: PD2 55: N/C
10: N/C 33: IOIS16# 56: N/C
11: PA9 34: Ground 57: VS2#
12: PA8 35: Ground 58: RESET
13: N/C 36: CD1# 59: WAIT#
14: N/C 37: PD11 60: INPACK#
15: WE# 38: PD12 61: REG#
16: IREQ# 39: PD13 62: SPKR#
17: VCC 40: PD14 63: N/C
18: VPP1 41: PD15 64: PD8
19: N/C 42: CE2# 65: PD9
20: N/C 43: VS1# 66: PD10
21: N/C 44: IORD# 67: CD2#
22: PA7 45: IOWR# 68: Ground
23: PA6 46: N/C
![](/img.php?id=467204&img=bgd.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 9
Section 4. Installing the Reader
The instructions provided in this section describe a generic installation of the AR 400 Reader. Depending
upon your application, your installation steps may vary. Contact Matrics (refer to the “Contact Us”
section in this User’s Manual) if you need further assistance for a customized installation.
Follow the steps listed below (and detailed in the following sections) to install and test your AR 400
Reader:
1. Check that you have all of the items you need before you proceed with your Reader installation (refer
to the “Getting Started” section below.)
2. Mount the Reader in a location chosen for optimal surveillance.
3. Connect antenna(s) to the Reader.
4. Connect the Reader to your host computer.
5. Power on the Reader.
6. Verify that your Reader installation is operational.
Getting Started
Before you proceed with your Reader installation, check that you have all of the items you need. Contact
Matrics (refer to the “Contact Us” section in this User’s Manual) if any of the parts listed in this section
are missing from your Reader package, or any of the items you received are damaged.
NOTE: You should use ONLY those parts provided in your Reader
package or specifically recommended by Matrics. Do not substitute any
other cables, etc., since doing so may degrade your system’s performance,
damage your Reader, and void your warranty.
In addition to this User’s Manual, you should have received the following items in your package:
In addition, you will need:
Four (4) screws for mounting the Reader, and
Several wire ties to secure any extra lengths of cable.
MODEL NUMBER (MN) PART NUMBER (PN) QTY. DESCRIPTION
AR-400-US 250009-001 1 AR 400 Reader
201529-001 1 24vDC Power Supply
![](/img.php?id=467204&img=bge.png)
10 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Mount the Reader
Before mounting the Reader, you must select a location for it. For best results, consider the following
when determining the optimal placement for your Reader:
WARNING: The antenna must be installed in a manner that ensures a
minimum separation distance of 23 centimeters between the antenna and
human beings.
CAUTION: If the Reader is not installed properly, it could be damaged
and your system performance diminished.
To mount the Reader:
1. Position the AR 400 Reader at the desired mounting position on the wall or shelf. Make sure that
there are five (5) inches of clearance on all sides of the Reader.
2. Using the pre-drilled holes at the corners of the Reader to guide you, drill four holes for mounting the
reader.
3. Securely affix the Reader to the wall of shelf using the four screws that you provided.
Mount the Reader indoors, in operating range, and out of direct sunlight, high moisture,
or extreme temperatures.
Mount the Reader in an area free from electromagnetic interference. Such sources of
interference may include: generators, pumps, converters, non-interruptible power
supplies, AC switching relays, light dimmers, computer CRT terminals, etc.
Mount the Reader within 15 feet of your antennas (antenna connector cables from
Matrics are 15-feet long.)
Make sure the local power supply cord, when attached to the Reader, can reach the power
source outlet.
Do not mount the Reader within 12 inches of a computer CRT terminal.
Make sure that you will be mounting the Reader onto a permanent fixture (wall or shelf)
where it won’t get disturbed, bumped, or damaged. Keep in mind that you will need five
(5) inches of clearance on all sides of the Reader.
![](/img.php?id=467204&img=bgf.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 11
Connect Antenna(s) to the Reader
Attach your antenna(s) to the Reader in sequential order (first connecting Antenna 1 to Reader connectors
Tx1 and Rx1, then Antenna 2 to Reader connectors Tx2 and Rx2, Antenna 3 to the Tx3/Rx3 connectors
next, and Antenna 4 to the Tx4/Rx4 connectors last.)
1. Attach the large ends of your antenna connector cables to the large connectors on the antenna.
2. Attach the small ends of the cables to the corresponding connectors on the Reader (Antenna 1 to
Reader connectors Tx1 and Rx1, etc.)
3. Secure your cables using wire ties (do not bend the cables.)
WARNING: Do not disconnect antenna cables when actively reading tags
(if the LED is lit on the Reader, don’t disconnect the antenna cables.) You
could severely damage your Reader. Make sure that you unplug the power
supply to power off the system first before disconnecting cables.
Connect the Reader to a Host Computer
The steps you must follow to interface the Reader with your system depend upon the software package
you choose to use. Contact Matrics (refer to the “Contact Us” section in this User’s Manual) for more
information.
Power On (and Off) the Reader
1. Connect the provided 24vDC power supply to the Reader’s Unit Power port.
2. To power on the system, insert the plug end of the power supply into a 24v power outlet. The green
Power/Link LED on the Reader should turn on, indicating that the Reader is powered on and the
system is live.
3. To power off the Reader, unplug the power supply from the power outlet. The green Power/Link
LED on the Reader should turn off, indicating that the Reader is powered off and the system is not
operational.
![](/img.php?id=467204&img=bg10.png)
12 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Verify the Reader Installation
Reader On?
After you have installed the AR 400 Reader as described in this User’s Manual, test that the Reader is on
by following the instructions provided above in the “Power on (and Off) the Reader” section.
To verify that the Reader is operational, power it on by plugging the power supply (attached to the
Reader) into the appropriate power outlet. The green Power/Link LED on the Reader should turn on,
indicating that the Reader is powered on and the system is operational.
Test Read Range
After you have installed the AR 400 Reader as described in this User’s Manual, test the read distance of
your hardware configuration to verify that it meets your needs.
1. To measure the read distance between the Reader and a tag, hold a tag in front of you (with the tag
face parallel to the antenna face.)
2. Walk slowly toward the antenna until the Reader responds by lighting the yellow Read LED. This
indicates that the Reader has detected and read the tag.
NOTE: For purposes of this test, we recommend that you do not hold the
tag at an angle, or wave the tag in front of the antenna, as that may cause
the measured read distance to vary.
3. In order to read the same tag again, first remove the tag completely from the Reader’s read field, and
then perform Step 2 again.
![](/img.php?id=467204&img=bg11.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 13
Section 5. Configuring the Reader
Follow the steps listed below (and detailed in the following sections) to configure your AR 400 Reader:

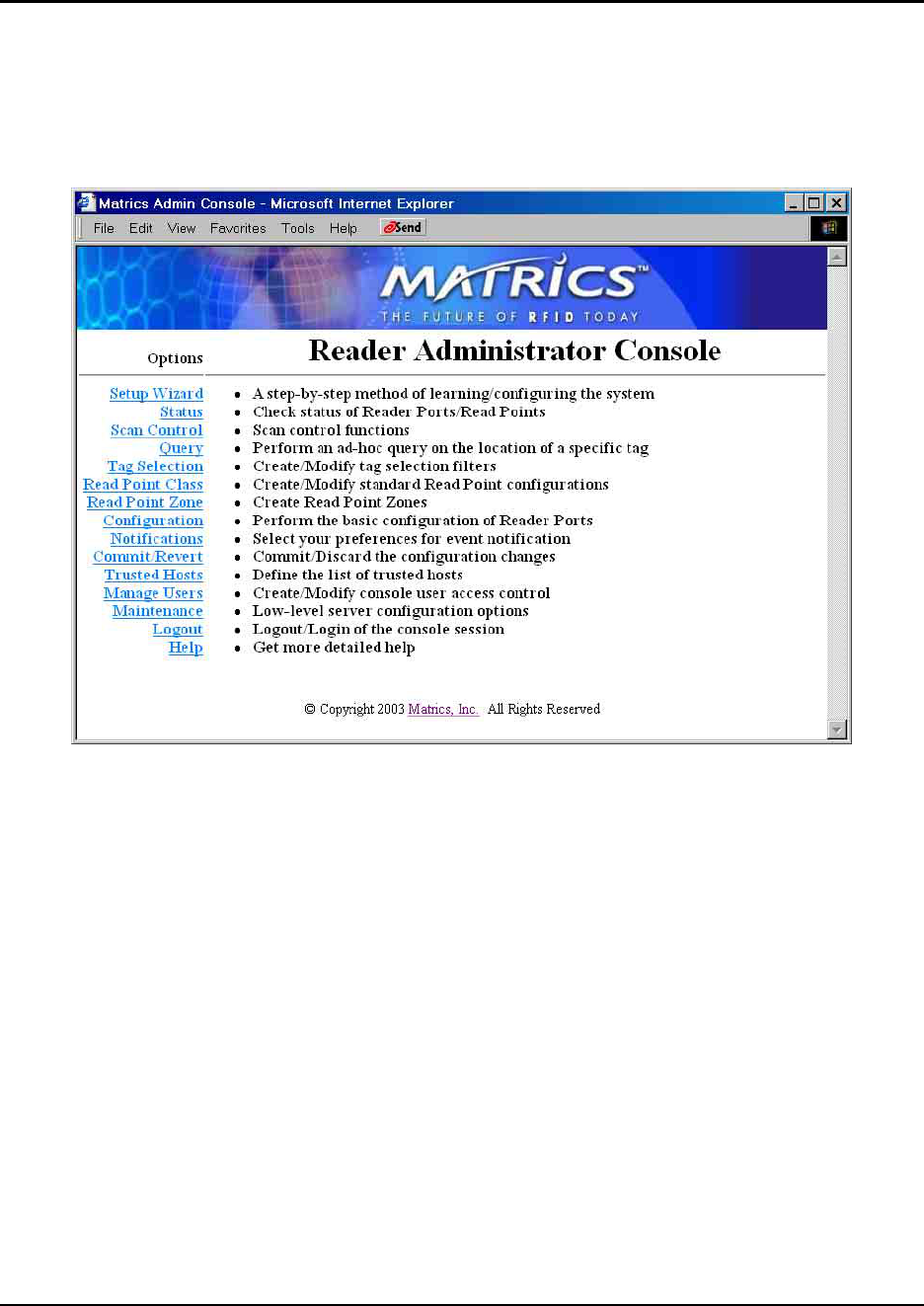

1. Launch and log in to the Reader Administrator Console via its Web interface.

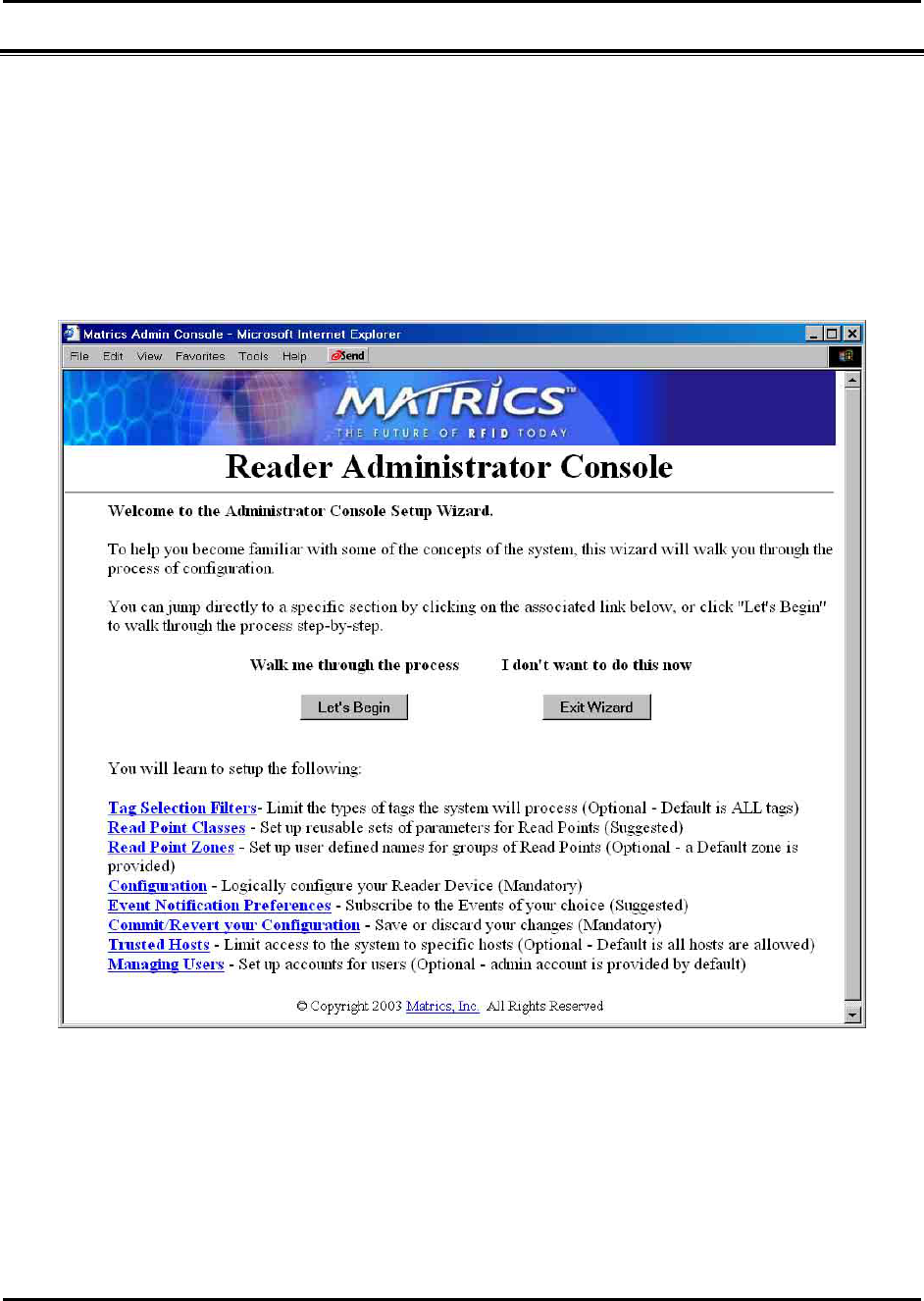

2. Familiarize yourself with the system by using the Setup Wizard and/or Online Help.
3. Create standard Read Point configurations (via the Read Point Class and Read Point Zone pages.)
4. Perform the basic configuration of Reader Ports (via the Configuration page.)
5. Define the list of trusted hosts (via the Trusted Hosts page), and enable or disable trusted hosts
checking.
6. Set user access controls (via the Manage Users page.)
7. Commit or discard your changes (via the Commit/Revert page.)
8. Log out of the system (via the Logout link on any page.)
Launch and Log In to the Reader Administrator Console
Users must log in to the system to ensure that: 1) System access is granted only to authorized users, and
2) Only one user is logged in at a time to ensure that multiple users don’t make conflicting changes to the
system.

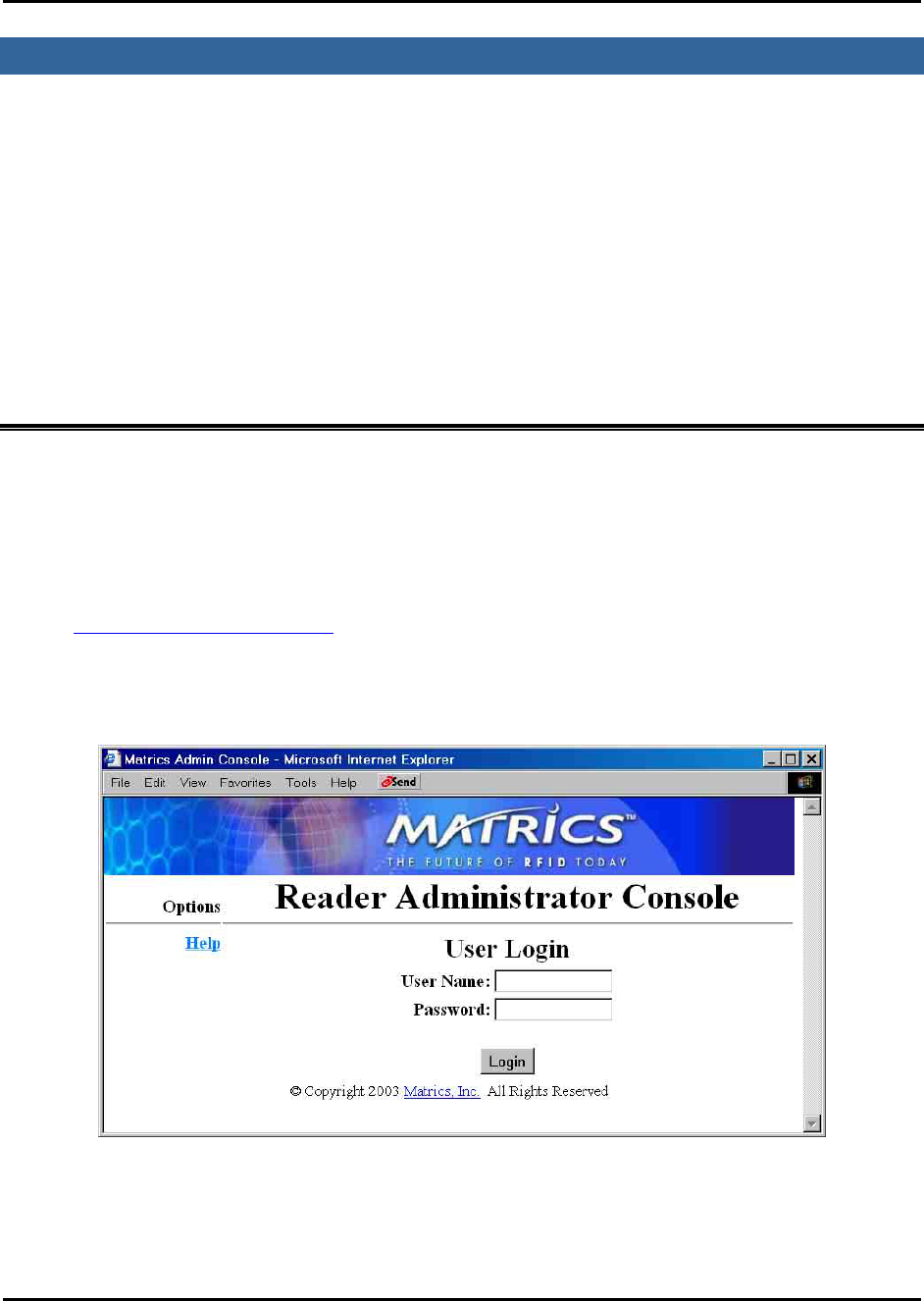

1. Using the Web browser of your choice, launch the Reader Administrator Console by typing
http://your Reader’s IP address into the browser’s Address field. If the Reader is not defaulted to
DHCP, the default IP address is 192.168.127.254.

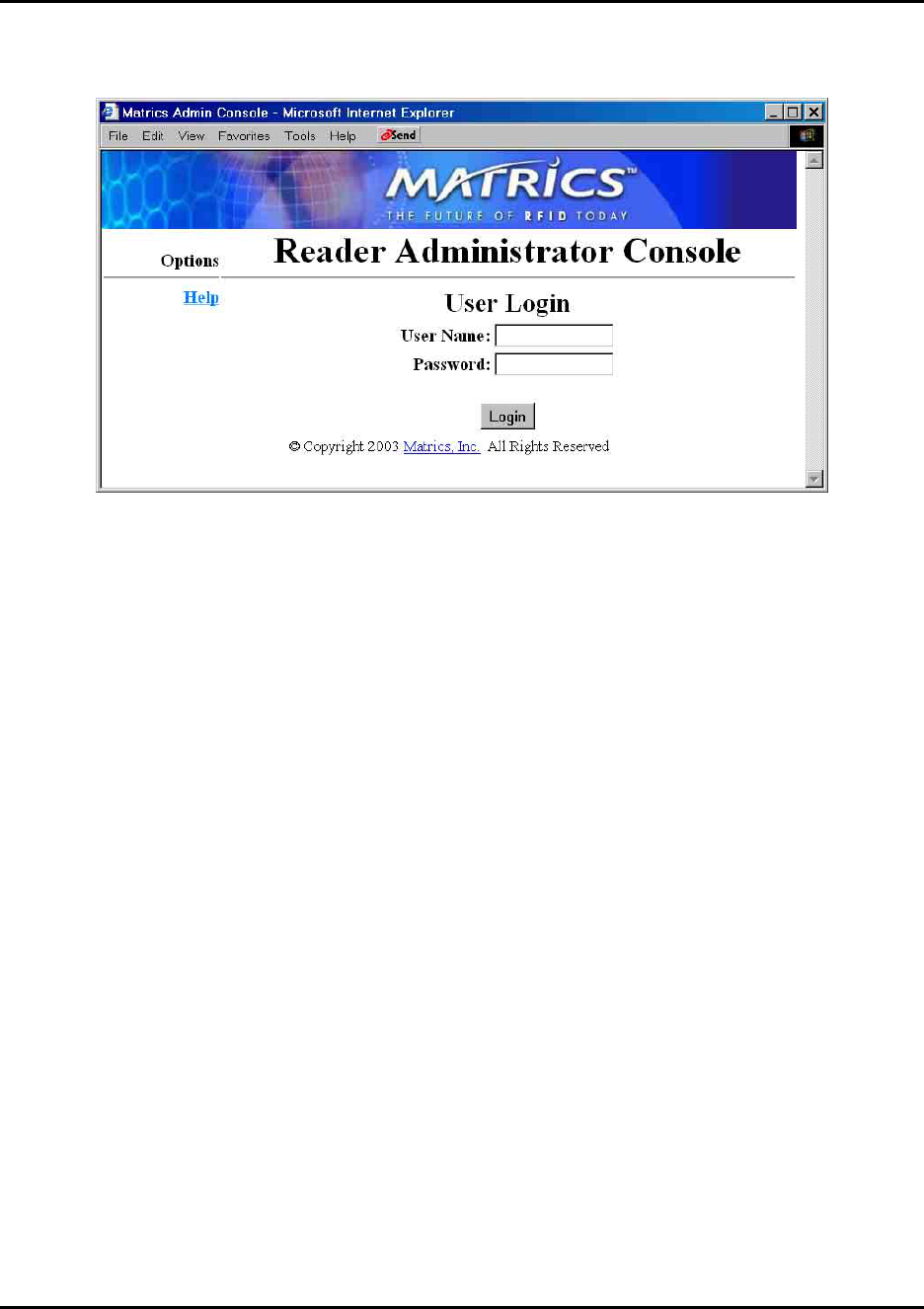

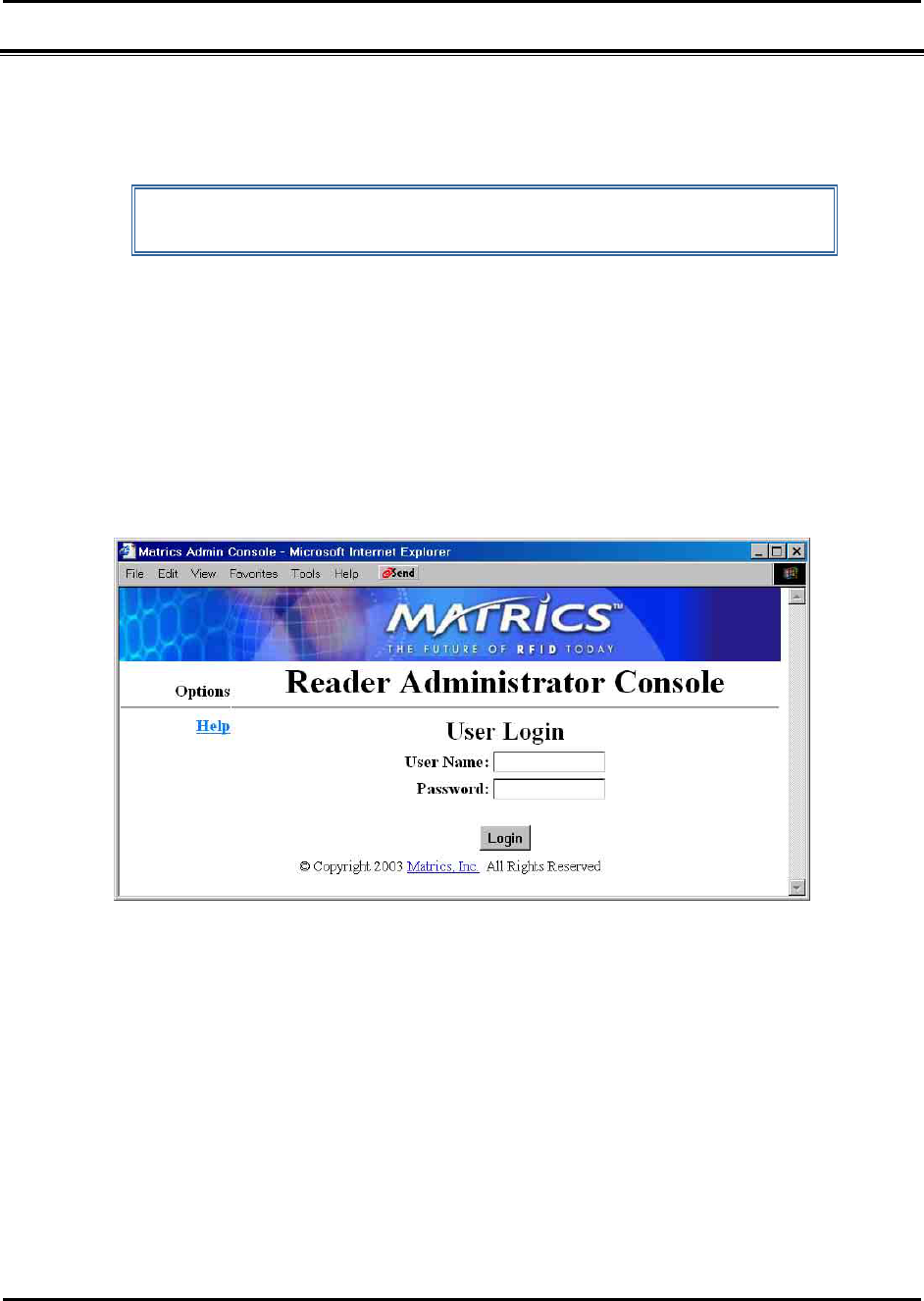

The User Login page displays.
2. If this is the first time you have logged into your system, login to the default Admin account by
typing ‘admin’ in the User Name field, ‘change’ in the Password field, and then clicking Login.
![](/img.php?id=467204&img=bg12.png)
14 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
For subsequent logins, after you’ve created users (refer to the “Manage Users” section in this manual
for more information), type your user name in the User Name field, your password in the Password
field, and then click Login.
The Main page displays.
The Main page provides an informational list of Reader functions, and links to each of the Reader’s
dynamic web pages. Click a link on the left-hand side of the Main page to display the corresponding
page.
![](/img.php?id=467204&img=bg13.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 15
Use Setup Wizard
The Setup Wizard walks you through a test setup of the system to familiarize you with the process of
configuring a system.
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Setup Wizard link on the left-hand side of the main page. The Reader Administrator
Console Configuration Wizard page displays.
Click the Let's Begin button to start the Setup Wizard from the beginning, or click a topic link at the
bottom of the page to jump directly to that topic. Then, simply read the pages displayed for you, and
click Next Step to move through the Wizard page-by-page.
![](/img.php?id=467204&img=bg14.png)
16 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Use Online Help

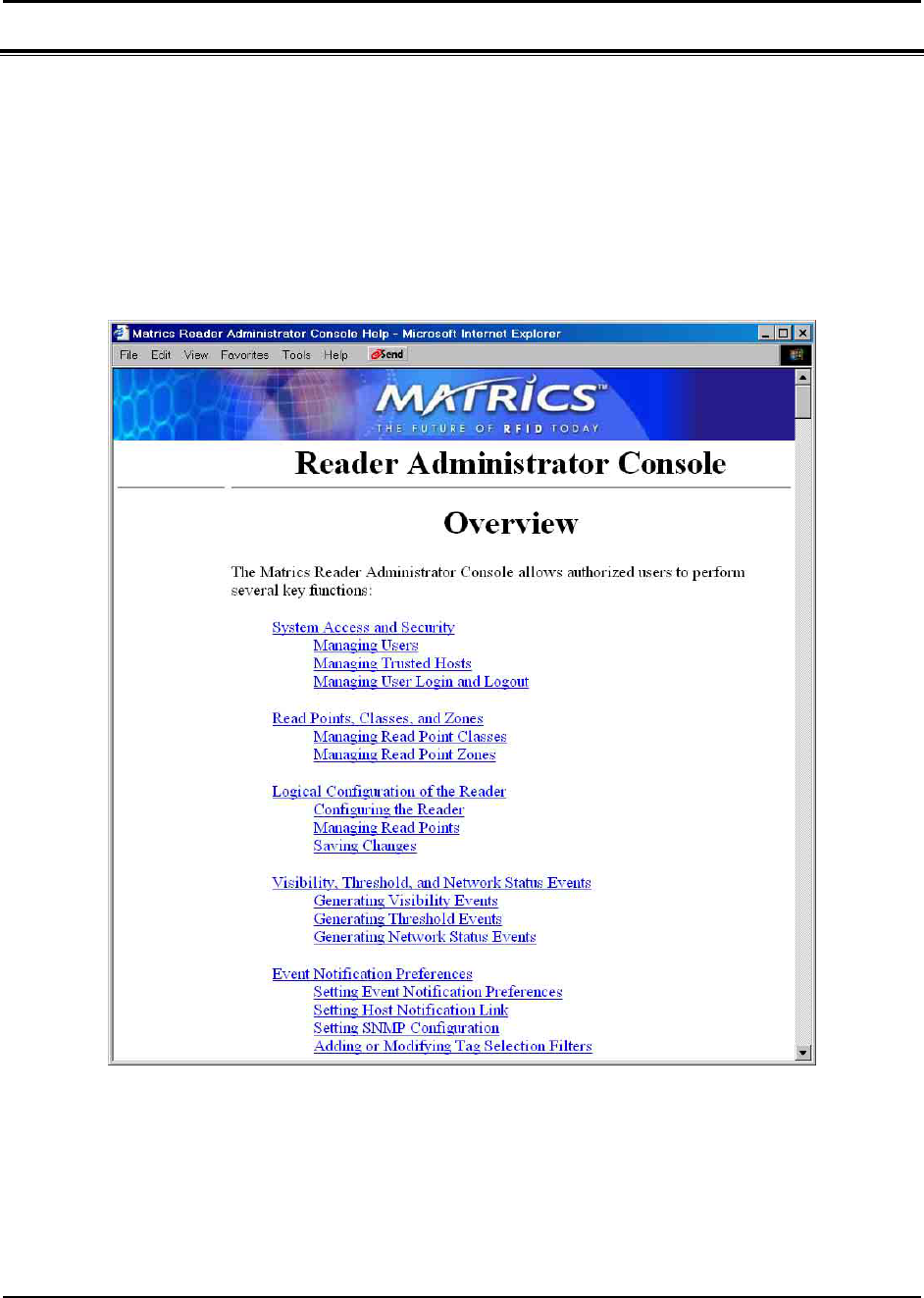

The Help pages provide easy online access to conceptual and procedural information related to the
Reader Administrative and Maintenance Consoles.
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. To view Help for the Administrator Console, click the Help link on the left-hand side of any page in
the Administrator Console. The Administrator Console Help page displays in a separate window.
The Overview section at the top of the Help page provides a ‘table of contents’ of topic links. Click a
topic link in the Overview section to jump to that topic.
3. To view Help for the Maintenance Console, click the Help link on the left-hand side of any page in
the Maintenance Console. The Maintenance Console Help page displays in a separate window.
![](/img.php?id=467204&img=bg15.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 17
Save or Discard Changes (or Revert to Backup)
Whenever you add or make modifications to your Reader configuration using the Reader Administrator
Console, the changes are not immediately applied to the underlying physical Reader Network of hardware
components and networked connections. You must click Commit to save the changes and notify the
Reader to update its configuration file, which updates your physical Reader configuration. While a
successful update may take up to a minute to complete, your system will continue to operate with only a
brief one- or two-second period where no polling is taking place.

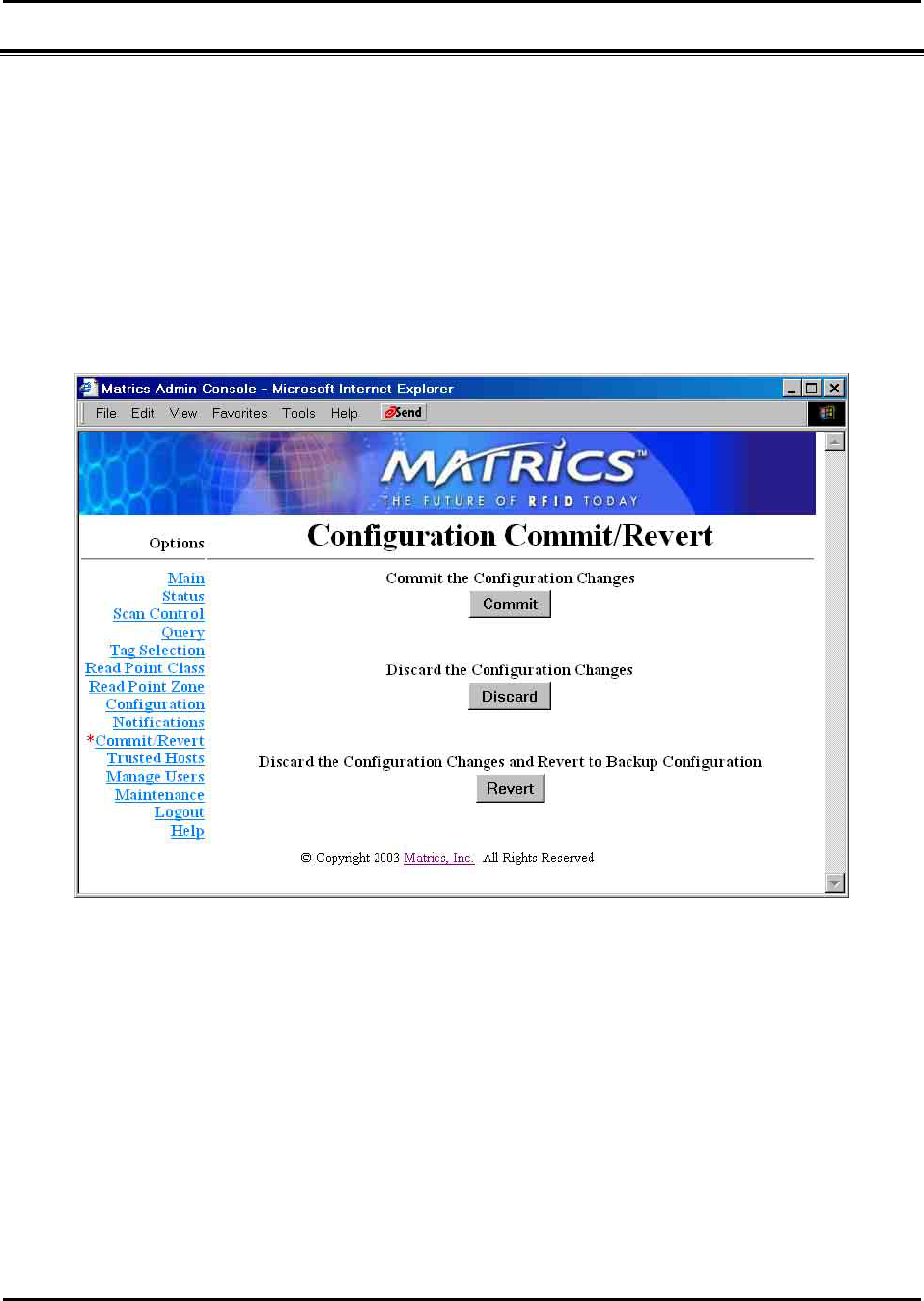

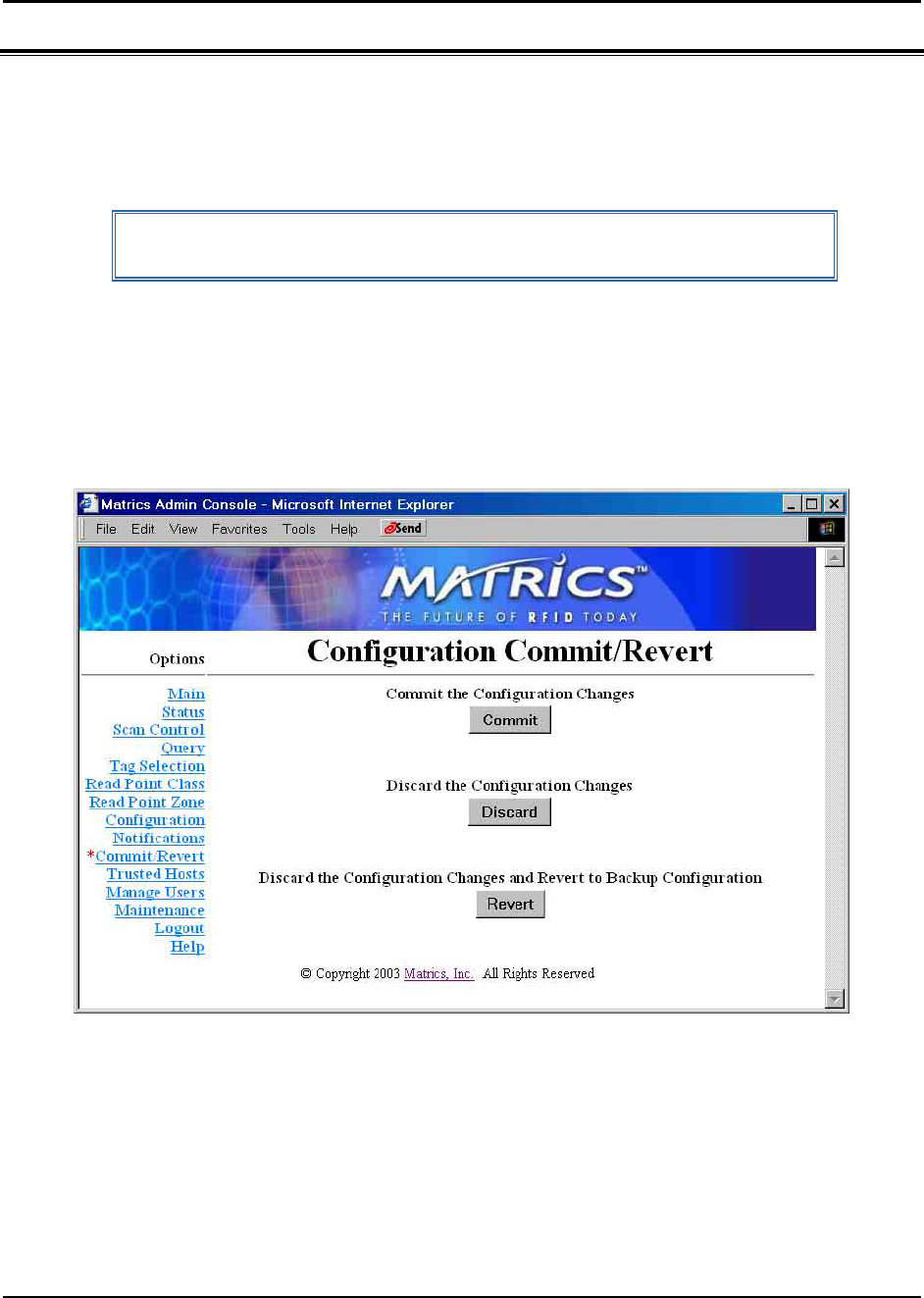

1. Click the Commit/Revert link on the left-hand side of any Reader Administrator Console page. The
Configuration Commit/Revert page displays.
2. Click Commit to save a new configuration, and apply changes to the Reader’s configuration file.
3. Click Discard ONLY if you decide you DO NOT want to save changes to the Reader’s configuration
file that you’ve made to the Reader configuration during this session.
4. Click Revert ONLY if you’ve saved a backup configuration, and you want to discard your current
changes AND revert your physical Reader configuration to the backup configuration.
![](/img.php?id=467204&img=bg16.png)
18 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.

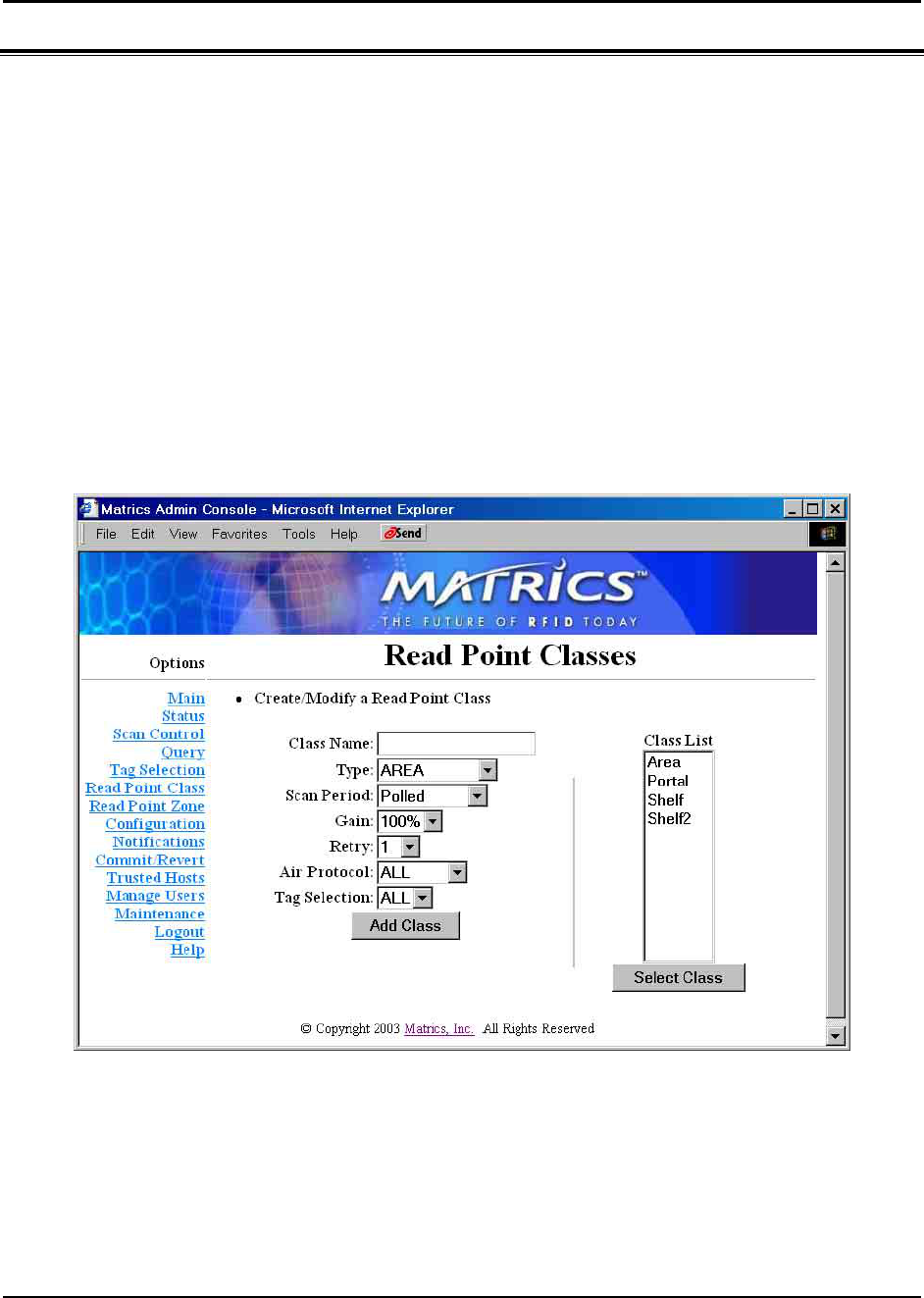

Create Read Point Classes
A read point is an individually addressable antenna. Every read point must have a read point class
associated with it, which is where you define certain parameters in an effort to fine tune the performance
and characteristics of the read point.
Multiple read points may share a single read point class. So, once you define a read point class, you can
re-use it many times without re-entering the same parameters over and over again.
You can add a new read point class from scratch (naming it and specifically setting its parameters), or
you can use an existing read point class as a template (copying its settings, and renaming it.)
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Read Point Class link on the left-hand side of any page. The Read Point Classes page
displays.
3. To add a new read point class, enter the following information:
A unique Class Name (one that does not already exist in the system),
The antenna Type--AREA (long range), SHELFv1 (existing short range shelf type), SHELFv2
(next generation short range shelf type), COMBINED1, or COMBINED2,
Set the Scan Period to tell how often the read point is to be checked for tags,
Set the Gain (as a percentage) to designate the antenna’s power setting,
![](/img.php?id=467204&img=bg17.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 19
Set Retry to tell the Reader how many times to repeat the read command each time a scan is to
be performed,
Set Air Protocol to All, Class 0, or Class 1 to tell the Reader which protocol to use to
interrogate tags, and
Set Tag Selection to designate which tags to read.
After typing the required information, click the Add Class button. If the data is valid, the read point
class is added and the Class List updated.
NOTE: Your physical Reader configuration is not updated until you click
Commit [refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.] If not successful, the system
should indicate the problem and allow you to correct it by repeating the
operation.
4. To create a new read point class by copying an existing class, select the existing class’ name in the
Class List, and then click the Select Class button. The values of the existing class are copied
(including the name.) Change the name of the copied class, and then click Add/Modify Class. A new
read point class is created.
5. To modify a read point class, select the class’ name in the Class List, and then click the Select Class
button. The values of the class auto-populate the fields on the left-hand side of the Read Point
Classes page.
![](/img.php?id=467204&img=bg18.png)
20 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Modify the parameters as needed, and then click Add/Modify Class.
NOTE: If you modify the class’ name, a new class is created. If you modify
the class’ parameters and DO NOT modify its name, then the existing class
is updated with the changes you made to its parameters.
When you modify a read point class’ parameters, all read points that are associated with that class
are automatically updated.
6. To delete an unused read point class, select the class’ name in the Class List, click Select Class, and
then click the Delete Class button. You cannot delete default read point classes.
7. Commit or discard your changes (refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.)
![](/img.php?id=467204&img=bg19.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 21

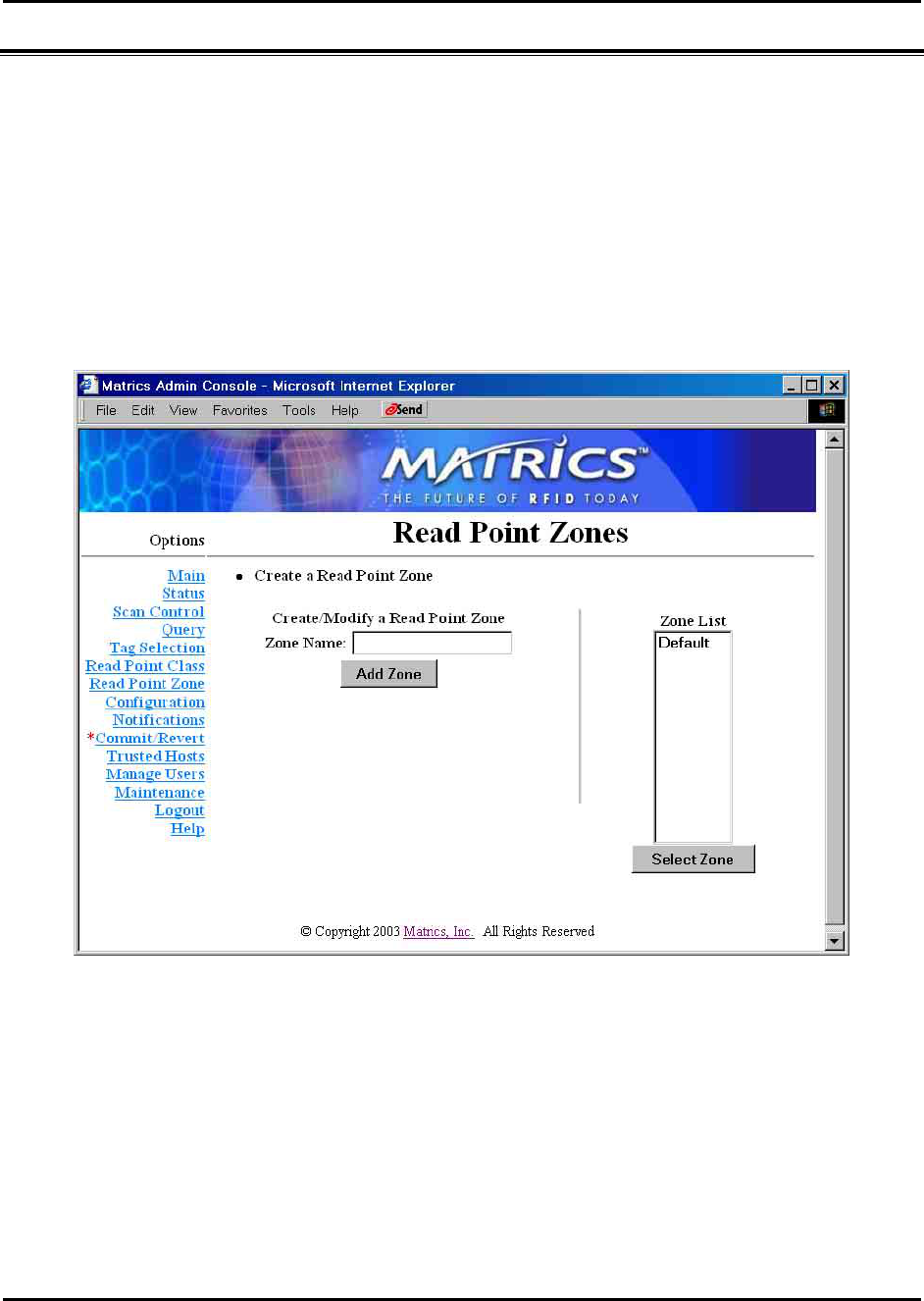

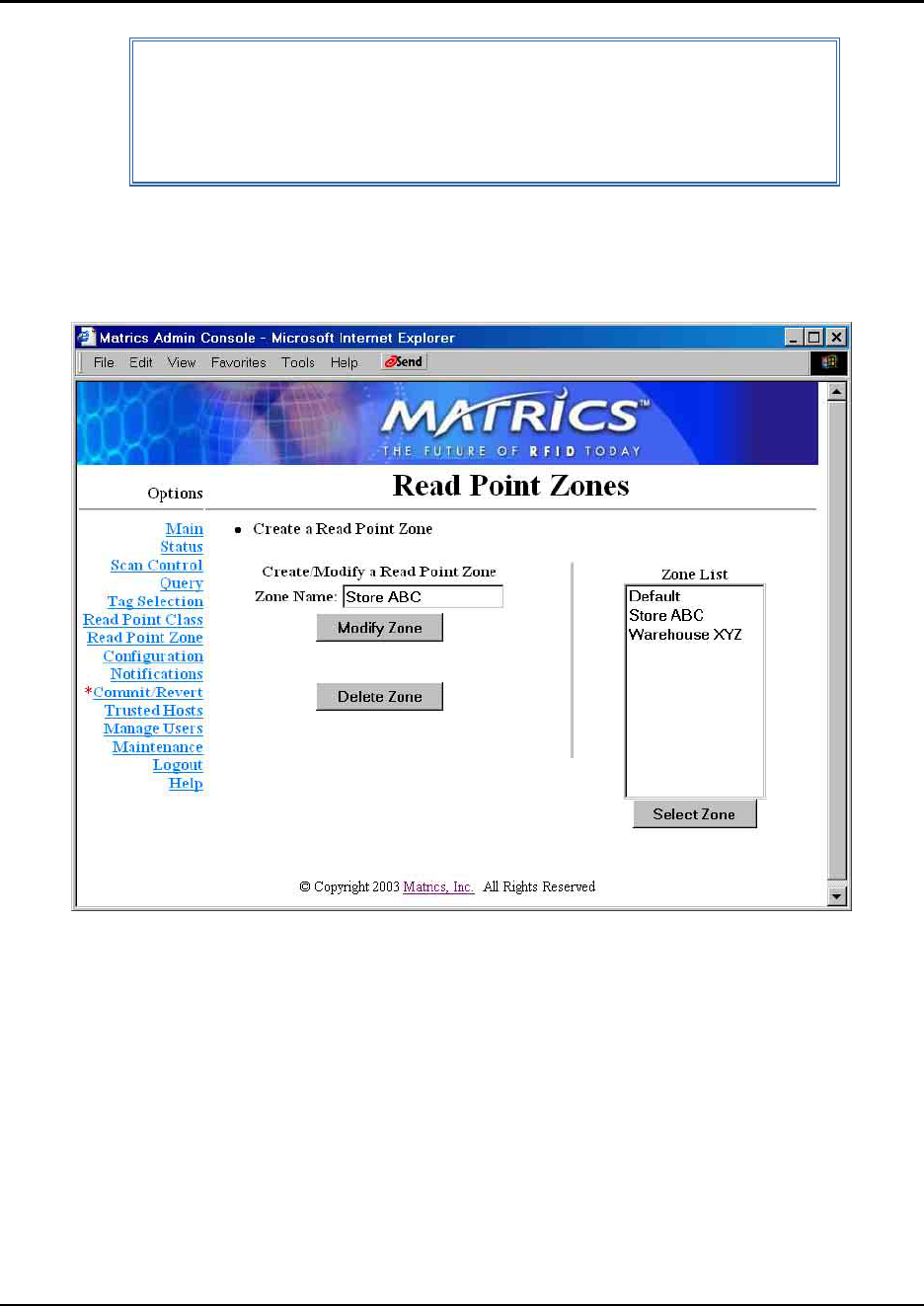

Create Read Point Zones
While you are not required to create or use them, read point zones allow you to group several read points
in a logical, customized manner. For example, you might create a zone named Warehouse XYZ to group
all read points installed in a particular warehouse area, or Store ABC to group all read points installed in
a particular retail location. A default zone (named ‘Default’) is provided for you.
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Read Point Zone link on the left-hand side of any page. The Read Point Zones page
displays.
3. To add a new read point zone, type a unique zone name (one that does not already exist in the
system), and then click the Add Zone button. The new zone name displays in the Zone List.
The new zone can now be associated with one or more read points (refer to the “Add or Modify Read
Points” section in this manual for more information.)
![](/img.php?id=467204&img=bg1a.png)
22 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
NOTE: Your physical Reader configuration is not updated until you click
Commit [refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.] If not successful, the system
should indicate the problem and allow you to correct it by repeating the
operation.
4. To modify a read point zone, select the zone’s name in the Zone List, and then click Select Zone.
The Zone Name field on the left-hand side of the Read Point Zone page auto-populates with the
selected zone’s name.
Change the selected zone’s name as needed, and then click Modify Zone.
5. To delete an unused read point zone, select the zone’s name in the Zone List, click Select Zone, and
then click the Delete Zone button. You cannot delete the default read point zone.
6. Commit or discard your changes (refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.)
![](/img.php?id=467204&img=bg1b.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 23

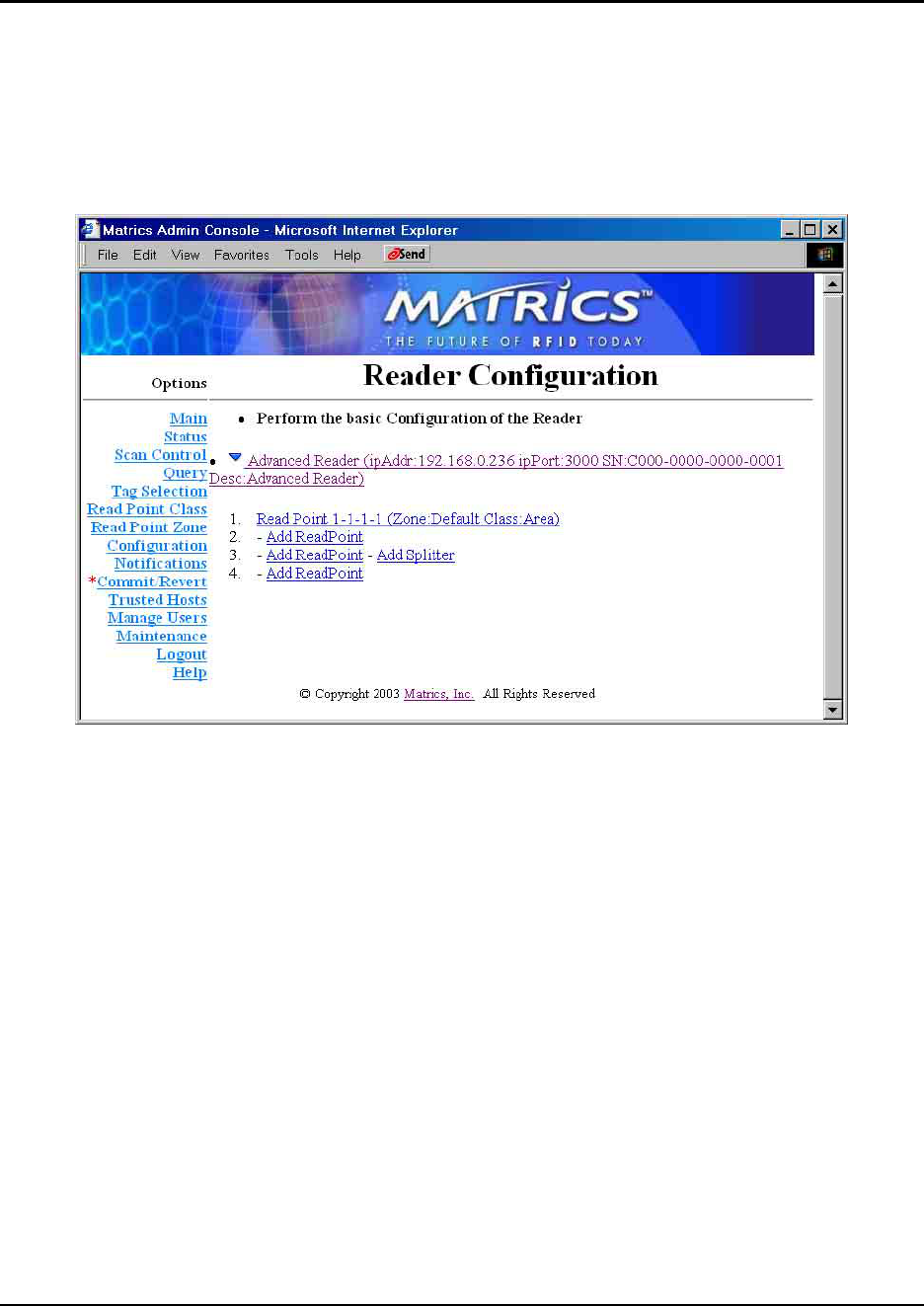

Configure the Reader
The Reader Administrator Console’s Reader Configuration pages allow you to logically describe the
antenna connections of your physical Reader, so that the AR 400 Reader can communicate to other
systems the connectivity and parameters of the devices.
Before you use the Reader Administrator Console to define the configuration of your Reader, you must
gather certain information about your physical devices from the personnel who installed them. For
example, you will need to know what types of devices are connected to each port and the parameters
associated with those devices. You also need to know the network configuration parameters (such as IP
addresses, netmask and default gateway, etc.)
Once you have obtained the information you need about your physical devices, you can access the
dynamic web pages in the Reader Administrator Console, which act as a wizard to walk you through the
process of defining your Reader configuration and the association of its devices.
By default, a standard Reader configuration is displayed with a Reader link and links for four Reader
ports. A port can connect directly to a read point (antenna), or combine with a subsequent port to connect
to a splitter. The following list describes the four possible port combinations:
4 Ports -- All four ports connect directly to read points.
1 Splitter + 2 Ports -- The first two ports connect to one splitter, the other two connect directly to
read points.
2 Ports + 1 Splitter -- The first two ports connect directly to read points, the other two connect to
one splitter.
2 Splitters -- The first two ports connect to one splitter, the other two connect to another splitter.
The current Reader port status (direct port or splitter port) determines what kind of read points can be
attached to this specific port. In other words, it determines what Read Point Class types can be used with
this attached read point, essentially determining a subset of compatible Read Point Classes with these
types.
If a port connects to a read point directly, the link for the read point provides access to its
parameters.
If a port is empty, Add ReadPoint and Add Splitter links are displayed.
If a splitter is used:
o If a read point has not been added yet to this splitter, a Delete Splitter link is provided if you
want to remove the splitter, and an Add ReadPoint link is provided if you want to add a
read point to the splitter.
o If a read point has been added to this splitter, the only link provided is to access to the read
point’s parameters.
![](/img.php?id=467204&img=bg1c.png)
24 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Modify a Reader’s Attributes
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Configuration link on the left-hand side of any page. The Reader Configuration page
displays.

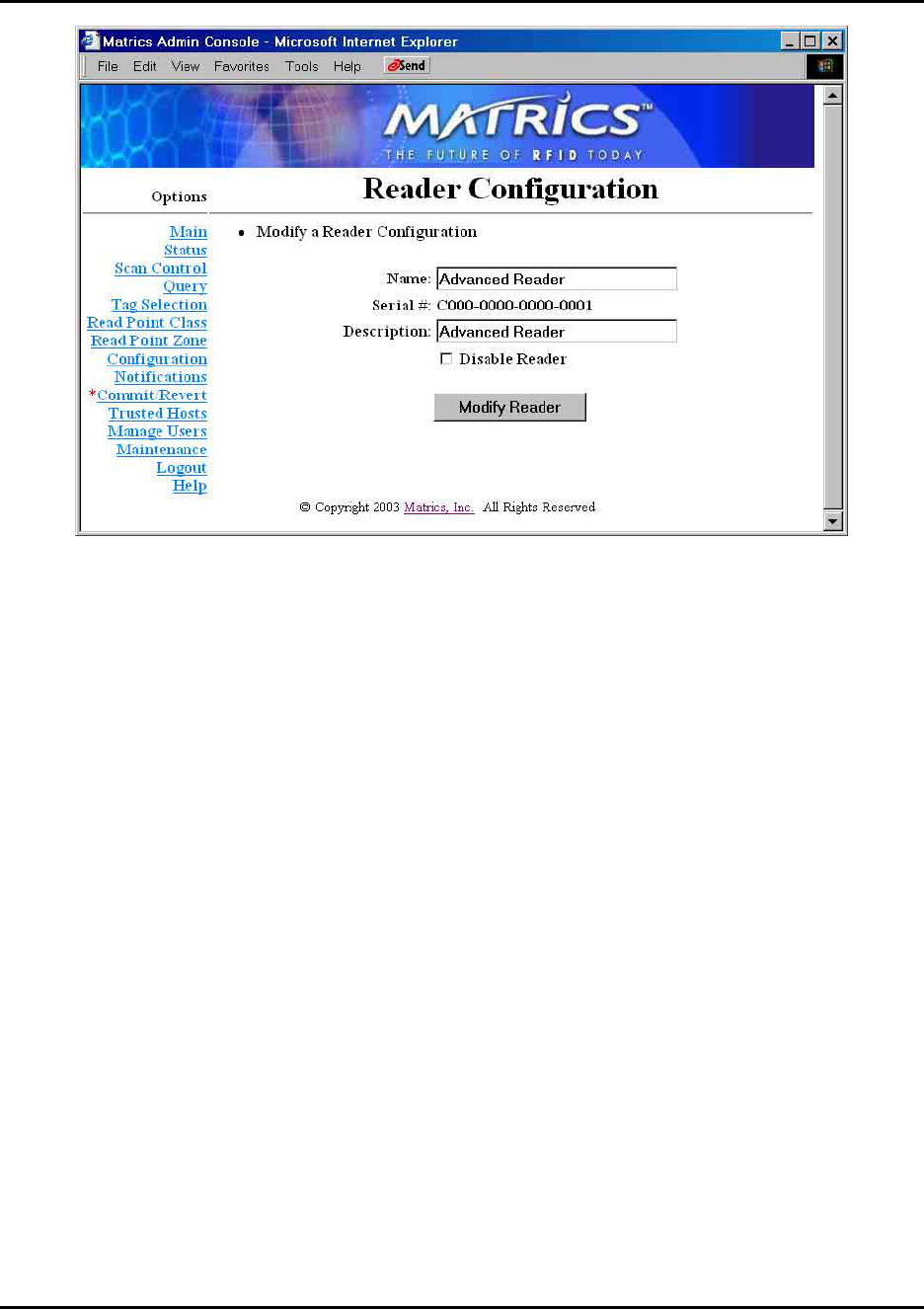

3. To view the Reader’s attributes, click the Reader link at the top of the Reader Configuration page.
The Reader Configuration’s Modify a Reader page displays. The fields on the Modify a Reader page
auto-populate with the selected Reader’s attributes.
![](/img.php?id=467204&img=bg1d.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 25
To customize the Reader’s name and/or descriptive information, type a unique name (one that
does not already exist in the system) and/or description to help identify the Reader (for example,
its location), in the corresponding fields. Click Modify Reader when you are done to return to
the Reader Configuration page.
A unique (factory defined) serial number is displayed in the Serial # field in the format “nnnn-
nnnn-nnnn-nnnn.”
Check Disable Reader on the Reader Configuration’s Modify a Reader page if you want to
disable this Reader from add and modify operations. Click Modify Reader when you are done to
return to the Reader Configuration page.
Add, Modify, or Delete Read Points
When you add a read point to the logical view of your Reader, you add it to a Reader port.
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Configuration link on the left-hand side of any page. The Reader Configuration page
displays.

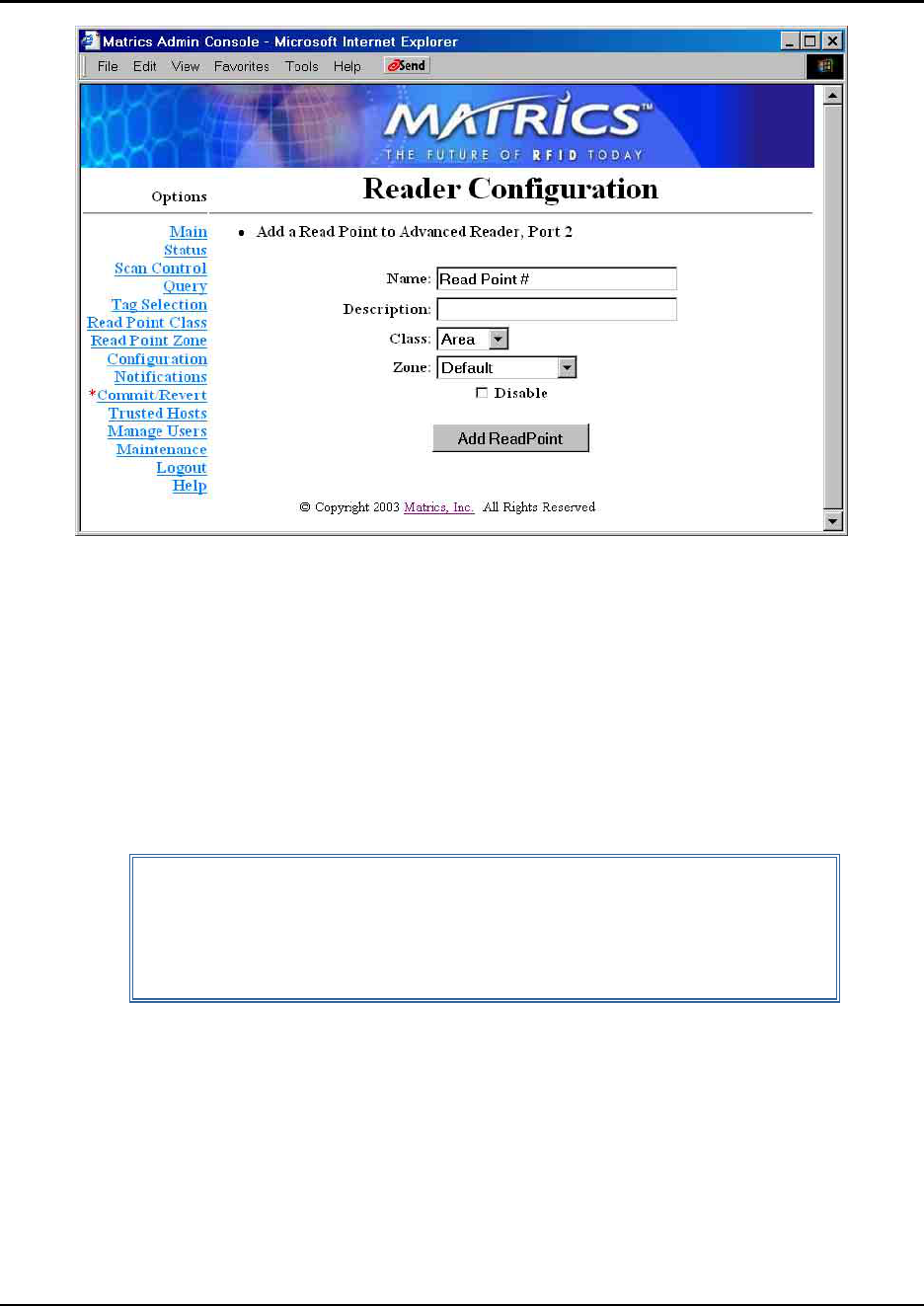

3. To add a single read point to a particular Reader port, click Add ReadPoint. The Reader
Configuration’s Add Read Point page displays.
![](/img.php?id=467204&img=bg1e.png)
26 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
4. To add a read point to the associated Reader port, enter the following information:
A unique read point Name (one that does not already exist in the system),
An optional Description to help identify the read point (for example, its location),
The read point Class to associate with this read point, and
The read point Zone to associate with this read point.
Check Disable if you want to disable this read point from add and modify operations.
5. After typing the required information, click the Add ReadPoint button. If the data is valid, the read
point is added and the updated logical view of your Reader configuration displays.
NOTE: Your physical Reader configuration is not updated until you click
Commit [refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.] If not successful, the system
should indicate the problem and allow you to correct it by repeating the
operation.

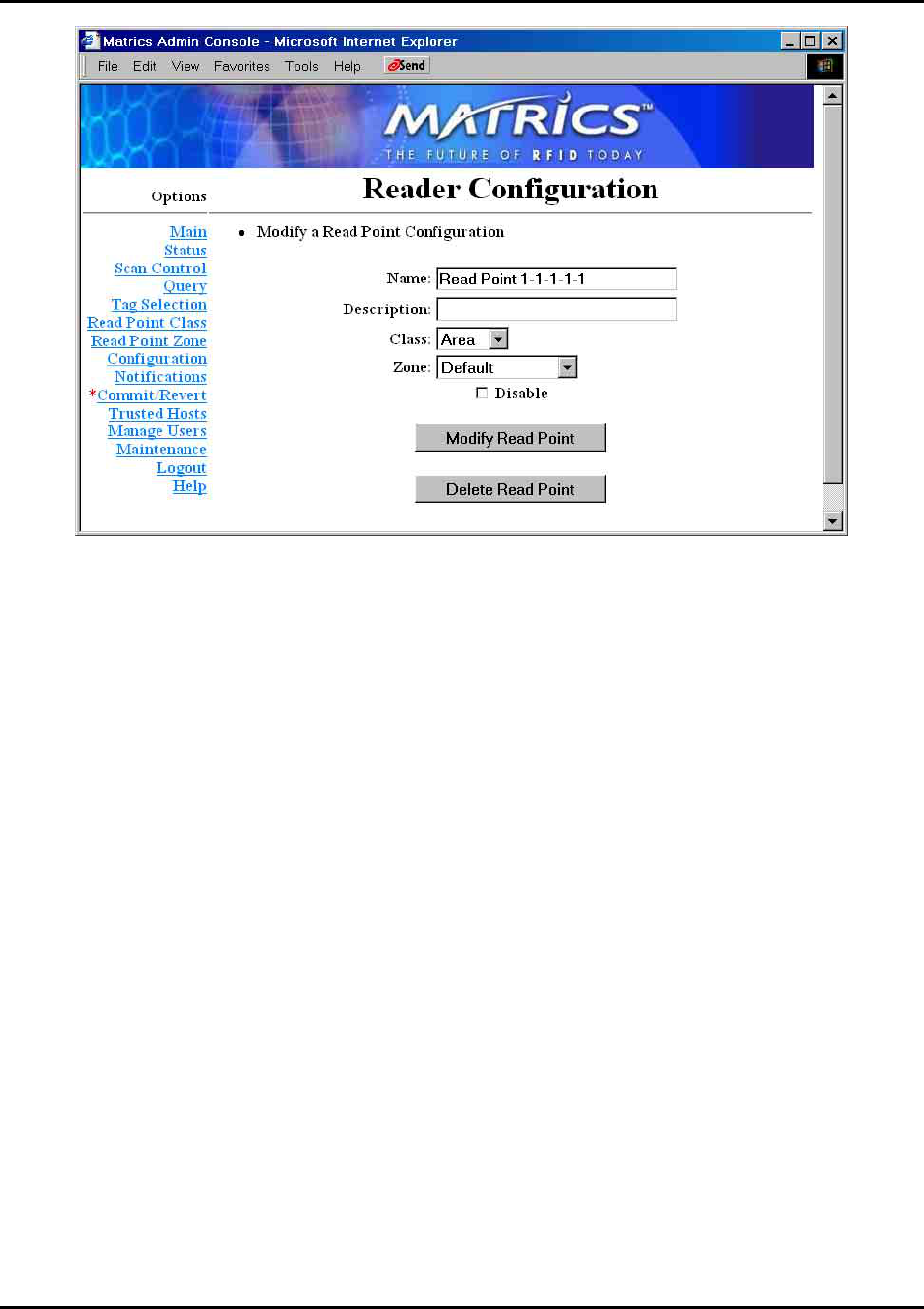

6. To modify a read point, select it on the Reader Configuration page, and the Reader Configuration’s
Modify Read Point page displays. The fields on the Modify Read Point page auto-populate with the
selected read point’s settings.
![](/img.php?id=467204&img=bg1f.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 27
Change the selected read point’s settings as needed, and then click Modify Read Point.
7. To delete a read point, select it on the Reader Configuration page, and the Reader Configuration’s
Modify Read Point page displays. The fields on the Modify Read Point page auto-populate with the
selected read point’s settings.
Click Delete Read Point. The selected read point is removed from the logical view of your Reader
configuration.
8. Commit or discard your changes (refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.)
Add or Delete a Splitter
When you add a splitter to the logical view of your Reader, you add it to a Reader port.
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Configuration link on the left-hand side of any page. The Reader Configuration page
displays.
3. To add a splitter to a particular Reader port, click Add Splitter. A Delete Splitter link is provided if
you choose to remove the splitter later, and an Add ReadPoint link is provided if you want to add a
read point to the splitter.
![](/img.php?id=467204&img=bg20.png)
28 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
4. Click Add ReadPoint to add a read point to the splitter. The Reader Configuration’s Add Read
Point page displays.
5. To add a read point to the associated splitter, enter the following information:
A unique read point Name (one that does not already exist in the system),
An optional Description to help identify the read point (for example, its location),
The read point Class to associate with this read point, and
The read point Zone to associate with this read point.
Check Disable if you want to disable this read point from add and modify operations.
6. After typing the required information, click the Add ReadPoint button. If the data is valid, the read
point is added and the updated logical view of your Reader configuration displays.
NOTE: Your physical Reader configuration is not updated until you click
Commit [refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.] If not successful, the system
should indicate the problem and allow you to correct it by repeating the
operation.
![](/img.php?id=467204&img=bg21.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 29
Define Trusted Hosts
To ensure the controlled and secured access to Reader Administrator Console functions, you should
designate which computers are authorized to have system access. You do this by setting up “trusted
hosts” (authorized computers.) Only computers that are registered in the system as trusted hosts can
successfully access Reader Administrator Console functions.

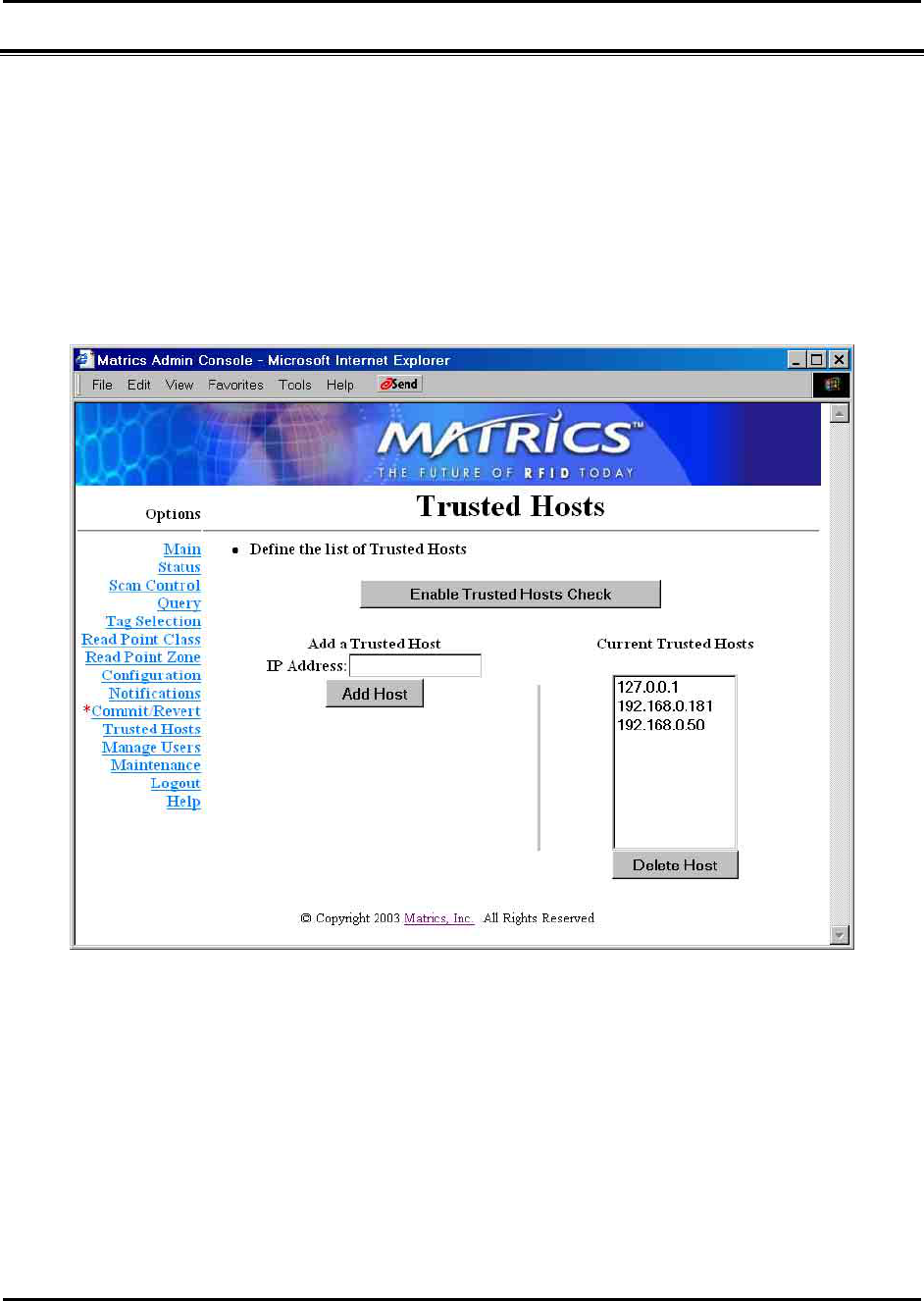

1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Trusted Hosts link on the left-hand side of any page. The Trusted Hosts page displays.
Trusted hosts checking is disabled by default (to allow your first admin to log in from anywhere.)
With trusted hosts checking disabled, the IP address of any system that accesses the Reader is
automatically added to the Current Trusted Hosts List. You can use this feature to see which systems
have accessed the Reader, thereby enabling you to track down any unauthorized users.
However, if you wish to limit Reader access to only those computers that you’ve designated in the
Current Trusted Hosts List, then you should enable trusted hosts checking for higher security.
![](/img.php?id=467204&img=bg22.png)
30 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
3. To enable trusted hosts checking, click the Enable Trusted Hosts Check button on the Trusted
Hosts page. When enabled, the Enable Trusted Hosts Check button toggles to a Disable Trusted
Hosts Check button. Click Disable Trusted Hosts Check to turn off trusted hosts checking.
4. To add a trusted host, type the computer’s IP address in the dotted notation form (0.0.0.0), not
hostname, in the IP Address field on the Trusted Hosts page. After you have entered the IP address,
click the Add Host button.
The system will attempt to validate the IP address by “pinging” it. If the address is properly
formatted and can be pinged, it is added to the Current Trusted Hosts List.
5. To delete a trusted host, select the computer’s IP address in the Current Trusted Hosts List on the
Trusted Hosts page, and then click the Delete Host button. The local host (127.0.0.1) cannot be
deleted.
6. Commit or discard your changes (refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.)
![](/img.php?id=467204&img=bg23.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 31
Manage Users
To ensure the controlled and secured access to Reader Console functions, you should designate which
users are authorized to have system access, and what level of access they are allowed. You do this by
setting up authorized user accounts. Only users logging in with a registered user name and password can
successfully access Reader Console functions.

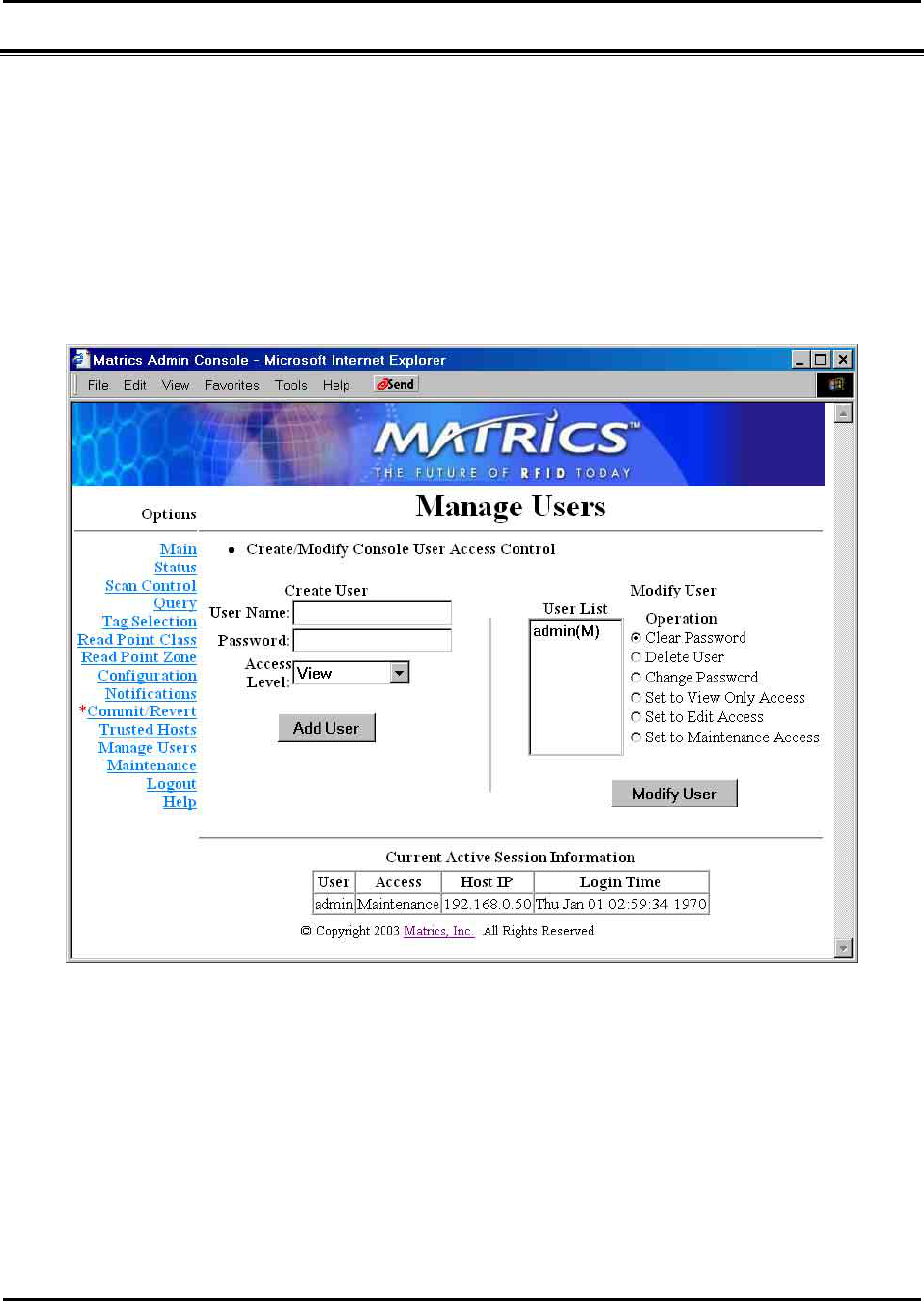

1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Manage Users link on the left-hand side of any page. The Manage Users page displays.
3. To add a new user, type a valid User Name and Password for him or her on the Manage Users page.
A valid user name must be unique (no other user can be assigned the identical user name), and both
user name and password must consist of at least one but not more than 32 alphanumeric characters.
Also, user name and password are case-sensitive (for example, a password that is assigned to a user
typed in all lower-case letters must be entered by the user at log-in in all lower-case letters.)
![](/img.php?id=467204&img=bg24.png)
32 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
4. Select an access level for the new user from the Access Level drop-down list box.
The Maintenance option gives the new user all privileges (including upgrading firmware.) The Edit
option allows the new user to change system parameters, but not as extensively as Maintenance
access. The View option allows the new user to see system settings, but not change them.
NOTE: You will only see the Maintenance option in the Access Level
drop-down list box if you have been granted Maintenance level access. If
you have Edit level access, for example, you will only be able to create
users with the same (Edit) or lesser level access (View) than you have.
5. Click the Add User button. If successful, the new user name displays in the User List. If not
successful, the system should indicate the problem and allow you to correct it by repeating the
operation.
6. To delete an existing user, select the user name in the User List, select the Delete User radio button,
and then click Modify User. When you delete a user, you remove him or her from the system
entirely. After a user has been deleted, a new user may be added using the old user name again.
Reset (Clear) a Password
1. To reset a user’s password (in the event he or she has forgotten it), select the user name in the User
List, and then select the Clear Password radio button.
2. Click Modify User. The user’s password is re-set automatically to the default password, “change.”
When the user attempts to log in next, the Reader will display the Change User Password page to
prompt the user to change his or her password from the default.
Change a Password

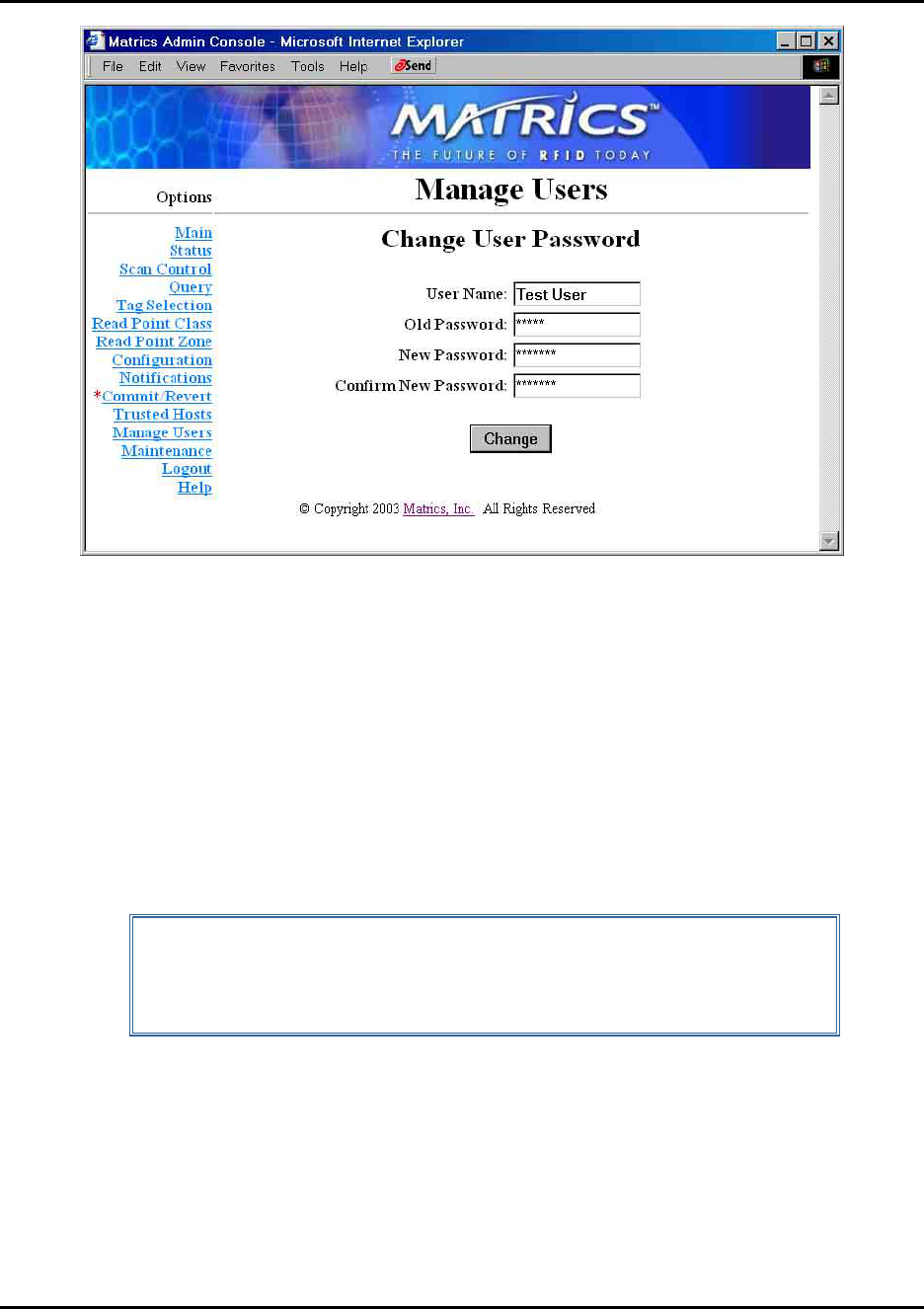

1. To change a user’s password, select the user name in the User List, select the Change Password
radio button, and then click Modify User. The Change User Password page displays.
![](/img.php?id=467204&img=bg25.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 33
2. Type the Old Password, and the New Password (twice) on the Change User Password page, and
then click Change.
3. Commit or discard your changes (refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.)
Change an Access Level
To change a user’s access level, select the user name in the User List, and then select one of the following
radio buttons: Set to View Only Access, Set to Edit Access, or Set to Maintenance Access. Then click
Modify User.
NOTE: You cannot increase another user’s access level higher than your
own. If you have Edit level access, for example, you cannot increase another
user’s access level to Maintenance. Also, if you only have View access, you
cannot change another user’s access level at all.
Display Current Active Session Information
At the bottom of the Manage Users page, the Current Active Session Information section displays
information about your current login session, such as: your login name and access level, the IP address of
the computer from which you are accessing the system, and the date and time that you logged in.
![](/img.php?id=467204&img=bg26.png)
34 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Log Out of the System
After you have configured your new system and committed your configuration to save it, you can log out
of the system. Logging out ensures the security and integrity of your system, denying unauthorized users
access to the Reader.
NOTE: If you do not log out, and you haven’t used the system for a pre-set
amount of time, the Reader logs you out of the system automatically.
1. Click the Logout link on the left-hand side of any page.
If you have any unsaved changes, the Reader will prompt you to commit or discard them.
2. If prompted to do so, commit or discard your changes (refer to the “Save or Discard Changes (or
Revert to Backup)” section in this manual for more information.)
![](/img.php?id=467204&img=bg27.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 35
Your session ends, and the User Login page displays.
![](/img.php?id=467204&img=bg28.png)
36 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Section 6. Notification of Events
Events Overview
The AR 400 Reader generates several types of events: Visibility and Threshold Events that report tag
activity; and Network Status and Exception Events that report device/system activity. If you want to be
notified when particular events occur, you can choose (subscribe to) these events via the Event
Notifications page. You may also choose whether or not you want to receive any event notifications at all.
Visibility Events
There are three types of Visibility Events that are generated when changes in tag visibility occur:
New Tag Event— A New Tag Event is a special case event generated to notify you when a new tag
appears for the first time. A new tag is one that has never been seen before, and has not previously
been known to the Reader. You can then commission the tag (or associate an User ID and a threshold
rule to the tag.)
This event should be processed in a timely fashion to give meaningful results, so set the Notify
option to Immediate (the default for this event type). If you don’t want to be notified when this type
of event occurs, set the Notify option to Never, in which case the event is promoted to a generic
Visibility Changed Event.
Tag Not Visible Event—A Tag Not Visible Event is a special case event generated to notify you
when a tag is not currently visible to any Read Point. For example, if a tagged item is removed from
a shelf and is out of RF range (not being seen by any Read Point), then a Tag Not Visible Event
would apply. The Event reports where the tag was located when last visible to the system.
Since there may be cases, in the normal course of operation, that a tag has transient periods when it is
changing visibility in the system, set the Notify option to Moderated to smooth out temporary
conditions, and generate an event only when the tag is no longer being actively tracked. (The AR 400
Reader still knows about the tag, but it is not visible to any Read Point.) If you don’t want to be
notified when this type of event occurs, set the Notify option to Never, in which case the event is
promoted to a generic Visibility Changed Event.
Visibility Changed Event—A Visibility Changed Event is a generic event (not as specific as a New
Tag or Tag Not Visible Event) generated any time that the visibility of a tag changes. The visibility
change may be due to more, less, different, or even no Read Points being associated with a tag. For
example, if a tagged item moves from a shelf on aisle 2 to another shelf on aisle 4 (visibility changes
from one Read Point to another), then a Visibility Changed Event would apply.
Note: If you have enabled Tag Not Visible Events, then a tag not currently visible to any Read
Point(s) will generate the more specific Tag Not Visible Event instead. Likewise, a New Tag Event
will be generated for the first visibility change when applicable.
![](/img.php?id=467204&img=bg29.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 37
This event should be processed in a timely fashion to give meaningful results, so set the Notify
option to Immediate (the default for this event type.)
Threshold Events
A Threshold Event is generated when the number of visible tags drops below or rises above a threshold
that you specify via a Tag List notification reply. Before you can generate Thresholds Events, you must
import and associate rules for your thresholds. Since some users may not want to set up rules and
thresholds, by default, this event’s notify option is set to Never. Threshold events are only generated
when the notify option is enabled, and User IDs and thresholds have been supplied via a Tag List. Since
there may be cases, in the normal course of operation, that a tag may have transient periods when it is
changing visibility in the system, set the Notify option to Moderated to smooth out temporary conditions,
and generate an event only when the tag is not experiencing a temporary moment of invisibility.
Network Status Events
Network Status Events alert you to changes in status of the managed resources of the Reader. For
example, if a Reader problem is detected, an event is generated by the Reader and sent without a server
request.
If you want to receive Network Status Event notifications, you must subscribe to them by setting the
SNMP configuration on the Event Notifications page. If the SNMP host is not set (or is not valid), no
Network Status Events will be sent
Network Status Events are divided into two categories, ‘device’ and ‘program.’ A Device Event notes the
change in a device’s status. A Device Event is further divided into two categories, ‘user’ and ‘system.’
Both categories have an addition specification as to whether the status change is being reported for itself
or in association with a ‘parent’ device.
For example, if the ‘user’ disabled a Reader, several events would be generated. The Reader would get a
‘user/disable’ status notification. The Read Point(s) below the Reader would get a ‘user/disable/parent’
notification. If the system detected a problem with the Reader, it would automatically disable the device,
and the matching events would be generated. These classifications allow you to not only see the overall
effect on the Reader Network, but also allow the likely offending component to be identified. When the
fault is fixed, you can ‘enable’ the device. Any device below it that was ‘parent disabled’ is automatically
brought back online.
Exception Events
Exception Events provide the same type of information available via SNMP, except over XML. An
Exception Event gives you information when a device goes off-line, polling is turned off, etc.. You may
choose this option if you don’t support SNMP, but still want to receive feedback if the device/program
changes state. XML is enabled by setting the Notify option for Exception Events to ‘Immediate’ in the
Notify column on the Event Notifications page.
![](/img.php?id=467204&img=bg2a.png)
38 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Set Event Notification Preferences
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.

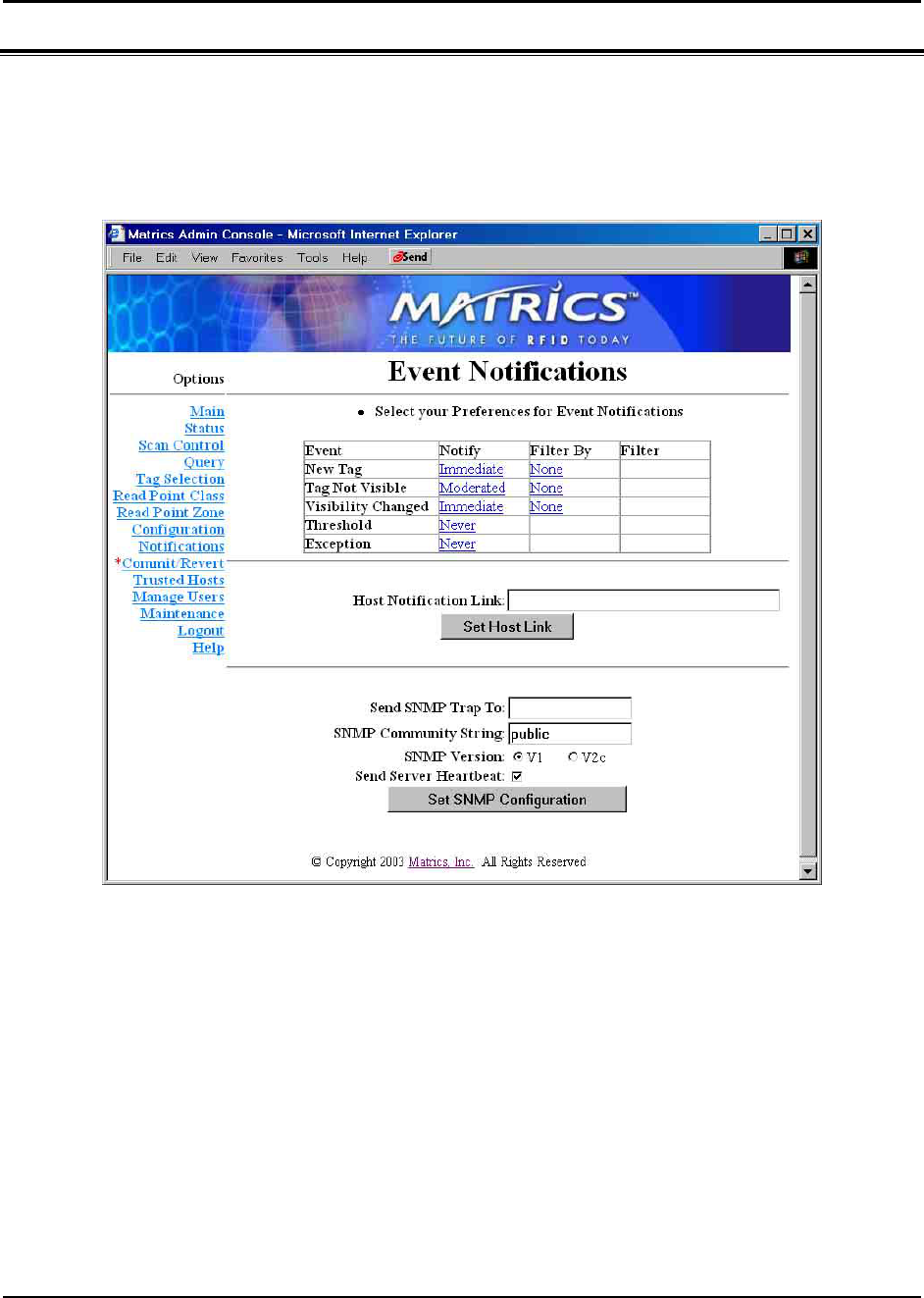

2. Click the Notifications link on the left-hand side of any page. The Event Notifications page displays.
3. To specify the event notifications that you want to receive, click the link in the Notify column
corresponding to each event type, and then select the appropriate Notify Option for the event:
Never—The system never generates notifications for this event type.
Immediate—The system generates notifications for this event type as soon as they are detected,
assuming they are not ‘filtered’ out.
Moderated—The system retests this condition every minute up to the timeout value. If the
condition still exists and an intervening event has not happened since, the system generates
notifications for this event type, assuming they are not ‘filtered’ out.
Click Set Notify Option. The Event Notifications page displays again.
![](/img.php?id=467204&img=bg2b.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 39
4. To specify the event filter option that you want to use, click the link in the Filter By column
corresponding to each event type (not available for Threshold or Exception Events because they
provide system-wide information), and then select the appropriate Filter Option for the event:
None - No filter. Allows all events to pass through.
Zone Inclusive - Only allow events that occur in a specific Read Point Zone to pass through.
Class Inclusive - Only allow events that occur in a specific Read Point Class to pass through.
Read Point Inclusive - Only allow events that occur in a specific Read Point to pass through.
Zone Exclusive - Only allow events that do NOT occur in a specific Read Point Zone to pass
through.
Class Exclusive - Only allow events that do NOT occur in a specific Read Point Class to pass
through.
Read Point Exclusive - Only allow events that do NOT occur in a specific Read Point to pass
through.
Click Set Filter Option. The Event Notifications page displays again.
5. Commit or discard your changes (refer to the “Save or Discard Changes (or Revert to Backup)”
section in this manual for more information.)
Set Host Notification Link
If the Host Notification Link is not set (or is not valid), no notifications will be sent. If you want to
receive event notifications, you must supply a valid link in the Host Notification Link field on the Event
Notifications page, and then click Set Host Link.
Set SNMP Configuration
If the SNMP host is not set (or is not valid), no Network Status Events will be sent. If you want to receive
Network Status Event notifications, you must subscribe to them by setting the SNMP configuration on
the Event Notifications page.
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Notifications link on the left-hand side of any page. The Event Notifications page displays.
3. Type a valid link (a static IP address) in the Send SNMP Trap To: field.
4. Type the SNMP variable (the default value is “public”) in the SNMP Community String field.
5. Click the radio button corresponding to the version of SNMP you are using.
6. Click and check the Send Server Heartbeat checkbox if you want to receive a “positive” feedback
letting you know that the Reader is up and running. The system could detect it has gone offline (i.e.,
lost power) if it doesn’t see a heartbeat within two minutes.
7. Click Set SNMP Configuration.
![](/img.php?id=467204&img=bg2c.png)
40 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Section 7. Tag Selection Filters
By creating tag selection filters (and associating rules to those filters), you can specify tag selection
criteria that you want the AR 400 Reader to use to limit the tags on which it reports.
Add, Modify, or Delete Tag Selection Filters
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.

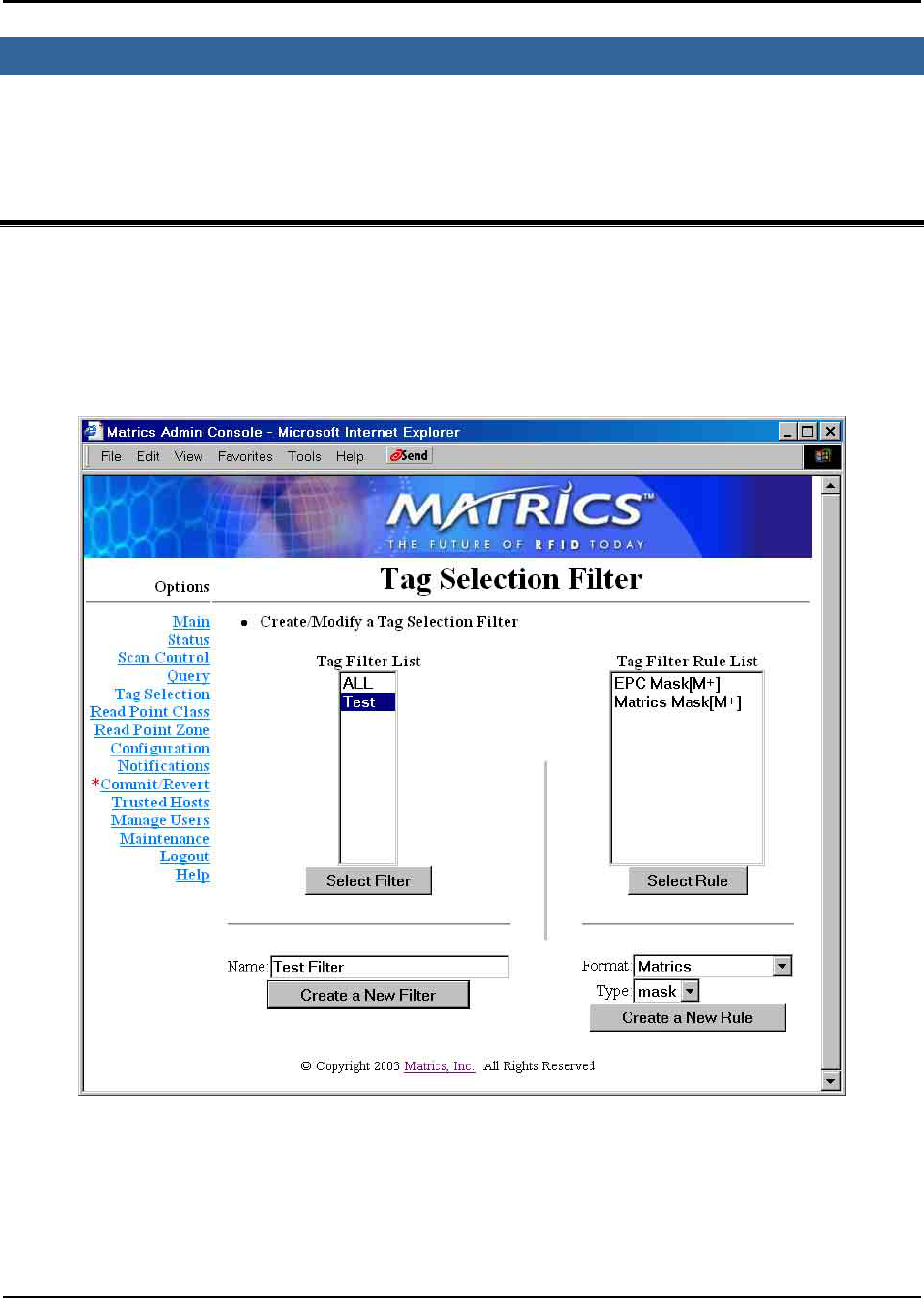

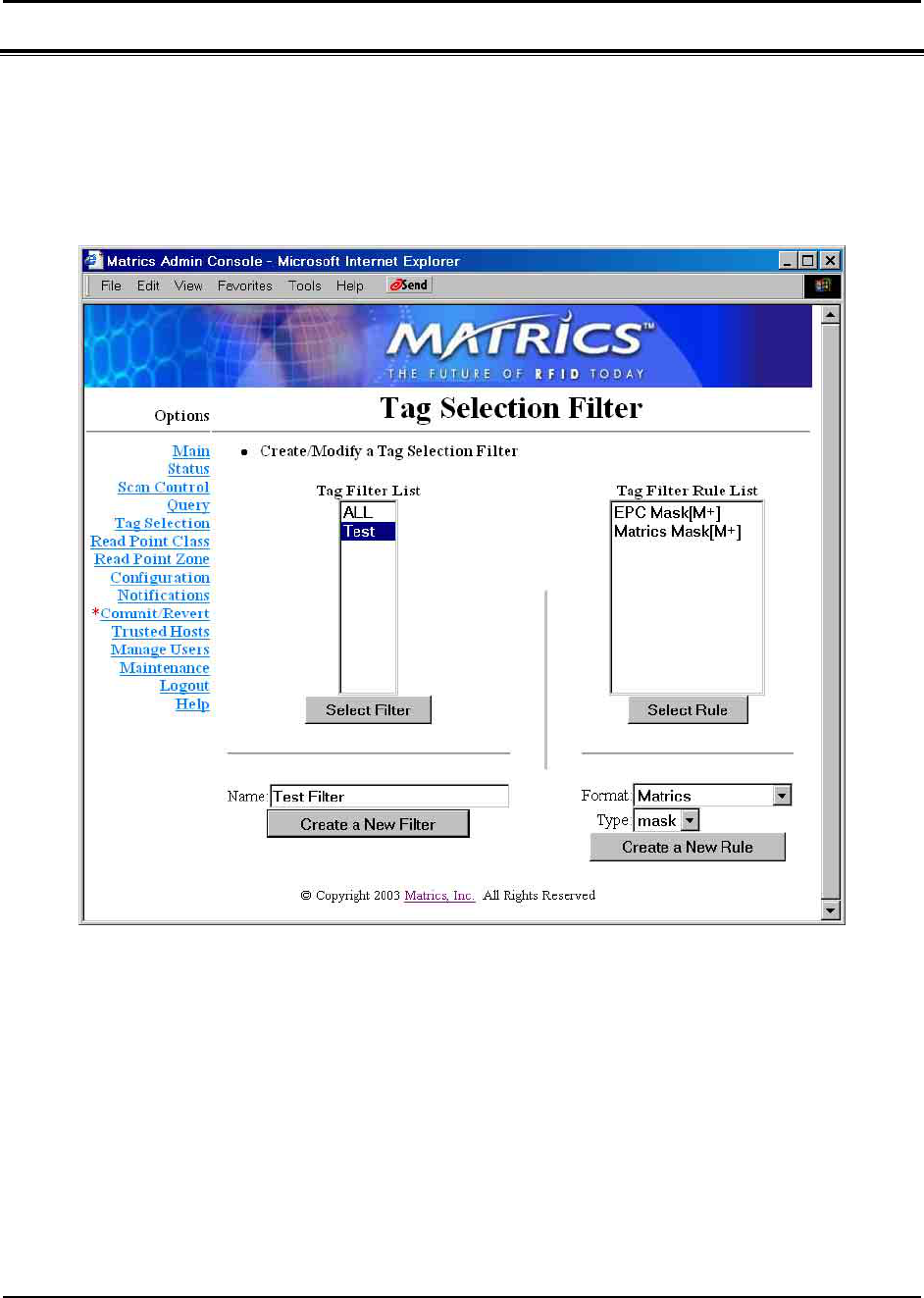

2. Click the Tag Selection link on the left-hand side of any page. The Tag Selection Filter page
displays.
![](/img.php?id=467204&img=bg2d.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 41

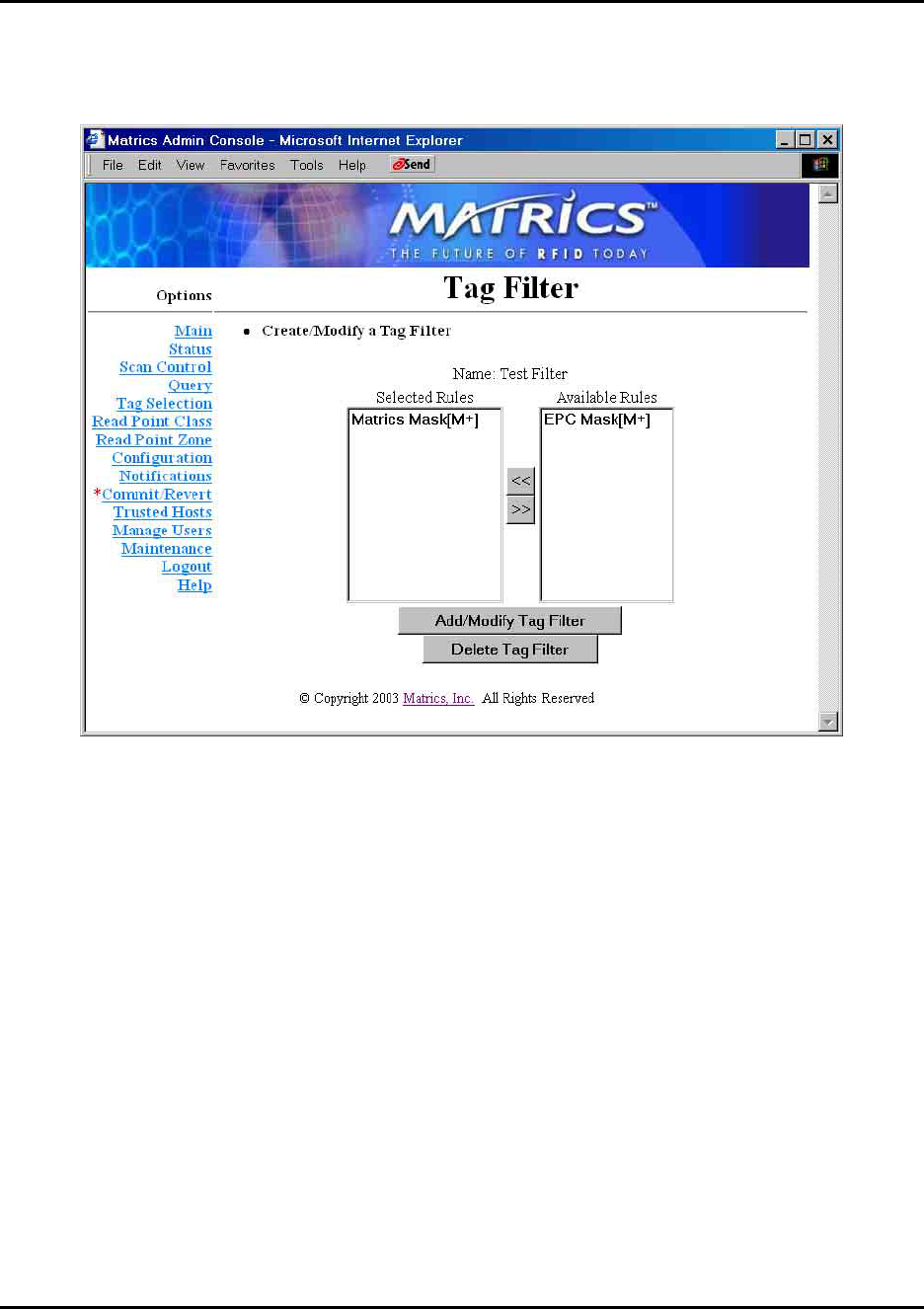

3. To create a new filter, type a new name in the Name field, and then click Create a New Filter. The
Tag Filter page displays.
4. Select a rule from the Available Rules list, and then click the << button to associate the selected rule
to the new filter. The selected rule displays in the Selected Rules list.
5. Click Add/Modify Tag Filter. The newly created filter displays in the Tag Filter List on the left-
hand side of the Tag Selection Filter page.
6. To modify a filter, select it in the Tag Filter List on the left-hand side of the Tag Selection Filter
page, and then click Select Filter. The Tag Filter page displays. Change the selected filter’s
associated rules as needed using the << and >> buttons, and then click Add/Modify Tag Filter.
7. To delete a filter, select it in the Tag Filter List on the left-hand side of the Tag Selection Filter page,
and then click Select Filter. The Tag Selection Filter page displays. Click Delete Tag Filter. The
selected filter is removed from the Tag Filter List on the left-hand side of the Tag Selection Filter
page.
NOTE: Only filters not being used at any read point can be deleted.
![](/img.php?id=467204&img=bg2e.png)
42 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Add, Modify, or Delete Tag Filter Rules
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Tag Selection link on the left-hand side of any page. The Tag Selection Filter page
displays.
3. To create a new tag filter rule, select a tag format to filter and a tag type from the corresponding
drop-down list boxes on the bottom right-hand side of the Tag Selection Filter page, and then click
Create a New Rule.
![](/img.php?id=467204&img=bg2f.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 43

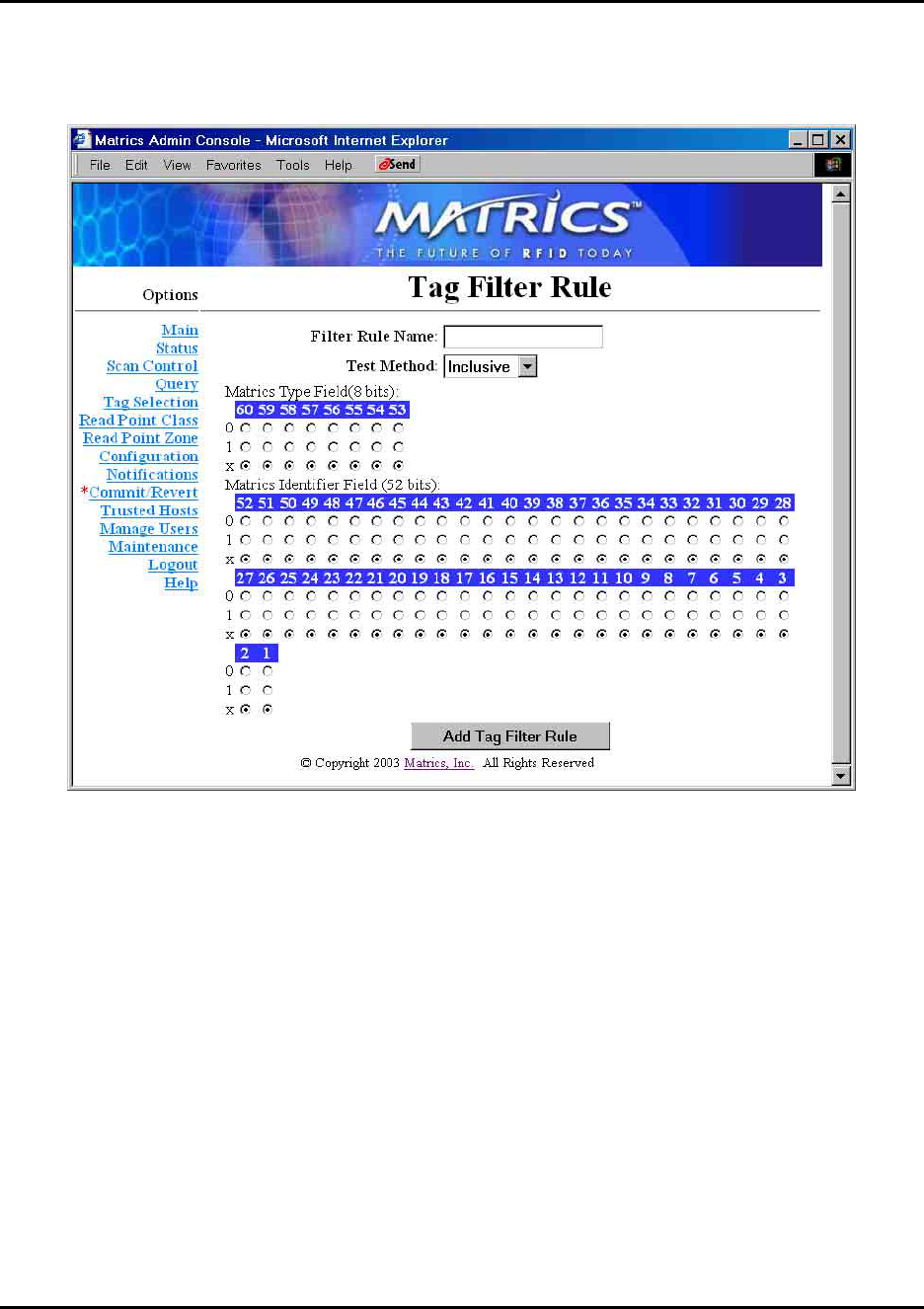

4. If you select “Matrics” in the Format field and “mask” in the Type field on the bottom right-hand
side of the Tag Selection Filter page, the following Tag Filter Rule page displays.
Type a name for the new rule in the Filter Rule Name field.
Select Inclusive (include all tags that match this rule) or Exclusive (exclude all tags that match
this rule) in the Test Method drop-down list box.
Click the radio buttons associated with each numbered bit position for its specific bit mask
choice.
Note: If specifying 0 or 1 does not matter for a particular bit, simply click the x radio button for
that bit.
Click Add Tag Filter Rule when you are done to create the new tag filter rule.
The newly created tag filter rule displays in the Tag Filter Rule List on the right-hand side of the Tag
Selection Filter page.
![](/img.php?id=467204&img=bg30.png)
44 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.

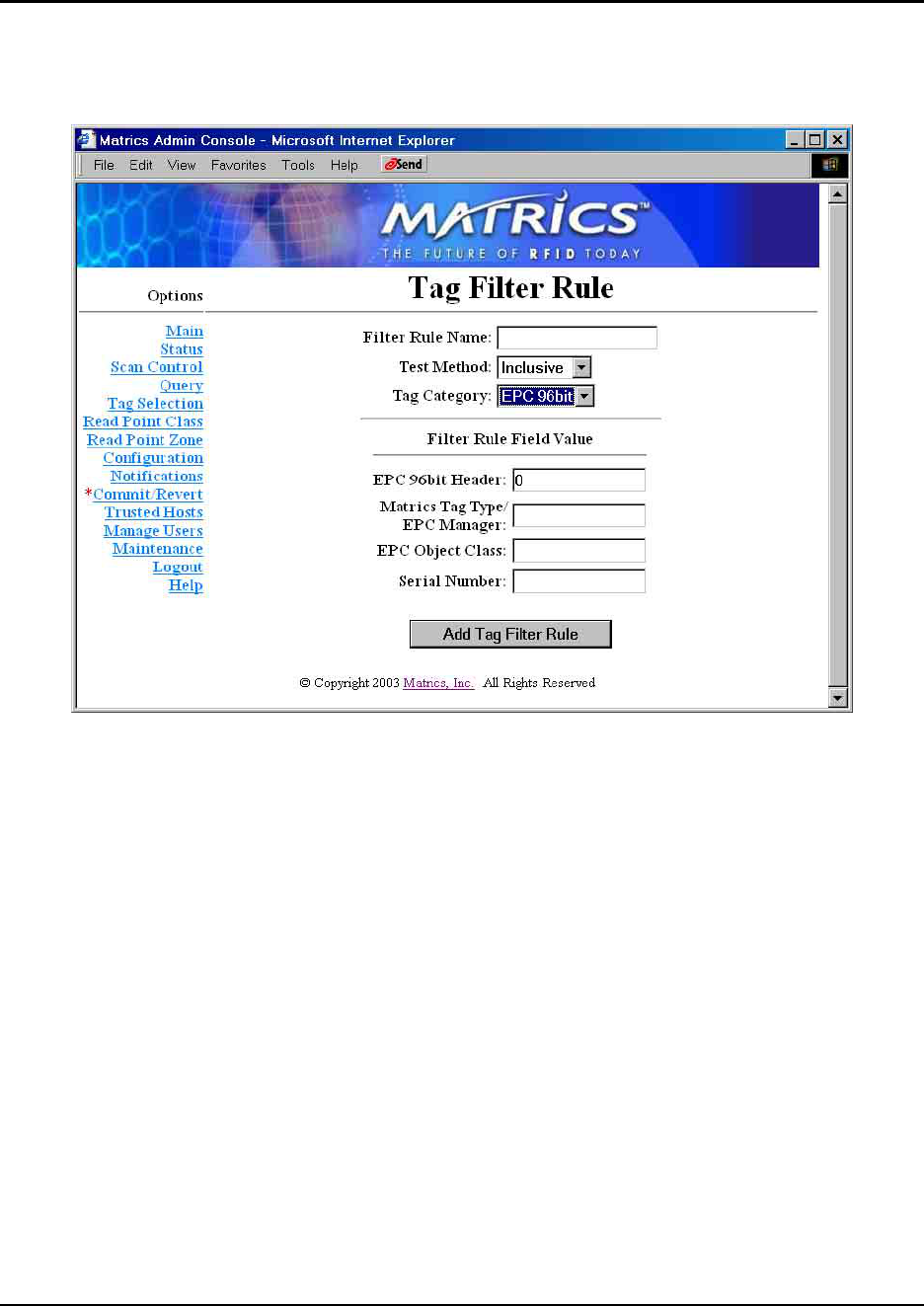

5. If you select “Matrics” in the Format field and “field” in the Type field on the bottom right-hand
side of the Tag Selection Filter page, the following Tag Filter Rule page displays.
Type a name for the new rule in the Filter Rule Name field.
Select Inclusive (include all tags that match this rule) or Exclusive (exclude all tags that match
this rule) in the Test Method drop-down list box.
Select a tag category in the Tag Category drop-down list box.
Using the hex values associated with Matrics EPC tags, type the value for the extra 6 bits in the
EPC 96 bit header in the EPC 96bit Header field, the Matrics Tag Type/EPC Manager value in
the Matrics Tag Type/EPC Manager field, the EPC Object Class value in the EPC Object
Class field, and the serial number in the Serial Number field.
Click Add Tag Filter Rule when you are done to create the new tag filter rule.
The newly created tag filter rule displays in the Tag Filter Rule List on the right-hand side of the Tag
Selection Filter page.
![](/img.php?id=467204&img=bg31.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 45

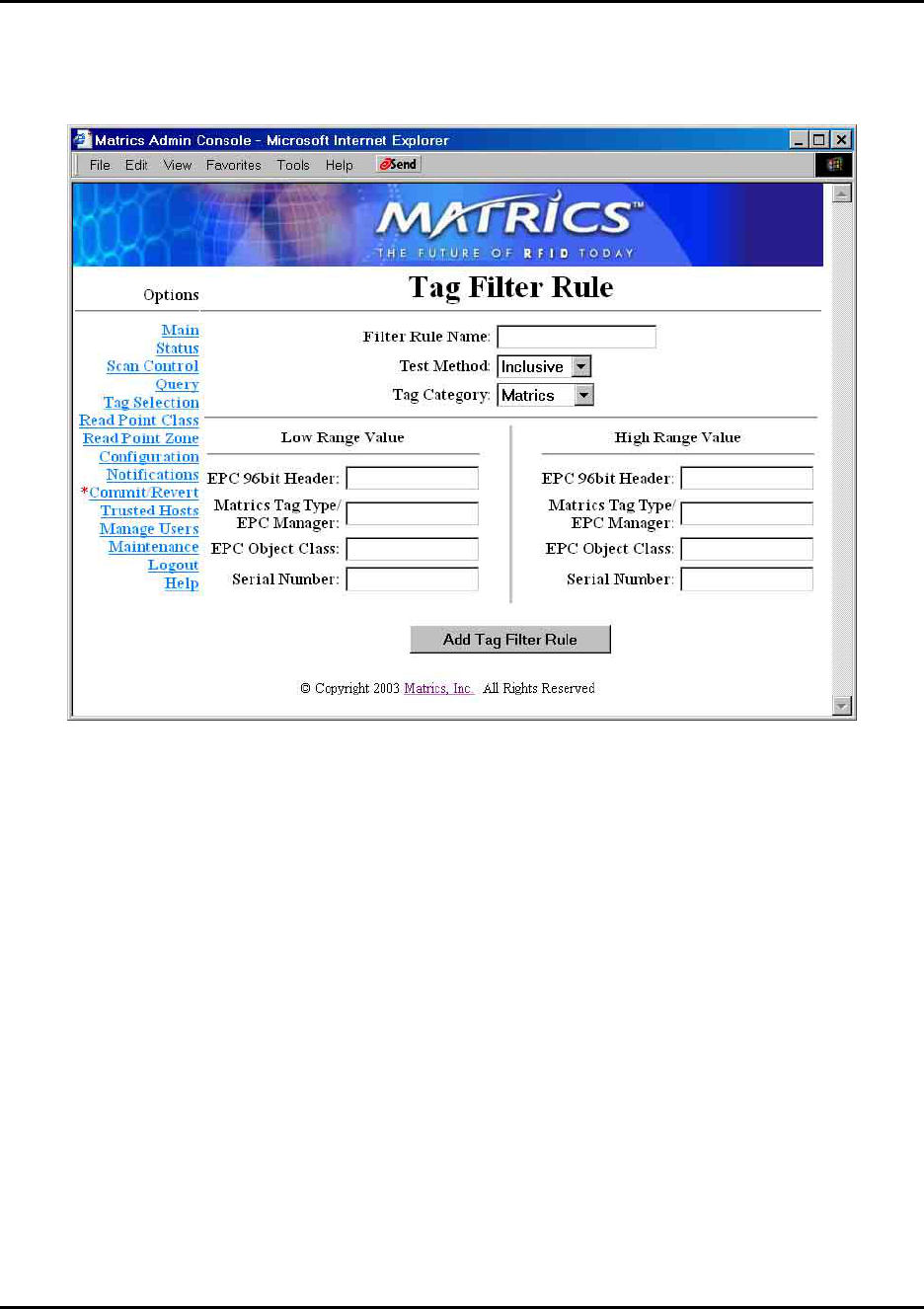

6. If you select “Matrics” in the Format field and “range” in the Type field on the bottom right-hand
side of the Tag Selection Filter page, the following Tag Filter Rule page displays.
Type a name for the new rule in the Filter Rule Name field.
Select Inclusive (include all tags that match this rule) or Exclusive (exclude all tags that match
this rule) in the Test Method drop-down list box.
Select a tag category in the Tag Category drop-down list box.
Using the hex values associated with Matrics EPC tags, type both low range and high range
values for the value for the extra 6 bits in the EPC 96 bit header in the EPC 96bit Header
fields, the Matrics Tag Type/EPC Manager value in the Matrics Tag Type/EPC Manager
fields, the EPC Object Class value in the EPC Object Class fields, and the serial number in the
Serial Number fields.
Click Add Tag Filter Rule when you are done to create the new tag filter rule.
The newly created tag filter rule displays in the Tag Filter Rule List on the right-hand side of the Tag
Selection Filter page.
![](/img.php?id=467204&img=bg32.png)
46 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.

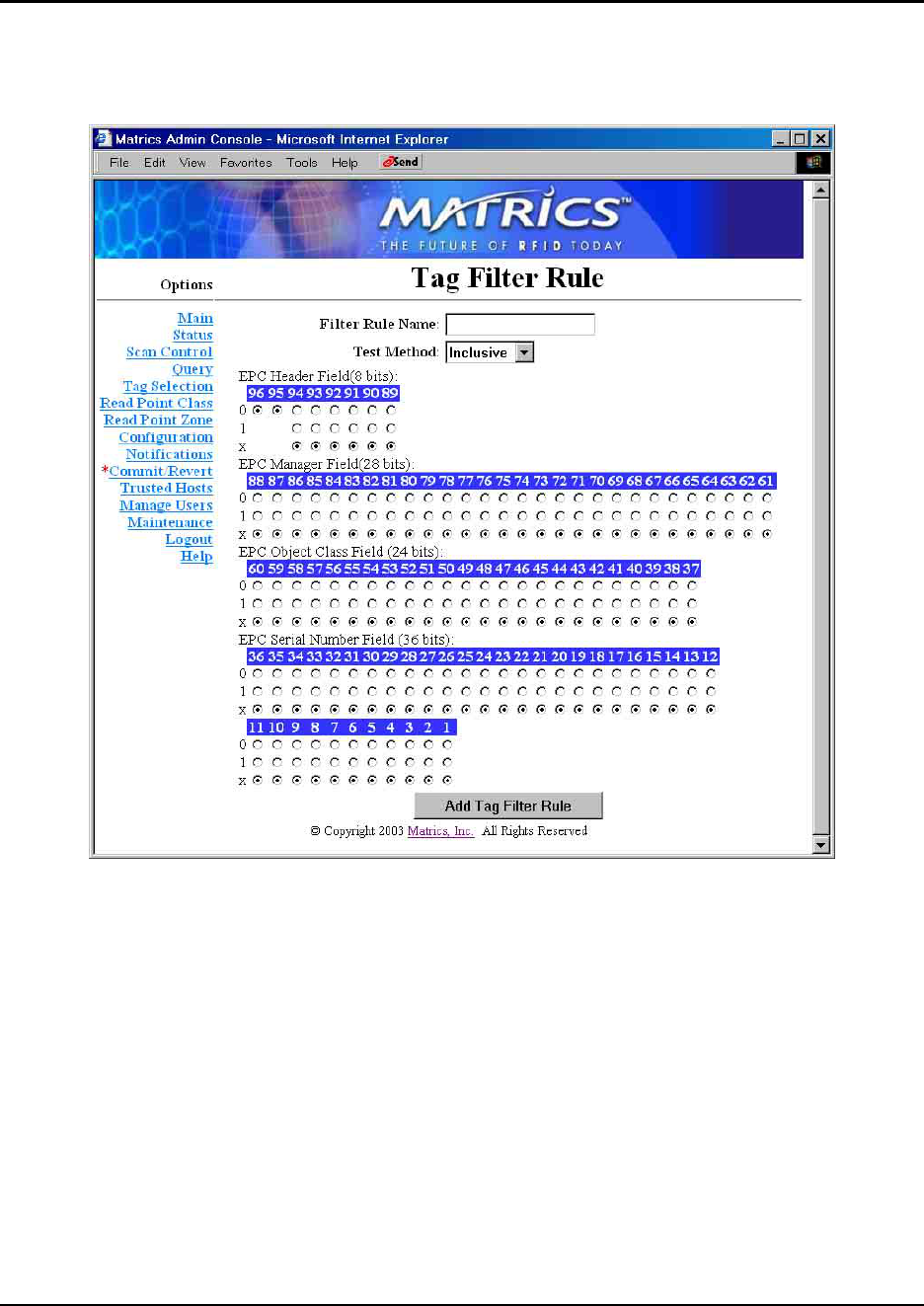

7. If you choose an “EPC” selection in the Format field and “mask” in the Type field on the bottom
right-hand side of the Tag Selection Filter page, the following Tag Filter Rule page displays.
Type a name for the new rule in the Filter Rule Name field.
Select Inclusive (include all tags that match this rule) or Exclusive (exclude all tags that match
this rule) in the Test Method drop-down list box.
Click the radio buttons associated with each numbered bit position for its specific bit mask
choice.
Note: If specifying 0 or 1 does not matter for a particular bit, simply click the x radio button for
that bit.
Click Add Tag Filter Rule when you are done to create the new tag filter rule.
The newly created tag filter rule displays in the Tag Filter Rule List on the right-hand side of the Tag
Selection Filter page.
![](/img.php?id=467204&img=bg33.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 47

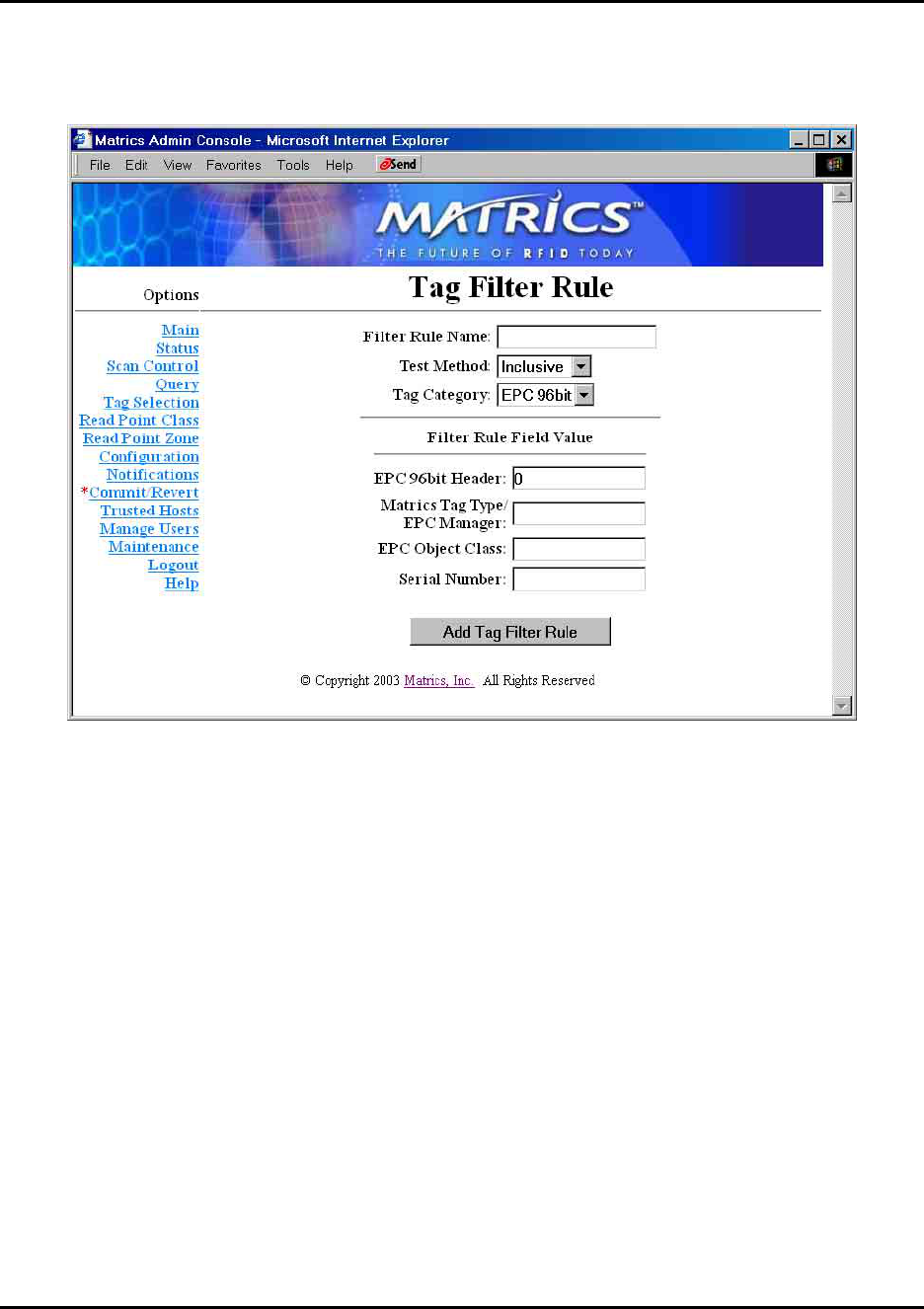

8. If you choose an “EPC” selection in the Format field and “field” in the Type field on the bottom
right-hand side of the Tag Selection Filter page, the following Tag Filter Rule page displays.
Type a name for the new rule in the Filter Rule Name field.
Select Inclusive (include all tags that match this rule) or Exclusive (exclude all tags that match
this rule) in the Test Method drop-down list box.
Select a tag category in the Tag Category drop-down list box.
Using the hex values associated with Matrics EPC tags, type the value for the extra 6 bits in the
EPC 96 bit header in the EPC 96bit Header field, the Matrics Tag Type/EPC Manager value in
the Matrics Tag Type/EPC Manager field, the EPC Object Class value in the EPC Object
Class field, and the serial number in the Serial Number field.
Click Add Tag Filter Rule when you are done to create the new tag filter rule.
The newly created tag filter rule displays in the Tag Filter Rule List on the right-hand side of the Tag
Selection Filter page.
![](/img.php?id=467204&img=bg34.png)
48 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
9. If you choose an “EPC” selection in the Format field and “range” in the Type field on the bottom
right-hand side of the Tag Selection Filter page, the following Tag Filter Rule page displays.
Type a name for the new rule in the Filter Rule Name field.
Select Inclusive (include all tags that match this rule) or Exclusive (exclude all tags that match
this rule) in the Test Method drop-down list box.
Select a tag category in the Tag Category drop-down list box.
Using the hex values associated with Matrics EPC tags, type both low range and high range
values for the value for the extra 6 bits in the EPC 96 bit header in the EPC 96bit Header
fields, the Matrics Tag Type/EPC Manager value in the Matrics Tag Type/EPC Manager
fields, the EPC Object Class value in the EPC Object Class fields, and the serial number in the
Serial Number fields.
Click Add Tag Filter Rule when you are done to create the new tag filter rule.
The newly created tag filter rule displays in the Tag Filter Rule List on the right-hand side of the Tag
Selection Filter page.
![](/img.php?id=467204&img=bg35.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 49
10. To modify a tag filter rule, select it in the Tag Filter Rule List on the right-hand side of the Tag
Selection Filter page, and then click Select Rule. The corresponding Tag Filter Rule page displays
with the fields auto-populated with the selected rule’s settings. Change the selected rule’s settings as
needed, and then click Add/Modify Tag Rule.
11. To delete a tag filter rule, select it in the Tag Filter Rule List on the right-hand side of the Tag
Selection Filter page, and then click Select Rule. The corresponding Tag Filter Rule page displays
with the fields auto-populated with the selected rule’s settings. Click Delete Tag Rule. The selected
tag filter rule is removed.
NOTE: Only tag filter rules not associated with a filter can be deleted.
![](/img.php?id=467204&img=bg36.png)
50 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Section 8. Reader Server Controls
While most of the Reader Administrative Console functions allow you to create a logical view of your
Reader, the Reader Server Status and Scan Control pages give you a view of (and control over) the actual
“running” system configuration.
Check Status of Reader
The AR 400 Reader monitors the health and welfare of Readers and associated devices. Under normal
circumstances, the table displayed on the Reader Status page should show the same number of devices in
the Total column and the Enabled column. However, if devices are off-line (not enabled), you will see a
non-zero number in some of the other columns.
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Status link on the left-hand side of any page. The Reader Status page displays.
If you have disabled a device, you will see an entry in the User Disabled column. User-disabled
devices can be enabled via the Reader Configuration page. If there are child devices (lower in the
hierarchy) such as Read Points connected to a Reader that you have disabled, a value displays in the
Parent Disabled column.
![](/img.php?id=467204&img=bg37.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 51
During the operation of the system, if a device becomes non-operational, the system will disable it
automatically, but allow the rest of the system to continue to operate. If this happens, a SNMP trap is
generated, the appropriate device or devices are marked as system-disabled, child devices are marked
as parent-disabled, and a non-zero entry (link) displays in the System Disabled column.
For devices with multiple read points (such as a shelf), a read point can become non-operational (its
status changing to “degraded”) while its other read points continue to operate. An additional value
displays in the Enabled column for a degraded device. For example, if four read points were enabled
and one of them became degraded, “4/1” would display in the Enabled column. The “1” links to a list
of degraded devices, allowing you to enable degraded devices like you would a system-disabled
device.
3. To attempt to re-enable a system-disabled device, click the link in the System Disabled column, and
the associated Enable Device page displays. Select a device to enable and then click Enable Device,
or click Enable All Devices to attempt to enable all devices. If the device(s) is successfully brought
back into service, it will automatically enable all of the parent-disabled children, and it will be
removed from the Disabled lists.
4. If you want to automatically attempt to re-enable degraded or system-disabled devices after a
specified number of minutes, type the number of minutes in the Automatic Enable Period field on
the Reader Status page, and then click Set Auto Enable Period.
5. Information displayed in the System Clock field tells you the time on the Reader. When tags are seen
and/or events are generated, they are time-stamped with this time value. To change the time, click the
link. The System Time Management page displays. Select the appropriate values from the Year,
Month, Day, Hour, Minute, and Second drop-down list boxes, and then click Set Date and Time.
6. Information displayed in the System Up Time field tells you how long it has been running since the
system was last rebooted. The System Up Time field value is reset automatically each time the
Reader is rebooted.
![](/img.php?id=467204&img=bg38.png)
52 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
7. Information displayed in the Memory Usage and Flash Usage fields shows you the total number of
memory and flash space, and divides the space into how much is currently used and how much is
free.

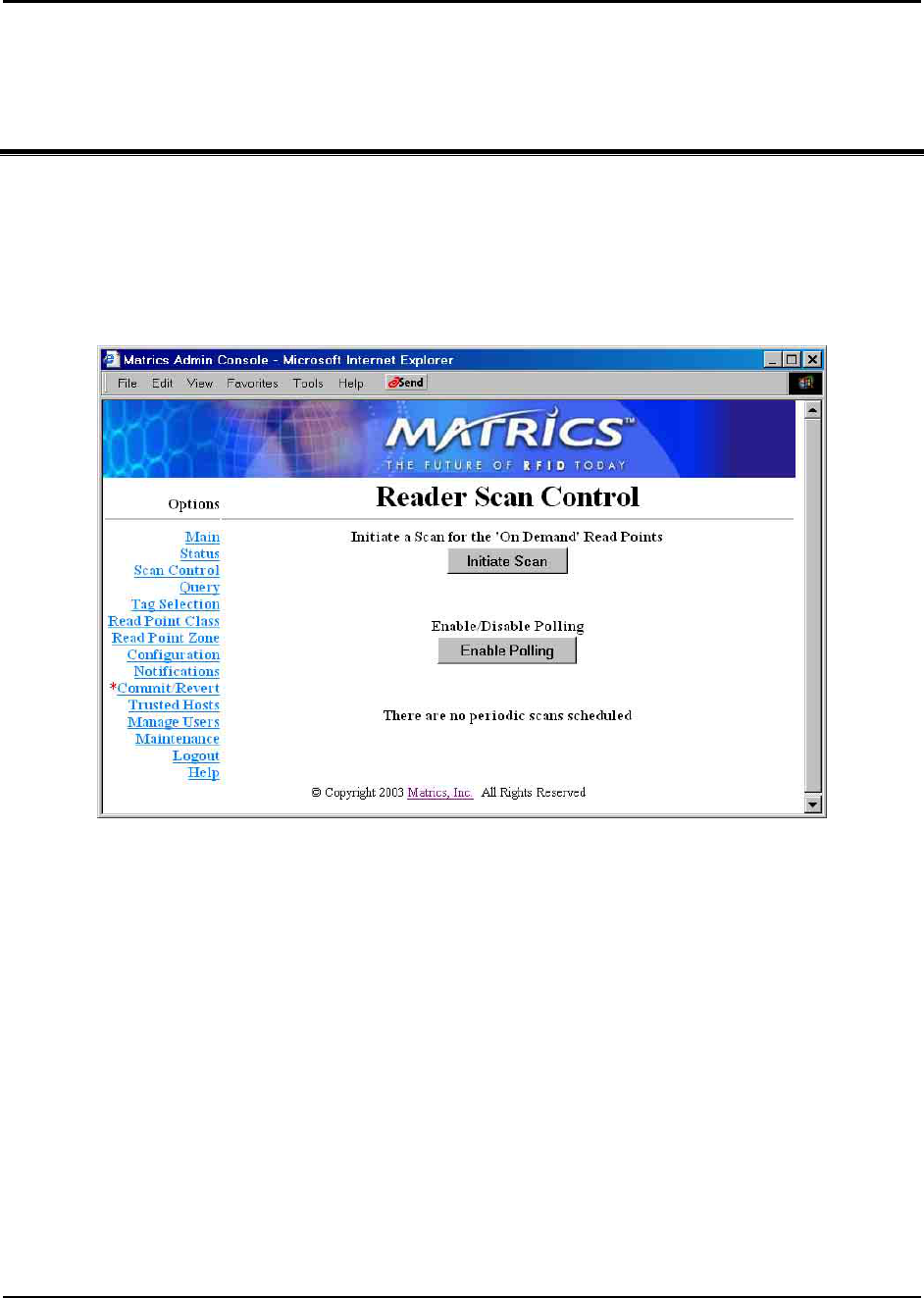

Scan Control
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Scan Control link on the left-hand side of any page. The Reader Scan Control page
displays.
3. To initiate a scan for all On Demand read points associated with a Read Point Class that has selected
the “On Demand” Scan Period, click Initiate Scan on the Reader Scan Control page.
The Reader queues the On Demand scans.
4. To poll read points associated with a Read Point Class that has selected the “Polled” Scan Period,
click Enable Polling on the Reader Scan Control page (the button toggles to Disable Polling.) To
stop polling, click Disable Polling (the button toggles back to Enable Polling.)
The polling state is saved in the configuration file when committed, so the system will come up with
the last saved setting.
The bottom of the Reader Scan Control page displays the next periodic scan time (i.e., “Periodic
Scan schedule in 3 minutes” or “There are no periodic scans scheduled.”)
![](/img.php?id=467204&img=bg39.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 53
Section 9. Ad-hoc Queries
While the AR 400 Reader is not designed to be your primary source for querying tags, you can use the
Tag Query page to perform simple queries to locate a specific tag.
Perform an Ad-hoc Query for a Specific Tag

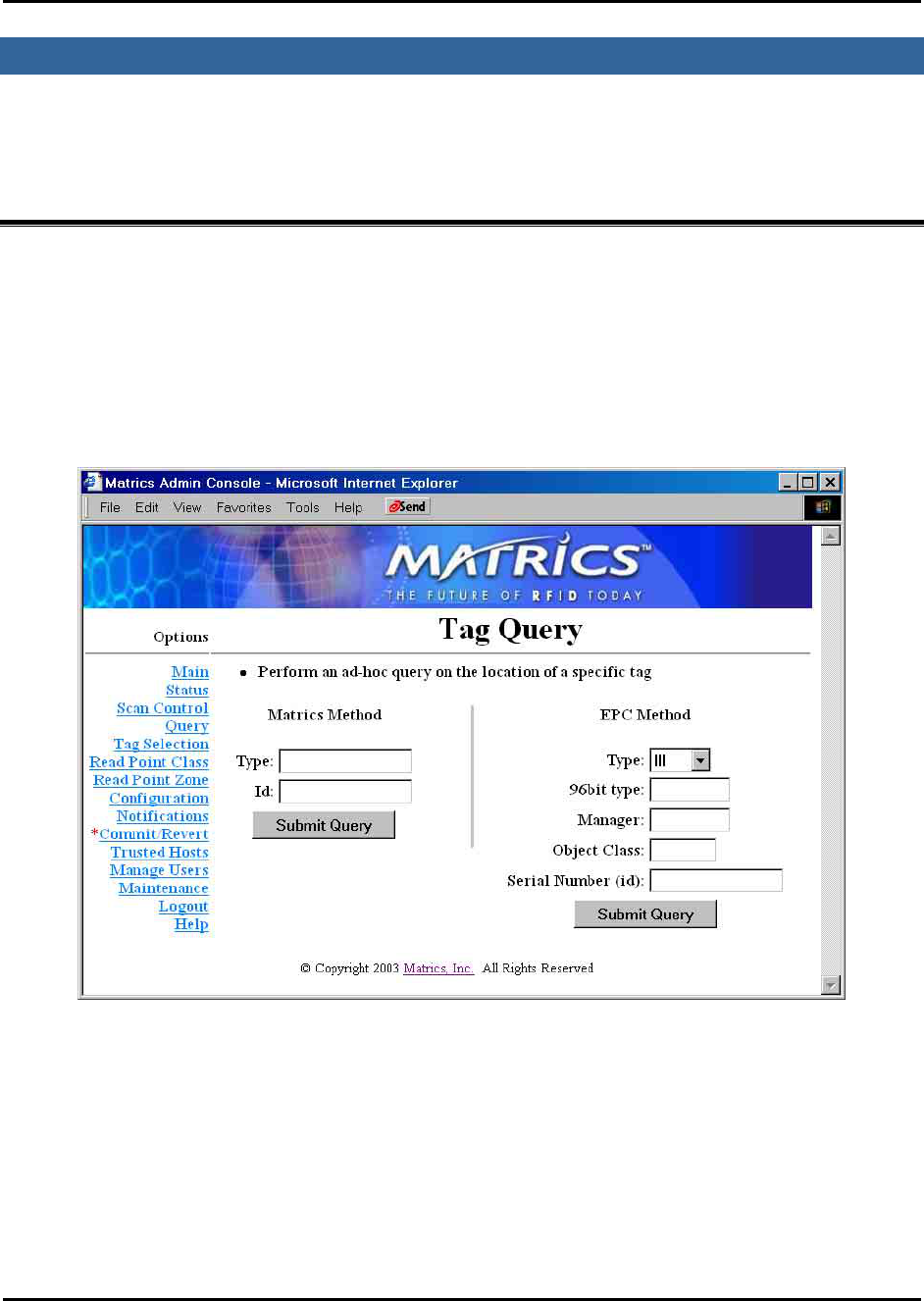

To query for a specific Matrics tag, type the tag type and ID in the corresponding Matrics Method fields
on the Tag Query page. To query for a specific EPC tag, select the tag type, and type the hex values for
the 96bit type, Manager, Object Class, and Serial Number (ID) in the corresponding EPC Method fields
on the Tag Query page.
Note: The Matrics Method will work for any tag type.
One of the following statements will result:
The tag is not known to the system. (The tag has never been seen or imported.)
The tag is not visible to the system. (The tag is known to the system, but is currently not visible to
any read point.)
The tag is visible at one or more read points. (A list of read points where the tag can be seen
displays.)
![](/img.php?id=467204&img=bg3a.png)
54 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Section 10. Maintaining the Reader
The Reader Maintenance Console allows you to view information that may be helpful to you in
maintaining a healthy Reader.
Access the Reader Maintenance Console
1. If you haven’t already done so, launch and log in to the Reader Administrator Console.
2. Click the Maintenance link on the left-hand side of any page. The Reader Maintenance Console
Main page displays.

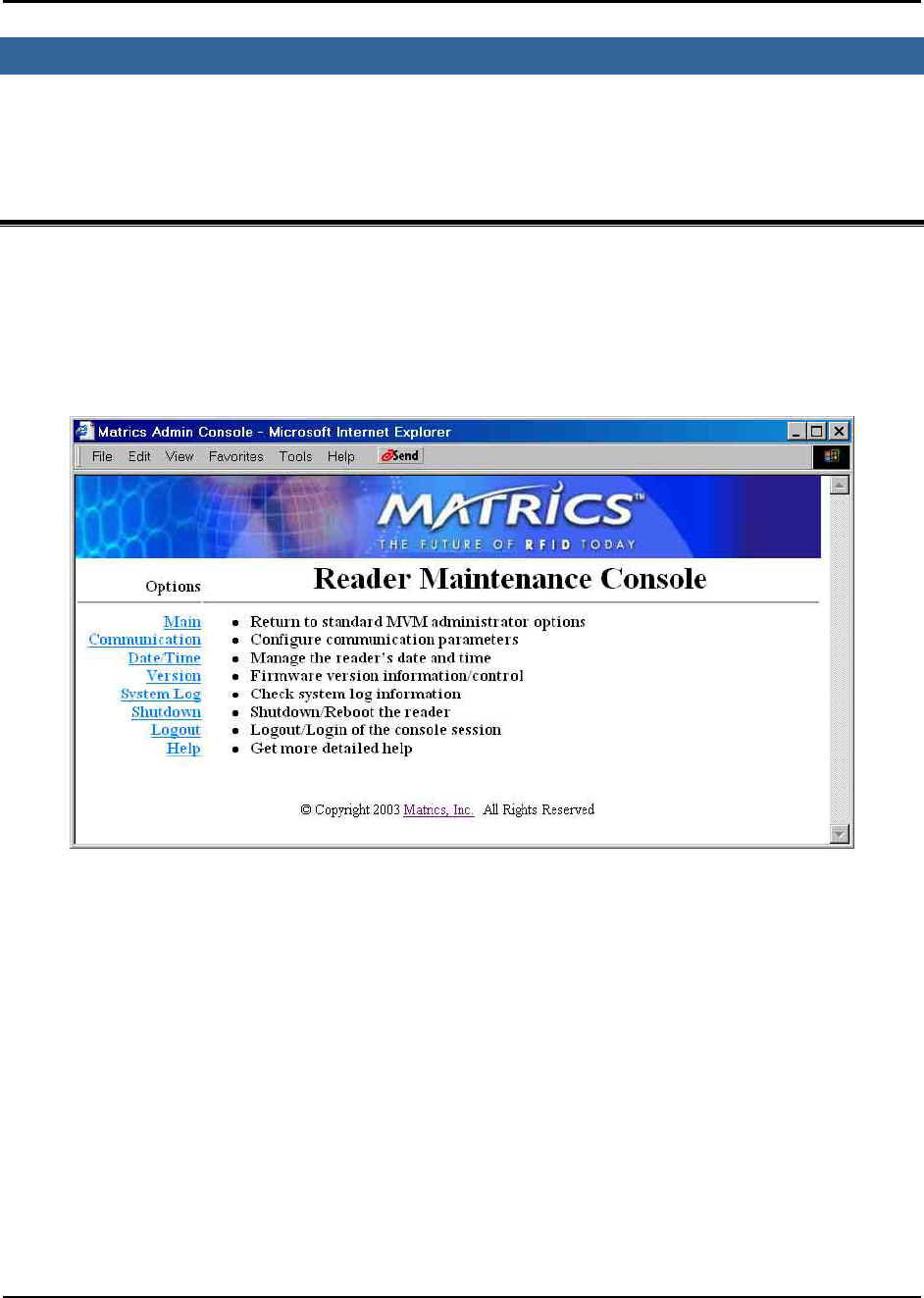

The Reader Maintenance Console Main page provides an informational list of Reader maintenance
functions, and links to each of the Maintenance Console’s dynamic web pages. Click a link on the
left-hand side of the Main page to display the corresponding page.
The Main link returns you to the Reader Administrator Console.
![](/img.php?id=467204&img=bg3b.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 55

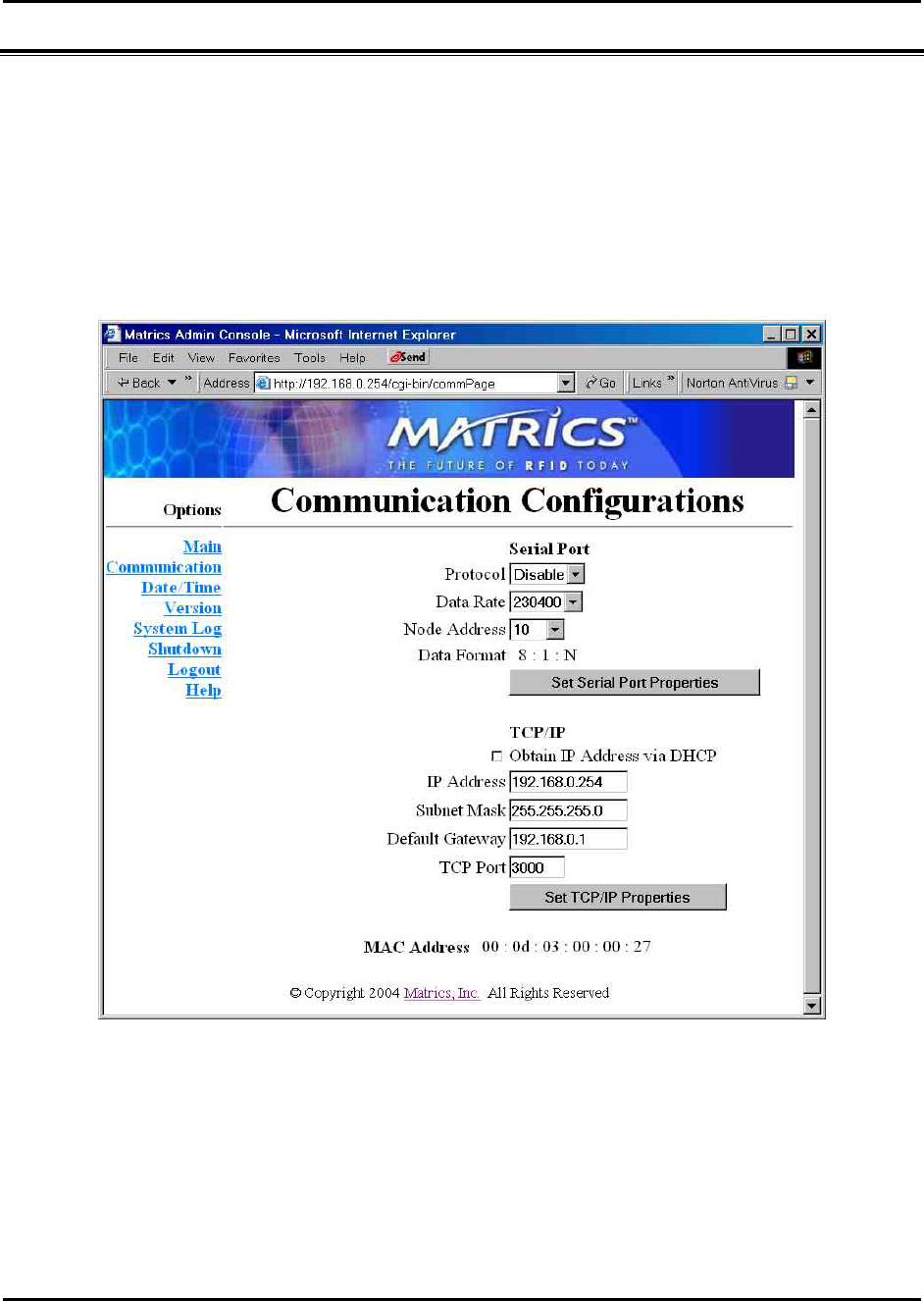

Manage Communication Configuration Settings
The AR 400 Reader supports RS232 and RS485 serial communication protocols, or TCP/IP network
communication protocol.
1. If you haven’t already done so, access the Reader Maintenance Console.
2. Click the Communication link on the left-hand side of any Reader Maintenance Console page. The
Communication Configurations page displays.
3. To configure the Reader’s Serial Port communication settings, enter the following information:
Set the Protocol to Enable or Disable serial communication.
Set the Data Rate to designate the baud rate for the selected protocol.
(Applies only to RS485) Set the Node Address to designate the node address the AR 400
Reader will use in a RS485 serial bus network environment. It can be in the range of 0 ~ 30, or
set to Auto to be automatically set by the Matrics Visibility Manager.
![](/img.php?id=467204&img=bg3c.png)
56 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
The Data Format fields show that the Reader supports one fixed data format: 8 data digit/ 1
stop bit/ No parity check.
After typing the required information, click Set Serial Port Properties.
4. To configure the Reader’s TCP/IP communication settings, enter the following information:
Click and check (or uncheck) the Obtain IP Address via DHCP checkbox to enable (or disable)
the system from automatically obtaining an IP Address via the Dynamic Host Configuration
Protocol (DHCP.)
Set the IP Address (in dotted notation) to designate the desired fixed IP address of the Reader.
Set the Subnet Mask (in dotted notation) to designate the subnet mask for the network on which
the Reader is going to reside.
Set the Default Gateway (in dotted notation) to designate the gateway for the network on which
the Reader is going to reside.
Set the TCP Port to designate the number (the default is 3000) of the Reader by which the host
program will be able to talk.
After typing the required information, click Set TCP/IP Properties.
NOTE: You must reboot the system whose communication settings have been
changed before they will take effect.
![](/img.php?id=467204&img=bg3d.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 57

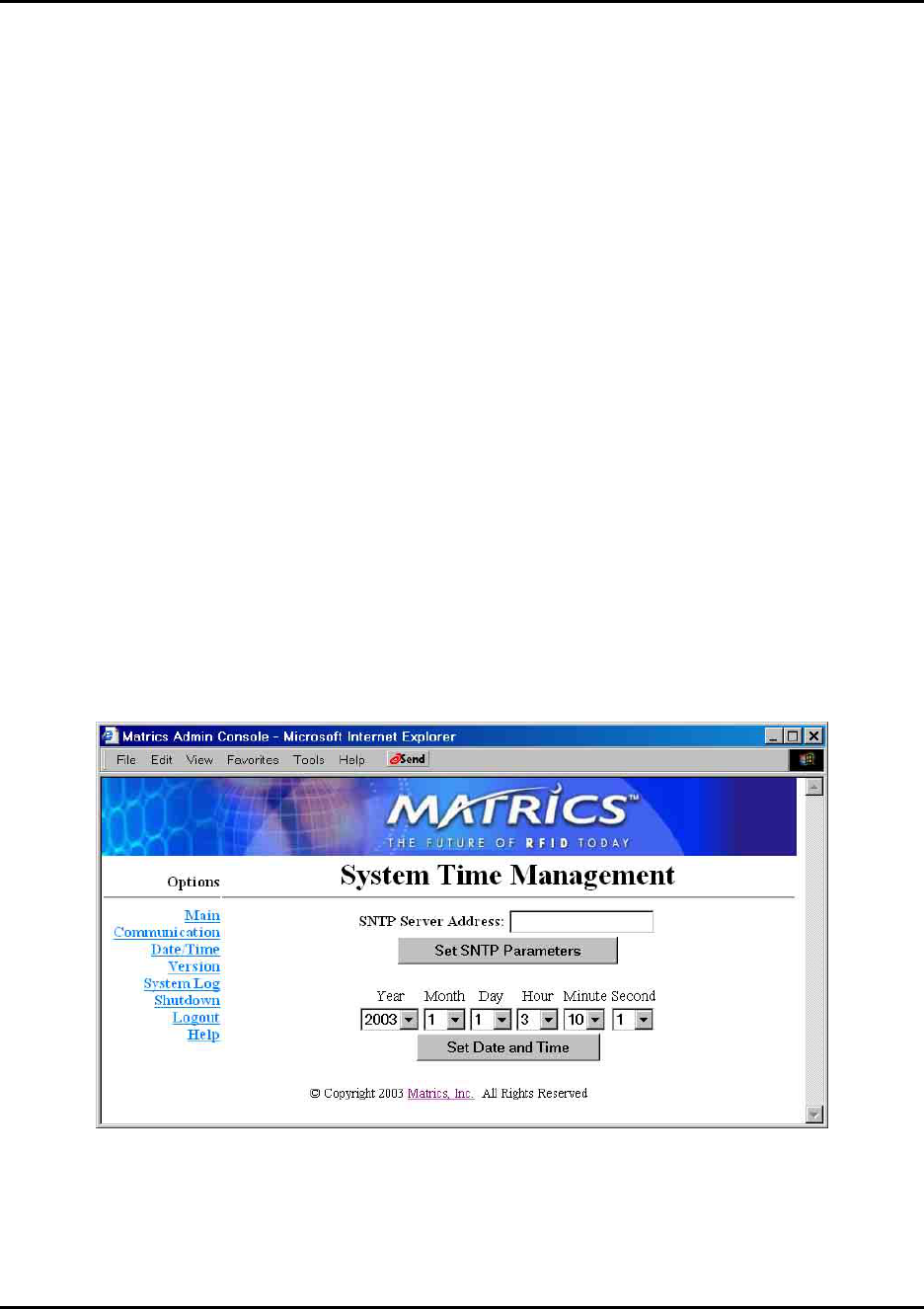

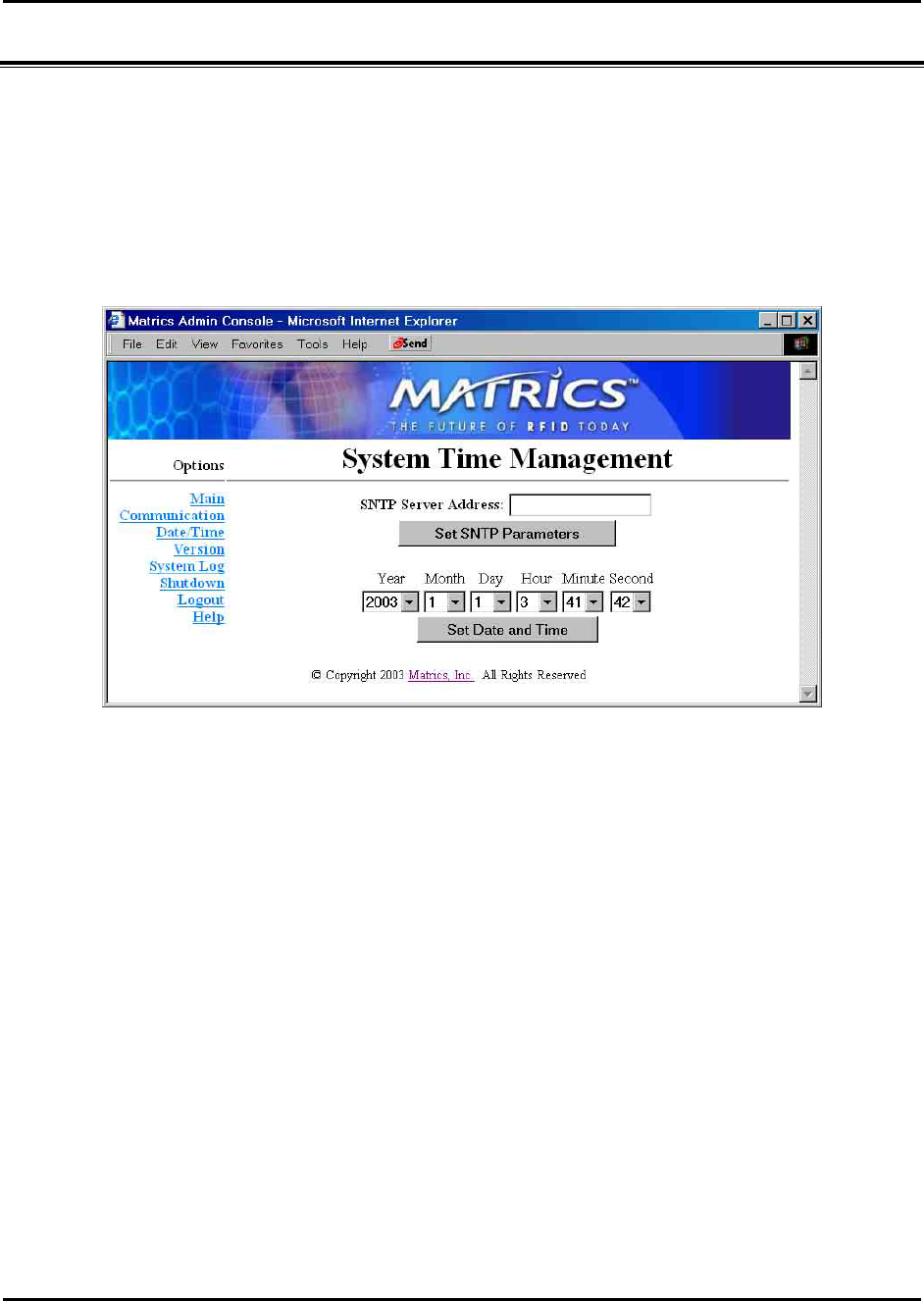

Manage System Time Settings
To reach public time servers on the Internet, the gateway must be set on the AR 400 Reader system.
1. If you haven’t already done so, access the Reader Maintenance Console.
2. Click the Date/Time link on the left-hand side of any Reader Maintenance Console page. The
System Time Management page displays.
3. Type the address of the server you want to designate as your SNTP (Simple Network Time Protocol)
Server in the SNTP Server Address field, and then click Set SNTP Parameters.
4. To set the date and time on the Reader, select the appropriate values from the Year, Month, Day,
Hour, Minute, and Second drop-down list boxes, and then click Set Date and Time.
![](/img.php?id=467204&img=bg3e.png)
58 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Display Version Control Information and Load Firmware via FTP
1. If you haven’t already done so, access the Reader Maintenance Console.
2. Click the Version link on the left-hand side of any Reader Maintenance Console page. The Version
Control page displays.

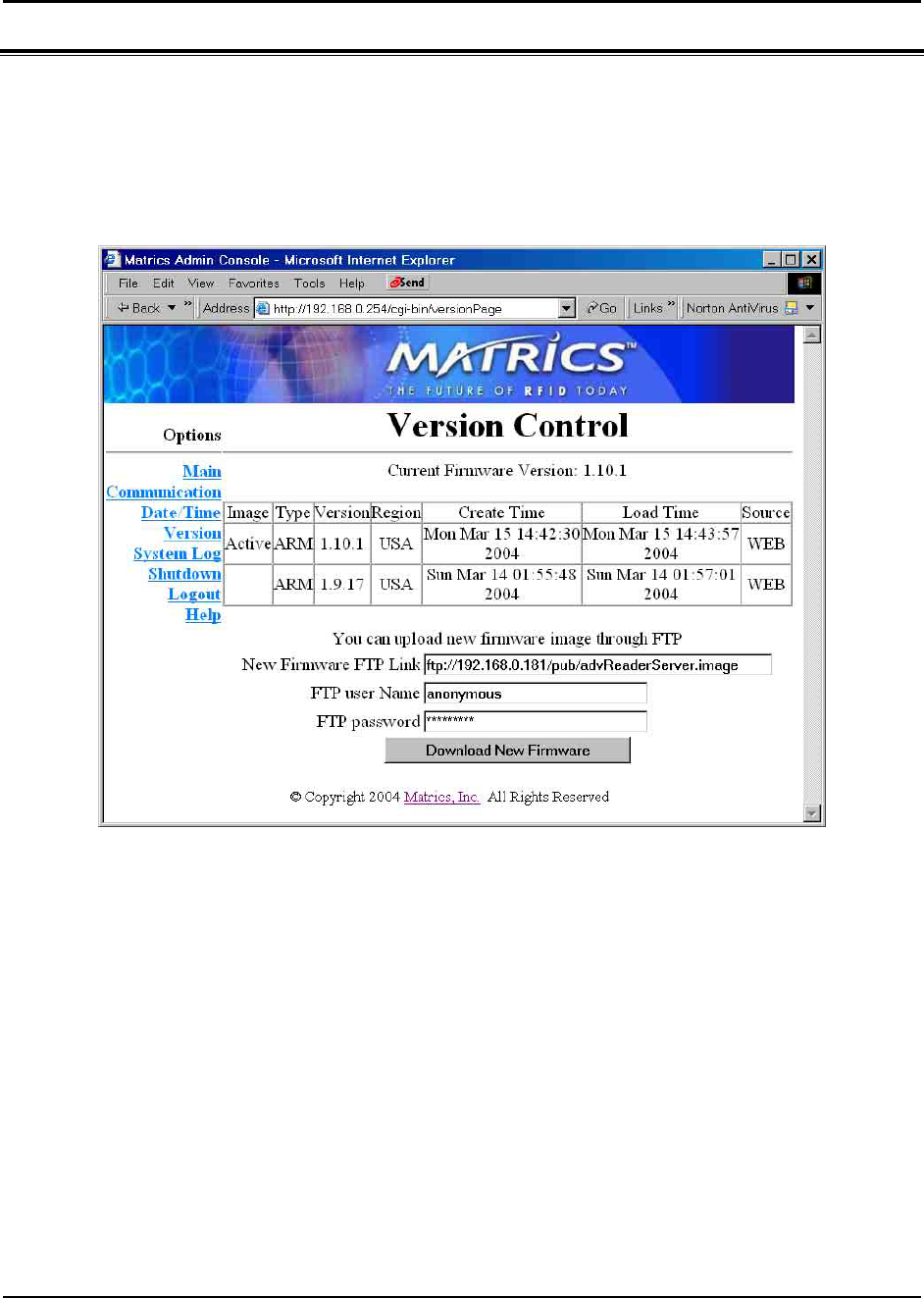

The Version Control page displays data that tells you the current version number of the AR 400
firmware, including when it was created, and when it was loaded and from where.
3. To load another version of firmware for the Reader via FTP, type the URL to the FTP location on the
Web in the New Firmware FTP Link field, enter your FTP user name and password in the
appropriate fields, and then click Download New Firmware.
![](/img.php?id=467204&img=bg3f.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 59
Display the System Log and/or Access History
The System Log page allows you to see system log and access history information stored on the Reader.
The System Log provides system information generated by the Reader’s internal instructions. The
System Log is a circular queue that holds a maximum of 200 records.
The Access History log provides a historical log of user access to this Reader. Every successful login to
the Reader through the web interface is recorded. The Access History log is a circular queue that holds a
maximum of 20 records.
1. If you haven’t already done so, access the Reader Maintenance Console.

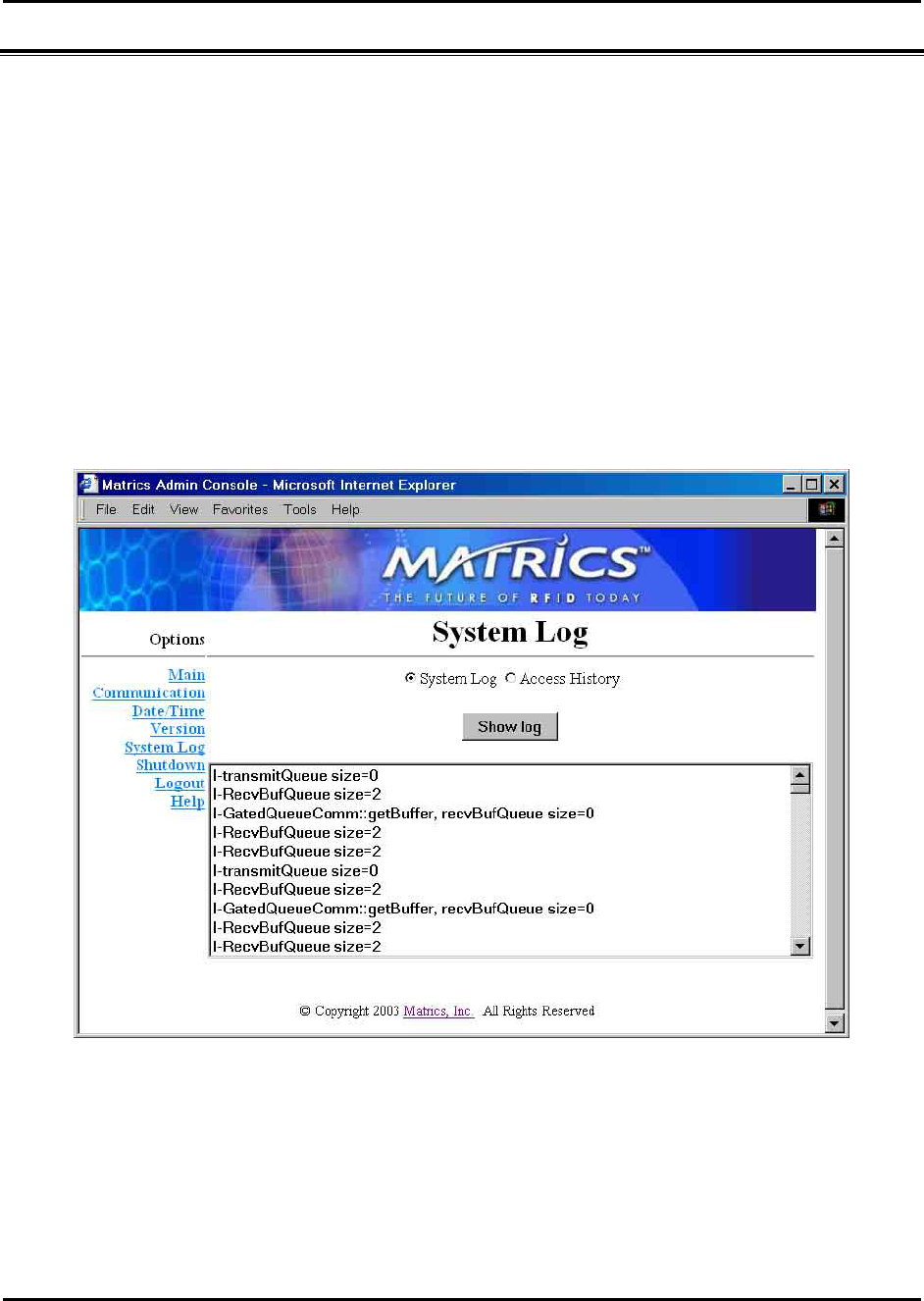

2. Click the System Log link on the left-hand side of any Reader Maintenance Console page. The
System Log page displays system log information in the scrolling text box.
![](/img.php?id=467204&img=bg40.png)
60 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.

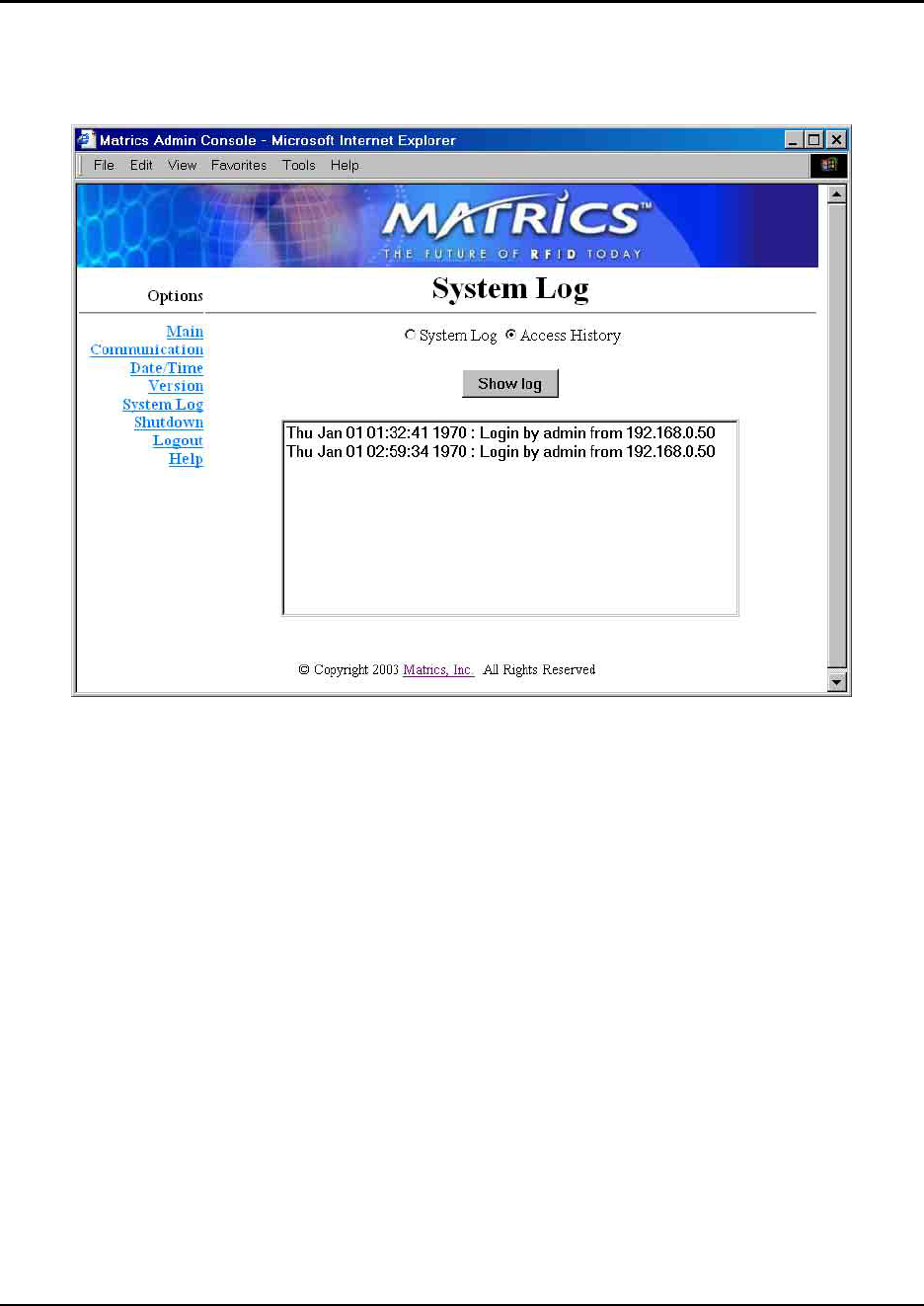

3. To view access history information, click the Access History radio button, and then click Show log.
The System Log page displays access history information in the scrolling text box.
4. To view system log information again, click the System Log radio button, and then click Show log.
The System Log page again displays system log information in the scrolling text box.
![](/img.php?id=467204&img=bg41.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 61

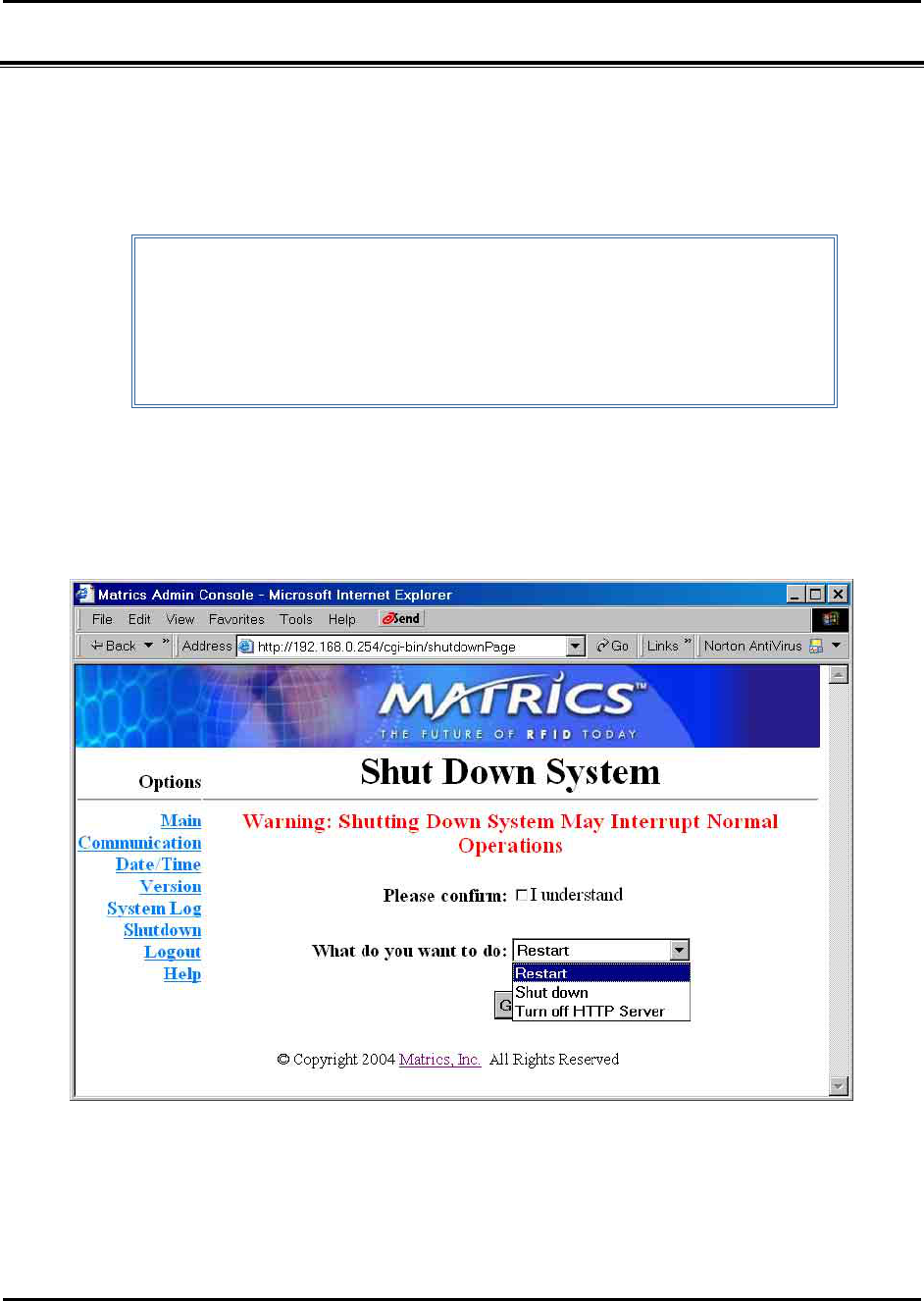

Shut Down and/or Restart the System, and Turn Off the HTTP Server
In order to protect the integrity of the data in the Reader, it is strongly recommended that you shut down
or restart the Reader via the Shut Down System page when necessary. The request must be confirmed by
checking the Please confirm checkbox.
CAUTION: If you choose to turn off the Web interface (using the Turn off
HTTP Server command on the Shut Down System page), you must
physically re-connect via serial cable to re-enable Web interface
communication. It is not recommended that you use Turn off HTTP
Server unless you require the highest level of security and understand the
process for restart.
1. If you haven’t already done so, access the Reader Maintenance Console.
2. Click the Shutdown link on the left-hand side of any Reader Maintenance Console page. The Shut
Down System page displays.
3. Click and check the Please confirm checkbox to indicate that you understand that you are about to
shut down and/or restart the system, which may interrupt normal system operation.
![](/img.php?id=467204&img=bg42.png)
62 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
4. Select either Restart or Shut down from the What do you want to do drop-down list, or select
Turn off HTTP Server if you want to shut down (disable) the Web interface.
CAUTION: If you choose to turn off the Web interface via the Turn off
HTTP Server command, you must physically re-connect via serial cable to
re-enable Web interface communication. It is not recommended that you use
Turn off HTTP Server unless you require the highest level of security and
understand the process for restart.
5. Click Go.
Use Online Help
The Reader Maintenance Console’s Help page provides easy online access to conceptual and procedural
information related to the Reader Maintenance Console.
1. To view Help for the Maintenance Console, click the Help link on the left-hand side of any page in
the Maintenance Console.
The Maintenance Console Help page displays in a separate window (refer to the “Use Online Help”
section provided previously in Section 3 of this User’s Manual for more information.)
![](/img.php?id=467204&img=bg43.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 63
Log Out of the System
When you are done using the Maintenance Console, you can log out of the system. Logging out ensures
the security and integrity of your system, denying unauthorized users access to the Reader.
NOTE: If you do not log out, and you haven’t used the system for a pre-set
amount of time, the Reader logs you out of the system automatically.
1. Click the Logout link on the left-hand side of any page.
If you have any unsaved changes, the Reader will prompt you to commit or discard them.
2. If prompted to do so, commit or discard your changes [refer to the “Save or Discard Changes (or
Revert to Backup)” section provided previously in Section 3 of this User’s Manual for more
information.]
Your session ends, and the User Login page displays.
![](/img.php?id=467204&img=bg44.png)
64 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Section 11. Cautions, Notes, and Approvals
Matrics products are approved (or approval pending) by the appropriate regulatory agencies:
Federal Communications Commission (FCC), Part 15
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the User’s Manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his or her own expense.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Information to the User: This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired operation.
WARNING: This device must be installed in a location that is not
accessible to the general public. Install the device so that the antenna is at
least 23 centimeters from unsuspecting personnel. Failure to install this
device as described will result in a failure to comply with FCC rules for RF
exposure and is discouraged.
Disclaimer: Operation of any radio transmitting equipment, including this product, may interfere with
the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of
the medical device if you have any questions. Other electronic equipment may also be subject to
interference.
![](/img.php?id=467204&img=bg45.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 65
Section 12. Warranties and Returns
Limited Warranty
Matrics warrants its products to the original purchaser to be free of defects in workmanship and material
for a period of ninety (90) days from date of receipt. Matrics’ sole and complete responsibility under this
warranty is expressly limited to repair or replacement of the defective product.
Replacement products may be new or reconditioned. All products that are replaced shall become the
property of Matrics The warranty for replacement products is the same as the equivalent newly purchased
product.
Any tampering or modification to the product, or subjecting of product to abnormal electrical,
mechanical, or environmental abuse will void this product warranty.
Return Material Authorization (RMA)
You must obtain a return material authorization (RMA) number from Matrics Customer Service (refer to
the “Contact Us” section in this User’s Manual) before you return any parts for repair or replacement.
This RMA number must be clearly marked on the outside of the returned package, and referenced in any
correspondence contained within the package.
NOTE: If you return parts to Matrics without a RMA number, they will be
returned to you at your own expense.
Before you call Matrics to receive a RMA number, make sure that you have the following information
available for the Customer Service technician:
A description of the returning item.
Serial numbers (if applicable.)
A description of the fault or failure. (Example: The antenna cable appears to have been
pulled out of the antenna, and the system is not functioning.)
Fault or Error message (if applicable.)
![](/img.php?id=467204&img=bg46.png)
66 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Section 13. Contact Us
For sales, service, and technical assistance, contact Matrics at:
Tel: 301.610.6100
Monday-Friday 8:30 a.m. – 5:00 p.m. EST
Fax: 301.610.6101
http://www.matrics.com/
Matrics, Inc.
7361 Calhoun Place
Suite 250
Rockville, MD 20855
USA
![](/img.php?id=467204&img=bg47.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 67
Appendix A. Error Messages and Resolutions
User Messages
Access Denied - Non-trusted Host
Cause: The machine that is attempting access is not set up as a Trusted Host in the system.
Resolution: Add the IP address to the Trusted Host list, or disable Trusted Host check.
Operation failed.
Cause: A user operation did not complete, typically due to invalid input.
Resolution: Validate all of your inputs, and then retry the operation. If it is not successful, contact Matrics
Customer Support at 410-872-0300.
You have entered an invalid User Name and/or Password - Try again.
Cause: The User Name and/or password that you typed are not found in the system, or do not match the
current user registry.
Resolution: Retype your login information to ensure its accuracy. If it is not successful, contact your site’s
System Administrator to add/edit your user account.
Your session has Timed-out - Log in again.
Cause: The current session was inactive beyond the timeout period, so the system automatically logged you
out.
Resolution: Log in again. As a security precaution to protect against unauthorized system access, you should
always log out of the system when you are done using it.
Invalid Name.
The User Name is not correct.
Cause: The User Name that you typed does not match the current user registry (may be illegal characters,
too long, too short, unknown or duplicate.)
Resolution: Retype your User Name to ensure its accuracy.
The user name has already been used.
Cause: The User Name is a duplicate (when adding a new user to the user registry.)
Resolution: Retype a new User Name.
![](/img.php?id=467204&img=bg48.png)
68 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Not a legal IP address (1.0.0.0 - 255.255.255.255).
The Host Link is not valid.
Cannot reach the specified IP Address.
The SNMP Host Link is not valid.
Cause: The IP address that you entered is either formatted inaccurately or cannot be accessed (pinged.)
Resolution: Correct any typos in the IP address, and make sure your Host device is connected and online.
Invalid network mask.
Cause: The network mask that you entered is formatted inaccurately.
Resolution: Make sure you get the correct network mask from the network administrator and type it in correctly.
Invalid SNMP version number.
Cause: The version number for SNMP protocol is not a supported version.
Resolution: Use version number 1 for SNMP version 1, and 2 for SNMP version 2c.
Invalid Serial Number (0000-0000-0000-0000).
Cause: The serial number that you entered is formatted inaccurately.
Resolution: Correct any typos in the serial number.
Invalid Description.
Cause: The description you entered contains invalid characters ( <,>,or').
Resolution: Remove the invalid characters to correct the description.
Invalid Password.
Cause: The password that you typed does not match the current user registry (may be illegal characters, too
long, or too short.)
Resolution: Retype your password to ensure its accuracy.
Cannot delete the admin user account.
Cause: You may have tried to delete the “admin” user account.
Resolution: No action. The operation is ignored because the system will not allow deletion of this user account.
Cannot delete local Host Address.
Cause: You may have tried to delete the 127.0.0.1 IP address.
Resolution: No action. The operation is ignored because the system will not allow deletion of this IP address.
![](/img.php?id=467204&img=bg49.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 69
Cannot delete the IP address of the active session host.
Cause: You may have tried to delete the IP address of the host that has the current active session.
Resolution: No action. The operation is ignored because the system will not allow deletion of this IP address.
The IP address is still used in ReaderNetwork configuration.
Cause: You may have tried to delete the IP address that has been automatically added in the trusted hosts
database for a reader network device.
Resolution: No action. The operation is ignored because the system will not allow deletion of this IP address.
Cannot modify Default zone.
Cause: The Default read point zone cannot be modified.
Resolution: No action. The operation is ignored because the system will not allow modification of the Default
zone.
Cannot modify the default tag filter ALL.
Cause: The default tag filter “ALL” cannot be modified.
Resolution: No action. The operation is ignored because the system will not allow modification of the tag filter
“ALL”.
This Name has already been used.
This Serial Number has already been used.
This IP Address has already been used.
Cause: The Name, Serial Number, or IP Address that you entered already exists in the system.
Resolution: Type a unique value for the new Name, Serial Number, or IP Address.
You must select an item from the list.
Cause: The system requires that you select an item from the list box before continuing.
Resolution: Select an item from the list box, and then continue.
Last command is still pending. Try again later.
Cause: The system has not completed processing the previous command.
Resolution: Wait a few moments for the previous command to complete, before sending another command.
Another Administrator is currently logged in. Try again later.
Cause: The system will not allow more than one Administrator to log in at a time.
Resolution: Wait until the other Administrator logs out (or times-out) before you log in.
![](/img.php?id=467204&img=bg4a.png)
70 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
Backup configuration file does not exist.
Cause: The system cannot revert to a backup of the current configuration unless a backup file exists.
Resolution: Commit the new configuration to create a backup file.
Failed to confirm the new Password.
Cause: The system requires that you type your password identically two times.
Resolution: Retype your password twice to ensure its accuracy.
Reader Network configuration change(s) have not been saved.
Cause: The user has requested to log out prior to committing/reverting the changes made during their
session.
Resolution: Select one of the Commit/Revert options.
The new Password is the same as the old one.
Cause: The system requires that you type a new password (that is different from your existing password)
during the Change Password operation.
Resolution: Type a new password that is different from your existing password.
The old Password is not correct.
Cause: The system requires that you correctly type your existing password during the Change Password
operation.
Resolution: Retype your existing password to ensure its accuracy.
Commit Accepted - Configuration Changes are queued for action.
Discard Accepted - Configuration reverted to last committed version.
Revert Accepted - Configuration reverted to backup version.
Command Accepted - All 'On Demand' scans queued.
Command Accepted - Polling is Enabled.
Command Accepted - Polling is Disabled.
Operation was Successful.
Cause: You asked the system to perform a function.
Resolution: No action required. The system is reporting that your request was accepted.
Unspecified error occurred - code: ####
Cause: A specific error message is missing for the given status code.
Resolution: Note the code number, and contact Matrics Customer Support at 410-872-0300.
The page that you requested was not found.
Internal Web Server Error.
Cause: The system experienced an internal web server error.
Resolution: Contact Matrics Customer Support at 410-872-0300.
![](/img.php?id=467204&img=bg4b.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 71
Internal Messages
Request method was NULL.
No query string was provided.
Cause: The system does not permit a proxy program to be executed from the command line rather than the
web server.
Resolution: No action required. The system is reporting that this action is not permitted.
Content length is unknown.
Cause: The system cannot accept an incorrectly formatted HTTP POST request (from an unsupported
Browser application.)
Resolution: Use a GET request instead, or update your software.
Couldn't read complete post message.
Cause: The system stopped a POST operation before completion.
Resolution: Retry the operation, and allow it to complete.
Unhandled reply type.
Cause: The system generated an unexpected value.
Resolution: Contact Matrics Customer Support at 410-872-0300.
Failed to open port.
Failed to connect.
Failed to transmit.
Failed to receive.
Error during Receive of Command.
Cause: The system experienced an internal network failure.
Resolution: Contact Matrics Customer Support at 410-872-0300.
DB open failed.
DB put failed.
DB get failed.
DB delete failed.
Cause: The system experienced internal database errors. If you have recently installed the system, this error
may be a configuration problem (open permissions.) If the system has been operational for a while,
this error may be due to a full or corrupt database. This error may also be caused by disk failure.
Resolution: Contact Matrics Customer Support at 410-872-0300.
![](/img.php?id=467204&img=bg4c.png)
72 AR 400 Reader User’s Manual 2003-2004 Matrics, Inc.
FIFO open failed.
Cause: The system experienced an internal communication failure.
Resolution: Contact Matrics Customer Support at 410-872-0300.
Invalid Read Point Type.
Invalid Read Point Scan Period.
Invalid tag category.
Invalid value for the header field of EPC tag.
Invalid value for the manager field of EPC tag.
Invalid value for the class field of EPC tag.
Invalid User Access value.
The option is not valid.
Cause: The system does not recognize the value that you entered, or requires you to make a menu selection.
Resolution: Contact Matrics Customer Support at 410-872-0300.
Invalid Device Address.
Cause: The device address info (parent) is invalid, missing, or formatted inaccurately.
Resolution: Retry the operation. If it is not successful, contact Matrics Customer Support at 410-872-0300.
The size of command over limit.
The size of value over limit.
Too many command/value pairs.
Cause: The command input has exceeded some internal limit.
Resolution: Contact Matrics Customer Support at 410-872-0300.
Command parsing state error.
Missing argument for the command.
Command internal type case error.
Missing operator.
Unknown operator.
Cause: A command has been formatted inaccurately.
Resolution: Contact Matrics Customer Support at 410-872-0300.
Failed to register the Read Point.
Failed to unregister the Read Point.
Failed to unregister the Reader.
Cause: The system could not process the item as intended.
Resolution: Contact Matrics Customer Support at 410-872-0300.
![](/img.php?id=467204&img=bg4d.png)
AR 400 Reader User’s Manual 2003-2004 Matrics, Inc. 73
Cannot find Read Point Class.
Cannot find Reader.
Cannot find Read Point Zone.
Converter was not found.
Cannot find the Event.
Cannot find the Read Point.
Cannot find the specified Reader Port.
Cannot find the specified Host Address.
Cannot find the specified Tag Filter.
Cannot find the specified Read Point Zone.
Cause: The system could not find (or process) the item as intended.
Resolution: Retry the operation. If it is not successful, contact Matrics Customer Support at 410-872-0300.
The reader is not empty.
Cause: The device cannot be deleted if it is not empty.
Resolution: Delete all children devices at first.
The action must be confirmed.
Cause: The user must confirm the requested action before it is executed.
Resolution: Select the confirmation option.
