1 Introduction
EMG101 Gateways are components of Symbol Technologies Wireless Controller System. An EMG101 Gateway
links to wireless 802.15.4 electronic shelf label tags. It installs in minutes anywhere a CAT-5e (or better) cable is
located.
The EMG101 Gateway ships with two single-band 2.4GHz 802.15.4 radios. The radios are configured for redundant
operation. If the currently operating radio fails, the gateway will automatically activate the second radio.
The EMG101 Gateway is approved under MODEL: EMG101.
Symbol recommends the EMG101 Gateway receive power and transfer data through the same CAT-5e (or better)
Ethernet cable using a Symbol Power Injector. The Power Injector ((Part No. AP-PSBIAS-2P2-AFR) is an 802.3af PoE
injector. For information, see Power Injector System.
A separate power supply (Part No. PWRS-147376-01R) is also available if you do not wish to use a Power Injector.
This standard power supply just supplies power to the EMG101 Gateway’s power connector and does not converge
power and Ethernet within a single cable connection.
1.1 Document Conventions
The following graphical alerts are used in this document to indicate notable situations:
1.2 Warnings
• Read all installation instructions and site survey reports, and verify correct equipment installation before
connecting the EMG101 Gateway.
• Remove jewelry and watches before installing this equipment.
• Verify any device connected to this unit is properly wired and grounded.
• Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment
operation specifications.
NOTE Tips, hints, or special requirements that you should take note of.
CAUTION Care is required. Disregarding a caution can result in data loss or
equipment malfunction.
WARNING! Indicates a condition or procedure that could result in personal injury or
equipment damage.
!
MN000995A01.fm Page 5 Tuesday, August 26, 2014 2:27 PM
6EMG101 Gateway
1.3 Site Preparation
To prepare your deployment site for gateway installation:
• Consult your site survey and network analysis reports to determine specific equipment placement, power
drops, and so on.
• Assign installation responsibility to the appropriate personnel.
• Identify and document where all installed components are located
• Ensure adequate, dust-free ventilation to all installed equipment
• Prepare Ethernet port connections
• Verify cabling is within the maximum 100 meter allowable length
1.4 Package Contents
The EMG101 Gateway ships with the following:
• ESL101 Gateway
• Installation Guide (This Guide)
• Rubber Wall Mount Spacers (4)
• Wall mount screw and anchor kit
1.5 Features
• One RJ-45 console connector
• LED indicator
• Safety wire tie point
• Wall mount slots
• Clips for suspended T-Bar mounting
• DC power connector

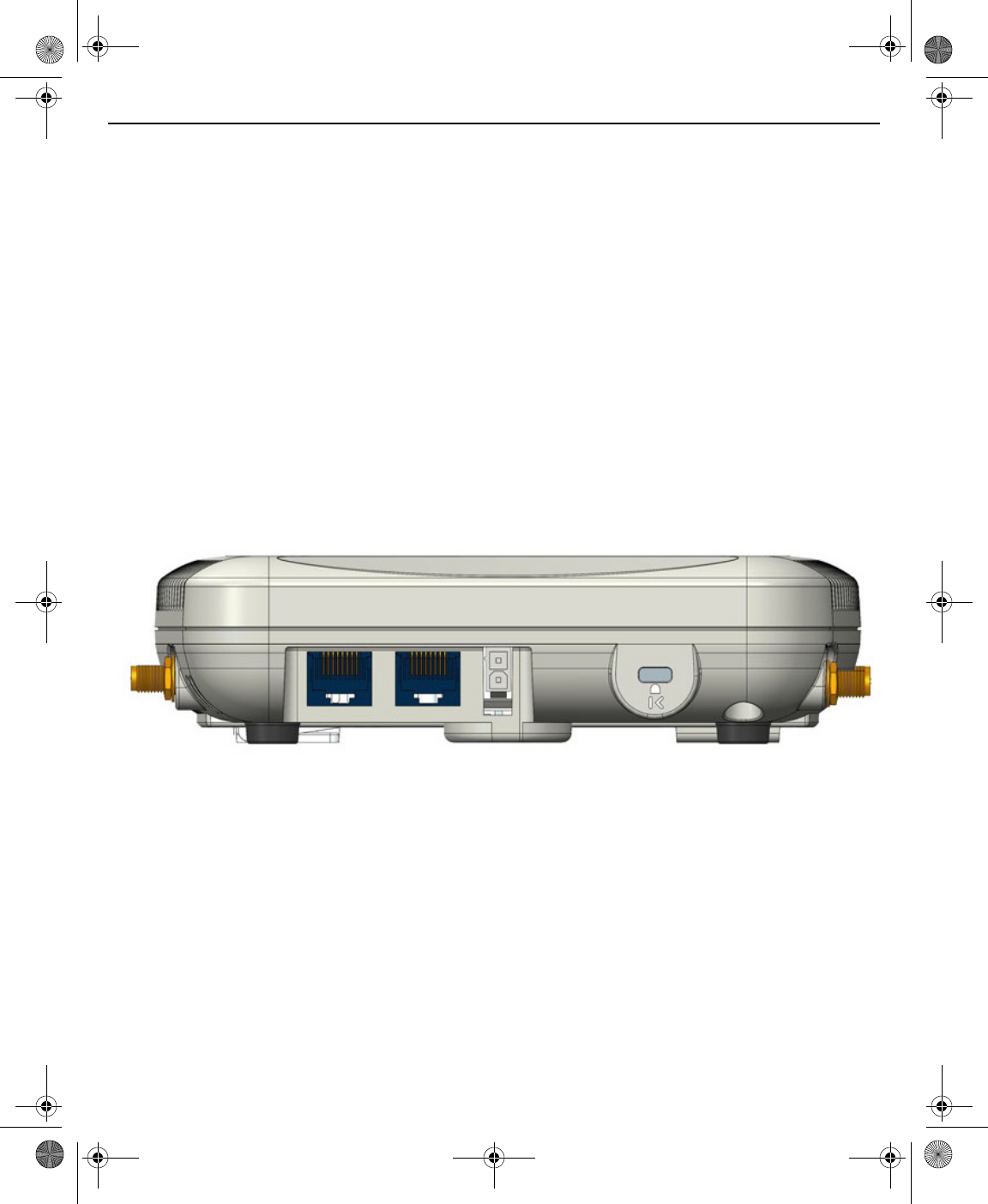

An EMG101 Gateway has one RJ-45 connector supporting an 10/100/1000 Ethernet port connection and requires
802.3af compliant power from an external source.
The EMG101 Gateway contains runtime firmware which enables the unit to boot after either a power up or a
watchdog reset. The runtime firmware on the gateway can be updated via the Ethernet interface.
MN000995A01.fm Page 6 Tuesday, August 26, 2014 2:27 PM
Installation Guide 7
2 Hardware Installation
2.1 Installation Instructions
The EMG101 Gateway can attach to a wall or mount under a suspended T-Bar. Select a mounting option based on
the physical environment of the coverage area. Do not mount the EMG101 Gateway in a location not approved in
a site survey.
To prepare for the installation:
1. Verify the contents of the box includes the intended EMG101 Gateway and accessory hardware.
2. Review site survey and network analysis reports to determine the location and mounting position for the
EMG101 Gateway.
3. Connect a CAT-5 or better Ethernet cable to a PoE compatible device and run the cable to the installation
site. Ensure there is sufficient cable slack to perform the installation steps.
4. Determine whether the EMG101 Gateway is powered using a Power Injector system, combining data and
power to the Gateway’s GE1/PoE port or will be powered from a conventional power adapter providing
power only to the Gateway’s DC-48V connector.
2.2 Precautions
Before installing the EMG101 Gateway:
• Verify the intended deployment location is not prone to moisture or dust.
• Verify the environment has a continuous temperature range between 0° C to 50° C.
MN000995A01.fm Page 7 Tuesday, August 26, 2014 2:27 PM
8EMG101 Gateway
2.3 EMG101 Gateway Placement
For optimal performance, install the EMG101 Gateway away from transformers, heavy-duty motors, fluorescent
lights, microwave ovens, refrigerators and other industrial equipment. Signal loss can occur when metal, concrete,
walls or floors block transmission. Install the EMG101 Gateway in an open area or add additional gateways as
needed to improve coverage.
Antenna coverage is analogous to lighting. Users might find an area lit from far away to be not bright enough. An
area lit sharply might minimize coverage and create dark areas. Uniform antenna placement in an area (like even
placement of a light bulb) provides even, efficient coverage.
Place the EMG101 Gateway using the following guidelines:
• Install the EMG101 Gateway at an ideal height of 10 feet from the ground.
• Orient the EMG101 Gateway antennas (Part Number ML-2452-APA2-01) vertically for best reception.
• Point the EMG101 Gateway antennas downward if attaching to the ceiling.
To maximize the EMG101 Gateway’s radio coverage area, Symbol recommends conducting a site survey to define
and document radio interference obstacles before installing the EMG101 Gateway.
2.4 Power Injector System

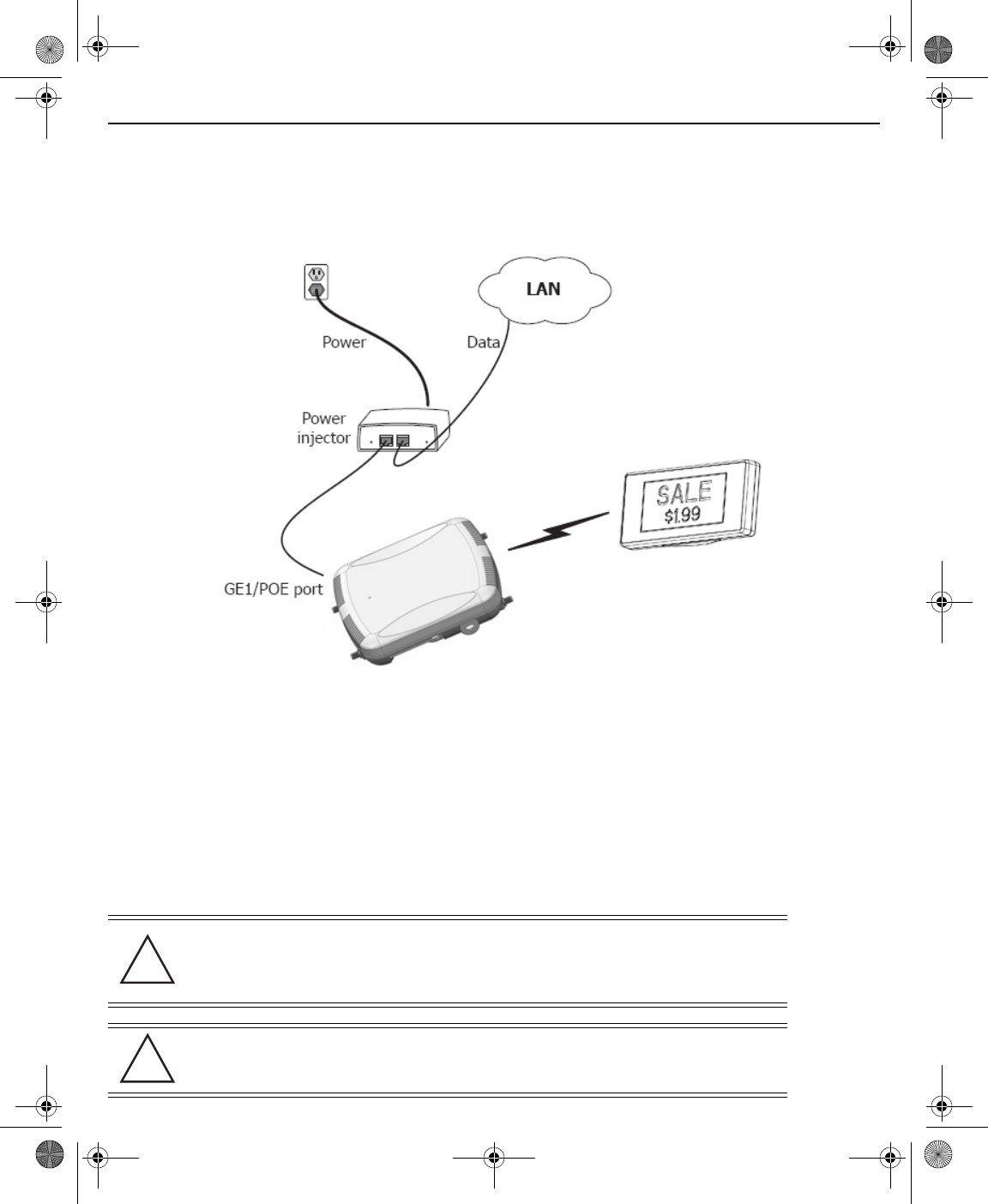

The EMG101 Gateway can receive power via an Ethernet cable connected to the GE1/PoE port.
When users purchase an Electronic Shelf Label (ESL) solution, they often need to place EMG101 Gateways in
obscure locations. Power can be supplied from a dedicated connection or from a PoE injector. The Power Injector
merges power and Ethernet into one cable, reducing the burden of installation and allowing optimal EMG101
Gateway placement in respect to the intended coverage area.
The Power Injector (Part No. AP-PSBIAS-2P2-AFR) is an 802.3af PoE injector. The EMG101 Gateway can only use a
Power Injector when connecting to the EMG101 Gateway’s GE1/PoE port. The Power Injector is separately ordered
and not shipped with the EMG101 Gateway. A separate Power Injector is required for each EMG101 Gateway
comprising the network.
MN000995A01.fm Page 8 Tuesday, August 26, 2014 2:27 PM
Installation Guide 9
The Power Injector has no On/Off power switch. The Injector receives power and is ready for device connection and
operation as soon as AC power is applied. Refer to the Installation Guide shipped with the Power Injector for a
description of the device’s LED. The Power Injector can be installed free standing, on an even horizontal surface or
wall mounted using the Power Injector’s wall mounting key holes.
The following guidelines should be adhered to before cabling the Power Injector to an Ethernet source and an
EMG101 Gateway:
• Do not block or cover airflow to the Power Injector.
• Keep the Power Injector away from excessive heat, humidity, vibration and dust.
• The Power Injector isn’t a repeater, and does not amplify the Ethernet signal. For optimal performance,
ensure the Power Injector is placed as close as possible to the Ethernet switch. This allows the EMG101
Gateway to be deployed away from power drops.
• Ensure the cable length from the Ethernet source (host) to the Power Injector and EMG101 Gateway does
not exceed 100 meters (333 ft).
CAUTION To avoid problematic performance and restarts, disable PoE from a
wired controller port connected to an EMG101 Gateway if mid-span
power sourcing equipment (PSE) is used between the two, regardless
of the manufacturer.
CAUTION Ensure AC power is supplied to the Power Injector using an AC cable
with an appropriate ground connection approved for the country of
operation.
!
!
MN000995A01.fm Page 9 Tuesday, August 26, 2014 2:27 PM
10 EMG101 Gateway
2.5 Wall Mount Installation
To support wall mount installations, the EMG101 Gateway is fastened directly to a flat wall surface. The wall
should be of gypsum board, plaster, wood or concrete in composition.
To install the EMG101 Gateway to a wall surface:
1. Orient the EMG101 Gateway by either its width or length.
2. Mark the mounting surface at the target screw insertion points.
3. At each point, drill a hole in the wall, insert an anchor, screw into the anchor the wall mounting screw and
stop when there is 1mm between the screw head and the wall.
4. If pre-drilling a hole, the recommended hole size is 2.8mm (0.11in.) if the screws are going directly into
the wall and 6mm (0.23in.) if wall anchors are being used.
5. If required, install and attach a security cable to the EMG101 Gateway lock port.
6. Attach the antennas to their correct connectors.
7. Place the large center opening of each of the mount slots over the screw heads.
8. Slide the EMG101 Gateway down along the mounting surface to hang the mount slots on the screw heads.
9. Cable the EMG101 Gateway using either the Power Injector solution or an approved line cord and power
supply.
For Symbol Power Injector installations:
a. Connect an RJ-45 CAT5 Ethernet cable between the network data supply (host) and the Power
Injector’s Data In connector.
b. Connect an RJ-45 CAT5 Ethernet cable between the Power Injector’s Data & Power Out connector
and the EMG101 Gateway.
CAUTION EMG101 must only be connected to PoE networks without any
connections to an outside plant power source.
NOTE If not using the Power Injector to power the EMG101 Gateway, the only
other approved power solution is the standard power supply (Part
Number PWRS-147376-01R). The standard power supply does not
converge data and power in one cable, and requires a separate data
Ethernet connection in addition to a power connection. This product is
intended to be supplied by a listed power adapter marked “Class 2” or
“L.P.S” (or “Limited Power Source”) and rated from 48Vdc, 0.38A
minimum.
CAUTION An EMG101 Gateway should be wall mounted to concrete or
plaster-wall-board (dry wall) only. Do not wall mount the EMG101
Gateway to combustible surfaces.
!
!
MN000995A01.fm Page 10 Tuesday, August 26, 2014 2:27 PM
Installation Guide 11
c. Ensure the cable length from the Ethernet source (host) to the Power Injector and EMG101 Gateway
does not exceed 100 meters (333 ft). The Power Injector has no On/Off power switch. The Power
Injector receives power as soon as AC power is applied. For more information, see Power Injector
System.
For power adapter (Part Number PWRS-147376-01R) and line cord installations:
a. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the network data supply (host) and the
EMG101 Gateway’s GE1/PoE.
b. Verify the power adapter is correctly rated according the country of operation.
c. Connect the power supply line cord to the power adapter.
d. Attach the power adapter cable to the DC-48V power connector on the EMG101 Gateway.
e. Attach the power supply line cord to a power supply.
10. Verify the behavior of the EMG101 Gateway LED. For more information, see LED Indicator.
11. The Gateway is ready to configure. For information on basic Gateway configuration, see Basic Gateway
Configuration.
2.6 Suspended Ceiling T-Bar Installation
A suspended ceiling mount requires holding the EMG101 Gateway up against the T-bar of a suspended ceiling grid
and twisting the EMG101 Gateway chassis onto the T-bar.
To install the EMG101 Gateway on a ceiling T-bar:
1. If desired, install and attach a security cable to the EMG101 Gateway lock port.
2. Attach the antennas to their correct connectors.
3. Cable the EMG101 Gateway using either the Power Injector solution or an approved line cord and power
supply.
For Symbol Power Injector installations:
a. Connect an RJ-45 CAT5 Ethernet cable between the network data supply (host) and the Power
Injector’s Data In connector.
b. Connect an RJ-45 CAT5 Ethernet cable between the Power Injector’s Data & Power Out connector
and the Gateway.
c. Ensure the cable length from the Ethernet source (host) to the Power Injector and Gateway does not
exceed 100 meters (333 ft). The Power Injector has no On/Off power switch. The Power Injector
receives power as soon as AC power is applied. For more information, see Power Injector System.
CAUTION Do not connect to the power source until the cabling of the EMG101
Gateway is complete. Ensure PoE is not connected to the EMG101
Gateway’s console connector or risk rendering the console connector
permanently inoperable.
!
MN000995A01.fm Page 11 Tuesday, August 26, 2014 2:27 PM
12 EMG101 Gateway
For power adapter (Part Number PWRS-147376-01R) and line cord installations:
a. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the network data supply (host) and the
Gateway’s GE1/PoE.
b. Verify the power adapter is correctly rated according the country of operation.
c. Connect the power supply line cord to the power adapter.
d. Attach the power adapter cable to the DC-48V power connector on the Gateway.
e. Attach the power supply line cord to a power supply.
4. Verify the behavior of the Gateway LED. For more information, see Basic Gateway Configuration.
5. Align the bottom of the ceiling T-bar with the back of the Gateway.
6. Orient the Gateway chassis by its length and the length of the ceiling T-bar.
7. Rotate the Gateway chassis 45 degrees clockwise.
8. Push the back of the Gateway chassis on to the bottom of the ceiling T-bar.
9. Rotate the Gateway chassis 45 degrees counter-clockwise. The clips click as they fasten to the T-bar.
10. Verify the behavior of the Gateway LED. For more information, see LED Indicator.
11. The Gateway is ready to configure. For information on basic Gateway device configuration, see Basic
Gateway Configuration.
MN000995A01.fm Page 12 Tuesday, August 26, 2014 2:27 PM
Installation Guide 13
2.7 LED Indicator

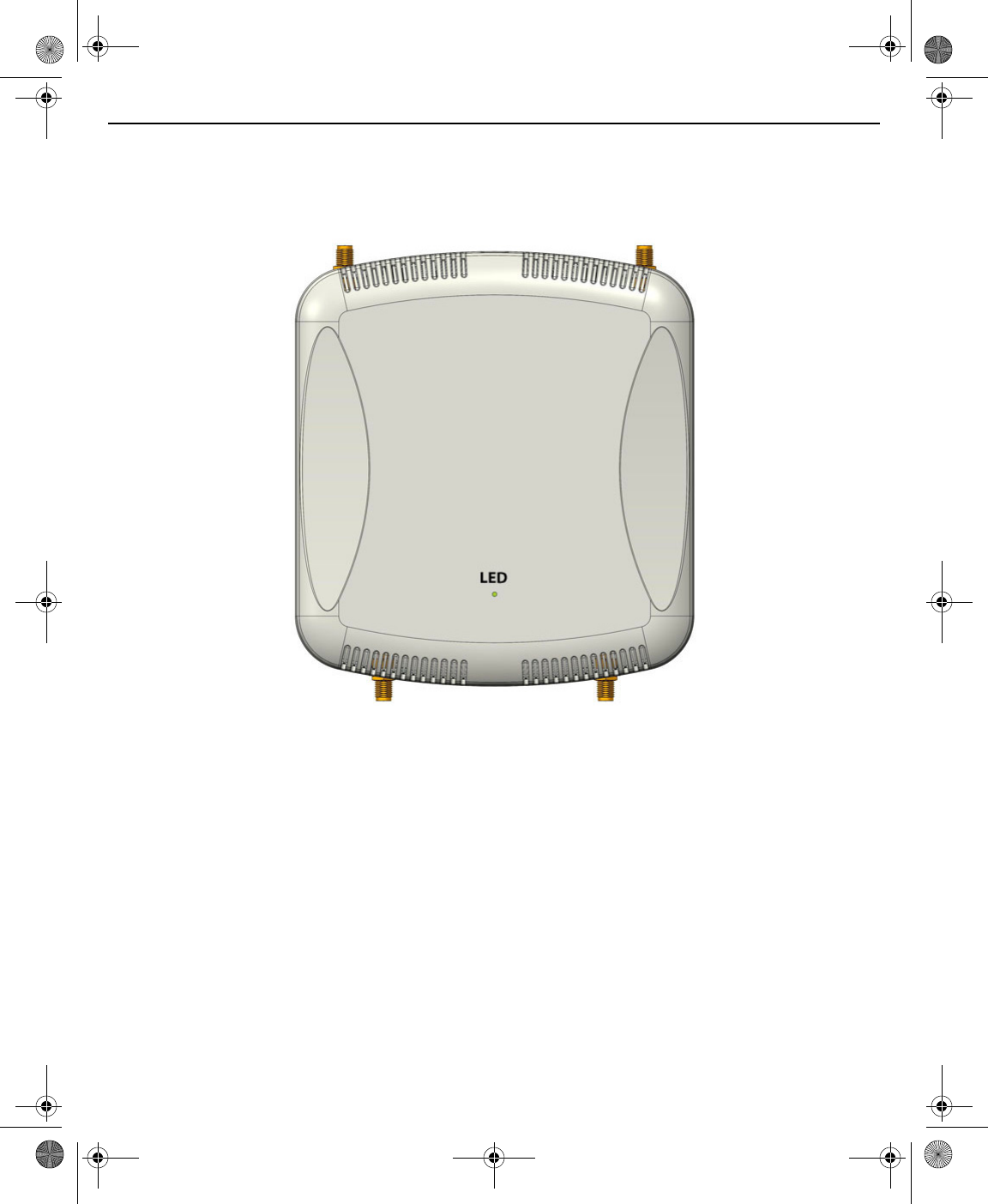

The EMG101 Gateway has a single LED on the front of the unit.
When the EMG101 Gateway is not powered up, the LED will be amber. When the EMG101 Gateway is powered
up and running, the LED will be green.
MN000995A01.fm Page 13 Tuesday, August 26, 2014 2:27 PM
14 EMG101 Gateway
3 Basic Gateway Configuration
To provide the EMG101 Gateway with a basic configuration:
1. Power up the Gateway.
2. By default, the Gateway will obtain an IP address from the DHCP server.
3. If no DHCP server is available, a Static IP address should be configured. You will need to contact Symbol
technical support to obtain a valid password.
4. To configure a Static IP address:
a. Connect to the Gateway via the Console port.
b. Login as motgw and switch to superuser (su) mode.
c. Edit the interfaces file at /etc/network/interfaces to enter the IP address.
5. You will also need to configure the Channel and PAN ID.To configure the Channel and PAN ID:
a. Connect to the Gateway via the Console port (if the Gateway IP address needs to be configured), or
via ssh (if the Gateway has already been configured).
b. Login as motgw and switch to superuser (su) mode.
c. Edit the coord.conf file.
d. Update the COORD_PANID and COORD_CHANNEL values to be used for the Gateway deployment.
Contact Symbol technical support to identify the required values for these parameters.
e. Ensure that the SPI_INDEX value is set to zero or a positive value.
f. Update the REGULATORY_REGION parameter to the appropriate value (example: EU1, NA1, NA2, and
NA3). Contact Symbol support for the correct value for your deployment.
g. Update the STORE_ID parameter with the store ID to be used for the deployment location.
h. Save the updated coord.conf file.
MN000995A01.fm Page 14 Tuesday, August 26, 2014 2:27 PM
Installation Guide 15
4 Specifications
4.1 Electrical Characteristics
An EMG101 Gateway has the following electrical characteristics:
4.2 Physical Characteristics
An EMG101 Gateway has the following physical characteristics:
4.3 Radio Characteristics
An EMG101 Gateway has the following radio characteristics:
Max DC Power
Consumption
6W (125mA@48V)
Dimensions 6.0 (Length) x 5.5 (Width) x 1.63 (Tall) - Inches
152.4 (Length) x 139.7 (Width) x 41.1 (Tall) - Millimeters
Housing Plastic
Weight 0.60 lbs/0.272 kg
Operating
Temperature
32°F to 122°F/0°C to 50°C
Storage Temperature -40°F to 158°F/-40°C to 70°C
Operating Humidity 5 to 95% Relative Humidity non-condensing
Storage Humidity 85% Relative Humidity non-condensing
Operating Altitude
(max)
8,000 ft @ 28°C
Storage Altitude
(max)
30,000 ft @ 12°C
Electrostatic
Discharge
+/-8V Air and +/-4kV Contact @ 50% Relative Humidity
Operating Channels Channels 11-25 (2405 to 2475 MHz)
Max Transmit Power 10 dBm
MN000995A01.fm Page 15 Tuesday, August 26, 2014 2:27 PM
16 EMG101 Gateway
5 Regulatory Information
5.1 Regulatory Overview
This device is approved under Symbol Technologies, Inc.
This guide applies to Model Number EMG101.
Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be
labeled as required.
Local language translations are available at the following website:
https://portal.motorolasolutions.com/Support/US-EN/Wireless+Networks
Any changes or modifications to Symbol equipment, not expressly approved by Symbol, could void the user’s
authority to operate the equipment.
When Symbol devices are professionally installed, the Radio Frequency Output Power will not exceed the maximum
allowable limit for the country of operation.
Antennas: Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or
attachments could cause damage and may violate regulations.
Declared maximum operating temperature: 50°C.
5.2 Wireless Device Country Approvals
Regulatory markings, subject to certification, are applied to the device signifying the radio(s) is/are approved for
use in the following countries: United States, Canada, and Europe.
Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at
http://www.motorolasolutions.com/doc
Note: Europe includes, Austria, Belgium, Bulgaria, Czech Republic, Cyprus, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland and the
United Kingdom.
Operation of the device without regulatory approval is illegal.
5.2.1 Frequency of Operation – FCC and IC
2.4 GHz Only
The available channels for 802.15.4 operation in the US are Channels 11 to 25. The range of channels is limited by
firmware.
MN000995A01.fm Page 16 Tuesday, August 26, 2014 2:27 PM
Installation Guide 17
5.3 Health and Safety Recommendations
5.3.1 Warnings for the use of Wireless Devices
Please observe all warning notices with regard to the usage of wireless devices.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between a handheld
wireless device and a pacemaker to avoid potential interference with the pacemaker. These recommendations are
consistent with independent research and recommendations by Wireless Technology Research.
Persons with Pacemakers:
• Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned ON
• Should not carry the device in a breast pocket
• Should use the ear furthest from the pacemaker to minimize the potential for interference
• If you have any reason to suspect that interference is taking place, turn OFF your device.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device, to determine if the operation of your
wireless product may interfere with the medical device.
5.4 RF Exposure Guidelines
5.4.1 Safety Information
Reducing RF Exposure—Use Properly
Only operate the device in accordance with the instructions supplied.
5.5 International
The device complies with internationally recognized standards covering human exposure to electromagnetic fields
from radio devices. For information on “International” human exposure to eletromagnic fields refer to the Symbol
Declaration of Conformity (DoC) at http://www.motorolasolutions.com/doc.
For further information on the safety of RF energy from wireless devices - see
http://responsibility.motorolasolutions.com/index.php/downloads/
Located under Wireless Communications and Health
MN000995A01.fm Page 17 Tuesday, August 26, 2014 2:27 PM
18 EMG101 Gateway
5.6 Europe
Electronic Shelf Gateway
To comply with EU RF exposure requirements, this device must be used according to installation instructions. Other
operating configurations should be avoided.
To satisfy EU RF exposure requirements, a transmitting device must operate with a minimum separation distance
of 20 cm or more from a person's body.
5.7 US and Canada
Co-located statement
To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must not be
co-located or operating in conjunction with any other transmitter/antenna except those already approved in this
filling.
To comply with FCC/IC RF exposure requirements, antennas that are mounted externally or operating near users
must operate with a minimum separation distance of 20 cm from all persons.
To satisfy US and Canadian RF exposure requirements, a transmitting device must operate with a minimum
separation distance of 20cm or more from a person's body.
Pour satisfaire aux exigences Américaines et Canadiennes d'exposition aux radiofréquences, un dispositif de
transmission doit fonctionner avec une distance de séparation minimale de 20cm ou plus de corps d'une personne.
5.8 Power Supply
Use ONLY a Symbol/Motorola approved UL LISTED ITE (IEC/EN 60950-1, LPS) power supply with electrical ratings:
Output 48Vdc, min 0.38A, with a maximum ambient temperature of at least 50° C. Use of alternative power supply
will invalidate any approvals given to this unit and may be dangerous.
This device must be powered from a 802.3af or 802.3at compliant power source which has been certified by the
appropriate agencies, or by a Motorola approved UL LISTED ITE (IEC/EN 60950-1, LPS) power supply with electrical
ratings: Output 48Vdc, min 0.35A, with a recommended temperature greater than 50 degrees C. Use of an
alternative power supply will invalidate any approvals given to this unit and ma be dangerous.
5.9 Radio Frequency Interference Requirements—FCC
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can
MN000995A01.fm Page 18 Tuesday, August 26, 2014 2:27 PM
Installation Guide 19
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
5.10 Radio Frequency Interference Requirements – Canada
In accordance with the regulations of Industry Canada, this radio transmitter can operate with an antenna of a type
and a maximum gain (or lower) approved for the transmitter by Industry Canada. With the aim of reducing the risk
of radio interference to other users, the chosen antenna type and it gain should be selected so that the equivalent
isotropically radiated power (e.i.r.p.) does not exceed the intensity necessary for the establishment of a satisfactory
connection.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une
antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but
de réduire les risques de brouillage radioélectriqueà l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire àl'établissement d'une communication satisfaisante.
This radio transmitter EMG101 has been approved by Industry Canada to operate with the antenna types listed
below and having a maximum gain allowable and the impedance required for each type of antenna. The antenna
types not included in this list, or whose gain is higher than the maximum gain indicates, are strictly prohibited for
the operation of the transmitter.
Dipole 3.2 dBi 50 ohms
Cet émetteur EMG101 radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne
énumérés ci-dessous et ayant un gain maximal admissible et l'impédance requise pour chaque type d'antenne. Les
types d'antennes ne figurent pas dans cette liste, ou dont le gain est supérieur au gain maximal indique, sont
strictement interdits pour le fonctionnement de l'émetteur.
5.10.1 Radio Transmitters
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
MN000995A01.fm Page 19 Tuesday, August 26, 2014 2:27 PM
20 EMG101 Gateway
Cet appareil est conforme avec Industrie Canada RSS exemptes de licence. Son fonctionnement est soumis aux
deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences, et (2) cet appareil doit accepter
toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
Label Marking: The Term "IC:" before the radio certification only signifies that Industry Canada technical
specifications were met.
5.11 CE Marking and European Economic Area (EEA)
The use of 2.4 GHz RLAN’s, for use through the EEA, have the following restrictions:
• Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400 -2.4835 GHz.
5.12 Statement of Compliance
Symbol hereby declares that this device is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A Declaration of Conformity (DoC) may be obtained from
http://www.motorolasolutions.com/doc.
MN000995A01.fm Page 20 Tuesday, August 26, 2014 2:27 PM
Installation Guide 21
5.13 Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be returned to Symbol for recycling. For
information on how to return product, please go to: http://www.motorolasolutions.com/recycling/weee.
Français: Clients de l'Union Européenne: Tous les produits en fin de cycle de vie doivent être retournés à Symbol
pour recyclage. Pour de plus amples informations sur le retour de produits, consultez :
http://www.motorolasolutions.com/recycling/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Symbol al final de su ciclo
de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto, visite:
http://www.motorolasolutions.com/recycling/weee.
Български: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се връщат на
Symbol за рециклиране. За информация относно връщането на продукти, моля отидете на адрес:
http://www.motorolasolutions.com/recycling/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum Recycling an
Symbol zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie unter
http://www.motorolasolutions.com/recycling/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono essere
restituiti a Symbol al fine di consentirne il riciclaggio. Per informazioni sulle modalità di restituzione, visitare il
seguente sito Web: http://www.motorolasolutions.com/recycling/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Symbol para
reciclagem. Para obter informações sobre como devolver o produto, visite:
http://www.motorolasolutions.com/recycling/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar Symbol te
worden teruggezonden voor recycling. Raadpleeg http://www.motorolasolutions.com/recycling/weee voor meer
informatie over het terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji naleźy zwrócić do firmy Symbol w
celu ich utylizacji. Informacje na temat zwrotu produktów znajdują się na stronie internetowej
http://www.motorolasolutions.com/recycling/weee./recycling/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich životnosti vrátit spoleènosti Symbol
k recyklaci. Informace o zpùsobu vrácení produktu najdete na webové stránce:
http://www.motorolasolutions.com/recycling/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil Symbol 'ile.
Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun aadressi:
http://www.motorolasolutions.com/recycling/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Symbol vállalathoz kell eljuttatni újrahasznosítás
céljából. A termék visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el a
http://www.motorolasolutions.com/recycling/weee weboldalra.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Symbol för
återvinning. Information om hur du returnerar produkten finns på
http://www.motorolasolutions.com/recycling/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Symbol
Technologies-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa
http://www.motorolasolutions.com/recycling/weee.
MN000995A01.fm Page 21 Tuesday, August 26, 2014 2:27 PM
22 EMG101 Gateway
Dansk: Til kunder i EU: Alle produkter skal returneres til Symbol til recirkulering, når de er udtjent. Læs
oplysningerne om returnering af produkter på: http://www.motorolasolutions.com/recycling/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρέφονται
στην Symbol για ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επιστροφή ενός προϊόντος,
επισκεφθείτε τη διεύθυνση http://www.motorolasolutions.com/recycling/weee στο ∆ιαδίκτυο.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu rritornati
għand Symbol għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk jogħġbok żur:
http://www.motorolasolutions.com/recycling/weee.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare, trebuie returnate la
Symbol pentru reciclare. Pentru informaţii despre returnarea produsului, accesaţi:
http://www.motorolasolutions.com/recycling/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Symbol za reciklažo. Za
informacije o vračilu izdelka obiščite: http://www.motorolasolutions.com/recycling/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti vrátené
spoločnosti Symbol na recykláciu. Bližšie informácie o vrátení výrobkov nájdete na:
http://www.motorolasolutions.com/recycling/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į kompaniją
„Symbol“. Daugiau informacijos, kaip grąžinti gaminį, rasite: http://www.motorolasolutions.com/recycling/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Symbol otrreizējai
pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Symbol, lūdzu, skatiet:
http://www.motorolasolutions.com/recycling/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Symbol 'ya iade edilmelidir.
Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin:
http://www.motorolasolutions.com/recycling/weee.
5.14 TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
MN000995A01.fm Page 22 Tuesday, August 26, 2014 2:27 PM
Installation Guide 23
6 Support Information
If you have a problem with your equipment, contact support for your region.
Contact information is available at: https://portal.motorolasolutions.com/Support/US-EN
When contacting Symbol technical support, please provide the following information:
• Serial number of the unit
• Model number or product name
• Software type and version number
Symbol responds to calls by e-mail, telephone, or fax within the time limits set forth in support agreements. If you
purchased your product from a Symbol business partner, contact that business partner for support.
6.1 Customer Support Web Sites
The Symbol Support Web site, located at: https://portal.motorolasolutions.com/Support/US-EN.
provides information and online assistance including developer tools, software downloads, product manuals and
online repair requests.
6.2 Manuals
Symbol documentation is available at:
https://portal.motorolasolutions.com/Support/US-EN/Wireless+Networks.
6.3 General Information
Obtain additional information by contacting Symbol at:
Telephone (North America): 1-800-722-6234
Telephone (International): +1-631-738-5200
Website: http://www.motorolasolutions.com
MN000995A01.fm Page 23 Tuesday, August 26, 2014 2:27 PM
24 EMG101 Gateway
MN000995A01.fm Page 24 Tuesday, August 26, 2014 2:27 PM
Installation Guide 25
MN000995A01.fm Page 25 Tuesday, August 26, 2014 2:27 PM
26 EMG101 Gateway
MN000995A01.fm Page 26 Tuesday, August 26, 2014 2:27 PM
Installation Guide 27
MN000995A01.fm Page 27 Tuesday, August 26, 2014 2:27 PM
Symbol Technologies, Inc
One Symbol Plaza
Holtsville, New York 11742-1300
http://www.symbol.com
Symbol® is a registered trademark, and The Enterprise Mobility Company is a trademark of Symbol Technologies, Inc. All other trademarks and
service marks are proprietary to their respective owners. © 2014 Symbol Technologies, Inc. All Rights Reserved.
MN000995A01
Revision A August 2014
MN000995A01.fm Page 28 Tuesday, August 26, 2014 2:27 PM
