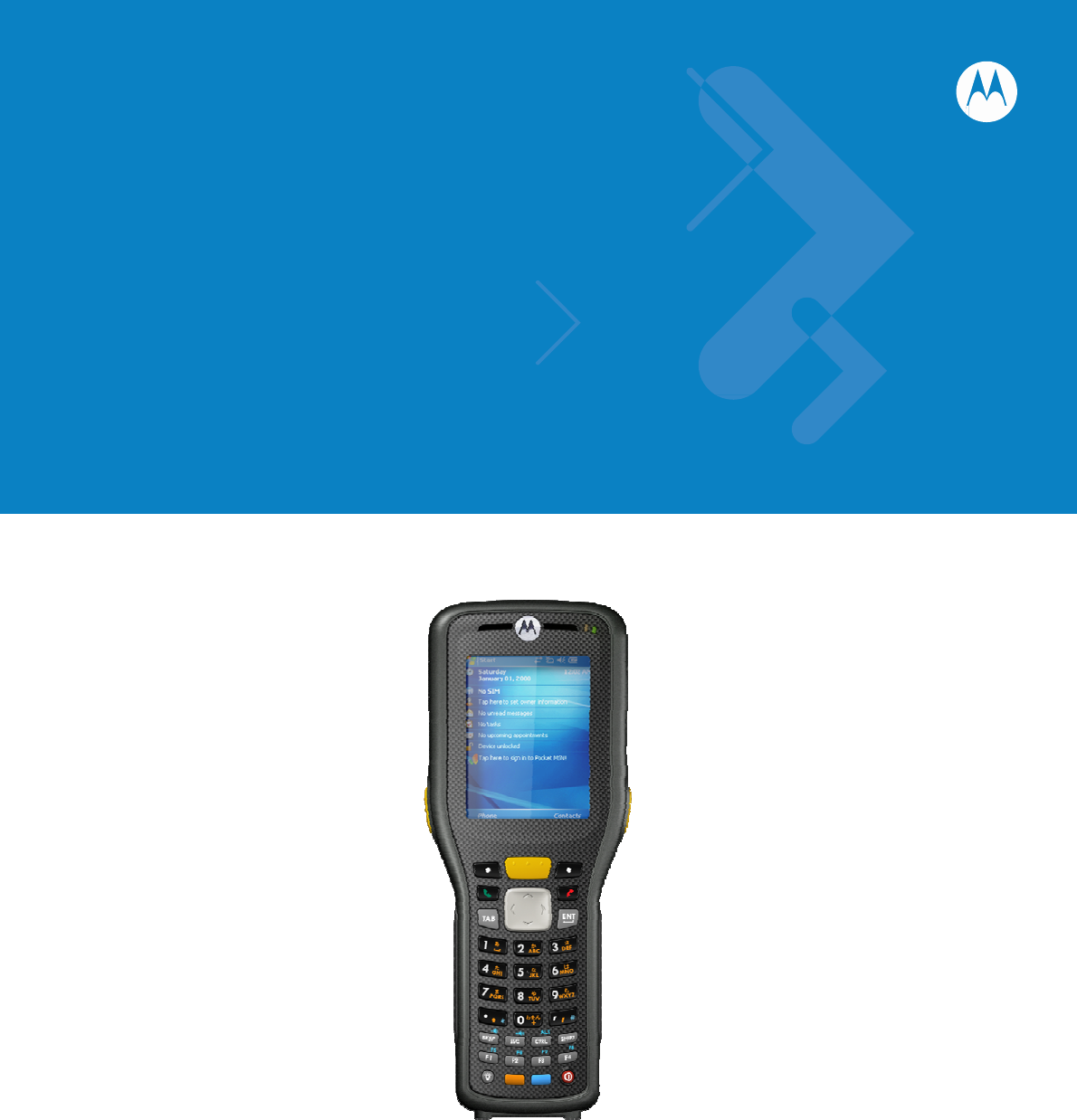

Symbol Technologies FR6070 MOBILE COMPUTER User Manual FR6070 User Guide 1
Symbol Technologies Inc MOBILE COMPUTER FR6070 User Guide 1
Users Manual
FR6070Enterprise Digital Assistant
User Guide
2
FR6070
Enterprise Digital A
ssistant
User
Guide
Rev.
A
Jan.
2009
FR6076
User Guide
3
© 2008 by Motorola, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Motorola. This includes electronic or mechanical means, such as
photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to
change without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Motorola grants to the user a non-transferable and non-exclusive license to use each
software or firmware program delivered hereunder (licensed program). Except as noted below, such license
may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of
Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under
copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with
other program material, create a derivative work from a licensed program, or use a licensed program in a
network without written permission from Motorola. The user agrees to maintain Motorola’s copyright notice on
the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in
whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed
program delivered to the user or any portion thereof.
Motorola reserves the right to make changes to any software or product to improve reliability, function, or
design.
Motorola does not assume any product liability arising out of, or in connection with, the application or use of
any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Motorola, Inc.,
intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in
Motorola products.
MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the US Patent &
Trademark Office. Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync
are either registered trademarks or trademarks of Microsoft Corporation. All other product or service names
are the property of their respective owners.
Motorola, Inc.
One Motorola Plaza
Holtsville, New York 11742-1300
http://www.motorola.com
Patents
This product is covered by one or more of the patents listed on the website: www.symbol.com/patents.
FR6076
User Guide
4
Revision History
Changes to the original manual are listed below:
Change
Date
De
scrip
tio
n
-01 Rev. A Initial release.
FR6076
User Guide
5
ECLARATION OF CONFORMITY
CE Regulations:
Hereby, declares that this FR6070product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Towhichthisdeclarationrelates,isinconformitywiththefollowingstandards
EN300328V1.7.1
EN301489‐1V1.8.1
EN301489‐17V1.3.2
EN60950‐1:2001+A11:2004
EN55022:2006+A1:2007
EN55024:1998+A2:2003+A1:2001
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s
authority to operate the equipment.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions
accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating
can be well below the maximum value. This is because the device is designed to operate at multiple power levels so
FR6076
User Guide
6
as to use only the poser required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The highest SAR value for the device as reported to the FCC when tested for use at the ear is 0.014 W/kg and when
worn on the body, as described in this user guide, is 0.00407 W/kg. (Body-worn measurements differ among device
models, depending upon available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various devices and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be
found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: H9PFR6070.
For body worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF exposure guidelines.
Table of Contents
ix
7
Table of Contents
About This Guide
Chapter1: Getting Started
Chapter2: Using the FR6070
Chapter3: Using Bluetooth
Chapter4 Accessories
Chapter5 Maintenance & Troubleshooting
iacs
-
is&t
In
reply
to:
8
About
This Guide
Introduction
This guide provides information about using the FR6070 Enterprise Digital Assistant (EDA) and accessories.
NOTE
Screens and windows pictured in this guide are samples and can differ from actual screens.
Documentation Set
The documentation set for the FR6070 provides formation for specific user needs, and includes:
• FR6070 Quick Start Guide - describes how to get the FR6070 up and running.
• FR6070 User Guide - describes how to use the FR6070
About This Guide
9
Configurations
This guide covers the following configurations:
Configuration Radios
Display Memory
Data
Capture
Operating
S
y
stem
Keypads
FR6070 WPAN:
Bluetooth
2.8”
VGA
Color
128 MB
RAM/
256 MB
Flash
1D laser
scanner Windows
Mobile 6
Professional
Alphanumeric
keypad
Software
V
e
rsi
ons
This guide covers various software configurations and references are made to operating
system or software versions for:
• Adaptation Kit Update (AKU) version
AKU
V
e
rsion
To determine the Adaptation Kit Update (AKU) version:
Tap Start > Settings > System tab > About icon > Version tab.
The second line lists the operating system version and the build number. The last part of the build
number represents the AKU number. For example, Build 18552.0.7.5 indicates that the device is
running AKU version 0.7.5.
About This Guide
10
Chapter Descriptions
Topics covered in this guide are as follows:
• Chapter 1, Getting Started provides information on getting the FR6070up and running
for the first time.
• Chapter 2, Using the FR6070provides basic instructions for using the FR6070,
including powering on and resetting the FR6070, and entering and capturing data.
• Chapter 3, Using Bluetooth explains Bluetooth functionality on the FR6070.
• Chapter 4, Accessories describes the available accessories and how to use them
with the FR6070.
• Chapter 5, Maintenance & Troubleshooting includes instructions on cleaning and
storing the FR6070, and provides troubleshooting solutions for potential problems
during FR6070operation.
Notational Conventions
The following conventions are used in this document:
• “Handy” refers to the Motorola FR6070series of hand-held computers.
• Italics are used to highlight the following:
• Chapters and sections in this and related documents
• Icons on a screen.
• Bold text is used to highlight the following:
• Dialog box, window, and screen names
• Drop-down list and list box names
• Check box and radio button names
• Key names on a keypad
• Button names on a screen.
• bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
• Sequential lists (e.g., those that describe step-by-step procedures) appear as
About This Guide
11
numbered lists.
Related Documents
• FR6070Quick Start Guide, p/n 72-103079-xx.
• FR6070Windows Mobile 6 Regulatory Guide, p/n 72-103080-xx.
• FR6070Integrator Guide, p/n 72E-103078-xx.
• Microsoft® Applications for Mobile 6 User Guide, p/n 72E-108299-xx
• Enterprise Mobility Application Guide, p/n 72E-68901-xx
• Enterprise Mobility Developer Kits (EMDKs), available at: http://support.symbol.com/.
• Latest ActiveSync software, available at: http://www.microsoft.com.
For the latest version of this guide and all guides, go to: http://www.symbol.com/manuals.
Service Information
If you have a problem with your equipment, contact Motorola Enterprise Mobility support for
your region. Contact information is available at: http://www.symbol.com/contactsupport.
When contacting Enterprise Mobility support, please have the following information available:
• Serial number of the unit
• Model number or product name
• Software type and version number
If your problem cannot be solved by Motorola Enterprise Mobility Support, you may need to
return your equipment for servicing and will be given specific directions. Motorola is not
responsible for any damages incurred during shipment if the approved shipping container is
not used. Shipping the units improperly can possibly void the warranty.
If you purchased your Enterprise Mobility business product from a Motorola business partner,
contact that business partner for support.
11
Chapter 1 Getting Started
Introduction
This chapter lists the parts and accessories for the FR6070and explains how to install and charge the batteries,
replace the strap, and power on the FR6070for the first time.

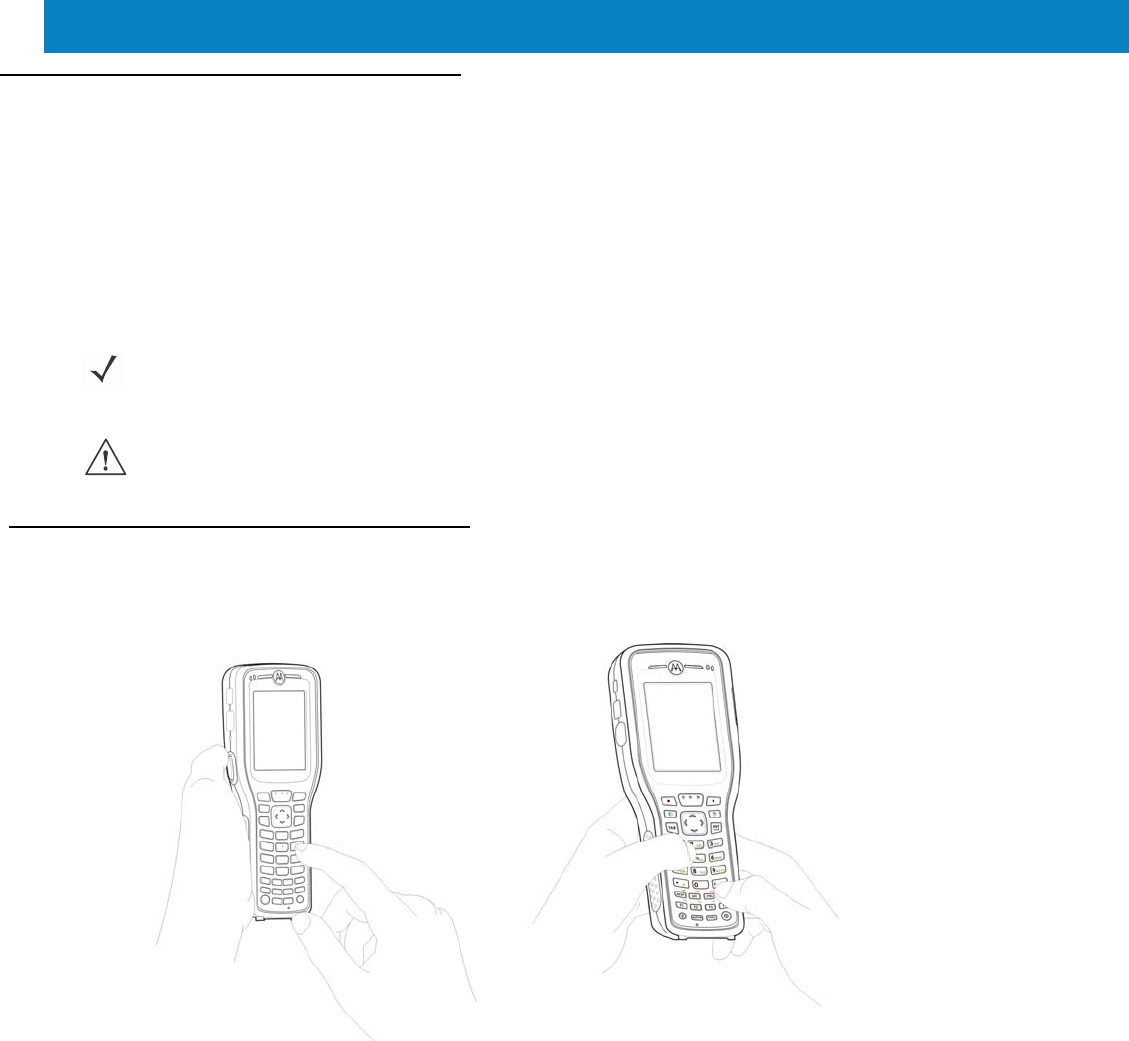

Figure 1-1 FR6070Front View Figure 1-2 FR6070Rear View
1. IrDA Window 2. Headset Jack 13. Battery Door 14. Door Latch
3. Scan Button 4. Microphone (Not available in FR6070)15. Speaker 16. Scan Widnow
5. I/O Connector 6. Power button 17. CF Card Slot 18. SD Card Slot
7. Keypad 8. Touch Screen 19. Scan Button 20. Handstrap
9. Scan/Decode LED 10. Charging LED 21. Stylus
11. Radio Status LED 12. Receiver

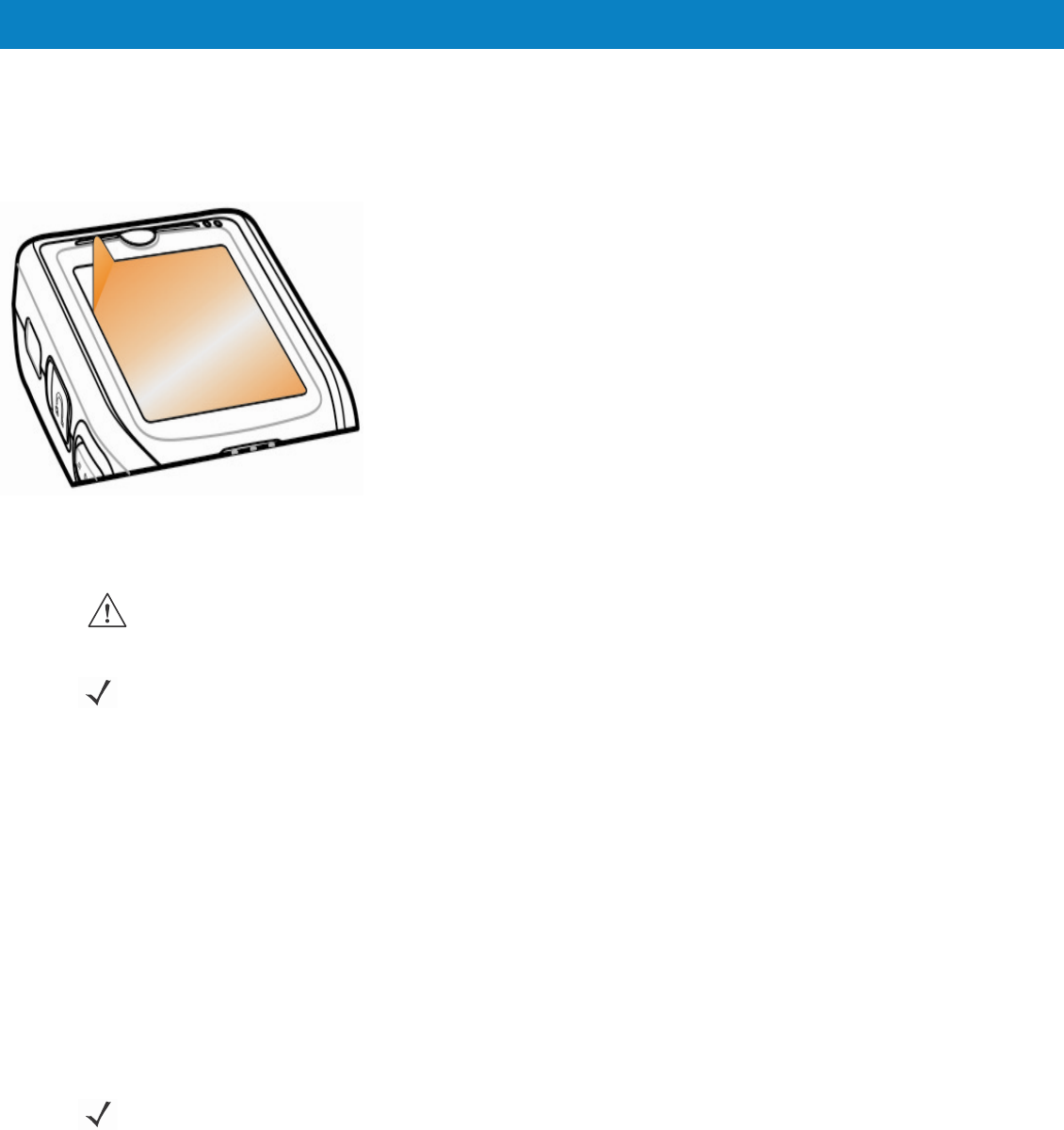

````````````````````````````` Getting Started
12
Unpacking
Carefully remove all protective material from the FR6070and save the shipping container for later storage
and shipping.
Verify that you received the following:
• FR6070
• 3600 mAh Lithium-ion battery
• Battery cover/strap assembly
• Tethered stylus
• Protective overlay, installed on display window
• Regulatory Guide
• Quick Start Guide.
Inspect the equipment for damage. If any equipment is missing or damaged, contact the Motorola Enterprise
Mobility Support center immediately. See page xvi for contact information.
````````````````````````````` Getting Started
13
Accessories
Table 1-1 lists the accessories available for the FR6070.
T
abl
e
1-1 FR6070Accessories
Manufacturing Part Number Description

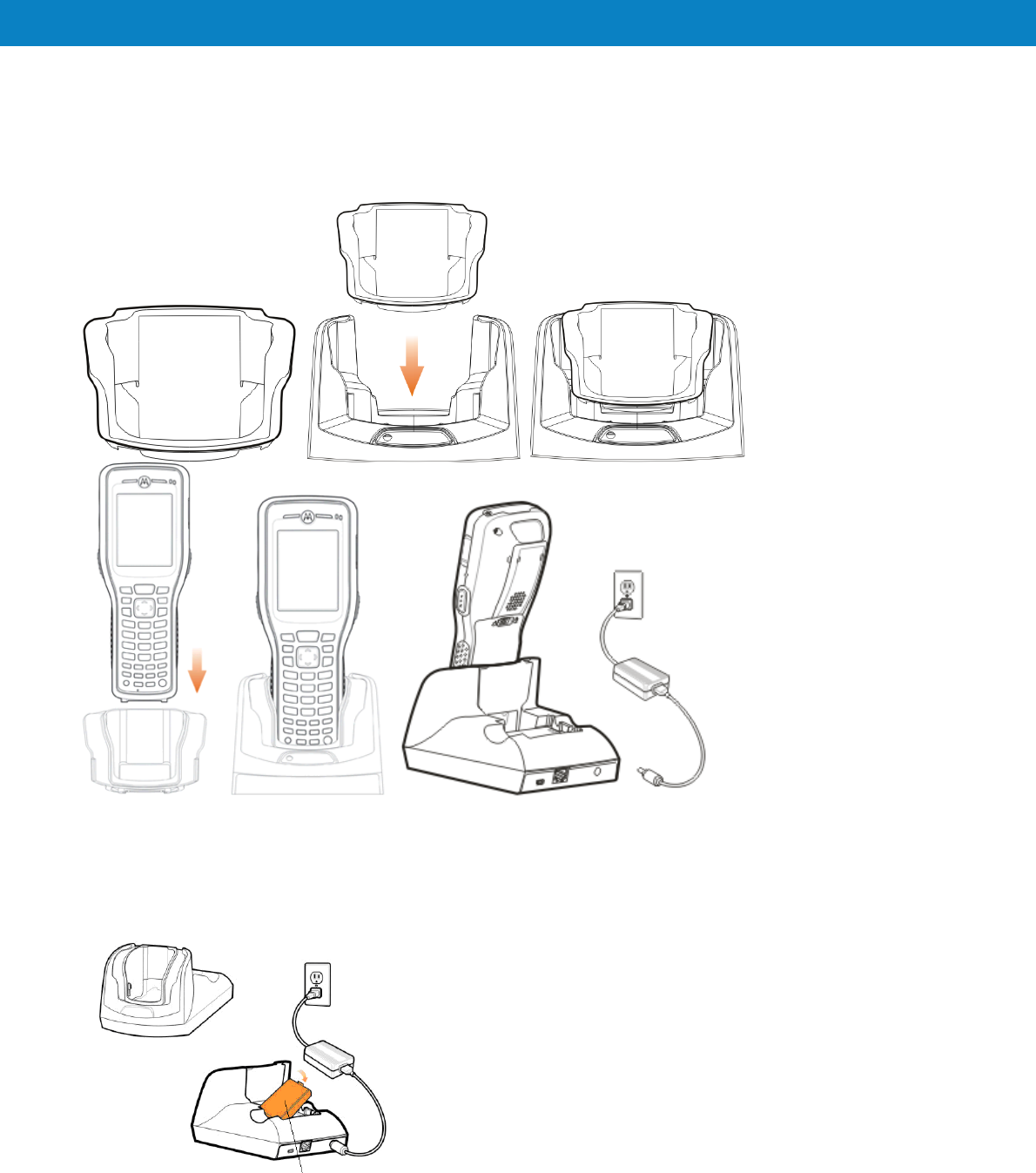

Cradle
CRD7X00-1000RR
MC70/MC75/FR68/FR6000 Series RoHS
Compliant Single Slot USB Cradle with Spare
Battery Charging: Must Order power adapter
(KT-14000-148) and US AC Line Cord
(23844-00-00R) separately.
Power Adapter
KT-14000-148R
Power adapter (HP-O2040D43) manufacture
from HIPRO with following
(1)Input 100-240V,50-60Hz,1.5A
(2)Output 12V, 3.33A.
50-14000-249R
Power adapter (EADP-16BB A)manufacture
from Delta Electronics Ltd. with following
(1)Input 100-240V,50-60Hz,0.4A
(2)Output 5.4V, 3A.
.
USB Charging Cable
25-118708-01R
FR6000 series USB Charging Cable. Requires
power adapter (P/N:50-14000-249R.)
Model:EADP-16BBA, Manufacture: Delta
Electronics Ltd.
Miscellaneous
KT-76490-01R Battery adapter (shim for 4 slot charge only;
packet of 5)
MN2800AAAPCD FR6070Cradle Adaptor Clip – Adapts
FR6070mobile computer to the cradle. Pack of
3. (Orders are placed directly FCA Shanghai)
MN2800BAAPCD FR6070Cradle Adaptor Clip – Adapts
FR6070mobile computer to the cradle. Pack of
10. (Orders are placed directly FCA Shanghai)
MN2800AAAPST FR6070spare stylus with tether. Pack of 3.
(Orders are placed directly FCA Shanghai)
MN2800AAAPSP Screen protector for 2.8” QVGA display. Pack of
3. (Orders are placed directly FCA Shanghai)
90-17C28-001R Hands free headset (earbud). This note ONLY
````````````````````````````` Getting Started
14
applies to orders placed directly with Motorola.
FCA Manila, Minimum order: 100 (in Multiples of
100"s there after).
50-11300-050R GSM/GPRS Metal Headset (1 earpiece with
speaker boom)
Grounded Line Cords
23844-00-00R AC Line Cord, 2.3M, grounded, NEMA 5-15P
plug. Associated Countries: Brazil, United
States
50-16000-217R AC Line Cord, 1.8M, grounded, AS 3112 plug.
Associated Country: Australia, China, New
Guinea
50-16000-219R AC Line Cord, 1.8M, grounded BS1363 plug.
Associated Countries: Hong Kong, Iraq,
Malaysia, Singapore, United Kingdom
50-16000-220R
AC Line Cord, 1.8M, grounded CEE 7/7plug.
Associated Countries: Europe, Abu Dabi,
Bolivia, Dubai, Egypt, Iran, Korea, Russia,
Vietnam
50-16000-221R AC Line Cord, 1.8M, grounded, USA NEMA
5-15P. Associated Countries: Brazil, United
States
50-16000-256R AC Line Cord, 1.8M, grounded,CEE7/7 plug.
Associated Country: Korea
50-16000-257R AC Line Cord, 1.8M, grounded, IEC 60320 C13
plug. Associated Country: China
50-16000-669R AC Lind Cord, 1.8 M grounded, BS 546 Plug.
Associated Country: India
50-16000-671R AC Line Cord, 1.8M grounded, CIE 23-16 plug.
Associated Country: Italy
50-16000-672R AC Line Cord, 1.8M grounded, S132 Plug.
Associated Country: Israel
50-16000-678R AC Line Cord, 36"L grounded. Associated
Countries: Brazil, United States
50-16000-218R AC Line Cord, 1.8M, grounded, NEMA 1-15P
plug. Associated Countries: Japan
Ungrounded Line Cords
50-16000-182R AC Line Cord, 1.8M, ungrounded. Associated
Countries: Brazil, United States
50-16000-255R AC Line Cord, 1.8M ungrounded, CEE7/16.
Europe, Abu Dabi, Bolivia, Dubai, Egypt, Iran,
Korea, Russia, Vietnam
50-16000-666R
A
C Line Cord, 1.8M ungrounded, AS 3112 plug.
Associated Country: Australia
50-16000-664R AC Line Cord, 1.8M ungrounded, GB
2099-1-1996 plug. Associated Country: China
50-16000-670R
AC Lind Cord, 1.8 M ungrounded, BS 1363
Plug. Associated Countries: Bermuda, Hong
Kong, Iraq, Malaysia, Singapore, United
Kingdom
Getting Started
FR6800
User Guide
15
Getting Started
To start using the FR6070for the first time:
• Install the SIM card (FR6070and FR6070only)
• Install the main battery.
• Charge the FR6070.
• Power on the FR6070.
• Configure the FR6070.
Getting Started
FR6800
User Guide
16
Installing the Main Battery
NOTE
The FR6070ships with a 3600 mAh battery.
To install the main battery:
1. Insert the battery, top first, into the battery compartment in the back of the FR6070.
NOTE
Position the battery correctly, with the battery charging contacts on top of the charging contacts in the battery
compartment.
2. Press the battery down into the battery compartment until the battery release latch snaps into place.
Figure 1-4 Inserting the Battery
3. With the battery cover latches open, insert the cover, bottom first, then press down on the top of the cover.
4. Close the battery cover latches on either side of the battery cover.
5. Insert the handstrap through the handstrap slot, then tighten and press down to secure.
The FR6070powers up after inserting the battery and replacing the battery cover.
Charging the Battery
CAUTION
Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-2.
Charging
the Main
Battery
and
Memory
Backup Battery
Before using the FR6070for the first time, charge the main battery until the amber Charging/Battery Status LED
remains lit (see Table 1-2 on page 1-7 for charge status indications). To charge the FR6070, use a cable or a cradle
with the appropriate power supply. For information about the accessories available for the FR6070, see Chapter 6,
Accessories.
The FR6070is equipped with a memory backup battery which automatically charges from the fully-charged main
battery. When using the FR6070for the first time, the backup battery requires approximately 36 hours to fully charge.
This is also true any time the backup battery is discharged, which occurs when the main battery is removed for several
hours. The backup battery retains RAM data in memory for at least 15 minutes (at room temperature) when the
FR6070's main battery is removed. When the FR6070reaches a very low battery state, the combination of main
battery and backup battery retains RAM data in memory for at least 48 hours.
To charge the main battery, use either a charging cable or a cradle. For cable and cradle setup and charging
procedures refer to the FR6070Integrator Guide.
Getting Started
FR6800
User Guide
17
• Single Slot USB/Serial Cradle
• Vehicle Cradle.
To charge the main battery:
1. Connect the charging accessory to the appropriate power source.
2. Insert the FR6070into a cradle or attach to a cable. The FR6070begins charging. The Charging/Battery Status
LED blinks amber while charging, then turns solid amber when fully charged. See Table 1-2 for charging
indications.
The 3600 mAh battery fully charges in approximately five hours.
T
abl
e
1-2 LED Charge Indicators
Charging/Battery
Status
LED
Indi
ca
tion
Off FR6070is not charging.
FR6070is not inserted correctly in the cradle or connected to a power
source. Charger/cradle is not powered.
Slow Blinking Amber
(1 blink every 2 seconds) FR6070is charging.
Solid Green Charging complete.
Note: When the battery is initially inserted in the FR6070, the amber LED
flashes once if the battery power is low or the battery is not fully inserted.
Fast Blinking Red
(2 blinks/second) Charging error, e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion (typically eight hours).
T
abl
e
1-2 LED Charge Indicators (Continued)
Char
g
in
g
/Batter
y
Status
LED
Indi
ca
tion
Single Blink
A
mbe
r
(when device is turned on) Battery depleted.
Blink Amber (Battery charger temperature is to
o
high.) Battery over-temperature condition.
Charging Spare Batteries
See Chapter 6, Accessories for information on using accessories to change spare batteries.
Charging Temperature
Charge batteries in temperatures from 0°C to 45°C (32°F to 113°F). Charging is intelligently controlled by the
FR6070.
To accomplish this, for small periods of time, the FR6070or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The FR6070or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2.
Powering On the FR6070
Press the Power button to turn on the FR6070. If the FR6070does not power on perform a warm boot. See Resetting
Getting Started
FR6800
User Guide
18
the FR6070on page 2-14.
When turning the FR6070on for the first time, the splash screen displays for about a minute as the FR6070initializes
its flash file system, then the calibration window appears. Note that these windows also appear upon cold boot.
NOTE
When the FR6070powers up after inserting a battery for the first time, the device boots and powers on
automatically.
Calibrating the Screen
To calibrate the screen so the cursor on the touch screen aligns with the tip of the stylus:
1. Remove the stylus from its holder on the back of the FR6070.
2. Carefully press and briefly hold the tip of stylus on the center of each target that appears on the screen.
3. Repeat as the target moves around the screen, then tap the screen to continue.
Checking Battery Status
To check the charge status of the main battery or backup battery in the FR6070, tap Start > Settings > System tab >
Power icon to display the Power window.
To save battery power, tap the Advanced tab and set the FR6070to turn off after a specified number of minutes.
CF Card Installation
First unscrew the plastic cover, and remove it, insert CF card with the front facing up.
Micro Secure Digital (microSD) Card
The microSD card slot provides secondary non-volatile storage. The slot is located on the side of the FR6070(see
Figure 1-7). Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.
CAUTION
Follow proper ESD precautions to avoid damaging the microSD card. Proper ESD precautions
include, but are not limited to, working on an ESD mat and ensuring that the operator is properly
grounded.
To install the microSD card:
1. Power off the FR6070.
Getting Started
FR6800
User Guide
19
2. Remove the memory card cover on the side of the FR6070.

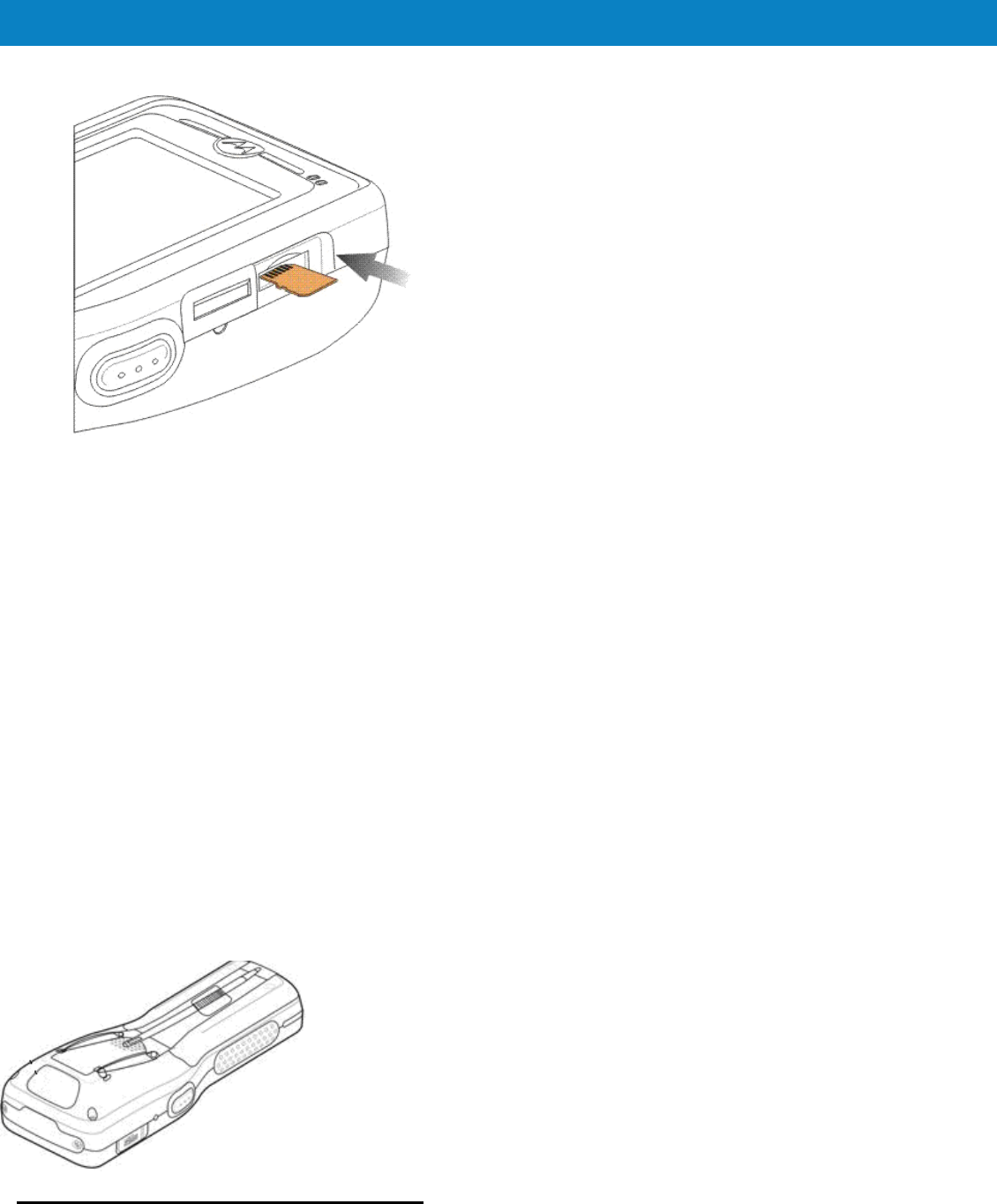

Figure 1-6 Card Installation
3. Insert the card with the card contacts facing up and the cut corner on the left, until you feel a click.
4. Replace the memory card cover .
To remove an microSD card:
1. Power off the FR6070.
2. Remove the memory card cover.
3. Carefully press and release the card to eject it.
4. Remove the card from the card slot.11/28
5. Replace the memory card cover.
Adjusting
the Handstrap
The FR6070handstrap is attached to the bottom of the battery cover. Adjust the handstrap to increase comfort
when holding the FR6070for extended periods of time. To adjust the handstrap:
1. Feed the handstrap through the handstrap slot in either direction, to tighten or loosen.
2. Secure the handstrap by pressing the two sides together.
Getting Started
FR6800
User Guide
20
Removing the Screen Protector
A screen protector is applied to the FR6070. Motorola recommends using this to minimize wear and tear. Screen
protectors enhance the usability and durability of touch screen displays.
To remove the screen protector, lift the corner using a thin plastic card, such as a credit card, then carefully lift it off
the display.
Figure 1-7 Removing the Screen Protector
CAUTION
Do not use a sharp object to remove the protector. Doing so can damage the display.
NOTE
Not using a screen protector can affect warranty coverage. To purchase replacement protectors, contact
your local account manager or Motorola, Inc. These include screen protector installation instructions. Part
number: KT-93765-01R Screen Protector 3/pk.
Replacing the Main Battery
1. Press the red Power button to suspend the FR6070.
2. Loosen the handstrap.
3. Open the battery cover latches on either side of the battery cover.
4. Lift the top of the battery cover and remove.
5. Press the battery release latch on the bottom of the battery to unlock, and lift the battery out of the well.
6. Insert the replacement battery, top first, into the battery compartment in the back of the FR6070.
7. Press the battery down into the battery compartment until the battery release latch snaps into place.
NOTE
Position the battery correctly, with the battery charging contacts on top of the charging contacts in the battery
compartment.
8. With the battery cover latches open, insert the cover, bottom first, then press down on the top of the cover.
9. Close the battery cover latches on either side of the battery cover.
10. Insert the handstrap through the handstrap slot, then tighten and press down to secure.
The FR6070powers up after the battery is inserted and the battery cover is replaced.
Getting Started
FR
6800
User
G
u
id
e
21
Battery Management
Observe the following battery saving tips:
NOTE
The FR6070factory default settings for the WWAN and WLAN radios are
set to ON.
• Leave the FR6070connected to AC power at all times when not in use.
• Set the FR6070to turn off after a short period of non-use.
• Set the backlight to turn off after a short period of non-use.
• Turn off all wireless activities when not in use.
• Power off the FR6070when charging to charge at a faster rate.
Changing the Power Settings
To set the FR6070to turn off after a short period of non-use:
1. Tap Start > Settings > System tab > Power icon > Advanced tab.
2. Select the On battery power: Turn off device if not used for check
box and select a value from the drop-down list.
3. Select ok.
Changing the Backlight Settings
To change the backlight settings in order to conserve more battery power:
1. Tap Start > Settings > System tab > Backlight icon > Power tab.
2. Select the Turn off backlight if device is not used for check box and select a
value from the drop-down list.
3. Select the Brightness tab.
4. Use the slider to set a low value for the backlight.
5. Select ok.
Getting Started
FR
6800
User
G
u
id
e
22

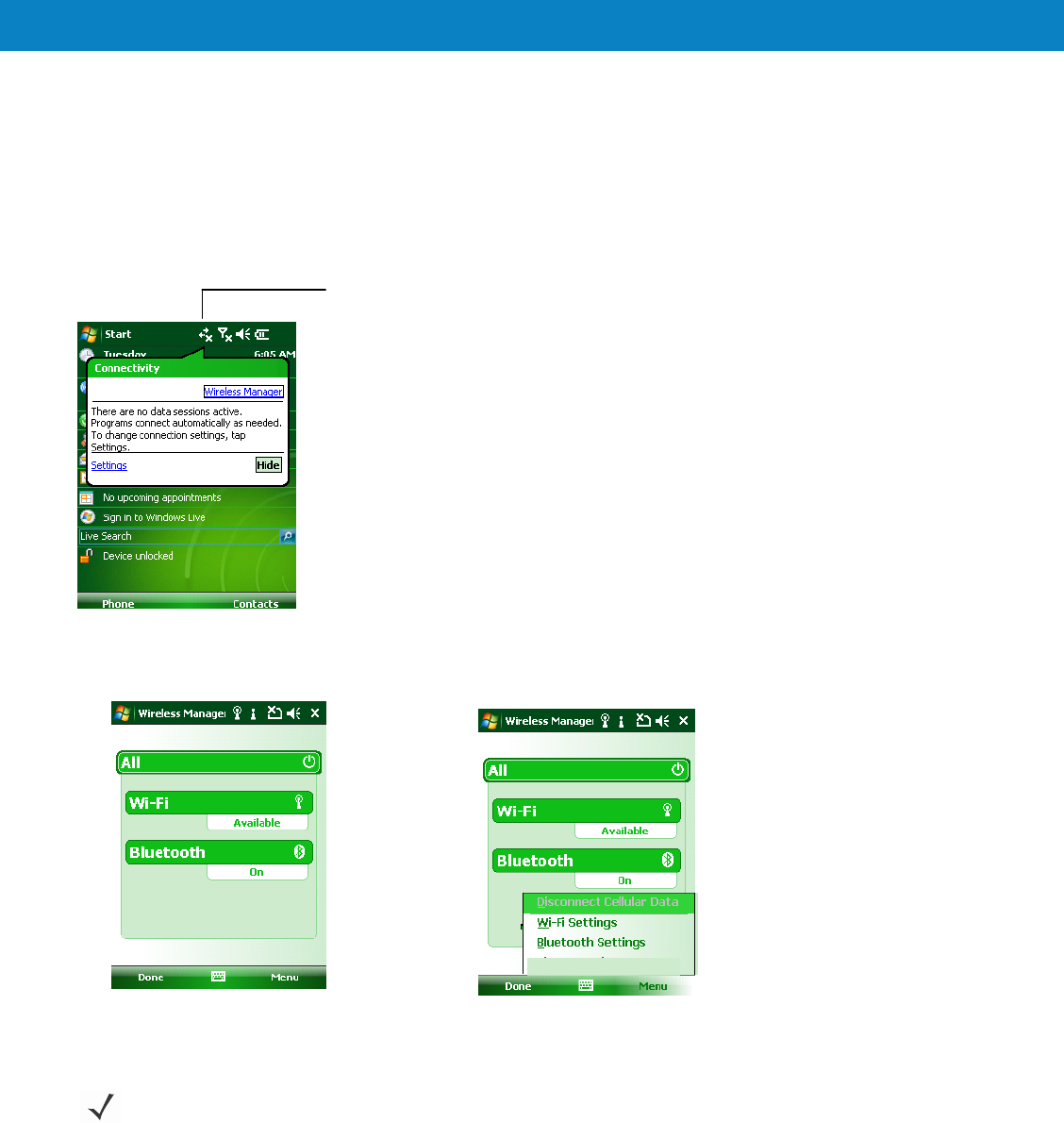

Turning Off the Radios
Windows Mobile 6 devices include Wireless Manager, which provides a simple method of
enabling, disabling, and configuring all the device’s wireless capabilities in one place.
To open Wireless Manager, tap the Connectivity icon or tap Wireless Manager on the Today
screen.
Connectivity icon
Figure 1-8 Opening Wireless Manager
Select Wireless Manager.
Figure 1-9 Wireless Manager Window Figure 1-10 Wireless Manager Menu
NOTE
Wireless connection options vary depending upon configurations.
To enable or disable a wireless connection, tap the specific button.
To enable or disable all wireless connections, tap the All button. To configure settings for
a connection, tap Menu.
26
Chapter 2 Using the FR6070
Introduction
This chapter explains the buttons, status icons, and controls on the FR6070, and provides basic instructions for
using the FR6070, including powering on and resetting the FR6070, and entering and capturing data.
The FR6070factory default radio states are:
• Bluetooth - OFF
• Wireless LAN - ON.

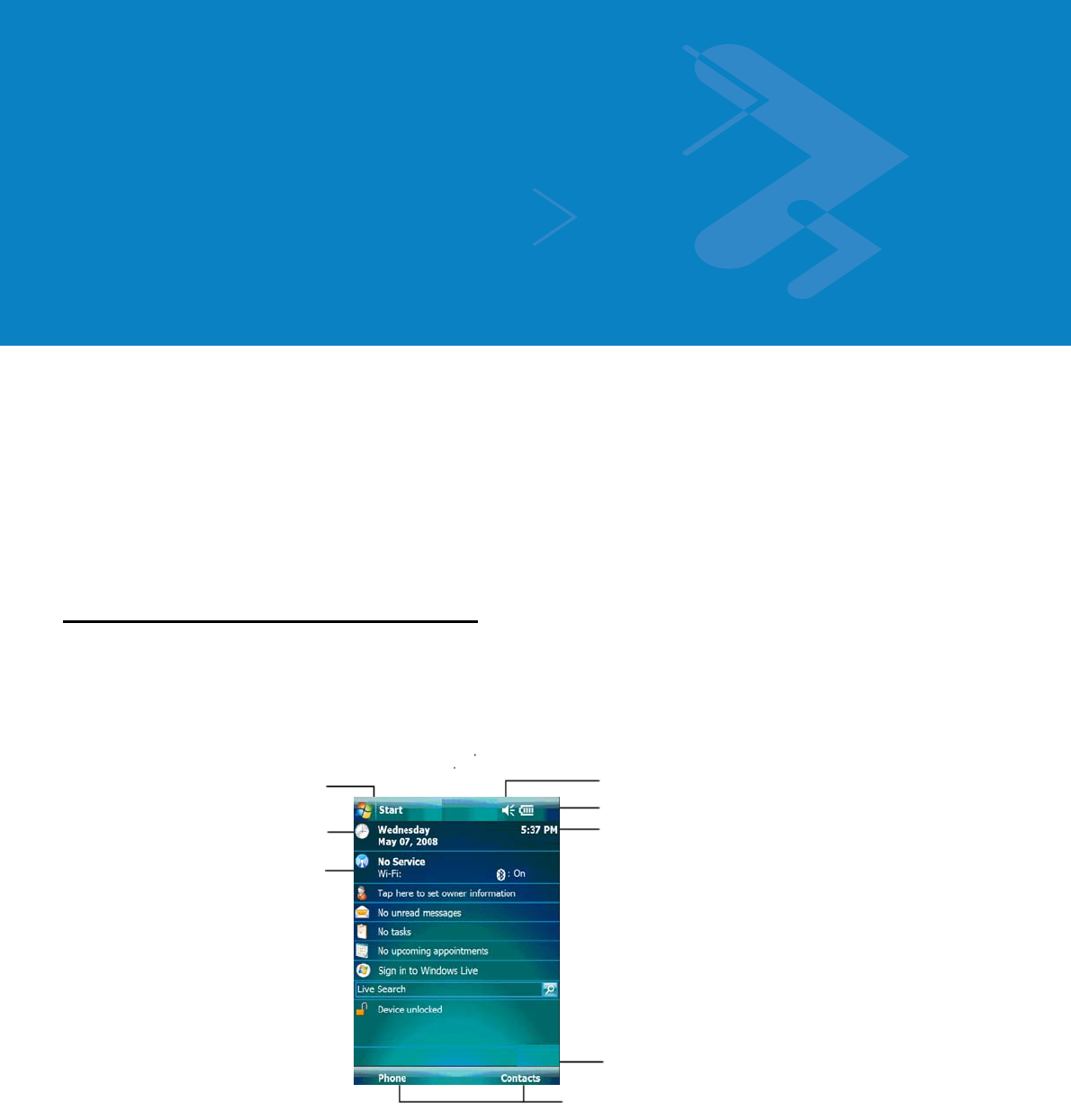

Today Screen
The Today screen displays important information, such as upcoming appointments and status indicators. Tap a
section on the screen to open the associated program. Alternatively, tap Start > Today to display the Today
screen.
Open the Start Menu Adjust volume
Battery Status
Change the date and time Change the date and time, set up the alarm, and more
Turn on or off radios
Command Bar
Soft Keys
Figure 2-1 Today Screen
Using the FR6076
27
To customize the Today screen, tap Start > Settings > Today icon. Use the Appearance tab to customize the
background and the Items tab to change the list and order of items that appear on the screen.
Status Icons
The Navigation bar at the top of the screen can contain the status icons listed in Table 2-1.
T
abl
e
2-1 Status Icons
Icon Function
Des
c
ription
Notification Backup Battery Low.
Notification that one or more instant messages were received.
Notification that one or more e-mail/text messages were received.
There are more notification icons than can be displayed. Tap to display
remaining icons.
Indicates a reminder of an upcoming calendar event.
Connectivity Connection is active.
Connection is not active.
Synchronization is occurring.
Wi-Fi available.
Wi-Fi in use.
Dormant State - no data transmission during a 1x connection. (FR6070and
FR6070)
Using the FR6076
28
T
abl
e
2-1 Status Icons (Continued)
Icon Function
Des
c
ription
Speaker Vibrate is on.
Main battery is charging.
Battery power completely depleted.
Battery Main battery is low.
Main battery level.
Displays current time in analog or digital format.
Time and Next
Appointment
Using the FR6076
29
The command bar at the bottom of the screen can contain the task tray icons listed in Table 2-2.
T
abl
e
2-2 Task Tray Icons
Icon
Bluetooth Enabled Bluetooth radio is on.
Bluetooth Disabled Bluetooth radio is off.
Bluetooth Connection Bluetooth radio is connected to another Bluetooth device.
ActiveSync Active serial connection between the FR6070and the host computer.
Programs
Table 2-3 lists the default programs in the Start menu.
T
abl
e
2-3 Programs in the Start Menu
Icon
Name
Des
c
ription
Office Mobile Use the complete suite of Microsoft® Office applications for your mobile
device.
Excel Mobile - Create new workbooks or view and edit Microsoft®
Excel® workbooks.
OneNote Mobile - Create new notes or view existing notes.
PowerPoint Mobile - View Microsoft® PowerPoint® slides and
presentations.
Word Mobile - Create, view, and edit Microsoft® Word documents.
Calendar Keep track of appointments and create meeting requests.
Contacts Keep track of friends and colleagues.
Internet Explorer Mobile Browse Web and WAP sites as well as download new programs and
files from the Internet.
Messaging Send and receive e-mail, MMS, and text messages.
Help See Help topics for the current screen or program.

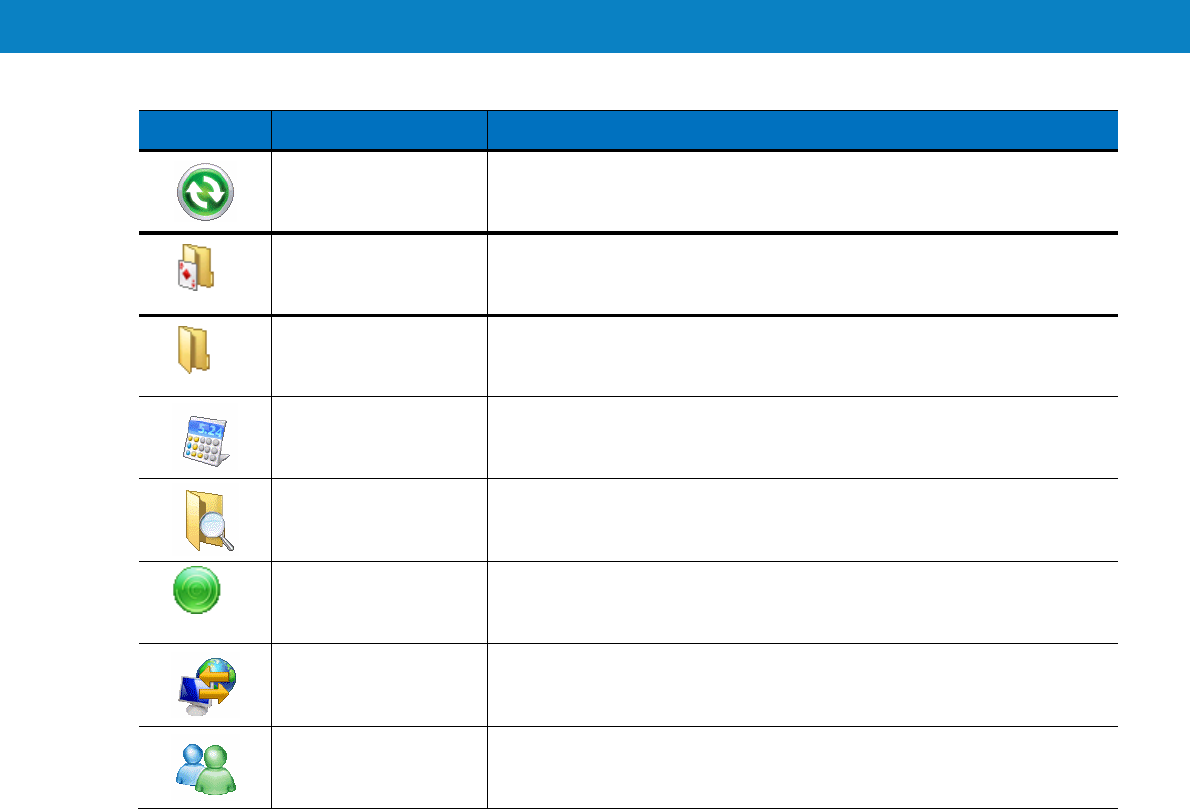

Table 2-4 lists programs that are listed in the Programs window.
Using the FR6076
30
T
abl
e
2-4 Programs in Program Window
Icon
Name
Des
c
ription
ActiveSync Synchronize information between the FR6070and a host computer or the
Exchange Server.
Games Bubble Breaker, Solitaire
Sample AP DataWedge, Notify, and Scanner
Calculator Perform basic arithmetic and calculations, such as addition,
subtraction, multiplication, and division.
File Explorer Organize and manage files on your device.
Getting Started Display help on how to use some functions
Internet Sharing Connect a notebook computer to the Internet using the FR6070's
data connection.
Messenger Use this mobile version of Windows Live Messenger.
Using the FR6076
31
T
abl
e
2-4 Programs in Program Window (Continued)
Icon
Name
Des
c
ription
Notes Create handwritten or typed notes, drawings, and voice recordings.
Pictures & Videos View and manage pictures, animated GIFs, and video files.
Search Search contacts, data, and other information on your FR6070.
Task Manager Show and stop all the tasks on run
Tasks Keep track of your tasks.
Windows Live Use this mobile version of Windows Live™ to find information on the
web.
Windows Media Player
Mobile Play back audio and video files.
Using the FR6076
32
Settings

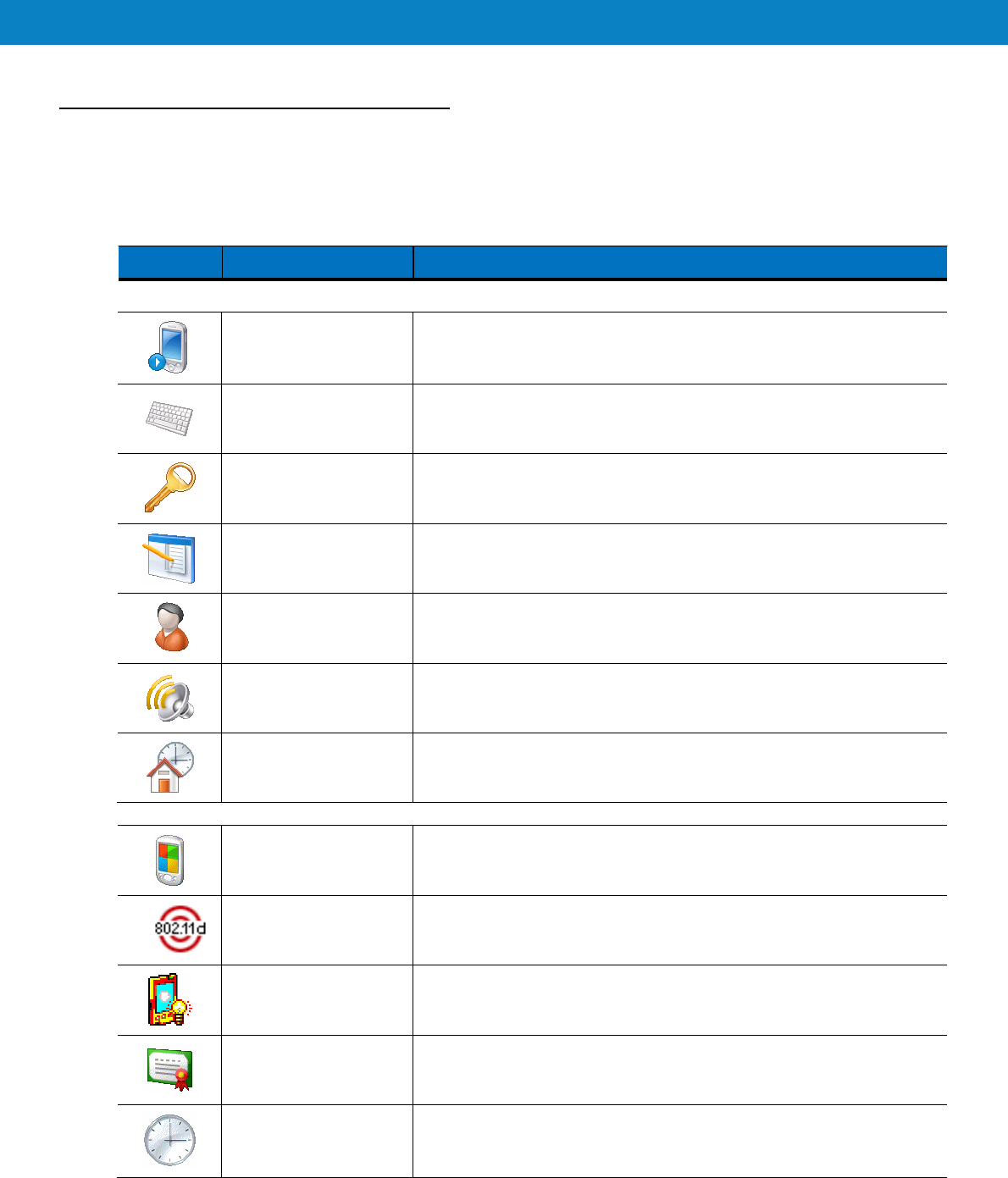

Table 2-5 lists control applications pre installed on the FR6070. Tap Start > Settings to open the Settings window.
T
abl
e
2-5 Settings in the Setting Window
Icon Name
Des
c
ription
Personal Tab
Buttons Assign a program to a button.
Input Set options for each of the input methods.
Lock Set a password for the FR6070.
Menus Set what programs appear in the Start menu.
Owner Information Enter personal information on the FR6070.
Sounds & Notifications Enable sounds for events, notifications, and more, and set the type of
notification for different events.
Today Customize the appearance and the information to be displayed on the
Today screen.
System Tab
About View basic information such as the Windows Mobile® version and type
of processor used on the FR6070.
802.11d Tools Enable or disable 802.11d
Backlight Set the display backlight time-out and adjust brightness.
Certificates See information about certificates installed on the FR6070.
Clock & Alarms Set the device clock to the date and time of your locale or to a visiting
time zone when you’re traveling. Alarms can also be set at specified
days and times of a week.
Using the FR6076
33
Customer Feedback Submit feedback on the Windows Mobile 6 software.
Device information Displays the FR6070’s software and hardware information.
Encryption Allow files on a storage card to be encrypted. Encrypted files are
readable only on your device.
Enroller Allow you to get a Certificate from Certificate servers.
Error Reporting Enable or disable the device's error reporting function. When this
function is enabled and a program error occurs, technical data about
the state of the program and your computer is logged in a text file and
d
e
livered
to
Microso
f
t
'
s
technical
support
if you
choose
to
send
i
t
Managed Programs View installation history.
Memory Check the device memory allocation status and memory card
information and stop currently running programs.
Power Check battery power and set the time-out for turning off the display to
conserve battery power.
Regional Settings Set the regional configuration to use, including the format for displaying
numbers, currency, date, and time on the FR6070.
Remove Programs Remove programs that you installed on the FR6070.
Screen Change the screen orientation, re-calibrate the screen, and change the
screen text size.
Windows Update Link to Microsoft's web site and update Windows Mobile® on your
device with the latest security patches or fixes. Do not use. Obtain
updates from Motorola.
Using the FR6076
34
T
abl
e

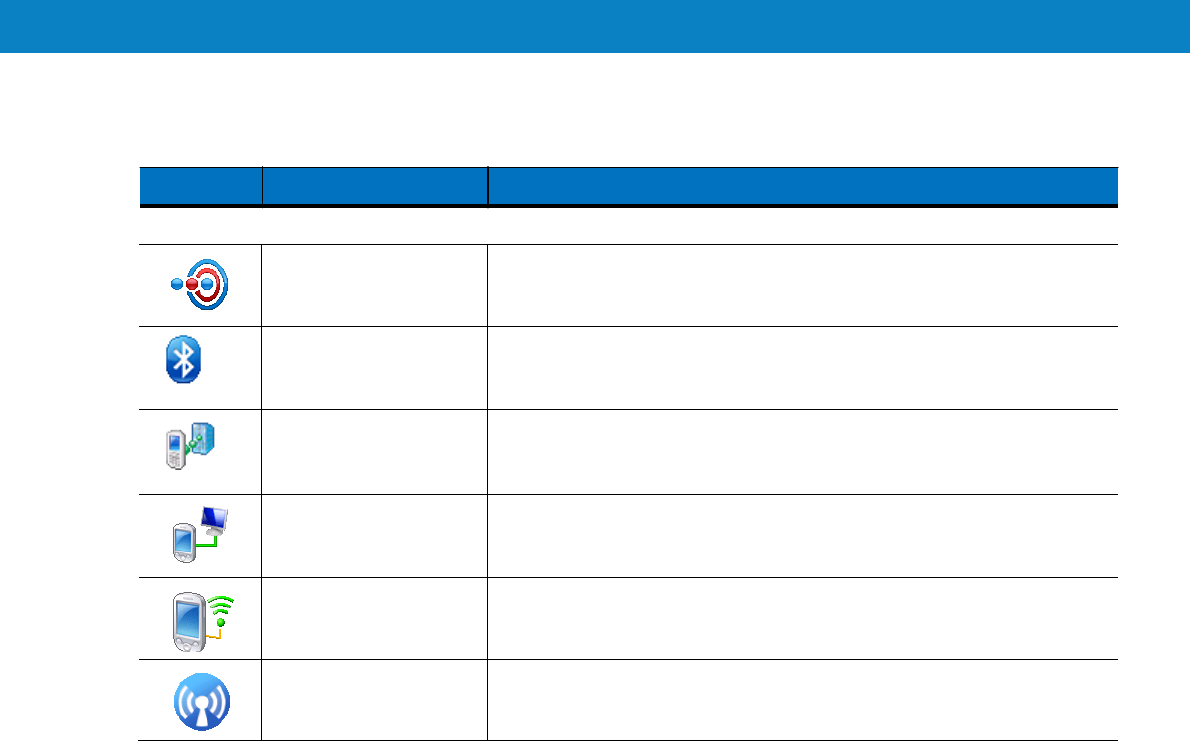

2-5 Settings in the Setting Window (Continued)
Icon Name
Des
c
ription
Connections Tab
Beam Set the FR6070to receive incoming IrDA beams and bluetooth beam.
Bluetooth Search for other Bluetooth devices.
Domain Enroll Enroll in domain.
USB to PC Enables or disables the enhanced network connectivity.
Wi-Fi Setup wireless network connection and customize settings.
Wireless Manager Enables or disables the FR6070’s wireless radios and customizes
Wi-Fi, Bluetooth
Using the FR6076
35

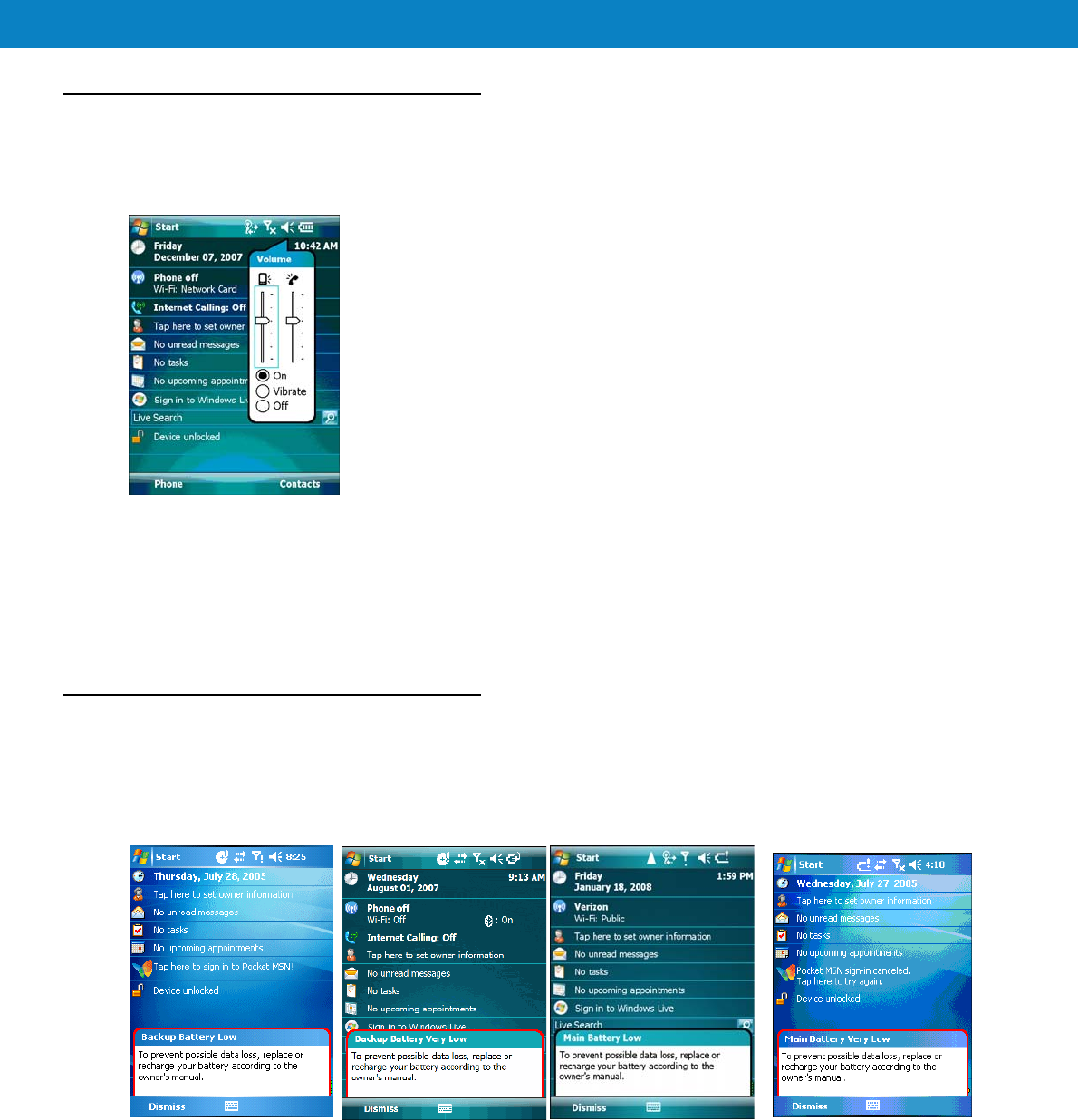

Adjusting Volume
To adjust the system volume using the Speaker icon in the navigation bar:
1. Tap the Speaker icon. The Volume dialog box appears.
Figure 2-2 Volume Dialog Box
2. Tap and move the slide bar to adjust the volume.
3. Select the On or Off radio button to turn the volume on or off.
You can also adjust the system volume using the Sounds & Notifications window, or use the Up/Down button on
the side of the FR6070.
Battery Status Indications
Battery icons appear on the navigation bar indicating the battery power level. When the main battery or backup
battery power falls below a predetermined level, the icon indicates the status and a battery dialog box appears
indicating the status of the main or backup battery.
Figure 2-3 Battery Status Dialog Box
The Battery icon always appears in the navigation bar when the Today screen is visible. The icon indicates the
battery power level. The message displays until the Dismiss button is pressed.
Using the FR6076
36
Figure 2-4 Battery Icon on the Title Bar
Also view the battery status using the Power window.
Power Setting
1. Tap Start > Settings > Power icon > Main tab. A power remaining capacity bar appears.
Figure 2-5 Main Tab
2. Tick the following options to save the power, and tap ok.
Figure 2-6 Advanced Tab
Using the FR6076
37
3. Select Slow charge or Fast charge, and tap ok.

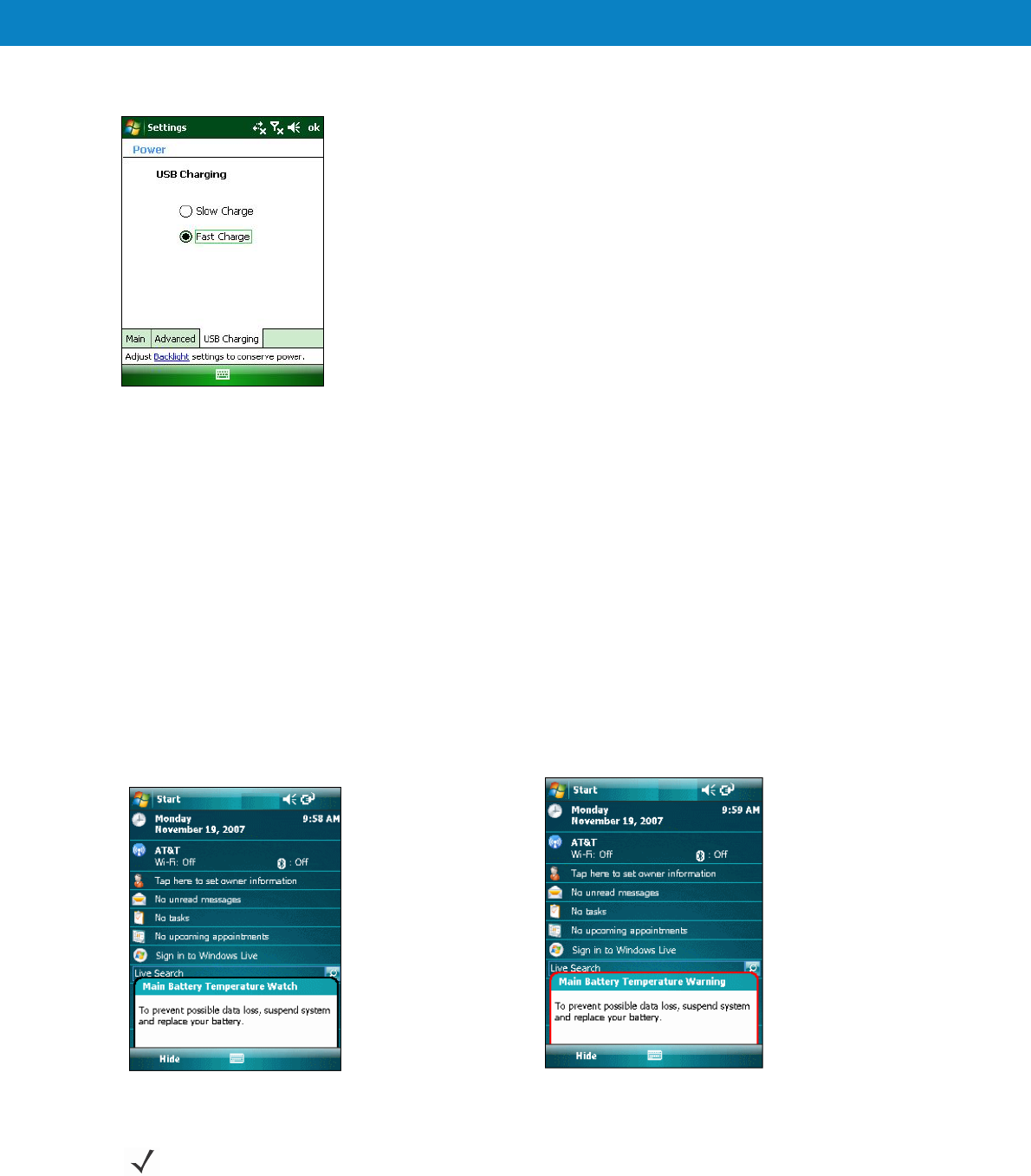

Figure 2-7 USB Charge Tab
Main Battery Temperature Notifications
The temperature notification system implements three levels of notification when the temperature within the battery
exceeds specific temperature thresholds:
• Level 1: Temperature Watch; this level is similar to main battery low warning. It indicates that the battery
temperature has reached the first threshold level. The user should move to an environment within proper
operating temperature.
• Level 2: Temperature Warning; this level is similar to main battery very low warning. It indicates the
battery temperature has reached the second threshold level. The user should stop using the FR6070.
• Level 3: Temperature Error; this level indicates the battery has reached an unusable temperature
threshold and immediately suspends the FR6070. This level does not have any graphical notification
associated with it.
Figure 2-8 Main Battery Temperature Watch Dialog Box Figure 2-9 Main Battery Temperature Warning Dialog Box
NOTE
The Temperature Warning dialog box remains visible until you tap Hide.
Using the FR6076
38
LED Indicators
The FR6070has three LED indicators. The Scan/Decode LED indicates status for bar code scanning. The
Charging/Battery Status LED indicates battery charging and status. The Radio Status LED indicates WAN radio
status. Table 2-6 describes the LED indications.
Figure 2-10 LED Indicators
1. Scan/Decode LED
2. Charging LED
3. Radio Status LED
T
abl
e
2-6 LED Indications
LED status Indication
Scan/Decode LED
Solid Green Successful decode/capture
Solid red Laser enabled, scanning in process
Off Not enabled
Charging/Battery Status LED
Slow blinking amber Main battery in FR6070is charging.
Solid green Main battery in FR6070is fully charged.
Fast blinking amber Charging error
Off Not charging
Single blink amber (when power button is
pressed) Battery depleted
Blinking amber (when power button is
pressed) Battery over-temperature condition
Radio Status LED
Slow blink green
The radio (BT,WIFI,GPS,RIL) can work
correctly when it is on
Slow blink red
Some radio (BT,WIFI,GPS,RIL) can not
work correctly when it is on.
Off All radio off.
Using the FR6076
39
Resetting the FR6070
There are two reset functions, warm boot and cold boot. A warm boot restarts the FR6070by closing all running
programs. A cold boot also restarts the FR6070, and also resets the clock. Data saved in flash memory or a
memory card is not lost.
If the FR6070is not functioning properly, perform a warm boot first. If the FR6070still does not respond, perform a
cold boot.
Performing a Warm Boot
Press the reset button to reboot the device.
Performing a Cold Boot
Put the battery into the device, lock the battery cover, and press the power button
Waking the FR6070
The wake-up conditions define what actions wake up the mobile computer after it has gone into suspend mode.
The mobile computer can go into suspend mode by either pressing the Power button or automatically by Control
Panel time-out settings. These settings are configurable and the factory default settings are shown in Table 2-7 are
subject to change/update.
T
abl
e
2-7 Wake-up Default Settings
Condition for
Wake-up
Power Button Automatic
Ti
me-out
AC power is applied. No Yes
Mobile computer is inserted into a cradle. No Yes
Mobile computer is removed from a cradle. No Yes
Mobile computer is connected to a USB device. No Yes
Mobile computer is disconnected from a USB device. No Yes
A key is pressed. No Yes
The scan triggered is pressed. No Yes
The screen is touched. No No
Audio Jack No No
Audio Btn No No
Bluetooth communication Yes Yes
Using the FR6076
40
Locking the FR6070
Use the Device Lock feature to prevent use of the device. Note that when locked, the FR6070does not respond to
screen or keypad input.
To lock the device, tap the Device unlocked icon. The icon changes to locked.

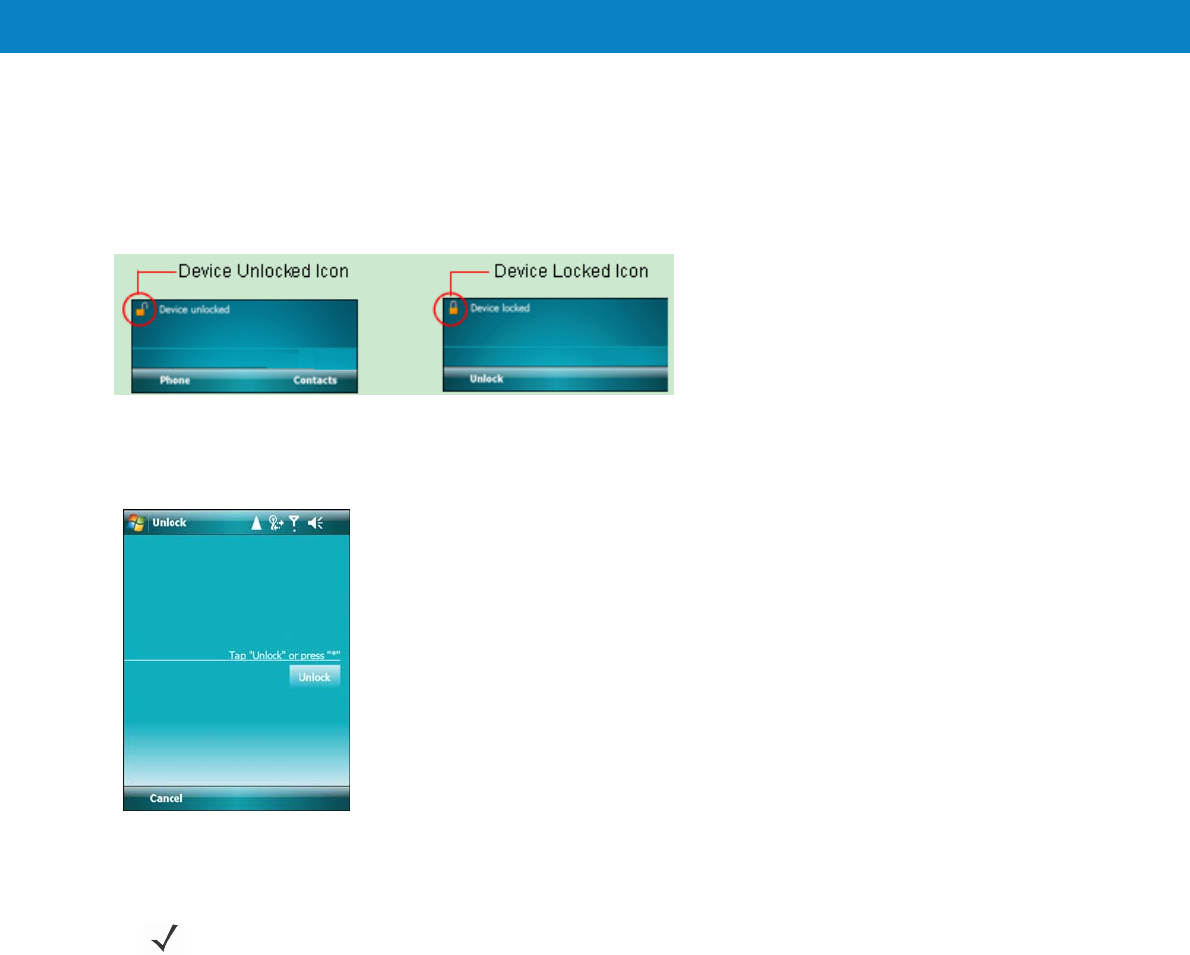

Figure 2-11 Device Locked/Unlocked Icons
To unlock the device and free it for use, tap Unlock.
Figure 2-12 Unlock Device Window
Tap Unlock on the Unlock window.
NOTE
You can make emergency calls even when the FR6070is locked. See Making an Emergency Call on page
5-7 for more information.
Using the FR6076
41
Keypads
The FR6070offers one type of modular keypad configuration: alpha-numeric.
Table 2-8
Alpha-numeric Keypad Input Modes
Key
Numeric
Mode
Orange
Key
(Alpha
Lowercase Mode)
Blue+
Key SHIFT
+ Key
1st
Press
2nd
Press
3rd
Press
4th
Press
5th
Press
6th
Press
7th
Press
8th
Press
9th
Press
1 1 1 ! Space Space Space Space Space Space Space Space
2 2 2 @ a B c 2 A B C
3 3 3 # d e f 3 D E F
4 4 4 $ g h i 4 G H I
5 5 5 % j k l 5 J K L
6 6 6 ^ m n o 6 M N O
7 7 7 & p q r s 7 P Q R S
8 8 8 * t u v 8 T U V
9 9 9 ( w x y z 9 W X Y Z
0 0 0 ) + + + + + + + + +
Note: An
application
can change
the
k
e
y
functions.
The keypad may
not
function exactly
as
described.
T
abl
e
2-8 Alpha-numeric Keypad Input Modes (Continued)
Key Numeric Mode Orange
Key
(Alpha
Lowercase Mode)
Orange + Shift
Keys
(Alpha Uppercase
Mode)
Blue+
Key SHIFT
+ Key
1st
Press
2nd
Press
3rd
Press
4th
Press
1st
Press
2nd
Press
3r
d
Press
4th
Press
Up Up Up Hilight
Up Left Left
Down Down Down Hilight
Down Right Right
Enter Action Action Action Action Action
Note: An
application
can change
the
k
e
y
functions.
The keypad may
not
function exactly
as
described.
Alpha-numeric Keypad Configurations
The three types of alpha-numeric keypads produce the 26-character alphabet (A-Z, both lowercase and
uppercase), numbers (0-9), and assorted characters. The keypad is color-coded to indicate which modifier key
to press to produce a particular character or action. The keypad default is alphabetic, producing lowercase
letters. See Table 2-8 for key and button descriptions.
Using the FR6076
42

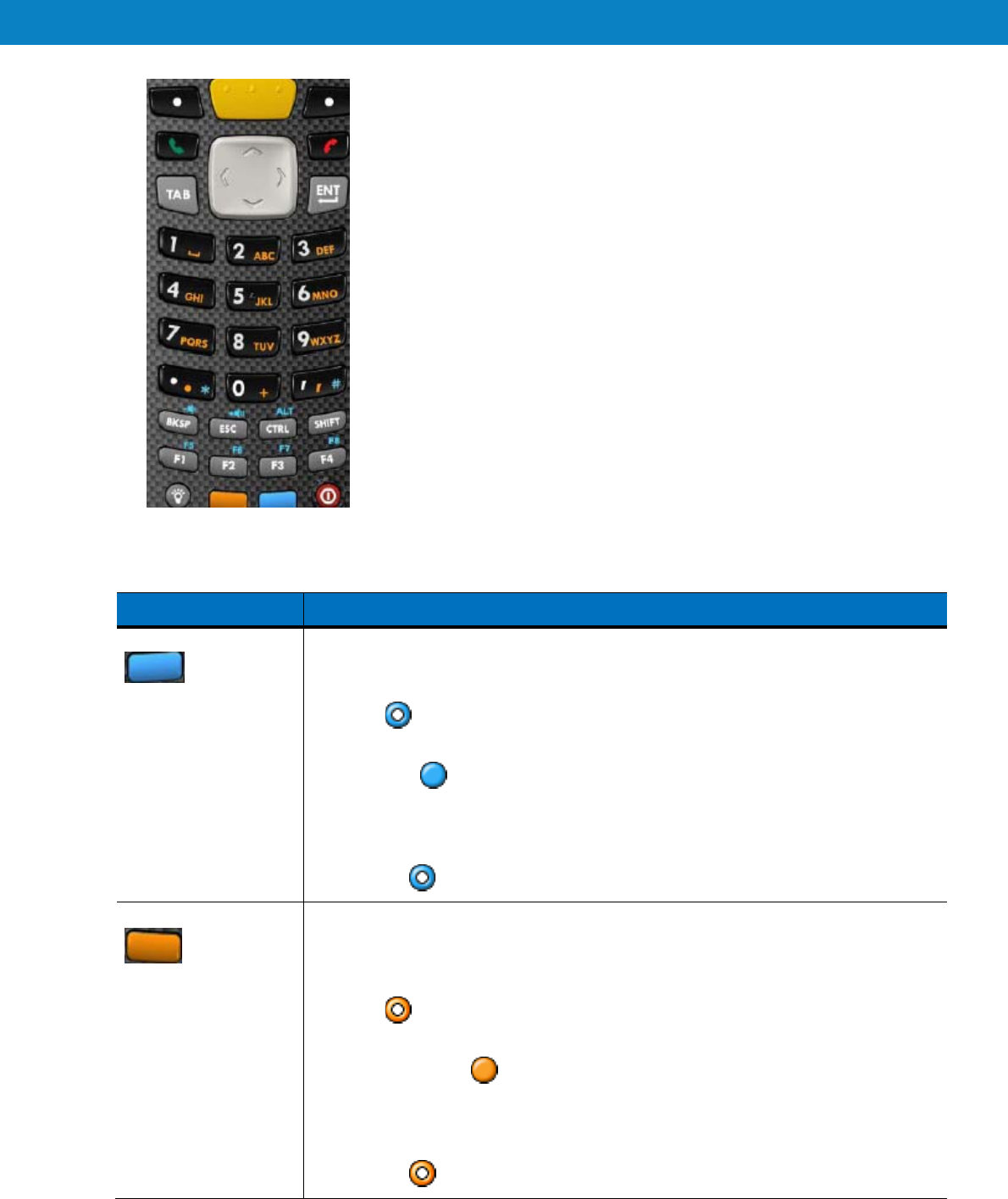

Figure 2-13 FR6070Numeric Keypad
T
abl
e
2-9 Alpha-numeric Keypad Descriptions
Key
Action
Blue Key
Launches applications (shown on the keypad in blue).
Press the Blue key once to activate this mode temporarily, followed by another key. This
displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Blue key twice to lock this mode. This displays the following icon at the bottom
of
the
screen:
Press the Blue key a third time to unlock.
Press and hold the Blue key while selecting a sequence of keys to activate this mode
temporarily. This displays the following icon at the bottom of the screen as long as the key
is
pressed:
Orange Key
Accesses the secondary layer of characters and actions (shown on the keypad in
orange).
Press the Orange key once to activate this mode temporarily, followed by another key.
This displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Orange key twice to lock this mode. This displays the following icon at the
bottom
of
the
screen:
Press the Orange key a third time to unlock.
Press and hold the Orange key while selecting a sequence of keys to activate this mode
temporarily. This displays the following icon at the bottom of the screen as long as the key
is
pressed:
Using the FR6076
43
Talk/End
Not available in FR6070
Not available in FR6070
T
abl
e

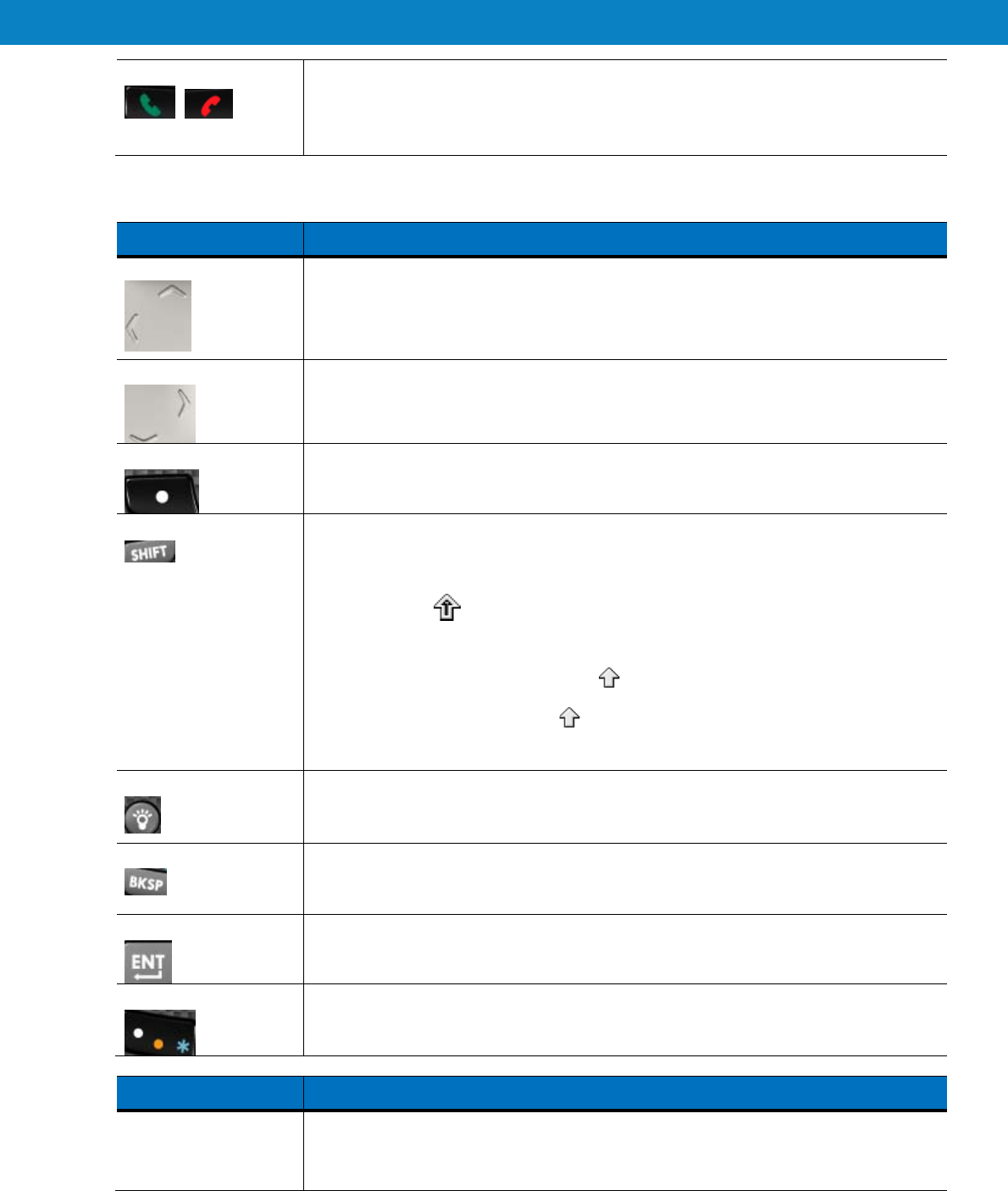

2-9 Alpha-numeric Keypad Descriptions(continued)
Key
Action
Scroll Up and Left
Moves up one item.
Moves left one item when pressed with the Orange key.
Scroll Down and Right Moves down one item.
Moves right one item when pressed with the Orange key.
Soft Keys Accesses the command or menu above it on the screen.
Shift
Changes the state of the alpha characters from lowercase to uppercase.
• Press the Shift key to activate this mode temporarily, followed by another key.
This displays the following icon at the bottom of the screen, until a second key is
pressed:
z Press and hold the Shift key while selecting a sequence of keys to activate this
mode temporarily. This displays the following icon at the bottom of the screen
as long as the key is pressed:
• Press the Shift key twice to lock this mode. This displays the following icon at
the bottom of the screen:
• Press the Shift key a third time to unlock.
Backlight
Turns the display backlight on and off.
Backspace
Produces a backspace.
Enter Executes a selected item or function.
Star Produces an asterisk.
Key
Action
Menu Use this key in conjunction with the Blue key to instantly display the context menu from
any application without tapping the screen. This function is user programmable.
Using the FR6076
44
Phonepad Use this key in conjunction with the Blue key to display the Phonepad application
without tapping the screen. This function is user programmable.
Function Buttons
The FR6070’s buttons perform certain functions.
Figure 2-14 Function Buttons
1. Scan button
2. Power button
• Power: Press the red Power button to turn the FR6070screen on and off. The FR6070is in suspend mode
when the screen is off. For more information, see Powering On the FR6070on page 1-8. Also use the
Power button to reset the FR6070by performing a warm or cold boot. See Resetting the FR6070on page
2-14.
• Scan: Press to scan bar codes. See Data Capture on page 2-29.
Using theFR6076
45
Stylus
Use the FR6070stylus to select items and enter information. The stylus functions as a mouse.
• Tap: Touch the screen once with the stylus to press option buttons and open menu items.
• Tap and Hold: Tap and hold the stylus on an item to see a list of actions available for that item. On the
pop-up menu that appears, tap the action to perform.
• Drag: Hold the stylus on the screen and drag across the screen to select text. Drag in a list to select
multiple items.
NOTE
Motorola recommends using the spring-loaded tip of the stylus to write on the screen, and the back end of the
stylus to tap the screen. Use your finger to press the Power button and keypad buttons.
CAUTION
To prevent damage to the screen, do not use any device other than the Motorola-provided stylus.
Entering Data
When entering data on the keypad, use either the single-hand method or the two-hand method as shown in Figure
2-15.
Single-hand Method Two-hand Method
Figure 2-15 Entering Data on the Keypad
Using theFR6076
46
Data Capture
The FR6070offers linear scanning as data capture.
NOTE
To perform data capture a scanning enabled application must be installed on the FR6070. A sample
scanning application can be downloaded from the Motorola Support site at http://support.symbol.com.
Linear Scanning
FR6070with an integrated linear scanner have the following features:
• Reading of a variety of bar code symbologies, including the most popular linear, postal, and 1-D code
types.
• Intuitive aiming for easy point-and-shoot operation.
Scanning Considerations
Typically, scanning is a simple matter of aim, scan, and decode and a few quick trial efforts master it. However,
consider the following to optimize scanning performance:
• Range
Any scanning device decodes well over a particular working range — minimum and maximum distances from
the bar code. This range varies according to bar code density and scanning device optics.
Scanning within range brings quick and constant decodes; scanning too close or too far away prevents
decodes. Move the scanner closer and further away to find the right working range for the bar codes being
scanned.
• Angle
Scanning angle is important for promoting quick decodes. When laser beams reflect directly back into the
scanner from the bar code, this special reflection can “blind” the scanner.
To avoid this, scan the bar code so that the beam does not bounce directly back. But don’t scan at too sharp
an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode.
Practice quickly shows what tolerances to work within.
• Hold the FR6070farther away for larger symbols.
• Move the FR6070closer for symbols with bars that are close together.
NOTE
Scanning procedures depend on the application and FR6070configuration. An application may use different
scanning procedures from the one listed above.
1. Ensure that a scan enabled application is loaded on the FR6070.
2. Aim the scan window at the bar code.
Using theFR6076
47
Figure 2-16 Linear Scanning
3. Press the scan button. Ensure the red scan beam covers the entire bar code. The Scan/Decode LED lights red
to indicate that scanning is in process, then lights green and a beep sounds, by default, to indicate the bar code
was decoded successfully.
Figure 2-17 Linear Scanner Aiming Pattern
4. Release the scan button.
Using theFR6076
48
Using
IrDA

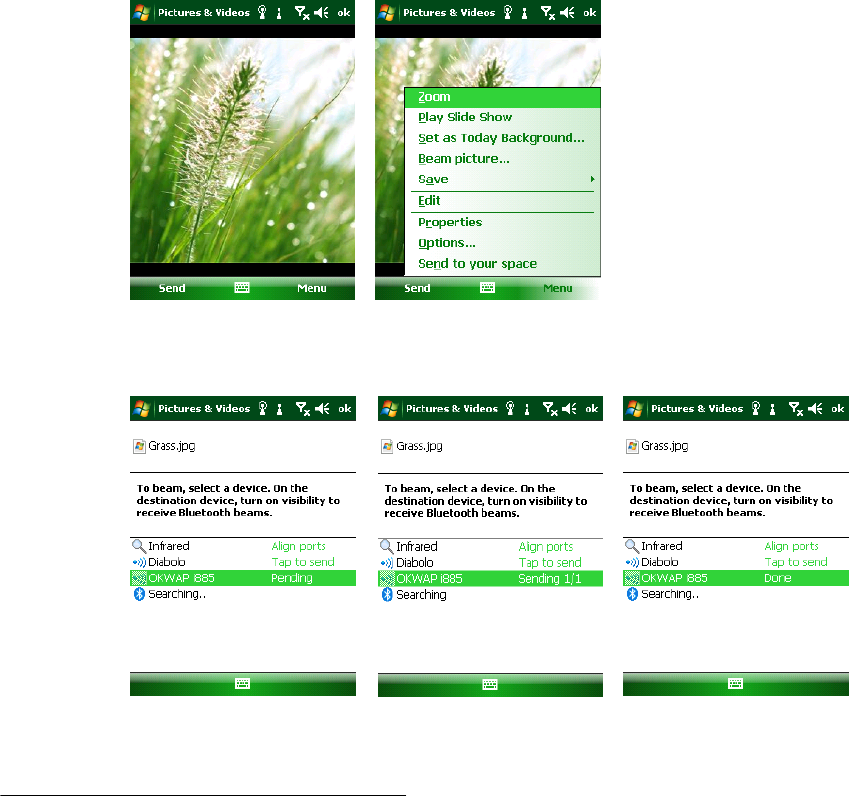

In a Microsoft Windows Mobile program (except Messaging), and Picture & Videos, you can exchange files using
either infrared or Bluetooth.
NOTE
You can also beam files (not folders) from the File Explorer window. Tap and hold
the item you want to send, then tap Beam File from the pop-up menu.
First activate the beam function before exchanging files with another IrDA device.
To activate the Beam function:
1. Tap Start > Settings > Connections tab > Beam icon.
2. Tap Receive all incoming beams check box.
Figure 2-18 Beam Window
3. Tap ok.
Infrared Connection
Using infrared, you can enable short-range file exchange between your FR6070and another IrDA device.
Exchanging Files using IR Connection
Ensure that the IrDA function on both the FR6070and the other device are enabled. To send files via IrDA
connection:
1. Switch to the program where you created the item you want to send and locate the item in the list.
NOTE
Do not cover or block the IrDA window.
2. Align the IrDA port of the FR6070with that of the IrDA device so that they are unobstructed and within a
close range.
Using theFR6076
49

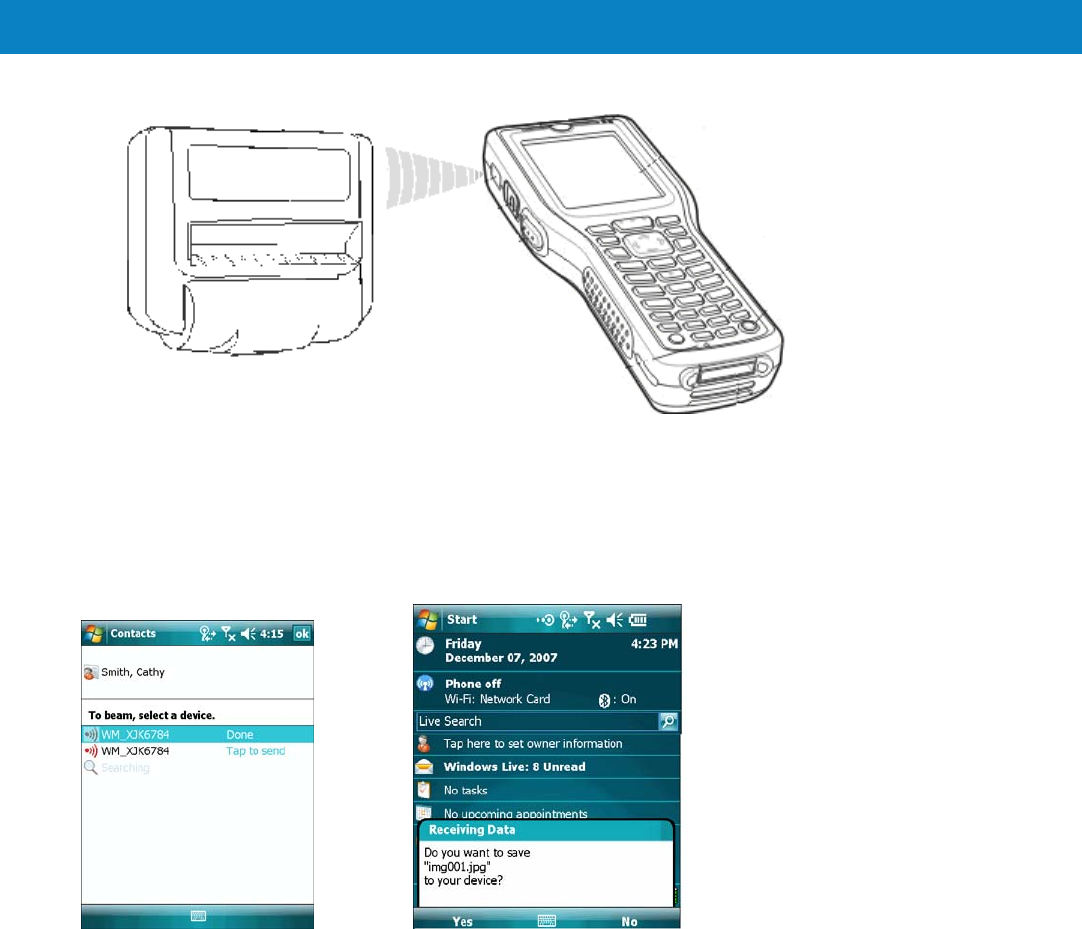

Figure 2-19 Align FR6070with IrDA Device
3. Tap and hold the item, then tap Beam [type of item] on the pop-up menu.
4. Tap the device that you want to send the file to.
Figure 2-20 Beam Contact Figure 2-21 Receive File
To receive files via IrDA connection:
1. Align the IrDA port of the FR6070with that of the other IrDA device so that they are unobstructed and within a
close range.
2. On the other device, send the file to the FR6070.
3. When the Receiving Data dialog displays, tap Yes.
54
Chapter
3 Using Bluetooth
Introduction
Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band
(802.15.1). Bluetooth wireless technology is specifically designed for short-range (30 feet/10 meters)
communication and low power consumption.
FR6070s with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other
Bluetooth enabled devices such as phones, and other mobile computers.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with
Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work.
There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries
during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
• Channel Classification - A method of detecting an interference on a channel-by-channel basis, or
pre-defined channel mask.
• Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.
• Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.
• Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH
coexistence allows Motorola mobile computers to operate in any infrastructure.
55
The Bluetooth radio in this FR6070operates as a Class 2 device power class. The maximum output power is
2.5mW
and the expected range is 32.8 feet (10 meters). A definition of ranges based on power class is difficult to
obtain due to power and device differences, and whether one measures open space or closed office space.
NOTE
It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation
is
required.
Security
The current Bluetooth specification defines security at the link level. Application-level security is not specified.
This allows application developers to define security mechanisms tailored to their specific need. Link-level
security occurs between devices, not users, while application-level security can be implemented on a per-user
basis. The Bluetooth specification defines security algorithms and procedures needed to authenticate devices,
and if needed, encrypt the data flowing on the link between the devices. Device authentication is a mandatory
feature of Bluetooth while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key that is used to authenticate the
devices and create a link key for them. Entering a common PIN number in the devices being paired generates
the initialization key. The PIN number is never sent over the air. By default, the Bluetooth stack responds with
no key when a key is requested (it is up to user to respond to the key request event). Authentication of
Bluetooth devices is based-upon a challenge-response transaction. Bluetooth allows for a PIN number or
passkey that is used to create other 128-bit keys used for security and encryption. The encryption key is
derived from the link key used to authenticate the pairing devices. Also worthy of note is the limited range and
fast frequency hopping of the Bluetooth radios that makes long-distance eavesdropping difficult.
Recommendations are:
• Perform pairing in a secure environment
• Keep PIN codes private and don't store the PIN codes in the mobile computer
• Implement application-level security.
Turning the Bluetooth Radio Mode On and Off
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When
the radio is off, other Bluetooth devices cannot see or connect to the FR6070. Turn on the Bluetooth radio to
exchange information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in
close proximity.
NOTE
To achieve the best battery life turn off radios not in use.
Disabling Bluetooth
To disable Bluetooth, tap Bluetooth icon to enter Wireless Manager. Tap Bluetooth icon to change on to off.
The Bluetooth icon changes to indicate that Bluetooth is disabled.
56

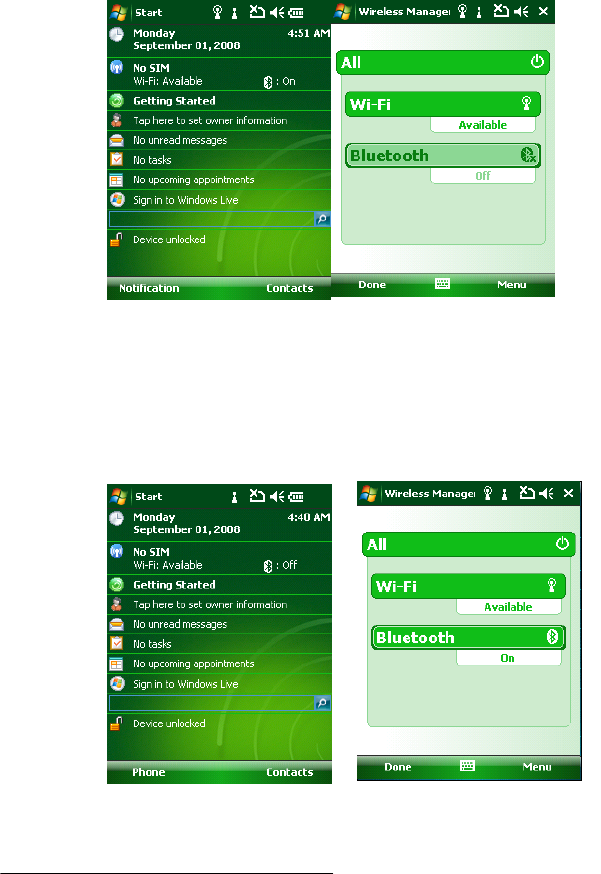

Figure 4-1 Disable Bluetooth
Enabling Bluetooth
To enable Bluetooth, tap Bluetooth icon to enter Wireless Manager. Tap Bluetooth icon to change off to on.
The Bluetooth icon changes to indicate that Bluetooth is enabled.
Figure 4-2 Enable Bluetooth
Bond New Device(s)
The FR6070can exchange information with bonded devices.
To find Bluetooth devices in the area:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3. Ensure that the two devices are within 30 feet (10 meters) of one another.
4. Tap the Bluetooth icon to enter Wireless Manager. Then tap Menu.
57

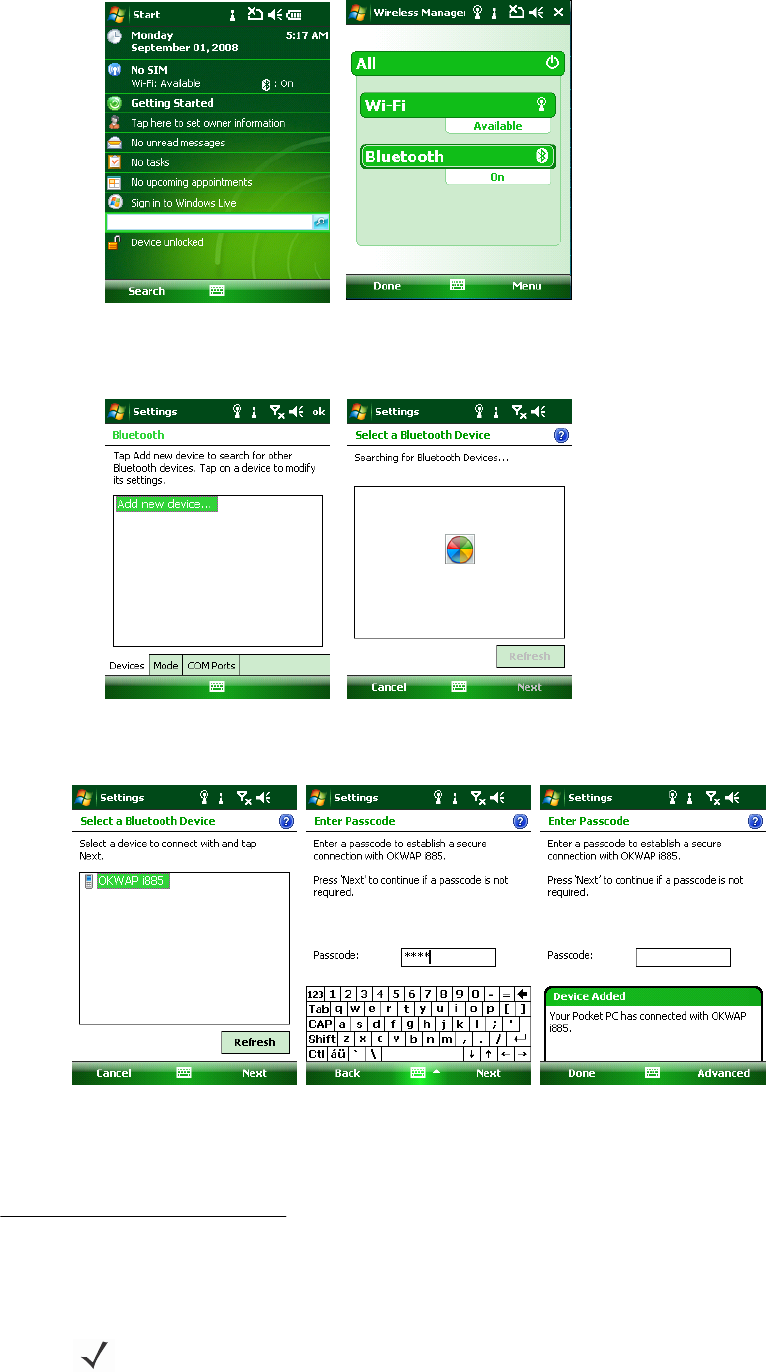

Figure 4-3 Enter Bluetooth Window
5. Tap Menu to enter Settings window. Then tap Add new device to search for Bluetooth Devices.
Figure 4-4 Add new device Window
6. After the device appears, tap it and enter a passcode to establish a secure connection with it. Meanwhile
enter the passcode on the target device.
Figure 4-5 Discover Devices Dialog Box
File Transfer Services
To transfer files between the FR6070and another Bluetooth enabled device, please ensure the FR6070is
discoverable and connectable.
NOTE
Some devices might not require a PIN. This depends upon the device’s authentication.
58
1. Choose one file as below, tap Menu > Beam picture Menu.
Figure 4-6 Select file
2. Then choose the destination device, and wait till Done is showed.
Figure 4-7 Transfer file Window
Bluetooth Settings
Use the Bluetooth Settings window to configure the operation of the application. Tap Menu >
Settings. The Bluetooth Settings window appears.
Device Info Tab
Use the Device Info tab to add and bond new devices. Please refer to Bond new device(s).
Mode Tab
Use the Mode tab to configure the FR6070’s Bluetooth connection modes.
59

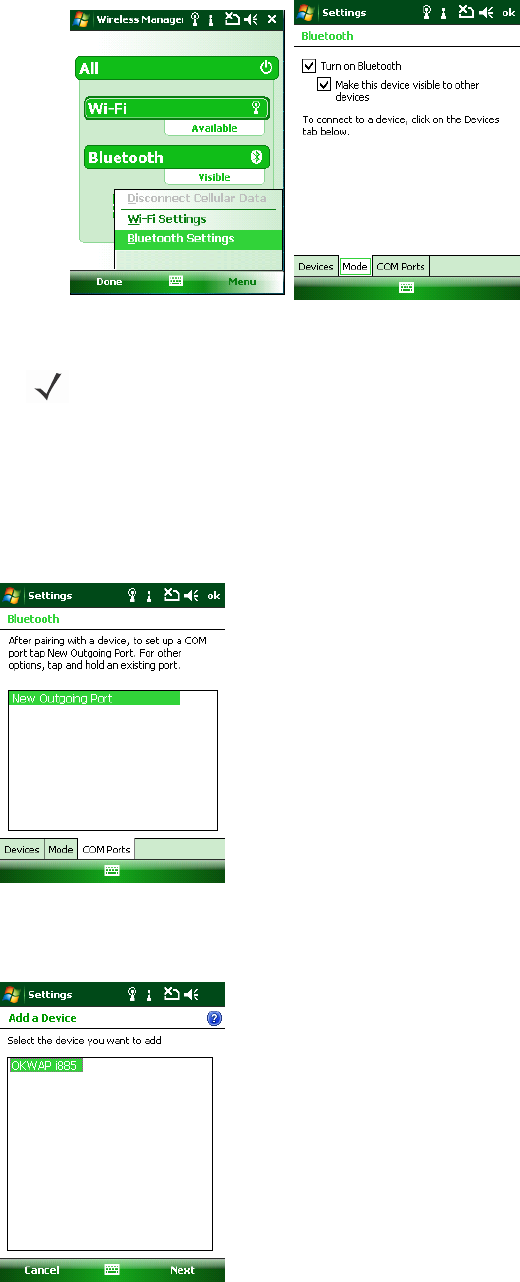

Figure 4-8 BTExplorer Settings - Device Info Tab
1. Before bonding a new device, make sure to turn on Bluetooth.
2. If you want other devices to find your FR6070, please tick “Make this device visible to other devices”.
COM Ports Tab
Use the COM Ports tab set specific outgoing ports for bonded devices.
1. Tap New Outgoing Port.
Figure 4-9 Add COM Ports
2. Select the device you want to add. Then tap Next.
Figure 4-10 Select device
3. Select a port from drop-down list. Then tap Finish.
60

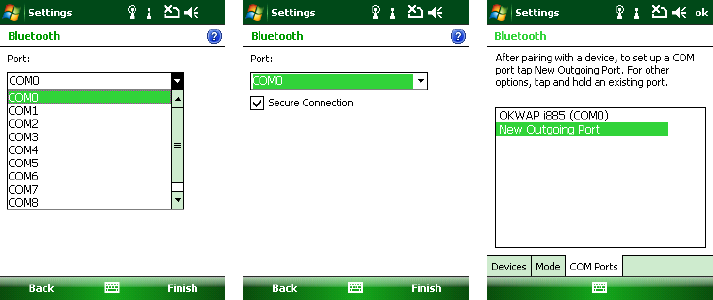

Figure 4-11 Select a Port for device
Accessories
61
Chapter 4 Accessories
Introduction
FR6070accessories, listed below, provide a variety of product support
capabilities.
• Single Slot USB/Serial Cradle - Charges the FR6070main battery and a spare battery. Synchronizes the
FR6070with a host computer through a USB connection.
• Four Slot Battery Charger - Charges spare standard and high capacity batteries.
• Auto Charge Cable - Plugs into a vehicle cigarette lighter to charge the FR6070while on the road.
• Charge Only Cable - Provides power to the FR6070.
• USB Charging Cable - Provides power to the FR6070and USB communication with a host computer.
• Headset - Used in noisy environments.
Single Slot USB/Serial Cradle
This section describes how to use a Single Slot USB/Serial cradle with the FR6070. For USB communication
setup procedures refer to the FR6070Integrator Guide.
The Single Slot USB/Serial Cradle:
• Provides 5.4 VDC power for operating the FR6070.
• Synchronizes information between the FR6070and a host computer. Refer to the FR6070Integrator
Guide for information on setting up a partnership between the FR6070and a host computer.
• Charges the FR6070’s battery.
• Charges a spare battery.
Charging the FR6070Battery
Connect the cradle to power. Insert the FR6070into the slot to begin charging.
Note : Please put the adaptor clip into the cradle before charging.
*Charging LED
Accessories
62
Slow Blinking Amber=Charging
Solid Green=Fully Charged
Fast Blinking Red=Charging Error
*It is recommended that this product be charged for 24 hours before the first use to ensure that the internal
battery is fully charged.
Figure 6-1 FR6070Battery Charging
Charging the Spare Battery
Spare Battery
Figure 6-2 Spare Battery Charging
Accessories
63
Battery Charging Indicators
The Single Slot USB/Serial Cradle charges the FR6070’s main battery and a spare battery simultaneously.
The FR6070’s charge LED indicates the status of the battery charging in the FR6070. See Table 1-2 on page 1-7
for charging status indications.
The spare battery charging LED on the cradle indicates the status of the spare battery charging in the cradle. See
Table 6-1 for charging status indications.
The 3600 mAh battery fully charges in less than five hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 45°C (32°F to 113°F). Charging is intelligently controlled by the
FR6070
.
To accomplish this, for small periods of time, the FR6070or accessory alternately enables and disables
battery charging to keep the battery at acceptable temperatures. The FR6070or accessory indicates when
charging is disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-7 and Table 6-1.
T
abl
e
6-1 Spare Battery LED Charging Indicators
Spare Battery LED
(on cradle)
Indication
Off Battery is not charging; battery is not inserted correctly in the cradle;
cradle is not powered
Slow Blinking Amber Spare battery is charging.
Solid Amber Charging complete.
Accessories
64
Headset
Use the headset to communicate via Voice-Over-IP (VOIP) or for audio playback and telephony applications.
To connect the headset, remove the plug from the headset jack at the top of the FR6070and insert the headset
connector. Contact a Motorola representative for compatible headsets.
For best performance, Motorola recommends a 2.5mm jack headset, p/n 50-11300-050R.
Figure 6-5 Headset Connection
Cables
This section describes how to set up and use the cables. The cables are available with a variety of
connection capabilities.
The following communication/charge cables are available:
• USB Client Charge cable (standard-A connector and a barrel receptacle for power)
• Auto charge cable
• Charge only cable.
The following printer cables are available directly from Motorola:
• O’Neil Printer cable
• Zebra Printer cable.
Figure 6-6 Cables
Communication/charge cables:
• Provide the FR6070with operating and charging power when used with the Motorola approved power
Accessories
65
supply.
• Synchronize information between the FR6070and a host computer. With customized or third party
software, it can also synchronize the FR6070with corporate databases.
• Provide USB connection through the USB pass-through port for communication with a USB device,
such as a host computer. For communication setup procedures, refer to the FR6070Integrator Guide.
Dedicated printer cables provide communication with a printer.
Battery Charging and Operating Power
The communication/charge cables can charge the FR6070battery and supply operating
power. To charge the FR6070battery:
1. Connect the communication/charge cable power input connector to the Motorola approved power source.
2. Slide the bottom of the FR6070into the connector end of the communication/charge cable and gently
press in until it latches into the FR6070. The FR6070amber Charge LED indicates the FR6070battery
charging status. The 3600 mAh standard battery charges in less than five hours. See Table 1-2 on page
1-7 for charging status indications.
3. When charging is complete, remove the cable by gently pulling the FR6070and the cable
apart.
LED Charge Indications
The amber Charge LED on the FR6070indicates battery charging status. See Table 1-2 on page 1-7 for charging
status indications.
Charging Temperature
Charge batteries in temperatures from 0°C to 45°C (32°F to 113°F). Charging is intelligently controlled by the
FR600
To accomplish this, for small periods of time, the FR6070or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The FR6070or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-7.4
66
Chapter 5 Maintenance&Troubleshooting
Introduction
This chapter includes instructions on cleaning and storing the FR6070, and provides troubleshooting solutions
for potential problems during FR6070operation.
Maintaining the FR6070
For trouble-free service, observe the following tips when using the FR6070:
• Do not scratch the screen of the FR6070. When working with the FR6070, use the supplied stylus or
plastic-tipped pens intended for use with a touch-sensitive screen. Never use an actual pen or pencil or other
sharp object on the surface of the FR6070screen.
Motorola recommends using a screen protector, p/n KT-67525-01R.
• The touch-sensitive screen of the FR6070is glass. Do not to drop the FR6070or subject it to strong impact.
• Protect the FR6070from temperature extremes. Do not leave it on the dashboard of a car on a hot day,
and keep it away from heat sources.
• Do not store or use the FR6070in any location that is dusty, damp, or wet.
• Use a soft lens cloth to clean the FR6070. If the surface of the FR6070screen becomes soiled, clean it with a
soft cloth moistened with a diluted window-cleaning solution.
• Periodically replace the rechargeable battery to ensure maximum battery life and product performance.
Battery life depends on individual usage patterns.
Maintenance
&
Troubleshooting
67
• A screen protector is applied to the FR6070. Motorola recommends using this to minimize wear and tear.
Screen protectors enhance the usability and durability of touch screen displays. Benefits include:
• Protection from scratches and gouges
• Durable writing and touch surface with tactile feel
• Abrasion and chemical resistance
• Glare reduction
• Keeping the device’s screen looking new
• Quick and easy installation.
Battery Safety Guidelines
• The area in which the units are charged should be clear of debris and combustible materials or chemicals.
Particular care should be taken where the device is charged in a non commercial environment.
• Follow battery usage, storage, and charging guidelines found in the user's guide.
• Improper battery use may result in a fire, explosion, or other hazard.
• To charge the mobile device battery, the battery and charger temperatures must be between +32 ºF and
+113 ºF (0 ºC and +45 ºC)
• Do not use incompatible batteries and chargers. Use of an incompatible battery or charger may present a
risk of fire, explosion, leakage, or other hazard. If you have any questions about the compatibility of a battery
or a charger, contact Motorola Enterprise Mobility support.
• For devices that utilize a USB port as a charging source, the device shall only be connected to products that
bear the USB-IF logo or have completed the USB-IF compliance program.
• To enable authentication of an approved battery, as required by IEEE1725 clause 10.2.1, all batteries will
carry a Motorola hologram. Do not fit any battery without checking it has the Motorola authentication
hologram.
• Do not disassemble or open, crush, bend or deform, puncture, or shred.
• Severe impact from dropping any battery-operated device on a hard surface could cause the battery
to overheat.
• Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to
water or other liquids, or expose to fire, explosion, or other hazard.
• Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle or
near a radiator or other heat source. Do not place battery into a microwave oven or dryer.
• Battery usage by children should be supervised.
• Please follow local regulations to promptly dispose of used re-chargeable batteries.
• Do not dispose of batteries in fire.
• Seek medical advice immediately if a battery has been swallowed.
• In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has
been made, wash the affected area with large amounts of water and seek medical advice.
• If you suspect damage to your equipment or battery, contact Motorola Enterprise Mobility support to
arrange for inspection.
Maintenance
&
Troubleshooting
68
Cleaning
CAUTION
Always wear eye protection.
Read warning label on compressed air and alcohol product before using.
If you have to use any other solution for medical reasons please contact Motorola for more information.
WARNING
!
Avoid exposing this product to contact with hot oil or other flammable liquids. If such exposure
occurs, unplug the device and clean the product immediately in accordance with these guidelines.
Materials Required
• Alcohol wipes
• Lens tissue
• Cotton tipped applicators
• Isopropyl alcohol
• Can of compressed air with a tube.
Cleaning the FR6070
Housing
Using the alcohol wipes, wipe the housing including keys and in-between keys.
Display
The display can be wiped down with the alcohol wipes, but care should be taken not to allow any pooling of liquid
around the edges of the display. Immediately dried the display with a soft, non-abrasive cloth to prevent streaking.
Scanner Exit Window
Wipe the scanner exit window periodically with a lens tissue or other material suitable for cleaning optical material
such as eyeglasses.
Connector
1. Remove the main battery from mobile computer. See Replacing the Main Battery on page 1-11.
2. Close battery door.
3. Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
4. Rub the cotton portion of the cotton tipped applicator back-and-forth across the connector on the bottom of the
FR6070. Do not leave any cotton residue on the connector.
5. Repeat at least three times.
6. Use the cotton tipped applicator dipped in alcohol to remove any grease and dirt near the connector area.
7. Use a dry cotton tipped applicator and repeat steps 4 through 6.
Maintenance
&
Troubleshooting
69
8. Spray compressed air on the connector area by pointing the tube/nozzle about ½ inch away from the surface.
CAUTION: Do not point nozzle at yourself and others, ensure the nozzle or tube is away from your face.
9. Inspect the area for any grease or dirt, repeat if required.
Cleaning Cradle Connectors
To clean the connectors on a cradle:
1. Remove the DC power cable from the cradle.
2. Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
3. Rub the cotton portion of the cotton tipped applicator along the pins of the connector. Slowly move the
applicator back-and-forth from one side of the connector to the other. Do not let any cotton residue on the
connector.
4. All sides of the connector should also be rubbed with the cotton tipped applicator.
5. Spray compressed air in the connector area by pointing the tube/nozzle about ½ inch away from the surface.
CAUTION: do not point nozzle at yourself and others, ensure the nozzle or tube is pointed away from your
face.
6. Ensure that there is no lint left by the cotton tipped applicator, remove lint if found.
7. If grease and other dirt can be found on other areas of the cradle, use lint free cloth and alcohol to remove.
8. Allow at least 10 to 30 minutes (depending on ambient temperature and humidity) for the alcohol to air dry
before applying power to cradle.
If the temperature is low and humidity is high, longer drying time is required. Warm temperature and dry
humidity requires less drying time.
Cleaning Frequency
The cleaning frequency is up to the customer’s discretion due to the varied environments in which the mobile
devices are used. They may be cleaned as frequently as required. However when used in dirty environments it
may be advisable to periodically clean the scanner exit window to ensure optimum scanning performance.
Maintenance
&
Troubleshooting
70
Troubleshooting
FR6070
T
abl
e
7-1 Troubleshooting the FR6070
Problem
Cause
Solution
FR6070does not
turn on. Lithium-ion battery
not charged. Charge or replace the lithium-ion battery in the FR6070.
Lithium-ion battery
not installed
properly.
Install the battery properly. See Installing the Main Battery on page
1-6.
System crash. Perform a warm boot. If the FR6070still does not turn on, perform
a cold boot. See Resetting the FR6070on page 2-14.
Rechargeable
lithium-ion battery did
not charge.
Battery failed. Replace battery. If the FR6070still does not operate, perform a
warm boot, then a cold boot. See Resetting the FR6070on page
2
1
4
FR6070removed
from cradle while
battery was
charging.
Insert FR6070in cradle. The 3600 mAh battery fully charges in
less than six hours.
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C (32°F)
or above 45°C (113°F).
Cannot see characters
on display. FR6070not
powered on. Press the Power button.
During data
communication,
no
data transmitted, or
transmitted data was
incomplete.
FR6070removed
from cradle or
disconne cted from
host computer
during
communication.
Replace the FR6070in the cradle, or reattach the
communication
cable and re-transmit.
Incorrect cable
configuration. See the system administrator.
Communication
software was
incorrectly installed
or configured.
Perform setup. Refer to the FR6070Integrator Guide for details.
No sound. Volume setting is
low or turned off. Adjust the volume. See Adjusting Volume on page 2-10.
Maintenance
&
Troubleshooting
71
T
abl
e
7-1 Troubleshooting the FR6070(Continued)
Problem
Cause
Solution
FR6070shuts off. FR6070is inactive. The FR6070turns off after a period of inactivity. If the FR6070is
running on battery power, set this period from 1 to 5 minutes, in
one-minute intervals. If the FR6070is running on external power,
set this period to 1, 2, 5, 10, 15, or 30 minutes.
Check the Power window by selecting Start > Settings > System tab
and tapping the Power icon. Select the Advanced tab and change
the setting for a longer delay before the automatic shutoff feature
activates.
Battery is depleted. Replace the battery.
Battery is not
inserted properly. Insert the battery properly. See Installing the Main Battery on page
1-6.
Tapping the window
buttons or icons does
not activate the
corresponding feature.
Screen is not
calibrated correctly. Re -calibrate the screen. Se e Calibrating the Screen on page 1-8.
The system is not
responding. Warm boot the system. See Resetting the FR6070on page 2-14.
A message appears
stating that the
FR6070memory is
full.
Too many files
stored on the
FR6070.
Delete unused memos and records. If necessary, save these
records on the host computer (or use an SD card for additional
memory).
Too many
applications
installed on the
FR6070.
Remove user-installed applications on the FR6070to recover
memory. Select Start > Settings > System tab and tap the Remove
Programs icon. Select the unused program and tap Remove.
FR6070keeps
powering down to
protect memory
contents.
The FR6070’s
battery is low. Recharge the battery.
The internal
Bluetooth radio is
powered on for a
long time.
Because this mode requires battery power, power it off when not
needed.
Maintenance
&
Troubleshooting
72
T
abl
e
7-1 Troubleshooting the FR6070(Continued)
Problem
Cause
Solution
The FR6070does
not accept scan
input.
Scanning
application is not
loaded.
Load a scanning application on the FR6070. See the
system administrator.
Unreadable bar
code. Ensure the symbol is not defaced.
Distance between
exit window and bar
code is incorrect.
Place the FR6070within proper scanning range.
FR6070is not
programmed for the
bar code.
Program the FR6070to accept the type of bar code being scanned.
FR6070is not
program med to
generate a beep.
If the FR6070does not beep on a good decode, set the application
to generate a beep on good decode.
Battery is low. If the scanner stops emitting a laser beam upon a trigger press,
check the battery level. When the battery is low, the scanner shuts
off before the FR6070low battery condition notification. Note: If the
scanner is still not reading symbols, contact the distributor or
Motorola.
Bluetooth Connection
T
abl
e
7-2 Troubleshooting Bluetooth Connection
Problem
Cause
Solution
FR6070cannot find
any Bluetooth
devices nearby.
Too far from other
Bluetooth devices. Move closer to the other Bluetooth device(s), within a range of 10
meters.
The Bluetooth
device(s) nearby are
not turned on.
Turn on the Bluetooth device(s).
The Bluetooth
device(s) are not in
discoverable mode.
Set the Bluetooth device(s) to discoverable mode. If needed, refer to
the device’s user documentation for help.
Maintenance
&
Troubleshooting
73
Single Slot USB/Serial Cradle
T
abl
e
7-3 Troubleshooting the Single Slot USB/Serial Cradle
Symptom
Possible
Cause
Action
LEDs do not light
when FR6070or
spare battery is
inserted.
Cradle is not
receiving power. Ensure the power cable is connected securely to both the cradle
and to AC power.
FR6070is not
seated firmly in the
cradle
Remove and re-insert the FR6070into the cradle, ensuring it is
firmly seated.
Spare battery is not
seated firmly in the
cradle.
Remove and re-insert the spare battery into the charging slot,
ensuring it is firmly seated.
Maintenance
&
Troubleshooting
74
T
abl
e
7-3 Troubleshooting the Single Slot USB/Serial Cradle (Continued)
Symptom
Possible
Cause
Action
FR6070battery is
not charging. FR6070was
removed from
cradle or
cradle was
unplugged from AC
power too soon.
Ensure cradle is receiving power. Ensure FR6070is seated
correctly. Confirm main battery is charging under Start > Settings >
System > Power. The 3600 mAh battery fully charges in less than
six hours.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
The FR6070is
not fully seated in
the cradle.
Remove and re-insert the FR6070into the cradle, ensuring it is
firmly seated.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C (32°F)
or above 45°C (113°F).
Spare battery is not
charging. Battery not fully
seated in charging
slot.
Remove and re-insert the spare battery in the cradle, ensuring it is
firmly seated.
Battery inserted
incorrectly. Re-insert the battery so the charging contacts on the battery align
with the contacts on the cradle.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
During data
communication,
no
data transmits, or
transmitted data was
incomplete.
FR6070removed
from cradle during
communications.
Replace FR6070in cradle and retransmit.
Incorrect cable
configuration. See the system administrator.
Communication
software is not
installed or
configured properly.
Perform setup as described in the FR6070Integrator Guide.
