Contents
User manual rev2 2
5 Using The Phone Function
Phone operation
51
Phone status icons
The list below shows the Phone-related status icons.
Phone operation
Turning the phone function on and off
If you have turned the phone function off, removed and then reinstalled the SIM card, the
connection to your mobile service provider’s network is not automatically enabled. You
have the option to just use the device’s PDA features or you can reestablish the mobile
service connection.
IMPORTANT: In many countries it is required by law to turn off cell phones when boarding
commercial flights. Turning off your MC35 does not turn off the device’s phone function; you must use
the Wireless Manager to turn off the phone.
Icon Name Description
Network search Indicates that the device is attempting to
establish mobile service connection.
No network Indicates that the device is not able to
establish mobile service connection.
Phone off Indicates that the phone is off.
In network service Indicates that the phone is connected to a
network.
Signal status The number of bars indicates the strength of
your connection signal. As the strength of the
signal diminishes — the number of bars in the
icon diminishes, with no bars indicating no
signal.
Active call Notifies you that a call is being made or there is
an incoming call.
Speakerphone Indicates that the speakerphone mode is
enabled. For more information on activating the
speakerphone, refer to page 54.
Missed call Indicates that you have a missed call.
Unread message Indicates that you have unread text or email
message(s), as well as voice mail
notification(s).
Bluetooth Indicates that the Bluetooth wireless
technology is on.
Bluetooth audio Indicates that the device is connected to a
Bluetooth-enabled headset.
5 Using The Phone Function
Phone operation
52
To turn on the phone function:
1 Launch the Wireless Manager application by doing either of the following:
•On the Today screen, tap the Wireless Manager icon.
•On the Today screen, tap the signal icon on the upper right corner
of the screen, then from the Phone callout, tap Wireless Manager.
2 On the Wireless Manager screen, tap Phone to turn on phone function.
This icon changes indicating your device is getting ready to search for a
mobile connection. This may take a few seconds. During connection,
the icon changes to then to and once a mobile connection is
established.
Tap to launch the
Wireless Manager.
5 Using The Phone Function
Phone operation
53
To turn off the phone function:
1 Launch the Wireless Manager application by doing either of the following:
•On the Today screen, tap the Wireless data program icon.
•On the Today screen, tap the signal icon on the upper right corner
of the screen, then from the Phone callout, tap Wireless Manager.
2 On the Wireless Manager screen, tap Phone to turn off phone function.
Erasing number input
If you entered a wrong phone number when dialing, you can either backspace to erase
individual digits or you can delete the entire phone number
•Tap to backspace over digits.
•Press the Backspace key on the QWERTY keypad.
Answering a call
•Tap Answer or press the Send button.
Rejecting a call
•Tap Ignore or press the End button.
Depending on your mobile service subscription, either a busy tone is sent
out, or the call is forwarded to your voice mailbox.
Ending a call
•Tap the End button on the Dialer keypad or press the End button.
5 Using The Phone Function
Phone operation
54
Adjusting the phone volume
To adjust the phone volume, you must do it during a call. If you adjust the volume at
another time it only affects the level of the system sounds (i.e., ring and notification
alerts, .wmv/MP3 playback).
To adjust the phone conversation volume:
1 Tap on the navigation bar or press the volume key down to bring up the In Call
callout.
2 Drag the slider to adjust the phone volume.
Using the speakerphone
To attend to phone calls, attach the single earbud headset or activate the speakerphone
mode. The speakerphone function allows you to talk hands-free and/or let other people
listen to the caller.
To enable speakerphone mode:
•Press and hold the Send button or press the Speaker On screen button until
the speakerphone turns on as indicated by the appearance of the
Speakerphone icon on the navigation bar.
To disable speakerphone mode:
•Press and hold the Send button or Speaker On screen button again until the
Speakerphone icon disappears from the navigation bar.
Muting a call
During a call you can mute the microphone so that the person with whom you are
speaking cannot hear you, but you can still hear him or her. This is useful if, for example,
you do not want the other person to hear a conversation or background noise on your
side of the call.
5 Using The Phone Function
Making phone calls
55
To mute a call:
•During a call, tap the Mute button on the dialer keypad to toggle the mute
function on and off.
The mute icon is displayed on the Dialer screen’s entry area to indicate that the
mute function is enabled.
Making phone calls
The integrated nature of your device’s phone function lets you make calls in a variety of
ways across different applications. You can make a call by:
•Manually entering a phone number using the Dialer keypad.
•Accessing numbers using Speed Dial, Call History, Microsoft Contacts or
SIM Manager.
Once a call has been initiated this icon changes to indicating an
active call.
Making a call using dialer
1 On the Dialer keypad, tap the phone number you want to call.
2 Tap Talk or press the Send button .
Tap to terminate
the call.
This icon indicates a call is being
made and the strength of the signal.
The number being
called is displayed
here.
5 Using The Phone Function
Making phone calls
56
Making a call using Microsoft Contacts
There are several ways to make a call in Contacts. In this section, only the method using
the hardware buttons is described. For instructions on other methods, see page 120.
1 Tap , then Contacts .
Contacts opens to the contact list.
2 Type a name or number, or move the joystick up or down to scroll through the
contact list and select the contact you want to call.
3 Press the Send button twice—once to launch Phone and another to make the call.
The call will be made to that contact’s priority number.
Making a call using Speed Dial
Speed Dial is a list you create for numbers you call regularly. Only numbers stored in
Microsoft Contacts can be added to this list.
To make a call using Speed Dial:
You can make a call in two ways:
•By memorizing a phone number’s position in the Speed Dial list, you can dial
the number by entering its location number.
In the picture above, Natasha Lambert is at position 2. To dial her number,
tap and hold 2 on the Dialer keypad until you hear a beep.
5 Using The Phone Function
Making phone calls
57
If a number holds a position of 10 or higher tap the first number, and then tap
and hold the second to dial. For instance, to call the number in position 12,
tap 1 then tap and hold 2.
•Alternatively, if you don’t remember the position of a number in the Speed
Dial list follow the steps below:
(a) Tap Speed Dial .
(b) On the Speed Dial window, press the joystick to go through the list to find the
number you want to call.
(c) Once the number is selected, you can either press the joystick or the Send
button to initiate the call.

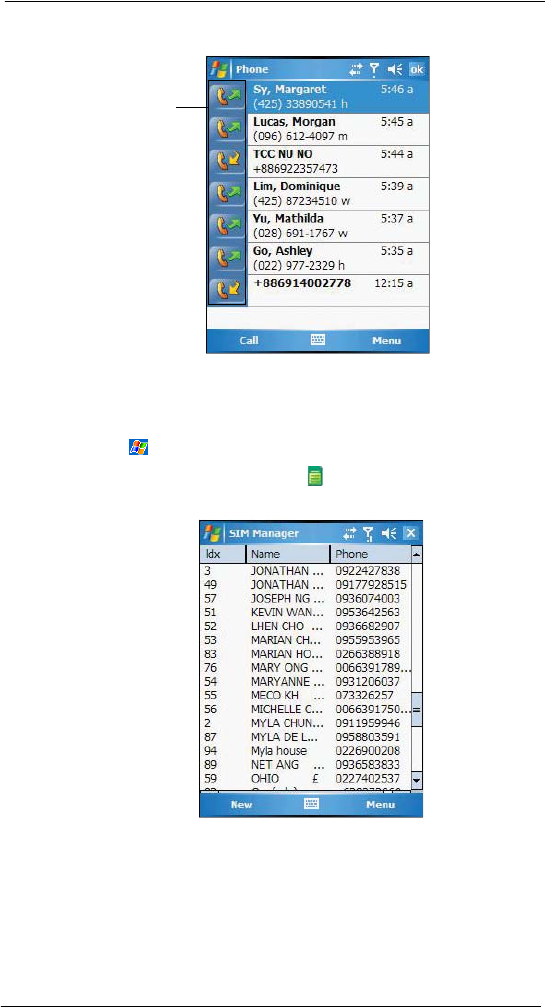

Making a call using Call History

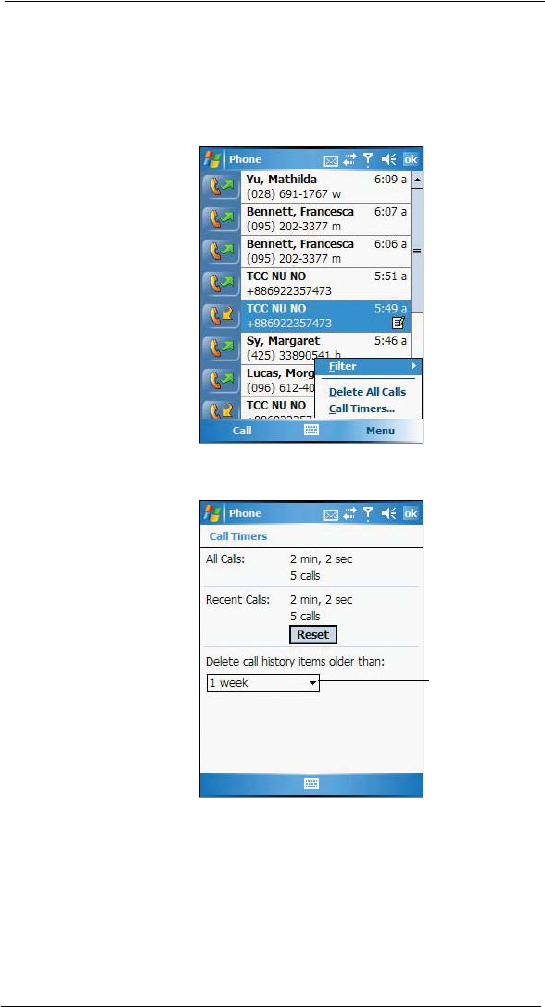

Call History is a record of all incoming, outgoing, and missed calls.

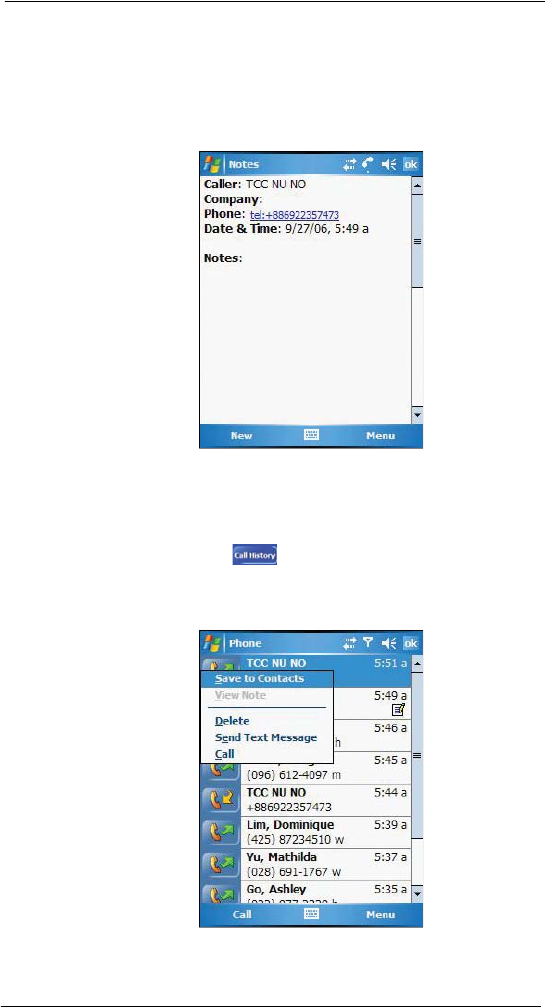

1 Tap Call History .
2 Find the number you want to call. You can select a call category—All Calls, Missed,
Outgoing, Incoming, and By Caller—by tapping the pick list in the top-left corner of
the screen.
3 Once the number has been selected, make the call by doing any of the following:
•Press the joystick.
•Press the Send button .
Tap to adjust voice
mail settings.
Tap to edit contact
details.
Tap to add a
contact to the
Speed Dial list.
Tap a Speed Dial
number to call that
contact.
5 Using The Phone Function
Making phone calls
58
•Tap the category icon on the left of the selected number.
Making a call using SIM Manager
SIM Manager is a program you can use to view and manage the contents of your SIM
card.
1 Tap , then Settings.
2 On the System tab, tap SIM Manager .
Wait for the SIM card contents to load.
3 Select the number you want to call.
4 Once the number has been selected, make the call by doing any of the following:
•Press the joystick.
•Press the Send button.
•Tap and hold the selected number, then select Call from the pop-up
menu.
Tap a category icon
to call the number
opposite it.
5 Using The Phone Function
Making phone calls
59

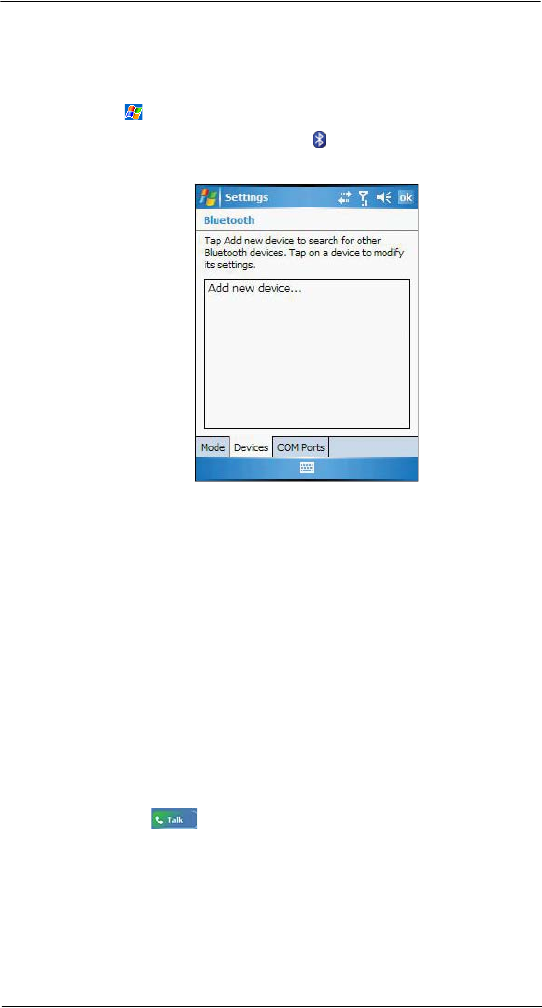

Making a call from a Bluetooth-enabled headset
You can use a Bluetooth-enabled headset with your device when you create a
partnership between your device and the headset.
1 Make sure that the two devices are turned on, discoverable, and within close range.
2 Tap , then Settings.
3 On the Connections tab, tap Bluetooth .
4 On the Devices tab, tap Add new device.
Your device will search for other Bluetooth devices and displays them in the device
list.
5 Tap the name of the Bluetooth-enabled hands-free device in the list, then tap Next.
6 If you want to use a passcode, enter the alphanumeric passcode for the Bluetooth-
enabled hands-free device, then tap Next.
You can find the passcode in the manufacturer’s documentation for your hands-free
device.
7 Tap Finish.
8 Select the check box for the Hands Free service, and tap Finish.
Making an International call
For making a call to an overseas number that is not stored either in your SIM card or on
your device, follow the steps below.
1 Tap and hold the 0 key until the ‘+’ sign appears.
‘‘+’ replaces the international number prefix ‘00’.
2 Enter the full phone number you want to dial.
It includes the country code, area code (without the leading zero), and phone
number.
3 Tap Talk or press the Send button.
Making an emergency call
MC35 supports the international emergency number 112, and for US/Canada residents,
the emergency number 911 as well. You can call these numbers for emergency police,
fire, and medical assistance.
5 Using The Phone Function
Phone features
60
NOTE: In some cases, additional local emergency numbers may be provided by your mobile phone
service provider.
Generally, you can make a call to these emergency numbers, with or without a SIM card
installed on your device, as long as a mobile phone service network is available in your
area. However, some mobile phone service providers may require that a SIM card is
inserted, and in some cases that the PIN has been entered as well, before an emergency
call can be made. Contact your mobile service provider for the requirements applicable
to your mobile subscription.
To make an emergency call:
1 Dial the emergency number by using Dialer.
•For international emergency calls, dial 112.
•For US/Canada emergency calls, dial 911.
2 Tap Talk or press the Send button.
Phone features
Flexibility is a hallmark of your device’s phone function. This is best exemplified in such
features as Call Notification, Call Hold and Conference Call, which allows you to attend
to more than one call simultaneously—all with a simple tap of your stylus.
Variety is another hallmark of your device’s phone function. This is implemented in such
range of features as Call Notes, text/email messaging, Voice Mail, and Contacts
Integration.
NOTE: The availability of some of the phone features described in this section may depend on your
mobile service subscription. Contact your mobile service provider for information.

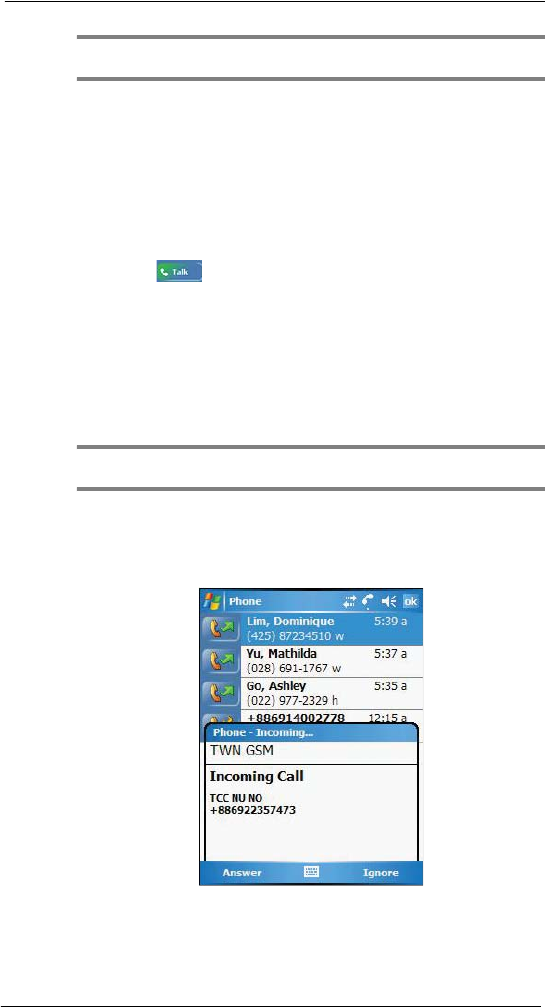

Call notification and identification
The Call Notification feature lets you know if another person is trying to call you when you
are talking on the phone. When this happens the following callout appears.
The Caller Identification feature matches the incoming call number with those stored in
Contacts so you know who is calling you.
5 Using The Phone Function
Phone features
61
Call hold
After being notified of an incoming call while already on the phone, you can choose to
reject a call by tapping the Ignore button on the Call Notification callout, or you can use
the Call Hold feature to attend to both calls.
To put a call on hold:
•On the Call Notification callout, tap Answer to take the incoming call and put
the original one on hold.
To swap between calls:
•To shift between two callers tap Menu, then Hold.
Conference call
With the Conference Call feature you can create a conversation line between several
callers. You can either, put a call on hold, then dial another number and wait for it to be
picked up; or accept an incoming call when you already have one in progress.
To set up a conference call:
•During a call with two active numbers, tap Menu, then Conference.
If the conference connection is successful the word Conference will appear
in the input area of the Dialer screen.
To add additional people to a conference call:
You can connect up to six (6) callers at a time in a conference call.
1 During an active conference call, tap Menu, then Hold.
2 Key in the new number.
3 Tap Resume to return and continue with the conference call.
4 Repeat steps 1-3 to add more people in the conference call.
5 Using The Phone Function
Phone features
62
Call notes
The Call Notes feature allows you to create a written or recorded note during a call. The
call note will be saved as an attachment to your call as viewed in Call History.
To create a call note:
1 During an active call, tap Note on the command bar.
2 In the Notes window, use any of the input methods to compose your call note.
3 After you finished your call note, tap OK.
To view a call note:
You can view call notes either from the Call History window or from the Notes program.
•From the Call History window:
(a) Tap Call History .
(b) Select a log item marked with this icon .
(c) Tap and hold the selected log item, then tap View Note from the pop-up
menu.
5 Using The Phone Function
Phone features
63

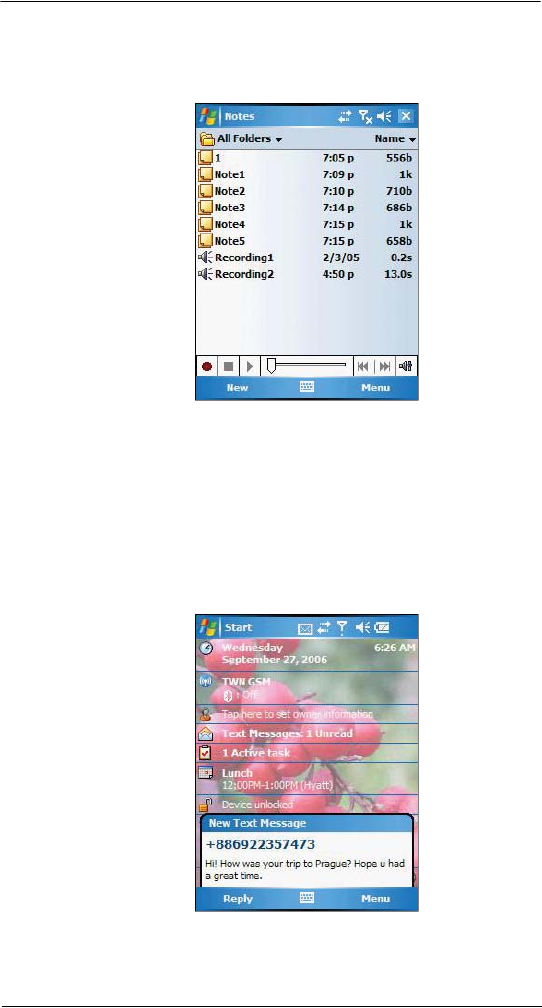

•From Notes:
In the Notes window, tap the call note from the list.
A call note’s label corresponds to the name or phone number of the related
contact.
Text messaging service
Just like a regular mobile phone, you can send and receive text messages using your
device. Your account is automatically setup in Inbox when you activated your mobile
service subscription.
To view a text message:
You can view a text message whether the phone function is on or off.
•When the phone function is on, you can view a text message from its
notification callout:
Tap the text message notification icon on the navigation bar to display the
message.
5 Using The Phone Function
Phone features
64
The Caller Identification feature matches incoming text message numbers with
those stored in Contacts so you know who is sending you a message. Furthermore,
the “New Text Message” callout gives you the option to call the sender or save,
dismiss, or delete the message.

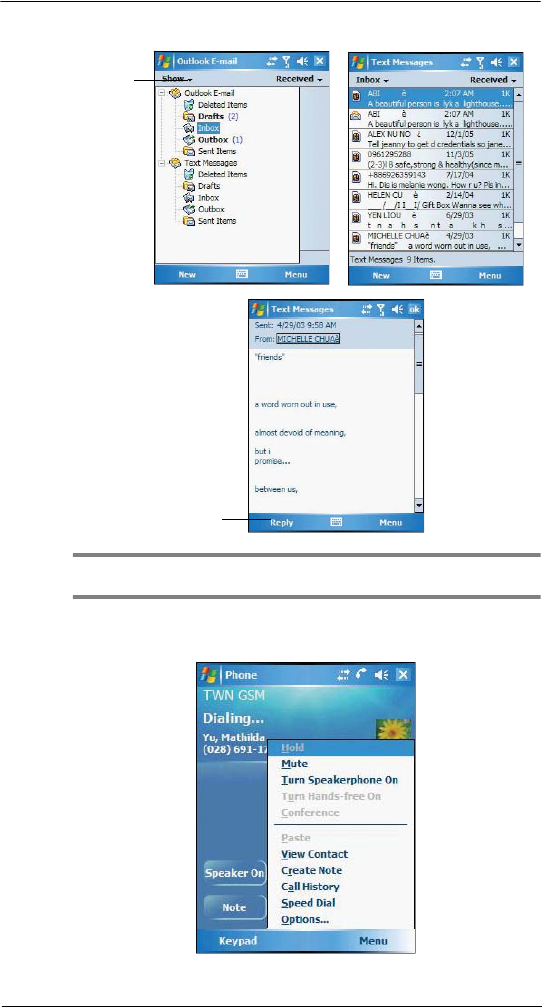

•When the phone function is off, you can still view received text message in
Messaging:
(a) Tap , then Messaging .
(b) Tap the pick list on the top-left corner to display the navigator panel.
(c) Tap Inbox.
5 Using The Phone Function
Phone features
65
(d) In the message list, tap a text message.
NOTE: If the phone function is turned off and you tried to call the sender, send a reply, or forward
the message, you will be prompted to turn the phone function on.
To send a text message:

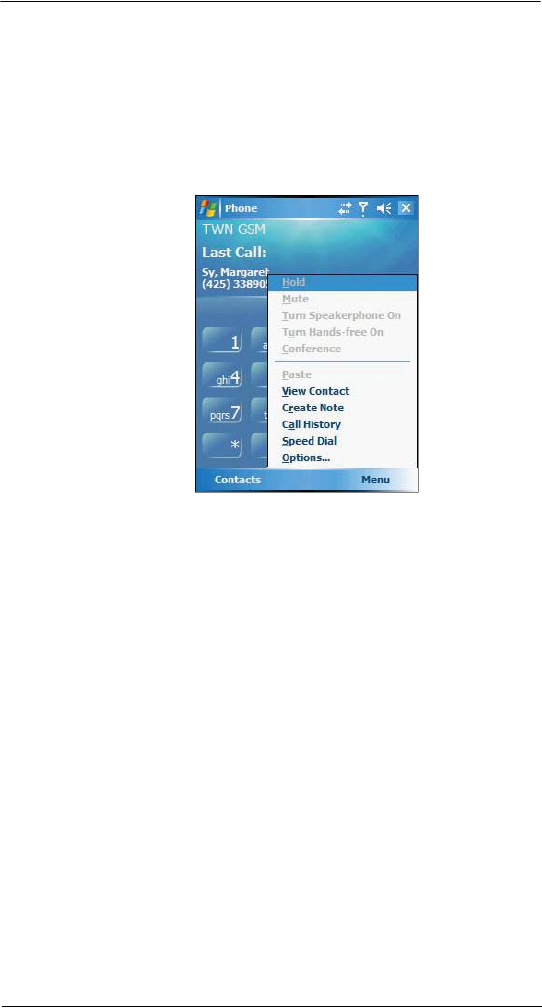

1 On the Dialer screen, tap Menu , then View Contact.
Tap to reply the
message.
Tap to
display the
navigator
panel.
5 Using The Phone Function
Phone features
66

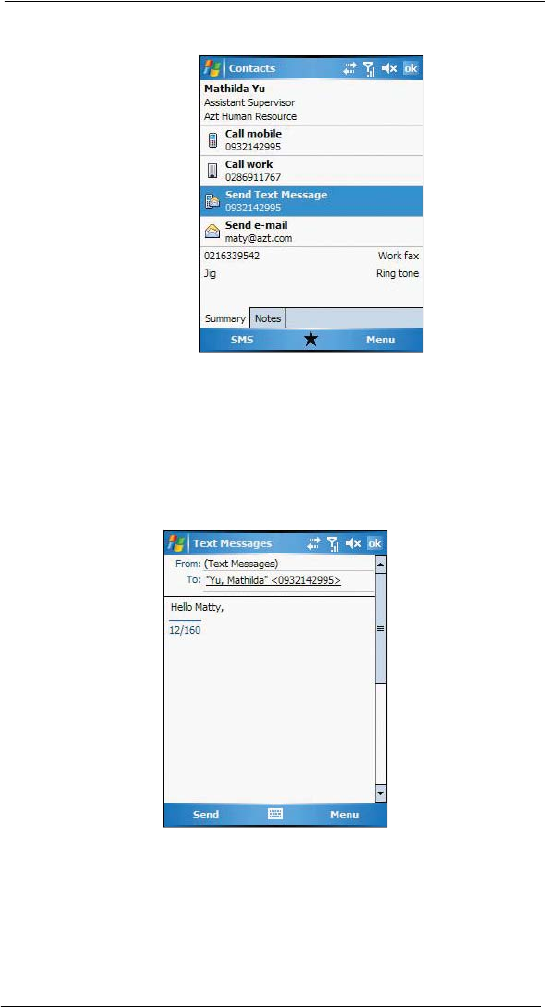

The contact’s information is displayed.
2 Tap the Summary tab, then tap Send Text Message.
Or, tap Menu, then Send Text Message.
3 In the To field, enter the SMS number of one or more recipients, separating them
with a semicolon. You can do this in two ways:
•Manually enter the SMS number using any of the input panel options.
•Tap the To field or Address Book to display the contact list, then tap a
contact from the list.
Tap the To field or Address Book again to hide the contact list.
4 Compose your message.
The auto-correct feature automatically fixes common spelling errors as you type so
your messages are more accurate.
The character counter lets you see and control the size of the message as you
compose.
5 Using The Phone Function
Phone features
67

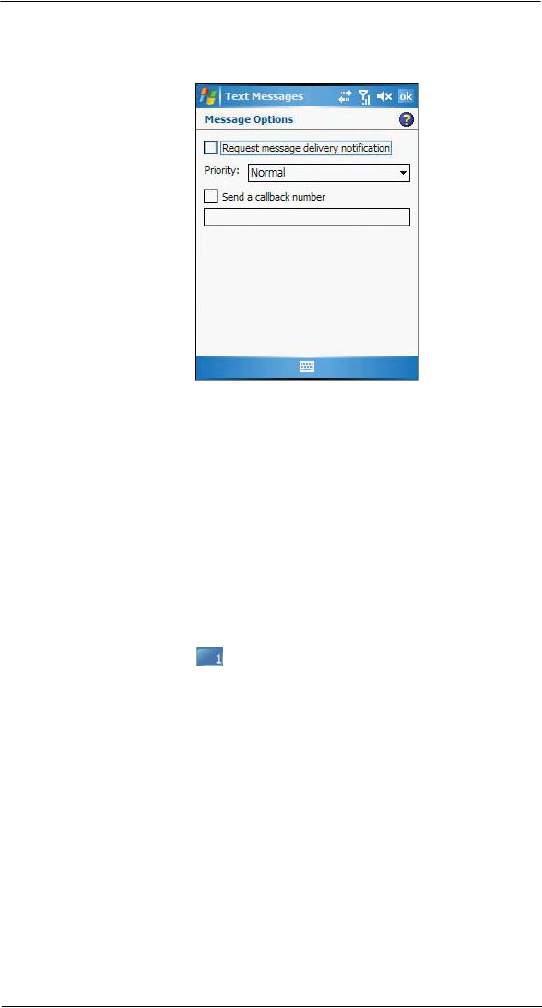

If you want to know if your text message was received, tap Menu, Message
Options, then select the Request SMS text message delivery notification check
box.
5 Tap Send when you've finished the message.
If the phone function is turned on, your text message will be immediately sent out. If
it’s off, you will be prompted to turn on the phone function. If you do so, the
message will sent out; otherwise when you tap OK, the message will be saved in
the Drafts folder and you can send it out later.

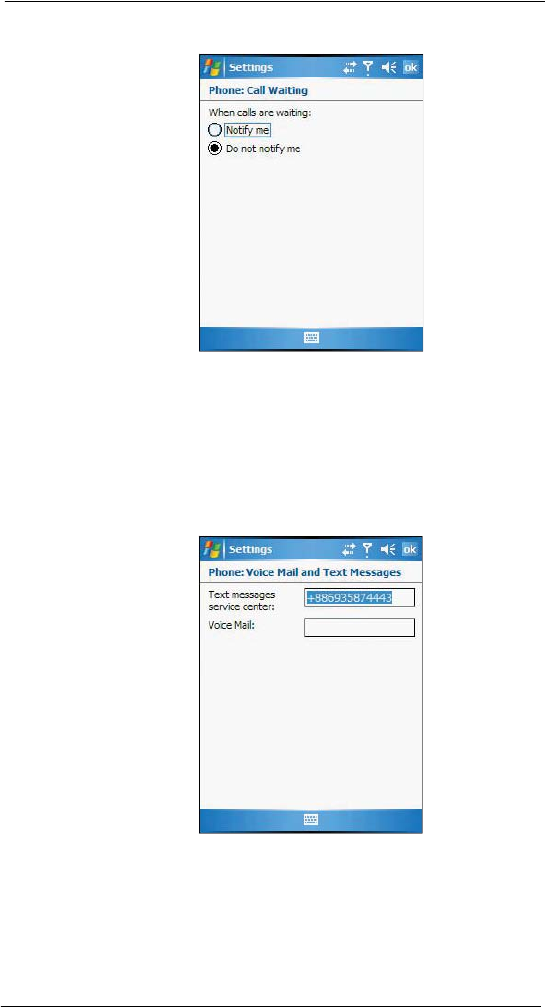

Voice mail
With the voice mail service you need not miss a message when you miss a call.
Unattended calls (i.e., no answer, phone function is turned off or is out of network
service) or a busy line will automatically forward callers to your voice mailbox where they
can leave their messages.
When you insert your SIM card into your device, it will automatically detect and set as
default the voice mailbox number provided by your mobile service provider. By default,
the first Speed Dial location is assigned to your voice mailbox.
To retrieve your voice mails:
•Tap and hold the button on the Dialer keypad.
Your voice mail retrieval number is automatically dialed.
5 Using The Phone Function
Phone features
68
•Tap the New Text Message Notification icon informing you of the new
voice mail, then tap Menu, then Call sender from the “New Text message”
callout.
Contacts integration
Your device’s phone function is integrated with other applications making it easy for you
to share contacts—phone numbers—between programs. Listed below are the places
where contacts can be stored on your device:
•Microsoft Contacts
Your contacts list contains phone numbers that you can use in Phone.
•Your SIM card
You interchange your SIM card between your MC35 and another device;
while using the other device you can create new contacts on the SIM card.
•Call History
New contact numbers can be found in incoming or missed calls.
Sharing contacts in Microsoft Contacts
Below are several advantages for exporting contact information to Microsoft Contacts:
•As a backup in case you lose your SIM card while using it with another
device.
•If you are using your SIM with another device, you may need the numbers
stored in Microsoft Contacts.
•Exporting phone numbers to Microsoft Contacts allows you to create a more
detailed record.
To add contacts to Microsoft Contacts:
You can choose to create new contacts or add contacts from SIM Contacts or from Call
History.
•For instructions on creating new contacts, see page 120.
•For instructions on adding Call History items, see page 69.
•For instruction on adding SIM contacts, see page 69.
To export contacts from Microsoft Contacts:
1 Do either of the following:
•Tap and hold a contact to display the pop-up menu.
•Tap a contact to select it, then tap Menu.
If you do not select a contact, the first entry on the list will be exported.
5 Using The Phone Function
Phone features
69
2 Select the location where to export the contact.
•To export a contact to Speed Dial:
(a) Tap Add to Speed Dial.
A screen appears to display the export status.
(b) In the next screen add the contact details.
(c) Select a location. You can either:
•Accept the default location which is the first available position in the
Speed Dial list.
•Use the up and down arrows in the Location field to scroll and select
the desired location. If you want to put a number in a position that is
already occupied, the new number will overwrite the number
already there.
(d) Tap OK.
Sharing contacts in SIM Contacts
SIM Contacts enable you to manage all contacts stored in your SIM card with the option
to export this information to Microsoft Contacts.
To export SIM contacts:
You can choose to export individual or all SIM Manager contacts to Microsoft Contacts.
Sharing contacts in call history
Call History is a record of all incoming, outgoing, and missed calls. You have the option to
export new numbers under the Incoming and Missed categories to Microsoft Contacts.
To export Call History entries to Microsoft Contacts:
1 On the Dialer screen, tap Call History .
The Incoming or Missed categories appear.
2 Tap and hold the number you want to export.
3 In the pop-up menu that appears select Save to Contacts.
4 On the Contact screen add additional contact details.
5 Tap OK or press the joystick.
The call details in the Call History for the transferred number will change to display
the contact name specified.
5 Using The Phone Function
Phone features
70
Call History
All calls made on your device are recorded in Call History. It provides the time and
duration of all incoming, outgoing, and missed calls, and a summary of total calls. You
can refer to it to access any notes taken during a call. You can also set a limit on the
number of entries or delete them as necessary to save memory space.
To view Call History:
On the Dialer screen, tap Call History .
To change the Call History view:
You can limit the number of entries that appear on the Call History list according to
specific criteria, such as All Calls, Missed, Outgoing, Incoming, or By Caller.
1 On the Dialer screen, tap Call History .
2 Tap Menu, Filter, then select a different view. For example, you can view only
missed or incoming calls. When you filter By Caller, you see a list of all contacts on
your device who have a phone number assigned to them.
5 Using The Phone Function
Phone features
71
The Call History list can be filtered according to the following criteria.
Call details
Call History allows you to check the date and time a call was made, as well as the
duration.
To view call details:
•Find the call you are interested in, then tap it once.
Category Description
All Calls Shows all calls made to and from your device in a chrono-
logical order.
Missed Shows calls made to your device that were not answered.
Outgoing Shows all calls made from your device.
Incoming Shows all calls made to your device.
By Caller Shows all calls made to and from your device in an alpha-
betical order based on caller ID.
5 Using The Phone Function
Phone features
72
Call history limit
To minimize the memory space occupied by the Call History items, you can set a limit for
the number of entries retained after a specific period of time. You can also delete items
that you no longer need.
To set the Call History limit:
1 From the command bar, tap Menu, then Call Timers.
2 On the Call Timers window, tap the ”Delete call history items older than” pick list,
then, tap a time period option.
3 Tap OK.
To delete individual Call History entries:
•Tap and hold the entry you want to delete, then from the pop-up menu,
select Delete.
To delete all Call History entries:
•From the command bar, tap Menu, then Delete All Calls.
Tap to select a basis
for the call history limit.
5 Using The Phone Function
Phone profiles
73

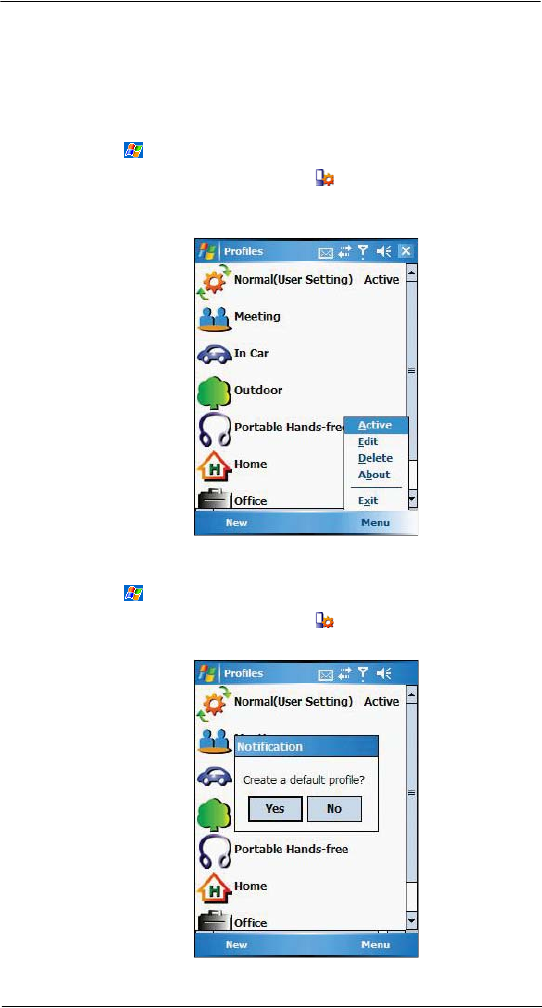

Phone profiles
Your device supports five types of preset profiles. These preset profiles allow you to
personalize the tone, image, and profile expiration time settings of your device, and to
activate a profile for different events and environments.
To activate a profile:

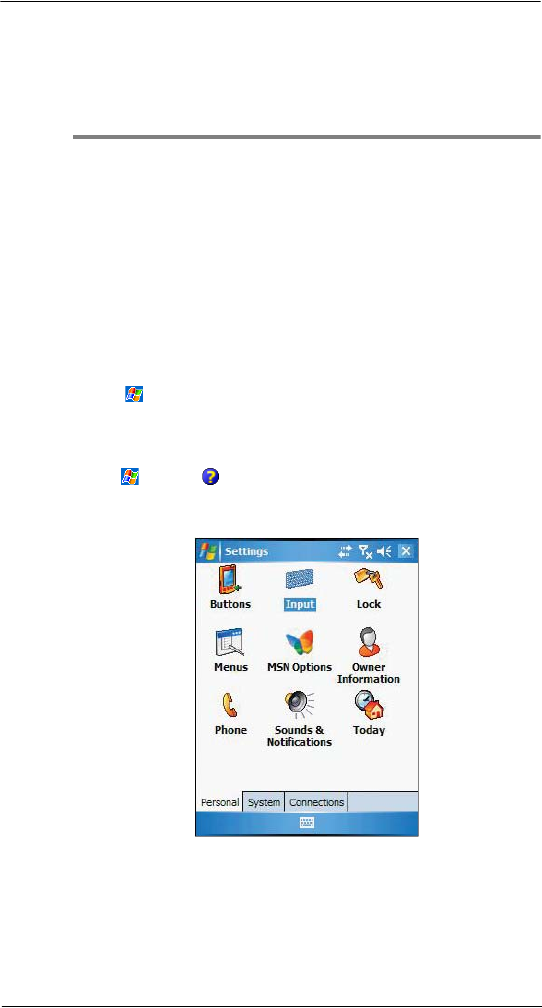

1 Tap , then Settings.
2 On the System tab, tap Phone Profiles .
3 Select a profile setting.
4 Tap Menu, then tap Active.

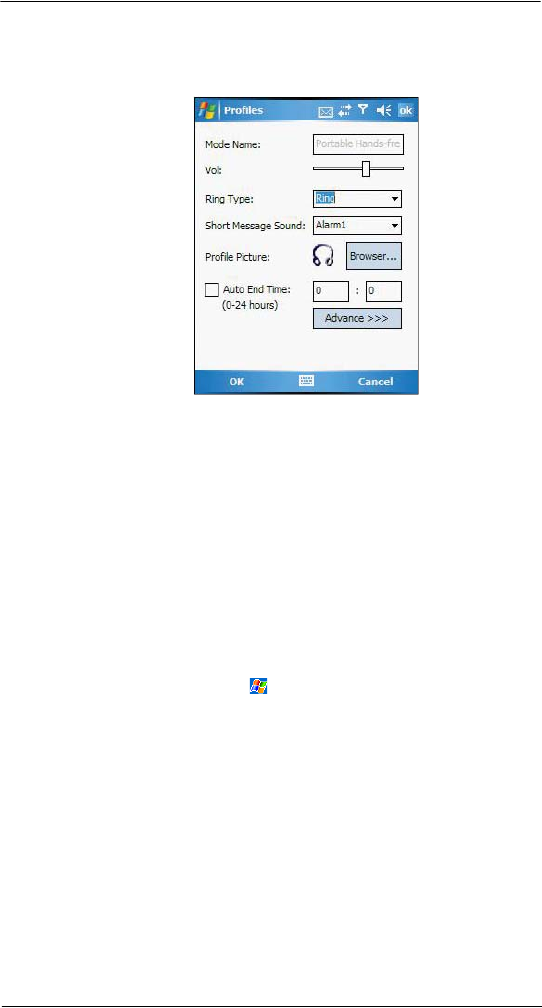

To create a new phone profile:
1 Tap , then Settings.
2 On the System tab, tap Phone Profiles .
3 Tap New, then tap Yes.
5 Using The Phone Function
Phone profiles
74
4 In the next screen, define the phone profile settings.
5 In the next screen, define the phone profile settings.
•Enter a profile name.
•To set the ring volume for incoming voice calls and messages, press
the Volume key up or down.
•To select a ringing option for incoming voice calls, tap the Ring Type
drop-down menu.
•To select a ringing option for incoming messages, tap the Short
Message Sound drop-down menu.
•To set a phone profile image, tap Browse.
•To activate a profile for a certain amount of time, up to 24 hours, enter
the hours and minutes in the text box.
•To select a ring tone for incoming calls and messages, tap Advance,
then on the Incoming tab, select a ring tone.
•To activate a profile for a certain amount of time, up to 24 hours, enter
the hours and minutes in the text box.
•To set an alarm, display message, phone to vibrate or flash indicator for
incoming voice calls and messages, tap Advance, then on the
Reminders/Message tab, select all check boxes.
6 Tap Ok, then Ok again.
5 Using The Phone Function
Phone preferences
75
To personalize the profile:
1 Tap a profile setting that you want to change.
2 Tap Menu, then tap Edit.
3 Define settings for the new profile.
4 Tap OK.
To delete a profile:
1 Tap a profile setting.
2 Tap Menu, then tap Delete.
3 Tap Yes, then OK.
Phone preferences
You can configure most features of the phone function to suit your preferences. You do
this by accessing the Phone option under Settings.
To access Phone settings:
•From the Dialer screen’s command bar, tap Menu, then Options.
- or -
From any other screen, tap , Settings, Personal tab, then tap Phone.
The Phone Settings window has three tabs—Phone, Services, and Network.
Refer to the following sections for the configuration options available for
each tab.
5 Using The Phone Function
Phone preferences
76

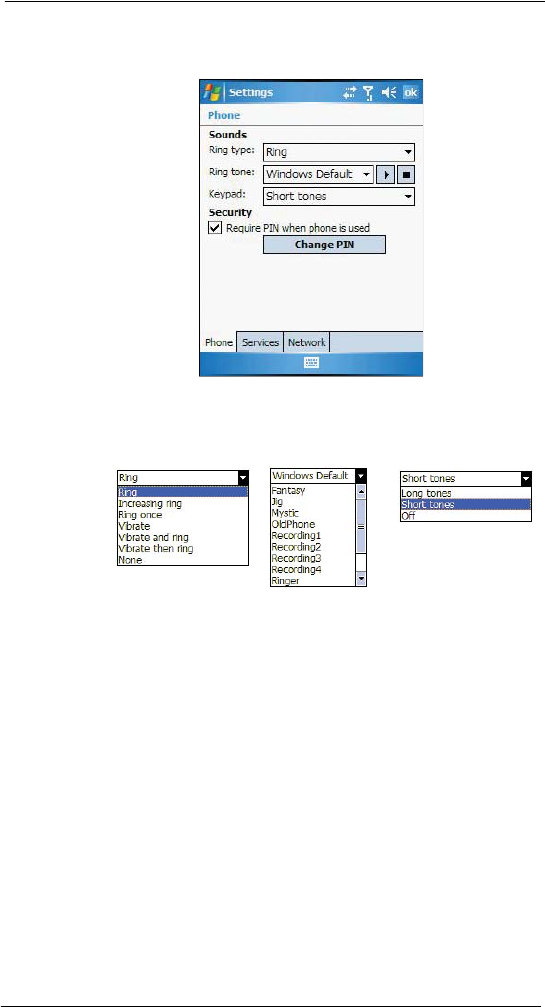

Phone tab
Configure sound and security settings in this tab.
Configuring ring type, ring tone, and keypad sounds
•Under the Sounds option, tap the pick list for each field, then select your
choice from the drop-down menu.
To download ring tones:
For a more personalized ring tone, you can choose to download additional sound files to
your device. File formats supported include .wav and mono .midi formats. You can
download sound files in several ways, including:
•Via synchronization using ActiveSync
•Via Internet access using Internet Explorer Mobile
•Via IR transfer
•Via Bluetooth
•Via WiFi
To listen to a ring tone:
•Select the ring tone file you want to play, then tap the Play button. To stop
ring tone playback, tap the Stop button.
Configuring your PIN
Under the Security options, you can change your PIN and have it enabled or disabled.
To enable your PIN:
•Select the “Require PIN when phone is used” check box.
Ring Type Ring Tone Keypad Sounds
5 Using The Phone Function
Phone preferences
77
To disable your PIN:
•Deselect the “Require PIN when phone is used” check box.
To change your PIN:
1 Tap the Change Pin button. The Dialer screen will be displayed.
2 Enter the old PIN, input a new one, then retype it for confirmation.

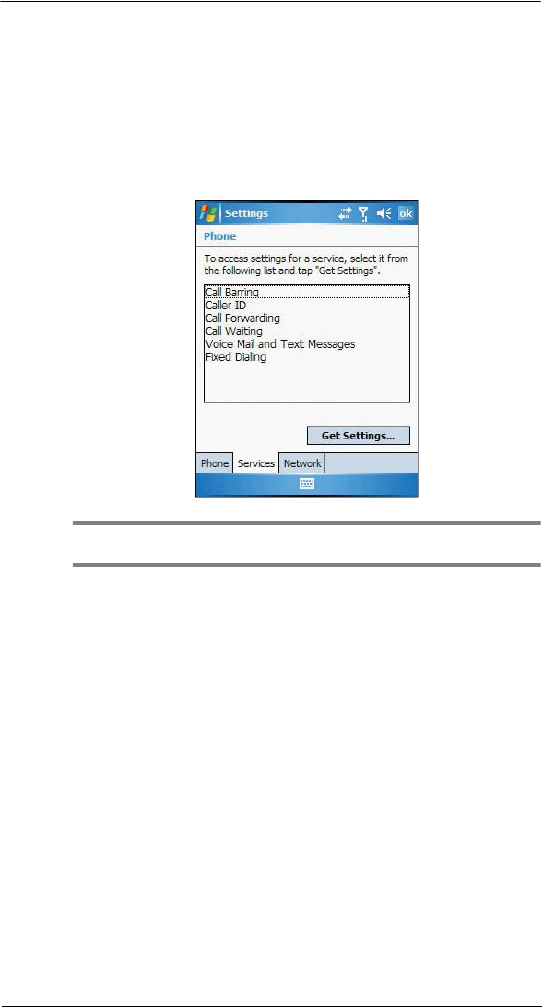

Services tab
Configure the different phone services in this tab—Call Barring, Caller ID, Call
Forwarding, Call Waiting, Voice Mail and Text Messages, and Fixed Dialing.
NOTE: The availability of some of the phone services described in this section may depend on your
mobile service subscription. Contact your mobile service provider for information.

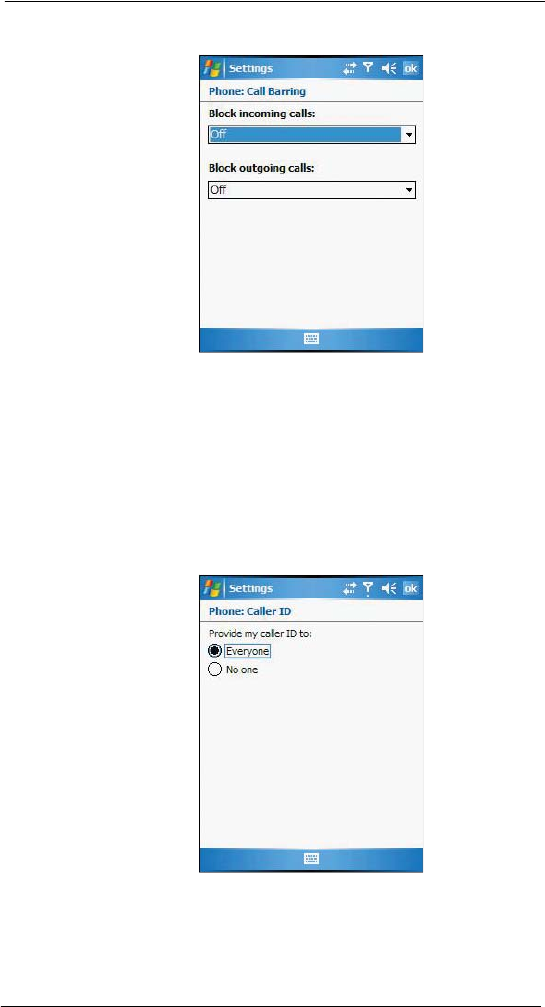

Call barring
You have the option to block calls in specific situations.
To enable or disable call barring:
1 Tap Call Barring from the services list.
2 Tap the Get Settings button (retrieving settings may take a few minutes).
3 In the next screen, define the call barring settings.
•Block incoming calls
•All calls - to prevent any calls from coming through
•When roaming - to block incoming calls when in phone service is in
roaming status
•Off - to accept all incoming calls
•Block outgoing calls
•All calls - to prevent any calls from being made from your device
•International - to block outgoing international calls
•International except to home country - to block all outgoing international
calls other than those being made to the set home country
5 Using The Phone Function
Phone preferences
78
•Off - to disable call barring for all outgoing calls
4 Tap OK.
Caller ID
When this service is enabled and you make a call, your phone number will be displayed
on the phone screen of the person you’re calling.
To enable or disable Caller ID:
1 Tap Caller ID from the services list.
2 Tap the Get Settings button (retrieving settings may take a few minutes).
3 In the next screen, define the caller ID settings.
•Everyone - to enable Caller ID, or
•No one - to disable Caller ID
4 Tap OK.
5 Using The Phone Function
Phone preferences
79

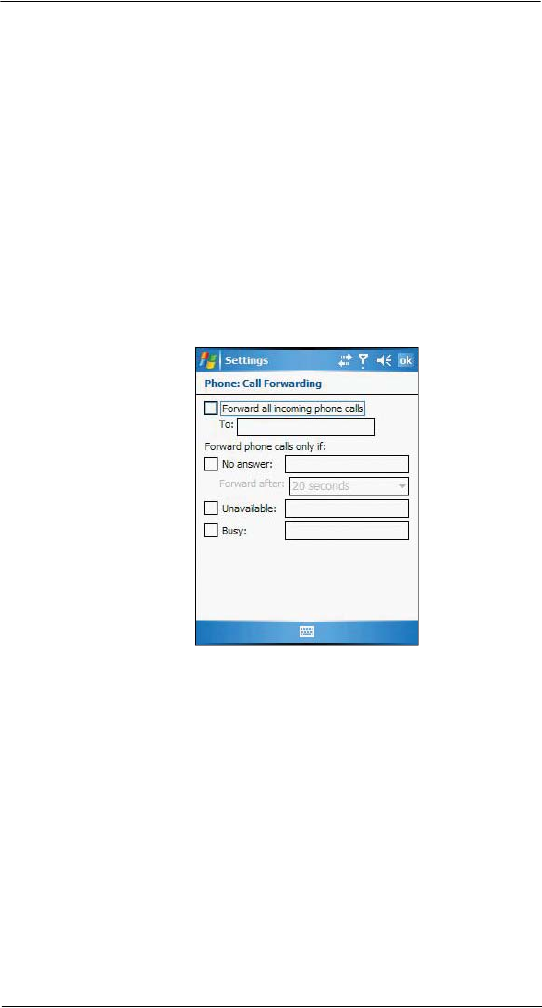

Call forwarding
This service allows you to forward incoming calls to another phone number. You can
choose to forward all calls to the same number or specify a number based on the
following conditions:
•Unavailable - the phone function is turned off or is out of network service
•Busy - when you are attending to a phone call
•No answer - when you are not answering your phone calls
To enable or disable call forwarding:
1 Tap Call Forwarding from the services list.
2 Tap the Get Settings button (retrieving settings may take a few minutes).
3 In the next screen, follow these steps to enable or disable call forwarding:
•To enable call forwarding:
•Tap the “Forward all incoming calls” check box, then specify the call
forward phone number on the To field.
- or -
•Tap the check box for one or all particular conditions, then specify the call
forward phone number on the box opposite it.
•To disable call forwarding, deselect all the check boxes.
4. Tap OK.
Call waiting
This service allows you to receive another call during an active call.
To enable or disable call waiting:
1 Tap Call Waiting from the services list.
2 Tap the Get Settings button (retrieving settings may take a few minutes).
3 In the next screen, define the call waiting settings.
•Notify me - to enable call waiting, or
5 Using The Phone Function
Phone preferences
80
•Do not notify me - to disable call waiting
4 Tap OK.
Voice mail and text messages
By default your device will automatically detect and set the voice mail and text messages
access numbers provided by your mobile service provider. You can view these numbers
for your reference.
To view voice mail and text messages numbers:
1 Tap Voice Mail and Text Messages from the services list.
2 Tap the Get Settings button (retrieving settings may take a few minutes).
5 Using The Phone Function
Phone preferences
81

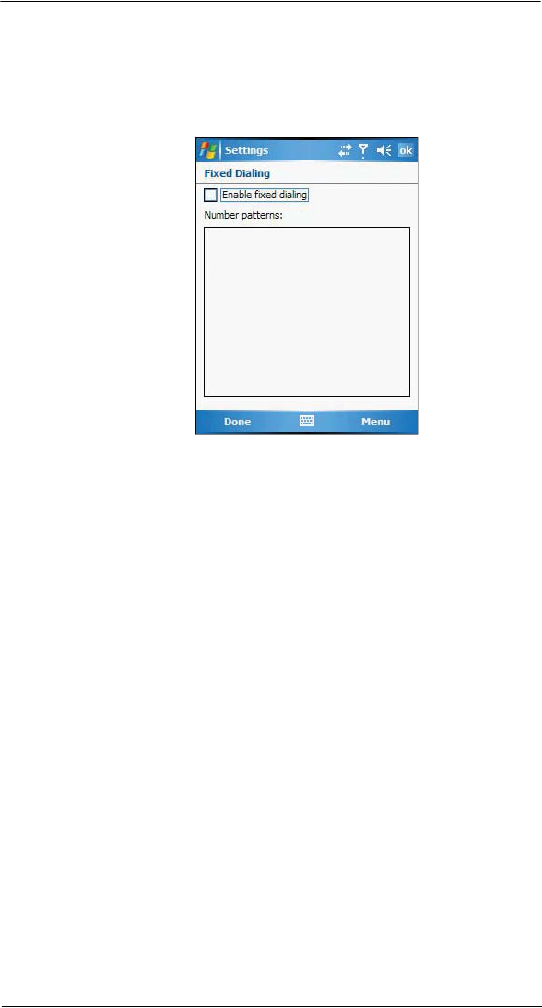

Fixed dialing
This service allows you to set predefined numbers or prefixes that you would like to call.
To create fixed number entries:
1 Tap Fixed Dialing from the services list.
2 Tap the Get Settings button (retrieving settings may take a few minutes).
3 Tap the Enable fixed dialing check box, then tap Done.
4 Enter the PIN2, then tap Done.
5 Enter the phone number, then tap Done.
6 Enter a new name, then tap Done.
7 Enter a position, then tap Done.
To edit entries:
1 Tap Fixed Dialing from the services list.
2 Tap the Get Settings button (retrieving settings may take a few minutes).
3 Select the number pattern, then tap Menu.
4 Tap Edit, then enter PIN2 and tap Done.
5 Enter the new number, name, and position, then tap Done.
5 Using The Phone Function
Phone preferences
82

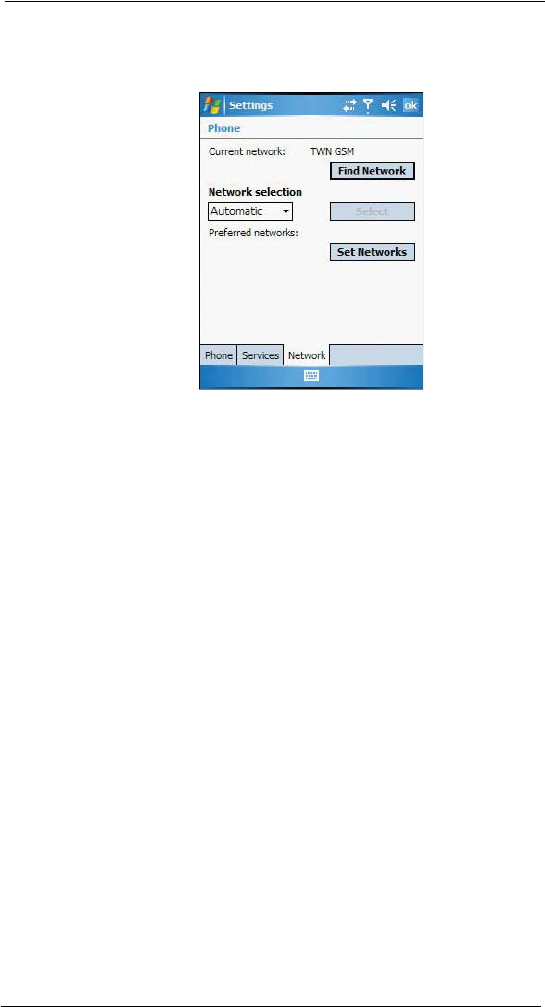

Network tab
This tab allows you to configure settings related to mobile service networks. The
currently activated network is indicated on the first line of this tab.
To find a network:
Do this when the network status is currently out of network service and you want to
conduct a search.
•Tap the Find Network button (search process may take a few minutes).
To select a network:
Set the mode for conducting a network search.
•Under the Network selection drop-down menu, tap either Automatic or
Manual. Rete rieving network settings may take a few minutes if you select
Manual.
To set preferred networks:
If there are many mobile phone service providers available in your area, you can
configure this function to select your preferred ones and set its priority level.
1 Under the Preferred networks list, tap the Set Networks button.
2 To include a listed network as a preferred network, tap the check box opposite it.
3 To set the priority level, tap a preferred network, then tap the Move Up or
Move Down buttons.
6 Customizing Your MC35
Adjusting settings
83
6 Customizing Your
MC35
You can customize your MC35 EDA based on your personal requirements and
preferences as well as depending on your usual work modes. Customize your device by
either adjusting the device settings or by adding/removing programs.
•Adjusting settings
•Adding programs
•Removing programs
Adjusting settings
You can adjust the settings of your device to suit the way you work. Adjusting certain
settings, such as backlight, auto power off timer, system volume, and processor speed,
from the factory default settings may decrease your standby time.
To access Settings:
•Tap , then Settings.
The Settings window has three tabs—Personal, System, and Connections,
each of which has its own set of options.
The following sections show the configuration page for each Settings option.
For detailed instructions on these pages, access the page from your device,
tap , then Help .
Personal tab
6 Customizing Your MC35
Adjusting settings
84
Buttons
Assign the Send/End button on the stereo headset/single earbud headset to commonly-
used programs. You can also adjust the onscreen scrolling speed here.
Input
Select an input method, options for word completion and other related settings.
Lock
Set a password to prevent unauthorized access to your device. You also have the option
to set a password hint to serve as a reminder in case you forget your password.
6 Customizing Your MC35
Adjusting settings
85

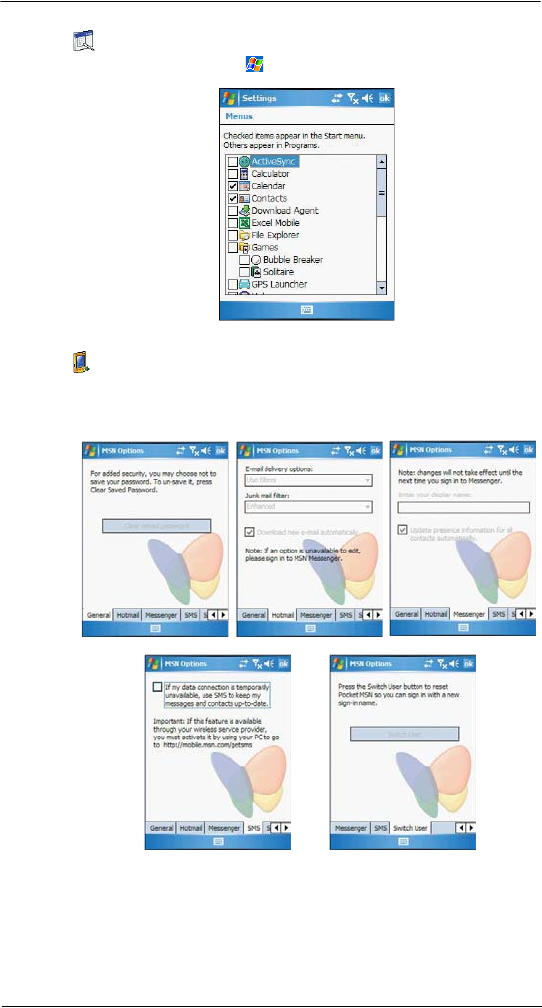

Menus
Customize what appears on the menu.
MSN Options
Set up the password and log-in setting in the MSN services. It also provides instant
access to the MSN Hotmail’s Inbox, MSN Messenger’s Contact list, and options for
customizing your Pocket MSN experience.
6 Customizing Your MC35
Adjusting settings
86

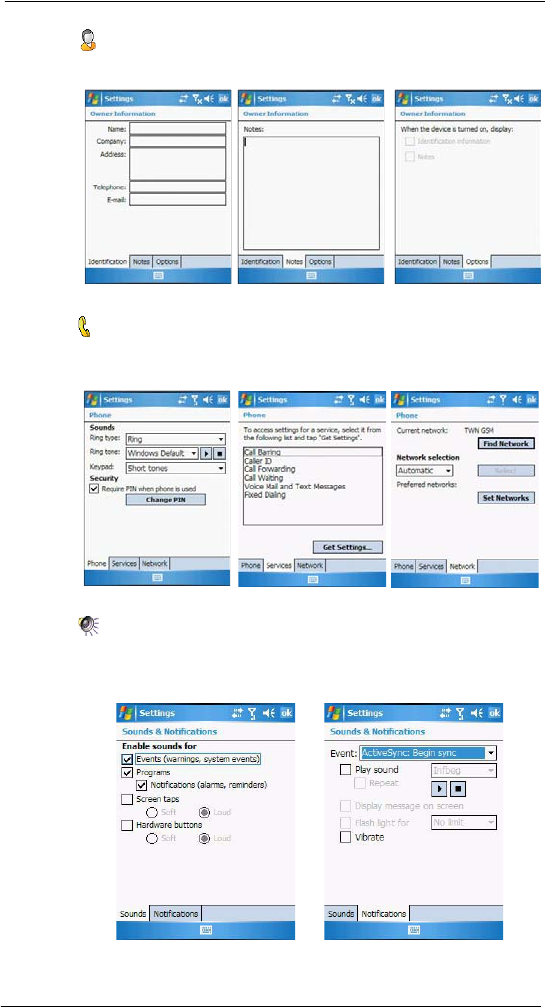

Owner Information
Enter personal information and customize text display when device is turned on.
Phone
Set up the phone function of your device. For more information on this Settings option,
refer to page 47.
Sounds & Notification
Set the volume level for system sounds and select the types of action you want to hear
sounds for. You can also define how you want to be notified about different events.
Options for personalizing sound notifications are also available.
6 Customizing Your MC35
Adjusting settings
87

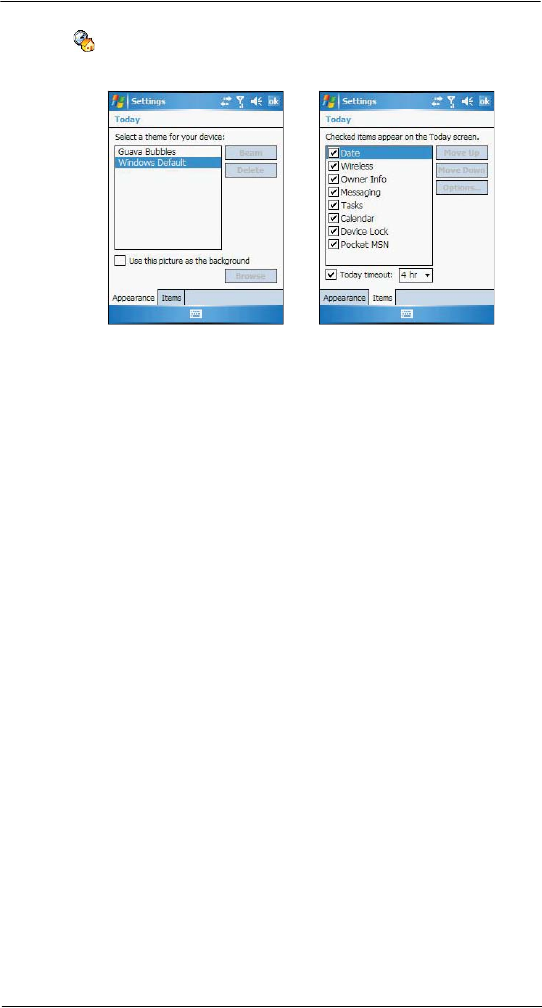

Today
Customize the look and the information that is displayed on the Today screen.
6 Customizing Your MC35
Adjusting settings
88
System tab
About
Displays your device’s version and copyright information; includes an option to define a
device ID.
rightness
Define settings for the display brightness and backlight control.
6 Customizing Your MC35
Adjusting settings
89

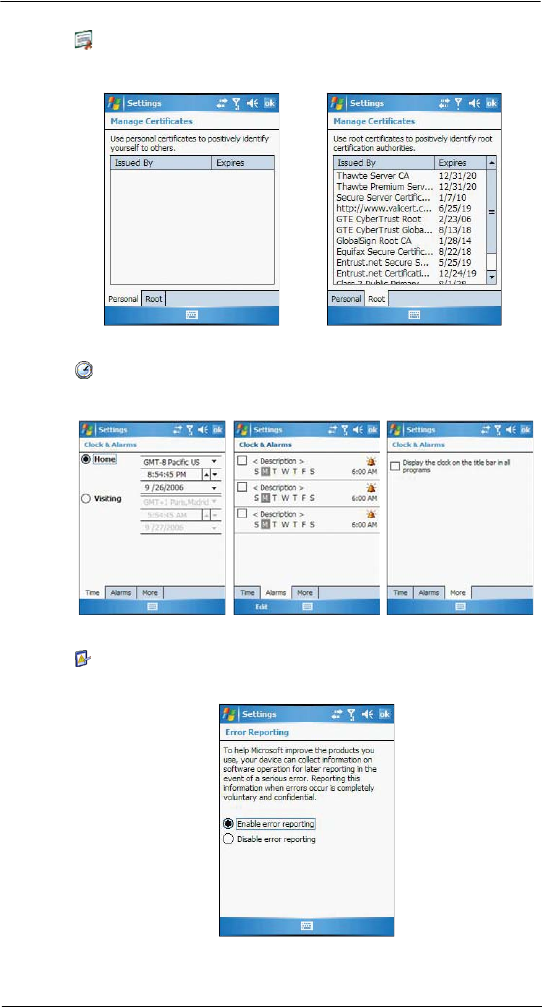

Certificates
View and manage the public key certificates available on your device.
Clock & Alarms
Change the time or set alarms.
Error reporting
Enable or disable error reporting.
6 Customizing Your MC35
Adjusting settings
90

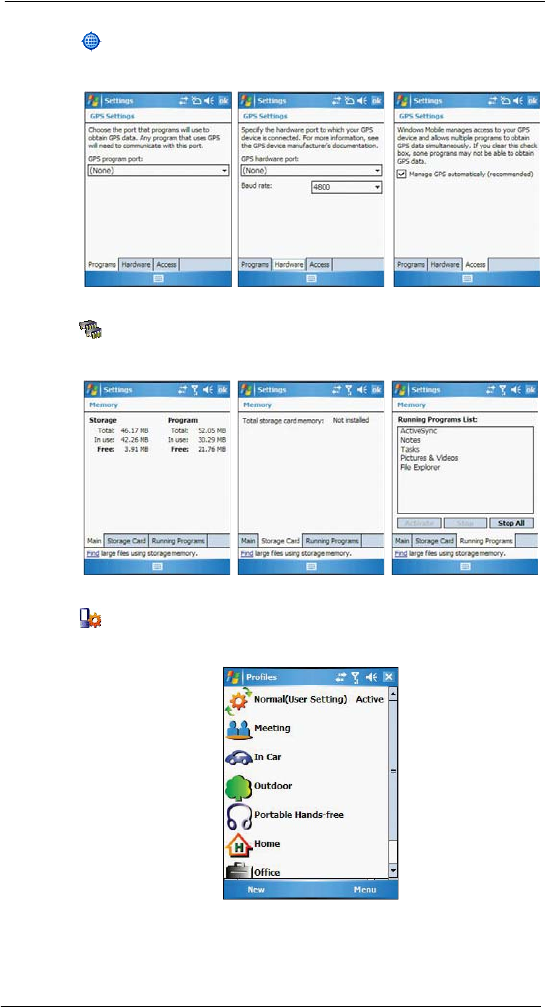

GPS
Adjust the GPS settings.
Memory
Adjust allocation of storage and main memory.
Phone Profiles
View and edit the Phone function’s preset profiles for different operations mode.
