Chapter 3
Using Bluetooth
Chapter 3
Using Bluetooth
Introduction
Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum
(FHSS) radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM)
band (802.15.1). Bluetooth wireless technology is specifically designed for short-range (30 feet/10 meters)
communication and low power consumption.
EDAs with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other
Bluetooth enabled devices such as phones, printers, access points, and other mobile computers. To use the
Bluetooth phone as a modem, create a dial-up modem connection between the Bluetooth mobile computer
and a Bluetooth enabled phone.
Symbol mobile computers with Bluetooth technology use the StoneStreet Bluetooth stack. To program
Bluetooth within the EDA refer to the Microsoft Embedded Visual C++ help.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with
Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work.
There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and
discoveries during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
•
Channel Classification - A method of detecting an interference on a channel-by-channel basis, or
pre-defined channel mask.
•
Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.
•
Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping
channels.
•
Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels.
AFH coexistence allows Symbol mobile computers to operate in any infrastructure.
The Bluetooth radio in this EDA operates as a Class 2 device power class. The maximum output power is
2.5mW and the expected range is 32.8 feet (10 meters). A definition of ranges based on power class is difficult
to obtain due to power and device differences, and whether one measures open space or closed office space.
NOTE It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation
is required.
PRELIMINARY
10/20/06
3 - 2 MC70 User Guide
Security
The current Bluetooth specification defines security at the link level. Application-level security is not specified.
This allows application developers to define security mechanisms tailored to their specific need. Link-level
security occurs between devices, not users, while application-level security can be implemented on a per-user
basis. The Bluetooth specification defines security algorithms and procedures needed to authenticate devices,
and if needed, encrypt the data flowing on the link between the devices. Device authentication is a mandatory
feature of Bluetooth while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key that is used to authenticate the
devices and create a link key for them. Entering a common PIN number in the devices being paired generates
the initialization key. The PIN number is never sent over the air. By default, the Bluetooth stack responds with
no key when a key is requested (it is up to user to respond to the key request event). Authentication of
Bluetooth devices is based-upon a challenge-response transaction. Bluetooth allows for a PIN number or
passkey that is used to create other 128-bit keys used for security and encryption. The encryption key is
derived from the link key used to authenticate the pairing devices. Also worthy of note is the limited range and
fast frequency hopping of the Bluetooth radios that makes long-distance eavesdropping difficult.
Recommendations are:
•
Perform pairing in a secure environment
•
Keep PIN codes private and don't store the PIN codes in the mobile computer
•
Implement application-level security.
Turning the Bluetooth Radio Mode On and Off
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When
the radio is off, other Bluetooth devices cannot see or connect to the EDA. Turn on the Bluetooth radio to
exchange information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in
close proximity.
NOTE To achieve the best battery life in EDAs with multiple radios, turn off radios not in use.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 3
Disabling Bluetooth

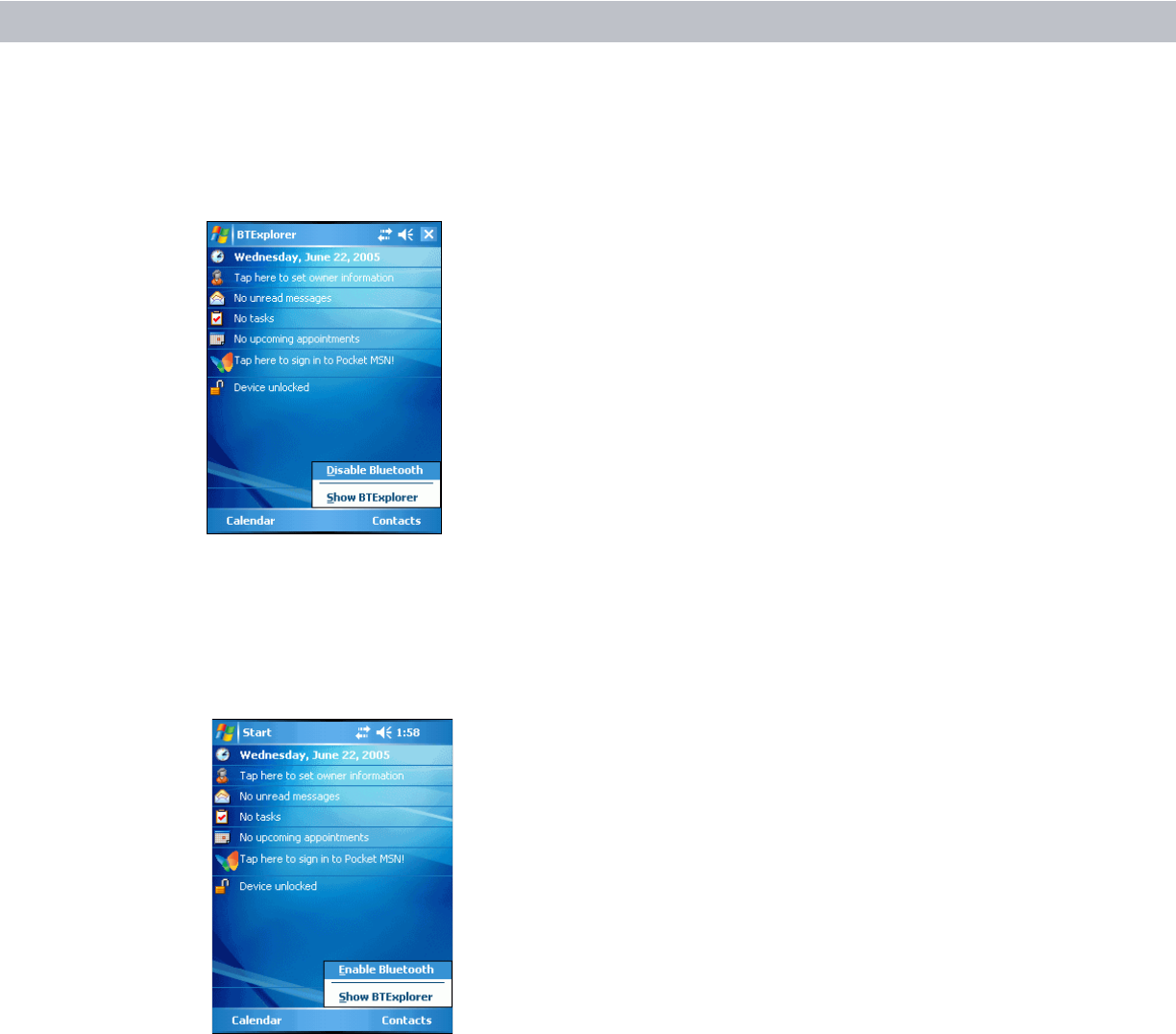

To disable Bluetooth, tap Bluetooth icon - Disable Bluetooth. The Bluetooth icon changes to indicate that
Bluetooth is disabled.
Figure 3-1
Disable Bluetooth
Enabling Bluetooth
To enable Bluetooth, tap Bluetooth icon - Enable Bluetooth. The Bluetooth icon changes to indicate that
Bluetooth is enabled.
Figure 3-2
Enable Bluetooth
Bluetooth Power States
Cold Boot
Performing a cold boot on the EDA turns off Bluetooth after initialization (which takes a few moments). It is
normal to see the Bluetooth icon appear and disappear, as well as a wait cursor, when initialization proceeds in
all modes.
PRELIMINARY
10/20/06
3 - 4 MC70 User Guide
Warm Boot
Performing a warm boot on the EDA returns Bluetooth to the last state after initialization.
Suspend
Suspending the EDA turns off Bluetooth.
Resume
When the EDA resumes, Bluetooth turns on if it was on prior to suspend.
Modes
The BTExplorer application has two mode for managing Bluetooth connections: Wizard Mode and Explorer
Mode. The Wizard Mode is for novice Bluetooth users and the Explorer Mode is for experienced Bluetooth
users. To switch between modes, select View - Wizard Mode or View - Explorer Mode.
Wizard Mode
Wizard Mode provides a simple process for discovering and connecting to Bluetooth devices.
The following steps provide an example for using the Wizard to connect to remote devices.
1. Tap the Bluetooth icon and select Show BTExplorer. The BTExplorer window appears.

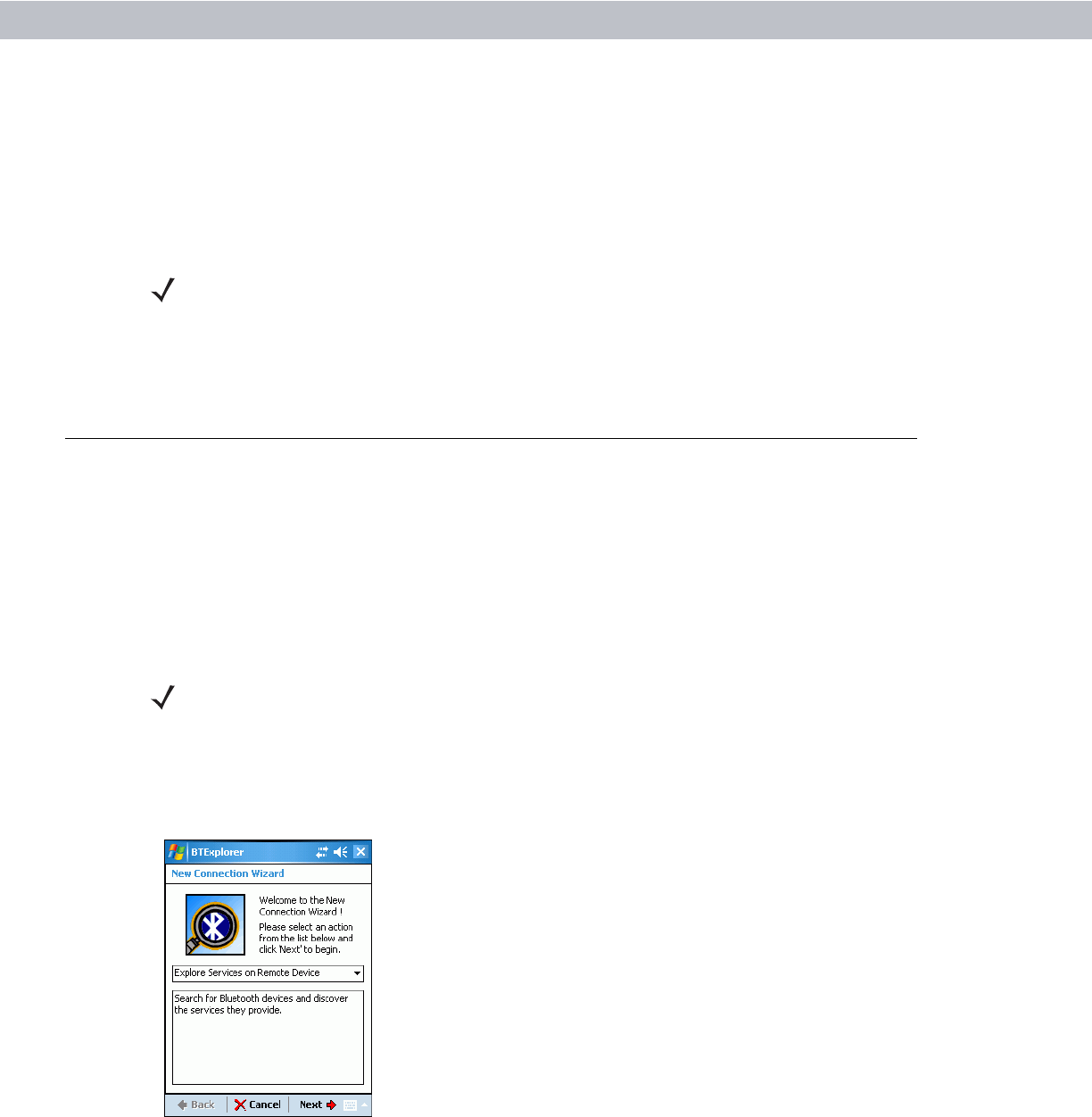

2. Tap File - New Connection. The New Connection Wizard window appears.
Figure 3-3
New Connection Wizard Window
3. Select an action from the drop-down list. Options include:
•
Explore Services on Remote Device
NOTE Suspending the EDA powers off the Bluetooth radio and drops the piconet (Bluetooth connection). When
the EDA resumes, it take approximately 10 seconds for the Bluetooth radio driver to re-initialize the radio.
NOTE Switching between Wizard Mode and Explorer Mode closes all active connections.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 5
•
Pair with a Remote Device
•
Active Sync via Bluetooth
•
Browse Files on Remote Device
•
Connect to Headset
•
Connect to Internet Using Access Point
•
Connect to Internet Using Phone/Modem
•
Connect to a Personal Area Network
•
Send or Exchange Objects
•
Associate Serial Port.
4. Tap Next. The BTExplorer searches for Bluetooth devices in the area and displays the devices in the
Select Remote Device window.

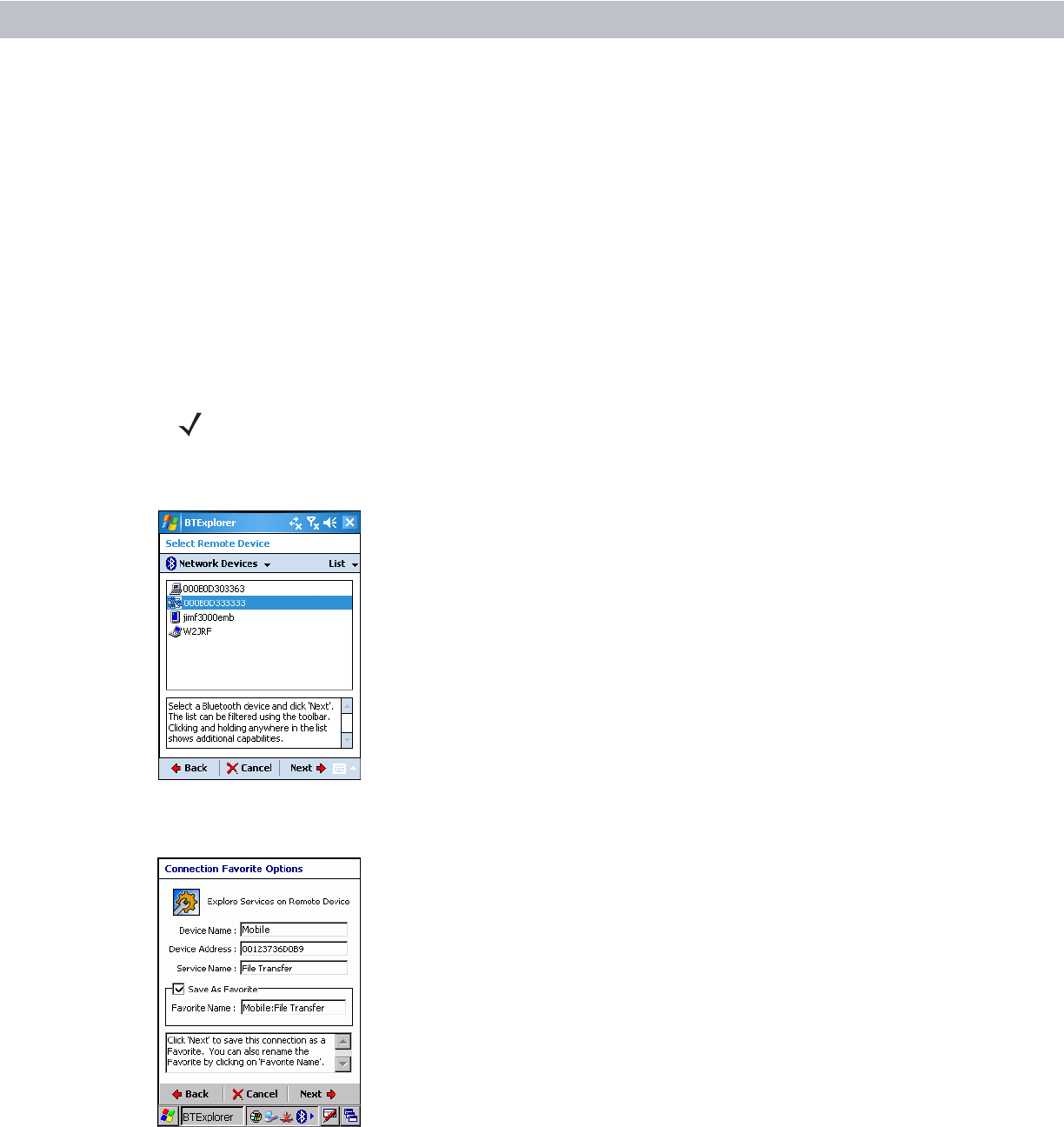

Figure 3-4
Select Remote Device Window
5. Select a device from the list and then tap Next. The Connection Favorite Options window appears.
Figure 3-5
Connection Favorite Options Window
6. Select the Save As Favorite check box to save this service in the Favorite view.
NOTE If you select Active Sync via Bluetooth, ensure that the Bluetooth software is set up properly on the host
device.
PRELIMINARY
10/20/06
3 - 6 MC70 User Guide
7. In the Favorite Name text box, enter a name for this service that will appear in the Favorite list.
8. Tap Next. The Connection Summary window appears.

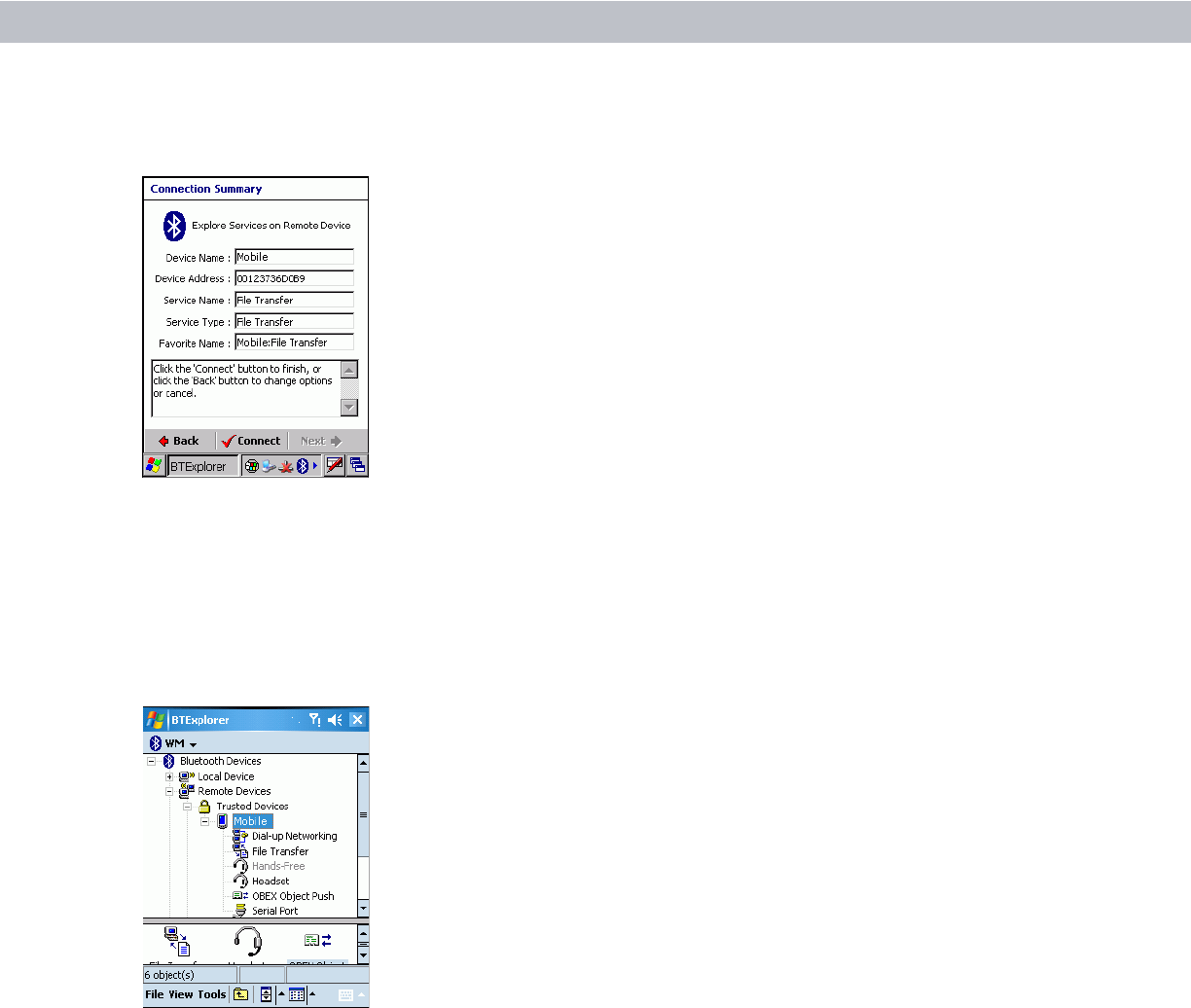

Figure 3-6
Connection Summary Window
9. Tap Connect to connect to the service.
Explorer Mode
The Explorer Mode window is easy to navigate and provides greater control to users familiar with Bluetooth.
The menu bar provides quick access to the options and tools used to connect to devices. To access Explorer
Mode, tap View - Explorer Mode.
Figure 3-7
Explorer Mode Window
PRELIMINARY
10/20/06
Using Bluetooth 3 - 7
You can also use the “tap and hold” technique to view available options. Scroll bars and view options are
similar to those on the Windows desktop. The tree structure lists the following sub-items:
•
Local Device - This EDA
•
Remote Device - Other Bluetooth devices
•Trusted Devices - Bonded (paired) Bluetooth devices
•Untrusted Devices - Discovered devices that are not bonded
•
Favorites - Selected services that are set as Favorite for quick access.
Discovering Bluetooth Device(s)
The EDA can receive information from discovered devices without bonding. However, once bonded, the EDA
and a bonded device exchange information automatically when you turn the Bluetooth radio on.
To find Bluetooth devices in the area:
1. Ensure that the Bluetooth device to discover is in discoverable mode.
2. Ensure that the two devices are within 30 feet (10 meters) of one another.

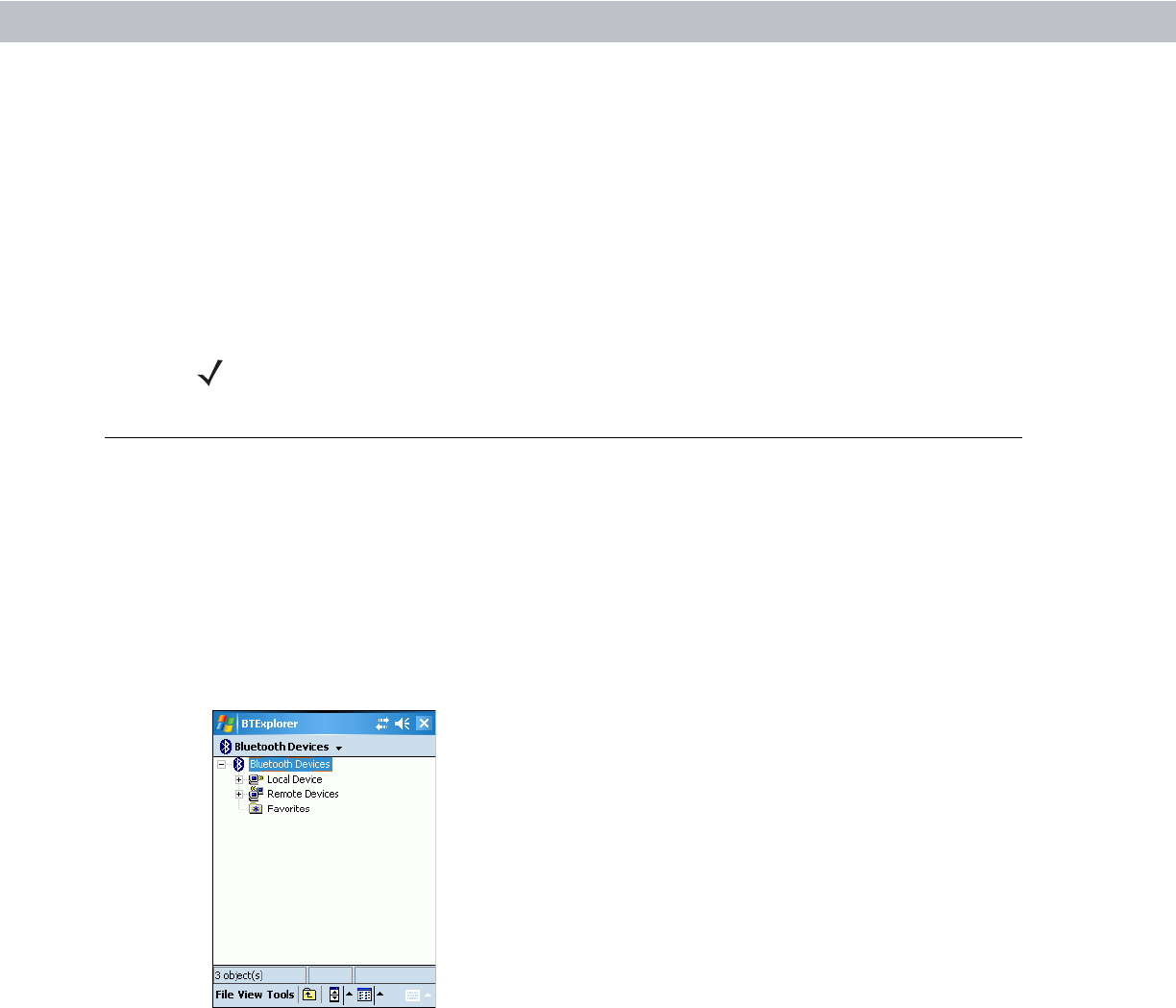

3. Tap the Bluetooth icon and select Show BTExplorer. The BTExplorer window appears.
Figure 3-8
BTExplorer Window
NOTE Switching between Wizard Mode and Explorer Mode closes all active connections.
PRELIMINARY
10/20/06
3 - 8 MC70 User Guide
4. Tap and hold Remote Devices and select Discover Devices from the pop-up menu. The EDA searches for
Bluetooth devices in the area.

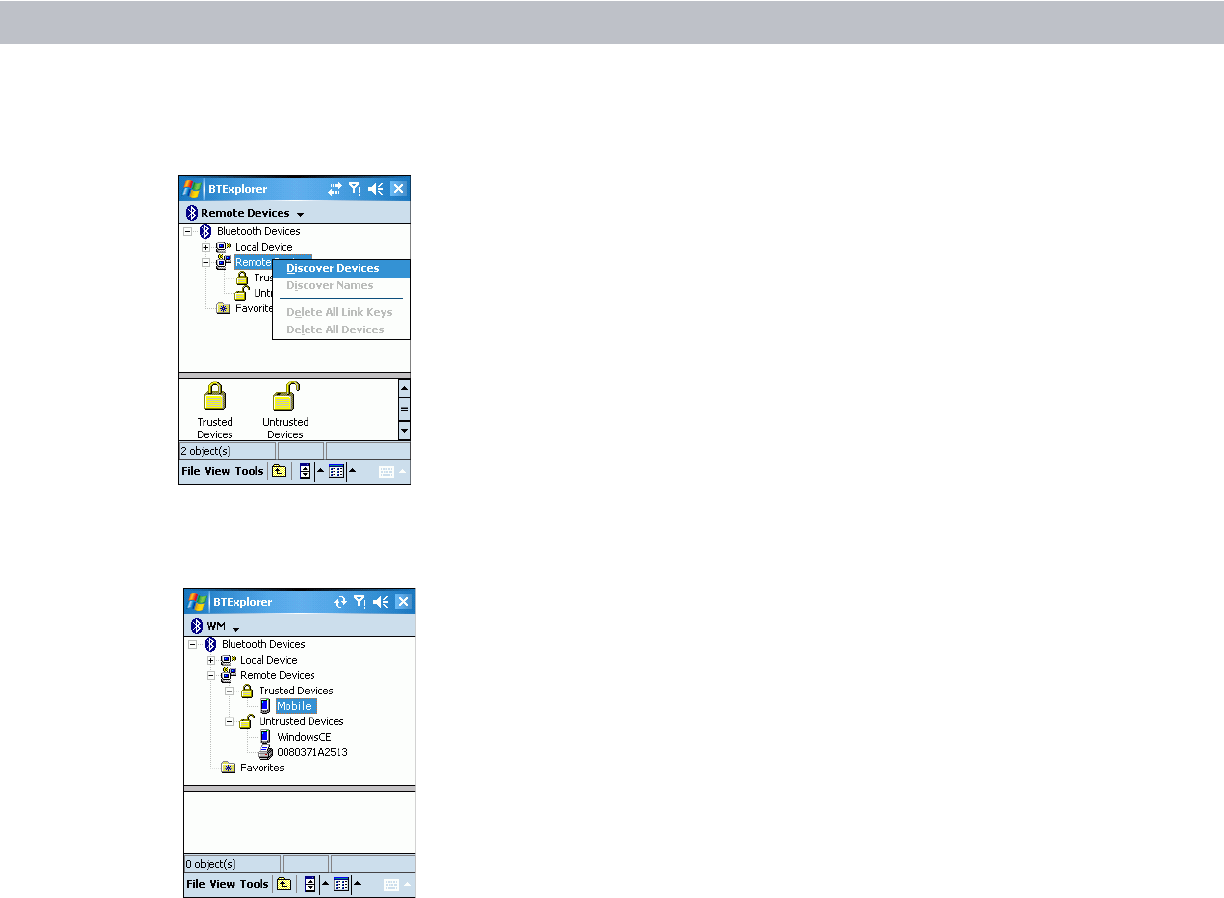

Figure 3-9
Discover Devices
The discovered devices display in the Untrusted Devices folder.

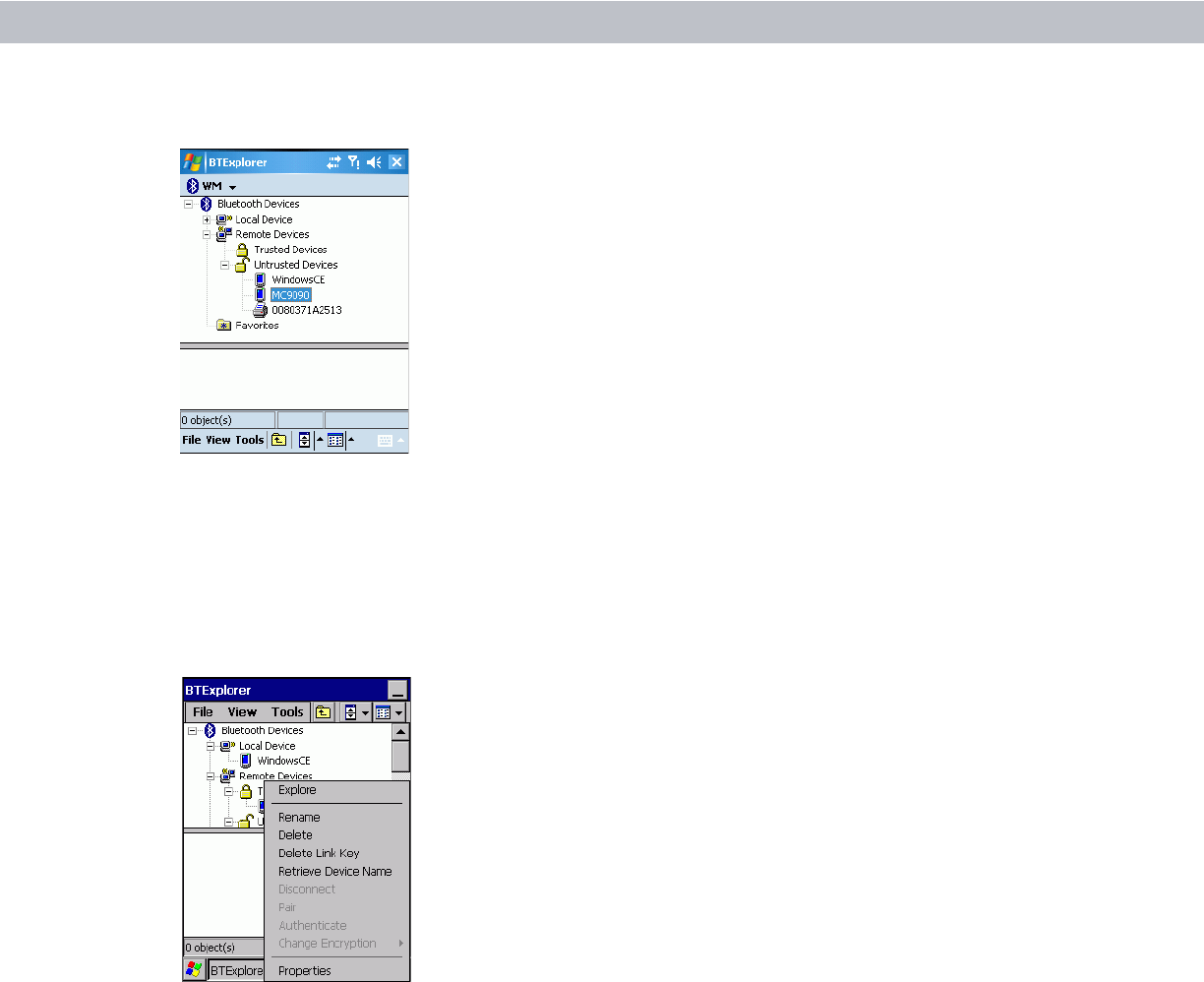

Figure 3-10
Discovered Devices Listed in Untrusted Folder
Bonding with Discovered Device(s)
A bond is a relationship created between the EDA and another Bluetooth device in order to exchange
information in a secure manner. Creating a bond involves entering the same PIN on the two devices. After
creating a bond and turning on the Bluetooth radios, the devices recognize the bond and can exchange
information without re-entering a PIN.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 9
To bond with a discovered Bluetooth device:
1. Discover remote devices. See Discovering Bluetooth Device(s) on page 3-7.
2. In the Untrusted Devices folder, tap and hold on a device to pair with.

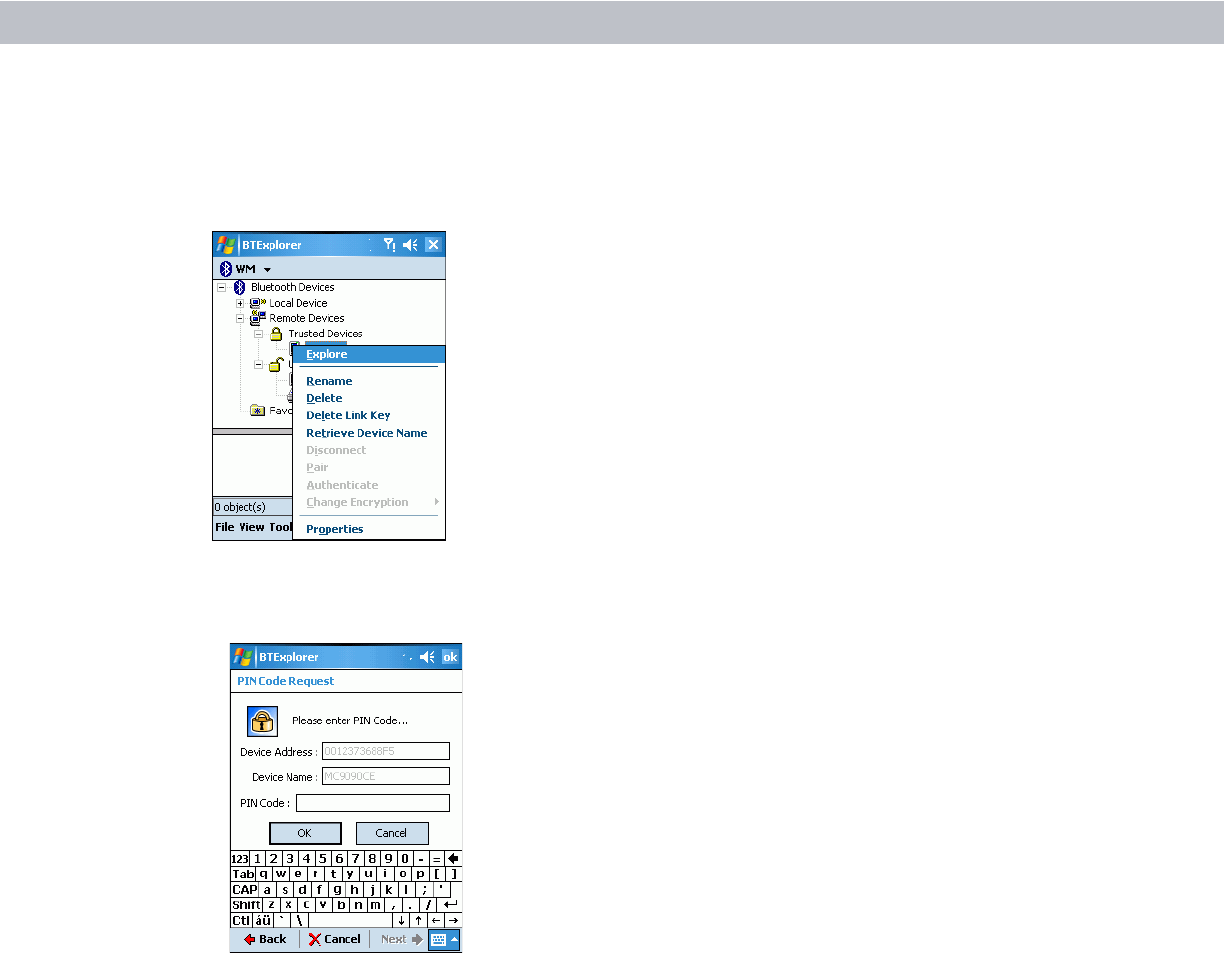

Figure 3-11
Pairing a Remote Device
3. Select Pair from the pop-up menu. The PIN Code Request window appears.

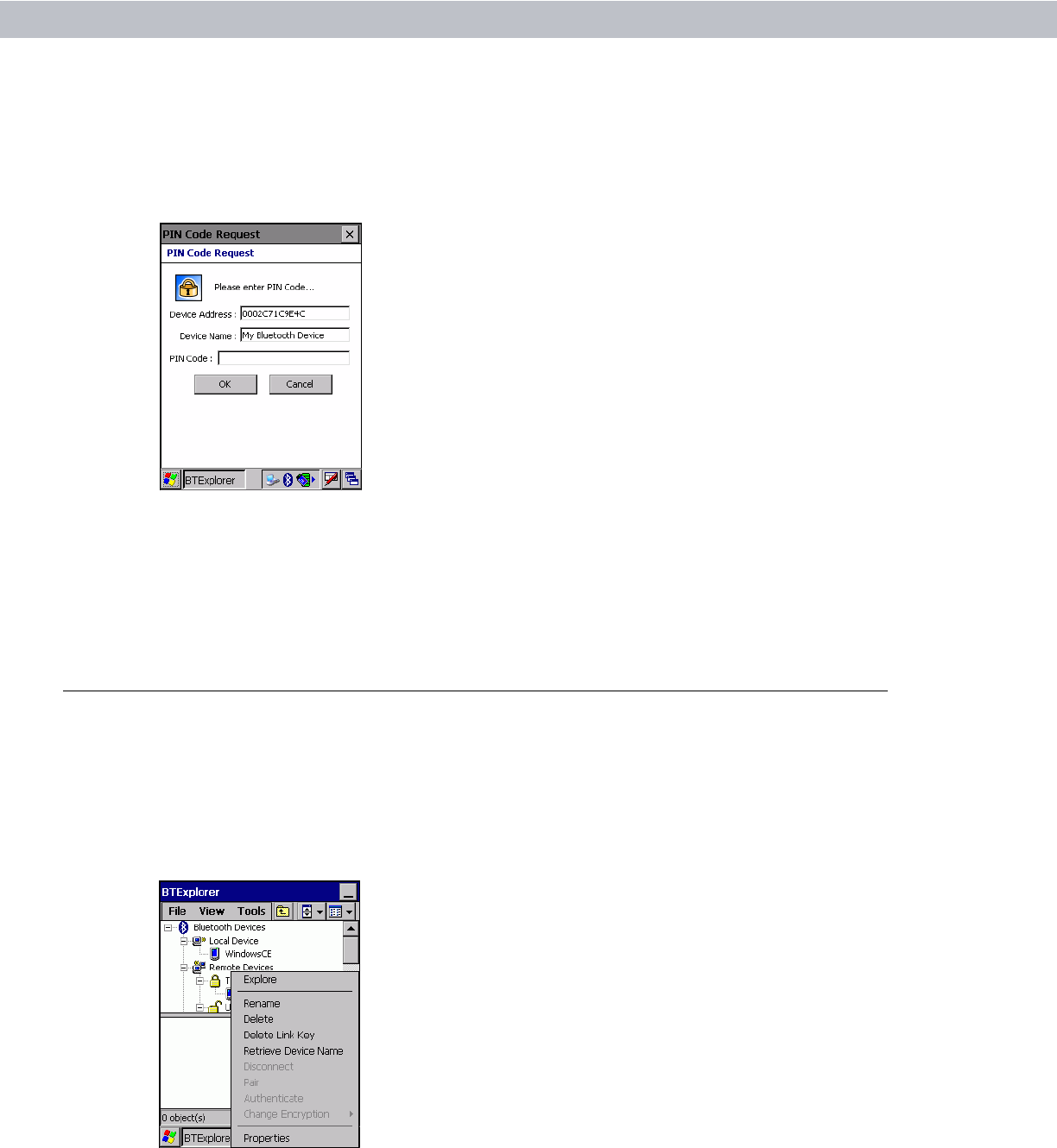

Figure 3-12
PIN Code Request Window
4. In the PIN Code: text box, enter the PIN number (between 1 and 16 characters) and then tap OK.
5. On the remote device, enter the same PIN number.
PRELIMINARY
10/20/06
3 - 10 MC70 User Guide
6. The devices pair and the device name moves to the Trusted Devices folder.
Figure 3-13
Bonded (Paired) Discovered Device
Renaming a Bonded Device
To rename a bonded device:
1. Launch BTExplorer.
2. Tap and hold the device to rename.
Figure 3-14
Rename Device Selection Dialog Box
PRELIMINARY
10/20/06
Using Bluetooth 3 - 11

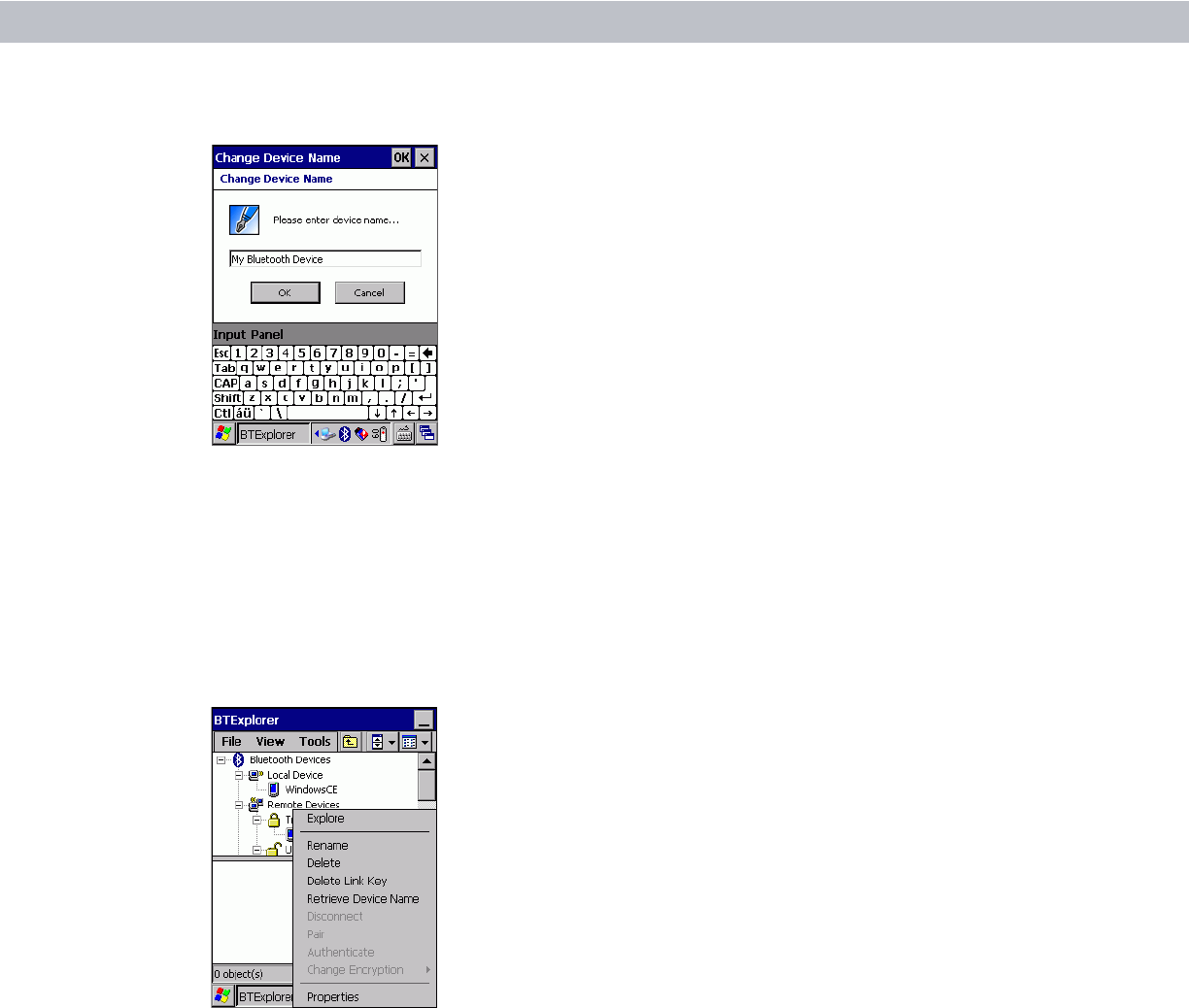

3. Select Rename in the pop-up menu. The Change Device Name window appears.
Figure 3-15
Change Device Name Window
4. Enter a new name for the bonded device in the text box. Tap OK.
Deleting a Bonded Device
To delete a device no longer needed:
1. Launch BTExplorer.
2. Tap and hold the device to delete and select Delete in the pop-up menu.
Figure 3-16
Deleting a Bonded Device
3. A confirmation dialog appears. Tap Yes.
PRELIMINARY
10/20/06
3 - 12 MC70 User Guide
Accepting a Bond
When a remote device wants to bond with the EDA, enter a PIN when requested to grant permission.
1. Ensure that the EDA is set to discoverable and connectable. See Bluetooth Settings on page 3-25.
When prompted to bond with the remote device the PIN Code Request window appears.
Figure 3-17
PIN Code Request Window
2. In the PIN Code: text box, enter the same PIN entered on the device requesting the bond. The PIN must
be between 1 and 16 characters.
3. In the Device Name: text box, edit the name of the device requesting the bond, if desired.
4. Tap OK to create the bond. The EDA can now exchange information with the other device.
Discovering Services
Before using services, first discover remote devices and then bond to those devices.
To determine what services are available on a bonded remote device:
1. Tap the Bluetooth icon and select Show BTExplorer.
2. In BTExplorer window, tap and hold on the remote device and select Explore from the pop-up menu.
Figure 3-18
Discovering Services
PRELIMINARY
10/20/06
Using Bluetooth 3 - 13

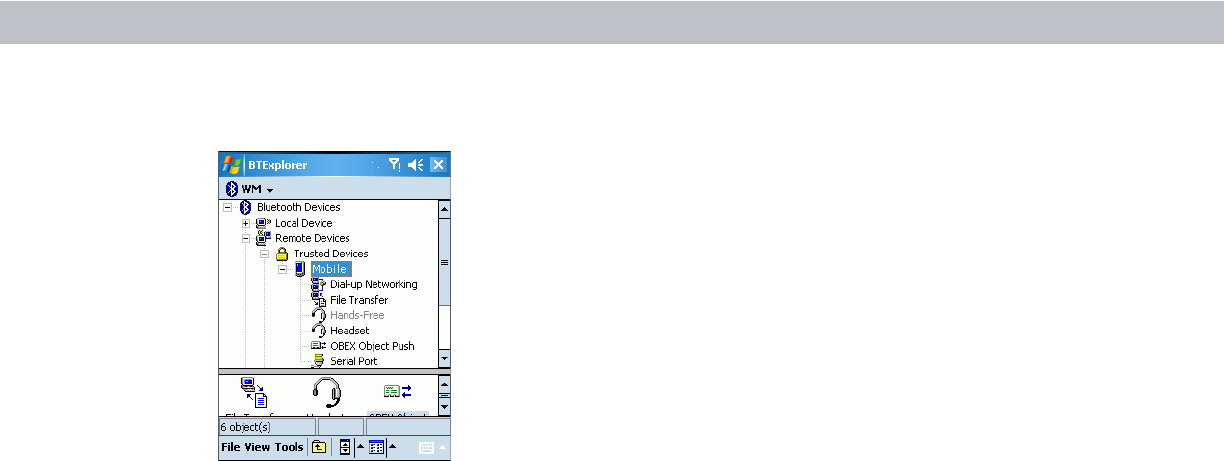

The EDA communicates with the remote device and lists the services under the device name.
Figure 3-19
List of Discovered Services
Some examples of available services are:
•
File Transfer Services
•
Dial-Up Networking Services
•
OBEX Object Push Services
•
Headset or Hands-Free Services
•
Serial Port Services.
See the following sections for information on these services.
File Transfer Services
To transfer files between the EDA and another Bluetooth enabled device:
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the remote access point. See Bonding with Discovered Device(s) on page
3-8.
3. In BTExplorer, select the Remote Devices folder.
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
6. Tap and hold on the remote device and select Explore from the pop-up menu.
7. Tap and hold on File Transfer and select Connect. The remote device’s accessible folders appear.
PRELIMINARY
10/20/06
3 - 14 MC70 User Guide

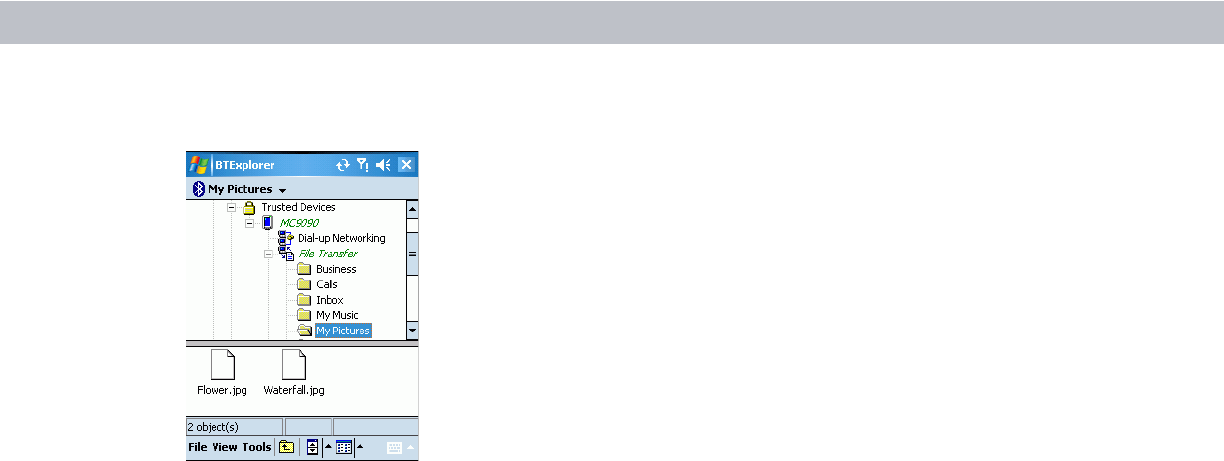

8. Select a folder. The contents of the folder appear in the sub-window.
Figure 3-20
Remote Device Folders
9. Tap and hold on the file. A pop-up menu appears.
10. Select the action to perform:
•
New - create a new file or folder on the remote device
•
Delete - delete the selected file on the remote device.
•
Get File - copy the file from the remote device to the EDA.
•
Put File - copy a file from the EDA to the remote device.
Creating a New File or Folder
To create a new folder or file on the remote device:
1. Tap and hold on the file and select New - Folder or New - File. The Create New Folder or Create New File
window appears.
2. Enter the name for the new folder or file.
3. Tap OK to create the new folder or file on the remote device.
Deleting a File
To delete a file from the remote device:
1. Tap and hold on the file and select Delete.
2. In the Delete Remote Device File dialog box tap OK.
Getting a File
To copy a file from a remote device:
1. Tap and hold on the file and select Get. The Save Remote File window appears.
2. Navigate to the directory to save the file.
3. Tap Save. The file is transferred from the remote device to the EDA.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 15
Copying a File
To copy a file to a remote device:
1. Tap and hold on the file and select Put. The Send Local File window appears.
2. Navigate to the directory to save the file and select a file.
3. Tap Open. The file copies from the EDA to the remote device.
Connecting to the Internet Using an Access Point
This section explains how to access a Bluetooth-enabled LAN access point (AP) for a network connection. Use
Internet Explorer to connect to a server.
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the remote access point. See Bonding with Discovered Device(s) on page
3-8.
3. In BTExplorer, select the Remote Devices folder.
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
6. Tap and hold on the remote device and select Explore from the pop-up menu.
7. Tap and hold LAN Access using PPP service and select Connect from the pop-up menu. The EDA
connects with the access point.
8. Tap Start - Internet Explorer. The Internet Explorer window appears.
9. In the address field, enter an internet address and tap the Enter button. The web page loads.
Dial-Up Networking Services
To use a phone that has Bluetooth capabilities as a modem for the EDA, create a Bluetooth modem connection
on the EDA and send information to the phone using Bluetooth. The phone relays the information over the
phone line and sends back to the EDA any information that was requested over the connection. After creating
a modem connection to the Bluetooth phone, you can reuse it.
Prior to creating a connection, ensure the following:
•
Bluetooth phone is turned on.
•
Bluetooth phone is discoverable. (Some phones must also be pairable to accept a bonding request. For
more information, refer to the phone documentation.)
•
EDA’s and phone's Bluetooth radios are turned on.
•
EDA and phone are within range of each other (30 feet/10 meters).
PRELIMINARY
10/20/06
3 - 16 MC70 User Guide
Before setting up dial-up networking, obtain dial-up information and other necessary settings for the office
network or ISP. To create a new Bluetooth connection:
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the remote device. See Bonding with Discovered Device(s) on page 3-8.
3. In BTExplorer, select the Remote Devices folder.
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
6. Tap and hold on Dial-up Networking and select Connect from the pop-up menu. The Select Dial-up
Networking Entry window appears.

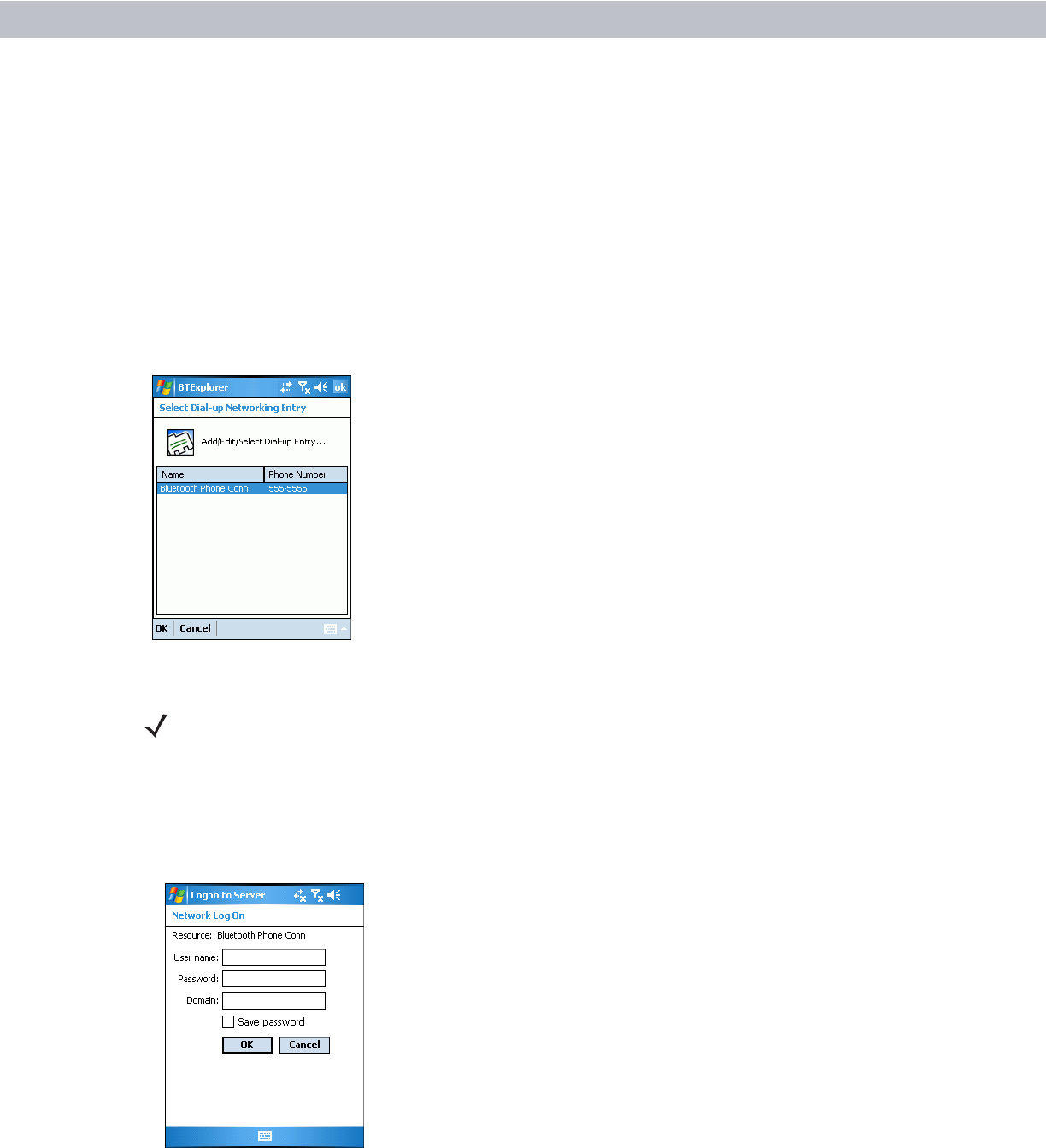

Figure 3-21
Select Dial-up Networking Entry Window
7. Select a dial-up entry.
8. Tap OK. The EDA begins to communicate with the phone. If required, the phone requests permission to
communicate with the EDA.
9. Confirm the connection on the phone. The Network Log On window appears.
Figure 3-22
Network Log On Window
NOTE If a dial-up entry is not listed, see Adding a Dial-up Entry on page 3-18.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 17
10. In the User name: text box, enter the user name for this connection.
11. In the Password: text box, enter the password for this connection.
12. In the Domain: text box, enter the domain for this connection, if required.
13. Tap OK. The phone begins dialing, then connects to the network.

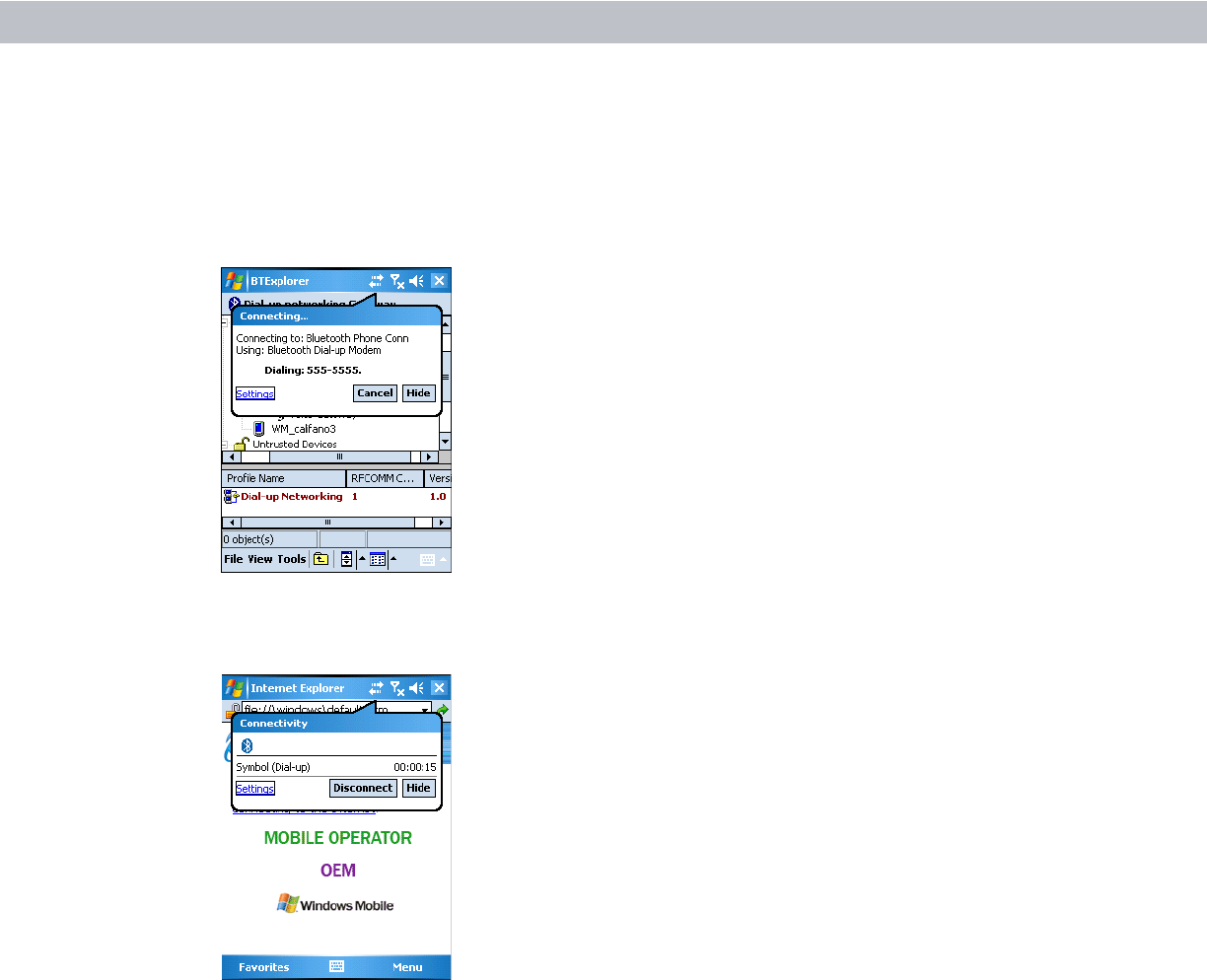

Figure 3-23
Connecting to Bluetooth Phone
14. To end a session, tap the Connection icon and then tap Disconnect in the dialog box.
Figure 3-24
Connectivity Dialog Box
PRELIMINARY
10/20/06
3 - 18 MC70 User Guide
Adding a Dial-up Entry
To add a dial-up entry:
1. In the Select Dial-up Networking Entry window, tap and hold, then select Add Entry from the pop-up menu.

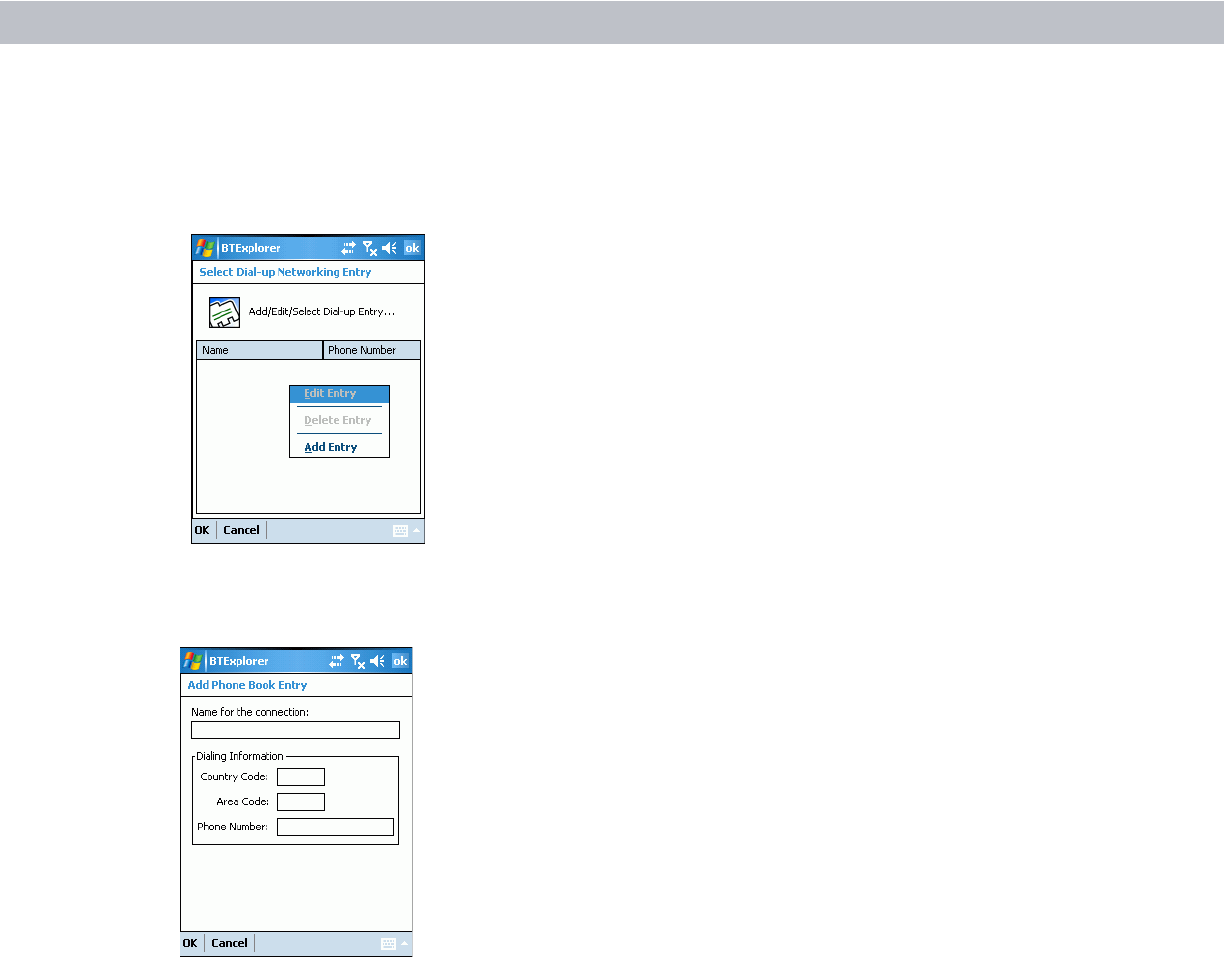

Figure 3-25
Add Dial-Up Entry
The Add Phone Book Entry window appears.
2. In the Name for the connection: text box, enter a name for this connection.
3. In the Country Code: text box, enter the country code for the country that you are calling.
4. In the Area Code: text box, enter the area code.
5. In the Phone Number: text box, enter the phone number.
6. Tap OK.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 19
Object Exchange Push Services
Object Exchange (OBEX) is a set of protocols that allows sharing objects such as Contacts or pictures using
Bluetooth.
To exchange contact information with another Bluetooth enabled device:
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the remote device. See Bonding with Discovered Device(s) on page 3-8.
3. In BTExplorer, select the Remote Devices folder.
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
6. Tap and hold on OBEX Object Push and select Connect. The OBEX Object Push window appears.
7. In the Action drop-down list, select one of the following options: Send Contact Information, Swap Contact
Information, Fetch Contact Information, or Send a Picture.
Sending a Contact
To send a contact to another device:
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the remote device. See Bonding with Discovered Device(s) on page 3-8.
3. In BTExplorer, select the Remote Devices folder.
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
6. Tap and hold on OBEX Object Push and select Connect. The OBEX Object Push window appears.

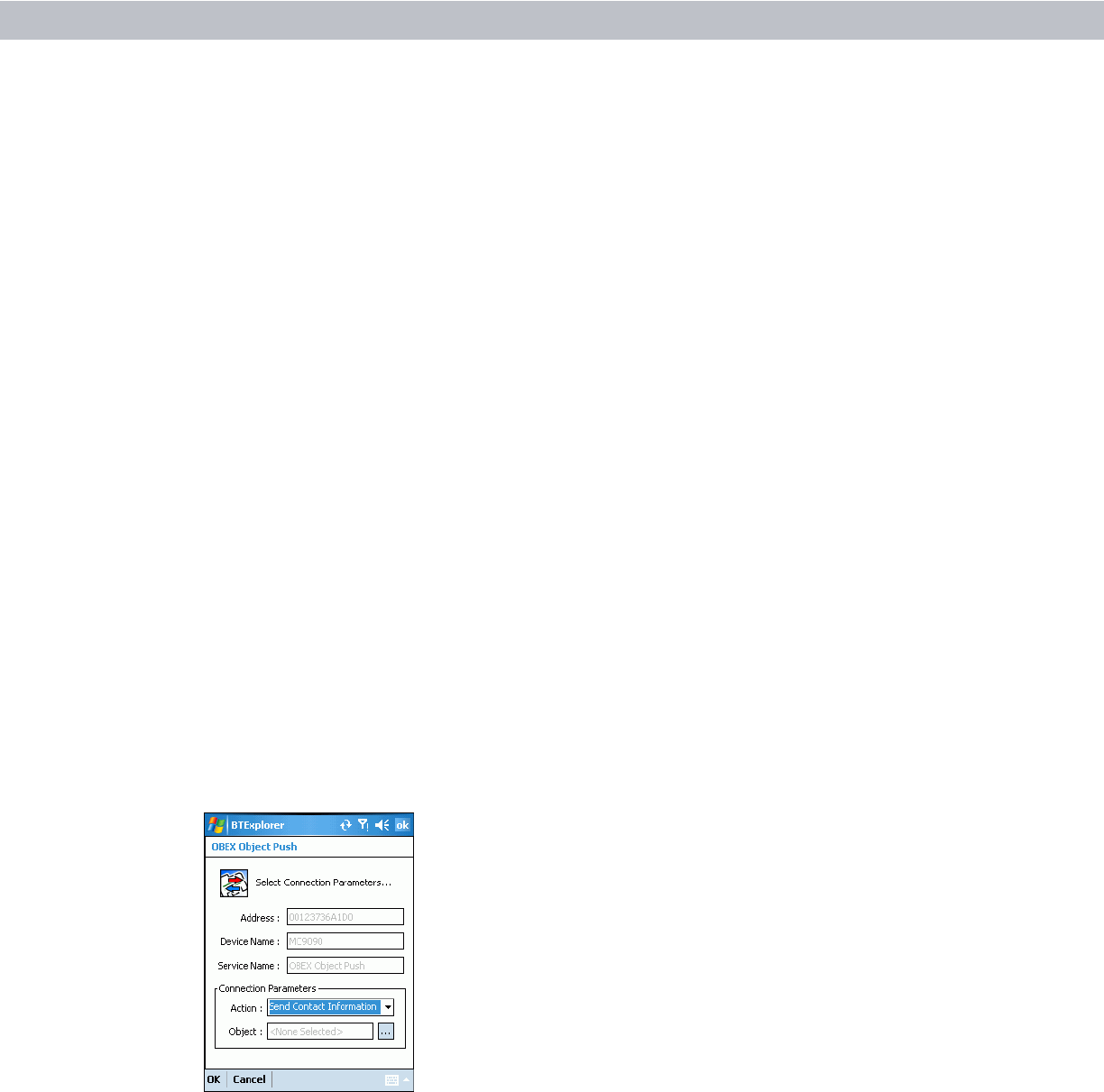

Figure 3-26
OBEX Object Push Window
7. In the Action: drop-down list, select Send Contact Information.
PRELIMINARY
10/20/06
3 - 20 MC70 User Guide
8. Tap . The Select Contact Entry window appears.

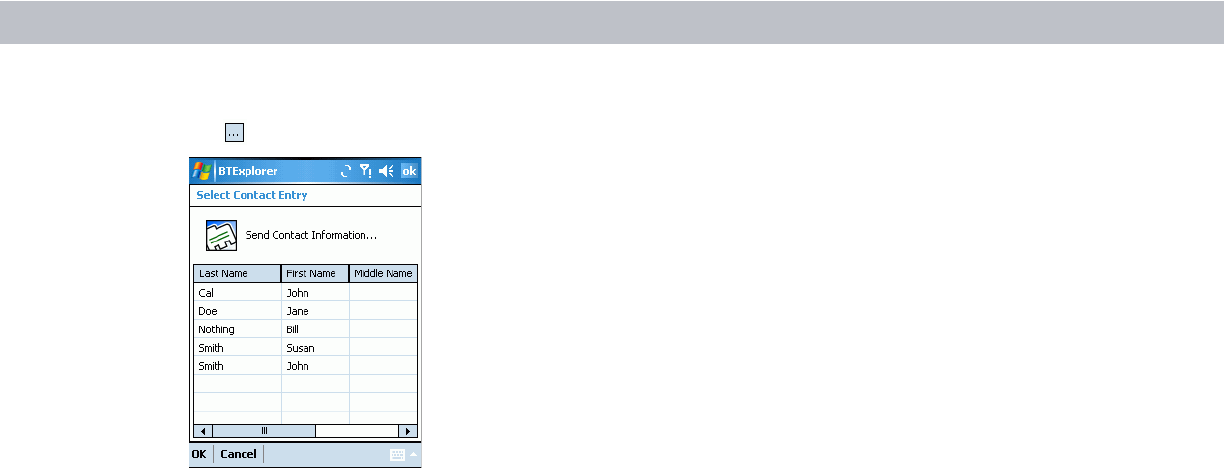

Figure 3-27
Select Contact Entry Window
9. Select a contact to send to the other device.
10. Tap OK.
11. Tap OK to send the contact to the other device and display a confirmation dialog box on the other device to
accept the contact. A Send Contact dialog appears.
12. Tap Ok.
Sending a Picture
To send a picture to another device:
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the remote device. See Bonding with Discovered Device(s) on page 3-8.
3. In BTExplorer, select the Remote Devices folder.
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 21
6. Tap and hold on OBEX Object Push and select Connect. The OBEX Object Push window appears.
Figure 3-28
OBEX Object Push Window
7. In the Action: drop-down list, select Send A Picture.
8. Tap . The Send Local Picture window appears.
Figure 3-29
Send Local Picture Window
9. Navigate to the picture to send to the other device.
10. Tap Open.
11. Tap OK to send the picture to the other device and display a confirmation dialog box on the other device to
accept the picture. A Send Picture dialog appears.
12. Tap Ok.
Headset Services
To connect to a Bluetooth headset:
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the headset. See Bonding with Discovered Device(s) on page 3-8.
3. In BTExplorer, select the Remote Devices folder.
PRELIMINARY
10/20/06
3 - 22 MC70 User Guide
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
6. Tap and hold on the remote device and select Explore. A headset service item appears.
7. Tap and hold on the headset service name and select Connect. The EDA connects to the headset. Refer to
the headset user manual for instructions on communicating with a Bluetooth device.
To adjust the microphone gain:
1. Tap and hold on the headset service item and select Adjust Microphone from the pop-up menu. The
Microphone Properties window appears.
2. Select the slider and adjust the gain.
3. Tap OK.
Serial Port Services
Use the wireless Bluetooth serial port connection as you would a physical serial cable connection. Configure
the application that will use the connection to the correct serial port.
To establish a serial port connection:
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the remote device. See Bonding with Discovered Device(s) on page 3-8.
3. In BTExplorer, select the Remote Devices folder.
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
6. Tap and hold Serial Port and select Connect in the pop-up menu. The Remote Service Connection window
appears.

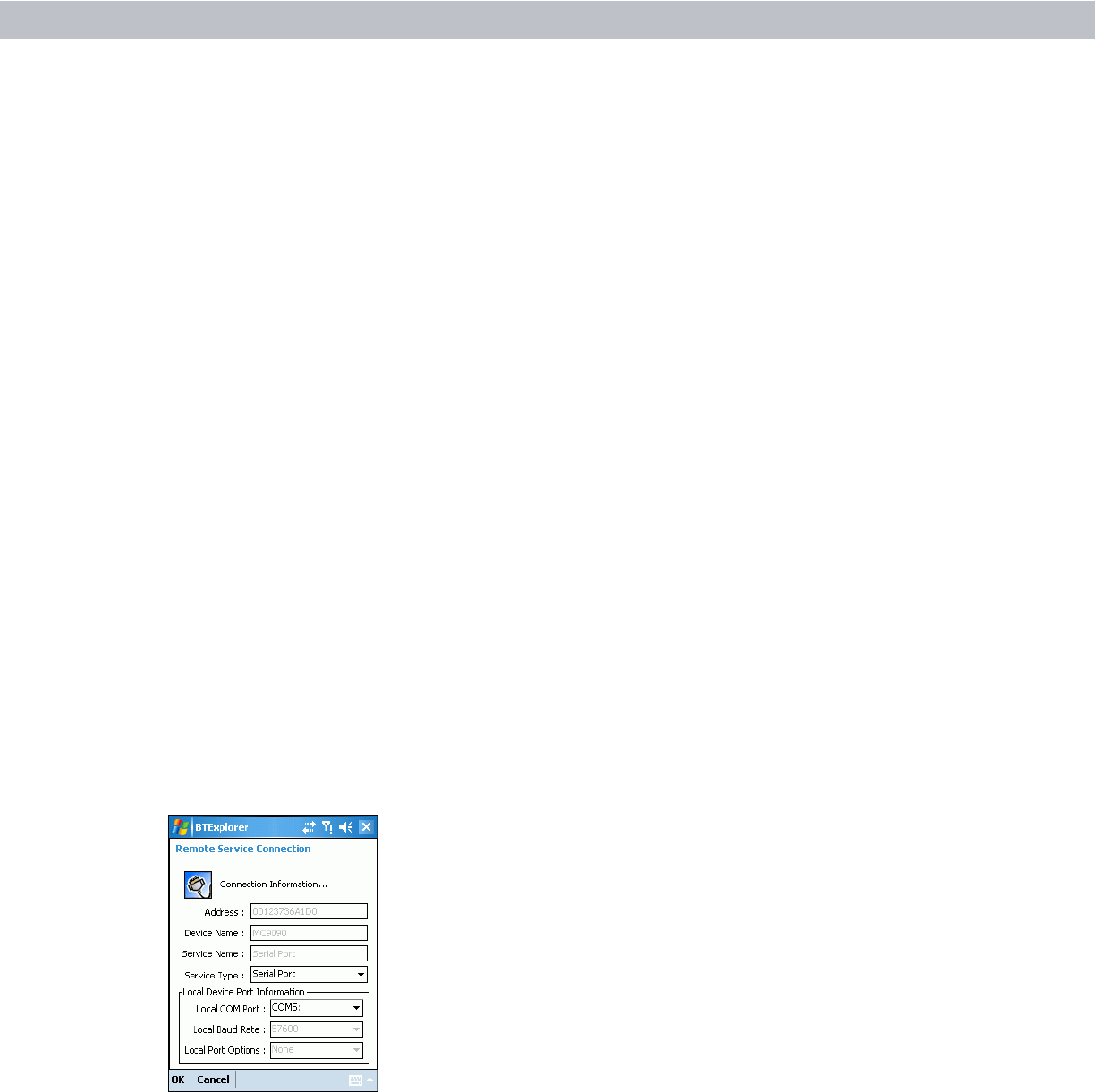

Figure 3-30
Remote Service Connection Window
7. In the Local COM Port: drop-down list select a COM port.
8. Tap OK.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 23
ActiveSync Using Serial Port Services
Use the wireless Bluetooth serial port connection for ActiveSync just as you would a physical serial cable
connection. You must configure the application that will use the connection to the correct serial port.
To establish an ActiveSync connection:
1. On the host computer, ensure the Bluetooth software is set up properly.
2. Ensure the mobile computer is discoverable and connectable. See Bluetooth Settings on page 3-25.
3. Discover and bond (pair) with the remote device.See Bonding with Discovered Device(s) on page 3-8.
4. In BTExplorer, select the Remote Devices folder.
5. Select the Trusted Devices folder.
6. Tap the remote device folder.
7. Tap and hold ActiveSync and select Connect in the pop-up menu.

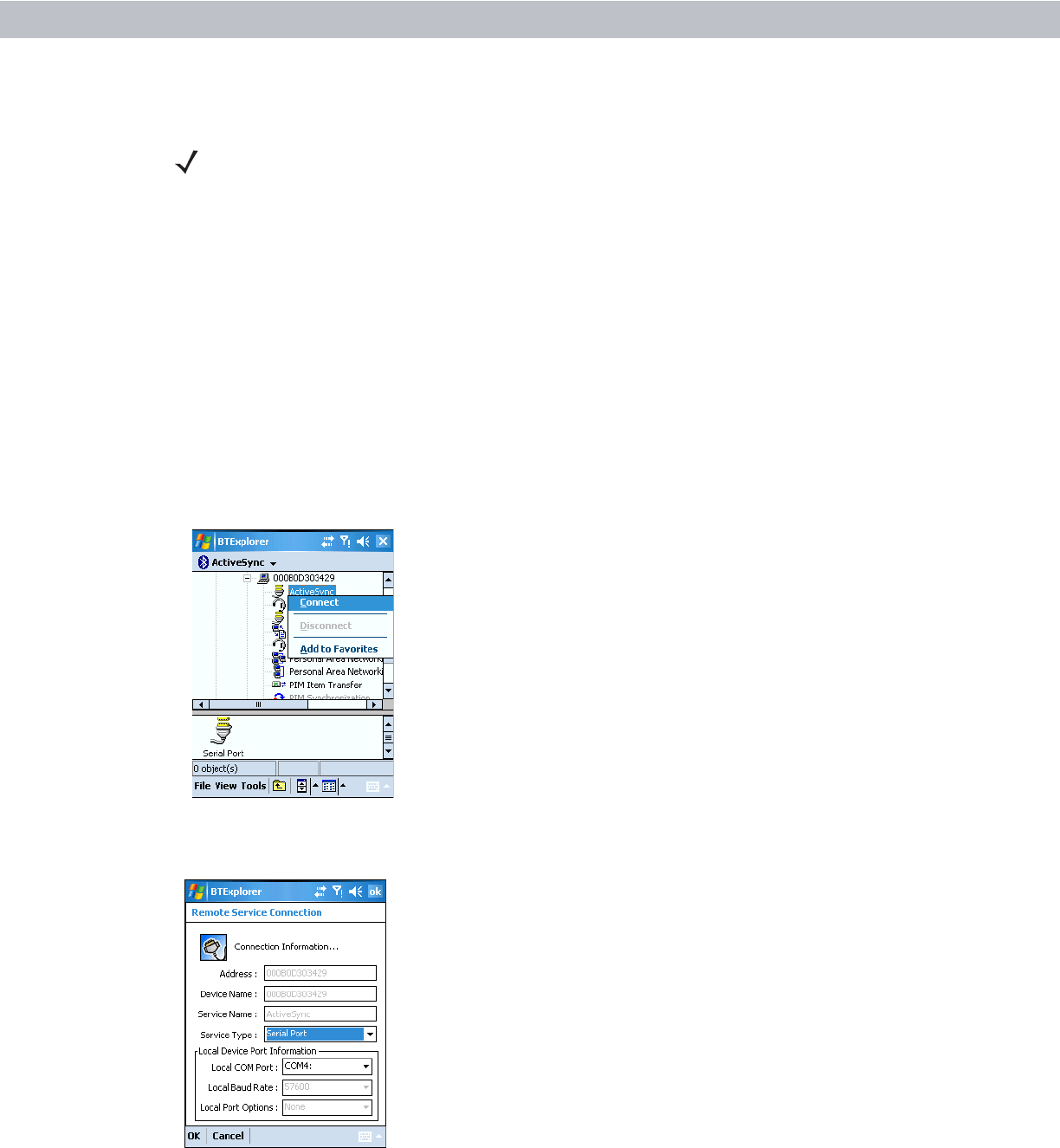

Figure 3-31
Connect to ActiveSync Service
8. The Remote Service Connection window appears In the Local COM Port drop-down list select a COM port.
Figure 3-32
Remote Service Connection Window
NOTE By default, COM ports COM4, COM5, and COM9 are Bluetooth virtual ports. If an application opens one of
these ports, the Bluetooth driver activates and guides you through a Bluetooth connection.
PRELIMINARY
10/20/06
3 - 24 MC70 User Guide
9. Tap OK. The mobile computer communicates with the host computer and ActiveSync initates.
Personal Area Network Services
Connect two or more Bluetooth devices to share files, collaborate, or play multi-player games.
To establish a Personal Area Network connection:
1. Ensure the EDA is discoverable and connectable. See Bluetooth Settings on page 3-25.
2. Discover and bond (pair) with the remote device. See Bonding with Discovered Device(s) on page 3-8.
3. In BTExplorer, select the Remote Devices folder.
4. Select the Trusted Devices folder.
5. Tap the remote device folder.
6. Tap and hold Personal Area Network and select Connect in the pop-up menu.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 25
Bluetooth Settings
Use the BTExplorer Settings window to configure the operation of the BTExplorer application. Tap Tools -
Settings. The BTExplorer Settings window appears.
Device Info Tab
Use the Device Info tab to configure the EDA’s Bluetooth connection modes.

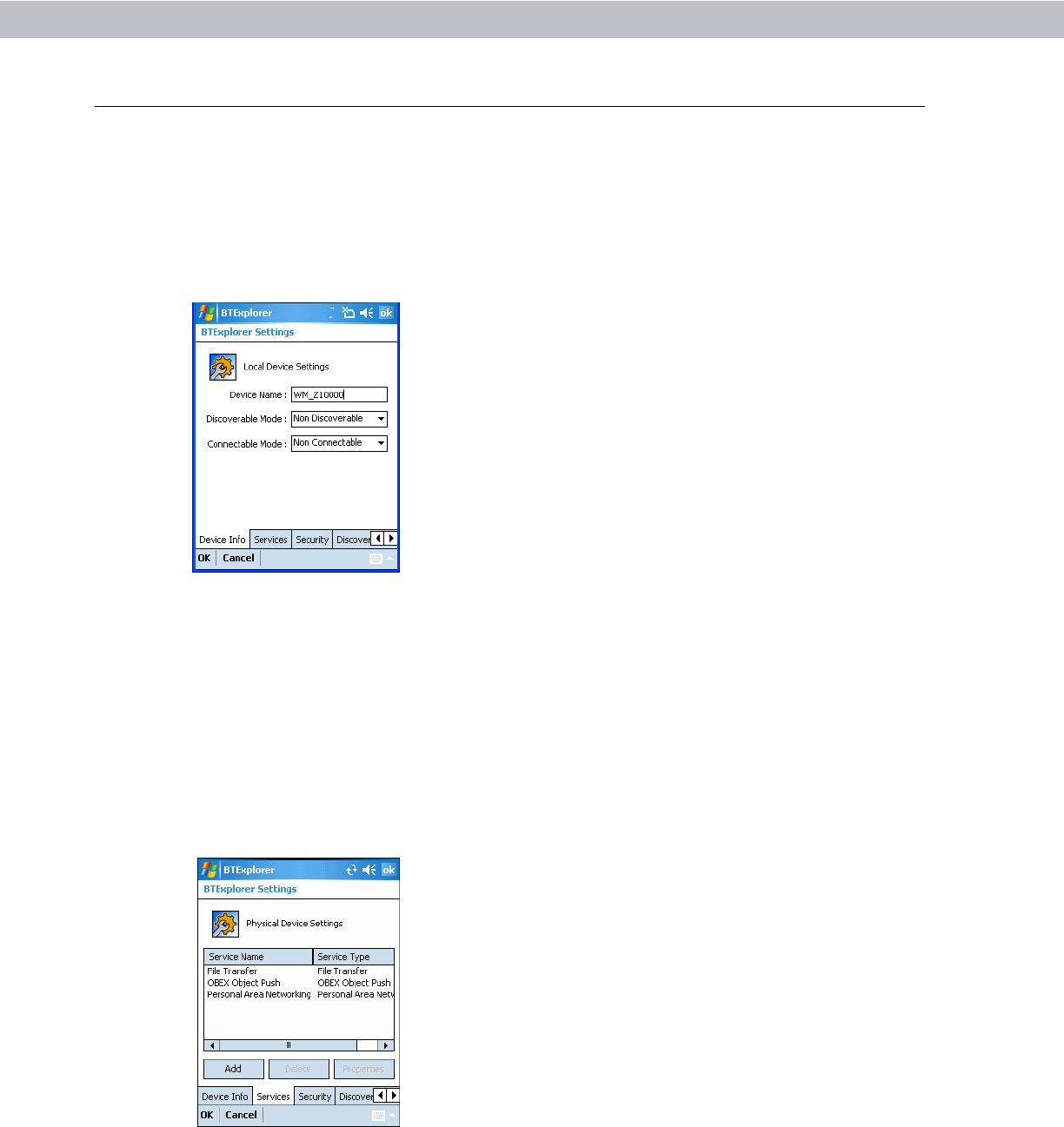

Figure 3-33
BTExplorer Settings - Device Info Tab
Services Tab
Use the Services tab to add or delete Bluetooth services.
Figure 3-34
BTExplorer Settings - Services Tab
Device Name Displays the name of the EDA.
Discoverable
Mode Select whether or not the EDA is discoverable by other Bluetooth
devices.
Connectable Mode Select whether or not the EDA is connectable by other Bluetooth
devices.
PRELIMINARY
10/20/06
3 - 26 MC70 User Guide
To add a service:
1. Tap Add. The Add Local Service window displays.

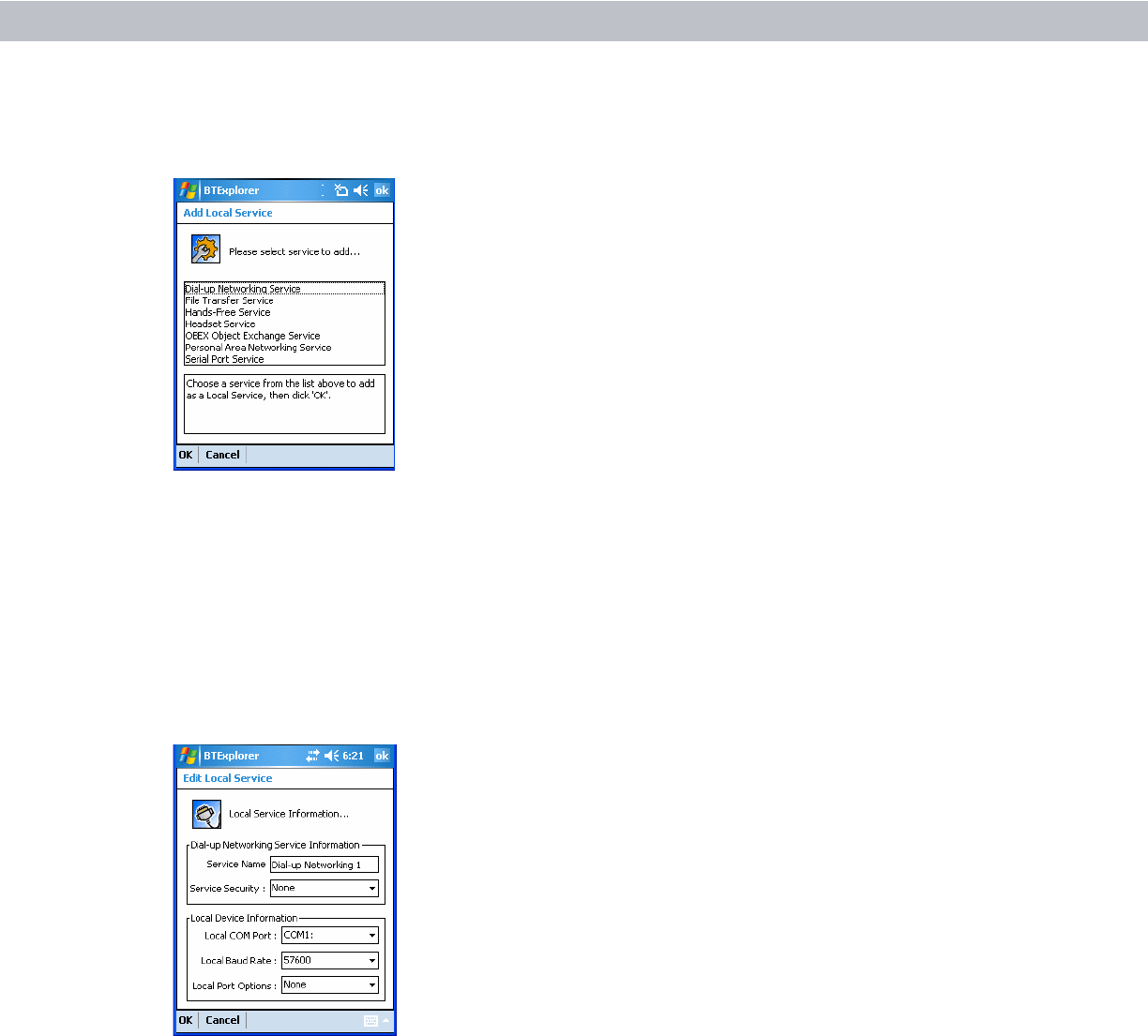

Figure 3-35
Add Local Service Window
2. In the list, select a service to add.
3. Tap OK. The Edit Local Service window displays for the selected service.
4. Select the appropriate information and then tap OK. See the following sections for information on the
available services.
Dial-Up Networking Service
Dial-up Networking allows other Bluetooth devices to access a dial-up modem.
Figure 3-36
Add Local Service Window
Service Name Displays the name of the service.
Service Security Select the type of security from the drop-down list. Options are None,
Authenticate, or Authenticate/Encrypt.
Local COM Port Select the COM port.
Local Baud Rate Select the communication baud rate.
Local Port Options Select the port option.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 27
File Transfer Service
File transfer allows other Bluetooth devices to browse files.

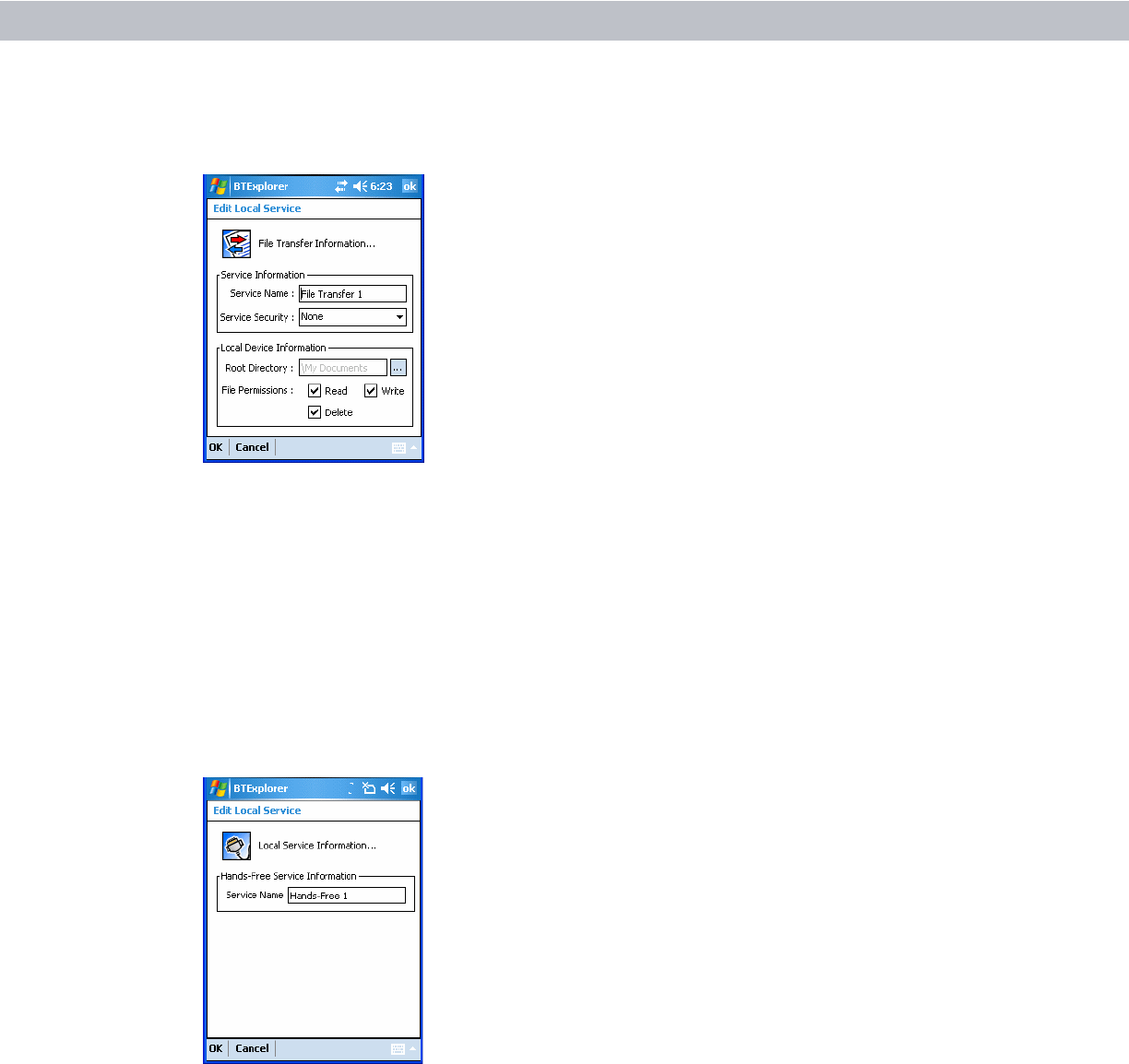

Figure 3-37
File Transfer Information Window
Hands-Free Service
Hands-Free Service allows connection to hands-free devices.
Figure 3-38
Hands-Free Service Window
Service Name Displays the name of the service.
Service Security Select the type of security from the drop-down list. Options are None,
Authenticate, or Authenticate/Encrypt.
Root Directory Select the directory that other Bluetooth devices can access.
File Permissions Select the file permissions for the selected directory. Check the
appropriate box to grant read access, write access, and delete access.
Service Name Lists the name of the audio service.
PRELIMINARY
10/20/06
3 - 28 MC70 User Guide
Headset Service
Headset Service allows connection to headset devices.

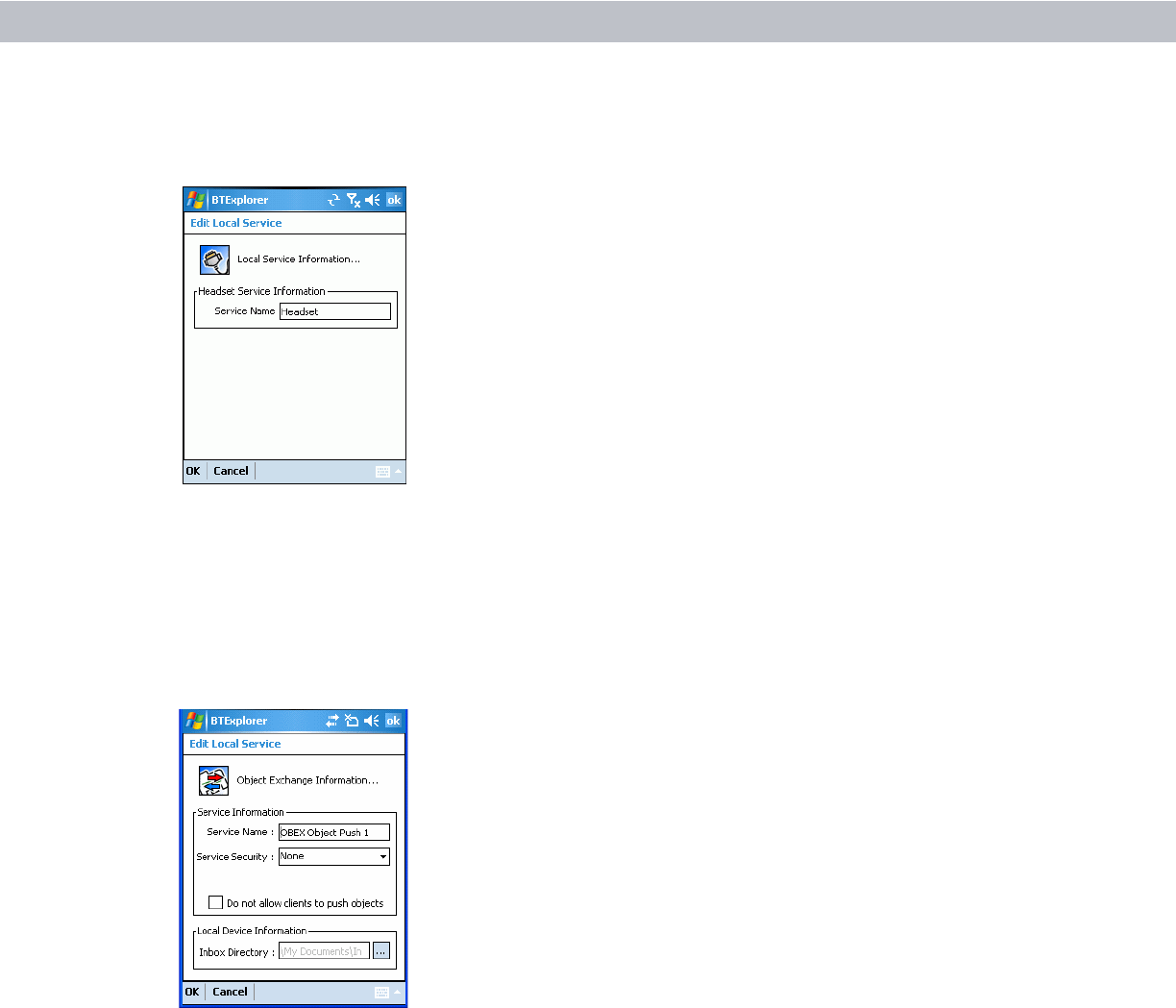

Figure 3-39
Headset Service Window
OBEX Object Push Service
OBEX Object Push allows other Bluetooth devices to push contacts, business cards, pictures, appointments,
and tasks to the EDA.
Figure 3-40
OBEX Exchange Information Window
Service Name Lists the name of the audio service.
Service Name Displays the name of the service.
Service Security Select the type of security from the drop-down list.
Options are None, Authenticate, or Authenticate/Encrypt.
Do not allow clients to push
objects Disables clients from pushing objects to the EDA.
Inbox Directory Select a directory where another Bluetooth device can
store files.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 29
Personal Area Networking Service
Personal Area Networking hosts a Personal Area Network which allows communication with other Bluetooth
devices.

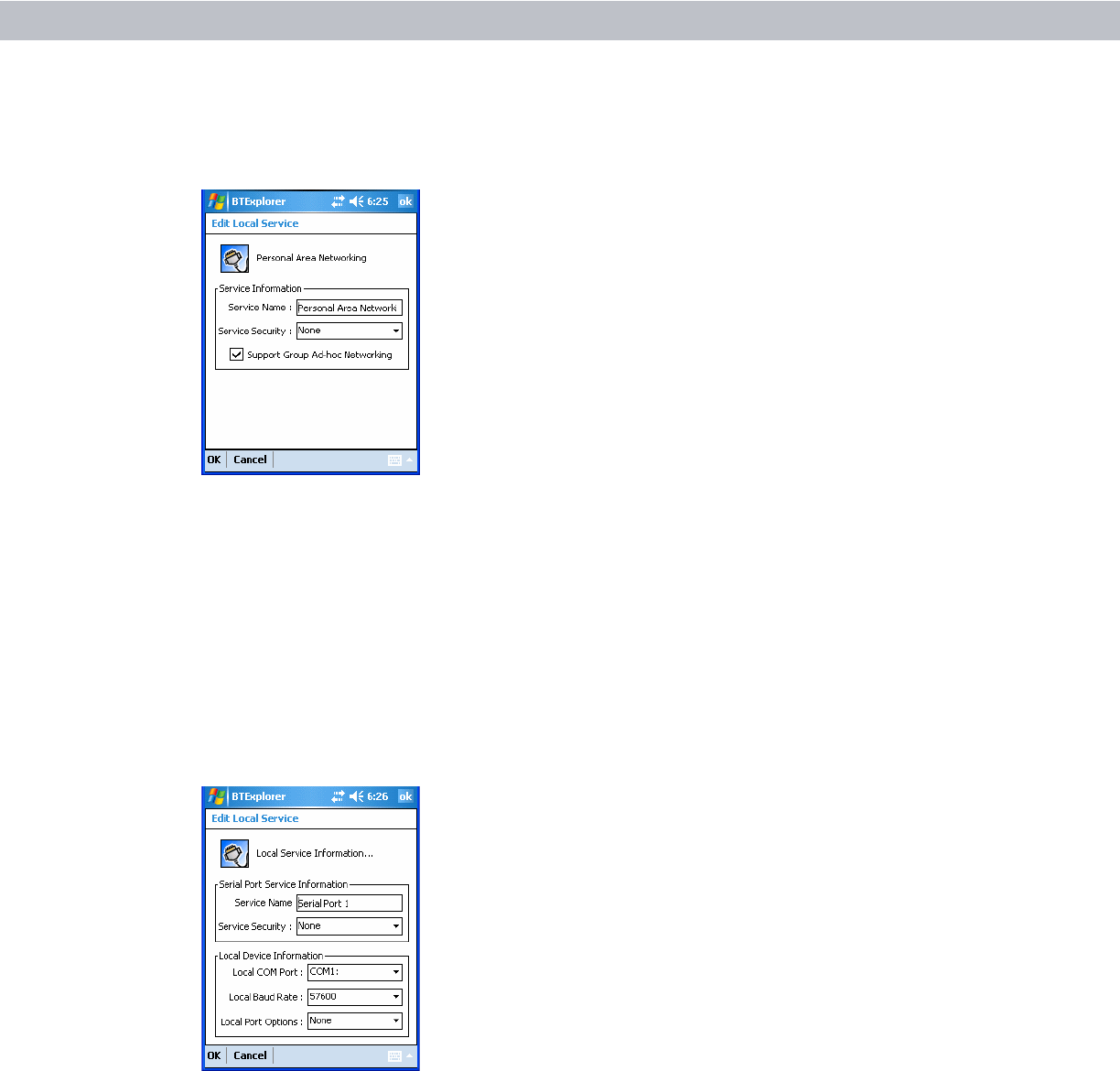

Figure 3-41
Personal Area Networking Window
Serial Port Service
Serial port allows other Bluetooth devices to access COM ports.
Figure 3-42
Serial Port Service Window
Service Name Displays the name of the service.
Service Security Select the type of security from the drop-down list. Options are None,
Authenticate, or Authenticate/Encrypt.
Support Group Ad-Hoc
Networking Select to enable Ad-Hoc networking.
PRELIMINARY
10/20/06
3 - 30 MC70 User Guide
Security Tab
To adjust the security settings for an individual service, select the Services tab first, then select the individual
service, then Properties.

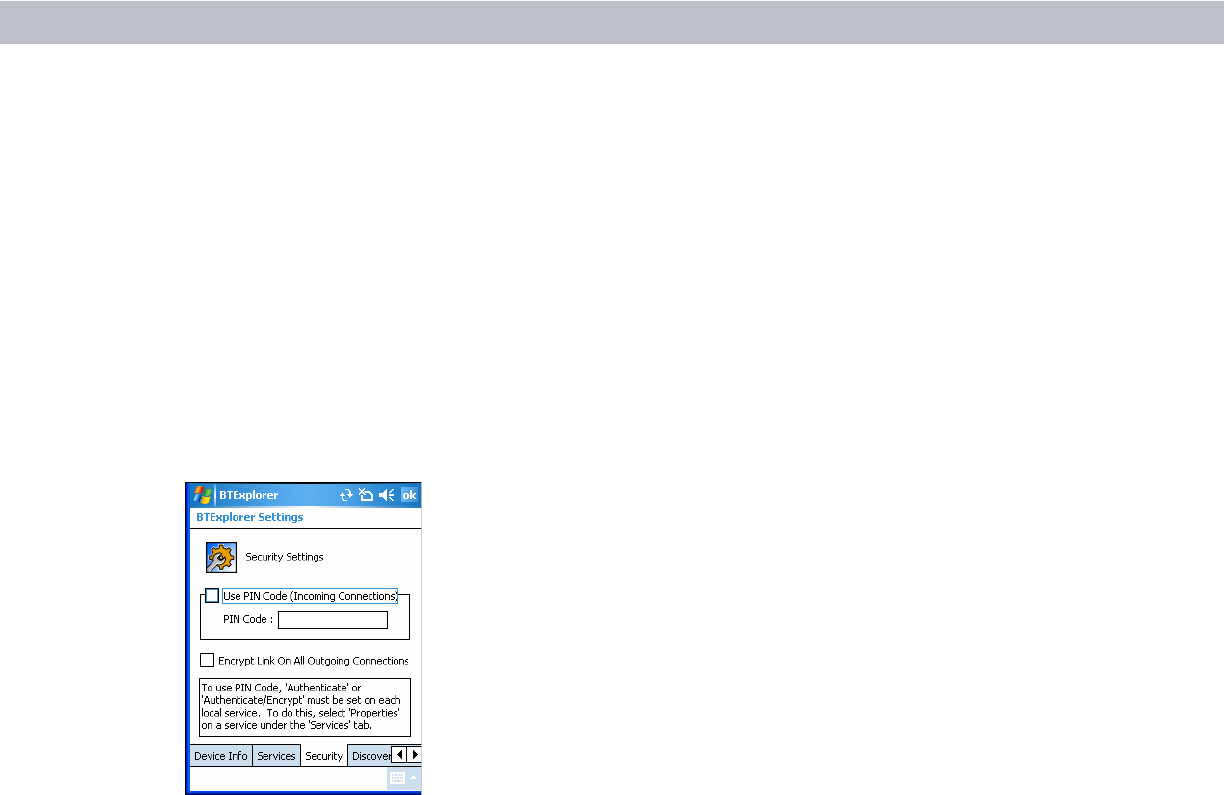

Figure 3-43
BTExplorer Settings - Security Tab
Service Name Displays the name of the service.
Service Security Select the type of security from the drop-down list. Options are None,
Authenticate, or Authenticate/Encrypt.
Local COM Port Select the COM port.
Local Baud Rate Select the communication baud rate.
Local Port Options Select the port option.
Use PIN Code (Incoming
Connection) Select for automatic use of the PIN code entered in the PIN Code
text box. It is recommended not to use this automatic PIN code
feature. See Security on page 3-2 for more information.
PIN Code Enter the PIN code.
Encrypt Link On All Outgoing
Connections Select to enable or disable encryption. Use encryption whenever
possible.
PRELIMINARY
10/20/06
Using Bluetooth 3 - 31
Discovery Tab
Use the Discovery tab to set and modify discovered devices.

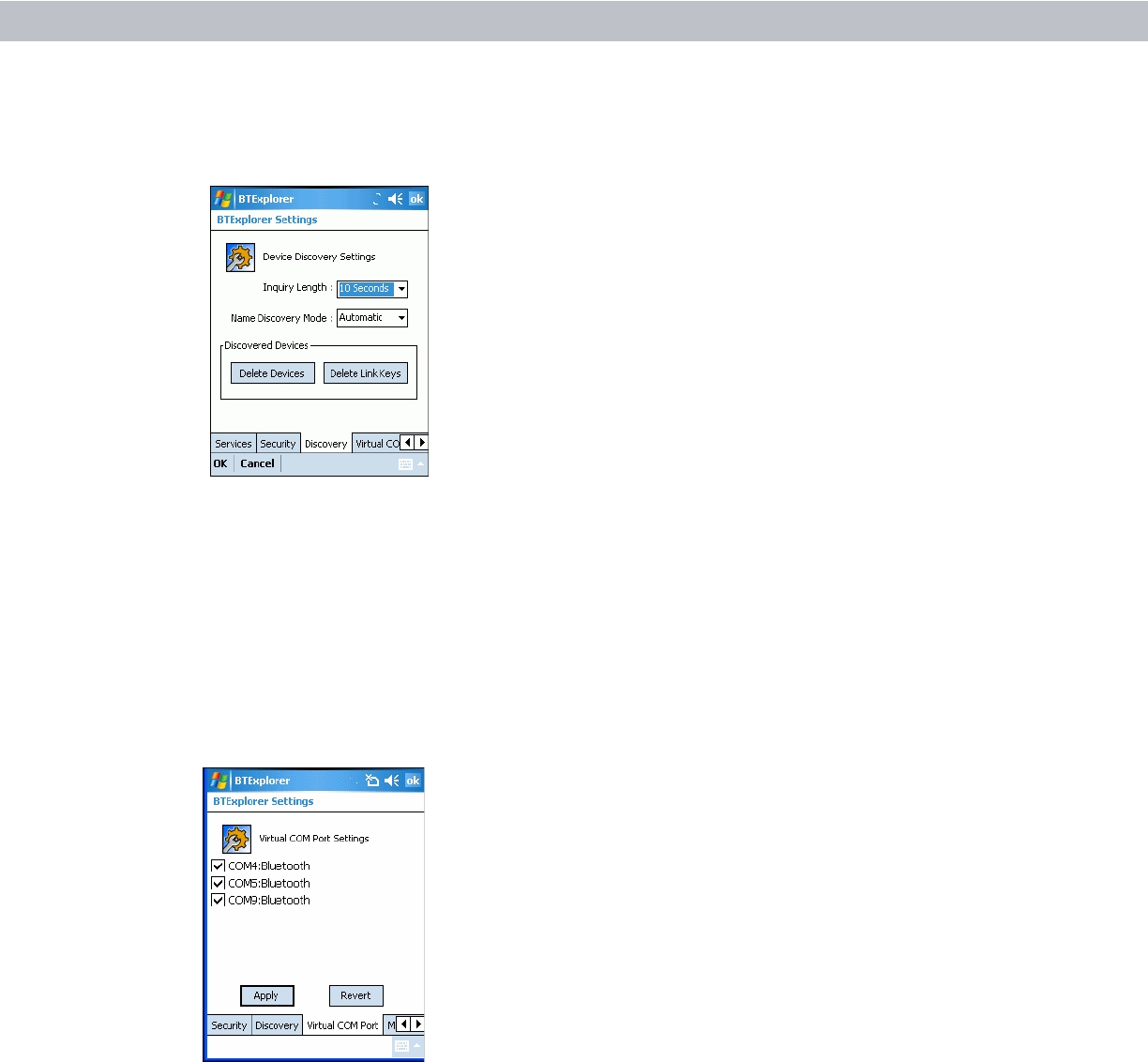

Figure 3-44
BTExplorer Settings - Discovery Tab
Virtual COM Port Tab
Use the Virtual COM Port tab to select the COM ports for Bluetooth communication.
Figure 3-45
BTExplorer Settings - Virtual COM Port Tab
Inquiry Length Sets the amount of time the EDA takes to discover Bluetooth devices
in the area.
Name Discovery Mode Select either Automatic or Manual.
Discovered Devices Deletes all discovered devices and link keys.
COM4:Bluetooth Enable or disable COM Port 4.
COM5:Bluetooth Enable or disable COM Port 5
COM9:Bluetooth Enable or disable COM Port 9
PRELIMINARY
10/20/06
3 - 32 MC70 User Guide
Miscellaneous Tab

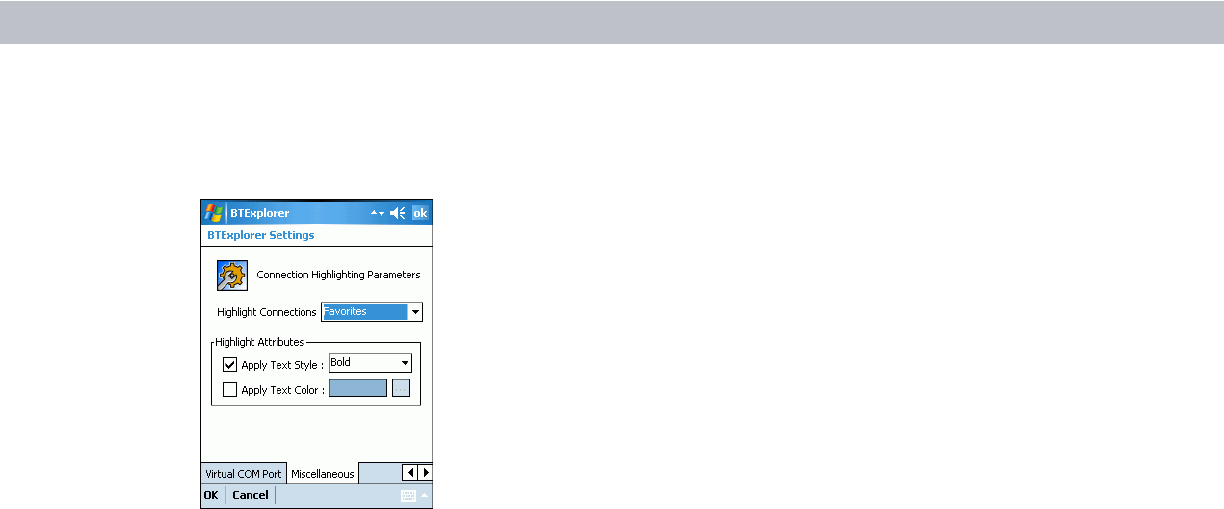

Figure 3-46
BTExplorer Settings - Miscellaneous Tab
Highlight Connections Select the connection type to highlight when connected. In the
Wizard Mode, the only options are Favorites or None. In the Explorer
Mode the options are None, Tree View Only, List View Only, or Tree
and List View.
Apply Text Style Select the text style to apply to the connection text.
Apply Text Color Select the text color to apply to the connection text.
PRELIMINARY
10/20/06

Navigation menu
