DATA SHEET

HCTAG Series

Model Number: HCTAG01

Part Numbers: HCTAG-ST201

Document Revision v1.1

All Synapse products are patented or patent pending

Specifications are subject to change without notice – confirm that data is current

Synapse, the Synapse logo, SNAP, and Portal are all registered trademarks of

Synapse Wireless, Inc.

500 Discovery Drive

Huntsville, Alabama 35806

877-982-7888

Doc # 430157-01A

Page 2 of 7 · Document Number 430157-01A · HCTAG Data Sheet

HCTAG01 Data Sheet

· Document Number 430157-01A · Page 3 of 7

Table of Contents

1. HCTAG01 OEM Device Overview ........................................................................................ 4

Specifications .............................................................................................................................. 5

Electrical Characteristics ............................................................................................................ 5

2. Agency Certifications ............................................................................................................. 5

United States (FCC) .................................................................................................................... 5

FCC Notices ............................................................................................................................ 6

Page 4 of 7 · Document Number 430157-01A · HCTAG Data Sheet

1. HCTAG01 OEM Device Overview

The HCTAG01 device is an IEEE 802.15.4, low-power, highly-reliable solution to

embedded wireless control and monitoring network needs that require high data rates.

The HCTAG01 embeds Synapse’s SNAP OS, the industry’s first Internet-enabled,

wireless mesh network operating system into the Atmel ATMEGA1284RFR2-ZU single-

chip AVR® microcontroller with an integrated transceiver that delivers up to 2Mbits/sec.

This low-power TAG is intended to be used in Real Time Location Systems using RF

technologies with power consumptions as low as 1.0 µA to enable a new generation of

battery-driven systems.

SNAP’s on-board Python interpreter provides for rapid application development and

over-the-air programming, while Atmel’s low-power RF single-chip design saves board

space and lowers the overall Bill of Materials and power consumption. The HCTAG01 is

approved as an FCC Part 15 unlicensed modular transmitters. The modules provide up

to 16 channels of operation in the ISM 2.4GHz frequency band. The HCTAG01 device

is intended to be a low-power transmitter with a low duty cycle (<14%) operation that

can be worn on the body by the user.

This Data Sheet details Part Number HCTAG01:

• 128k flash, 58.5k free for over-the-air uploaded user apps

• One UART port (not externally accessible) for control or transparent data, which

surmounts noisy environments

• Low power modes: 1.0 µA with internal timer running

• Spread spectrum (DSSS) technology

• Up to 2 Mbps Data Rate

• 2.4 GHz RF Frequency

• Receive Mode (7 dBm) standard

• Transmit Mode (2-3 dBm) for good low-power range

• HCTAG01: ANT5320LL24R2400A, ANTENNA,CHIP,2.45GHz,50ohm,2.8dBi

GAIN

HCTAG01 Data Sheet

· Document Number 430157-01A · Page 5 of 7

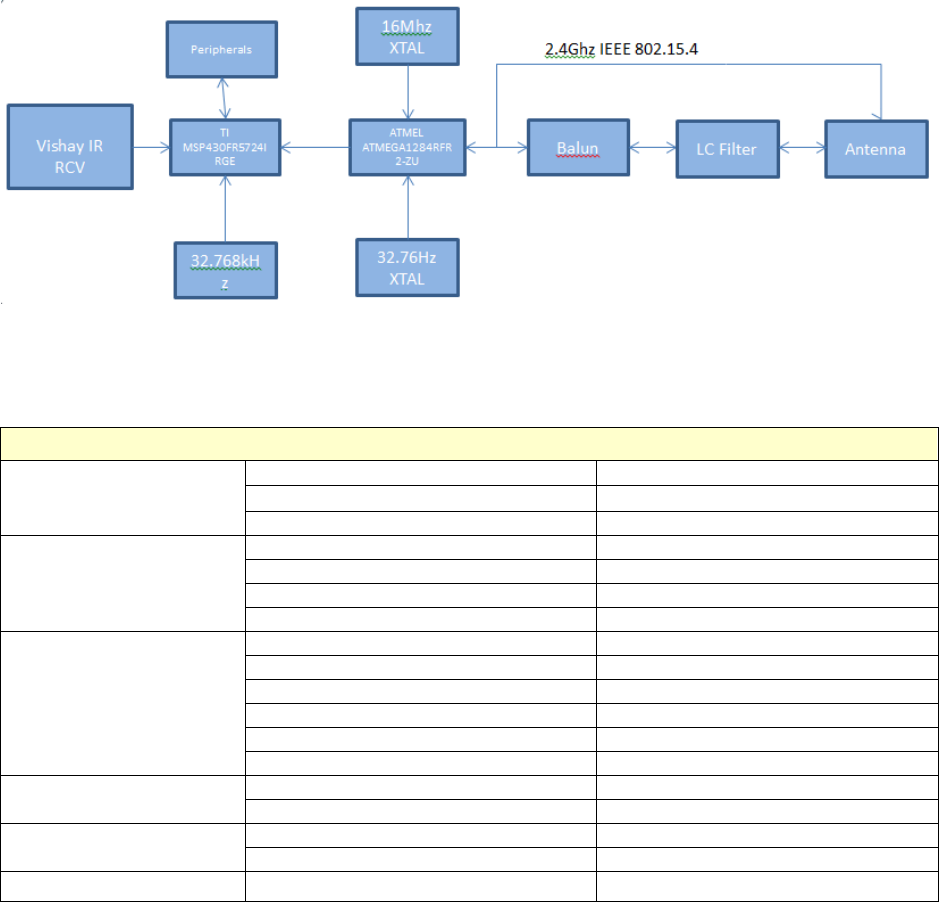

Figure 1.0 Block diagram showing the major subsystems comprising the HCTAG01

Specifications

Table 1.0 HCTAG01 Specifications

Performance

Transmit Power Output

3 dBm

RF Data Rate

250Kbps, 500Kbps, 1Mbps, 2Mbps

Receiver Sensitivity

-107 dBm (1% PER)

Power Requirements

Supply Voltage

2.7 - 3.6 V

Transmit Current (Typ@3.0V)

40mA

Idle/Receive Current (Typ@3.0V)

20mA

Power-down Current (Typ@3.0V)

1.0uA

General

Frequency

ISM 2.4 GHz

Spreading Method

Direct Sequence (DSSS)

Modulation

O-QPSK

Dimensions

3.25" x 2.0" x 0.375"

Operating Temperature

-40 to 85 deg C.

Antenna Option

ANT5320LL24R2400A, Chip

Networking Topology

SNAP

Error Handling

Retries and acknowledgement

Available I/O Number of Channels

16

UARTS with HW Flow Control

1 Port - 8 total I/O

Agency Approvals FCC Part 15.247

FCC ID: U9O-HCTAG01

Electrical Characteristics

The HCTAG01 is powered by quantity two AAA Alkaline Battery Cells. They are not

intended to be user-replaceable.

2. Agency Certifications

United States (FCC)

Page 6 of 7 · Document Number 430157-01A · HCTAG Data Sheet

WARNING: The HCTAG01 modules have been tested by the FCC for use with other

products without further certification (as per FCC Section 2.1091). Changes or

modifications to this device not expressly approved by Synapse Wireless Inc. could void

the user’s authority to operate the equipment.

The HCTAG01 modules comply with Part 15 of the FCC rules and regulations.

Compliance with the labeling requirements, FCC notices and antenna usage guidelines

is required.

FCC ID: U9O-HCTAG01

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS (1) THIS DEVICE MAY NOT

CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY

INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE

UNDESIRED OPERATION

FCC Notices

WARNING: The HCTAG01 device has been tested by the FCC for use with other

products without further certification (as per FCC Section 2.1091). Changes or

modifications to this device not expressly approved by Synapse Wireless Inc. could void

the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Warning:

HCTAG01 Data Sheet

· Document Number 430157-01A · Page 7 of 7

“This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment is in direct contact with the body of the user

under normal operating conditions. This transmitter must not be co-located or operating

in conjunction with any other antenna or transmitter.”
