Syncomm Technology Corp. RADIO PORT Manual
Contents
User Manual
SYNCOMM Proprietary
1
SYNCOMM Radio Port operation manual
1.Environment
Radio Port
Antenna
RS232 Cable: one set
Power module or Power supply: one set
PC or Notebook: one set
RP
PC
Power
Module
Antenna Wire RS-232

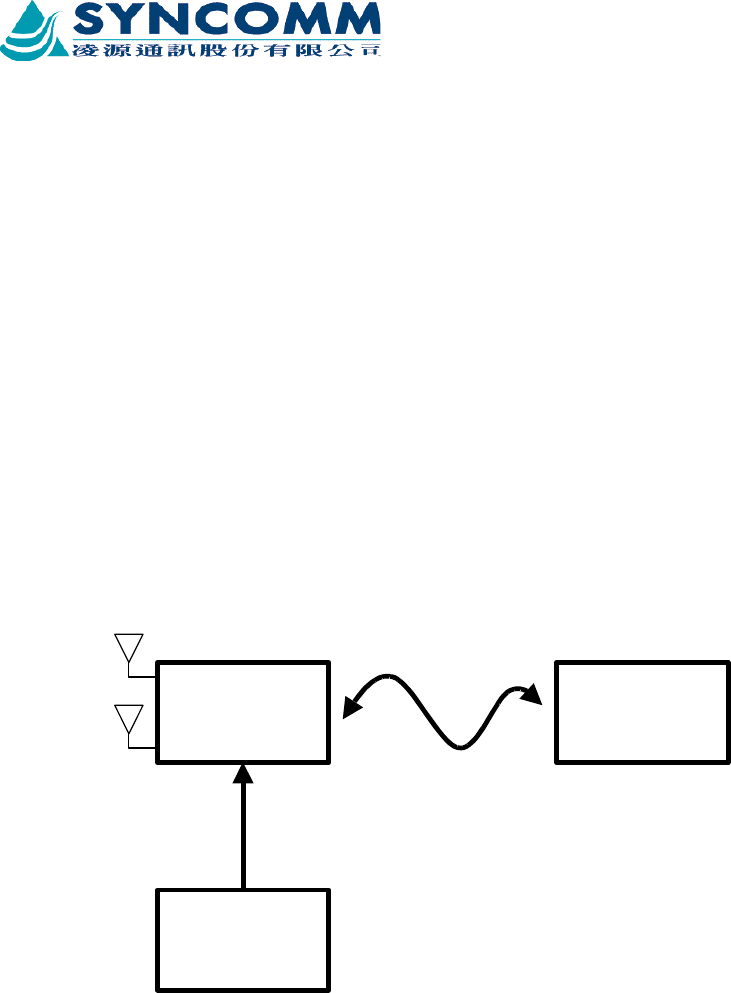

Figure 1-1 Connection view of operation environment
Attention issues:
(1). Please make sure the antennas are connected with
Radio port before power on
(2). If no power module, you could use power supply
SYNCOMM Proprietary
2
2.Explication of operation
(1). Firstly, setup the environment as figure 1-1.
(2). Run Hyper Terminal, setup it and prepare for monitor RP’s
state. (Please refer the third item for how to setup hyper
terminal)
(3). Setup the parameter of RP. (Please refer the fourth item for
setup various parameter in RP)
3.Explication of how to setup Hyper Terminal)
Step 1: Run Hyper terminal

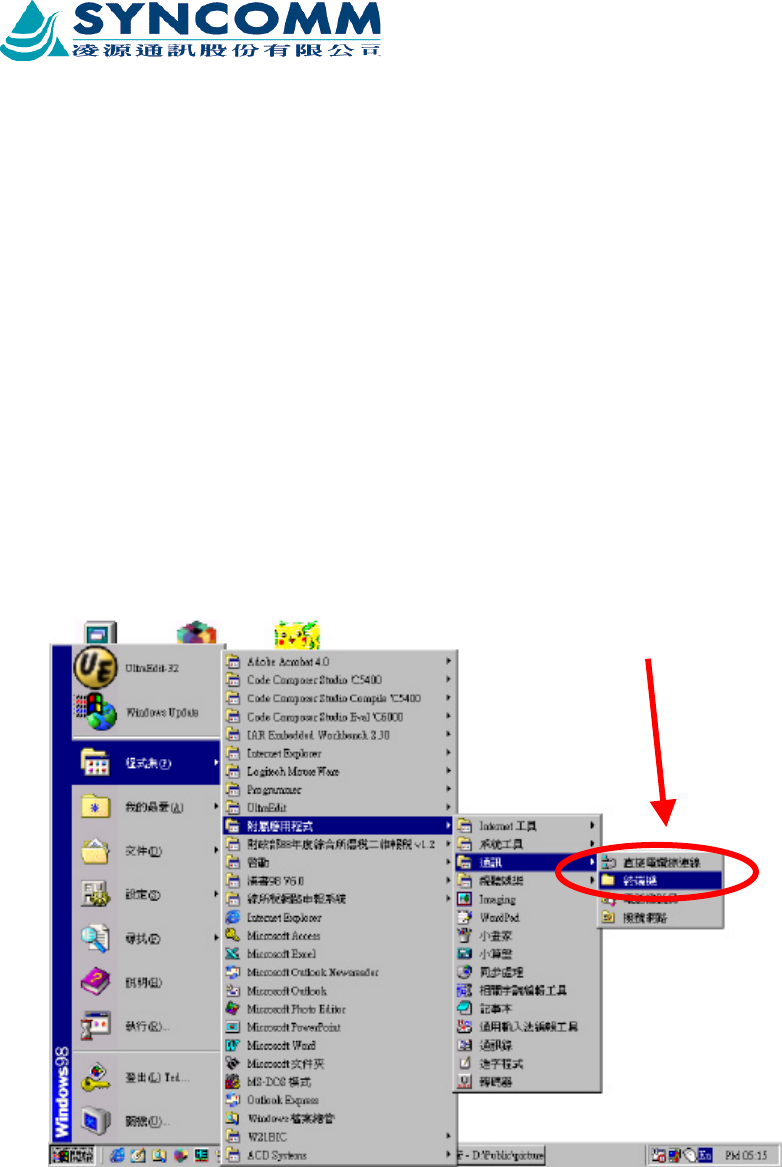

Figure 3-1 the path for executing Hyper Terminal
After ran the Hyper Terminal you could see the status as below.
If you couldn’t find Hyper Terminal, you must re-install it
Hyper Terminal
SYNCOMM Proprietary
3

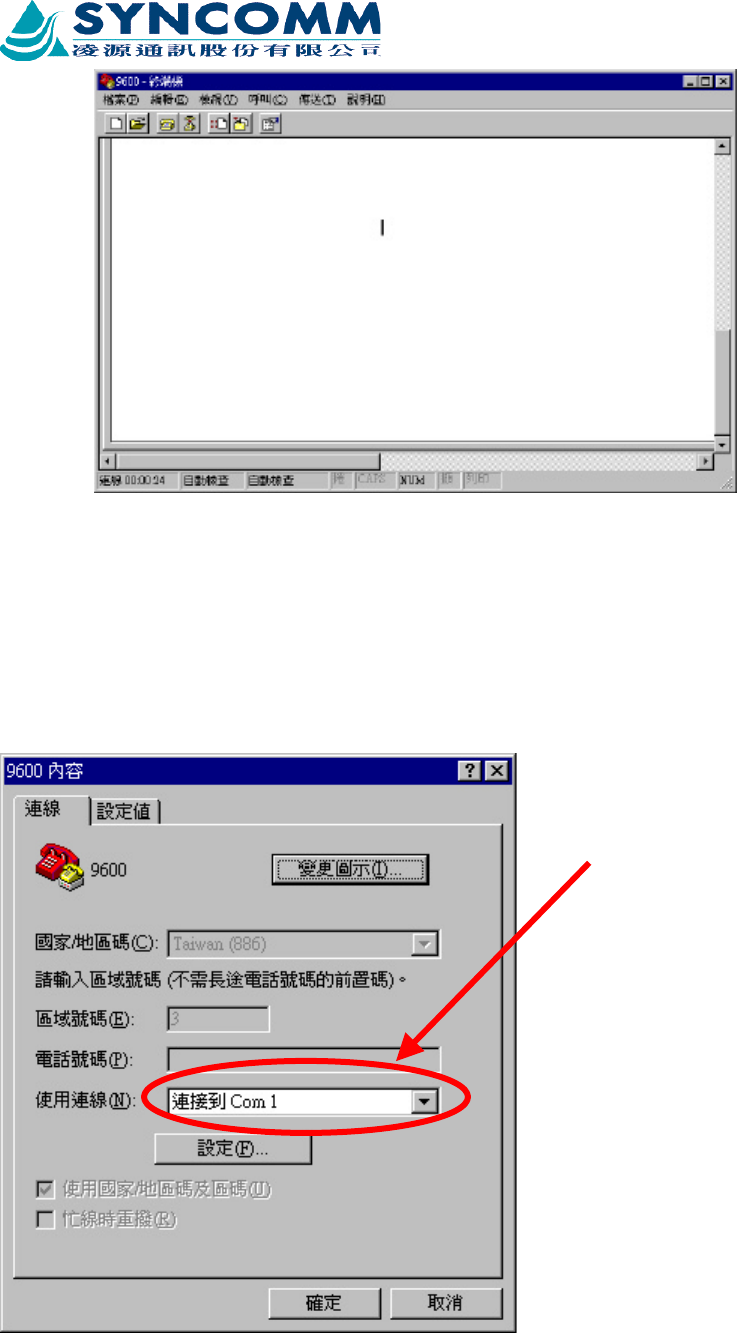

Figure 3-2 the screen after ran Hyper Terminal
Step 2: Setting connection port
In figure 3-2,select “file”, select “content”, then get the screen
as below
Figure 3-3 Select connection port
Step3: Port setting
Set the port that you connect
PC and RP use RS232
SYNCOMM Proprietary
4
Set the data transfer rate (bits/second), bits per unit, parity
check, stop bits, data flow control as below.

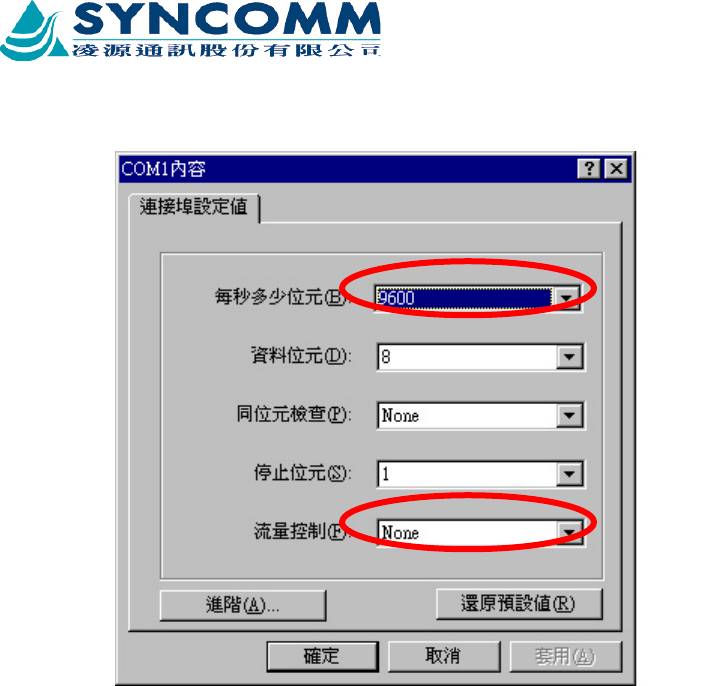

Figure 3-4 Hyper Terminal port setting
4.Various parameter setting
After we done all the preceding action, we turn on the power of
RP and watch the windows of Hyper Terminal

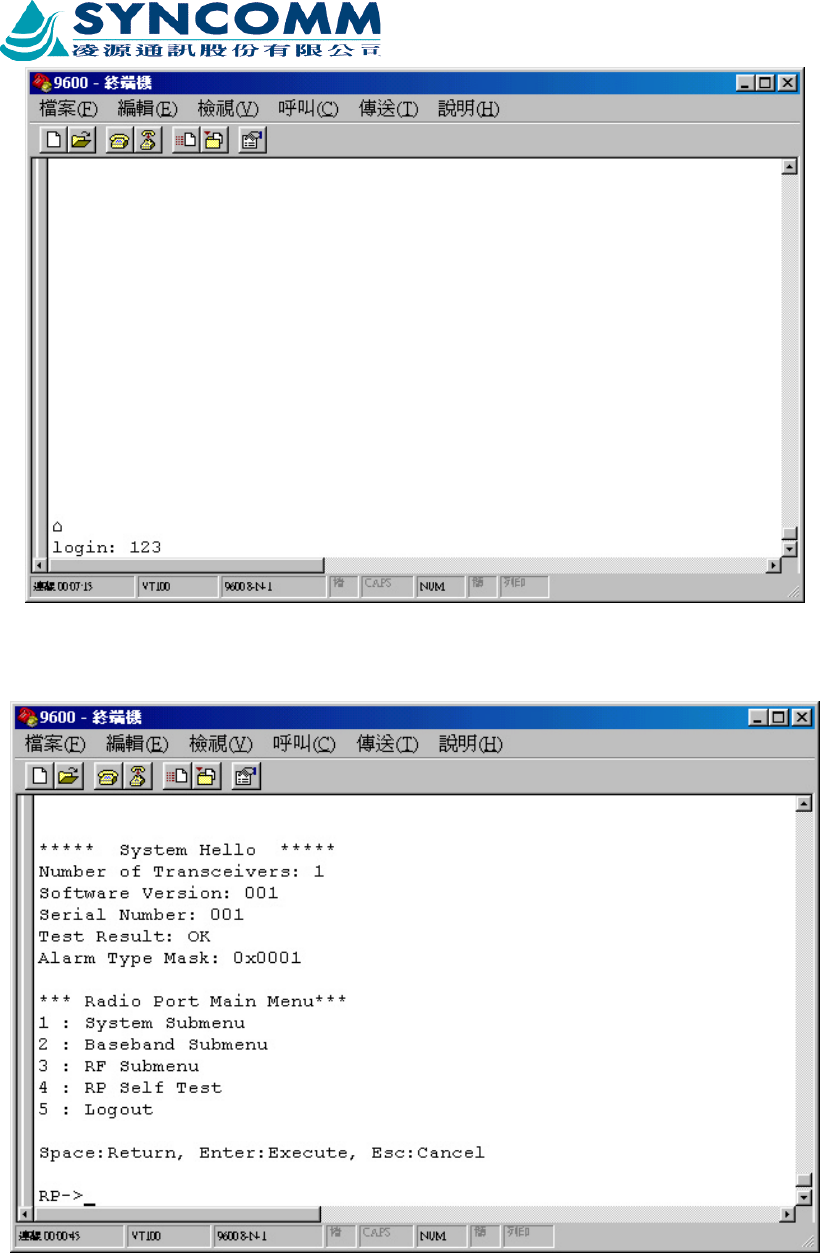

(1). At first, the word “login” show on the window, and please
input the password 123
SYNCOMM Proprietary
5
(2). Enter main menu
(3). Input “rd” & press “Enter” to enter Research mode, there
are three kinds of mode, normal mode, research mode, and
test mode
SYNCOMM Proprietary
6
(4). Input 2 to enter RF test menu
(5). After enter RF Test menu, you can control to turn on of
turn off transmitter
SYNCOMM Proprietary
7

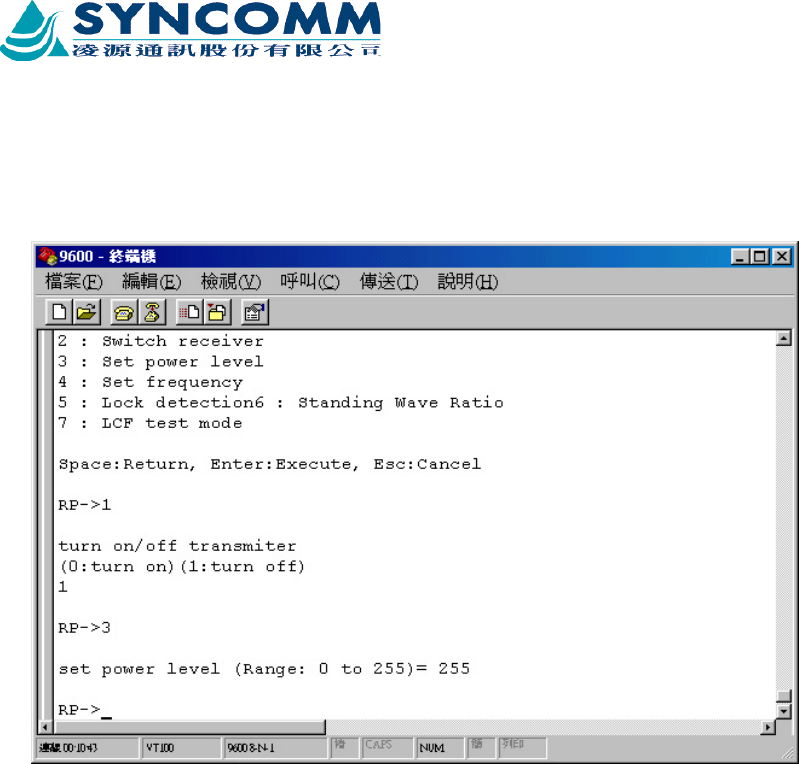

(6). If you Select 3, you can set the output power of
transmitter, the range from 0 to 255, mapping to output
power level from 0 to 800 mW, you can use this way to
setting output power level to correct output power level.

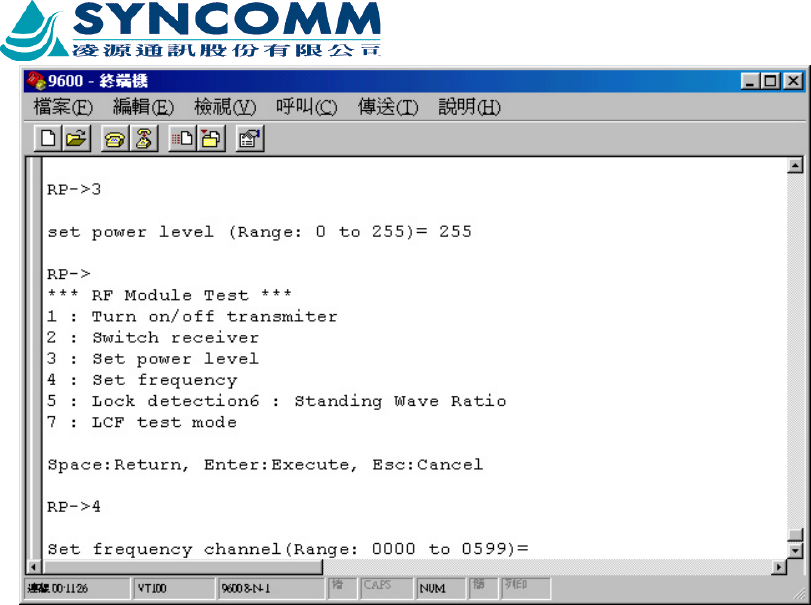

(7). Select 4, you can set the operation frequency of
transmitter, range from 0 to 599, mapping to 1.93 GHz
to 1.99GHz
