Syncomm Technology RADIOPORTB1990 RADIO PORT User Manual Manual 1

Syncomm Technology Corp. RADIO PORT Manual 1

Contents

Addtional instructions for installation

SYNCOMM Proprietary
1
1. Installation Guide
1.1. Material List
PACS RADIO PORT Material List
Component
Number Specification Quantity
1 RADIO PORT 1
2 MOUNTING PLATE 1
3 ANTENNA BRACKET 2
4 BRACKET ANGLE 4
5 MOUNTING BELT 2
6 MECHINIC SCREW M6*20 8
7 MECHINIC SCREW M6*40 4
8 WASHER 24
9 NUT SCREW 12
10 SPRING WASHER 12
11 ANTENNA ASS'Y 2
12 ANCHOR BOLT 2
13 ANTENNA CABLE 2
14 ABS COVER 2
1.2. Installation on utility pole or cylindrical pole
1.2.1.Installation requirements
The diameter of the utility pole or cylindrical pole should be between 20cm
and 35 cm. The material of the pole can be wood, cement or metal.
1.2.2.Installation procedure
Step 1.:
According to figure 5-1, assemble components (3) and (4) for two
sets (left and right) by M6*40 screws with grommet or spring
grommet between the screw and screw nut using components (7),
(8), (9), and (10).
Step2:
SYNCOMM Proprietary
2
Assemble the two combined entities (left and right) from Step1 with
component (2) by M6*20 screws with grommet or spring grommet
between the screw and screw nut using components (6), (8), (9),
and (10). Then press component (14) into component (3).
Step3:
Fix the rack from Step1 and Step2 on the pole by two stainless bands,
component (5), respectively on the op and the bottom following the instruction
in Figure 5-3.
Step4:
Screw two antenna sets (component (11) and component (13) ) onto the two
sides of component (3) tightly with antenna facing the outer side.
Step 5:
Fix the radio port (component (1)) on the rack by M6*20 screws with
grommet or spring grommet between the screw and screw nut
using components (6), (8), (9), and (10), and the installation is
complete.
Step 6:
According to figure 5-4, connect ANT0, ANT1, LINE cable, and the EARTH
cable to the RP.
SYNCOMM Proprietary
3
1.3. Installation on the wall
1.3.1.Installation requirements
It would be better that the wall is 8-inch thick. Because the
adopted fixed crew is only for cement wall use, the other materials
such as wooden wall and metal wall are not applicable
1.3.2.Installation procedures
Step1:
According to figure 5-2, assemble components (3) and (4) for two
sets (left and right) by M6*40 screws with grommet or spring
grommet between the screw and screw nut using components (7),
(8), (9), and (10).
Step2:
According to figure 5-2, drill two holes on the wall by electrical
driller with fitting size measured from the metal rack. Then fix the
component (2) on the wall by component (12).
Step3:
Assemble the two combined entities (left and right) from Step1 with
component (2) by M6*20 screws with grommet or spring grommet
between the screw and screw nut using components (7), (8), (9),
SYNCOMM Proprietary
4
and (10). Then press the plastic cap ( component (14) ) into
component (3).
Step4:
Screw two antenna sets( component (11) and component (13) )
onto the two sides of component (3) tightly with antenna facing the
outer side.
Step 5:
Fix the radio port ( component(1) ) on the rack by M6*20 screws
with grommet or spring grommet between the screw and screw nut
using components (6), (8), (9), and (10), and the installation is
complete.
Step 6:
According to figure 5-4, connect ANT0, ANT1, LINE cable, and the
EARTH cable to the RP.
SYNCOMM Proprietary
5

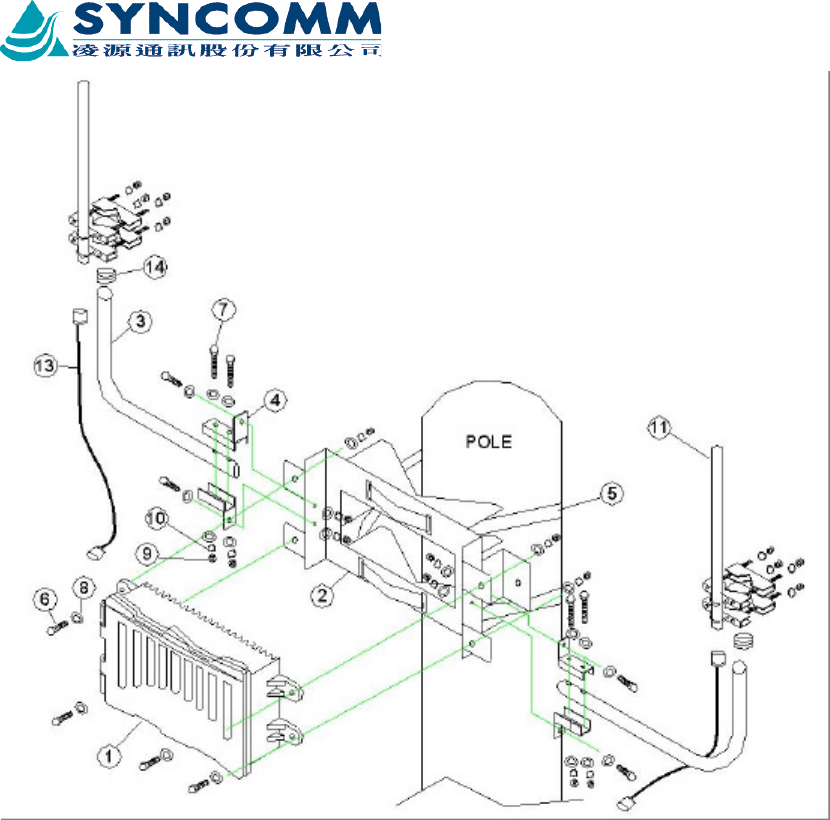

Figure. 5-1
SYNCOMM Proprietary
6

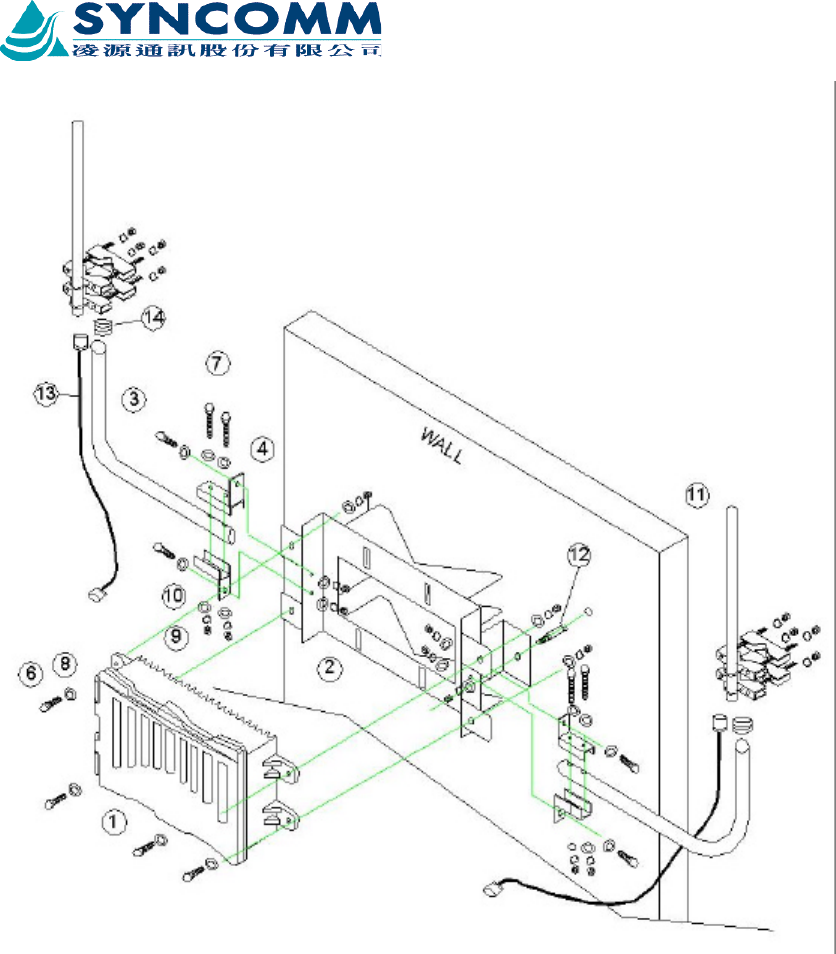

Figure. 5-2
SYNCOMM Proprietary
7

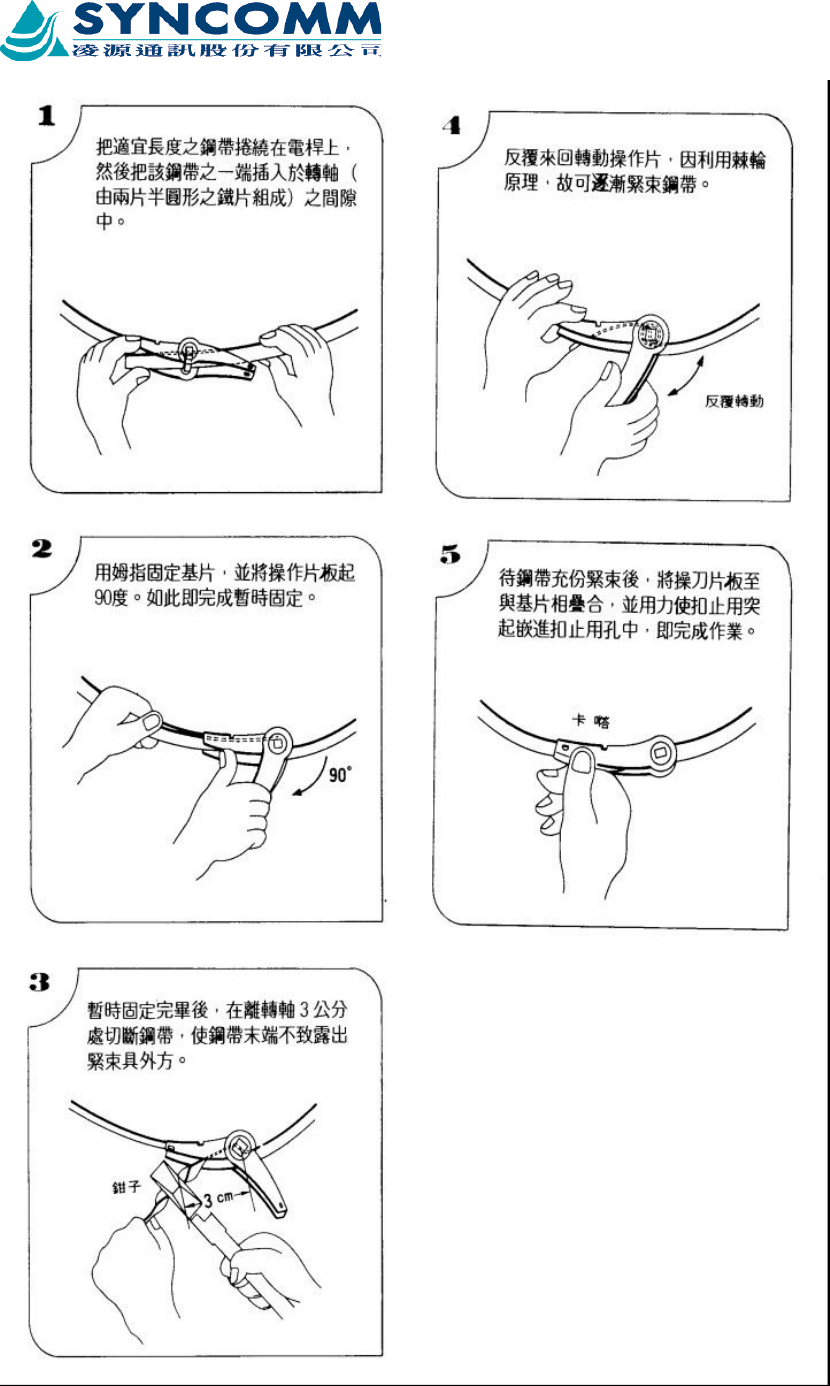

Figure. 5-3
SYNCOMM Proprietary
8

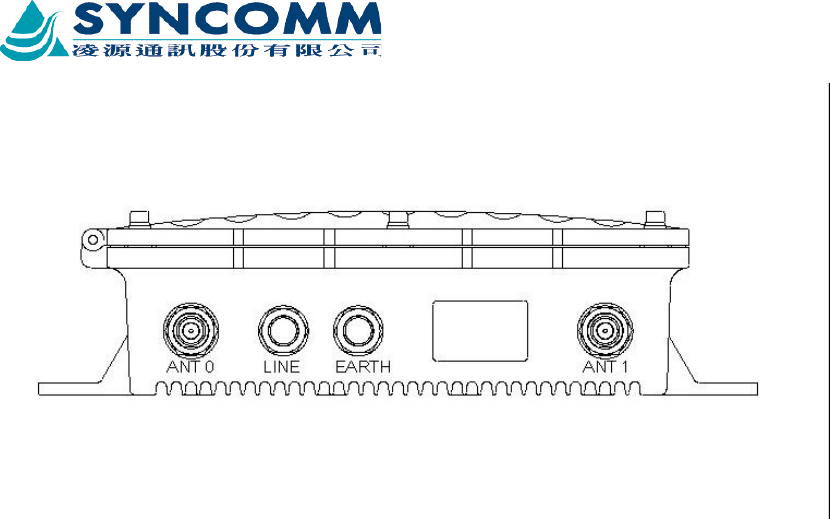

Figure. 5-4
