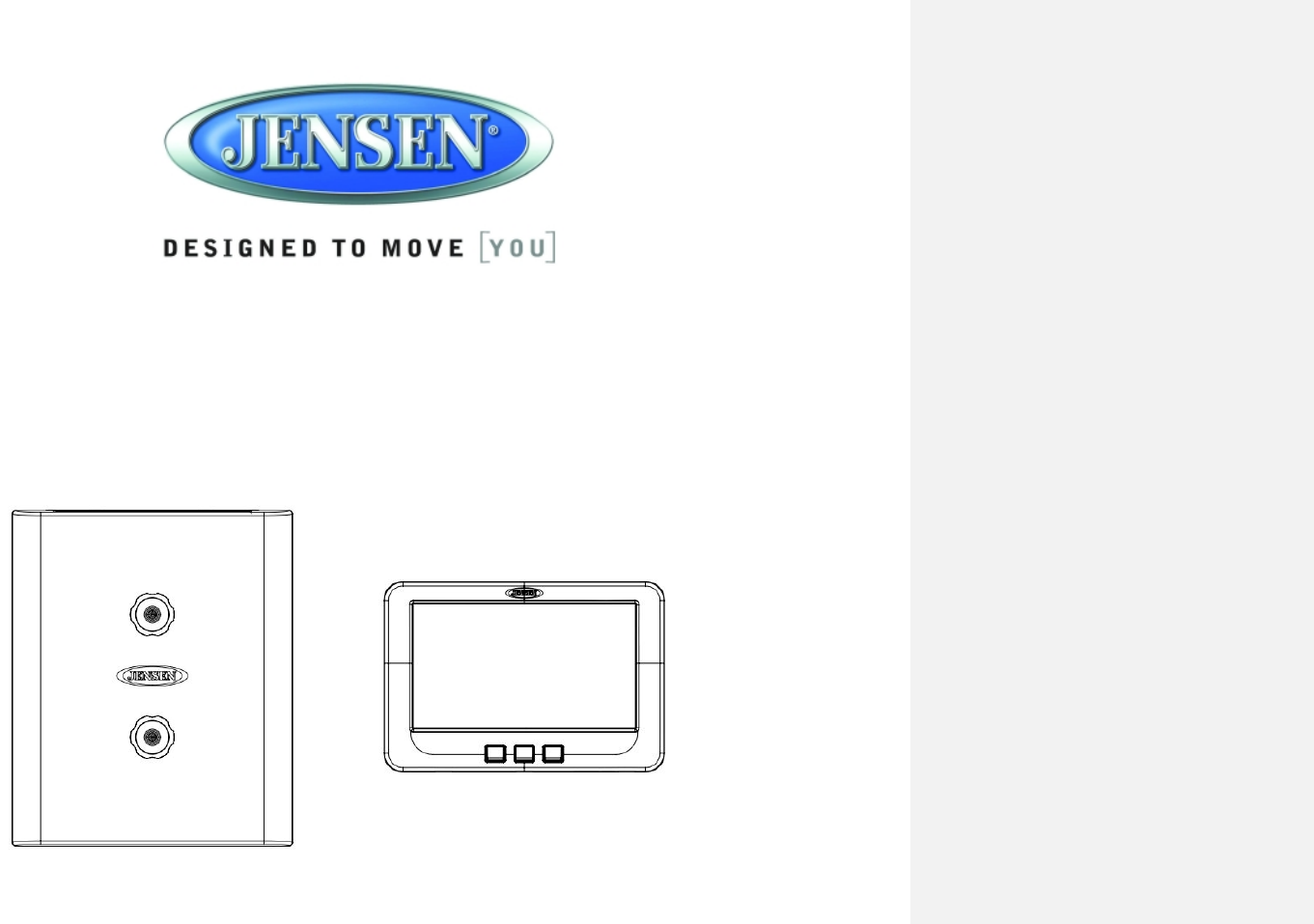

JRVCS1

RV CONTROL AND MONITORING SYSTEM

Installation and Operation Manual

JRVCS1

ii

CONTENTS

CONTENTS ................................................................................................................................. ii

Introduction .................................................................................................................................. 4

Thank You! ............................................................................................................................ 4

Features ................................................................................................................................ 4

Precautions ........................................................................................................................... 4

Packing List .......................................................................................................................... 4

Installation .................................................................................................................................... 5

Tools and Supplies ................................................................................................................ 5

Disconnecting the Battery ..................................................................................................... 5

Selecting the Mounting Location ........................................................................................... 5

Mounting the Digital Commander (DC) ................................................................................. 5

Wiring ........................................................................................................................................... 6

Troubleshooting ........................................................................................................................... 9

Specifications ............................................................................................................................. 11

FCC Notes .......................................................................................................................... 11

JRVCS1

iii

JRVCS1

4

INTRODUCTION

Thank You!

Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s

manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to

use all the features of your new Jensen JRVCS1 for maximum enjoyment.

Features

Features of Jensen JRVCS1 system include:

 Control four zones of lighting.

 Monitor all water tank levels.

 Control and monitor the Water Heater.

 Control and monitor the Generator.

Precautions

 Use the Proper Power Supply.

This product is designed to operate with a 12 volt DC, negative ground battery system (the

standard system in a North American vehicle).

 Use Authorized Service Centers.

Do not attempt to disassemble or adjust this precision product; contact a professional for

assistance.

 Avoid Moisture.

To reduce the risk of fire or electric shock, do not expose this equipment to rain or

moisture.

 Avoid Cleaning Products.

The front of this unit should only be cleaned with a slightly damp cloth. Do not use

cleansers.

 Use Recommended Accessories.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

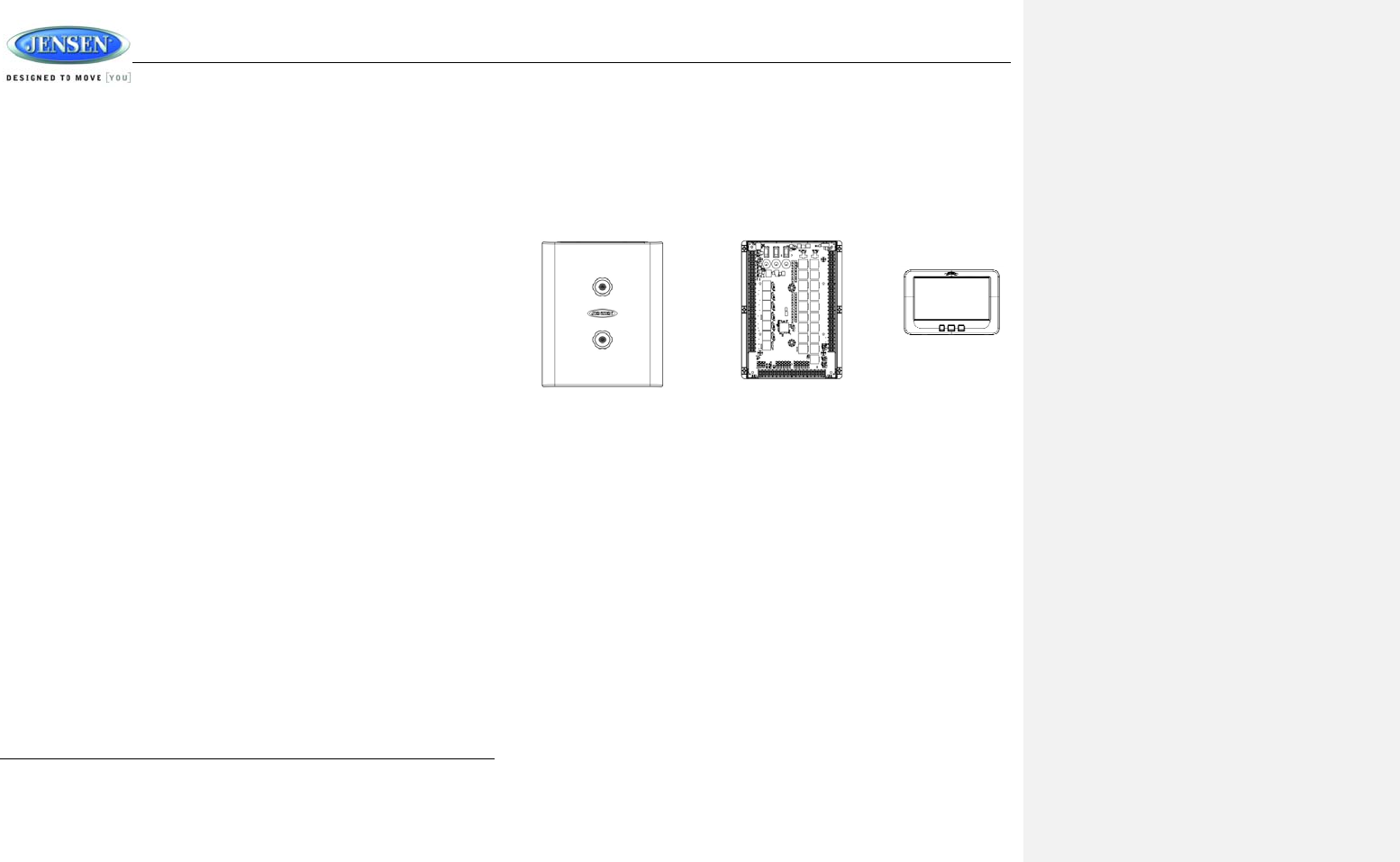

Packing List

1 Cover, 2 Thumb Screws 1 Body Control Module (BCM) 1 Display Commander (DC)

JRVCS1

5

INSTALLATION

It’s a good idea to read all of the instructions before beginning the installation. We recommend

having your Jensen JRVCS1 installed by a reputable RV dealership

Tools and Supplies

You will need these tools and supplies to install your JRVCS1:

 Phillips screwdriver

 Wire cutters and strippers

 Electrical tape

 Crimping tool

 Volt meter/test light

 Fork Crimp connectors

 10 gauge wire for power and slide connections

 14 and 18 gauge wire for all other connections

 Four #8 PH (0.164” x 0.75”) screws for the DC

 Six #8 PH (0.164” x 1.0”) screws for the BCM

Disconnecting the Battery

To prevent a short circuit, be sure to turn off 12V power and remove the negative (-) battery

cable prior to installation.

Selecting the Mounting Location

Select a mounting location, taking care to avoid the following:

 Places exposed to heat-radiating appliances such as electric heaters

 Adjacent to other equipment that radiates heat

 Poorly-ventilated or dusty places

 Moist or humid locations

Mounting the Display Commander (DC)

 Use the mounting hole diagram to measure and cut a mounting hole

 Route power wires through the hole and connect

 Check and ensure correct operation

 Mount the unit using four #8 PH (0.164” x 0.75”) screws

 Attach Trim ring.



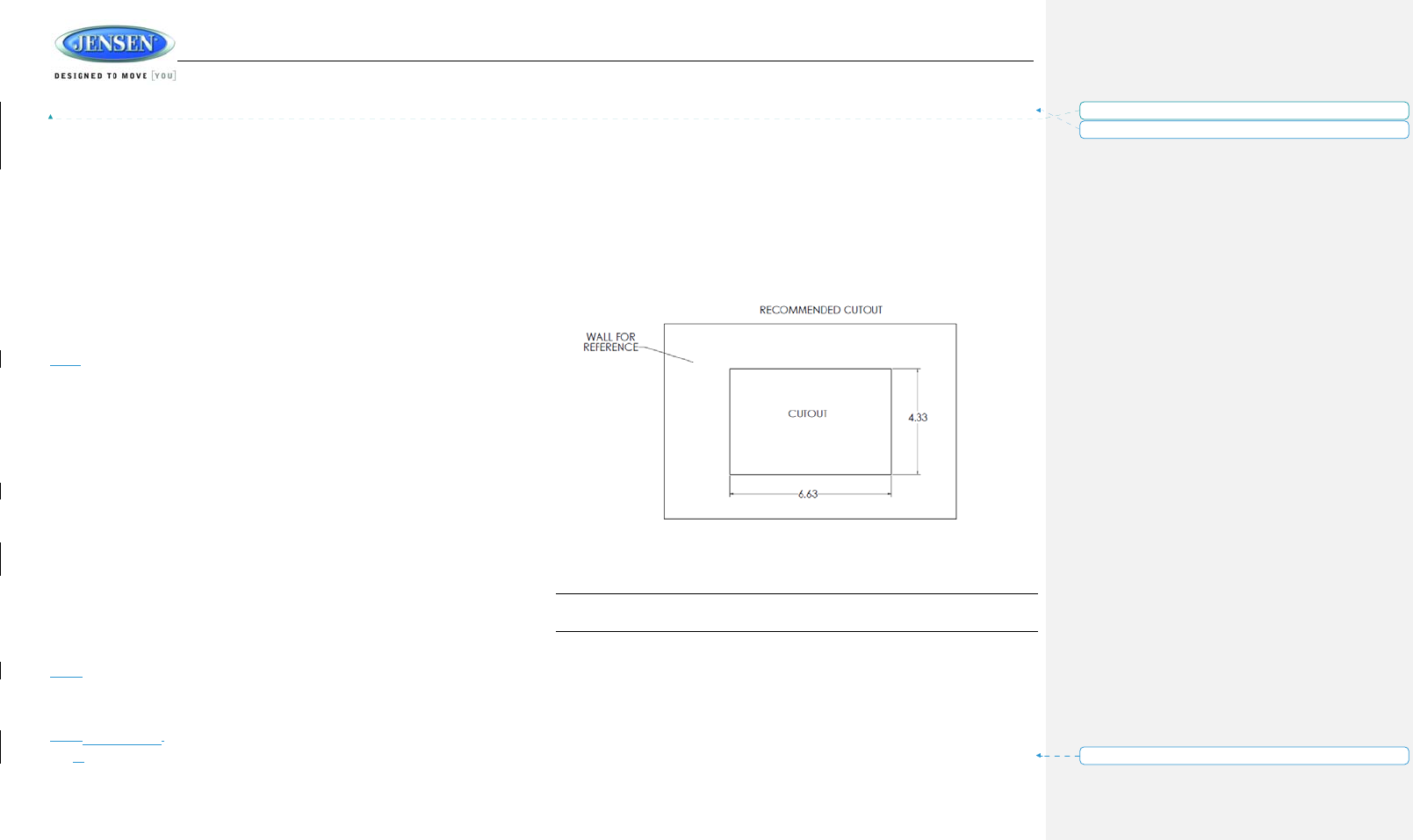

CUTOUT FOR DISPLAY COMMANDER (DC)

NOTE: Before cutting the mounting hole, make sure the area behind the mounting

location is clear of wires, fuel and vacuum or water lines.

格式化: 字型: 粗體

格式化: 左 0 字元

格式化: 縮排: 左: 0.63 公分

JRVCS1

6

WIRING

The wiring diagram depicts all the wiring connections required for proper operation of the unit.

DETAIL A

BODY CONTROL MODULE (BCM) CONNECTIONS

PIN NO.

WIRE COLOR/SIZE DESCRIPTION

1 BLUE (18) FRESH TANK 1 (IN)

2 FRESH TANK 2 (IN)

3 BROWN (18) BLACK TANK 1 (IN)

4 LIGHT BLUE (18) BLACK TANK 2 (IN)

5 GRAY (18) GRAY TANK 1 (IN)

6 RED (18) GRAY TANK 2 (IN)

7 LIGHT BLUE (18) GRAY TANK 3 (IN)

8 WHITE (18) TANK SENSOR GROUND (IN)

9 GREEN (14) LIGHT GROUP 1 + (IN)

10 WHITE (14) LIGHT GROUP 1 - (IN/OUT)

11 GREEN (14) LIGHT GROUP 1 + (OUT)

12 GREEN (14) LIGHT GROUP 2 + (IN)

13 WHITE (14) LIGHT GROUP 2 - (IN/OUT)

14 GREEN (14) LIGHT GROUP 2 + (OUT)

15 GREEN (14) LIGHT GROUP 3 + (IN)

16 WHITE (14) LIGHT GROUP 3 – (IN/OUT)

17 GREEN (14) LIGHT GROUP 3 + (OUT)

18 GREEN (14) LIGHT GROUP 4 + (IN)

19 LIGHT WHITE

(14)

LIGHT GROUP 4 - (IN/OUT)

20 LIGHT GREEN

(14)

LIGHT GROUP 4 + (OUT)

21 ORANGE (14) EXTERIOR LIGHTS + (IN)

22 WHITE (14) EXTERIOR LIGHTS - (IN/OUT)

23 LIGHT ORANGE

(14)

EXTERIOR LIGHTS + (OUT)

24 LIGHT ORANGE

(14)

SECURITY LIGHTS + (IN)

25 WHITE (14) SECURITY LIGHTS - (IN/OUT)

26 ORANGE (14) SECURITY LIGHTS + (OUT)

27 LIGHT ORANGE

(14)

AWNING LIGHTS + (OUT)

28 LIGHT WHITE

(14)

AWNING LIGHTS - (OUT)

29 AUX FUEL TANK + (IN)

30 AUX FUEL TANK - (OUT)

31 LIGHT AUX TRIGGER 1 (OUT)

32 RED

(18)LIGHT

GEN START +12V (OUT)

DETAIL A

BODY CONTROL MODULE (BCM) CONNECTIONS

PIN NO. WIRE COLOR/SIZE DESCRIPTION

33 GREEN (18) GEN PRIME/STOP +12V (OUT)

34 BLUE (18) GEN SERVICE +12V (IN)

35 ORANGE (18) GEN HOUR METER +12V (IN)

36 BLACK (14) GEN FUEL TANK LEVEL (IN)

37 RED(14)/BROWN (18) GEN GROUND

38 GRAY (16) LANDING GEAR +12V (OUT)

39 WHITE (16) LANDING GEAR GROUND (OUT)

40 GRAY (16) HYDRAULIC VALVE EXTEND

41 WHITE (16) HYDRAULIC VALVE RETRACT

42 GRAY (16) HYDRAULIC VALVE +12V

43 WHITE (16) HYDRAULIC VALVE GROUND

44 AUX TRIGGER 2 (OUT)

45 AUX TRIGGER 3 (OUT)

46 AUX TRIGGER 4 (OUT)

47 AUX TRIGGER 5 (OUT)

JRVCS1

7

48 AUX TRIGGER 6 (OUT)

49 AUX TRIGGER 7 (OUT)

50 AUX TRIGGER 8 (OUT)

51 BROWN (18) LOCKOUT SIGNAL +12V (IN)

52 W HITE

(18)

WATER HEATER GROUND

53 BROWN (18) WATER HEATER ON (GAS)

54 ORANGE (18) WATER HEATER ON (ELECTRIC)

55 PINK (18) WATER HEATER FAULT

56 BLUE (14) WATER PUMP +12V (OUT)

57 WHITE (14) WATER PUMP -12V (IN/OUT)

58 BLUE (14) WATER PUMP +12V (OUT)

59 WHITE (14) AWNING 2 -12V (OUT)

60 YELLOW (14) AWNING 2 +12V (OUT)

61 WHITE (14) AWNING 1 -12V (OUT)

62 YELLOW (14) AWNING 1 +12V (OUT)

63 (10) REAR JACKS (OUT)

64 (10) REAR JACKS (OUT)

BODY CONTROL MODULE (BCM) CONNECTIONS

PIN NO.

WIRE COLOR/SIZE DESCRIPTION

65 (10) FRONT JACKS (OUT)

66 (10) FRONT JACKS (OUT)

67 WHITE (10) ELECTRIC SLIDE 5 -12V (OUT)

68 PURPLE (10) ELECTRIC SLIDE 5 +12V (OUT)

69 WHITE (10) ELECTRIC SLIDE 4 -12V (OUT)

70 PURPLE (10) ELECTRIC SLIDE 4 +12V (OUT)

71 WHITE (10) ELECTRIC SLIDE 3 -12V (OUT)

72 PURPLE (10) ELECTRIC SLIDE 3 +12V (OUT)

73 WHITE (10) ELECTRIC SLIDE 2 -12V (OUT)

74 PURPLE (10) ELECTRIC SLIDE 2 +12V (OUT)

75 WHITE (10) ELECTRIC SLIDE 1 -12V (OUT)

76 PURPLE (10) ELECTRIC SLIDE 1 +12V (OUT)

77 BLACK (10) CHASSIE GROUND (IN)

78 YELLOW (14) AWNING +12V (IN)

79 PURPLE (10) ELECTRIC SLIDE +12V (IN)

80 RED (10) BCM +12V (IN)

JRVCS1

8

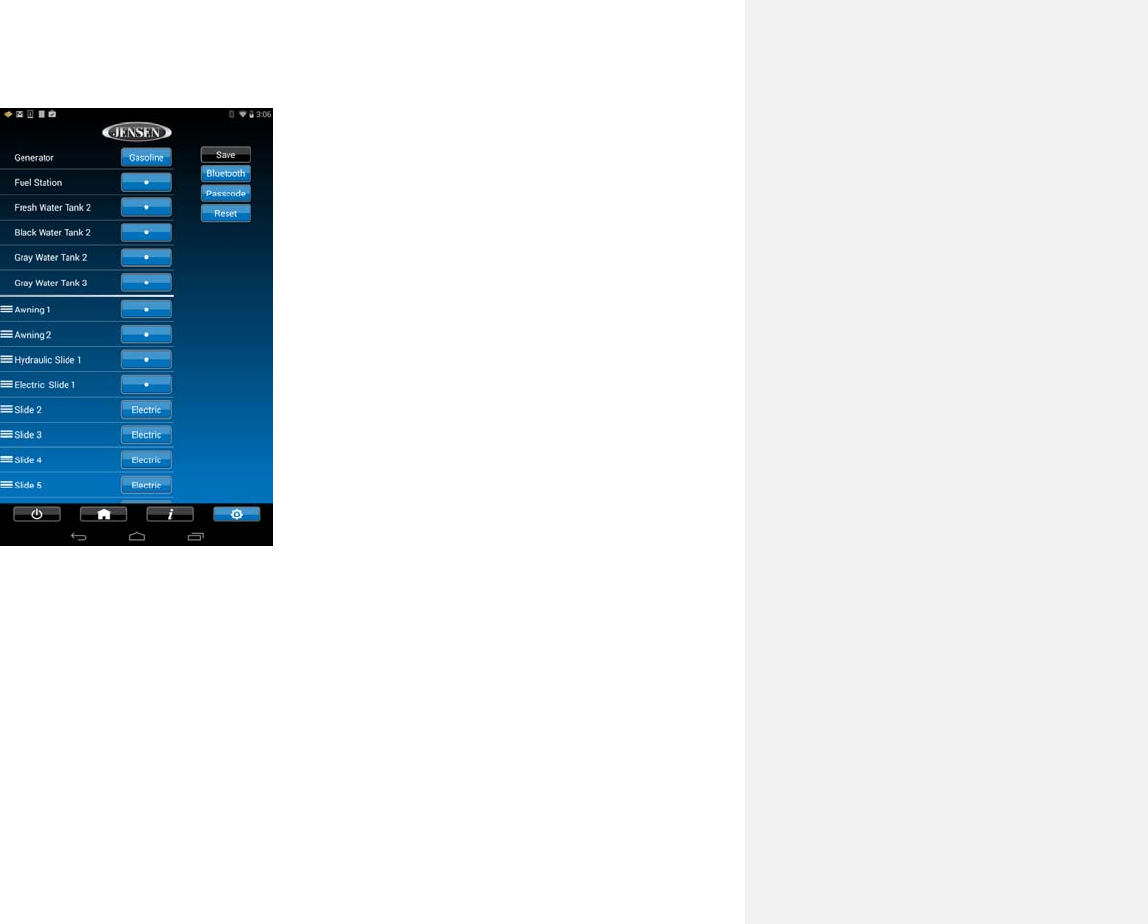

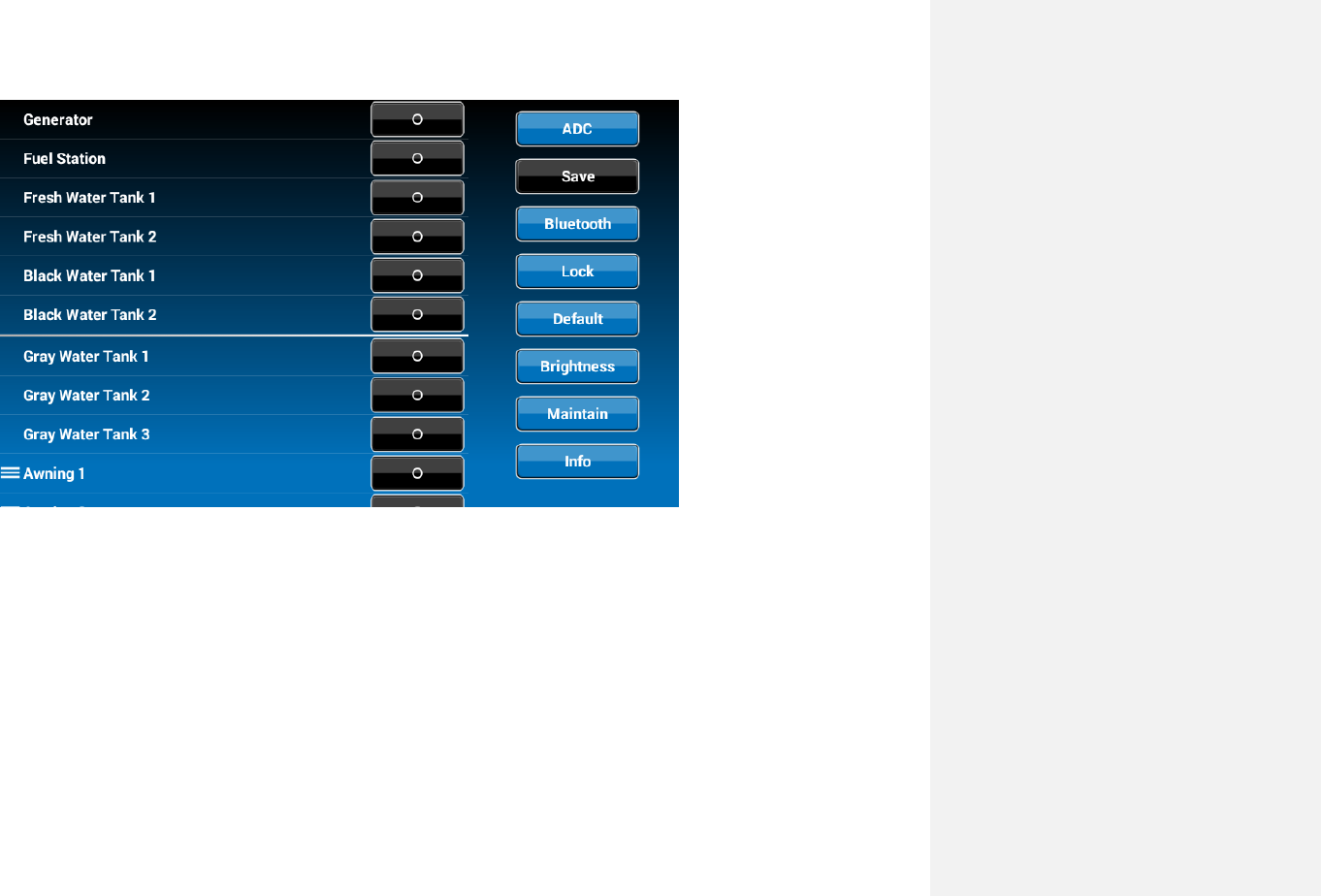

SETUP MENU LIST

JRVCS1

9

ITEM SELECTION

GENERATOR

PROPANE OR GAS

SLIDE 1 ELECTRIC OR HYDRAULIC

SLIDE 2 ELECTRIC OR HYDRAULIC

SLIDE 3 ELECTRIC OR HYDRAULIC

SLIDE 4 ELECTRIC OR HYDRAULIC

SLIDE 5 ELECTRIC OR HYDRAULIC

TRIGGER 1 MOMENTARY OR LATCH

TRIGGER 2 MOMENTARY OR LATCH

TRIGGER 3 MOMENTARY OR LATCH

TRIGGER 4 MOMENTARY OR LATCH

TRIGGER 5 MOMENTARY OR LATCH

TRIGGER 6 MOMENTARY OR LATCH

TRIGGER 7 MOMENTARY OR LATCH

TRIGGER 8 MOMENTARY OR LATCH

FRONT JACKS ELECTRIC OR HYDRAULIC

REAR JACKS ELECTRIC OR HYDRAULIC

JRVCS1

10

TROUBLESHOOTING

Symptom Solution

DC will not turn ON or No

front panel operation

Try the ON/OFF button.

Check main fuse in Distribution Panel.

Check 12V+ on wire to DC (RED wire).

Check Ground wire to DC.

No Power to the Body

Control Module (BCM)

Check the Red power LED is off,

Check the fuse in the Distribution Panel.

Check 12V+ on wire at pin 80.

Check Ground wire at pin 77.

JRVCS1

11

SPECIFICATIONS

Display Commander (DC)

Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12vdc

Maximum Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600ma@12vdc

Minimum Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …9vdc

Maximum Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16vdc

Body Control Module (BCM)

Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12vdc

Maximum Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600ma@12vdc

Minimum Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9vdc

Maximum Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16vdc

JRVCS1 System

EPROM Non-Volatile Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . YES

Bluetooth Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0 BLE

General

Body Control Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.7” (W) x 17.87” (D) x1855mm

1.75” (H)

Display Commander . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195mm (W) x 132mm (D) x36.5mm

(H)

FCC Notes

WARNING! Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

格式化: 置中

格式化: 靠右

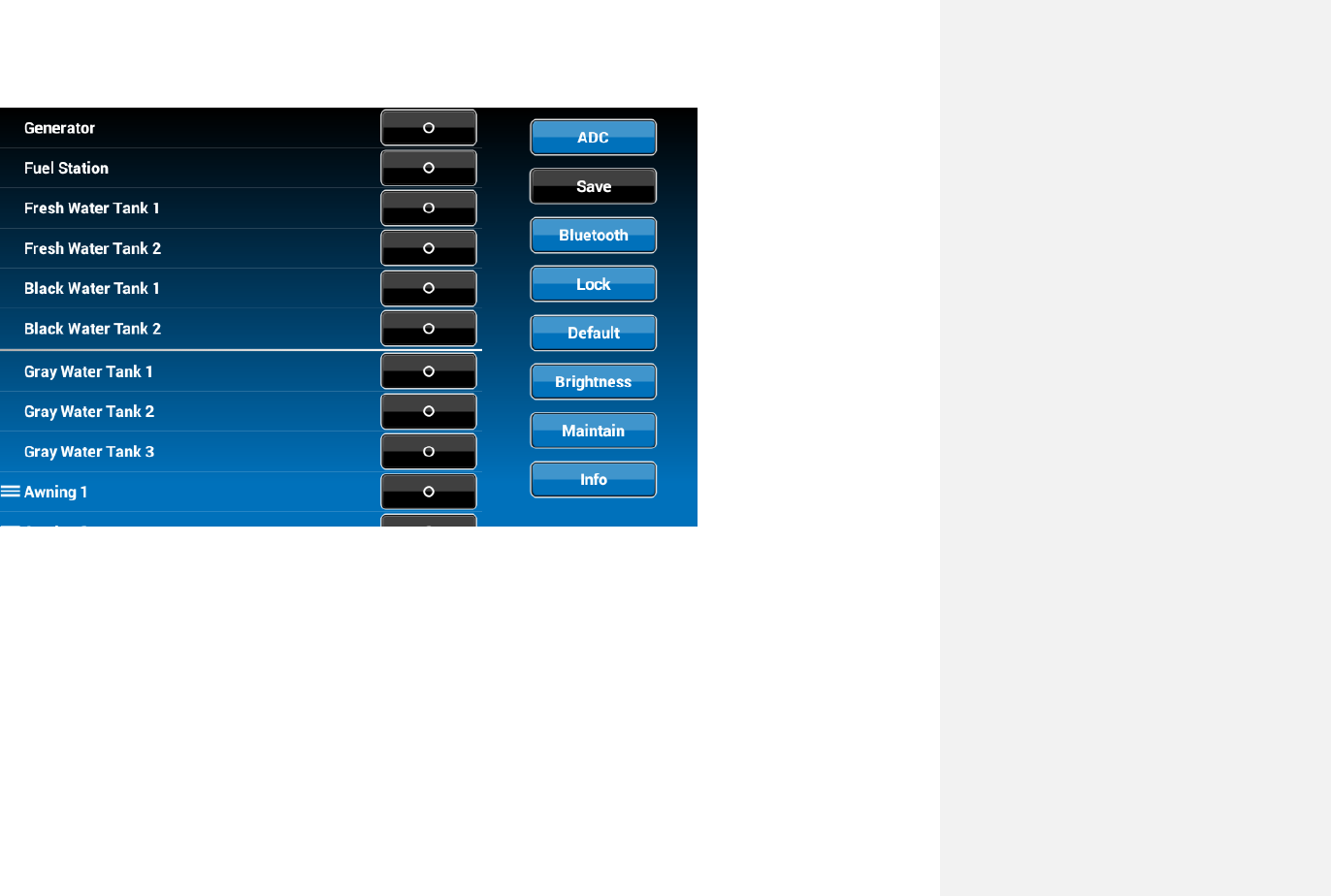

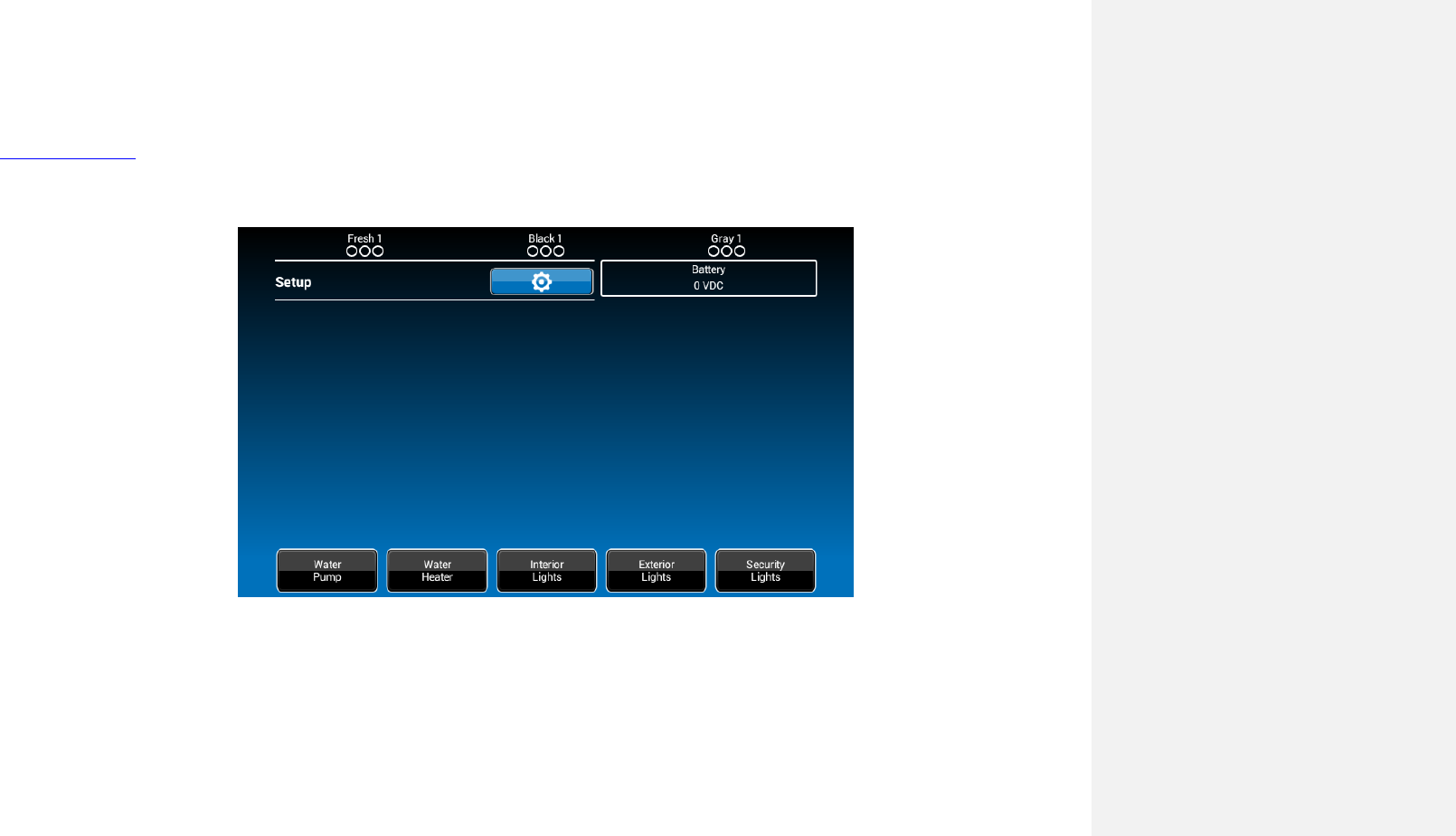

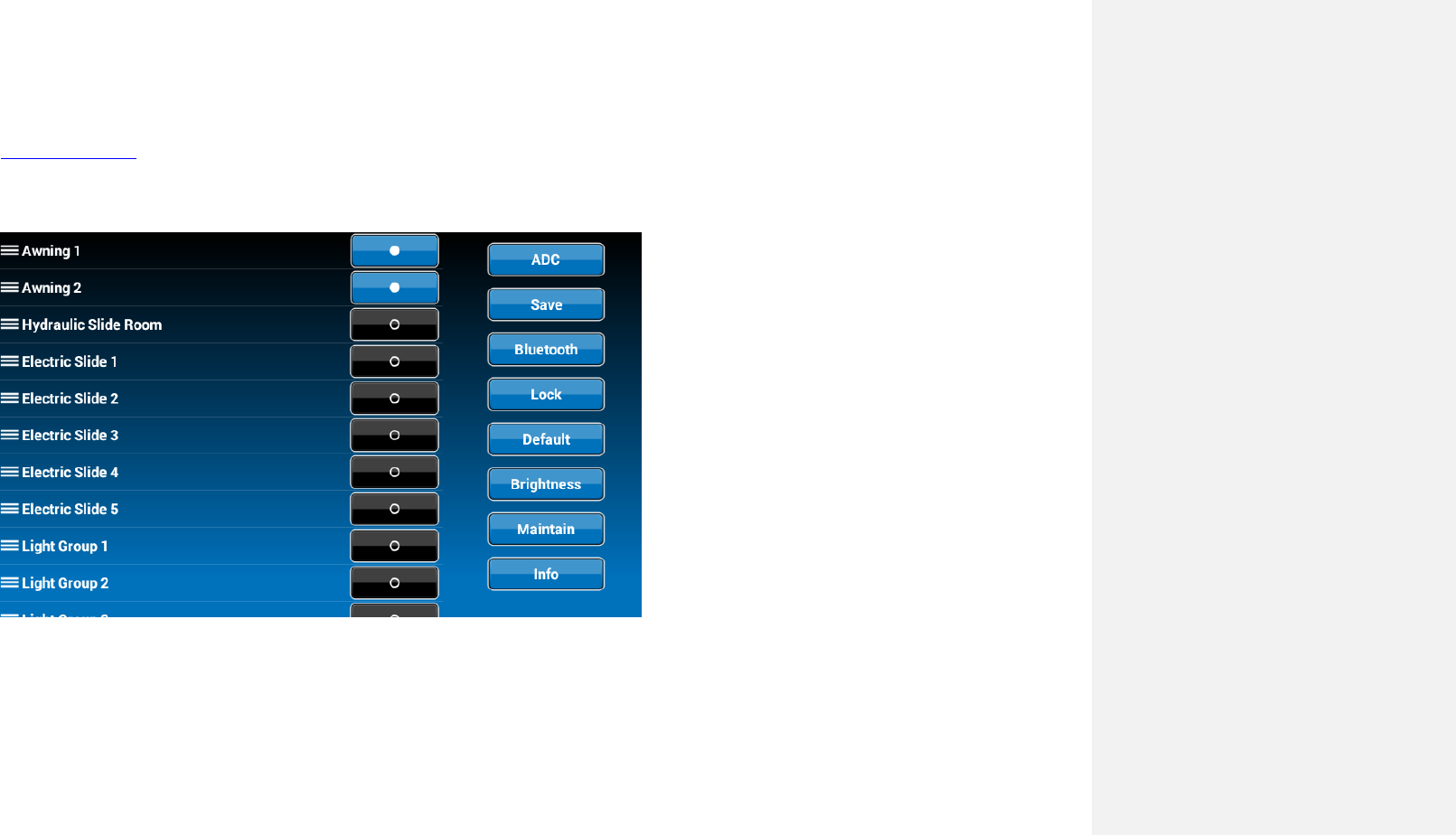

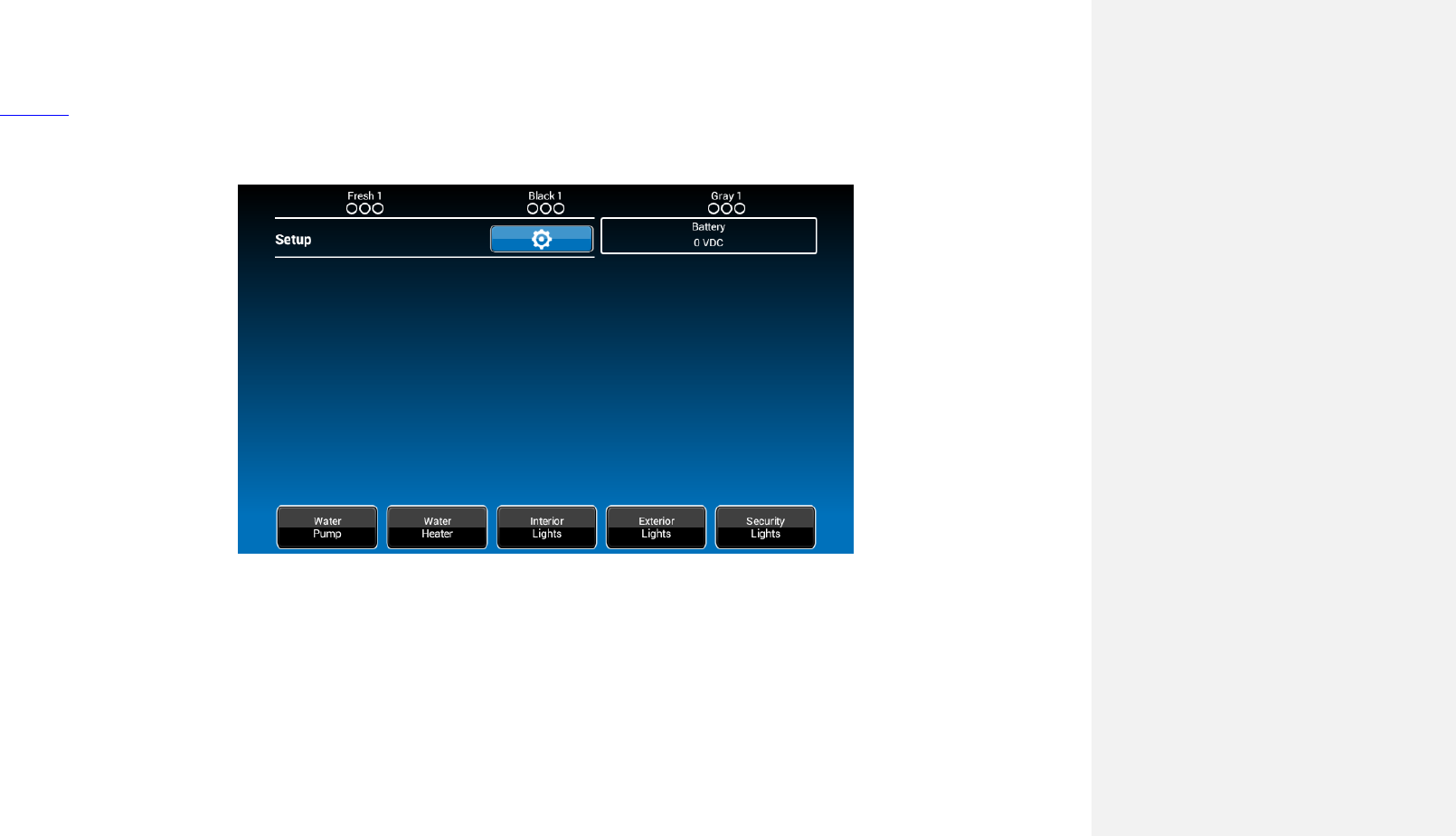

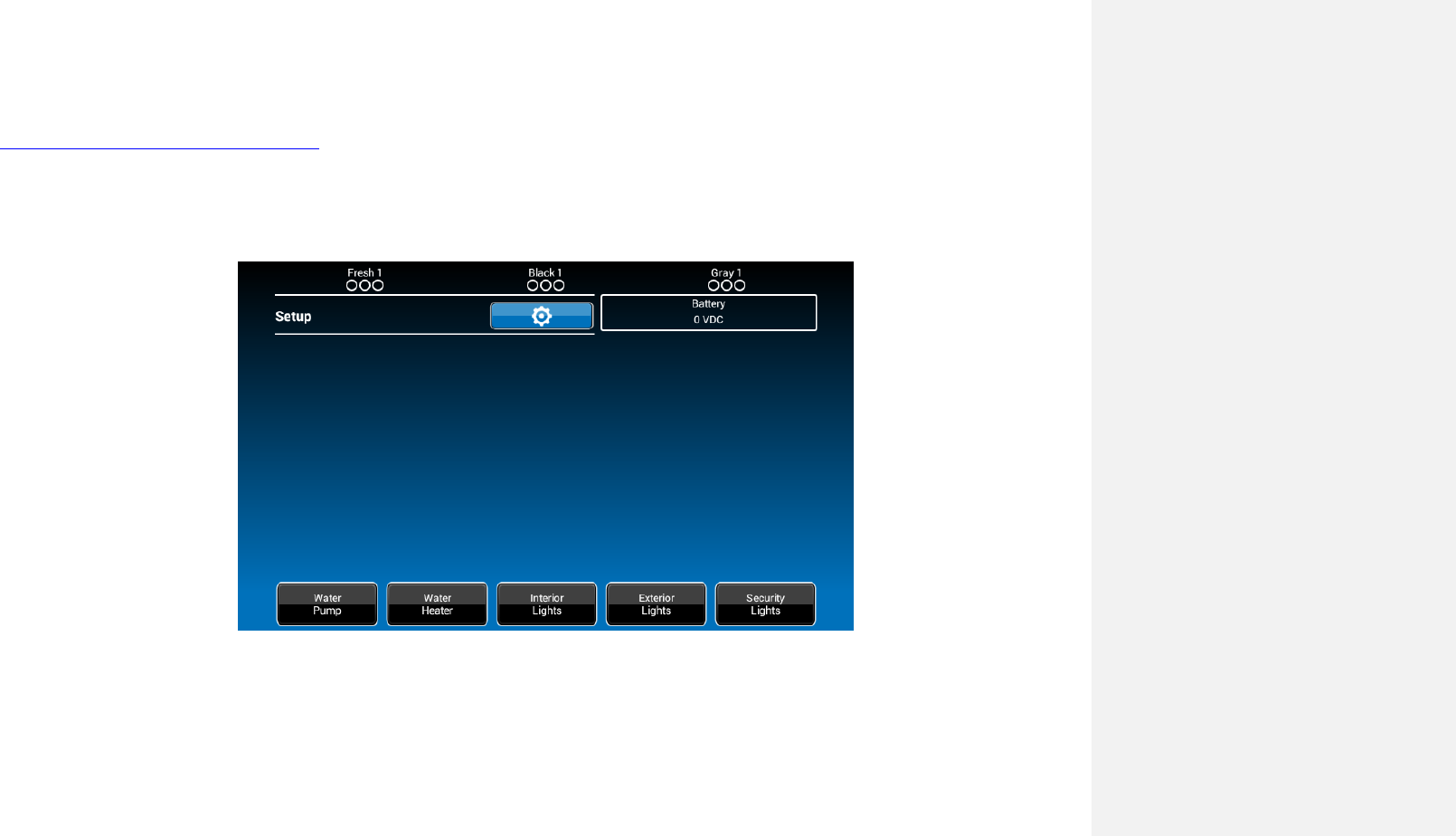

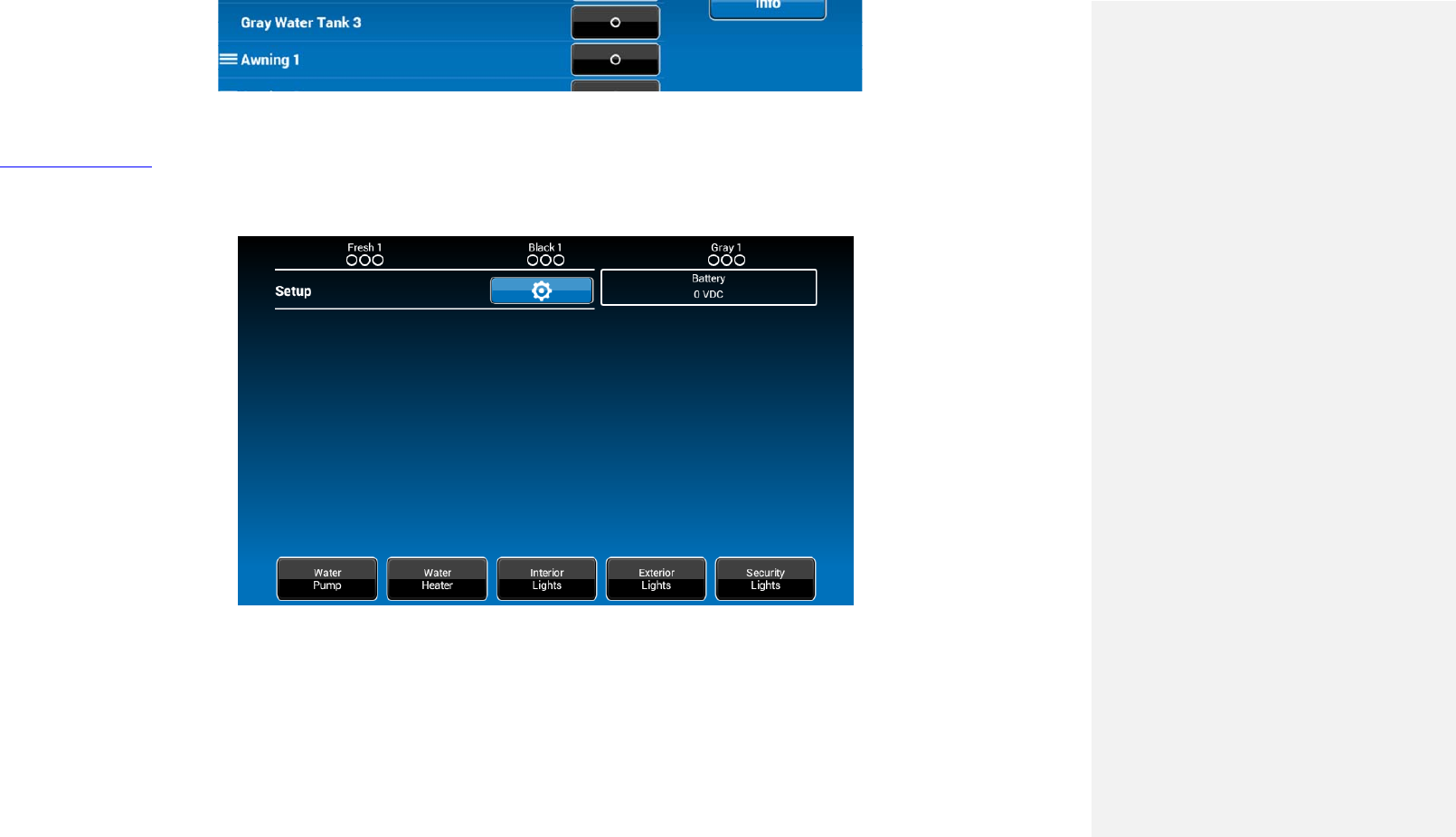

SETUPTextEditing

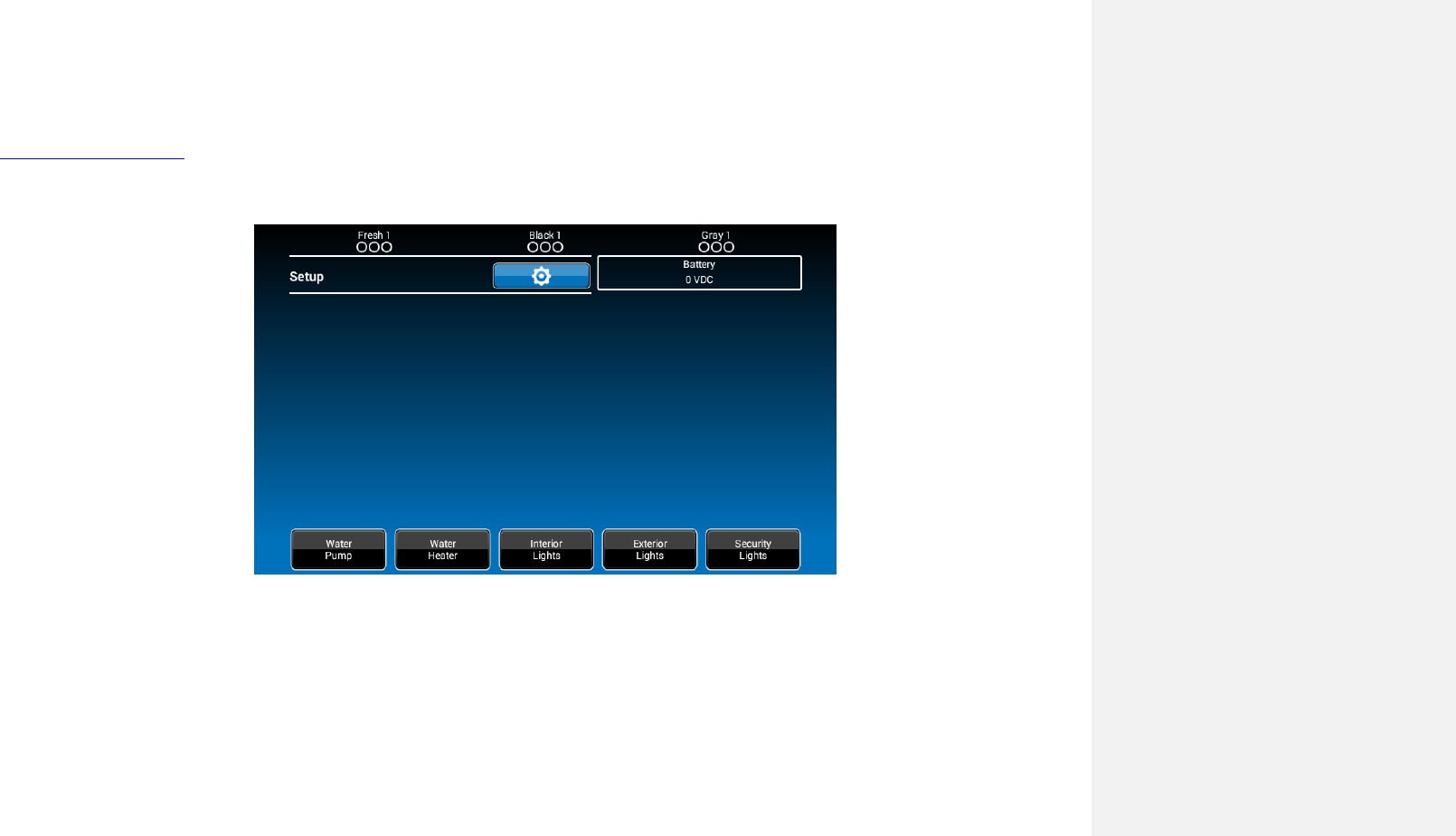

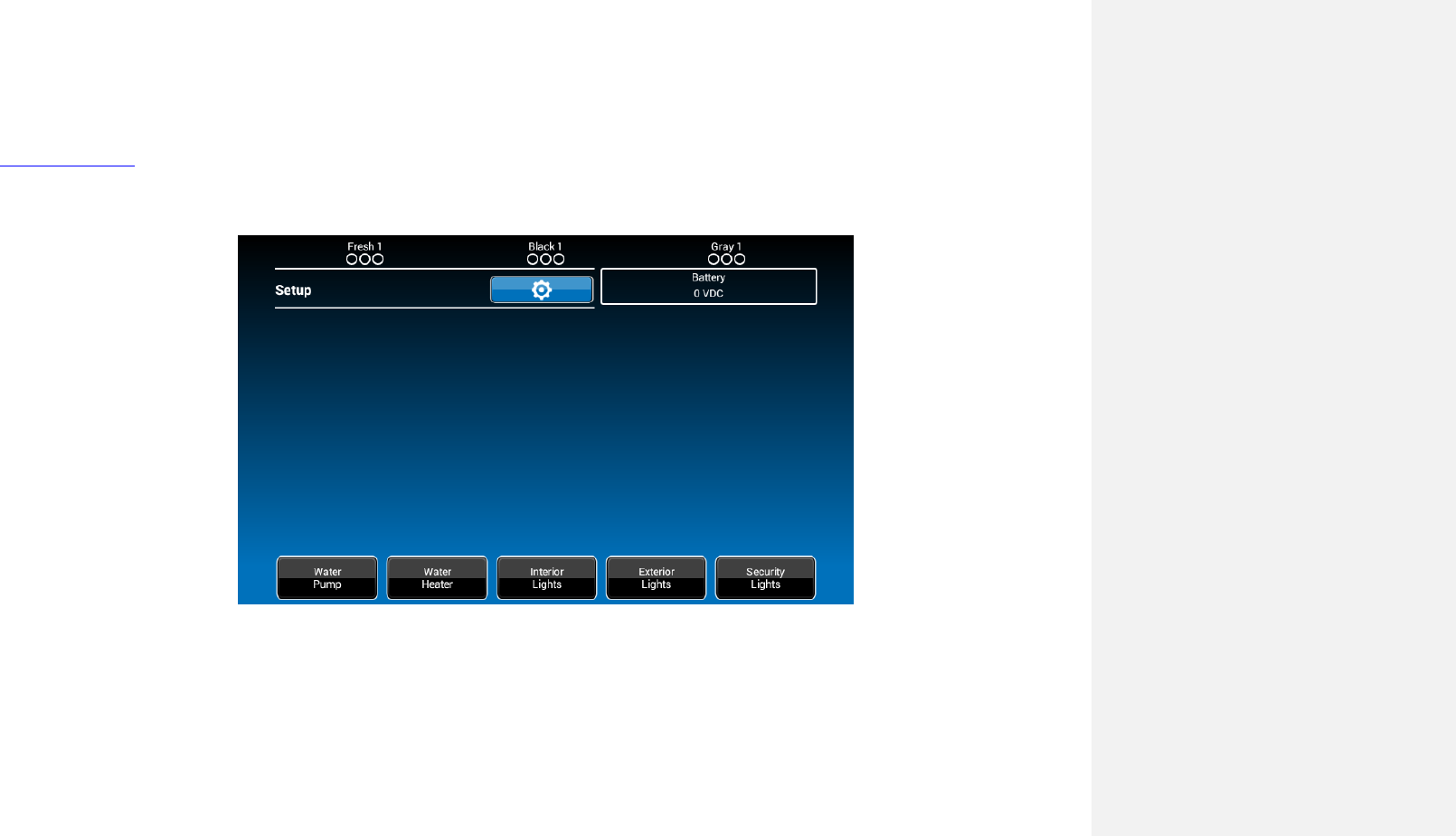

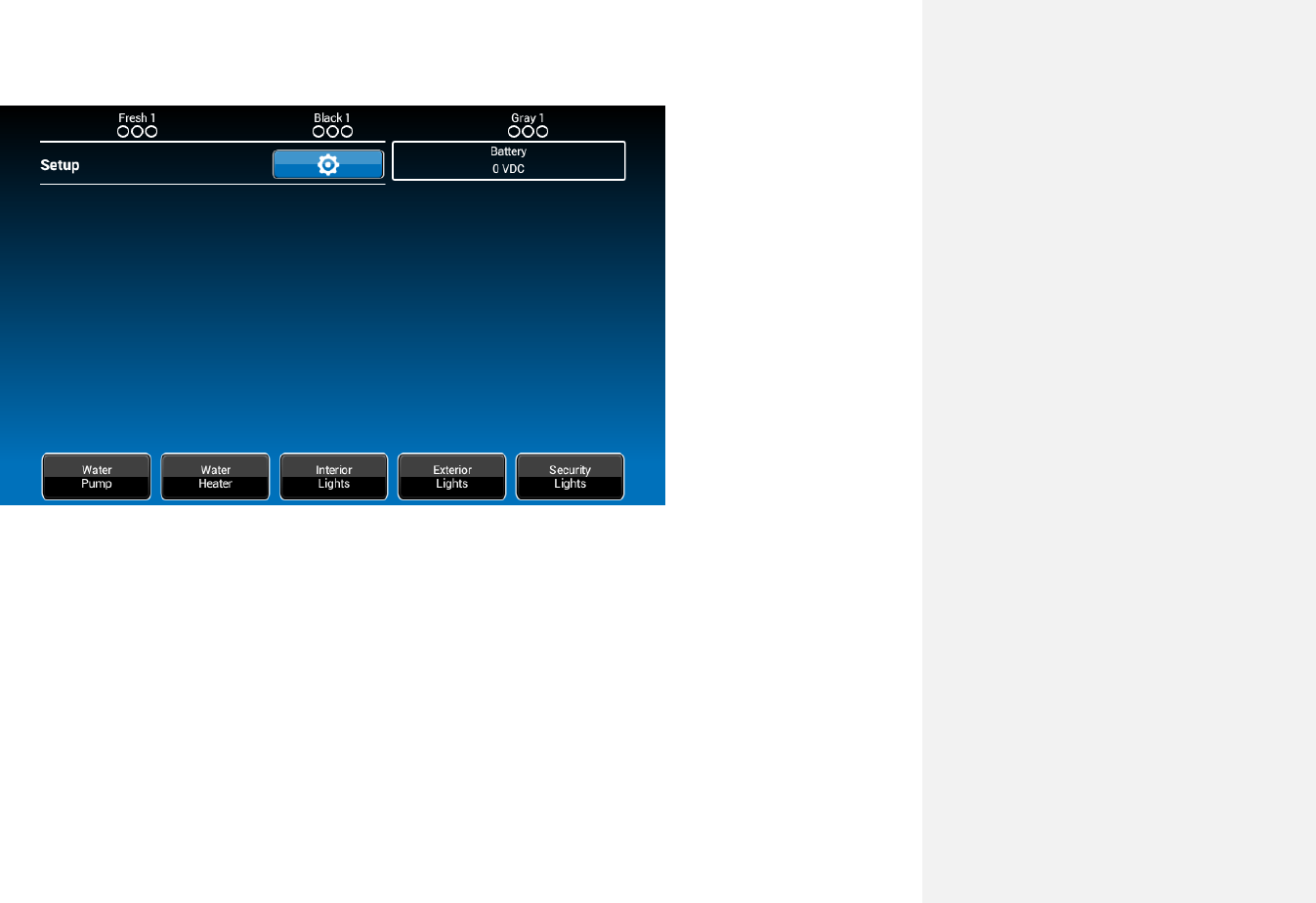

1.Select“setup”



2.Longpress“Awning1”



3.Adevicerenamewindowwillopen.Press“OK”aftercompletingthetextediting.



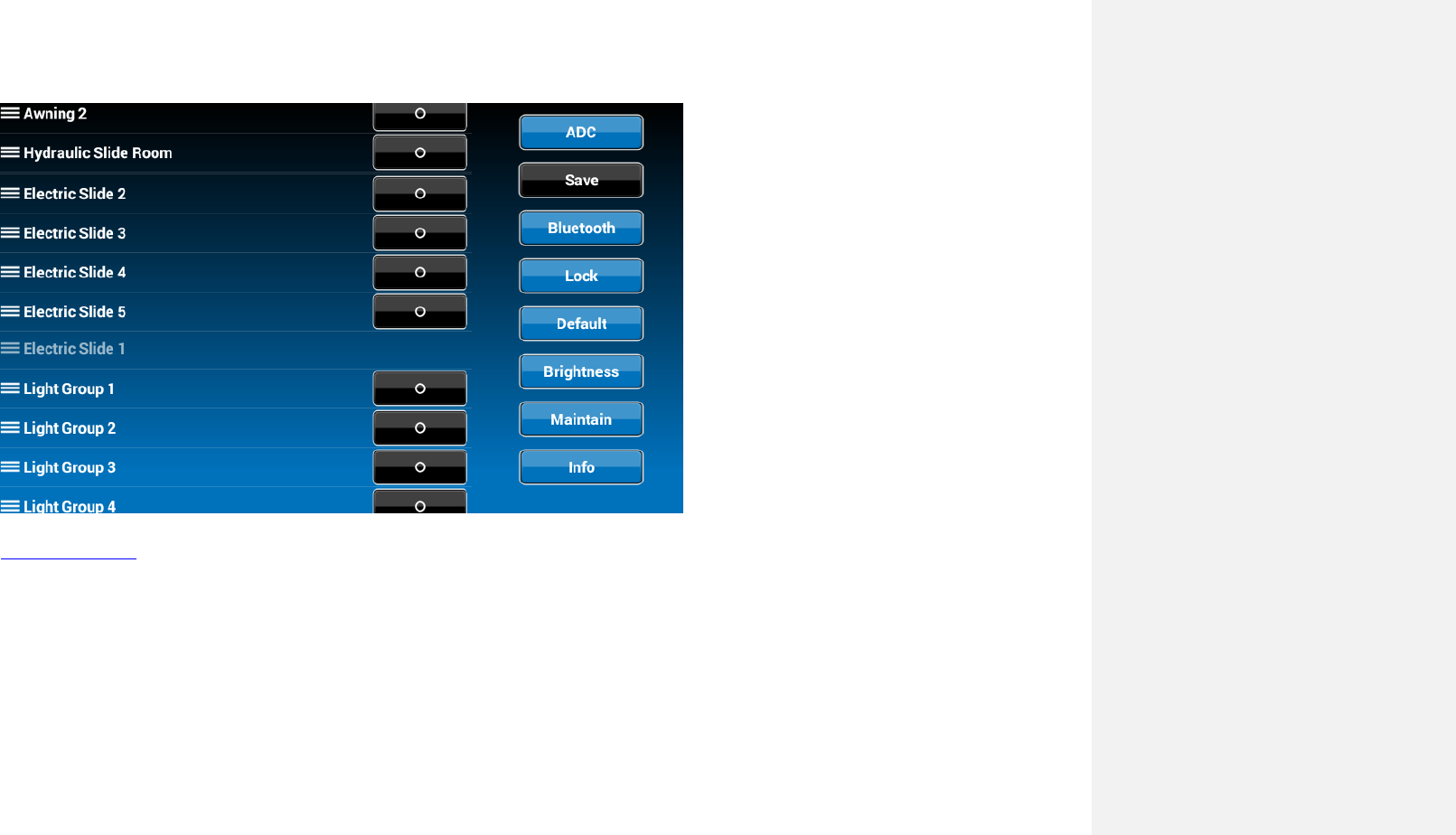

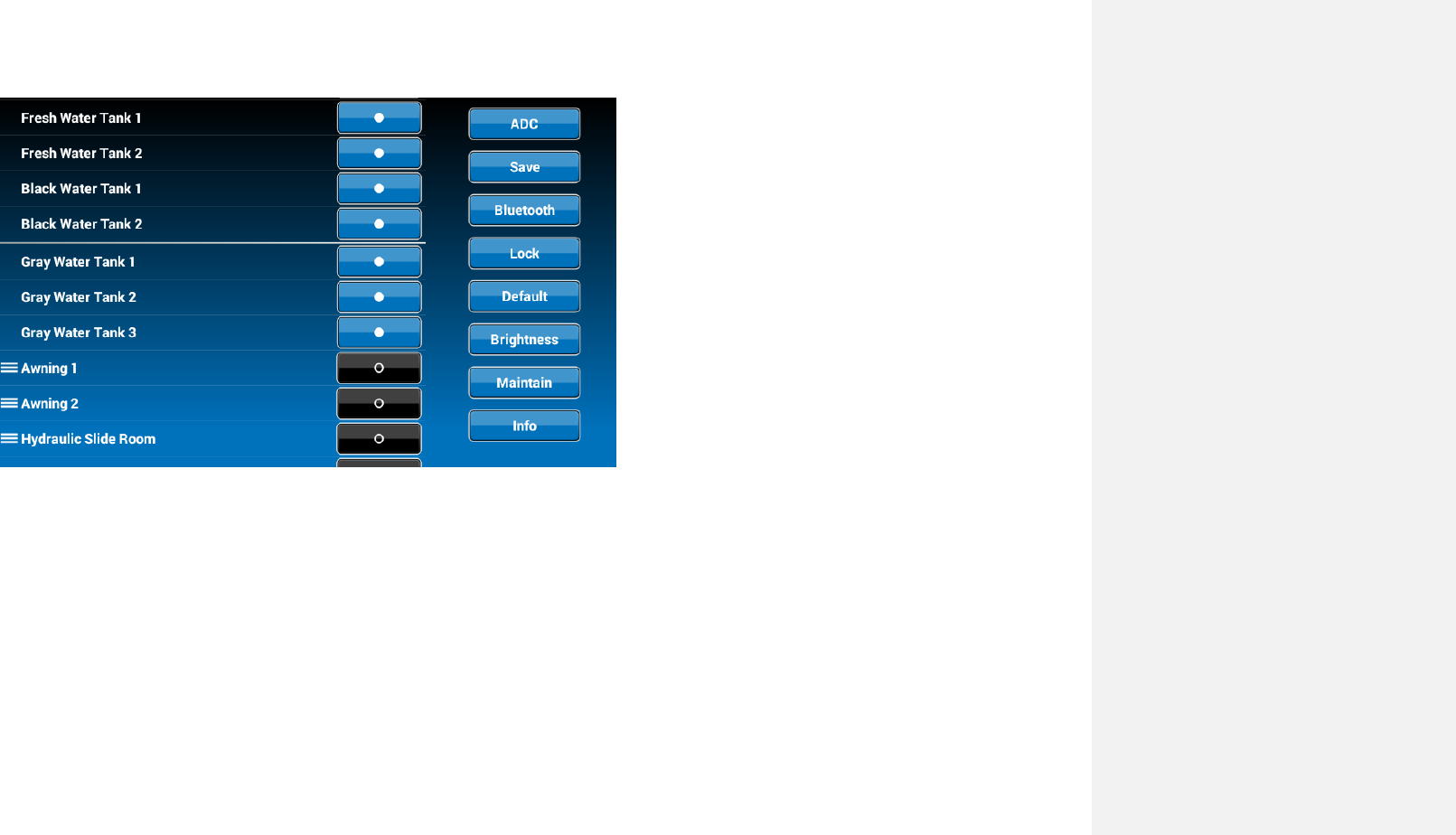

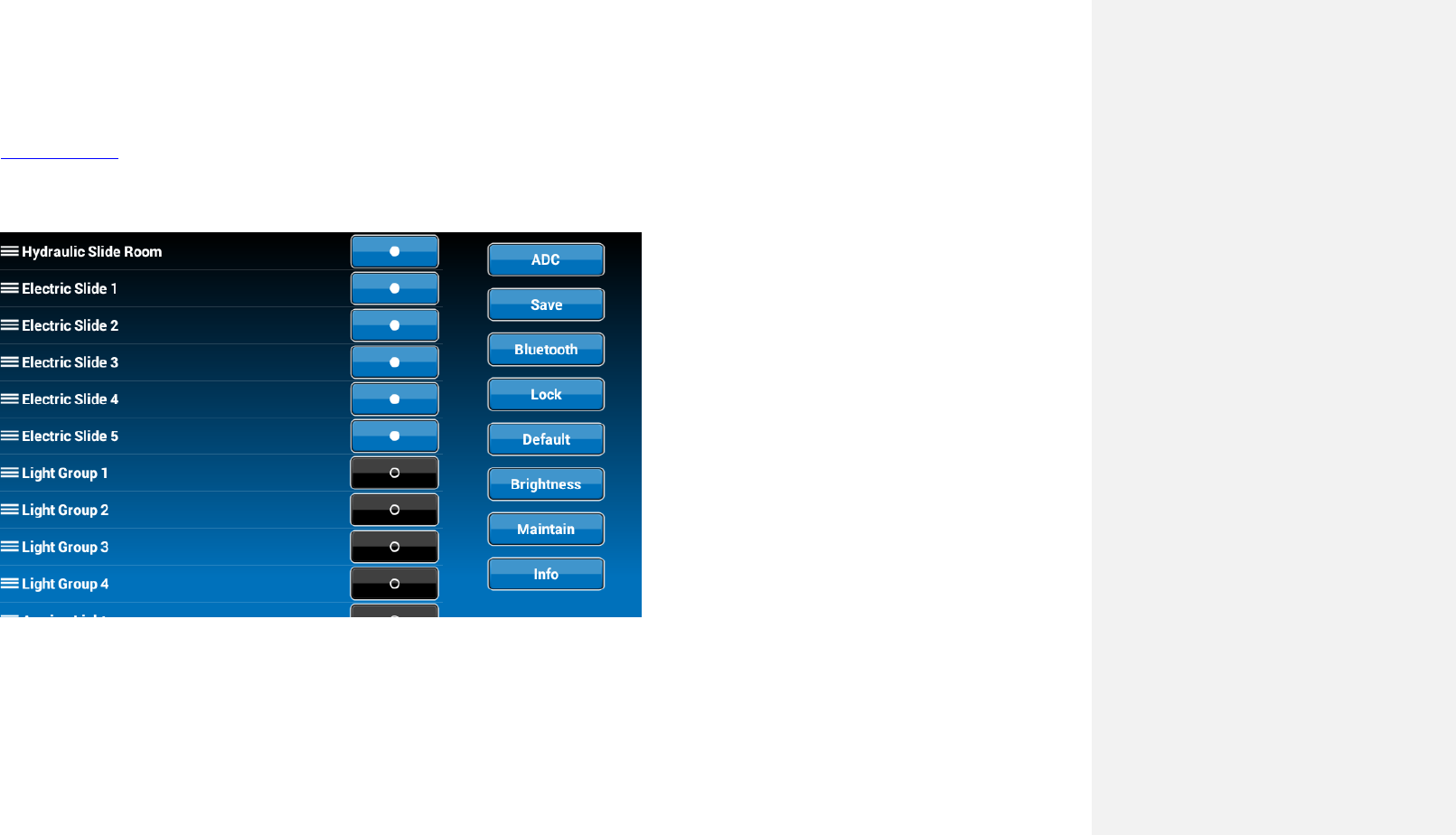

SETUPScrollListEditing

1.Select“setup”



2.Pressthe“Î”iconbeforethedevicenameandmovethedevicetoanewlocation,“ElectricSlide1”asanexample.



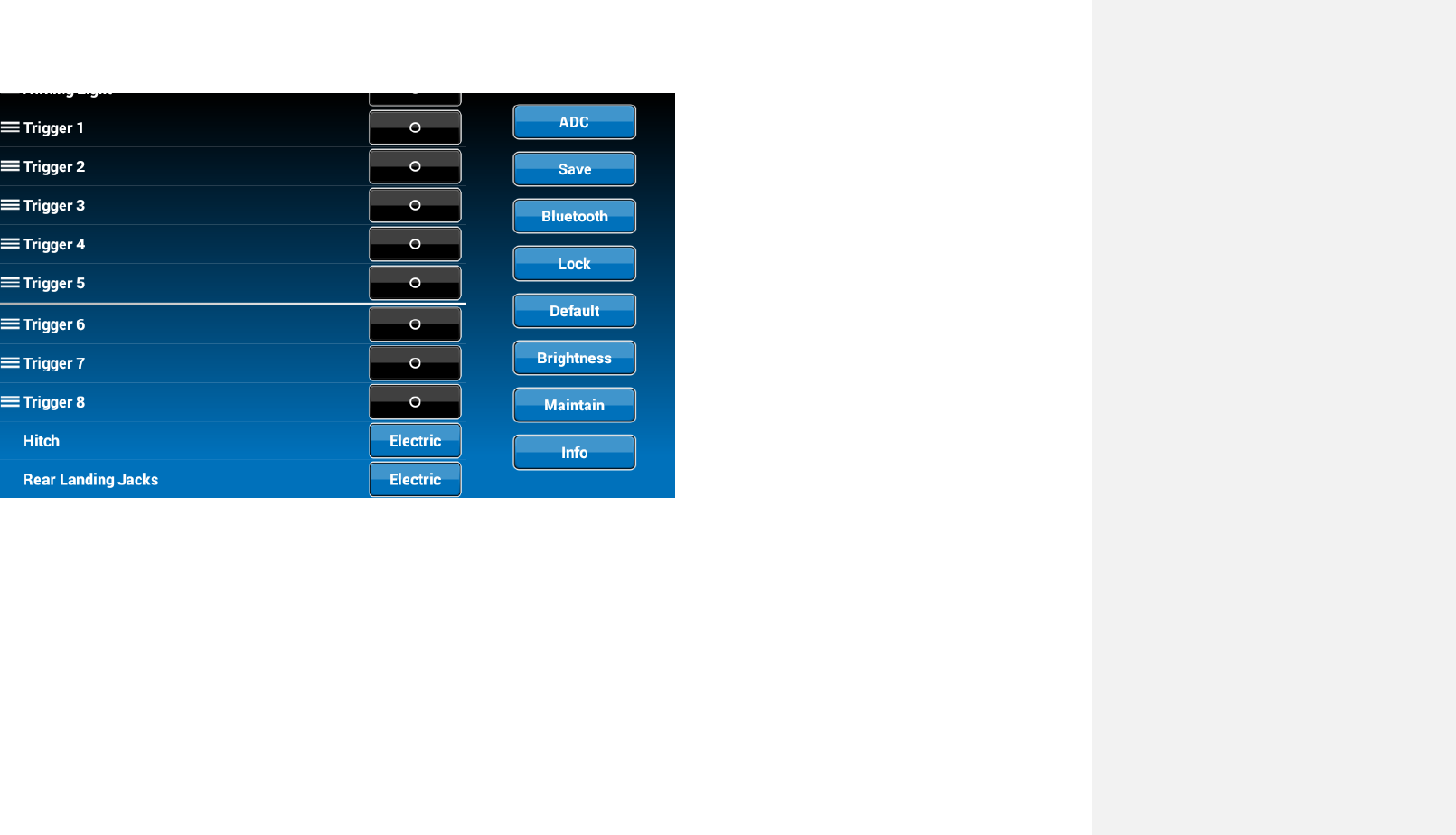

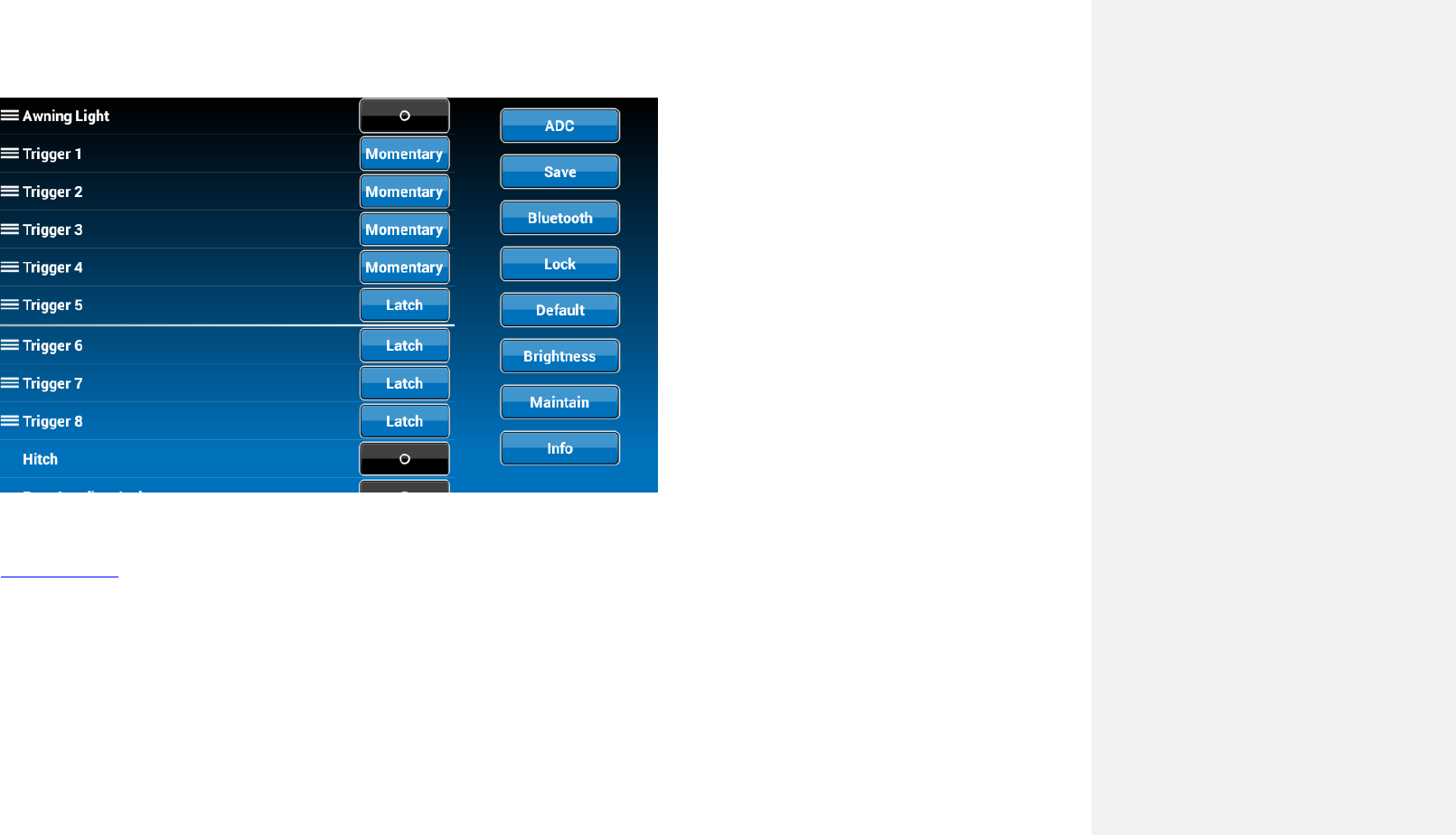

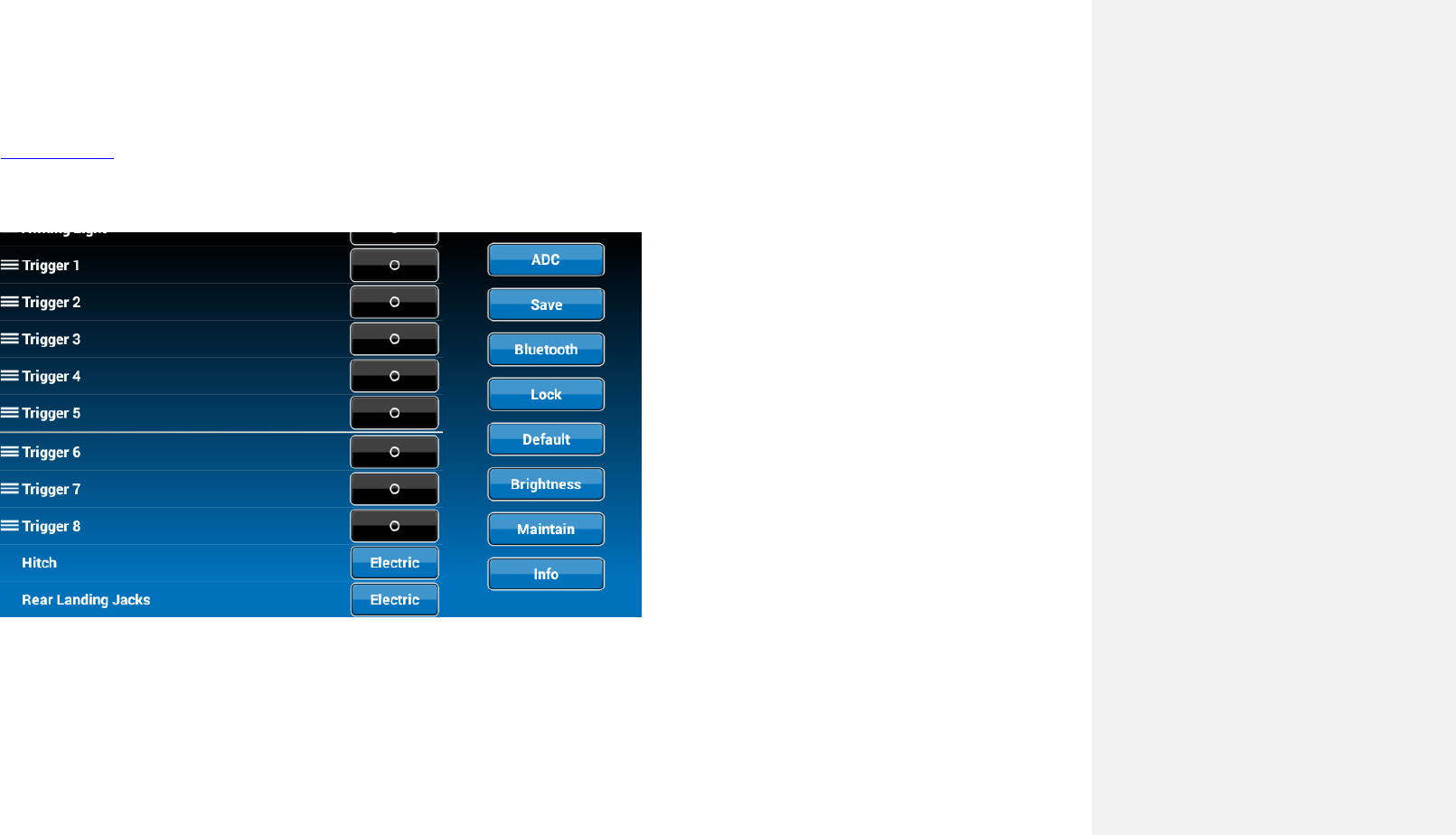

SETUPTriggers

1.Triggers1through8canbeaddedtothesystem.



2Either“Momentary”or“Latch”canbeselectedforeachTrigger.



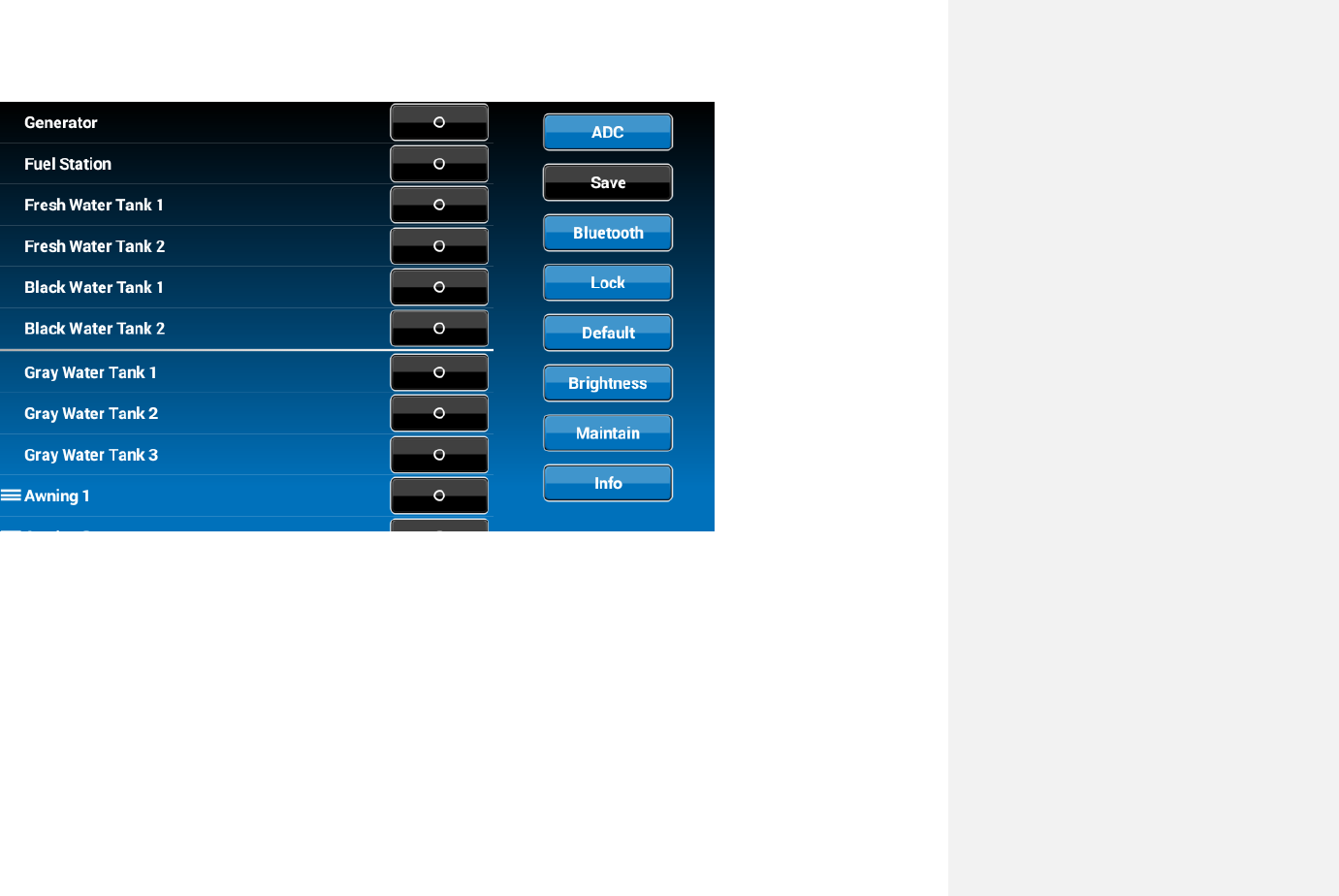

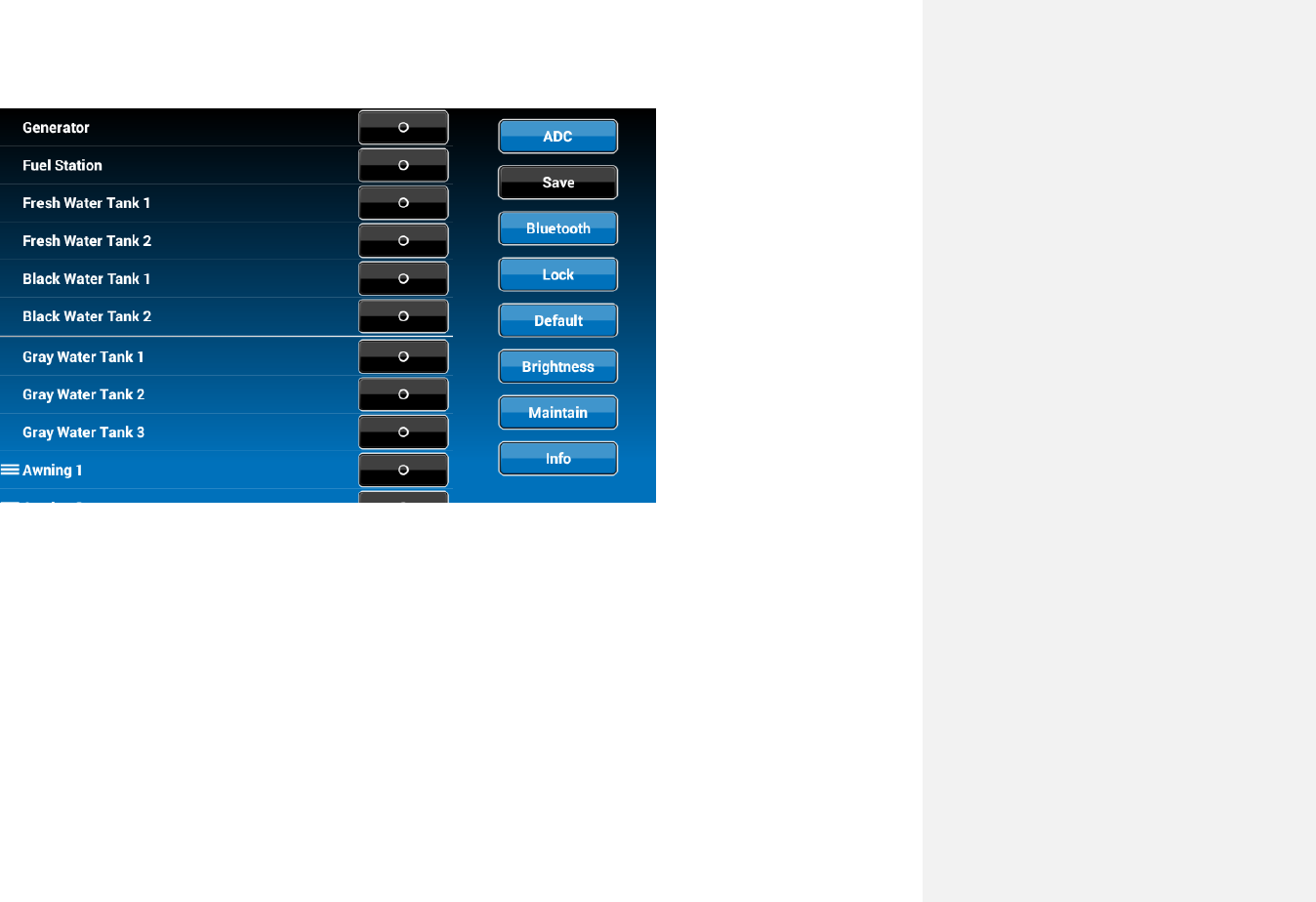

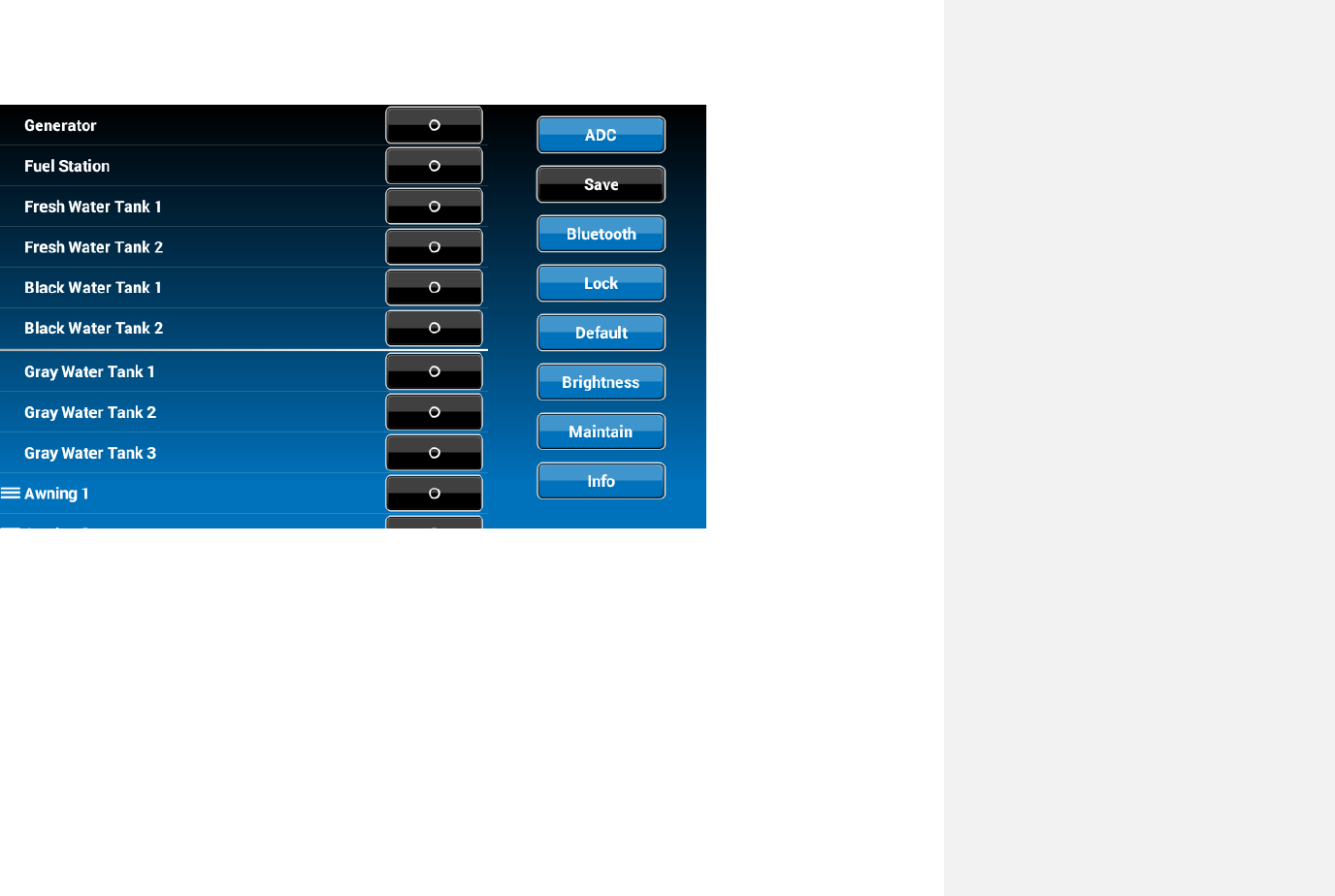

SETUPTanks

1.Freshwatertanks,BlackwatertanksandGraywatertankscanbeaddedtothesystem,



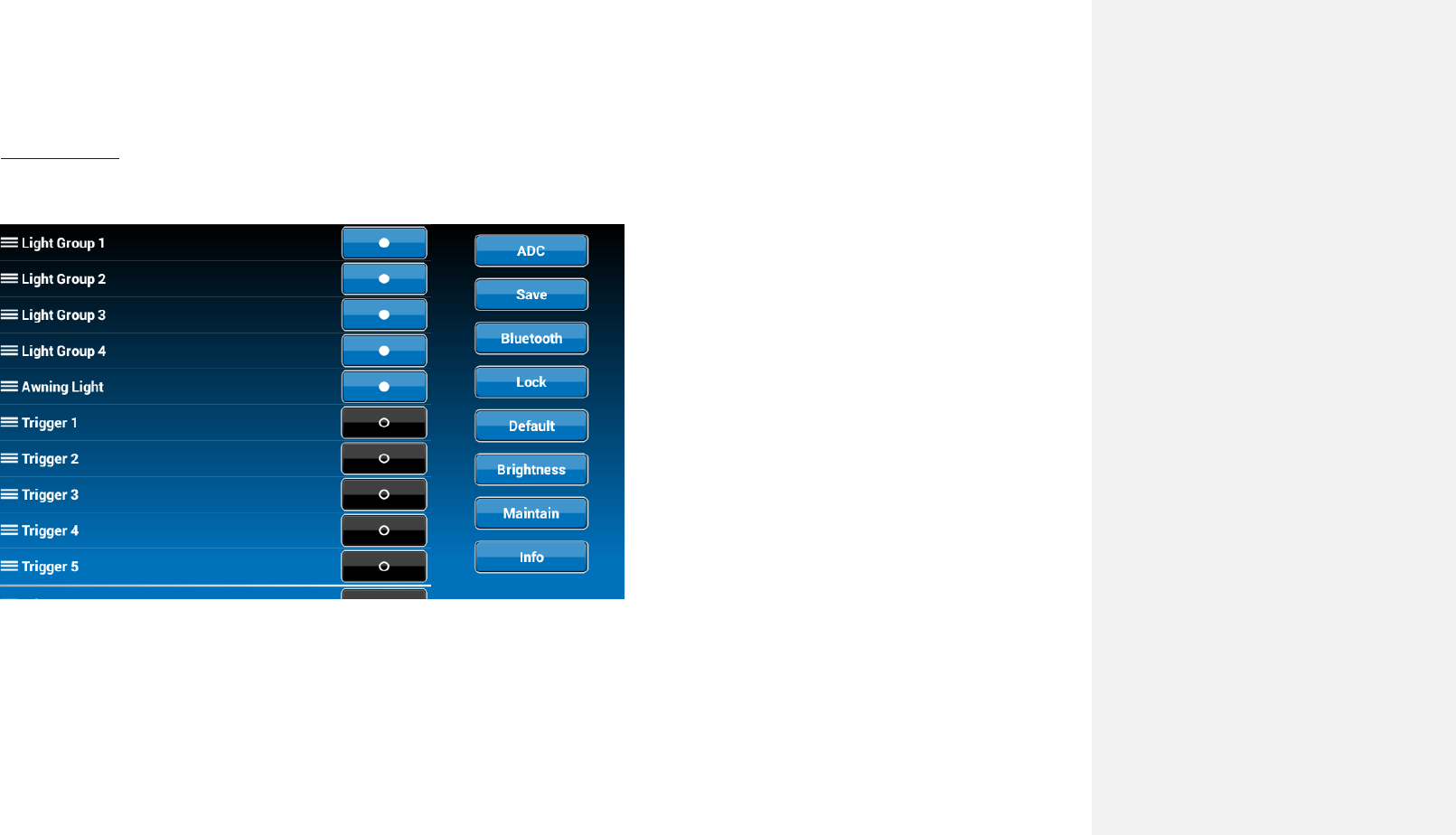

SETUPLights

1.LightGroupscanbeaddedtothesystem,



SETUPSlides

1.Slidescanbeaddedtothesystem,



SETUPAwnings

1.Awningscanbeaddedtothesystem,



SETUPJacks

1.Jackscanbeaddedtothesystem,



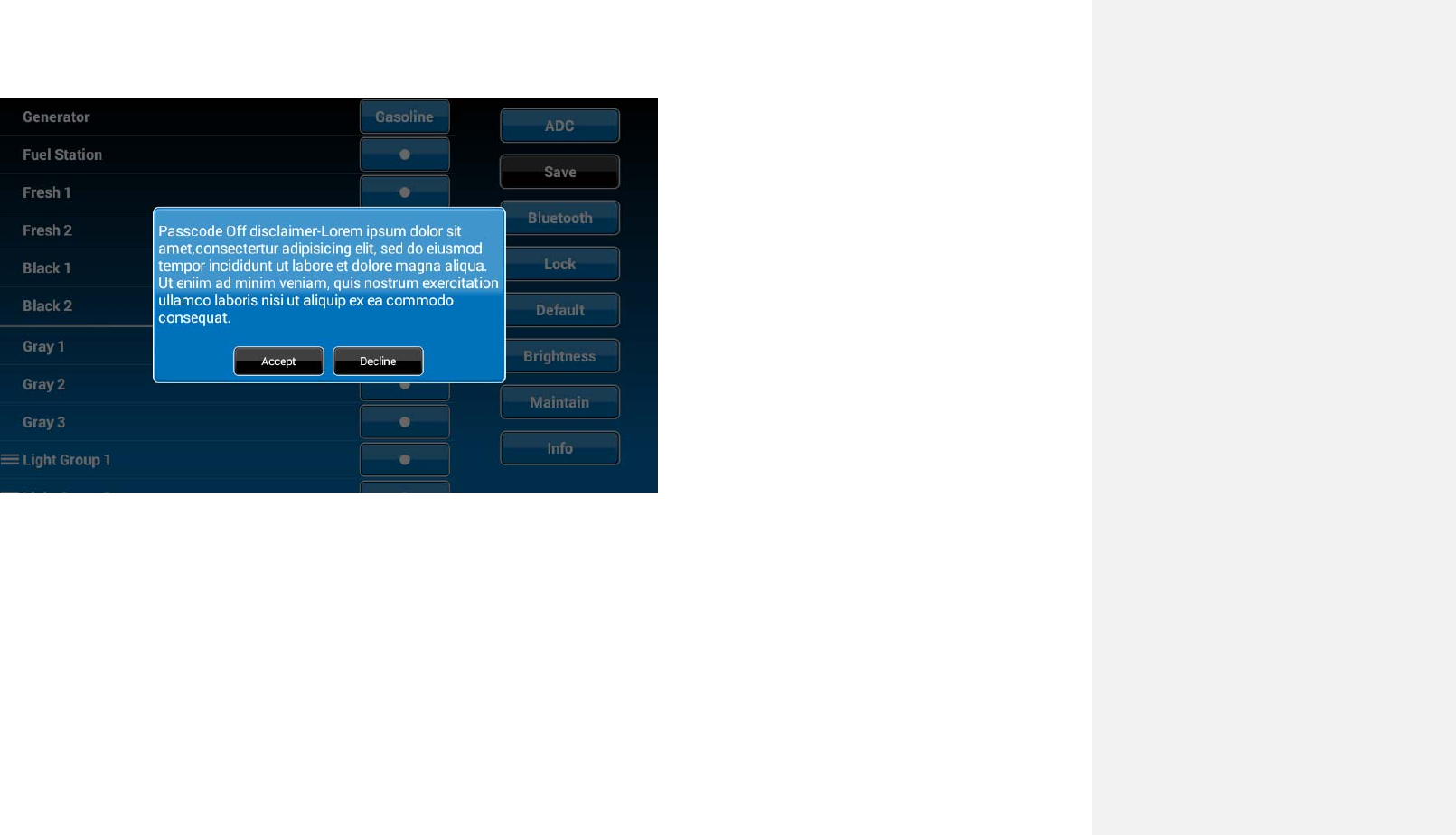

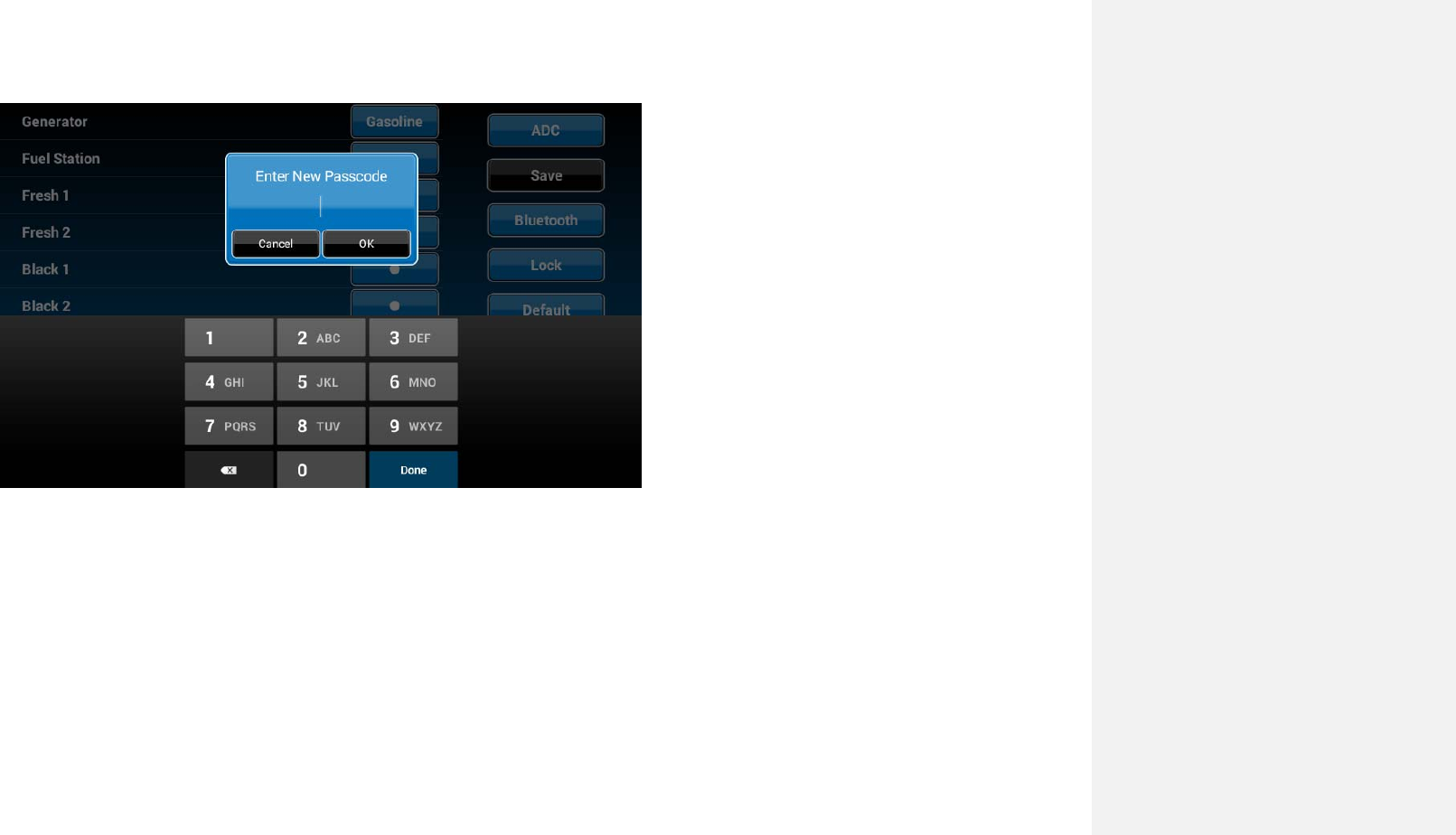

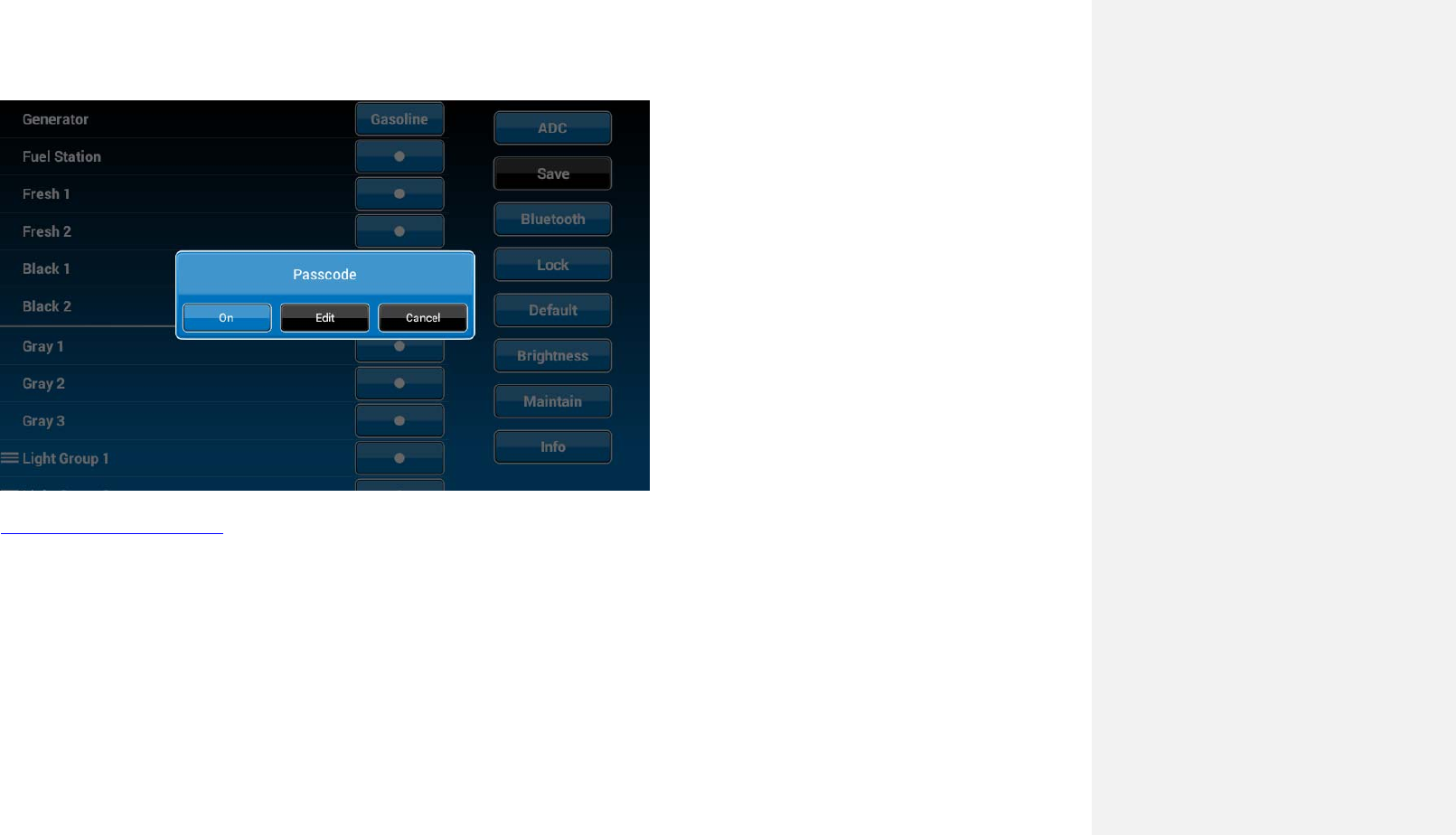

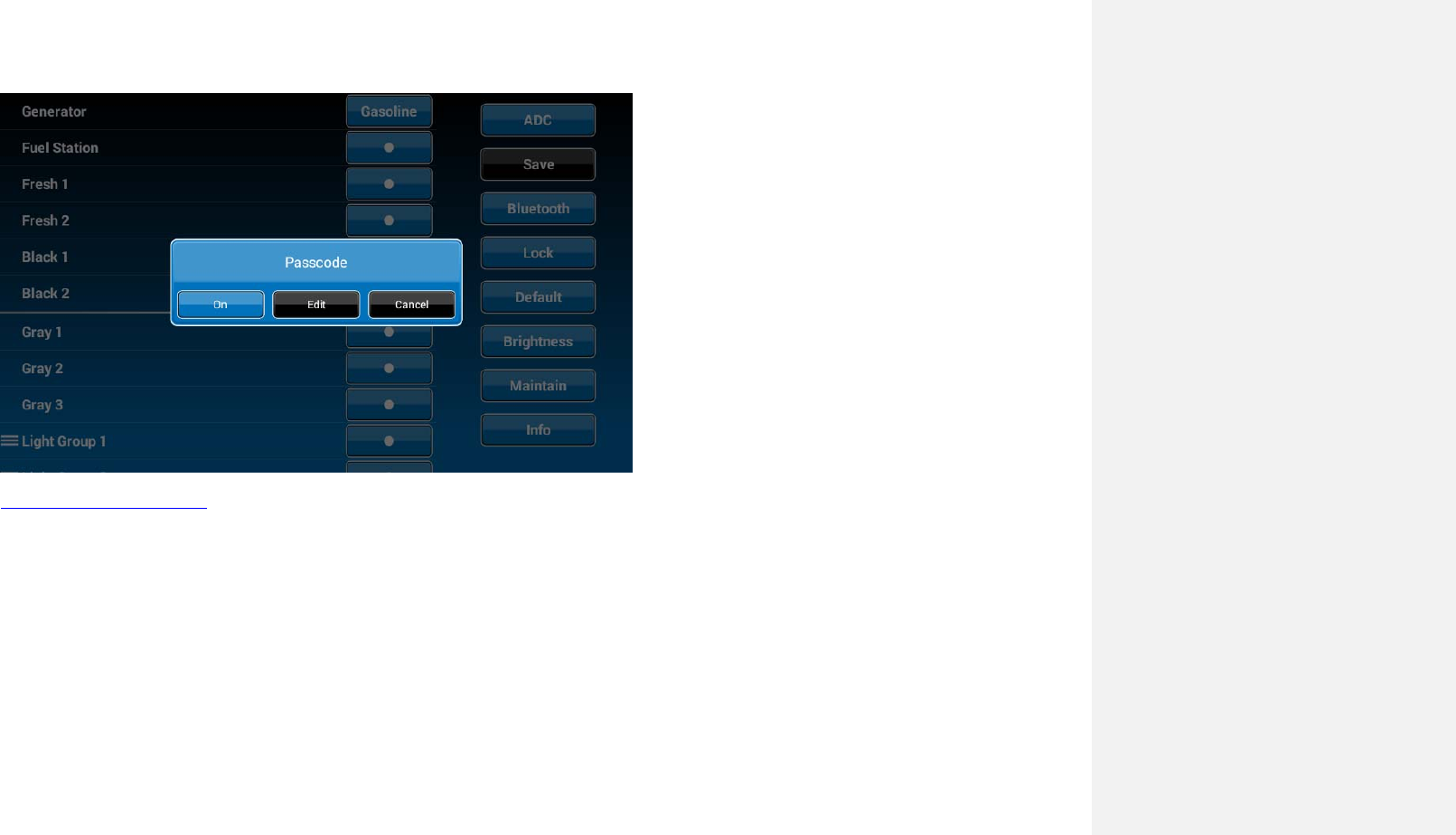

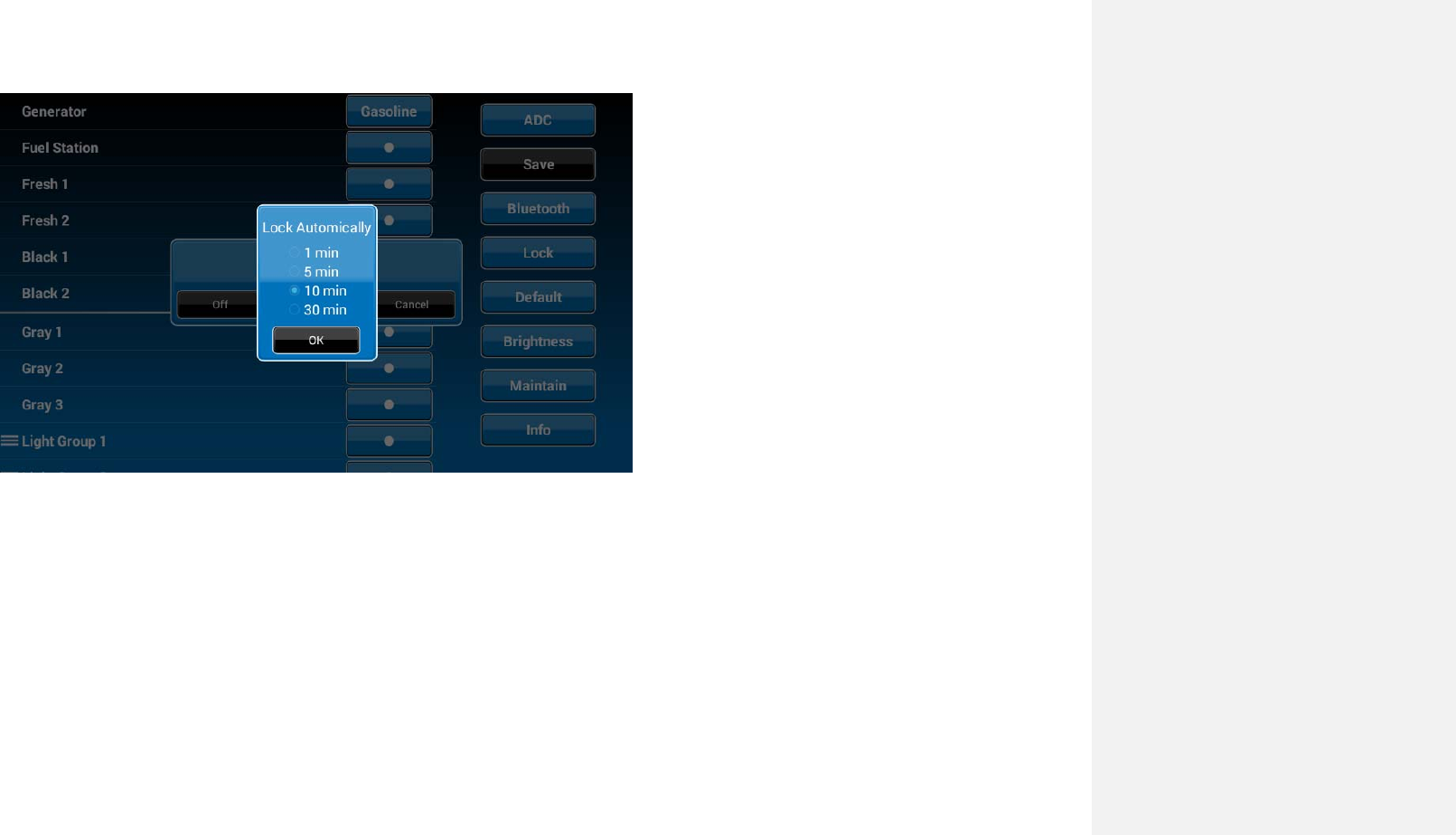

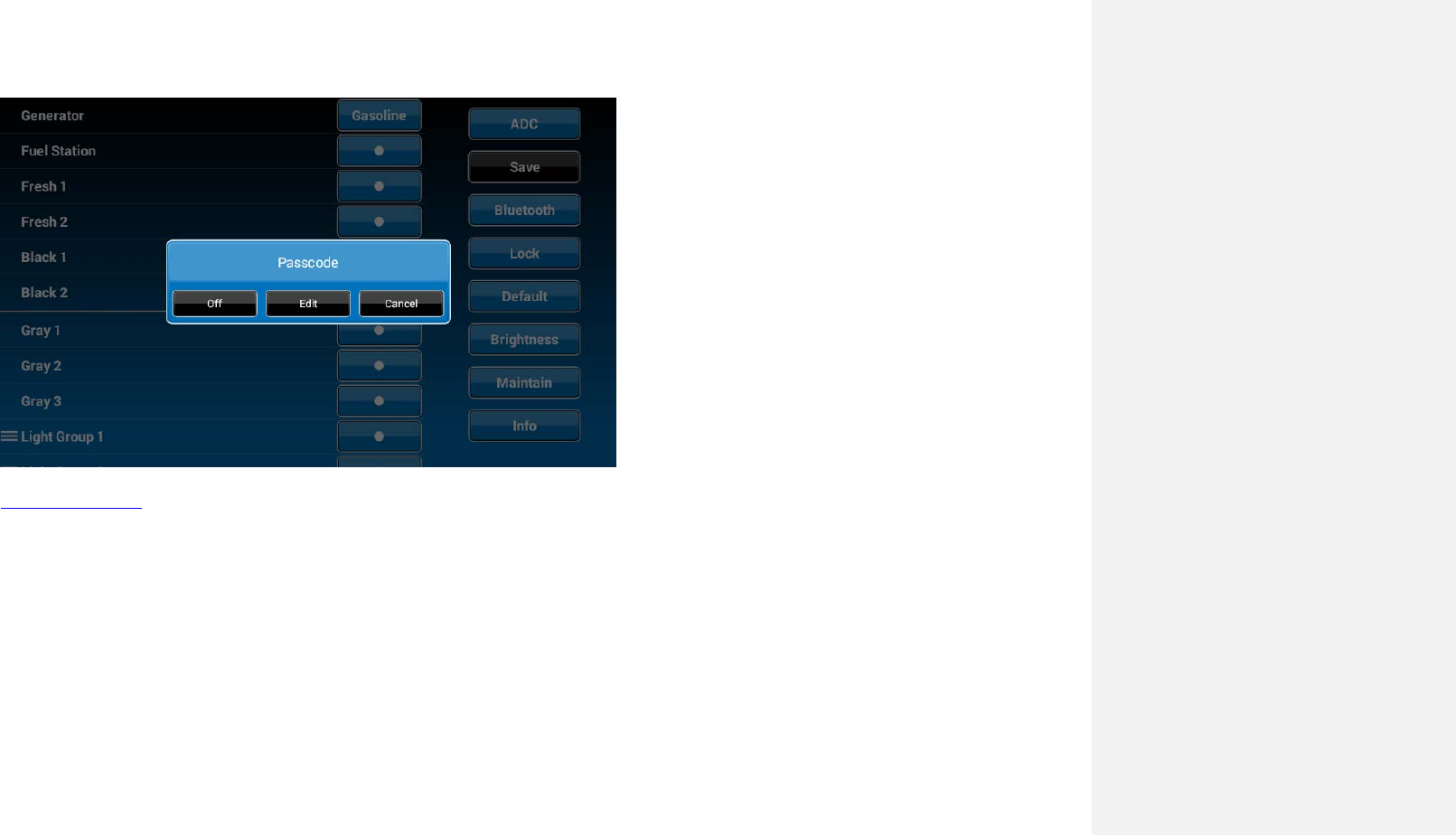

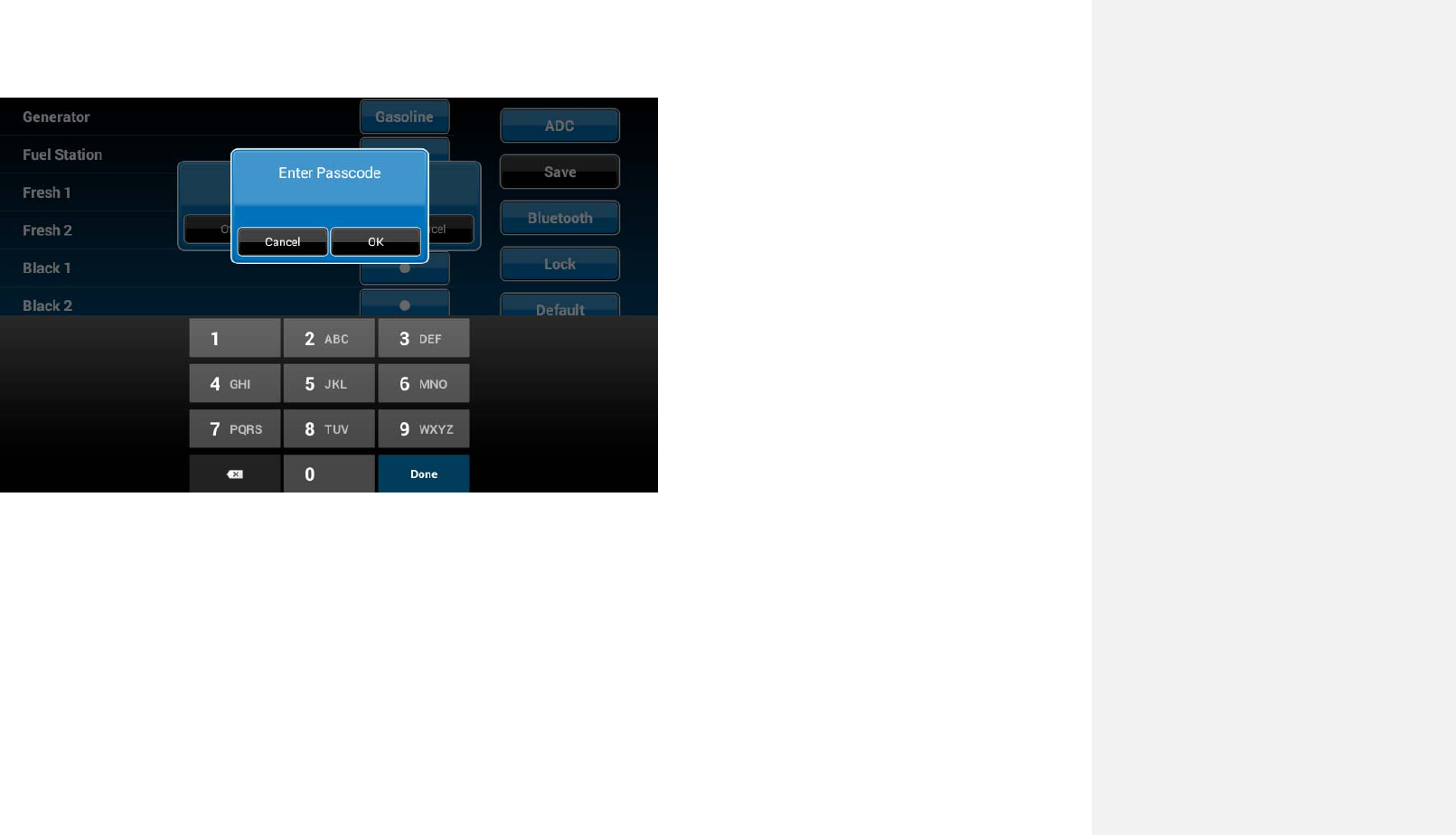

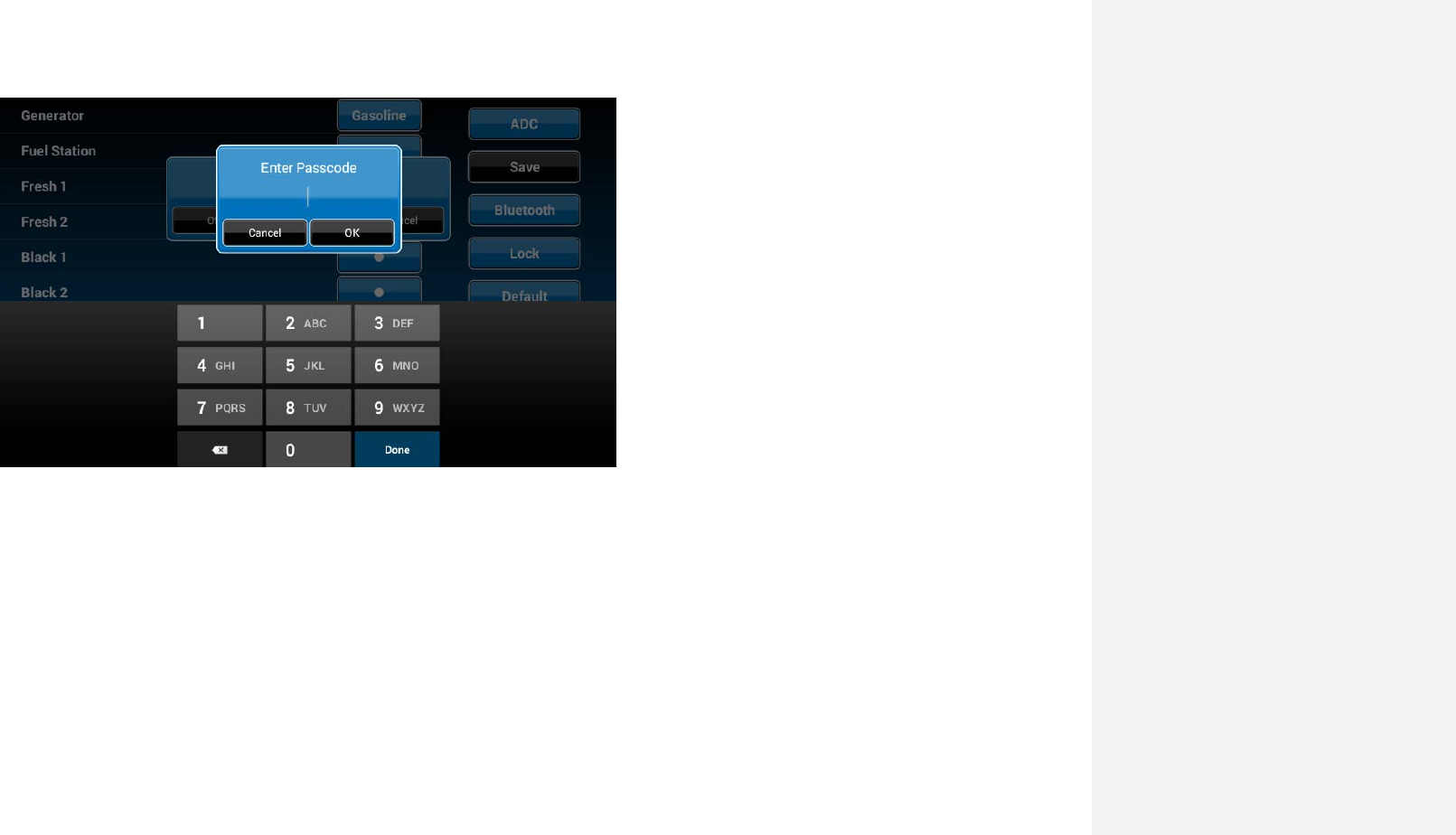

SETUPPasscode

1.Select“Setup”.



2.Press“Lock”toenterpasscodesetup.



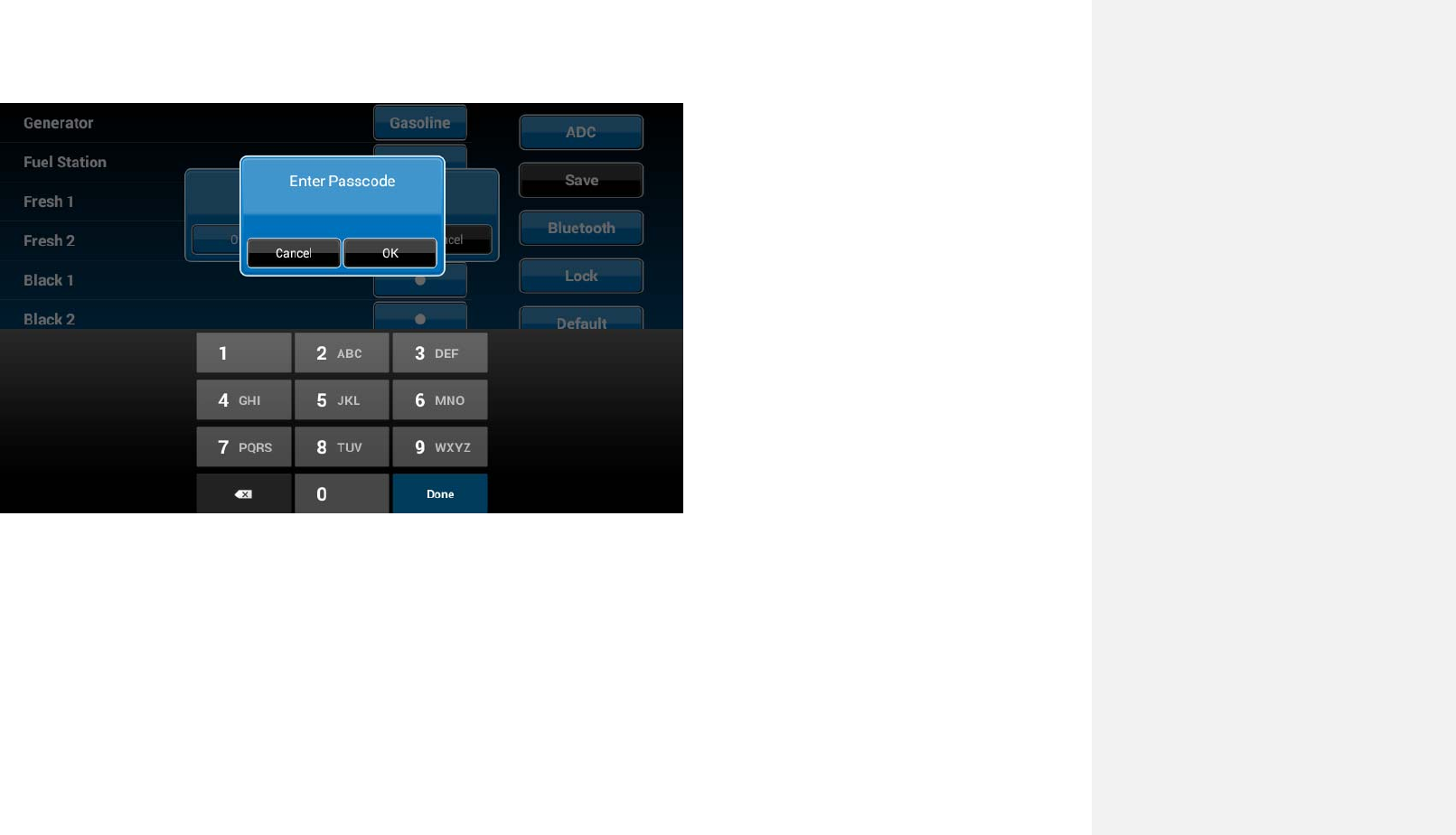

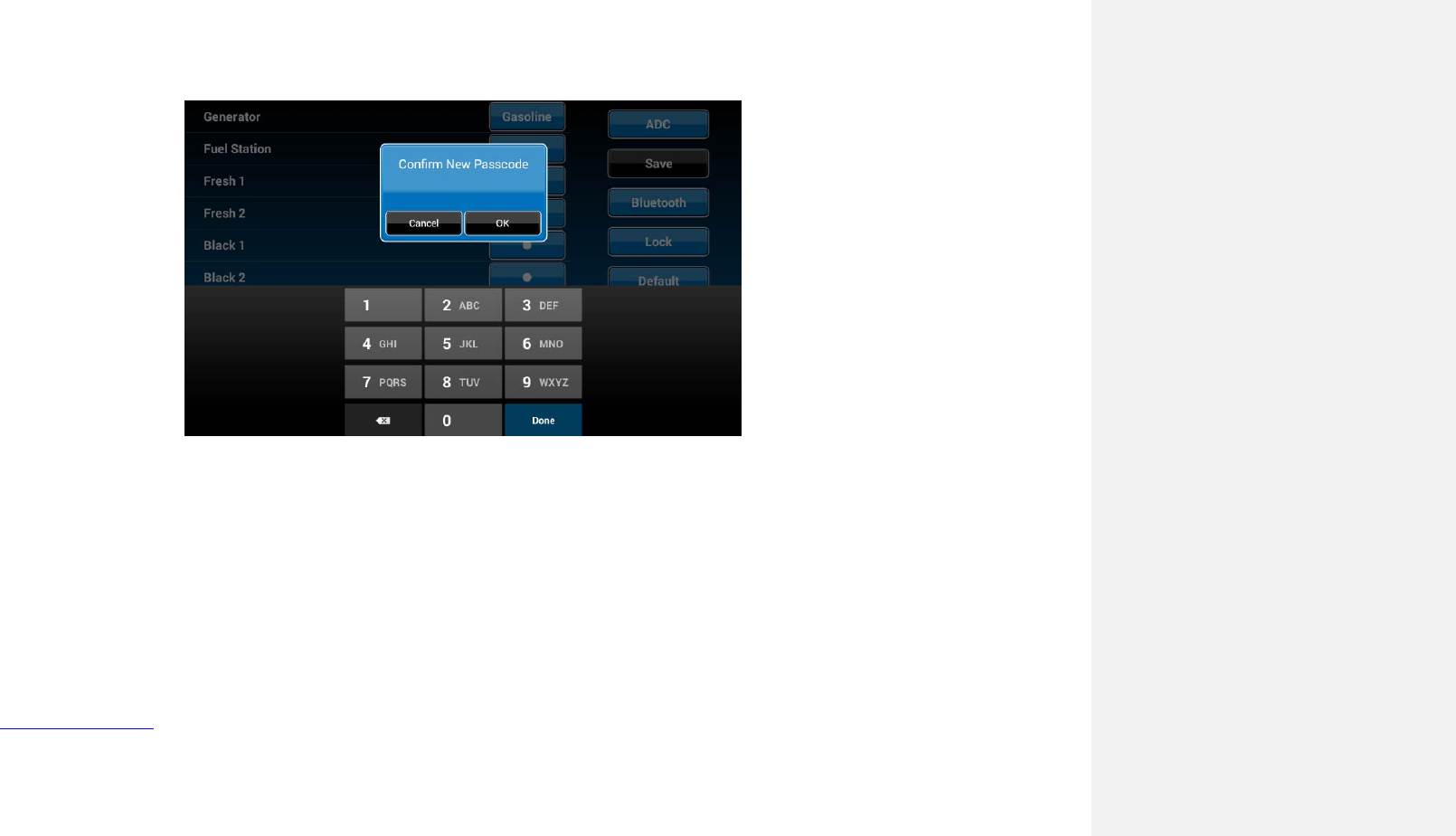

3.Thepasscodesetupwindowwillopen.(DEFAULTFACTORYSETTINGIS“ON”)



3.1TurnonPasscodeProtection

3.1.1.Press“On”toturnonpasscodeprotection.Thesystemwillrequestapasscode.(5391)



3.1.2.Selecttheidletimetoactivatethepasscodeprotection.



3.1.3Passcodeprotectionisactivated.



3.2TurnOFFPasscodeprotection

3.2.1.WhenpasscodeprotectionisON,press“On”buttontoturnoffpasscodeprotection



3.2.2.Readthepasscode”Off”disclaimerstatementandpress“Accept”toproceed.



3.2.3Enterpasscodetoproceed



3.2.4.Passcodeprotectionisnowturnedoff.



3.3ChangePasscode

3.3.1.Pressthe“Edit”buttontochangetoanewpasscode.



3.3.2.Entertheoldpasscode.



3.3.3.Enterthenewpasscode.



3.3.4.Confirmnewpasscode. 



PAIRINGINSTRUCTIONS

DCtoBCM

1.Select“Setup”



2.Select“Maintain”



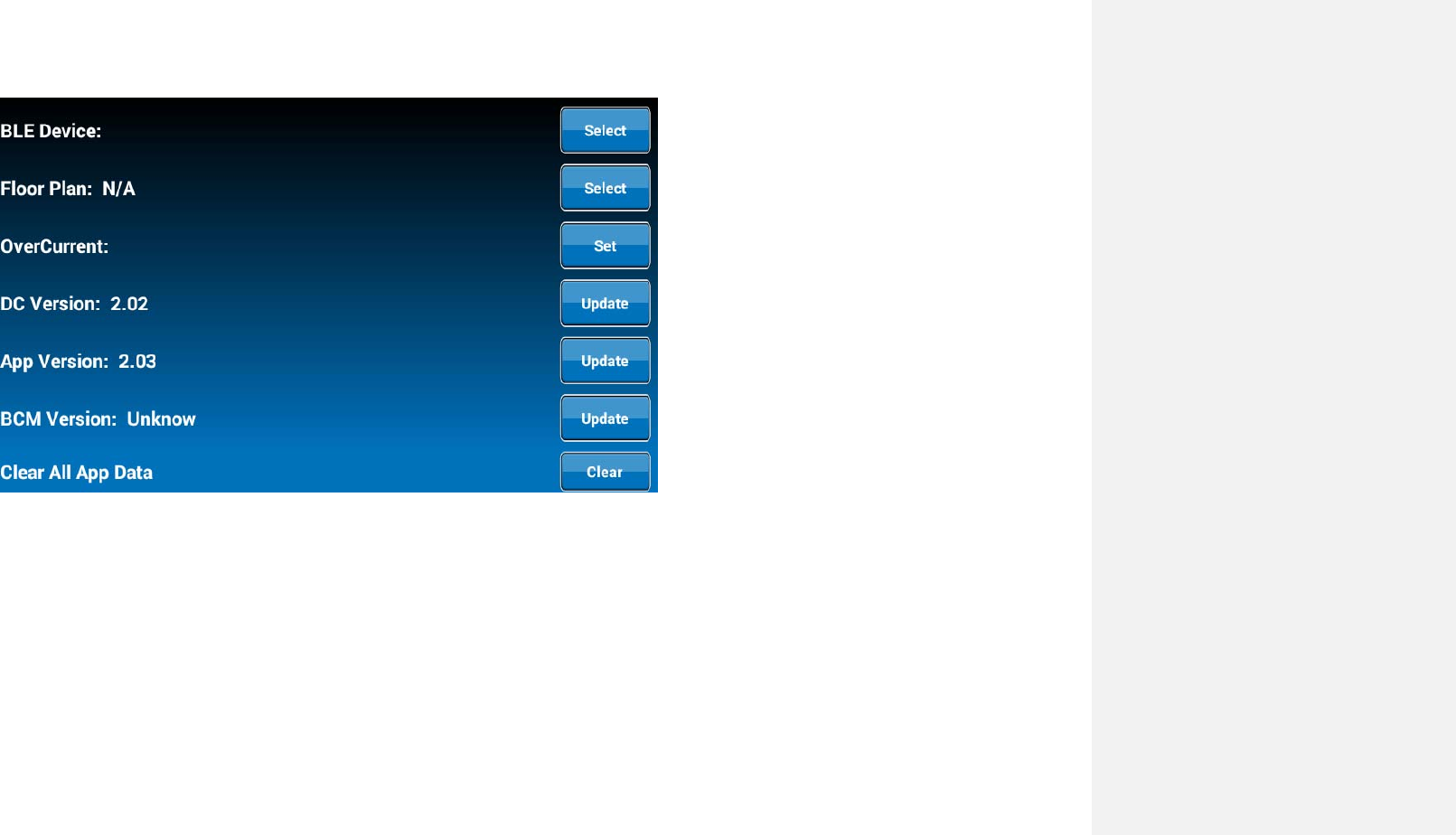

3.Currently,itshowsnoBluetoothLowEnergydeviceconnectedtothisDC.Pressthe“Select”buttonacrossfromthe“BLEDevice”.



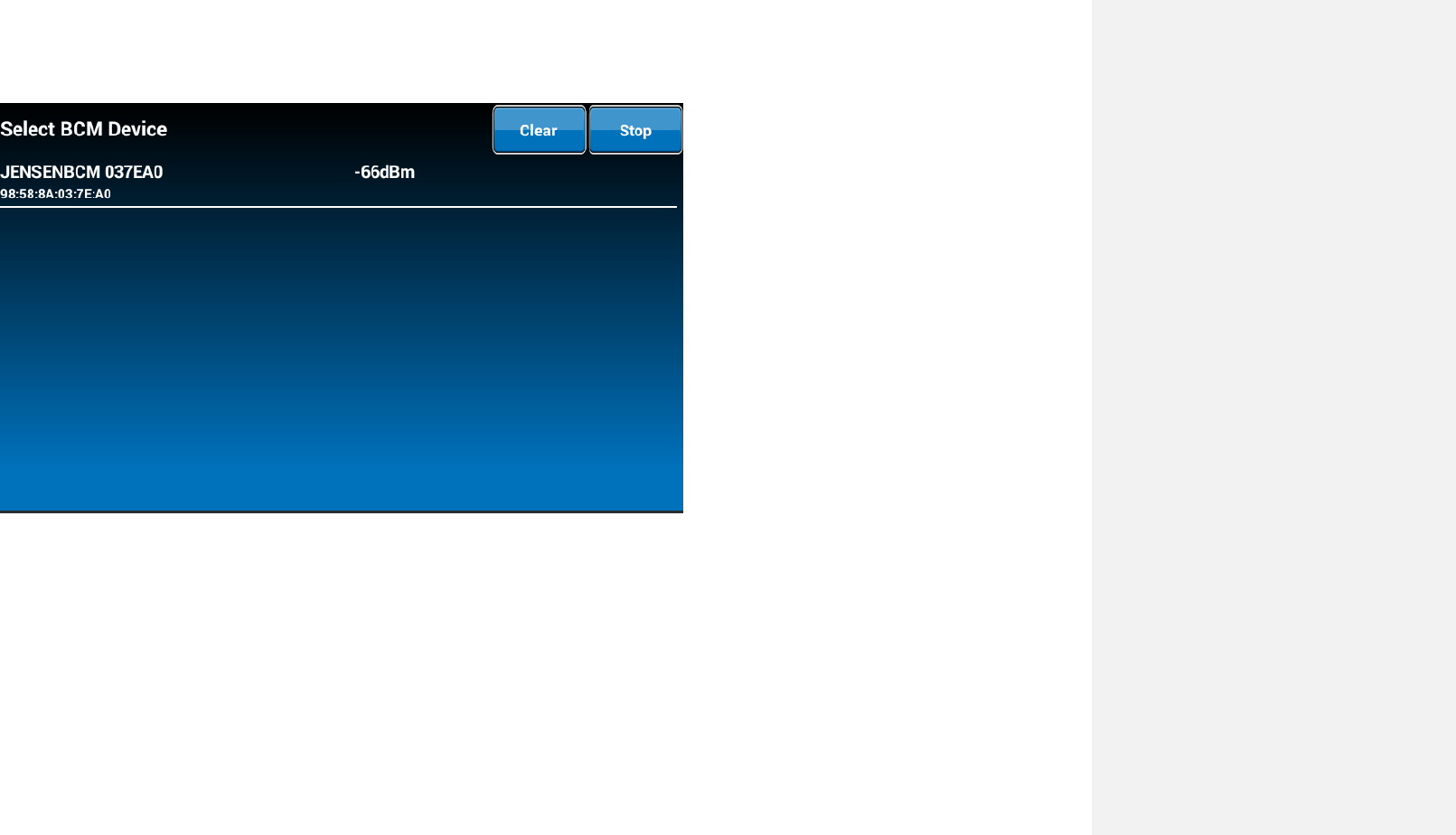

4.TheDCwillfindandlistallavailabledevices.



5.PressthetargetBCMtoconnect,“JENSENBCM037EA0”asanexample.



6.TheDCwillautomaticallyreturntothepreviouspageandshowthepairedBCM.



7.Pressthehotkeytoexitthe“Maintain”setuppageandtheDCwillstarttoconnecttotheselectedBCM.



BCMtoDC

BLEconnectionisactivatedbytheDC.TheBCMonlyneedstopowerup.ThereisnoactionneededfromtheBCM.

PAIRINGINSTRUCTIONSMobileDevicetoDC

1.DCside.

1.1Select“Setup”.



1.2.Select“Bluetooth”.



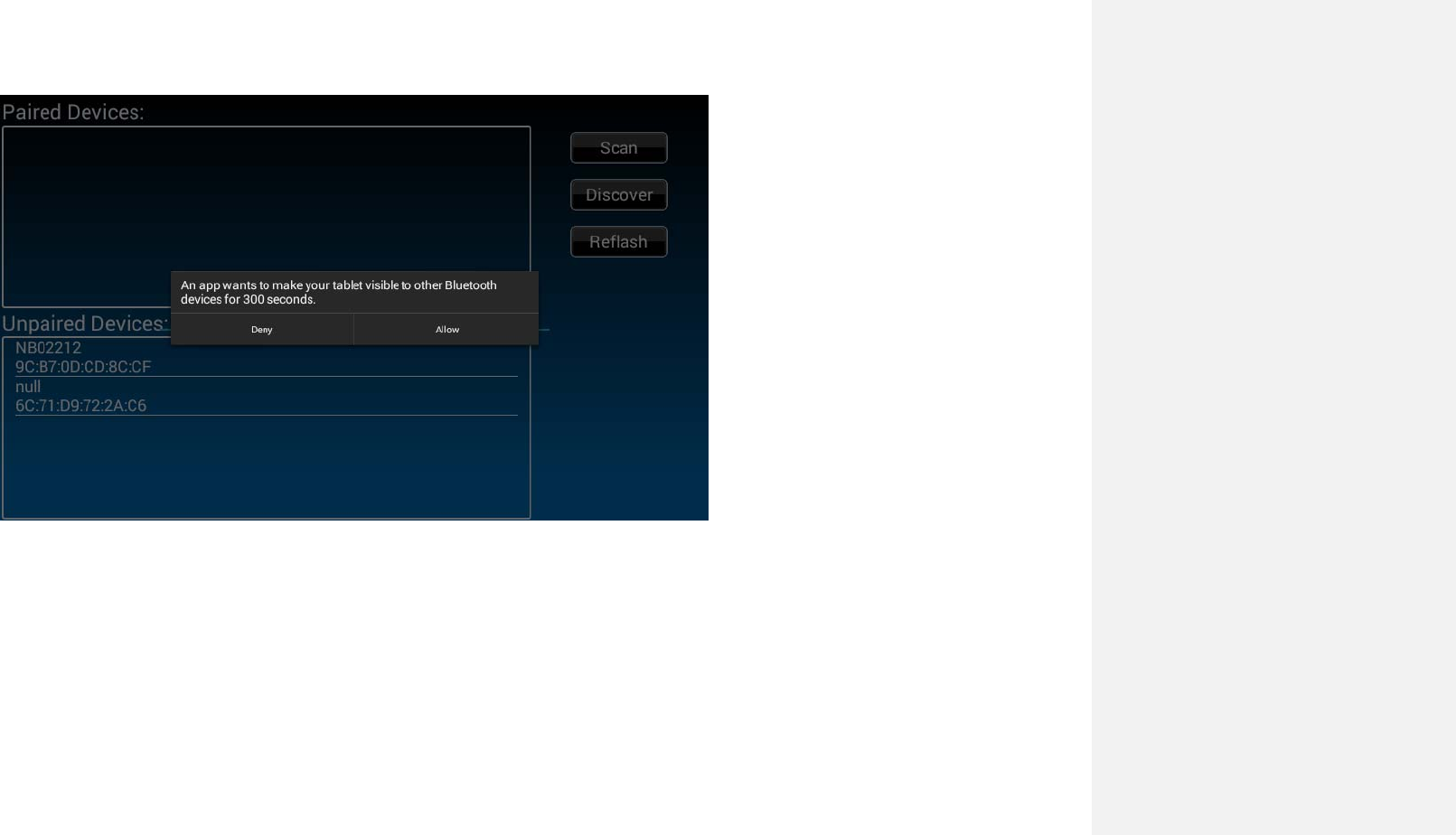

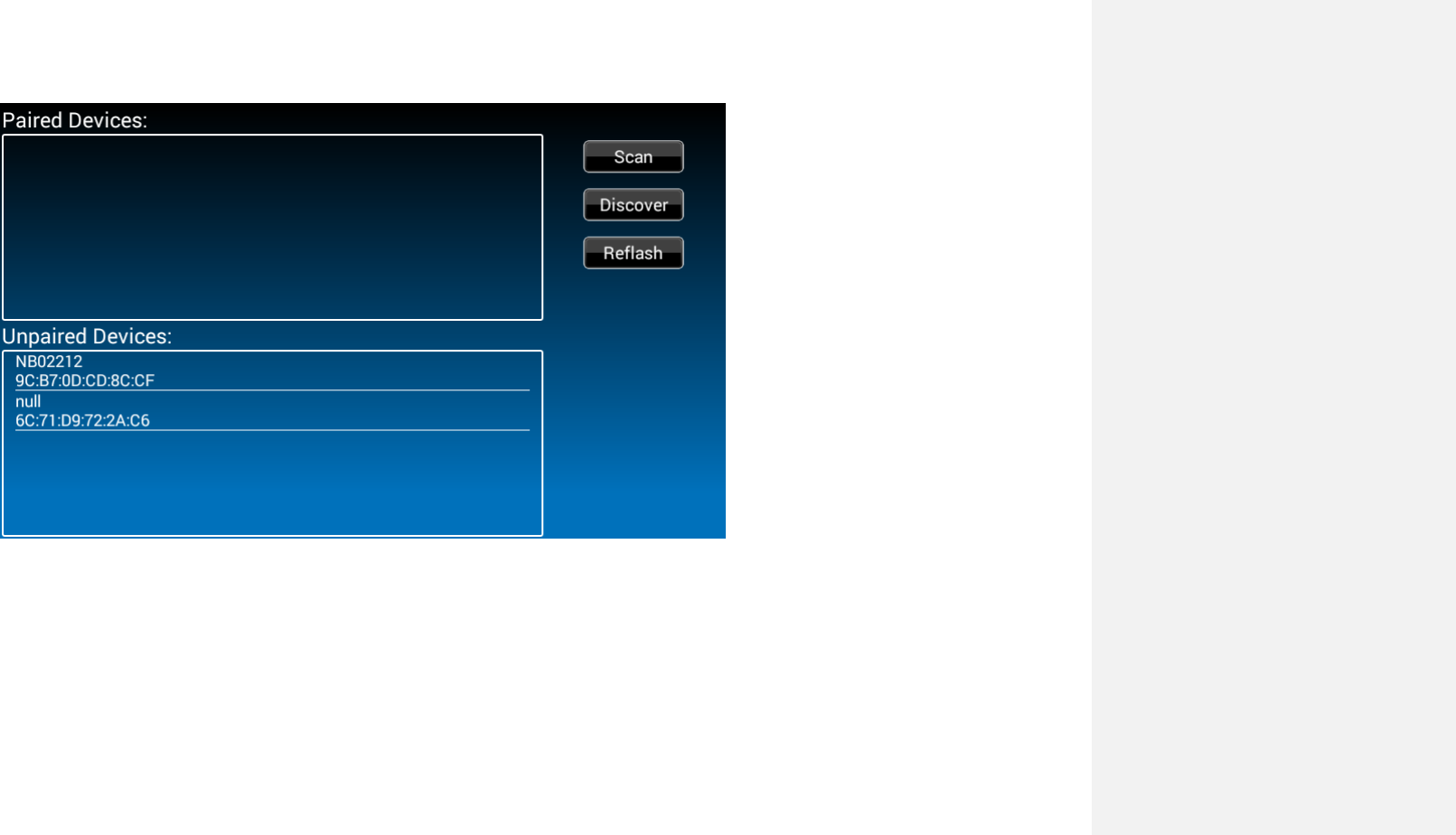

1.3.Currently,itshowsnoBTpaireddeviceconnectedtothisDC.Pressthe“Discover”buttontoactivatetheBTpairingmode.



1.4.Press“Allow”.



2.MobileDeviceside.

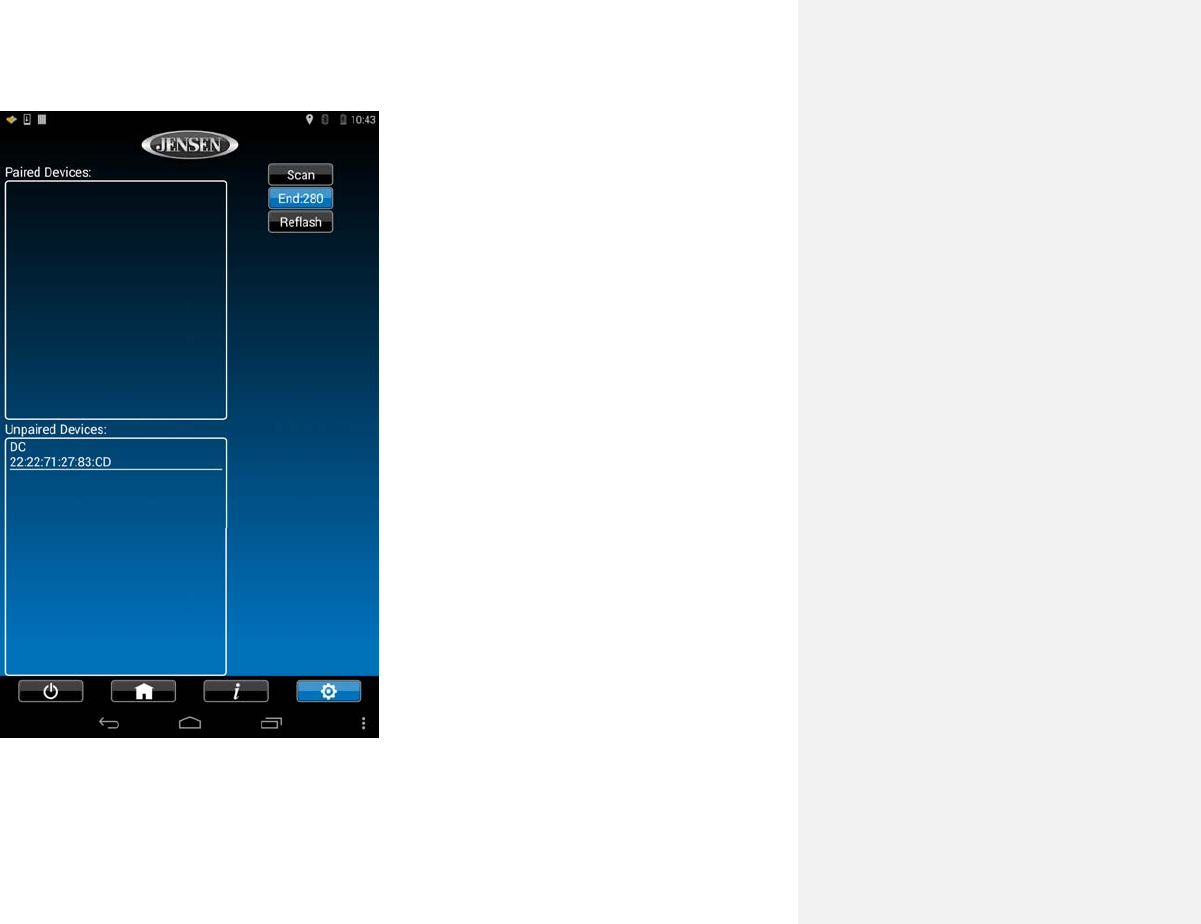

2.1Press“Bluetooth”onthe“Setup”pagetofindtheDCdevice.



2.2.TheMobileAPPwillscanfortheDCdevice.



2.3.Findthe“DC”intheunpaireddevicelist.Press“DCdevice”topairwithit.



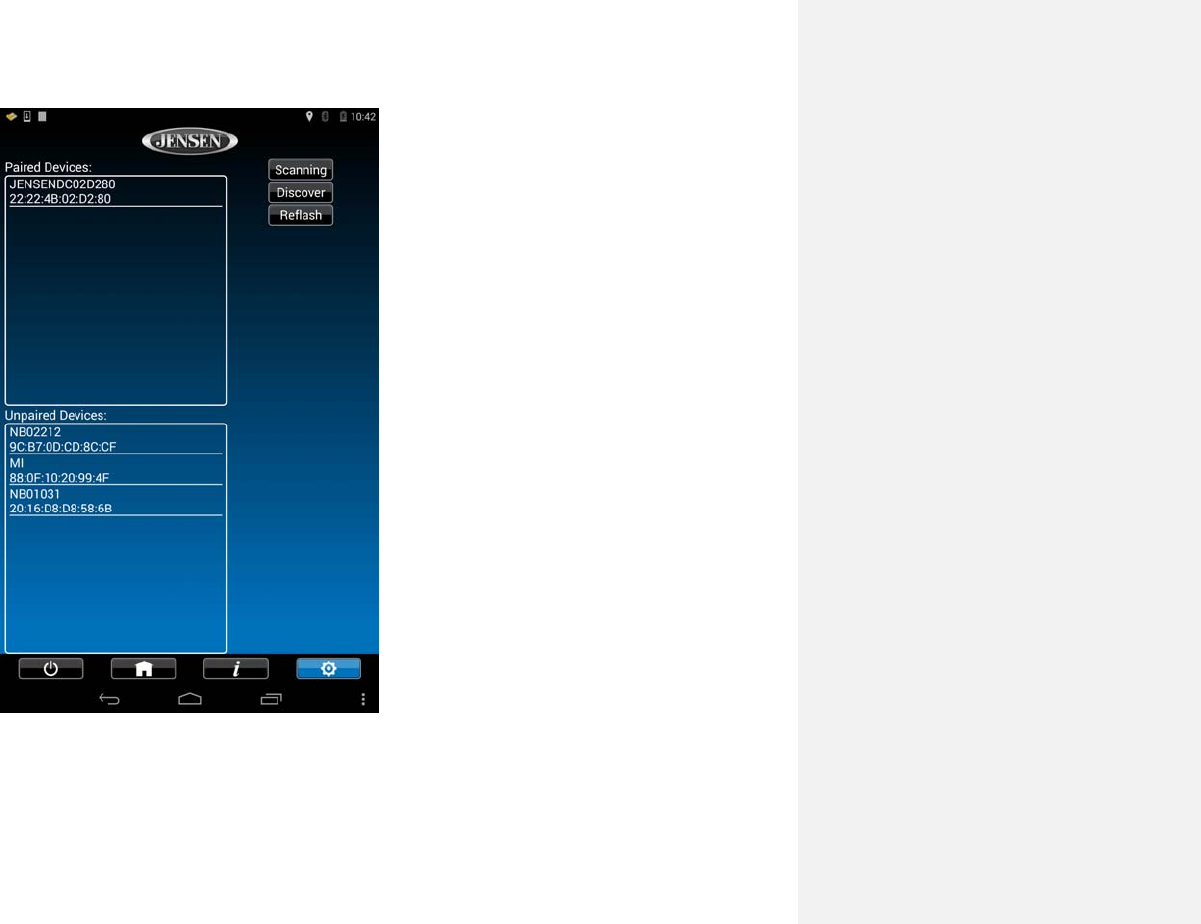

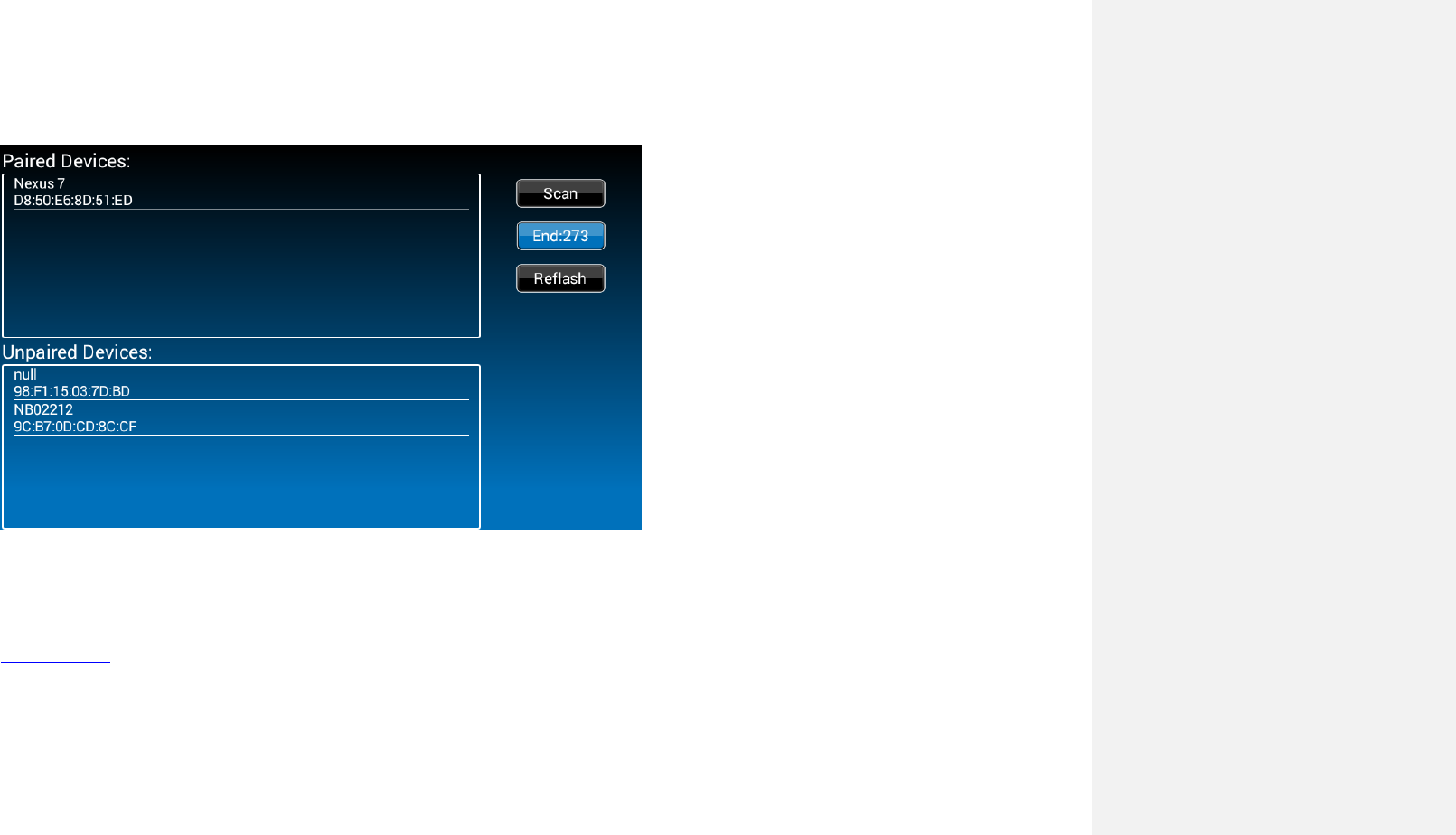

3.2TheDCnowshowstheMobiledeviceispaired.



SoftwareUpdate

1.Select“Setup”.



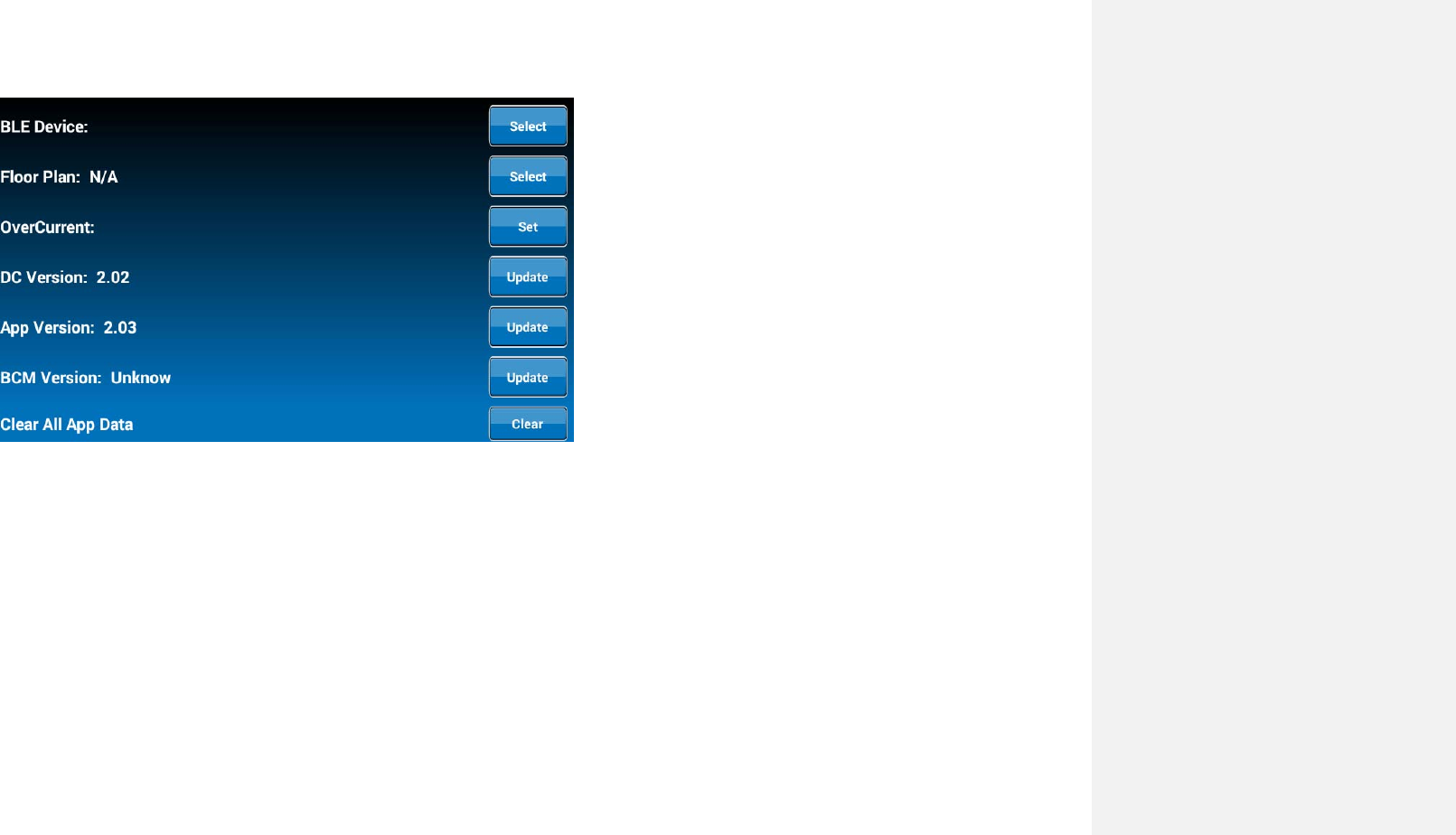

2.AttachtheupdatesoftwareUSBDrivebeforeselecting“Maintain”.



3.Thesystemwilllookforspecificfilenamesforsoftwareupdatesandturnon“Select”actionbuttonsaccordingly.

‐Filename:“JRVCS1_APVxxxx.apk”DCAPPupdate,(xxxxisversionnumber)

‐Filename:“JRVCS1_CMVxxxx.bin”BCMupdate,(xxxxisversionnumber)

‐Filename:“update.zip”DCAndroidOSupdate



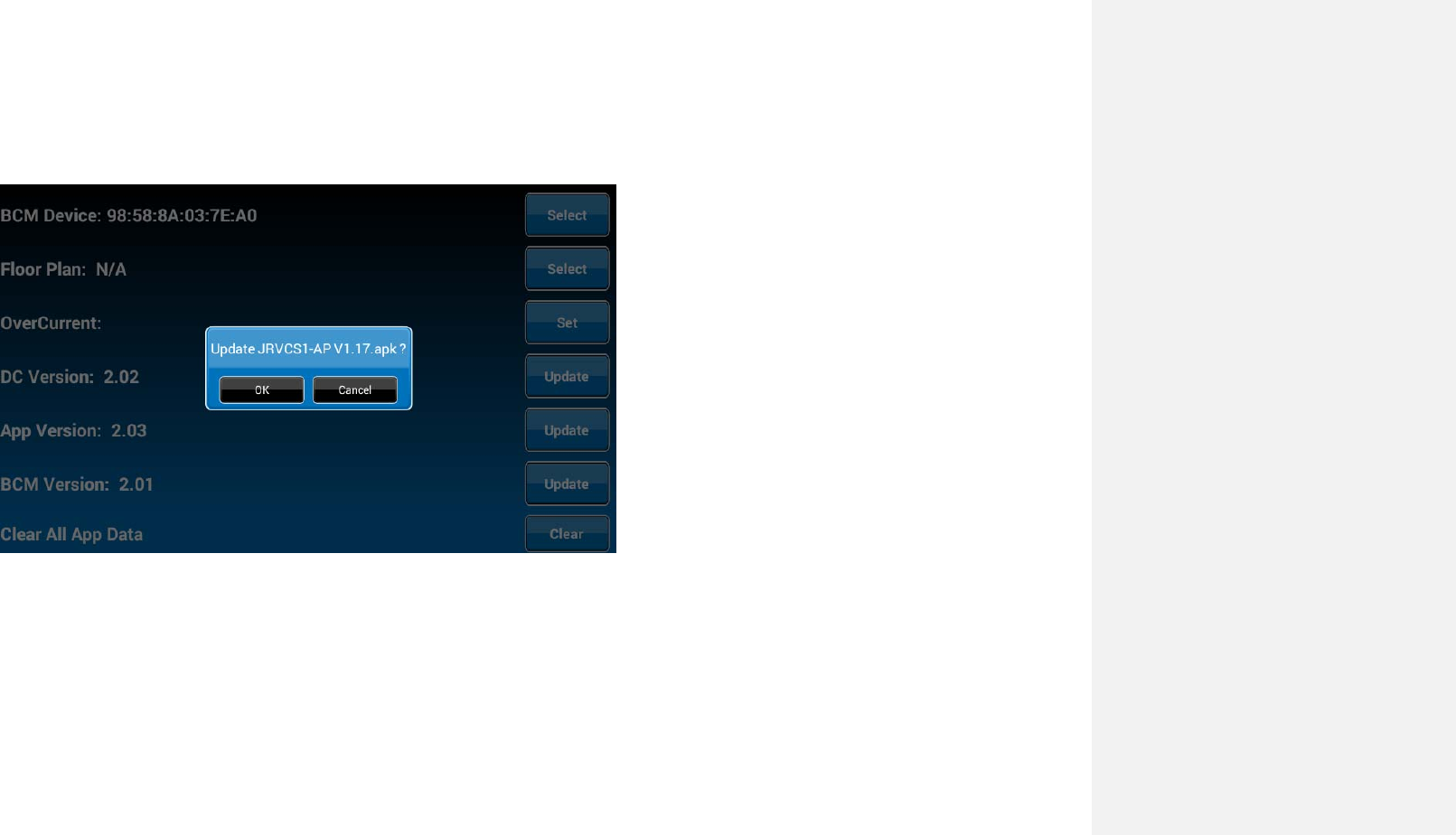

3.1.PresstheAPP“Update”buttontoupdateDCAPP.



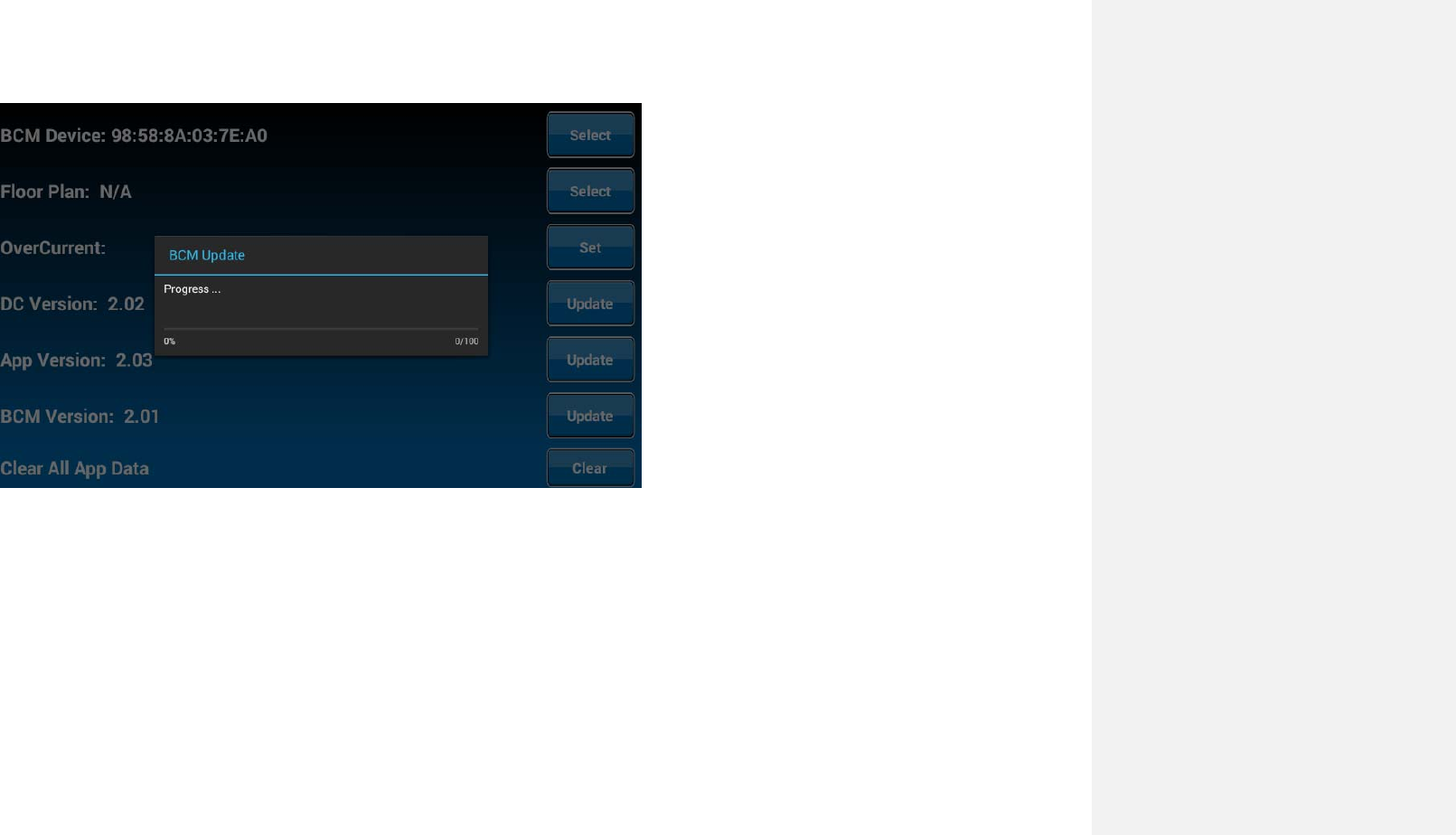

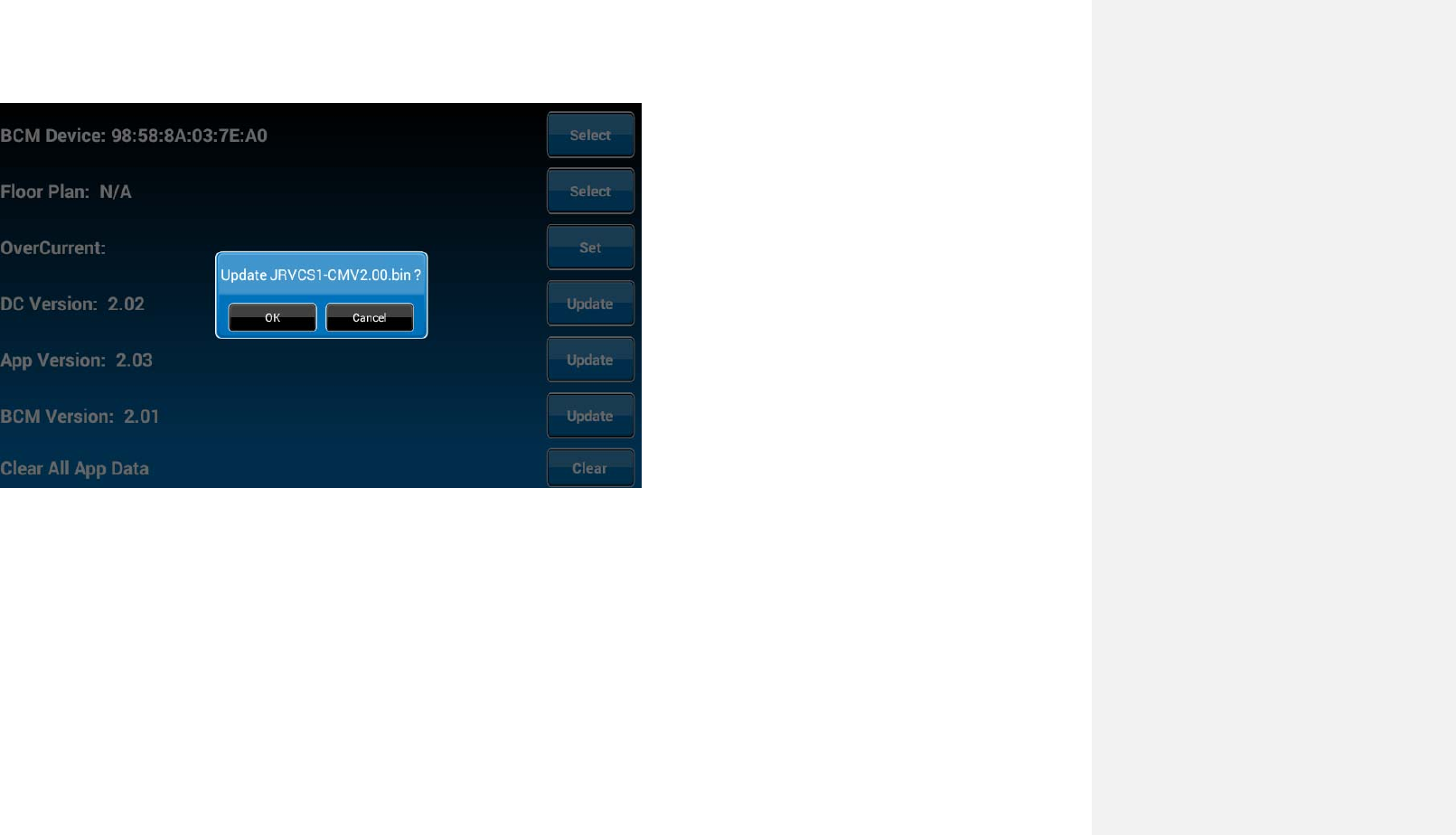

3.2.PresstheBCM“Update”buttontoupdatetheBCMfirmware.



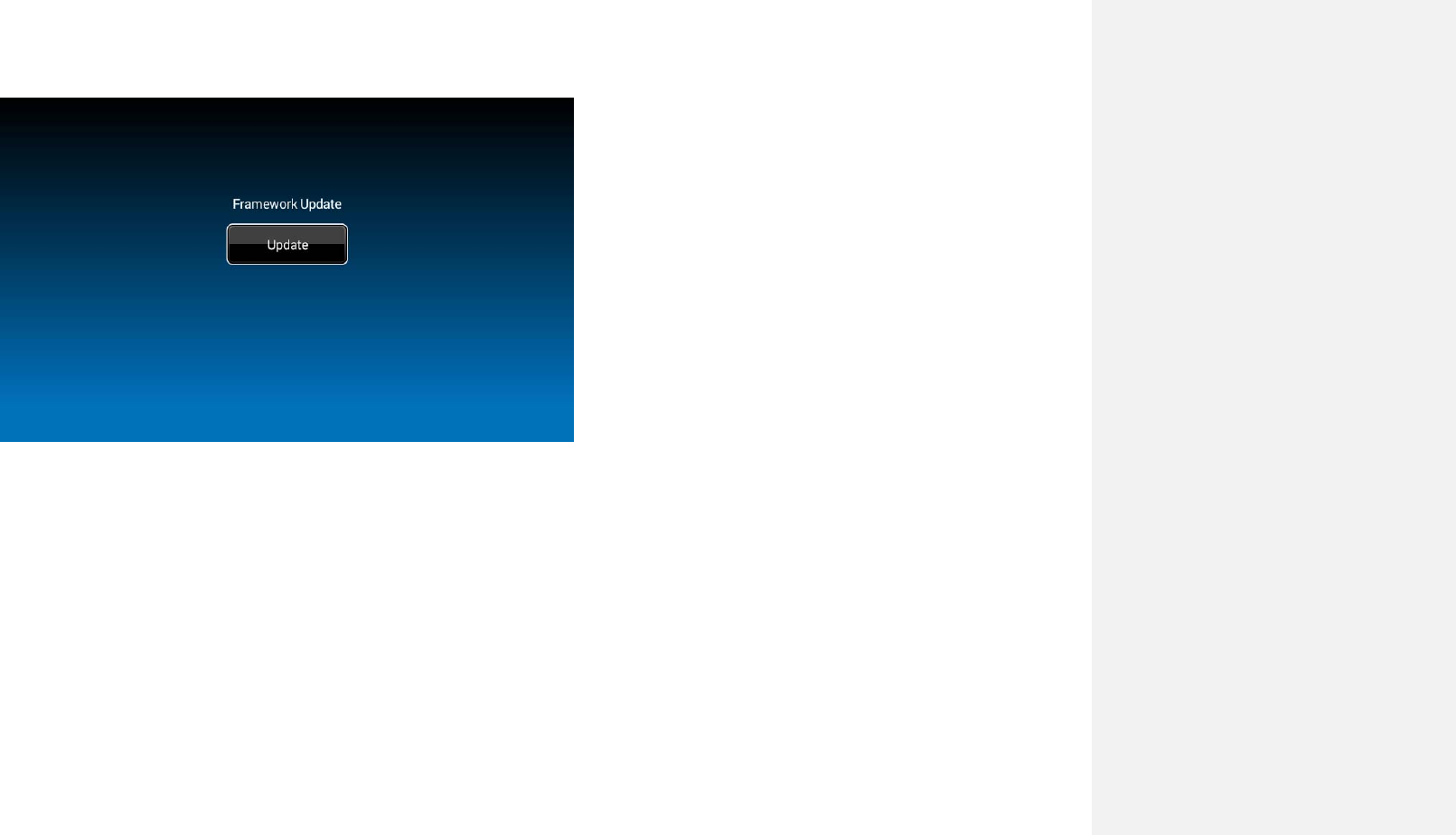

3.3PresstheDC“Update”buttontoupdateDCAndroidOS.



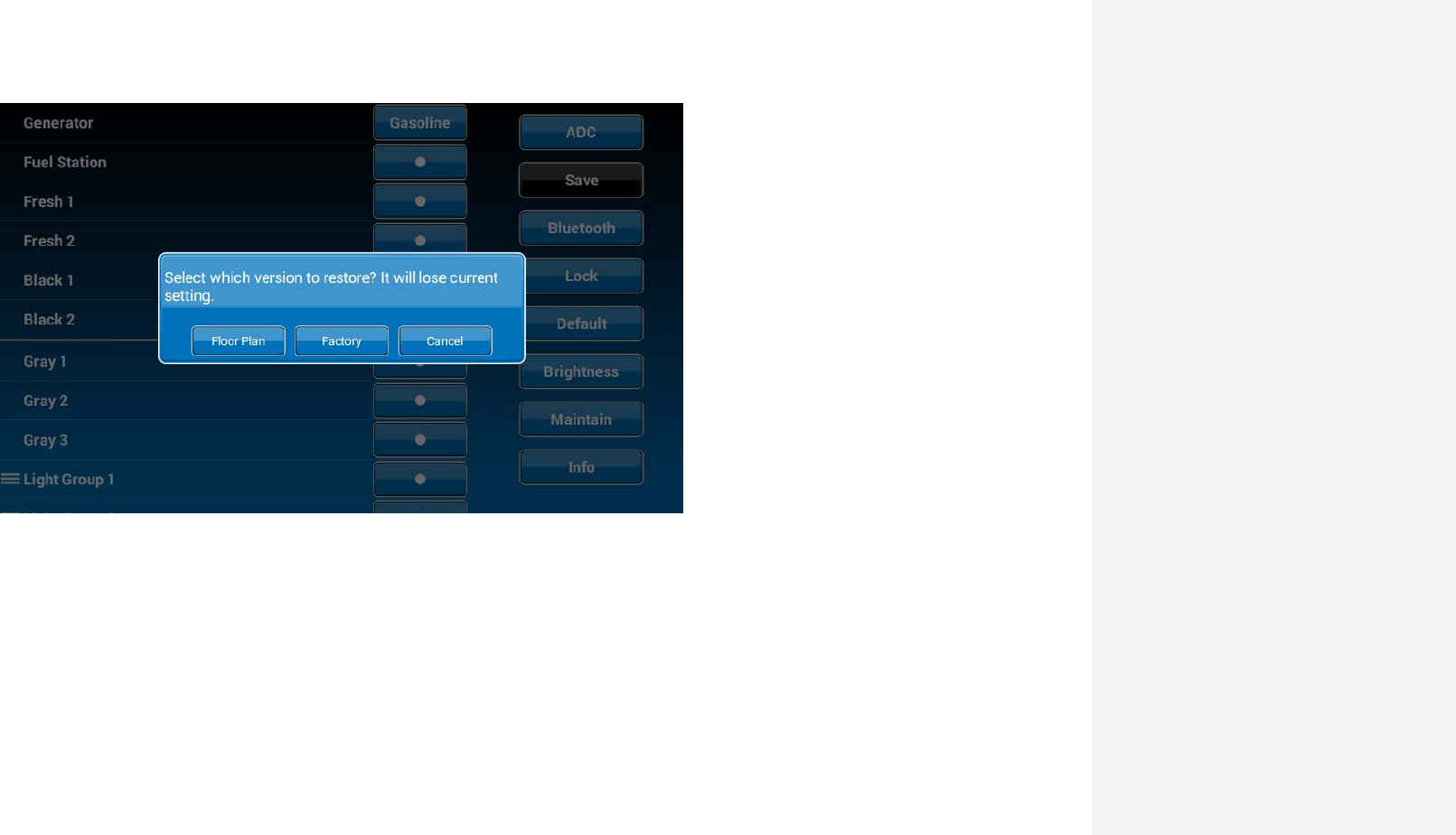

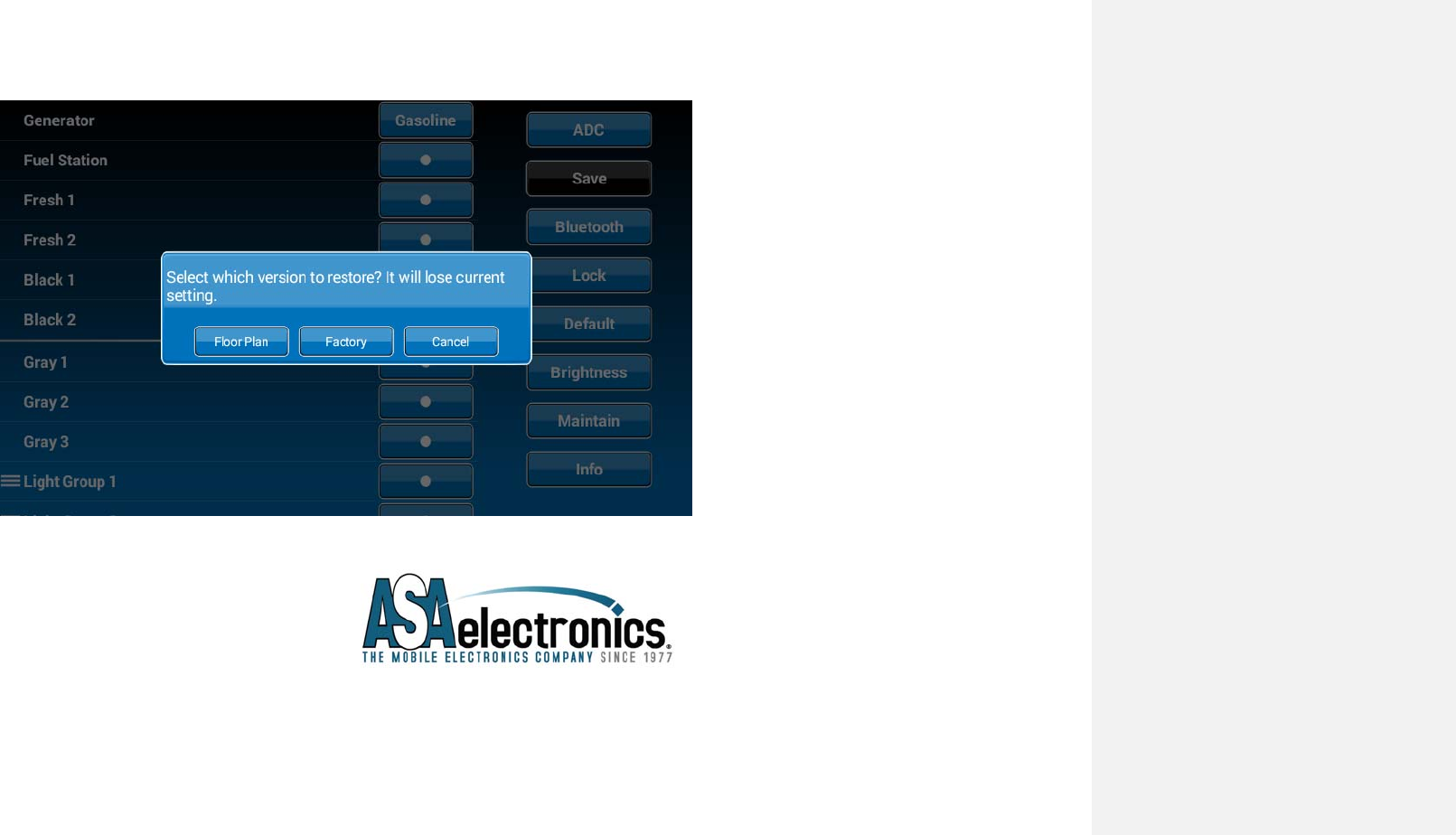

ResetFloorPlan

1.Select“Setup”.



2.Press“Default”torestorethesystemtoprevioussettings.



3.Select“FloorPlan”torestorethepreviousfloorplansetting.Currentsettingswillbelost.



4.Select“Factory”torestorebacktoASAdefaultsettings.Currentsettingswillbelost.



ASA Electronics Corporation

www.asaelectronics.com

www.jensenrvdirect.com

Sysgration JRVCS1CM JRVCS1 Body Control Module User Manual

Sysgration Ltd. JRVCS1 Body Control Module User Manual

User_Manual

Navigation menu

Namespaces

Views

Navigation
