Systems and Technology STAVL0637 GSM Modem User Manual IntelliTrac X Series Protocol
Systems & Technology Corp. GSM Modem IntelliTrac X Series Protocol
Manual
© Systems & Technology Corp. All rights reserved.

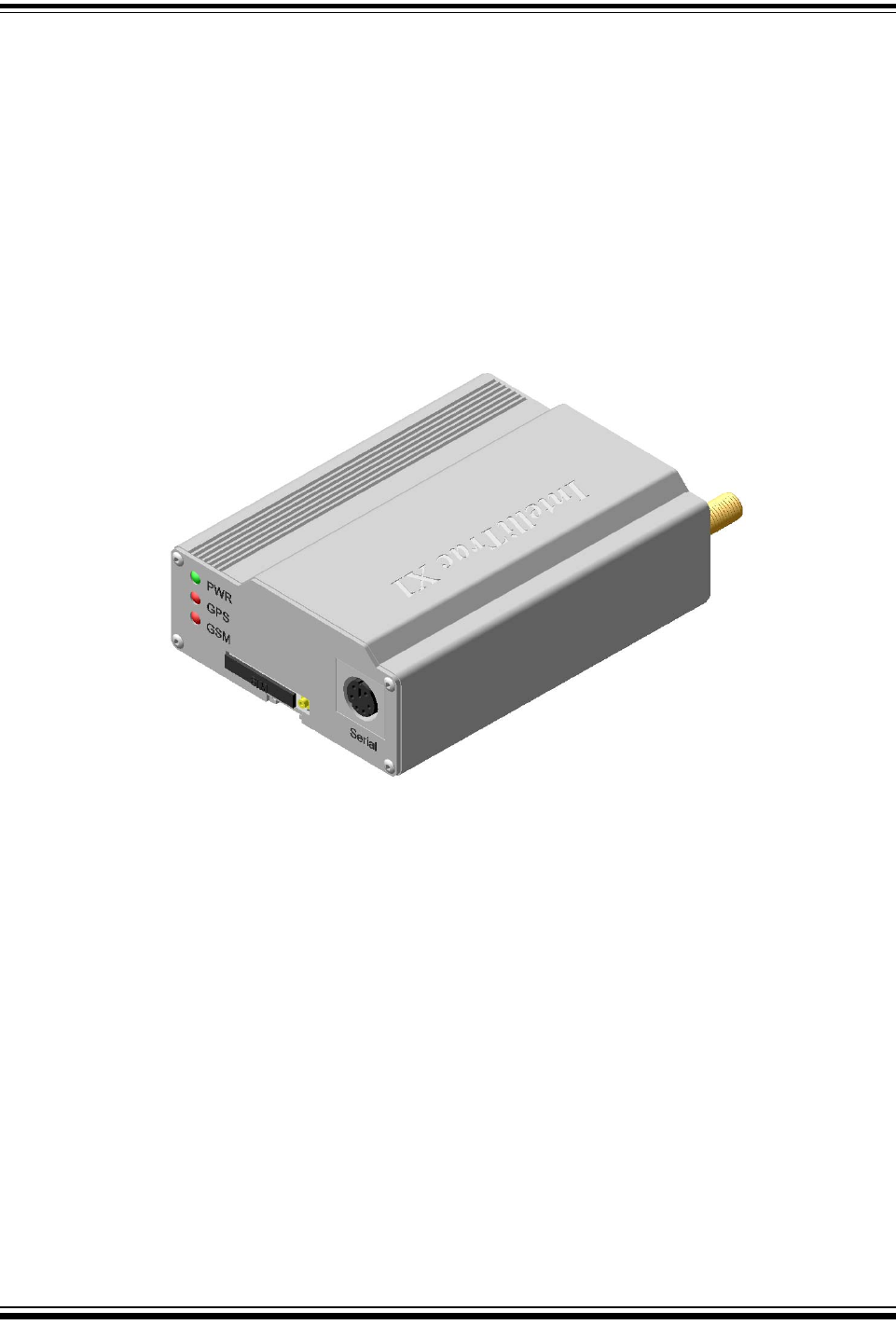

I
In
nt
te
el
ll
li
iT
Tr
ra
ac
c
X
X1
1
U
Us
se
er
r’
’s
s
M
Ma
an
nu
ua
al
l
Version: 1.3
Date: Mar 27, 2006
Status: Preliminary
© Systems & Technology Corp. All rights reserved.
General notes
With respect to any damages arising in operation with the described product or this document, S&T shall be
liable according to the General Conditions on which the delivery of the described product and this document
are based. This product is not intended for use in life support appliances, devices or systems where a
malfunction of the product can reasonably be expected to result in personal injury. S&T customers using or
selling this product for use in such applications do so at their own risk and agree to fully indemnify S&T for
any damages resulting from illegal use or resale.
Information in this document is subject to change without notice at any time.
Copyright notice
Copying of this document and giving it to others and the use or communication of the contents thereof, are
forbidden without express authority. Offenders are liable to the payment of damages.
© Systems & Technology Corp. All rights reserved
IntelliTrac X1 User’s Manual
Table Of Contents
Table Of Contents
1 Features ...................................................................................................................................1
2 System Requirements .............................................................................................................1
3 Product Contents ....................................................................................................................1
4 Hardware Installation ............................................................................................................2
4.1 Install SIM card ............................................................................................................................ 2
4.2 Install Cables................................................................................................................................ 2
4.3 Mounting the unit ......................................................................................................................... 3
5 Software Installation ..............................................................................................................4
5.1 Configuration Software ................................................................................................................ 4
5.2 Firmware Download Software......................................................................................................5
6 Specifications...........................................................................................................................6
7 Electrical, reliability and radio characteristics....................................................................6
7.1 Absolute maximum ratings........................................................................................................... 6
7.2 Operating temperatures ............................................................................................................... 6
7.3 GSM/GPRS Output Power...........................................................................................................7
7.4 GSM/GPRS Receive sensitivity ...................................................................................................7
7.5 GSM/GPRS receive/transmit frequency ...................................................................................... 7
8 LED Indicators .......................................................................................................................8
9 About Systems & Technology Corporation..........................................................................9
© Systems & Technology Corp. All rights reserved.
IntelliTrac X1 User’s Manual
3
3
P
Pr
ro
od
du
uc
ct
t
C
Co
on
nt
te
en
nt
ts
s
© Systems & Technology Corp. All rights reserved.
- 1 -
1
1
F
Fe
ea
at
tu
ur
re
es
s
16 channels GPS receiver with high sensitivity up to –152dBm
Quad-band GSM/GPRS (850 / 900 / 1800 / 1900 MHz) solution
Intelligent real time tracking mode
High capacity Li-Polymer backup battery
Advanced power management
Journey logging for thousands position
Remote configuration and firmware upgrade
2
2
S
Sy
ys
st
te
em
m
R
Re
eq
qu
ui
ir
re
em
me
en
nt
ts
s
The IntelliTrac X1 configuration software is based on Microsoft Windows systems.
Windows Systems：Win98/Me/2000/XP

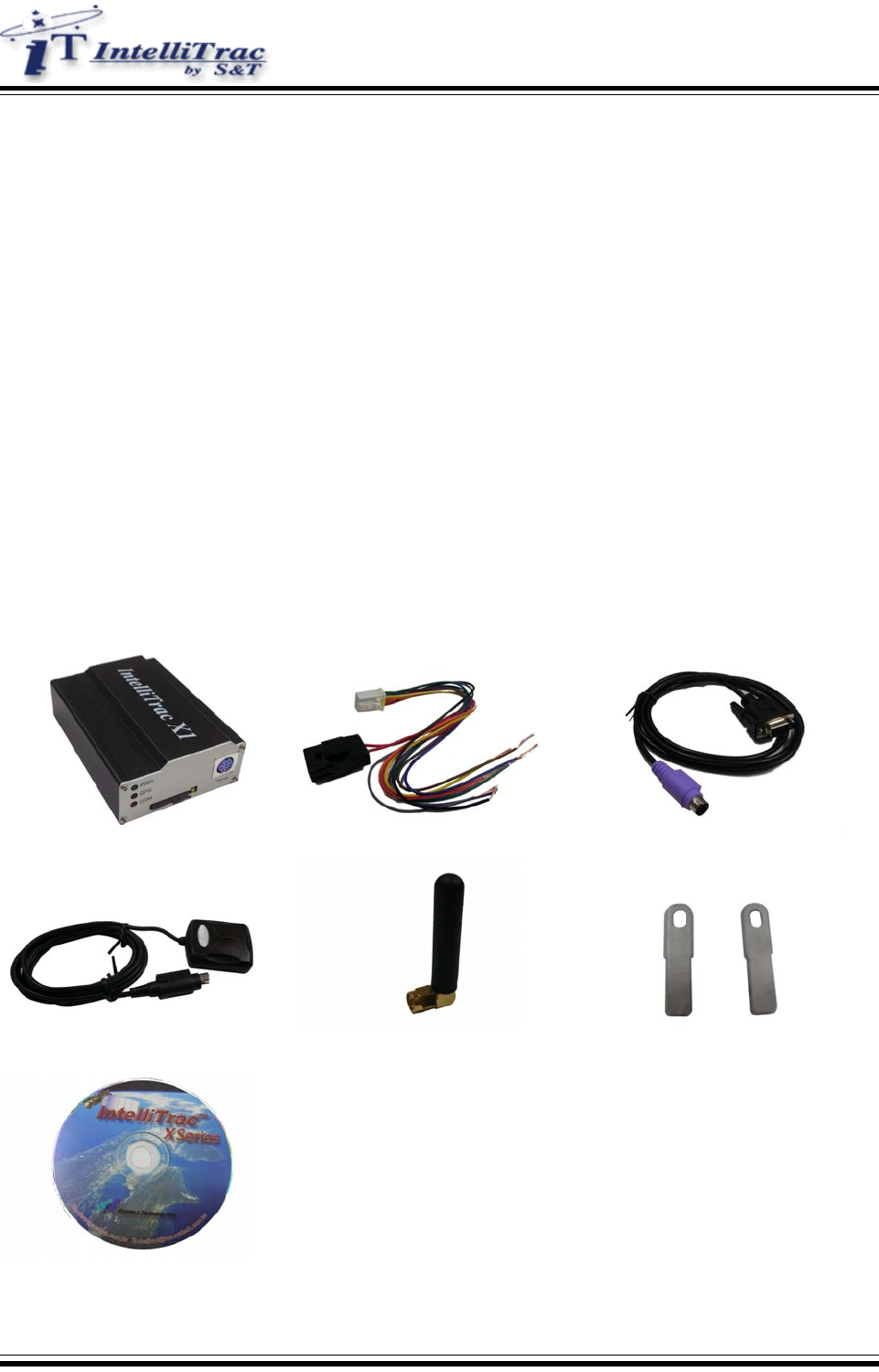

IntelliTrac X1 device Power I/O Cable Serial Cable
GPS Receiver GSM/GPRS Antenna Holding Bridles
CD (User manual & Software)
IntelliTrac X1 User’s Manual
© Systems & Technology Corp. All rights reserved.
- 2 -
4
4
H
Ha
ar
rd
dw
wa
ar
re
e
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n

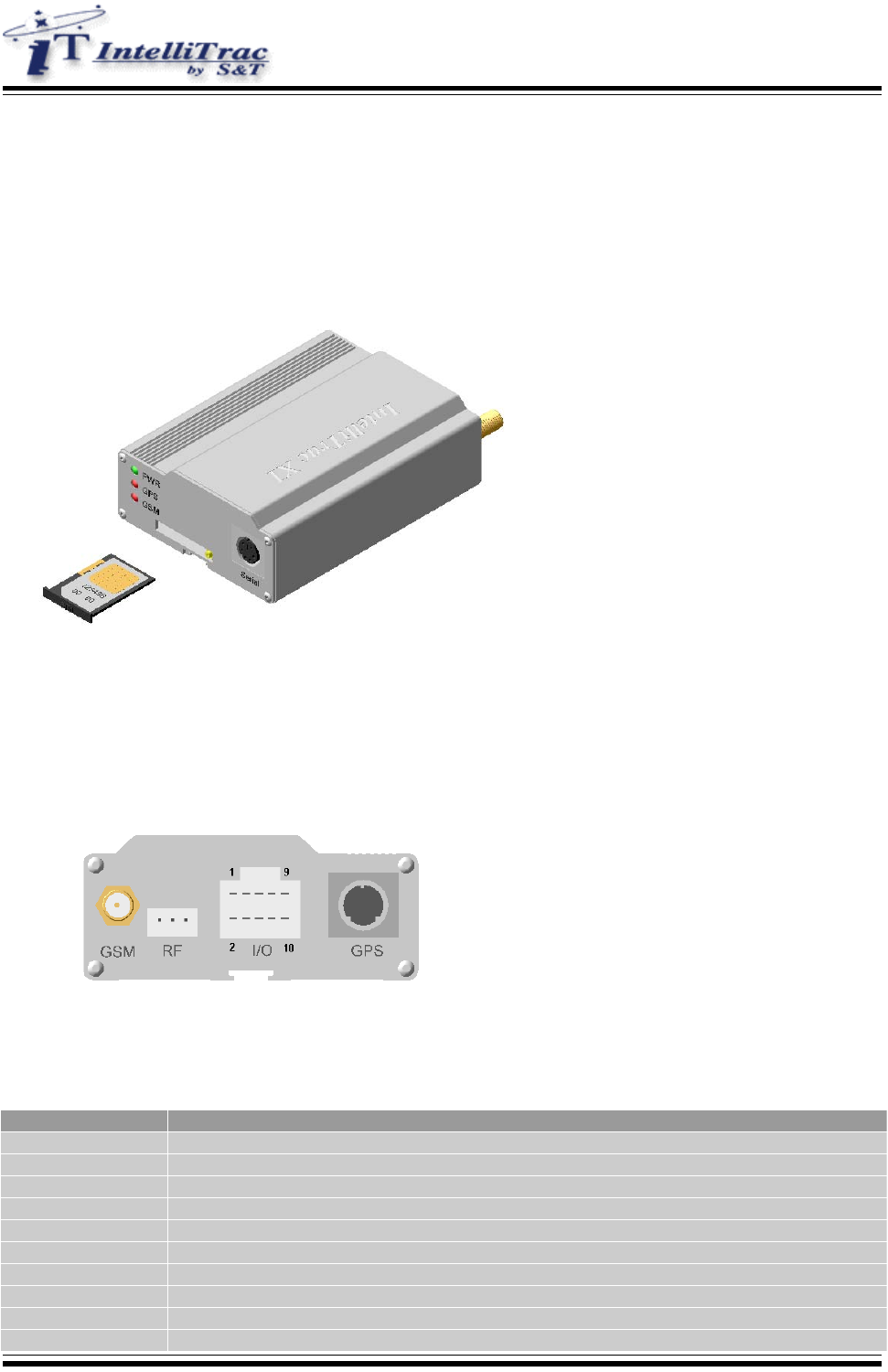

4.1 Install SIM card
Press the yellow button to enject the SIM card holder and insert the SIM card. If you would like to disable
the PIN code, please use general GSM cellular phone to disable the PIN code in advance.
4.2 Install Cables
Install I/O cable
The I/O cable is a 10-wires cable which include power and positive/negative inputs and outputs.
The I/O cable pins assignment shown below :
Pin Number Description
1 DC power source ( 8V ~ 30V )
2 Ground
3 Input1 (ACC Positive trigger input)
4 Output1
5 Input2 (Positive trigger)
6 Output2
7 Input3
8 Output3
9 Input4
10 Output4 (Internal 2A Relay)
IntelliTrac X1 User’s Manual
© Systems & Technology Corp. All rights reserved.
- 3 -
Install GSM Antenna
Connect the GSM antenna to the SMA connector with lable “GSM”.
Install GPS Receiver
Connect the GPS receiver to the Mini DIN connector with label “GPS”. Use a nylon cable tie to prevent
unexpected come off.
Install RF Receiver (Optional)
Connect the RF receiver ti the 3 pins connector with label “RF”.

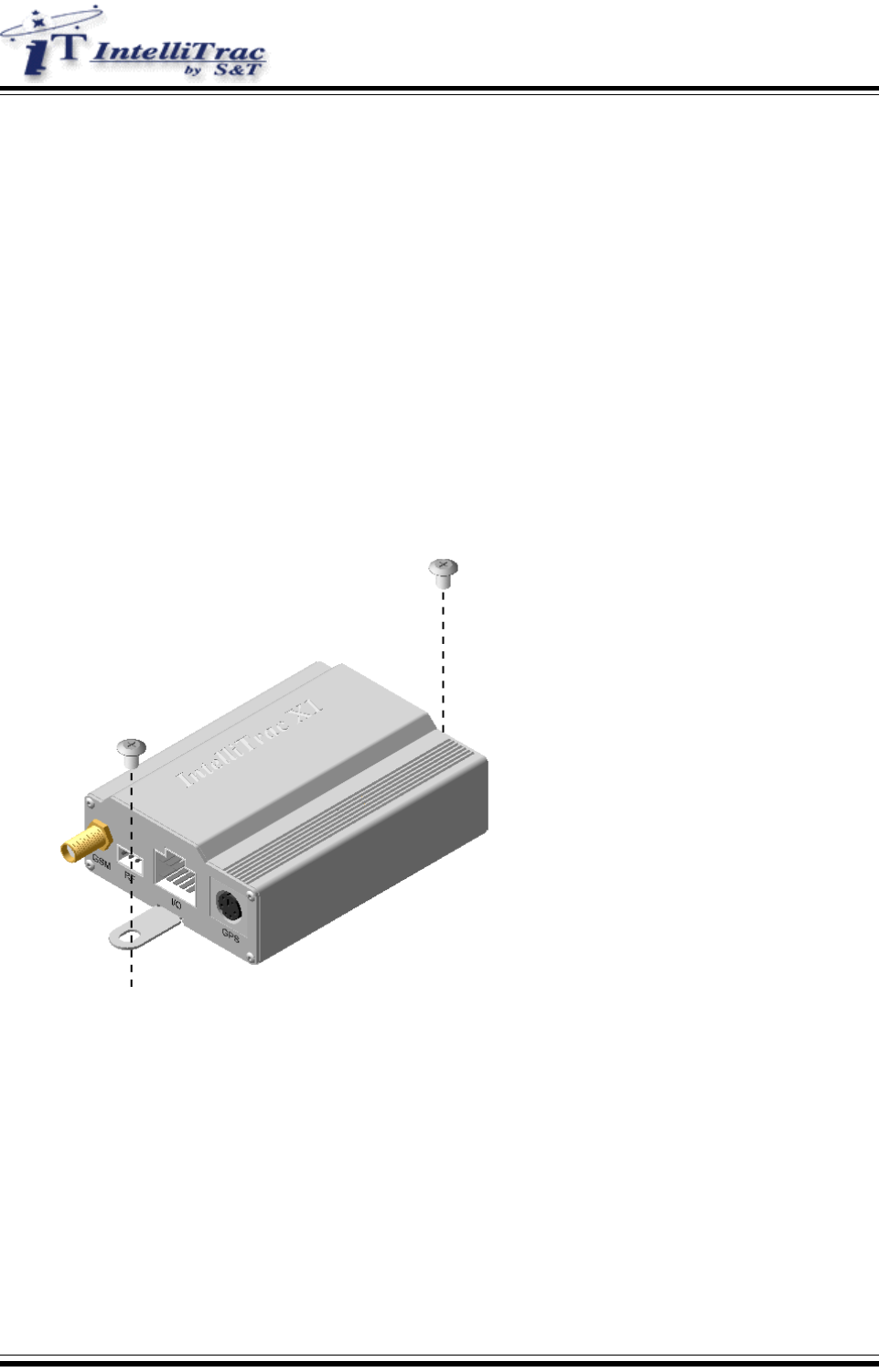

4.3 Mounting the unit
For mounting the unit, bind to the body the holding bridles according the the schema below :
IntelliTrac X1 User’s Manual
© Systems & Technology Corp. All rights reserved.
- 4 -
5
5
S
So
of
ft
tw
wa
ar
re
e
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n

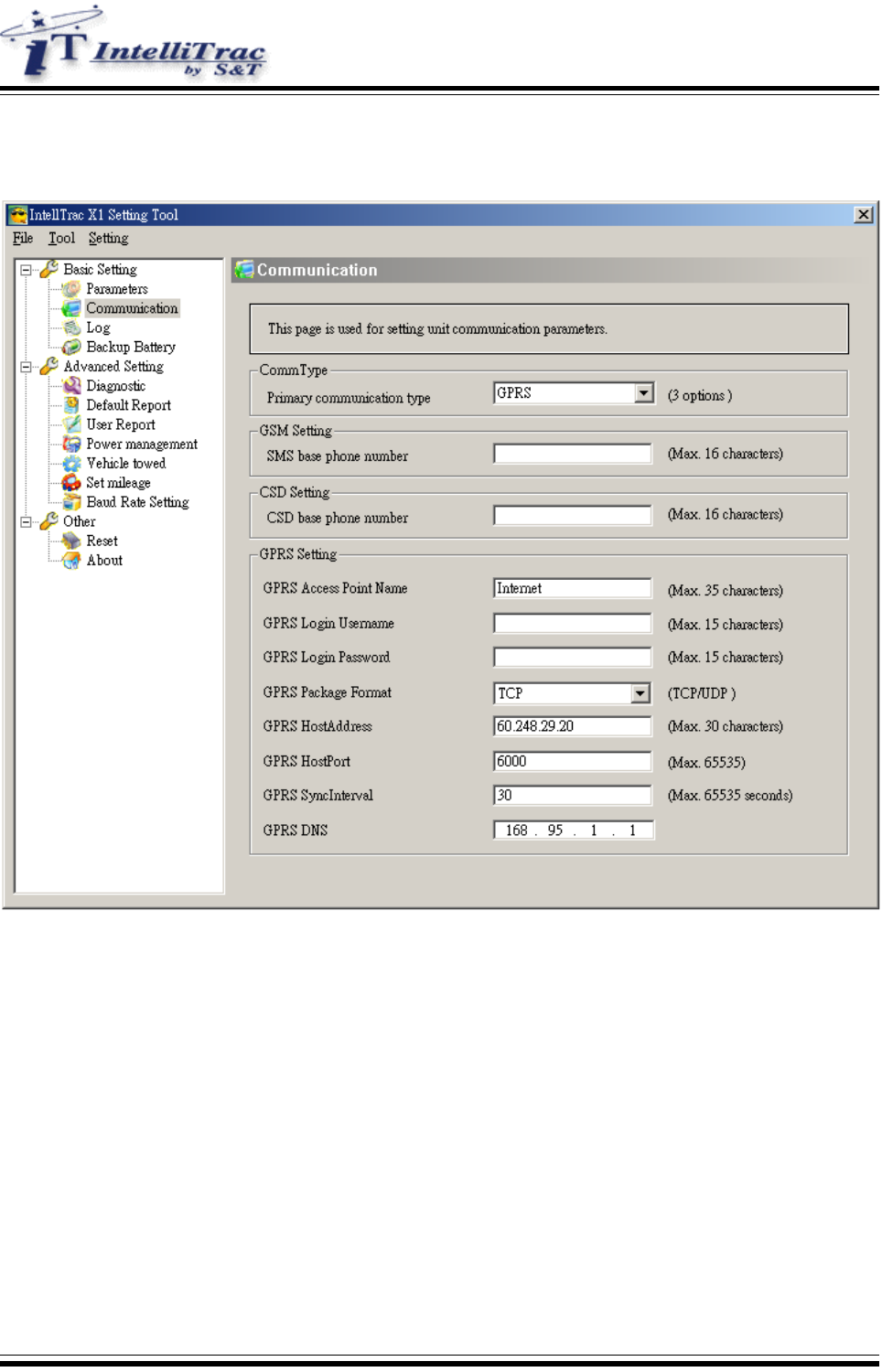

5.1 Configuration Software
IntelliTrac X1 User’s Manual
© Systems & Technology Corp. All rights reserved.
- 5 -

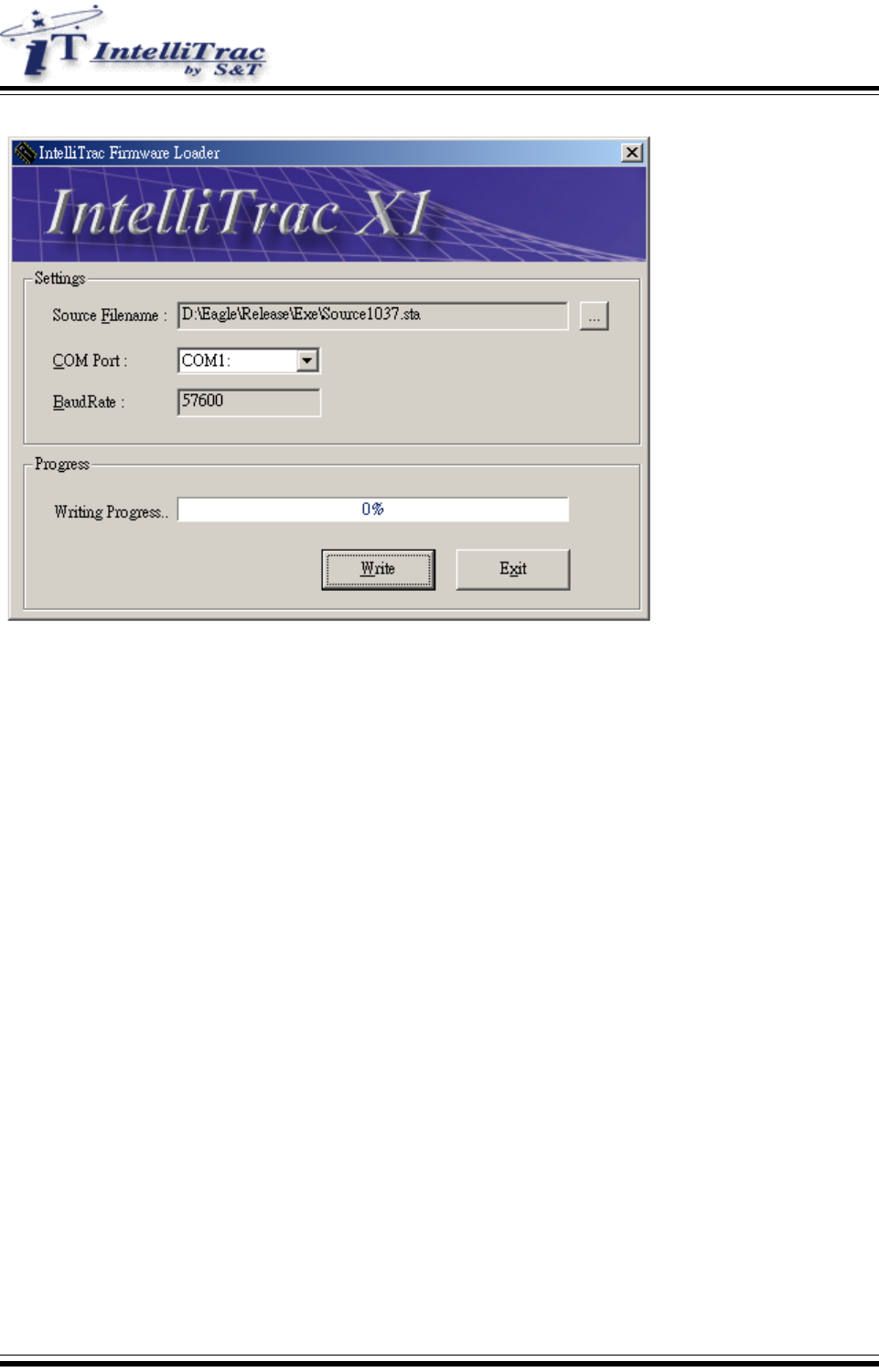

5.2 Firmware Download Software
IntelliTrac X1 User’s Manual
© Systems & Technology Corp. All rights reserved.
- 6 -
6
6
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s
Dimension 90mm x 70mm x 30mm
Weight 250g
Input Ports 4 Inputs (2 positive, 2 negative)
Output Ports 4 Outputs (4 negative trigger)
GPS Datum WGS-84
GPS Frequency L1, 1575.42MHz
GPS Channel 16
GPS Tracking sensitivity -152dBm typ.
GPS Cold Start 40secs
GPS Warm Start 25secs
GPS Hot Start 3secs
GPS Update Rate 1Hz
GPS Accuracy 3m CEP (50%), 7m (90%)
GPS Baud Rate 19200bps
GSM/GPRS Frequency Quad-Band 850/900/1800/1900MHz
GPRS Multi-slot class 10
SMS PDU mode
Data mode CS Data
Voice mode HR/FR/EFR
7
7
E
El
le
ec
ct
tr
ri
ic
ca
al
l,
,
r
re
el
li
ia
ab
bi
il
li
it
ty
y
a
an
nd
d
r
ra
ad
di
io
o
c
ch
ha
ar
ra
ac
ct
te
er
ri
is
st
ti
ic
cs
s
7.1 Absolute maximum ratings
Absolute maximum rating for power supply and voltage on digital input pins of the IntelliTrac X1 are list in
following table：
Parameter Min Max Unit
Supply Voltage 8 30 V
Positive trigger Input Voltage 5 30 V
Positive trigger Input current 35 uA
Negative trigger Input Voltage 0 0.7 V
Output current 400 mA
Relay output current 2 A
Power current consumption (Standby mode) 40 45 mA @ 12VDC
Power current consumption (GPS Off mode) 24 26 mA @ 12VDC
Power current consumption (Deep sleep mode) 15 15 mA @ 12VDC
7.2 Operating temperatures
The operating temperature is listed in following table:
Parameter Min Typ Max Unit
Ambient temperature -20 25 55 ℃
Restricted temperature* -20 ~ -40 55 ~ 85 ℃
Storage Temperature -40 85 ℃
*The IntelliTrac X1 device can work, but the deviation from the specification may occur.
IntelliTrac X1 User’s Manual
© Systems & Technology Corp. All rights reserved.
- 7 -
7.3 GSM/GPRS Output Power
Parameter Min Max Unit
GSM850 33 5 dBm
E-GSM900 33 5 dBm
DCS1800 30 0 dBm
PCS1900 30 0 dBm
7.4 GSM/GPRS Receive sensitivity
Parameter Min Max Unit
GSM850 <-106 dBm
E-GSM900 <-106 dBm
DCS1800 <-104 dBm
PCS1900 <-104 dBm
7.5 GSM/GPRS receive/transmit frequency
Parameter Receive Transmit
GSM850 869 ~ 894 MHz 824 ~ 849 MHz
E-GSM900 925 ~ 960 MHz 880 ~ 915 MHz
DCS1800 1805 ~ 1880 MHz 1710 ~ 1785 MHz
PCS1900 1930 ~ 1990 MHz 1850 ~ 1910 MHz
IntelliTrac X1 User’s Manual
© Systems & Technology Corp. All rights reserved.
- 8 -
8
8
L
LE
ED
D
I
In
nd
di
ic
ca
at
to
or
rs
s
PWR LED Status Function
Off Power off
20 ms On / 2 secs Off The device is running in power saving mode.
500ms On / 500ms Off Reset procedure is in progress
20ms ON / 20ms Off Upgrade firmware is in progress
On Power on
GPS LED Status Function
Off The GPS is off or running in power saving mode.
1 sec On / 1 sec Off No GPS satellites signal received
On GPS Ready
GSM LED Status Function
Off The device is off or running in deep sleep mode.
600 ms On / 600ms Off No SIM card inserted or no PIN entered, or network search in
progress, or network login in progress.
90 ms On / 3 secs Off Logged to network.
90 ms blinking 2 times
/3secs Off
GPRS Network connected
IntelliTrac X1 User’s Manual
© Systems & Technology Corp. All rights reserved.
- 9 -
9
9
A
Ab
bo
ou
ut
t
S
Sy
ys
st
te
em
ms
s
&
&
T
Te
ec
ch
hn
no
ol
lo
og
gy
y
C
Co
or
rp
po
or
ra
at
ti
io
on
n
IntelliTrac X Series AVL device is produced by Systems & Technology Corporation. The company is a key
developer and supplier of advanced systems in the Automatic Vehicle Location (AVL), Digital Map and Car
Navigation Systems.
If you need information on other maps solutions or products, please contact us at the phone and fax
numbers listed below, or visit our web sites.
Contact Information for System & Technology Corp.
S&T Web Site http://www.systech.com.tw
Technical Support Hotline 886-2-26981599
Technical Support E-mail AVL@ms.systech.com.tw
Main Phone 886-2-26981599
Main Fax 886-2-26981211
FCC Regulations:
zThis mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation.
zThis mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
