Systems and Technology STAVL1104 IntelliTrac User Manual X1 Plus User Guide 001
Systems & Technology Corp. IntelliTrac X1 Plus User Guide 001
user manual
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
I
In
nt
te
el
ll
li
iT
Tr
ra
ac
c
X
X1
1-
-P
PL
LU
US
S
S
Se
er
ri
ie
es
s
U
Us
se
er
r
G
Gu
ui
id
de
e
Version: V0.1
Date: 10 May 2011
Status: Preliminary
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
General notes
With respect to any damages arising in operation with the described product or this document, S&T shall be
liable according to the General Conditions on which the delivery of the described product and this document
are based. This product is not intended for use in life support appliances, devices or systems where a
malfunction of the product can reasonably be expected to result in personal injury. S&T customers using or
selling this product for use in such applications do so at their own risk and agree to fully indemnify S&T for
any damages resulting from illegal use or resale.
Information in this document is subject to change without notice at any time.
Copyright notice
Copying of this document and giving it to others and the use or communication of the contents thereof, are
forbidden without express authority. Offenders are liable to the payment of damages.
© Systems & Technology Corp. All rights reserved
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
T
Ta
ab
bl
le
e
O
Of
f
C
Co
on
nt
te
en
nt
ts
s
1. Introduction.............................................................................................................................1
1.1
Scope ..................................................................................................................................................... 1
1.2
About IntelliTrac X1-Plus.......................................................................................................................... 1
1.3
Hardware Architecture............................................................................................................................... 2
1.4
Related Documents.................................................................................................................................... 3
2. Basic Operations.....................................................................................................................3
2.1
Hardware Installation................................................................................................................................. 4
2.2
Connectors Pins Assignment...................................................................................................................... 5
2.3
Software Upgrade ...................................................................................................................................... 6
2.4
Firmware Download Software
......................................................................................................... 8
3. Technical Specification for IntelliTrac X1-Plus...................................................................9
4. Electrical reliability and radio characteristics...................................................................10
5. LED Indicators……………
……………………………..………………………………………12
6. FCC Regulations……………………...……………………………………………………13
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 1 -
1
1.
.I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
Thank you for your purchasing IntelliTrac X1-Plus GPS Vehicle Tracking device. The benefits are:
Improve Safety
Ensure Security
Good efficiency on Fleet management and Dispatch solution
Asset and resource management
Economic operation and improving productivity
Keep the Journey record for future analysis or accident report
Where is the Car? When it will arrive? What is its speed now?
1.1 Scope
The purpose of this document is to describe how to getting started with the IntelliTrac X Series
devices. The document contains basic device configuration. For advanced users, please refer to the
IntelliTrac X Series Protocol Document for detailed information.
1.2 About IntelliTrac X1-Plus
The IntelliTrac X1-Plus GPS Unit wirelessly transmits location, peripheral, and vehicle control data
to a control center. Location data, including speed, direction, mileage, and altitude, is provided by
an onboard GPS receiver. Wireless transmission is achieved using an onboard GSM/GPRS module.
microcontroller is used to poll location and command data at regular intervals, derive actions based
on location, peripheral, and control data, and execute those actions.
One of the best feature of X series AVL is that they can transit data on ASCII mode.
Peripheral data indicates the status of the various peripherals that are connected to and/or
controlled by the unit. Peripherals include, but not limited to, door locks/un-locks , starter interrupt,
ignition, battery, engine and panic button.
Firmware on the device applies intelligent filtering to overcome coverage limitations for both GPS
and GSM/GPRS networks.
Motion sensor is used to control the status of the unit, either sleep, idle, or full power, there by
controlling the amount of current the unit consumes.
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 2 -
Backup battery and tamper sensing GPS Antennas are primarily used to indicate loss of Main
Power and loss of GPS antenna connectivity.
Device supports Over-the-air firmware upgrade to deliver added functionality without physically
touching the device once installed.

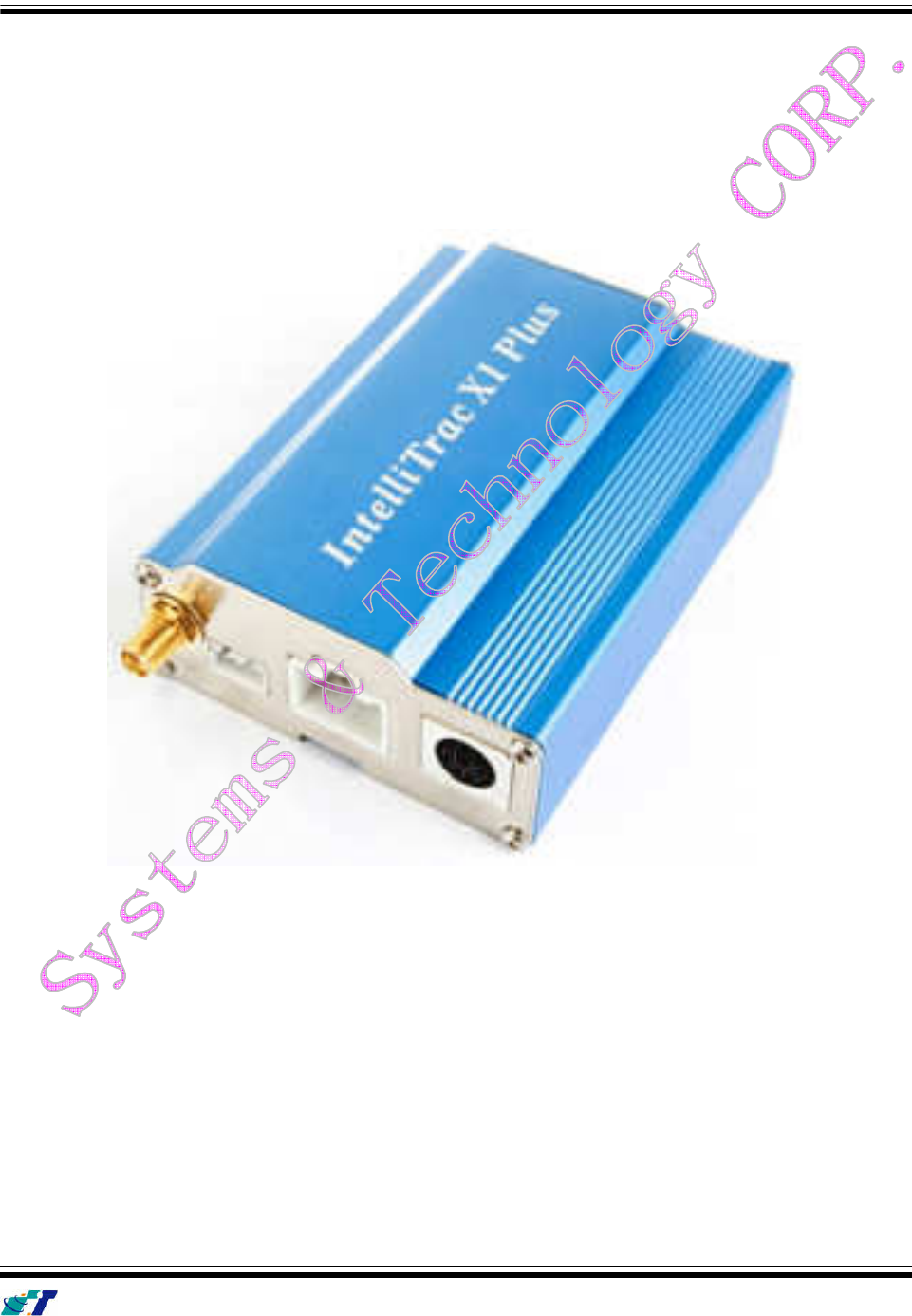

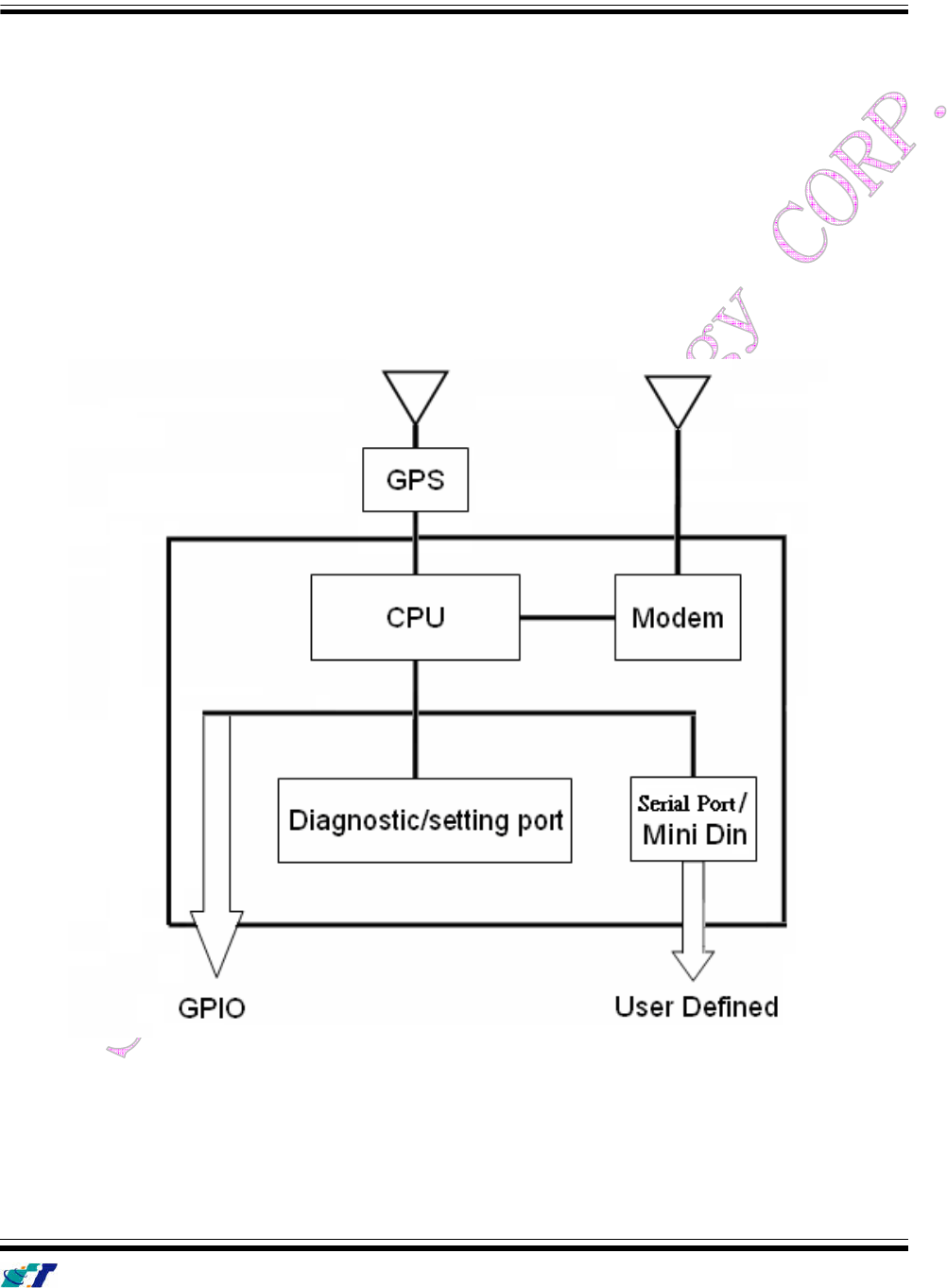

1.3 Hardware Architecture
The IntelliTrac X1-Plus hardware includes Micro-controller, GPS receiver, GSM/GPRS modem,
I/Os interface.
.
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 3 -
User can use PC HyperTerminal connect to the Diagnostic / setting port to configure the AVL.
The GPS is used for car accident. Car tow-away warning and power management.
GPIO can be used to connect to any customer monitoring points (door switch, anti-thief) or
Actuators.
Serial Expansion port .
RTOS OPTION: We will have X1,X1-Plus professional version with Real Time operation system
in JAN.2011.
1.4 Related Documents
[1] IntelliTrac X Series Protocol Document Basic Operations
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 4 -
2. Basic Operations
2.1 Hardware Installation

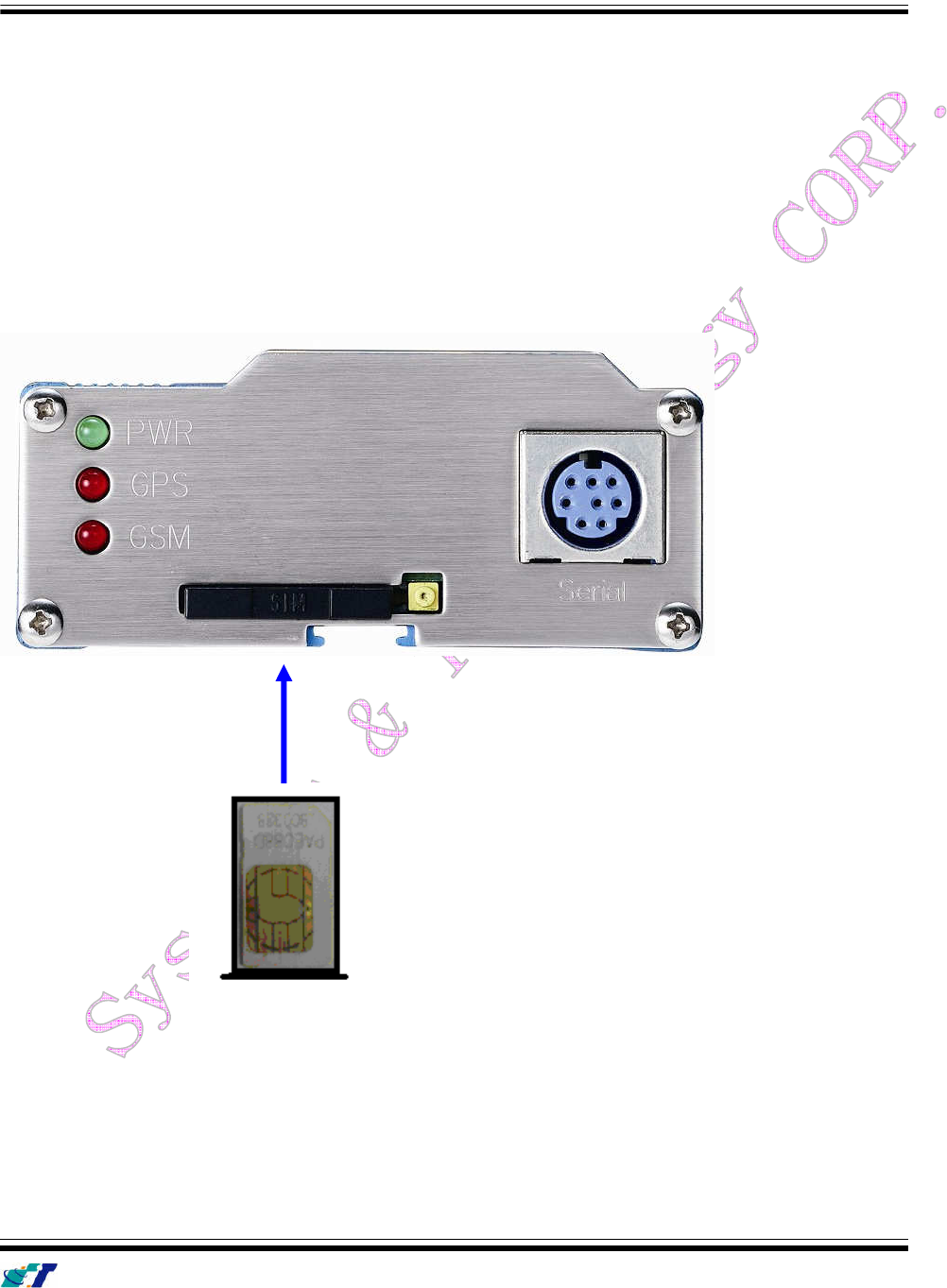

(1) SIM Card Installation
Press yellow button to eject the SIM card holder.
Put the SIM card on the SIM card holder.
Insert the SIM card holder to the device correctly.

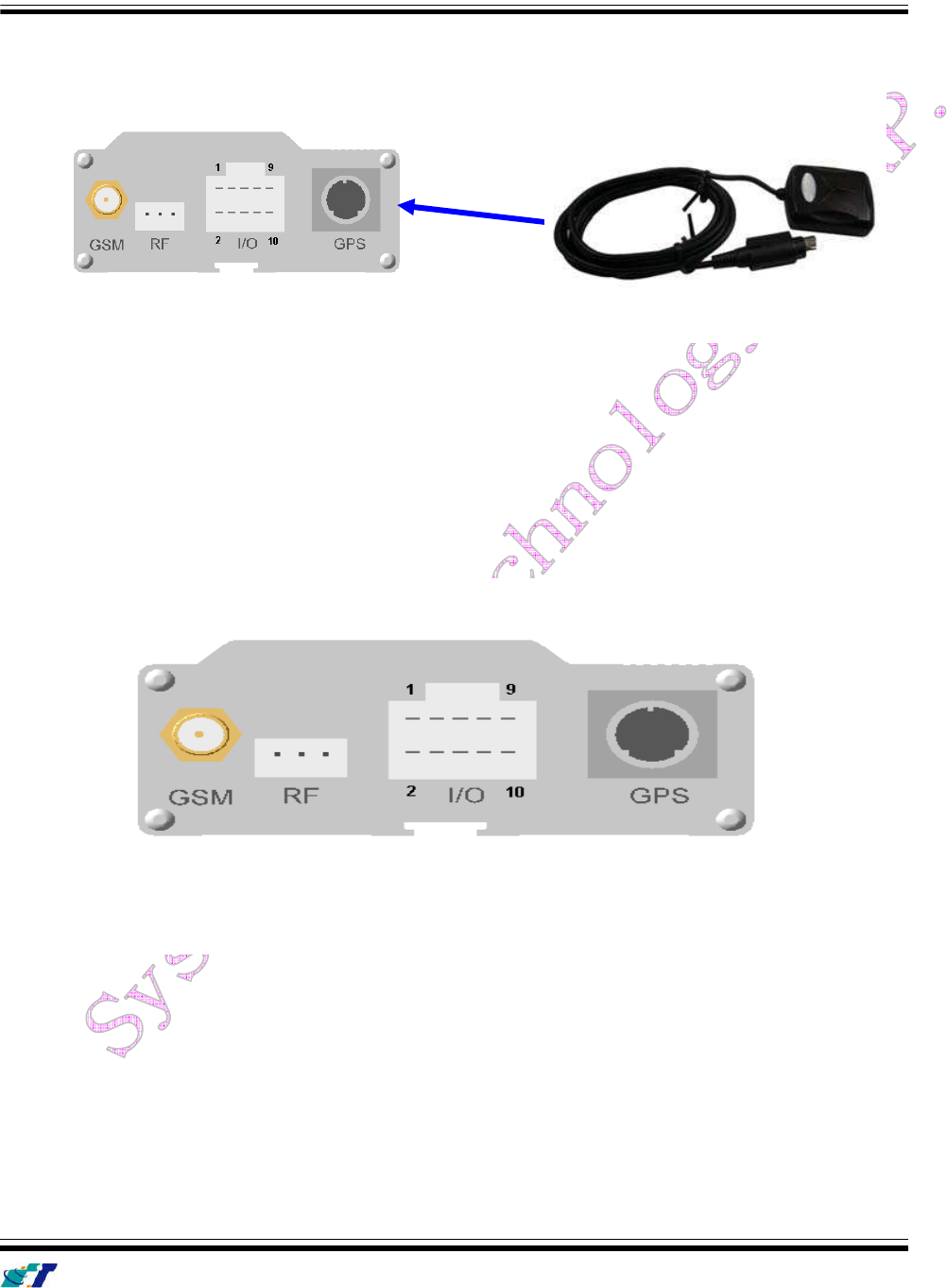

(2) GPS Antenna Installation
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 5 -
Connect the GPS Receiver antenna to the right-down Press Mini DIN connector.
(3) Power, I/O Cable Installation

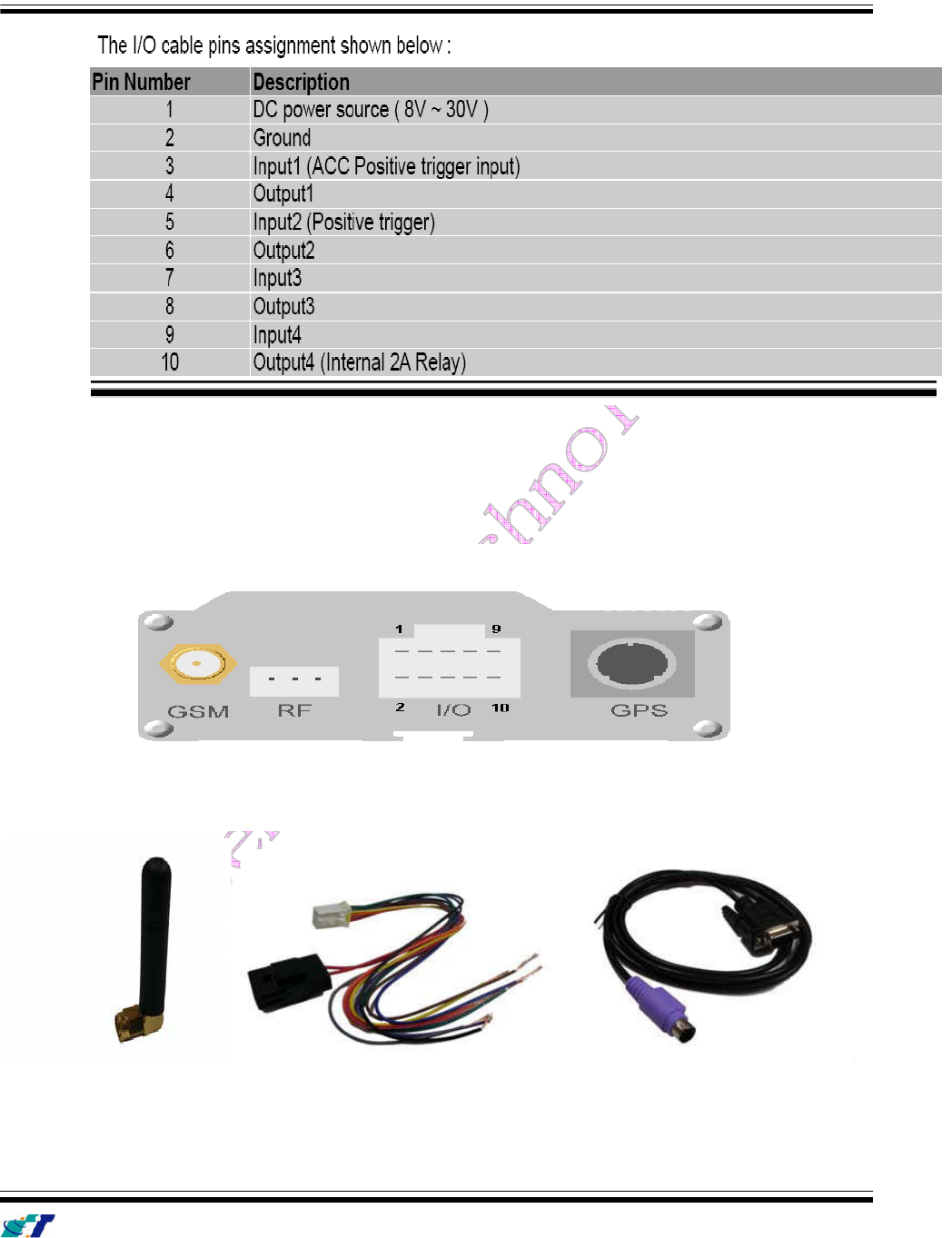

2.2 Connectors Pins Assignment
The I/O cable is a 10-wires cable which include power and positive/negative inputs and outputs.
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 6 -
(4) Install GSM Antenna
Connect the GSM antenna to the SMA connector with label “GSM”.
(5) Install RF Receiver (Optional)
Connect the RF receiver it the 3 pins connector with label “RF”.
GSG Antenna Power I/O Cable Serial Cable
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 7 -
2.3 Software Upgrade

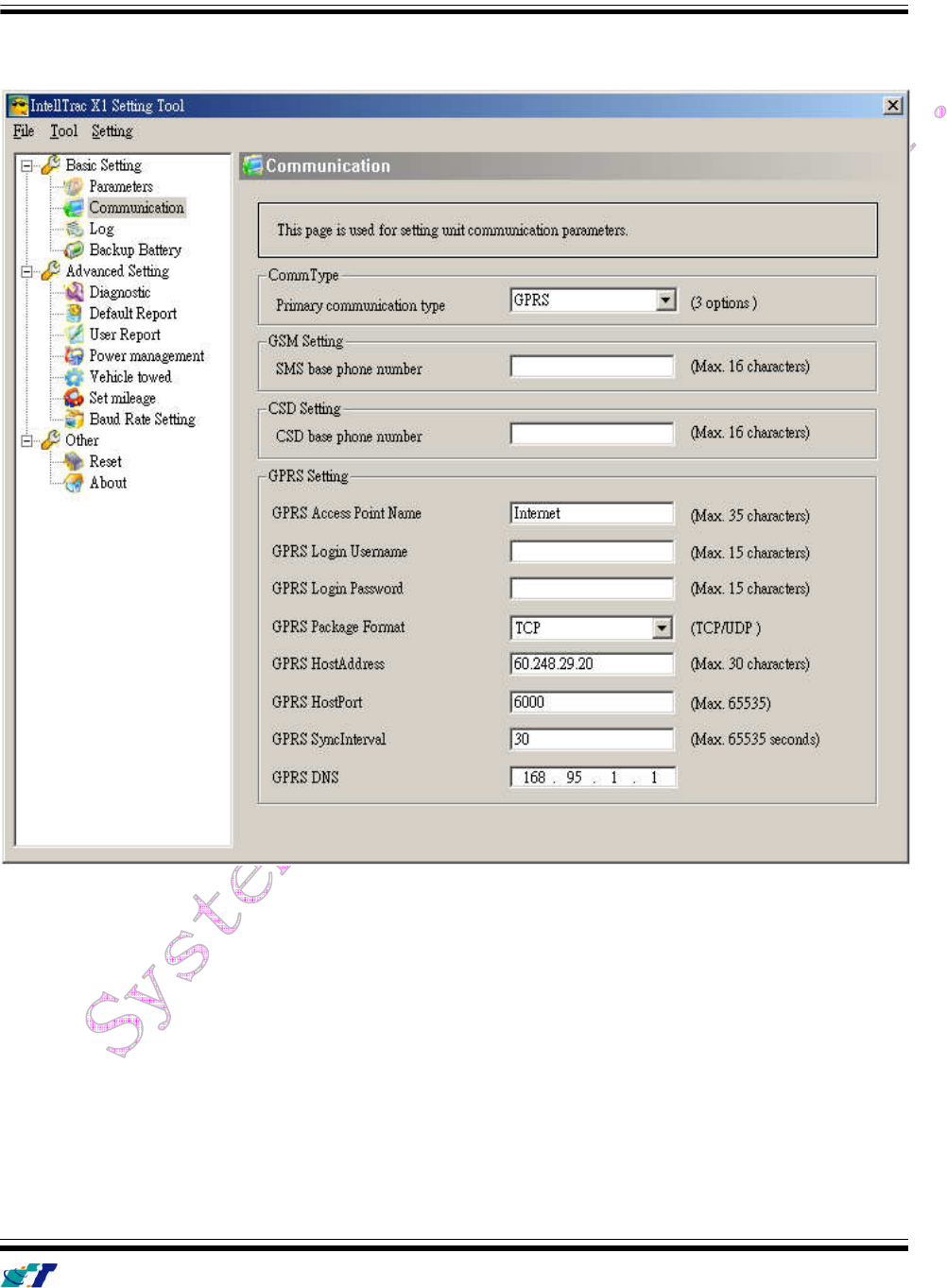

Device Configurations
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 8 -

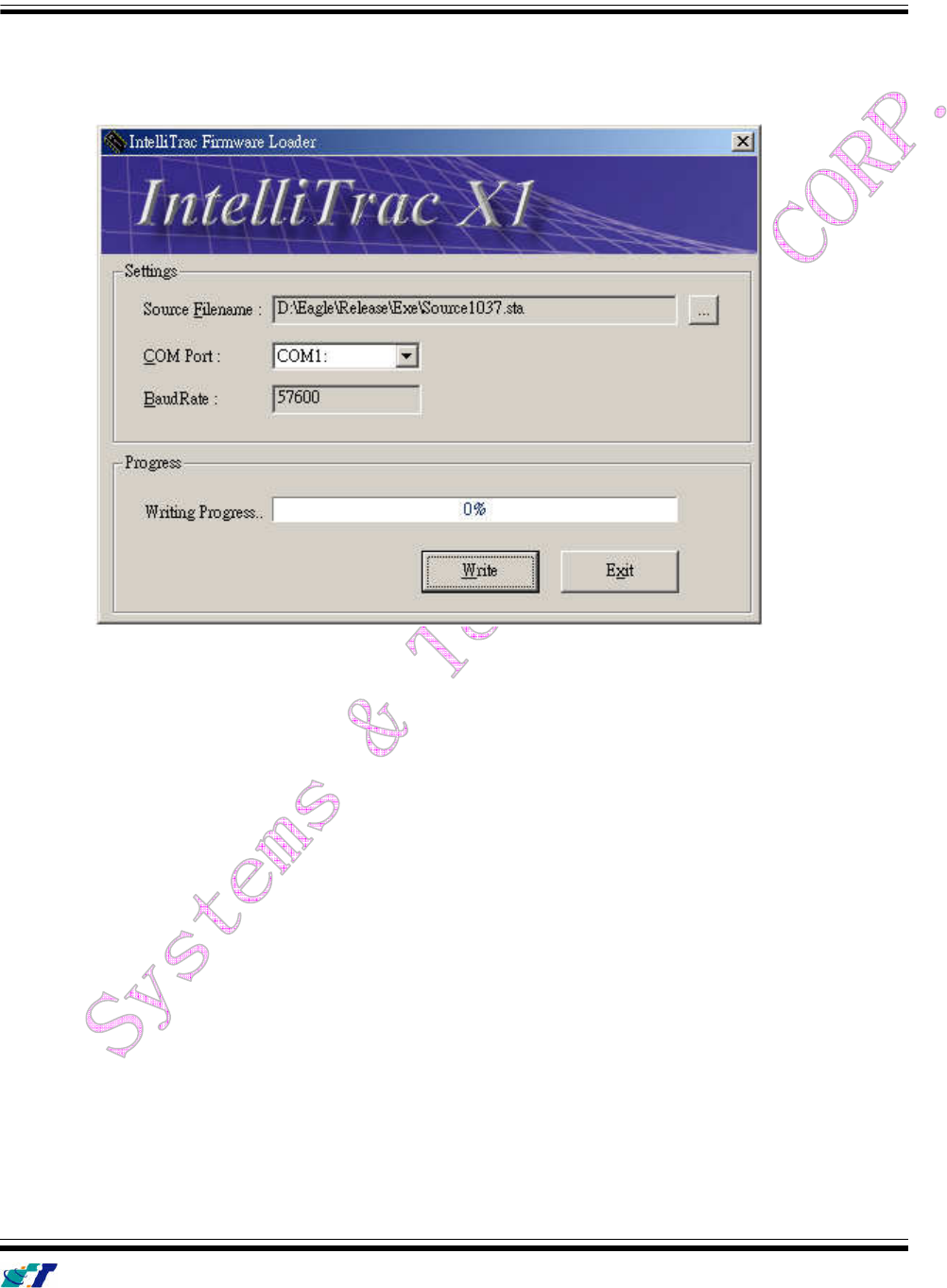

2.4 Firmware Download Software
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 9 -

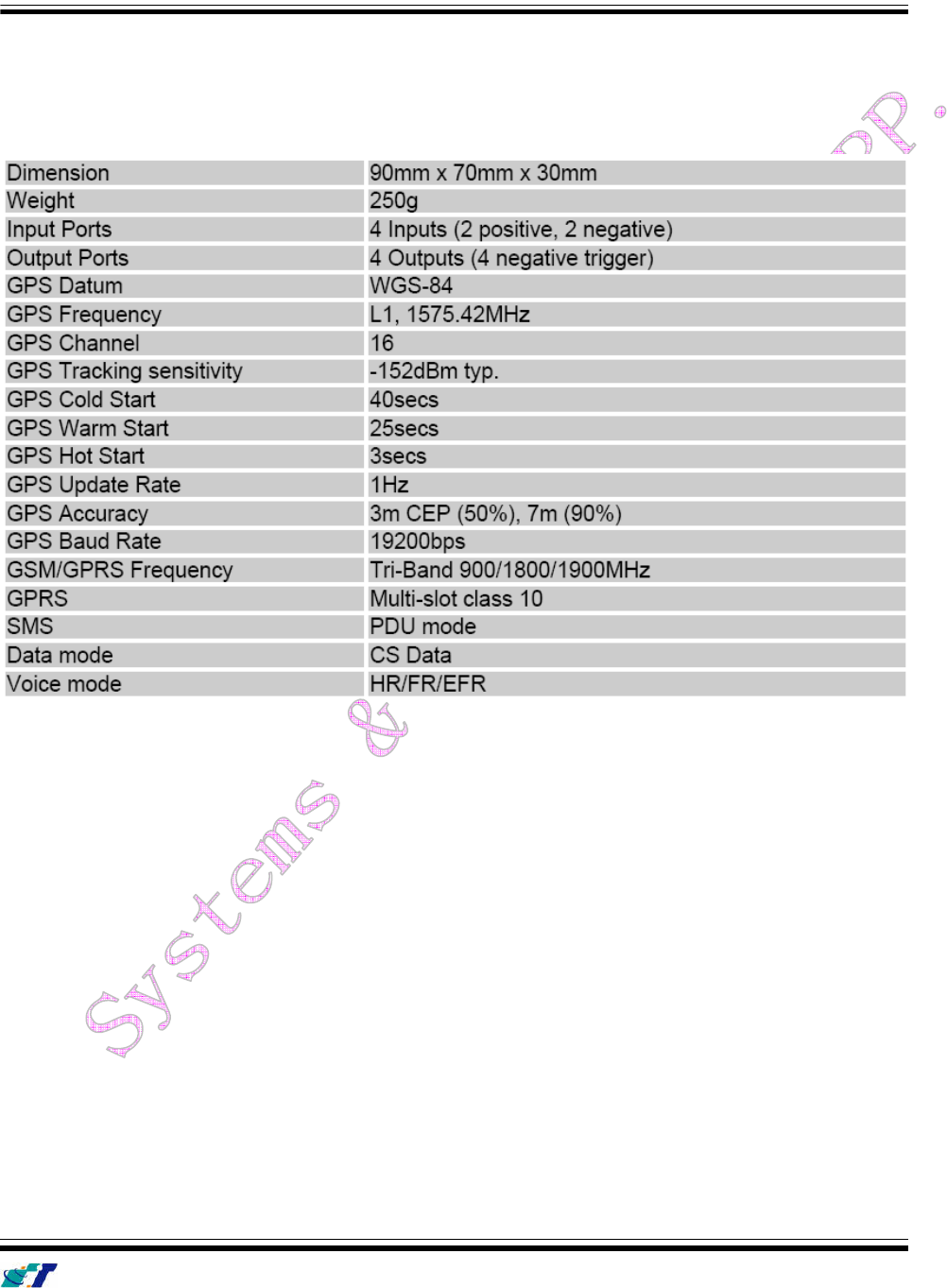

3. Technical Specification
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 10 -
4.Electrical reliability and radio characteristics
Absolute maximum rating for power supply and voltage on digital input pins of the I
ntelliTrac X1-Plus are
list in following table:
4.1 Operating temperatures
The operating temperature is listed in following table:
* The Intelli Trac X1-Plus device can work , but the deviation from the specification may occur.
4.2 GSM/GPRS Output Power
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 11 -

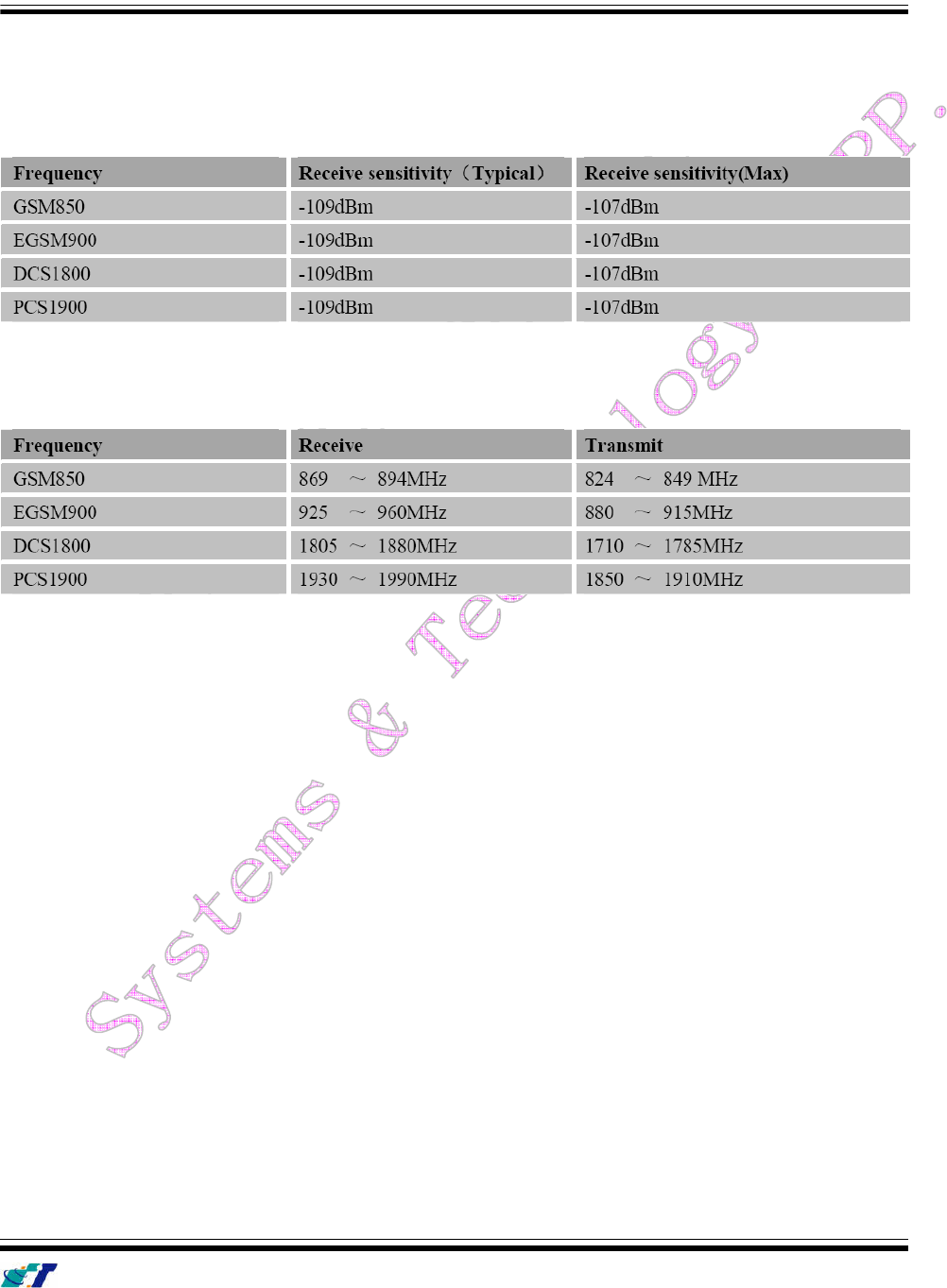

4.3 GSM/GPRS Receive sensitivity
4.4 GSM/GPRS Receive/transmit frequency
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 12 -

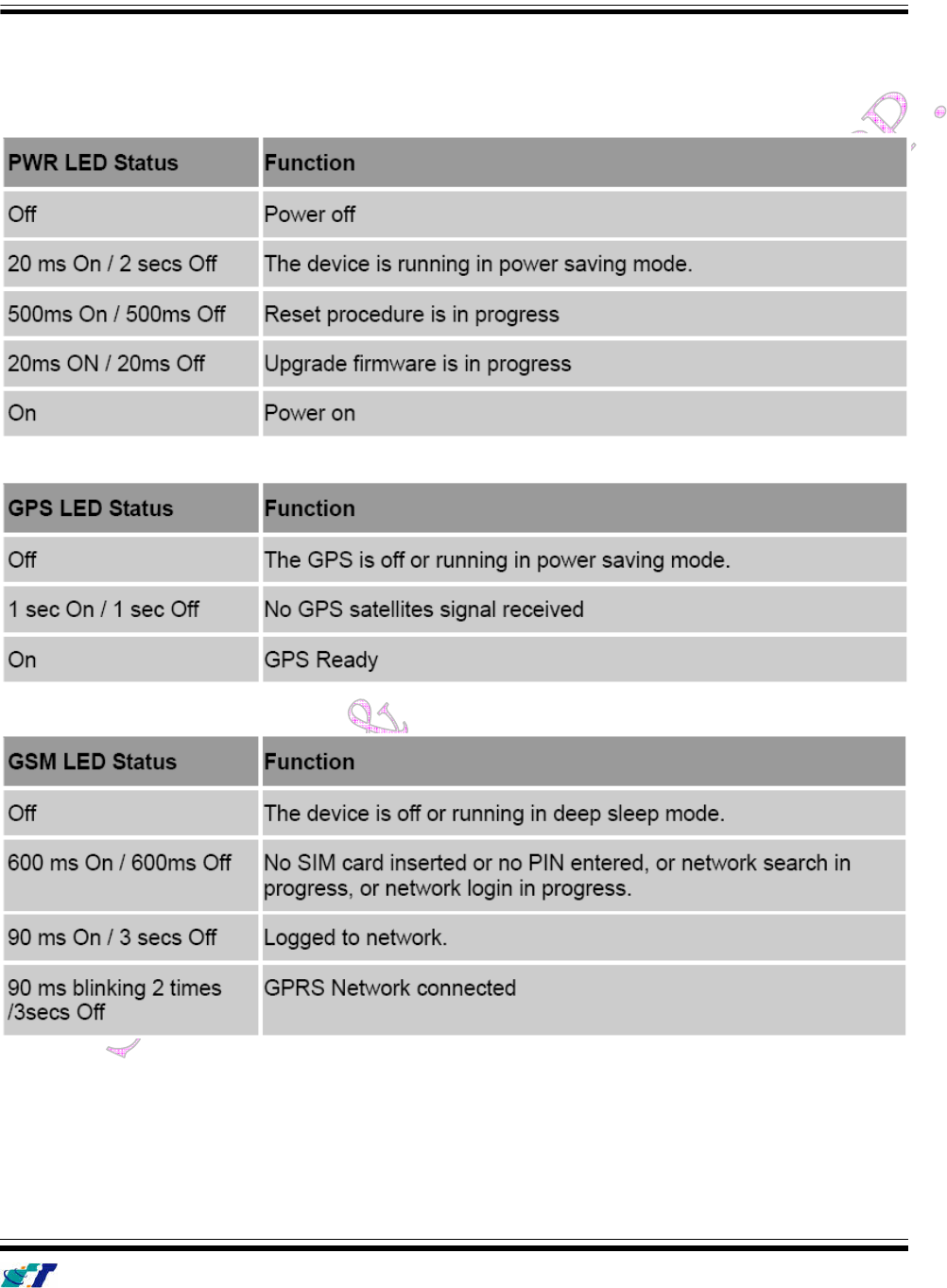

5. LED Indicators
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 13 -
FCC Regulations:
This mobile device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This mobile device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiated radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
4RF Exposure Information
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal
operation.
IntelliTrac X1-Plus Series User Guide
Systems & Technology Corp. © 2011
This document contains confidential, restricted, and proprietary information. The document has been prepared for the
exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in
part, without the prior, written consent of an authorized officer of S&T.
- 14 -
About Systems & Technology Corporation
IntelliTrac X-Series AVL device is produced by Systems & Technology Corporation. The company is a key
developer and supplier of advanced systems in the Automatic Vehicle Location (AVL), Digital Map and Car
Navigation Systems.
If you need information on other maps solutions or products, please contact us at the phone and fax
numbers listed below, or visit our web sites.
Contact Information for System & Technology Corp.
S&T Web Site http://www.systech.com.tw
Technical Support Hotline +886-2-2698-1599
Technical Support E-mail AVL@ms.systech.com.tw
Main Phone +886-2-2698-1599
Main Fax +886-2-2698-1211
