Systems and Technology STAVL1239 GPS Watch Tracking Device User Manual U

Systems & Technology Corp. GPS Watch Tracking Device U

user manual

1
CAREU WT1
Vehicle Tracker
User Guide
Version: 0.1
Reference No.:
Date: November 20, 2012
SYSTEMS & TECHNOLOGY
CORP.
2
General Information
If any breakdown occurs due to the operation of the described product or users’ improper handling
in accordance with the instructions of the document, S&T shall be liable for the General Conditions
based on the delivery of the described product and the content of the document. This product is not
designed for the use of life support appliances, devices or systems and thence a malfunction of the
product might reasonably be expected to make personal injury. S&T customers using or selling this
product for such applications will take the risk on their own; therefore, it must be agreed S&T will
be fully indemnified from any damages due to illegal use or resale. All information in this document
is subject to change without notice at any time.
Disclaimer
The information, specification, images and photos in this user guide are subject to change without
notice and without obligation to notify any person of such revision change.
Copyright
This user guide, including all photographs, illustrations and software, to name a few, is protected
under international copyright laws, with all rights reserved. This document contains confidential,
restricted and proprietary information that it has been exclusively prepared for the internal use of
certain designated S&T employees, and may not be duplicated or distributed, in whole or in part,
without the prior written consent of S&T’s authorized delegates. Any illegal copying and disclosure
of the document are absolutely prohibited, and violators are liable to the damages caused.
© Systems & Technology Corp. All Rights Reserved
3
Table of Contents
Chapter 1 Introduction ................................................................................................. 5
1.1 Features ........................................................................................................... 5
1.2 Scope ............................................................................................................... 6
1.3 About WT1 ..................................................................................... …………….6
1.4 Hardware Architecture ..................................................................................... 7
1.5 Related Document ........................................................................................... 8
Chapter 2 Taking a Tour of CAREU WT1 ....................................................................
2.1 Dimensions ...................................................................................................... 9
2.2 Laterel View.....................................................................................................10
2.3 Front View........................................................................................................11
Chapter 3 Getting Started with CAREU WT1 ..............................................................12
3.1 USB Device Driver Installation ........................................................................ 12
3.2 Device Configuration...................................................................................... 19
3.3 Communication Settings ................................................................................ 23
3.4 GPS Tracking Configurations......................................................................... 25
3.5 Firmware Upgrade ......................................................................................... 28
Chapter 4 Technical Specification ............................................................................. 30
Chapter 5 Regulation .................................................................................................. 34
Chapter 1
CAREU WT1 Vehicle Tracker User

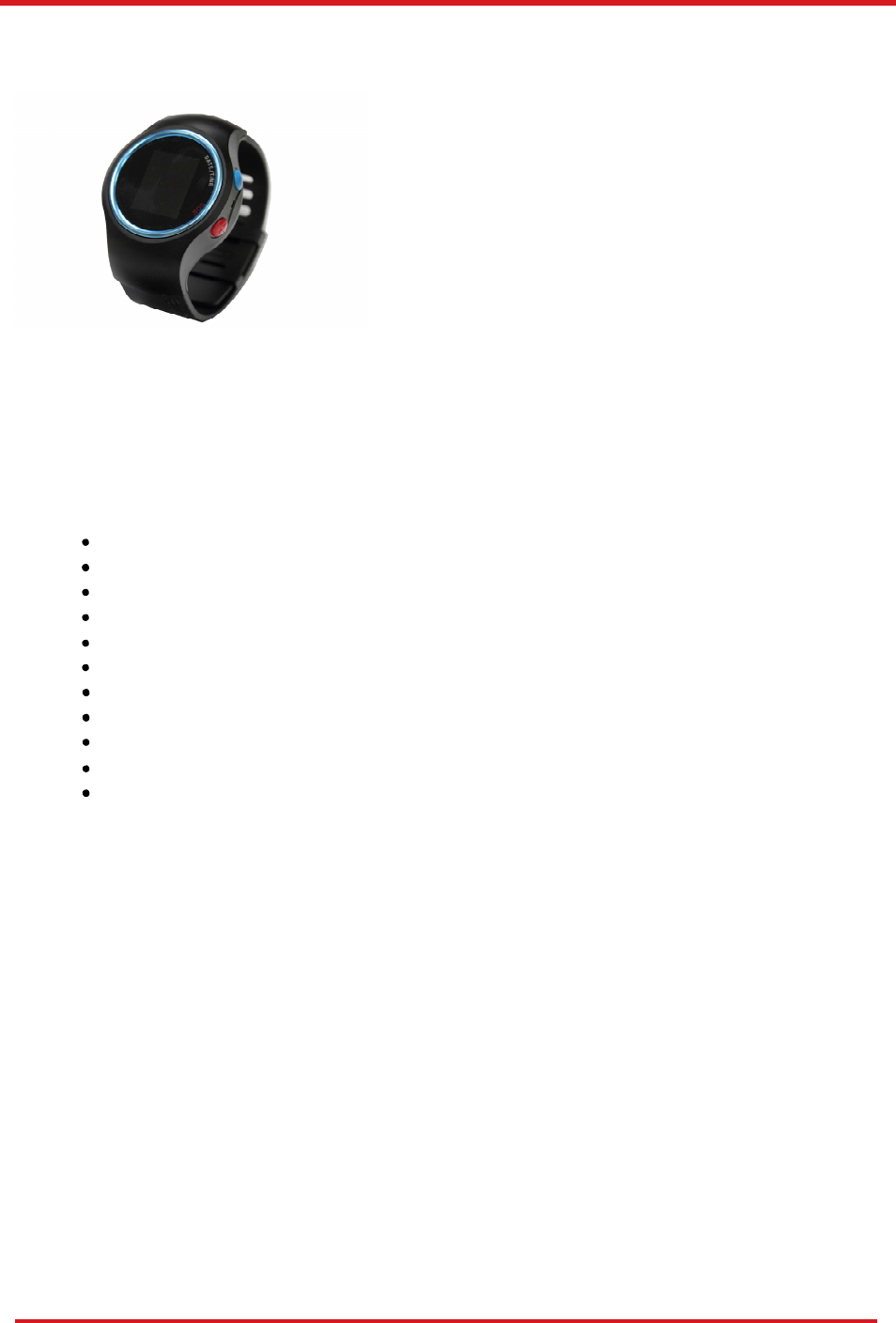

Chapter 1. Introduction
Thank you for your purchasing the CAREU W T1
Vehicle Tracker. We are very pleased to introduce you
our excellent product, and you will enjoy great benefits
by applying such a smart device.
The CAREU WT1 Vehicle Tracker is a n all-in-one
device that integrates multiple applications of GPS
(Global Position System), GSM (Global System for
Mobile Communication) and GIS (Geographic
Information Systems) with each other.
Designed with the latest GPS technology, the CAREU WT1 delivers positioning message by GSM
wireless transmission to GIS platform, and then helps back-end users proceed with the analysis
and the applications of vehicle transport, management, anti-theft, security and tracking.
1.1 Features
• Cost effective and easy installation
• SMS, GPRS TCP/ UDP, USSD, FTP communications
• Geo-fencing reports
• Remote configuration
• Real-time tracking (time, distance interval or intelligent mode, and heading)
• Intelligent power management
• Power low/lost alarm
• Journey report wireless downloads
• GSM/GPRS simultaneously
• Firmware upgrade over the air (via GPRS from FTP)
• Up data log capacity
CAREU
Lite
V
ehicle
T
r
acker User
Guide
1.2 Scope
This document will guides you to start the CAREU WT1 Vehicle Tracker. However, as
this document contains basic device configuration only, please see the CAREU WT1
Protocol Document for the advanced information.
1.3 About WT1
The CAREU WT1 Vehicle Tracker transmits the wireless signals such as location,
peripheral, and vehicle control data to a control center. The onboard GPS receiver provides
users with location data including speed, direction, mileage and altitude. It uses an
onboard GSM/ GPRS module to accomplish wireless transmission.
A microcontroller can probe location and command data at regular intervals, derive actions
from location, peripheral and control data, and execute such actions.
Among the best features of the CAREU WT1 Vehicle Tracker, in particular, they transmit
data in ASCII mode or binary mode.
Peripheral data indicates the status of various peripherals connected to and/or controlled by
the device. The peripherals include, but not limited to, door locks/un-locks, starter interrupt,
ignition, battery, engine and panic button.
The firmware in the device applies intelligent filtering to overcome coverage limitations for
both GPS and GSM/GPRS networks.
Motion sensor controls the status of the device, whether in sleep, idle or fully-powered
mode, and thereby controls the amount of current consumed by the device.
Backup battery and tamper sensing GPS Antennas primarily indicate the loss of Main
Power and the interruption of GPS antenna connectivity.
The device supports over-the-air firmware upgrade to deliver additional functionality without
physically touching the device once installed.
In consideration of technicality and marketability, the CAREU WT1 has so many
excellences to be competitive enough to stand out in the market. With regard to the
technicality, the CAREU WT1 saves and records more data even under inactive
communication staus, and it also provides better power management, coexistence of GPRS
and SMS modes. When it comes to the marketability, the CAREU WT1 users are
provided with the convenience that its firmware can be upgraded through mini USB
without disassembling the device.
Chapter 1
CAREU WT1 Vehicle Tracker User
1.4 Hardware Architecture
As hardware is concerned, the CAREU WT1 is comprised of a micro-controller,
regulator, GPS receiver, GSM/GPRS modem, G-Force sensor, flash memory data
storage, I/Os interface and LED status indicators.
• Users can connect PC's HyperTerminal to the Diagnostic/setting port for the AVL
configuration.
• G-Sensor for man down warning.
CAREU
Lite
V
ehicle
T
r
acker User
Guide
1.5 Related Document
[1] CAREU WT1 Protocol Document
CAREU WT1 Vehicle Tracker User
Chapter 2. Taking a Tour of CAREU WT1
This chapter will guide you to the major connectors of the WT1 device.

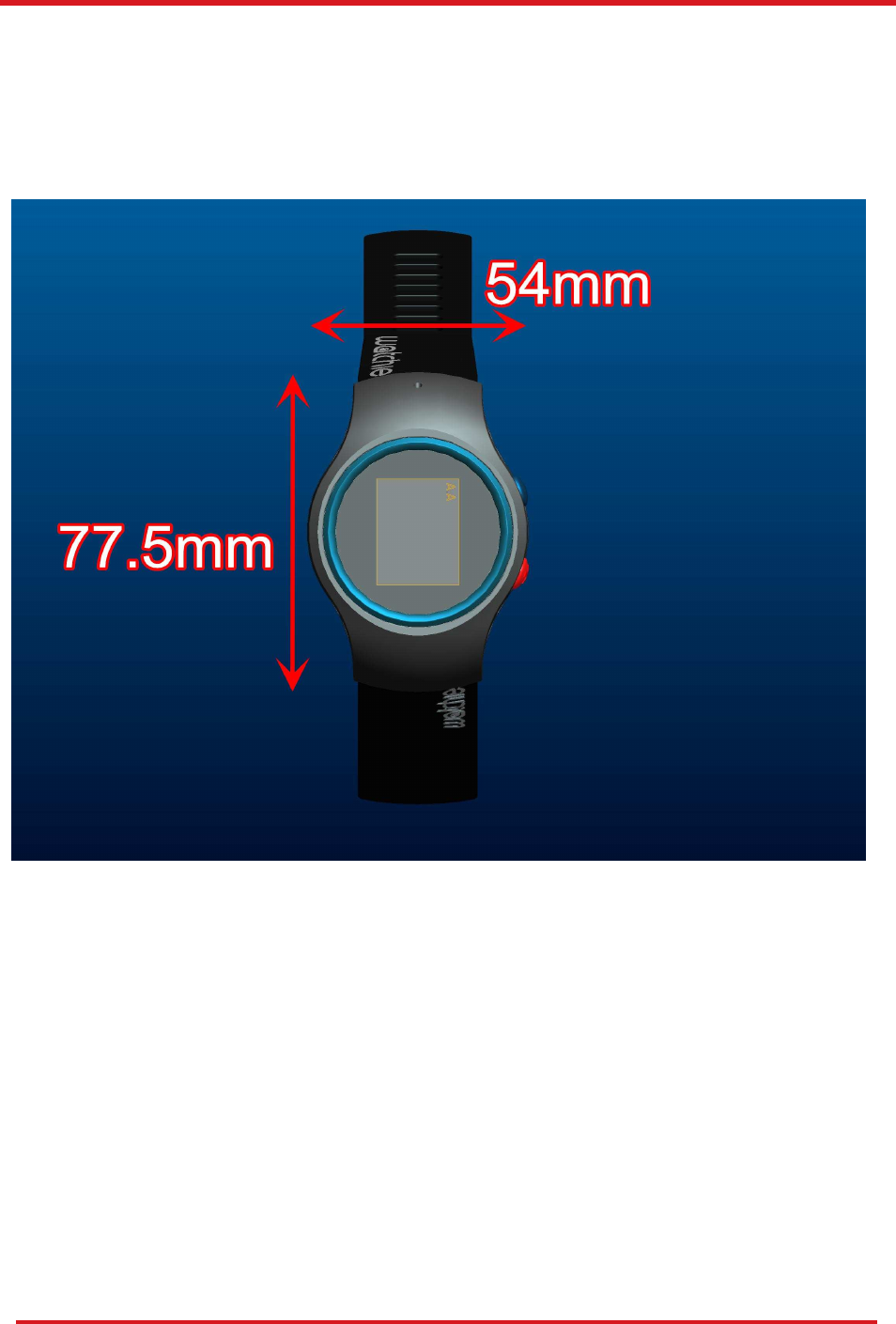

2.1 Dimensions
CAREU
Lite
V
ehicle
T
r
acker User
Guide

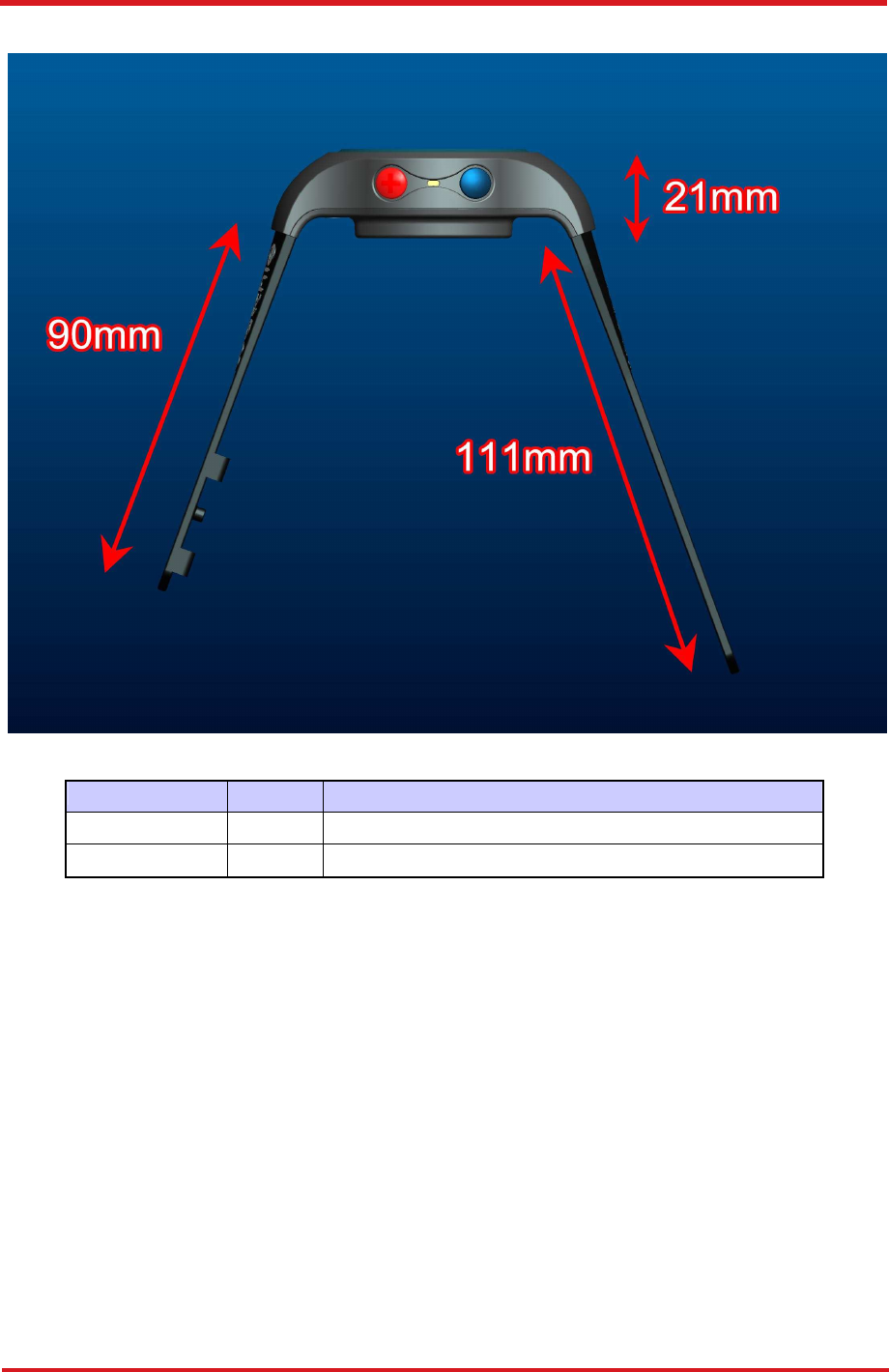

2.2 Lateral view
No. Name Description
Red Button SOS SOS Function,User define Message & Action mode
Blue Button Page LCD View change key,User define function.
CAREU WT1 Vehicle Tracker User

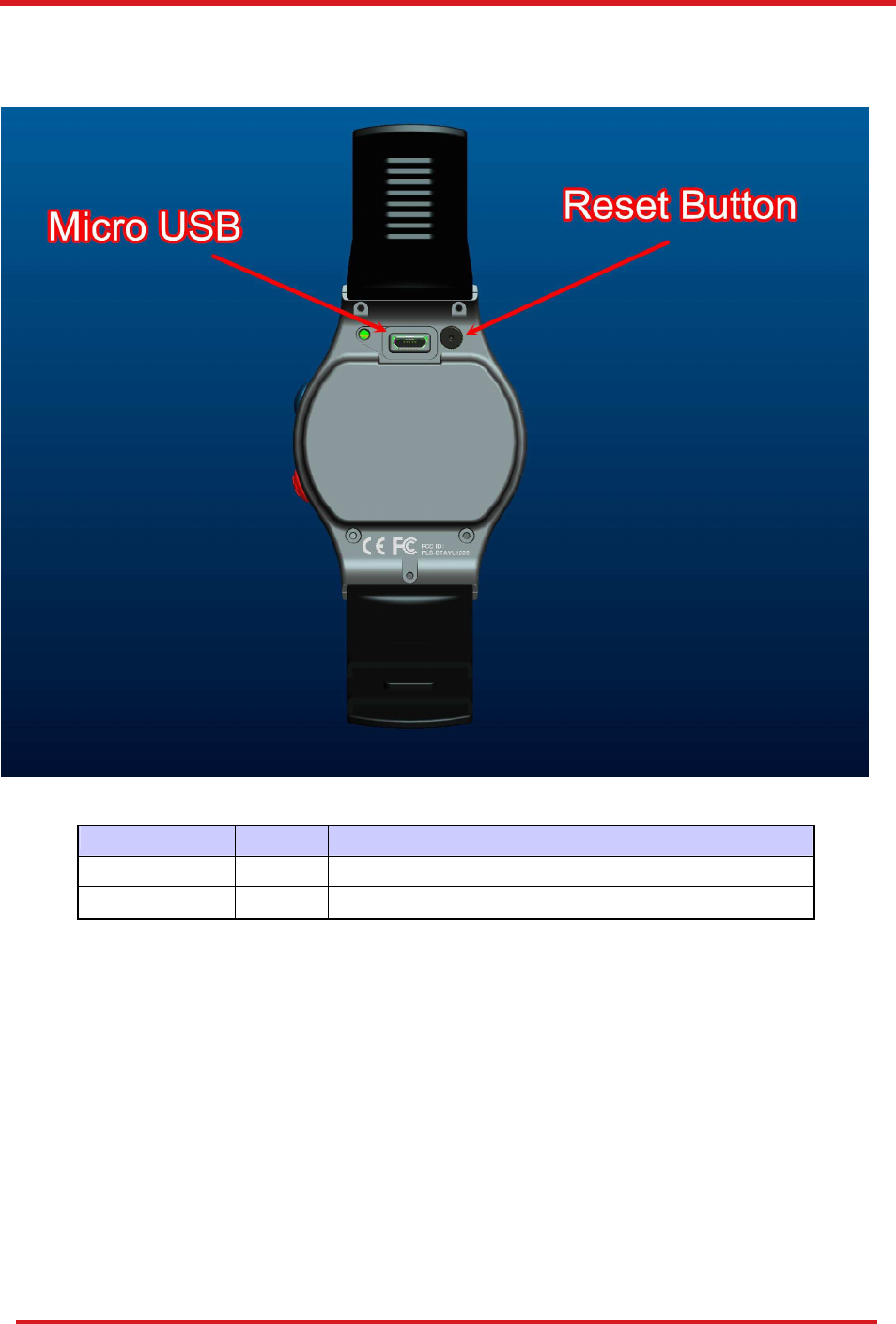

2.3 Front View
No. Name Description
Micro USB USB USB for change battery & Function set.
Reset Button Reset H/W Reset Key.
CAREU
Lite
V
ehicle
T
r
acker User
Guide
Chapter 3. Getting Started with CAREU WT1
3.1 USB Device Driver Installation
The CAREU WT1 communicates with your host computer by either RS-232 or USB
interface.
In some newer editions of Windows XP, the CAREU WT1 device can be installed as a "virtual
COM port" device whereby the CAREU WT1 would automatically access Windows XP's
inbox USB drivers. While in some other earlier editions of Windows XP, you would need to
manually install the USB driver for the CAREU WT1 device. In the following content of this
section, you will be guided to how the installation can be done in both cases.
To install the device driver for the CAREU WT1, connect the CAREU WT1 device to
your system with an USB cable as mentioned in Mini USB Cable Connection on
section 3.1.

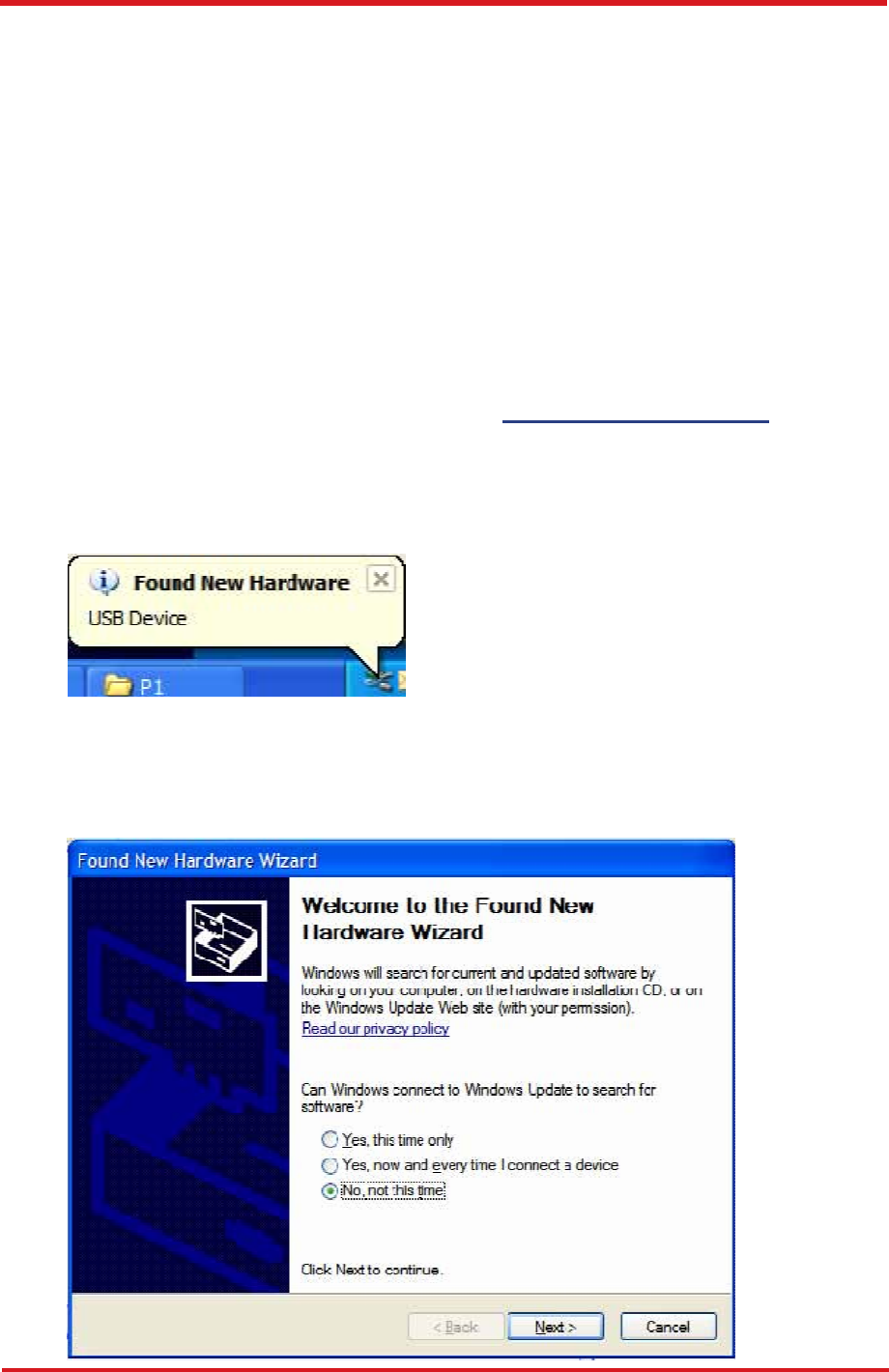

As soon as the connection is made between the CAREU WT1 and your computer, a
balloon appears above the notification area saying an USB device is found.
Click on this balloon to start the [Found New Hardware] wizard.
Select No, not this time. Press the Next button to proceed.
CAREU WT1 Vehicle Tracker User

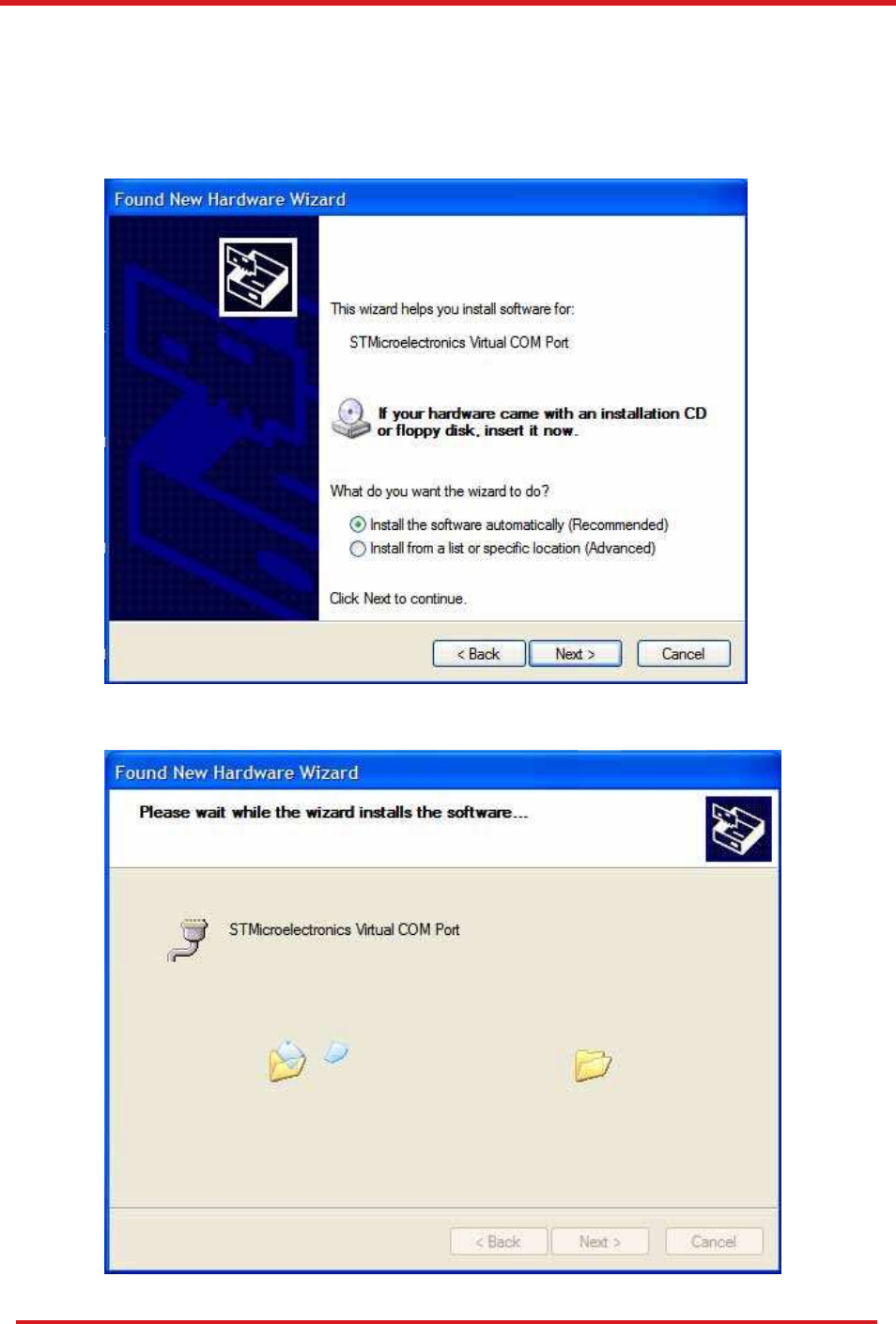

1. Automatic Installation
If the wizard prompts to help you install the software for "STMicroelectronics Virtual
COM Port". Select Install the software automatically (Recommended). Press the
Next button to proceed.
The wizard proceeds to install the driver.
CAREU
Lite
V
ehicle
T
r
acker User
Guide

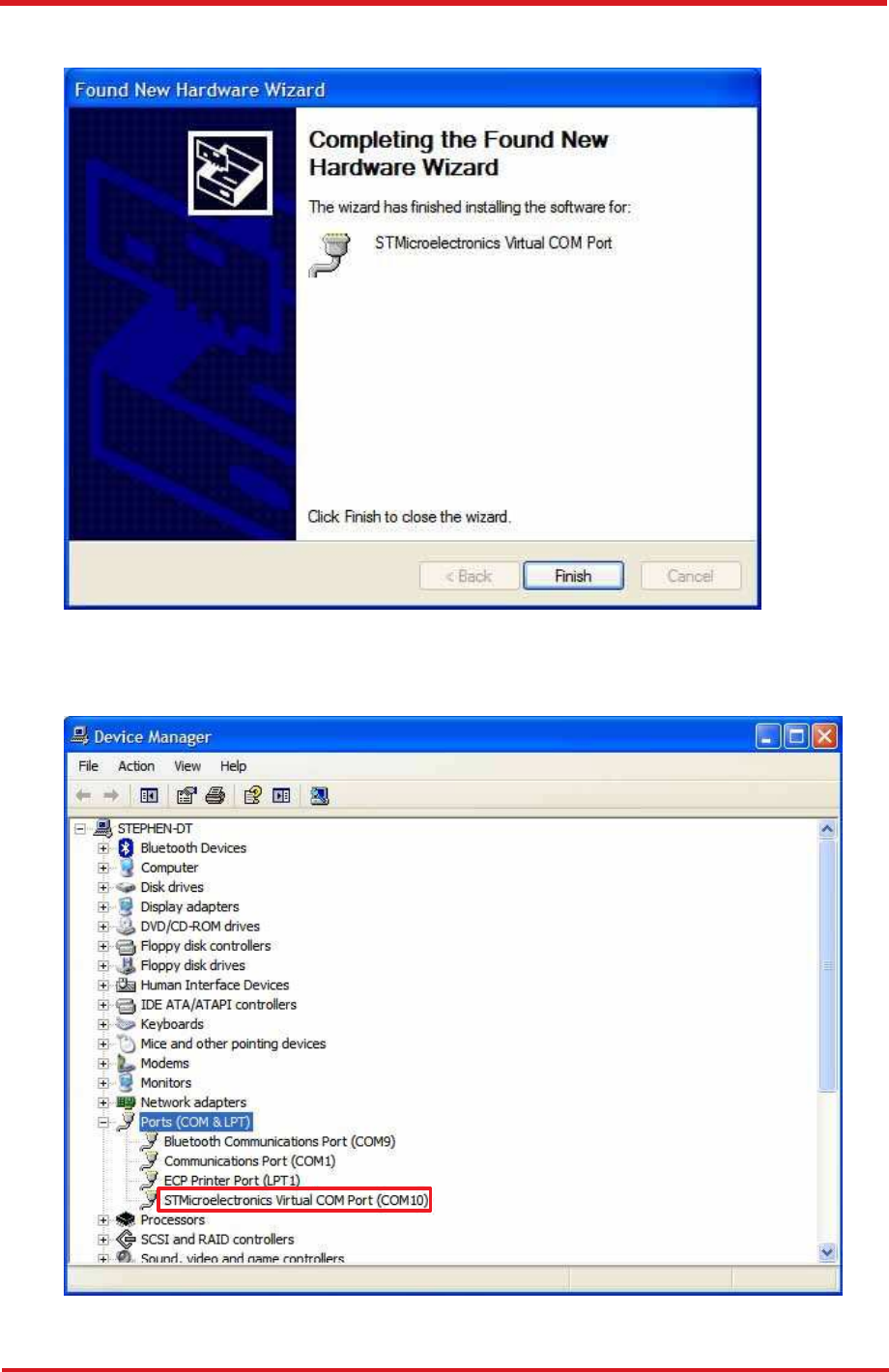

The installation completes.
In [Device Manager], the CAREU WT1 device is included under Ports (COM & LPT) as
"STMicroelectronics Virtual COM Port". COM port number is displayed as well.
CAREU WT1 Vehicle Tracker User

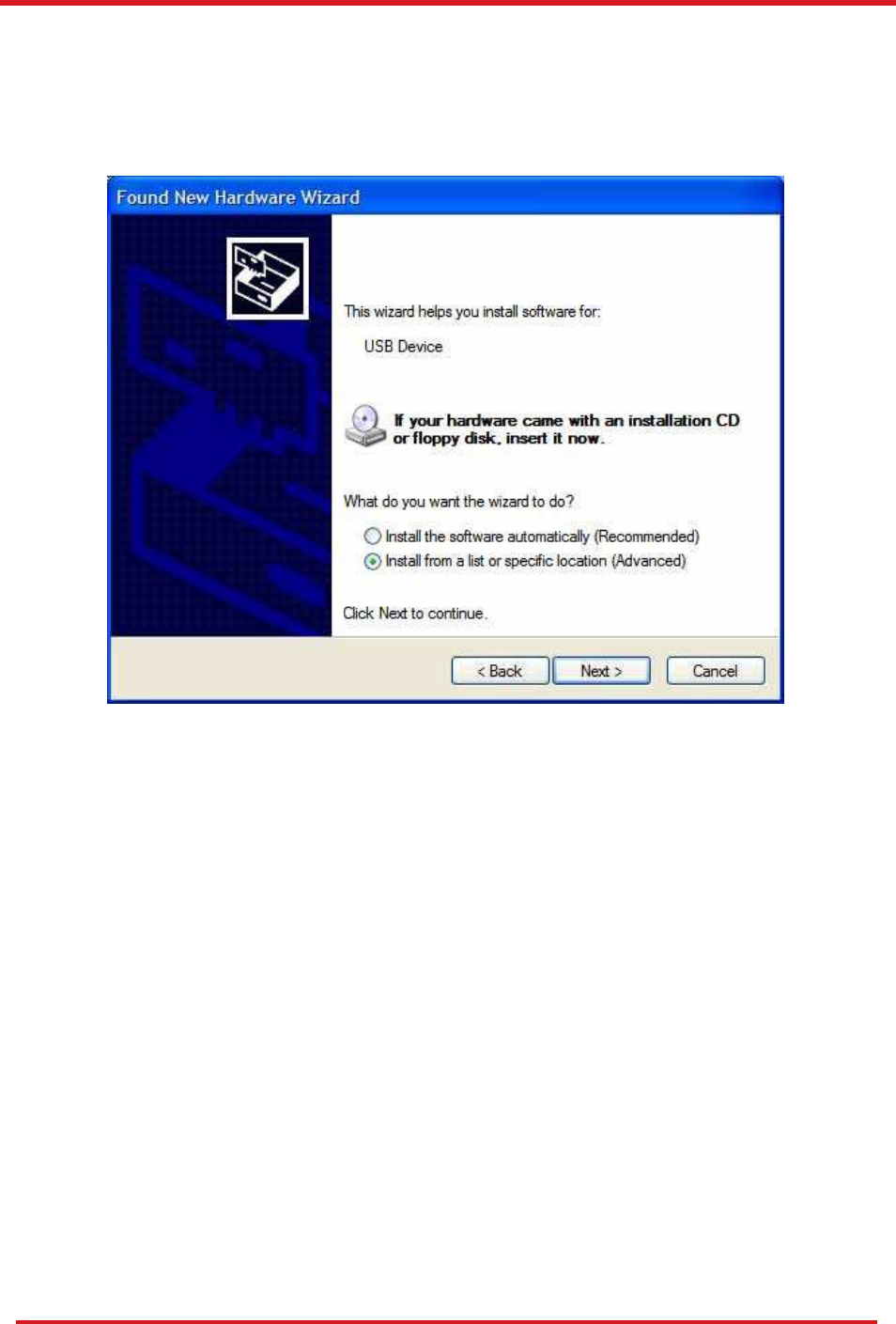

2. Manual Installation
After you select No, not this time, if the wizard only prompts to help you install software
for "USB device", you need to manually install the driver. Select Install from a list or
specific location (Advanced). Press the the Next button to proceed.
CAREU
Lite
V
ehicle
T
r
acker User
Guide

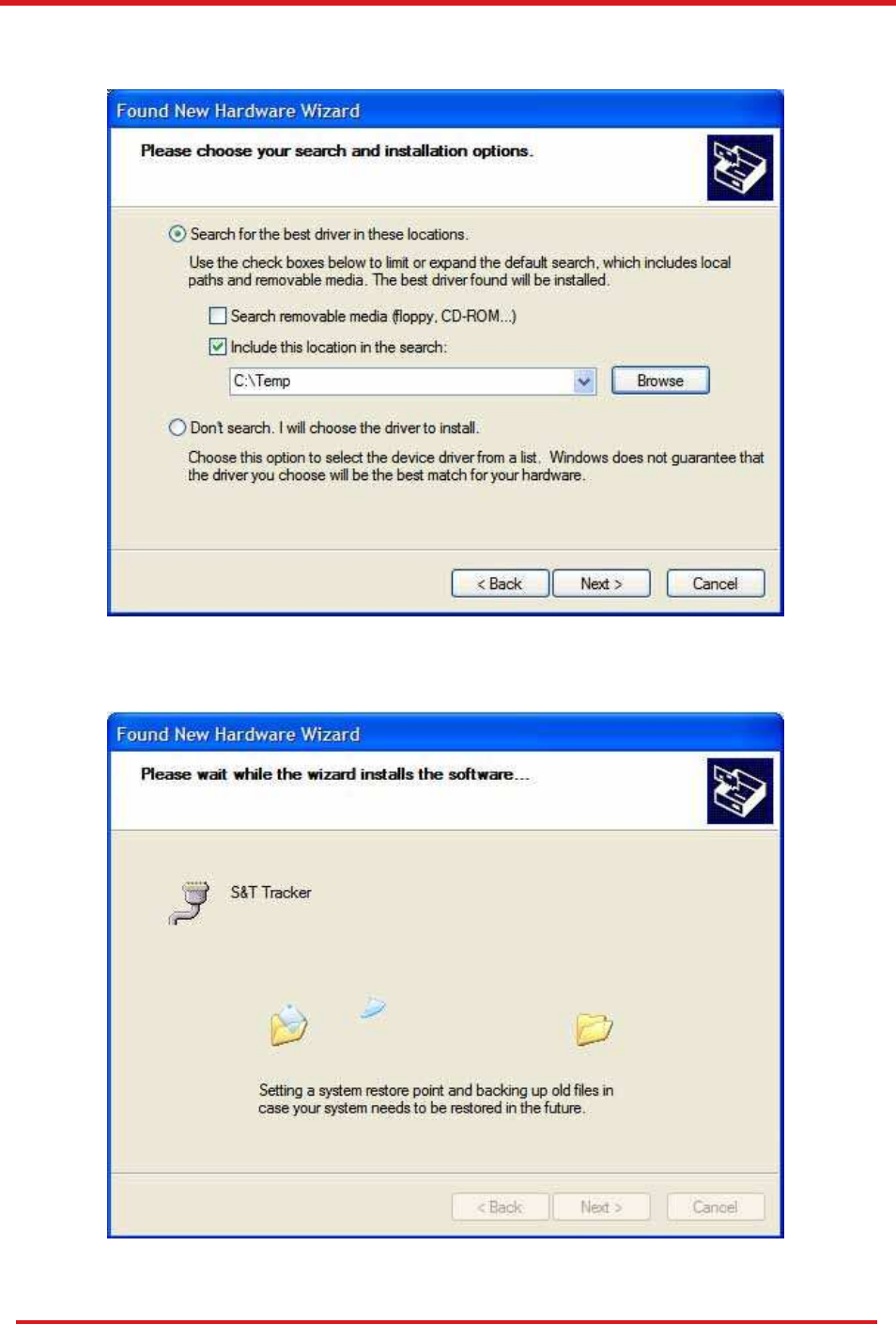

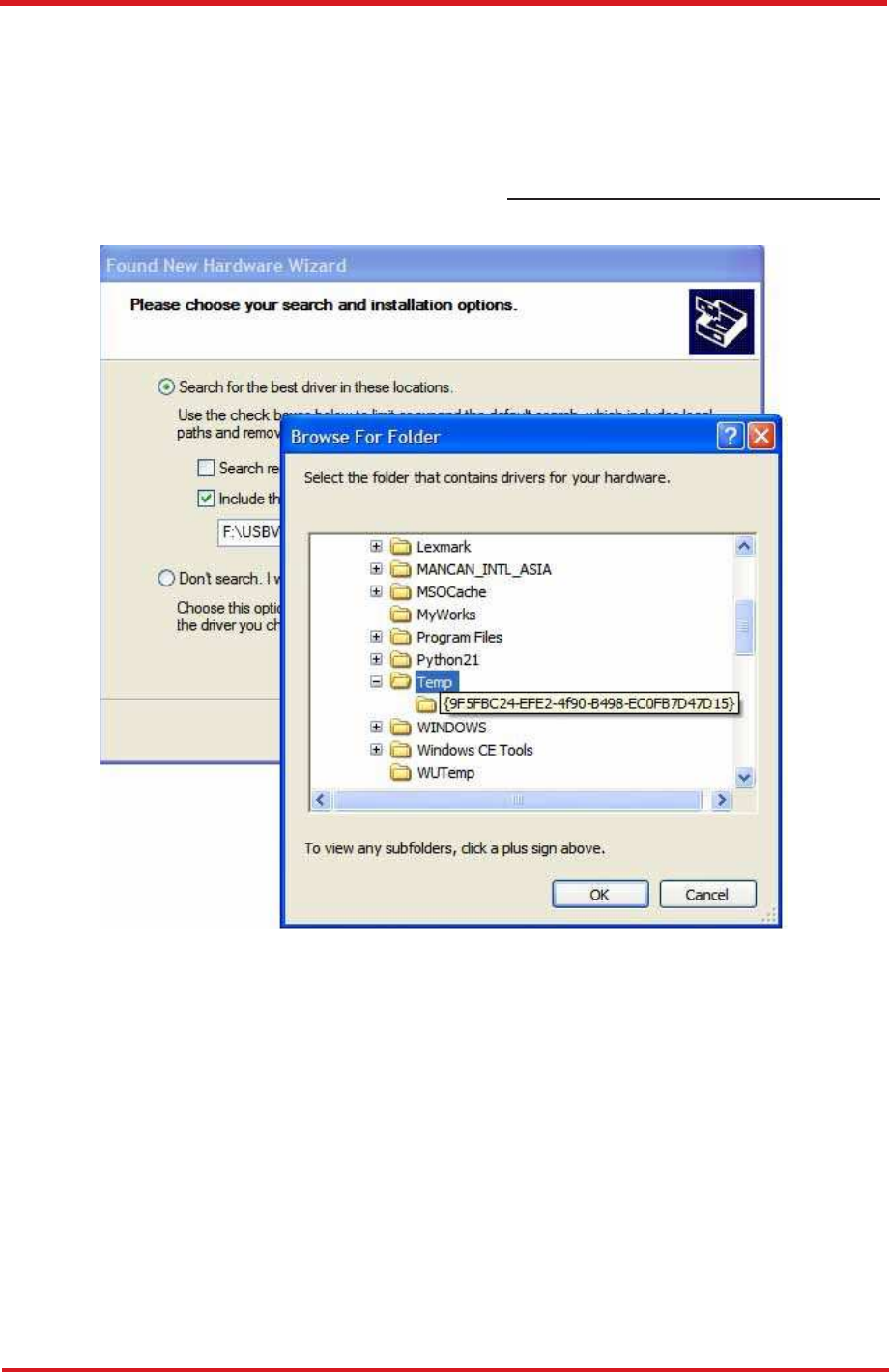

Select Search for the best driver in these locations. Check Include this location
in the search. Press the Browse button to assign where your the CAREU WT1 device
driver locates on your local disk.
Press the OK button.
You can download the USB device driver from http://www.systech.com.tw/downloads.php.
CAREU WT1 Vehicle Tracker User
Press the Next button to proceed.
The wizard proceeds to install the driver.
CAREU
Lite
V
ehicle
T
r
acker User
Guide

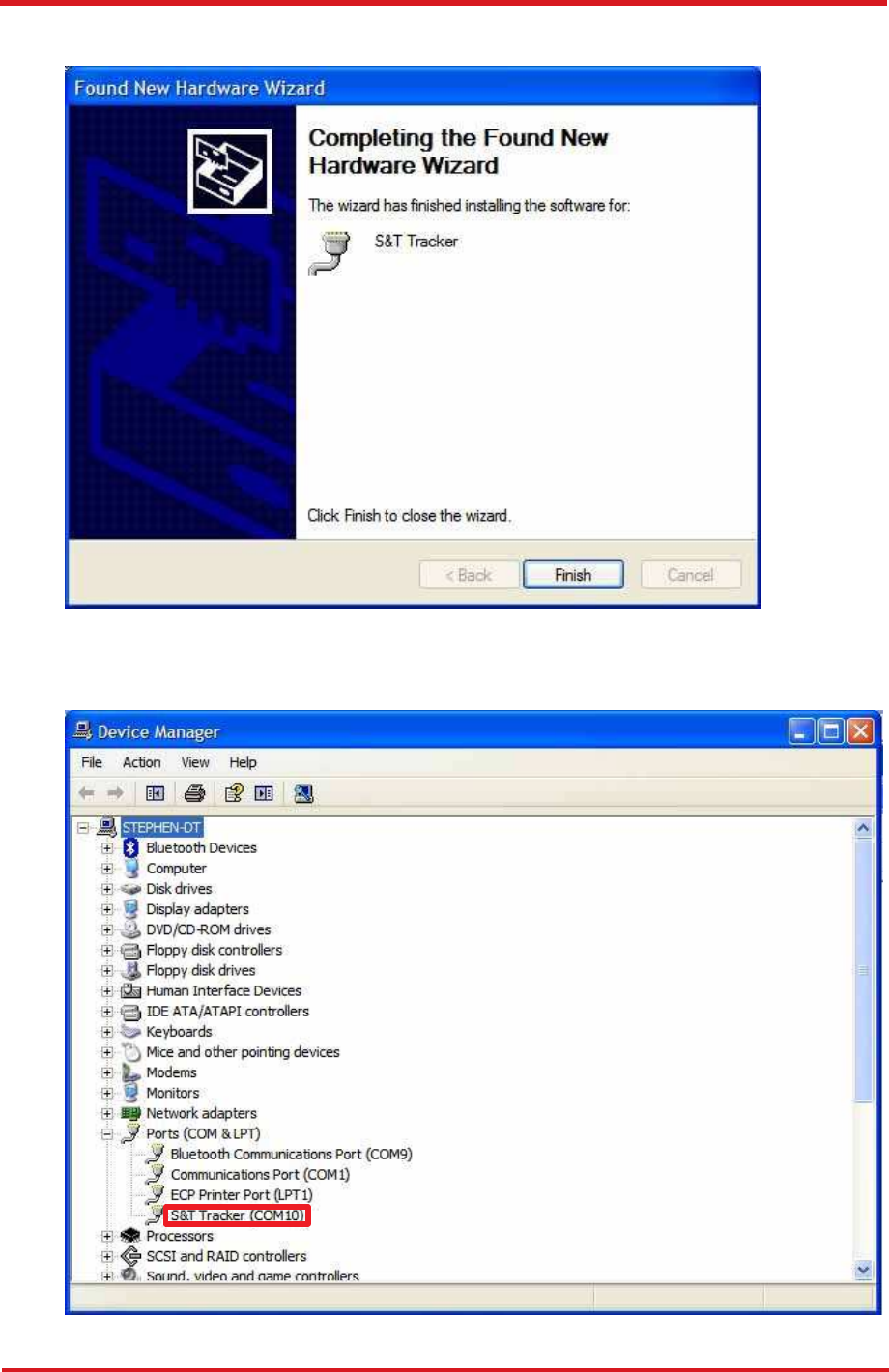

The installation completes.
In [Device Manager], the CAREU WT1 device is included under Ports (COM & LPT) as
"S&T Tracker". COM port number is displayed as well.
CAREU WT1 Vehicle Tracker User
3.2 Device Configuration
1. In Windows XP desktop, click Start | All Programs | Accessories |
Communications | HyperTerminal.
2. If you are prompted to input the information of your location, complete them to proceed.

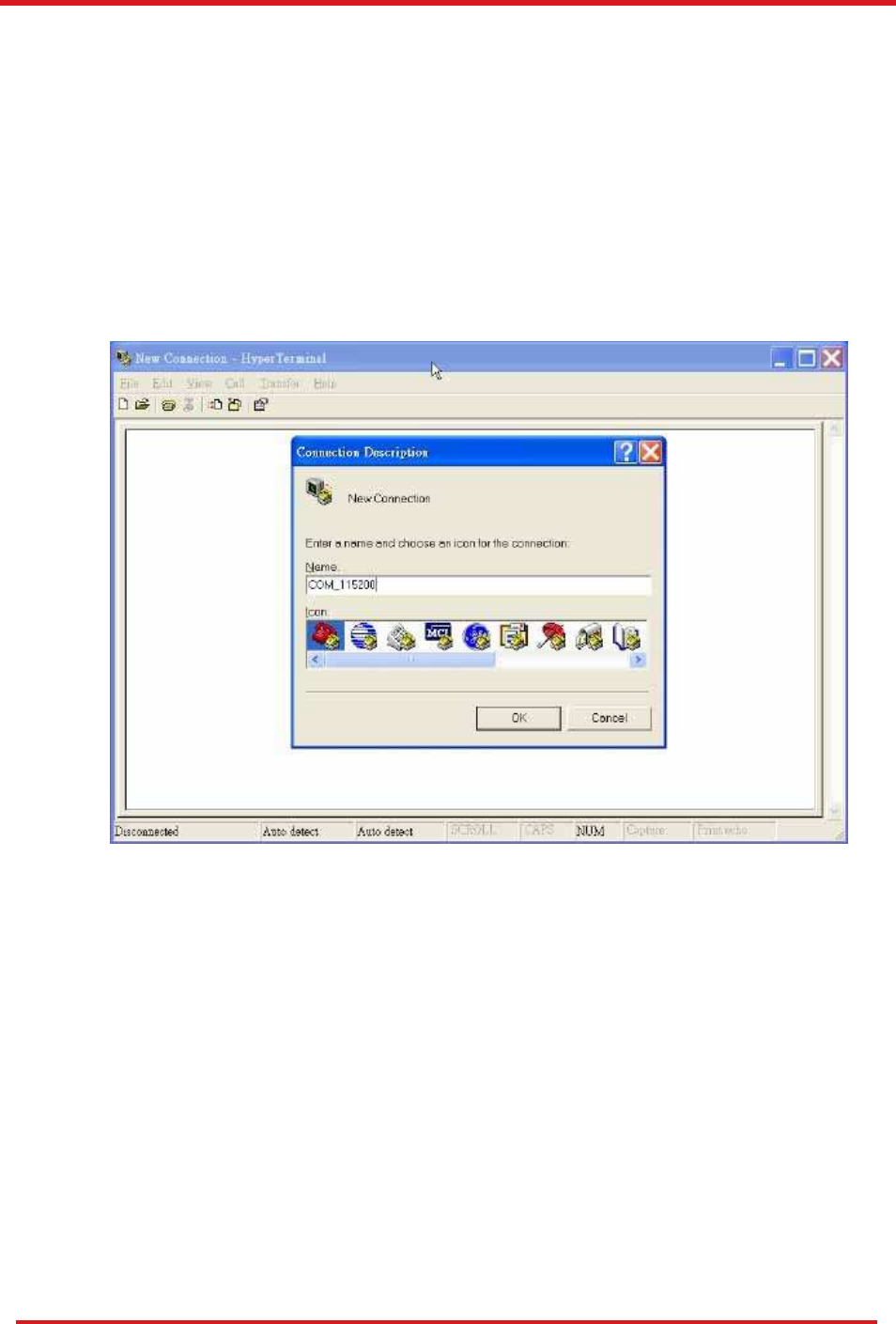

3. On the File menu of HyperTerminal, click New Connection.
4. In the Name box, type a name that describes the connection. In the Icon box, click
an appropriate icon. Press the OK button to proceed.
5. For Com port properties, configure as follows:
Baud Rate --> 115200 bps
Data Bits --> 8
Parity --> None
Stop Bits --> 1
Flow Control --> None
CAREU
Lite
V
ehicle
T
r
acker User
Guide

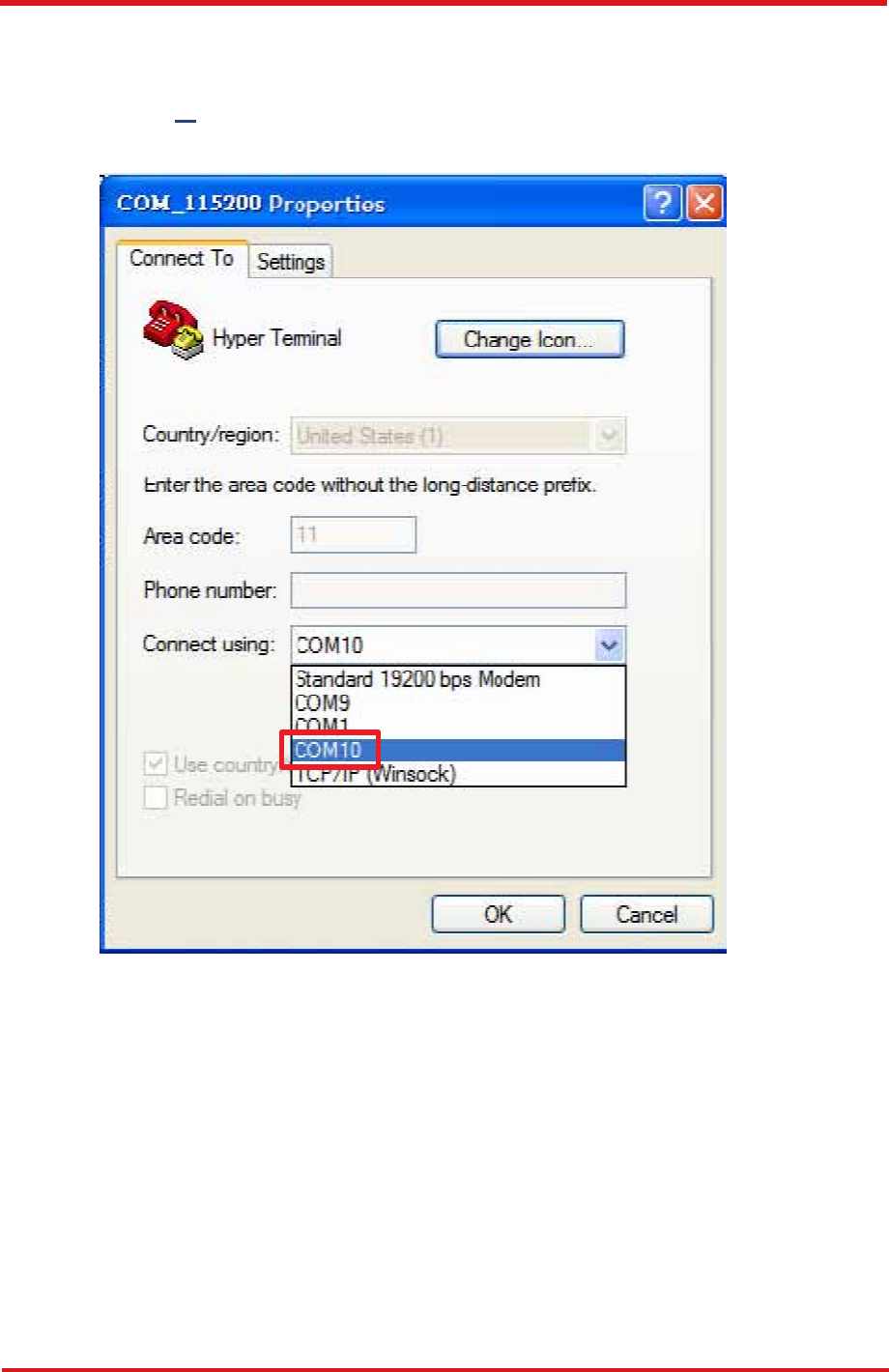

6. In the connection that you have just set up, click File | Properties. Select the
[Connect To] tab. From the [Connect using] drop down list, select the correct com
port by checking it up at Windows XP's [DeviceManager] as previously mentioned
on page 21. Go there by clicking Start | Control Panel | System | Hardware |
Device Manager.
CAREU WT1 Vehicle Tracker User

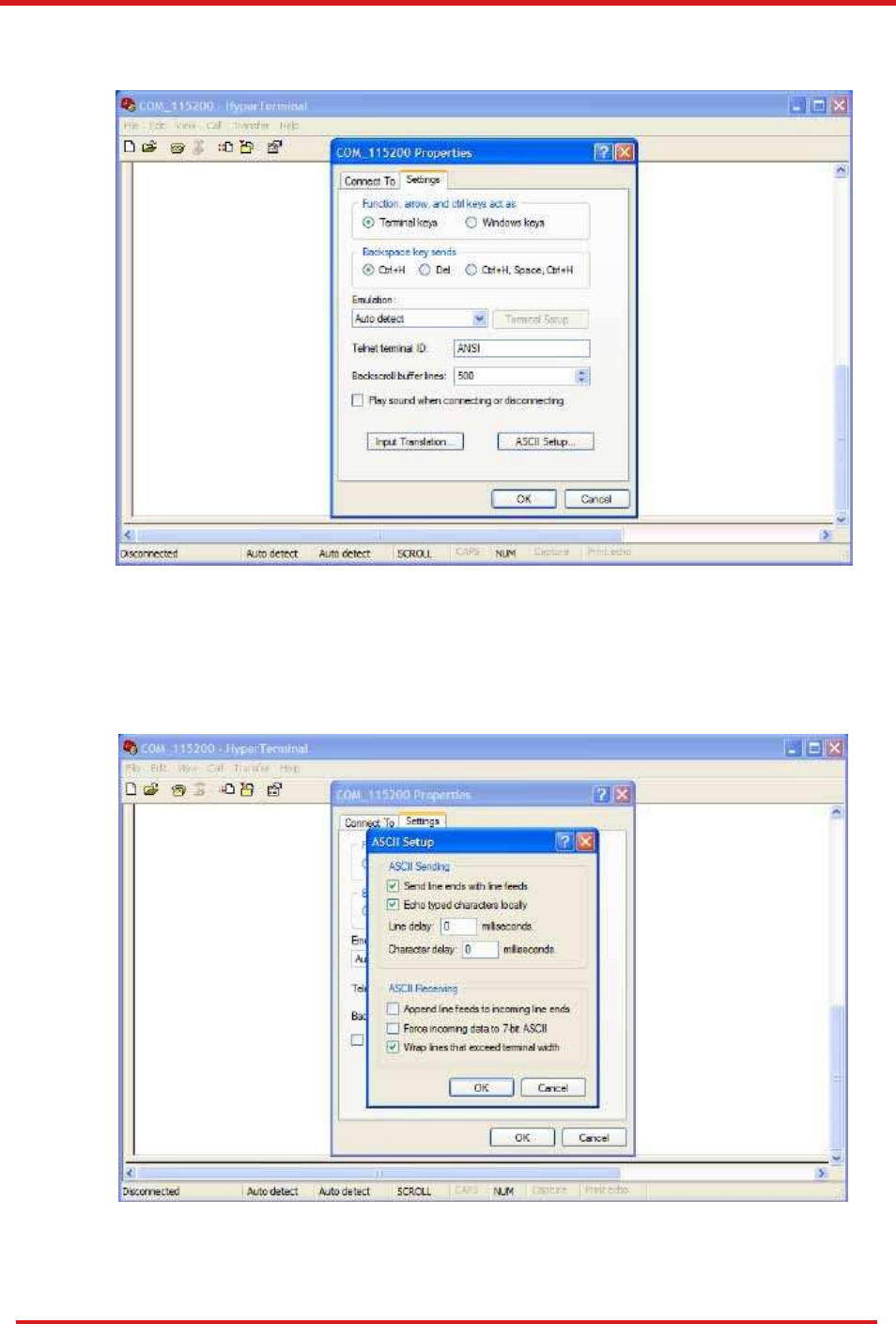

7. In the File menu, click Properties. Click the [Settings] tab. Press the ASCII Setup
button.
8. In the [ASCII Sending] group box. Select both Send line ends with line feeds and
Echo typed characters locally. Press the OK button.
CAREU
Lite
V
ehicle
T
r
acker User
Guide

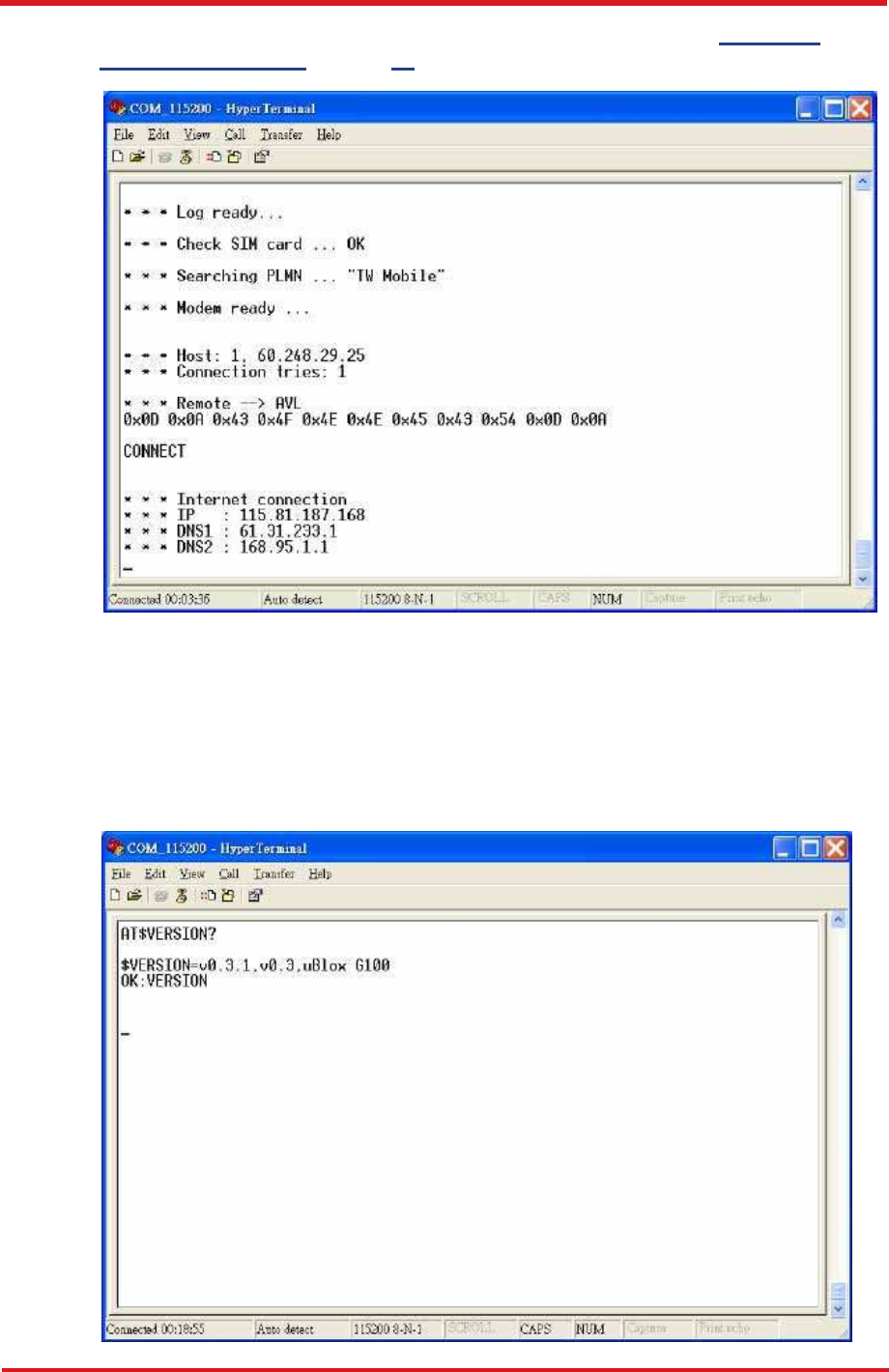

9. Connect your the CAREU WT1 device to power as mentioned in Power and
I/O Cable Connection on page 12. The device startup message will be displayed.
10. In [HyperTerminal] window, type in the command "AT$VERSION?" and press the
Enter key. The hardware and firmware version will show. As long as your
[HyperTerminal] window appears as the screenshot below, a connection between the
device and your system has already been built up and working. It is time to send all
configuration commands.
CAREU WT1 Vehicle Tracker User
3.3 Communication Settings
The CAREU WT1 Vehicle Tracker communicates with your control center by either SMS
or GPRS (TCP/UDP). Before the device is installed into a vehicle, communication
parameters should be set.
1. SMS Configuration
Use AT$SMSDST command to set a SMS control center phone number or short code.
For example, if the SMS control center phone number is +886123456789, the
AT$SMSDST command to be issued into HyperTerminal should be:
AT$SMSDST=+886123456789
OK
Then you can try to use cellular phone or SMS gateway to send a SMS message to
the CAREU WT1 device. Send a SMS message --> "AT$MODID?"
Device will response:
$MODID=101000001
OK
This proves a successful mobile phone SMS connection.
CAREU
Lite
V
ehicle
T
r
acker User
Guide
2. GPRS Configuration
Set GPRS servers by using the folloiwng commands:
AT$APN=internet,username,password (APN=internet, Username=username,
Password=password) OK
AT$HOSTS=1,0,60.148.19.10,6000
(Server IP address = 60.148.19.10 and Port number =6000)
OK
AT$RETRY=5,10 (Message retry settings)
OK
AT$IPTYPE=1 (Using TCP/IP mode)
OK
AT$GPRSEN=1 (GPRS enable)
OK
AT$HB=60,1 (Heartbeat setting)
OK
Please refer to the CAREU WT1 Protocol Document for more command details.
CAREU WT1 Vehicle Tracker User
3.3 GPS Tracking Configurations
After the device communication settings are done, the remote GPS tracking is ready to
function. The setting of GPS tracking can be done by using AT$PDSR command. For
example,
AT$PDSR=1,30,0,0,2,0,0,1,1 (Tracking through GPRS by time interval 30 seconds)
OK

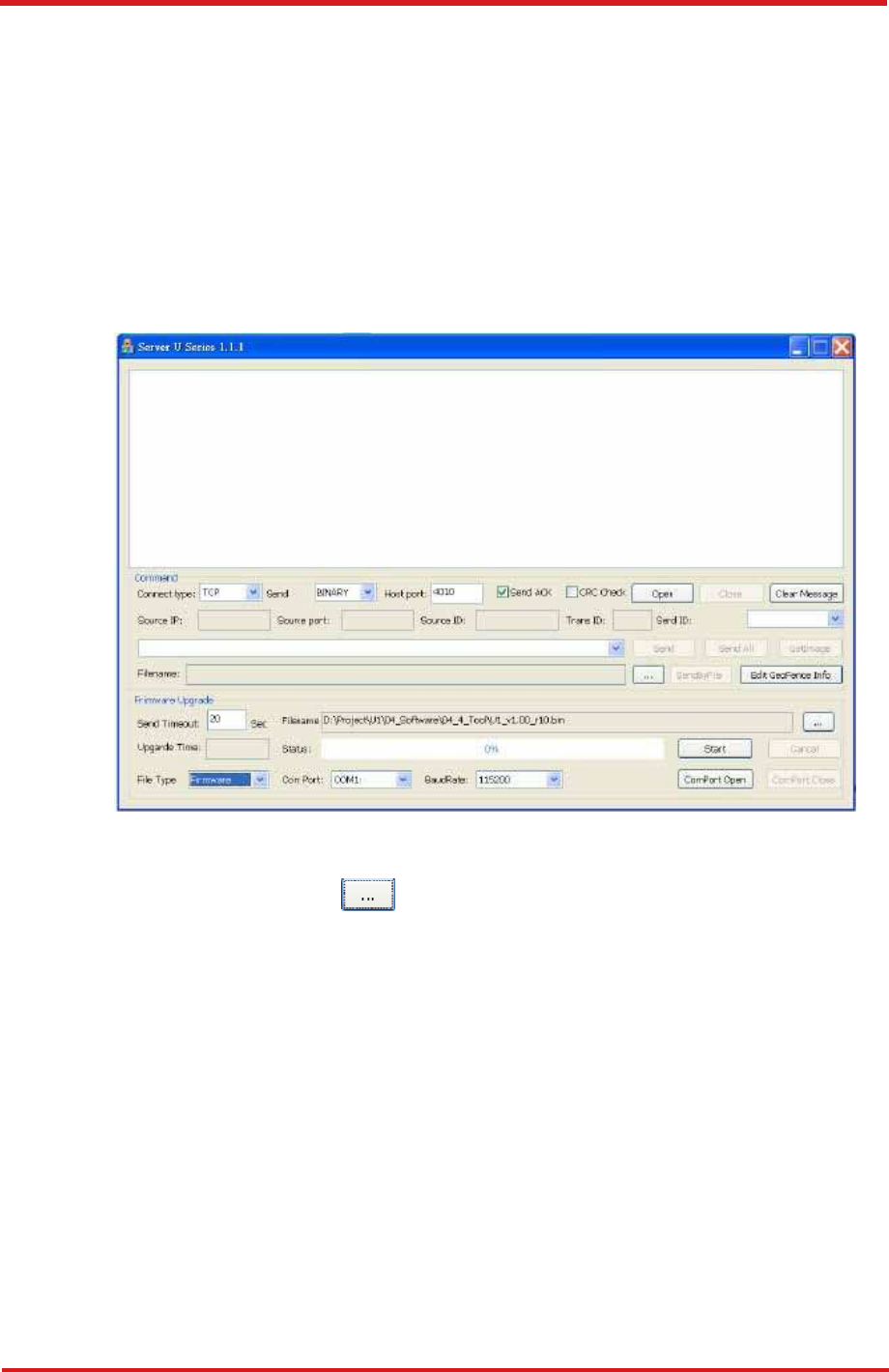

For simple testing GPRS, run the TCP Server U-Series software which is provided by
S&T. It is simple server software that can wait for device connection and data.
CAREU
Lite
V
ehicle
T
r
acker User
Guide

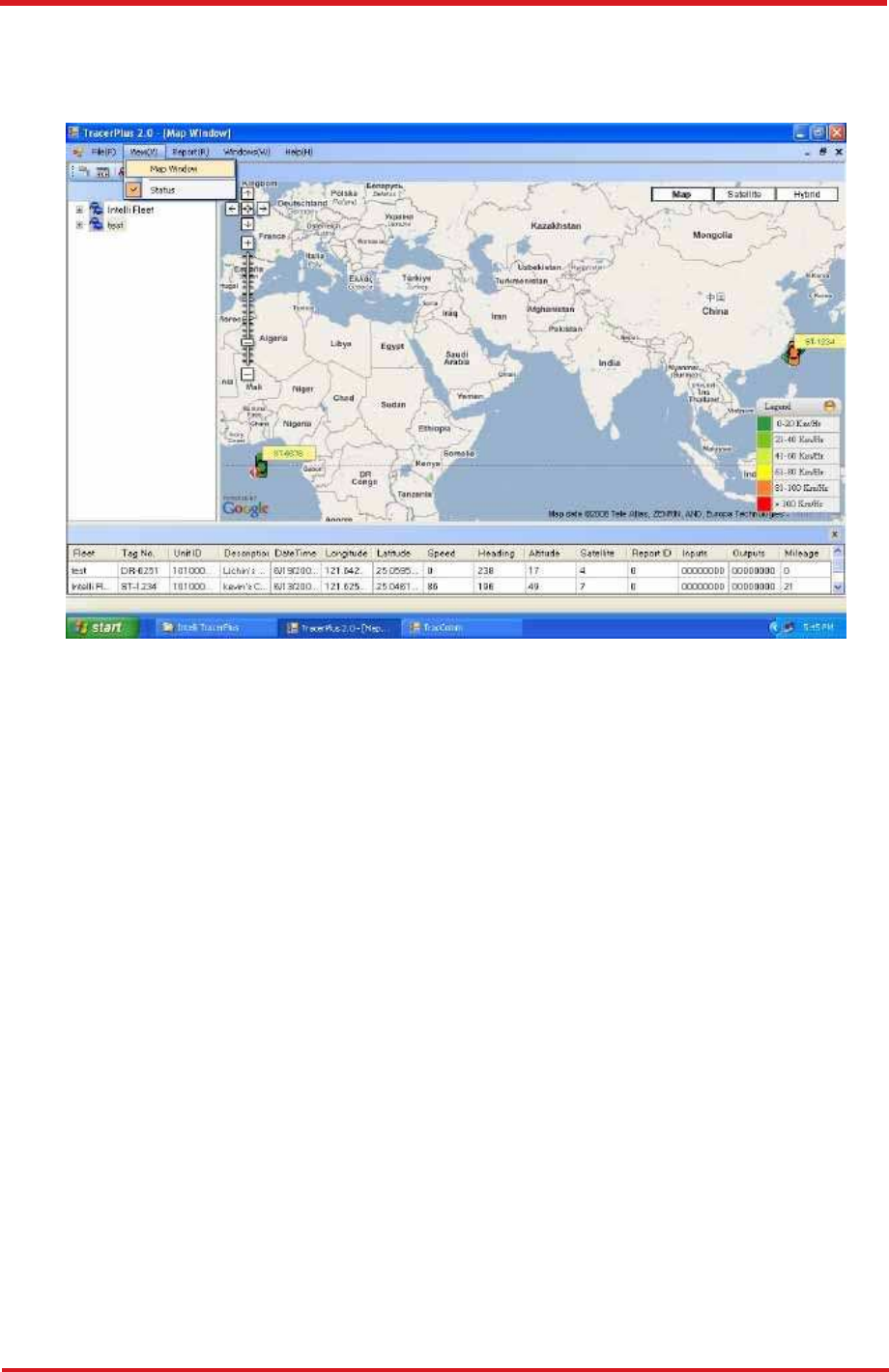

For advanced testing, you need the software Intelli TracerPlus. Please
request this software through your sales contact.
You can also apply for a testing account from S&T's FleetWeb solution through your sales
contact.
CAREU WT1 Vehicle Tracker User

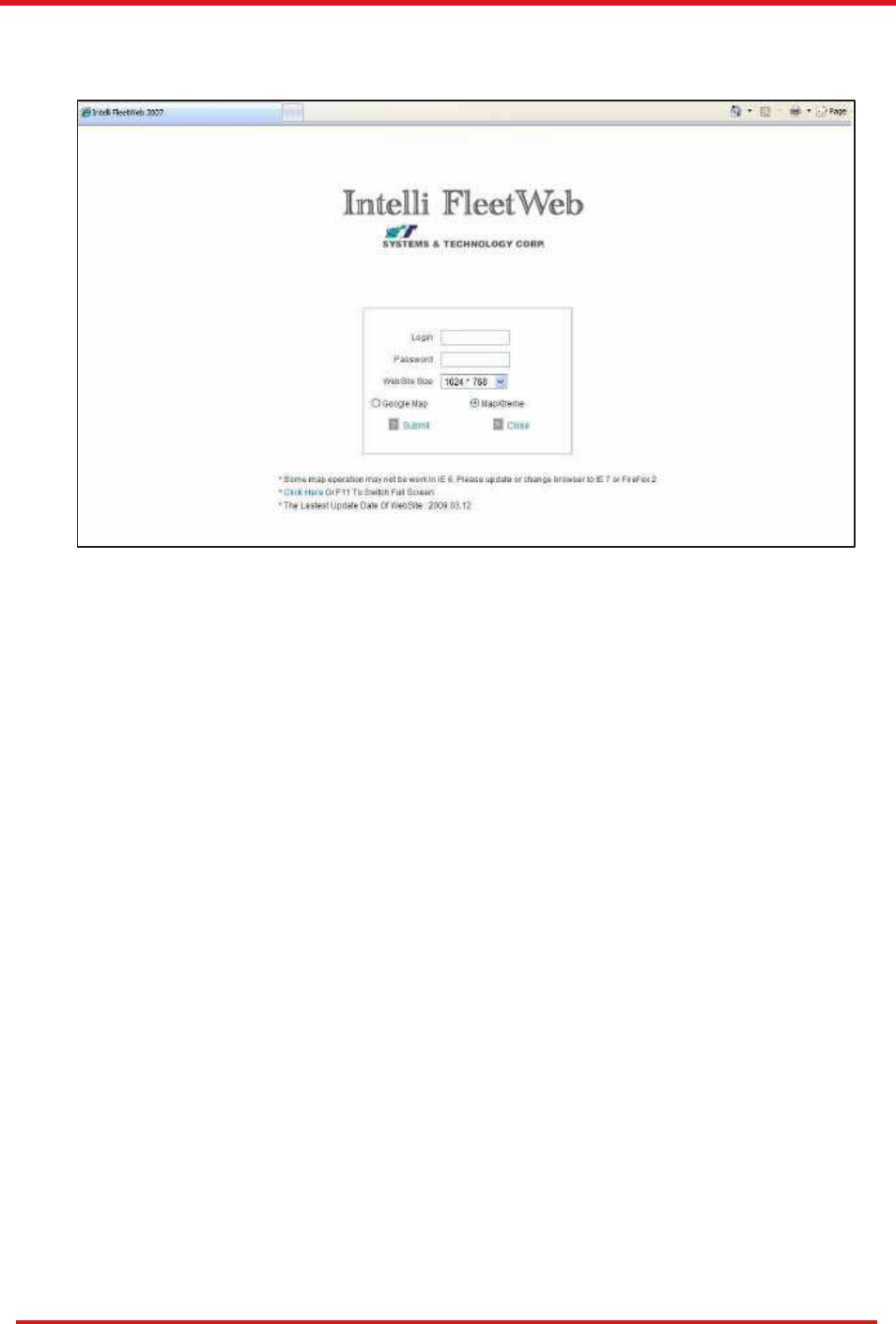

The main page of the Intelli FleetWeb appears as below:
CAREU
Lite
V
ehicle
T
r
acker User
Guide
3.4 Firmware Upgrade
The firmware of the CAREU WT1 can only be updated through USB interface. With the
firmware loader tool provided by S&T, firmware update can be done for the device. Such
firmware loader runs on Windows-based systems. To upgrade the firmware, follow the
procedure below:
1). Connect the device to your PC with the USB cable.
2). Connect the device to power.
3). Power on the device.

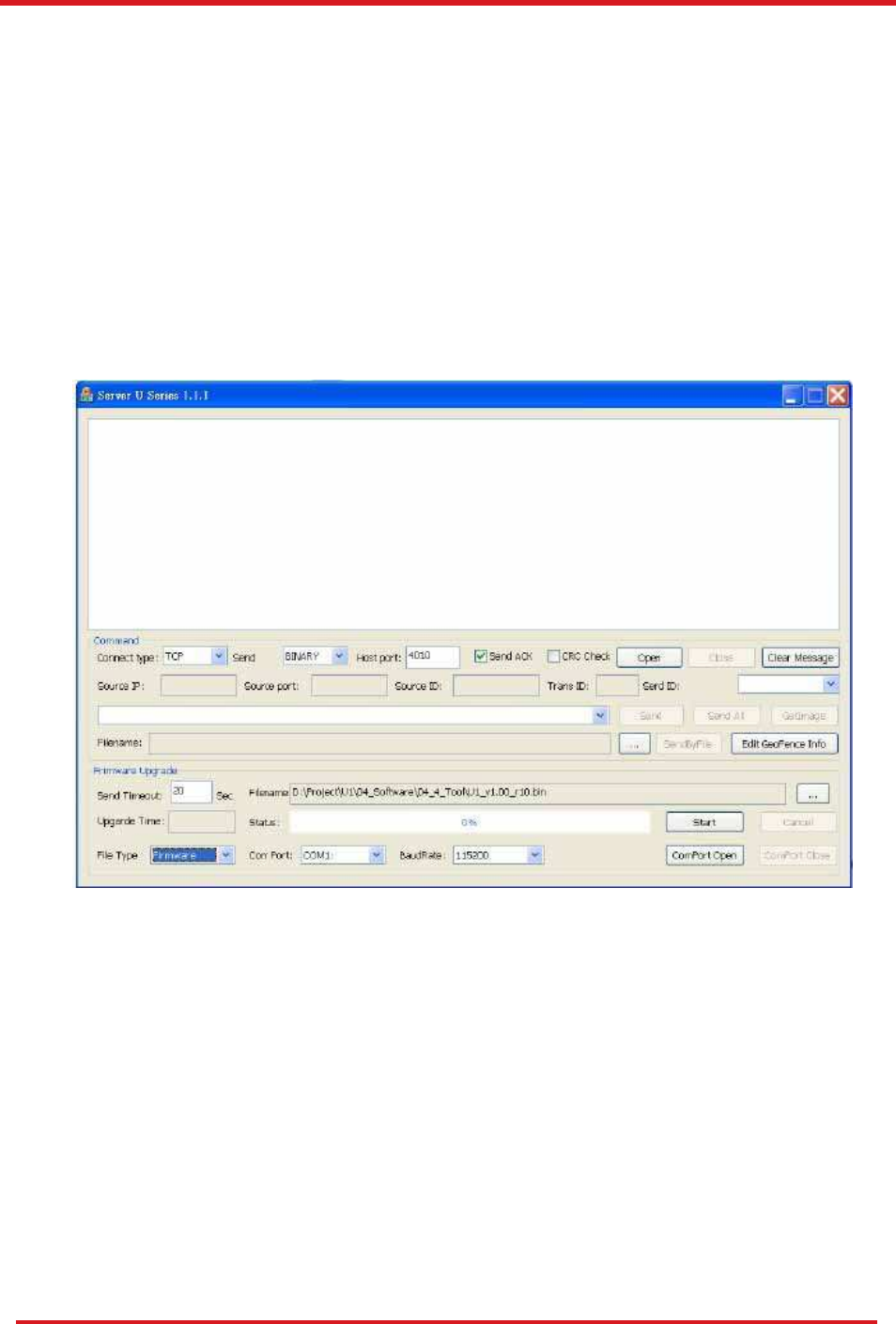

4). Run ServerUSeries.exe. A window displays as follows:
5). Press browse the button to browse to the firmware provided by S&T.
6). Press the Start button to run the firmware program.
7). After the writing progresses to 100%, it takes about 20 seconds for the update
to completes.
8). Firmware update completes.
CAREU
Lite
V
ehicle
T
r
acker User
Guide
Chapter 4
Chapter 4. Technical Specification
Characteristics
Dimensions (L x W x H)
108 x 72 x 31mm
Weight 165g
Radio Performance
Frequency Quad-band 850/900/1800/1900MHz
GSM Functionality / GPRS
GPRS Mode
Multi-slot class 10
GPRS Coding Scheme
CS1,CS2,CS3 and CS4
GSM Antenna
Internal
SIM Interface
E- SIM (Built-in mainboard)
GPS Functionality
Receiver
50 channels
Sensitivity (Tracking)
-160dBm
Antenna Type
External GPS active antenna, 3.3V
Connector
SMA female
GPS Protocol
NMEA 0183 Ver3.0
Onboard Components
MCU
32-bit microcontroller
Data Memory
8 MB Flash
Motion Sensor
3-axes acceleration sensor
Led Indicator
GPS and GSM Indicator
CAREU WT1 Vehicle Tracker User
Interface I/O
Button Key Emergency Button
Controls Function Button
Electrical
Power Source
500mA @ +5V
Environment
Operating Temperature
–20 °C to +60 °C
Battery
Rechargeable Backup
Battery
3.7V / 550mAH
Note: The specification herein is subject to change without prior notice.
CAREU
Lite
V
ehicle
T
r
acker User
Guide
Chapter 4
Systems & Technology Corp. (S&T), founded in 1987, is a market leader in Automatic Vehicle
Locating (AVL) solutions, Geographical Information Systems (GIS) and navigation. It has formed a
professional development team to innovate the most advanced and comprehensive GPS tracking
products for the customers and has built a global service network to provide non-stop services and
support.
With the well-established marketing networks of over 100 distributors in the world, S&T is your
trustworthy tracking solution provider. For more product information, please contact S&T by Email,
phone or fax.
Web Site http://www.systech.com.tw
Email avl@systech.com.tw
Phone
+886-2-2698-1599
Fax
+886-2-2698-1211
CAREU WT1 Vehicle Tracker User
Chapter 5. Regulation
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment
and are safe for intended operation as described in this manual. The further RF exposure reduction
can be achieved if the product can be kept as far as possible from the user body or set the device to
lower output power if such function is available.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating
positions accepted by the FCC with the device transmitting at its highest certified power level in all tested
frequency bands.
CAREU
Lite
V
ehicle
T
r
acker User
Guide
Chapter 4
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr
[udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme
tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de
equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ∆ΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di
apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of
equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlan
ds [Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott]
jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm
CAREU WT1 Vehicle Tracker User
fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Portuguê
s
[Portuguese
]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme
com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami
in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky
a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja
sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.

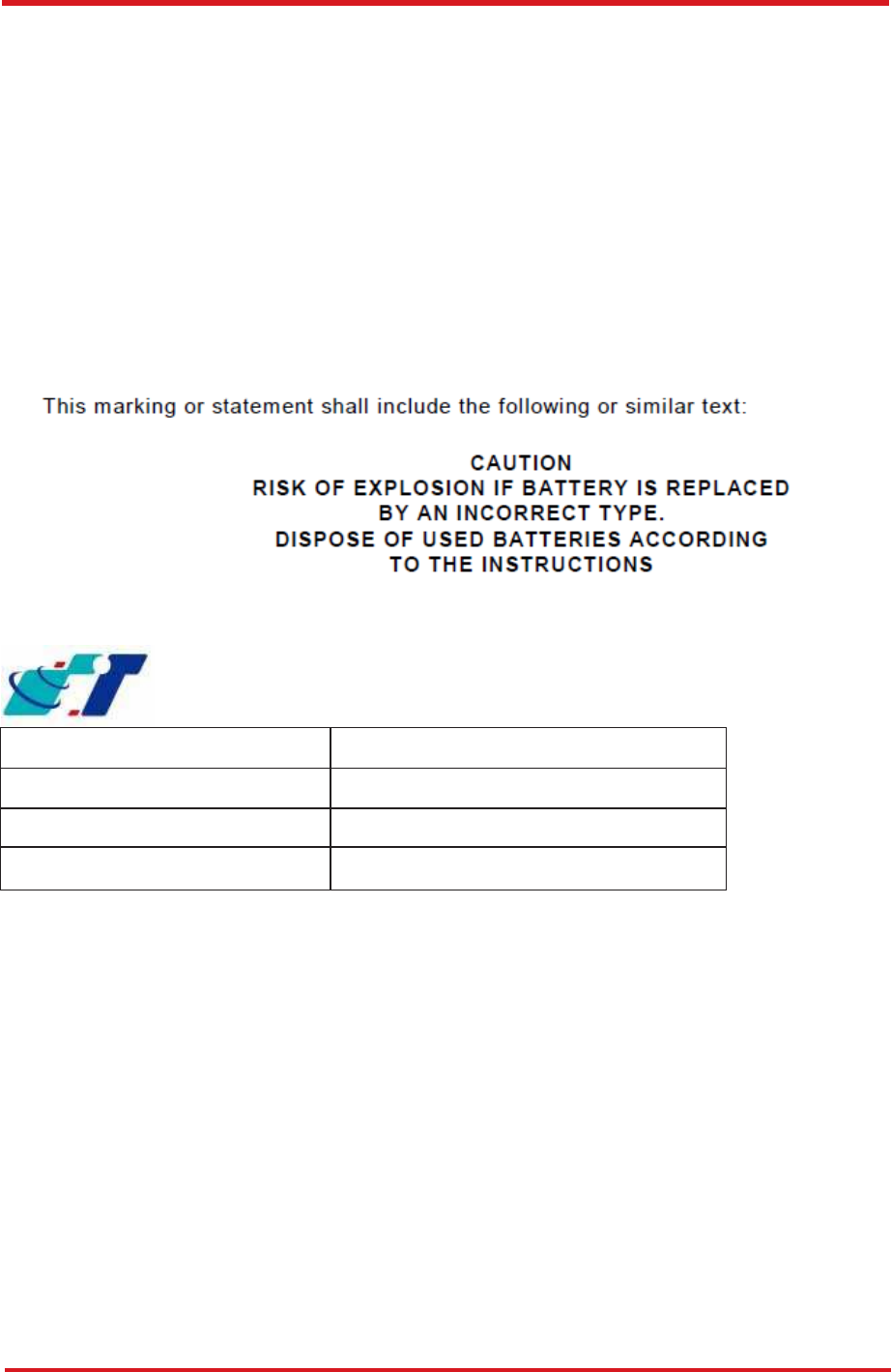

Statement:
A minimum separation distance of 0 cm must be maintained between the user’s body and the device,
including the antenna during body-worn operation to comply with the RF exposure requirements in Europe.
CAREU
Lite
V
ehicle
T
r
acker User
Guide
Chapter 4
DoC 法規版本
法規版本法規版本
法規版本

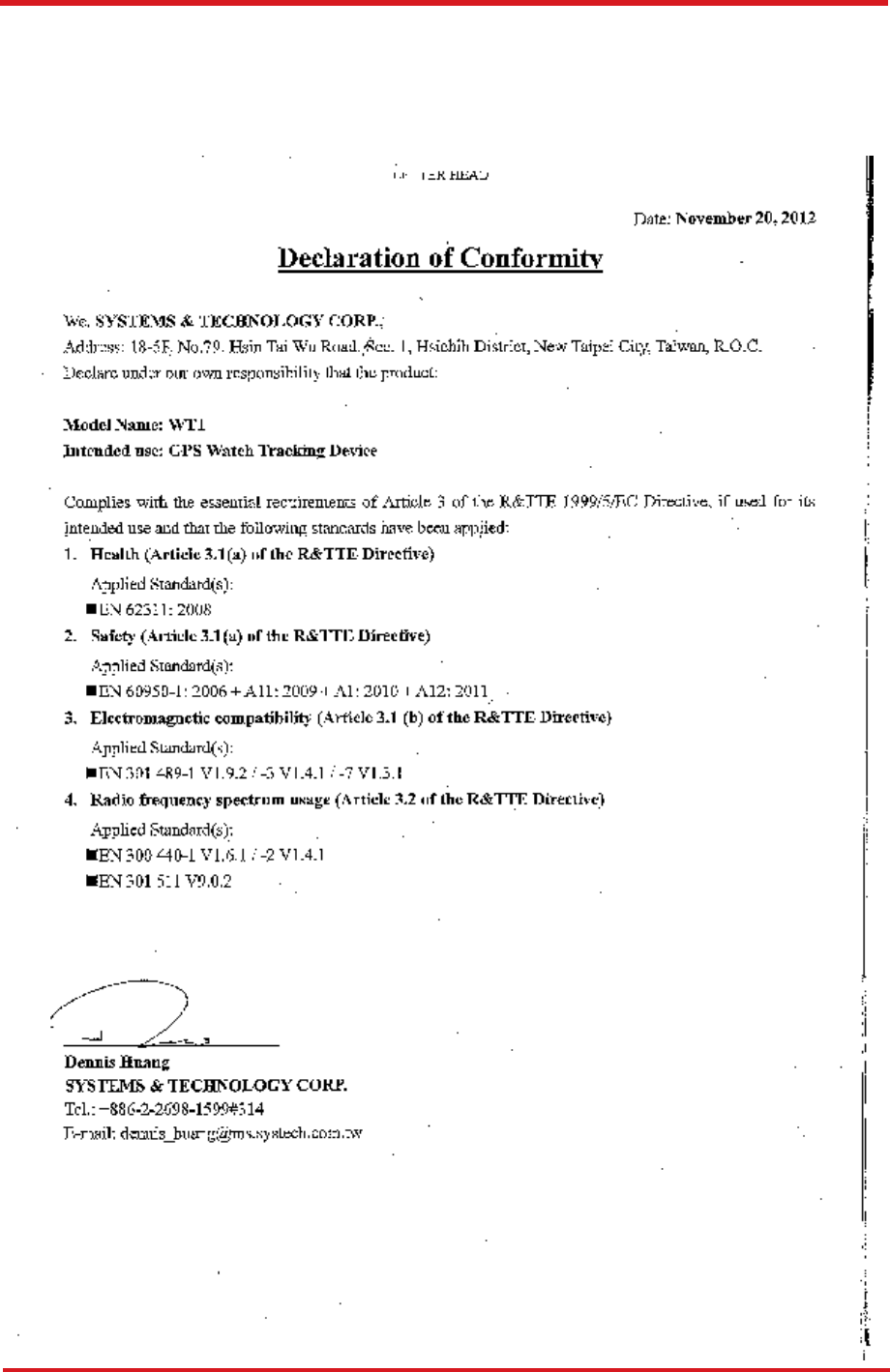

Declaration of Conformity

Navigation menu
