Systems & Technology Corp. GPS Vehicle Tracking Device
User Manual
CAREU UCAN 3G
User
Guide
Version: 0.1
Reference No.: AVL
Date: 2014/8/26
SYSTEMS & TECHNOLOGY CORP.
General Information
If any breakdown occurs due to the operation of the described product or users’ improper handling
in accordance with the instructions of the document, S&T shall be liable for the General Conditions
based on the delivery of the described product and the content of the document. This product is not
designed for the use of life support appliances, devices or systems and thence a malfunction of the
product might reasonably be expected to make personal injury. S&T customers using or selling this
product for such applications will take the risk on their own; therefore, it must be agreed S&T will
be fully indemnified from any damages due to illegal use or resale. All information in this document
is subject to change without notice at any time.
Disclaimer
The information, specification, images and photos in this user guide are subject to change without
notice and without obligation to notify any person of such revision change.
Copyright
This user guide, including all photographs, illustrations and software, to name a few, is protected
under international copyright laws, with all rights reserved. This document contains confidential,
restricted and proprietary information that it has been exclusively prepared for the internal use of
certain designated S&T employees, and may not be duplicated or distributed, in whole or in part,
without the prior written consent of S&T’s authorized delegates. Any illegal copying and disclosure
of the document are absolutely prohibited, and violators are liable to the damages caused.
© Systems & Technology Corp. All Rights Reserved
Table of Contents
Chapter 1 Introduction ................................................................................................... 1
1.1
Features.......
........................................................................................................
1
1.2
Scope
...................................................................................................................
1
1.3 About CAREU UCAN 3G
.....................................................................................
1
1.4 Hardware Architecture
.........................................................................................
2
1.5 Related
Document ...............................................................................................
2
Chapter 2 Taking a Tour of CAREU UCAN 3G ......................................................... 3
2.1 Dimensions
..........................................................................................................
3
2.2 PIN
Assignment....................................................................................................
3
Chapter 3 Getting Started with CAREU UCAN 3G................................................... 5
3.1 Hardware Installation
...........................................................................................
5
3.2 USB Device Driver
Installation
.............................................................................
6
3.3 Device
Configuration..........................................................................................
12
3.4 Communication
Settings
....................................................................................
16
3.5 GPS Tracking
Configurations.............................................................................
17
3.6 Firmware Upgrade
.............................................................................................
18
Chapter 4 Technical Specification .............................................................................. 19
Chapter 5 Regulation……………… .............................................................................. 22
CAREU UCAN 3G - User Guide
Chapter 1
1
Chapter 1 Introduction

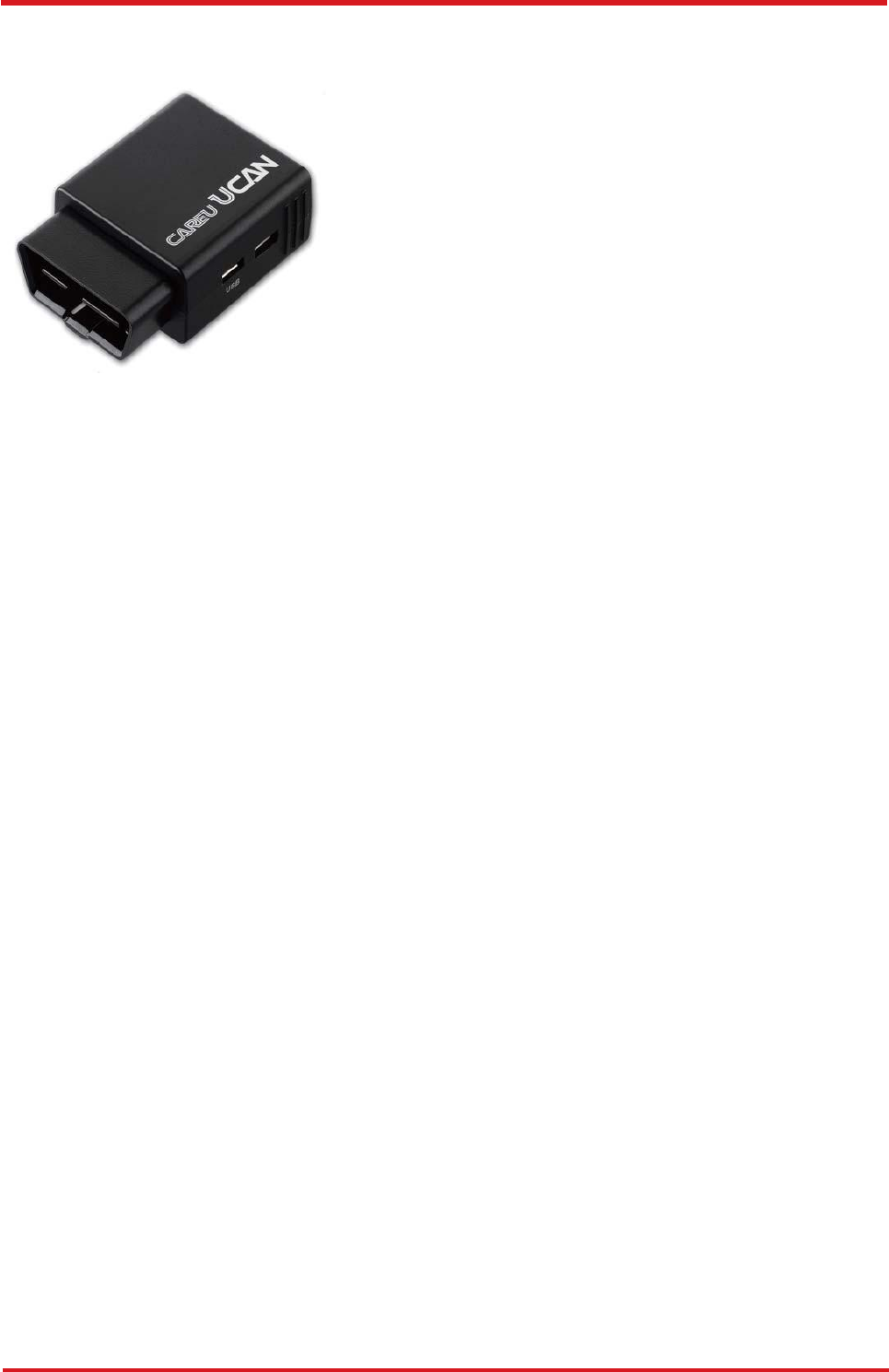

1.1 Features
Thank you for purchasing CAREU UCAN 3G GPS
Vehicle Tracker, a plug-and-use device for tracking and
vehicle status diagnostics.
● SMS, GPRS TCP/UDP, USSD, FTP communications
● Plug-and-use design and cost effectiveness
● DTC OBD II error codes
● GSM/GPRS simultaneously
● Real-time tracking (Time, Distance Interval or Intelligent Mode, and Heading)
● Firmware upgrade over the air (via GPRS from FTP)
● Journey report wireless download
● Battery low alert
● Geofence reports
● Mileage reports
● User-defined reports
● Up to 100,000 data logs
1.2 Scope
This document will guides you to start the CAREU UCAN 3G Vehicle Tracker.
However,as this document contains basic device configuration only, please see the
CAREU UCAN 3G Protocol Document for the advanced information.
1.3 About CAREU UCAN 3G
Designed with the latest GPS technology, the CAREU UCAN 3G delivers positioning
message by GSM wireless transmission to GIS platform, and then helps back-end users
proceed with the analysis and the applications of vehicle transport, management, anti-theft,
security and tracking.
A microcontroller can probe location and command data at regular intervals, derive actions
from location, peripheral and control data, and execute such actions. Peripheral data
indicates the status of various peripherals connected to and/or controlled by the device.
Among the best features of the CAREU UCAN 3G Vehicle Tracker, in particular, they
transmit data in ASCII mode (Intellitrac X Series compatible mode) or binary mode.
CAREU UCAN 3G - User Guide
2
Chapter 1
The firmware in the device applies intelligent filtering to overcome coverage
limitations for both GPS and GSM/GPRS networks. Motion sensor controls the status
of the device, whether in sleep, idle or fully-powered mode, and thereby controls the
amount of current consumed by the device. The device supports over-the-air firmware
upgrade to deliver additional functionality without physically touching the device once
installed.
1.4 Hardware
Architecture
As hardware is concerned, the CAREU UCAN 3G is comprised of a micro-
controller, regulator, GPS receiver, GSM/GPRS modem, G-Force sensor, flash
memory data storage.
● Users can connect PC's Hyper Terminal to the diagnostic setting port for the AVL
configuration.
● G-Sensor is for car accident prevention, car tow-away warning and power
management.
SPI
FLASH
G-Sensor
CAN
Transceiver
GPS
GSM
Modem
CPU USB
Power
1.5 Related Document
[1] CAREU UCAN 3G Protocol Document
CAREU UCAN 3G - User Guide
Chapter 1
3
Chapter 2 Taking a Tour of CAREU UCAN 3G
2.1 Dimensions
Dimensions (L x W x H): 48mm x 66mm x 25mm
25mm 48mm
66mm
2.2 PIN Assignment
1. Pin Definition of OBD II Connect
8
87
76
65
54
43
32
21
1
1
16
6
1
15
5
1
14
41
13
31
12
2
1
11
11
10
0
9
Pin#
Signal Name
Description
1,3,8,9,
11,12,13
NC
No Connect
2
J1850 BUS+
SAE J1850 Data Transmission Cable (+)
4,5
GND
Signal Ground
6
CAN-H
ISO 15765-4; CAN Bus Diagnostic Cable (H Cable)
7
ISO-K
SAE J1850 Data Transmission Cable (-)
10
J1850 BUS
ISO 15765-4; CAN Bus Diagnostic Cable (L Cable)
14
CAN-L
ISO 15765-4; CAN Bus Diagnostic Cable (L Cable)
15
ISO-L
ISO-9141-2 Data Transmission Cable (L)
16
VIN
Battery Supply Input (12V/24V)
CAREU UCAN 3G - User Guide
4
Chapter 2
2. USB Port
3. SIM Card Slot
CAREU UCAN 3G - User Guide
Chapter 2
5
SIM Card
Chapter 3 Getting Started with CAREU UCAN 3G
To install the the CAREU UCAN 3G device, follow the instructions below for basic operations.

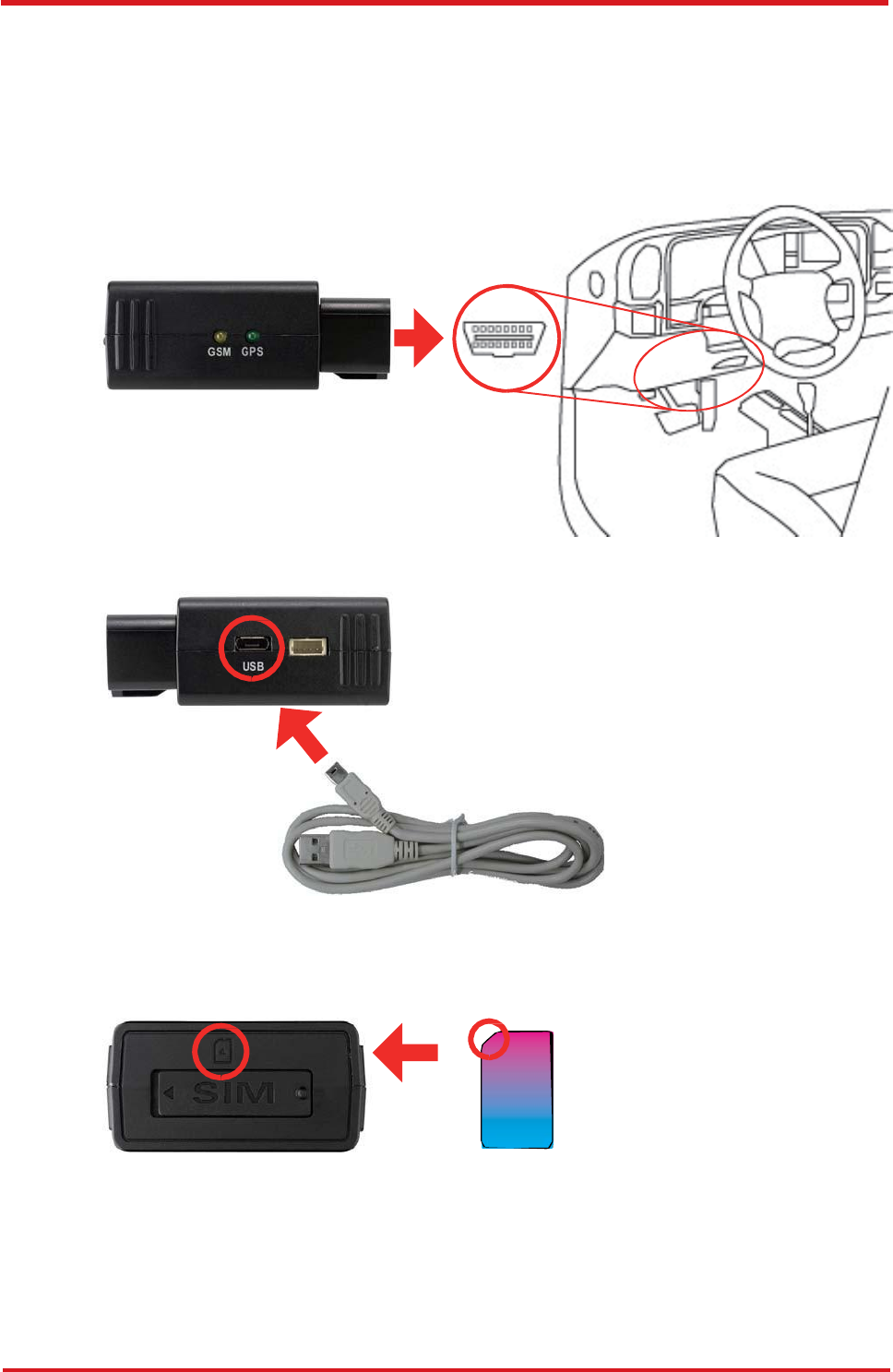

3.1 Hardware Installation
1. Installation Mode
2. Mini USB Cable Connect
3. SIM Card Installation
CAREU UCAN 3G - User Guide
6
Chapter 2
3.2 USB Device Driver Installation
The CAREU UCAN 3G communicates with your host computer by the USB
interface.
In some newer editions of Windows XP, the CAREU UCAN 3G device can be installed as a
"virtual COM port" device whereby the CAREU UCAN 3G would automatically access
Windows XP's inbox USB drivers. While in some other earlier editions of Windows XP, you
would need to manually install the USB driver for the CAREU UCAN 3G device.
To install the device driver for the CAREU UCAN 3G, connect the CAREU UCAN 3G device
to your system with an USB cable as mentioned in Mini USB Cable Connection on page 6.

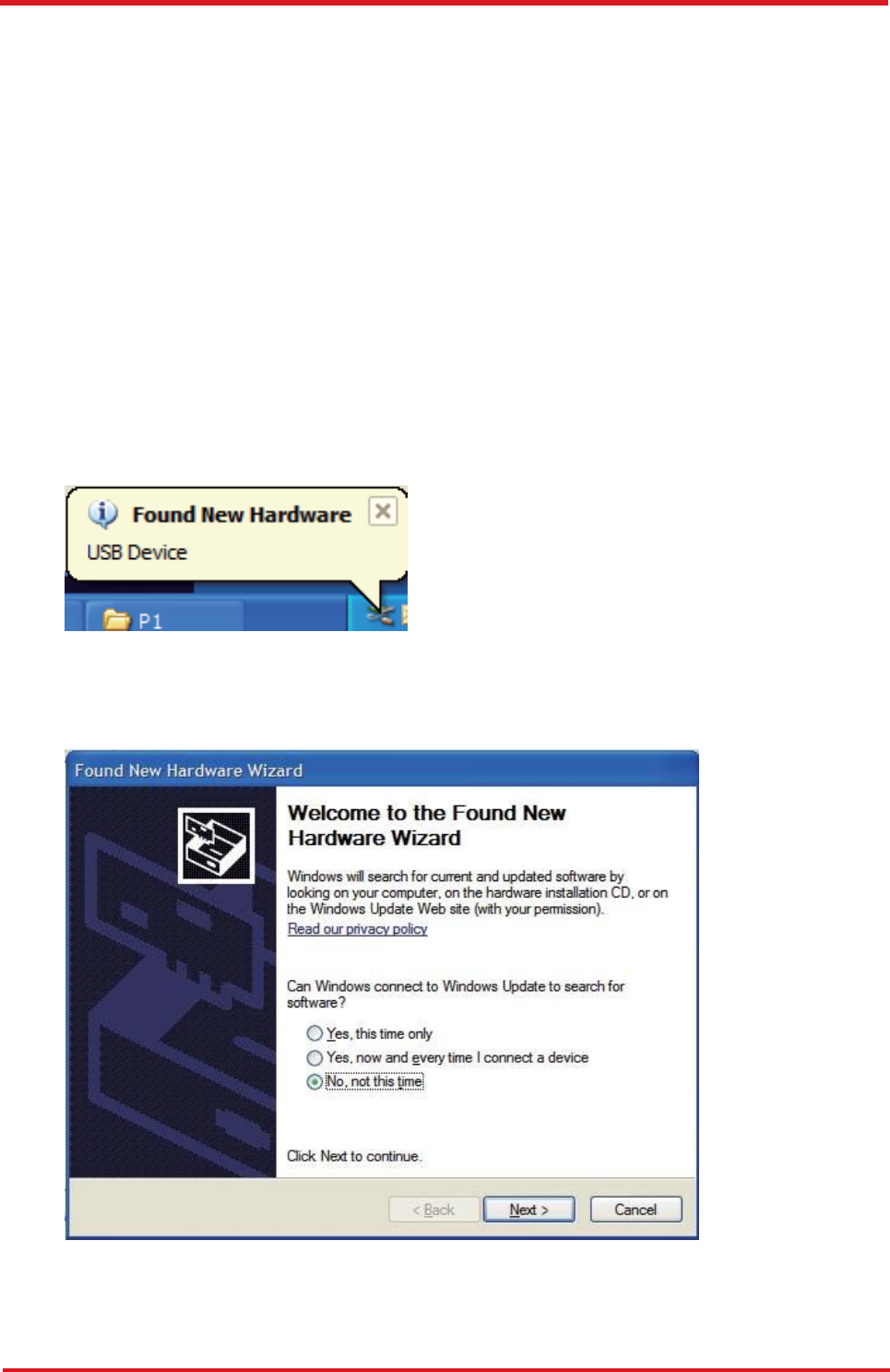

As soon as the connection is made between the CAREU UCAN 3G and your computer, a
balloon appears above the notification area saying an USB device is found.
Click on this balloon to start the [Found New Hardware] wizard.
Select No, not this time. Press the Next button to proceed.
CAREU UCAN 3G - User Guide
Chapter 3
7

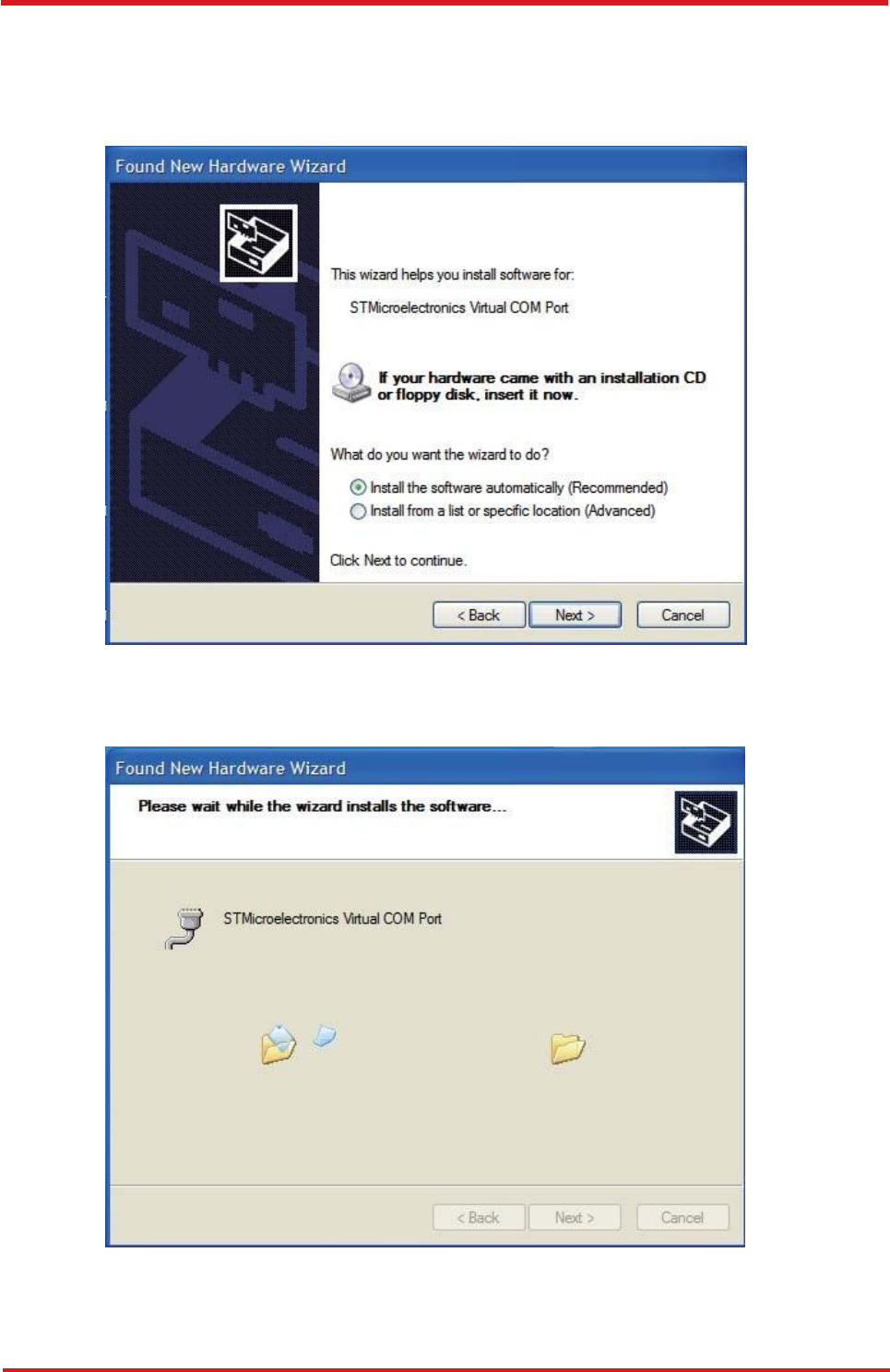

1. Automatic Installation
If the wizard prompts to help you install the software for "STMicroelectronics Virtual
COM Port". Select Install the software automatically (Recommended). Press the
Next button to proceed.
The wizard proceeds to install the driver.
CAREU UCAN 3G - User Guide
8
Chapter 3
The installation completes.
In [Device Manager], the CAREU UCAN 3G device is included under Ports (COM &
LPT) as "STMicroelectronics Virtual COM Port". COM port number is displayed as well.
CAREU UCAN 3G - User Guide
Chapter 3
9
2. Manual Installation
After you select No, not this time, if the wizard only prompts to help you install
software for "USB device", you need to manually install the driver. Select Install from a
list or specific location (Advanced). Press the the Next button to proceed.

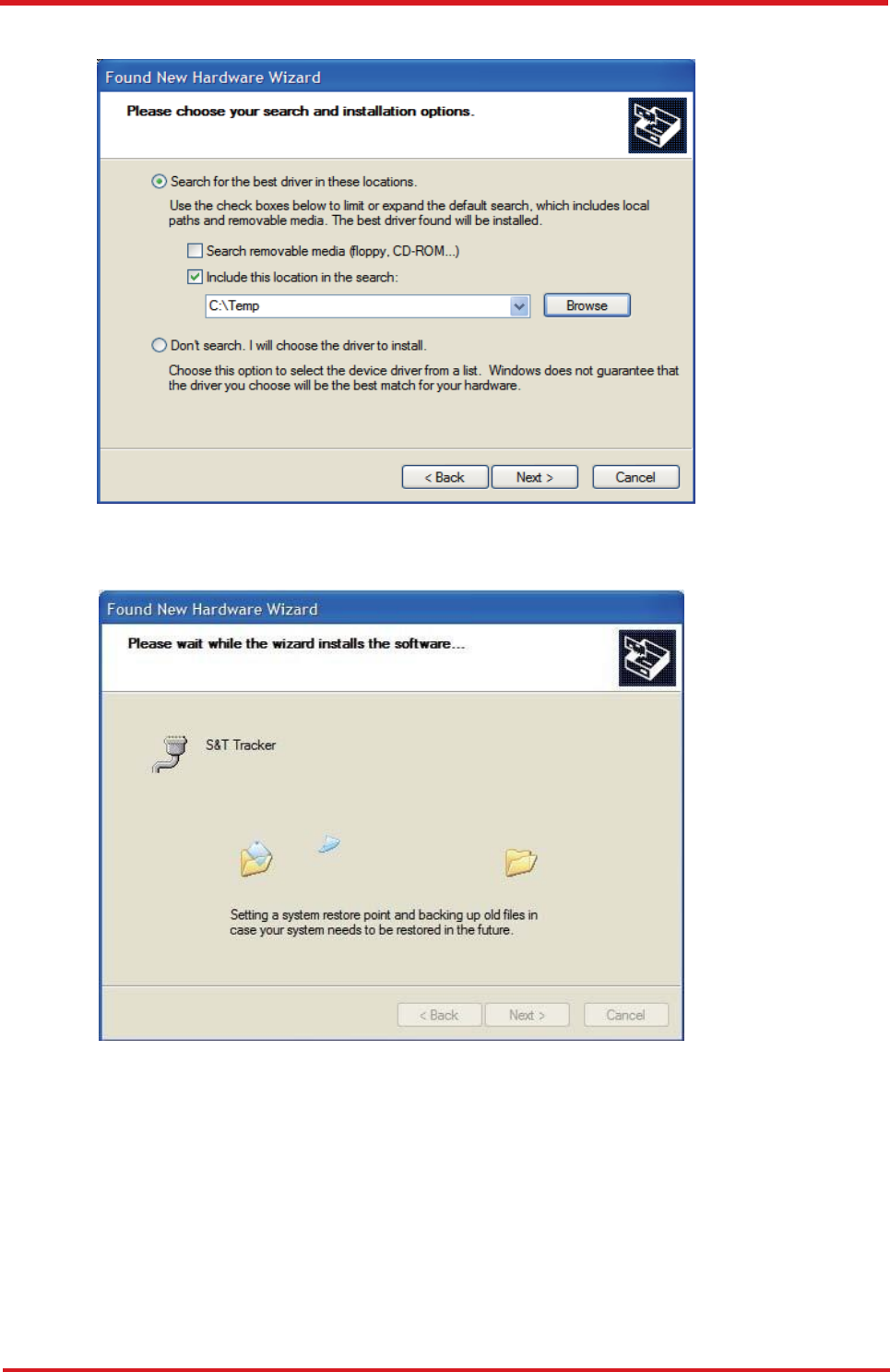

Select Search for the best driver in these locations. Check Include this location
in the search. Press the Browse button to assign where your the CAREU UCAN 3G
device driver locates on your local disk.
Press the OK button.
You can download the USB device driver from http://www.systech.com.tw/downloads-04.php
?id=34&page=downloads&lang=en
CAREU UCAN 3G - User Guide
10
Chapter 3
Press the Next button to proceed.
The wizard proceeds to install the driver.
CAREU UCAN 3G - User Guide
Chapter 3
11
The installation completes.
In [Device Manager], the CAREU UCAN 3G device is included under Ports (COM & LPT)
as"S&T Tracker". COM port number is displayed as well.
CAREU UCAN 3G - User Guide
12
Chapter 3
3.3 Device
Configuration
1. In Windows XP desktop, click Start | All Programs | Accessories |
Communications | HyperTerminal.
2. If you are prompted to input the information of your location, complete them
to proceed.
3. On the File menu of HyperTerminal, click New Connection.
4. In the Name box, type a name that describes the connection. In the Icon box, click
an appropriate icon. Press the OK button to proceed.
5. For Com port properties, configure as follows:
Baud Rate --> 115200 bps
Data Bits --> 8
Parity --> None
Stop Bits --> 1
Flow Control --> None
CAREU UCAN 3G - User Guide
Chapter 3
13
6. In the connection that you have just set up, click File | Properties. Select the
[Connect To] tab. From the [Connect using] drop down list, select the correct com port
by checking it up at Windows XP's [Device Manager] as previously mentioned on page
9 and page 12. Go there by clicking Start | Control Panel | System | Hardware | Device
Manager.
CAREU UCAN 3G - User Guide
14
Chapter 3
7. In the File menu, click Properties. Click the [Settings] tab. Press the ASCII Setup
button.
8. In the [ASCII Sending] group box. Select both Send line ends with line feeds and
Echo typed characters locally. Press the OK button.
CAREU UCAN 3G - User Guide
Chapter 3
15
9. Connect your the CAREU UCAN 3G device to power as mentioned in USB on page 6.
The device startup message will be displayed.
10. In [HyperTerminal] window, type in the command "AT$VERSION?" and press the
Enter key. The hardware and firmware version will show. As long as your
[HyperTerminal] window appears as the screenshot below, a connection between the
device and your system has already been built up and working. It is time to send all
configuration commands.
CAREU UCAN 3G - User Guide
16
Chapter 3
3.4 Communication
Settings
The CAREU UCAN 3G Vehicle Tracker communicates with your control center by
either SMS or GPRS (TCP/UDP). Before the device is installed into a vehicle,
communication parameters should be set.
1. SMS Configuration
Use
AT$SMSDST
command to set a SMS control center phone number or short code.
For example, if the SMS control center phone number is +886123456789, the
AT$SMSDST
command to be issued into HyperTerminal should be:
AT$SMSDST=+886123456789
OK
Then you can try to use cellular phone or SMS gateway to send a SMS message to the
CAREU UCAN 3G device. Send a SMS message --
>"AT$MODID?" Device will response:
$MODID=101000001
OK
This proves a successful mobile phone SMS connection.
2. GPRS Configuration
Set GPRS servers by using the folloiwng commands:
AT$APN=internet,username,password
(APN=internet, Username=username,
Password=password) OK
AT$HOSTS=1,0,60.148.19.10,6000
(Server IP address = 60.148.19.10 and Port number =6000)
OK
AT$RETRY=5,10 (Message retry settings)
OK
AT$IPTYPE=1
(Using TCP/IP mode)
OK
AT$GPRSEN=1 (GPRS enable)
OK
AT$HB=60,1 (Heartbeat setting)
OK
Please refer
to the
CAREU UCAN 3G Protocol Document
for
more command
details.
CAREU UCAN 3G - User Guide
Chapter 3
17
3.5 GPS Tracking Configurations
After the device communication settings are done, the remote GPS tracking is ready to
function. The setting of GPS tracking can be done by using AT$PDSR command. For
example,
AT$PDSR=1,30,0,0,2,0,0,1,0
(Tracking through GPRS by time interval 30 seconds)
OK
For simple testing GPRS, run the TCP Server U-Series software which is provided by S&T.
It is simple server software that can wait for device connection and data.
For advanced testing, you need the software Intelli TracerPlus. Please request
this software through your sales contact.
You can also apply for a testing account from S&T's FleetWeb solution through your
sales contact.
CAREU UCAN 3G - User Guide
18
Chapter 3

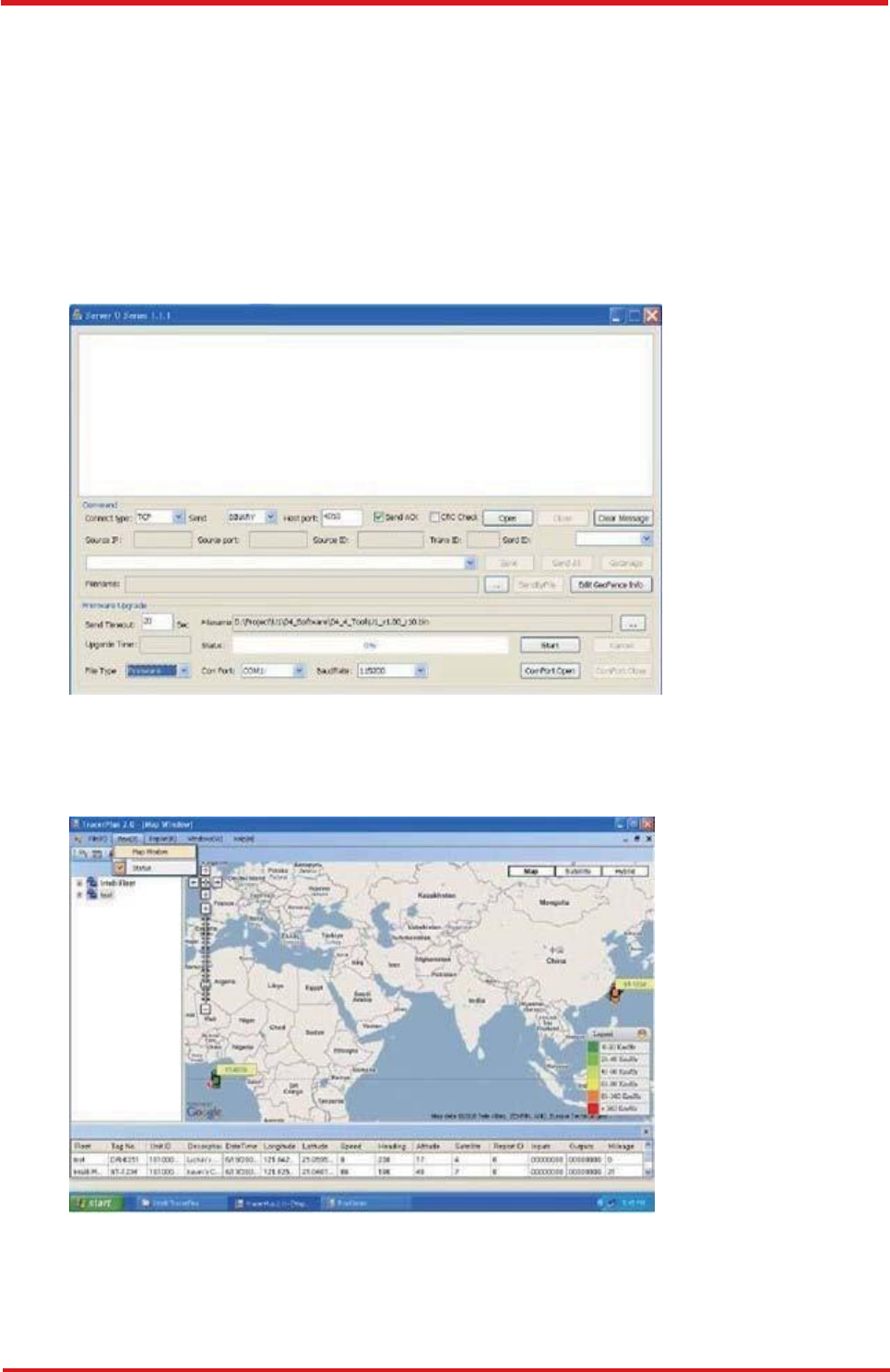

The main page of the Intelli FleetWeb appears as below:
3.6 Firmware Upgrade
The firmware of the CAREU UCAN 3G can only be updated through USB
interface. With the firmware loader tool provided by S&T, firmware update can be
done for the device. Such firmware loader runs on Windows-based systems. To
upgrade the firmware, follow the procedure below
1. Connect the device to your PC with the USB cable.
2. Connect the device to power.
3. Power on the device.
4. Run
ServerUSeries.exe.
A window displays as follows:
5. Press browse the button to browse to the firmware provided by S&T.
6. Press the Start button to run the firmware program.
7. After the writing progresses to 100%, it takes about 20 seconds for the update
to completes.
8. Firmware update completes.
CAREU UCAN 3G - User Guide
Chapter 3
19
Chapter 4 Technical Specification
Characteristics
Dimensions (L x W x H)
48mm x 66mm x 25mm
Weight
55g
Radio Performance
Frequency
U260 for NAR Ver. 850/1900MHz
U270 for EUR Ver. 900/1800/2100MHz
GSM Functionality / GPRS
GPRS Mode
Multislot Class 10
GSM Antenna
Internal
SIM Interface
SIM Card 1.8V, 3V Supported
GPS Functionality
Receiver
50 Channels
Sensitivity (Tracking)
-162dBm
Antenna Type
Internal GPS Active Antenna, 3.3V
GPS Protocol
NMEA 0183 (2.3, compatible to 3.0)
Onboard Components
MCU
32-bit Microcontroller
Data Memory
8MB Flash
Motion Sensor
3-axes Acceleration Sensor
CAREU UCAN 3G - User Guide
20
Chapter 4
Electrics
Power Source
DC 8V to 30V
Power Consumption
150mA @ 12V (operating mode)
20mA @ 12V ( sleep mode)
Environment
Temperature
–20 °C to +60 °C (Operating Temperature)
–20 °C to +70 °C (Storage Temperature
Note: The specification herein is subject to change without prior notice.
CAREU UCAN 3G - User Guide
Chapter
21
Systems & Technology Corp. (S&T), founded in 1987, is a market leader in Automatic Vehicle
Locating (AVL) solutions, Geographical Information Systems (GIS) and navigation. It has formed a
professional development team to innovate the most advanced and comprehensive GPS tracking
products for the customers and has built a global service network to provide non-stop services and
support.
With the well-established marketing networks of over 100 distributors in the world, S&T is your
trustworthy tracking solution provider. For more product information, please contact S&T by Email,
phone or fax.
Web Site
http://www.systech.com.tw
Email
avl@systech.com.tw
Phone
+886 2 26981599
Fax
+886 2 26981211
CAREU UCAN 3G - User Guide
22
Chapter 4
Chapter 5. Regulation
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
CAREU UCAN 3G - User
Guide
Taiwan 警語： (此產品含電信終端設備+電信管制射頻器材)
電磁波警語標示
(1) 警語內容：「減少電磁波影響，請妥適使用」。
(2) 標示方式：必須標示於設備本體適當位置及設備外包裝或使用說明書上。
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至
無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法
通信或工業、科學及醫療 用電波輻射性電機設備之干擾。
Chapter 5
