TAIDOC TECHNOLOGY 3109ABEM2 BLOOD PRESSURE MONITOR User Manual Ideal BP Manual July07

TAIDOC TECHNOLOGY CORP. BLOOD PRESSURE MONITOR Ideal BP Manual July07

Users Manual

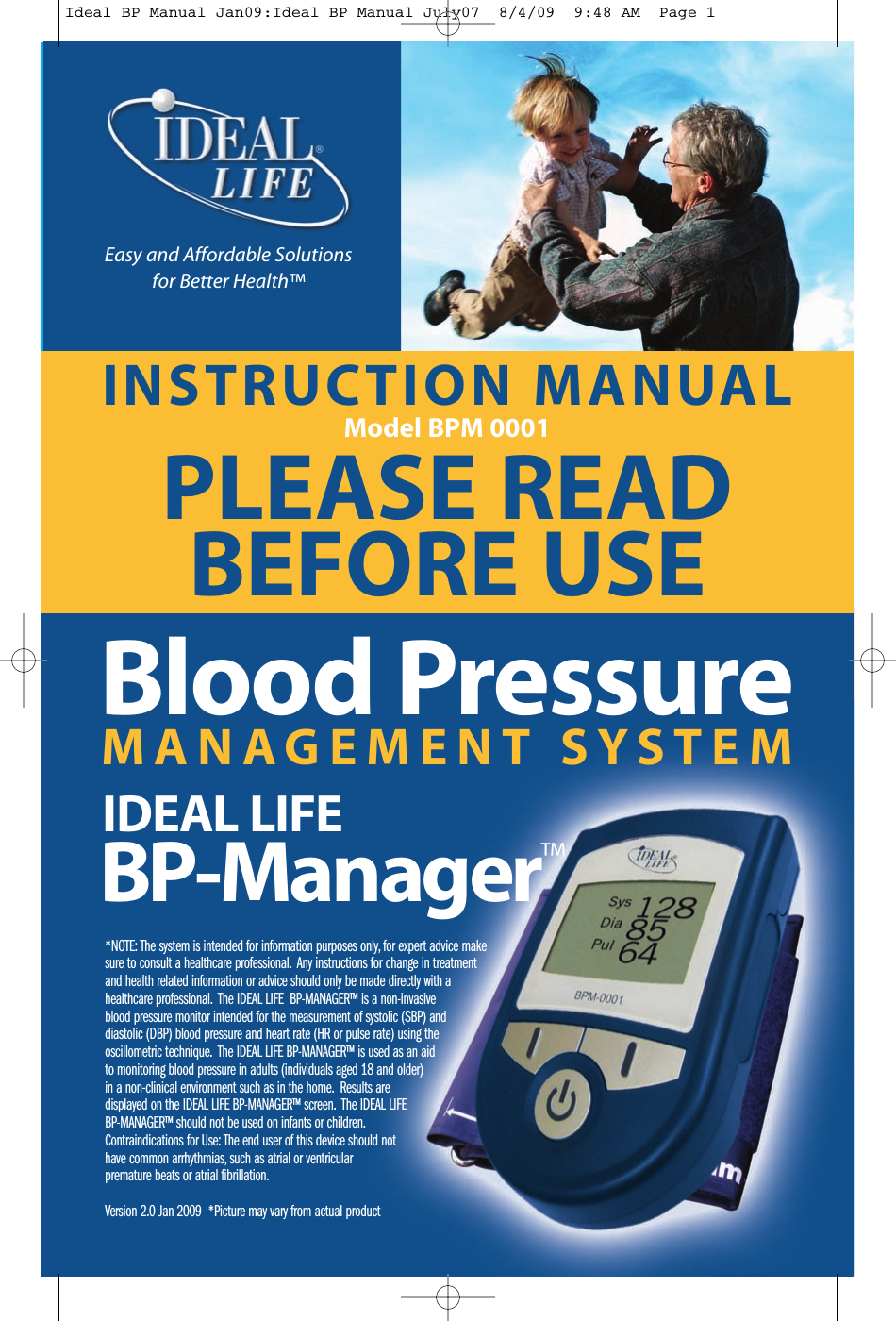

INSTRUCTION MANUALModel BPM 0001PLEASE READBEFORE USE*NOTE: The system is intended for information purposes only, for expert advice makesure to consult a healthcare professional. Any instructions for change in treatmentand health related information or advice should only be made directly with ahealthcare professional. The IDEAL LIFE BP-MANAGER™ is a non-invasiveblood pressure monitor intended for the measurement of systolic (SBP) anddiastolic (DBP) blood pressure and heart rate (HR or pulse rate) using theoscillometric technique. The IDEAL LIFE BP-MANAGER™ is used as an aidto monitoring blood pressure in adults (individuals aged 18 and older)in a non-clinical environment such as in the home. Results aredisplayed on the IDEAL LIFE BP-MANAGER™ screen. The IDEAL LIFEBP-MANAGER™ should not be used on infants or children.Contraindications for Use: The end user of this device should nothave common arrhythmias, such as atrial or ventricularpremature beats or atrial fibrillation.Version 2.0 Jan 2009 *Picture may vary from actual productEasy and Affordable Solutionsfor Better Health™M A N A G E M E N T S Y S T E MBlood PressureIDEAL LIFEBP-Manager™Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 1
IDEAL LIFE BP-Manager™2Table of Contents© 2009 - 001 IDEAL LIFE INC. All rights reserved. IDEAL LIFE is a registered trademark in the United States for weight scales,blood glucose meters, blood pressure cuffs and meters, heart monitors. IDEAL LIFE BODY MANAGER, IDEAL LIFE BP MANAGER,IDEAL LIFE GLUCO MANAGER, IDEAL LIFE POD, REALIZING THE VISION OF A BETTER TOMORROW, Leveraging the Power ofCommunication, Real time health and wellness information on demand, wireless remote health and wellness management, andSolutions for better healthcare through advanced communication technology, The IDEAL LIFE Interactive CommunicationTechnology Platform, the IDEAL LIFE Information Management System, and the IDEAL LIFE Health & Wellness Solution are allproprietary trademarks of IDEAL LIFE INC. Contents are covered by one issued U.S. patent and one or more U.S. patentspending. Manufactured for and Distributed by IDEAL LIFE INC., Toronto ON M4P 1G8, and made in Taiwan and China. Productsmay vary from pictures shown.Table of ContentsTABLE OF CONTENTS 2INTRODUCTION 3CONTENTS 4REQUIREMENTS 5!WARNINGS!6IDEAL LIFE Pod™LOCATION/INTERFERANCE 7BEFORE YOU START 8Your IDEAL LIFE BP-Manager™ 8Your IDEAL LIFE Pod™ 9INSTALLATION 10Connecting YourIDEAL LIFE Pod™ 10Using an RJ11 Jack 10Back-up Batteries 11Powering Up YourIDEAL LIFE BP-Manager™ 11First Time Power Upand Registration 12SUGGESTIONS BEFORE TAKINGA MEASUREMENT 13HOW TO APPLY THE ARM CUFF 13Applying the Pressure Cuff 14HOW TO TAKE A PROPERMEASUREMENT 15FUNCTIONS 16Main Screen 16Taking Your Blood PressureMeasurement 17Error Display 18Looking at PreviouslyTaken Readings 19Looking at Messages 20Looking at Graphics 21Users 22Select User 22Add/Remove User 23CARE AND MAINTENANCE 25SPECIFICATIONS 26IDEAL LIFE BP-Manager™ 26IDEAL LIFE Pod™ 26FCC STATEMENT 27CUSTOMER INFORMATION 28SERVICE REQUIREMENTS 29Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 2

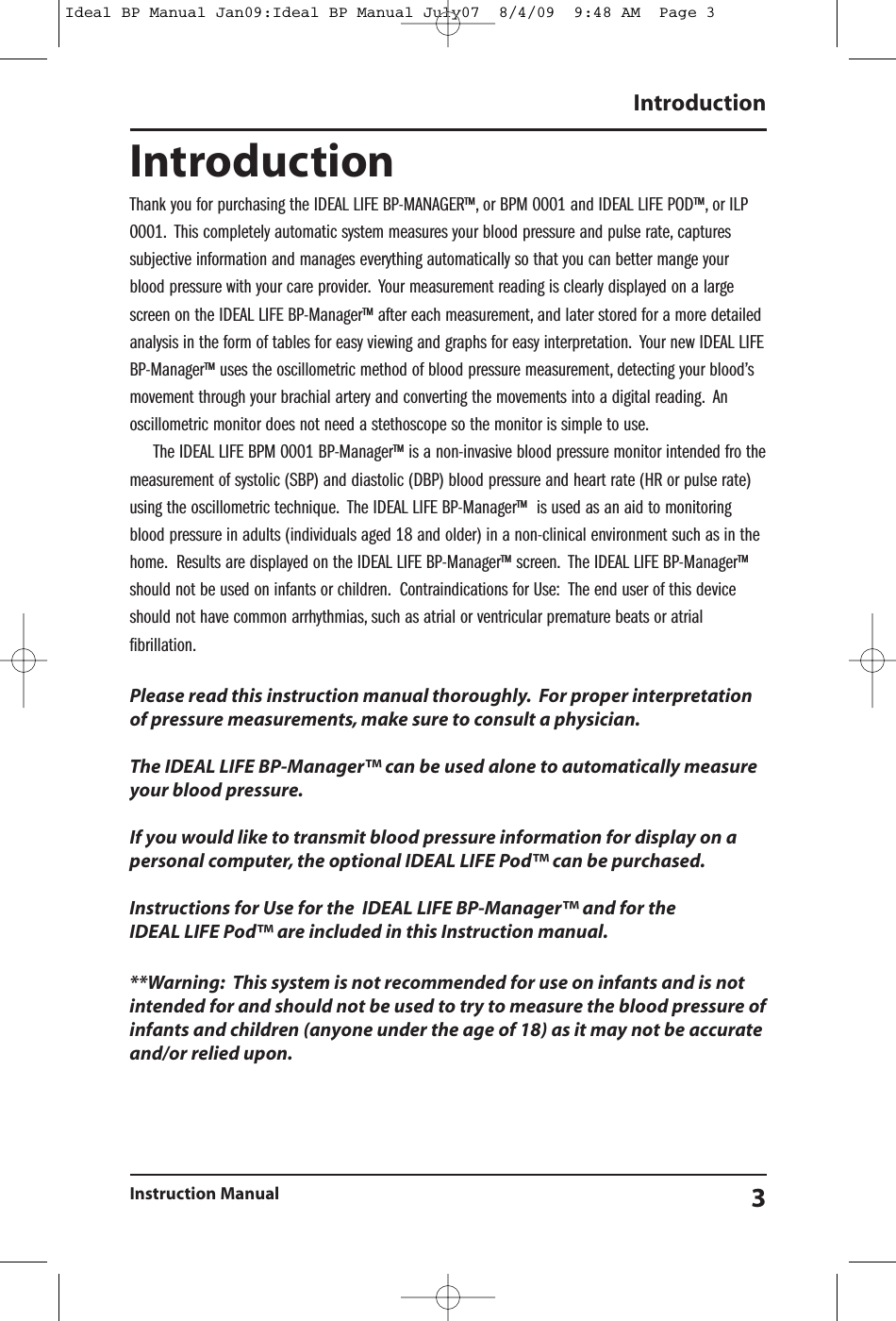

IntroductionInstruction Manual 3IntroductionThank you for purchasing the IDEAL LIFE BP-MANAGER™, or BPM 0001 and IDEAL LIFE POD™, or ILP0001. This completely automatic system measures your blood pressure and pulse rate, capturessubjective information and manages everything automatically so that you can better mange yourblood pressure with your care provider. Your measurement reading is clearly displayed on a largescreen on the IDEAL LIFE BP-Manager™ after each measurement, and later stored for a more detailedanalysis in the form of tables for easy viewing and graphs for easy interpretation. Your new IDEAL LIFEBP-Manager™ uses the oscillometric method of blood pressure measurement, detecting your blood’smovement through your brachial artery and converting the movements into a digital reading. Anoscillometric monitor does not need a stethoscope so the monitor is simple to use.The IDEAL LIFE BPM 0001 BP-Manager™ is a non-invasive blood pressure monitor intended fro themeasurement of systolic (SBP) and diastolic (DBP) blood pressure and heart rate (HR or pulse rate)using the oscillometric technique. The IDEAL LIFE BP-Manager™ is used as an aid to monitoringblood pressure in adults (individuals aged 18 and older) in a non-clinical environment such as in thehome. Results are displayed on the IDEAL LIFE BP-Manager™ screen. The IDEAL LIFE BP-Manager™should not be used on infants or children. Contraindications for Use: The end user of this deviceshould not have common arrhythmias, such as atrial or ventricular premature beats or atrialfibrillation.Please read this instruction manual thoroughly. For proper interpretationof pressure measurements, make sure to consult a physician.The IDEAL LIFE BP-Manager™ can be used alone to automatically measureyour blood pressure.If you would like to transmit blood pressure information for display on apersonal computer, the optional IDEAL LIFE Pod™ can be purchased.Instructions for Use for the IDEAL LIFE BP-Manager™ and for theIDEAL LIFE Pod™ are included in this Instruction manual.**Warning: This system is not recommended for use on infants and is notintended for and should not be used to try to measure the blood pressure ofinfants and children (anyone under the age of 18) as it may not be accurateand/or relied upon.Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 3

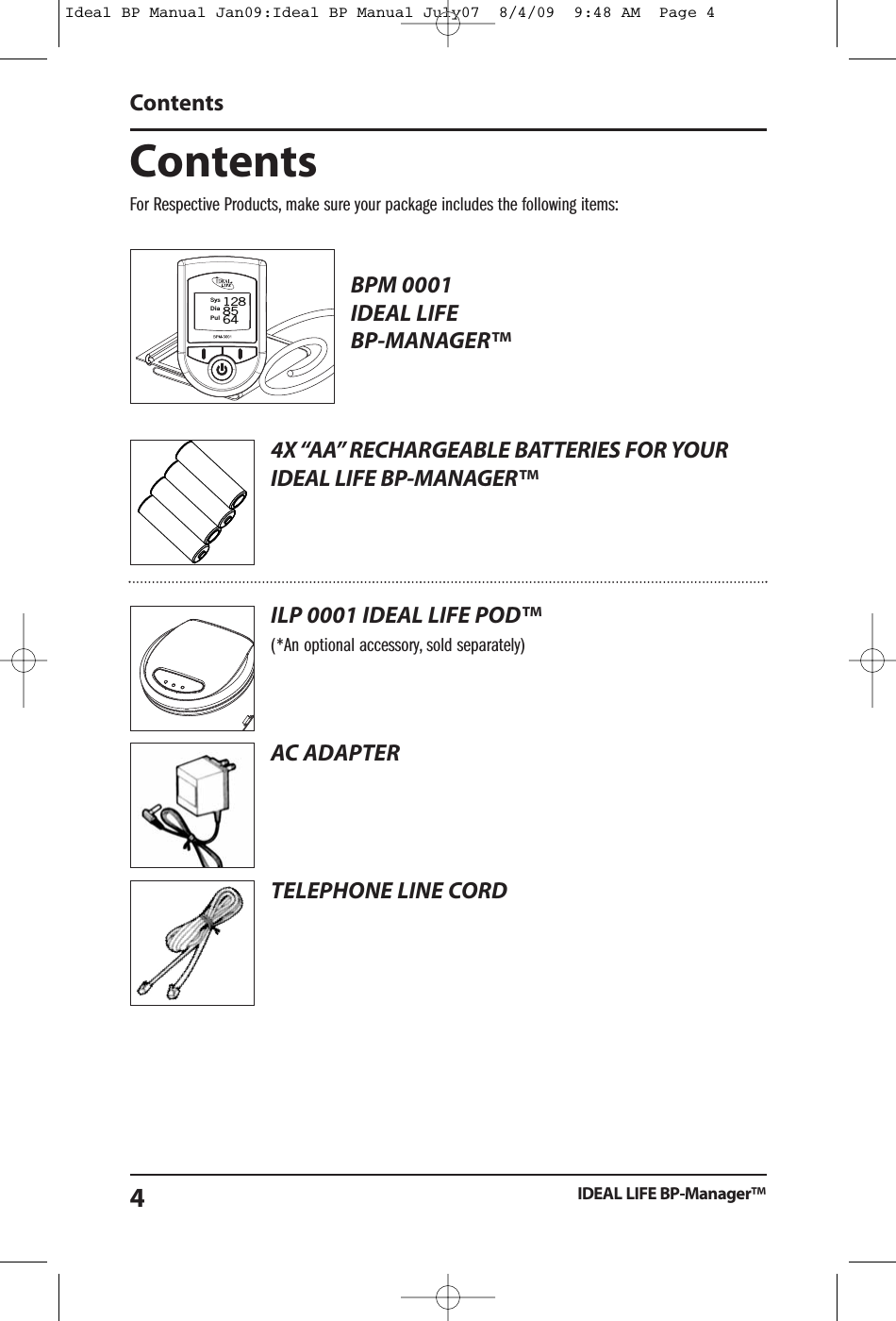

ContentsFor Respective Products, make sure your package includes the following items:BPM 0001IDEAL LIFEBP-MANAGER™4X“AA” RECHARGEABLE BATTERIES FOR YOURIDEAL LIFE BP-MANAGER™ILP 0001 IDEAL LIFE POD™(*An optional accessory, sold separately)AC ADAPTERTELEPHONE LINE CORDContentsIDEAL LIFE BP-Manager™4SysDiaPul1288564Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 4
RequirementsInstruction Manual 5RequirementsMODULAR JACK REQUIREMENTSWhen using your IDEAL LIFE BP-Manager™ with an IDEAL LIFE Pod™, you willneed an RJ11 type modular jack, which is the most common type of phonejack and might look like the one pictured here. If you don’t have a modularjack, call your local phone company to find out how to get one installed.ADDITIONAL BATTERIESYou may wish to use rechargeable batteries in your IDEAL LIFE Manager™. The IDEAL LIFE Pod™ isequipped to recharge batteries.Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 5
!Warnings!To assure the correct use of the product basic safety measures should always be followed includingthe precautions listed below:•Read all the information in the instruction manual and any other literature included in the boxbefore using the unit.•Follow the instructions of your healthcare provider.•Contact your physician for specific information about your blood pressure.•Operate the unit only as intended. Do not use for any other purpose.•The IDEAL LIFE BPM 0001 BP-Manager™ is a non-invasive blood pressure monitor intended for themeasurement of systolic (SBP) and diastolic (DBP) blood pressure and heart rate (HR or pulserate) using the oscillometric technique. The IDEAL LIFE BP-Manager™ is used as an aid tomonitoring blood pressure in adults (individuals aged 18 and older) in a non-clinical environmentsuch as in the home. Results are displayed on the IDEAL LIFE BP-Manager™ screen. The IDEALLIFE BP-Manager™ should not be used on infants or children. Contraindications for Use: The enduser of this device should not have common arrhythmias, such as atrial or ventricular prematurebeats or atrial fibrillation.•This system is not recommended for use on infants and is not intended for and should not beused to try to measure the blood pressure of infants and children (anyone under the age of 18) asit may not be accurate and/or relied upon.•Changes or modifications not approved by IDEAL LIFE INC. may affect the proper functioning ofthis product. No recalibration or verification is needed, as the accuracy of the cuff-pressuretransducers/indicators is valid for the life of the product. The system might not meet itsperformance specifications if stored or used outside the specified temperature and humidityranges detailed below. Do not disassemble or attempt to repair the unit or components. In theevent of malfunction, call IDEAL LIFE™ directly as instructed below.•Blood pressure measurements determined with this device are equivalent to those obtained by atrained observer using the cuff/stethoscope auscultation method within the limits prescribed bythe American National Standard, Electronic or automated sphygmomanometers. A report ofclinical performance study findings that used the fourth Korotkoff sign to determine overallefficacy are available upon written request with proof of purchase.For any questions or comments, please call an IDEAL LIFE customerrepresentative at 1-888-IDEAL-41 (888-433-2541).!Warnings!IDEAL LIFE BP-Manager™6Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 6
IDEAL LIFE Pod™Location/InterferanceWhen using an IDEAL LIFE Pod™ to communicate information from your IDEAL LIFE BP-Manager™,wireless radio waves are used. For maximum distance and interference-free operation, therecommended IDEAL LIFE Pod™ location is:Note:While using an IDEAL LIFE Pod™, the telephone line will be in use. If the telephone line is in usebefore using the your IDEAL LIFE Pod™ and you wish to use the your IDEAL LIFE Pod™ while thetelephone line is being used, the unit will not be able to make a connection and will store theinformation in your IDEAL LIFE BP-Manager™ for later transmission.IDEAL LIFE Pod™ Location/InterferanceInstruction Manual 7•In a HIGH and CENTRALlocation with no obstructionssuch as walls•Away from electrical appliances such as a TV, personal computeror a cordless phoneIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 7
Before You StartTo assure the correct use of the product basic safety measures should always be followed includingthe precautions listed below:•Read all information in the instruction manual and any other literature included in the box beforeusing the unit.•Follow the instructions of your healthcare provider.•Contact your physician for specific information about your blood pressure.•Operate the unit only as intended. Do not use for any other purpose.•This product is intended for information purposes only. It is not intended for diagnostic purposesand is not intended and should not be used on infants or children (anyone under the age of 18).•This is not a clinical device, but a tool for information purposes only.•Changes or modifications not approved by IDEAL LIFE INC. may affect the proper functioning ofthis product. Do not disassemble or attempt to repair the unit or components.Your IDEAL LIFEBP-Manager™REMEMBER: You can stop the inflationor deflation process anytime by pressingany button.SysDiaPul1288564Before You StartIDEAL LIFE BP-Manager™8DisplayRight “Soft”ButtonLeft “Soft” ButtonSTART/ESCAPEButtonUpper Arm CuffIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 8
Your IDEAL LIFE Pod™(*An optional accessory, sold separately)Before You StartInstruction Manual 9Power buttonLED DisplayAC Adapter JackTelephone line cord RJ11Jack For TelephoneConnectionTelephone line cord RJ11Jack For Line ConnectionBattery CoverIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 9

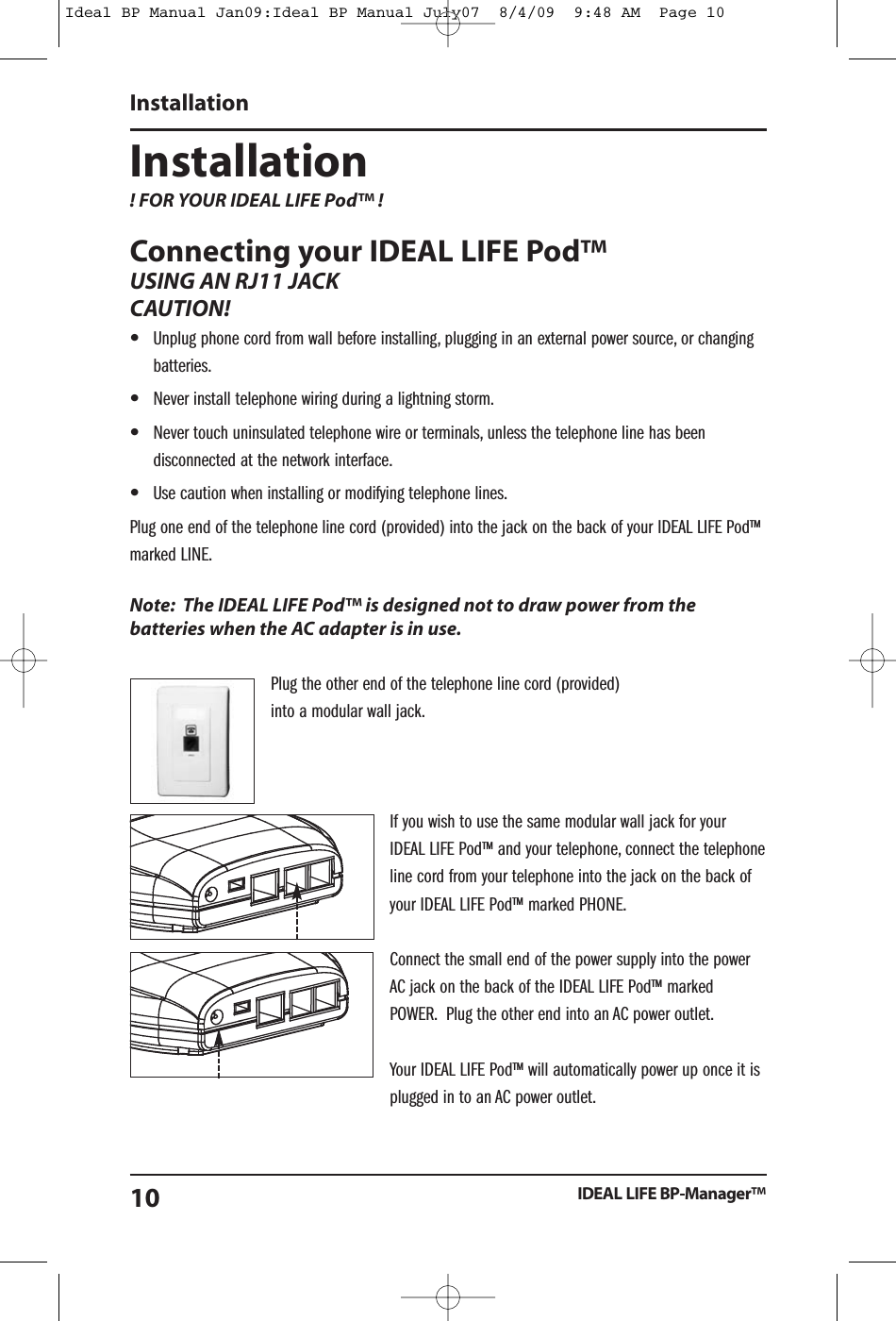

Installation! FOR YOUR IDEAL LIFE Pod™ !Connecting your IDEAL LIFE Pod™USING AN RJ11 JACKCAUTION!•Unplug phone cord from wall before installing, plugging in an external power source, or changingbatteries.•Never install telephone wiring during a lightning storm.•Never touch uninsulated telephone wire or terminals, unless the telephone line has beendisconnected at the network interface.•Use caution when installing or modifying telephone lines.Plug one end of the telephone line cord (provided) into the jack on the back of your IDEAL LIFE Pod™marked LINE.Note: The IDEAL LIFE Pod™ is designed not to draw power from thebatteries when the AC adapter is in use.Plug the other end of the telephone line cord (provided)into a modular wall jack.If you wish to use the same modular wall jack for yourIDEAL LIFE Pod™ and your telephone, connect the telephoneline cord from your telephone into the jack on the back ofyour IDEAL LIFE Pod™ marked PHONE.Connect the small end of the power supply into the powerAC jack on the back of the IDEAL LIFE Pod™ markedPOWER. Plug the other end into an AC power outlet.Your IDEAL LIFE Pod™ will automatically power up once it isplugged in to an AC power outlet.InstallationIDEAL LIFE BP-Manager™10Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 10
USING AN RJ45 JACKPlug one end of the Ethernet cord (not provided) into a modular RJ45wall jack.Plug the other end of the Ethernet cord (not provided) intothe RJ45 jack on the back of your IDEAL LIFE Pod™.Connect the small end of the power supply into the powerAC jack on the back of the IDEAL LIFE Pod™ markedPOWER. Plug the other end into an AC power outlet.Your IDEAL LIFE Pod™ will automatically power up once it isplugged in to an AC power outlet.RECHARGING BATTERIES WITH YOUR IDEAL LIFE POD™:•Remove the battery compartment door on the bottom of your IDEAL LIFE Pod™ by pushing gentlyin the direction shown on the battery cover.•Place the rechargeable batteries as marked.•Replace the battery compartment door and push the compartment door shut in the oppositedirection shown on the battery cover.•When using rechargeable batteries with your IDEAL LIFE BP-Manager™, simply place them in yourIDEAL LIFE Pod™ for 10 hours to recharge when battery status is low as indicated on your IDEALLIFE BP-Manager™Powering UpYour IDEAL LIFE BP-Manager™INSTALLING THE BATTERIES (INCLUDED)•Remove the battery compartment door on your IDEAL LIFE BP-Manager™ by lifting the battery doorusing the notch•Place the batteries as instructed on the device•Replace the battery compartment door and click into placeNote:Replacing the battery does not affect previous test results stored in memory of the meter. However,InstallationInstruction Manual 11Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 11

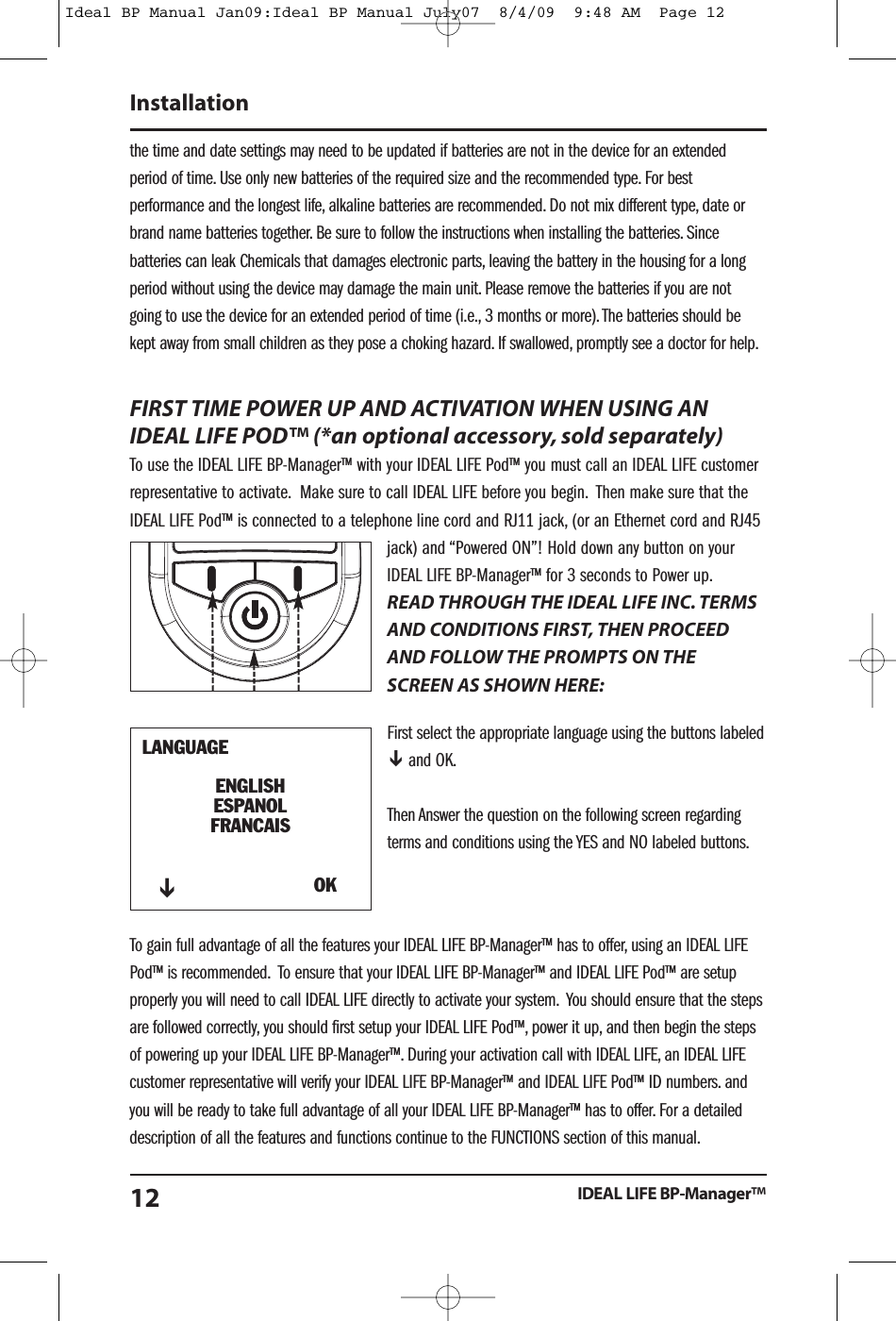

the time and date settings may need to be updated if batteries are not in the device for an extendedperiod of time. Use only new batteries of the required size and the recommended type. For bestperformance and the longest life, alkaline batteries are recommended. Do not mix different type, date orbrand name batteries together. Be sure to follow the instructions when installing the batteries. Sincebatteries can leak Chemicals that damages electronic parts, leaving the battery in the housing for a longperiod without using the device may damage the main unit. Please remove the batteries if you are notgoing to use the device for an extended period of time (i.e., 3 months or more).The batteries should bekept away from small children as they pose a choking hazard. If swallowed, promptly see a doctor for help.FIRST TIME POWER UP AND ACTIVATION WHEN USING ANIDEAL LIFE POD™ (*an optional accessory, sold separately)To use the IDEAL LIFE BP-Manager™ with your IDEAL LIFE Pod™ you must call an IDEAL LIFE customerrepresentative to activate. Make sure to call IDEAL LIFE before you begin. Then make sure that theIDEAL LIFE Pod™ is connected to a telephone line cord and RJ11 jack, (or an Ethernet cord and RJ45jack) and “Powered ON”! Hold down any button on yourIDEAL LIFE BP-Manager™ for 3 seconds to Power up.READ THROUGH THE IDEAL LIFE INC. TERMSAND CONDITIONS FIRST, THEN PROCEEDAND FOLLOW THE PROMPTS ON THESCREEN AS SHOWN HERE:First select the appropriate language using the buttons labeledand OK.Then Answer the question on the following screen regardingterms and conditions using the YES and NO labeled buttons.To gain full advantage of all the features your IDEAL LIFE BP-Manager™ has to offer, using an IDEAL LIFEPod™ is recommended. To ensure that your IDEAL LIFE BP-Manager™ and IDEAL LIFE Pod™ are setupproperly you will need to call IDEAL LIFE directly to activate your system. You should ensure that the stepsare followed correctly, you should first setup your IDEAL LIFE Pod™, power it up, and then begin the stepsof powering up your IDEAL LIFE BP-Manager™. During your activation call with IDEAL LIFE, an IDEAL LIFEcustomer representative will verify your IDEAL LIFE BP-Manager™ and IDEAL LIFE Pod™ ID numbers. andyou will be ready to take full advantage of all your IDEAL LIFE BP-Manager™ has to offer. For a detaileddescription of all the features and functions continue to the FUNCTIONS section of this manual.InstallationIDEAL LIFE BP-Manager™12LANGUAGEENGLISHESPANOLFRANCAISOKIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:48 AM Page 12
Suggestions Before Taking AMeasurement•Avoid eating, smoking, and exercising for 30 minutes before taking a measurement. Rest at least15 minutes before taking a measurement.•Stress raises blood pressure. Avoid taking measurements during stressful times.•Remove tight-fitting clothing from your left arm.•Measurements should be taken in a quiet place.•Sit in a chair with your feet flat on the floor. Rest your left arm on a table so that the cuff is atthe same level as your heart.•Remain still and do not speak during the measurement.•It is recommended that a record of your blood pressure and pulse readings be brought to yourphysician on a regular basis, as a single measurement does not provide an accurate indication ofyour true blood pressure.•It is recommended that you take and record several readings over a period of time, measuringyour blood pressure at the same time each day for consistency.•If you are taking multiple readings consecutively, you should wait 2-3 minutes betweenmeasurements. The wait time allows the arteries to return to the condition prior to taking theblood pressure measurement. You may need to increase the wait time depending on yourindividual physical characteristics.CAUTION: Blood pressure recording can be affected by the position of thesubject, his/her physiologic condition, and other factors.Suggestions Before Taking A MeasurementInstruction Manual 13Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 13

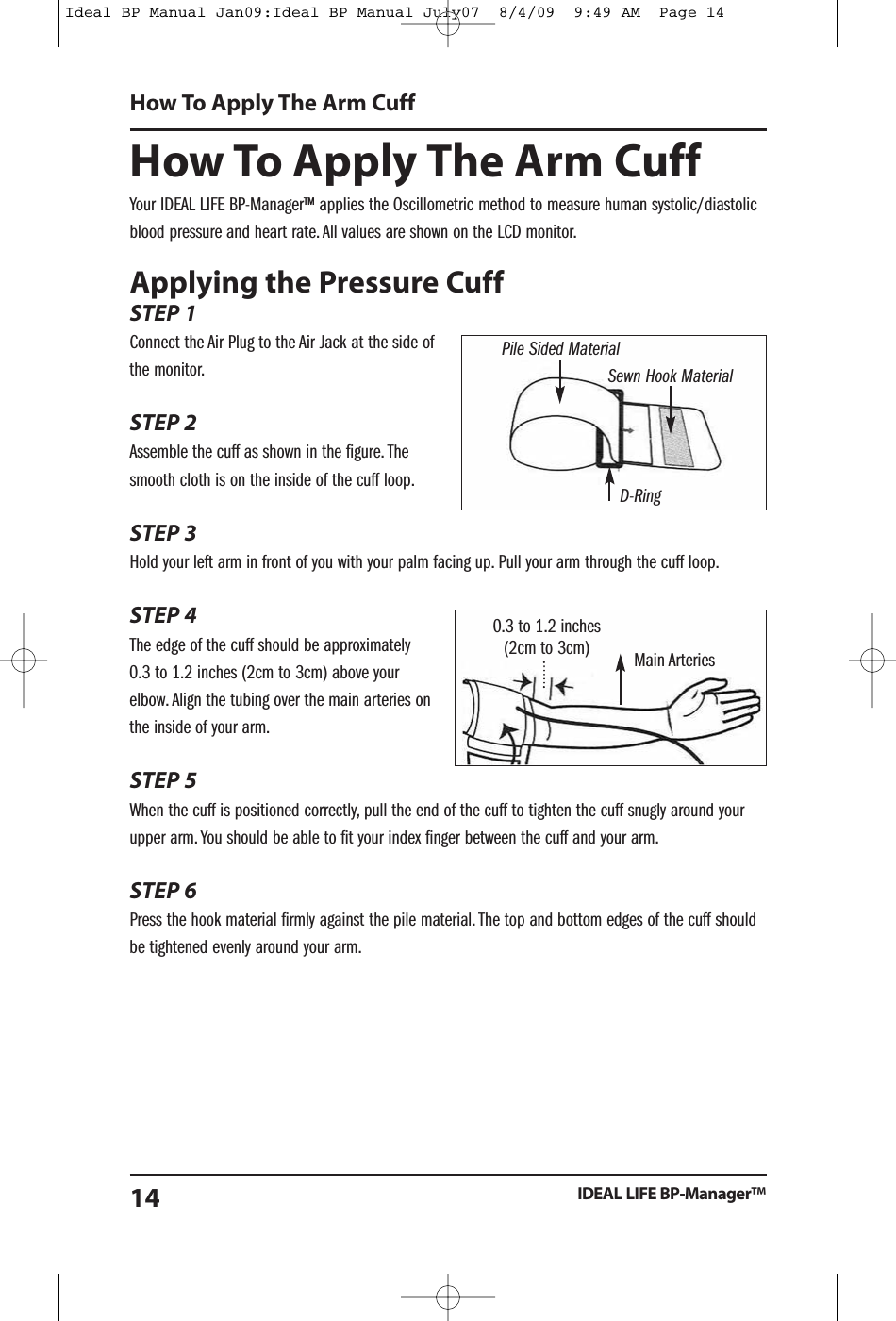

How To Apply The Arm CuffYour IDEAL LIFE BP-Manager™ applies the Oscillometric method to measure human systolic/diastolicblood pressure and heart rate. All values are shown on the LCD monitor.Applying the Pressure CuffSTEP 1Connect the Air Plug to the Air Jack at the side ofthe monitor.STEP 2Assemble the cuff as shown in the figure. Thesmooth cloth is on the inside of the cuff loop.STEP 3Hold your left arm in front of you with your palm facing up. Pull your arm through the cuff loop.STEP 4The edge of the cuff should be approximately0.3 to 1.2 inches (2cm to 3cm) above yourelbow. Align the tubing over the main arteries onthe inside of your arm.STEP 5When the cuff is positioned correctly, pull the end of the cuff to tighten the cuff snugly around yourupper arm. You should be able to fit your index finger between the cuff and your arm.STEP 6Press the hook material firmly against the pile material. The top and bottom edges of the cuff shouldbe tightened evenly around your arm.How To Apply The Arm CuffIDEAL LIFE BP-Manager™14Pile Sided MaterialSewn Hook MaterialD-Ring0.3 to 1.2 inches(2cm to 3cm) Main ArteriesIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 14

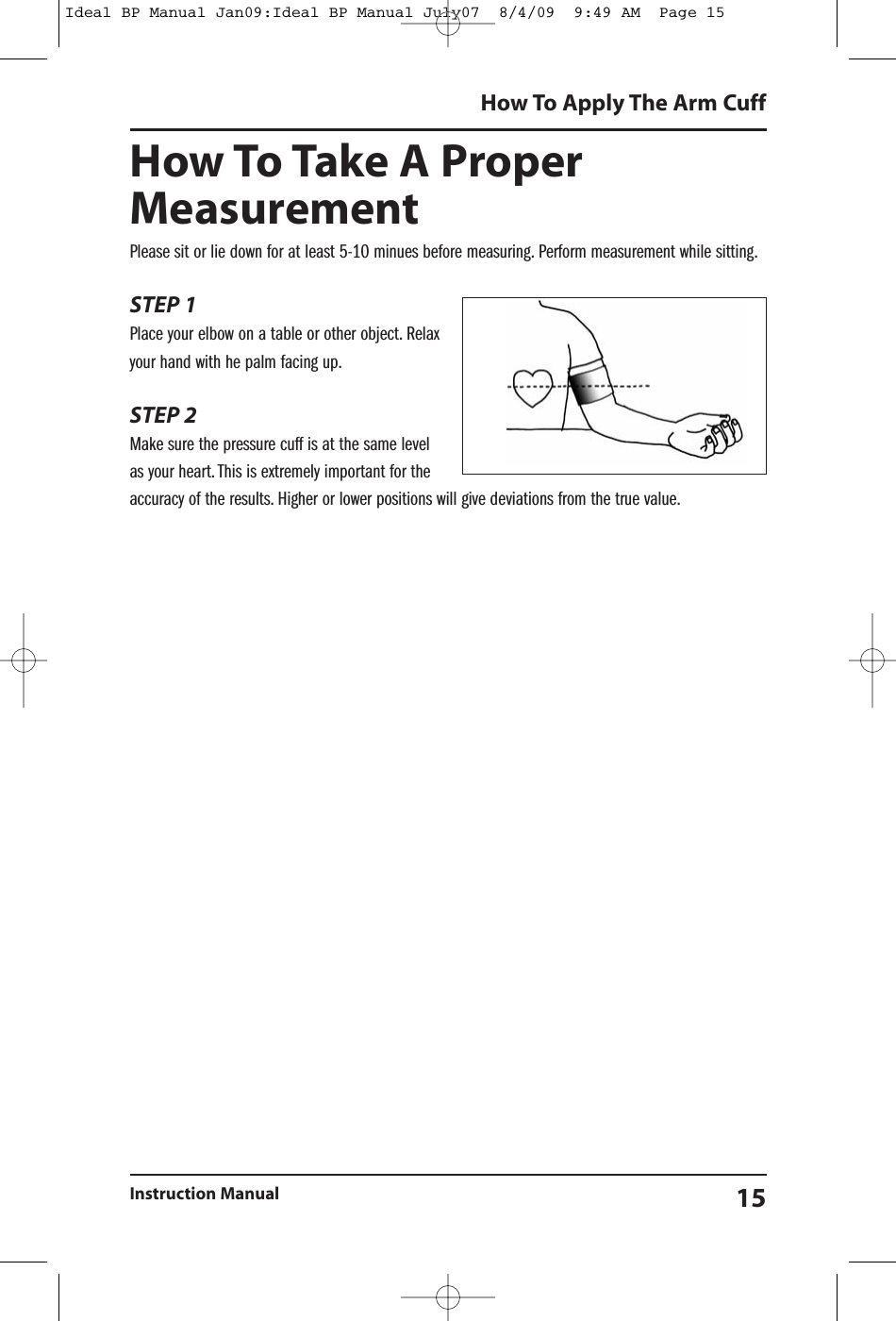

How To Take A ProperMeasurementPlease sit or lie down for at least 5-10 minues before measuring. Perform measurement while sitting.STEP 1Place your elbow on a table or other object. Relaxyour hand with he palm facing up.STEP 2Make sure the pressure cuff is at the same levelas your heart. This is extremely important for theaccuracy of the results. Higher or lower positions will give deviations from the true value.How To Apply The Arm CuffInstruction Manual 15Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 15

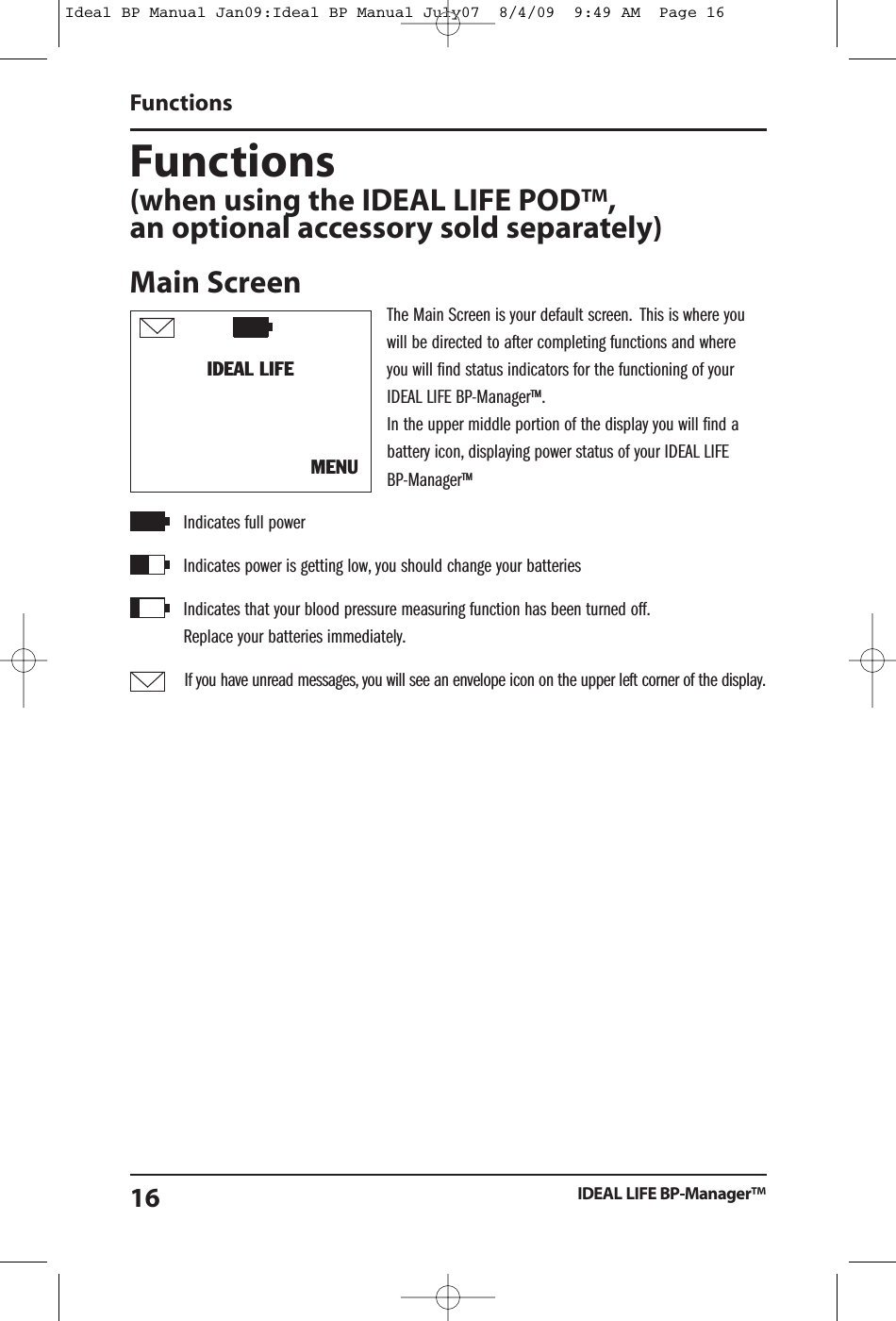

Functions(when using the IDEAL LIFE POD™,an optional accessory sold separately)Main ScreenThe Main Screen is your default screen. This is where youwill be directed to after completing functions and whereyou will find status indicators for the functioning of yourIDEAL LIFE BP-Manager™.In the upper middle portion of the display you will find abattery icon, displaying power status of your IDEAL LIFEBP-Manager™Indicates full powerIndicates power is getting low, you should change your batteriesIndicates that your blood pressure measuring function has been turned off.Replace your batteries immediately.If you have unread messages, you will see an envelope icon on the upper left corner of the display.FunctionsIDEAL LIFE BP-Manager™16IDEAL LIFEMENUIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 16
Taking Your Blood Pressure MeasurementPlease sit or lie down for at least 5-10 minues before measuring. Perform measurement while sitting.STEP 1Place your elbow on a table or other object. Relaxyour hand with he palm facing up.STEP 2Make sure the pressure cuff is at the same levelas your heart. This is extremely important for theaccuracy of the results. Higher or lower positions will give deviations from the true value.From the default screen, press the " " button located in the center of the key pad to continue.A graphic will appear to show the correct placement of the cuffon the arm.Your IDEAL LIFE BP-Manager™ will begin to inflate automatically.Do not talk or move during the measurement.The cuff will quickly inflate to the appropriate level and willget tighter around your arm. If the cuff becomes too tight, pressany button to stop the unit from inflating and then re-wrap the cuff, leaving a little more roombetween the cuff and your arm.! You can stop the inflation/deflation at any time by pressing any button onyour IDEAL LIFE BP-Manager™ !When the measurement is complete, the cuff will automatically deflate releasing the cuff’s airpressure. Your IDEAL LIFE BP-Manager™ will then display your reading automatically, and begin tocommunicate when you are using your IDEAL LIFE Pod™. Your IDEAL LIFE BP-Manager™ will notify youon the bottom of the display as to the status of your connection. Connection times may varydepending on many factors. Your reading will always be stored in your meter memory for local lookup.After displaying your reading and automatically communicating the information, your meter willautomatically return to the default screen before going to sleep mode. Each time your IDEAL LIFEBP-Manager™ communicates successfully to IDEA LIFE through your IDEAL LIFE Pod™ the time anddate are set to ensure reliable date and time stamping of all readings.FunctionsInstruction Manual 17IIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 17

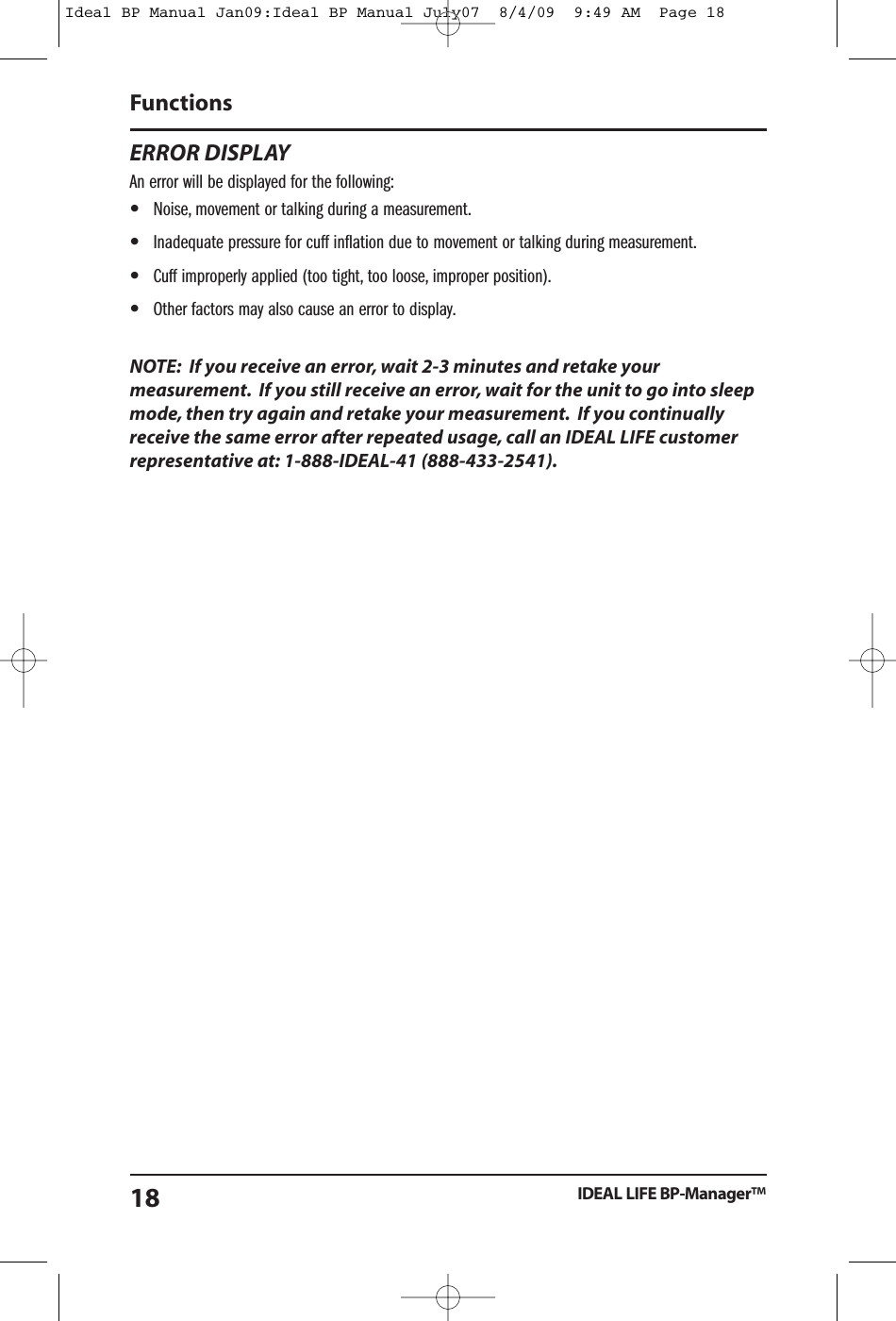

ERROR DISPLAYAn error will be displayed for the following:•Noise, movement or talking during a measurement.•Inadequate pressure for cuff inflation due to movement or talking during measurement.•Cuff improperly applied (too tight, too loose, improper position).•Other factors may also cause an error to display.NOTE: If you receive an error, wait 2-3 minutes and retake yourmeasurement. If you still receive an error, wait for the unit to go into sleepmode, then try again and retake your measurement. If you continuallyreceive the same error after repeated usage, call an IDEAL LIFE customerrepresentative at: 1-888-IDEAL-41 (888-433-2541).FunctionsIDEAL LIFE BP-Manager™18Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 18

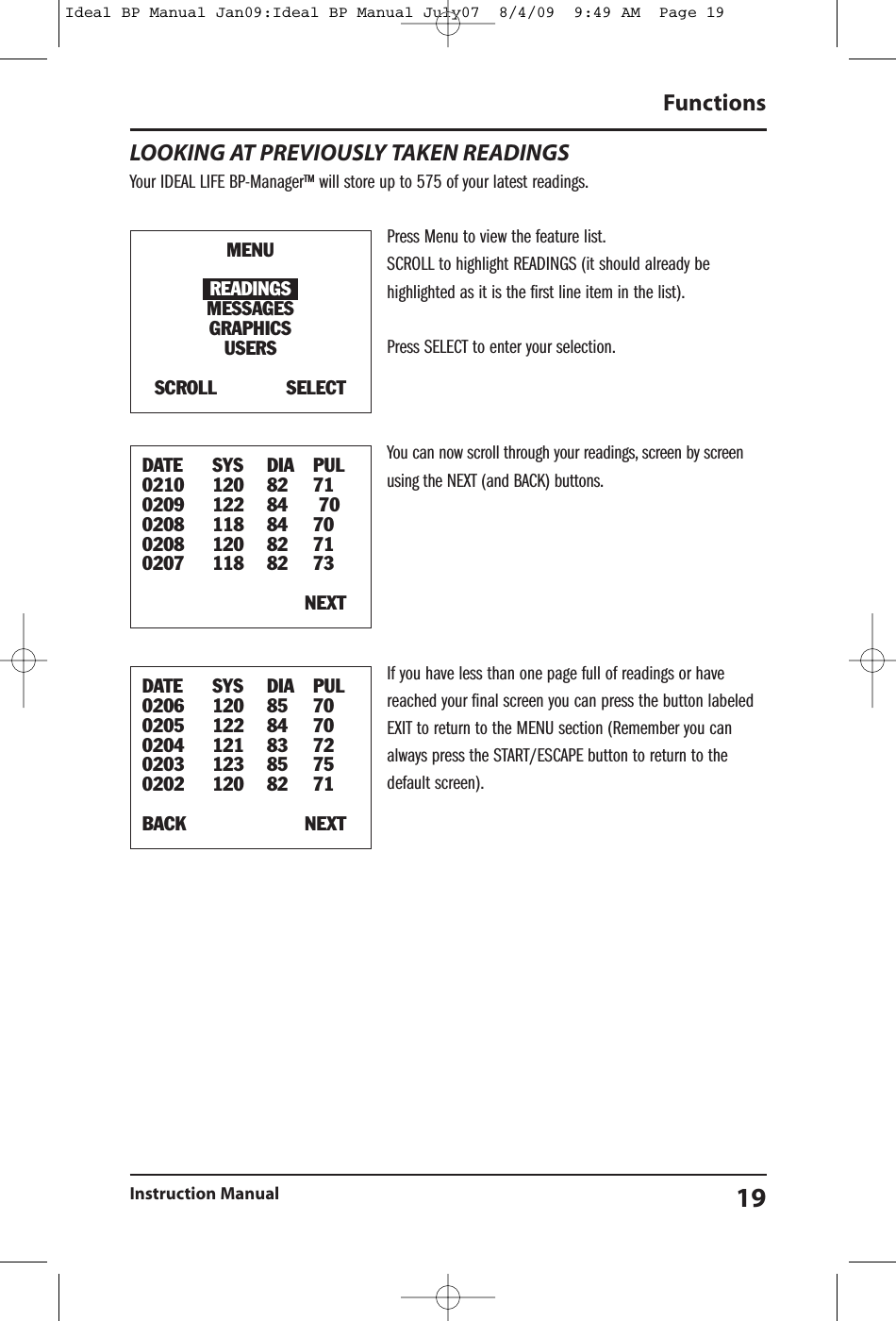

LOOKING AT PREVIOUSLY TAKEN READINGSYour IDEAL LIFE BP-Manager™ will store up to 575 of your latest readings.Press Menu to view the feature list.SCROLL to highlight READINGS (it should already behighlighted as it is the first line item in the list).Press SELECT to enter your selection.You can now scroll through your readings, screen by screenusing the NEXT (and BACK) buttons.If you have less than one page full of readings or havereached your final screen you can press the button labeledEXIT to return to the MENU section (Remember you canalways press the START/ESCAPE button to return to thedefault screen).FunctionsInstruction Manual 19MENUREADINGSMESSAGESGRAPHICSUSERSSCROLL SELECTDATE SYS DIA PUL0210 120 82 710209 122 84 700208 118 84 700208 120 82 710207 118 82 73NEXTDATE SYS DIA PUL0206 120 85 700205 122 84 700204 121 83 720203 123 85 750202 120 82 71BACK NEXTIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 19

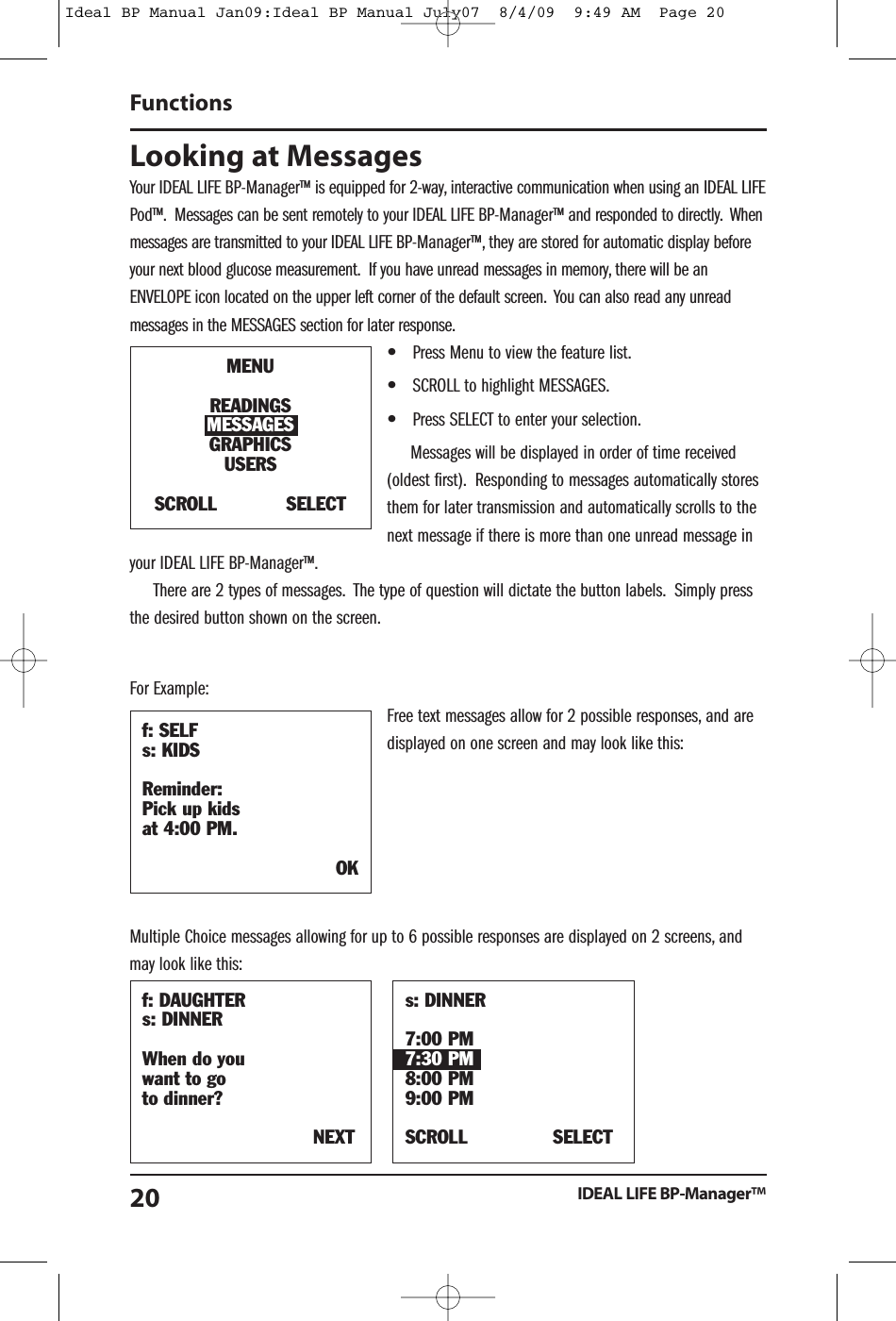

Looking at MessagesYour IDEAL LIFE BP-Manager™ is equipped for 2-way, interactive communication when using an IDEAL LIFEPod™. Messages can be sent remotely to your IDEAL LIFE BP-Manager™ and responded to directly. Whenmessages are transmitted to your IDEAL LIFE BP-Manager™, they are stored for automatic display beforeyour next blood glucose measurement. If you have unread messages in memory, there will be anENVELOPE icon located on the upper left corner of the default screen. You can also read any unreadmessages in the MESSAGES section for later response.•Press Menu to view the feature list.•SCROLL to highlight MESSAGES.•Press SELECT to enter your selection.Messages will be displayed in order of time received(oldest first). Responding to messages automatically storesthem for later transmission and automatically scrolls to thenext message if there is more than one unread message inyour IDEAL LIFE BP-Manager™.There are 2 types of messages. The type of question will dictate the button labels. Simply pressthe desired button shown on the screen.For Example:Free text messages allow for 2 possible responses, and aredisplayed on one screen and may look like this:Multiple Choice messages allowing for up to 6 possible responses are displayed on 2 screens, andmay look like this:FunctionsIDEAL LIFE BP-Manager™20f: DAUGHTERs: DINNERWhen do youwant to goto dinner?NEXTs: DINNER7:00 PM7:30 PM8:00 PM9:00 PMSCROLL SELECTf: SELFs: KIDSReminder:Pick up kidsat 4:00 PM.OKMENUREADINGSMESSAGESGRAPHICSUSERSSCROLL SELECTIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 20

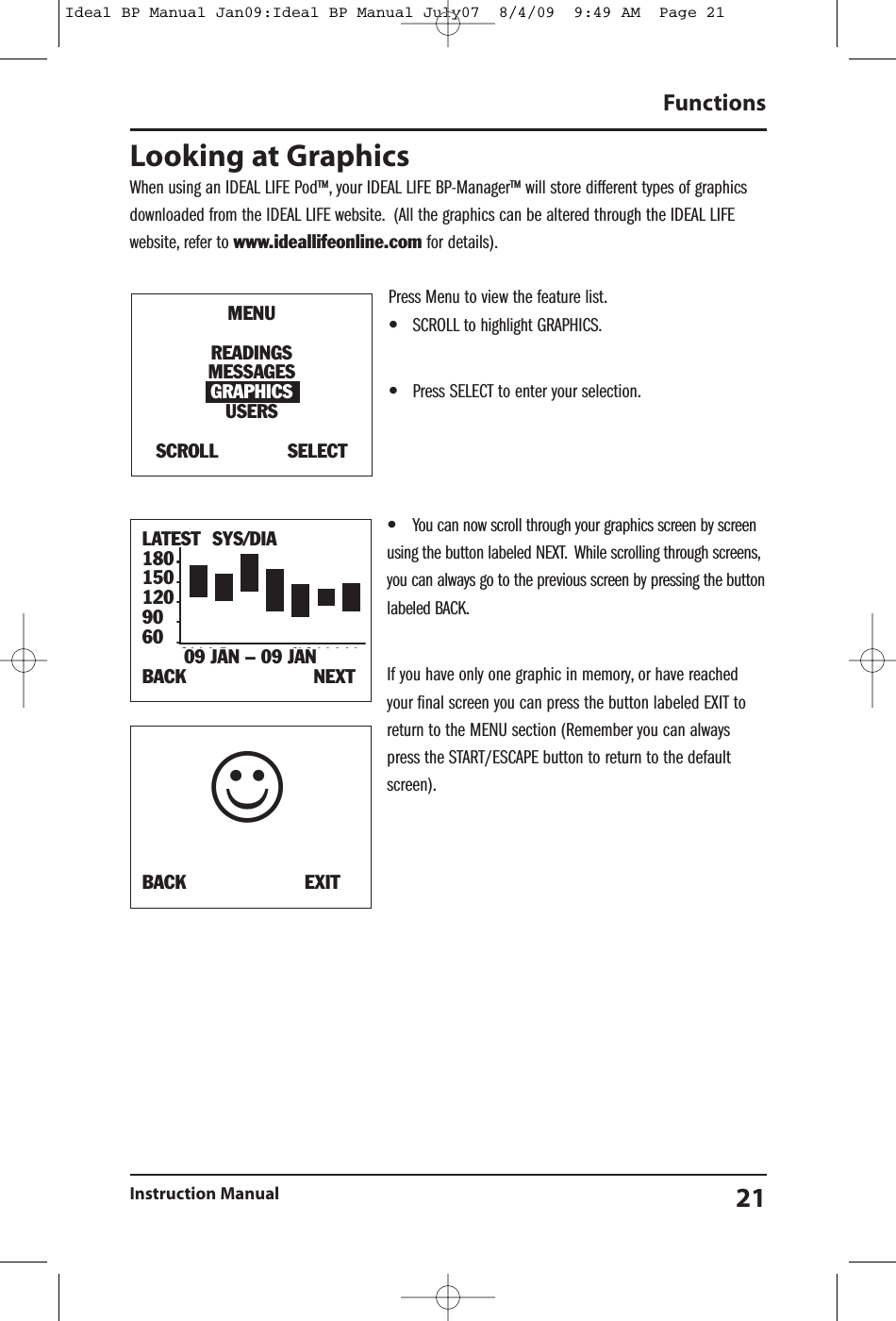

Looking at GraphicsWhen using an IDEAL LIFE Pod™, your IDEAL LIFE BP-Manager™ will store different types of graphicsdownloaded from the IDEAL LIFE website. (All the graphics can be altered through the IDEAL LIFEwebsite, refer to www.ideallifeonline.com for details).Press Menu to view the feature list.•SCROLL to highlight GRAPHICS.•Press SELECT to enter your selection.•You can now scroll through your graphics screen by screenusing the button labeled NEXT. While scrolling through screens,you can always go to the previous screen by pressing the buttonlabeled BACK.If you have only one graphic in memory, or have reachedyour final screen you can press the button labeled EXIT toreturn to the MENU section (Remember you can alwayspress the START/ESCAPE button to return to the defaultscreen).FunctionsInstruction Manual 21MENUREADINGSMESSAGESGRAPHICSUSERSSCROLL SELECTBACK EXIT☺LATEST SYS/DIA180150120906009 JAN – 09 JANBACK NEXTIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 21

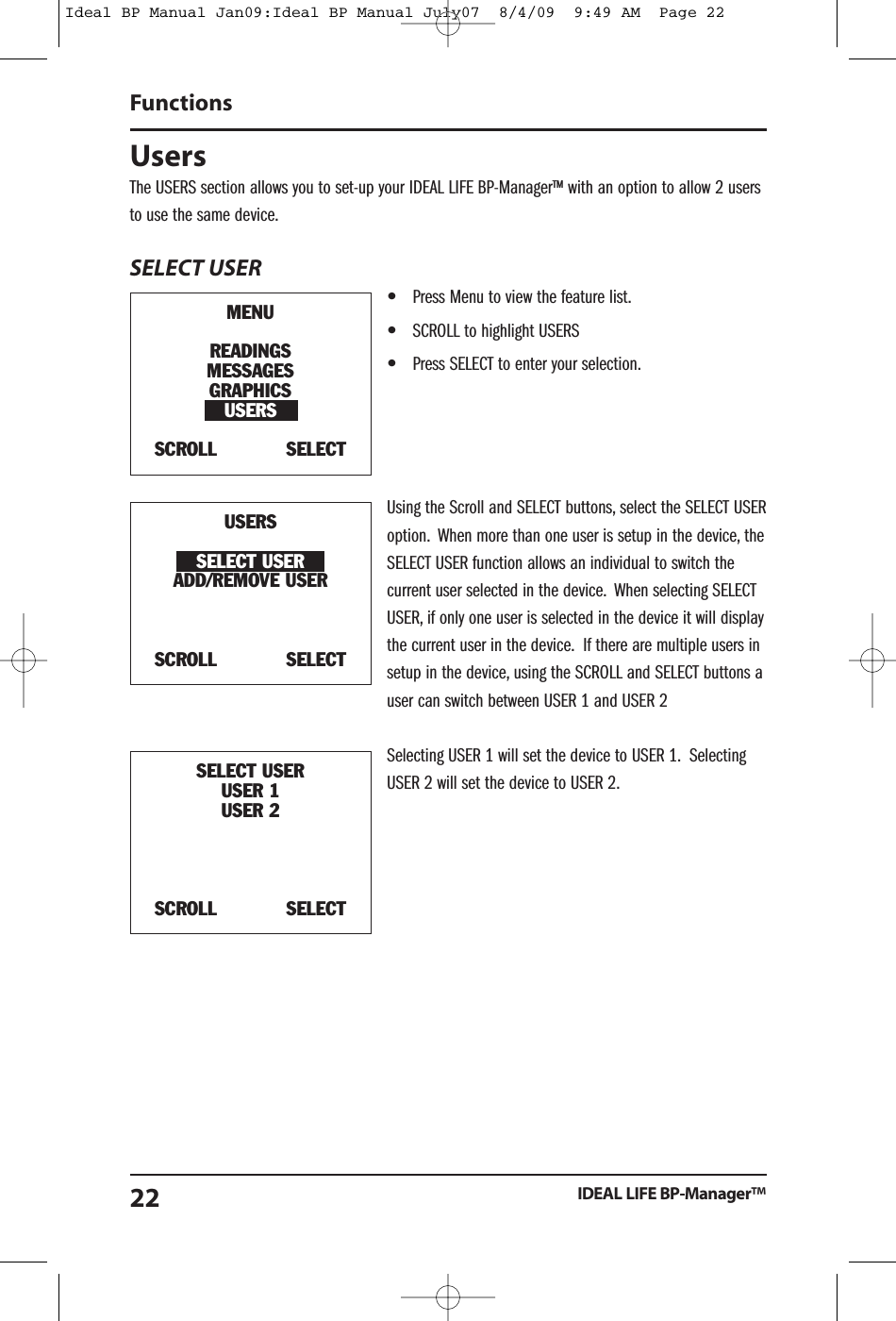

UsersThe USERS section allows you to set-up your IDEAL LIFE BP-Manager™ with an option to allow 2 usersto use the same device.SELECT USER•Press Menu to view the feature list.•SCROLL to highlight USERS•Press SELECT to enter your selection.Using the Scroll and SELECT buttons, select the SELECT USERoption. When more than one user is setup in the device, theSELECT USER function allows an individual to switch thecurrent user selected in the device. When selecting SELECTUSER, if only one user is selected in the device it will displaythe current user in the device. If there are multiple users insetup in the device, using the SCROLL and SELECT buttons auser can switch between USER 1 and USER 2Selecting USER 1 will set the device to USER 1. SelectingUSER 2 will set the device to USER 2.FunctionsIDEAL LIFE BP-Manager™22MENUREADINGSMESSAGESGRAPHICSUSERSSCROLL SELECTUSERSSELECT USERADD/REMOVE USERSCROLL SELECTSELECT USERUSER 1USER 2SCROLL SELECTIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 22

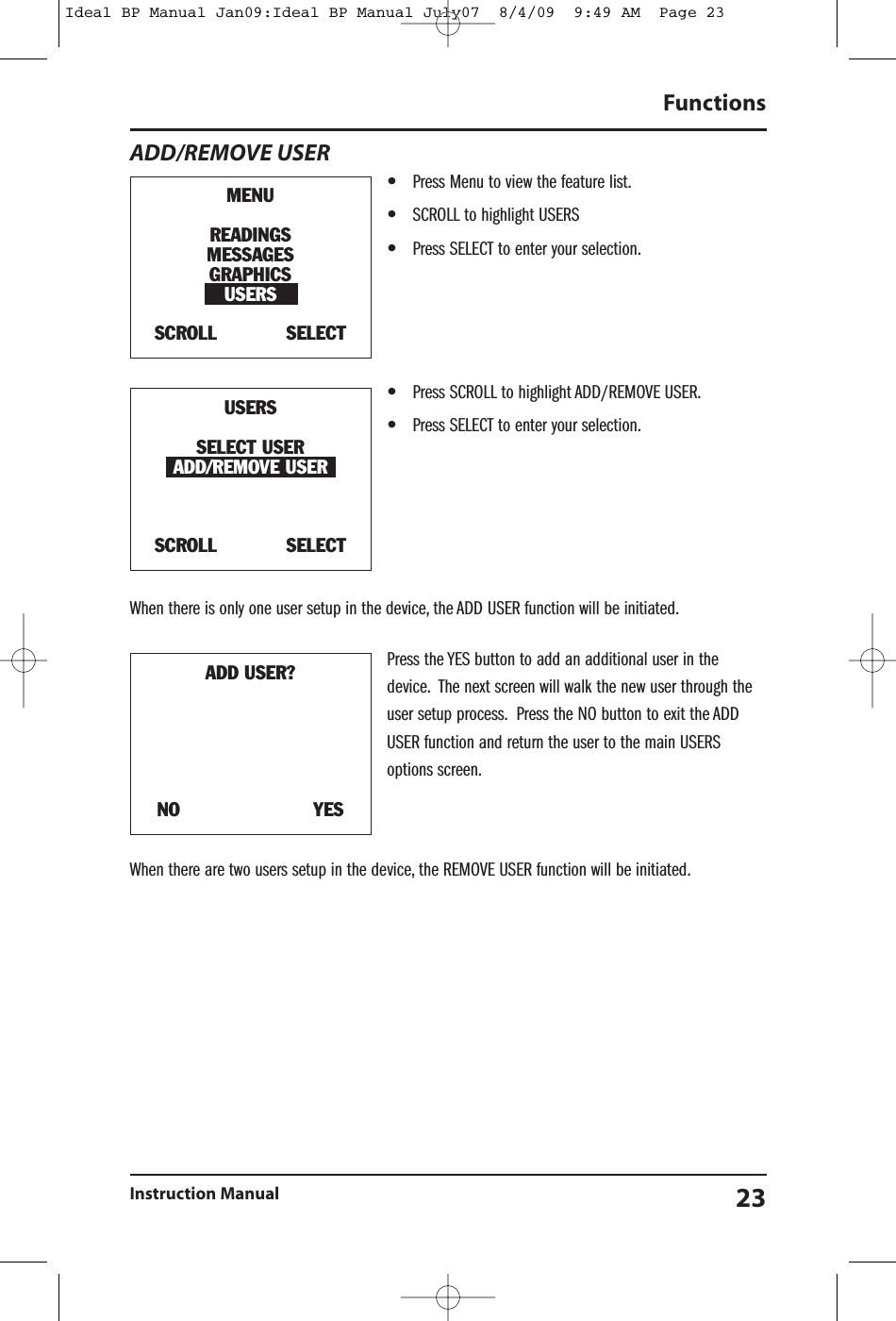

ADD/REMOVE USER•Press Menu to view the feature list.•SCROLL to highlight USERS•Press SELECT to enter your selection.•Press SCROLL to highlight ADD/REMOVE USER.•Press SELECT to enter your selection.When there is only one user setup in the device, the ADD USER function will be initiated.Press the YES button to add an additional user in thedevice. The next screen will walk the new user through theuser setup process. Press the NO button to exit the ADDUSER function and return the user to the main USERSoptions screen.When there are two users setup in the device, the REMOVE USER function will be initiated.FunctionsInstruction Manual 23MENUREADINGSMESSAGESGRAPHICSUSERSSCROLL SELECTUSERSSELECT USERADD/REMOVE USERSCROLL SELECTADD USER?NO YESIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 23

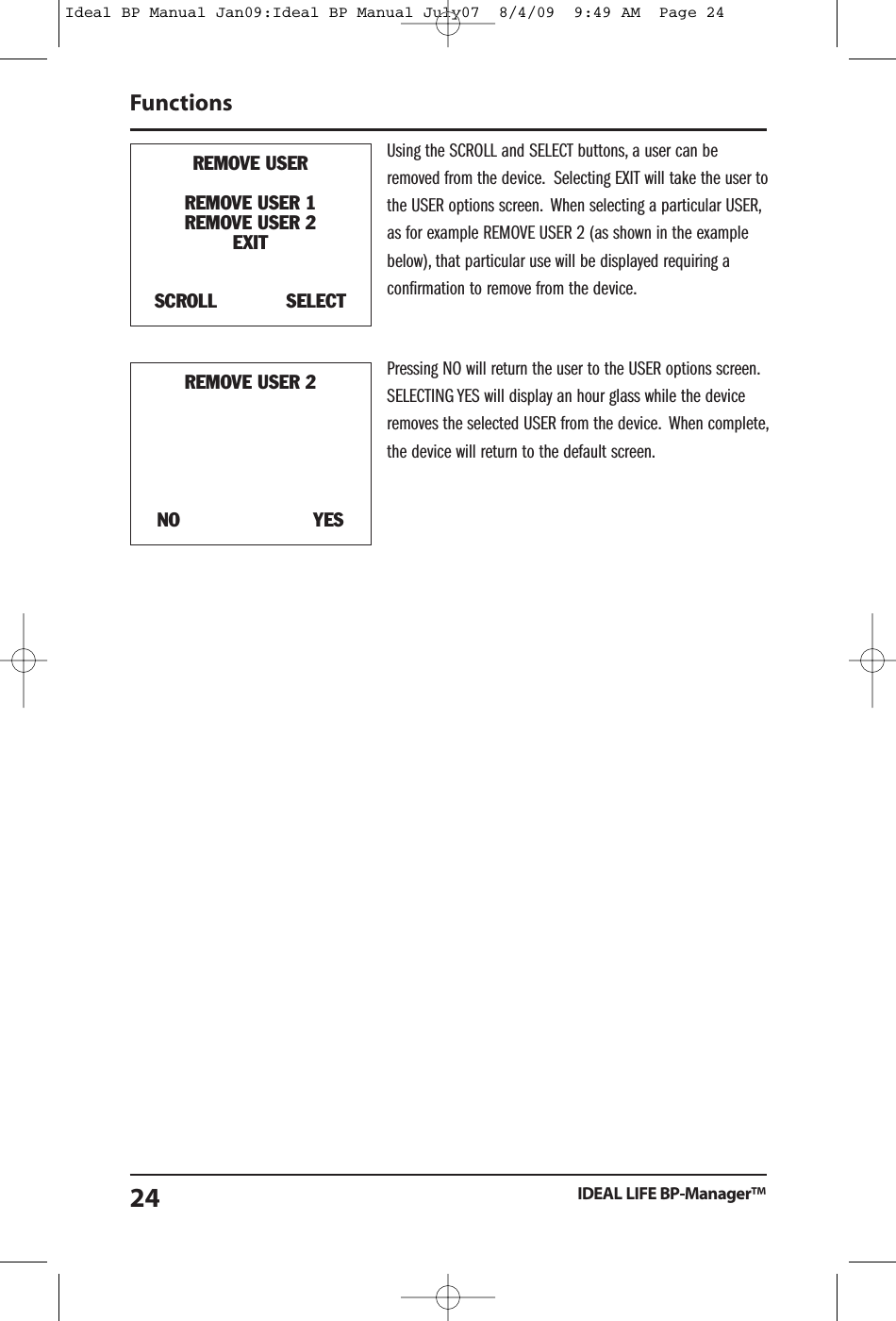

Using the SCROLL and SELECT buttons, a user can beremoved from the device. Selecting EXIT will take the user tothe USER options screen. When selecting a particular USER,as for example REMOVE USER 2 (as shown in the examplebelow), that particular use will be displayed requiring aconfirmation to remove from the device.Pressing NO will return the user to the USER options screen.SELECTING YES will display an hour glass while the deviceremoves the selected USER from the device. When complete,the device will return to the default screen.FunctionsIDEAL LIFE BP-Manager™24REMOVE USERREMOVE USER 1REMOVE USER 2EXITSCROLL SELECTREMOVE USER 2NO YESIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 24

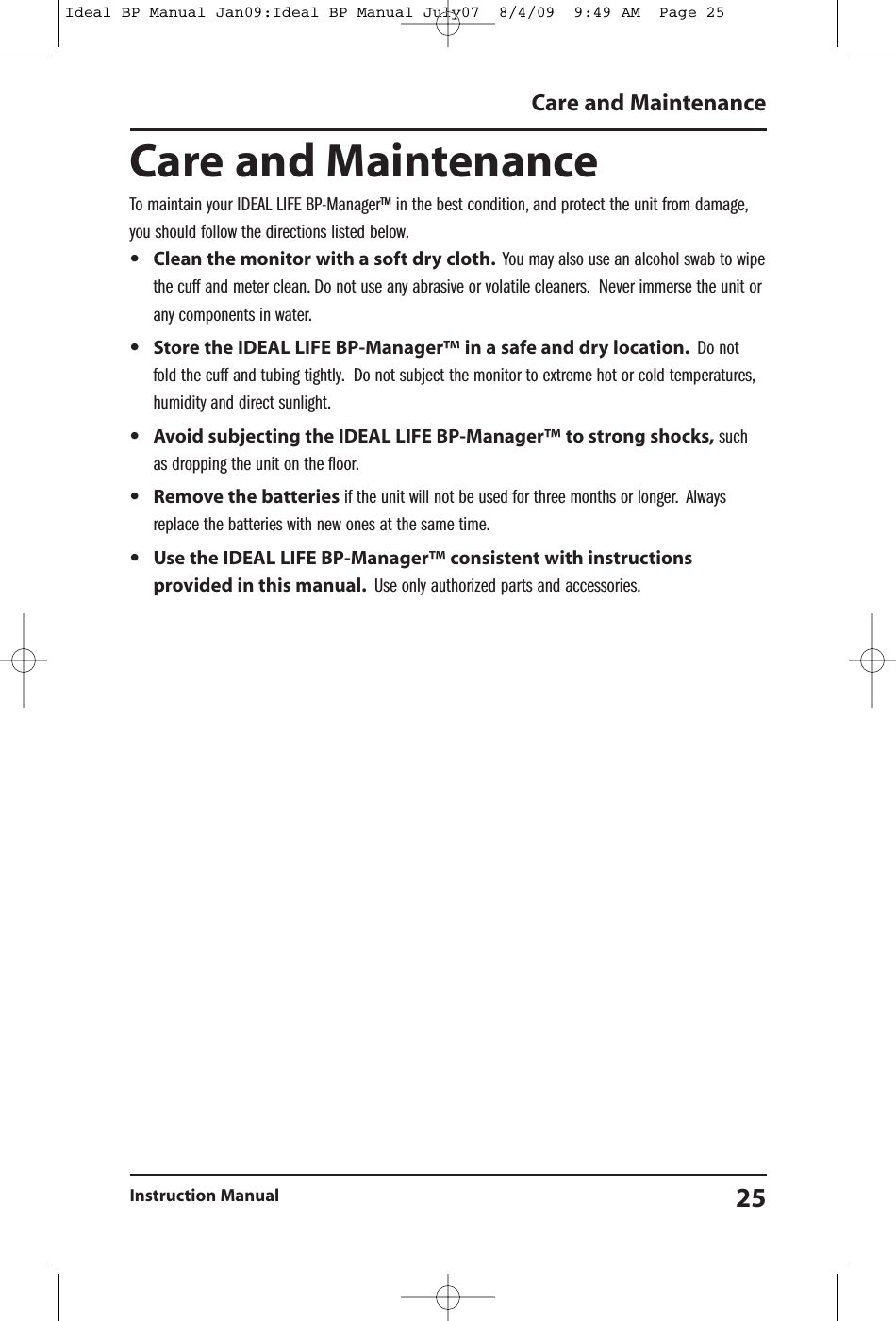

Care and MaintenanceTo maintain your IDEAL LIFE BP-Manager™ in the best condition, and protect the unit from damage,you should follow the directions listed below.•Clean the monitor with a soft dry cloth. You may also use an alcohol swab to wipethe cuff and meter clean. Do not use any abrasive or volatile cleaners. Never immerse the unit orany components in water.•Store the IDEAL LIFE BP-Manager™ in a safe and dry location. Do notfold the cuff and tubing tightly. Do not subject the monitor to extreme hot or cold temperatures,humidity and direct sunlight.•Avoid subjecting the IDEAL LIFE BP-Manager™ to strong shocks, suchas dropping the unit on the floor.•Remove the batteries if the unit will not be used for three months or longer. Alwaysreplace the batteries with new ones at the same time.•Use the IDEAL LIFE BP-Manager™ consistent with instructionsprovided in this manual. Use only authorized parts and accessories.Care and Maintenance25Instruction ManualIdeal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 25
SpecificationsIDEAL LIFE BP-Manager™Model: BPM 0001 IDEAL LIFE BP-Manager™Display: LCD Digital DisplayMeasurement Range: Pressure: 30-280 mmHg, Pulse: 40-200 Pulses per minuteAccuracy / Calibration: Pressure: +/- 3 mmHg, Pulse: +/- 4%Inflation: Automatic by electronic pumpDeflation: Linear ValveRapid Air Release: Linear ValvePressure Detections: Pressure transducerMeasurement Method: Oscillometric methodPulse Wave Detections: By peaks of waveformPower Source: 4 “AA” alkaline batteriesBattery Life: battery life is approx. 3 months depending on usageOperating Temperature/Humidity: 50°F to 104°F (10°C to 40°C)/Below 85% relative humidityMeter Storage Temperature/Humidity -4°F to 140°F (-20°C to 60°C)/Below 95% relative humidityConsole Weight: Approx. 270g without batteriesOuter Dimensions: Approx. 110 mm Width x 130 mm Depth x 78 mm HeightCuff Dimensions: Approx. 140 mm Width x 480 mm LengthNote: these specifications, to improve performance, are subject to change without notice.IDEAL LIFE Pod™(*An optional accessory, sold separately)Model: ILP 0001 IDEAL LIFE Pod™Display: 3 LED’sPower Source: AC adapterOperating Temperature/Humidity: 50°F to 104°F (10°C to 40°C)/Below 85% relative humidityStorage Temperature/Humidity 23°F to 122°F (-5°C to 50°C)/Below 90% relative humidityConsole Weight: Approx. 142 g without batteriesOuter Dimensions: Approx. 120 mm Width x 105 mm Depth x 30 mm HeightNote: These specifications are subject to change without notice.SpecificationsIDEAL LIFE BP-Manager™26Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 26

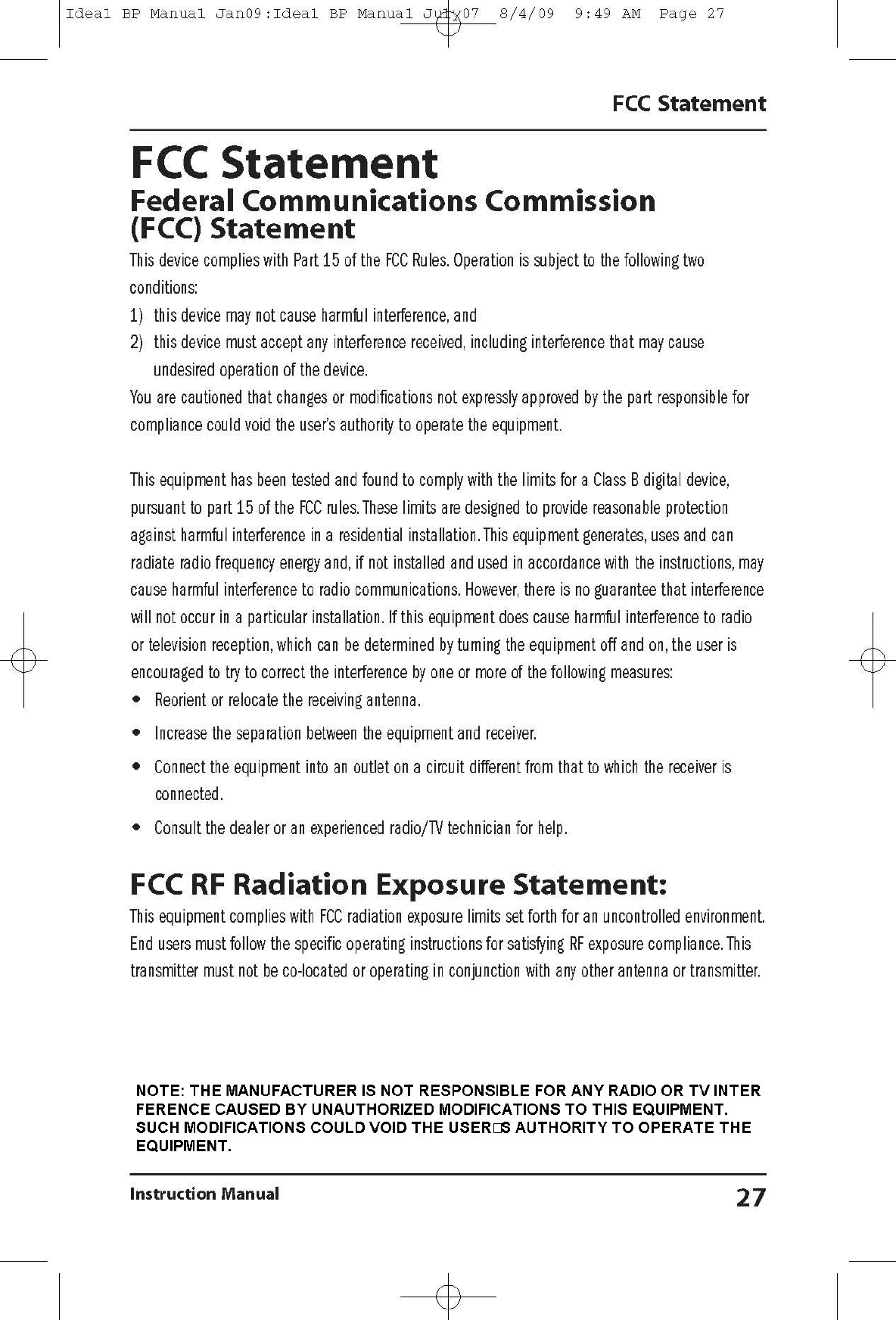

FCC StatementFederal Communications Commission(FCC) StatementThis device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:1) this device may not cause harmful interference, and2) this device must accept any interference received, including interference that may causeundesired operation of the device.You are cautioned that changes or modifications not expressly approved by the part responsible forcompliance could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmful interference to radioor television reception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.•Consult the dealer or an experienced radio/TV technician for help.FCC RF Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.End users must follow the specific operating instructions for satisfying RF exposure compliance. Thistransmitter must not be co-located or operating in conjunction with any other antenna or transmitter.FCC StatementInstruction Manual 27Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 27
Service RequirementsIn the event of equipment malfunction, all repairs should be performed by our Company or anauthorized agent. It is the responsibility of users requiring service to report the need for service toour Company or to one of our authorized agents. Please refer to the location you purchased orreceived your equipment for details of where service can be facilitated through.Service RequirementsInstruction Manual 29Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 29

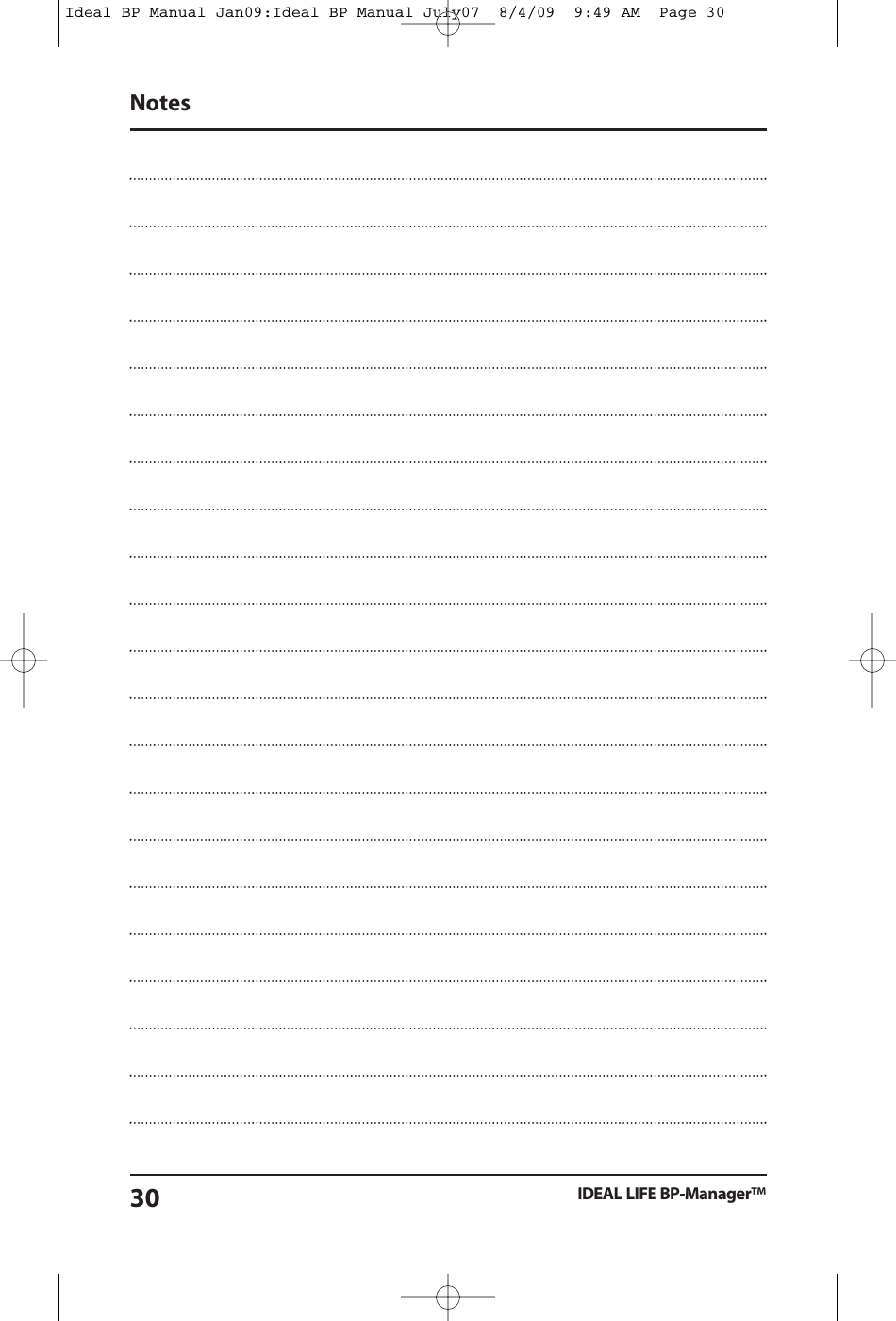

NotesIDEAL LIFE BP-Manager™30Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 30

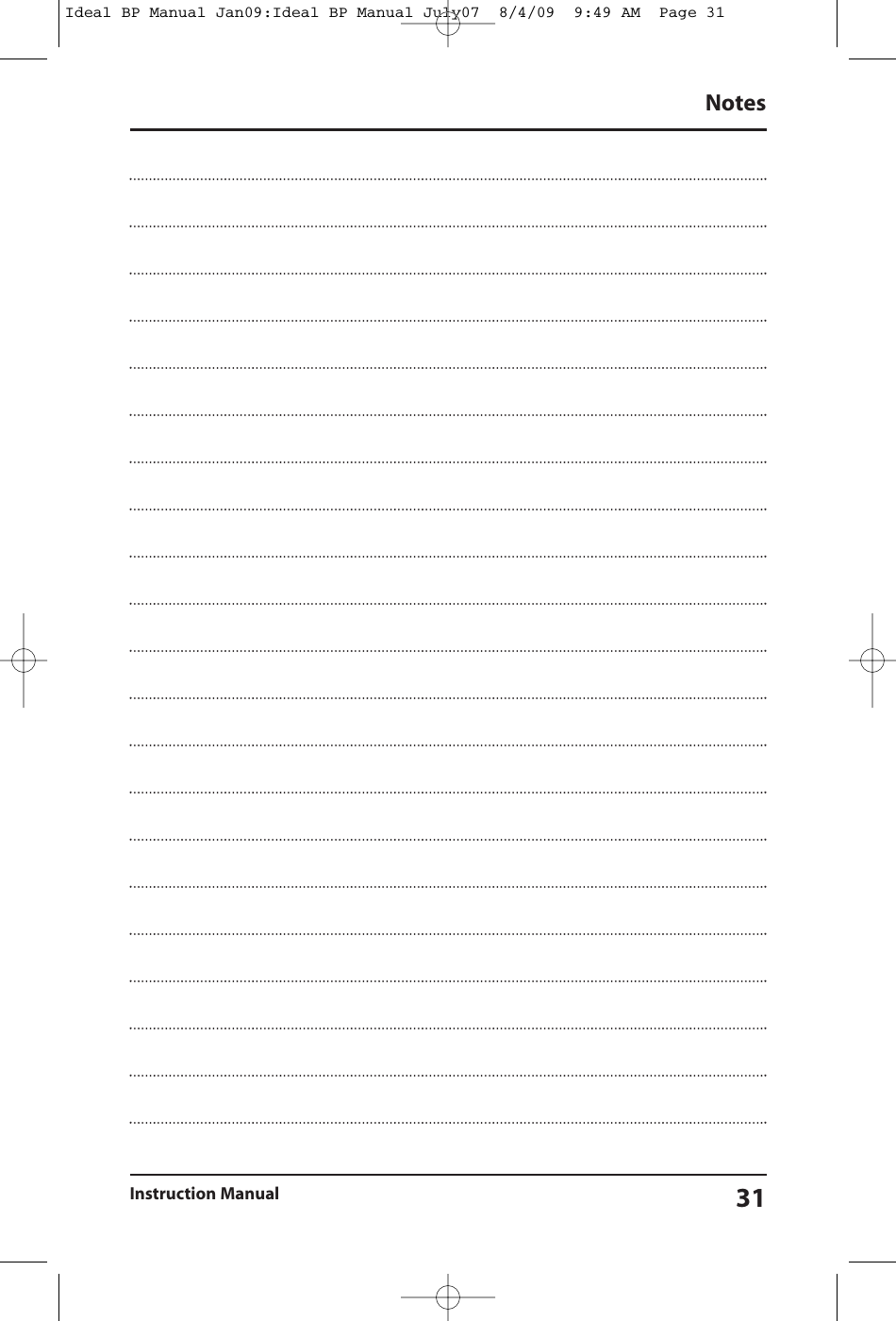

NotesInstruction Manual 31Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 31

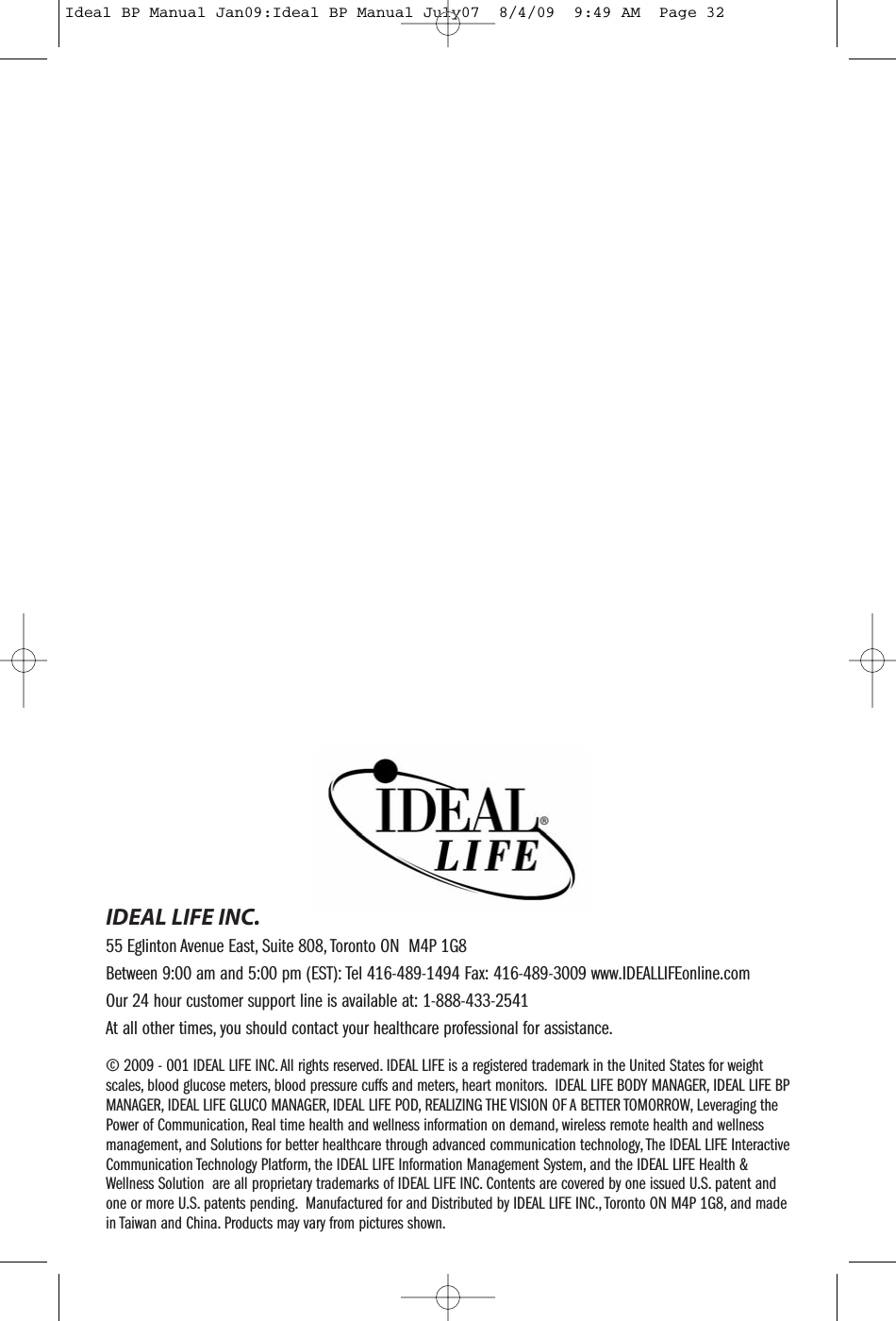

© 2009 - 001 IDEAL LIFE INC. All rights reserved. IDEAL LIFE is a registered trademark in the United States for weightscales, blood glucose meters, blood pressure cuffs and meters, heart monitors. IDEAL LIFE BODY MANAGER, IDEAL LIFE BPMANAGER, IDEAL LIFE GLUCO MANAGER, IDEAL LIFE POD, REALIZING THE VISION OF A BETTER TOMORROW, Leveraging thePower of Communication, Real time health and wellness information on demand, wireless remote health and wellnessmanagement, and Solutions for better healthcare through advanced communication technology, The IDEAL LIFE InteractiveCommunication Technology Platform, the IDEAL LIFE Information Management System, and the IDEAL LIFE Health &Wellness Solution are all proprietary trademarks of IDEAL LIFE INC. Contents are covered by one issued U.S. patent andone or more U.S. patents pending. Manufactured for and Distributed by IDEAL LIFE INC., Toronto ON M4P 1G8, and madein Taiwan and China. Products may vary from pictures shown.IDEAL LIFE INC.55 Eglinton Avenue East, Suite 808, Toronto ON M4P 1G8Between 9:00 am and 5:00 pm (EST): Tel 416-489-1494 Fax: 416-489-3009 www.IDEALLIFEonline.comOur 24 hour customer support line is available at: 1-888-433-2541At all other times, you should contact your healthcare professional for assistance.Ideal BP Manual Jan09:Ideal BP Manual July07 8/4/09 9:49 AM Page 32
